Engine - Engine and crankcase

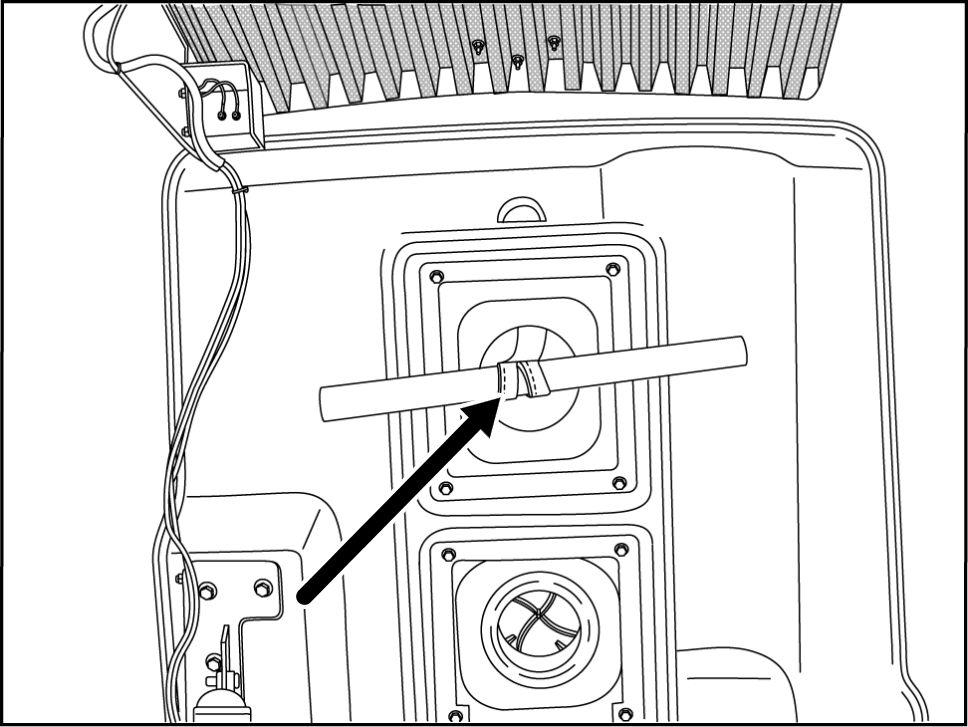

1 Place a bar pipe through the strap loop inside the hood and attach the strap a suitable lifting Then raise the hood with the strap release tension the lifting motor

T and disconnect the camera wire harness (if chine equipped with a camera.)

RAPH12WEL0601AA

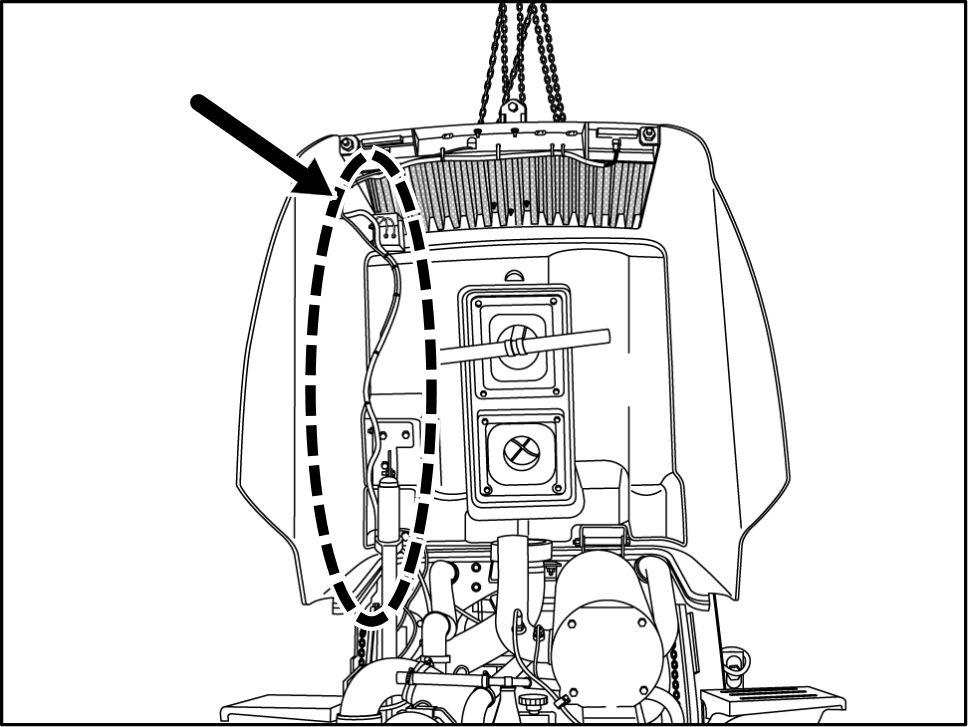

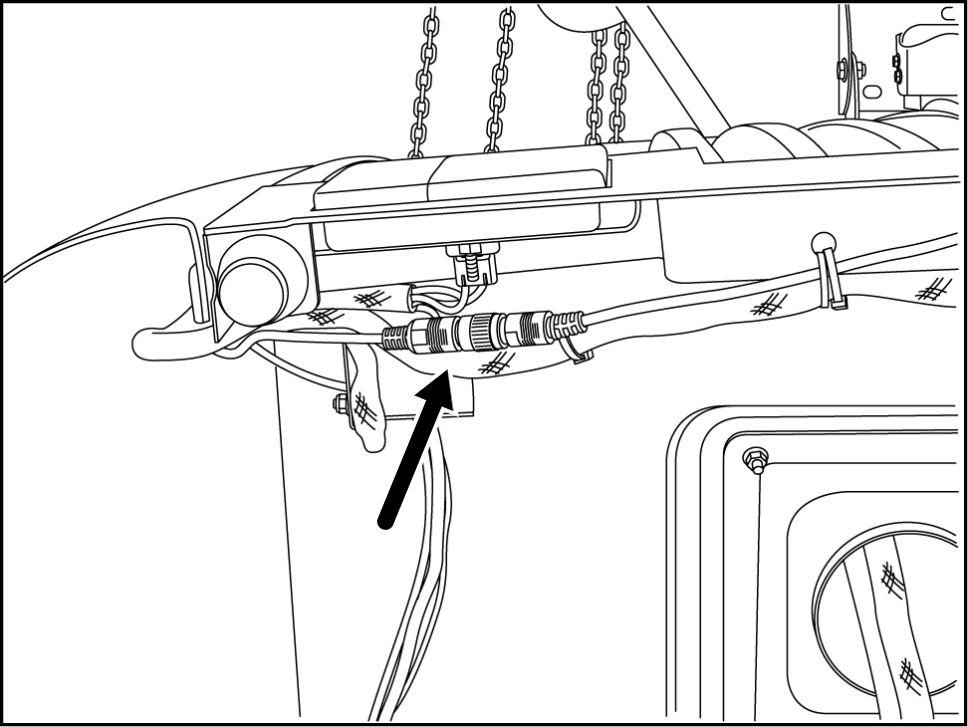

Cut wire ties and remove camera wire harness from Then place f the side a safe (If machine equipped with a camera.)

RAPH12WEL0602AA

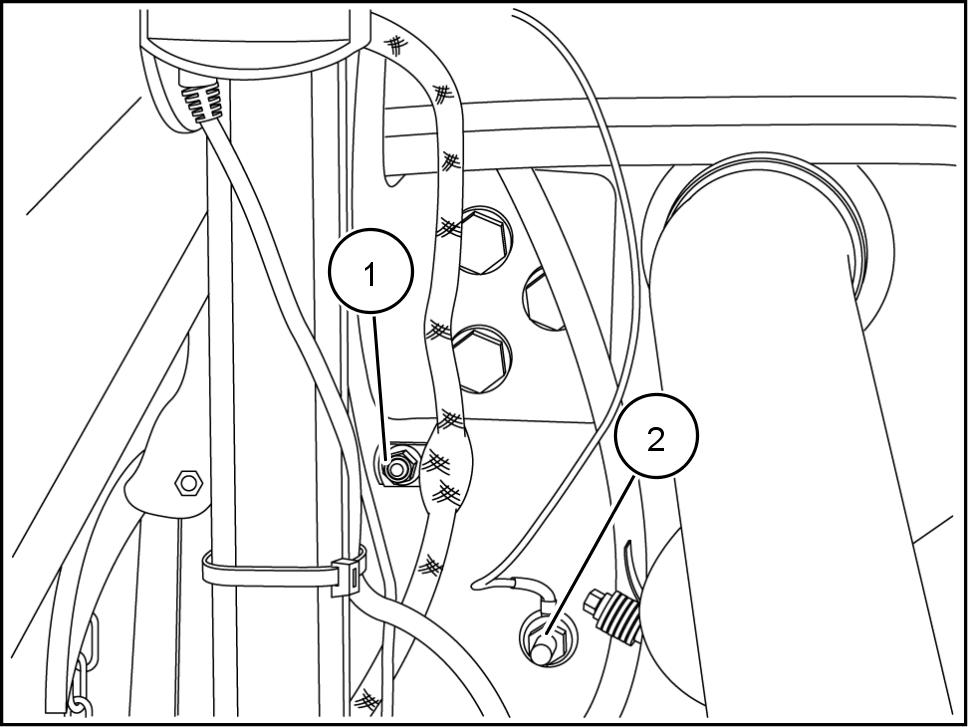

14. Remove mount bolt (1) and backup alarm wiring ness clamp from cooler Then tag and move hood ground wire (2) from cooler

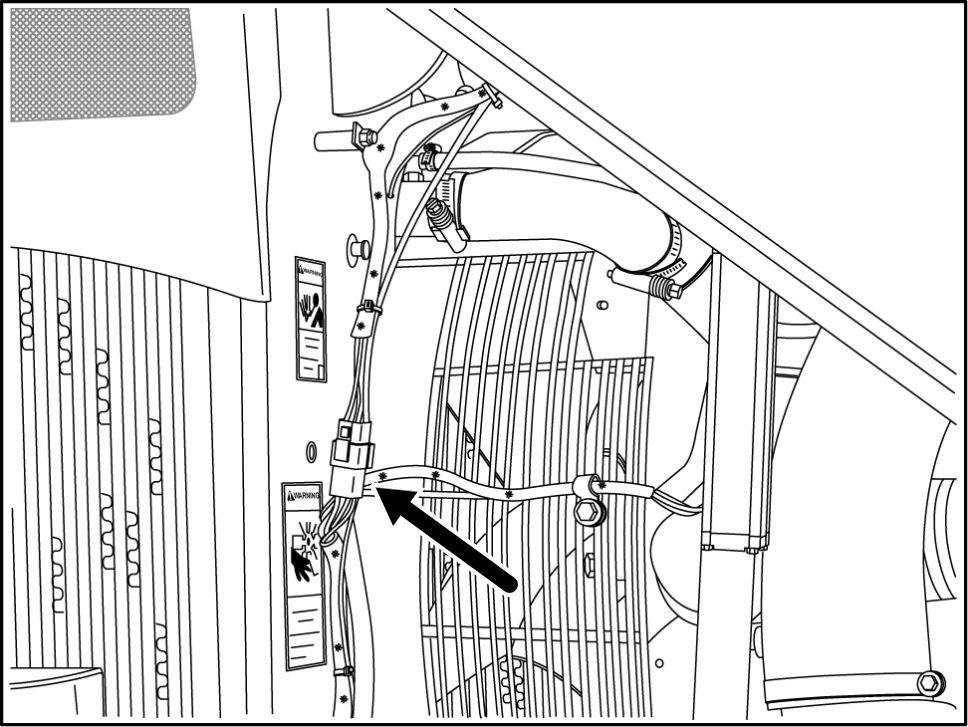

T and disconnect hood wiring harness connector from rear chassis wiring harness connector

Have another person balance the hood and LOOSEN the hood hinge mounting bolts (arrows) from the cooler frame.

NOTE: not remove the hood hinge mounting bolts this

17. Remove the pin from the bottom the lifting motor cylinder where attaches the loader

RAPH12WEL0606AA

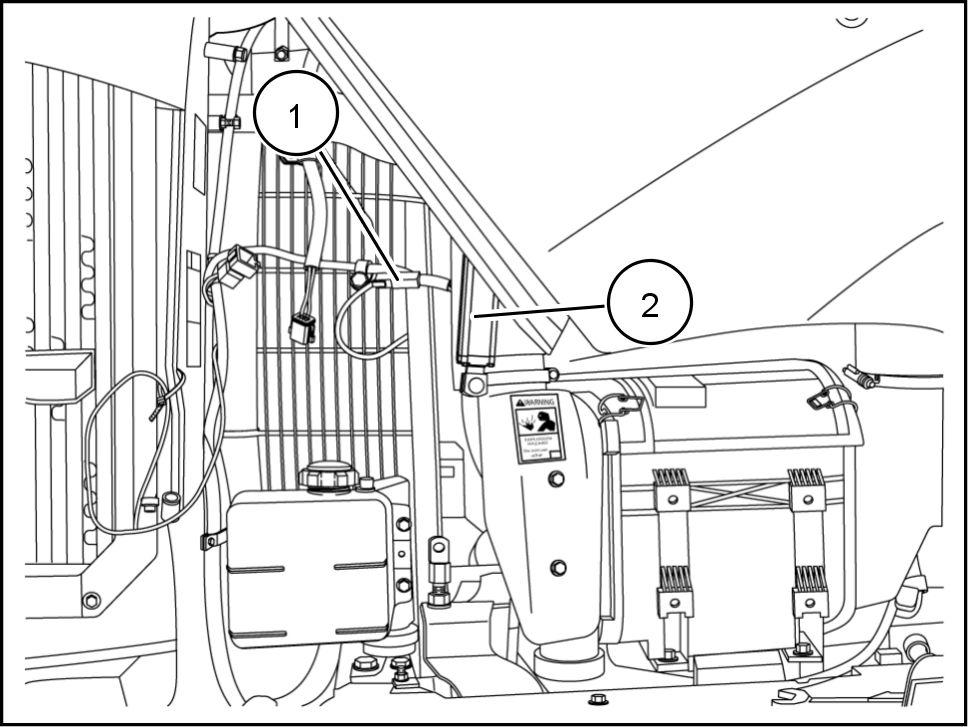

Put the master disconnect switch the Then, retract the lifting motor cylinder (2) , replace pin and disconnect wiring harness (1)

RAPH12WEL0062AA

Put master disconnect switch (1) OFF Remove the battery cover and disconnect ground lead from the batteries (2) . Y may replace battery cover desired give you a place

RAPH12WEL0608AA

Have another person balance the hood and remove the hood hinge mounting bolts (arrows) from the cooler frame.

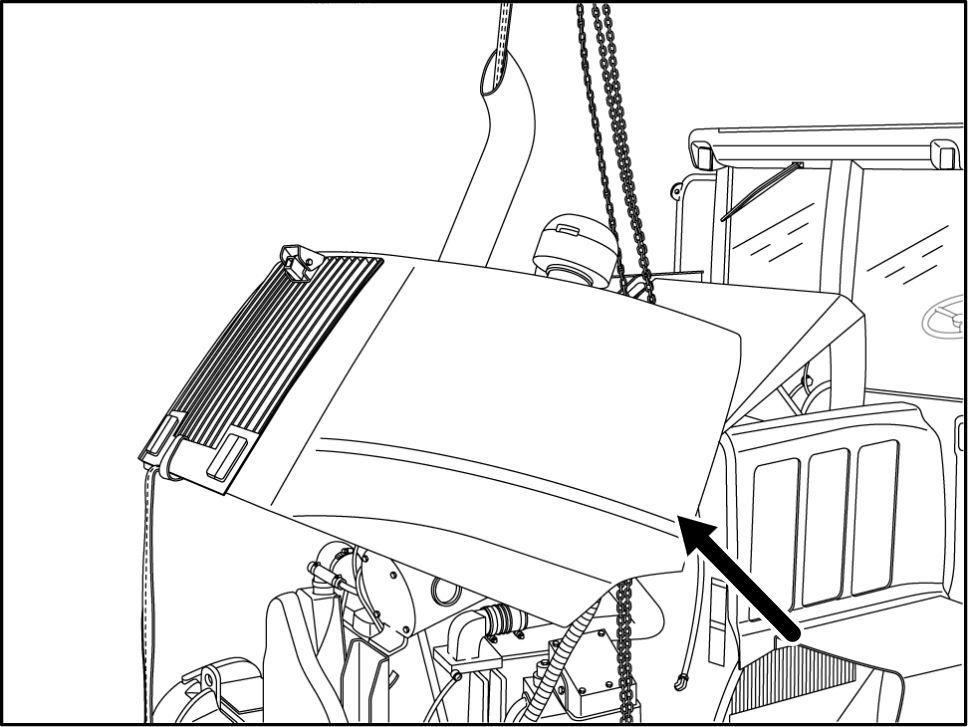

Carefully raise and remove hood from loader Lower hood onto suitable platform and disconnect lifting

NOTE: Radiator overflow hose may interfere with left hand hood hinge movement and hood

T and disconnect engine wiring harness connector from air filter restriction

Engine - Engine and crankcase

T and disconnect engine wiring harness connector from air inlet humidity sensor

Loosen clamp (1) the crankcase ventilation hose (2) and disconnect hose.

RAPH12WEL0612AA

Loosen clamps turbocharger and air filter

Then remove the intake air Cover turbocharger inlet prevent debris entry .

RAPH12WEL0613AA

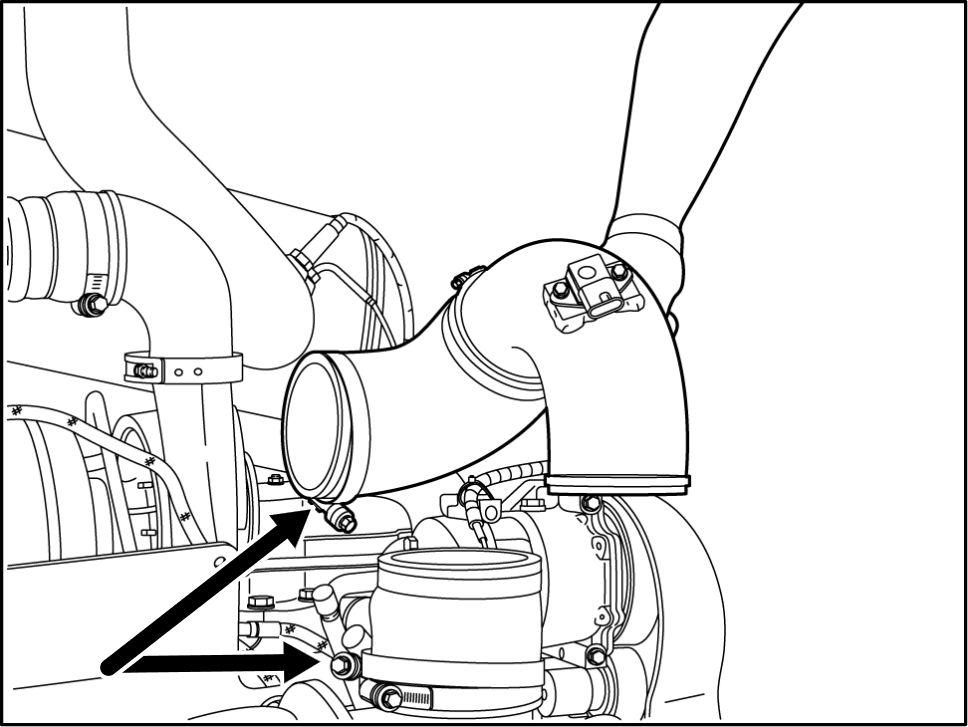

26. Loosen the clamp the turbocharger for the after cooler inlet elbow

Loosen the clamp the hose the after cooler inlet and remove the tube.

Loosen clamp the air inlet hose the air filter

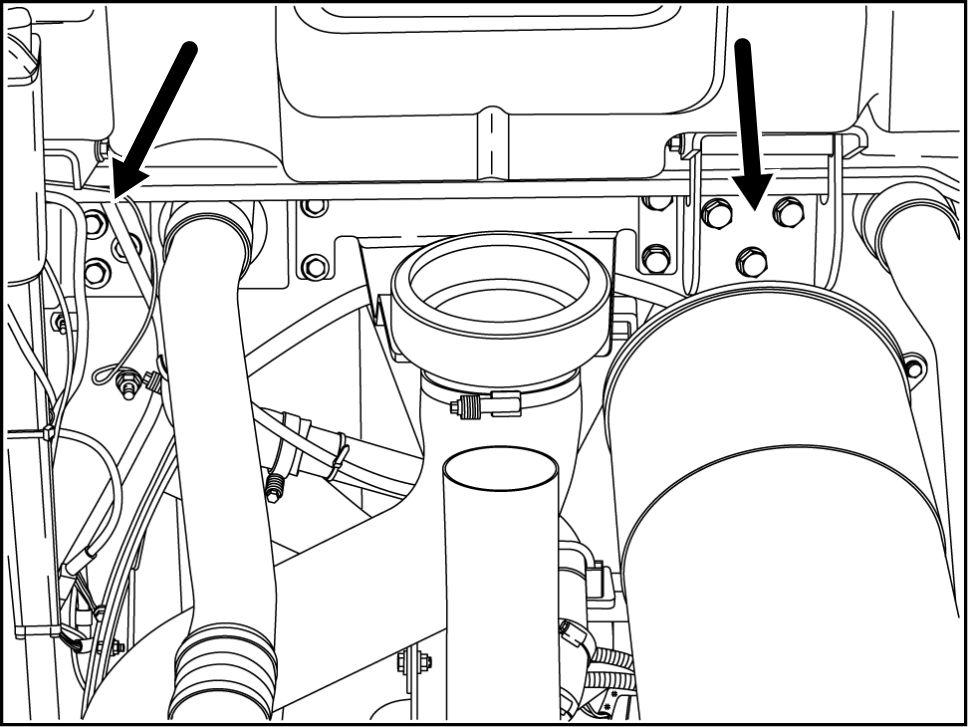

29. Remove bolts from the cooler box (1) and the ter support bracket (2) securing the air inlet hose Then remove air inlet hose and

RAPH12WEL0617AA

Remove four the bolts securing the air filter housing the mounting support bracket. Then remove air filter

RAPH12WEL0618AA

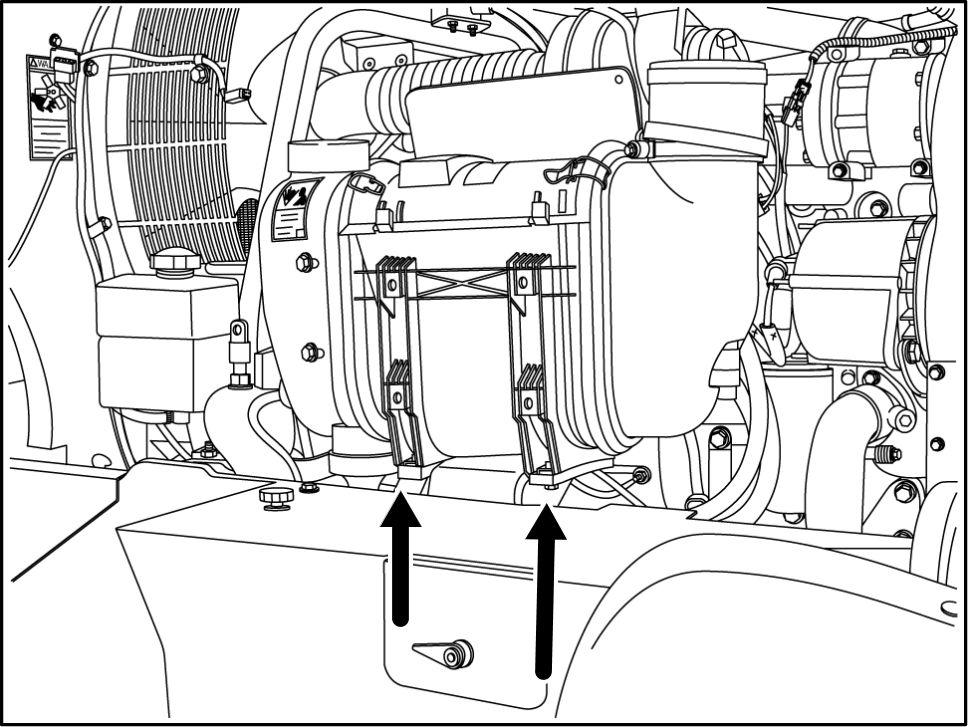

Remove the four mounting bolts from the belt cover Then remove the cover

NOTE: After removing the belt cover , remove the cover mounting bracket from the left rear side machine frame.

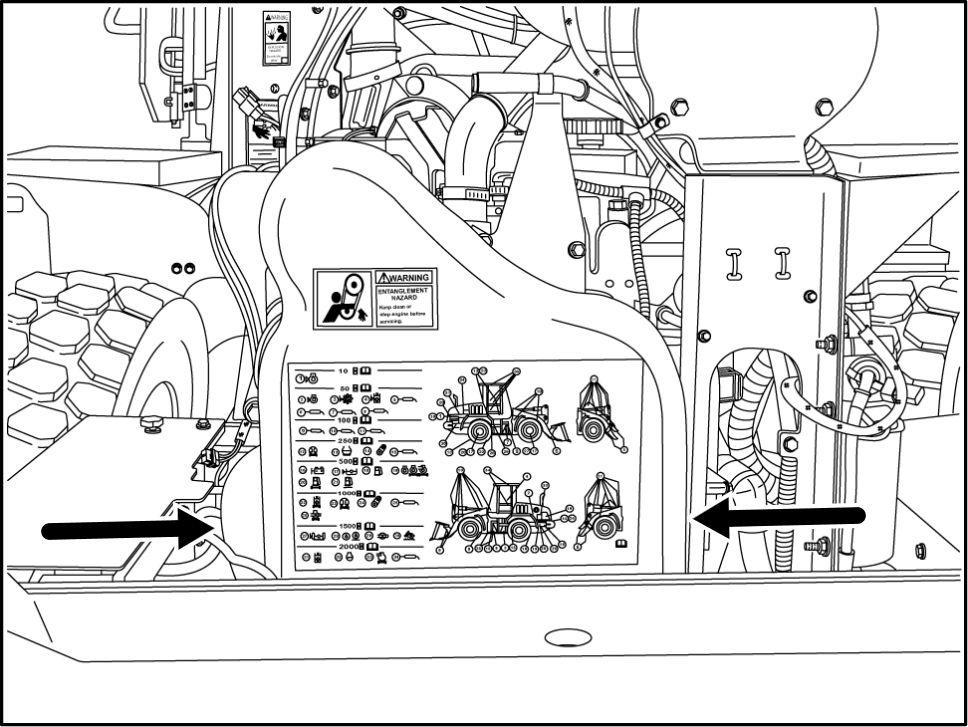

RAPH12WEL0619AA loader equipped with air identify , tag, and disconnect the engine wiring harness nectors from air compressor clutch connector (1) and high pressure switch (2) Then remove the three mounting bolts (3) for the compressor and carefully set the left battery cover

32. Remove the drive belt from the engine.

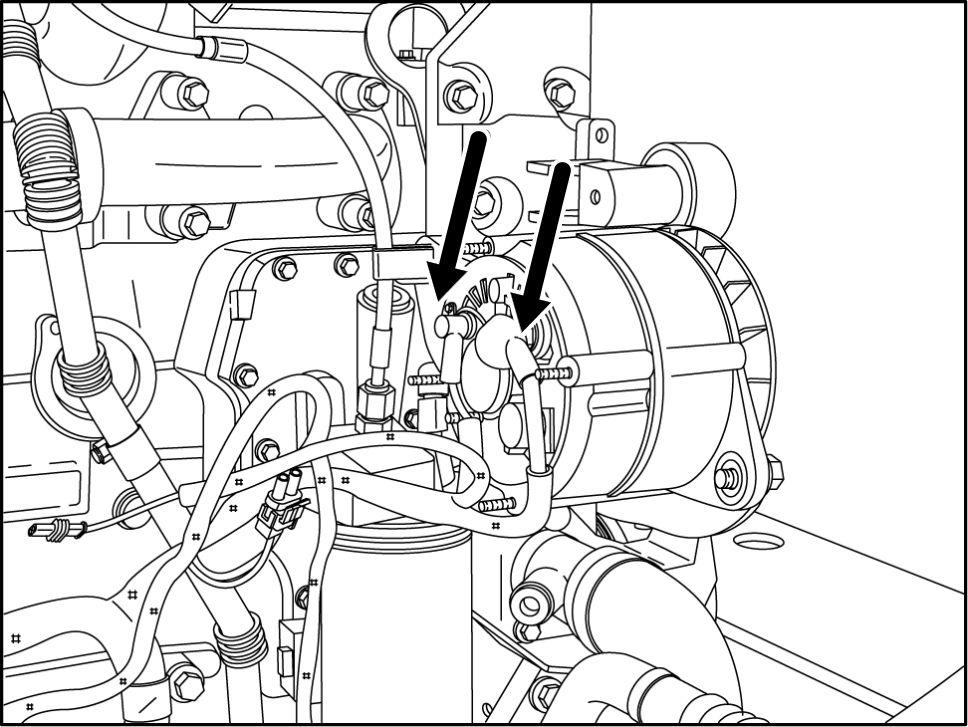

T and disconnect the wiring from the alternator

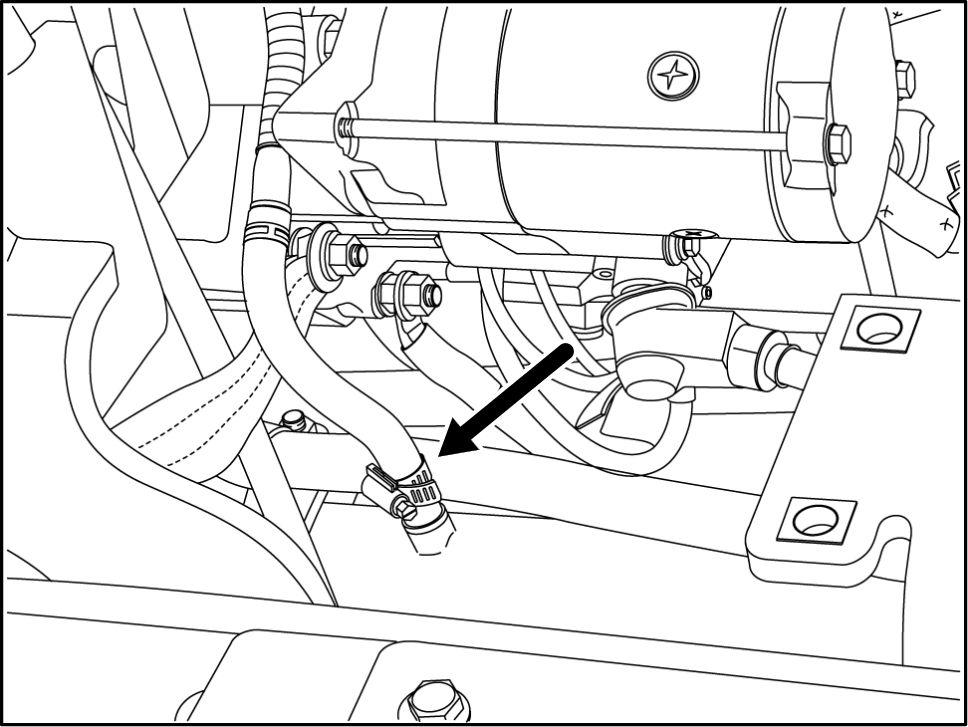

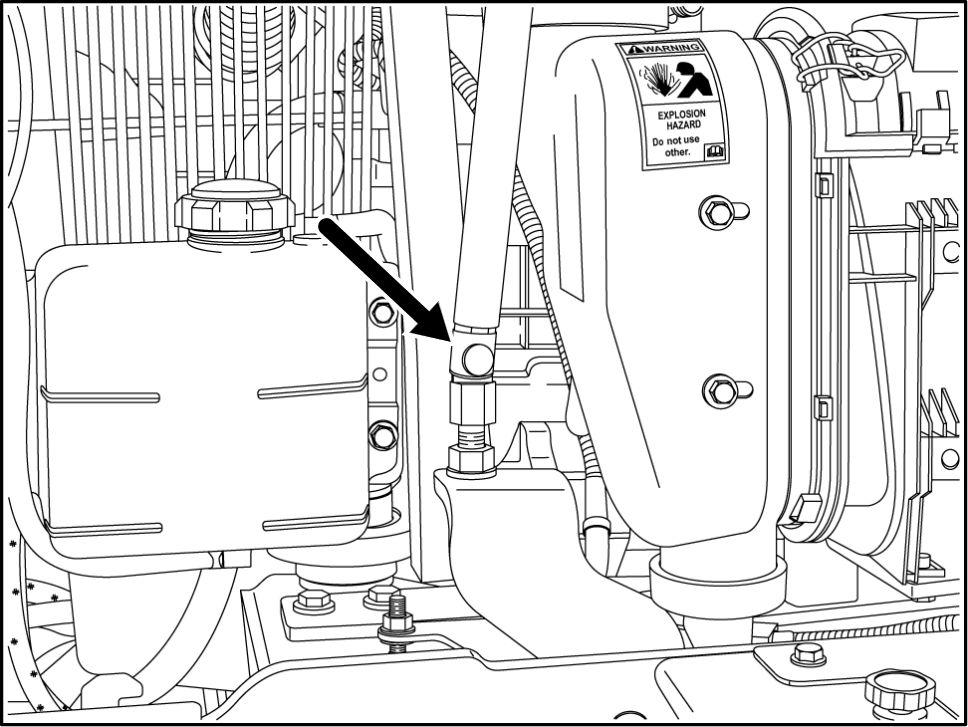

35. Remove SCR coolant return line.

RAPH12WEL0623AA

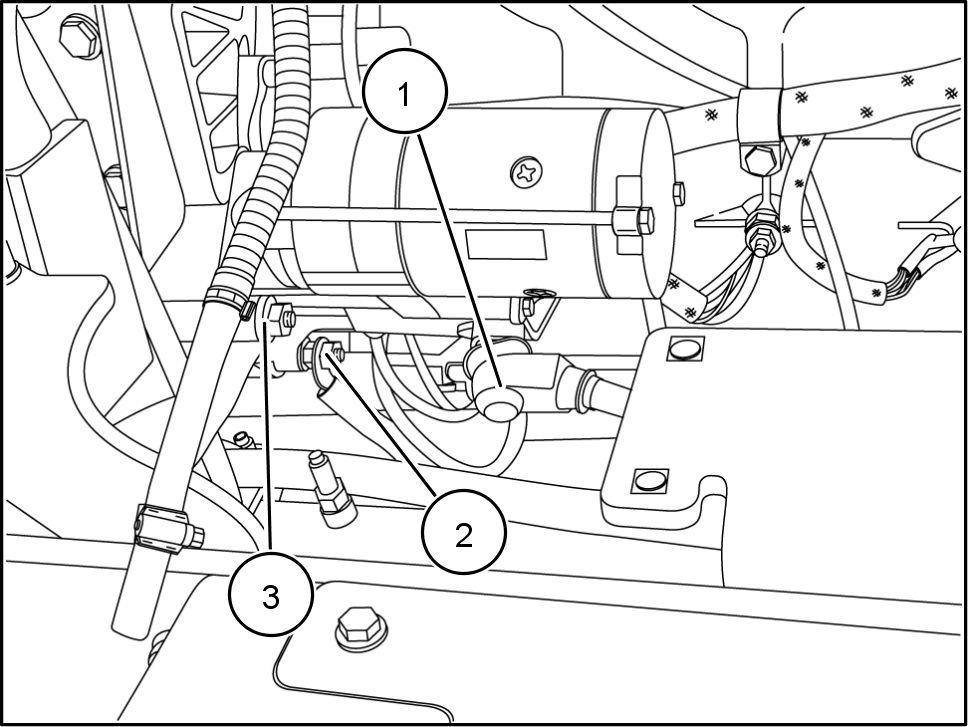

T and remove the wires from the starter solenoid (1) , the ground cable (2) , and ground strap (3) from the starter

NOTE: Move the starter cables away from the

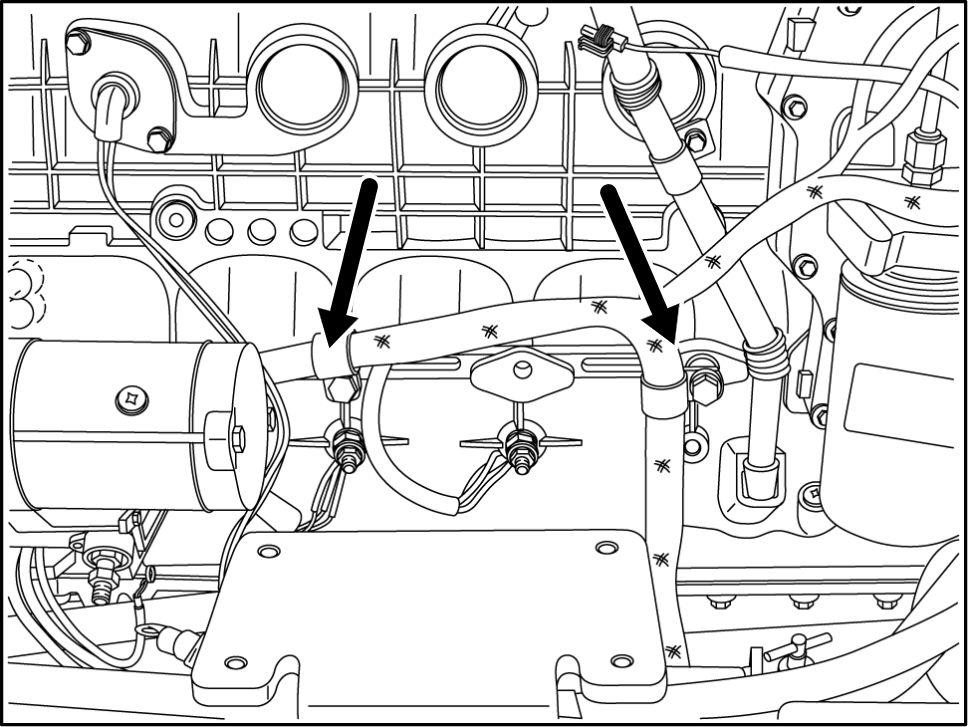

RAPH12WEL0624AA Remove bolts securing wiring harness clamps

RAPH12WEL0625AA

38. Remove ground wires from the engine.

NOTE: Move the wiring harness away from the the machine unplug the engine block heater and set aside.

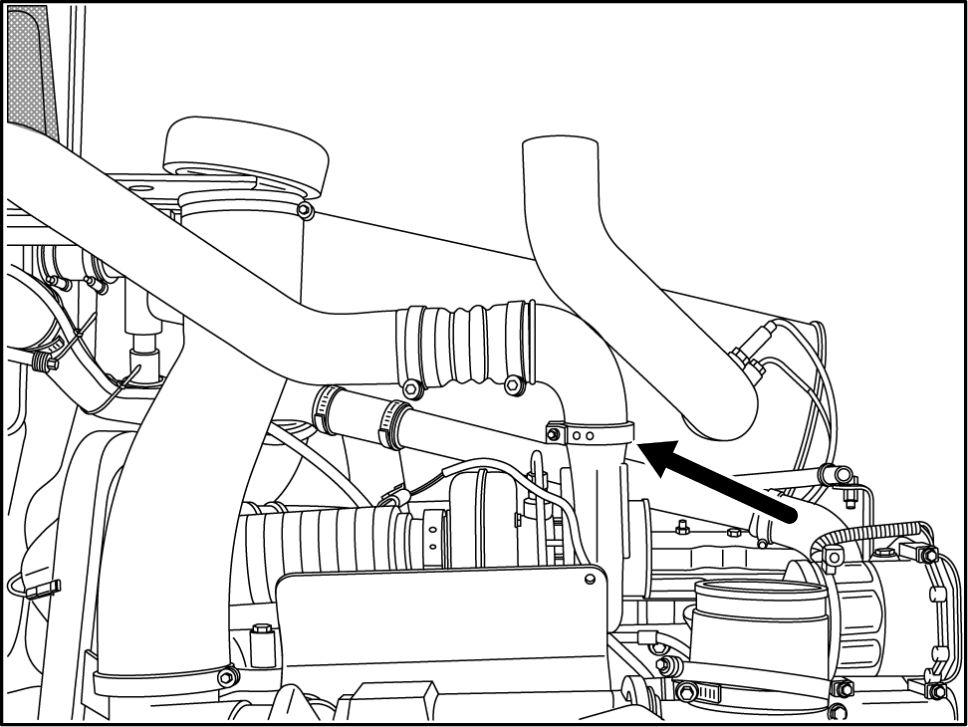

Loosen the exhaust clamp from the turbocharger
