Product Catalog \ VIBROMAX \ MISCELLANEOUS PRODUCTS \ VIBROMAX VM \ VM200PD 02900500 02900999,02901000 02901999 TIER 3 9802/4790 \ E HYDRAULICS & AIR INCLUDING STEERING \ E03 VALVES & HYDRAULIC FILTERS 9802/4790 E3-1-1 HYDRAULIC OIL FILTER Item Part # Change No Description Usage Code QTY 0 2611/00045 Oil Filter Assembly 1 A 2611/00002 Kit gasket hyd filter 1
Product Catalog \ VIBROMAX \ MISCELLANEOUS PRODUCTS \ VIBROMAX VM \ VM200PD 02900500 02900999,02901000 02901999 TIER 3 9802/4790 \ E HYDRAULICS & AIR INCLUDING STEERING \ E03 VALVES & HYDRAULIC FILTERS 9802/4790 E3-1-2 FILTER HYDRAULIC Item Part # Change No Description Usage Code QTY A 332/N0483 Filter hydraulic 1 1 :332/F9517 Filter Element 1
Product Catalog \ VIBROMAX \ MISCELLANEOUS PRODUCTS \ VIBROMAX VM \ VM200PD 02900500 02900999,02901000 02901999 TIER 3 9802/4790 \ E HYDRAULICS & AIR INCLUDING STEERING \ E04 RAMS 9802/4790 E4-1-1 RAM, STEERING Item Part # Change No Description Usage Code QTY 0 4022/64120 Cylinder Steering 1 1 4022/64122 Piston Rod 1 5 4022/64121 Piston 1
6 4022/64124 Guide 1 7 4022/64125 Nut Guide Nut 1 10 4022/64123 Kit Sealing Steering Cylinder 1 19 2242/14041 Bearing 2 20 2041/08010 Pin 1 21 2021/08010 Screw Hex M8x10 1

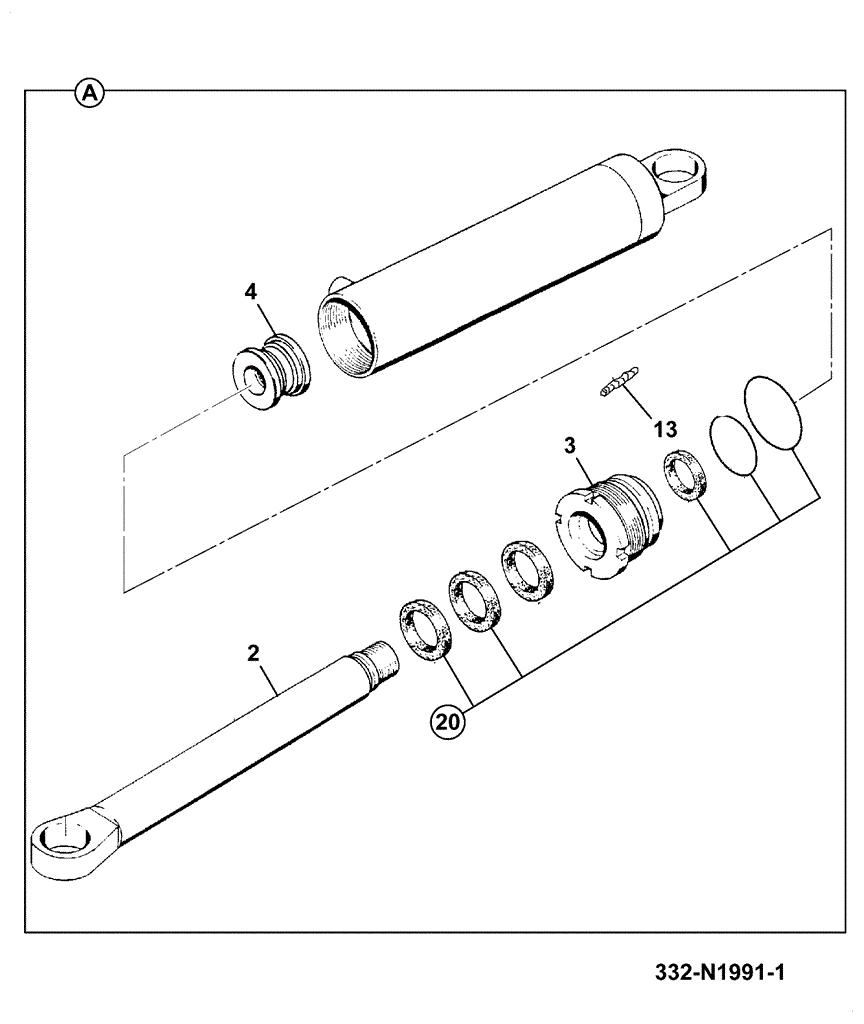

Product Catalog \ VIBROMAX \ MISCELLANEOUS PRODUCTS \ VIBROMAX VM \ VM200PD 02900500 02900999,02901000 02901999 TIER 3 9802/4790 \ E HYDRAULICS & AIR INCLUDING STEERING \ E04 RAMS 9802/4790 E4-1-2 . RAMS STEER Item Part # Change No Description Usage Code QTY A 332/N1991 Ram steering 1 2 :333/D5767 Piston rod assembly 1 3 :333/D5769 Guide . 1
4 :333/D5770 Piston . 1 13 :333/D5771 Pin threaded 2 20 :333/D5772 Kit seal 1

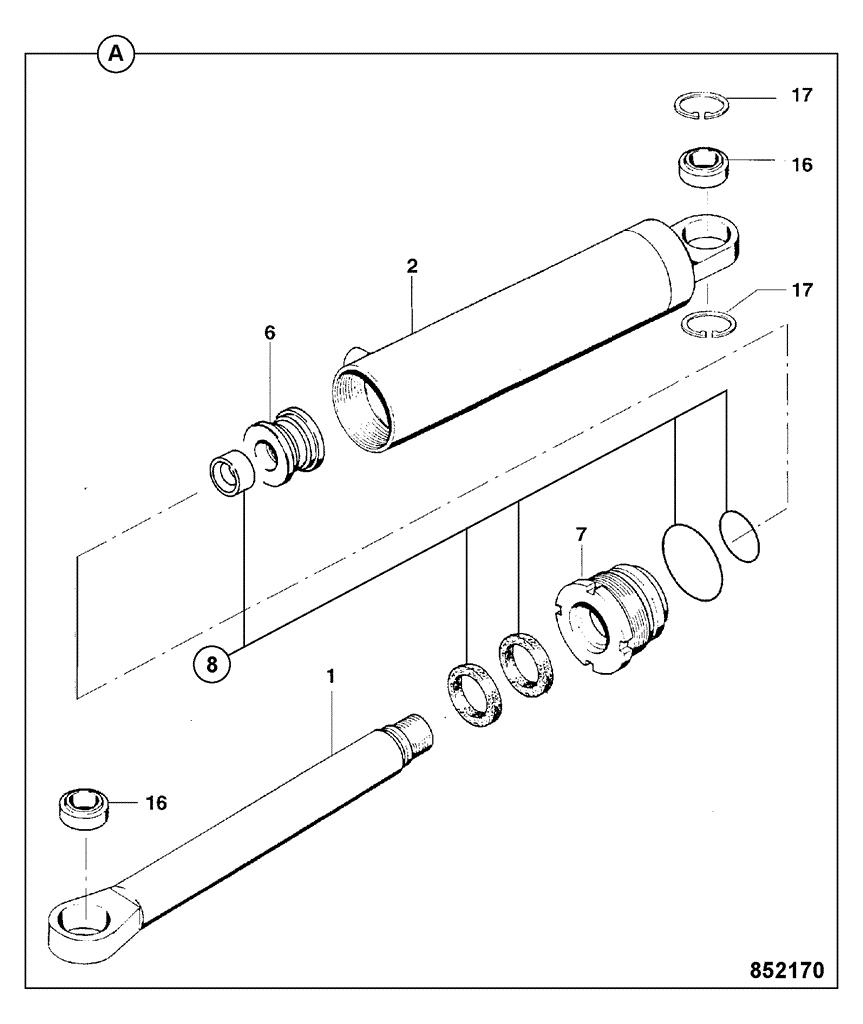

Product Catalog \ VIBROMAX \ MISCELLANEOUS PRODUCTS \ VIBROMAX VM \ VM200PD 02900500 02900999,02901000 02901999 TIER 3 9802/4790 \ E HYDRAULICS & AIR INCLUDING STEERING \ E04 RAMS 9802/4790 E4-3-1 RAM, ENGINE BONNET Item Part # Change No Description Usage Code QTY 0 7210/60120 Ram 1 1 7210/60124 Piston Rod 1 2 7210/60125 Cylinder 1
6 7210/60126 Piston 1 7 7210/60127 Guide 1 8 7210/60128 Kit seal 1 16 2242/14025 Bearing liner 2 17 2304/00042 Circlip 2
Product Catalog \ VIBROMAX \ MISCELLANEOUS PRODUCTS \ VIBROMAX VM \ VM200PD 02900500 02900999,02901000 02901999 TIER 3 9802/4790 \ E HYDRAULICS & AIR INCLUDING STEERING \ E04 RAMS 9802/4790 E4-3-2 . RAM ENGINE BONNET Item Part # Change No Description Usage Code QTY A 332/N4004 Ram complete 1 3 :333/D5735 Guide . 1 4 :333/D5731 Piston . 1
14 :333/D5737 Cylinder assembly 1 15 :333/D5738 Piston rod assembly 1 20 :333/D5739 Kit seal 1
Product Catalog \ VIBROMAX \ MISCELLANEOUS PRODUCTS \ VIBROMAX VM \ VM200PD 02900500 02900999,02901000 02901999 TIER 3 9802/4790 \ F AXLES, WHEELS & TRANSMISSION \ F01 AXLES, FRONT 9802/4790 F1-2-1 TAMPING FOOT DRUM PD BUILD (FIG 1) Item Part # Change No Description Usage Code QTY 1 7260/10550 Drum tamping foot 1 3 7240/10003 Plate 6 5 2712/06265 Bearing 1
6 7262/10050 Shaft Exciter 1 7 7260/10007 Cover 1 8 7260/10008 Bearing 1 9 7260/10009 Plate 1 10 7260/10015 Bracket 2 11 7260/10016 Bracket 2 12 7260/10060 Counterweight Includes70,71 2 14 7260/10020 Spacer 12 15 7261/20300 Buffer Rubber 12 20 2314/16080 Key 2 21 7261/20200 Motor Vibration 1 21A :7260/10201 Kit seal Vibration Motor 1 22 2314/18056 Key Parallel 1 24 2700/01360 Bearing 1 25 2700/01340 Bearing 1 26 2777/00030 Seal 1 27 2304/00280 Circlip 1 28 7260/10028 Spacer 1 29 2305/00170 Circlip 3 30 2305/00140 Circlip 1 31 2304/00300 Circlip 1 33 7262/20050 Clutch Vibration SeeE02 02 01 1 36 2208/00120 Washer Din 20 16 37 2118/32000 Nut M20 28 38 2020/20090 Screw Hexagon M20x90 8 40 2201/00016 Washer M16 12 44 2021/24080 Screw Hexagon M24x80 12 45 2118/41600 Nut M16 12 46 2200/00021 Washer Din 21 16 47 2203/10017 Washer 12 48 2201/00012 Washer M12 24 49 2118/41200 Nut M12 12 51 2027/12050 Capscrew M12 x 50mm 12 52 2806/00540 Washer 24 53 2020/20220 Screw Hexagon M20x220 12 54 2020/20080 Screw Hexagon M20x80 8 56 2021/14045 Screw Hexagon M14x45 4 57 2201/00015 Washer 4 58 2021/16055 Screw 12 60 2027/10016 Capscrew M10x16 1 61 2766/01013 Seal Copper Ring 2 62 2027/20030 Capscrew M20x30 1 63 2766/02130 Seal 2 64 2772/40850 O Ring 1 65 2772/12530 O Ring 1 66 2528/01015 Breather 1 67 2766/01215 Seal 1 70 7260/10067 Plug 1 71 2766/01823 Seal 1

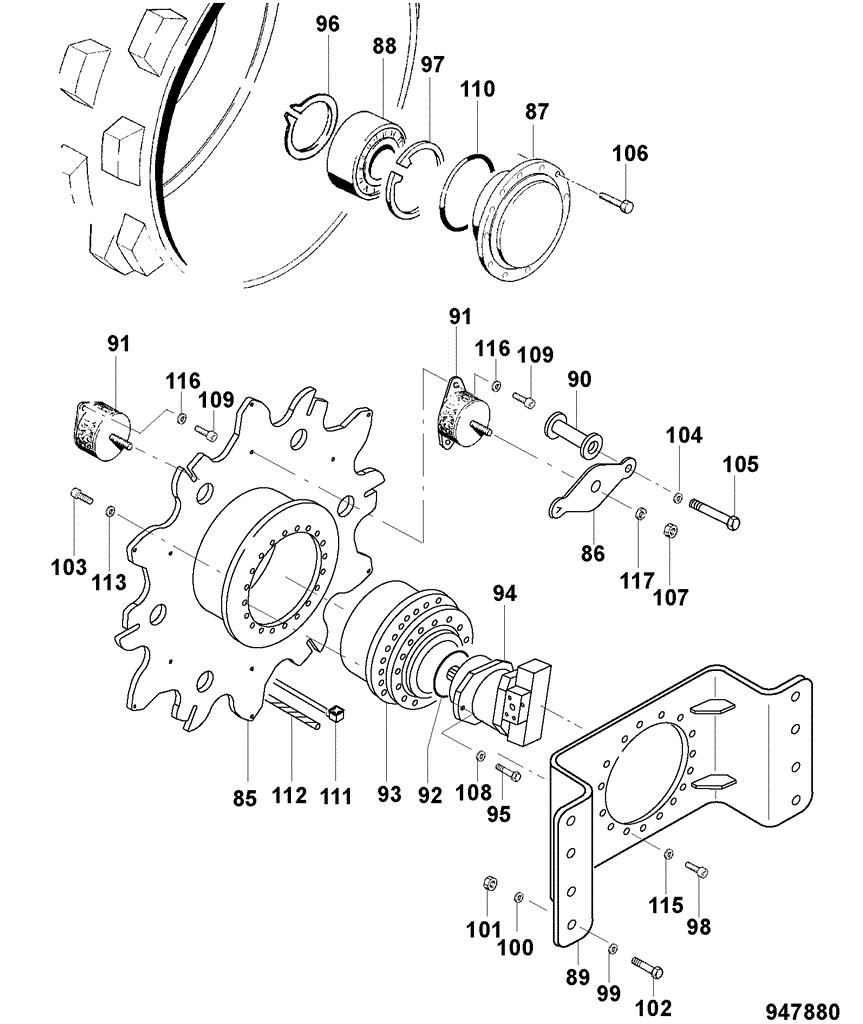

Product Catalog \ VIBROMAX \ MISCELLANEOUS PRODUCTS \ VIBROMAX VM \ VM200PD 02900500 02900999,02901000 02901999 TIER 3 9802/4790 \ F AXLES, WHEELS & TRANSMISSION \ F01 AXLES, FRONT 9802/4790 F1-2-10 TAMPING FOOT DRUM PD BUILD (FIG 2) Item Part # Change No Description Usage Code QTY 85 7260/10003 Bracket 1
86 7261/10003 Plate 6 87 7260/10004 Cover 1 88 2712/06265 Bearing 1 89 7260/10014 Adapter 1 90 7261/10005 Spacer 12 91 7261/20300 Buffer Rubber 12 92 2772/15040 O Ring 1 93 7262/20305 Gearbox GFT 36 SeeAlsoE0205 01 1 94 7241/20250 Motor Variable Disp 1 94A :7241/20251 Kit seal Drive Motor 1 95 2021/16035 Screw Hexagon M16x35 2 96 2305/00140 Circlip 1 97 2304/00300 Circlip 1 98 2026/20050 Capscrew M20x50 16 99 2208/00120 Washer Din 20 8 100 2200/00021 Washer Din 21 8 101 2118/32000 Nut M20 8 102 2020/20090 Screw Hexagon M20x90 8 103 2026/66060 Capscrew M16x60 20 104 2806/00540 Washer 12 105 2016/20220 Screw 12 106 2021/24080 Screw Hexagon M24x80 12 107 2118/41600 Nut M16 12 108 2201/00016 Washer M16 2 109 2027/12025 Capscrew M12x25 24 110 2772/40850 O Ring 1 111 7260/10070 Lead front gearbox 1 112 2883/27711 Hose 3000mm 1 113 7260/10301 Washer 20 115 2200/00068 Washer M20 16 116 2201/00012 Washer M12 24 117 2203/10017 Washer 12
Product Catalog \ VIBROMAX \ MISCELLANEOUS PRODUCTS \ VIBROMAX VM \ VM200PD 02900500 02900999,02901000 02901999 TIER 3 9802/4790 \ F AXLES, WHEELS & TRANSMISSION \ F02 AXLES, REAR 9802/4790 F2-1-1 ZF-AXLE COMPLETE INC VAR DISP MOTOR Item Part # Change No Description Usage Code QTY 1 7261/30100 Axle 1
SeeNote1 2 7261/30300 Motor axle drive Variable Displacement See.Note1 1 2A 7261/30301 Kit seal Housing Seeincludes10itemsNote1 1 2B 7240/13350 Adjuster inc solenoid valve 1 2C 7240/13353 Valve Solenoid 1 3 2016/20280 Screw Hexagon M20x280 8 4 2208/00120 Washer Din 20 8 5 2118/32000 Nut M20 8 6 2027/20060 Capscrew M20x60 4 7 2201/00020 Washer M20 4 8 7241/30511 Plate 2 9 2128/00022 Nut Wheel 16 10 2026/10040 Capscrew M10x40 7 11 4996/00183 Washer 16 12 4032/15253 O Ring 1 20 7261/30297 Superseded Plate motor mounting adaptor 1 20 333/D4032 Plate motor mounting adaptor 1 21 7261/30298 Sleeve 1 Note 1: .
Product Catalog \ VIBROMAX \ MISCELLANEOUS PRODUCTS \ VIBROMAX VM \ VM200PD 02900500 02900999,02901000 02901999 TIER 3 9802/4790 \ F AXLES, WHEELS & TRANSMISSION \ F02 AXLES, REAR 9802/4790 F2-1-10 ZF-AXLE CASTING COMPLETE Item Part # Change No Description Usage Code QTY 1 7261/30200 Casing 2 2 7261/30201 O Ring 4 3 7261/30205 Housing 1
4 2506/01815 Plug 1 5 7261/30202 O Ring 1 8 7261/30203 O Ring 2 9 7261/30204 Screw 20 12 7261/30208 Decal 1 13 7261/30209 Stud 4 15 7261/30210 Bearing 2 16 7261/30211 Bearing 2 17 7261/30410 Shaft Driveshaft 2 18 7261/30213 Nut 2 19 7261/30214 Dowel 2 20 7261/30215 Plug 1 21 7261/30411 O Ring 2 22 7261/30412 Ring Seal, Shaft 2 23 2506/21010 Plug 1 24 7261/30217 Plug 1 40 7261/30223 Shim washeroptionalS=0,3 2 40 7261/30222 Shim washeroptionalS=0,5 2 40 7261/30221 Shim washeroptionalS=1,0 2 40 7261/30225 Shim washeroptionalS=2,0 2 40 7261/30224 Shim washeroptionalS=3,0 2 41 7261/30226 Bolt 2 42 7261/30413 Stud 16
Product Catalog \ VIBROMAX \ MISCELLANEOUS PRODUCTS \ VIBROMAX VM \ VM200PD 02900500 02900999,02901000 02901999 TIER 3 9802/4790 \ F AXLES, WHEELS & TRANSMISSION \ F02 AXLES, REAR 9802/4790 F2-1-20 ZF-AXLE DIFFERENTIAL ASSY Item Part # Change No Description Usage Code QTY 1 7261/30430 Housing Differential 1 2 7261/30431 Casing Cover Lid 6 3 7261/30432 Ring Snap 1
4 7261/30433 Ring Shift Disc 2 5 7261/30434 Ring Shift Disc 1 6 7261/30435 Piece External 4 6 7261/30440 Plate external (optional) A=2,1 4 6 7261/30463 Plate External (optional) A=2,2 4 6 7261/30437 Plate External (Optional) A=2,3 4 6 7261/30438 Plate External (optional) A=2,4 4 6 7261/30439 Plate External (optional) A=2,5 4 7 7261/30441 Plate Internal 4 8 7261/30442 Ring Thrust 2 9 7261/30443 Axle 2 10 7261/30444 Gear Bevel Gear 2 11 7261/30445 Gear Bevel Gear 4 12 7261/30446 Bolt 12 13 7261/30447 Cover Housing 1 14 7261/30448 Screw 12
Product Catalog \ VIBROMAX \ MISCELLANEOUS PRODUCTS \ VIBROMAX VM \ VM200PD 02900500 02900999,02901000 02901999 TIER 3 9802/4790 \ F AXLES, WHEELS & TRANSMISSION \ F02 AXLES, REAR 9802/4790 F2-1-30 CROWN WHEEL AND PINION Item Part # Change No Description Usage Code QTY 1 **** Gear Bevel 1 2 **** Pinion 1 3 2772/08230 O Ring 1
4 7261/30111 Shim 1 5 7261/30299 O Ring 1 6 7261/30112 Superseded Bearing 2 6 907/20126 Bearing taper roller 2 7 7261/30113 Bush 1 9 7261/30115 Washer ShimoptionalS=0,1 1 9 7261/30116 Washer ShimoptionalS=0,2 1 9 7261/30117 Washer ShimoptionalS=0,3 1 9 7261/30118 Washer ShimoptionalS=0,5 1 9 7261/30124 Shim ShimoptionalS=0,85 1 9 7261/30125 Shim ShimoptionalS=0,90 1 9 7261/30126 Shim ShimoptionalS=0,95 1 9 7261/30119 Washer ShimoptionalS=1,0 1 9 7261/30121 Washer ShimoptionalS=1,05 1 9 7261/30127 Shim ShimoptionalS=1,10 1 9 7261/30128 Shim ShimoptionalS=1,15 1 9 7261/30120 Washer ShimoptionalS=1,2 1 9 7261/30129 Shim ShimoptionalS=1,5 1 9 7261/30130 Shim ShimoptionalA=1,55 1 9 7261/30131 Shim ShimoptionalA=1,6 1 9 7261/30132 Shim ShimoptionalA=1,65 1 9 7261/30133 Shim ShimoptionalA=1,7 1 9 7261/30134 Shim ShimoptionalA=1,75 1 9 7261/30122 Washer ShimoptionalS=1,8 1 9 7261/30135 Shim ShimoptionalA=1,85 1 9 7261/30136 Shim ShimoptionalA=1,9 1 9 7261/30137 Shim ShimoptionalA=1,95 1 9 7261/30123 Washer ShimoptionalS=2,0 1 10 7261/30183 Shim ShimoptionalA=1,05 1 10 7261/30184 Shim ShimoptionalA=1,1 1 10 7261/30185 Shim ShimoptionalA=1,15 1 10 7261/30140 Shim 1
