Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ 3CX 4 France 00306001 00336999 9802/8500 \ F AXLES,WHEELS & TRANSMISSION \ F05 TRANSMISSION M320000 ON 9802/8500 F5-5-2 GEAR CHANGE

Item Part #

1 445/10800

Change No Description

Usage Code QTY

Lever assembly gear turret 1

2 :445/03021 Gaiter gear change 1

3 :445/05301 Clip 1

4 :445/10801 Housing 1

5 :445/03023 Pin Pivot 2

6 :445/05501 Lever Gearshift 1

7 :445/05504 Washer 2 8 :814/00233 Spring 1 9 :445/05503 Lever gear 1 10 :445/10802 Seat Gearshit Ball 1

11 :2203/1080 Circlip Internal, 78mm 1 13 :445/05506 Plug 4

14 :1315/0405Z Setscrew M10 x 20 mm 4

15 813/00320 Superseded Gasket 1 15 813/50042 Gasket 1 16 445/03035 Screw 2

17 445/03024 Superseded Fork selector 1st & 2nd 1

17 M.S.S

17A 445/26101

Multi Supersession PartN.L.Ause17Awithitems17B,17C,17D,17E 1

Fork selector 1

17B 445/26102 Fork selector 1

17C 445/26104 Block selector 2

17D 445/26105 Shaft selector 2

17E 445/26110 Screw 4 18 445/03025 Shaft selector 1

19 445/03027 Block selector 1 20 445/03028 Shaft selector 1

21 445/03026 Superseded Fork selector 3rd & 4th 1

21 M.S.S

Multi Supersession PartN.L.Ause21Awithitems21B,21C,21D,21E 1

21A 445/26101 Fork selector 1

21B 445/26102 Fork selector 1

21C 445/26104 Block selector 2

21D 445/26105 Shaft selector 2

21E 445/26110 Screw 4 22 445/03031 Roller Baulk 1 23 816/80027 Plug 1 24 916/00006 Ball 11mm dia 2 25 814/00223 Spring detent 2 26 816/80030 Plug detent 2 27 123/00821 Lever 2 28 1305/3220Z Bolt 1 29 1340/0203Z Nut Lock 3/8" UNF 1 30 120/68101 Superseded Gaiter Gear Lever 1 30 123/00903 Gaiter 1 31 120/68103 Plate Retaining, Gaiter 1 32 826/00887 Retainer Scrivet 4 33 122/38504 Knob 1 34 817/00590 Decal 4 Speed 1 34 817/00671 Label 3 speed 1 Spacer

35 445/05903 3SpeedGearboxonly 1

36 445/05302 Clip 1

37 826/00651 Superseded Nut 1

37 1340/0402Z Nut THIN NUT (1/2" UNF) 1

1 03/300001

1 04/500100

1 04/500800

Converter 2.67:1 ratio 3 brown spots LD&LHengine SeeNote1

P/Ex 1

Converter 2 purple & 1 white spot. 2.2:1 ratio UK&World P/Ex 1

Converter 2.44:1 ratio 2 orange 1 green LJengine P/Ex 1

2 04/500300 Kit drive plate 1

3 02/101737 Flywheel assembly 1 4 :02/100078 Gear starter ring 1 5 1305/0407 Bolt 6 6 02/100614 Washer Was02/100076 6

7 1305/3314 <M322965 Bolt 1 7 1315/3512 Bolt 1 8 1340/0304Z <M322965 Nut 7/16"UNF 2 8 1370/0403Z Nut Lock, M12 2 9 1305/4818 <M322965 Bolt 5 9 1315/3514 Bolt 5 10 1305/4822 <M322965 Bolt 4 10 1315/3516Z Bolt M12 x 70mm 4 11 1305/4814 <M322965 Bolt 2 11 1315/0511Z Bolt M12 x 45mm 2 12 02/101370 Dowel 2 13 1305/3330 <M322965 Bolt 1 13 1315/3520 Bolt 1 14 1305/4812 <M322965 Bolt 2 14 1315/3519Z Bolt M12x90mm 2 15 123/01600 Tube filler 1 16 122/74100 Superseded Dipstick gearbox 1 16 123/00987 Dipstick gearbox 1 17 155/10600 Nut Male 1" 1 17A :904/20334 Kit seal & ferrule 1 18 122/67421 <M322965 Bracket 1 18 122/67493 Bracket 1

Note 1: France,Austria,Swiss,Nordic,Italy,Spain & Reunion.

Item Part #

Change No Description Usage Code QTY

Item Part #

1 121/77000 <M322965

1 122/97702

1A 121/77100 <M322965

Mounting engine mounting front, right hand Front 1

Bracket engine mounting front, right hand SeeNote1 1

Bracket engine mounting front, left hand Front 1

1A 122/97701 Bracket engine mounting front, left hand 1 2 1305/3620Z <M322965 Bolt 2 2 1315/0710Z Setscrew 2

3 1340/0603Z <M322965 Nut lock 2 3 1370/0603Z Nut lock M16 2 4 111/30101 Mounting metalastik 4 5 1305/3424Z Bolt 1/2" x 3.1/4" long 4

6 111/15709 Washer 4

7 1340/0403Z Nut lock 4 8 122/67600 Mounting 1 9 111/15709 Washer 2 10 1305/3620Z Bolt 2 11 1340/0603Z Nut lock 2 12 1305/2112 <M322965 Bolt 2 12 1315/3716Z Bolt M16 x 70mm 2 13 1416/0010 Washer 2 14 1410/0007Z Washer (5/8" Small) 2

Note 1: The above cut in date will be 20th August 1986 approximately.

QTY

Change No Description Usage Code

Item Part #

1 121/77000 <M322965

1 122/97702

1A 121/77100 <M322965

Mounting engine mounting front, right hand Front 1

Bracket engine mounting front, right hand SeeNote1 1

Bracket engine mounting front, left hand Front 1

1A 122/97701 Bracket engine mounting front, left hand 1 2 1305/3620Z <M322965 Bolt 2 2 1315/0710Z Setscrew 2

3 1340/0603Z <M322965 Nut lock 2 3 1370/0603Z Nut lock M16 2 4 111/30101 Mounting metalastik 4 5 1305/3424Z Bolt 1/2" x 3.1/4" long 4

6 111/15709 Washer 4

Note 1: The above cut in date will be 20th August 1986 approximately.

QTY

Change No Description Usage Code

Cooler oil

Item Part # Change No Description Usage Code QTY

1 816/60125

Elbow Swept 2 2 648/02509 Hose 0 3 648/02509 Hose 0 4 993/40400

Useonm/s'swithouthydraulicoilcooler. P/Ex 1

4 923/01000

Useonm/c'swithhydraulicoilcooler. P/Ex 1

5 2201/0005 Clip Worm Drive 14/27mm 6

6 2201/0001 Clip Worm Drive 8/16mm 2

7 647/02111 Superseded Hose 0

7 647/02117 Tube 0 8 816/55030 Adapter tee 1 9 648/02509 Hose 1 10 816/00383 Adapter 1

11 1406/0018

Washer Bonded (1/2" BSP) 1

12 25/905800 Valve check in line 1

Cooler oil

Useonm/c'swithouthydraulicoilcooler P/Ex 1

Cooler oil

Item Part # Change No Description Usage Code QTY

1 816/60125

Elbow Swept 2 2 648/02509

Hose 0 3 648/02506 Hose 2200mm long 0 4 993/40400

4 923/01000

5 2201/0005

Useonm/c'swithhydraulicoilcooler

P/Ex 1

Clip Worm Drive 14/27mm 6

Hose 1 7 122/51802 Bracket front 1 8 122/51801 Bracket rear 1 9 923/01400 Superseded Cooler oil electrical 1 9 923/04000 Cooler oil electrical 1 10 706/51800 Harness 1 11 1305/0210Z

6 648/02505

Bolt 4 12 1411/0003Z

Washer medium 4 13 1340/0203Z

Nut Lock 3/8" UNF 4 14 204/07006

Tie Cable 3 14 200/77106

Tie cable 1 15 926/07903

Foam 0

Item Part #

1 914/35200

Change No Description Usage Code QTY

Propshaft front 1

2 :914/35501 Superseded Kit spider 2 2 :914/03402 Kit spider 2 3 :914/35502 Yoke flange 2 4 :N.S.P. None serviced part 2 5 :914/35503 Kit dust cap 1 6 ::N.S.P. None serviced part 1 7 ::N.S.P. None serviced part 1 8 :N.S.P. None serviced part 1 10 1305/3312Z Bolt 4 11 1340/0303Z Nut lock 4 12 1305/3312Z Bolt 4 13 1340/0303Z Nut lock 4 14 914/34700 Propshaft Rear,sideshift 1 14 914/34600 Propshaft 4CN4Only 1 15 :914/35401 Kit spider cap D=35mm x 106.4 2 16 :914/35402 Yoke flange 2 17 :N.S.P. None serviced part 2 18 :914/35403 Kit end cap 1 19 ::N.S.P. None serviced part 1 20 ::N.S.P. None serviced part 1 21 :N.S.P. None serviced part 1 22 **** 'See Remark' Notrequiredinthisapplication 1 23 1305/3312Z Bolt 8 24 1340/0303Z Nut lock 8

Item Part #

1 1604/0002

1 816/15133

2 1406/0011

3 45/904200

3 45/905000

4 816/55036

4A 997/22100

5 1406/0008

6 701/31900

6 701/37300

6 701/41600

7 993/69600

Change No Description

Adapter 1

Adapter 1/4 BSP x M12 1

Washer Bonded (1/4") 1

Adapter pressure test 10mm male 1

Adapter Pressure Test 1/4BSP Male 1

Adapter tee 1

Adapter tee M12X1/4BSPXM10 1

Seal Washer 1

Switch pressure M10 1

Switch pressure blue body 1

Switch oil pressure M12 red body, AMP 1

Connector 2 way junior timer 1

Usage Code QTY

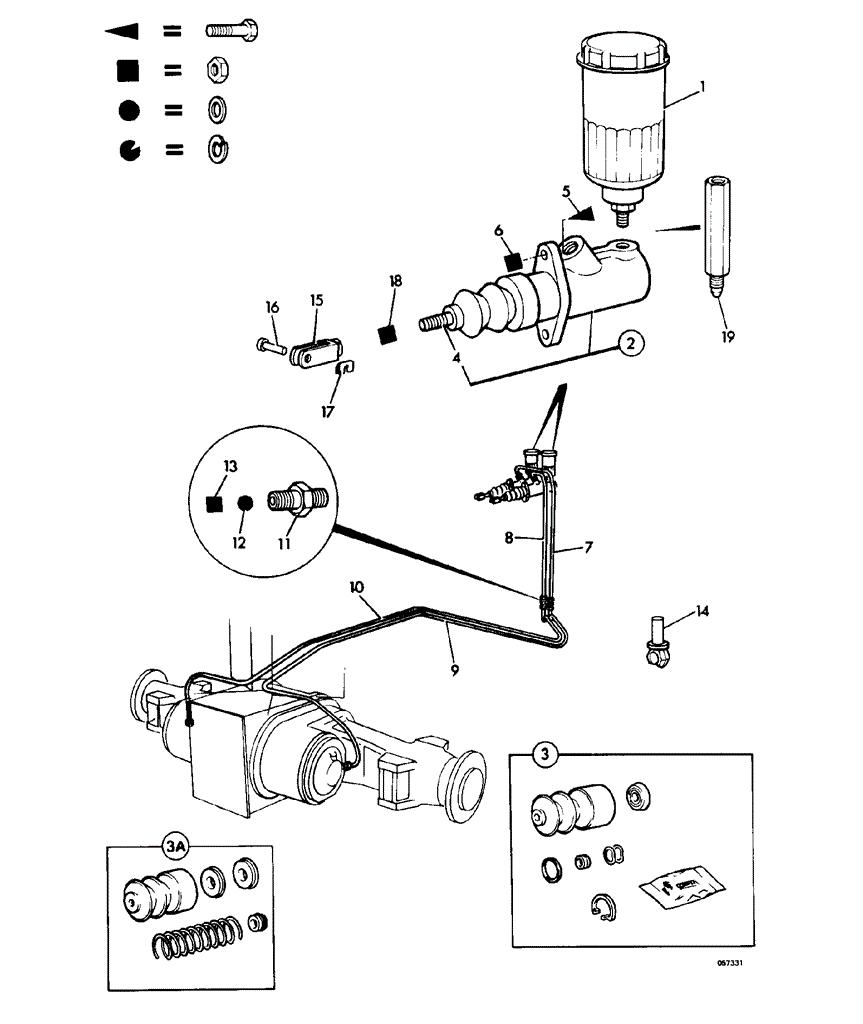

Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ 3CX 4 France 00306001 00336999 9802/8500 \ G BRAKES \ G01 BRAKES 9802/8500 G1-1-1 BRAKE SYSTEM Item Part # Change No Description Usage Code QTY 1 121/34400 Reservoir 2 2 15/106100 Cylinder master SeeNote1 2

3 :15/106600

3A :15/107400

Kit repair Seefootnote 1

4 :N.S.P. None serviced part 1 5 1305/0108Z Bolt 4 6 1340/0103Z Nut 5/16" UNF 4 7 120/76700 Pipe RH 1 8 120/76800 Pipe LH 1 9 121/73000 Pipe RH 1 10 121/72900 Pipe LH 1 11 15/106400 Connector 2 12 1417/0014Z

Washer Locking (1/2") 2 13 15/106700 Nut M12 2 14 821/00069 Clip pipe 6 15 913/00013 Clevis 2 16 913/00014 Pin Clevis 2 17 913/00005 Clip Clevis 2 18 1340/0102Z Nut 2 19 816/00083 Adapter Austrianonly 2

Note 1: Due to alternative suppliers of master cylinder repair kits are not interchangable

Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ 3CX 4 France 00306001 00336999 9802/8500 \ G BRAKES \ G01 BRAKES 9802/8500 G1-2-1 BRAKE ASSEMBLY Item Part # Change No Description Usage Code QTY 1 451/01701 Plate back 2 2 921/00901 Superseded Shim 0.15 0 2 921/01701 Shim 0.15 12 holes 0

2 921/00902

Superseded Shim 0.20 0

2 921/01702 Shim 0.20 12 holes 0

2 921/00903 Superseded Shim 0.25 0

2 921/01703 Shim 0.25 12 holes 0

2 921/00904 Superseded Shim 0.50 0

2 921/01704 Shim 0.50 12 holes 0

2 921/00905 Superseded Shim 1.00 0

2 921/01705 Shim 1.00 12 holes 0

3 1391/3407

Capscrew M10 x 25mm 12

4 451/08002 <M324108 Plate counter 12

4 451/22702 Plate counter 12

5 451/01702 Plate friction 10

6 451/08003 Pin 4

7 451/01710 Piston 1

8 813/00184 Seal 2

9 451/08001 Superseded Cover WastoM324108 1 9 451/22701 Cover 1

10 1315/3509Z

Bolt M12x35 Grade 8.8 16 11 816/60040 Nipple Screw 2

12 835/00017 Cap Grease Nipple 2 13 813/00258 Gasket 2

14 993/00011

Spacer SeeTIG26/H&G25/E 2

Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ 3CX 4 France 00306001 00336999 9802/8500 \ G BRAKES \ G01 BRAKES 9802/8500 G1-3-1 BRAKE, PARKING Item Part # Change No Description Usage Code QTY 1 15/105100 Superseded Brake 1 1 452/00100 Superseded Brake RefertopageG1 32forcomponentparts 1

1 M.S.S

Multi Supersession RefertopageG1 32 1

None serviced part 1 3 :15/103501 Pivot seat 1

2 :N.S.P.

4 :N.S.P. None serviced part 1 5 :15/104300 Pad assembly 1 6 ::N.S.P. None serviced part 2 7 ::N.S.P. None serviced part 2 8 ::N.S.P. None serviced part 2 9 :N.S.P. None serviced part 1 10 :15/103502 Pin pivot 1 11 :15/103503 Spring return 1 12 15/103506 Bolt adjusting 1 13 :15/103504 Clip spring 1 14 :15/103505 Nut adjusting 1 15 :2103/0506 Pin split 3/32 x 5/8 1 16 :2103/0310 Pin split 1 17 :15/103511 Superseded Pin 1 17 :15/103502 Pin pivot 1 18 :15/103507 Plate reaction 1 19 :15/103508 Washer tab 1 20 :15/103509 Bolt hinge 2 21 :15/105101 Superseded Housing caliper 1 21 :N.L.A No longer available PartN.L.Ause452/00100 1 22 450/00201 Plate mounting 1 23 1425/0009Z Washer Spring M12 4 24 1305/0410Z Bolt 1/2" x 1.1/2" long 4 25 835/00013 Cap red 1
