JCB 3CX-2 BACKOHE LOADER Parts Catalogue Manual (Serial Number 00337000-00399999) by kmd9isiod6ok

Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ ,3CX 2 H'master 00337000 00399999 9802/8550 \ N ENGINES 1000 SERIES 4 4 & 4 4T \ N04 COOLING SYSTEM 9802/8550 N4-1-1 PUMP, WATER AA,AB & AC BUILDS

Item Part #

1 02/200080 Superseded Pump water 1

1 M.S.S Multi Supersession PartN/Ause1Awithitem12A 1

1A 02/200450 Superseded Pump water 1

1A 02/200850 Pump water 1

2 **** None serviced part Body 1 3 **** None serviced part Shaft 1 4 **** None serviced part Impeller 1 5 :02/290004 Gear 1 6 :02/200082 O Ring 1 7 :02/200083 Seal 1 8 :02/200084 Superseded Seal 1 8 **** None serviced part Seal,useitem18repairkit 1 9 :02/200085 <EU570642V Cover 1 9 **** >EU570643V None serviced part 1 10 :02/200086 Gasket 1 11 :02/291013 <EU570642V Bolt 6 11 :02/291145 <EU594296W Screw 6 11 :02/291146 Screw 6 12 :02/291053 Stud Usedonlywith02/200080 3 12A 02/291120 Screw Usedonlywith02/200450 3 13 02/291058 Nut flanged M8 Usedonlywith02/200080 3 14 02/200087 O Ring 1 15 02/291028 Bolt 1 16 02/291019 Bolt 1 17 02/291019 Bolt 1 18 02/200088 Superseded Kit repair water pump Containsitems3.4.6.7.8.10&14 1 18 02/200852 Kit repair water pump 1

Change No Description Usage Code QTY

Item Part # Change No Description Usage Code QTY 1 02/200144 Housing thermostat 1 2 02/200145 Gasket 1 3 02/100095 Plug taper 1 4 02/291040 Bolt 2 5 02/291028 Bolt 1

6 02/291021

Bolt 2

7 02/100192 Thermostat 1

8 02/200325

Connector Water outlet AA&ACBuilds SeeNote1 1

Connector Water outlet ABBuild 1 9 02/200147 Gasket 1 10 02/291023 Bolt AA&ACBuilds 4 10 02/291023 Bolt ABBuildonly 5

8A 02/200325

10A 02/291024 Bolt ABBuild 1

10A 02/291021 Bolt AA&ACBuildsUsedonlywith02/200325 2 11 02/291081 Washer ABBuild 1

12 02/200251 Kit hose by pass 1 13 :2201/0011 Clip Worm Drive 40/64mm 2 14 02/200247 Connector by pass 1 15 02/200149 Gasket 1 16 02/100095 Plug taper Standard 2 16 02/100095 >M365054 Plug taper Hotclimatebuildonly 1

16A 716/06100 >M365054 Sender temperature FittedonHotclimatebuildsonly 1

16A 716/06100 <M365788 Sender temperature 1

16B 716/12800 >M365789 Sender temperature 1 17 02/291017 Screw 1 18 02/291017 Screw 1 19 716/06100 <M365788 Sender temperature 1 19 716/12800 >M365789 Sender temperature 1

19A 701/34000 >M365054 Switch water temperature FittedonHotclimatebuildsonly 1

Note 1: Was 02/200209 + 6 off item 10.

Item Part # Change No Description Usage Code QTY

1 2

4 3

4 4

1 123/00802 Cowling fan

1A 123/00669 Cowling fan UsedonlywhenAirConditioningfitted

1305/0204Z Bolt 3/8"

1410/0003Z Washer (3/8" Small)

826/00798 Nut

5 123/00725

6 123/00898

7 1305/1604Z

Guard fan left hand 1

Guard Fan right hand 1

Screw 5/16 18unc 4

Washer spring 5/16" Zinc plated 4 9 1411/0002Z Superseded Washer (5/16" Medium) 4 9 1420/0007Z Washer (M8) 4 10 826/00537

8 1416/0005Z

Nut J'Retainer 4 11 926/07903

Foam 1 12 926/09901

Foam strip 2 13 926/09902

14 123/00967

14 123/00856

Foam strip 1

Plate baffle AABuild 1

Plate AB,ACBuilds 1

1 923/02500

1 923/02900

1A 923/02900

Radiator

AABuilds

Radiator assembly

AABuildwithhydraulicoilcooler

Radiator assembly

AB&ACBuilds

P/Ex 1

Part # Change No Description

Code QTY

Item

Usage

1B 923/03700

2 :30/301602

Radiator wide matrix SeeNote1 P/Ex 1

Tap radiator drain SeeNote2 1

Hose top 1 4 2201/0010 Clip jubilee 2 5 2201/0012 Clip Jubilee, 46/70mm 2 6 834/00262 Hose elbow 1 7 2201/0013 Clip Jubilee 2 8 **** 'See Remark' TransmissionOilcooler,RefertoE1INDEX 1 9 834/00263

3 834/00261

Hose bottom 1 10 2201/0008 Clip Jubilee 2 11 123/00574 Plug 1 12 123/00841 Bottle filler 1 13 121/60601 Cap coolant filler double seal, 7psi 1 14 648/21300 Hose 900mmLengthrequired 1 15 2201/0002 Clip jubilee 3 16 123/49200 Bottle expansion 1 16A :123/03532 Cap expansion bottle 1 17 :123/00457 Plug & Overflow tube 1 18 123/00781 Bracket 1 19 926/07000 Strip Sponge 135mmx2Lengthsrequired 2 20 1305/0202Z

Bolt 1 21 1416/0006Z Washer spring 2 22 1305/0206Z Setscrew (3/8" UNF x1") 1 23 1410/0003Z Washer (3/8" Small) 1 24 1340/0203Z Nut Lock 3/8" UNF 1

Note 1: For use with Chaff guard front grille installation.

Note 2: Nat/asp (AAbuild) located on bottom inside face,Turbo (AB & AC builds) on bottom face.

Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ ,3CX 2 H'master 00337000 00399999 9802/8550 \ N ENGINES 1000 SERIES 4 4 & 4 4T \ N05 LUBRICATION SYSTEM 9802/8550 N5-1-1 SUMP, OIL AA,AB & AC BUILDS

Item Part #

Change No Description

Usage Code QTY

1 02/200200 Sump oil 1

2 02/101782 Plug oil drain 2

2A 993/29700 Kit drain 1

3 02/200198 O Ring 2

4 02/100060 Superseded Gasket oil sump 1 4 02/102069 Gasket oil sump 1 5 02/200199 Superseded Bridge piece 1 5 02/200387 Superseded Bridge piece 1 5 02/201094 Piece bridge 1 6 1391/3205 Screw cap 2 7 02/200202 Plug 1 8 02/200203 Olive 1 9 02/291075 Stud 2 10 02/291058 Nut flanged M8 2 11 02/291076 Screw 1 12 02/291077 Screw 5 13 02/291028 Bolt 12 14 02/200204 Pipe oil suction 1 15 02/100873 Gasket 1 16 02/291021 Bolt 2 17 02/100166 Superseded Bracket 1 17 M.S.S Multi Supersession PartN/Ause17Awithitems20A&21A 1

17A 02/200427 Bracket 1 18 02/291017 Screw 1 19 02/100326 Spacer 1 20 02/200205 Clip 1 20A 02/200428 Clamp 1 21 02/291012 Bolt 2

21A 02/291119 Screw Usedonlywith17A&20A 2 22 02/291070 Nut 2 23 02/200318 Tube dipstick 1 24 :02/291090 Nut 1 25 02/200203 Olive 1 26 02/200319 Dipstick 1 27 :02/100666 Seal 1 28 **** 'See Remark' Notfittedorrequired 1 29 02/291102 Stud 1 30 02/291057 Nut 2 31 02/101802 Clip 1 32 02/291011 Bolt 1 33 02/291099 Spacer 1

Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ ,3CX 2 H'master 00337000 00399999 9802/8550 \ N ENGINES 1000 SERIES 4 4 & 4 4T \ N05 LUBRICATION SYSTEM 9802/8550 N5-2-1 PUMP, OIL & RELIEF VALVE AA BUILD

Item Part #

Change No Description

Usage Code QTY

1 02/200110 Superseded Pump oil 1

1 02/200840 Pump oil 1

2 02/100161 Superseded Shaft idler, oil pump 1

2 02/290028 Shaft idler, oil pump 1

3 02/290005 Gear assembly 1

4 **** None serviced part Gear 1 5 :02/290006 Bush 1 6 02/200104 Washer 1 7 02/100328 Circlip 1 8 02/291018 Bolt 3 9 02/200106 Valve oil relief 1 10 **** None serviced part Body 1

11 :02/100599 Plunger 1 12 :02/200107 Spring 1 13 :02/101309 Seat 1 14 :02/200108 Circlip 1 15 02/291038 Bolt 1 16 02/101893 Superseded Thimble 1 16 02/100319 Thimble 1 17 02/200109 Pipe oil delivery 1 18 02/200112 O Ring 2 19 02/200111 Flange 1 20 02/291017 Screw 2

Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ ,3CX 2 H'master 00337000 00399999 9802/8550 \ N ENGINES 1000 SERIES 4 4 & 4 4T \ N05 LUBRICATION SYSTEM 9802/8550 N5-2-2 PUMP, OIL & RELIEF VALVE AB & AC BUILDS

1 02/200115

Superseded Pump Oil 1

1 02/200320 Pump oil 1

2 02/100161

Superseded Shaft idler, oil pump 1

2 02/290028 Shaft idler, oil pump 1

3 02/290005 Gear assembly 1

Part # Change No Description Usage Code QTY

Item

4 ****

None serviced part Gear 1

5 :02/290006 Bush 1 6 02/200104 Washer 1 7 02/100328 Circlip 1 8 02/291018 Bolt 3

9 02/200102

Valve oil relief ABBuildonly 1

Valve Oil relief ACBuildonly 1 10 ****

9A 02/200321

None serviced part Body 1 11 :02/100599 Plunger 1 12 :02/200107 Spring 1 13 :02/101309 Seat 1 14 :02/200108 Circlip 1 15 02/291038 Bolt 1 16 02/101893 Superseded Thimble 1 16 02/100319 Thimble 1 17 02/200109

Pipe oil delivery 1 18 02/200112 O Ring 2 19 02/200111 Flange 1 20 02/291017 Screw 2

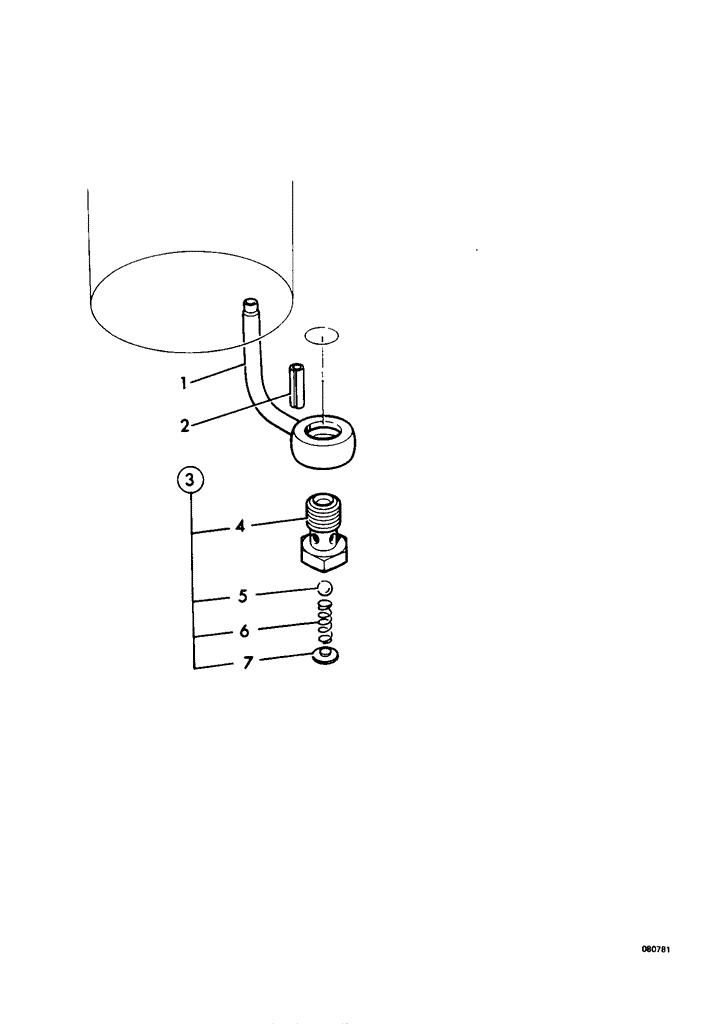

Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ ,3CX 2 H'master 00337000 00399999 9802/8550 \ N ENGINES 1000 SERIES 4 4 & 4 4T \ N05 LUBRICATION SYSTEM 9802/8550 N5-3-1 PISTON COOLING JETS AB & AC BUILDS

Item Part #

Change No Description

Usage Code QTY

1 02/101615 Superseded Jet piston cooling 4

1 02/200392 Jet piston cooling 4

2 02/200101 Dowel 4

3 02/101898 Valve 4

4 **** None serviced part Body 1

5 :02/200099 Ball 1

6 :02/200098 Spring 1

7 :02/200097 Retainer 1

Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL.NOWAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then clickonit. GET MORE OTHER MANUALS https://www.aservicemanualpdf.com/ GET MORE OTHER MANUALS https://www.aservicemanualpdf.com/

Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 3CX,4CX,5CX,214,215,217 \ ,3CX 2 H'master 00337000 00399999 9802/8550 \ N ENGINES 1000 SERIES 4 4 & 4 4T \ N05 LUBRICATION SYSTEM 9802/8550 N5-4-1 FILTER, OIL & OIL FEED ADAPTER AA BUILD

Item Part # Change No Description Usage Code QTY

Head filter 1

Connector 1

Superseded Gasket 1

Gasket

Stud

1 02/200330

2 :02/200094

3 02/200096

3 02/200979

1 4 02/291079

5 02/291059

6 02/100284

7 02/200208

Nut 4

Element oil filter canister type short 1

Adapter oil feed 1

8 826/00765 Plug 1

9 02/200096 Superseded Gasket 1 9 02/200979 Gasket 1

10 02/291044 Bolt 1 11 02/291042 Bolt 3

12 02/100123

Switch oil pressure 1
