CLAAS CHALLENGER 55-35 RC98 TRACTOR Parts Catalogue Manual (SN 79201001-79202199)

ENGINE; COUPLING GP-FLEXIBLE

Pos. Part No. Description Dimension Quanti ty Conditions

1 00 0360 113 0 CLUTCH 1

2 00 0362 961 0 COVER 1

3 00 0233 414 0 HEXAGON HEAD BOLT M10X20 14

4 00 0362 438 0 WASHER 11 - 11,5X21X2,5 14

Pos. Part No. Description

ENGINE; COVER GP-CYLINDER BLOCK

Dimension Quanti ty Conditions

1 00 0362 298 0 SIDE PANEL 3

2 00 0365 675 0 GASKET

MOTORTEIL 3

3 00 0360 097 0 O-RING 11,89X1,98-N 2

4 00 0368 176 0 HEXAGON HEAD SCREW M8X30 6

5 00 0362 502 0 WASHER GEHAERTET 18

6 00 0362 299 0 SLEEVE 6

7 00 0362 568 0 STUD 6

8 00 0362 447 0 WASHER GEHAERTET 6

9 00 0362 187 0 CAP 6

10 00 0237 441 0 HEXAGON HEAD BOLT M 8X20 12

11 00 0361 801 0 COVER 1

11 00 0360 003 0 SEALING COMPOUND TUBE 1

12 00 0367 975 0 HEXAGON HEAD SCREW W. ERS. D. 218 986.0 4

12 00 0362 502 0 WASHER GEHAERTET 4

13 00 0361 631 0 COVER 1

14 00 0361 905 0 GASKET 1

15 00 0236 984 0 SOCKET HEAD SCREW M10X 25 2

16 00 0362 527 0 SCREW PLUG 2

ENGINE; DAMPER & PULLEY GP 1)

Pos.

1 00 0362 220 0 DAMPER 1 2)

1 00 0362 978 0 PLUG 2

2 00 0361 111 0 V-BELT PULLEY 1

3 00 0367 955 0 HEX.HEAD BOLT M10X60 8

4 00 0362 122 0 WASHER 8

ENGINE; DAMPER & PULLEY GP 1)

Pos.

1 00 0362 220 0 DAMPER 1 2)

1 00 0362 978 0 PLUG 1

2 00 0365 562 0 V-BELT PULLEY 1

3 00 0237 806 1 HEXAGON HEAD BOLT M10X70 8

4 00 0362 122 0 WASHER 8

ENGINE; FAN DRIVE

ENGINE; FAN DRIVE

Pos. Part No. Description

1 00 0362 221 0 PLATE 1

2 00 0362 054 0 SPACER 1

3 00 0361 976 0 OUTER RING 2

4 00 0361 977 0 TA.ROLLER BEARING 2

5 00 0361 980 0 SPACER BUSH 1

6 00 0211 403 0 HEXAGON HEAD SCREW M12X120 1

7 00 0362 179 0 LIP RING 1

8 00 0361 947 0 BRACKET 1

9 00 0362 218 0 HUB 1

10 00 0362 219 0 CAP 1

ENGINE; WATER PUMP DRIVE 1)

Pos. Part No. Description Dimension Quanti ty Conditions

1 00 0360 007 0 V-BELT 1

2 00 0368 176 0 HEXAGON HEAD SCREW M8X30 2

3 00 0361 832 0 WASHER 1

4 00 0361 118 0 V-BELT PULLEY 1 2)

5 00 0670 446 0 CIRCLIP 15X1 1

6 00 0363 082 0 BALL BEARING 2 STK. 1

7 00 0360 381 0 PLATE 1

8 00 0362 502 0 WASHER GEHAERTET 1

9 00 0367 975 0 HEXAGON HEAD SCREW W. ERS. D. 218 986.0 1

10 00 0363 073 0 WASHER 1

1) Remarks Only Challenger 35/45

2) Remarks with Item 5-7

ENGINE; WATER PUMP DRIVE 1)

Pos.

1 00 0360 007 0 V-BELT 1

2 00 0237 342 0 HEXAGON HEAD BOLT M 8X30 2

3 00 0362 502 0 WASHER GEHAERTET 1

4 00 0361 118 0 V-BELT PULLEY 1 2)

5 00 0670 446 0 CIRCLIP 15X1 1

6 00 0363 082 0 BALL BEARING 2 STK. 1

7 00 0360 381 0 PLATE 1

8 00 0361 832 0 WASHER 1

ENGINE; LIFTING GP-ENGINE 1)

Pos.

1 00 0361 978 0 TRANSPORT SUPPORT HINTEN 1

2 00 0361 979 0 TRANSPORT SUPPORT VORNE 1

3 00 0362 112 0 HEX.HEAD BOLT M10X25-MKL 1

4 00 0362 122 0 WASHER 1

5 00 0362 112 0 HEX.HEAD BOLT M10X25-MKL 4

6 00 0362 122 0 WASHER 4

7 00 0362 112 0 HEX.HEAD BOLT M10X25-MKL 3

8 00 0362 122 0 WASHER 3

1) Remarks Only Challenger 35/45

ENGINE; LIFTING GP-ENGINE 1)

ENGINE; MOUNTING FLEXIBLE

Pos.

1 00 0360 008 0 SUSPENSION 4

2 00 0360 445 0 WASHER 4

3 00 0362 460 0 SCREW 4

4 00 0365 850 0 WASHER

35X23X3 RM 1050 N/MM2 A3 8

5 00 0233 561 0 HEXAGONAL NUT M20 4

ENGINE/g MOUNTING GP-ENGINE FLEXIBLE

Pos. Part No. Description Dimension Quanti ty Conditions

1 00 0362 245 0 BRACKET 1

2 00 0216 172 0 HEXAGON HEAD BOLT M10X35 4

3 00 0361 706 0 STRAP 1

4 00 0362 440 0 SCREW W. ERS. D. 211032.0 2

5 00 0211 032 0 HEXAGON HEAD BOLT M10X25 1

6 00 0362 445 0 WASHER S 11X32X2,5 1

7 00 0362 199 0 PLATE 1

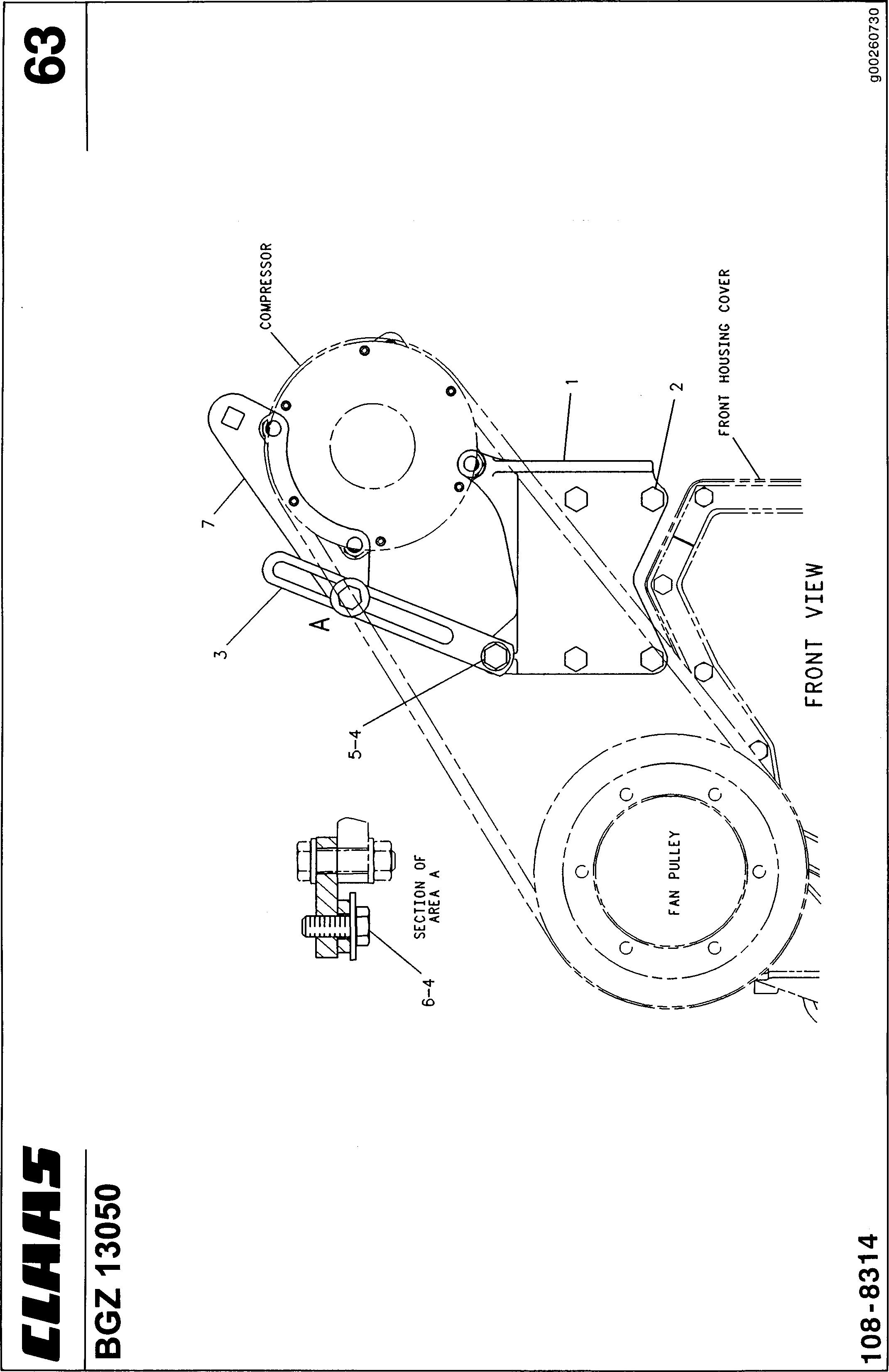

ENGINE; FAN DRIVE 1)

1 00 0361 951 0 V-BELT PULLEY 1 2)

2 00 0367 934 0 HEXAGON HEAD SCREW

W.ERS.D.244 378.0 6

3 00 0360 957 0 V-BELT PULLEY 1 3)

4 00 0361 787 0 V-BELT SET 1 4)

5 00 0360 011 0 V-BELT 1 5)

6 00 0367 955 0 HEX.HEAD BOLT M10X60 8

7 00 0362 122 0 WASHER 8

8 00 0361 111 0 V-BELT PULLEY 1 6) 9 00 0360 007 0 V-BELT 1 7) 10 00 0214 243 0 V-BELT 1 8)
