9812/7210 F2-2-1 RAM STEERING REAR AXLE
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 524-50 0106945701069548,01417000-01418024 Tier 2 9812/7210 \ F AXLES, WHEELS & TRANSMISSION \ F02 AXLES, REAR
Item Part # Change No Description Usage Code QTY 1 448/17200 Ram powered track rod 1 1A :448/17201 Kit-seal steer ram 1 1B :448/17202 Cap end 1 1C :448/17203 Cylinder 1 1D :448/17204 Piston Rod Assembly 1 2 826/01435 Bolt verbus ripp M12 x 55mm long 4 3 458/20692 Washer (22.5mm x 75mm x 3mm) 4WSmachinesonly 1 4 911/22800 Pin pivot 105mm x 25mm dia. 2 5 1321/0405Z Bolt 2 6 448/28700 Link steer 1 7 **** Arm steer link. 1 7A :1450/0001 Nipple Grease, Straight 1/8 BSP Iffitted 1 8 :448/17902 Ball joint 1 9 :826/01329 Nut THIN NUT (M28) 1 10 :808/00253 Bush 33mm Long 30mm OD X 25mm ID 1 11 :904/09300 Seal oil 1 12 826/01327 Bolt domed M16 2 13 826/01328 Lock nut M16 X 2 2 14 816/60056 Nipple Grease 4 15 458/20061 Trunnion 4 16 1321/0509 Screw 16 17 921/01400 Kit-shim Toptrunniononly 2 18 904/06700 Seal 4 19 907/08300 Bearing Taper Roller 4
9812/7210 F2-3-1 HUB & COMPONENTS
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 524-50 0106945701069548,01417000-01418024 Tier 2 9812/7210 \ F AXLES, WHEELS & TRANSMISSION \ F02 AXLES, REAR
Item Part # Change No Description Usage Code QTY 1 458/20339 Carrier planetary hub 2 2 826/00425 Plug tapered 3/4"-14PTF 2 3 450/10208 Pad Thrust 2
4 2203/0057 Circlip external 2 5 828/00238 O Ring 2 7 821/00289 Circlip 12 8 907/50600 Bearing Cyclindrical Roller 6 9 440/00709 Gear planet 6 10 2203/0041 Circlip 6 11 829/30671 Spacer 2 12 448/56033 Gear annulus ring 2 13 458/20485 Carrier Annulus 2 13A 921/51200 Spacer 2 14 826/01060 Bolt M14 x 70mm long 16 15 821/00291 Circlip 2 16 907/52200 Bearing Taper 4 17 450/12703 Dowel Hollow 16 18 458/20445 Carrier wheel bearing 4 stud 2 19 826/00923 Stud Wheel 8 20 904/50033 Seal - Cassette 2 22 1321/0407Z Bolt Coated M10 x 25 4 23 458/20403 Cover Plate Hub Seal 2

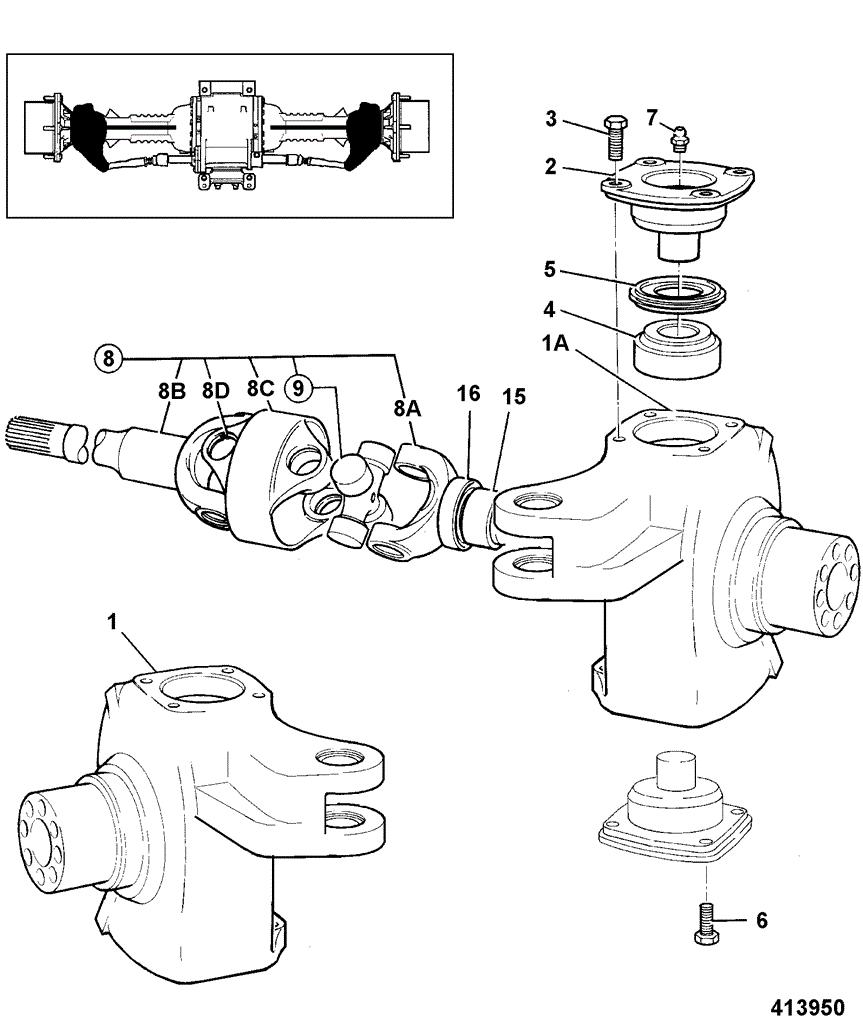

9812/7210 F2-4-1 KNUCKLES,STEER AXLE
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 524-50 0106945701069548,01417000-01418024 Tier 2 9812/7210 \ F AXLES, WHEELS & TRANSMISSION \ F02 AXLES, REAR
Item Part # Change No Description Usage Code QTY 1 458/20483 Joint knuckle swivel RH 1 1A 458/20484 Joint knuckle swivel 1
LH 2 458/20061 Trunnion 4 3 1321/0509 Screw 4 4 907/08300 Bearing Taper Roller 4 5 904/06700 Seal 4 6 1321/0509 Screw 16 7 816/60056 Nipple Grease SelfTappingtype. 4 8 914/60164 Shaft drive 2 8A :914/70000 Shaft drive hub side 1 8B :914/60237 Shaft Yoke Shaft 1 8C :914/60236 Yoke Shaft 1 8D :914/83303 Circlip 1 9 :914/86202 Kit-spider 1 14 4101/0251 Sealant Threadlock 50ml 1 15 917/50200 Bearing Needle Roller NK 45/30 2 16 904/50047 Seal 2 20 907/08400 Bearing 2 21 904/50040 Seal 2 22 2203/1082 Circlip 2 23 448/04802 Ring Masking 2
9812/7210 F2-5-1 DIFFERENTIAL ASSY
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 524-50 0106945701069548,01417000-01418024 Tier 2 9812/7210 \ F AXLES, WHEELS & TRANSMISSION \ F02 AXLES, REAR
Item Part # Change No Description Usage Code QTY 1 458/10646 Drive Head Assembly 1 2 :907/09000 Bearing Roller 1 3 :921/01900 Kit-shim 1 4 :921/53300 Kit-spacer 1 5 :907/09100 Bearing Taper Roller 1 6 :904/50023 Seal Triple Lip, To Suit 55.0/54.81 Shaft Blue 1 7 :450/10410 Yoke M24 1 8 :448/17401 Casing drivehead 1 9 :826/01483 Nut stake and washer M24 1 10 **** 'See Remark' Nowpartofitem9. 1 11 :448/05405 Nut Side Diff 2 12 :826/00818 Pin Tension 2 13 :826/01084 Bolt 12 14 :458/70025 Gear crown wheel & pinion 9T/31T (Purple) 1 15 :907/09200 Bearing Taper Roller 2 16 :448/26304 Washer Thrust (115.5mm x 154mm x 5mm) 1 17 :448/26305 Bush 1 18 :448/26302 Sleeve 1 19 :828/00369 O Ring seal 1 20 :448/26303 Dowel ring 2 21 :448/56161 Mounting Trunnion Assy 1 22 :448/26307 Bolt retaining 1 23 :816/60056 Nipple Grease 1 24 :448/42200 Differential Assembly 1 25 ::448/42300 Differential Casing Assembly 1 26 ::808/00210 Washer thrust Pinion 2 27 ::808/00209 Washer Thrust Side Gear 2 28 ::448/05408 Pin Trunnion 1 29 ::2102/0816 Pin Tension 1 30 ::826/01586 Bolt (M8 x 80) 8 31 ::448/15500 Differential gear kit 1
9812/7210 F2-5-2 DIFFERENTIAL ASSY LSD 9-FRICTION
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 524-50 0106945701069548,01417000-01418024 Tier 2 9812/7210 \ F AXLES, WHEELS & TRANSMISSION \ F02 AXLES, REAR
Item Part # Change No Description Usage Code QTY 1 458/10880 Drivehead G.A. LSD 9-FACE 1
FACES
2 :907/09000 Bearing Roller 1 3 :921/01900 Kit-shim 1 4 :921/53300 Kit-spacer 1 5 :907/09100 Bearing Taper Roller 1 6 :904/50023 Seal Triple Lip, To Suit 55.0/54.81 Shaft Blue 1 7 :450/10410 Yoke M24 1 8 :448/17401 Casing drivehead 1 9 :826/01483 Nut stake and washer M24 1 10 **** 'See Remark' Nowpartofitem9. 1 11 :448/05405 Nut Side Diff 2 12 :826/00818 Pin Tension 2 13 :826/01084 Bolt 12 14 :458/70025 Gear crown wheel & pinion 9T/31T (Purple) 1 15 :907/09200 Bearing Taper Roller 2 16 :448/26304 Washer Thrust (115.5mm x 154mm x 5mm) 1 17 :448/26305 Bush 1 18 :448/26302 Sleeve 1 19 :828/00369 O Ring seal 1 20 :448/26303 Dowel ring 2 21 :448/56161 Mounting Trunnion Assy 1 22 :448/26307 Bolt retaining 1 23 :816/60056 Nipple Grease 1 24 :458/10865 Differential G.A. LSD 1 25 ::458/10866 Casing Differenetial Assy 1 26 ::808/00210 Washer thrust Pinion 2 28 ::448/05408 Pin Trunnion 1 29 ::2102/0816 Pin Tension 1 30 ::826/01586 Bolt (M8 x 80) 8 31 ::448/35800 Pinion gear diff assy 1 32 ::450/20401 Plate pressure 2 33 ::450/20402 Plate friction 8 34 ::450/20403 Plate counter 10 35 ::921/52100 Kit shim 2
