MASSEY FERGUSON MF 220/220-4 COMPACT TRACTOR - 651426EA 651426EA TABLE OF CONTENT 00 Ref00 Page00
MASSEY FERGUSON MF 220/220-4 COMPACT TRACTOR - 651426EA 651426EA TABLE OF CONTENT 00 Ref00 Page00
MF 220/220-4 COMPACT TRACTOR - 651426EA 31 2 17 18 19 9 7 15 16 11 6 20 10 5 30 21 8 3 4 26 27 29 28 12 Ref2 Page2
MASSEY FERGUSON MF 220/220-4 COMPACT TRACTOR - 651426EA 651426EA CYLINDER BLOCK - 220, 220-4 2 ItemPart NumberQtyDescription Comments 220, 220-4 1 Kit DIESEL ENGINE (A) 3439720M911 Short Engine 2 3282289M911 Cylinder Block 3 3280112M16 Bolt 4 3280117M12 Bearing 5 3280551M11 Connector 6 3280118M11 Shaft 7 3280119M11 Plug Diameter 58MM 8 3280120M12 Plug Diameter 14MM 9 3280121M13 Plug Diameter 40MM 10 390789X13 Stud 11 390789X12 Stud 12 3280940M14 Stud 15 3280944M14 Stud 16 1440690X12 Pin 17 3280932M11 Pin 18 3280102M11 Plug 19 3280784M11 Gasket 20 3280115M12 Plug 21 3280500M12 Pin 26 3280093M11 Gasket 27 3280550M11 Cover 28 1440712X12 Screw 29 3280072M12 Washer 30 3280549M11 Rod 31 3280934M11 Pin (A) NOT SERVICED Ref2 Page2
MF 220/220-4 COMPACT TRACTOR - 651426EA 15 16 19 18 1 39 39 39 39 39 39 4 5 30 32 8 6 31 33 43 29 26 40 40 38 41 17 2 3 7 24 44 44 44 42 25 27 34 37 28 Ref5 Page5
MASSEY FERGUSON MF 220/220-4 COMPACT TRACTOR - 651426EA 651426EA CAMSHAFT AND TIMING GEAR - 220, 220-4 5 ItemPart NumberQtyDescription Comments 220, 220-4 1 3282486M11 Camshaft 2 3280929M11 Key 3 3280154M11 Plate 4 339123X12 Screw Metric 5 3280153M11 Gear 6 1442558X11 Bolt 7 339376X11 Lock Washer 8 3280148M11 Washer 3280149M911 Gear 1 Gear Not serviced, order 3280149M91 16 3280151M11 Bearing 17 3280146M11 Washer 18 1442558X11 Bolt 19 339376X11 Lock Washer 3280100M911 Cover 24 1 Cover Not serviced, order 3280100M91 25 3280091M11 Seal 26 391000X14 Stud 27 3280092M11 Point 28 3280103M911 Plate 29 3280101M11 Injector 30 391000X13 Stud 31 3280090M11 Gasket 32 3280089M11 Gasket 33 3004509X11 Plough Bolt 34 339123X13 Screw Metric 37 3280196M11 Bracket 38 339368X11 Bolt Metric 39 353446X1ARLock Washer 40 1440203X18 Nut Metric 41 339008X14 Bolt Metric 42 339011X12 Bolt Metric 43 339291X15 Bolt Metric 44 390972X114 Washer Metric Ref5 Page5
MF 220/220-4 COMPACT TRACTOR - 651426EA 4 7 1 8 6 5 19 38 16 16 17 17 15 30 12 33 32 31 35 13 43 18 18 4847 4849 39 20 36 21 2 3 14 22 23 24 40 44 44 46 45 34 Ref6 Page6
MASSEY FERGUSON MF 220/220-4 COMPACT TRACTOR - 651426EA 651426EA
RODS, CRANKSHAFT
220-4 6 ItemPart NumberQtyDescription Comments 220, 220-4 1 3281193M12 Piston 3281194M12 Piston 2 3281148M12 Piston Pin 3 3280132M14 Ring 4 3439721M912 Ring 3281196M912 Kit, Ring 5 3281925M912 Rod End 6 3280573M12 Bolt 7 3280138M11 Bush 8 3280135M14 Bearing 3280136M14 Bearing 3280137M14 Bearing 12 3281149M911 Crankshaft 13 3280144M11 Gear 14 3280001M12 Key 15 3280931M11 Pin 16 3280122M11 Kit, Bearing 17 3 Bearing Not serviced, order 3280122M1 18 3 Bearing Not serviced, order 3280122M1 16 3280123M11 Kit, Bearing 17 3 Bearing Not serviced, order 3280123M1 18 3 Bearing Not serviced, order 3280123M1 16 3280124M11 Kit, Bearing 17 3 Bearing Not serviced, order 3280124M1 18 3 Bearing Not serviced, order 3280124M1 19 3280125M11 Parts Pack 20 4 Flange Not serviced, order 3280125M1 19 3280978M11 Parts Pack 20 4 Flange Not serviced, order 3280978M1 21 3280947M14 Pin 22 3280525M11 Pulley 23 3280140M11 Washer 24 1441611X11 Nut Metric 30 3280142M11 Flywheel 31 3280141M11 Gear 32 3280930M13 Pin 33 1442558X16 Bolt 34 3436488M11 Bearing 35 3280097M11 Plate 36 3280933M11 Pin 38 3280095M11 Cover 39 3280098M11 Seal 40 3280096M11 Gasket 43 391001X13 Stud 44 353446X13 Lock Washer 45 1440203X13 Nut Metric 46 339008X13 Bolt Metric 47 339187X13 Bolt Metric 48 339369X17 Lock Washer 49 1440218X14 Nut Metric Ref6 Page6
PISTONS, CONNECTING
AND FLYWHEEL - 220,
MF 220/220-4 COMPACT TRACTOR - 651426EA 51 40 40 57 11 38 18 59 19 58 43 43 49 42 42 55 50 45 48 56 47 44 41 36 3937 46 27 26 25 20 24 29 2 28 3 6 23 9 10 4 5 7 1 14 12 8 22 21 Ref9 Page9

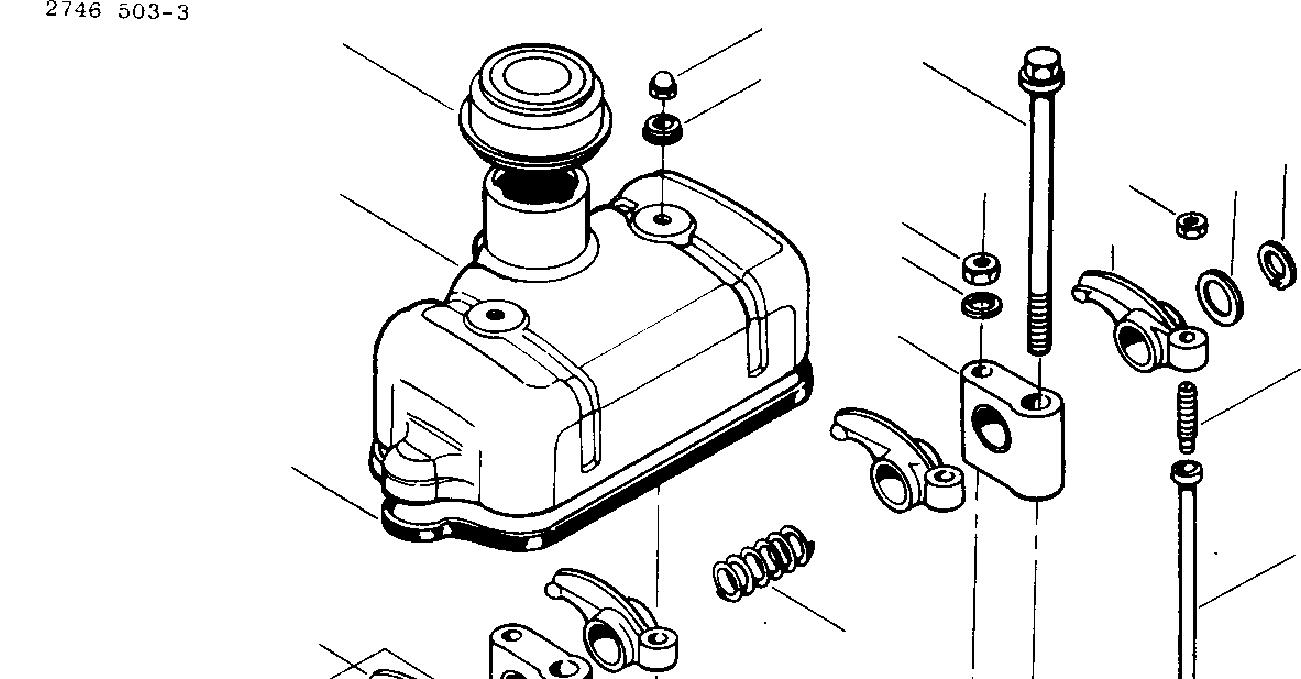

MASSEY FERGUSON MF 220/220-4 COMPACT TRACTOR - 651426EA 651426EA CYLINDER HEAD - 220, 220-4 9 ItemPart NumberQtyDescription Comments 220, 220-4 1 3281190M911 Cylinder Head 2 3280057M14 Guide 3 3280054M12 Stud 4 3280055M11 Cover 5 3280056M11 Gasket 6 3280058M13 Plug Diameter 18MM 7 3280059M16 Stud 8 3280060M11 Stud 9 390379X14 Bolt Metric 10 353446X14 Lock Washer 11 3280312M14 Plug Diameter 20MM 12 3280547M12 Pin 14 3280923M12 Valve 18 3284919M11 Gasket 19 3280053M12 Bolt 20 3280052M110 Bolt 21 3280046M12 Valve 22 3281972M12 Valve 23 3280051M14 Seal 24 3280049M14 Spring 25 3280048M14 Spring 26 3280050M14 Retainer 27 3280023M18 Lock 28 3280558M12 Thermostat 29 3280559M11 Plate 3280061M911 Valve 36 3280062M11 Shaft 37 3280064M911 Bracket 38 3280068M11 Bolt 39 1443847X11 Ring 40 3280063M914 Arm 41 3280975M11 Bush 42 3280069M12 Plate 43 1441970X12 Circlip 44 3280066M11 Spring 45 3280065M11 Bracket 46 3280145M14 Valve 47 3280147M14 Stem 48 3280067M14 Bolt 49 3280070M14 Nut 50 339376X12 Lock Washer 51 1441409X12 Nut Metric 55 3281587M911 Cover 56 3280071M11 Gasket 57 3280074M11 Cap 58 3280072M12 Washer 59 3005908X12 Nut Ref9 Page9
MF 220/220-4 COMPACT TRACTOR - 651426EA 13 13 7 22 24 25 37 37 37 37 4 31 27 43 26 12 12 12 34 32 54 47 45 44 56 56 58 58 29 28 11 10 14 59 30 36 2 9 3 8 56 21 1 33 35 35 46 53 50 49 48 52 52 51 51 55 55 Ref10 Page10
MASSEY FERGUSON MF 220/220-4 COMPACT TRACTOR - 651426EA 651426EA LUBRICATING SYSTEM - 220, 220-4 10 ItemPart NumberQtyDescription Comments 220, 220-4 1 3280189M911 Head 2 1 Housing Not serviced, order 3280189M91 3 3280191M11 Insert 4 3280192M11 Spring 5 3280193M11 Bolt 6 3280194M11 O Ring 7 3280187M11 Gasket 8 1440712X13 Screw 9 391898X12 Bolt Metric 10 3280185M911 Filter 11 3281969M911 Tube 12 1444745X14 Ring 13 3280188M12 Bolt 14 3280026M11 Switch,Indirect 3280556M911 Oil Pump 21 3280179M11 Body 22 3280180M11 Cover 3280557M911 Shaft 24 1 Shaft Not serviced, order 3280557M91 25 3280181M11 Parts Pack 26 3280184M11 Pin 27 3280183M11 Pin 28 3280182M11 Gear 29 339666X12 Screw Metric 30 353441X12 Lock Washer 31 3280177M11 Gasket 32 3280915M11 Tube 220 33 3281378M911 Tube 220-4 34 3282201M11 Gasket 35 339123X12 Screw Metric 36 339132X13 Screw 37 353446X15 Lock Washer 43 3282441M911 Housing 220 INCL. REF. 44 TO 46 (A) 43 3282200M911 Housing 220 (B, C) 44 3281926M16 Stud 220 45 3280498M11 Adaptor 220 46 391001X13 Stud 220 47 3281904M911 Housing 220-4 48 3281926M16 Stud 220-4 49 3280498M11 Adaptor 220-4 50 391001X13 Stud 220-4 51 3280104M11 Plug 52 3280105M11 Gasket 53 3280499M11 Gauge 220 54 3281377M11 Gauge 220-4 55 339084X17 Bolt Metric 220 339084X19 Bolt Metric 220-4 56 353446X113 Lock Washer 58 3281144M16 Screw 220 3281144M14 Screw 220-4 59 390972X15 Washer Metric (A) From Serial or Engine Number 00354 (B) Up to Serial or Engine Number 00354 (C) Repairs and replaces 3282441M91 Ref10 Page10
MF 220/220-4 COMPACT TRACTOR - 651426EA 5 9 4 6 10 22 29 24 27 30 32 28 26 33 31 25 3 2 23 7 8 Ref13 Page13
MASSEY FERGUSON MF 220/220-4 COMPACT TRACTOR - 651426EA 651426EA GASKET KITS (ENGINE) - 220, 220-4 13 ItemPart NumberQtyDescriptionComments 220, 220-4 3281973M11 Kit, Joint 2 3284919M11 Gasket 3 3280056M11 Gasket 4 3280071M11 Gasket 5 3280080M11 Gasket 6 3280083M12 Gasket 7 3280084M11 Gasket 8 3280173M11 Gasket 9 3280174M11 Gasket 10 3280025M12 Gasket 3282199M911 Kit, Joint 22 3280089M11 Gasket 23 3280090M11 Gasket 24 3280093M11 Gasket 25 3280096M11 Gasket 26 3280105M11 Gasket 27 3281924M11 Gasket 28 3280156M11 Gasket 29 3280177M11 Gasket 30 3282201M11 Gasket 31 3280187M11 Gasket 32 3280194M11 O Ring 33 1444745X14 Ring Ref13 Page13
MF 220/220-4 COMPACT TRACTOR - 651426EA 56 61 62 59 52 63 63 50 28 58 23 64 10 25 11 323130 33 39 38 37 3 6 9 1413 15 7 51 42 54 55 4543 44 5 2 8 4 40 41 24 29 57 53 27 26 12 Ref14 Page14
MASSEY FERGUSON MF 220/220-4 COMPACT TRACTOR - 651426EA 651426EA RADIATOR AND WATER PUMP - 220, 220-4 14 ItemPart NumberQtyDescription Comments 220, 220-4 2 3280517M911 Radiator 3 3280783M11 Radiator Cap 4 3280801M11 Deflector 5 3282061M11 Screen 6 3280808M11 Tube 7 3280102M11 Plug 8 3280784M11 Gasket 9 3280802M11 Protector 10 3282395M11 Hose 11 832713M14 Clamp (TYPE F) 12 1440711X14 Bolt Metric 13 353446X14 Lock Washer 14 390972X14 Washer Metric 15 3280650M11 Hose 23 3280162M911 Water Pump 24 3280166M11 Hub 25 3280165M11 Shaft 26 3280164M11 Seal 27 3280163M11 Turbine Wheel 28 3280156M11 Gasket 29 1440712X12 Screw 30 390972X14 Washer Metric 31 353446X16 Lock Washer 32 1440203X13 Nut Metric 33 3280555M11 Support 37 339168X13 Bolt Metric 38 353446X12 Lock Washer 39 3280160M11 Pulley 40 3280157M11 Belt 41 3280508M11 Spacer 42 3280507M11 Fan 43 3280504M11 Plate 44 3280509M14 Screw 45 353441X14 Lock Washer 50 3281591M11 Housing 51 3005263X12 Stud 52 3280173M11 Gasket 53 391898X13 Bolt Metric 54 3007617X11 Screw 55 353446X11 Lock Washer 56 390972X11 Washer Metric 57 3280169M11 Water Hose 58 3280171M12 Clamp 59 3281590M11 Flange 61 3280574M11 Thermostat 62 3280174M11 Gasket 63 353446X12 Lock Washer 64 1440203X12 Nut Metric Ref14 Page14
Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL.NOWAITING
NOTE:
If there is no response to click on the link above, please download the PDF document first and then clickonit.
MF 220/220-4 COMPACT TRACTOR - 651426EA 41 14 7 34 34 32 33 21 40 8 43 43 18 18 22 6 5 4 3 13 24 12 2 4445 42 19 37 15 16 17 3839 20 23 35 36 30 Ref17 Page17
MASSEY FERGUSON MF 220/220-4 COMPACT TRACTOR - 651426EA 651426EA AIR INTAKE AND EXHAUST - 220, 220-4 17 ItemPart NumberQtyDescription Comments 220, 220-4 3280520M921 Air Filter (A) 2 1 Body Not serviced, order 3280520M92 3 579873M11 Air Fitr.Element 4 3280780M11 Nut 5 3280781M11 Baffle 6 3280800M11 Cap 7 3280782M11 Clamp 8 773101M11 Filter Element (A) 3280520M911 Cleaner (B) 2 1 Body Not serviced, order 3280520M91 3 579873M11 Air Fitr.Element 4 3280780M11 Nut 5 3280781M11 Baffle 6 3280800M11 Cap 7 3280782M11 Clamp 12 3282202M11 Clamp 13 391931X12 Bolt Metric 14 3282203M11 Pipe 15 832713M11 Clamp (TYPE F) 16 3280082M11 Bracket 17 391836X13 Bolt Metric 18 832713M12 Clamp 19 3280076M11 Water Hose 20 3280079M11 Manifold 21 3280080M11 Gasket 22 339376X13 Lock Washer 23 1441409X13 Nut Metric 24 353446X12 Lock Washer 30 3280522M911 Manifold 32 3280938M13 Stud 33 3280083M12 Gasket 34 339376X14 Lock Washer 35 1441409X14 Nut Metric 36 3280084M11 Gasket 37 3282204M11 Muffler 38 339376X13 Lock Washer 39 1441409X13 Nut Metric 40 3280087M11 Pipe 41 3280088M11 Clamp 42 390246X11 Bolt 43 390972X12 Washer Metric 44 353446X11 Lock Washer 45 1440203X11 Nut Metric (A) From Serial or Engine Number 01309, 01671 (B) Up to Serial or Engine Number 01309, 01671 Repairs and replaces 3280520M92 Ref17 Page17
MF 220/220-4 COMPACT TRACTOR - 651426EA 4 3 2 1 25 33 31 30 6 5 24 7 35 9 8 12 15 32 21 23 34 14 13 11 10 26 22 27 Ref18 Page18
