Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 722 00833001 00833111 ADT 9802/4210 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4210 B1-1-20 CHASSIS & FITTINGS FRONT Item Part # Change No Description Usage Code QTY 1 335/06302 Chassis front WA 1 2 **** 'See Remark' Fronttransmissionmount,seeindexF5 1
3 **** 'See Remark' Reartransmissionmount,seeindexF5 1 4 335/00859 Beam cab mounting 1 5 **** 'See Remark' Rearenginemounting,seeindexU1 2 6 335/05521 Bracket fender support LH 1 7 335/05522 Bracket fender support RH 1 8 335/04062 Bracket support WA filter and valve 1 9 1315/0412Z Bolt M10 x 1.5 x 50 4 12 1315/3814Z Bolt M20 x 60mm 2 13 1420/0012Z Washer M20 4 14 1370/0703Z Nut LOCK NUT (M20) 2 15 335/01269 Bracket headlight 2 16 2410/1214 Grommet 2 17 **** 'See Remark' Frontworklight,seeindexC1 2 18 331/19953 Boss tapped 2 19 1315/0405Z Setscrew M10 x 20 mm 2 20 1315/0408Z Setscrew M10 x 30 2 21 1420/0008Z Washer (M10) 10 22 1370/0303Z Nut lock M10 4 23 274/00772 Bracket support LHSteerPivot 1 24 821/00481 Clip 'P' 2 25 821/00467 Clip 'p' 1 26 331/19456 Shield frame 2 27 331/21505 Rubber wheel arch 2 28 926/16100 Strip seal anti recirculation 1.6Mlong 0 29 331/45319 Bracket mounting transmission hoses 1 30 821/10169 Clamp dia 38mm Usewithitem31 1 31 821/00271 Plate cover M8 x 65mm Usewithitem30 1 32 821/00285 Clamp 21.3mm/21.3mm holes 37mm high usewithitem33 1 33 821/00237 Plate cover M8 x 45mm usewithitem32 1 34 1315/3322Z Bolt hex. 1
Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 722 00833001 00833111 ADT 9802/4210 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4210 B1-2-20 CHASSIS, REAR Item Part # Change No Description Usage Code QTY 1 335/90080 Superseded Chassis rear 1 1 332/U1503 Chassis rear 1 Chassis rear
1 335/07448 Mechanicaltailgateinstallationonly 1 1A 331/43416 Plate support Weldedto335/90080toproduce335/07448 4 2 **** 'See Remark' LiftramsSeeIndexE4 2 3 811/90562 Pin pivot Was811/50571 2 4 911/26600 Pin pivot 50mm x 142mm Lg. 2 5 829/30795 Spacer 8 6 1370/0303D Nut Self Lock M10 2 7 1420/0008D Washer (M10) 4 8 830/00599 Spacer 2 9 1412/0007D Washer (5/8" Large) 2 10 1315/0709D Screw M16x35 long 2 11 1420/0011D Washer (M16) 2 12 1315/3422Z Bolt M10 x 120 2 13 331/29298 Plate brake mounting 1 14 1315/3510D Bolt M12 x 40 6 15 1420/0009D Washer (M12) 6 16 1370/0403D Nut Lock M12 6 17 **** 'See Remark' RearSuspensionSeeIndexS2 1 18 811/90195 Pin Pivot Integral Greasing 2 19 1315/3522D Bolt M12x120 2 20 1370/0403D Nut Lock M12 2 21 331/37814 Pad upper axle machining 4 22 331/37815 Pad lower axle machining 4 23 1316/3933 Bolt M22 x 260mm 32 24 1371/0803 Nut self lock M22 32 25 331/41023 Bracket panard mtg 2 26 335/05608 Plate mounting WA 2 27 831/10288 Bearing liner SeeNote1 4 28 331/43050 Bracket Valve 1 28 331/54353 Bracket Valve Salesspecial7246SeeNote2 1 29 1315/0408D Setscrew M10 x 30 4 30 1425/0008D Washer Spring M10 4 31 274/01017 Shim 1 mm 4 Note 1: Fit 2 bearings into chassis pivot (LH & RH), fit 2 bearings into body pivot (LH & RH) Note 2: Fitted to sales special machine M833087
Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 722 00833001 00833111 ADT 9802/4210 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4210 B1-3-20 INTERFRAME & PIVOTS Item Part # Change No Description Usage Code QTY 1 283/52006 Tube assembly,interframe 1 2 907/20007 Bearing taper, assembly 1 3 826/10436 Retainer 1
31
37
39
40
43
45
35
41
42
46
4 811/90146 Pin pivot 1 5 826/10435 Plate keep 1 6 829/30491 Spacer 1 7 826/10437 Bolt M16 x 240mm 1 8 1412/0007D Washer (5/8" Large) 2 9 1370/0605D Nut 1 10 2103/1111 Pin Split 1 11 813/00416 Seal 90mm Internal Dia 2 12 1450/0001 Nipple Grease, Straight 1/8 BSP 2 13 1315/0509D Screw M12x35mm 6 14 1420/0009D Washer (M12) 6 15 911/40069 Pin pivot 1 16 809/00136 Bush 75x66 1 17 819/00103 Shim 1mm thick 75mm I.D 8 18 1315/0710D Setscrew M16 x 40mm 4 19 1412/0007D Washer (5/8" Large) 6 20 830/00599 Spacer 6 21 1450/1007 Nipple Grease 1 22 813/00415 Seal Pivot Pin 1 23 911/40081 Pin pivot steer 2 24 819/00033 Shim 0 25 823/10263 Washer thrust 0 26 809/00114 Bearing liner 60 x 50 X 52 2 27 813/00426 Seal Pivot Pin 50X60X5 4 28 811/50571 Pin pivot 2 29 1315/0710Z Setscrew 2 30 **** 'See Remark' Steerram,seeindexE4 2 816/80060 Plug 1 32 1406/0018 Washer Bonded (1/2" BSP) 1 33 816/80058 Plug 1 34 903/20714 Tube breather extension 1 903/20707 Adapter block 1 36 1315/3522D Bolt M12x120 4 1420/0009D Washer (M12) 4 38 1370/0403D Nut Lock M12 4 335/90109 Superseded Bracket support steer rams 1 39 332/T4169 Bracket support steer rams 1 911/40085 Pin pivot WA 2 1315/0709D Screw M16x35 long 2 331/37171 Plate keep 2 1315/0812D Setscrew M20 x 50mm 2 1420/0012D Washer Plain M20 2 331/15385 Bearing plastic 250mm I/D, 320mm O/D Centrepivot 2 904/20148 Seal 325 i/d Centrepivot 4
44
Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 722 00833001 00833111 ADT 9802/4210 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4210 B1-4-1 TANK FUEL & FITTINGS Item Part # Change No Description Usage Code QTY A 283/72010 Tank fuel ABI Standardmachinebuild 1 A 283/12110 Tank fuel ABI 1
Note 1: Sales Special fitted to machine serial numbers 830269, 830272, 830273 & 830274 only. Note 2: Not available for Sales Special machines listed in Note 1
SeeNote1 1 :335/03687 Tank fuel WA SeeNote2 1 2 :32/925390 Plug Drain G1A Was123/08086 1 3 :123/05892 Cap filler, lockable supplied without key 1 4 :331/15769 Plate cover 1 5 :1315/0307D Setscrew M8 x 25 mm Torqueto28Nm 10 6 :1420/0007D Washer (M8) 10 7 :716/30189 Sender fuel 1 8 :813/10225 Gasket 1 9 :331/15770 Gasket 1 10 :826/01828 Nut rivet 10 11 **** 'See Remark' Notrequired 1 12 1315/0712D Setscrew M16 x 50mm 3 13 1420/0011D Washer (M16) 6 14 1370/0603D Nut Lock Nut, M16 3 15 1315/3516Z Bolt M12 x 70mm 2 16 1420/0009D Washer (M12) 4 17 1370/0403D Nut Lock M12 2 19 926/04800 Strip Edging 0 20 1315/0105Z Setscrew M5 x 20 4 21 1420/0005Z Washer (M5) 4
Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 722 00833001 00833111 ADT 9802/4210 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4210 B1-5-20 TANK, HYDRAULIC & BATTERY COVER Item Part # Change No Description Usage Code QTY A 283/75014 Tank hydraulic ABI 1 1 :335/07210 Tank hydraulic WA 1 1A 816/00190 Cap 1
2 :331/15769 Plate cover 1 3 :331/15770 Gasket 1 4 :826/01828 Nut rivet 10 5 :1315/0307D Setscrew M8 x 25 mm Torqueto28Nm 10 6 :1420/0007D Washer (M8) 10 7 :32/901100 Strainer Suction 1 8 :123/08053 Gauge Sight 50mm 1 9 32/925334 Cap hydraulic filler breather 1 10 :32/925390 Plug Drain G1A Was123/08086 1 11 :1370/0403D Nut Lock M12 1 12 :331/28037 Cover battery 1 13 826/00752 Catch 1 14 828/00261 Buffer (stop),Rubber 1 15 162/02540 Hinge 1 16 826/01486 Screw Socket Button Head 4 17 1411/0002Z Washer (5/16" Medium) 8 18 1370/0203D Nut Lock M8 4 19 1315/0103D Setscrew M5 x 16mm 2 20 1370/0003D Nut Lock M5 1 21 1414/0011D Washer plain 2BA 2 22 1315/0712D Setscrew M16 x 50mm 3 23 1420/0011D Washer (M16) 6 24 1370/0603D Nut Lock Nut, M16 3 26 1420/0009D Washer (M12) 4 27 1370/0403D Nut Lock M12 2 28 162/01930 Spacer 2 29 926/04817 Strip edging Approx.305mmx2 0 30 926/04700 Seal Strip 480mmlong 0 35 1315/0212D Screw Batteryclamping 1 36 1370/0101D Nut Plain M6 Batteryclamping 1
Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 722 00833001 00833111 ADT 9802/4210 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4210 B1-6-1 BONNET & FITTINGS Item Part # Change No Description Usage Code QTY 1 283/72005 Bonnet ABI Excludessoundproofing 1 1A :826/10530 Fastener bonded 28
1B 926/17000 Seal Self Adhesive 13mm Diameter Aprox4metreslong 0 2 331/38690 Strut gas 2 3 331/36885 superseded Bracket mounting 1 3 332/U1164 Bracket mounting 1 4 1315/0408D Setscrew M10 x 30 1 5 1420/0008D Washer (M10) 11 6 331/26367 Pin striker 1 7 331/33357 Bracket hinge RH 1 8 331/31317 Bracket hinge LH 1 9 811/90368 Pin pivot 2 10 1315/0201D Setscrew Set M6x12 2 11 817/17580 Plate JCB badge yellow on black 1 12 1370/0301D Nut (M10) 10 13 1370/0201D Nut Plain M8 4 14 1420/0007D Washer (M8) 4 15 826/10831 Latch Bonnet 1 16 910/60130 Superseded Cable bonnet release 1 16 910/60224 Superseded Cable bonnet release 1 16 332/S3723 Cable bonnet release 1 17 331/33022 Grille front 1 17A 926/46900 Strip rubber edging 1600mmlongx2off 0 18 331/33091 Grille side LH 1 19 331/33093 Grille side RH 1 20 335/04441 Tube bonnet mounting WA 1 21 1370/0101Z Nut (M6) 3 22 1410/0001Z Washer (1/4") 3 23 1425/0006Z Washer Spring (M6) 3 24 331/31149 Panel sealing LH 1 25 331/31150 Panel sealing RH 1 26 335/04457 Superseded Bracket bonnet WA RH 1 26 335/08153 Bracket bonnet WA RH 1 27 335/04458 Superseded Bracket bonnet WA LH 1 27 335/08154 Bracket bonnet WA LH 1 28 335/06054 Plate top cowl 1 29 1315/0308Z Setscrew M8 x 30 4 30 823/00326 Washer M10 X 30mm 4 31 1370/0203Z Nut Nut M8 4

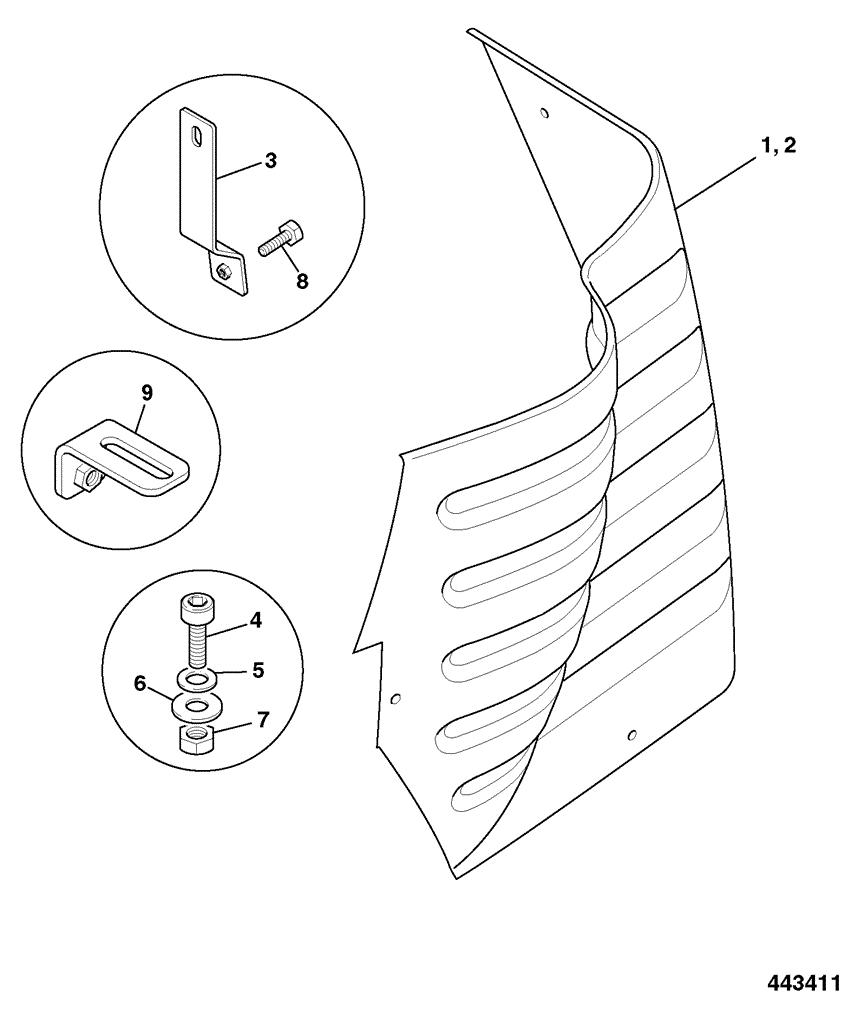

Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 722 00833001 00833111 ADT 9802/4210 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4210 B1-7-20 SIDE COVERS Item Part # Change No Description Usage Code QTY 1 331/36497 <M832080 Cover side RH 718Machine 1 1 **** <M833042 'See Remark' 1
722Machine 1 346/00074 Cover side RH 1 2 331/36498 <M832080 Cover side LH 718Machine 1 2 **** <M833042 'See Remark' 722Machine 1 2 346/00073 Cover side LH 1 3 331/36493 Bracket mounting 2 4 826/01487 Socket Screw M8 x 25mm 6 5 123/04791 Washer Nylon (M8) 6 6 1412/0002D Washer (5/16" Large) 8 7 1370/0201D Nut Plain M8 6 8 1315/0307D Setscrew M8 x 25 mm 4 9 335/07832 >M832080 Bracket side covers 718Machine 4 9 **** >M833042 'See Remark' 722Machine 4
Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 722 00833001 00833111 ADT 9802/4210 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4210 B1-9-20 BODY & FITTINGS REAR Item Part # Change No Description Usage Code QTY 1 335/03722 Body rear 1 1 335/07447 Body rear WA Mechanicaltailgateinstallationonly 1
2 331/29897 Pad body shock 4 2A 331/33737 Shim 1.0mm thick 0 2A 331/45338 Shim 5.0mm thick 0 4 1315/3413D Bolt M10 x 55mm 24 5 1420/0008D Washer (M10) 48 6 1370/0303D Nut Self Lock M10 24 7 331/37078 Shim spacer Nominal8offperside 0 8 331/37077 Guide bracket 2 9 191/00387 Spacer 4 10 331/37192 Plate 1 11 1315/0507D Setscrew M12 x 25 mm 4 12 1420/0009D Washer (M12) 4 13 331/37207 Plate number plate rear view camera 1 13A 2410/1111 Grommet Black blind 3 13B 2410/0113 Grommet 15.9mm dia 1 14 1315/3409D Bolt M10 x 35mm long 4 15 1420/0008D Washer (M10) 4 16 826/01307 Nut rivet 4 17 265/02175 Stop bump 4 18 1412/0003D Washer (3/8" Large) 4 19 2203/1089 Circlip 2 20 922/01200 Bearing spherical 2 21 1315/3716D Bolt M16 x 70 2perside 4 22 1420/0011D Washer (M16) 4perside 8 23 1370/0603D Nut Lock Nut, M16 2perside 4 23A 1370/0602D Nut thin M16 2perside 4 24 1315/3716D Bolt M16 x 70 2perside 2 25 831/10288 Bearing liner 2
Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 722 00833001 00833111 ADT 9802/4210 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4210 B1-10-1 STEPS CAB ACCESS Item Part # Change No Description Usage Code QTY 1 331/22800 Step Metal Tread 2perside 4 2 331/36245 Strip support flexi step 4
2perside 3 1315/3411D Bolt M10 x 45 mm Long 4 4 823/00322 Washer (8.5mm x 24mm x 2mm) 8 5 823/00326 Washer M10 X 30mm 4 6 1315/0309D Setscrew M8 x 35 mm 8
Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 722 00833001 00833111 ADT 9802/4210 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4210 B1-11-20 BELLY PLATES Item Part # Change No Description Usage Code QTY 1 335/05307 Plate belly guard WA front 1 1A 331/36761 Panel soundproofing front 1 2 335/04787 Plate belly WA middle 1
Thank you very much for your reading. Please Click Here. Then Get COMPLETE IfNOTE:MANUAL.NOWAITINGthereisnoresponse to click on the link above, please download the PDF document first and then clickonit. GET MORE OTHER MANUALS https://www.aservicemanualpdf.com/ GET MORE OTHER MANUALS https://www.aservicemanualpdf.com/
2A 331/36762 Panel soundproofing middle 1 3 335/04785 Plate belly WA rear 1 4 331/17036 Plate access cover 1 5 283/52007 Retainer belly plate rope 1 6 1315/0509D Screw M12x35mm 12 7 1420/0009D Washer (M12) 3 8 1315/0410D Setscrew M10 x 40mm 2 9 1315/0408D Setscrew M10 x 30 2 10 1370/0303D Nut Self Lock M10 3 11 1420/0008D Washer (M10) 3 12 1412/0005D Washer (1/2" Large) 9 13 1412/0004D Washer 7/16" Large 1 14 826/01308 Button Fastener 9
Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 722 00833001 00833111 ADT 9802/4210 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4210 B1-12-1 SOUNDPROOFING BONNET Item Part # Change No Description Usage Code QTY 1 331/36754 Panel soundproofing top front 1 2 331/36756 Panel soundproofing side rear LH 1 3 331/36757 Superseded Panel soundproofing side rear RH 1
3 331/39820 Panel soundproofing side rear RH 1 4 331/36758 Panel soundproofing middle side RH 28 5 331/36759 Panel soundproofing middle side LH 1 6 331/36760 Panel soundproofing top 1 7 826/01308 Button Fastener 47
