Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 712 37 00612001 00612369 ADT 9802/4100 \ B BODYWORK,CAB,LOADER END REFURBISHMENTS \ B01 BODYWORK/FRAME 9802/4100 B1-1-5 CHASSIS CENTRE PIVOT
Item Part # Change No Description Usage Code QTY 1 280/10500 Pivot chassis 1 2 280/10401 Pin pivot 2 3 1450/1001 Nipple grease 90deg. angle 2 4 808/00242 Bearing pivot 4 5 808/00243 Washer thrust 2 6 280/10403 Plate clamp 1 7 813/00250 Seal V 2 8 280/11900 Ring slew 1 8A :280/11901 Kit seal 1 9 280/10405 Spacer 20 10 280/10406 Spacer 12 11 1305/0210Z Bolt 6 12 1411/0003Z Washer medium 6 13 1305/0614Z Bolt 1 14 1411/0007Z Washer 5/8 1 15 826/00903 Bolt 40 16 826/00904 Nut self lock 20 17 1305/3232Z Bolt 2 18 1340/0203Z Nut Lock 3/8" UNF 2 19 1410/0002Z Washer (5/16" Small) 2 20 813/00247 Seal V 4 21 819/00040 Shim 1.00/1.05mm 0 22 811/50079 Pin pivot Forfrontpin,seechassis&fittings,front 2
Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 712 37 00612001 00612369 ADT 9802/4100 \ B BODYWORK,CAB,LOADER END REFURBISHMENTS \ B01 BODYWORK/FRAME 9802/4100 B1-1-13 SOUNDPROOFING KIT
Item Part # Change No Description Usage Code QTY 1 280/32305 Panel absorber bottom panel 2 2 280/43300 Duct bottom panel 1 3 1305/0002Z Setscrew (1/4" UNF x 1/2") 3 4 1411/0001Z Washer (1/4" Medium) 8 5 280/18308 Panel absorber 1 6 280/43400 Duct front panel 1 7 926/01100 Strip sealing Approx1250mm(4'1") 0 8 280/43500 Duct side panel LH 1 9 280/43600 Duct side panel RH 1 10 280/32307 Panel absorber duct side 2 11 280/32308 Panel absorber rear top 1 12 280/32303 Panel absorber 2 13 280/32304 Strip retaining 2 14 1430/0102 Screw 8 15 280/32309 Panel absorber bonnet 1 16 280/32306 Panel absorber 1 17 280/18306 Panel absorber 1 18 280/18311 Strip retaining 2 19 G46/3 Rivet 1/8" 4 20 280/18312 Clip 32 21 280/18305 Panel absorber 1 22 280/21700 Guard belly rear 1 23 280/32310 Panel absorber rear panel 1 24 280/32311 Panel absorber rear panel 1 25 281/32500 Cowling bodywork centre 1 26 280/32000 Hinge 1 27 280/31900 Cover Engine 1 28 1411/0002Z Washer (5/16" Medium) 2 29 1305/0102Z Bolt 2 30 1305/0110Z Bolt 4 31 1305/3416Z Bolt 1/2" x 2.1/4" long 4 32 1340/0103Z Nut 5/16" UNF 4 33 1340/0403Z Nut lock 2 34 1410/0002Z Washer (5/16" Small) 8 35 1410/0005Z Washer (1/2") 4 36 280/27600 Pivot tube 1

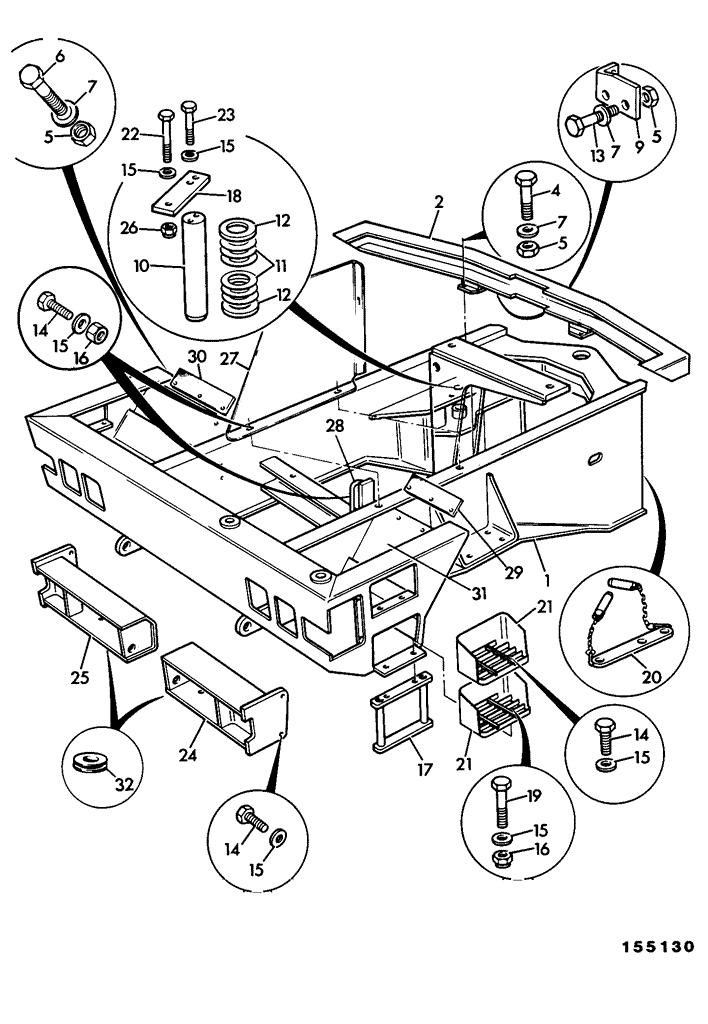

Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 712 37 00612001 00612369 ADT 9802/4100 \ B BODYWORK,CAB,LOADER END REFURBISHMENTS \ B01 BODYWORK/FRAME 9802/4100 B1-2-1 CHASSIS & FITTINGS FRONT
Item Part # Change No Description Usage Code QTY 1 280/31000 <M612349 Chassis front 1 1 280/41800 Chassis front 1 2 280/31200 Bumper rear 1 2 280/40500 Bumper rear, heated body Formachineswithexhaustheatedbody. 1 4 1305/3214Z Bolt 3/8"UNF X 2" 3 5 1340/0203Z Nut Lock 3/8" UNF 11 6 1305/0208Z Bolt 9 7 1411/0003Z Washer medium 9 9 280/10002 Bracket brake pipe 1 10 811/20026 Pin pivot Front 2 10 811/50079 Pin pivot Rear 2 11 819/00040 Shim 1.00/1.05mm 0 12 813/00247 Seal V 8 13 1305/3216Z Setscrew (3/8" UNF x 2 25") 2 14 1305/0206Z Setscrew (3/8" UNF x1") 17 15 1410/0002Z Washer (5/16" Small) 25 16 1340/0203Z Nut Lock 3/8" UNF 12 17 280/37300 Step swinging 2 18 280/01001 Plate retaining 2 19 1305/3212Z Bolt 4 20 280/22000 Stay safety 1 21 280/35800 Step 4 22 1305/3216Z Setscrew (3/8" UNF x 2 25") 2 23 1305/0212Z Bolt 4 24 280/19400 Box headlight L.H 1 25 280/19500 Box headlight R.H 1 26 1340/0203Z Nut Lock 3/8" UNF 2 27 280/01004 <M612304 Guard 1 27 281/10504 Guard 1 28 280/19100 Guide hose 1 29 280/10005 Superseded Guard flap Lefthand 1 29 280/10004 Guard flap 1 30 280/10004 Guard flap Righthand 1 31 280/37600 Superseded Plate filler 1 31 280/10003 Plate 1 32 2410/1111 >M612305 Grommet Black blind 4

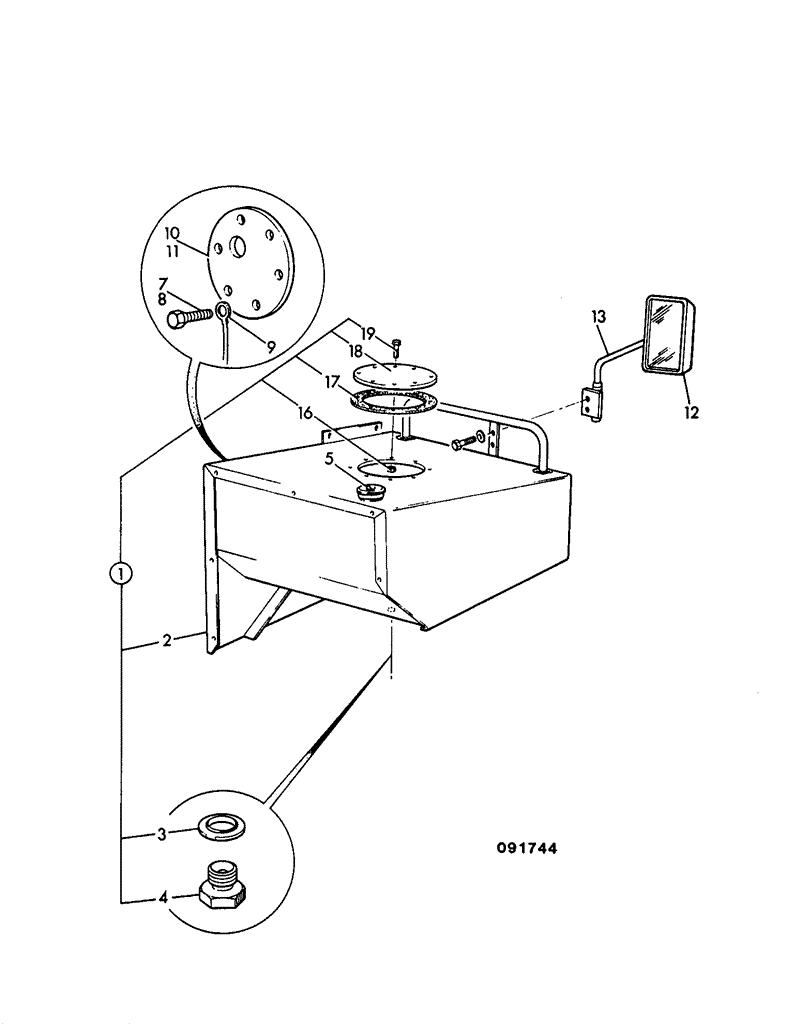

Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 712 37 00612001 00612369 ADT 9802/4100 \ B BODYWORK,CAB,LOADER END REFURBISHMENTS \ B01 BODYWORK/FRAME 9802/4100 B1-2-4 TANK, DIESEL FUEL
Item Part # Change No Description Usage Code QTY 1 280/12100 Tank assembly, fuel 1 2 N.S.P. None serviced part 1 3 1406/0021 Washer Bonded 1 4 816/80011 Plug 3/4BSP 1 5 121/95800 Cap filler c/w padlock lug 1 5A 122/98439 Strainer Diesel Filler 1 7 826/00687 Screw 6 8 813/00302 Seal 6 9 706/77000 <M Lead earth 1 10 704/13300 Sender unit,fuel 1 11 **** 'See Remark' Sealent 0 12 255/28200 Mirror 1 12A :255/28201 Mirror glass 1 13 107/87601 Bracket 1 14 1410/0001Z Washer (1/4") 2 15 1305/0004Z Bolt 2 16 826/00972 Nut Rivet,M6 8 17 813/00360 Gasket 8 Hole 1 18 123/00877 Cover 1 19 826/00953 Bolt 8
Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 712 37 00612001 00612369 ADT 9802/4100 \ B BODYWORK,CAB,LOADER END REFURBISHMENTS \ B01 BODYWORK/FRAME 9802/4100 B1-2-5 BODYWORK
Item Part # Change No Description Usage Code QTY 1 **** 'See Remark' SeeB1 24,fueltank 1 2 **** 'See Remark' SeeB1 23,hydraulictank 1 3 280/31600 Guard mud wing 1 4 **** 'See Remark' SeeB1 26,bodywork centre 1 7 926/04800 Strip Edging 0 8 280/13300 Panel rear 1 9 1305/0206Z Setscrew (3/8" UNF x1") 10 10 1305/0204Z Bolt 3/8" 15 11 1340/0203Z Nut Lock 3/8" UNF 26 12 1411/0003Z Washer medium 31 13 1305/3214Z Bolt 3/8"UNF X 2" 2 16 150/35200 Superseded Latch 5 16 826/01187 Latch 5 18 210/33604 Strut Gas 1 20 1420/0007Z Washer (M8) 2 21 1340/0103Z Nut 5/16" UNF 4 22 1412/0002Z Washer (5/16") 4 23 280/13500 Guard belly 1 24 2410/1202 Grommet blind 2 25 926/04800 Strip Edging 0 26 2410/1002 Grommet 2 27 1305/0410Z <M612304 Bolt 1/2" x 1.1/2" long 2 27 1411/0003Z Washer medium 2 28 280/03002 Spacer 4 29 1410/0005Z <M612304 Washer (1/2") 2 29 1412/0003Z Washer (3/8" Large) 2 30 1340/0403Z Nut lock 2 31 280/22600 Frame grille 1 32 280/22700 <M612334 Grille 1 32 281/17000 Grille 1 33 280/22800 Strut gas 1 34 1370/0203Z Nut Nut M8 2 35 1391/3409Z Capscrew M10 x 35mm 2 36 1305/0404Z Setscrew (1/2" UNF x 3/4") 2 37 1410/0005Z Washer (1/2") 2 38 1305/3112Z Bolt 2 41 280/12701 Panel access 1 42 G46/6 Rivet pop 10 43 2410/0009 Grommet 1
Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 712 37 00612001 00612369 ADT 9802/4100 \ B BODYWORK,CAB,LOADER END REFURBISHMENTS \ B01 BODYWORK/FRAME 9802/4100 B1-2-7 TANK, HYDRAULIC
Item Part # Change No Description Usage Code QTY 1 281/31400 Tank hydraulic, ABI 1 2 :N.S.P. None serviced part 1 3 :1305/0004 Bolt 8 4 :1416/0004 Washer 8 5 :4102/0804 Sealant 5oz 0 6 :816/80011 Plug 3/4BSP 1 7 :1406/0021 Washer Bonded 1 8 :280/37200 Plate cover 1 9 :813/00239 Gasket 8 Hole 1 10 :123/00306 Gauge Sight Hydraulic 1 11 :581/05800 Filter Main Hydraulic AlsoseeindexE2forpartsbreakdown 1 12 ::581/05609 Element filter AlsoseeindexE 1 13 :1305/3426Z Bolt 1 14 :1411/0005Z Washer (1/2" Medium) 1 15 :32/901100 Strainer Suction 1 16 :32/900100 Cap filler assembly 1 16A ::993/99172 Seal hydraulic oil filler 1 18 :122/22701 Stop bump 1 19 :1305/0105Z Bolt 4 20 :1411/0002Z Washer (5/16" Medium) 4 21 :1412/0002Z Washer (5/16") 1 22 :1340/0101Z Nut 1
Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 712 37 00612001 00612369 ADT 9802/4100 \ B BODYWORK,CAB,LOADER END REFURBISHMENTS \ B01 BODYWORK/FRAME 9802/4100 B1-2-8 BODYWORK, CENTRE
Item Part # Change No Description Usage Code QTY 1 281/31800 Bonnet centre 1 2 280/31900 Cover Engine 1 3 280/32000 Hinge 2 4 1305/0102Z Bolt 2 5 1411/0002Z Washer (5/16" Medium) 2 6 281/03002 Spacer 2 7 280/03101 Wire rope 1 8 1305/3116Z Bolt 2 9 1340/0103Z Nut 5/16" UNF 2 10 210/33604 Strut Gas 1 11 1412/0005Z Washer Plain 1/2" 2 12 280/03002 Spacer 4 15 826/01187 Latch 1 16 1340/0203Z Nut Lock 3/8" UNF 2 17 1411/0003Z Washer medium 2 18 1305/0206Z Setscrew (3/8" UNF x1") 2 19 G46/6 Rivet pop 2
Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 712 37 00612001 00612369 ADT 9802/4100 \ B BODYWORK,CAB,LOADER END REFURBISHMENTS \ B01 BODYWORK/FRAME 9802/4100 B1-2-9 CHASSIS, REAR FLATBED
Item Part # Change No Description Usage Code QTY 1 280/38400 Chassis rear flatbed long 71247RTV 1 2 280/39400 Chassis rear flatbed standard 71237RTV 1 3 280/10312 Bracket axle mounting Longflatbed 2 3 281/10209 Bracket axle mounting Standardflatbed 2 4 280/01002 Mounting rear lighting R.H. 1 5 280/01003 Mounting rear light L.H. 1 6 280/01007 Guard brake pipe axle 1 7 1305/0206Z Setscrew (3/8" UNF x1") 10 8 1410/0002Z Washer (5/16" Small) 10 9 1340/0203Z Nut Lock 3/8" UNF 10
Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 712 37 00612001 00612369 ADT 9802/4100 \ B BODYWORK,CAB,LOADER END REFURBISHMENTS \ B02 CAB 9802/4100 B2-1-3 CAB FRAME
Item Part # Change No Description Usage Code QTY 1 N.S.P. None serviced part SeeframeB2 14item1,cabasboughtin 1 2 :281/15200 <M Frame cab 1 2 :281/16500 >M612335 Frame cab 712 1 2 :281/16500 >M614009 Frame cab 716 1 3 :280/15700 <M Door cab 1 3 :281/16100 >M612335 Door cab 712 1 3 :281/16100 >M614009 Door cab 716 1 4 :280/15800 <M Roof cab 1 4 :281/16400 >M612335 Roof cab 712 1 4 :281/16400 >M614009 Roof cab 716 1 5 :1305/0106Z Bolt 5/16"UNF x 1" long 4 6 :1410/0002Z Washer (5/16" Small) 12 7 :281/15101 Plate heater top 1 8 :1340/0103Z Nut 5/16" UNF 4 9 :1305/1704 Bolt 4
Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 712 37 00612001 00612369 ADT 9802/4100 \ B BODYWORK,CAB,LOADER END REFURBISHMENTS \ B02 CAB 9802/4100 B2-1-4 CAB COMPLETE INCLUDING GLASS
Item Part # Change No Description Usage Code QTY 1 281/22300 Cab clear glass complete asboughtin 1 1 281/22400 Cab tinted glass complete asboughtin 1 2 :281/15000 Cab assembly ROPS & FOPS Lessglass,containsitems3to32 1 3 ::N.S.P. None serviced part SeeframeB21 1 1 4 ::280/15002 Superseded Panel door trim 1 4 ::280/15006 Panel door trim 1 5 ::280/15003 Panel R.H trim 1 6 ::280/15004 Panel rear trim 1 7 ::280/15005 Panel L.H trim 1 8 ::120/92808 Bush Hinge 2 9 ::826/00720 Circlip 2 10 ::122/22001 Cap Hinge 2 11 ::926/06800 Superseded Seal weather door Doorseal 0 11 ::926/07800 Seal Rubber, Window/Door 0 12 ::259/46000 Handle locking exterior 1 13 ::120/93002 Key 1 14 ::826/00547 Screw 1 15 ::1420/0006Z Washer (M6) 1 16 ::121/13400 Lock Door 1 17 ::826/00726 Bolt 5 18 ::826/00687 Screw 2 19 ::120/92804 Cover L.H. 1 20 ::120/92807 Knob interior 1 21 ::1391/3205Z Capscrew M6x20 1 22 ::1370/0102Z Nut 1 23 ::120/77505 Bolt closing 1 24 ::826/00622 Nut 1 25 ::823/00224 Washer 2 26 ::107/88000 Mirror interior 1 27 ::1430/1303 Screw 2 28 ::259/17501 Blind sun visor 1 29 ::280/15001 Lining roof Notillustrated 1 30 ::926/04800 Strip Edging 50mm,170mm,&275mmlong 0 31 157/51701 Holder handbook 1 32 1305/0006Z Bolt 4
Thank you very much for your reading. Please Click Here. Then Get COMPLETE IfNOTE:MANUAL.NOWAITINGthereisnoresponse to click on the link above, please download the PDF document first and then clickonit. GET MORE OTHER MANUALS https://www.aservicemanualpdf.com/ GET MORE OTHER MANUALS https://www.aservicemanualpdf.com/
Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 712 37 00612001 00612369 ADT 9802/4100 \ B BODYWORK,CAB,LOADER END REFURBISHMENTS \ B02 CAB 9802/4100 B2-2-1 CAB GLAZING CLEAR
Item Part # Change No Description Usage Code QTY 1 927/15400 Glass sliding assy 1 2 :927/15401 Glass fixed upper 1 3 :927/15402 Glass fixed lower 1 4 :927/15403 Glass sliding 1 5 :927/12308 Catch Alsousedonitem8 1 6 827/20134 Glass side L.H 1 7 827/50084 Windscreen 1 8 927/15600 Glass sliding assy R.H 1 9 :927/15601 Glass fixed 1 10 :927/15602 Glass sliding 1 11 :927/15603 Handle 1 12 827/20149 Glass rear 1 12 827/20208 Glass rear Useifrearwiperfitted 1 13 824/00017 Glazing seal metres 0 14 824/00006 Strip filler 0 15 152/17502 Ring key 20mm diameter approx. 2 16 152/17501 Ring key 38mm diameter approx 2 17 927/15404 Gasket fixed window R.H. R.H. 1 17 927/15604 Gasket fixed window L.H. L.H. 1
Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ ARTICULATED DUMP TRUCKS \ 712 37 00612001 00612369 ADT 9802/4100 \ B BODYWORK,CAB,LOADER END REFURBISHMENTS \ B02 CAB 9802/4100 B2-2-2 CAB GLAZING TINTED
