5430 TRACTOR ( TIER 3 ) - 3906338
Engine & Equipment - Tractor High Visibility Only
Item Part NumberQtyDescription Comments
1 339124X12 Hex Cap Screw M8 X 16
2 4294598M21 Cowl
3 4292754M31 Engine
PEL NM75170
Up to Serial or Engine Number B241026 4291233M41 Engine PEL NM75169 PEL NM81900 PEL NM51676
From Serial or Engine Number B241027
4226975M911 Short Engine [B]
4 3786092M11 Nut Metric M10
5 4293504M11 Cowl
6 4289959M4 1 Startermotor [A]
7 3788193M11 Label Up to Serial or Engine Number D098076
8 391006X13 Stud Bolt M10 X 30 9 339402X13 Nut Metric M10
10 4274074M21 Pulley,Fan
11 3780616M91 1 Kit, Belt Length 1345 MM
12 339124X13 Hex Cap Screw M8 X16
13 390972X11 Flat Washer
14 4294839M21 Cowl
15 4294838M21 Support
16 1447031M2 1 Oil Filter
17 3780425M31 Fan Spacer
18 3009286X14 Hex Socket ScrewM8 X 35 19 4292753M11 Fan 20 4292762M11 Clutch 21 3009192X16 Hex Flg Hd Bolt M8 X 16 22 3781286M11 Staple Length 780MM 23 4299378M41 Cowl 24 4272658M11 Gasket Length 387MM 25 3009491X11 Hex Cap Screw M10 X 20 26 4287378M11 Support 27 3787368M21 Gasket Length 615MM 28 3787368M21 Gasket Length 615MM 29 4272087M11 Staple Length 335MM 30 4299379M31 Fan Shield 31 4296773M11 Clip Diameter 35 - M10
FOOTNOTE[A] THE APPROPRIATE SAFETY DECALS MUST BE ORDERED AND FITTED TO THIS PART FOOTNOTE[B] NOT ILLUSTRATED
Massey Ferguson

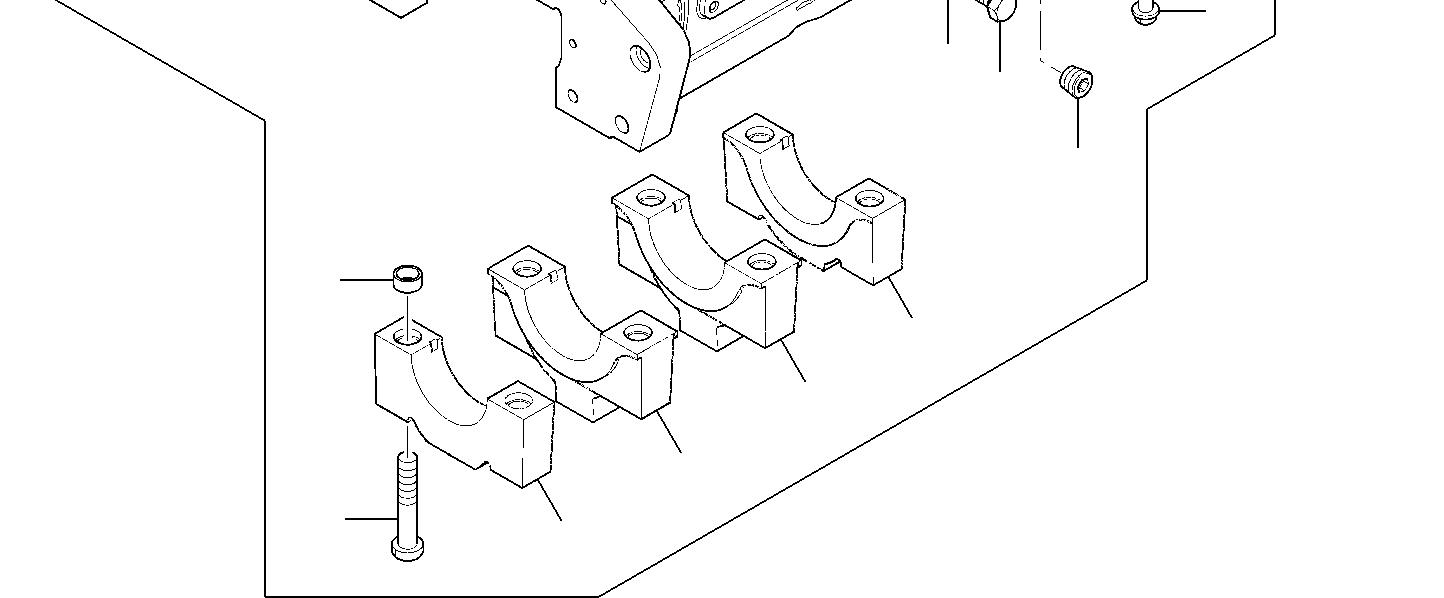

Cylinder-Block
ItemPart NumberQtyDescription Comments
1 4227015M911 Kit,Cyl.Block
2 1 Cylinder-Block (1) Not serviced,order REF. 1
3 1 Bearing Cap (1) Not serviced,order REF. 1
4 2 Bearing Cap (1) Not serviced,order REF. 1
5 1 Bearing Cap (1) Not serviced,order REF. 1
6 1 Bearing Cap (1) Not serviced,order REF. 1
7 733072M110 Thimble (1)
8 1476108X110 Hex Cap Screw (1) 9 4227065M11 Bush (1)
10 4224873M12 Plug (1)
11 4224874M11 Plug (1)
12 363819X11 Plug (1) 3/4"-14
13 731354M11 Plug (1) 14 4224866M11 Plug (1) 15 4224863M11 Plug (1)
16 4224009M12 Dowel (1)
17 3638809M11 Hex Cap Screw (1) 18 4224559M11 Washer (1) 19 731996M11 Plug (1) 20 4226139M14 Jet (1) 21 3641648M14 Hex Flg Hd Bolt (1) 22 4225280M11 Cover (1) 23 4224974M11 Joint (1) 24 3637092M14 Hex Flg Hd Bolt (1) 25 4224781M11 Plug (1) 26 4224865M11 Plug (1) 27 4224782M11 Plug 28 4224762M11 Housing 29 4224860M110 Hex Flg Hd Bolt
Crankshaft, Pistons & Piston Rod
ItemPart NumberQtyDescription Comments
1 4226955M911 Kit, Crankshaft
2 1 Crankshaft (1)
Not serviced,order REF. 1
3 4226953M911 Kit, Bearing (1)
4226987M91X Kit, Bearing Thickness (-) 0.25 mm 4226986M91X Kit, Bearing Thickness (-) 0.50 mm 4226999M91X Kit, Bearing Thickness (-) 0.75 mm
4 4226967M911 Kit, Bearing (1)
5 747128M12 Thrust Washer (1)
735742M1X Thrust WasherThickness (+) 0.007"
6 747129M12 Thrust Washer (1) 735743M1X Thrust WasherThickness (+) 0.007"
7 4224833M11 Gear,Crankshaft
8 709058451 Woodruff Key
9 4226960M13 Screw
10 4226958M11 Crnkshaft Pulley
11 4226650M914 Kit, Piston
4227212M91X Kit, Piston Thickness (+) 0.50 mm
12 4226454M911 Kit, Piston Ring (11) 4227211M91X Kit, Piston RingThickness (+) 0.50 mm 13 1 Piston (11) Not serviced,order REF. 12 14 1 Piston Pin (11) Not serviced,order REF. 12 15 4222135M12 Circlip (11) 16 4226961M914 Kit, Conrod [A] Grade "R" 4226962M914 Kit, Conrod [B] Grade "O" 4226963M914 Kit, Conrod [C] Grade "W" 4226964M914 Kit, Conrod [D] Grade "G" 4226965M914 Kit, Conrod [E] Grade "P" 4226966M914 Kit, Conrod [F] Grade "B"
17 4226968M12 Screw (16) 18 1 Piston Rod (16) Not serviced,order REF. 17 19 4224827M11 Bush (16)
5430 TRACTOR ( TIER 3 ) - 3906338
Cylinder Head
ItemPart NumberQtyDescription Comments
1 4226680M911 Cylinder Head
2 1 Cylinder Head (1) Not serviced,order Ref 1
3 4223987M14 Guide (1)
4 4223987M14 Guide (1)
5 4226861M14 Socket (1) 6 4226804M14 Insert (1)
7 3637015M12 Plug (1)
8 363819X14 Plug (1) 3/4"-14
9 4226652M14 Inlet Valve (1)
10 4225347M14 Seal [A] (1)
11 4226653M14 Spring (1) 12 4226654M14 Cap (1)
13 4226655M18 Guide (1)
14 4226656M14 Exhaust Valve (1) 15 4225844M14 Seal [B] (1)
16 4226653M14 Spring (1) 17 4226654M14 Cap (1)
18 4226655M18 Guide (1)
19 4224884M11 Plug (1)
20 4224752M11 O Ring (1) 21 376606X12 Plug (1)
22 4225850M11 Head Gasket 23 4224867M17 Hex Flg Hd Bolt 24 4224868M13 Hex Flg Hd Bolt 25 4224850M11 Lead 26 4224040M1 1 Temperat Sensor 27 3637139M14 Hex Flg Hd Bolt 28 4224933M11 Bracket 29 4225137M11 Bracket
FOOTNOTE[A] GREEN FOOTNOTE[B] BROWN
Massey Ferguson
Massey Ferguson
5430
Heater/Starter
1 4227180M11 Bar
5430 TRACTOR ( TIER 3 ) - 3906338

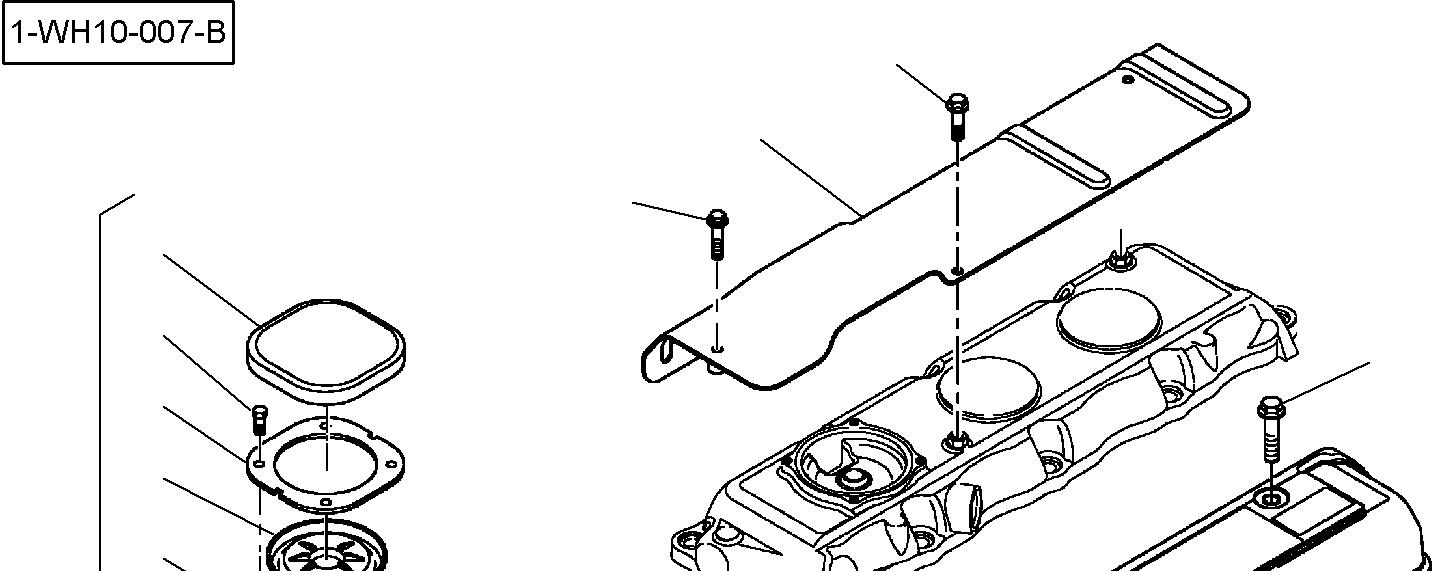

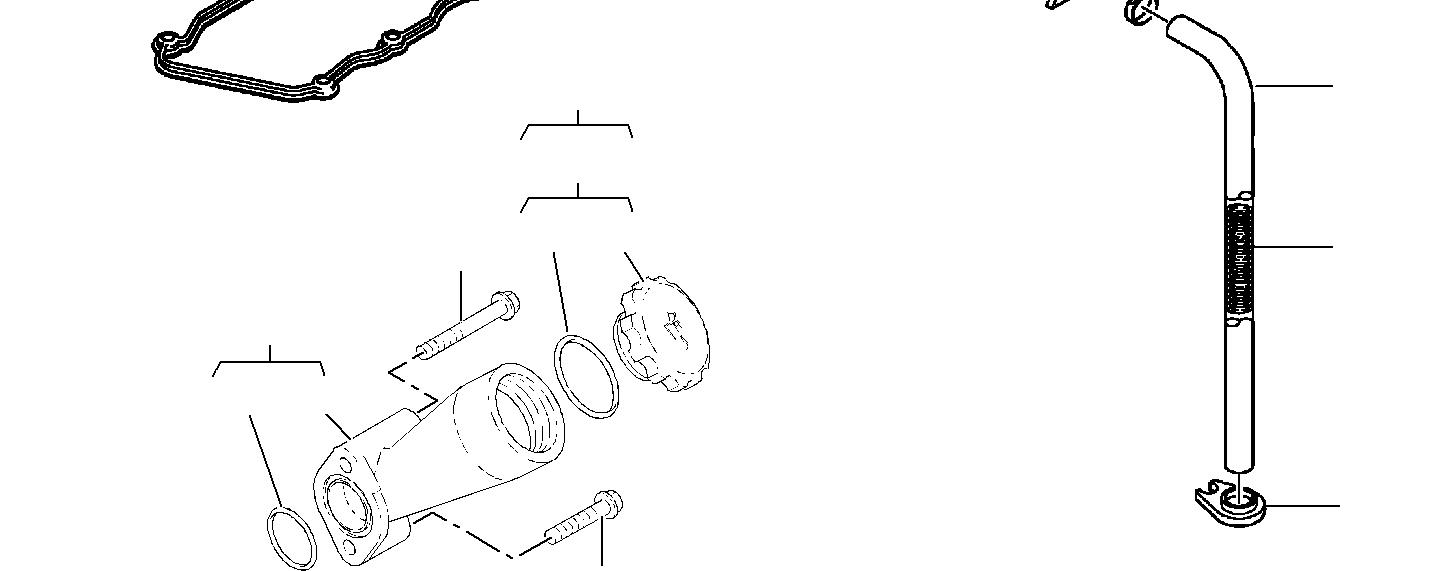

Rocker Arm
ItemPart NumberQtyDescription Comments
1 4226657M911 Rocker Shaft Asm
2 4225023M911 Rocker Shaft
3 1 Rocker Shaft Not serviced,order REF. 2 4 4224780M12 Plug
5 4226658M914 Rocker Arm
6 1 Rocker Arm Not serviced,order REF. 5
7 1 Pad Not serviced,order REF. 5 8 4226659M11 Nut 9 4226321M11 Grub Screw
10 4224855M13 Spring
11 4226660M914 Rocker Arm
12 1 Rocker Arm Not serviced,order REF. 11 13 1 Pad Not serviced,order REF. 11 14 4226659M11 Nut 15 4226321M11 Grub Screw
16 3638812M12 Circlip
17 4224720M12 Flat Washer
18 4224742M11 Hex Flg Hd Bolt 19 4224743M13 Hex Flg Hd Bolt
