TABLE OF CONTENT
Page NumberPage Title Page Reference
01-000-TOC ENGINE V834477140 44 AWIC 01-000-TOC 02-000-TOC ENGINE V834477187 44 AWIC 02-000-TOC 03-000-TOC ENGINE V834477299 44 AWIC 03-000-TOC 04-000-TOC ENGINE V834477514 44 AWIC 04-000-TOC 05-000-TOC ENGINE V834477300 44 AWIC 05-000-TOC 06-000-TOC ENGINE V834477515 44 AWIC 06-000-TOC 07-000-TOC ENGINE INSTALLATION 07-000-TOC 08-000-TOC AXLES 08-000-TOC 09-000-TOC STEERING SYSTEM 09-000-TOC 10-000-TOC DRIVE TRAIN SYSTEM 10-000-TOC 11-000-TOC BRAKE SYSTEM 11-000-TOC 12-000-TOC COMPRESSED AIR SYSTEM 12-000-TOC 13-000-TOC HYDRAULIC SYSTEM 13-000-TOC 14-000-TOC ELECTRICAL SYSTEM 14-000-TOC 15-000-TOC CAB 15-000-TOC 16-000-TOC CHASSIS 16-000-TOC 17-000-TOC DECALS 17-000-TOC 18-000-TOC WHEELS 18-000-TOC 19-000-TOC IMPLEMENT DRIVE SYSTEM 19-000-TOC 20-000-TOC IMPLEMENT LIFT SYSTEM REAR20-000-TOC 21-000-TOC LINKAGE 21-000-TOC 22-000-TOC FRONT/REAR LOADERS 22-000-TOC 23-000-TOC ACCESSORIES 23-000-TOC 24-000-TOC GENERAL INFORMATION 24-000-TOC
Massey Ferguson5611 TRACTOR ( DYNA 4 ) (D288050 - G308046)
ENGINE V834477140 44 AWIC
Page Number Page Title Page Reference
01-0001 ENGINE ASSEMBLIES
1MDL2355867
01-0002 CYLINDER BLOCK 1MDL1915551 01-0003 TIMING GEAR COVER 1MDL1916444
01-0004 CRANKSHAFT AND PISTONS 1MDL1916489
01-0005 CAMSHAFT AND VALVE MECHANISM 1MDL1916513
01-0006 CYLINDER HEAD 1MDL1916583 01-0007 INTAKE MANIFOLD 1MDL1916689
01-0008 TURBOCHARGER AND EXHAUST MANIFOLD 1MDL1916675
01-0009 OIL SUMP 1MDL1916703
01-0010 OIL COOLER AND FILTER 1MDL1916824
01-0011 CLOSED CRANKCASE VENTILATION (CCV) - UP TO ENGINE SERIAL NUMBER ECEXXXXXX
1MDL1918163
01-0012 COOLANT PUMP AND THERMOSTAT 1MDL1916949
01-0013 FUEL INJECTION SYSTEM 1MDL1917037
01-0014 FUEL FILTERS - UP TO ENGINE SERIAL NUMBER GCEXXXXXX
1MDL1918273
01-0015 FUEL FILTERS - STARTING FROM ENGINE SERIAL NUMBER GCEXXXXXX 1MDL1918274 01-0016 ELECTRONIC ENGINE MANAGEMENT 1MDL1917080
01-0017 EXHAUST AFTERTREATMENT 1MDL1918166 01-0018 ENGINE OVERHAUL PARTS 1MDL1917112

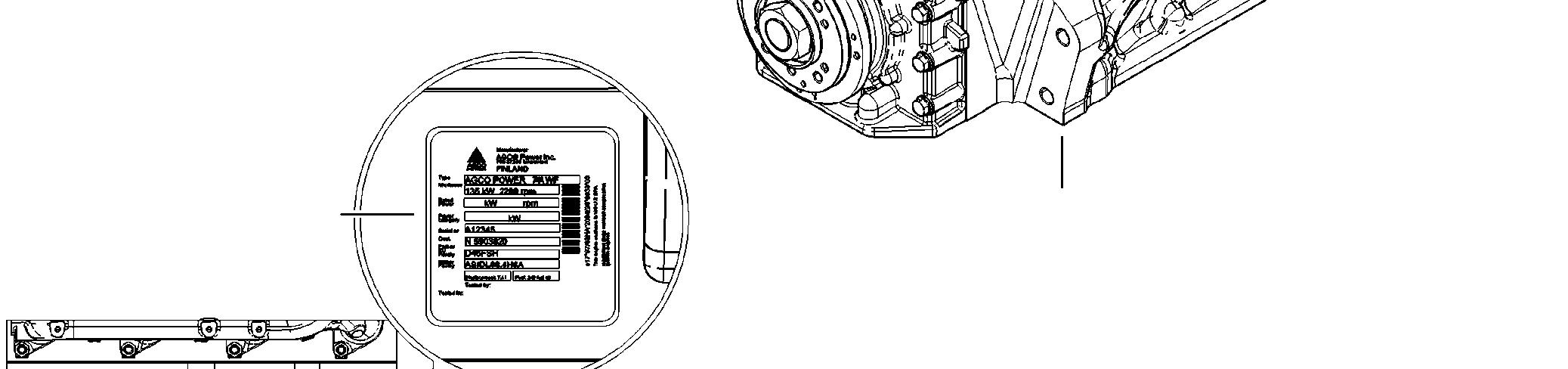

Massey Ferguson
1 V834477140 1 ENGINE 44 AWIC
2 V837081401 1 SHORT BLOCK ENGINE 44 AWIC/AWFC
3 V837079921 1 LABEL
CYLINDER BLOCK
ItemPart NumberQtyDescription
Comments
1 V837081301 1 CYLINDER BLOCK 2 V836866069 1 CAMSHAFT BEARING BUSHING [A]
3 V83708103710HEX CAP SCREW [A] 4 V83708104110GUIDE SLEEVE [A]
5 V837081031 4 LINER 6 V836647502 8 CYLINDER LINER O-RING INCLUDED IN GASKET KIT 2 7 V836647503 4 CYLINDER LINER O-RING INCLUDED IN GASKET KIT 2 8 V837081133 1 PLUG 9 V640016016 2 PLUG
10V615881824 1 SEALING WASHER INCLUDED IN GASKET KIT 2
11V640325018 1 PLUG 12V640016020 1 PLUG 13V640016018 2 PLUG
14V615871014 2 SEALING WASHER INCLUDED IN GASKET KIT 2
15V640325110 2 PLUG
16V837081103 1 PIPE 17V837081321 1 COVER
18V837081286 1 CRANKSHAFT SEAL INCLUDED IN GASKET KIT 2 19V595959140 2 PIN 20V581804580 6 HEX SOCKET SCREW 21V837081084 1 IDLER GEAR 22V837081019 1 BUSHING [B] 23V837081017 1 SHAFT 24V581705100 2 HEX SOCKET SCREW 25V640325014 1 PLUG 26V615881420 1 SEALING WASHER INCLUDED IN GASKET KIT 2 27V837069057 1 PLUG 28V837081427 1 COVER 29V579804602 4 HEX SOCKET SCREW 30V615881822 1 SEALING WASHER INCLUDED IN GASKET KIT 2 31V837081395 1 HOSE COUPLER 32V614602030 1 O-RING INCLUDED IN GASKET KIT 2 33V598359850 2 PIN
[A] INCLUDED IN ITEM 1 [B] INCLUDED IN ITEM 21
1 V837081039 1 TIMING GEAR CASE 2 V579904162 3 HEX SOCKET SCREW [A] 3 V837081057 1 COVER [A] 4 V640325120 2 PLUG [A] 5 V836840883 1 CRANKSHAFT SEAL INCLUDED IN GASKET KIT 2 [A] 6 1 NOT AVAILABLE AS SINGLE PART [A] 7 V540801470 1 HEXAGON FLANGE BOLT 8 V540801490 4 HEXAGON FLANGE BOLT 9 V540801510 1 HEXAGON FLANGE BOLT 10V54080145012HEXAGON FLANGE BOLT 11V837081375 1 SPEED SENSOR SUPPORT 12V590253388 1 SCREW 13V577804620 2 HEX SOCKET SCREW 14V581804182 1 HEX SOCKET SCREW 15 2 SEE PAGE 01-0016 [A] INCLUDED IN ITEM 1
CRANKSHAFT AND PISTONS
ItemPart NumberQtyDescription
Comments
1 V837081276 1 CRANKSHAFT 2 V837081275 1 GEAR [A] 3 V837081240 1 KEY [A] 4 V837081223 4 PISTON 5 4
NOT AVAILABLE AS SINGLE PART [B] 6 8 NOT AVAILABLE AS SINGLE PART [B]
7 V837079658 4 PISTON RING SET [B] 8 V837079729 1 KIT, CONROD 9 4
NOT AVAILABLE AS SINGLE PART [C]
10V837081024 8 CONNECTING ROD BOLT [C][D]
11V837081025 4 BUSHING [C][D]
12V837091164 4 CONROD BEARING 13V836655514 5 MAIN BEARING
14V836119459 2 THRUST WASHER
15V837081325 1 CRANKSHAFT PULLEY
16V581804602 6 HEX SOCKET SCREW
17V837081149 1 NUT
18V837081051 1 CRANKSHAFT HUB 19V837081059 1 GEAR 20V579904160 4 HEX SOCKET SCREW 21V595953360 2 PIN 22V837081012 1 GEAR,CRANKSHAFT 23V837081240 2 KEY 24V837081228 1 BALANCER 25V581805170 4 HEX SOCKET SCREW 26V836119920 SHIM AS REQUIRED, REFER TO WORKSHOP MANUAL
27V598359850 2 PIN 28V640435008 2 BANJO BOLT 29V641016008 1 STRAIGHT FITTING 30V837081295 1 OIL PIPE 31V602071608 1 HOSE CLIP 32V581804182 1 HEX SOCKET SCREW [A] INCLUDED IN ITEM 1 [B] INCLUDED IN ITEM 4 [C] INCLUDED IN ITEM 8 [D] INCLUDED IN ITEM 9

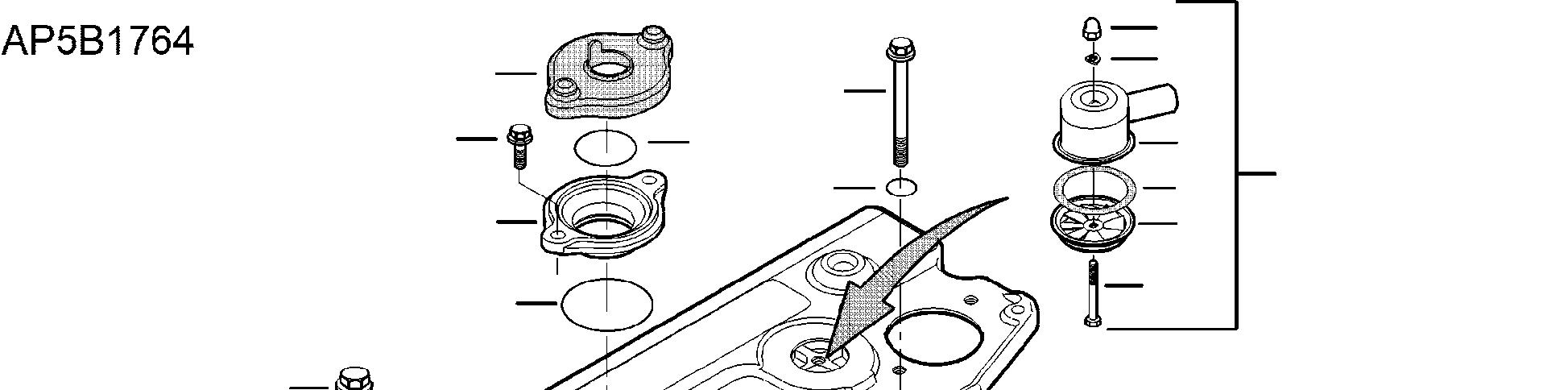

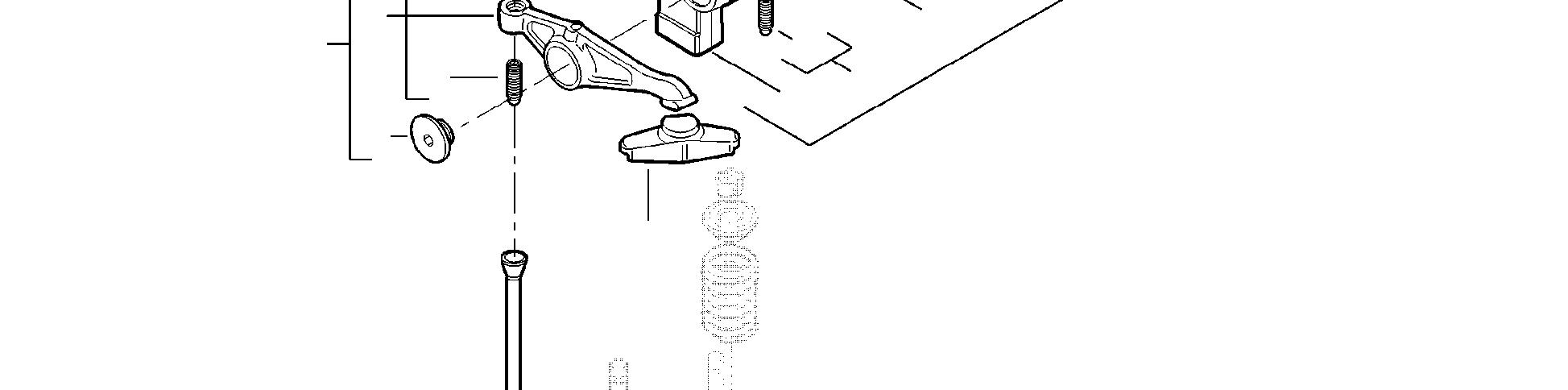

CAMSHAFT AND VALVE MECHANISM
ItemPart NumberQtyDescription
Comments
1 V837070105 1 ROCKER SHAFT ASM
2 V837069011 4 ROCKER ARM [A]
3 V512861000 4 NUT [A][B]
4 V837069023 4 VALVE ROCKER ADJUSTMENT SCREW [A][B]
5 V837069020 2 PLUG [A]
6 V837069013 4 ROCKER ARM [A]
7 V512861000 4 NUT [A][C]
8 V837069023 4 VALVE ROCKER ADJUSTMENT SCREW [A][C]
9 V837069017 3 ROCKER SHAFT BRACKET [A]
10V837069019 3 SPRING [A]
11V837070104 1 SHAFT [A]
12V837069018 1 ROCKER SHAFT BRACKET [A]
13V836655406 3 NUT
14V529801910 1 HEX CAP SCREW
15V837081221 8 PUSHROD
16V836014264 8 TAPPET
17V837081129 1 CAMSHAFT
18V603305760 1 WOODRUFF KEY 19V837081014 1 GEAR,CAMSHAFT 20V837073089 8 VALVE BRIDGE 21V837073903 3 ADAPTER 22V540801852 3 HEXAGON FLANGE BOLT 23V540801780 3 HEXAGON FLANGE BOLT 24V614901030 6 O-RING INCLUDED IN GASKET KIT 1 INCLUDED IN GASKET KIT 3 25V837073774 1 VALVE ROCKER COVER 26V519600602 1 NUT [D] 27V836667508 1 SEALING WASHER [D] 28V837070442 1 BREATHER [D] 29V836667459 1 GASKET [D] 30V837070443 1 BREATHER [D] 31V528801172 1 HEX CAP SCREW [D] 32V614903725 4 O-RING INCLUDED IN GASKET KIT 1 INCLUDED IN GASKET KIT 3 33V837073756 4 COVER INCLUDED IN GASKET KIT 1 INCLUDED IN GASKET KIT 3
34V54080108210HEXAGON FLANGE BOLT 35V837073753 4 FLANGE 36V614606230 4 O-RING INCLUDED IN GASKET KIT 1 INCLUDED IN GASKET KIT 3 37V836667508 2 SEALING WASHER INCLUDED IN GASKET KIT 1 INCLUDED IN GASKET KIT 3 [A] INCLUDED IN ITEM 1 [B] INCLUDED IN ITEM 2 [C] INCLUDED IN ITEM 6 [D] INCLUDED IN ITEM 25

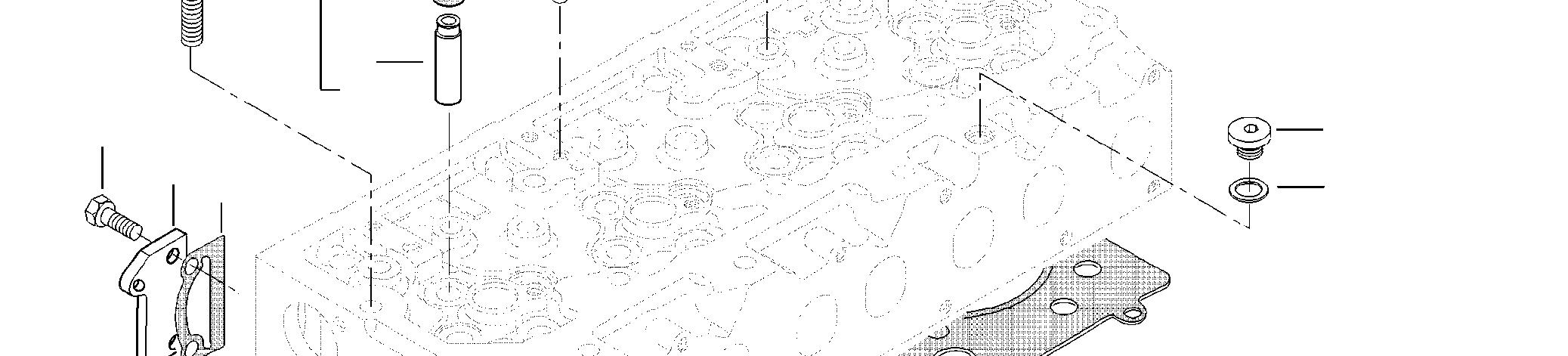

CYLINDER HEAD
ItemPart NumberQtyDescription
Comments
1 V837074247 1 CYLINDER HEAD 2 V83707317416VALVE GUIDE [A]
3 V837064907 8 VALVE SEAT [A]
4 V837064908 8 VALVE SEAT [A]
5 V837069002 8 EXHAUST VALVE [A]
6 V837069003 8 INTAKE VALVE [A]
7 V83707316516VALVE STEM GASKET INCLUDED IN GASKET KIT 1 [A]
8 V83706491032COTTER [A]
9 V83706900416SPRING PLATE [A]
10V83706900516VALVE SPRING [A]
11V836647942 5 PLUG [A]
12V640016045 1 PLUG [A]
13V546901900 3 STUD BOLT [A]
14V83706902514CYLINDER HEAD BOLT
15V837081397 1 COVER
16V836867753 1 GASKET INCLUDED IN GASKET KIT 1
17V528801800 2 HEX CAP SCREW
18V640325018 1 PLUG
19V615881824 1 SEALING WASHER INCLUDED IN GASKET KIT 1 20V837073571 8 CYLINDER HEAD BOLT 21V837084524 1 CYLINDER HEAD GASKET INCLUDED IN GASKET KIT 1 22V837084246 1 VALVE ROCKER COVER FRAME 23V837070128 1 VALVE ROCKER COVER GASKET INCLUDED IN GASKET KIT 1 [B]
24V837073751 1 VALVE ROCKER COVER GASKET INCLUDED IN GASKET KIT 1 INCLUDED IN GASKET KIT 3 [B]
25V581804630 4 HEX SOCKET SCREW 26V500950800 4 SPRING WASHER 27V540801082 7 HEXAGON FLANGE BOLT 28V837073754 4 FLANGE 29V614903725 4 O-RING INCLUDED IN GASKET KIT 1 30V614901725 4 O-RING INCLUDED IN GASKET KIT 1 31V528801102 1 HEX CAP SCREW [A] INCLUDED IN ITEM 1 [B] INCLUDED IN ITEM 22
