Massey Ferguson 4360 / 4370 TRACTORS - 819931 819931 Engine And Equipment Page010-0000

Massey Ferguson 4360 / 4370 TRACTORS - 819931 819931 Engine And Equipment Page010-0000

MF 4360 / 4370 TRACTORS - 819931 3-X001-001-A RefX0013001-1 Page010-0005

DescriptionComments

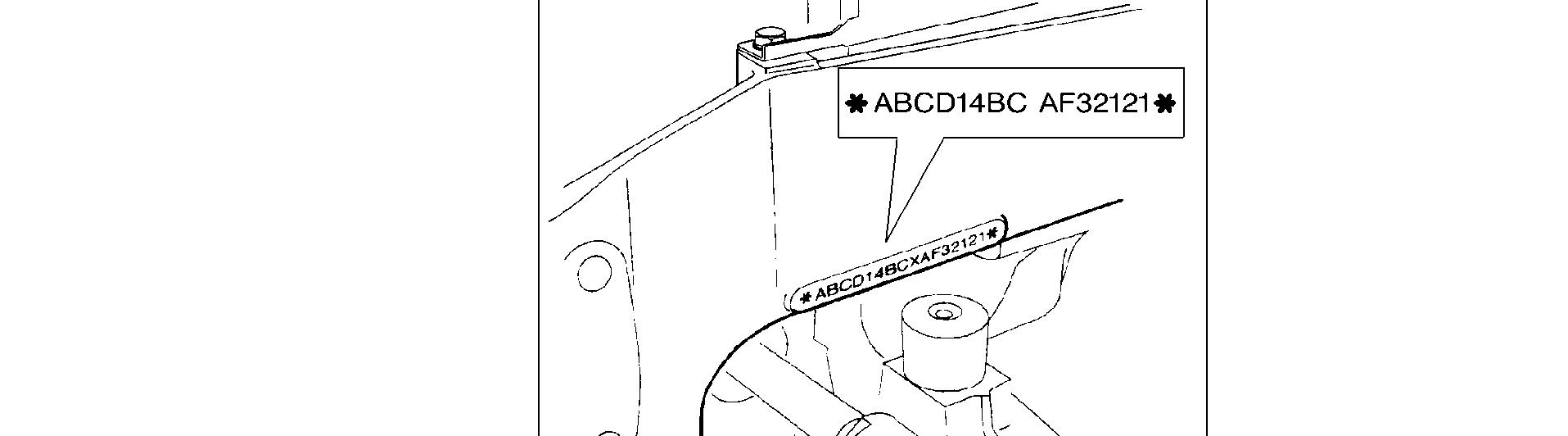

SERIAL NUMBERS

FOR UK ONLY OR ANY TEXT IN ENGHISH ONLY NUMEROS DE SERIES

FOR FRANCE ONLY OR ANY TEXT IN FRENCH ONLY SERIEN NUMMER

FOR GERMANY ONLY OR ANY TEXT IN GERMAN ONLY MATR.O NUMERO

FOR ITALY ONLY OR ANY TEXT IN ITALIAN ONLY E NUMERO SERIE

Massey Ferguson 4360 / 4370 TRACTORS - 819931 819931 Section

Page010-0005

Divider - TRACTOR SERIAL NUMBER

MF 4360 / 4370 TRACTORS - 819931 3-XA10-013-B 1 1 1 1 1 1 17 10 32 11 9 12 13 8 7 6 5 29 4 20 16 48 36 47 30 3 35 41 34 2 39 37 42 38 18 14 19 33 15 40 43 21 22 23 25 31 26 24 27 45 28 44 46 RefXA103013-1 Page010-0065

Cylinder Block - "GREEN"

ItemPart NumberQtyDescription Comments

1 4222497M911 Kit,Cyl.Block

2 7 Cap (1)

NOT SERVICED, ORDER REF. 1

3 4222017M11 Bush (1)

4 746259M13 Plug [D] (1)

5 746259M13 Plug [D] (1)

6 4222128M1X Liner [B] 4222129M16 Liner [A] (1) 4223985M1X Liner [B] (+) 0.010"

7 736868M11 Plug [G] (1)

8 4222012M15 Plug [E] (1)

9 1476282X11 Plug [F] (1)

10 746259M11 Plug [H] (1)

11 4224555M11 Washer (1) 12 376180X11 Plug [I] (1)

13 4222043M11 Plug [J] (1)

14 733072M114 Ring (1) 15 1476108X114 Screw (1)

16 746259M15 Plug [C] (1)

17 4222439M12 Dowel (1) 18 3638414M11 Pin (1) 19 3641847M11 Shaft (1) 20 3637011M112 Screw M8 X 25 21 4224385M914 Jet (1) 22 4222512M16 Dowel (21) 23 3821398M11 O Ring DIAMETER 93-99MM 24 3637005M916 Valve (1) 25 1 Body (24) NOT SERVICED, ORDER REF. 24 26 3637006M11 Ball (24) 27 748149M11 Spring (24) 28 3637007M11 Retainer (24) 29 731947M12 Dowel 30 4224532M11 Housing 31 3821399M11 O Ring DIAMETER 81,5-84,5MM 32 3639268M12 Dowel 33 748393M14 Plug 34 731996M12 Plug 35 376670X12 Plug 36 376606X11 Plug 37 1650388M11 Washer 38 3638809M11 Screw 39 4224584M11 Plug REPLACE AND REPAIR.OLD INTERCHANGEABLE WITH NEW 1476192X1 40 4222303M11 Flywheel Housing 41 3638416M12 Screw M12 X 70 42 3637051M16 Screw M10 X 25 43 733680M12 Locator 44 4222302M11 Spacer 45 3640526M13 Stud 46 3637221M13 Nut 47 4223587M11 Joint 48 3641756M12 Screw

Massey Ferguson 4360 / 4370 TRACTORS

819931 819931

Page010-0065

FOOTNOTE[A] UNFINISHED - PRESS FIT FOOTNOTE[B] FINISHED - SLIP FIT FOOTNOTE[C] WATER JACKET , LEFT HAND SIDE FOOTNOTE[D] WATER JACKET , RIGHT HAND SIDE FOOTNOTE[E] TAPPET CHAMBER FOOTNOTE[F] ROCKER OIL FEED DRILLING, RIGHT HAND SIDE FOOTNOTE[G] ROCKER OIL FEED DRILLING, TOP FACE

4360 / 4370 TRACTORS - 819931

Cylinder Block - "GREEN" Page010-0065

ItemPart NumberQtyDescription Comments

FOOTNOTE[H] WATER JACKET , REAR FACE

FOOTNOTE[I] LUBRICATING OIL PRESSURE RAIL , REAR END

FOOTNOTE[J] CAMSHAFT CHAMBER, REAR END

Massey Ferguson

819931

MF 4360 / 4370 TRACTORS - 819931 3-XA11-018-C 22 19 18 24 20 26 25 27 23 16 17 29 15 14 30 21 28 13 12 10 1 11 9 2 4 7 5 8 34 33 6 31 3 32 RefXA113018-1 Page010-0070

- 819931

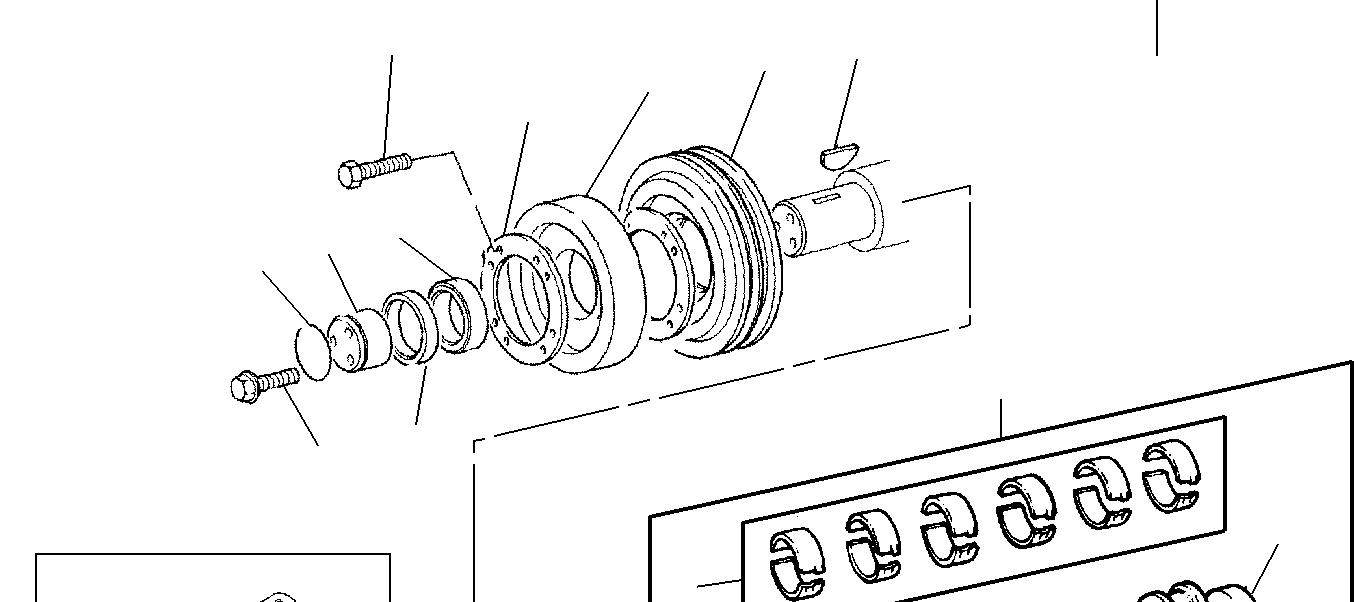

Crankshaft, Pistons And Connecting Rods - "GREEN"

ItemPart NumberQtyDescription Comments

1 3637019M911 Kit, CrankshaftUP TO SERIAL OR ENGINE NUMBER U801517J

1 Kit, Crankshaft[B]

FROM SERIAL OR ENGINE NUMBER U801518J

2 1 Crankshaft (1) NOT SERVICED, ORDER REF. 1

3 3637020M911 Kit, Bearing [A] (1)

3637021M91X Kit, Bearing [A] THICKNESS (-) 0,25MM

3637022M91X Kit, Bearing [A] THICKNESS (-) 0,50MM

3637023M91X Kit, Bearing [A] THICKNESS (-) 0,75MM

4 3637024M911 Kit, Bearing [A] (1)

UP TO SERIAL OR ENGINE NUMBER U801517J

3637025M91X Kit, Bearing [A]

UP TO SERIAL OR ENGINE NUMBER U801517J THICKNESS (-) 0,25MM

3637026M91X Kit, Bearing [A]

UP TO SERIAL OR ENGINE NUMBER U801517J THICKNESS (-) 0,50MM

3637027M91X Kit, Bearing [A]

UP TO SERIAL OR ENGINE NUMBER U801517J THICKNESS (-) 0,75MM

4225212M911 Kit, Bearing [A] MF 4370

FROM SERIAL OR ENGINE NUMBER U801518J PEL YH31302

4225213M911 Kit, Bearing [A] MF 4360

FROM SERIAL OR ENGINE NUMBER U801518J PEL YG31300

X Kit, Bearing [A,B]

FROM SERIAL OR ENGINE NUMBER U801518J THICKNESS (+) 0.010"

X Kit, Bearing [A,B]

FROM SERIAL OR ENGINE NUMBER U801518J THICKNESS (+) 0.020"

X Kit, Bearing [A,B]

SERIAL OR ENGINE NUMBER U801518J THICKNESS (+) 0.030"

819931

Massey Ferguson 4360 / 4370 TRACTORS

Page010-0070

Spacer 12 742536M11 Thrust Plate 13 748315M11 Spacer 14 3638407M11 Pulley MF 4360 3638588M11 Pulley MF 4370 15 11940X1 Woodruff Key 16 4222136M916 Kit, Piston Ring 17 4222134M916 Kit, Piston 18 4222135M12 Circlip

19 1 Piston

NOT

20 1 Pin

21 4223432M916 Kit,

4223433M916 Kit,

Kit,

FROM

5 747128M12 Thrust Washer (1) 735742M1X Washer THICKNESS (+) 0,19MM 6 747129M12 Thrust Washer (1) 735743M1X Washer THICKNESS (+) 0,19MM 7 748201M11 Gear 8 709058451 Key 9 748074M13 Screw 10 1447207M11 O Ring 11 1447128M11

(17)

SERVICED, ORDER REF. 17

(17) NOT SERVICED, ORDER REF. 17

Conrod UP TO SERIAL OR ENGINE NUMBER U801517J "H"

Conrod UP TO SERIAL OR ENGINE NUMBER U801517J "J" 4223434M916

Conrod UP TO SERIAL OR ENGINE NUMBER U801517J "K" 4223435M916

Conrod UP TO SERIAL OR ENGINE NUMBER U801517J "L"

Crankshaft, Pistons And Connecting Rods - "GREEN"

ItemPart NumberQtyDescription Comments

22 1 Conrod (21)

NOT SERVICED, ORDER REF. 21 23 4222821M12 Sleeve (21) UP TO SERIAL OR ENGINE NUMBER U801517J 24 4222131M11 Bush (21) UP TO SERIAL OR ENGINE NUMBER U801517J 25 1 Cap (21) NOT SERVICED, ORDER REF. 21 26 4222485M12 Screw (21) UP TO SERIAL OR ENGINE NUMBER U801517J 27 3637030M12 Nut (21) UP TO SERIAL OR ENGINE NUMBER U801517J 28 3638589M11 Plate MF 4370 29 3638590M16 Screw MF 4370 M8 X 25 30 1476037M11 Damper MF 4370 31 4225011M916 Kit, Conrod FROM SERIAL OR ENGINE NUMBER U801518J "F"

31 4225012M916 Kit, Conrod FROM SERIAL OR ENGINE NUMBER U801518J "G"

31 4225013M916 Kit, Conrod FROM SERIAL OR ENGINE NUMBER U801518J "H"

31 4225014M916 Kit, Conrod FROM SERIAL OR ENGINE NUMBER U801518J "J"

31 4225015M916 Kit, Conrod FROM SERIAL OR ENGINE NUMBER U801518J "K"

31 4225016M916 Kit, Conrod FROM SERIAL OR ENGINE NUMBER U801518J "L" 32 4224864M12 Bolt (31) FROM SERIAL OR ENGINE NUMBER U801518J 33 1 Conrod (31) NOT SERVICED, ORDER REF. 31 34 4224827M11 Bush (31) FROM SERIAL OR ENGINE NUMBER U801518J

FOOTNOTE[A] PRE-FINISHED FOOTNOTE[B] NUMBER TO BE ADVISED

819931

Massey Ferguson 4360 / 4370 TRACTORS - 819931

Page010-0070

MF 4360 / 4370 TRACTORS - 819931 3-XA12-001-C 1 1 1 1 19 20 22 24 21 23 4 9 10 5 2 3 18 6 11 25 12 7 26 8 13 27 34 29 33 32 31 28 30 14 16 17 15 RefXA123001-1 Page010-0075

Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL.NOWAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then clickonit.

Cylinder Head - "GREEN"

ItemPart NumberQtyDescription Comments

1 4223430M911 Kit, Cyl. Head

2 4224584M16 Plug (1)

REPLACE AND REPAIR.OLD INTERCHANGEABLE WITH NEW 1476192X1

3 376606X11 Plug (1)

4 4222150M112 Cotter [A] (1)

5 4222140M16 Cap (1) 6 4222139M16 Spring (1)

7 4222333M16 Oil Seal (1)

8 4223987M16 Guide (1)

REPLACE AND REPAIR.OLD NOT INTERCHANGEABLE WITH NEW 4222954M1

9 4222141M112 Cotter [A] (1)

10 4222140M16 Cap (1) 11 4222139M16 Spring (1) 12 4223442M16 Seal (1) 13 4223987M16 Guide (1)

REPLACE AND REPAIR.OLD NOT INTERCHANGEABLE WITH NEW 4222954M1

14 4224284M16 Insert (1)

15 4222147M916 Valve Exhaust (1) 16 4222148M16 Insert (1)

17 4222149M916 Valve Inlet (1) 18 4222144M11 Plug 19 745662M112 Screw 1/2-20 X 3.5/8 20 1476243X12 Screw 21 745663M118 Screw 1/2-20 X 4.1/4 22 746259M11 Plug 23 4222170M11 Plate 24 3637051M12 Screw M10 X 25 25 3637044M16 Screw M8 X 16 26 4222842M11 Cover 27 4222155M11 Joint 28 4222354M11 Head Gasket 29 731354M13 Plug 30 3637051M12 Screw M10 X 25 31 3637050M11 Plate MF 4360 4222228M11 Plate MF 4370 32 376178X11 Washer 33 731410M11 Plug 34 4222439M12 Dowel (1)

FOOTNOTE[A] SERVICED IN PAIRS

819931

Massey Ferguson 4360 / 4370 TRACTORS - 819931

Page010-0075

MF 4360 / 4370 TRACTORS - 819931 3-XA13-001-A 1 2 3 13 12 11 9 10 6 5 4 7 14 15 22 16 8 21 23 17 20 19 18 RefXA133001-1 Page010-0080

Rocker Shaft - "GREEN"

ItemPart NumberQtyDescription Comments

1 4224482M911 Rocker Shaft Ass REPLACE AND REPAIR.OLD NOT INTERCHANGEABLE WITH NEW 4222334M91

2 4222335M911 Rocker Shaft (1) 3 731330M12 Plug (2)

4 376137X12 Circlip (1)

5 4222156M12 Washer (1)

6 4224543M16 Rocker (1)

REPLACE AND REPAIR.OLD INTERCHANGEABLE WITH NEW 4222157M1

7 4224553M11 Bush (6) REPLACE AND REPAIR.OLD NOT INTERCHANGEABLE WITH NEW 4222158M1

8 376123X112 Nut (1) 9 733811M14 Spring (1)

10 3638403M16 Bracket (1)

11 3637073M12 Screw M12 X 50 12 733812M12 Spring (1)

13 3638500M11 Screw (1)

14 4224336M12 Shim (1)

15 3638499M11 Connection (1)

16 376525X1 1 Olive

17 733817M112 Rod

18 4222069M112 Tappet

19 4223933M112 Screw (1)

20 4224544M16 Rocker (1) REPLACE AND REPAIR.OLD INTERCHANGEABLE WITH NEW 4222159M1 21 4224553M11 Bush (20) REPLACE AND REPAIR.OLD NOT INTERCHANGEABLE WITH NEW 4222158M1

22 3637067M14 Nut 23 3637066M14 Stud

Massey Ferguson 4360 / 4370 TRACTORS

819931 819931

Page010-0080

MF 4360 / 4370 TRACTORS - 819931 3-XA14-001-B 20 16 39 3 2 4 1 5 34 33 32 6 31 7 30 8 37 35 9 36 38 27 29 42 23 10 25 26 24 28 11 12 22 21 15 17 19 18 14 13 40 41 RefXA143001-1 Page010-0085
