Cylinder Block - M.F 4325 " 1004-40 GREEN" - A.J31294-A.J31353
ItemPart NumberQtyDescriptionComments
1 4222818M911 Kit,Cyl.Block
2 4222129M14 Liner [A] (1) 4222128M1X Liner [B] 4223985M1X Liner [B] (+)0.010"
3 1476282X11 Plug (1)
4 376670X11 Plug
5 746259M14 Plug (1)
6 3638435M12 Screw (1) M8 X 20
7 748416M11 Plate (1)
8 3638696M11 Joint (1) 9 4222017M11 Bush (1) 10 1476108X110 Screw (1)
11 733072M110 Ring (1)
12 376616X14 Bush (1)
13 348281X14 Screw (1)
14 4224385M914 Jet (1)
15 4222512M11 Dowel (14)
16 3637005M914 Valve (1)
17 3637006M11 Ball (16)
18 748149M11 Spring (16)
19 3637007M11 Retainer (16) 20 731996M11 Plug 21 731354M11 Plug (1) DIAMETER 32,397+/-0,114MM 22 3641736M11 Plug (1) DIAMETER 25.971+/-0.063 23 731354M11 Plug (1) 24 363819X11 Plug (1) 25 4222439M12 Dowel (1) 26 376670X11 Plug 27 746259M12 Plug (1) 28 4224555M11 Washer (1) 29 376180X11 Plug (1) 30 4222043M11 Plug (1) 31 3638424M14 Screw (1) M10 X 25 32 4222048M11 Plate (1) 33 3638708M11 Joint (1) 34 736868M11 Plug (1) 35 3637011M112 Screw M8 X 25 36 3641756M12 Screw 37 4224532M11 Housing 38 4222012M14 Plug (1) 39 731947M12 Dowel 40 4223587M11 Joint 41 363819X11 Plug (1) 42 731856M11 Plug (1)
DIAMETER 25,971+/-0,063MM
FOOTNOTE[A] UNFINISHED - PRESS FIT
FOOTNOTE[B] FINISHED - SLIP FIT
- 819929
Cylinder Block - M.F 4335 " 1004-42 GREEN" - A.R31434-A.R31435
ItemPart NumberQtyDescriptionComments
1 4222945M911 Kit,Cyl.Block
2 731354M11 Plug (1)
3 1476282X11 Plug
4 4222012M11 Plug (1)
5 746259M11 Plug (1)
6 3638435M12 Screw M8 X 20
7 748416M11 Plate
8 3638696M11 Joint 9 4222017M11 Bush (1)
10 1476108X110 Screw (1)
11 733072M110 Ring (1)
12 4223072M12 Plug (1) 13 736868M11 Plug (1) 14 4224385M911 Jet (1) 15 4222512M11 Dowel (14) 16 3637005M911 Valve (1)
17 3637006M11 Ball (16) 18 748149M11 Spring (16) 19 3637007M11 Retainer (16) 20 731354M15 Plug (1)
DIAMETER 32,397+/-0,114MM
21 4223859M11 Plug (1)
22 363819X12 Plug (1) 23 731996M11 Plug 24 363819X11 Plug (1) 25 746259M12 Plug (1) 26 3637011M112 Screw M8 X 25 27 3641756M12 Screw 28 4224555M11 Washer (1) 29 376180X11 Plug (1) 30 4222043M11 Plug (1) 31 3638424M14 Screw (1) M10 X 25 32 4222048M11 Plate (1) 33 3638708M11 Joint (1) 34 742475M11 Plug (1) 35 4224532M11 Housing 36 4224552M13 Plug (1)
REPLACE AND REPAIR.OLD NOT INTERCHANGEABLE WITH NEW 4222947M1 37 731947M12 Dowel 38 4223587M11 Joint 39 376670X11 Plug 40 376670X11 Plug (1)
Massey Ferguson 4325 / 4335 TRACTORS - 819929

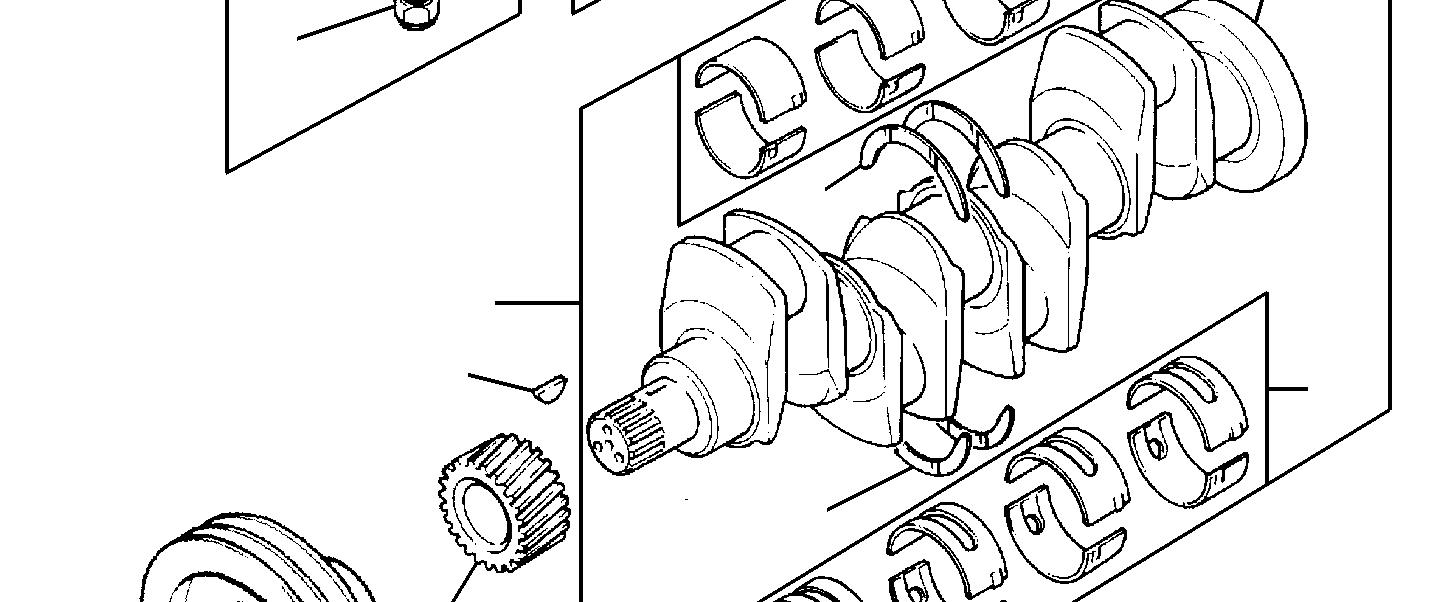

Crankshaft, Pistons And Connecting Rods - M.F 4325 " 1004-40 GREEN" - A.J31294-A.J31353
ItemPart NumberQtyDescription Comments
1 4223432M914 Kit, Conrod UP TO SERIAL OR ENGINE NUMBER U284277J "H"
4223433M914 Kit, Conrod UP TO SERIAL OR ENGINE NUMBER U284277J "J"
4223434M914 Kit, Conrod UP TO SERIAL OR ENGINE NUMBER U284277J "K"
4223435M914 Kit, Conrod UP TO SERIAL OR ENGINE NUMBER U284277J "L"
2 1 Conrod (1) NOT SERVICED, ORDER REF. 1 3 1 Cap (1) NOT SERVICED, ORDER REF. 1 4 4222131M11 Bush (1)
UP TO SERIAL OR ENGINE NUMBER U284277J 5 4222485M12 Screw (1) UP TO SERIAL OR ENGINE NUMBER U284277J 1/2-20 X 3
6 3637030M12 Nut (1) UP TO SERIAL OR ENGINE NUMBER U284277J 7 4222821M12 Sleeve (1)
UP TO SERIAL OR ENGINE NUMBER U284277J 8 4222134M914 Kit, Piston 9 1 Pin (8) NOT SERVICED, ORDER REF. 8 10 376131X12 Clip (8) 11 1 Piston (8) NOT SERVICED, ORDER REF. 8 12 3641031M911 Kit, CrankshaftUP TO SERIAL OR ENGINE NUMBER U284277J 1 Kit, Crankshaft[C]
FROM SERIAL OR ENGINE NUMBER U284278J 13 736950M911 Kit, Bearing [A] (12)
UP TO SERIAL OR ENGINE NUMBER U284277J 736951M91X Kit, Bearing [A]
UP TO SERIAL OR ENGINE NUMBER U284277J THICKNESS (-) 0,25MM 736952M91X Kit, Bearing [A]
UP TO SERIAL OR ENGINE NUMBER U284277J THICKNESS (-) 0,50MM 736953M91X Kit, Bearing [A]
UP TO SERIAL OR ENGINE NUMBER U284277J THICKNESS (-) 0,75MM 4225214M911 Kit, Bearing [A] (12)
FROM SERIAL OR ENGINE NUMBER U284278J
X Kit, Bearing [A,C]
FROM SERIAL OR ENGINE NUMBER U284278J THICKNESS (+) 0.010"
X Kit, Bearing [A,C]
FROM SERIAL OR ENGINE NUMBER U284278J THICKNESS (+) 0.020"
X Kit, Bearing [A,C] (+) 0.030"
FROM SERIAL OR ENGINE NUMBER U284278J
Thrust Washer (12) 735742M1X Washer THICKNESS (+) 0,19MM 15 1 Crankshaft (12)
14 747128M12
NOT SERVICED, ORDER REF. 12
16 735168M911 Kit, Bearing [A] (12)
735169M91X Kit, Bearing [A] THICKNESS (-) 0,25MM
735170M91X Kit, Bearing [A] THICKNESS (-) 0,50MM
735171M91X Kit, Bearing [A] THICKNESS (-) 0,75MM
17 747129M12
Thrust Washer (12) 735743M1X Washer THICKNESS (+) 0,19MM
18 4222401M11 Block 19 748074M13 Screw 20 4222820M11 Gear,Crankshaft 21 709058451 Key
Massey Ferguson
4325 / 4335 TRACTORS - 819929
Crankshaft, Pistons And Connecting Rods - M.F 4325 " 1004-40 GREEN" - A.J31294-A.J31353
ItemPart NumberQtyDescription Comments
22 4222867M11 Pulley,Crank 23 4222136M914 Kit, Piston Ring 24 4225011M914 Kit, Conrod FROM SERIAL OR ENGINE NUMBER U284278J "F"
24 4225012M914 Kit, Conrod FROM SERIAL OR ENGINE NUMBER U284278J "G"
24 4225013M914 Kit, Conrod FROM SERIAL OR ENGINE NUMBER U284278J "H"
24 4225014M914 Kit, Conrod FROM SERIAL OR ENGINE NUMBER U284278J "J"
24 4225015M914 Kit, Conrod FROM SERIAL OR ENGINE NUMBER U284278J "K"
24 4225016M914 Kit, Conrod FROM SERIAL OR ENGINE NUMBER U284278J "L"
25 4224864M12 Bolt (24) FROM SERIAL OR ENGINE NUMBER U284278J 26 1 Conrod (24) NOT SERVICED, ORDER REF. 24 27 4224827M11 Bush (24) FROM SERIAL OR ENGINE NUMBER U284278J
FOOTNOTE[A] PRE-FINISHED
FOOTNOTE[B] NOT ILLUSTRATED
FOOTNOTE[C] NUMBER TO BE ADVISED
Massey Ferguson
4325 / 4335 TRACTORS - 819929
Crankshaft, Pistons And Connecting Rods - M.F 4335 " 1004-42 GREEN" - A.R31434-A.R31435
ItemPart NumberQtyDescription Comments
1 4223939M911 Kit, CrankshaftUP TO SERIAL OR ENGINE NUMBER ........ 1 Kit, Crankshaft[C]
FROM SERIAL OR ENGINE NUMBER ........
2 1 Crankshaft (1) NOT SERVICED, ORDER REF. 1
3 735168M911 Kit, Bearing [A] (1)
735169M91X Kit, Bearing [A] THICKNESS (-) 0,25MM
735170M91X Kit, Bearing [A] THICKNESS (-) 0,50MM
735171M91X Kit, Bearing [A] THICKNESS (-) 0,75MM
4 3637791M911 Kit, Bearing [A] (1)
UP TO SERIAL OR ENGINE NUMBER ........
3637792M91X Kit, Bearing [A]
UP TO SERIAL OR ENGINE NUMBER ........ THICKNESS (-) 0,25MM
3637793M91X Kit, Bearing [A]
UP TO SERIAL OR ENGINE NUMBER ........ THICKNESS (-) 0,50MM
3637794M91X Kit, Bearing [A]
UP TO SERIAL OR ENGINE NUMBER ........ THICKNESS (-) 0,75MM
4225214M911 Kit, Bearing [A]
FROM SERIAL OR ENGINE NUMBER ........
X Kit, Bearing [A,C]
FROM SERIAL OR ENGINE NUMBER ........ THICKNESS (+) 0.010"
X Kit, Bearing [A,C]
FROM SERIAL OR ENGINE NUMBER ........ THICKNESS (+) 0.020"
X Kit, Bearing [A,C]
FROM SERIAL OR ENGINE NUMBER ........ THICKNESS (+) 0.030"
5 747128M12 Thrust Washer (1) 735742M1X Washer THICKNESS (+) 0,19MM 6 747129M12 Thrust Washer (1) 735743M1X Washer THICKNESS (+) 0,19MM 7 4222401M11 Block 8 748074M13 Screw 9 4223432M914 Kit, Conrod UP TO SERIAL OR ENGINE NUMBER ........ "H" 4223433M914 Kit, Conrod UP TO SERIAL OR ENGINE NUMBER ........ "J" 4223434M914 Kit, Conrod UP TO SERIAL OR ENGINE NUMBER ........ "K" 4223435M914 Kit, Conrod UP TO SERIAL OR ENGINE NUMBER ........ "L" 10 1 Conrod (9) NOT SERVICED, ORDER REF. 9 11 1 Cap (9) NOT SERVICED, ORDER REF. 9 12 4222131M11 Bush (9) UP TO SERIAL OR ENGINE NUMBER ........ 13 4222485M12 Screw (9) UP TO SERIAL OR ENGINE NUMBER ........ 1/2-20 X 3 14 3637030M12 Nut (9) UP TO SERIAL OR ENGINE NUMBER ........ 15 4222821M12 Sleeve (9) UP TO SERIAL OR ENGINE NUMBER ........ 16 4222949M914 Kit, Piston STANDARD 4223436M914 Kit, Piston THICKNESS (+) 0,50MM 4223437M914 Kit, Piston THICKNESS (+) 1,00MM 17 1 Pin (16) NOT SERVICED, ORDER REF. 16 18 4222135M11 Circlip (16) 19 4222135M11 Circlip (16) 20 1 Piston (16) NOT SERVICED, ORDER REF. 16
Massey Ferguson
4325 / 4335 TRACTORS - 819929
Crankshaft, Pistons And Connecting Rods - M.F 4335 " 1004-42 GREEN" - A.R31434-A.R31435
ItemPart NumberQtyDescription Comments 21 4222820M11 Gear,Crankshaft 22 709058451 Key 23 4222867M11 Pulley,Crank 24 4222400M11 Pulley,Crank 25 4222950M914 Kit, Piston RingSTANDARD 25 4223438M91X Kit, Piston RingTHICKNESS (+) 0,50MM 25 4223439M91X Kit, Piston RingTHICKNESS (+) 1,00MM 26 4225011M914 Kit, Conrod FROM SERIAL OR ENGINE NUMBER ........ "F" 26 4225012M914 Kit, Conrod FROM SERIAL OR ENGINE NUMBER ........ "G" 26 4225013M914 Kit, Conrod FROM SERIAL OR ENGINE NUMBER ........ "H" 26 4225014M914 Kit, Conrod FROM SERIAL OR ENGINE NUMBER ........ "J" 26 4225015M914 Kit, Conrod FROM SERIAL OR ENGINE NUMBER ........ "K" 26 4225016M914 Kit, Conrod FROM SERIAL OR ENGINE NUMBER ........ "L" 27 4224864M12 Bolt (26) FROM SERIAL OR ENGINE NUMBER ........ 28 1 Conrod (26) NOT SERVICED, ORDER REF. 26 29 4224827M11 Bush (26) FROM SERIAL OR ENGINE NUMBER ........
Massey Ferguson
4325 / 4335 TRACTORS - 819929

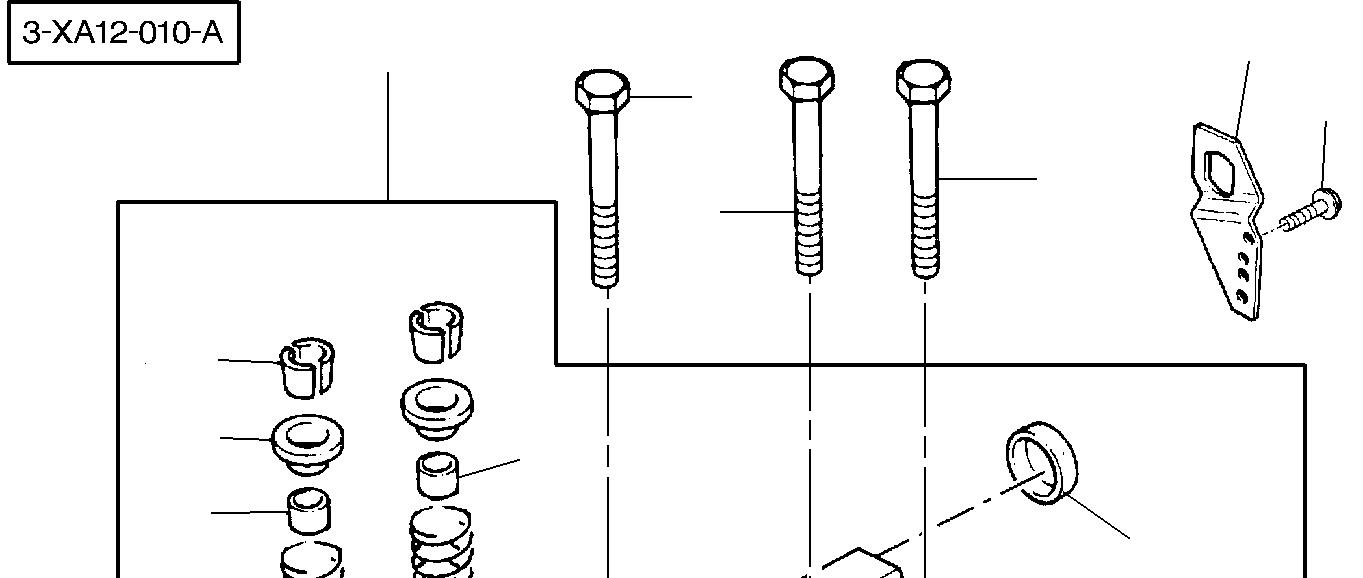

Cylinder Head - "GREEN" - See Section 10-15 For PERKINS Build List
ItemPart NumberQtyDescription Comments
1 4222822M911 Kit, Cyl. Head 2 1 Cylinder Head (1)
NOT SERVICED, ORDER REF. 1
3 4222149M914 Valve Inlet (1)
4 4222148M14 Insert (1)
5 4224284M14 Insert (1)
6 4222147M914 Valve Exhaust (1)
7 4223987M14 Guide (1)
REPLACE AND REPAIR.OLD NOT INTERCHANGEABLE WITH NEW 4222954M1
8 4222139M18 Spring (1)
9 4222333M14 Oil Seal (1)
10 4222140M18 Cap (1) 11 4222141M18 Cotter (1)
12 4222232M14 Plate (1) 13 4222959M14 Guide (1)
14 746259M12 Plug (1)
15 731354M12 Plug (1)
16 4224584M14 Plug (1)
REPLACE AND REPAIR.OLD INTERCHANGEABLE WITH NEW 1476192X1
17 731410M11 Plug (1)
18 376178X11 Washer (1)
19 4222439M12 Dowel (1)
20 745662M18 Screw 1/2-20 X 3.5/8 21 745663M112 Screw 1/2-20 X 4.1/4 22 1476243X12 Screw 23 4224501M1 1 Head GasketREPLACE AND REPAIR.OLD NOT INTERCHANGEABLE WITH NEW 4222534M1 24 4222170M11 Plate
25 3637051M14 Screw M10 X 25 26 4222228M11 Plate 27 Not Used
Massey Ferguson
4325 / 4335 TRACTORS - 819929
Cylinder Head - M.F 4335 " 1004-42 GREEN" - A.R31434-A.R31435
ItemPart NumberQtyDescription Comments
1 4223495M911 Kit, Cyl. Head 2 1 Cylinder Head (1)
NOT SERVICED, ORDER REF. 1
3 4222952M14 Valve Inlet (1)
4 4222953M14 Insert (1)
5 4222958M14 Insert (1)
6 4222957M14 Valve Exhaust (1)
7 4223987M14 Guide (1)
REPLACE AND REPAIR.OLD NOT INTERCHANGEABLE WITH NEW 4222954M1
8 4222955M18 Spring (1)
9 4224007M14 Oil Seal (1)
10 4222140M14 Cap (1)
11 4222141M18 Cotter (1)
12 4222442M14 Gasket (1)
13 4223581M14 Valve Guide (1)
14 746259M11 Plug (1)
15 731354M11 Plug (1)
16 4224584M14 Plug (1)
REPLACE AND REPAIR.OLD INTERCHANGEABLE WITH NEW 1476192X1
17 731410M11 Plug (1)
18 376178X11 Washer (1)
19 4224009M12 Dowel
20 4222962M18 Screw 21 4224011M18 Bolt 22 4224012M12 Screw 23 4223146M11 Head Gasket 24 4222170M11 Plate
25 3637051M14 Screw M10 X 25 26 4222228M11 Plate 27 745663M14 Screw 1/2-20 X 4.1/4
