URBAN INTERVENTION: SYNAPSE

01 URBAN INTERVENTION: SYNAPSE A proposal of neighbourhood revitalization.

This project renovate an ageing area, the Manor Place, within the Elephant & Castle area, including the famouse landmark Manor Place Bath. The project aims at using the Manor Place as a new urban living room, creating a multi functional landscape as the new centre of the redeveloping area.

Also, introducing a new life style to the local community, Co-living and Co-working. The project provide workspace for teenagers who are planning for start up and workshops for creative industries, as well as a residential building for the community. In addition, the garden landscape and piaza are the new landmark and redifining the character of the area, work life balance. As a result, to revitalized the Elephant and Castle district and bring new opportunities for the local community.

1

URBAN INTERVENTION: SYNAPSE

SITE RESEARCH

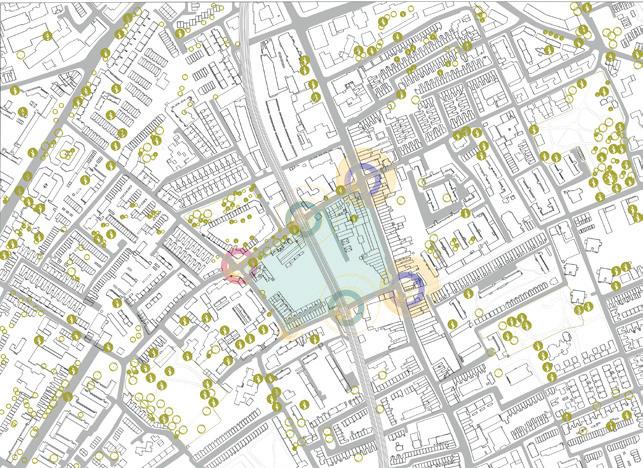

SURROUNDING CONTEXT

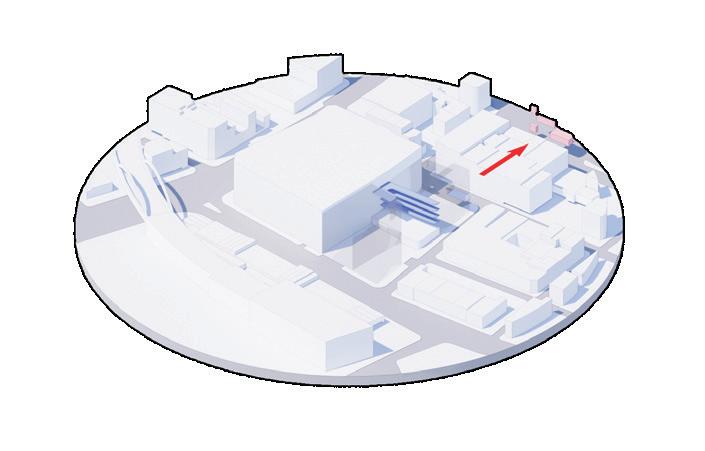

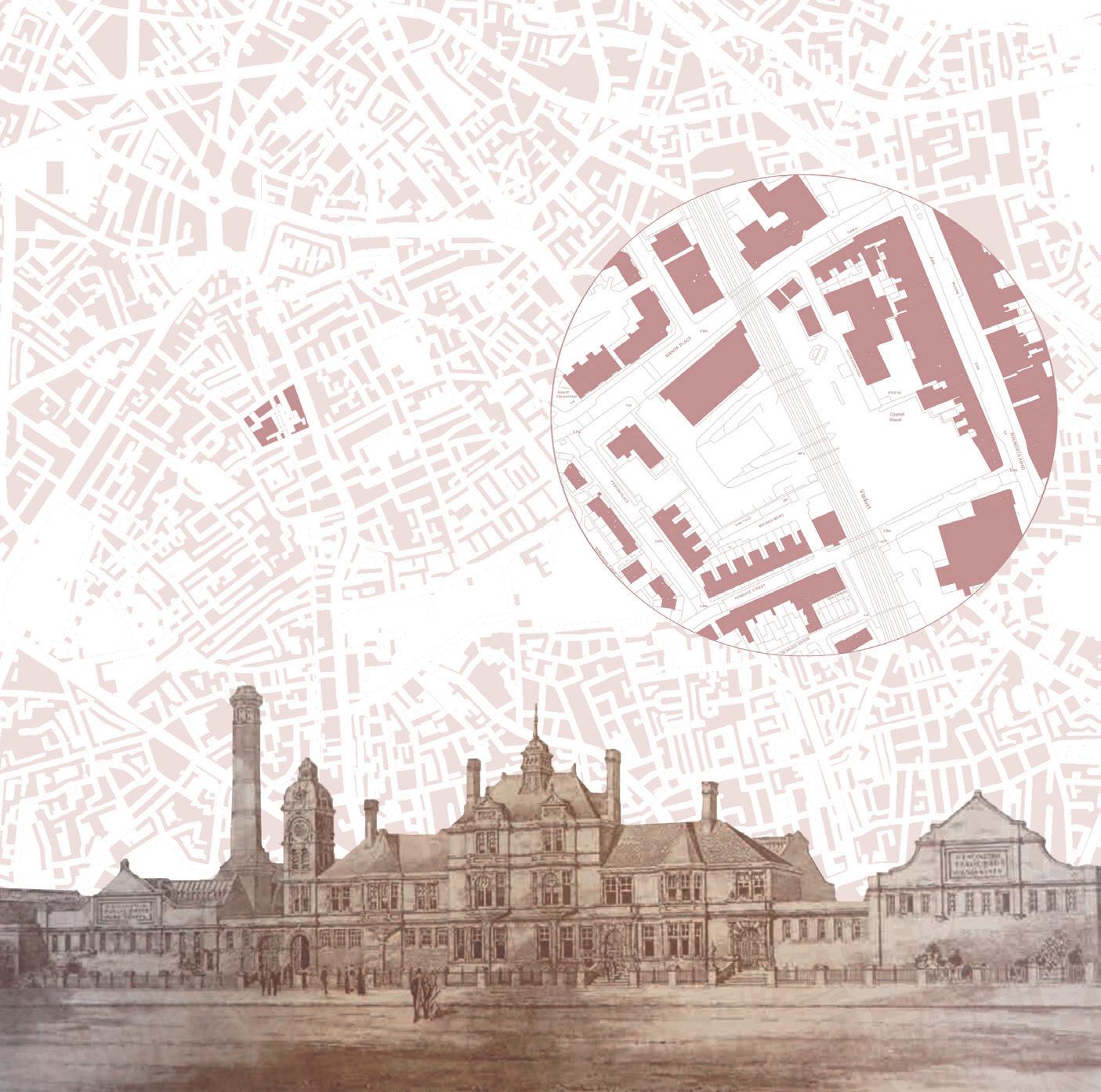

The Manor Place within context of the Elephant and Castle

The region of Elephant and Castle serves as a tranportation hub within the Southwark borough. In early age, Elephant and Castle was famous with young professionals and artists due to the proximity to the city centre and low living cost. Today, the area is suffer ingwith social issues, such as unemploment and high crime rate, cause by under development. Terrance house as the dominant housing typology is one of the main reason risisted the tide of gentrification.

The local region in relation to the site is divided in two by a railway. The eastern part of site lies on the Walworth road which houses many retails, restaurants and hotel. On the western part of site contain the Manor Place Bath and the Pasley Estate.

Hotels Retails The Manor Place Bath

Housing Mixed Use

The Manor Place is well-knowed with its Victorian public bath which was designed and built by Mr E B I’Anson in 1898, severed as a public bath and laundry for the locals. The building also included two swimming pools for each gender and re-purpoesed as event space in winter. The bath remain popular within the neighbourhood until the introduce of in-house bathrooms. Later, the openning of the Ellephant and Castle leisure center with modern swimming facilities put an end to the bath. Today, the bath is occupied by a Buddhist organizations. The sense of vatality and communal has disappered.

2

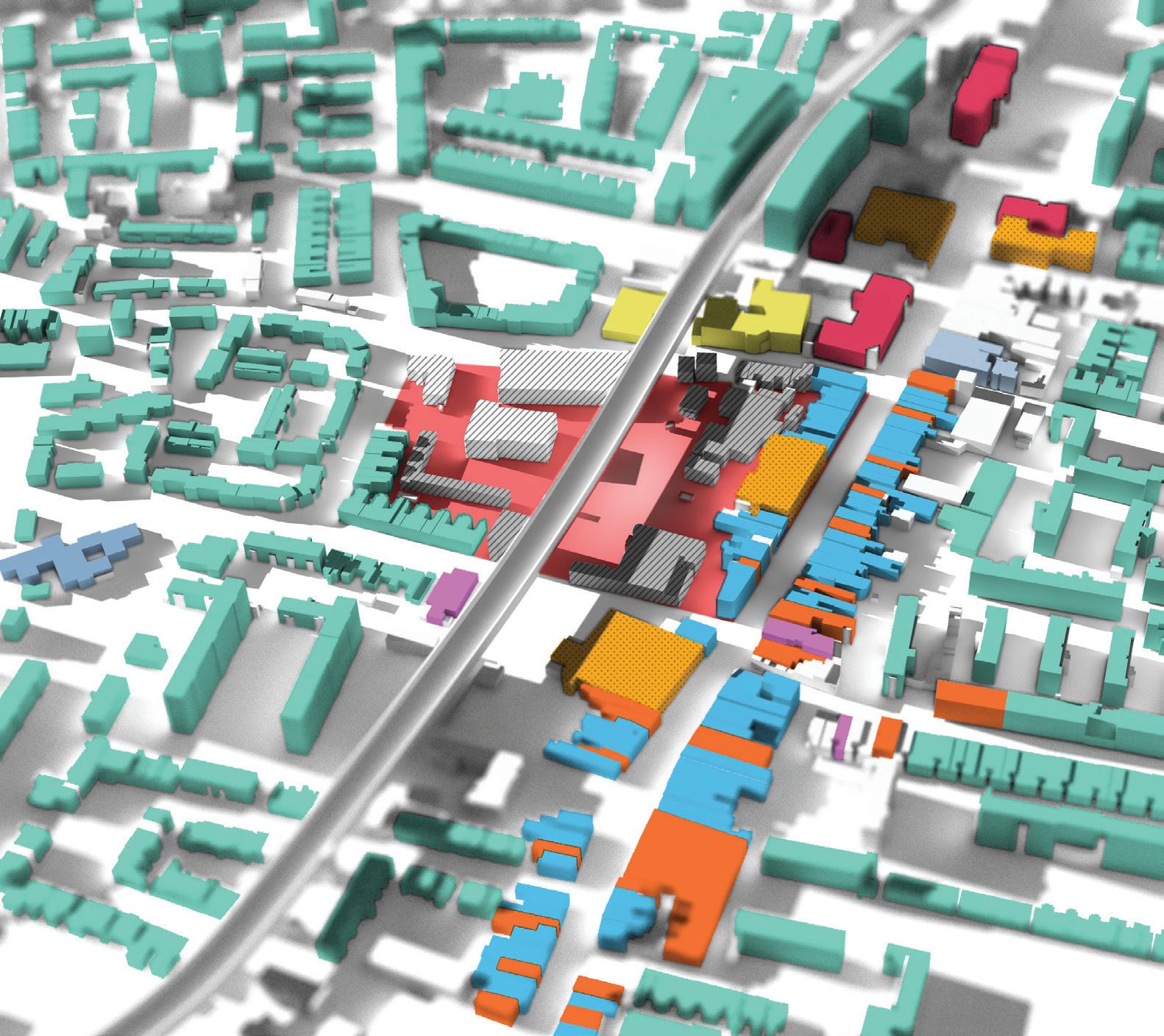

Police Station School Food & Dinning Unutilized Health Care

URBAN INTERVENTION: SYNAPSE

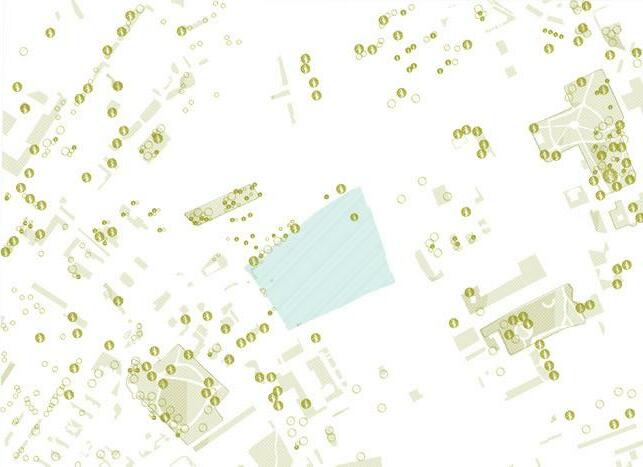

ENVIRONMENTAL ANAYLSIS Anaylsis of surroundings and sun light

1. The site lies on the left of the Walworth Road. As the main road of the area connecting north and south, the Walworth road is extremely busy with trafic. Alternatively, it has the most vistiors flowrate which is suitable for the main entrance to access the site.

2. The site sit between several parks. However, as an ‘Urban Living Room’ for recreation purpose, the site will need extra greening landscape to provide a natural environment.

3. There main noise source to the site comes from the main road and the railway cut through the site. Therefore, the east side of the site is not suitablef for residential accomodation. While the west side may also need extra noise barrier such as greenings.

1

2

3

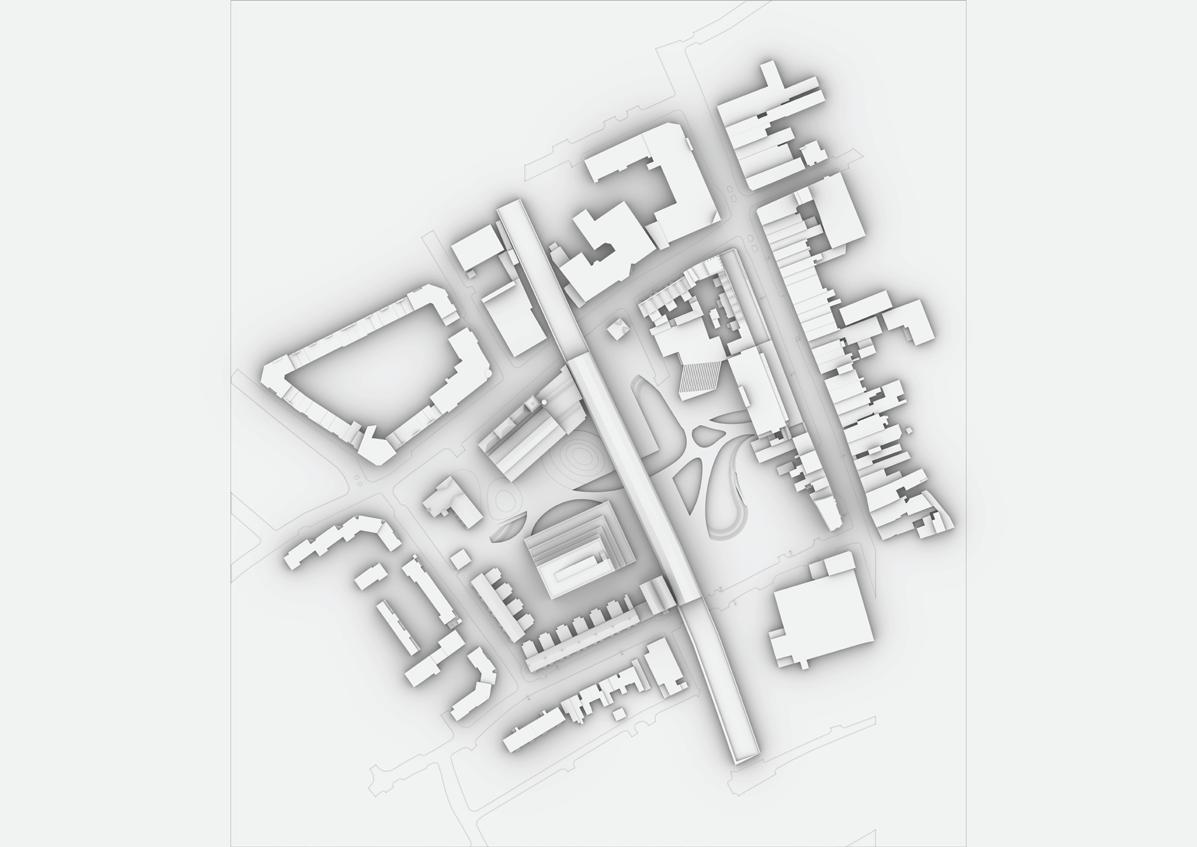

SUN LIGHT ANALYSIS

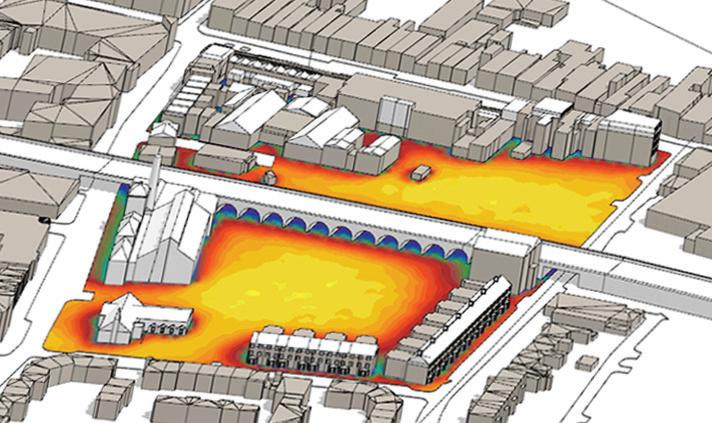

To the right I have conducted a radiation analysis for the local block of the site. This diagram displays areas with the highest solar radiation exposure (measured in KW per M2.. The readings are taken from an average of the year round exposure to the sun and were conducted once again utilising the Diva plugin for Rhino.

OVERALL SHADOW CASTING ON SITE

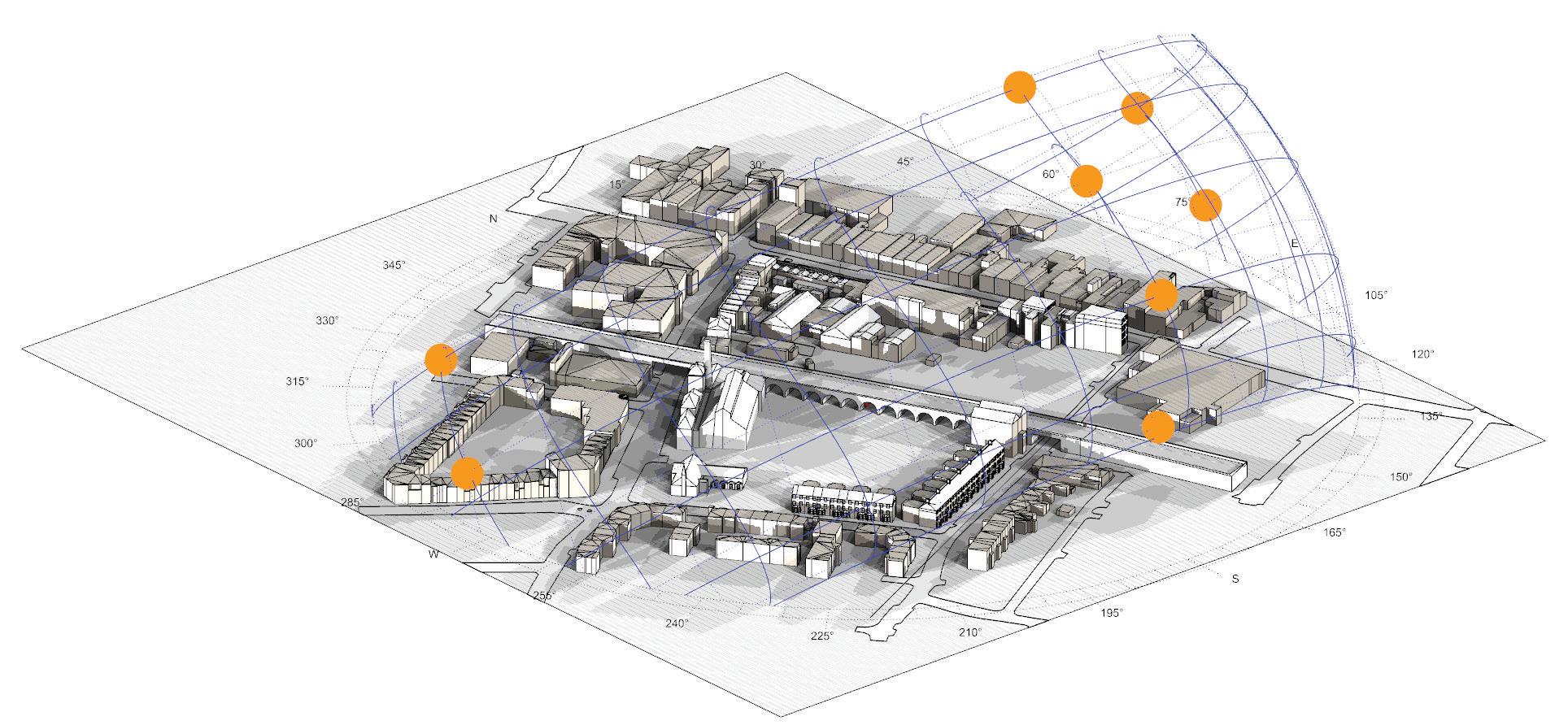

The diagram to the right displays the sum solar movement and variability throughout the days of the year and the total shadow cast upon different areas of the site. This may be an important consideration in the determination of areas of daylight autonomym ideally for the living quarters which the site should accomodate for, also for any green spaces that the site should have to allow any plants ample sunlight to photosynthesise.

3

URBAN INTERVENTION: SYNAPSE

SPACE AND EVENTS

TECHNICAL DRAWING

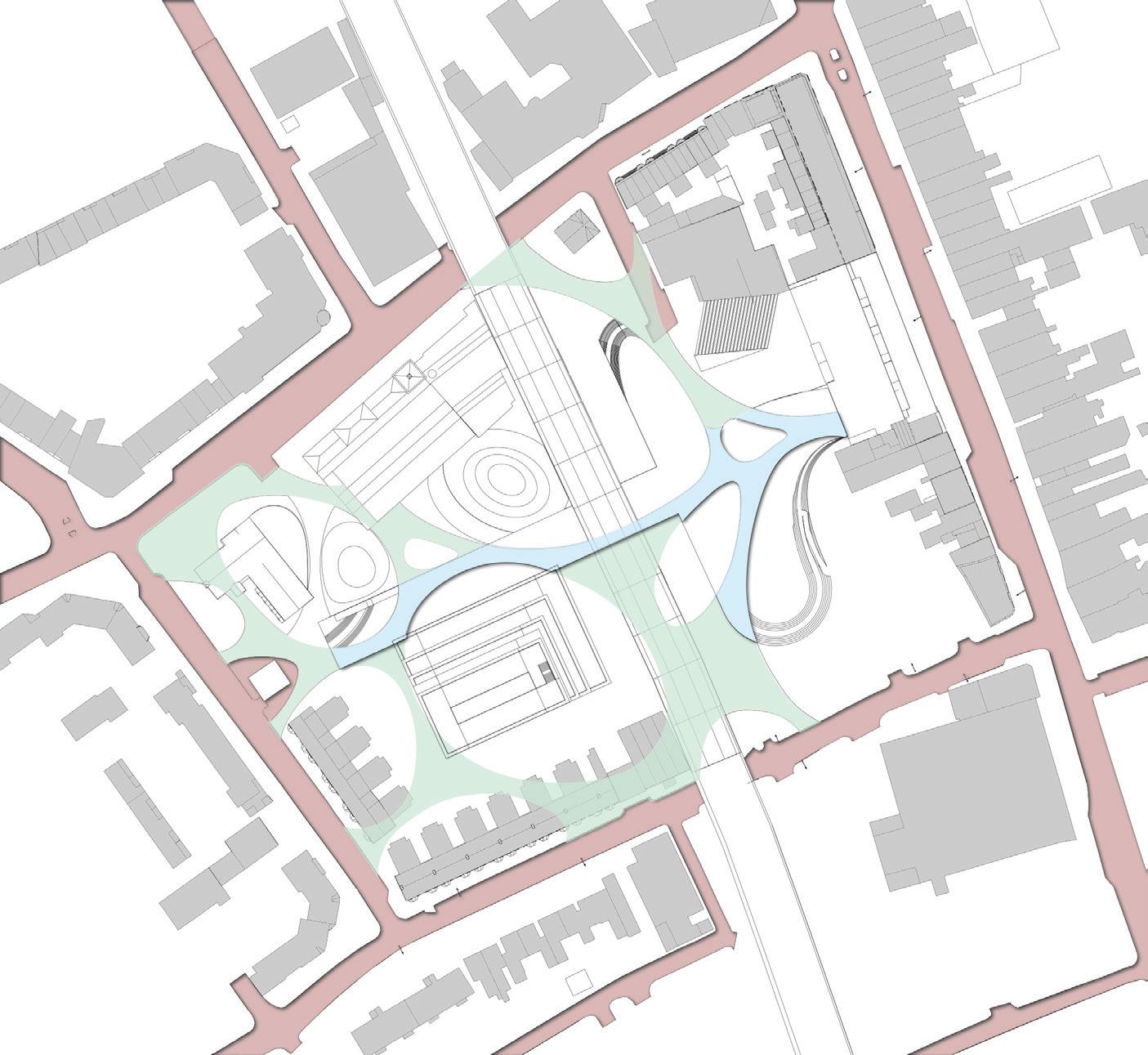

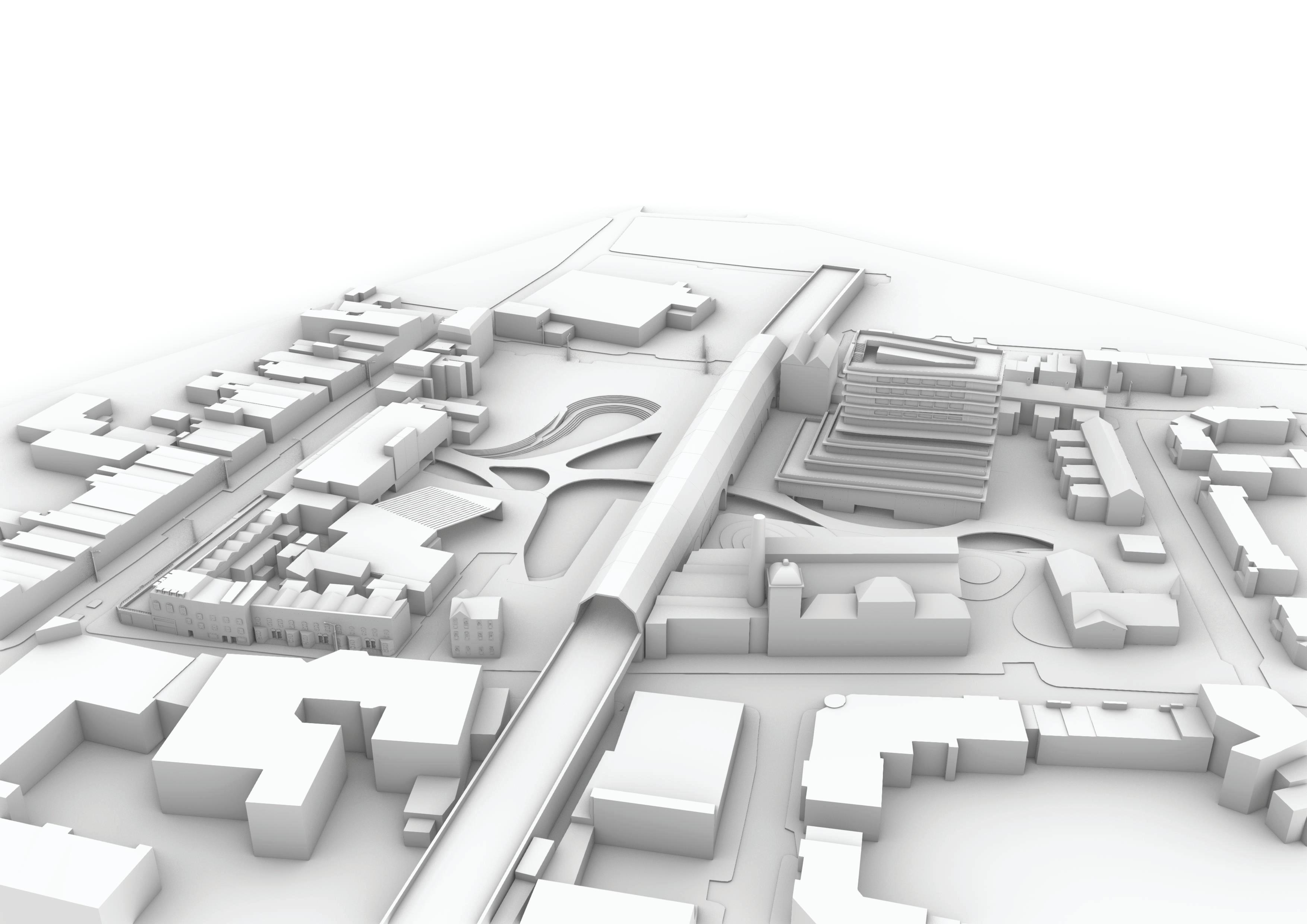

Master Plan and Space Layering

Master Plan and Space Layering

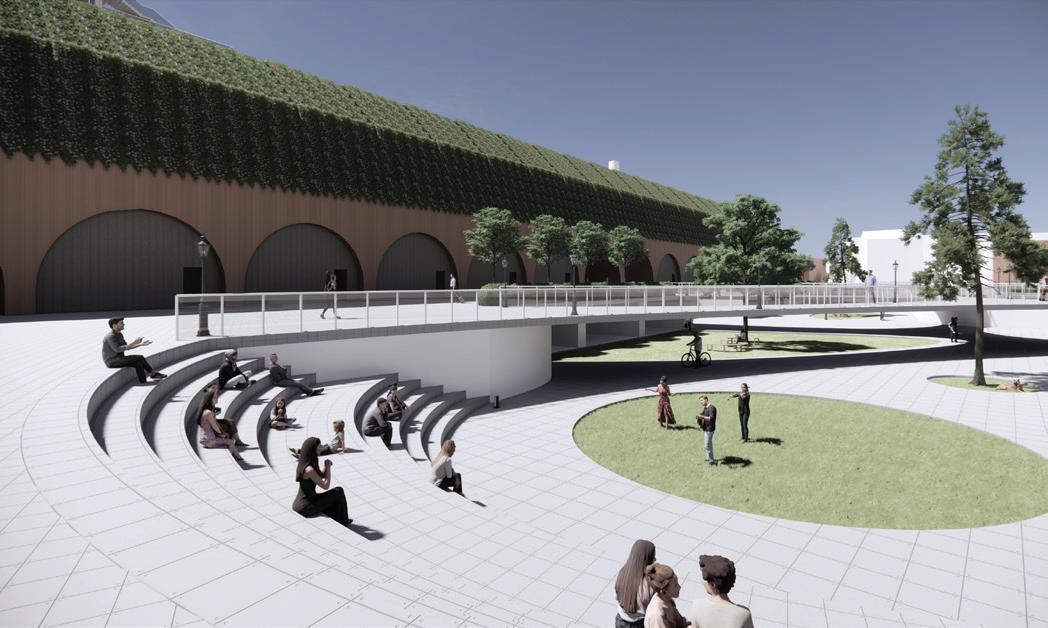

PIAZZA

Located at the south-east of the site, the Piazza is a public realm for events such as outdoor theatre and pop-up market.

The fading landscape blurs the definition of ‘ground’, guiding people walk into the space and interact with the community.

10 10

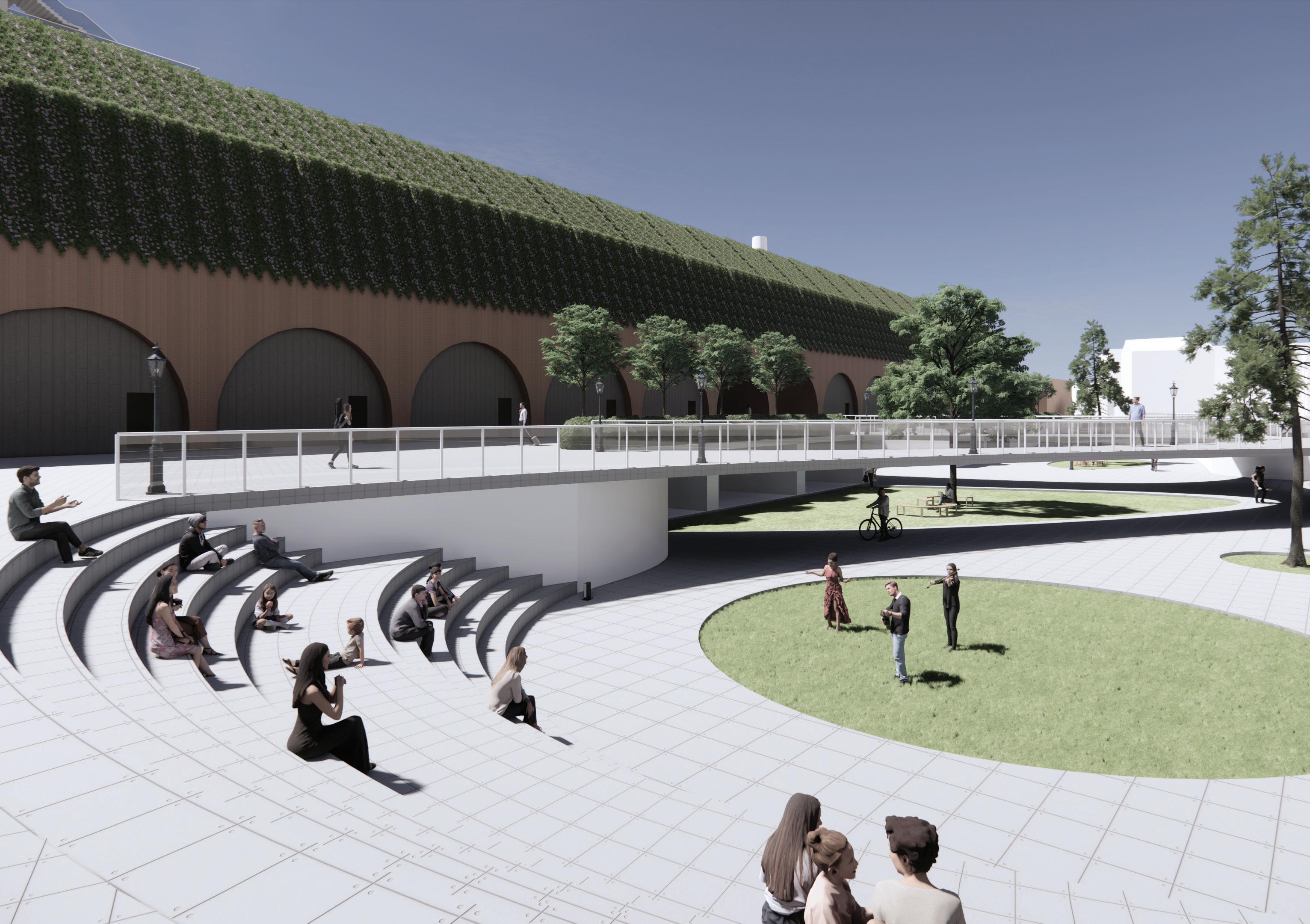

5 Manor Place Piazza

6

GARDEN

The garden locate next to the Manor Place Bath, which will be renovate as a new leisure centre. The garden is forseen as an augumentation of the bath, extending the experience of leisure and socializing to the outdoor area.

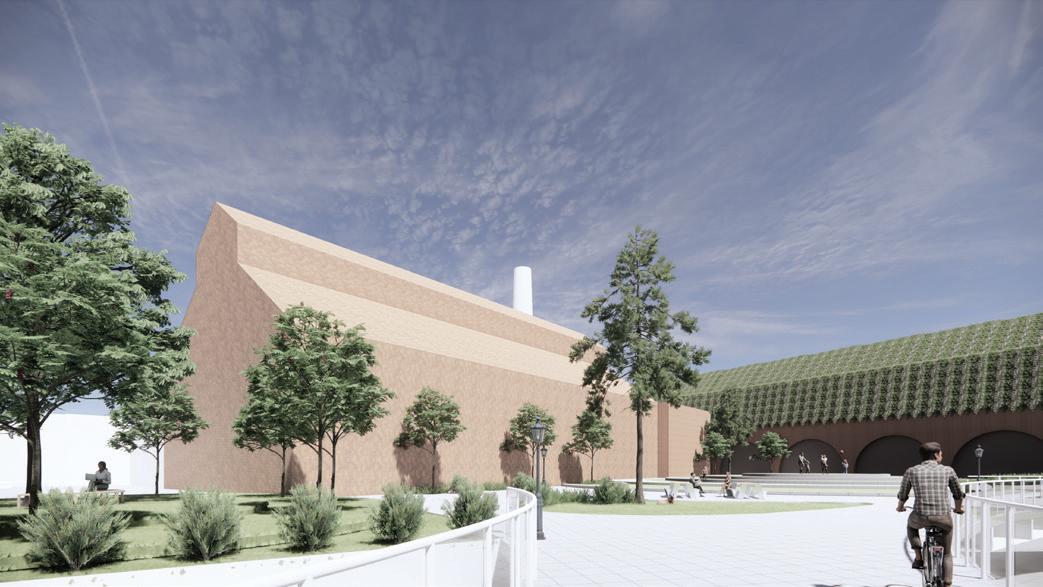

Manor Place Garden

COMMERCIAL STREET

The commercial street locate at the excavate level, including retials, workshops and restaurants for residents and vistors.

Manor Place Commercial Street

4

8

1. Entrance 2. Retail 3. Footbridge 4. Outdoor Theatre 5. Manor Place Bath

Landscape

1

3 2 10

2 9

2

2

4

7

6. Church 7. Apartment 8. Garden 9. Carpark Entrance 10. Workshops

Footbridge

Excavation

URBAN INTERVENTION: SYNAPSE

SYNAPSE: CONNECTION AND PUBLIC ENGAGEMENT

The concept is inspired by synapse. In the nervous system, a synapse is a structure that permits a neuron (or nerve cell) to pass an electrical or chemical signal to another neuron or to the target effector cell. Upon entering the site, a person can be forseen as a cell to interact with others with no limitation in time and space. In a bigger picture, the site connect the Elephant & Castle area with other part of London, as a synapse.

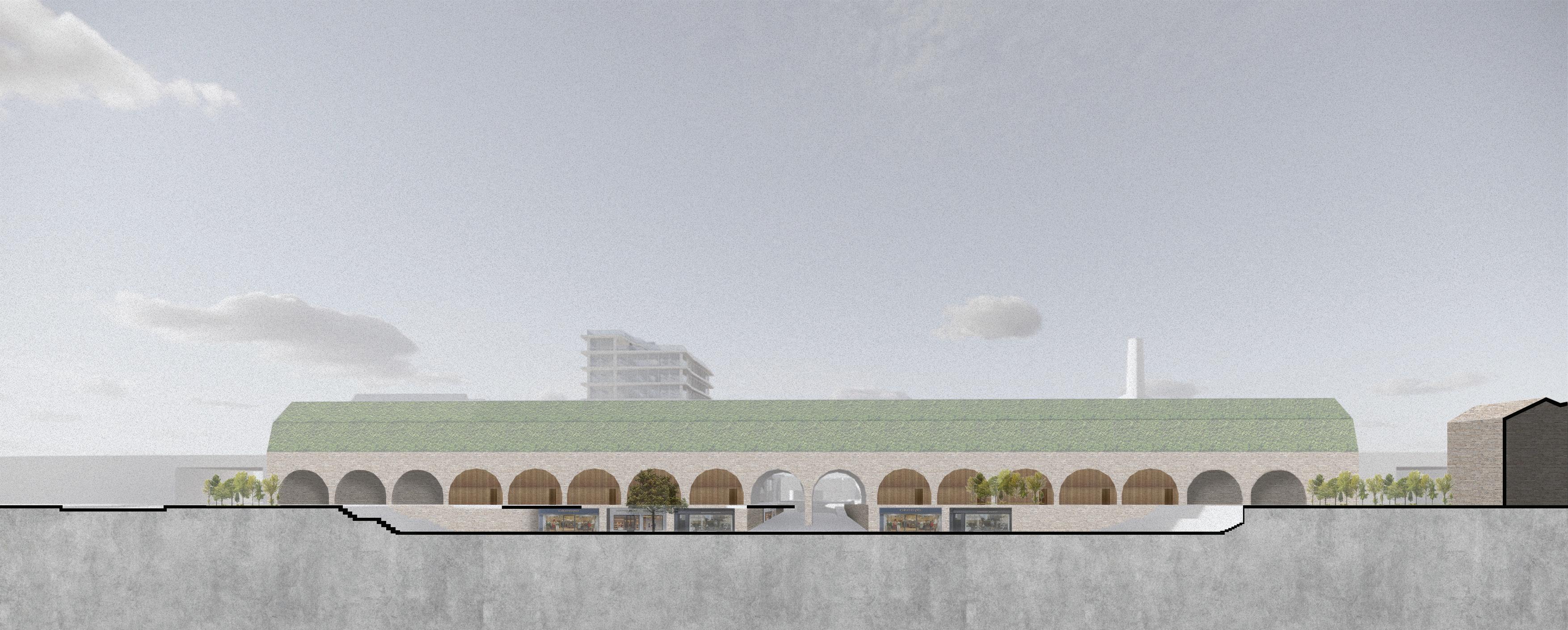

Sectional Drawing

5

URBAN INTERVENTION: SYNAPSE

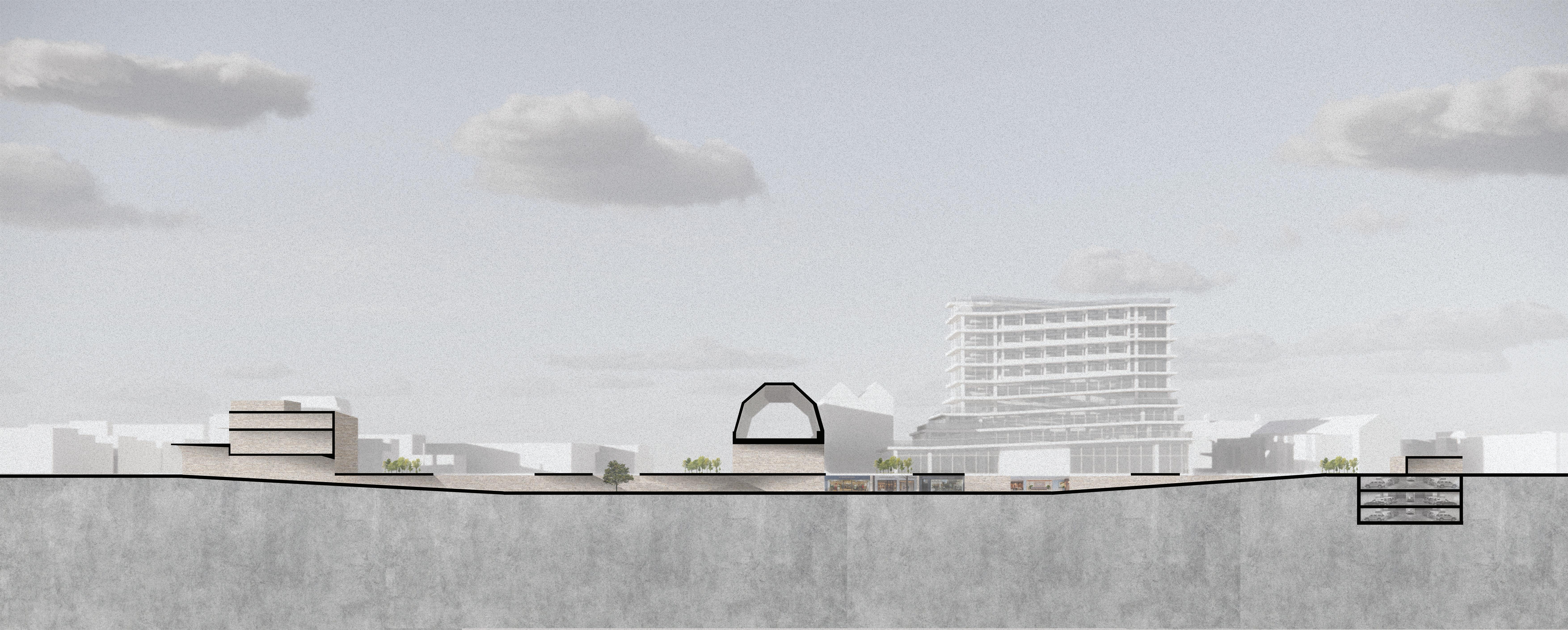

TRANSPARENT SPACE Sectional Drawing and Renderings

The space features a gradual slope from one end to another, providing disability access to the excavate level. Over the excation, solid ground is replaced with foot bridges to connect the whole site at ground level. Which also project boundary of space for the excavate level with form and shadow.

6

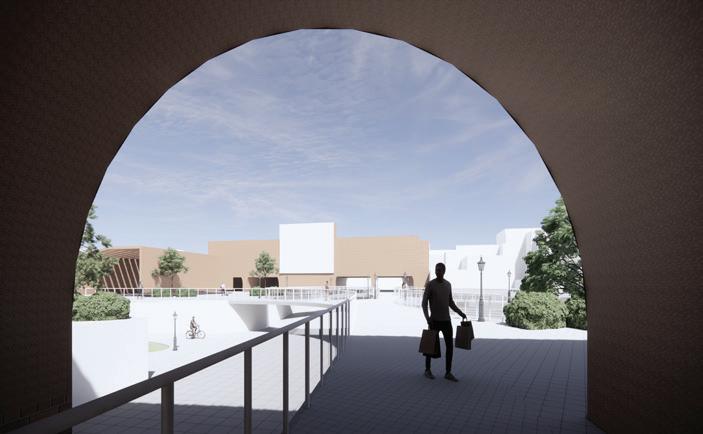

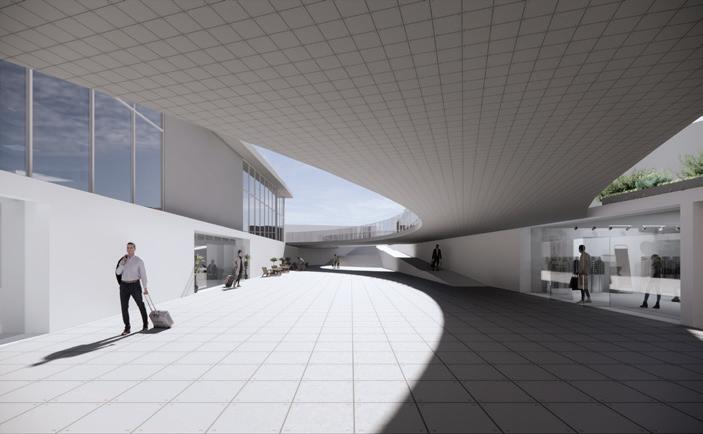

MAIN ENTRANCE

FOOTBRIDGE

The shape of the main entrance respected the shape of the railway arch within the site as a continue of space. The entrance connects to the both the bridge level and excavate level, also include retail space on top of the tunnels.

The footbridge is the main connection of the site at ground level. Allow residents to overlook the space and events happening at the excavation level.

URBAN INTERVENTION: SYNAPSE

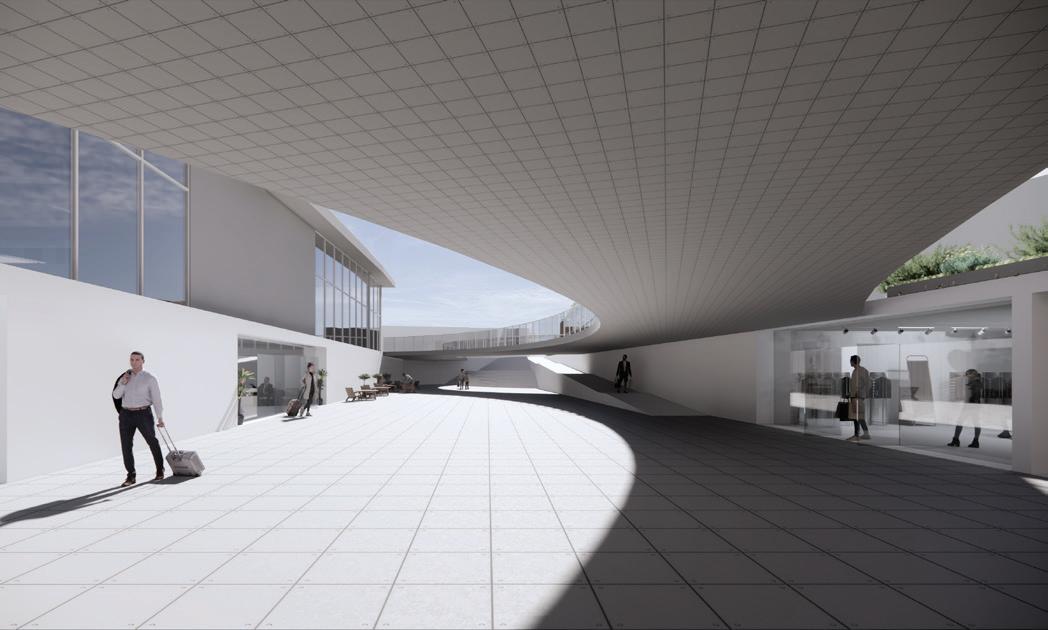

EXCAVATION SPACE

WEST EXIT

The excavation level provide spaces for shops, workshops and restaurants.

Also, include an entrance to the apartment, allow residents to enter the excavate level directly.

The exit to the west can be acces via staircase and ramp as a disability friendly facility. The west exit connect to the renovated Bathroom and the garden area as a continue of recreational experience.

7

URBAN INTERVENTION: SYNAPSE

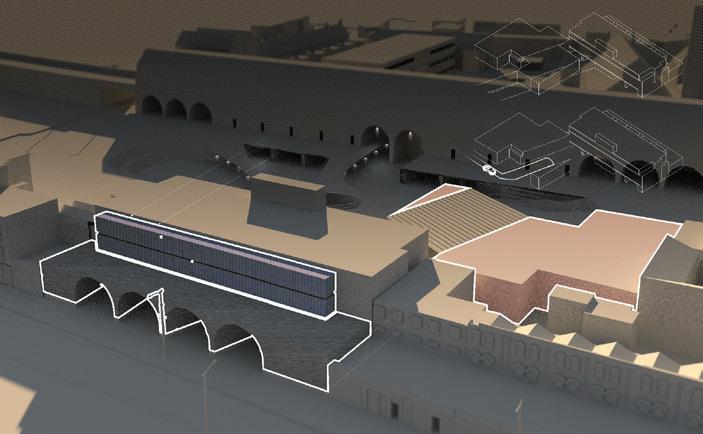

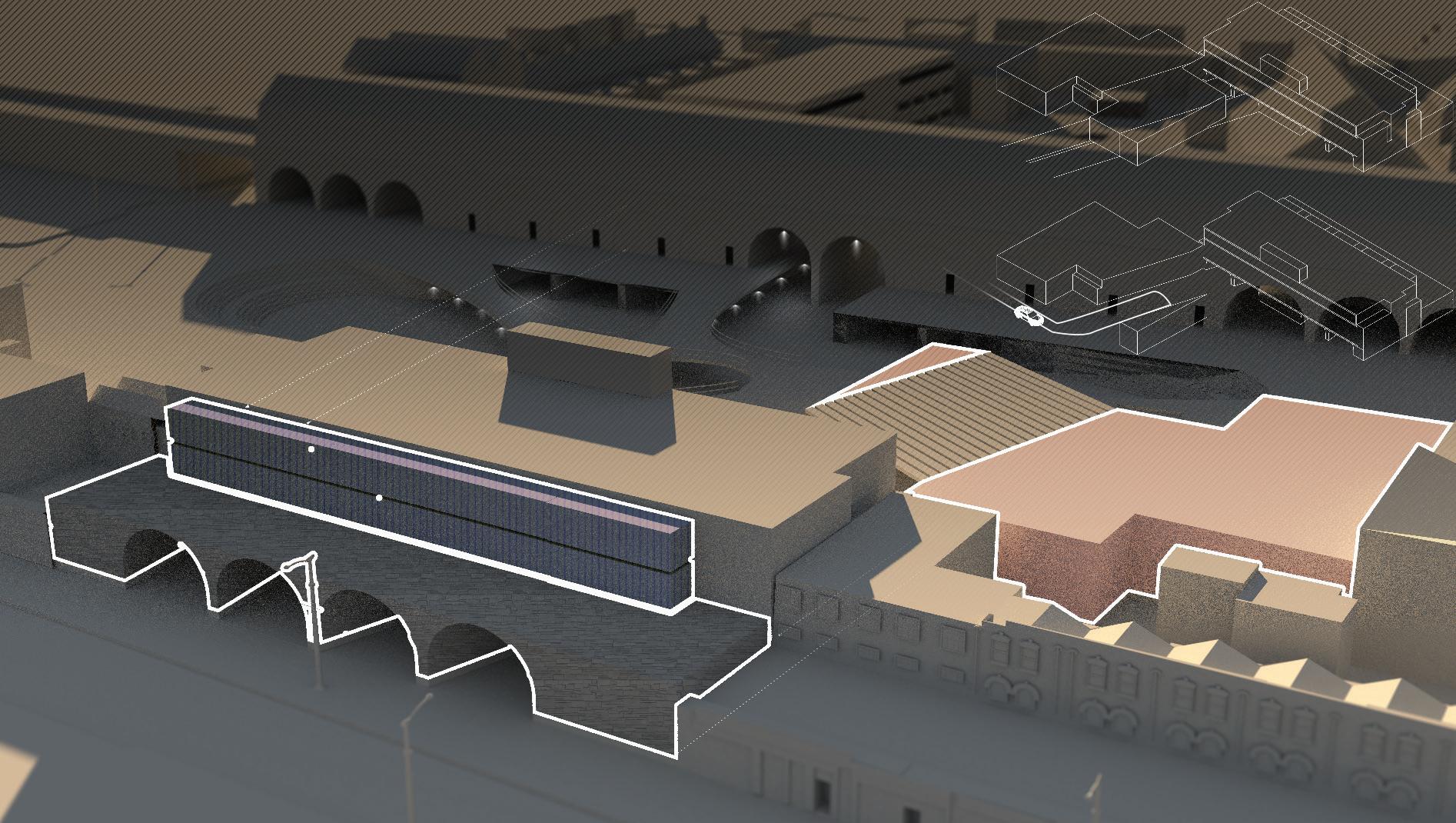

FORM OF SPACE Entrance and retail

This concept was partly derivative from some of the geometries in proximity to the site, namely the artwork elephant, a box-park like structure created through arraying a series of storage containers atop of a platform.

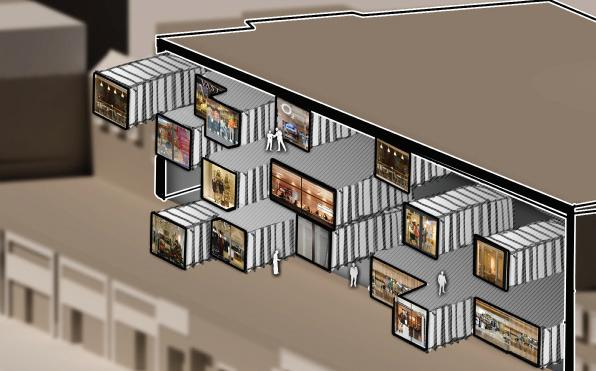

Each of these containers serves as a creative space, retail unit or social hub. I also noticed that there was a housing estate opposite which featured a number of different dormers jutting out at different points in the facade. I have appropriated this in the design of this concept which is located in an office space above the retail block on Walworth road.

Each shipping container could encapsulate a pop up store run by local creatives and entrepreneurs. The containers could be staggered to create space for people to walk on top of these platforms as well as a interesting pixelation effect to the facade of the building. The building could serve as a marketplace for ideas and people. The structure iteslf is seated within the shelled interior of the old office building. A grid of supporting beams could possibly run alongside the containers to provide structural support for the cantilevering containers. services such as lifts, fire escapes and staircases could be located to the rear of the building (east relative to the site) with a marketspace in the intermediate space between the front and the rear of the structure.

48m 27m

8

URBAN INTERVENTION: SYNAPSE

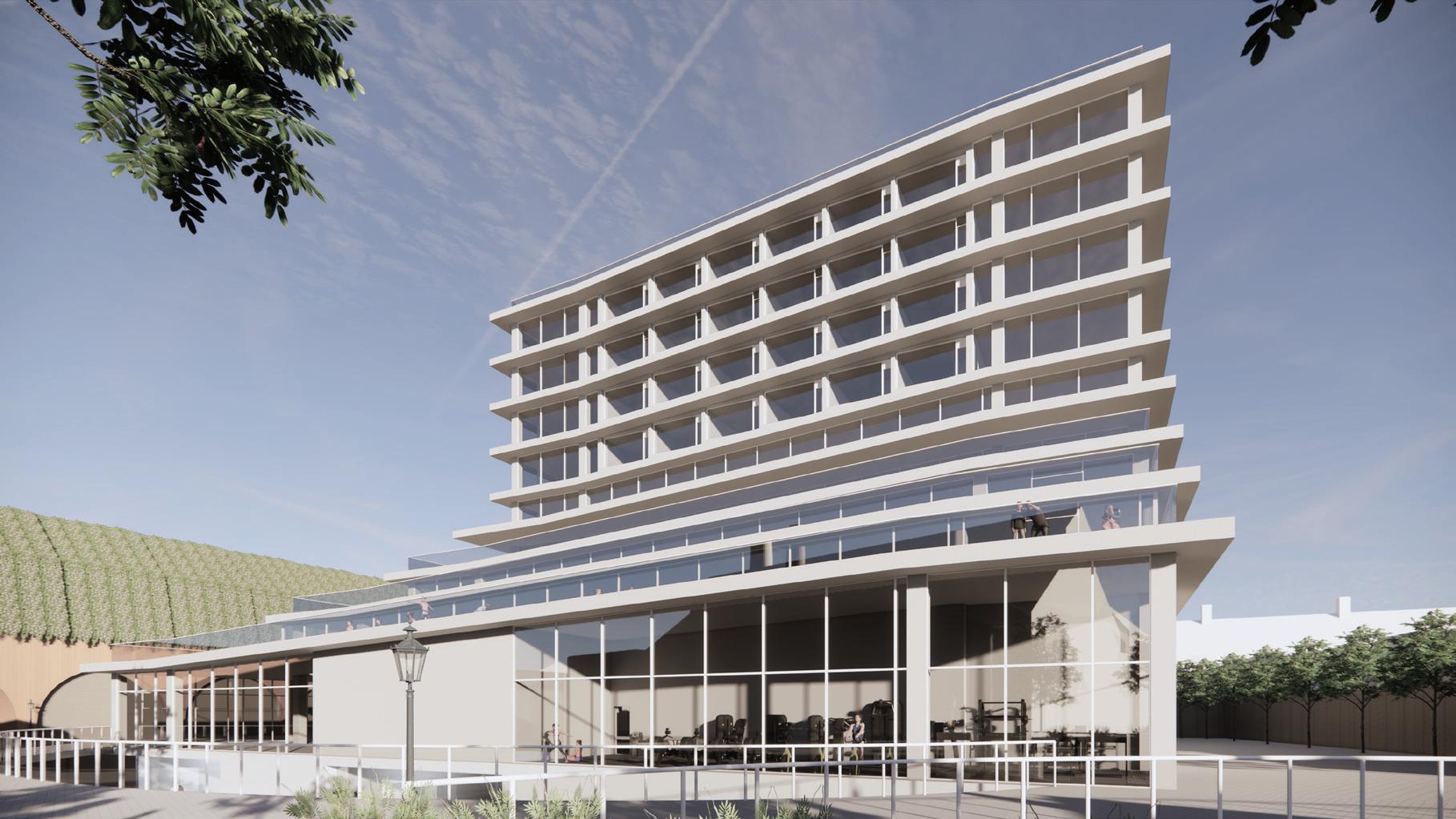

CORRIDOR AS THIRD SPACE Residential Accomodation

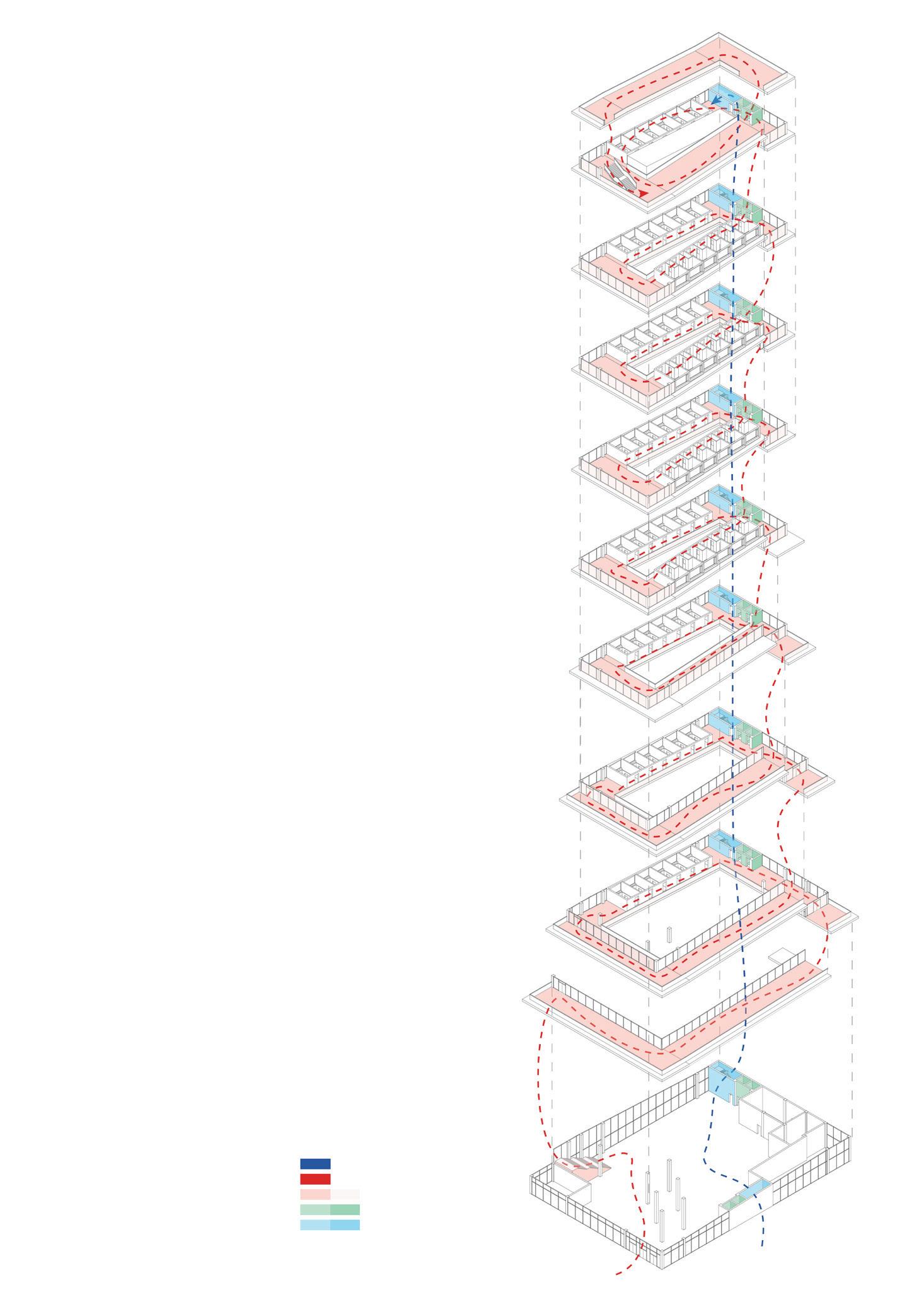

The design of the accomodation is using corridor as third space as concept, encouraging social interactions and foster connectivity and creativity. The building features a multi-functional ramp running through each floors, scrolling around the building. The external section of ramp locate at second and third floor, featuring roof top garden for socializing and leisure activities such as yoga. The interior sections connect common spaces on each floor and using as a circulation for accessing accommodation rooms.

People walkin to the community and continuesly interating with it, going home does not equal to disconnection.

Apartment on site

Circulation

Roof Garden

Common Space

Gymnasium

Ramp Circulation

9

HARVESTING HEALTH

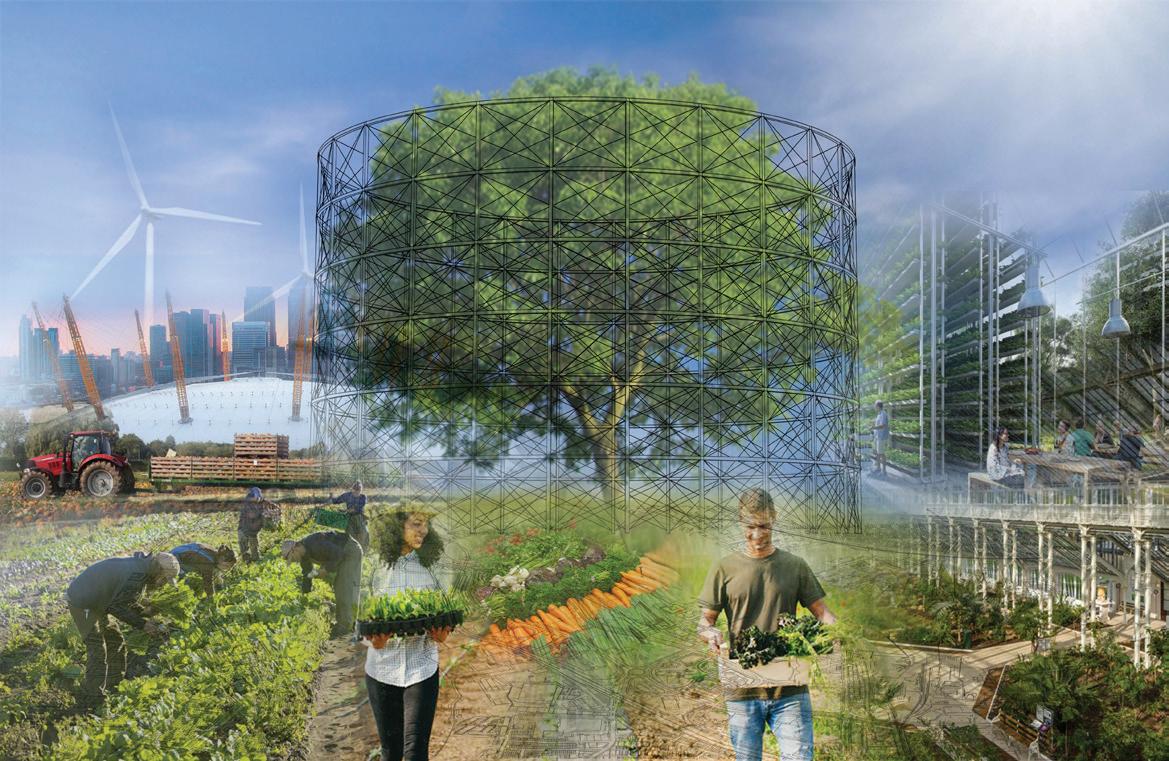

02 HARVESTING HEALTH

A proposal of sustainable and healthy life style.

This project aim at seeking a solution for famers who are facing metal heath issues, including loneliness and stress, brought by the critical working condition. The idea is to design an urban farming facility at the Greenwich peninsula, which is planned to be the next center of London. The farm will create a natural enviornment for visitor to relax and spend time with family or friends, forgetting the busy works and taking a mental relieve session.

The farm will run by experienced farmer, producing organic food and providing farming tutorials to publics. This provide a chance for them to reconnect to the society. Public engagement would potencially reduce their working amount in a long term bases and acheiving “Consumer as the Producer” in the future. The urban farm will demostray a new life style, organic and sustainable.

10

HARVESTING HEALTH

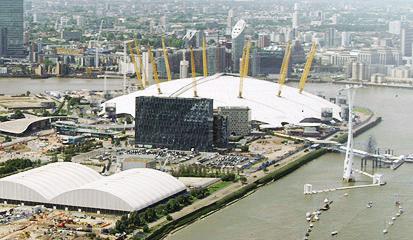

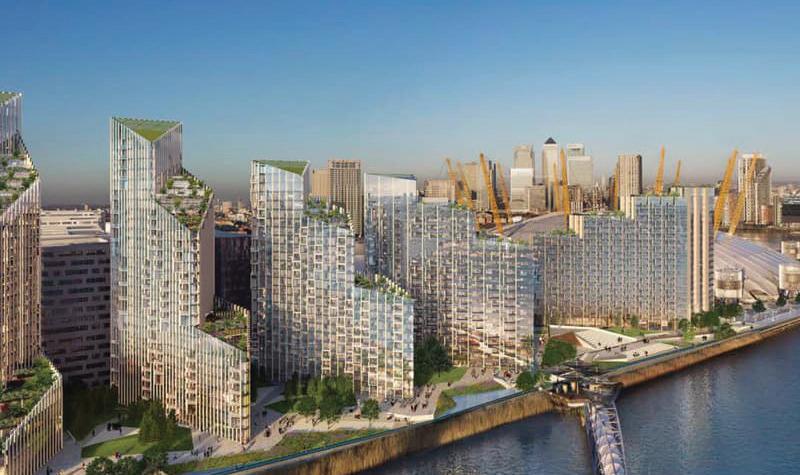

NEIGHBOURHOOD Greenwich Peninsula is the latest project from Knight Drag-on. Their previous London project, The Knightsbridge, was named Residential Development of the Year at the 2006 Property Awards, and this new project follows the same lifestyle-led approach.

Research from Jones Lang LaSalle (JLL) forecasts that property values and rental growth in this new district will outperform the Central London average over the next five years, making Greenwich Peninsula a hot ticket for local and oversea property buyers.

Greenwich Peninsula has also been designed with the needs of families in mind, featuring two new schools, a public park and 48 acres of green space. Peninsula Central is the district’s buzzing retail and entertainment precinct, while the neighboring O2 Arena brings the world’s biggest performers to your neighborhood. The Ravensbourne University London next door as one of the best universtiy for media and broadcasting has tight conversation with the O2. Which built the basis for a Creative industry hub and attract companies to set their base at the Greenwich Peninsula.

5 1 4

6 7

3 2

3

1. The O2 2. Office area 3. Residetntial area 4. The Blackwall Tunnel 5. North Greenwich Pier 6. The Ravensbourne University London 7. North Greenwich underground station

11

HARVESTING HEALTH

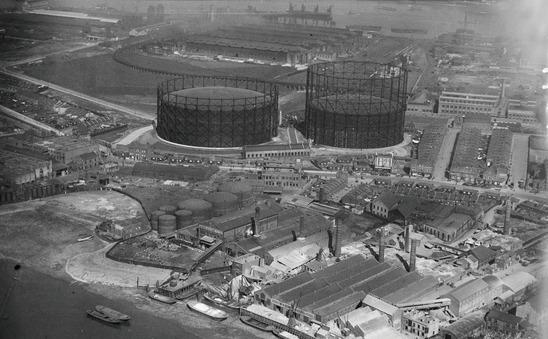

RESEARCH OF ‘JUMBO’ THE GASOMETER

The gas holders consits if vessels situated on the inside of each other so that when the inner vessel was fully extended the next vessel would also start to rise Once the gasholder reseaches its full capacity the gas fows out throught the main pipe causing the top most vesse to collapse

12

The Department of Culture, Media & Sport declined a Listing proposal and issued a Certificate of Immunity meaning that the gas holder cannot be listed, or have a building preservation for five years.

2018

Jumbo suffered damage more damage from the IRA bomb during World War ll. The second holder was demolished.

1892

Jumbo suffered damage in the massive Silvertown explotion.

1917

A second holder built at the East Greenwich Gas Works in 1892 with a capacity of 12,200,000 cubic feet.

1892

1889

1880s

Built by George Livesey in the 1880s, with a capacity of 8,600,000 cubic feet.

In The Times in 1889, an article referred to “the monster gasometer in Greenwichmarshes known as ‘Jumbo,’ believed to be the largest in the world.”

HARVESTING HEALTH

TECHNICAL DRAWING Elevation

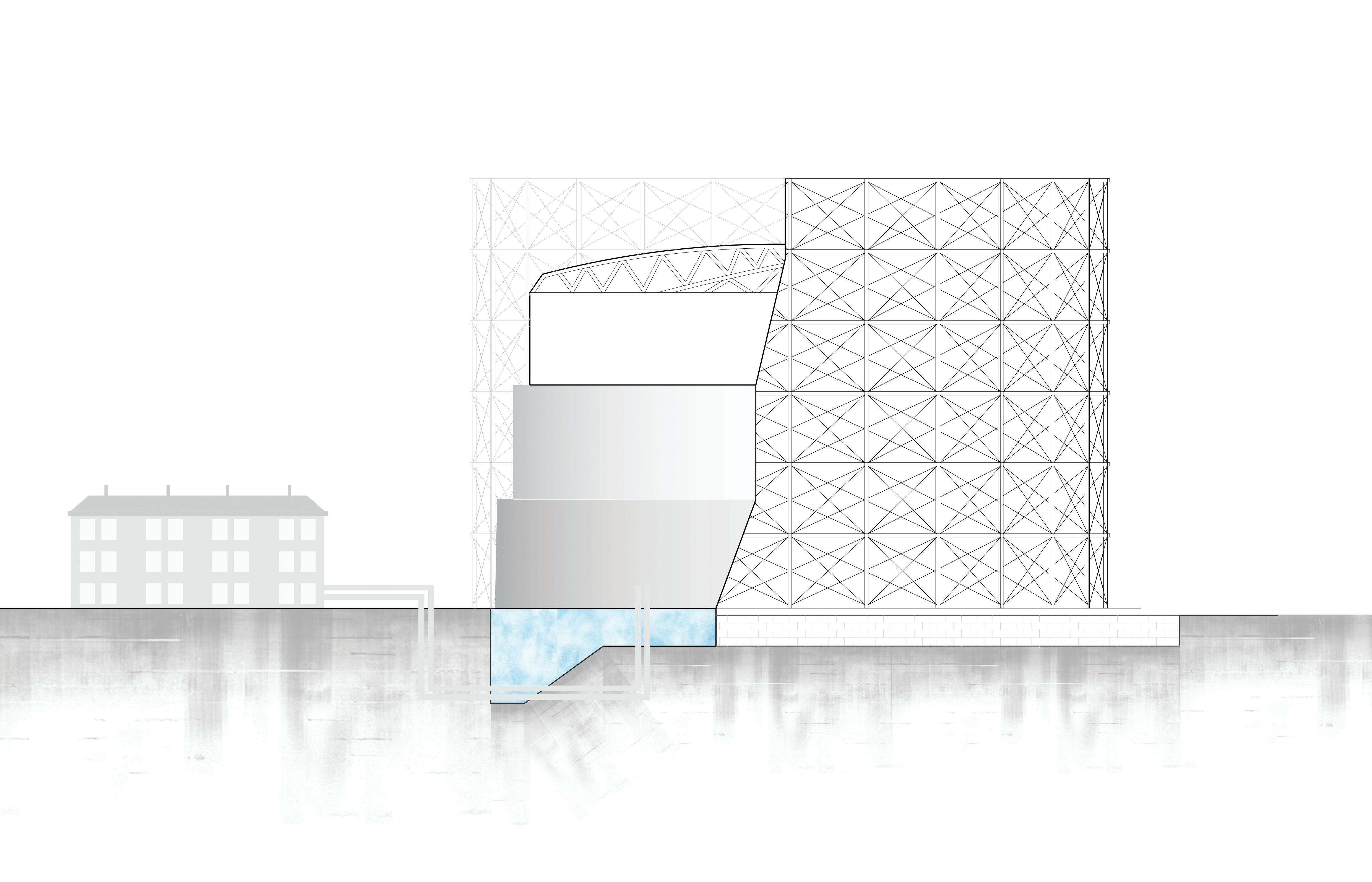

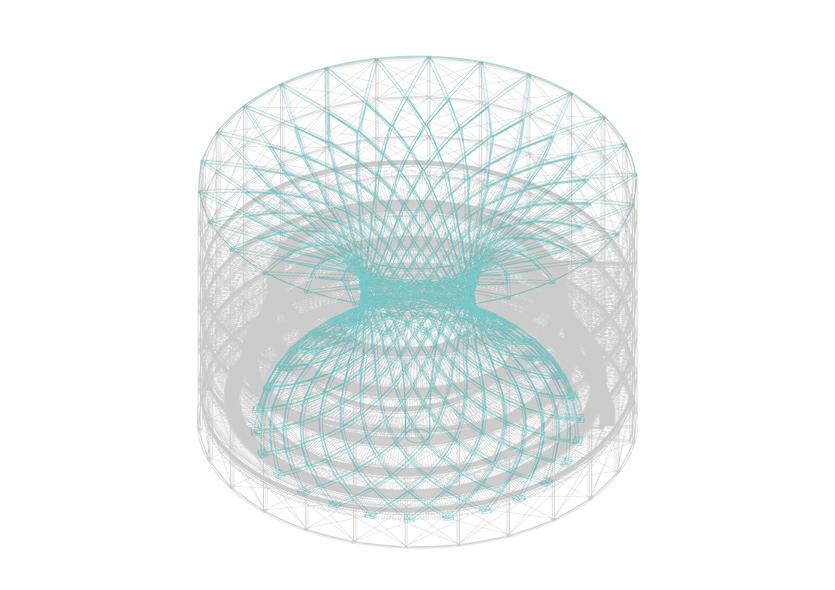

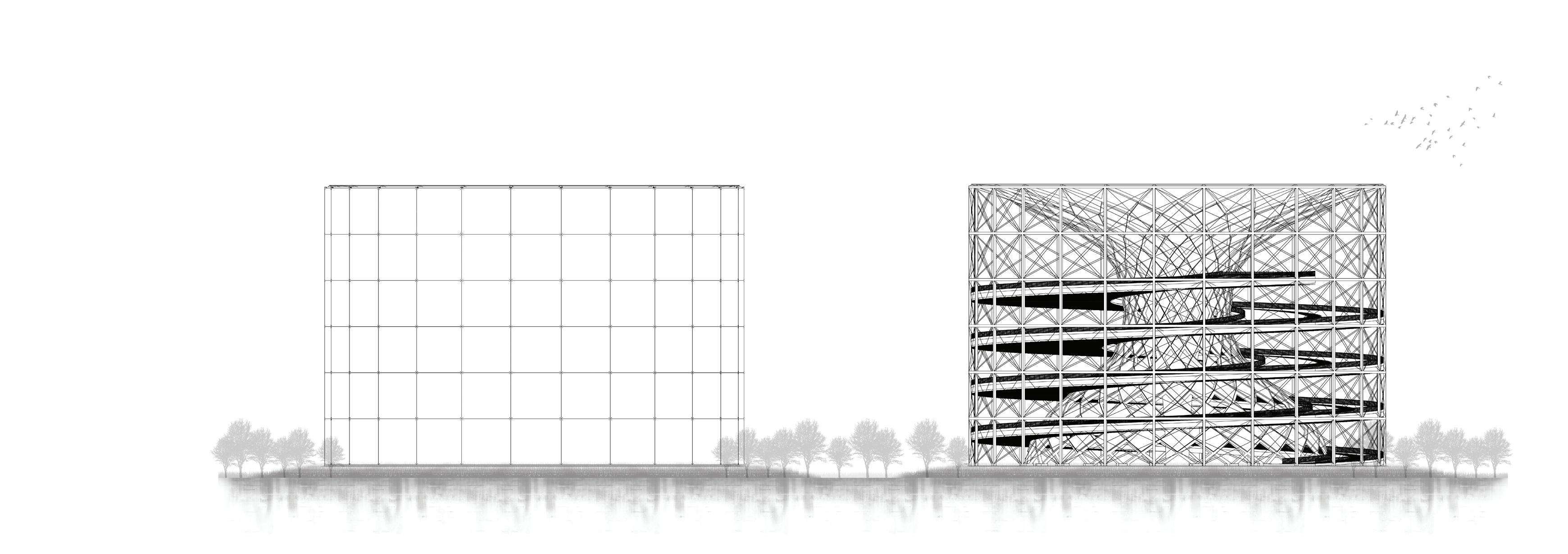

Elevation with glass facade (left), Elevation without glass facade (right)

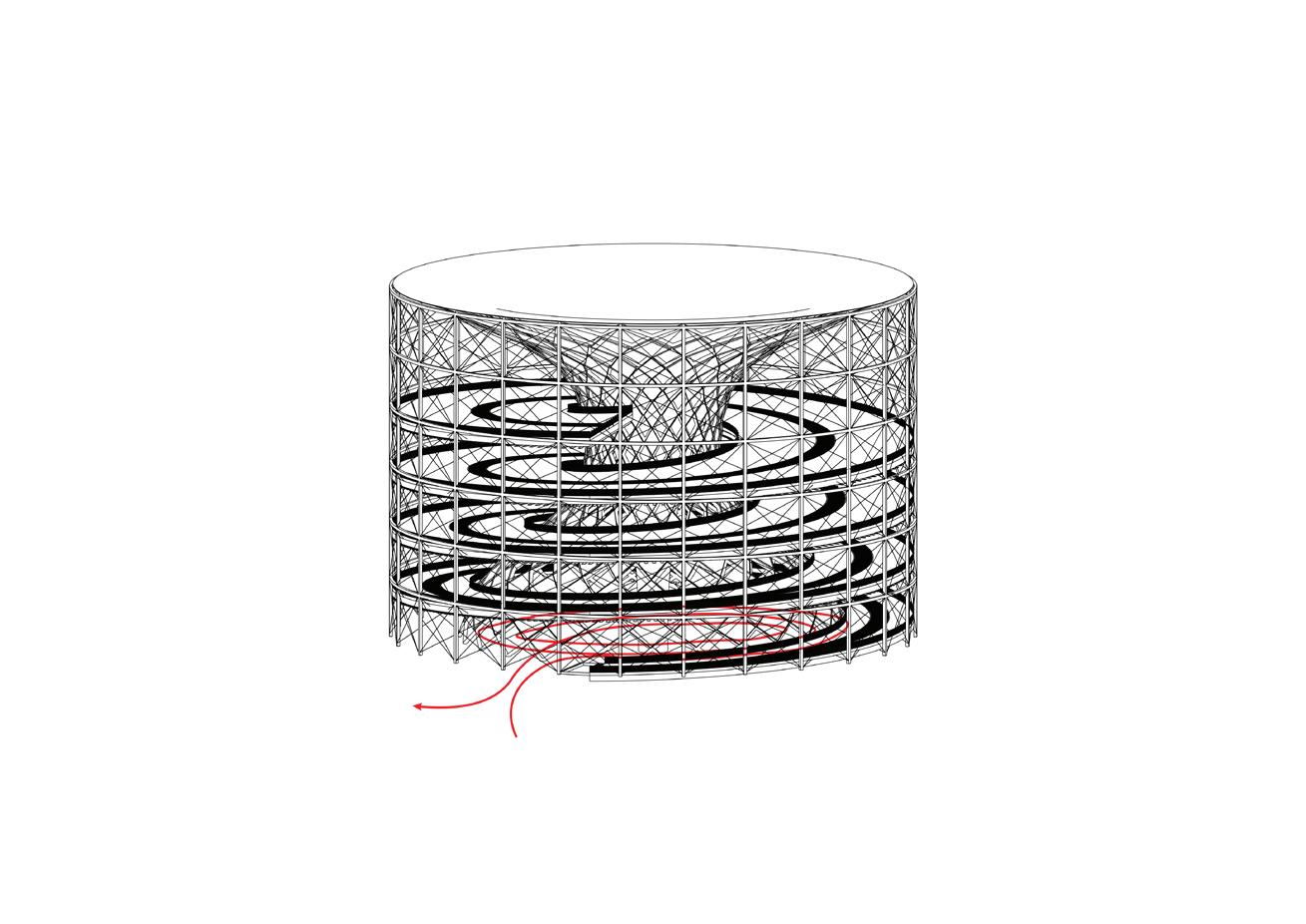

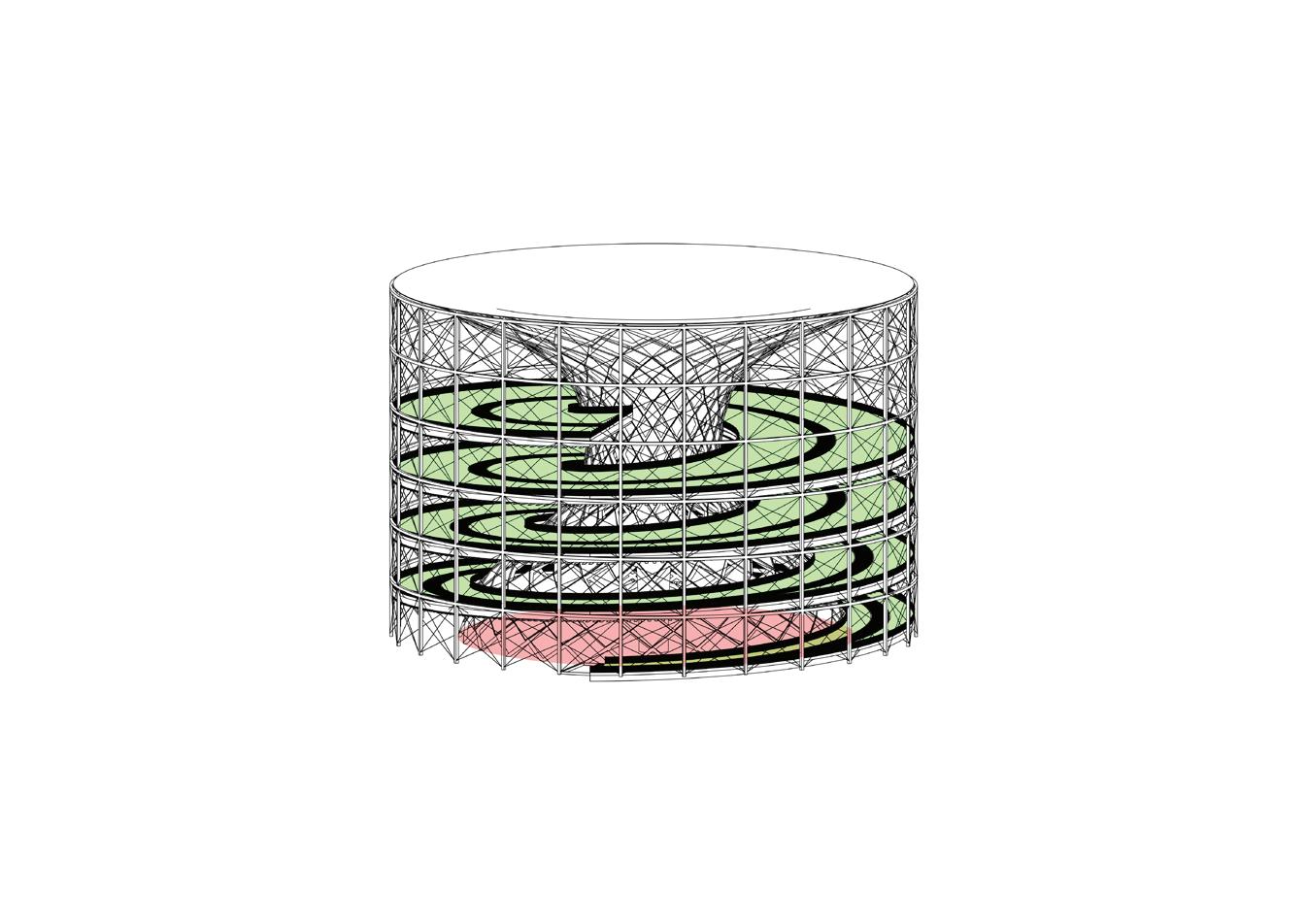

HABBITATION AND STRUCTURE

1

2

5

6

3

4

7

8

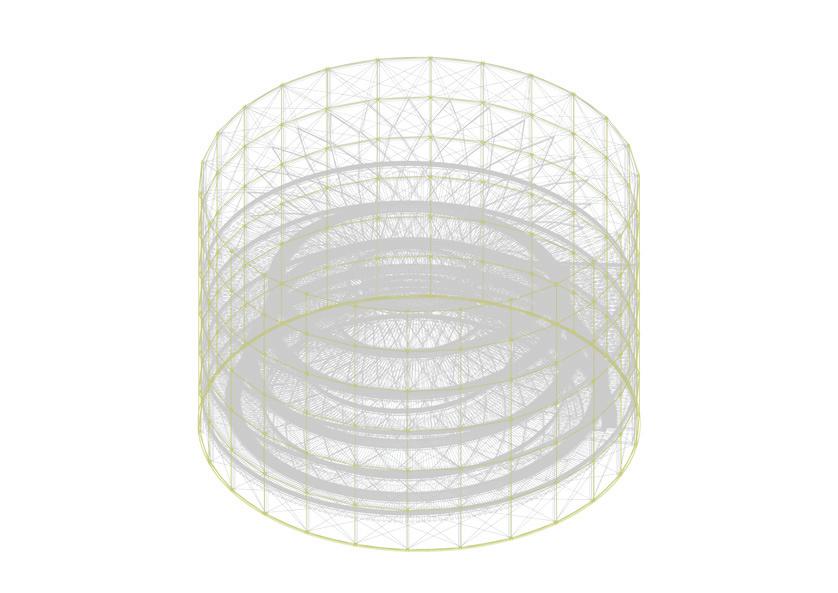

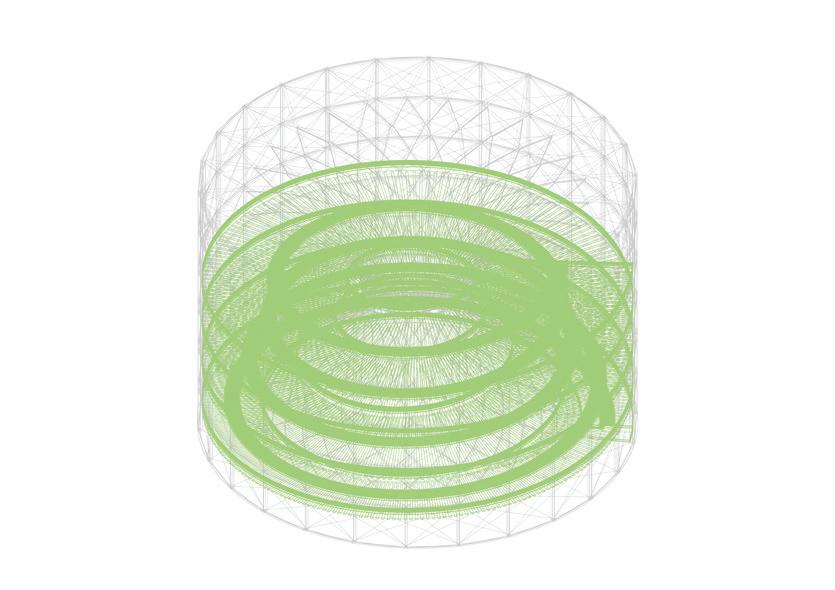

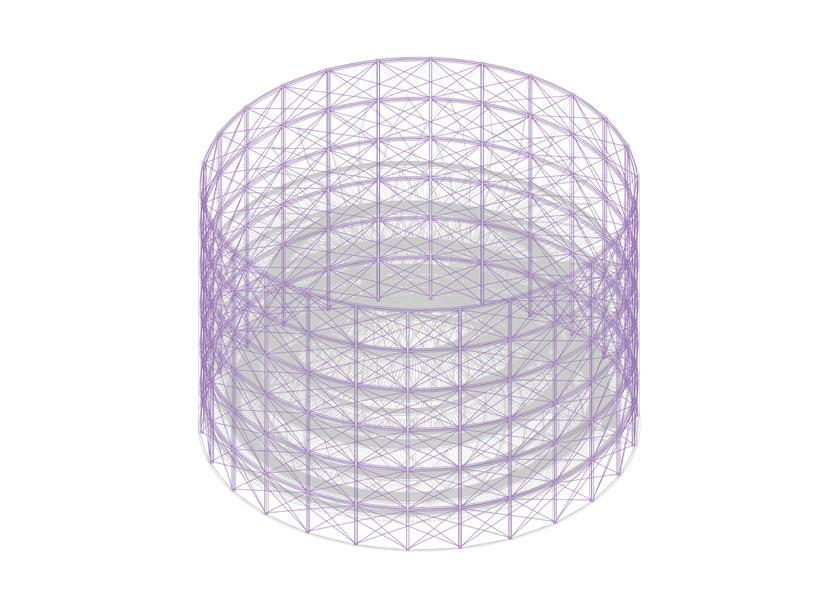

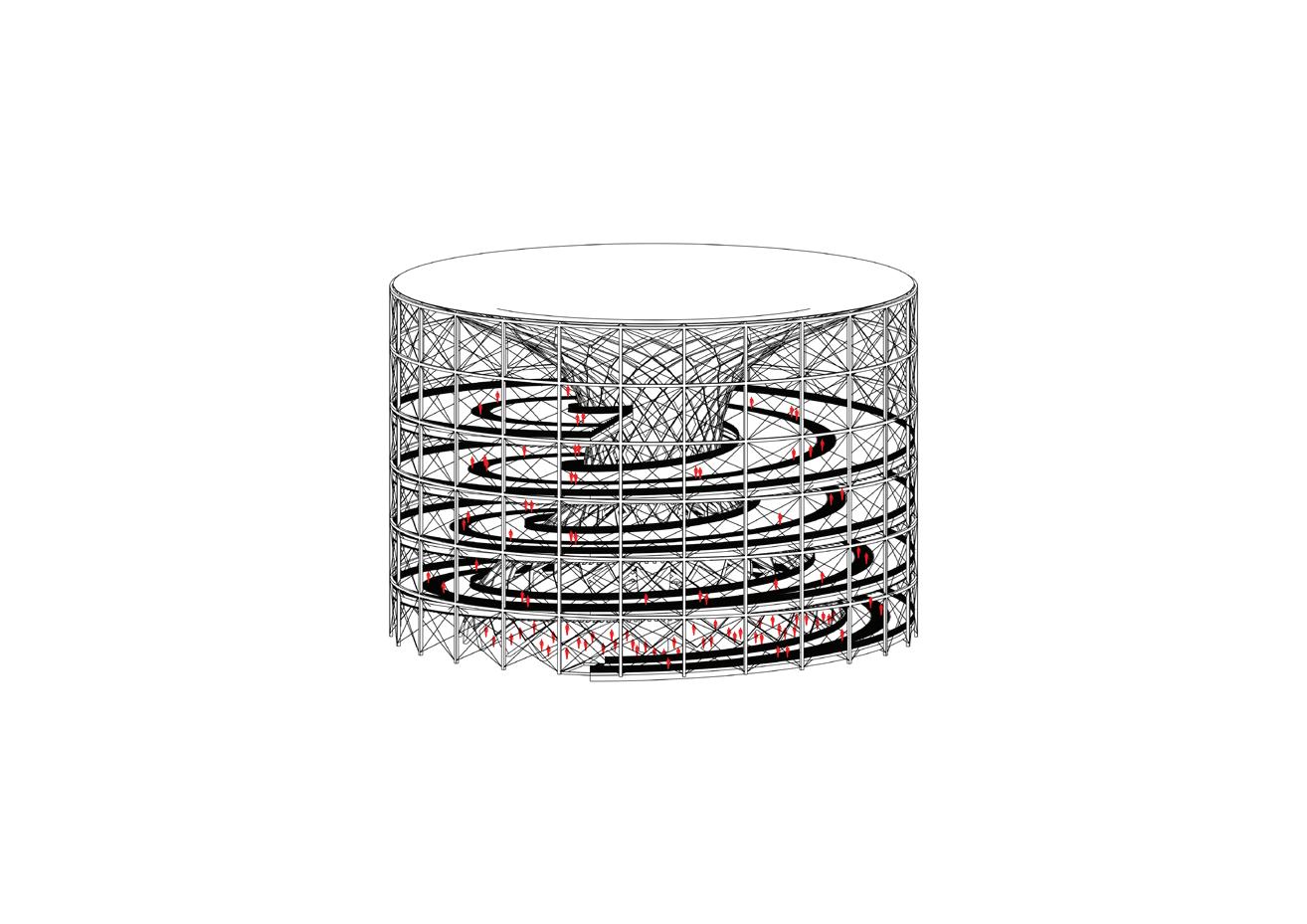

1. ‘Farming’ Circulation 2. ‘Shopping’ Circulation 3. Habbitation 4. Farm Area

Market Area

5. Gasometer Grid 6. Glass Facade 7. Rain Collector Support Structure 8. ‘Farm Area’ Ramp

13

HARVESTING HEALTH

14

HARVESTING HEALTH

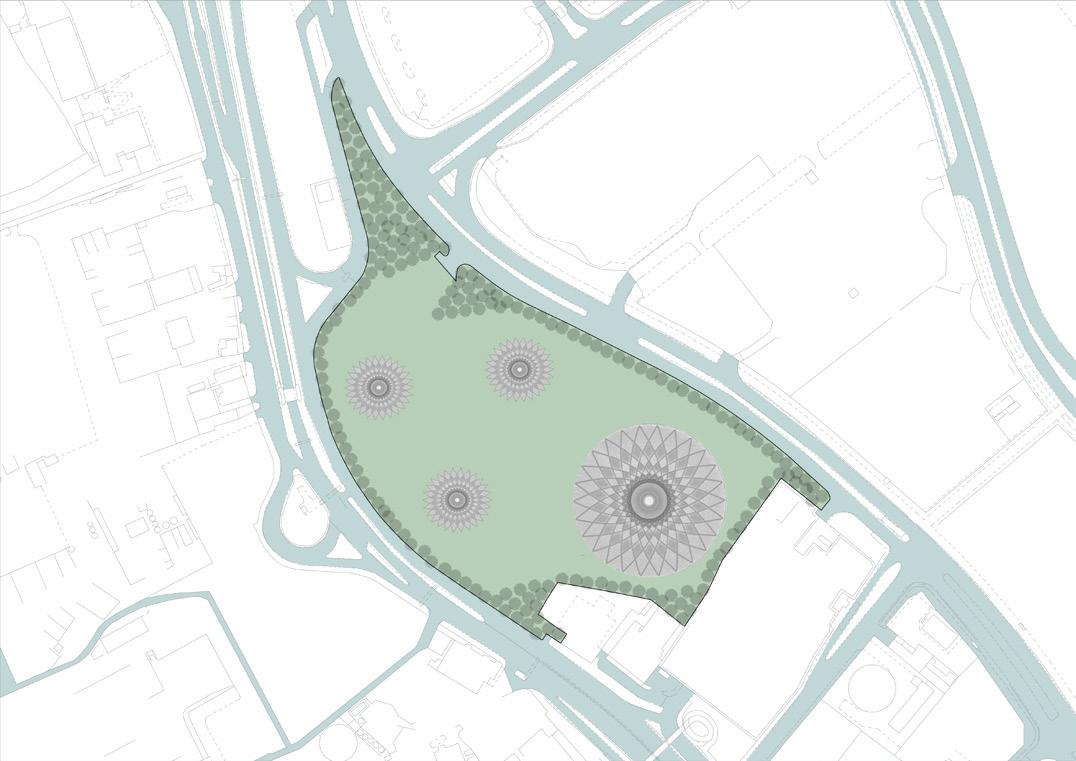

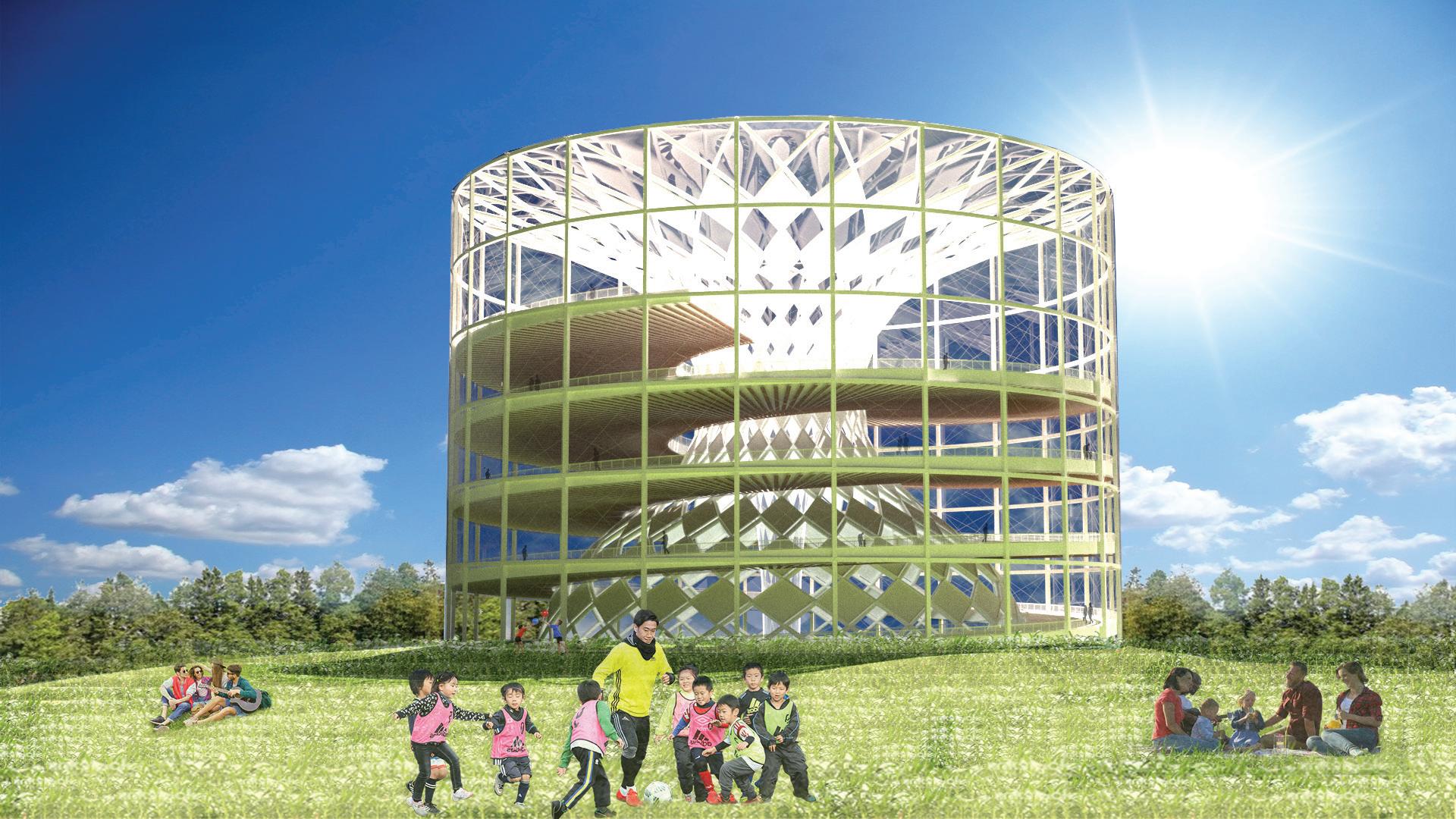

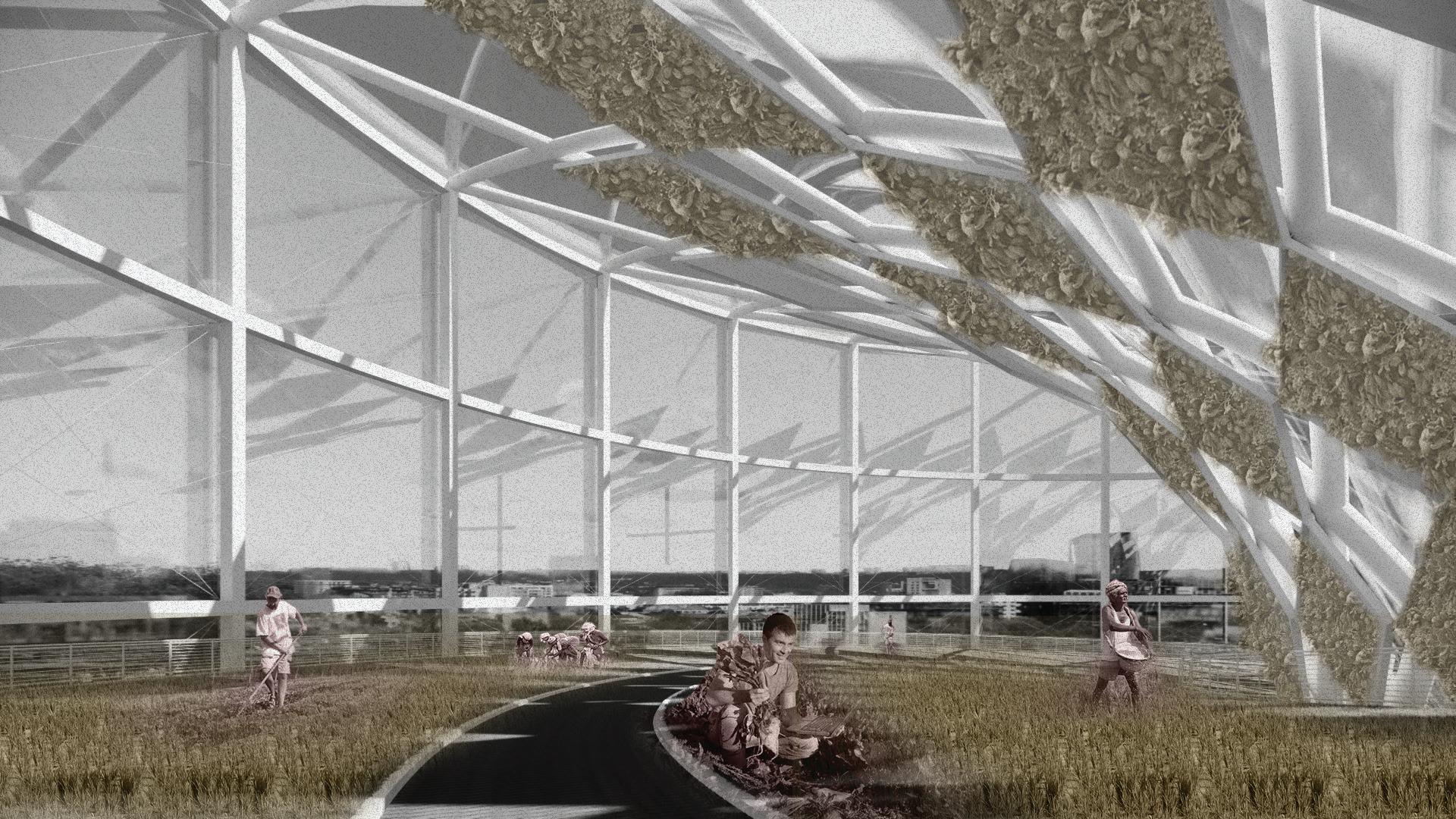

MASTER MAP & SCHEME The design of building maximise the usage of natural resources in the urban farming system, in order to achieve sustainable farming.

The structure is covered with glass facade whcih function as a glass house. Utilizing sunlight for farming and capture heat, porivding a warm enviornment. Rain will be collect into the water tank undergroud for watering after filtration The design is visioned a growing tree. By collecting natural resources into the building crops will be produced, which is similar to the photosynthesis proccess of an actual plant. Aim at creating a complete natural enviornment and introduce an organic life style, raising the public awareness of sustainability.

RAIN COLLECT SUN LIGHT & GLASS HOUSE EFFECT

PHOTOSYNTHESIS

TRANSPORTATION TO LOCAL STORE

FOOD MARKET & PICNIC AREA

FERTILIZING

15

03 MOTHER LONDON

A proposal of sustainable working environment.

This is a renovation project of the Tea Building at the Shoreditch District in London. The project aim at designing a modern working environment which emphasize work life balance. The design include an office for the advertisment company, Mother London, which required collabrative and inspired working space. On the other hand, the building include the Shoreditch House, a hotel providing 25 accomodation rooms for visitors. In order to achieve work life balance, the design will highlight leisure facilities and common space which allow staffs and visitors to relax and socializing. People will explore the building, engage into different events and sharing their life, developing an unique community.

16

RESTAURANT

WORKS

PACE

MOTHER LONDON

187

MOTHER LONDON

SITE RESEARCH

TECHNICAL DRAWINGS

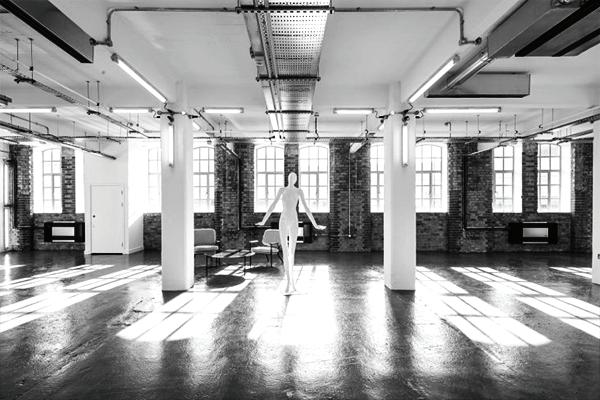

Exsisting Condition and History

193

195

192

191

56 5 to 11

Shelter

© Crown copyright and database rights 2018 Ordnance Survey (Digimap Licence). FOR EDUCATIONAL USE ONLY.

0

2

4

6

Scale 1:200 8

10

12

14

16

18

20 m

Projection: British National Grid

14.8m

This project aim at renovate the Tea Building located in Shoreditch, an entertainment district within Londong. The eightstoreys building sits at the junction of Shoreditch High Street and Bethnal Green Road, along with the neighbouring Biscuit Building.

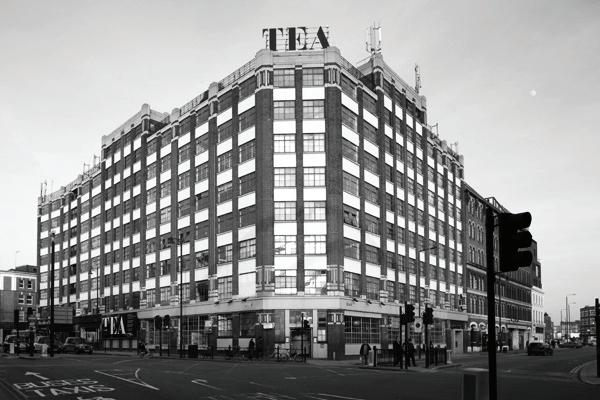

The Tea building is the landmark of Shoreditch since early 1930s, served as a factory for Allied Food Lipton brand. Today it is a hub of creative industry, head quater of Mother London and hotel accomodation, Shoreditch house.ditch House,

42 to 45

4 to 8

3

Today. Shoreditch is wellknown for its trendy bars, arty coffee shops and retro clothing stores. Many people see it as the birthplace of English theatre and the cultivator of London fashion and street art. Nowadays, it has become increasingly gentrified.

1

SURROUNDINGS

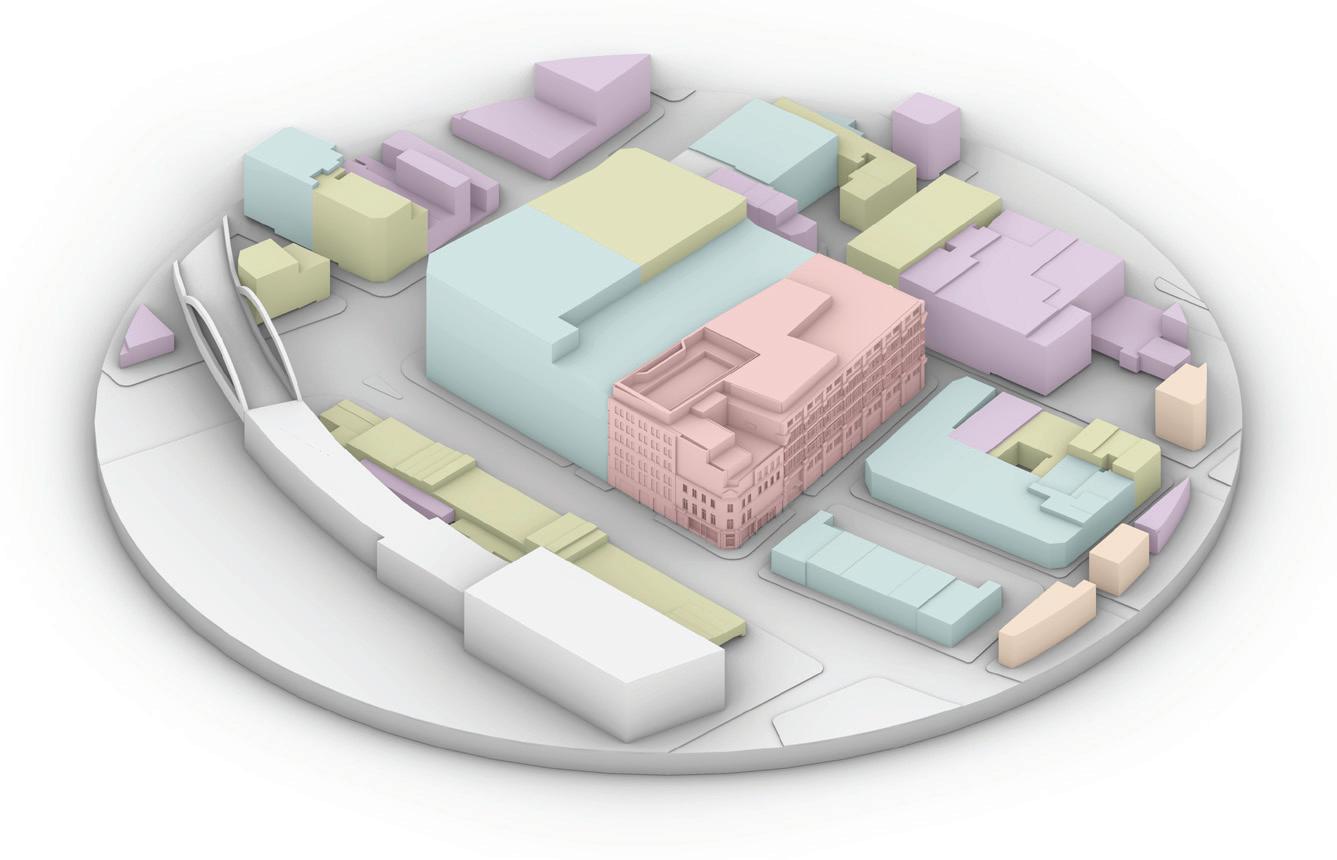

Tea building (project site) Cafe/Bar/Restaurant Retail Commercial Residential

17

MOTHER LONDON

18

MOTHER LONDON

URBAN ENCOUNTER

TECHNICAL DRAWING

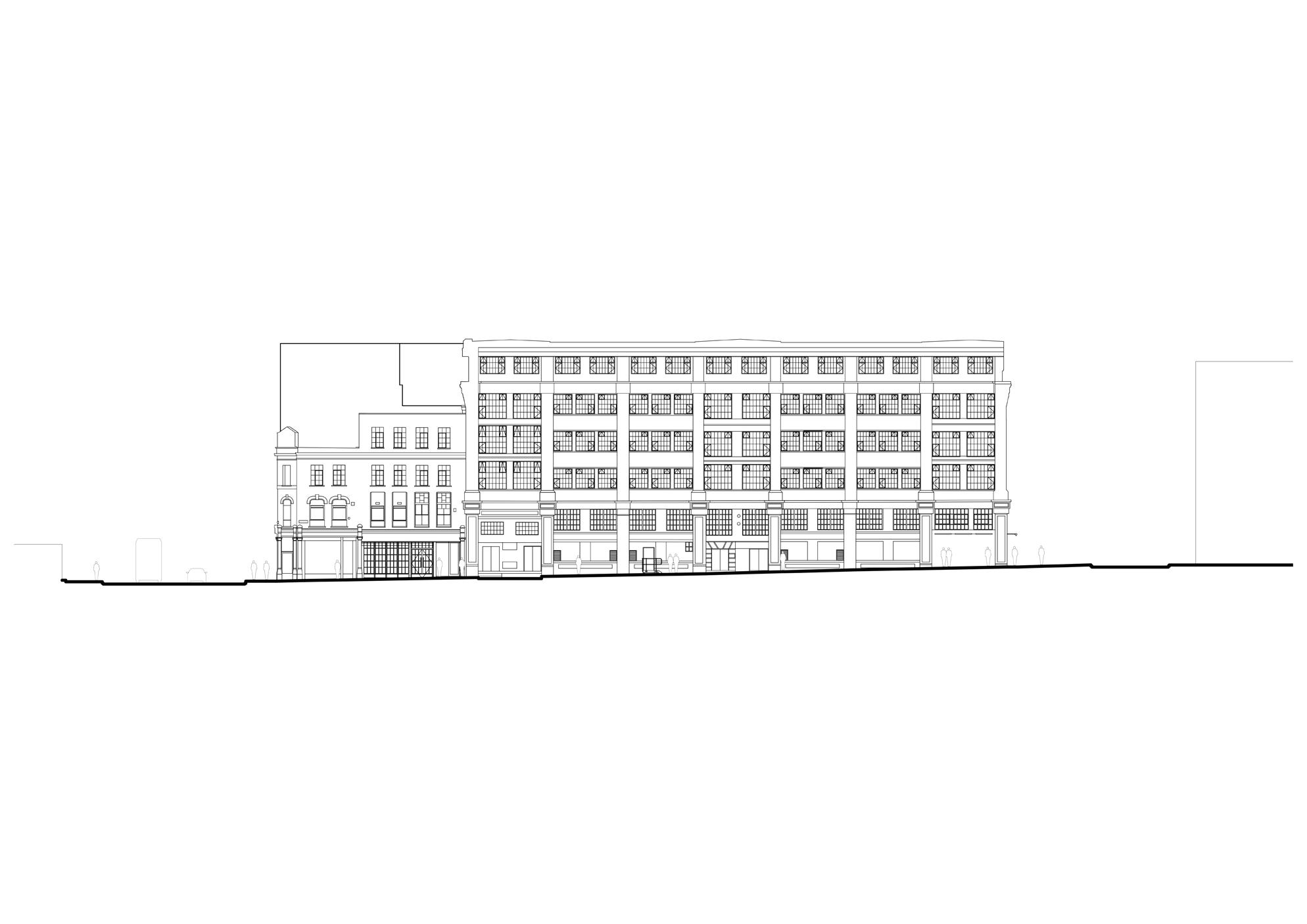

Facade and entrances

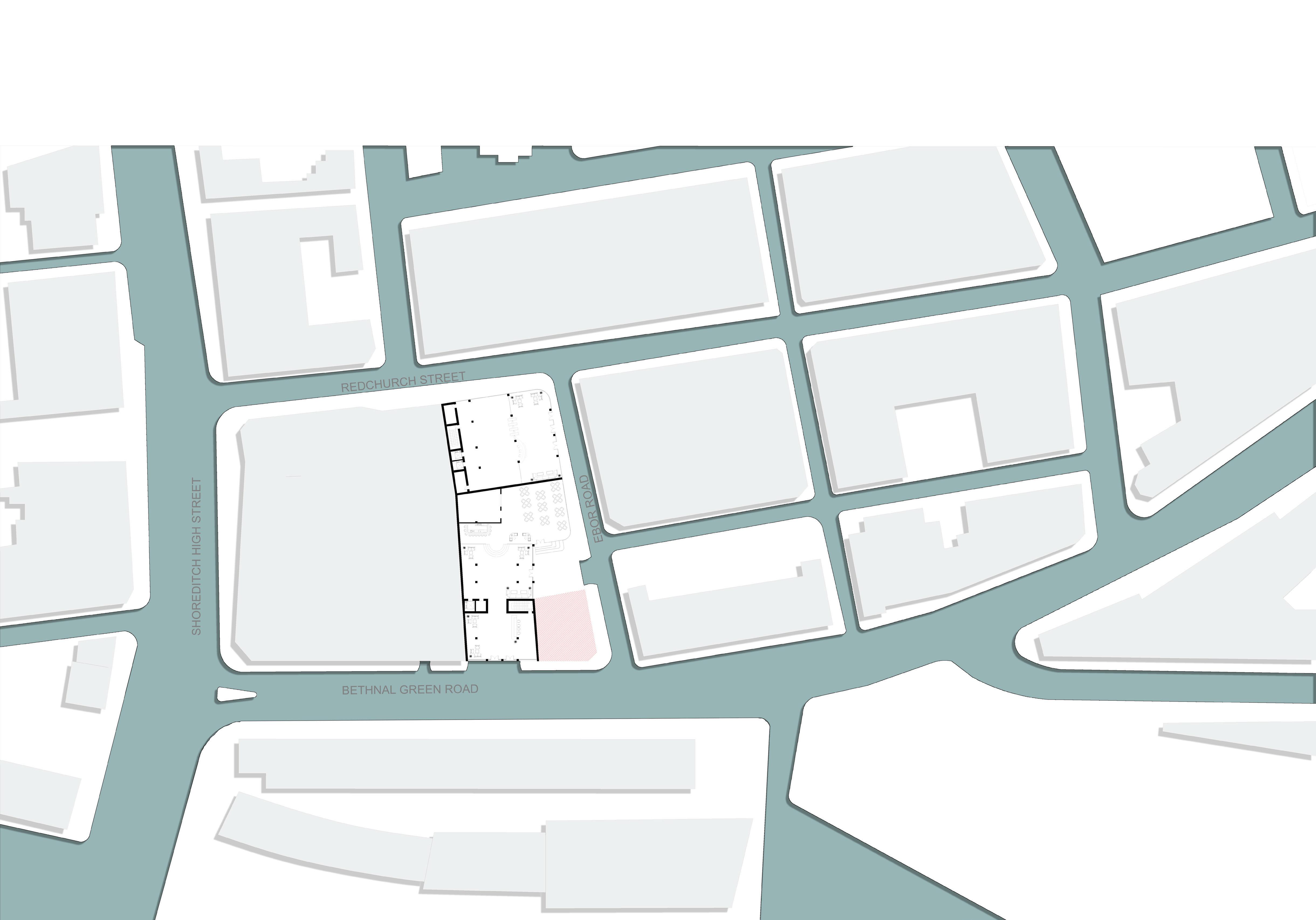

First Floor Floorplan

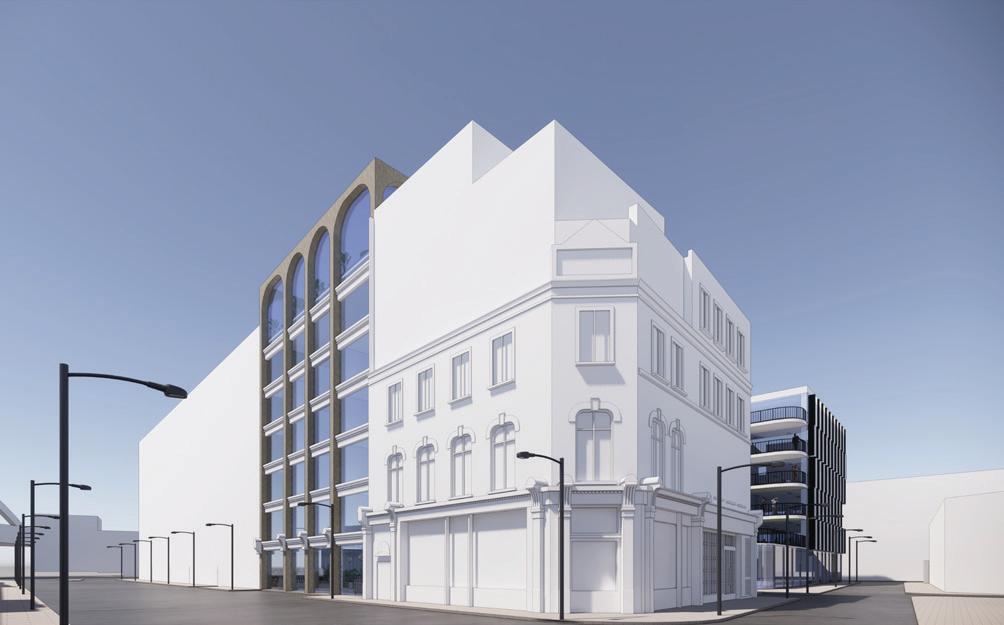

HOTEL ENTRANCE

The hotel entrance lies on the Bethnal Green Road, next to the Biscuit building. The design of the facade repects the materials and details of the original Tea building. Using bricks for the frame of the facade and decorated with Victorian style details. However, minimalism is used as the overall design language to show the sense of modernism.

12

9 8

11

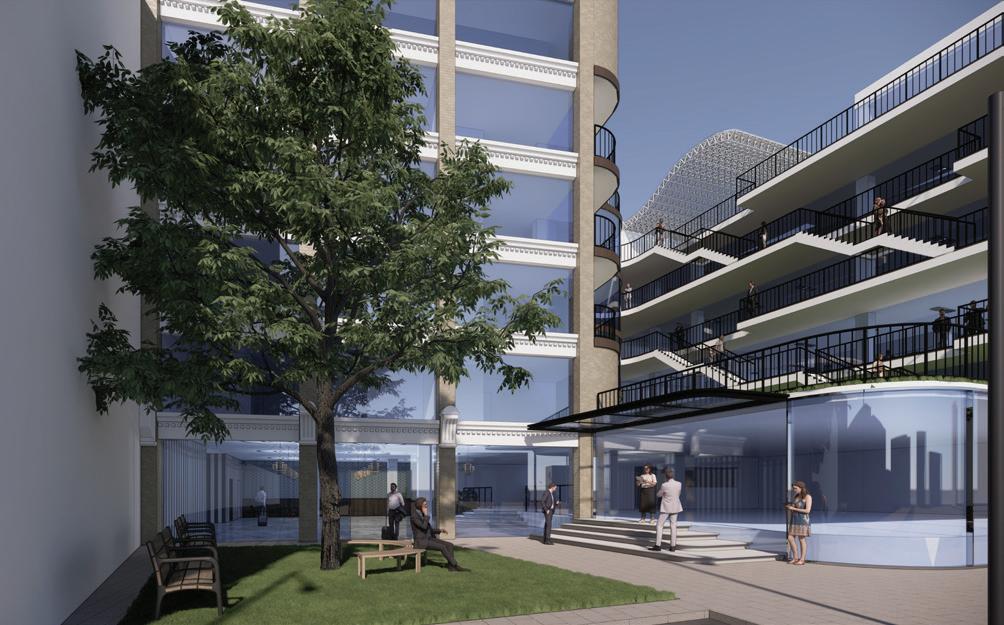

RESTAURANT ENTRANCE

The entrance of the restaurant is designed next to the corner park, facing the main road, for people to access without entering the hotel.

The corner park provides a comfort waiting area for the public.

10 5

6 4 2 3

7

1 OFFICE ENTRANCE

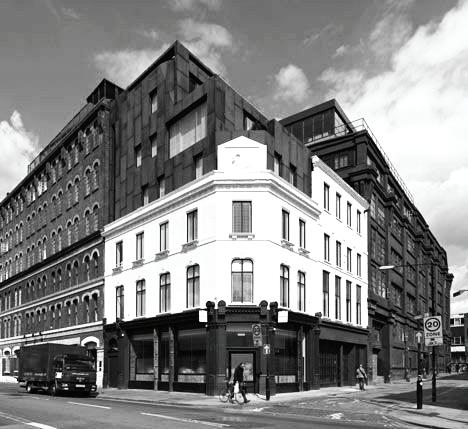

The office entrance lies on the coner of Ebor Road and Redchurch Street. To differ with the Hotel, also to established a smart and modern company impression, the office is designed with glass facade. The skin is a mutifunctional covering structure made with alluminium pannels. On one hand reduced direct sunlight, on the other hand casting unique shadow into the inteiror space.

1. Hotel Reception 2. Hotel Lounge 3. Hotel Lift Lobby 4. Hotel Bar 5. Hotel Restaurant 6. Restaurant Kitchen 7. Corner Park

8. Office Front Desk 9. Office Lounge 10. Gallery 11. Toilet 12. Storage Room

19

MOTHER LONDON

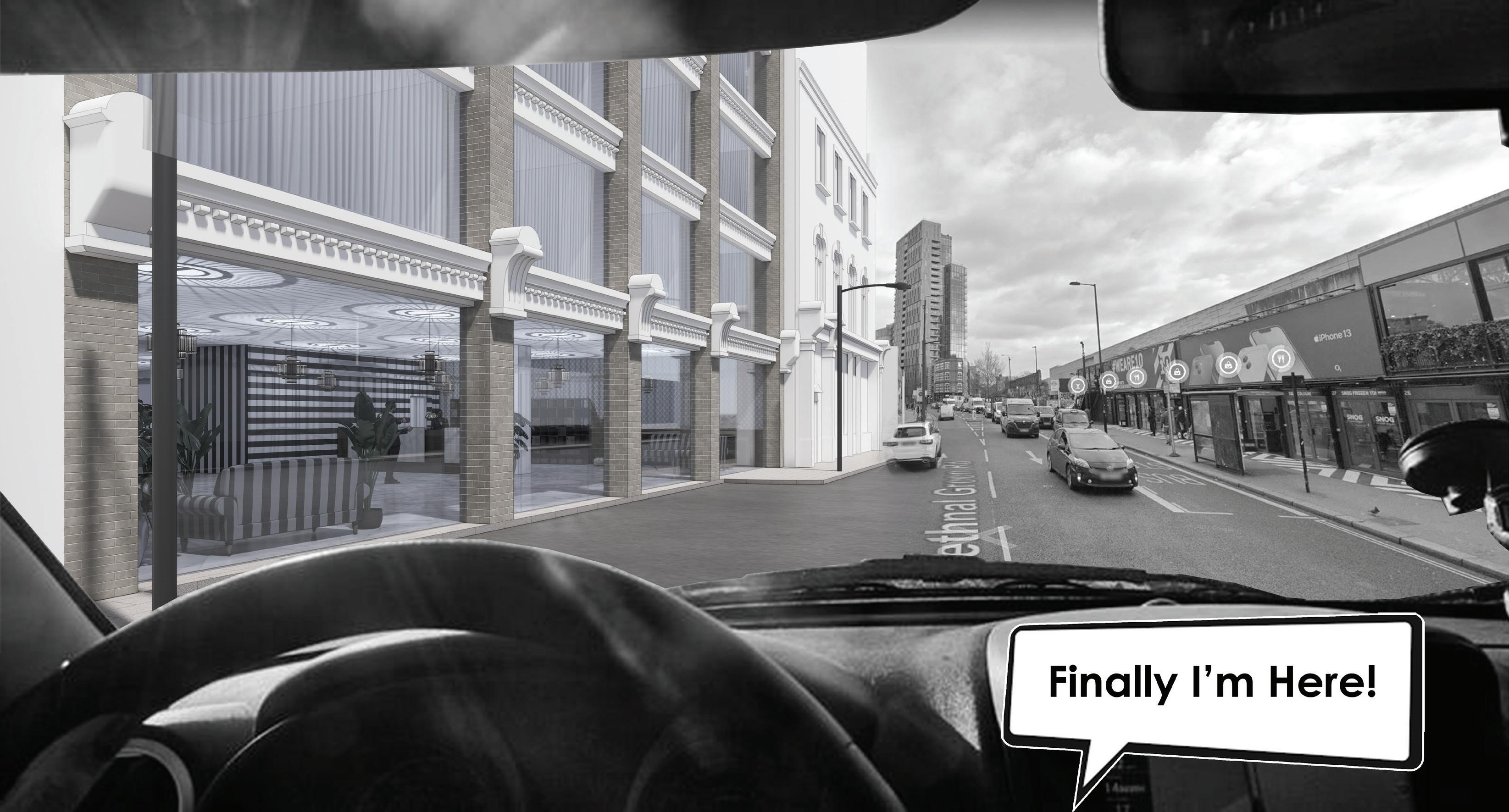

Welcome Mr. Lum. I am Sam Rong, your account manager. How’s your trip? I am gonna show you our company, but first, Julia is gonna help you check in...

Great! Please follow me Mr. Lum. I will show you around. Perhaps you may meet some of our team before the meeting tommorow!

Hello, Mr. Lum, I am Julia, the manager of the Shoreditch House. May I have your ID please? Thank you...

All done Mr. Lum. I am gonna help you to put your luggage in your room. Enjoy your stay!

Great! Can’t wait to see it...

20

MOTHER LONDON

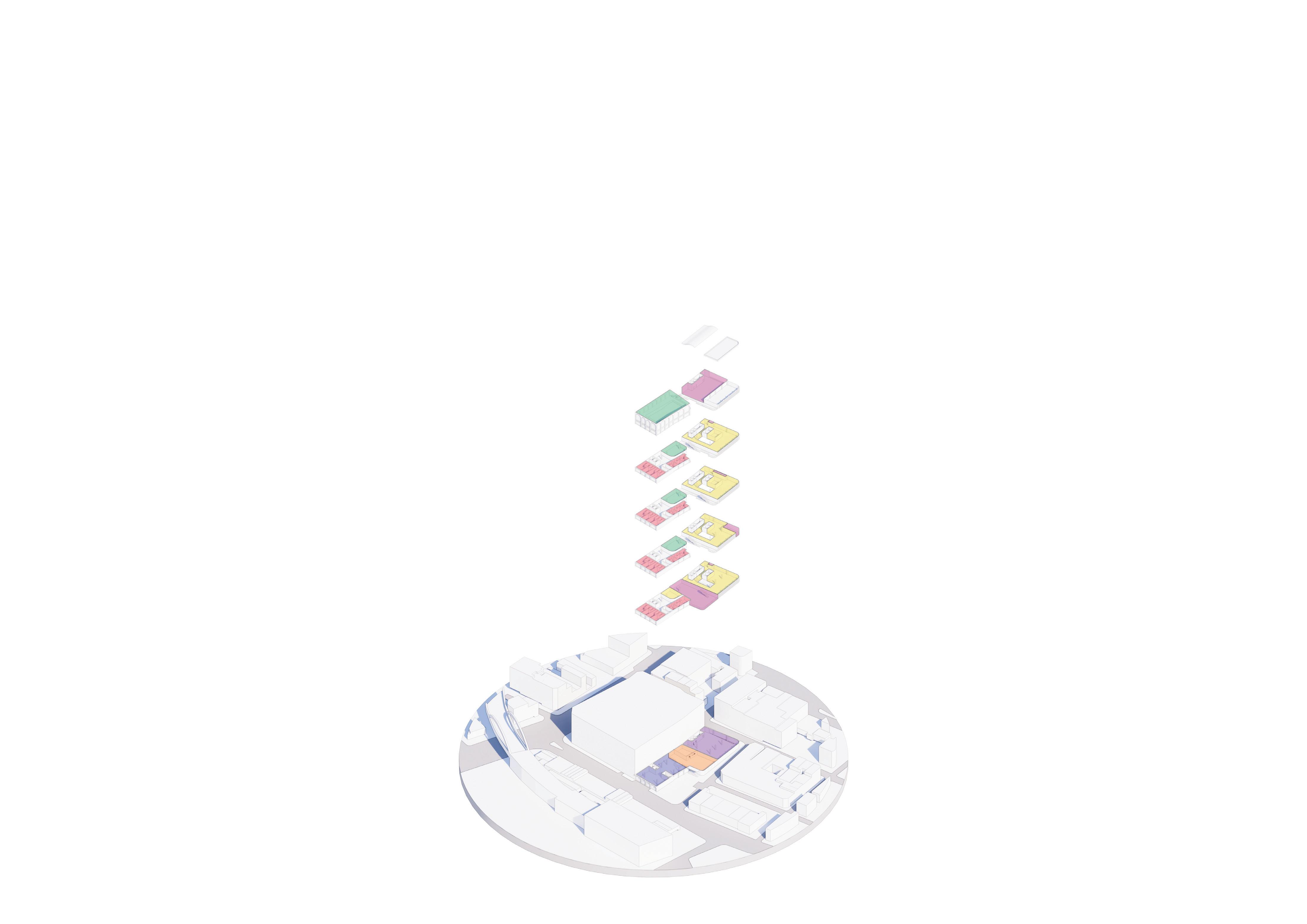

TECHNICAL DRAWING Floor plan and Exploded ISO

PROGRAMME Hotel Reception Office Kitchen Open Plan Office Event Space Meeting Room Hotel Room

Hotel Room

Second Floor floorplan

Restaurant Office Lobby Office Area Common Space Leisure Facilities -Gym 3/F -Dance/Yoga Studio 4/F -Game Room

5/F

-Swimming Pool

6/F

Private Office Open Plan Office

Gym Hotel Room

Hotel Room

Fifth Floor floorplan

21

MOTHER LONDON

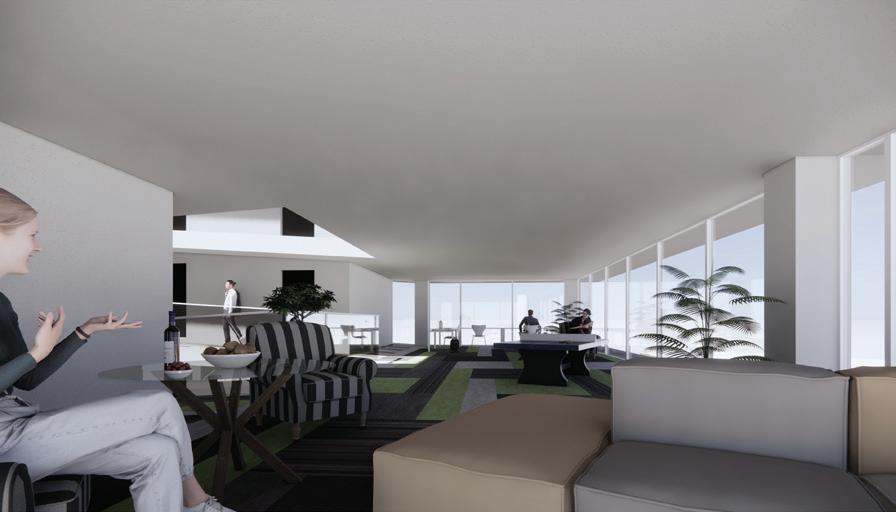

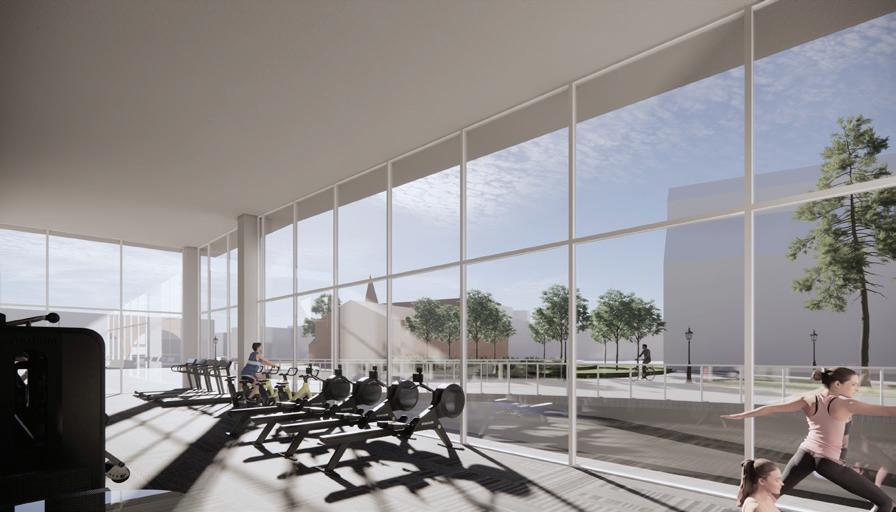

This is the gym room, one of my favourite leisure area within the building. Having the view of overlooking the atirum and the city while exercising is fantastic! Promise me, you must try this. Hey Andy, you are here...

Yes. Andy is one of our creative group...

Hey gaffer, how are you doing? Is this Mr. Lum? Right, I see him over there. Alex told me to meet him after picking up Mr. Lum. We should hurry up...

See you tommorrow Andy. The gym and other leisure space is the connection between the office and the hotel, accessible by both residents and staffs. Please follow me Mr. Lum...

Nice to meet you Mr. Lum...

I think Alex is waiting for you, gaffer...

Nice to meet you Andy.

Can’t wait for your story...

22

MOTHER LONDON

Baby, do you see the London Eye...

Do you want to go to restaurant downstair for lunch?

What’s up Mr. Lum. Finally meet you in person.

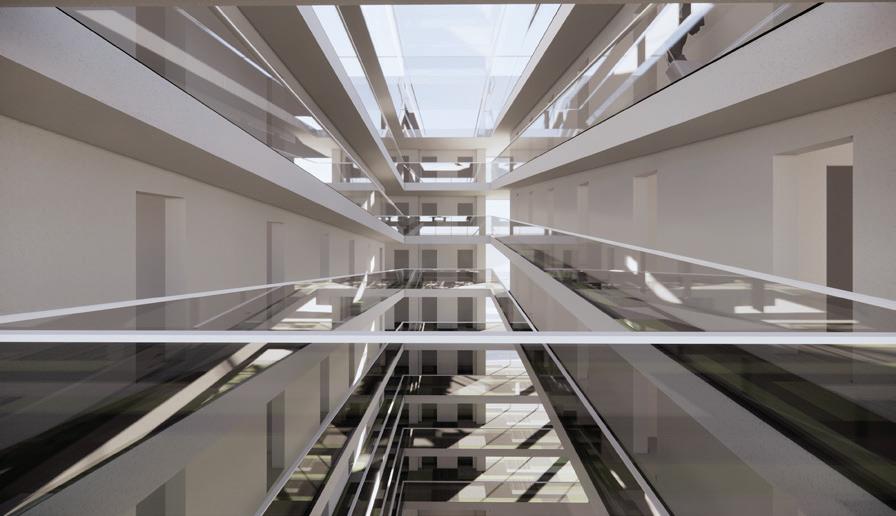

How do you find the building? Here we are at the atrium, the most important socializing space.

I have my coffe here every morning...

No, I am in diet...

I love it! Hope I can work here!

Should I go to gym today...

23

MOTHER LONDON

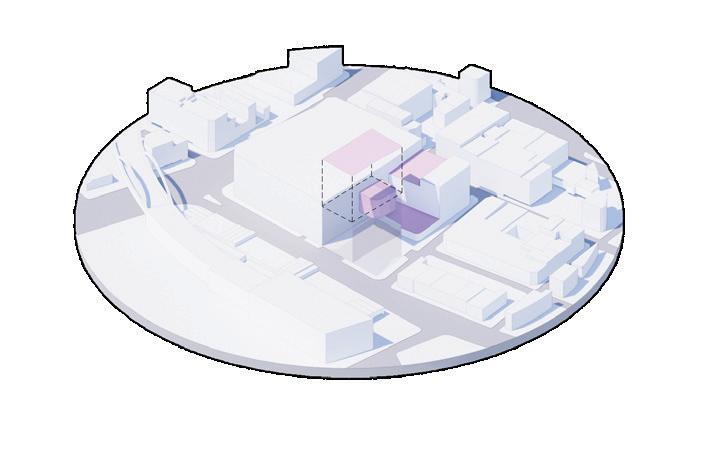

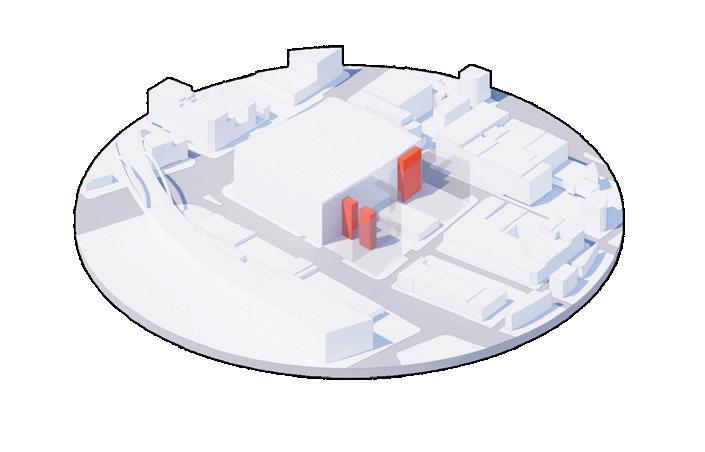

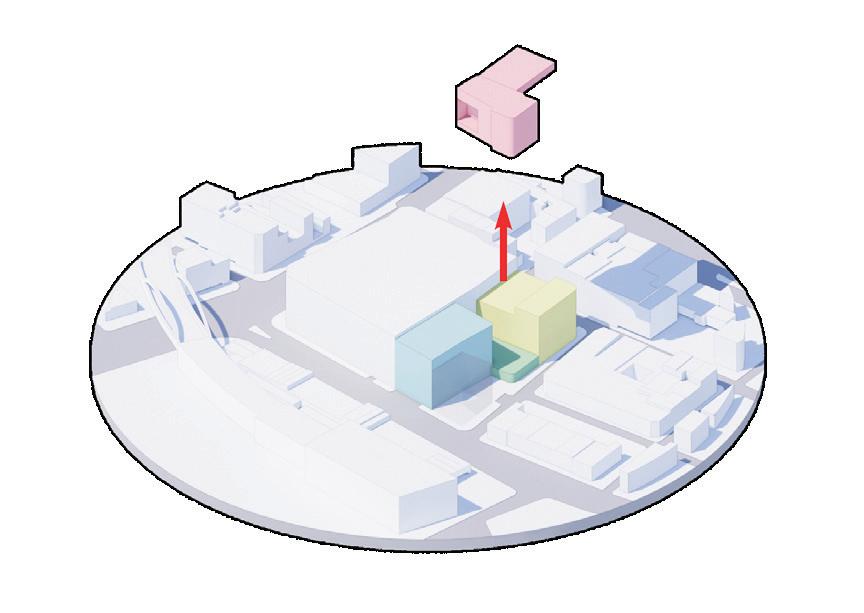

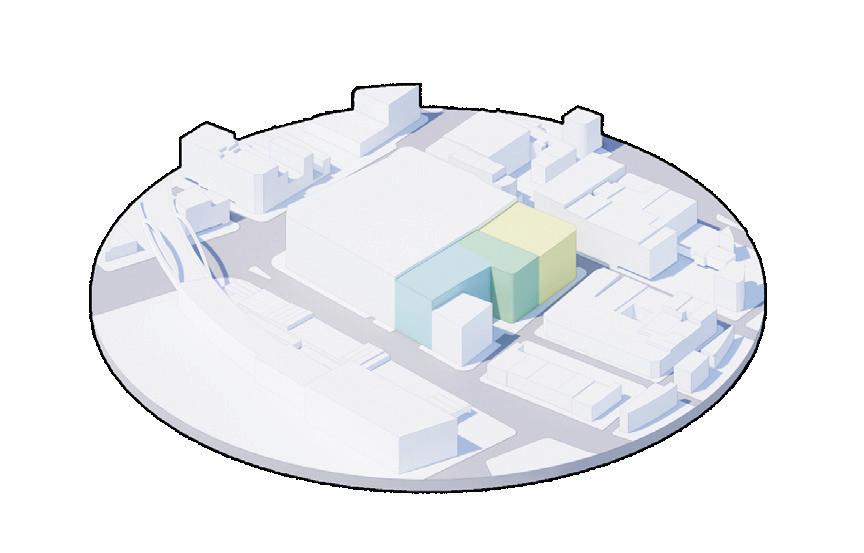

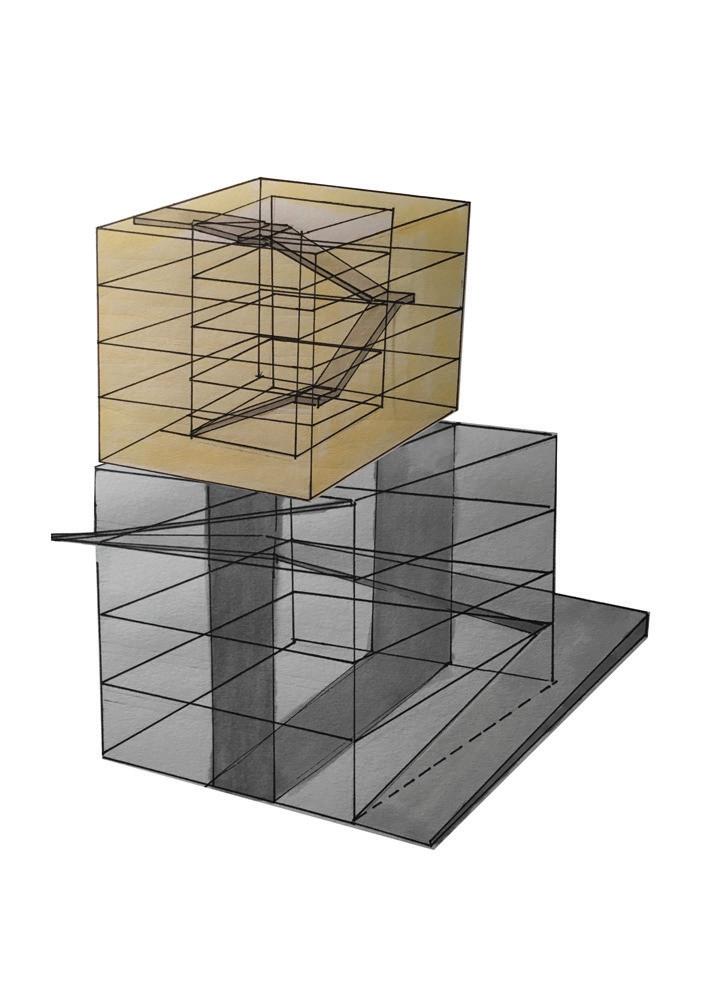

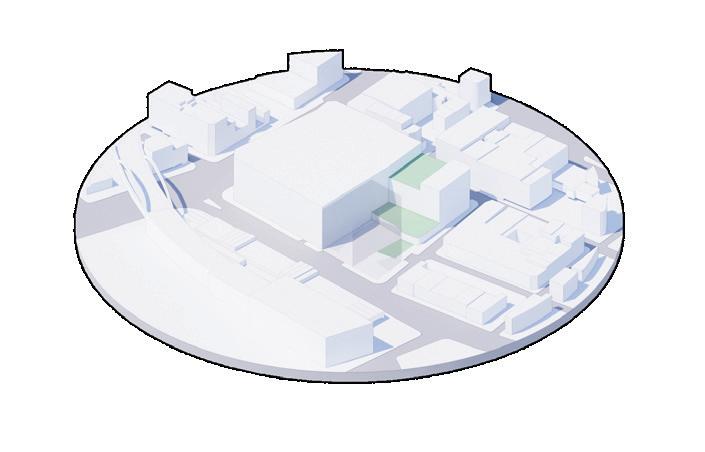

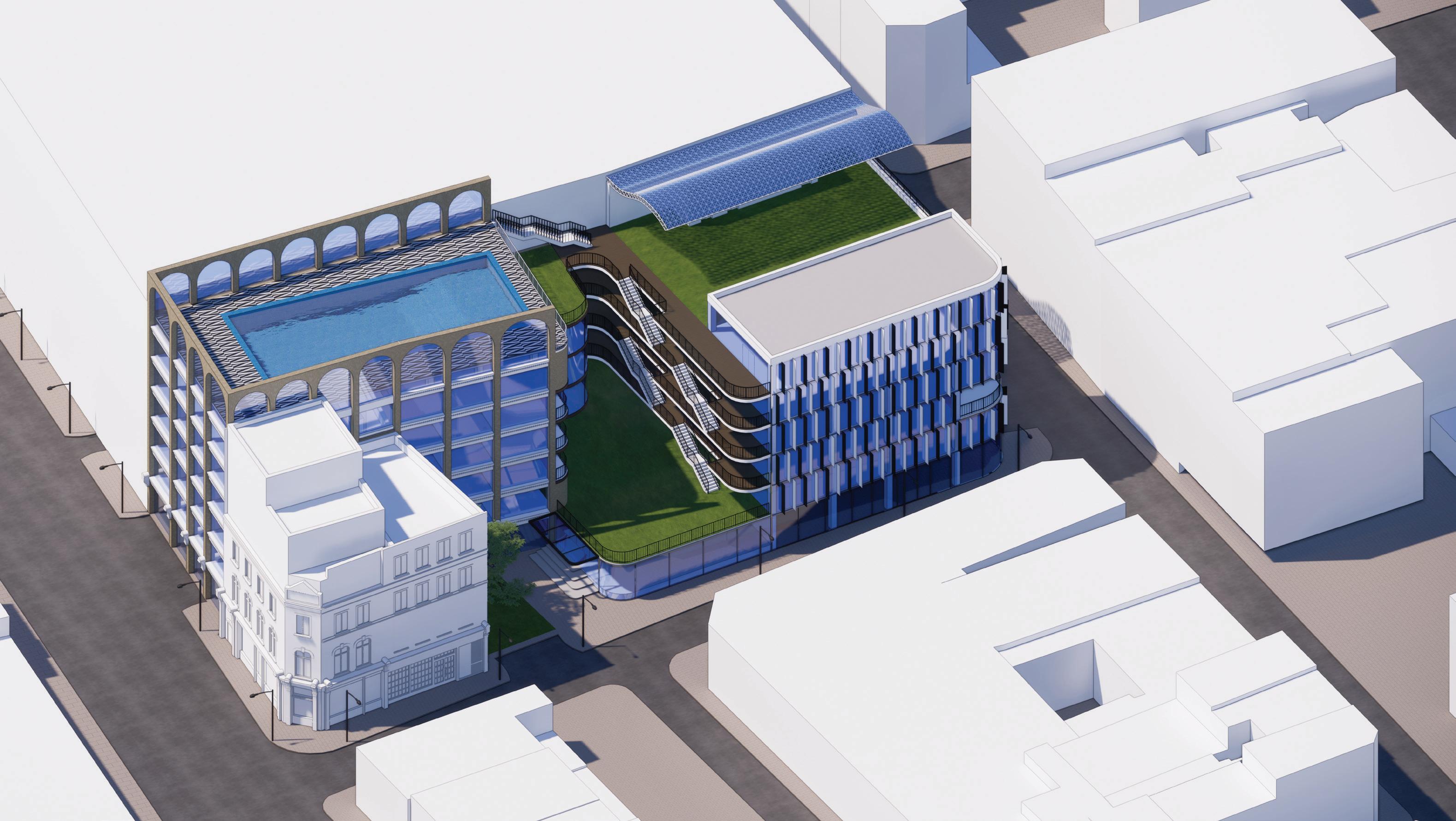

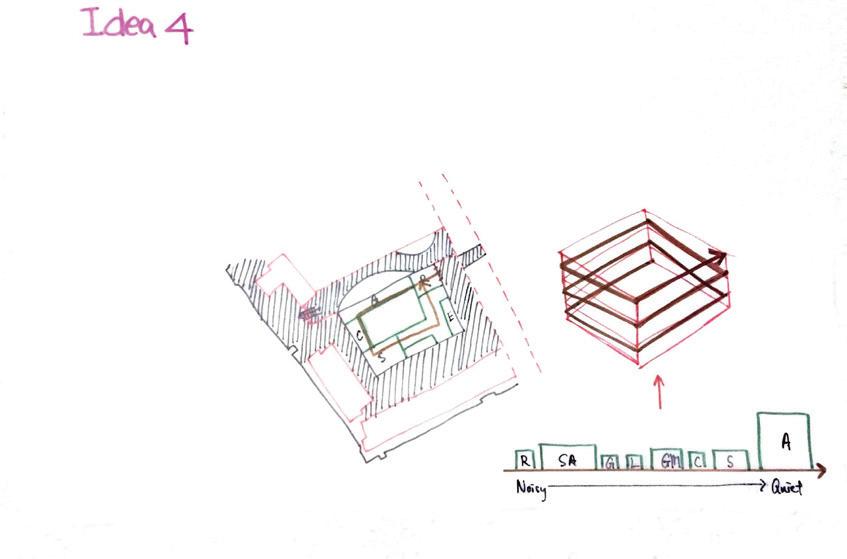

FORM AND SPACE Development and space diagram

The building is divided in three sectors, hotel(blue), leisure space(green) and workspace(yellow).

Part of the leisure space structure has been taken away to form an atrium, where the negative space will allow visual and physical connection between the hotel and workspace. Thus, the hotel and workspace has seperate circulation to ensure certain standard of security and privacy.

Communal Space

Breakout Space

Greenery Space

Original Volume 24

Reduced Volume

Accessability

MOTHER LONDON

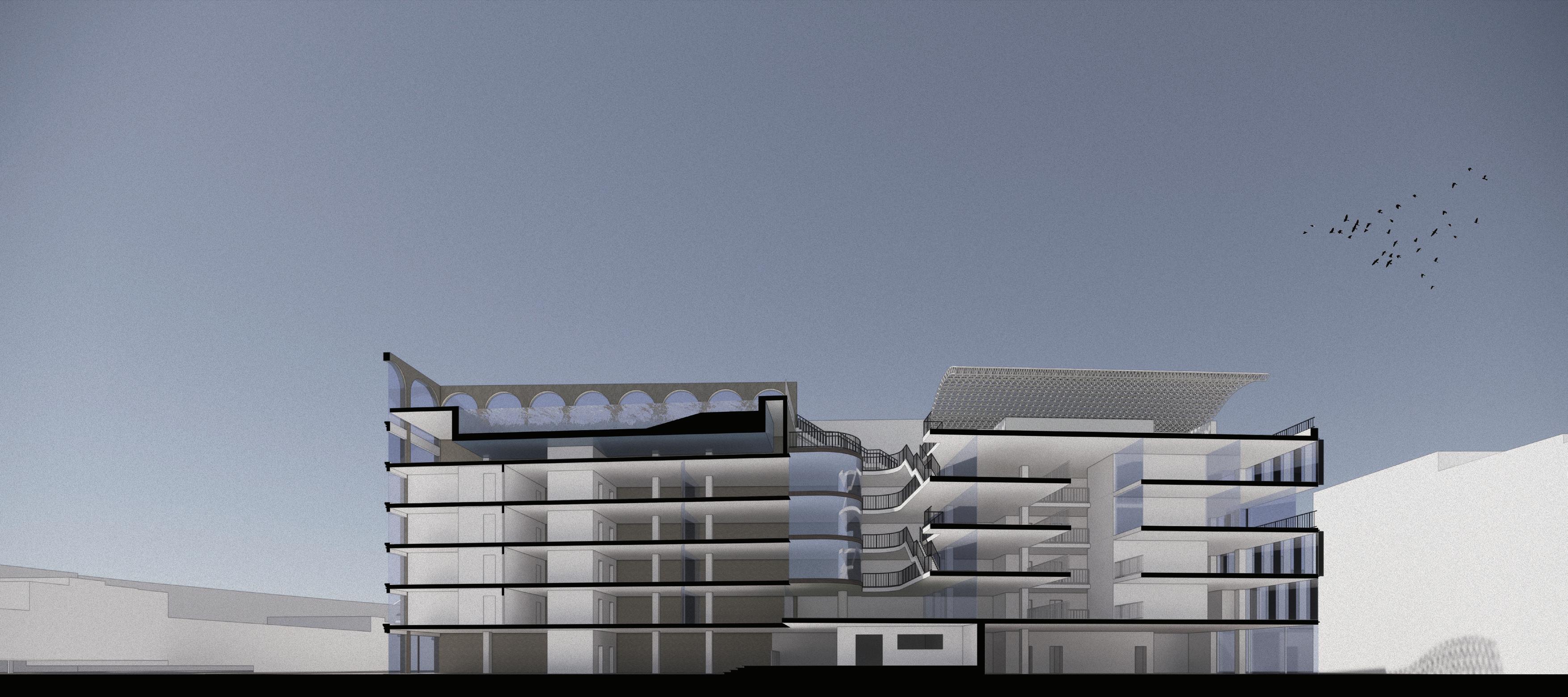

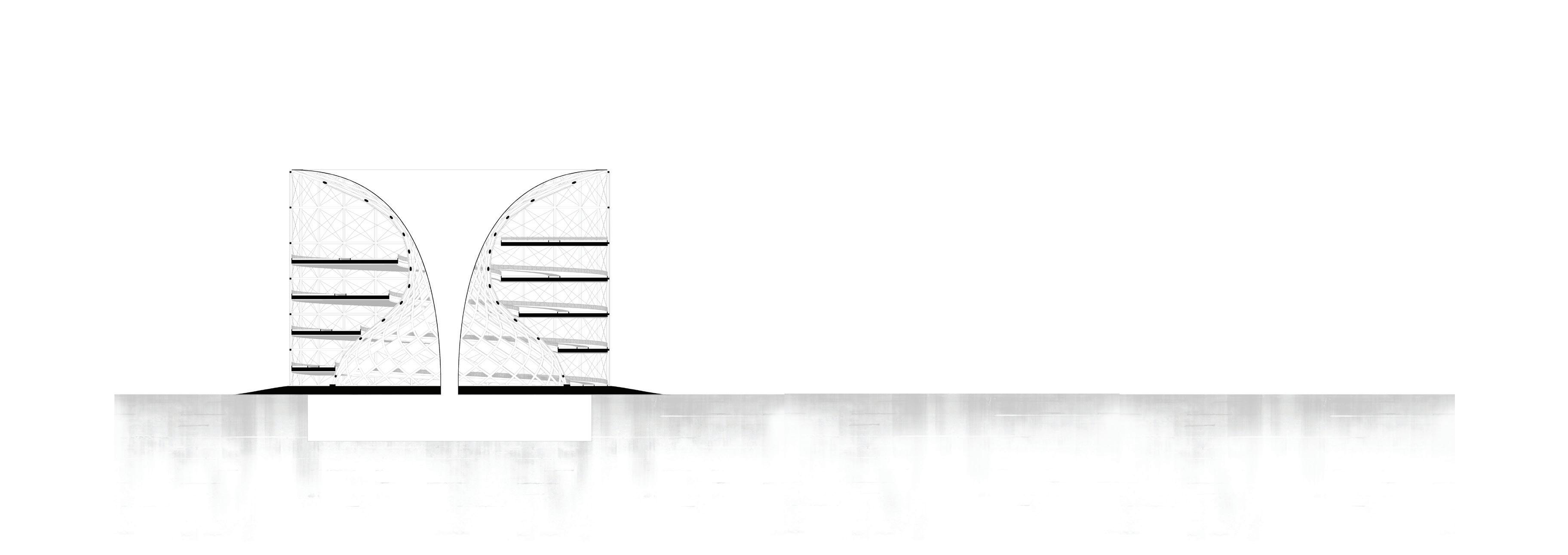

TRANSPARENT SPACE Sectional Drawing

The project use sustainable workplace concept, aim at building a work environment which dissolve with leisure space and city scape.

The design shows a kind of transparency from north to south. Merging the surrounding context, the office space and leisure facilities as one.

25

MOTHER LONDON

This is our office space. We set it up as an open plan so that our creative group and proudcers can inspire each others. Our aim is to promote our client without boundaries, so do our working space...

I believe you are tired from the long trip Mr. Lum. Should we continue tommorrow? Oh yes, the roof top swimming pool is definetly the place for relaxing, with my favourite dry Martini. I will see you tommorrow then, have some nice rest...

Who is good at Photoshop?

I need a hand...

How about “There’s nothing like the first bite”...

“It’s finger-lickin’ good” is outdated, they want somethink new...

Sounds great! I want some for lunch...

Yes, I definetly need some rest.

See ya...

26

MOTHER LONDON

Can I get you something?

The sun is nice today...

Sparkling water please...

I like the violin, so romantic...

Jesus, I’m in love with this place...

27

MOTHER LONDON

Nite-nite...

28

INTEREST AND HOBBIES

Sketching / Ink printing / Pottery / Football / Travelling / Photographing

29

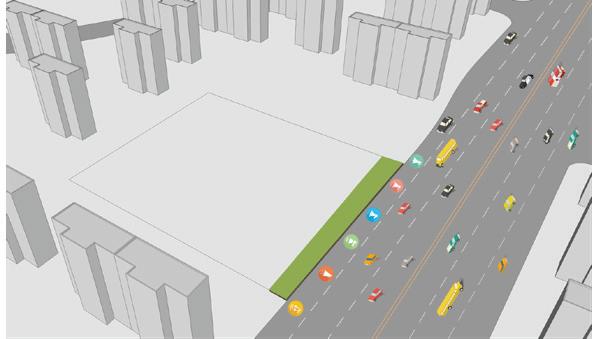

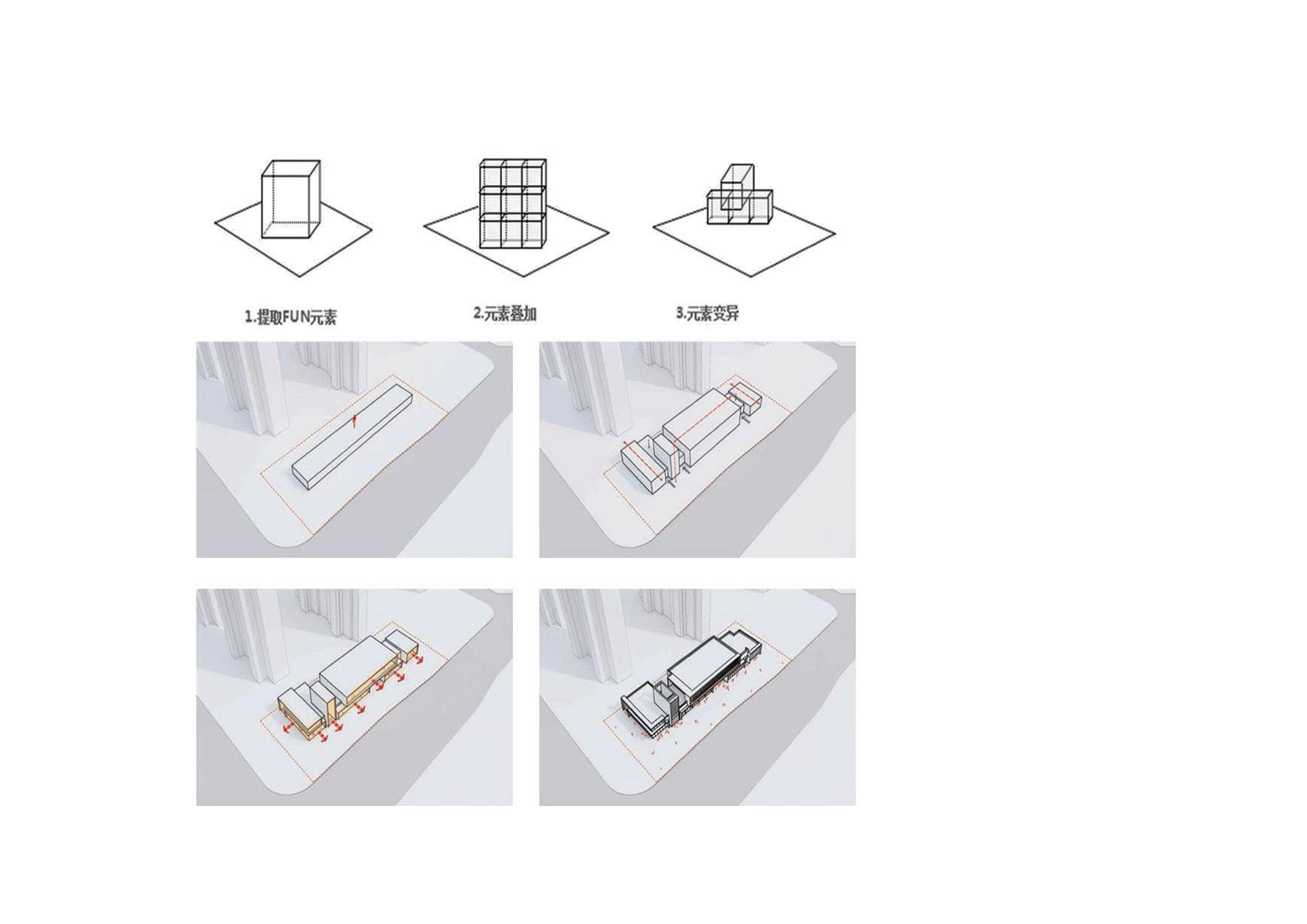

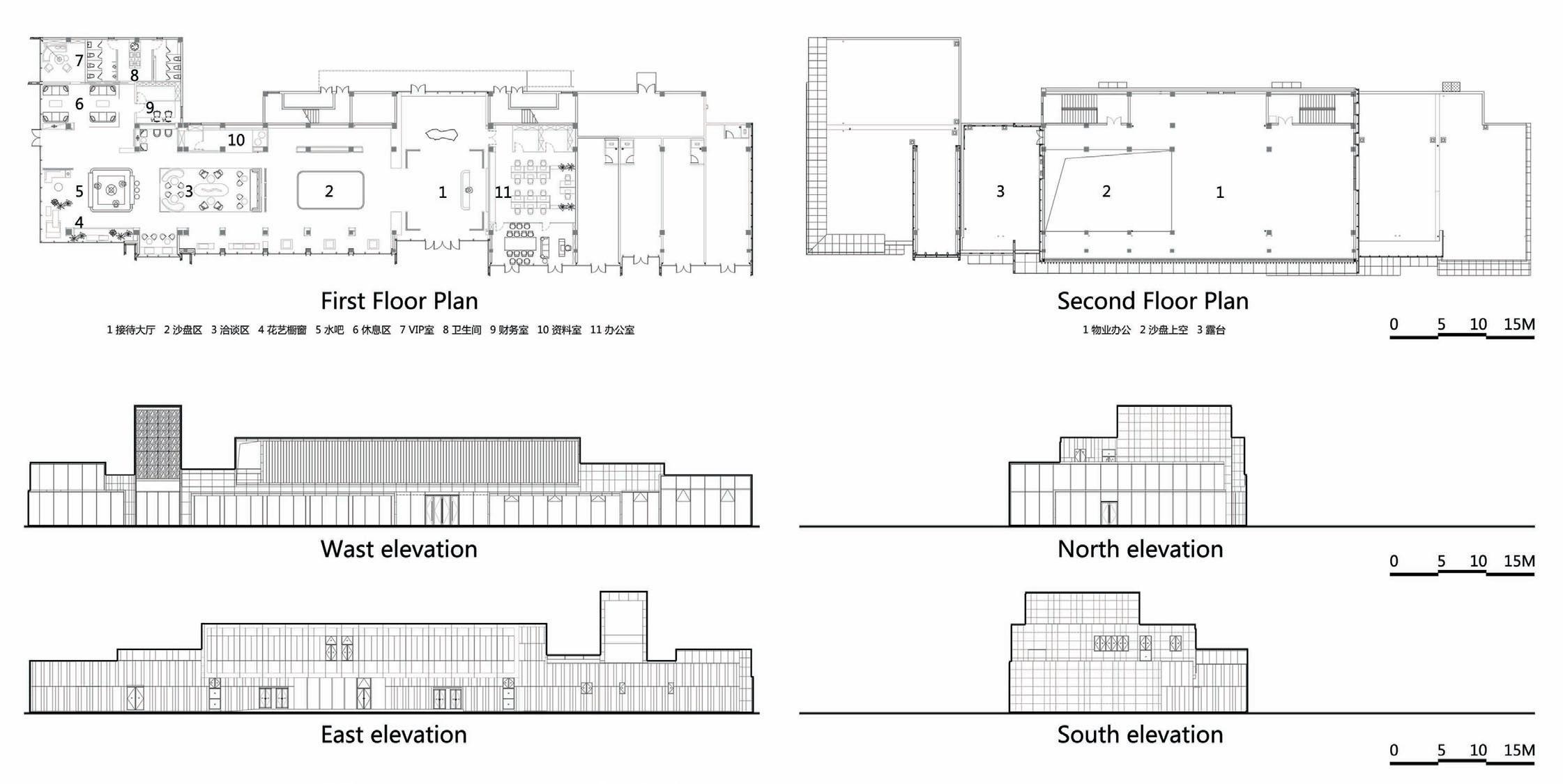

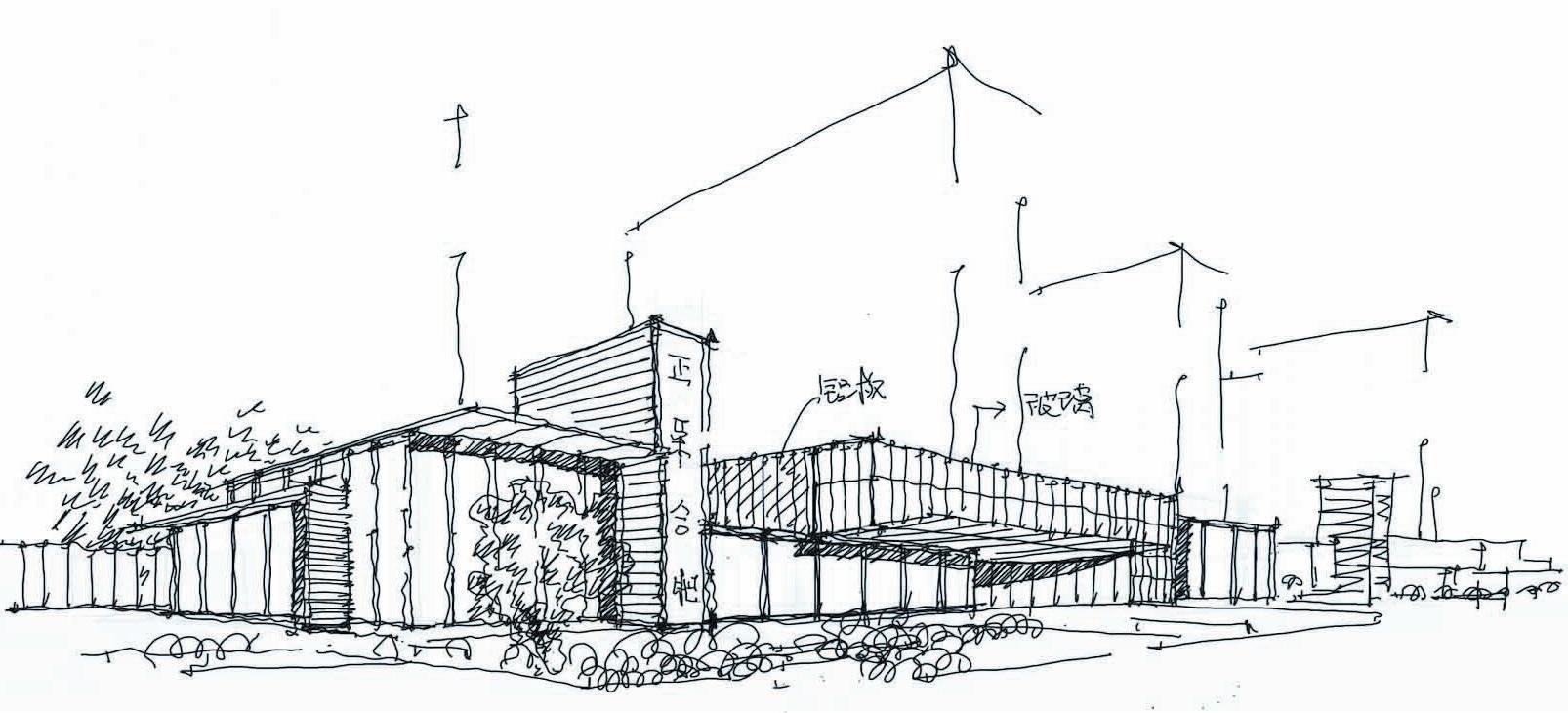

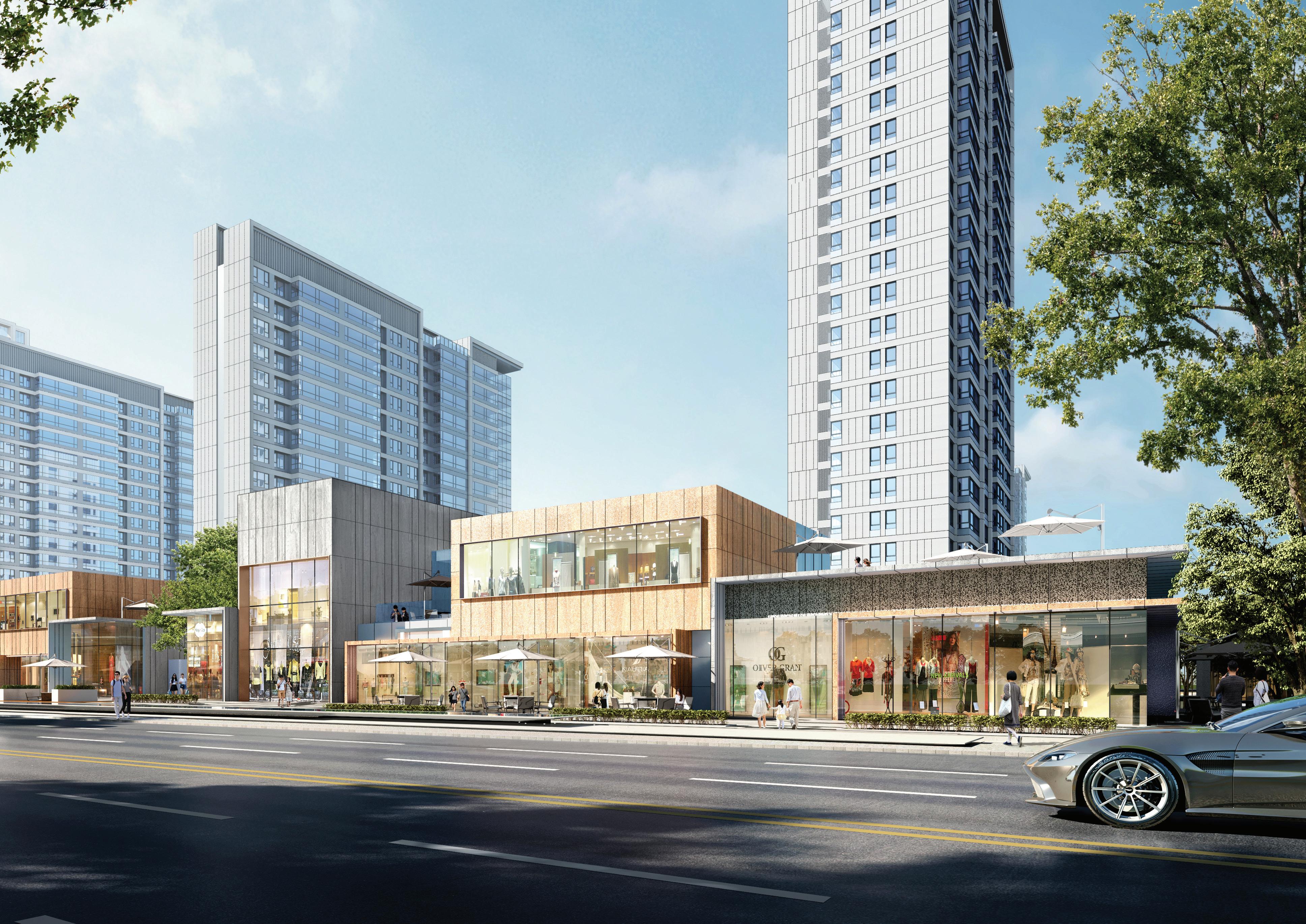

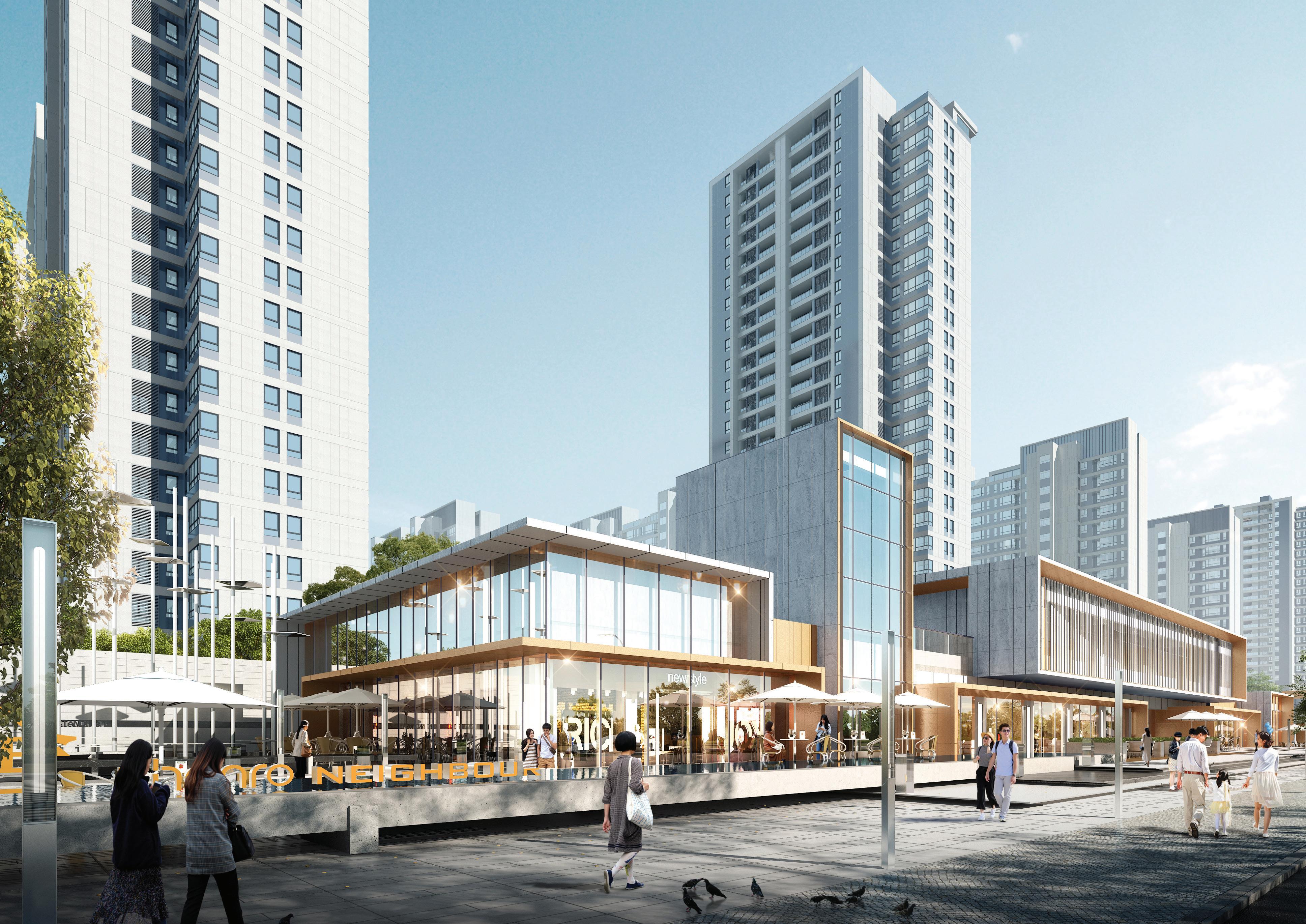

04 ZHENGRONG HEFEI BINYUTINGHU PAVILLION This project aim develop a Co-Living oasis neibourhood. Using the concept of “Fun Link”to design diverse scenario, create chances for conections between people, neighbourhood and life. Expressing the vision of Co-Living oasis with common prosperity, life enjoyment, vitality and joyful.

ZHENGRONG HEFEI BINYUTINGHU PAVILLION

31

ZHENGRONG HEFEI BINYUTINGHU PAVILLION

32

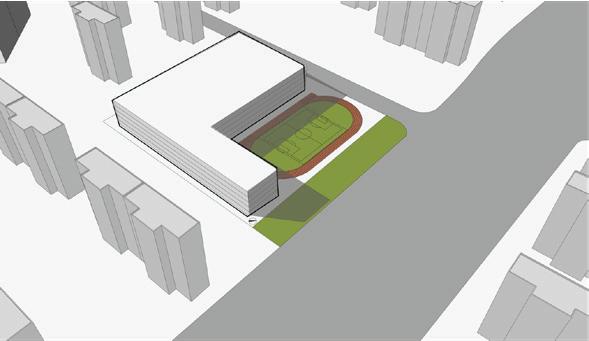

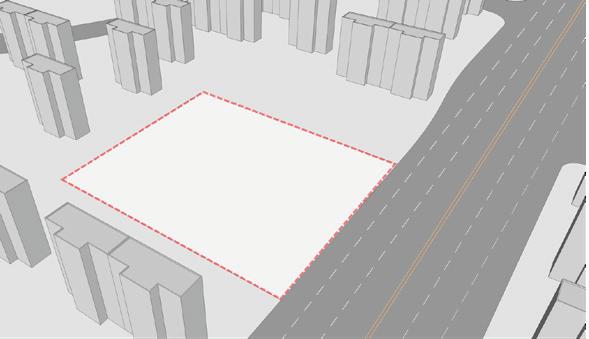

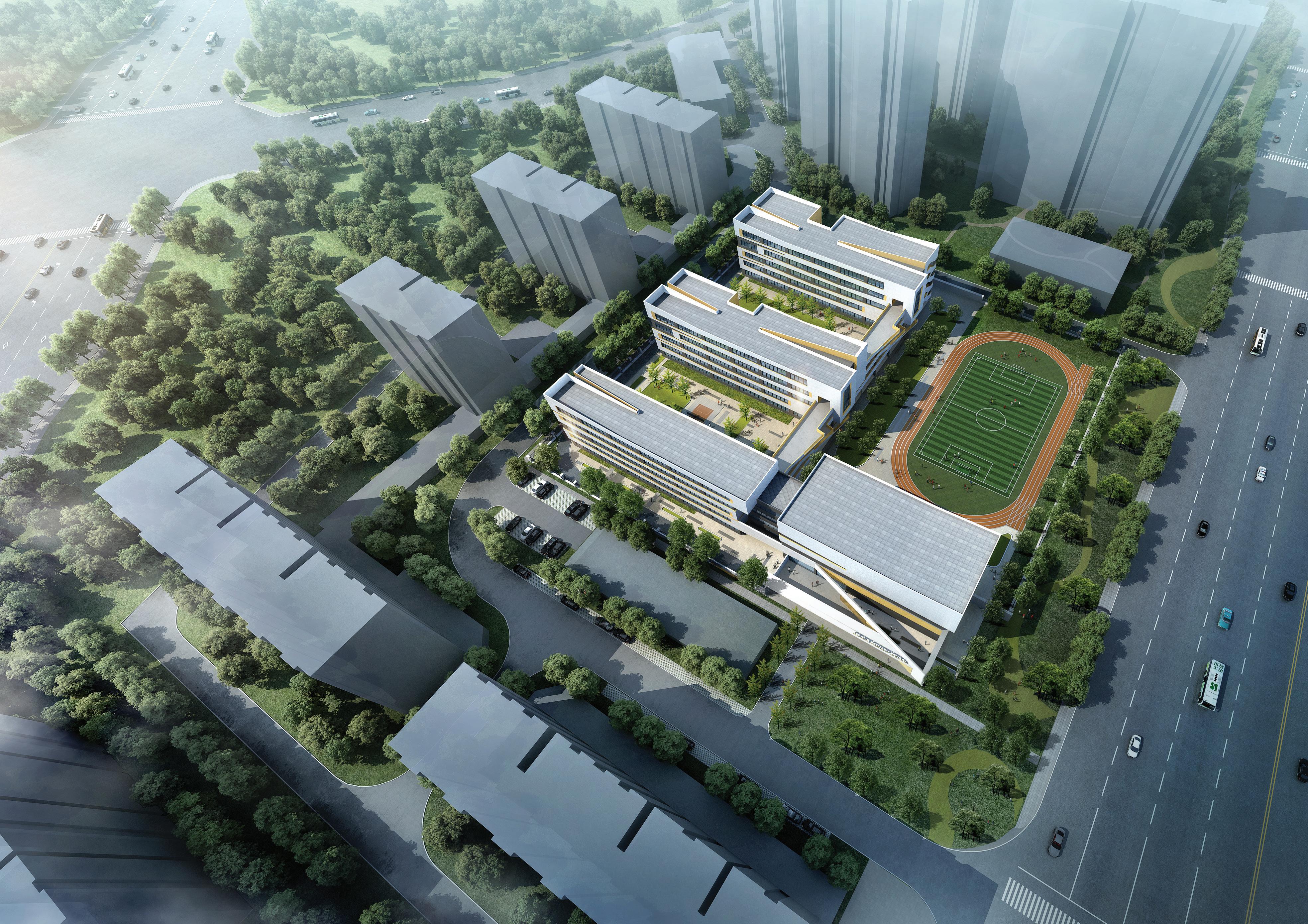

05 VANKE TAIYUAN SOUTH STATION NORTHCAMP PRIMARY SCHOOL This project used the concept of centralized design, also responding to the exsisting environment.

Aim at develop a new ecological campus.

VANKE TAIYUAN SOUTH STATION NORTH CAMP PRIMARY SCHOOL

5 4

3 1 3

2

1

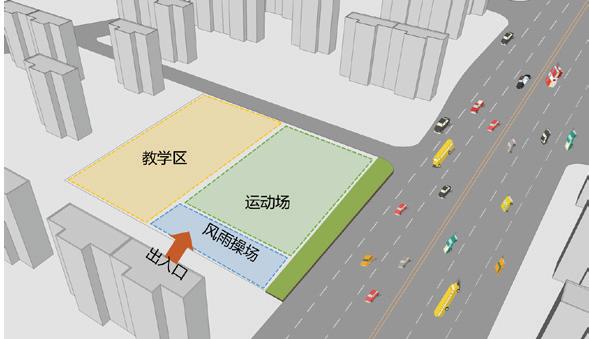

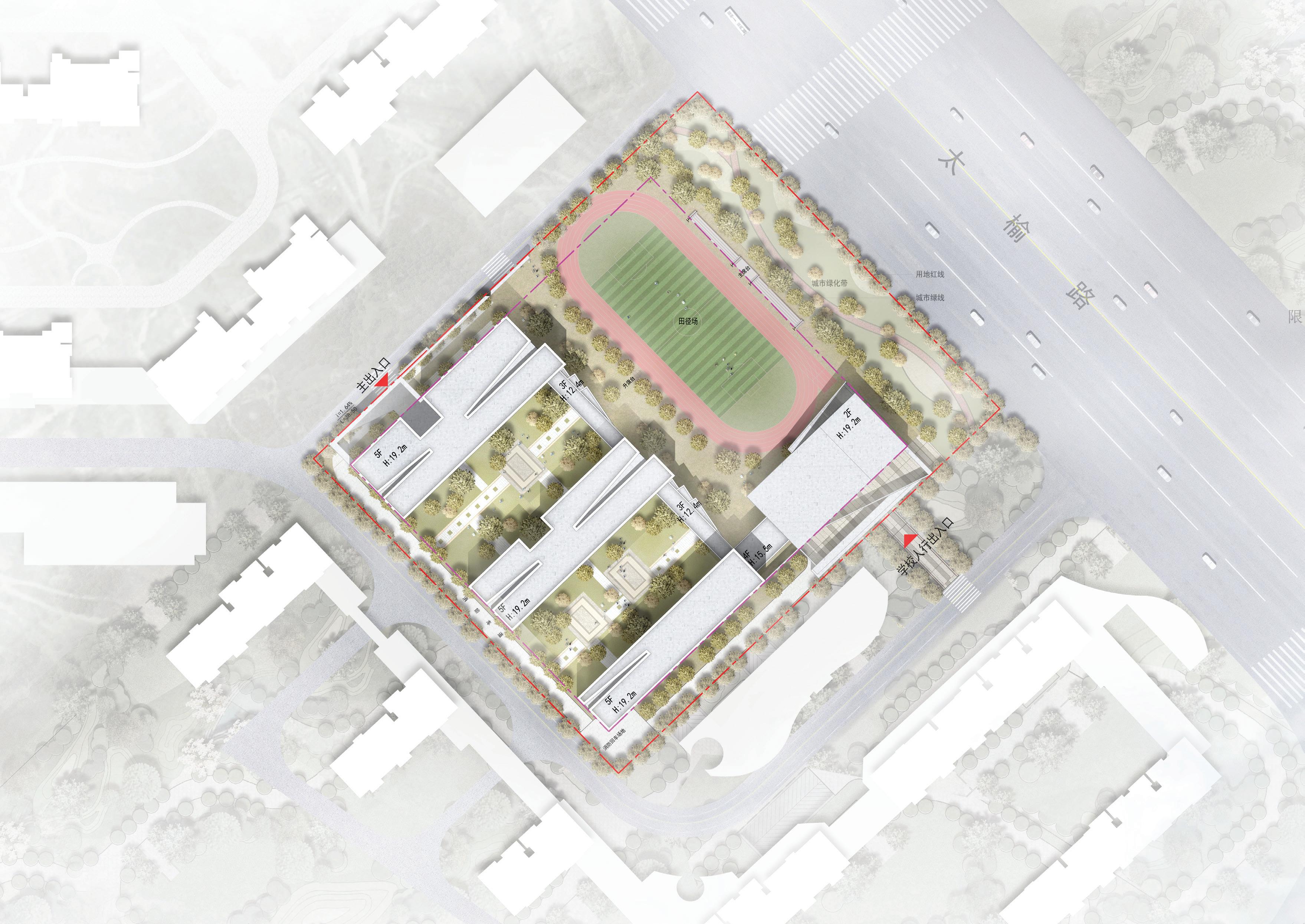

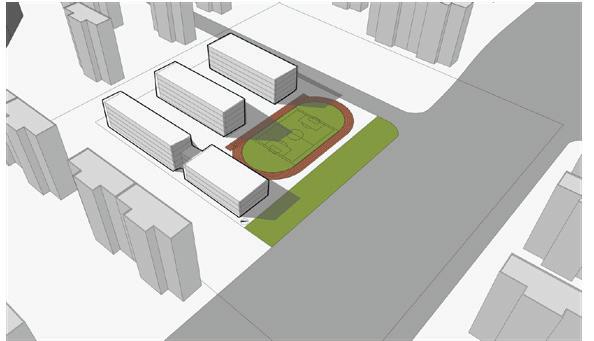

Sport and Assistance building

2

Specialized Classroom and Library

3

Classroom and Staff room

4

Athletic field

5

Urban green belt 35
