1. Office Administration
2. Presentation and Sanction

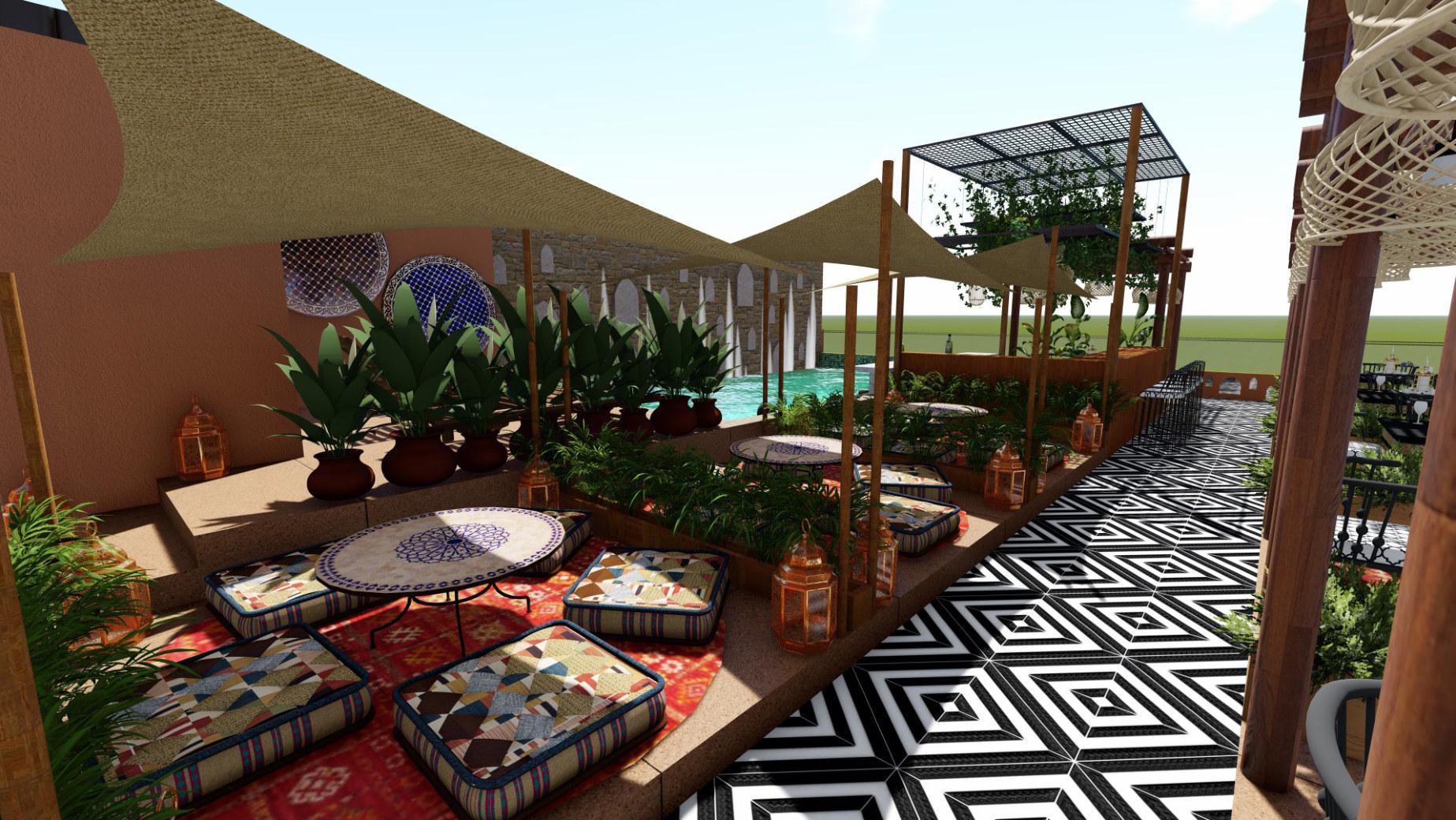

PROJECT NAME : HOTEL FOR MR. CHAUDARY
LOCATION : UDAIPUR
PROJECT TYPE : HOTEL
WORK DONE : 3D MODEL AND RENDERS OF ROOF TOP CAFE

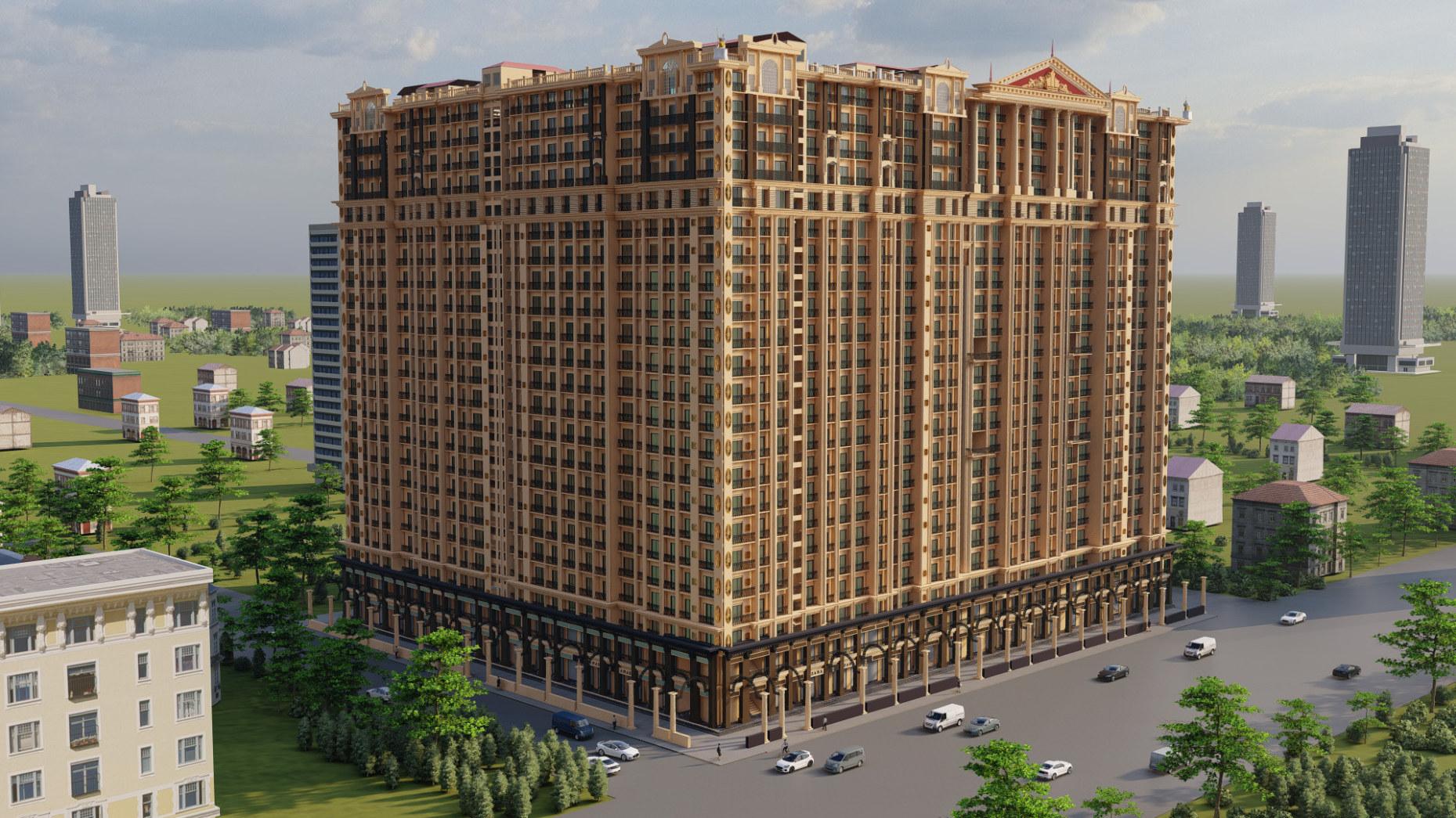

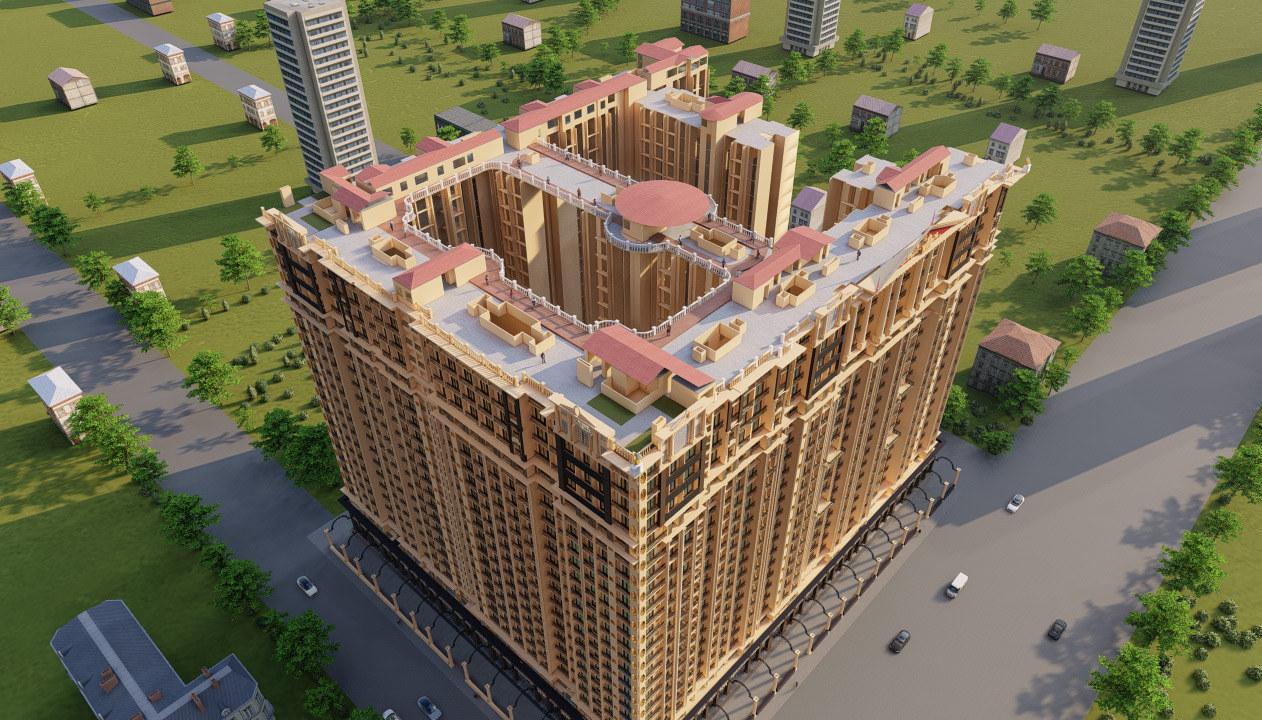

PROJECT NAME : IMPERIAL SPENDOLA
LOCATION : VASAI EAST, THANE
PROJECT TYPE : RESIDENTIAL COMPLEX
WORK DONE : 3D MODEL AND RENDER OF FRONT AND SIDE ELEVATION AND TERRACE
VIEWOFFRONTANDSIDEELEVATION
VIEWOFTERRACE

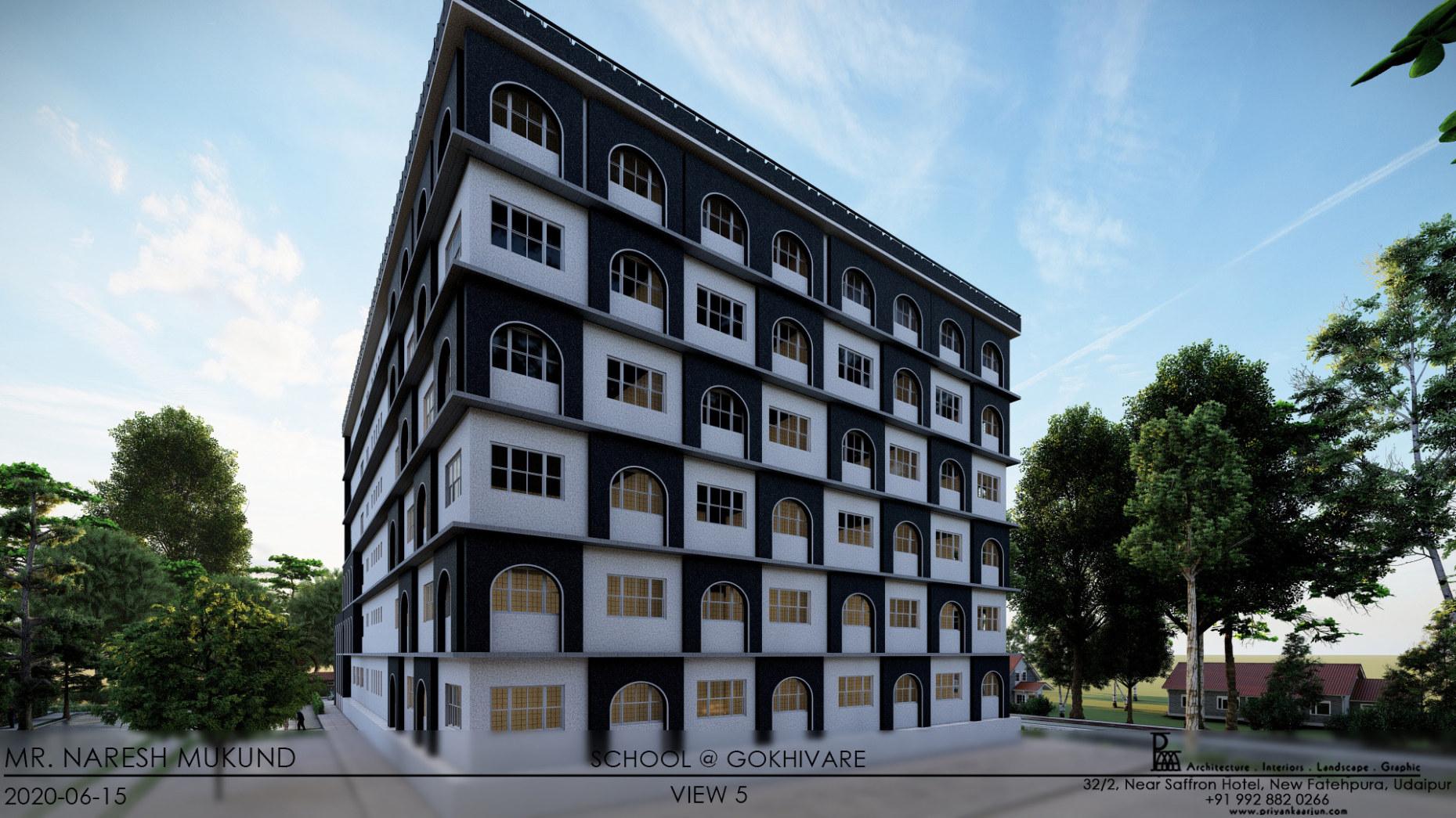

PROJECT NAME : SCHOOL AT GOKHIVARE
LOCATION : GOKHIVARE
PROJECT TYPE : SCHOOL
WORK DONE : 3D MODEL AND RENDER OF ALL 4 SIDE ELEVATION

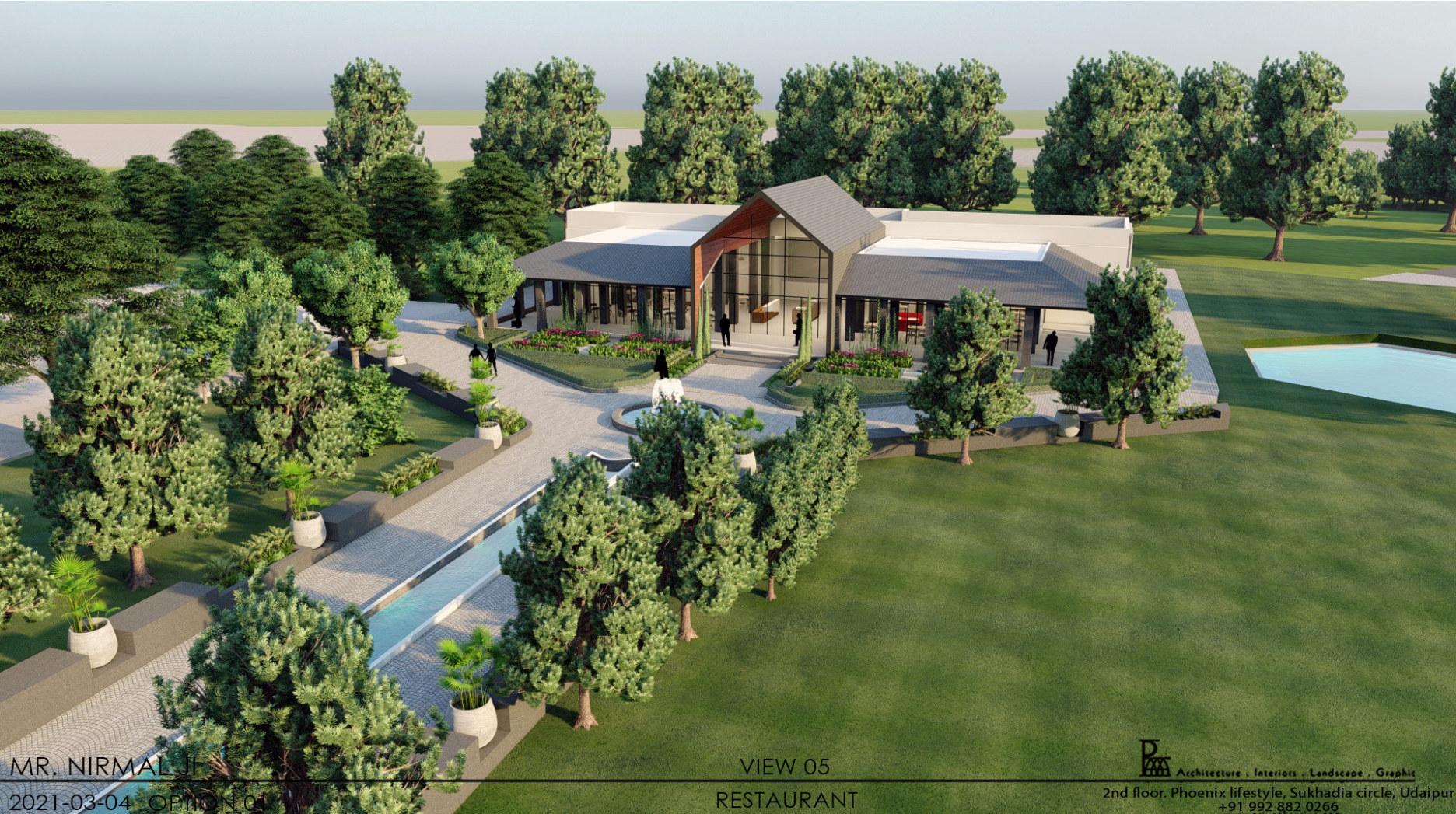

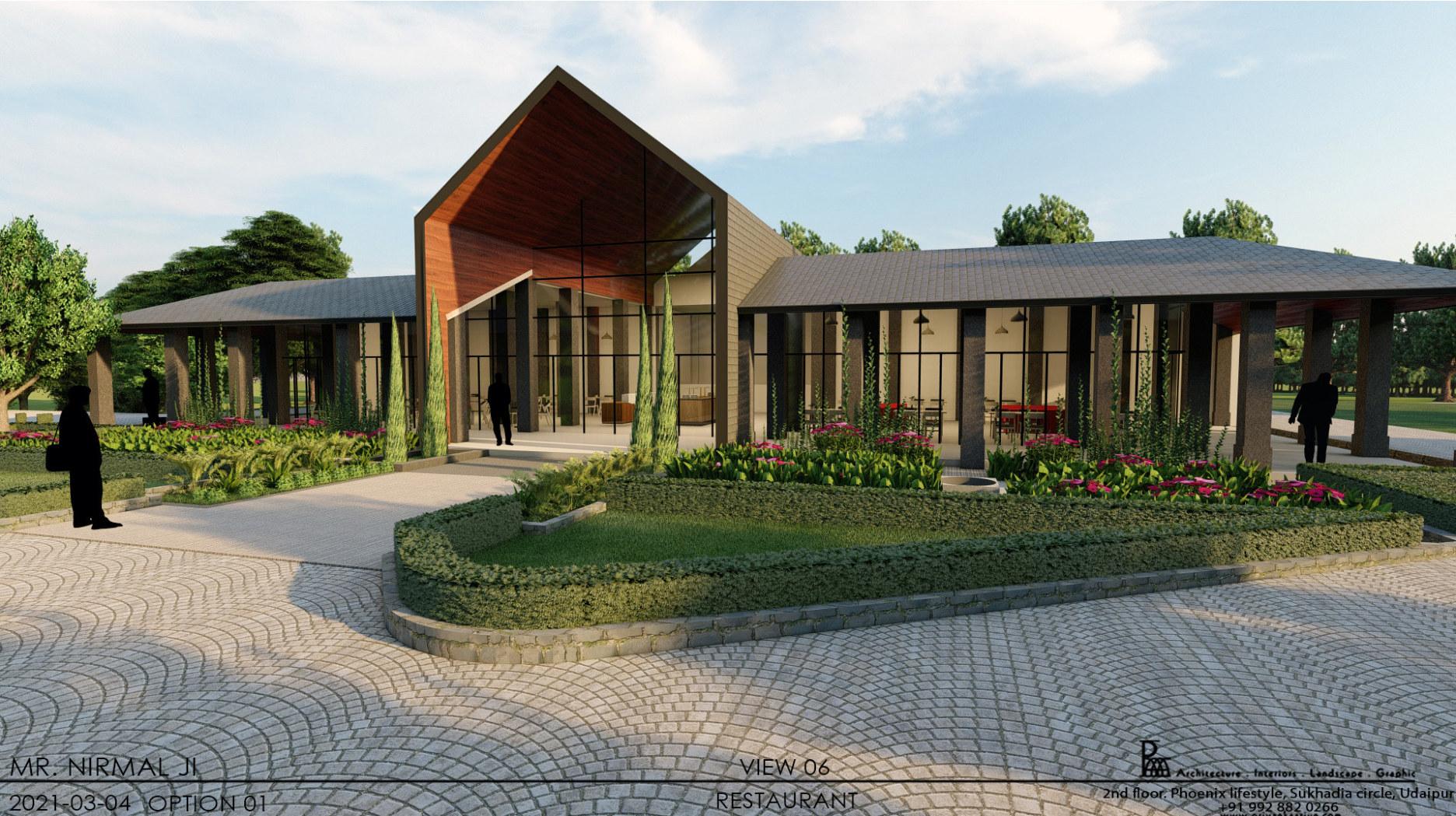

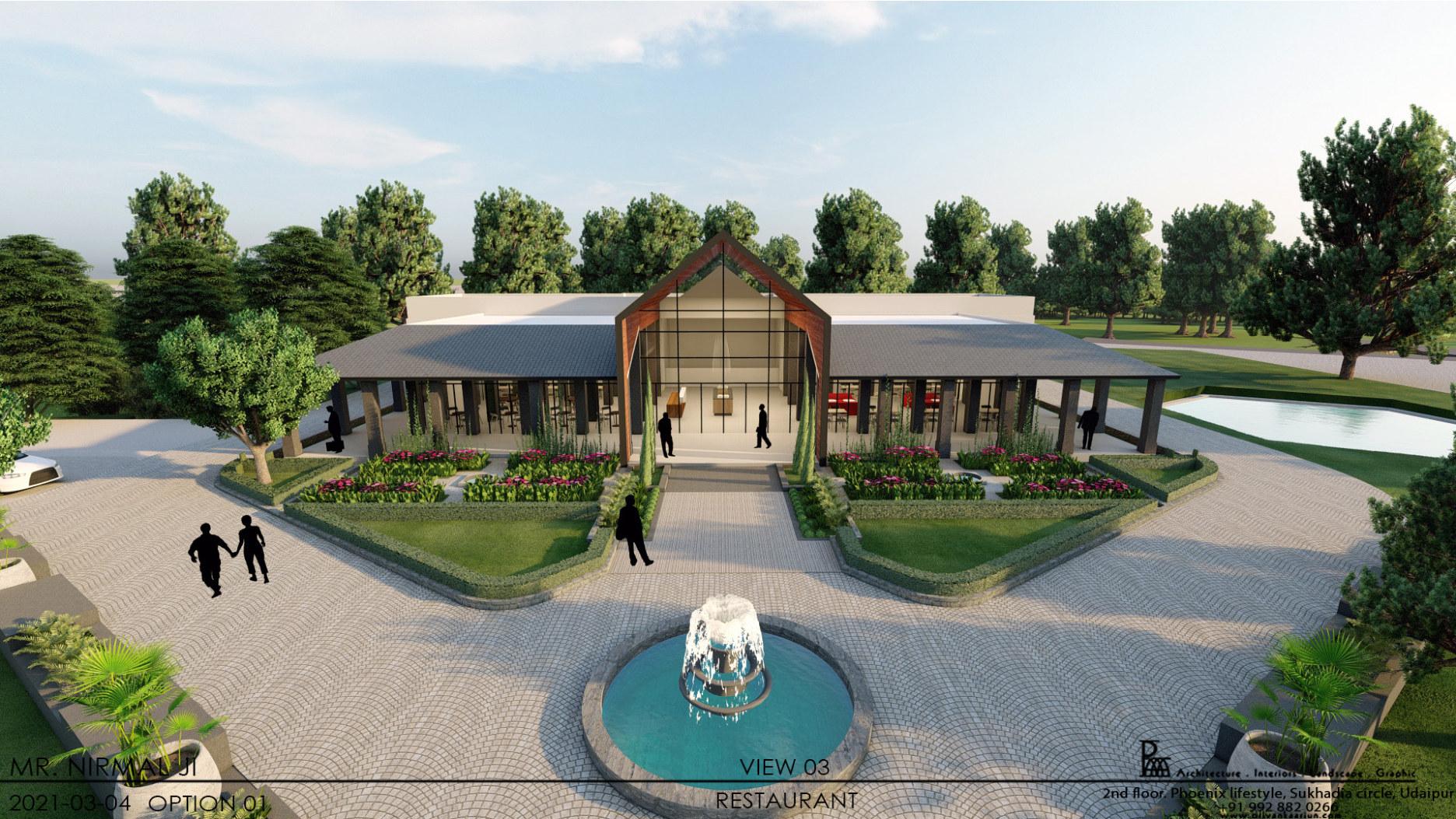

PROJECT NAME : RESTAURANT FOR MR. NIRMAL JI
LOCATION : UDAIPUR
PROJECT TYPE : RESTAURANT
WORK DONE : 3D MODEL AND RENDERS

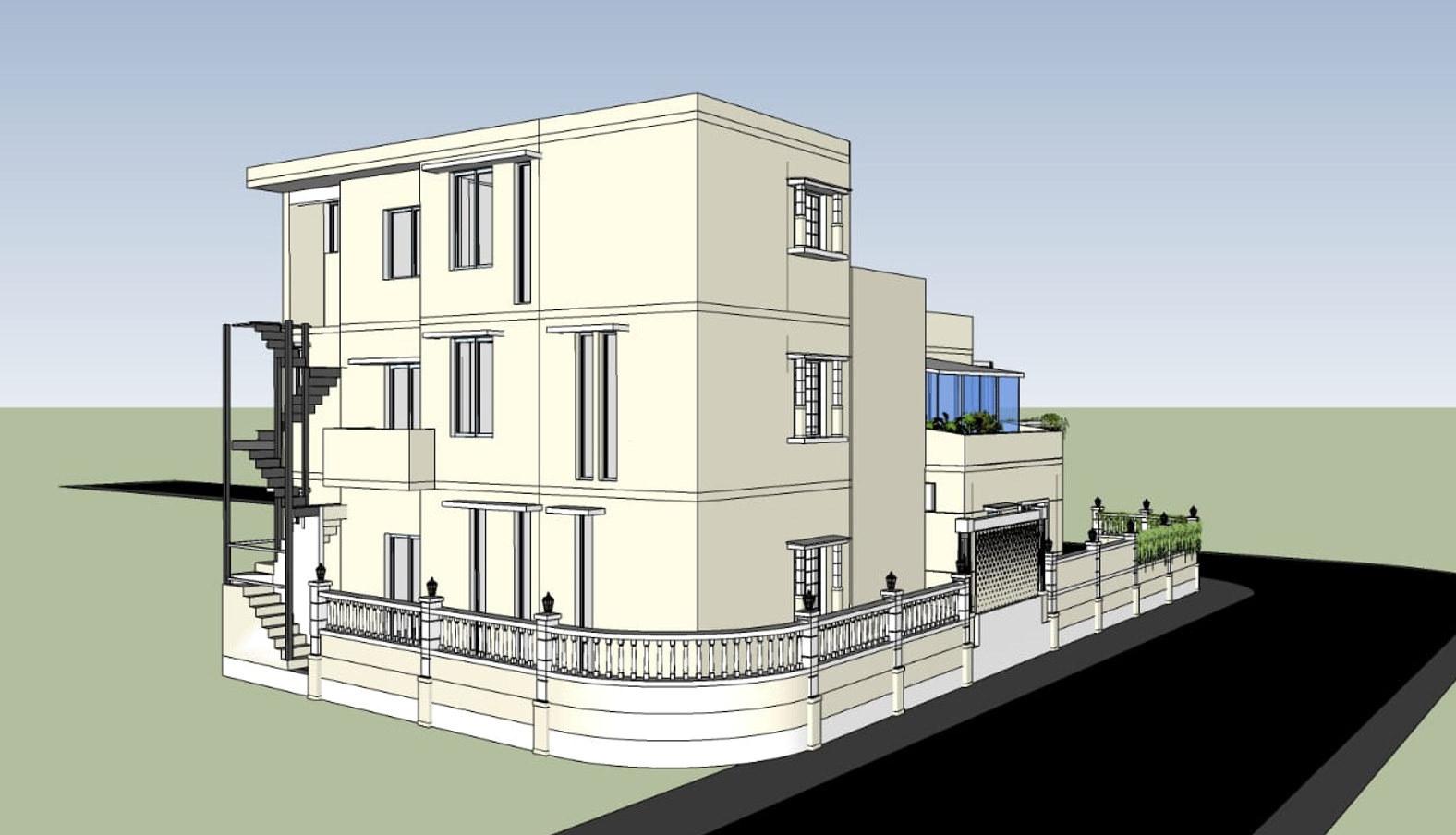

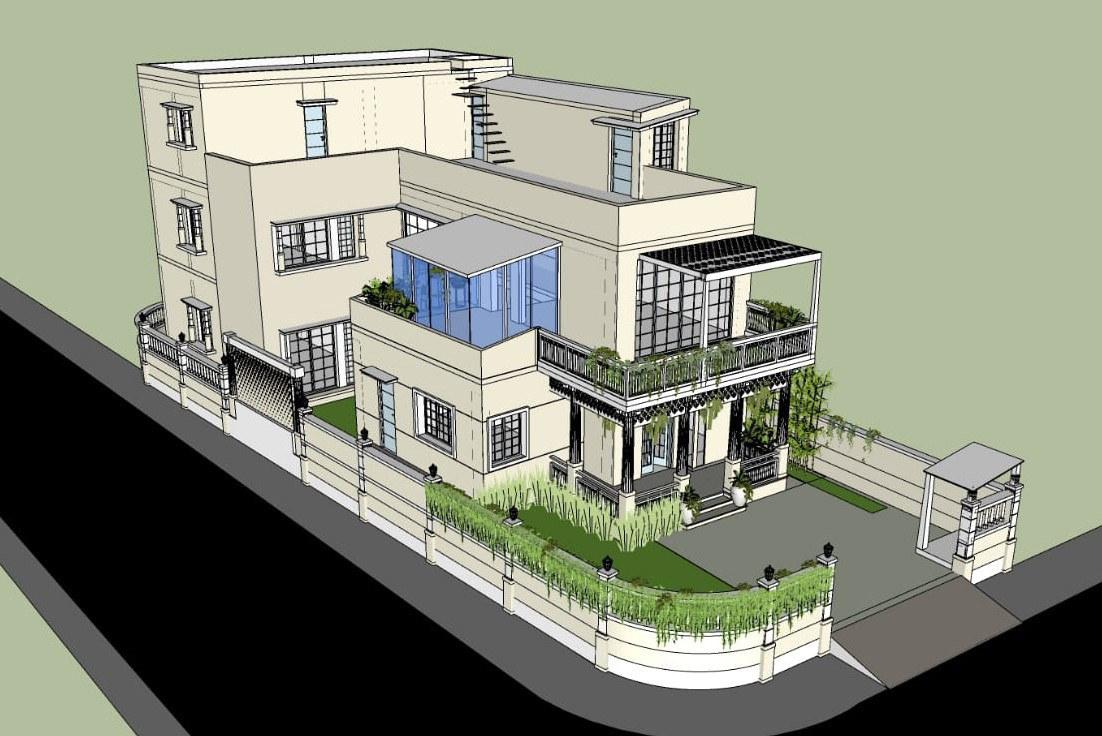

PROJECT NAME : RESIDENCE FOR NISHI MAHAJAN
LOCATION : UDAIPUR
PROJECT TYPE : RESIDENCE
WORK DONE : 3D MODEL ON SKETCHUP
3. Site Visits

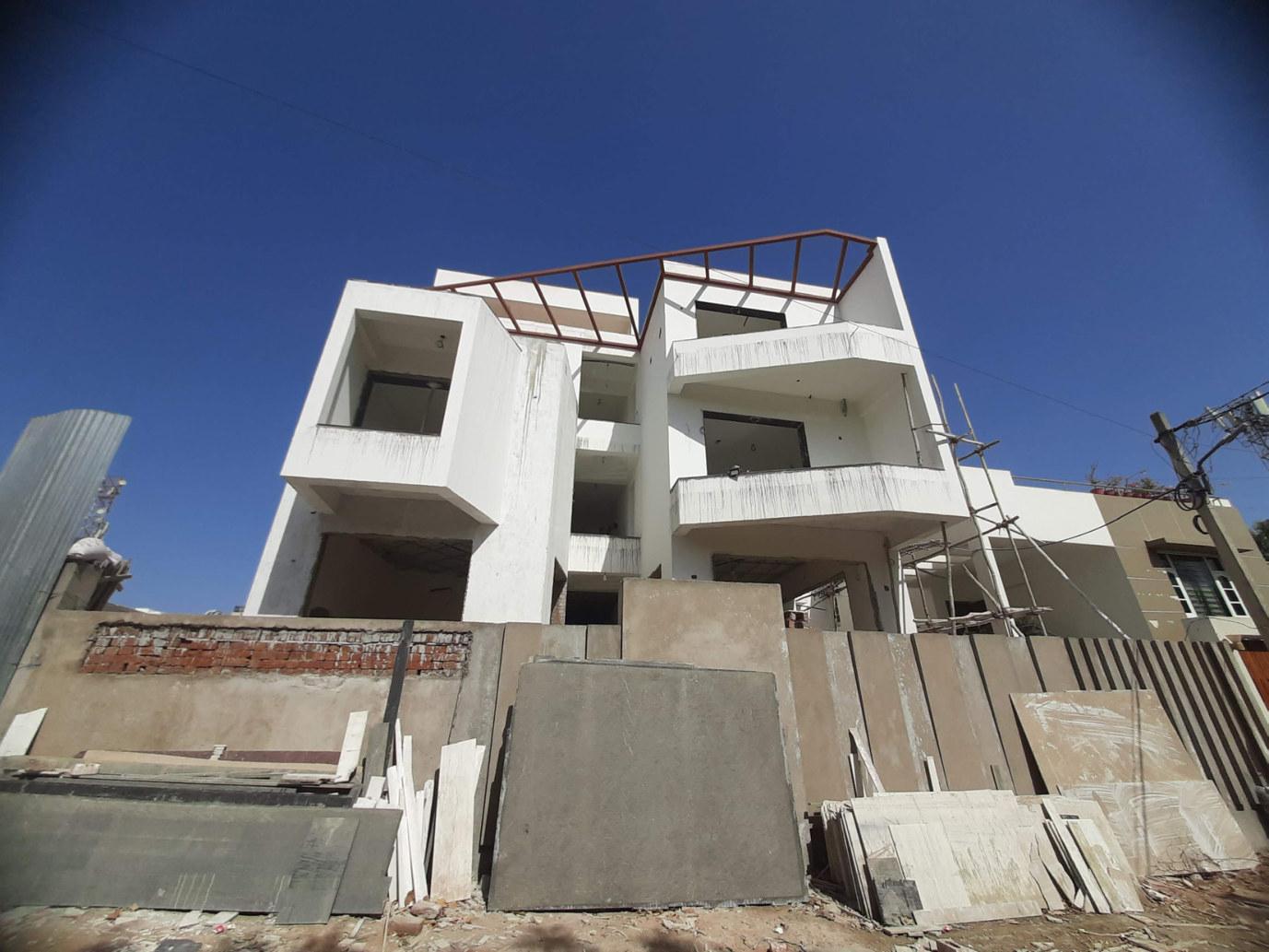

PROJECT NAME : RESIDENCE FOR MUKESH PATEL
LOCATION : UDAIPUR
PROJECT TYPE : RESIDENCE

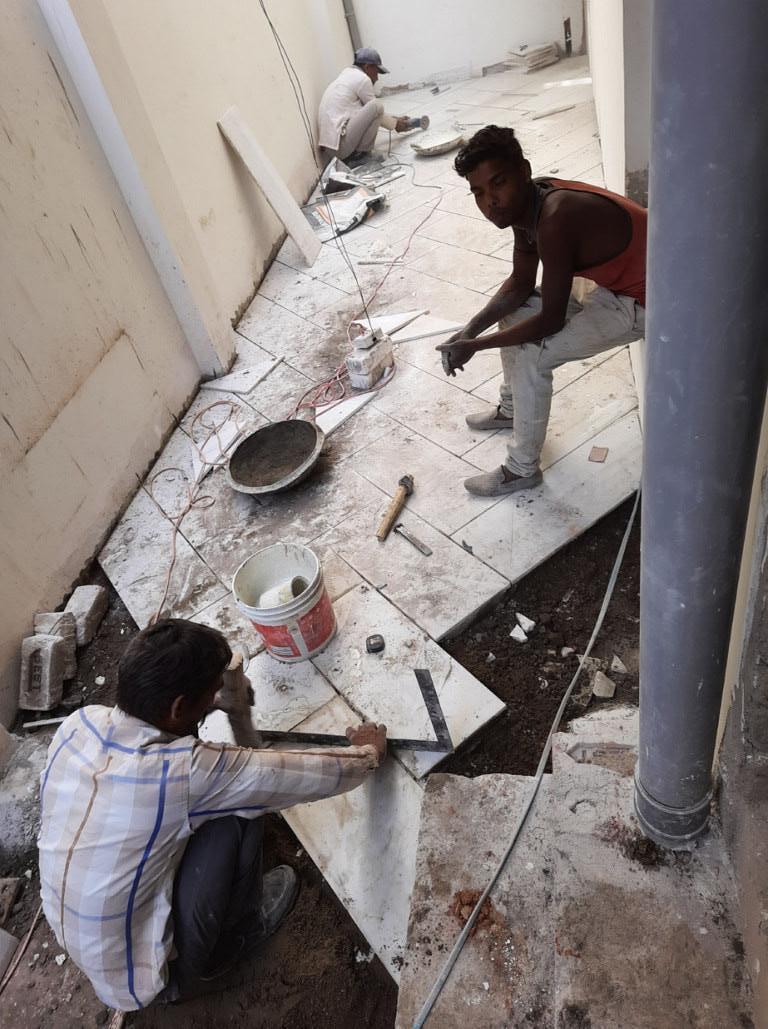

PURPOSE OF SITE VISIT : TO SEE THE FLOORING MARBLE AND TILE SELECTION FOR WASHROOM
STONEWORKONBOUNDARYWALL

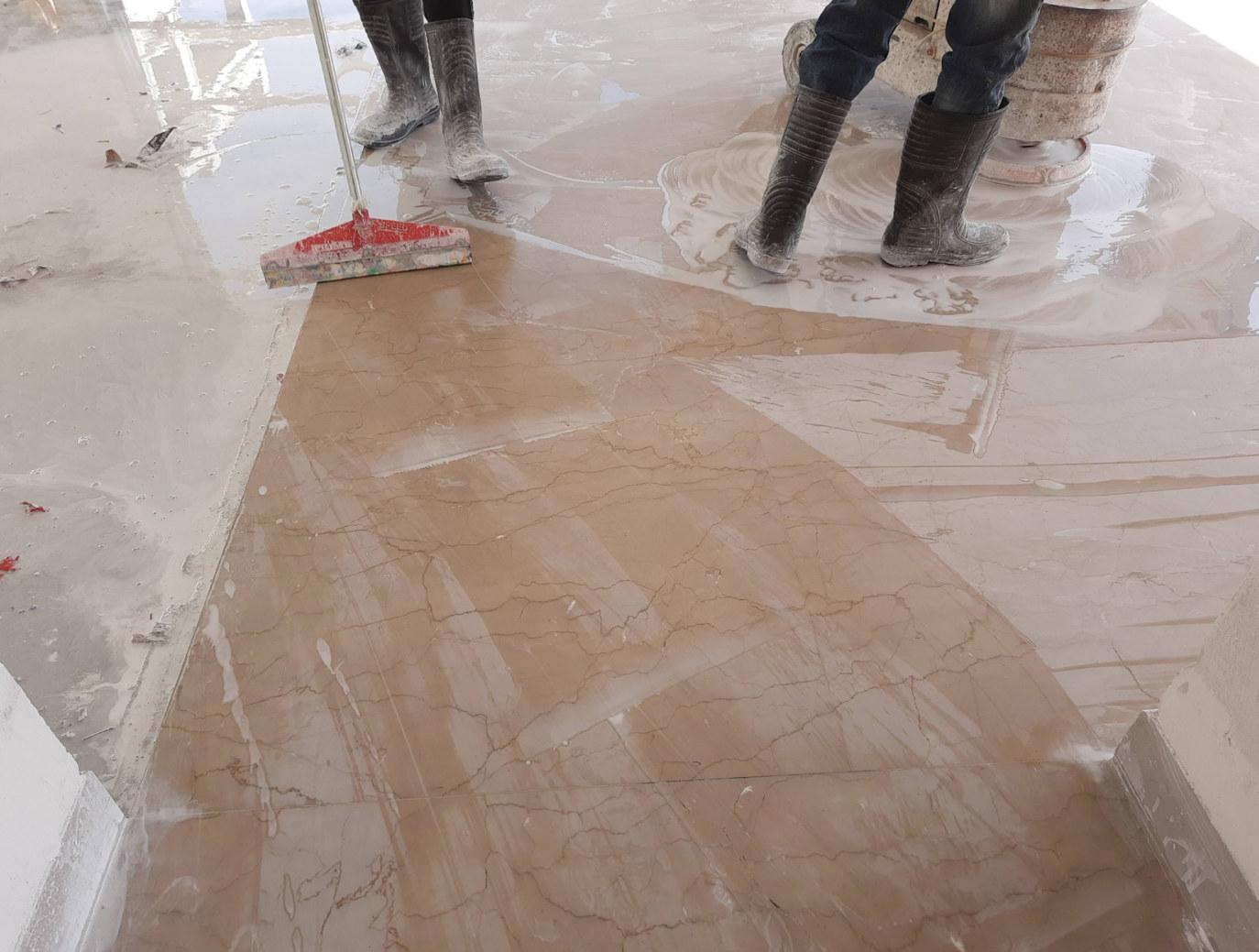

MARBLEFINISHINGOFTHEFLOOR

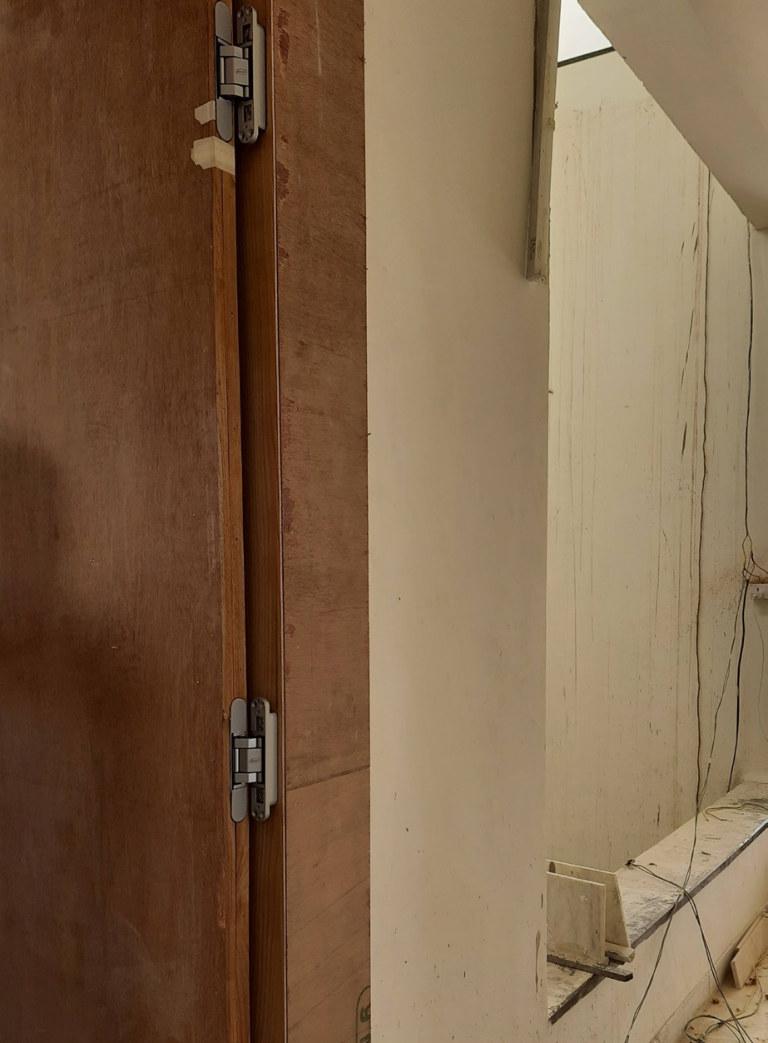

CONSOLEHINGE

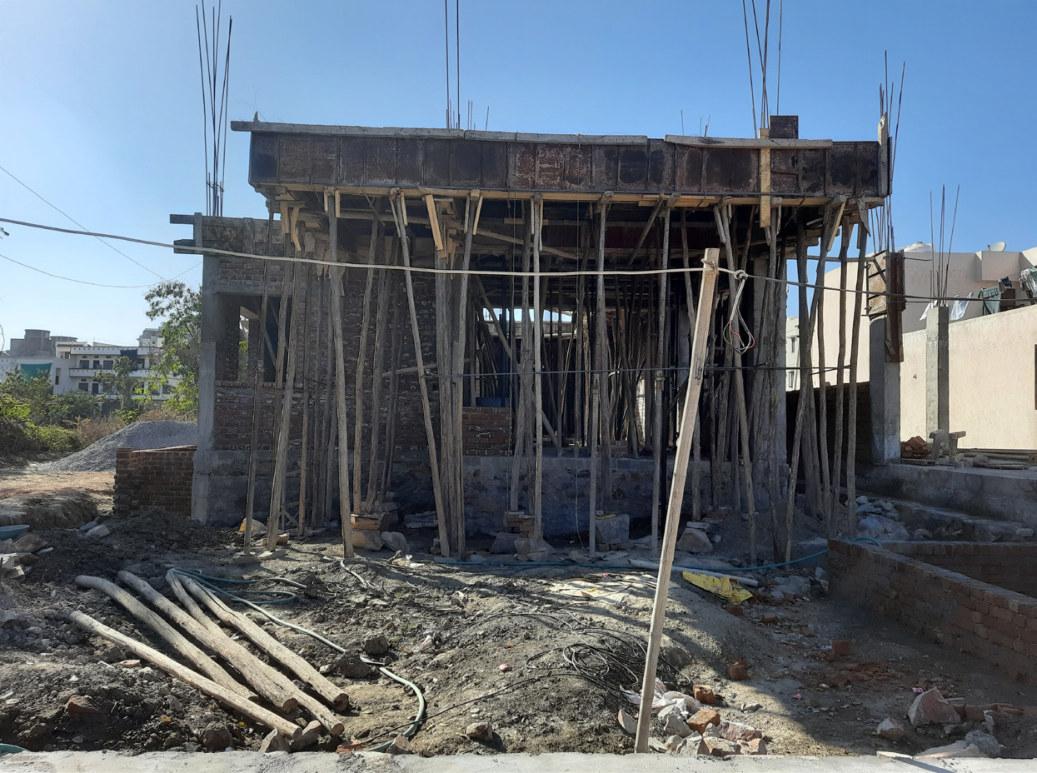

PROJECT NAME : RESIDENCE FOR NISHI MAHAJAN
LOCATION : UDAIPUR
PROJECT TYPE : RESIDENCE

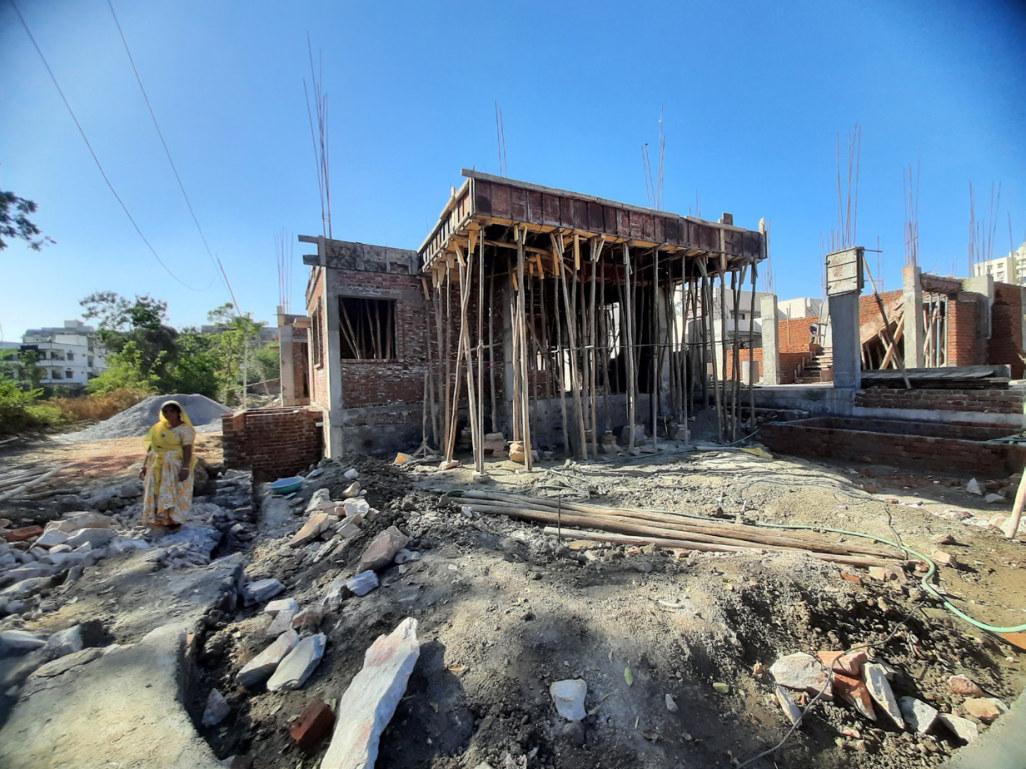

PURPOSE OF SITE VISIT : CHECK SHUTTERING AND BAR INSTALLATION

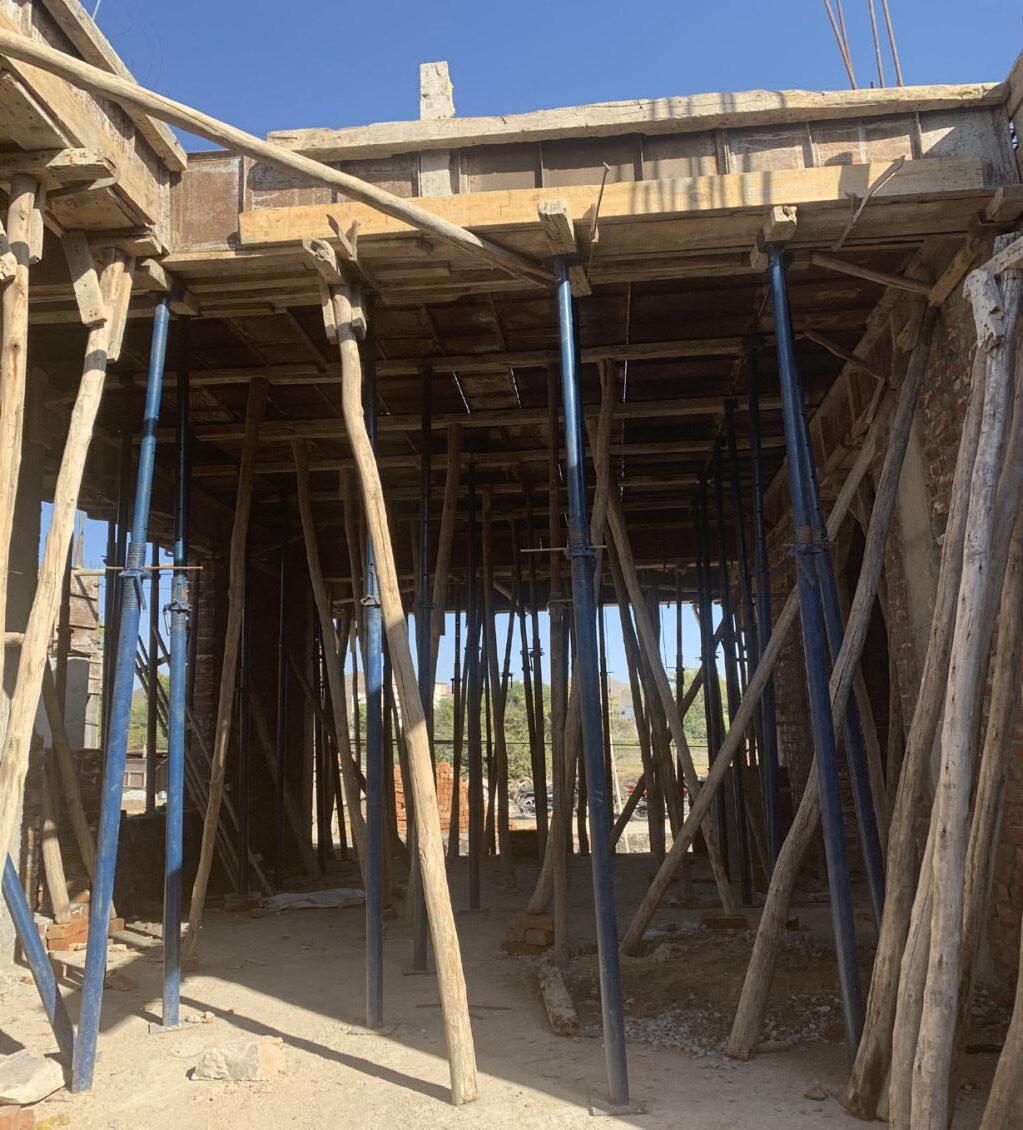

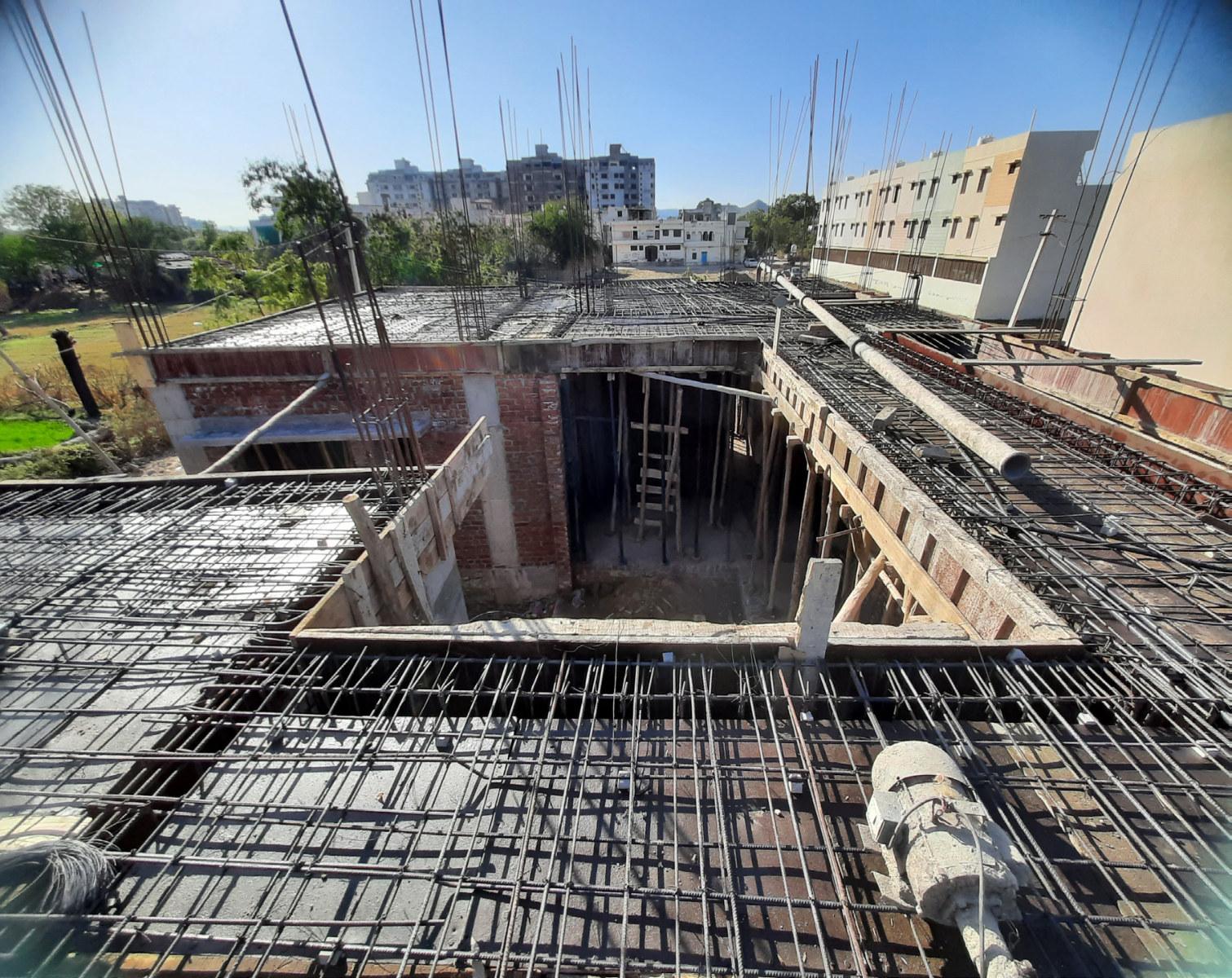

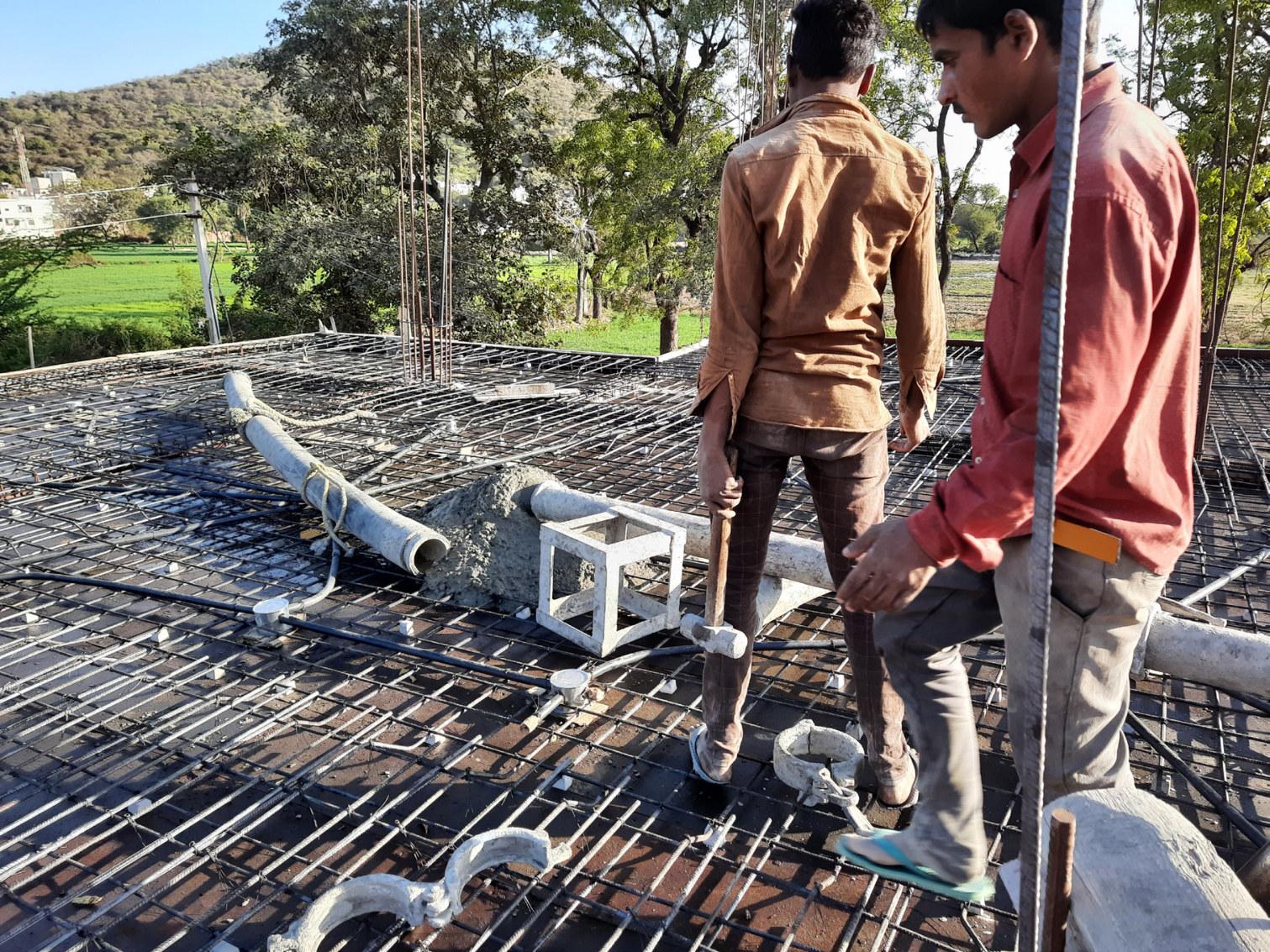

SHUTTERINGOFCANTELIVER VIEW2 REINFORCEMENTBARSOFSLAB

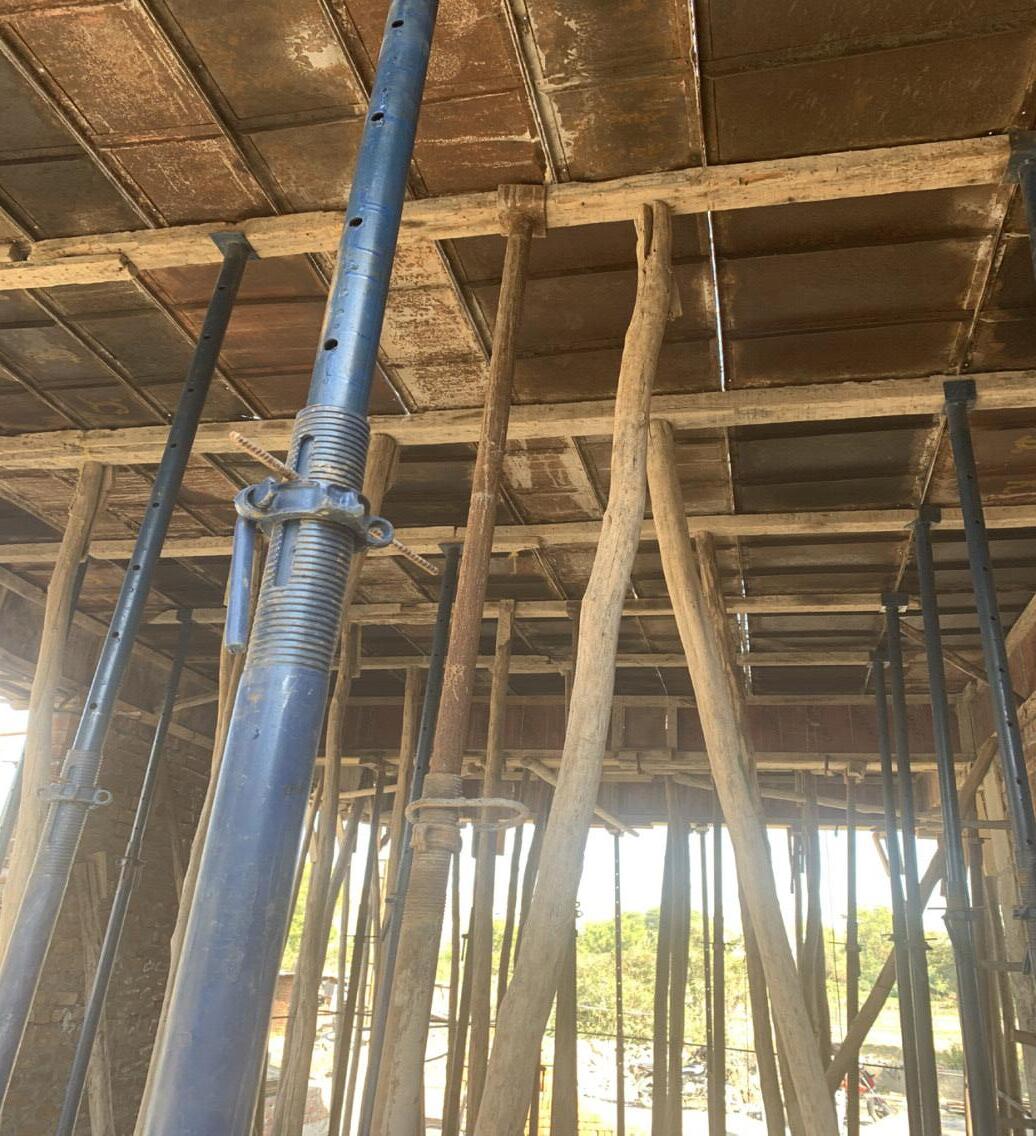

SHUTTERINGOFSLAB

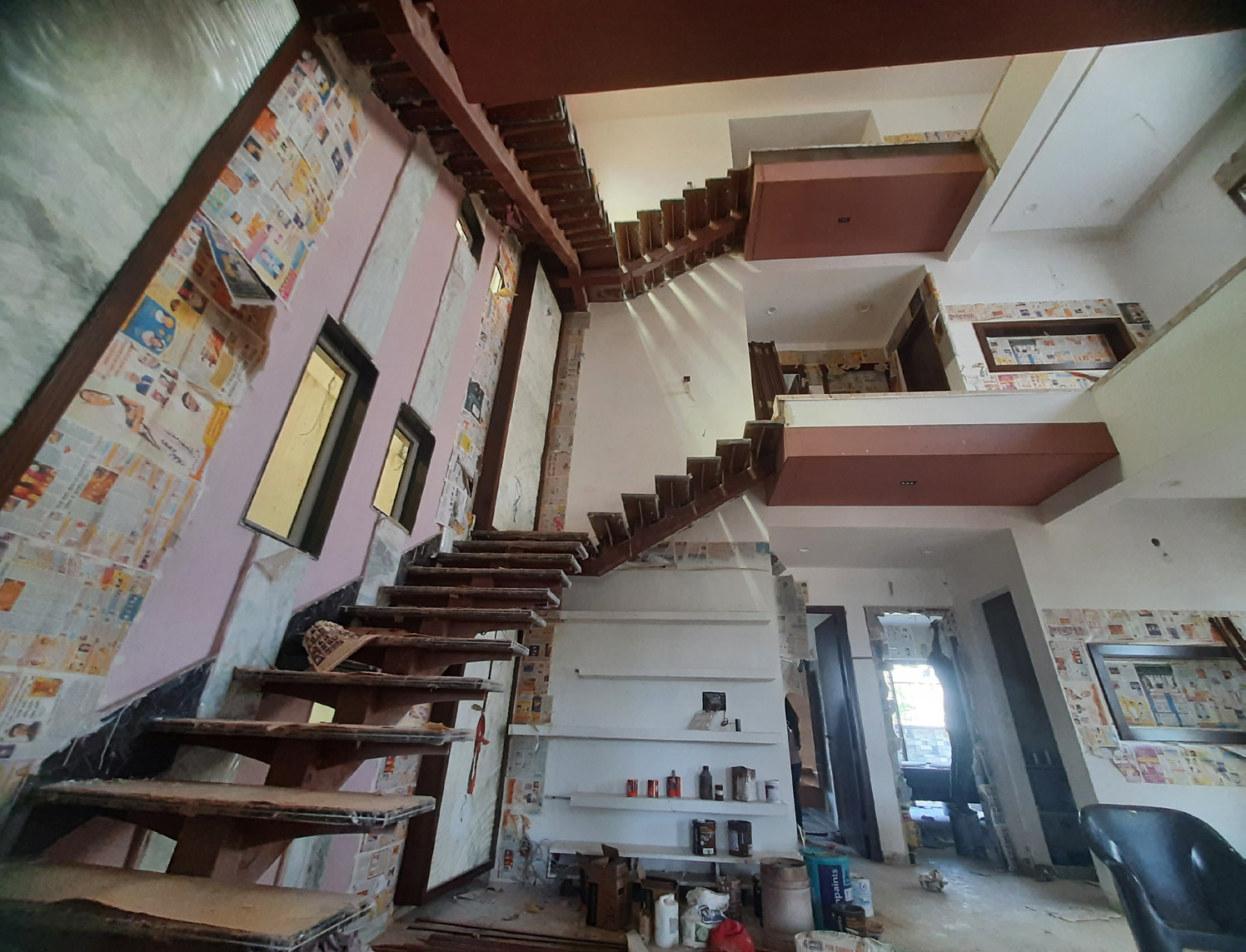

PROJECT NAME : RESIDENCE FOR VASUDEV VEERWANI
LOCATION : UDAIPUR
PROJECT TYPE : RESIDENCE
PURPOSE OF SITE VISIT : COLOUR SELECTION FOR ROOM INTERIORS AND INSTALLATION OF CHAKRA

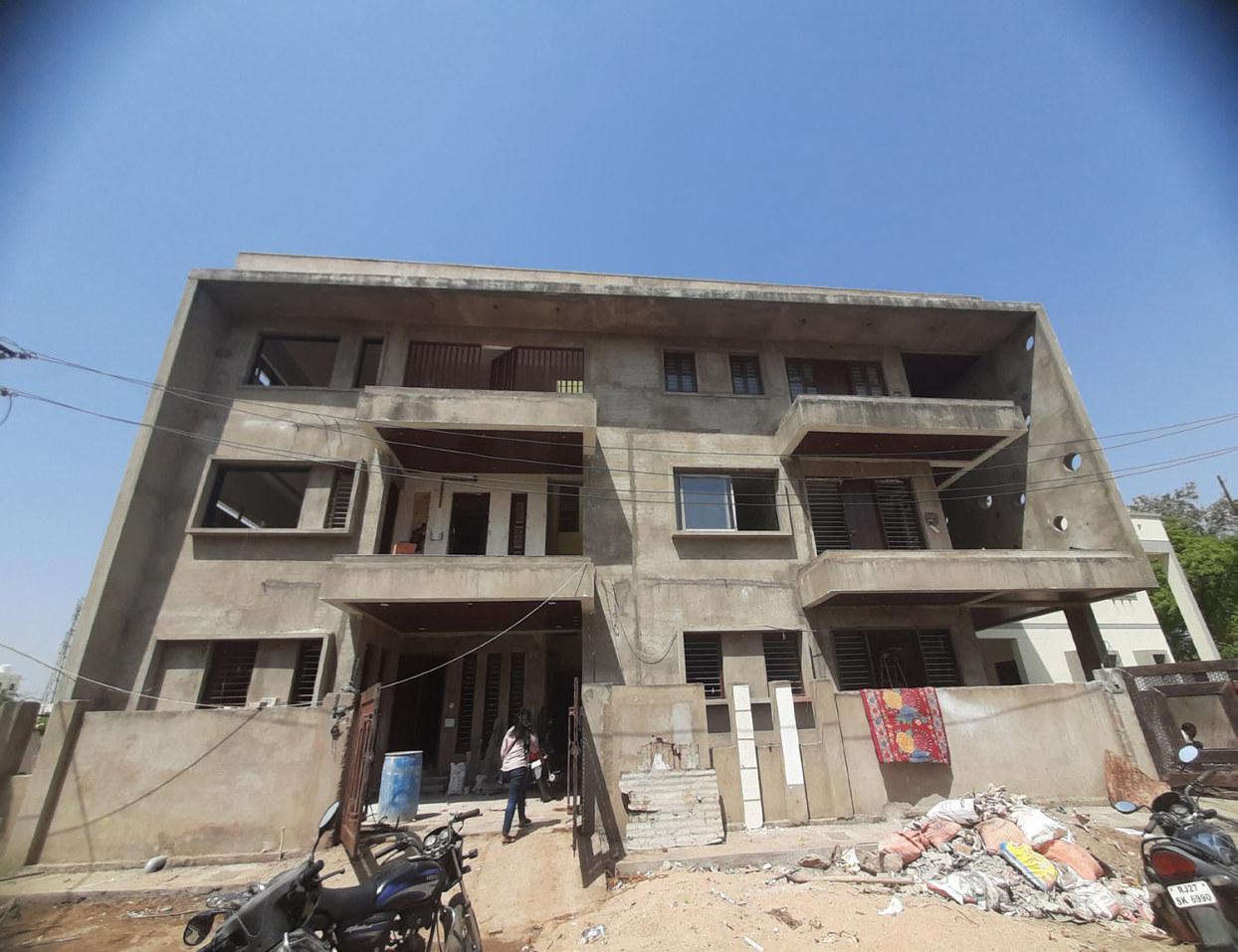

FRONTELEVATION

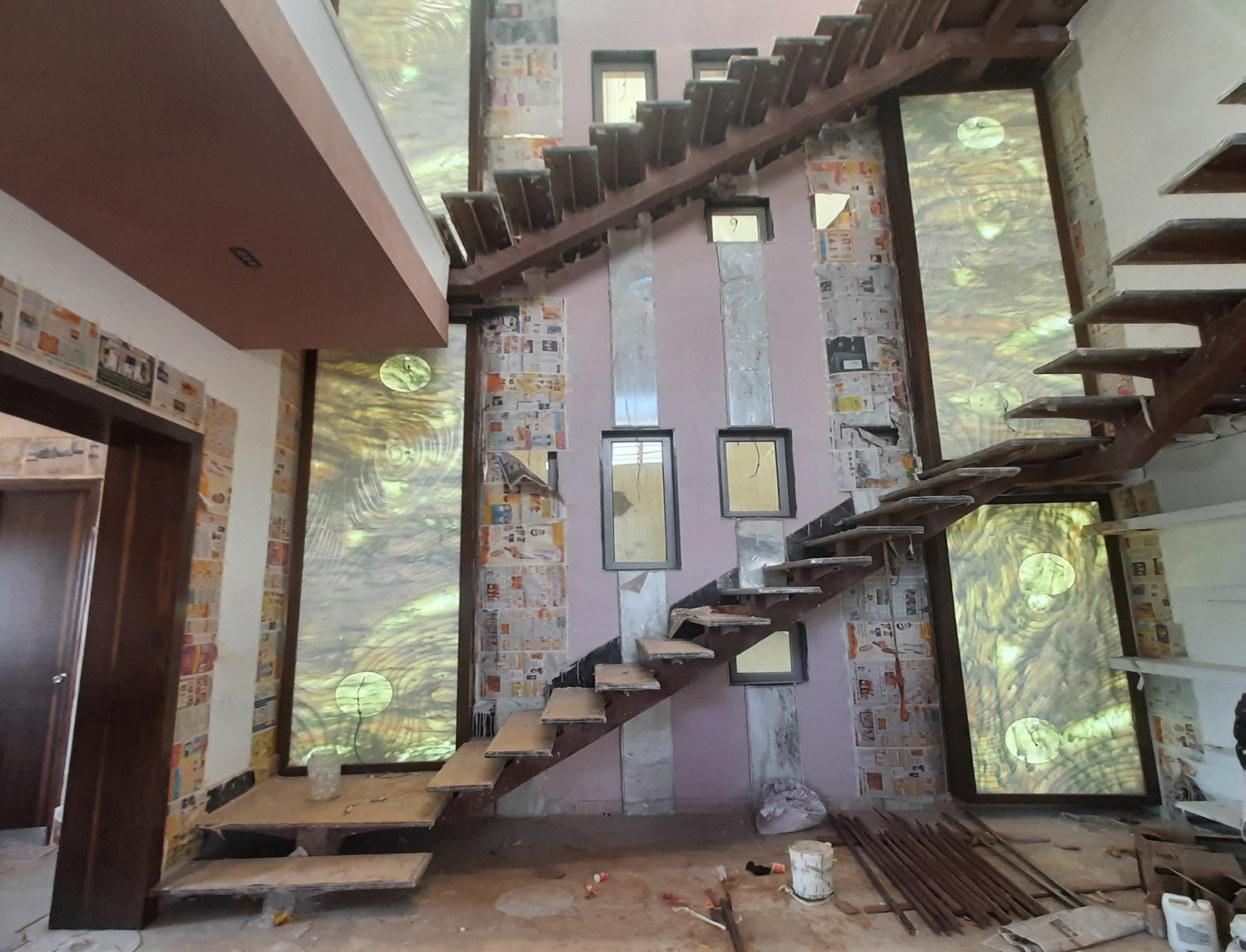

LIGHTFITTINGONTREADS

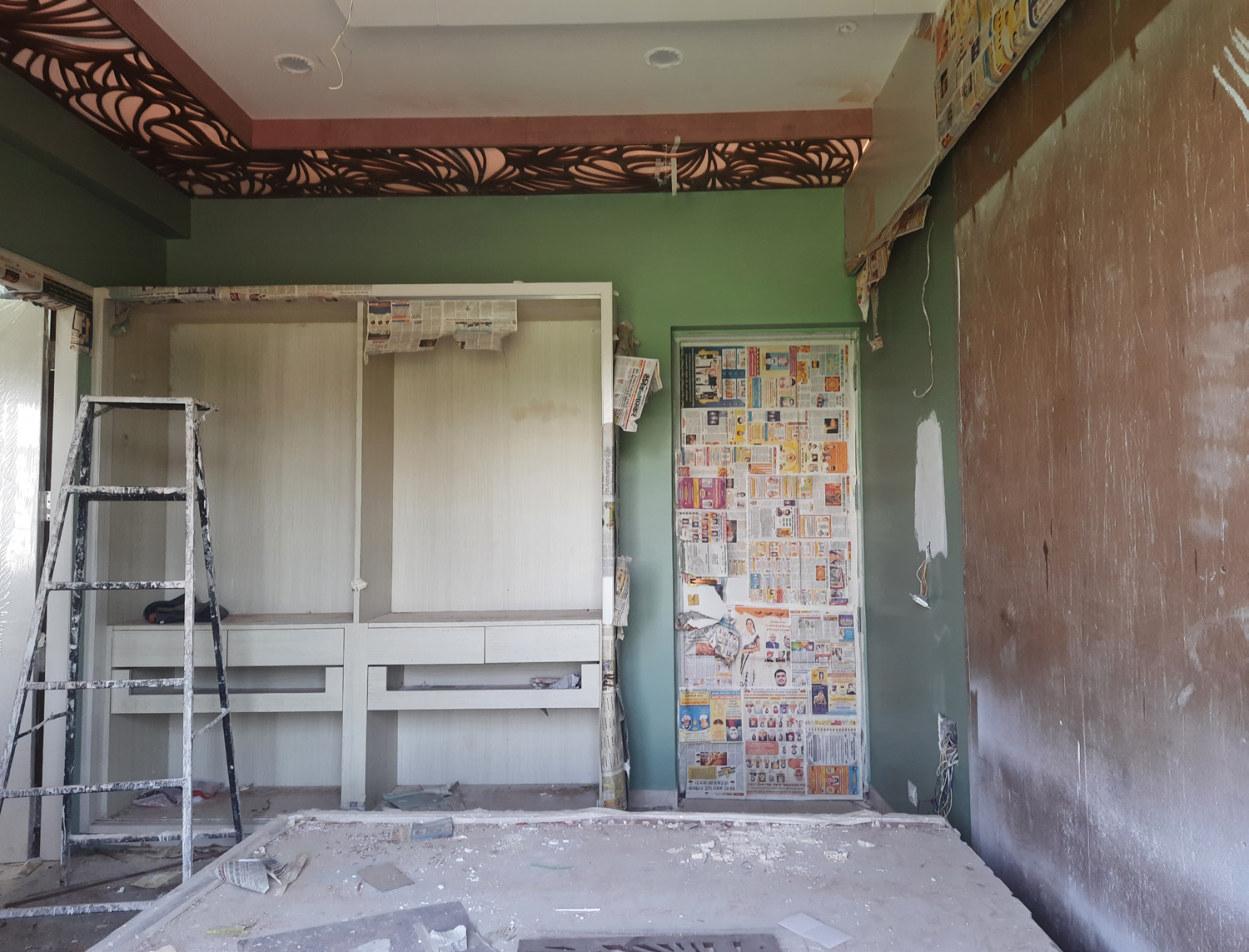

WARDROBEINSTALLATION

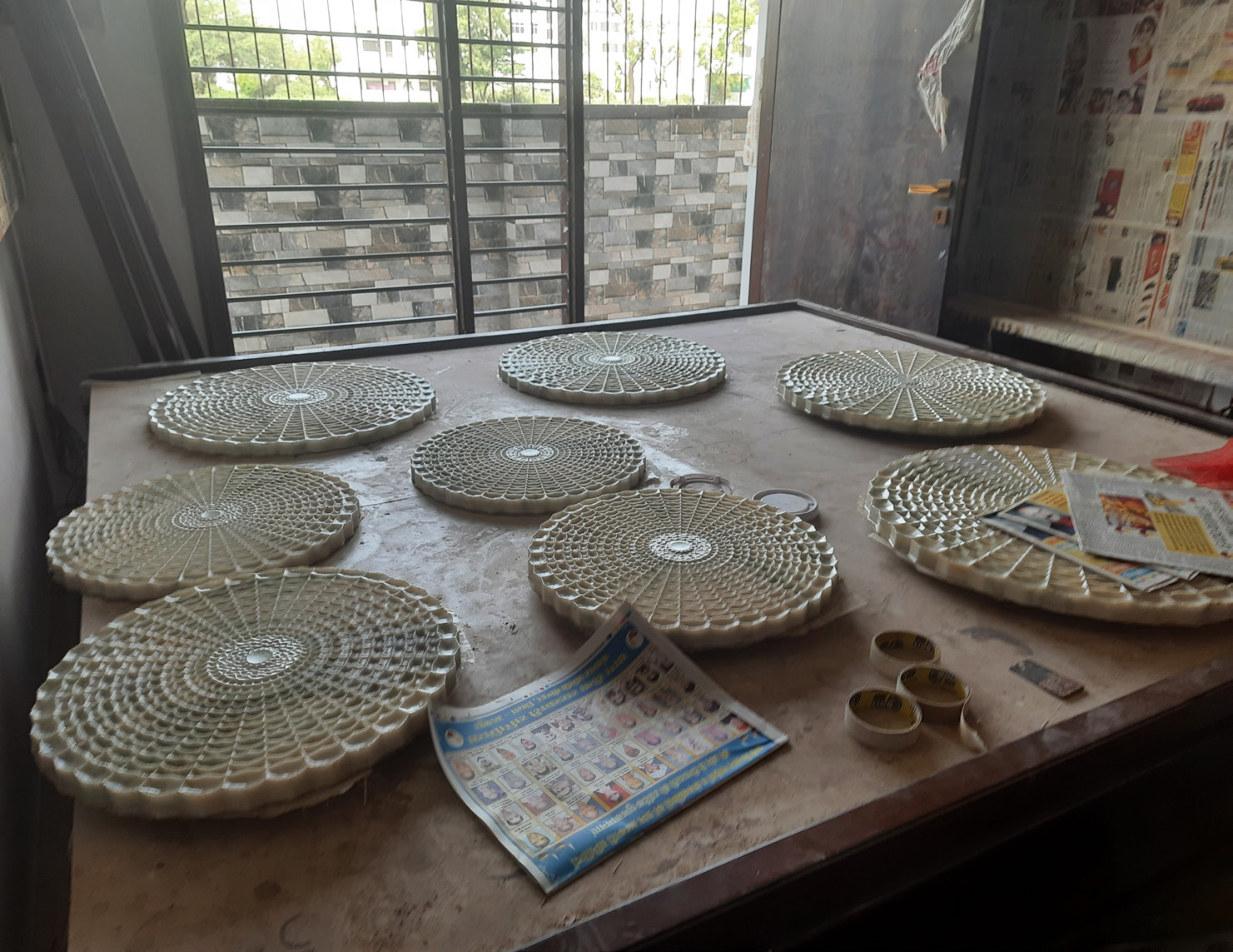

INSTALLATIONOFMDFCHAKRA
INSPECTIONOFMFDCHAKRADESIGN

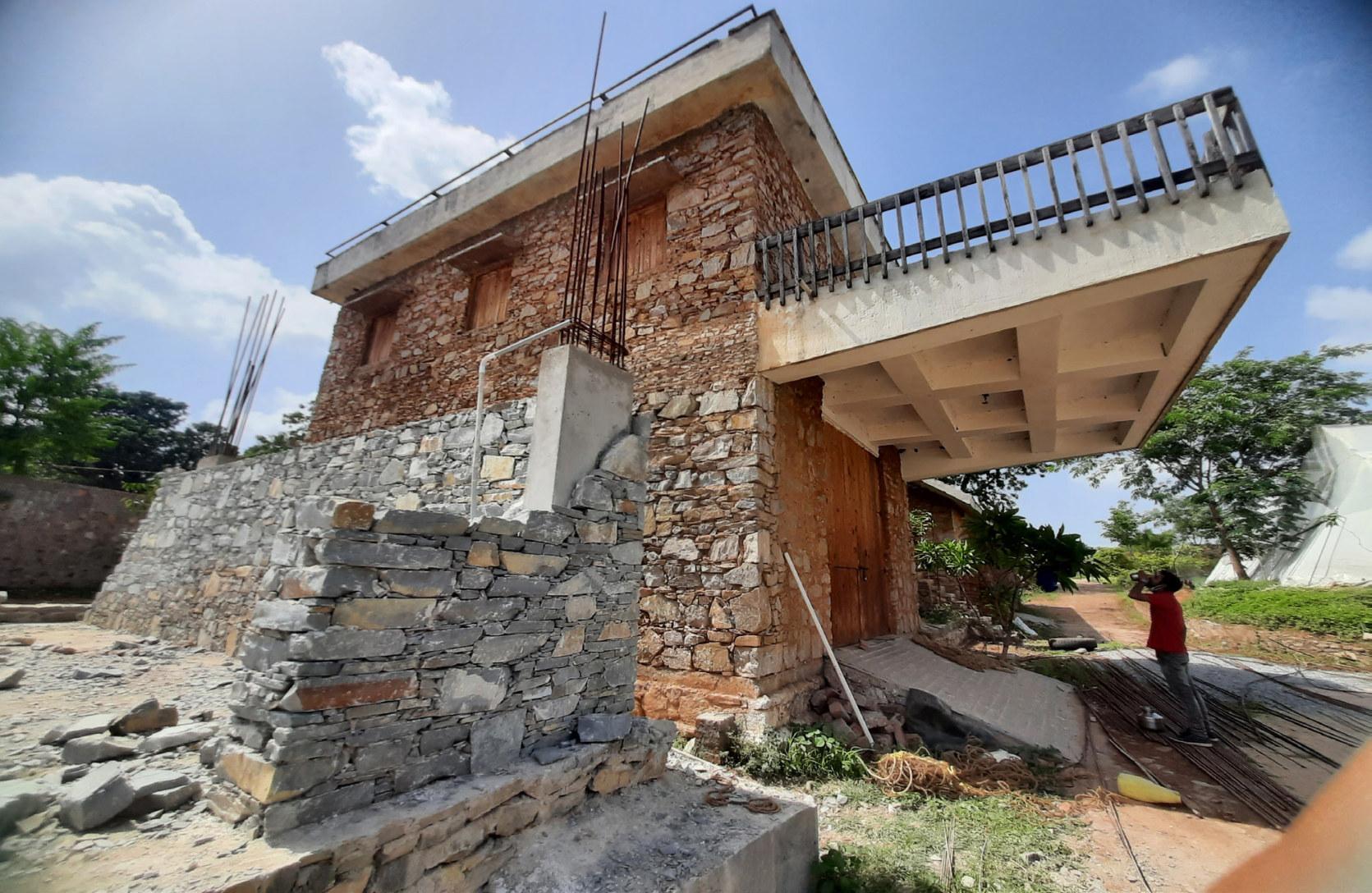

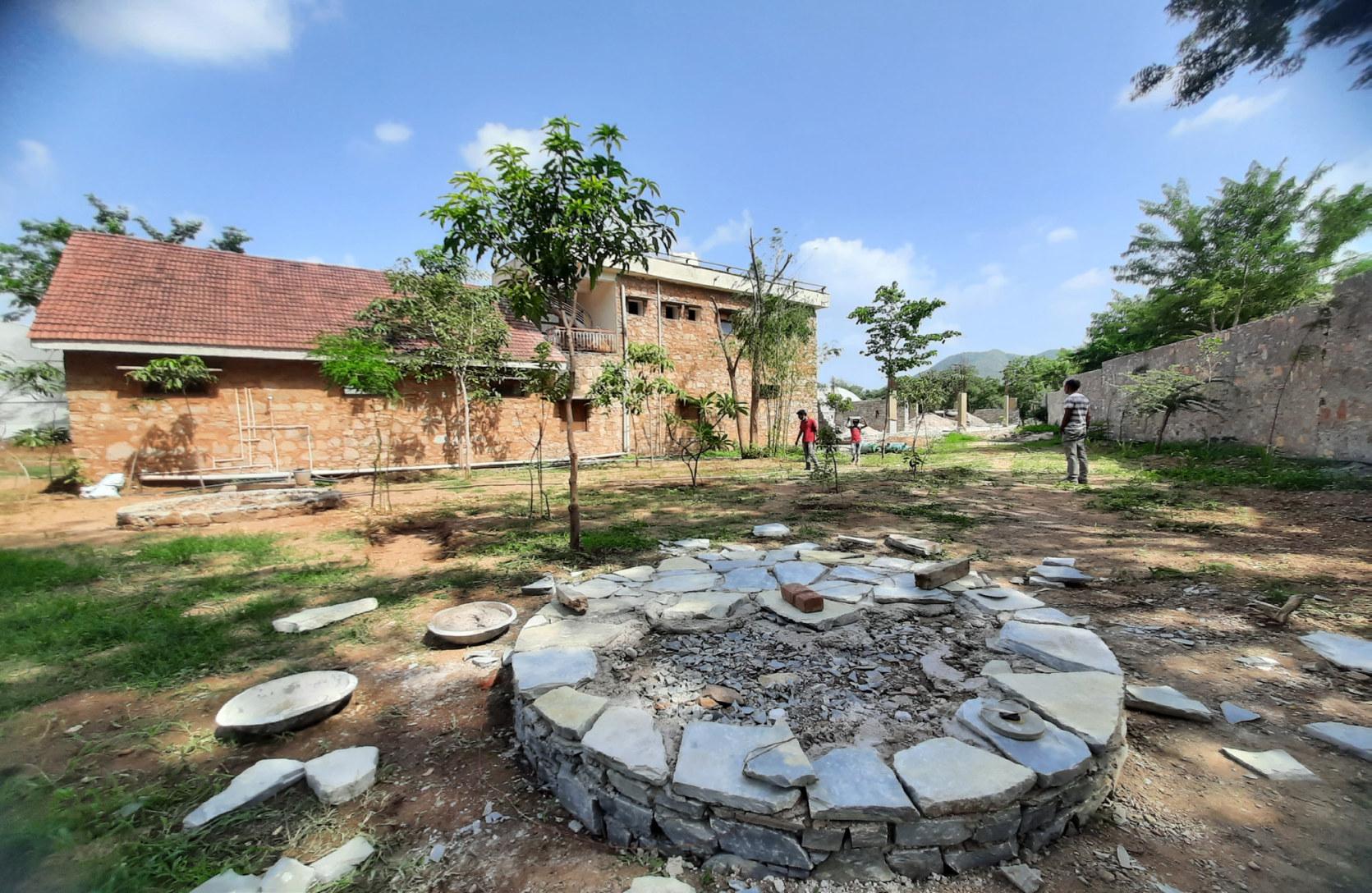

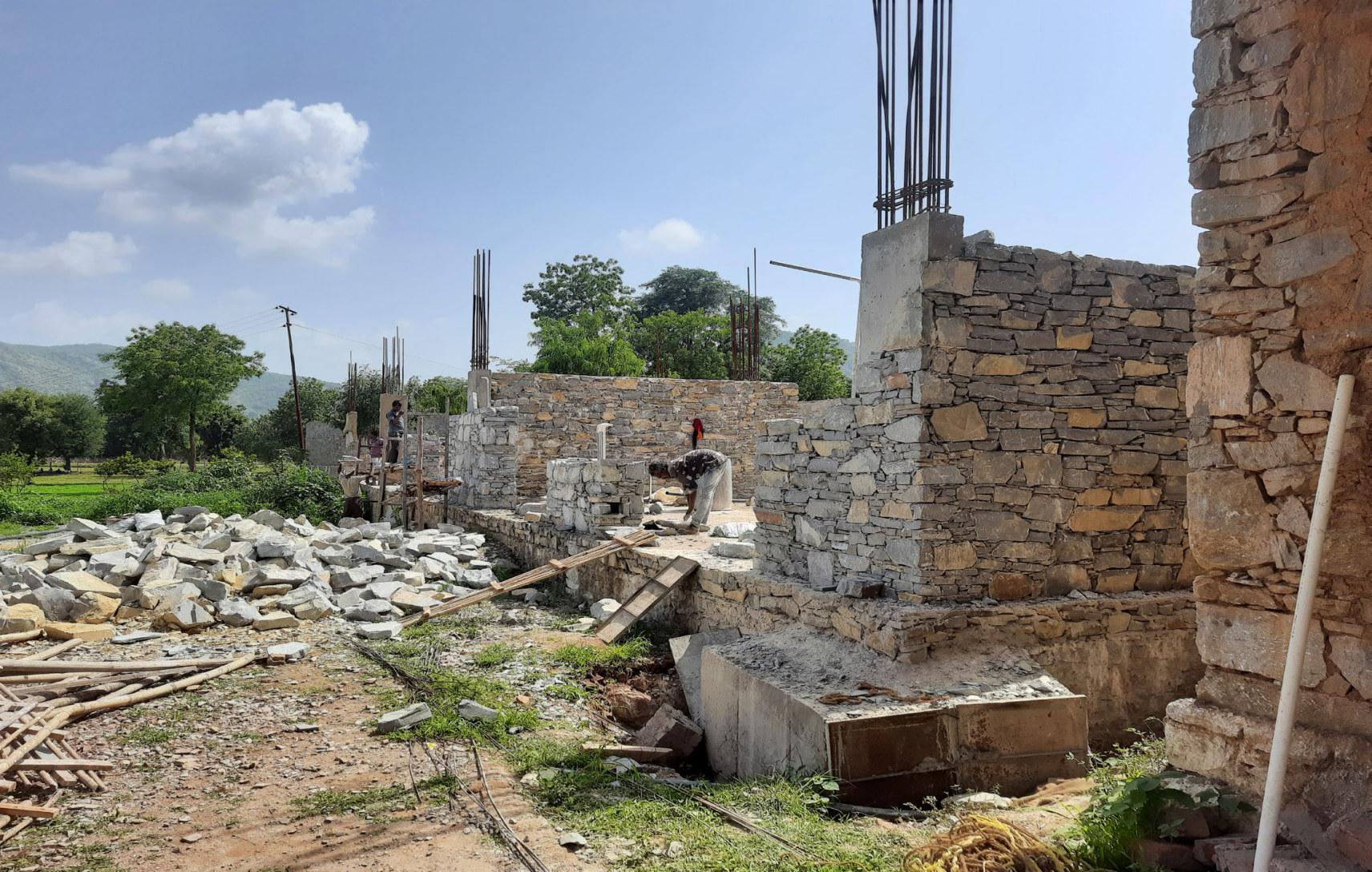

PROJECT NAME : FARM HOUSE FOR MR. AASHISH JI
LOCATION : BADI, UDAIPUR
PROJECT TYPE : FARM HOUSE

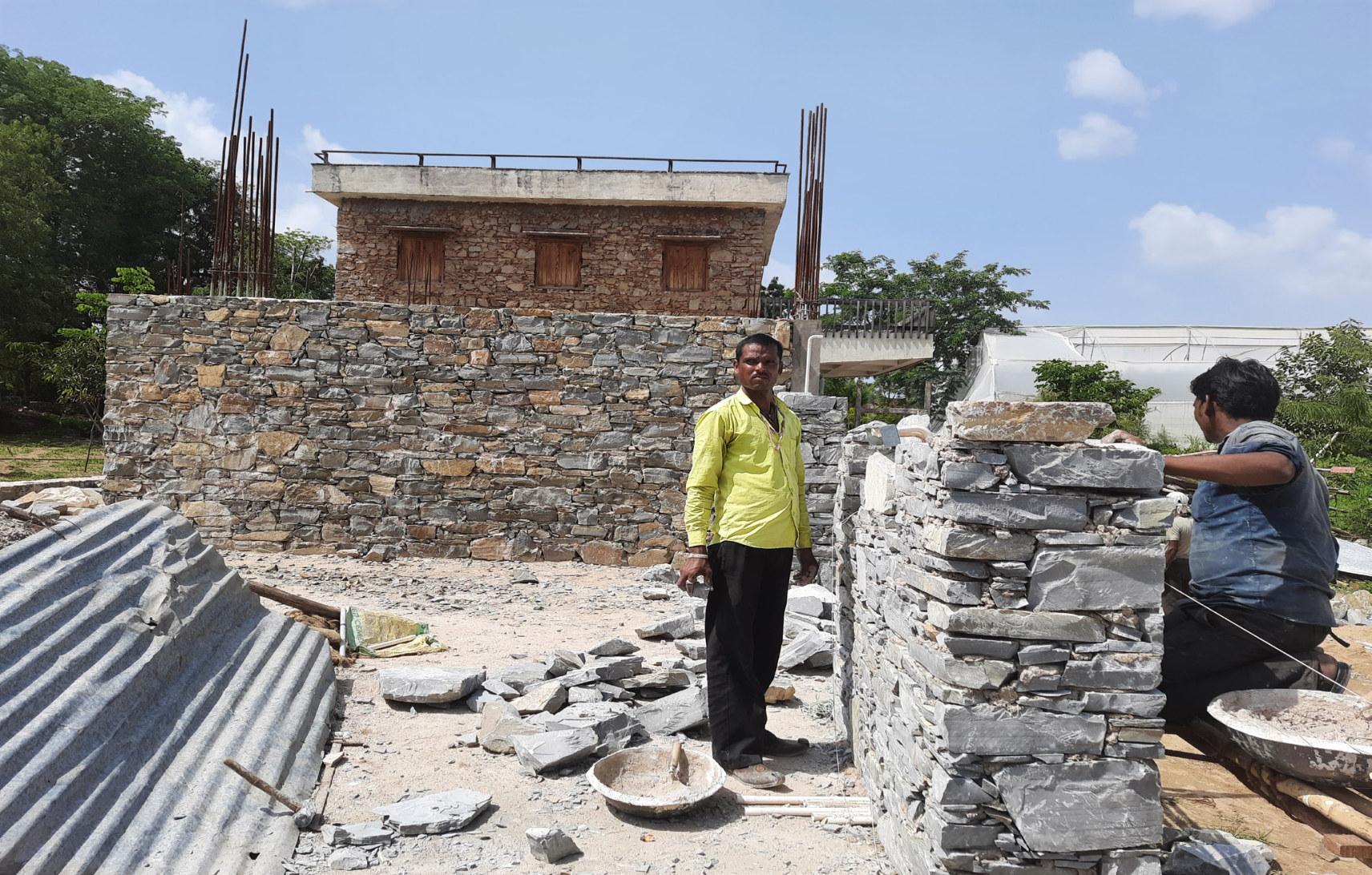

PURPOSE OF SITE VISIT : CHECK STONE MASIONARY WORK
4. Critical Appraisal

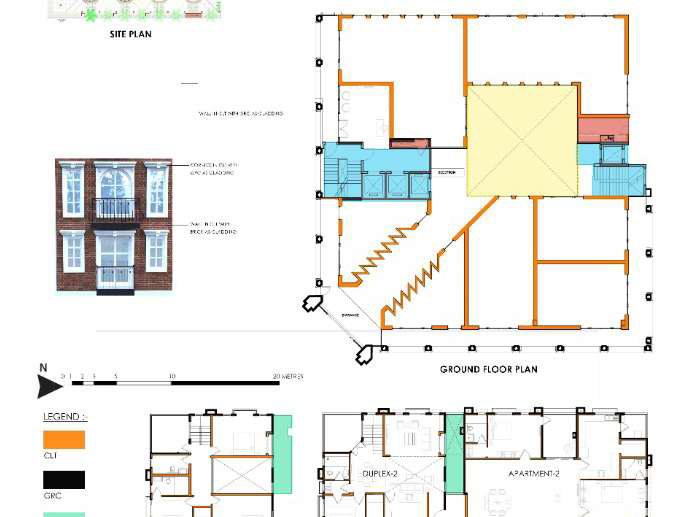

Project Name : Phoenix Lifestyle
Location : Udaipur
Project Type : Mixed use Facility
CLToffers high-strength andstructuralsimplicity.Forthecompetitionwechose to make a multi-storey mixed-use building with CLT. While the key components like walls, slabs and external envelope are made of Cross Laminated Timber.
Introducing GRC, (GlassÞbre Reinforced Concrete) in combination with CLT (Cross Laminated Timber) can be a radical idea to change the construction of high-rise buildings.
• GRC can be prepared on site or in a factory and be assembled on site with CLT.
• GRC is 80% lighter than concrete and qualiÞes as a sustainable construction material with similar strength.
• It is water-proof, hence weather shades and copings made of GRC protect the CLT panels.
• GRC can be Þxed with CLT using same hardware as CLT constructions are done.
• This technique reduces waste generation on site as components are pre-fabricated.
Section of building showing CLT walls and GRC arches.
5. Working Drawing And Details
BRANDING CURTAINS FROM CEILING
COVE
FROM SLAB BOTTOM LVL
CEILING FROM BEAM BOTOM
FROM SLAB BOTTOM LVL
CEILING
CEILING FROM BEAM BOTTOM
KIDS BEDROOM
13'-0" X 16'-0"
MASTER BEDROOM
13'-0" X 16'-0"
CEILING DETAILS
BED
MASTER BEDROOM
13'-0" X 16'-0"
