Content Gug
A - House 26 Hadsunvej 06 24 44
Sport Hall
Gug Sport Hall
Location: Gug Alps, Aalborg - Denmark
Category: Sports Architecture
Area: 1905m2
Year: 2020
The objective of this project is to design and develop the manufacturing process for a prefabricated building component for the Sport Hall. In this interdisciplinary project, prefabricated exterior wooden walls were chosen as my focus.
Khanh Tran Selected Works 7
Khanh Tran Selected Works 9

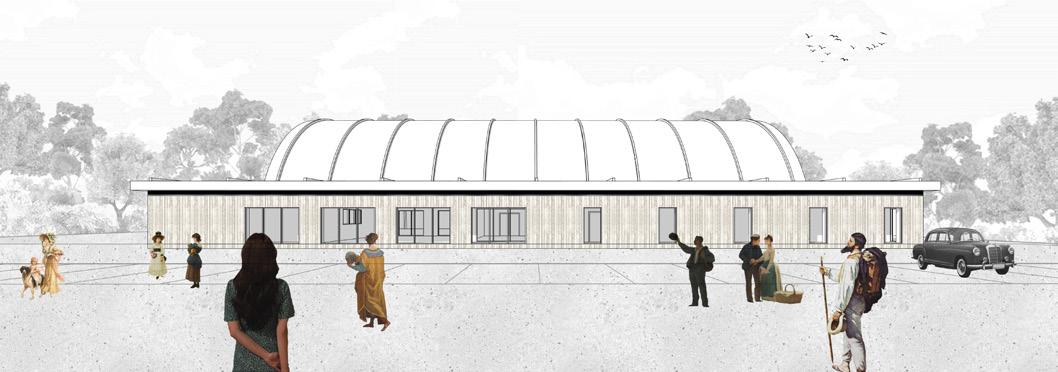

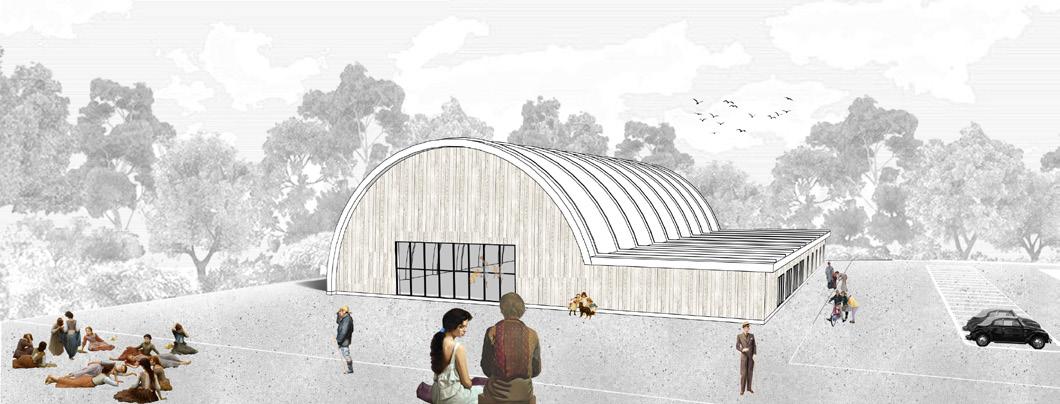

Main Entrance View

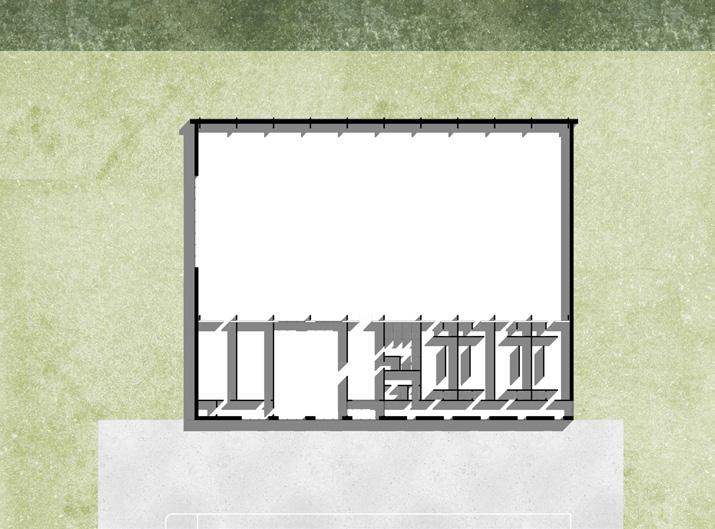

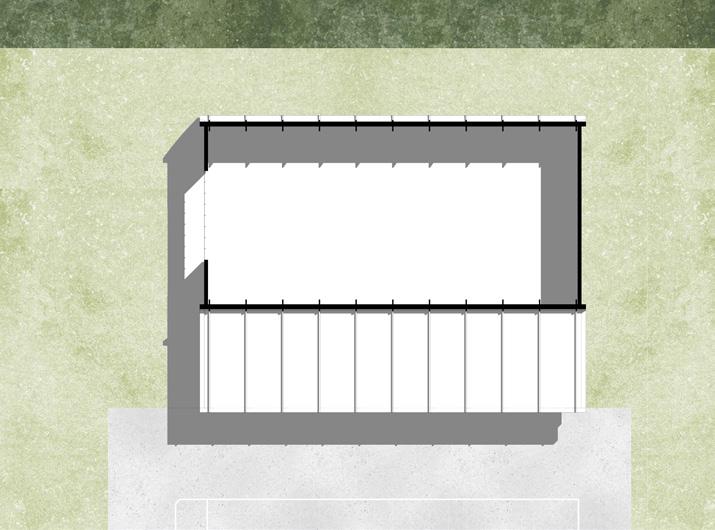

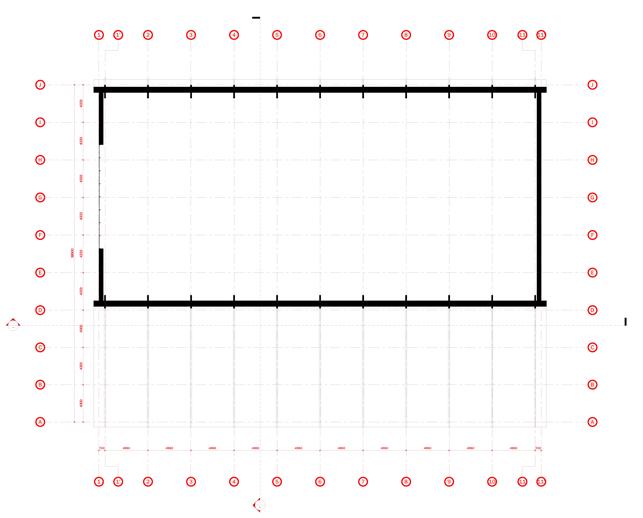

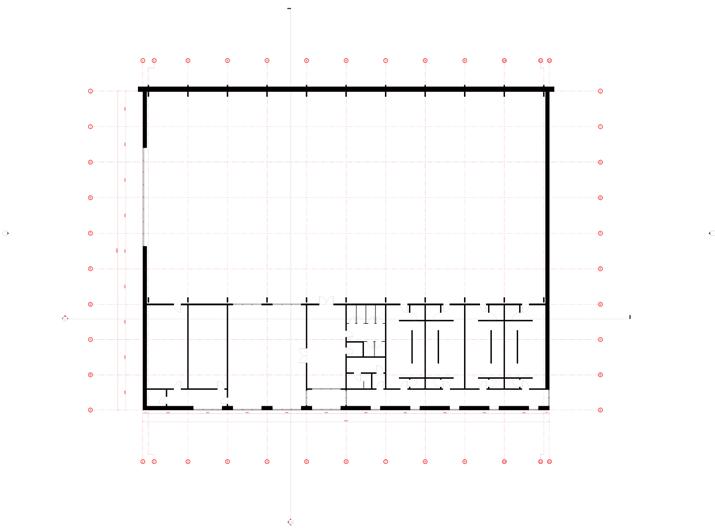

Khanh Tran Selected Works 11 Ground Floor Ground Floor
Khanh Tran Selected Works 13 Level 1 Level 1
Khanh Tran Selected Works 15

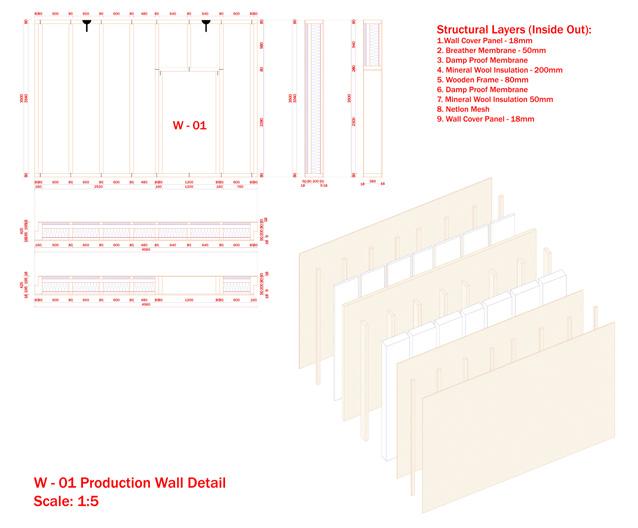

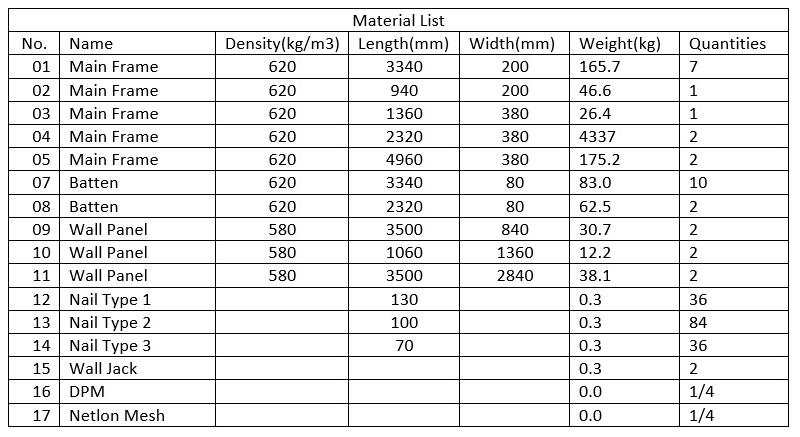

Prefabricated Wall Element

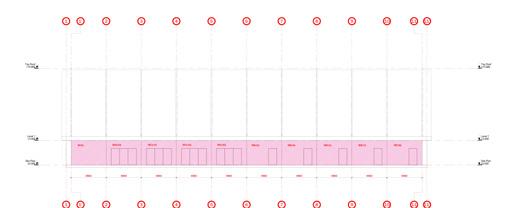

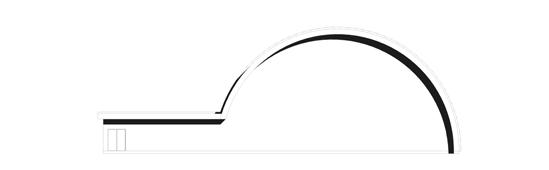

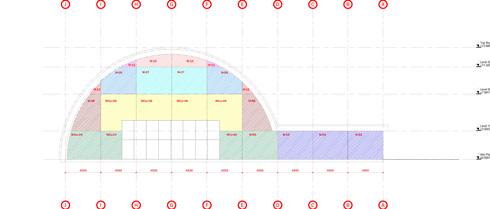

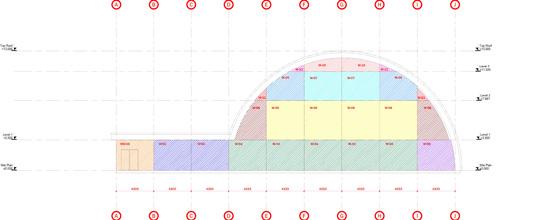

Assembly - South Elevation

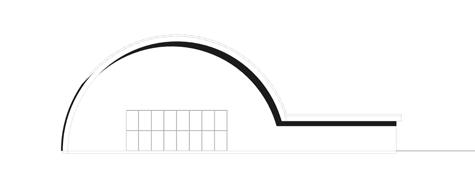

Assembly - West Elevation

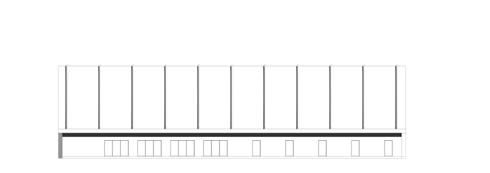

Assembly - East Elevation
Khanh Tran Selected Works 17

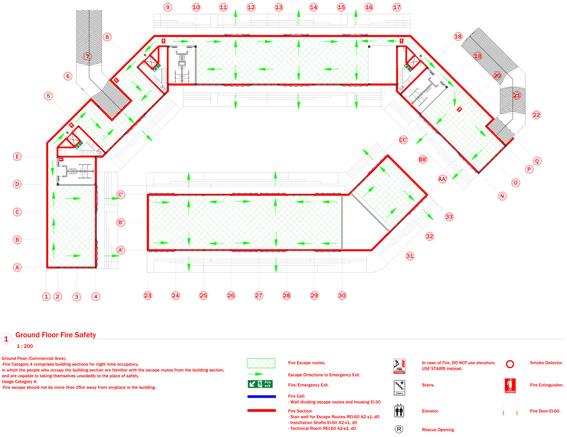

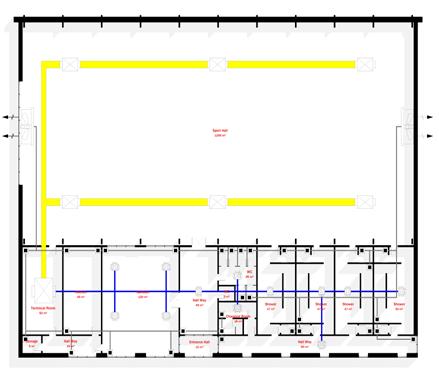

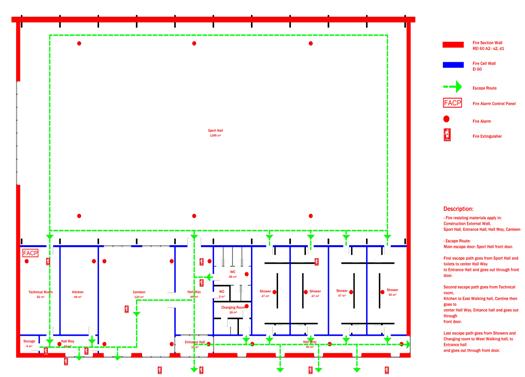

Khanh Tran Selected Works 19 Fire Safety Ventilation Plan
Khanh Tran Selected Works 21
B:B

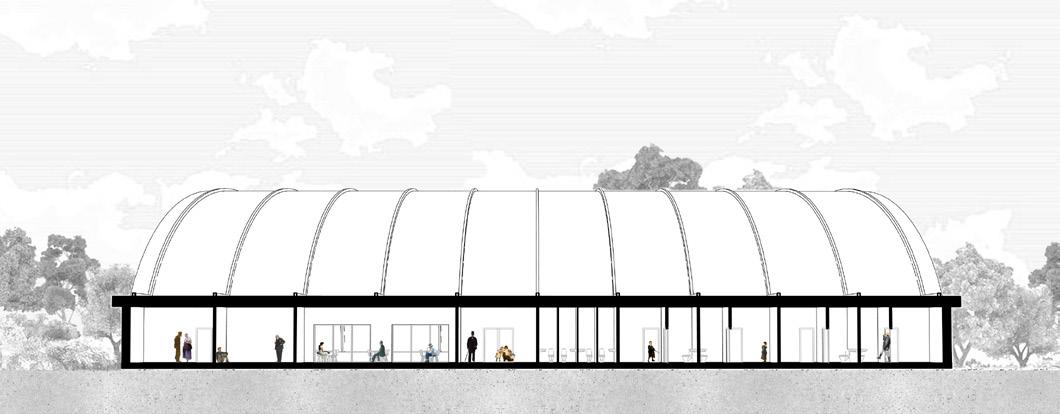

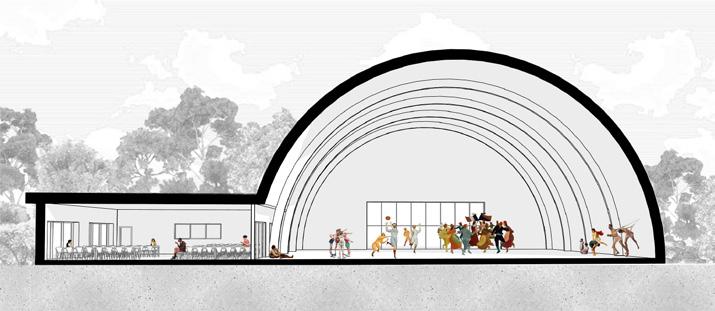

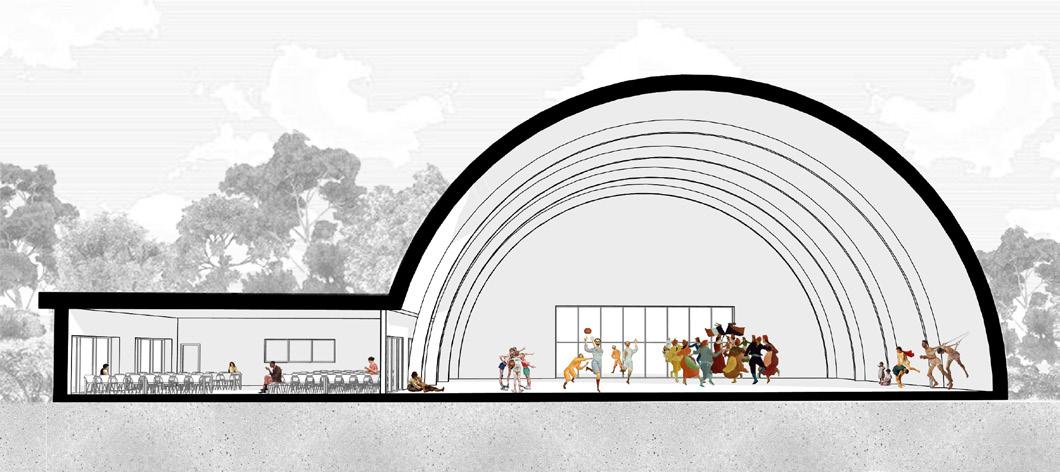

Section A:A Section
Khanh Tran Selected Works 23
West Side View

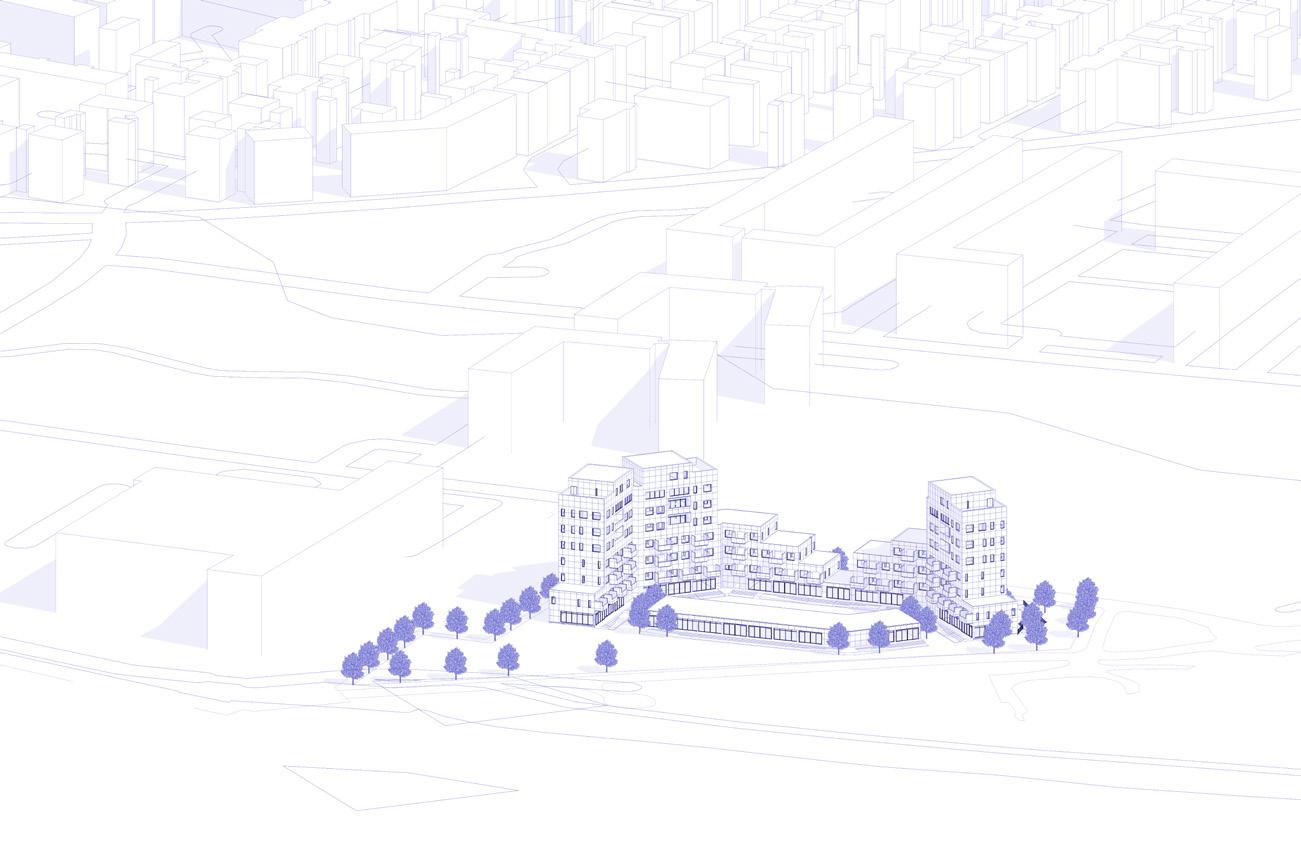

A - House

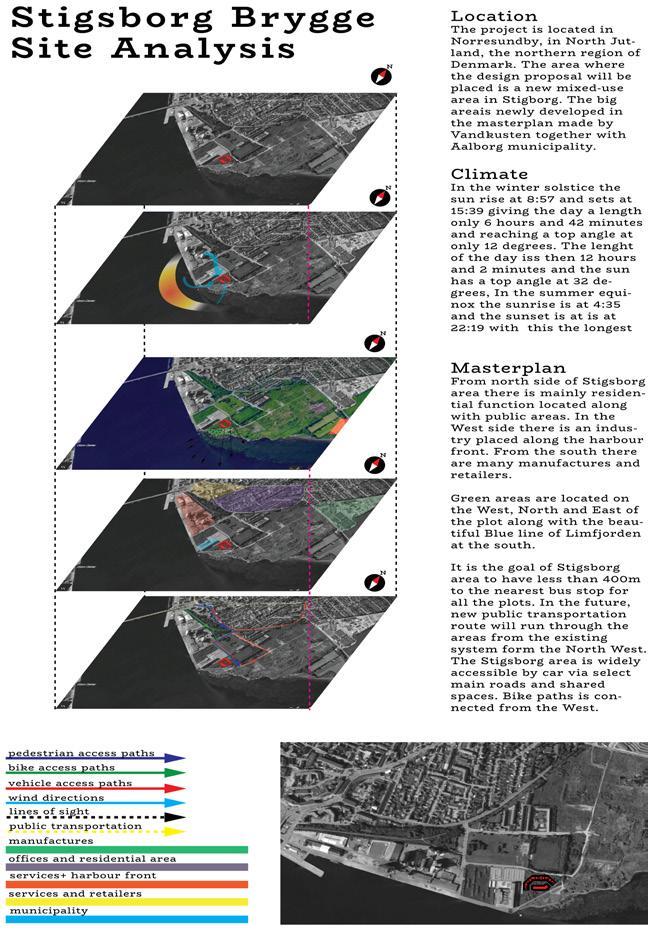

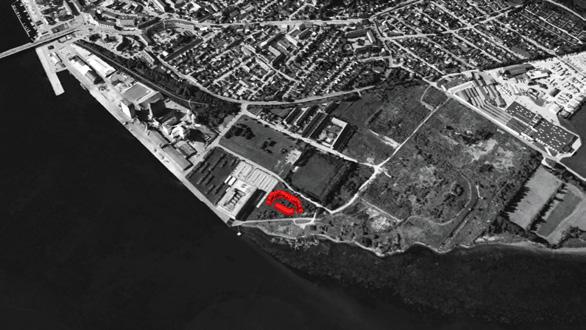

Location: Stigsborg Brygge, Norresundby - Aalborg
Category: Residential/ Commercial Architecture
Area: 13527m2
Year: 2022

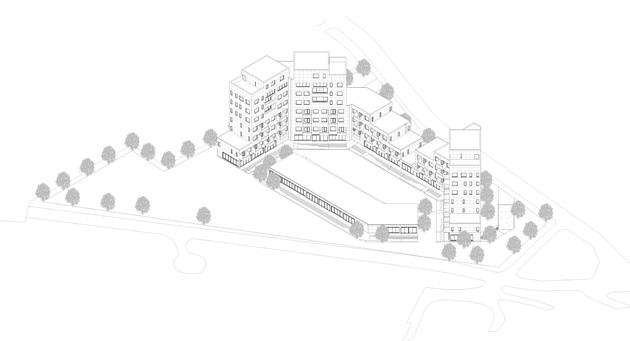

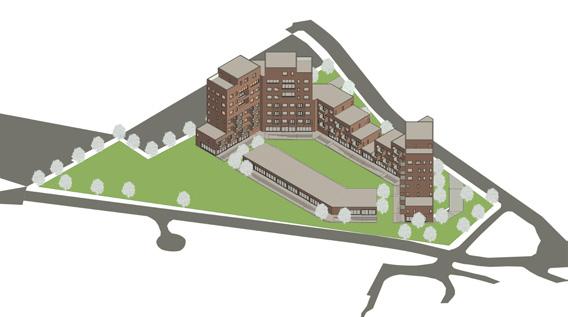

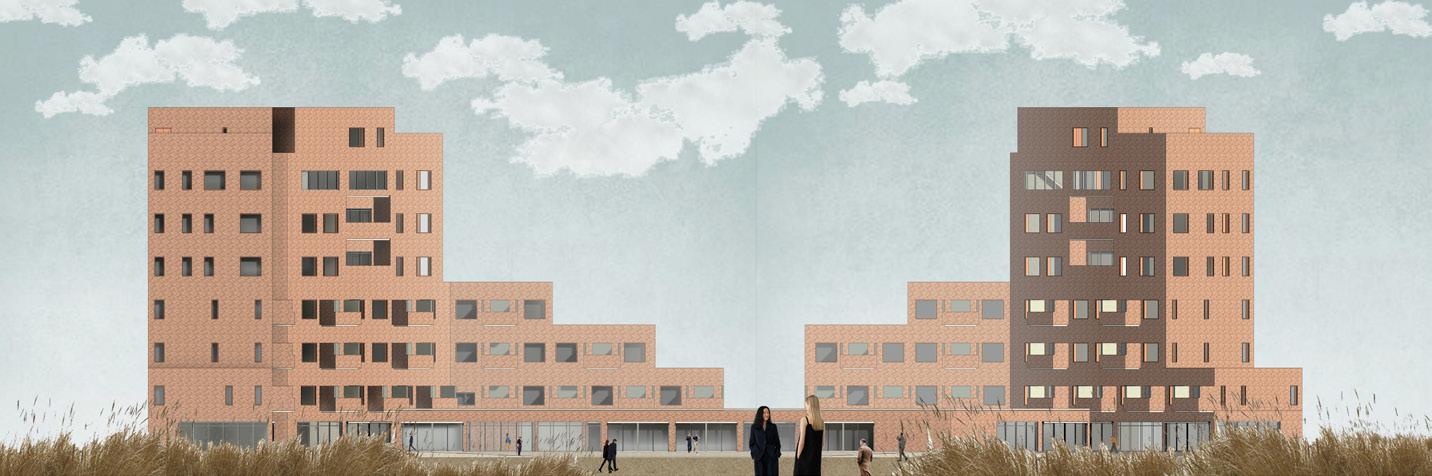

A - House is a multi-storey builidng complex that has a commerical area on the groundfloor and a residential area on the upper floors.

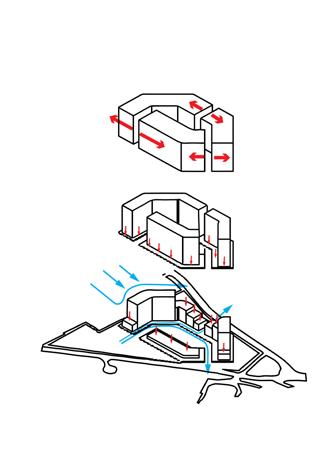

The design concept honors Aalborg’s heritage as one of Scandinavia’s most industrialized and important commercial centers.
Khanh Tran Selected Works 25
Khanh Tran Selected Works 27
Khanh Tran Selected Works 29
Khanh Tran Selected Works 31

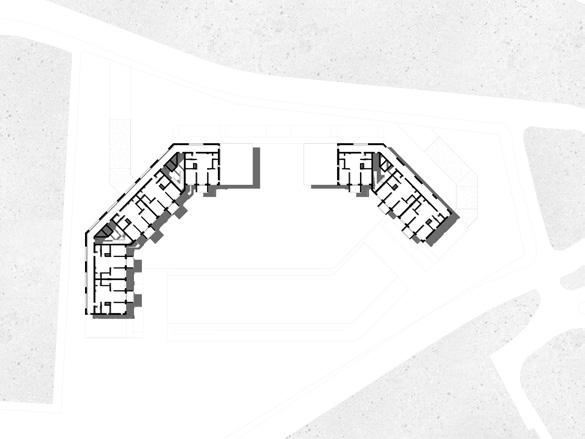

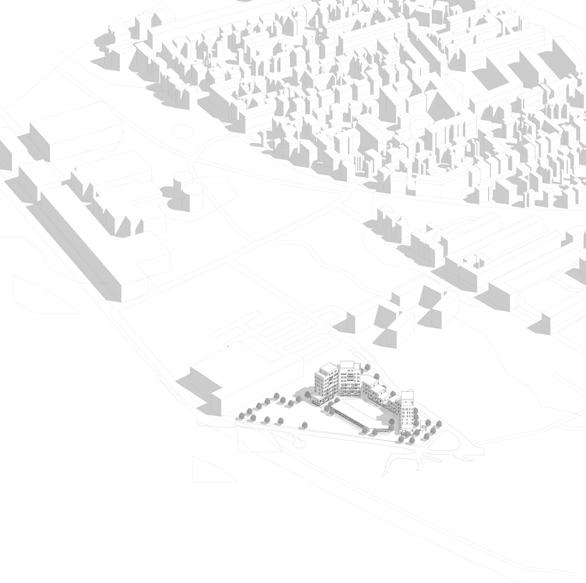

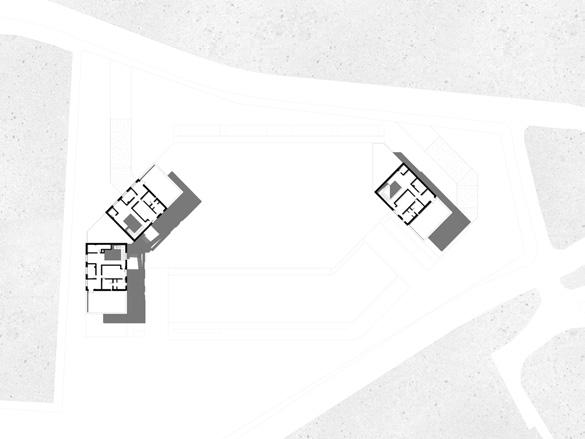

Plan

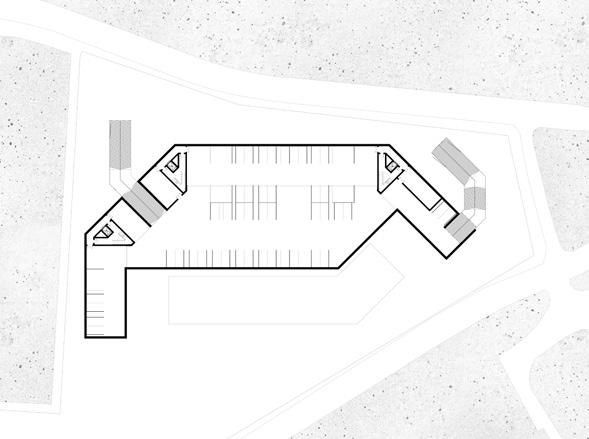

Basement

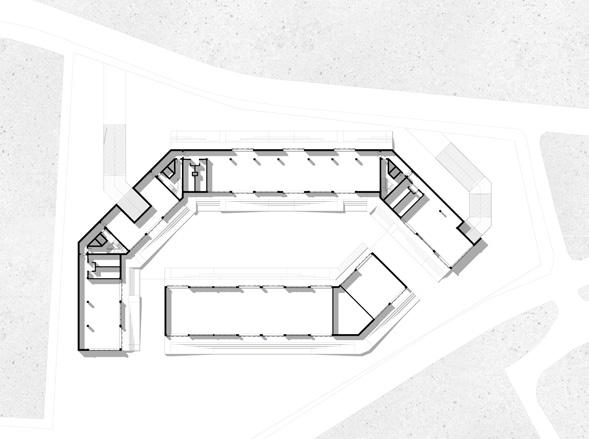

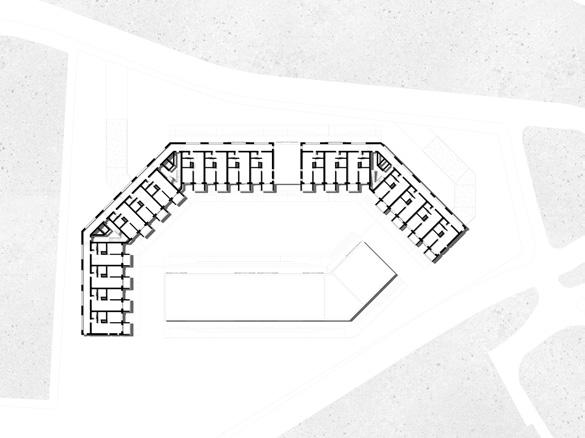

Ground Floor Plan

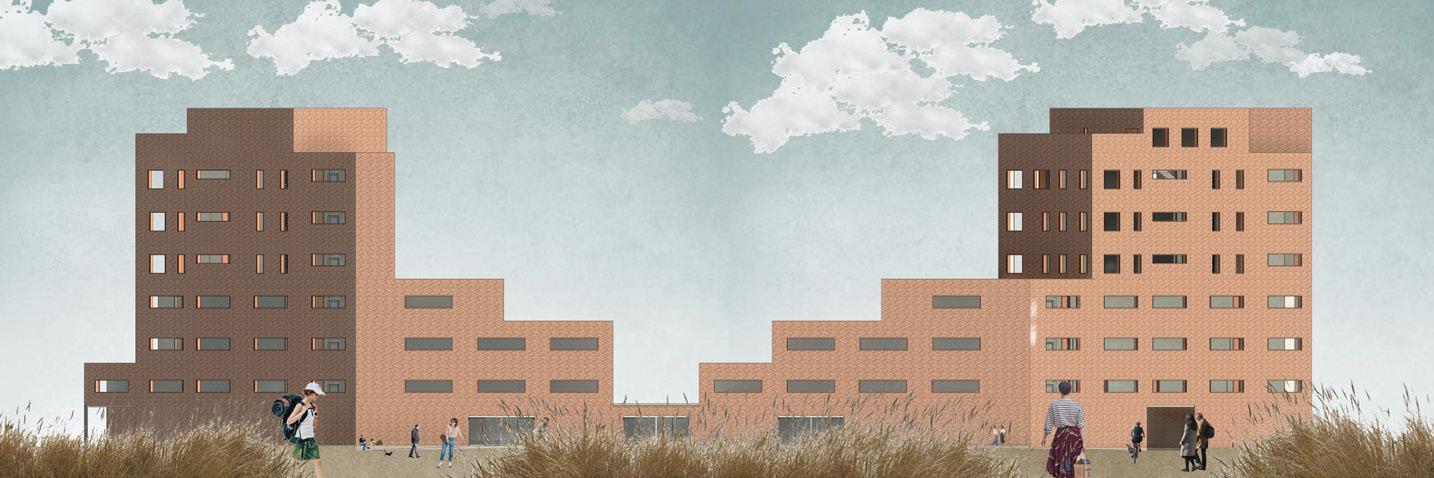

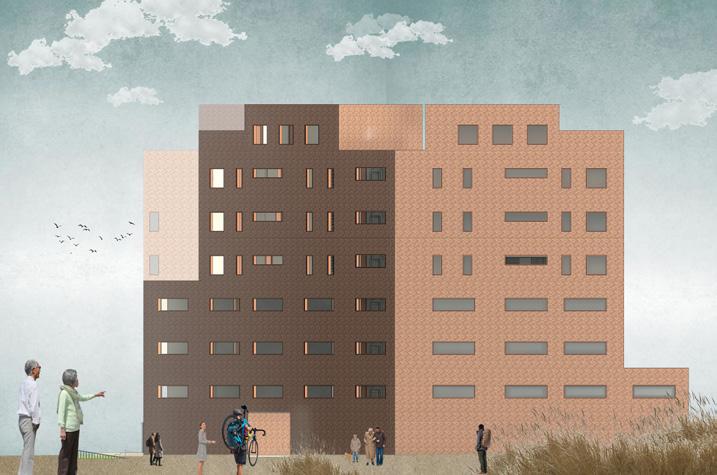

East Elevation
West Elevation

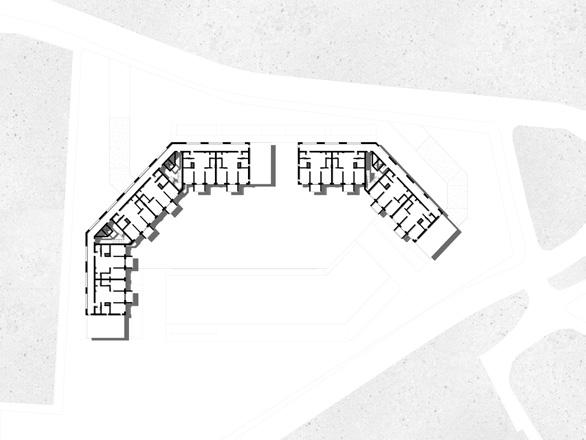

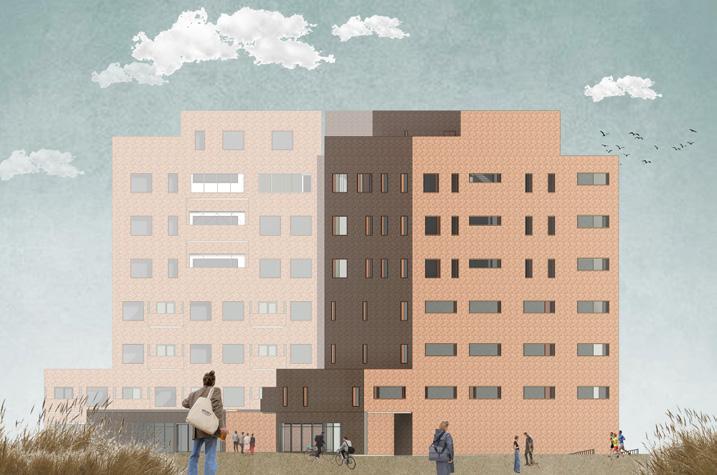

Khanh Tran Selected Works 33 Level 1 Plan Level 2 Plan South Elevation
Khanh Tran Selected Works 35 Level 3 Plan Level 4,5 Plan North Elevation

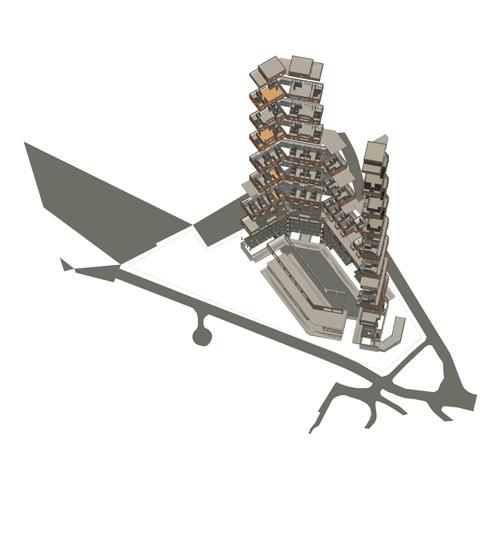

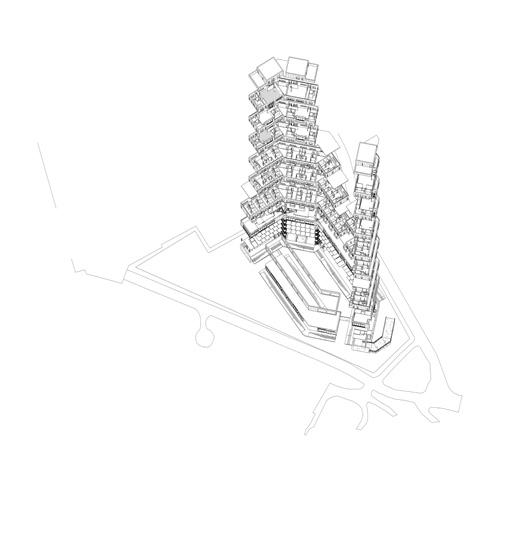

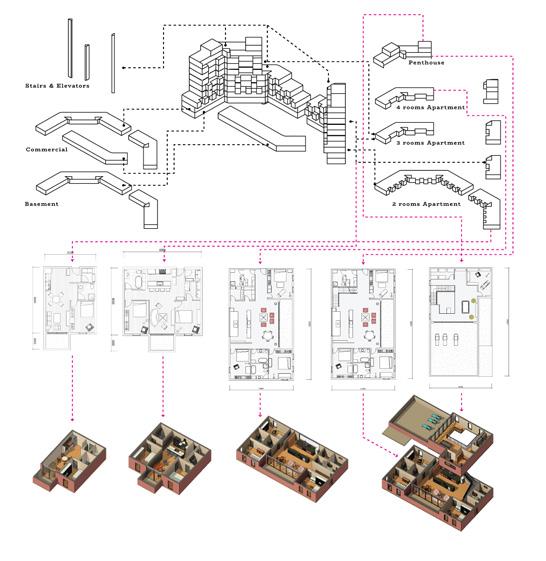

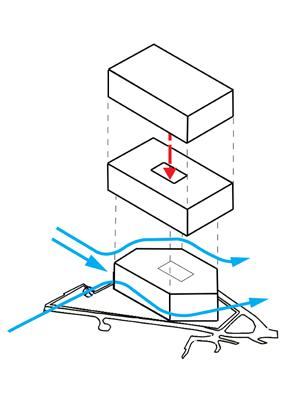

Khanh Tran Selected Works 37 Level 6 Plan Exploded View Level 7 Plan Exploded View
Khanh Tran Selected Works 39

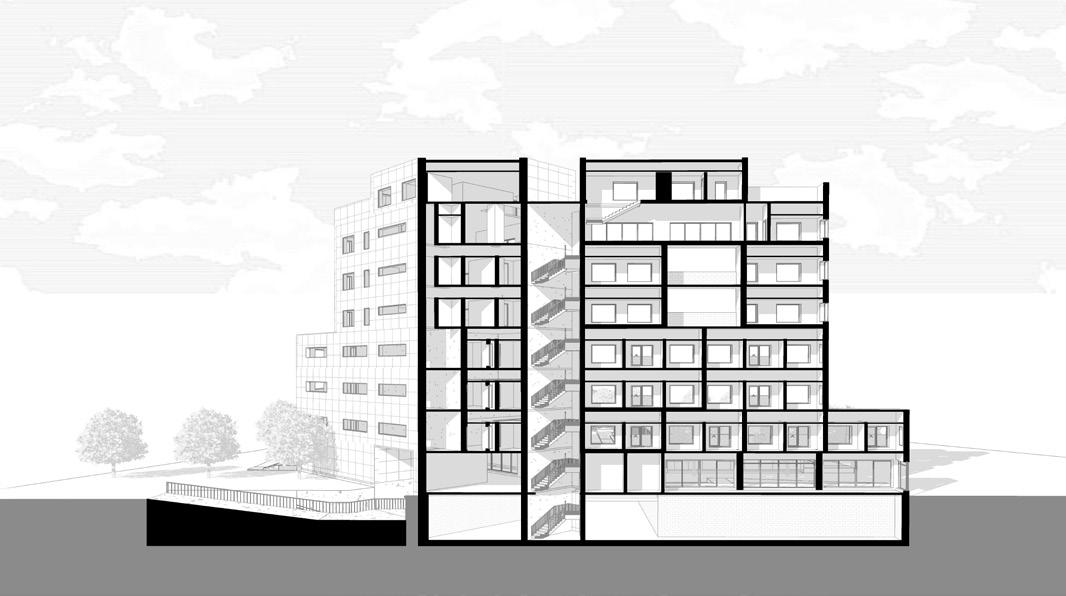

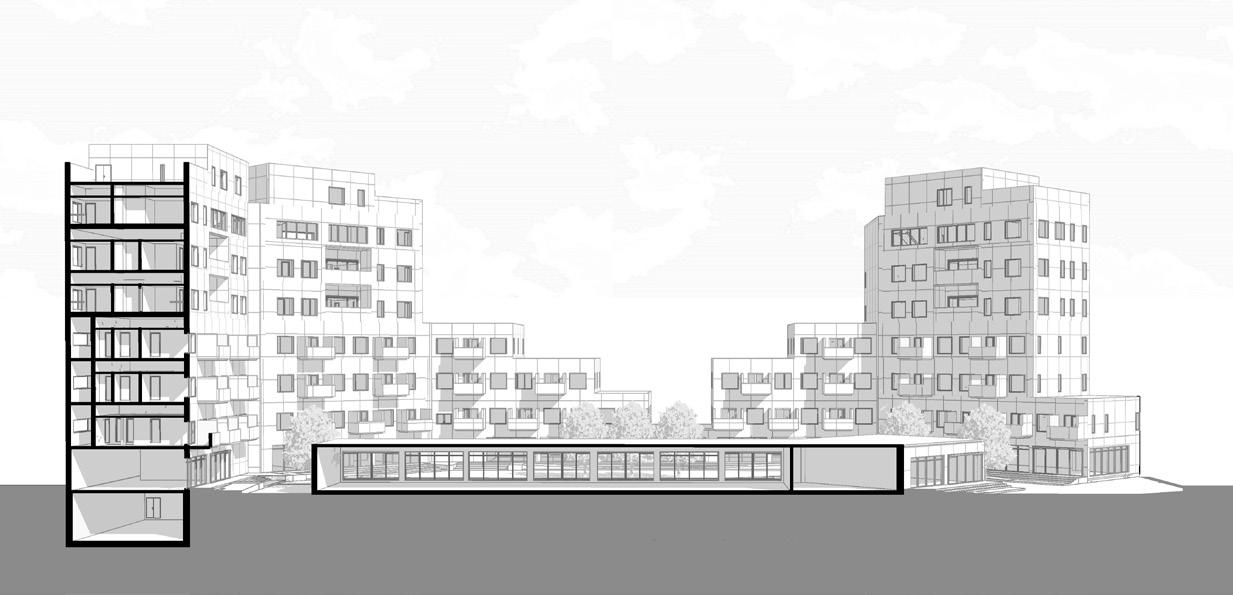

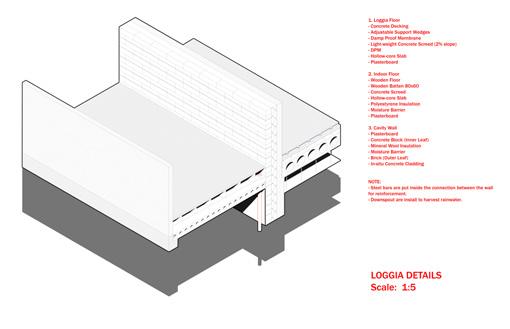

Longitudinal Section
Khanh Tran Selected Works 41

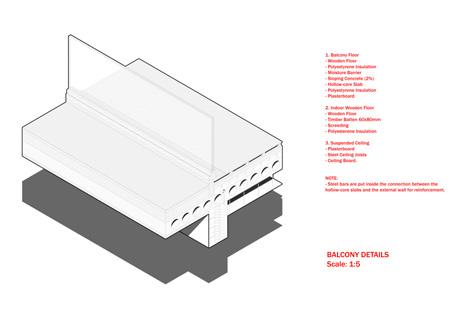

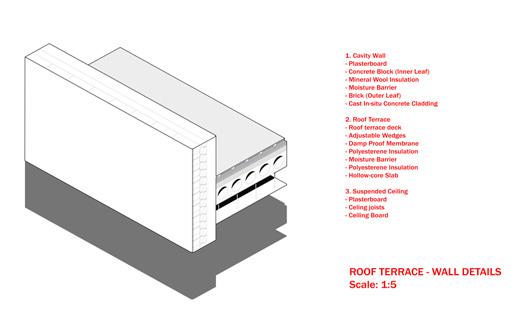

Cross Section

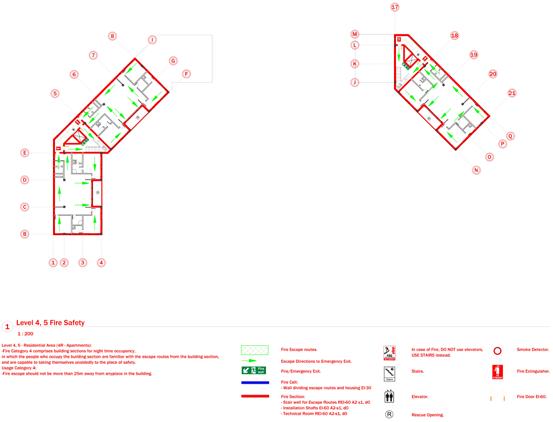

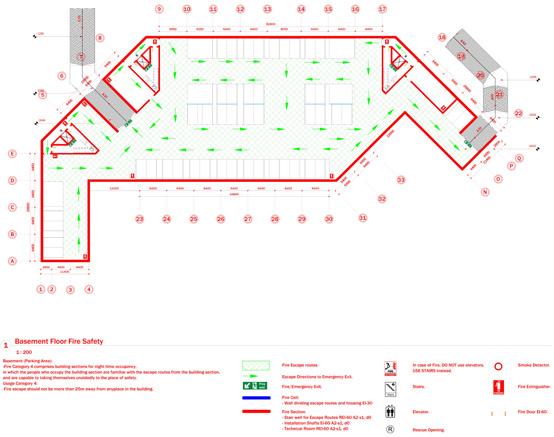

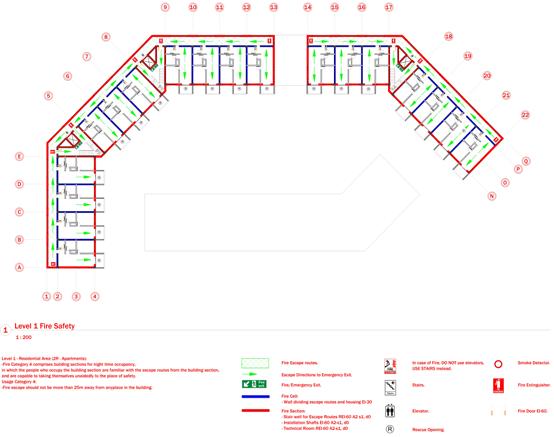

Khanh Tran Selected Works 43 Basement - Fire Safety Ground Floor - Fire Safety Level 2 - Fire Safety Level 1 - Fire Safety

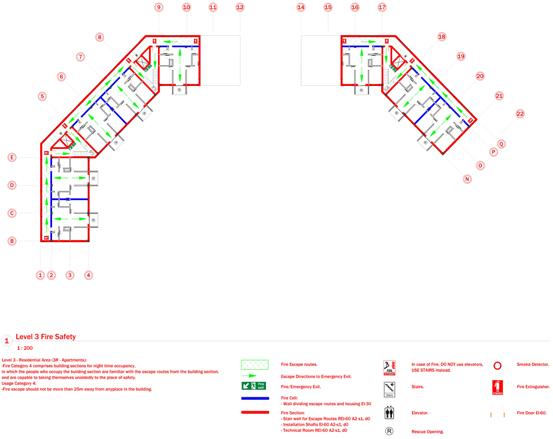

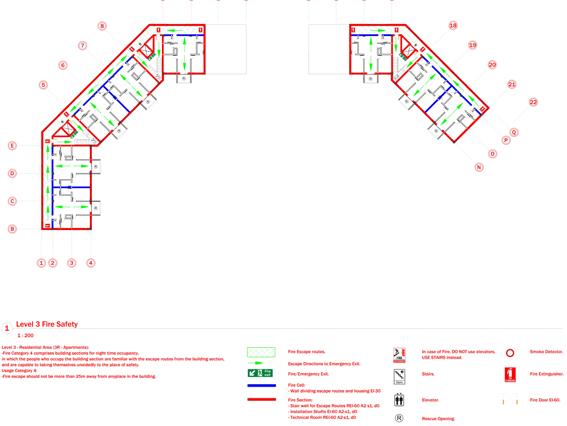

Khanh Tran Selected Works 45 Level 3 - Fire Safety Level 6 - Fire Safety
4, 5 - Fire Safety

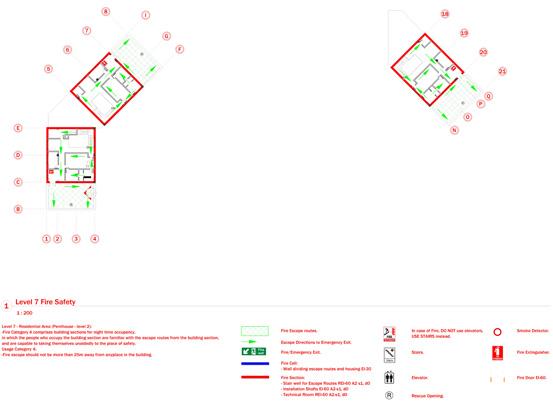

7 - Fire Safety
Level
Level
Khanh Tran Selected Works 47

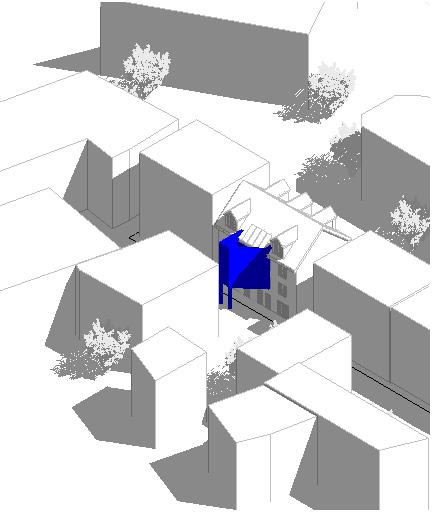

26 Hadsunvej
Location: 26 Hadsunvej, Vejaard - Aalborg
Category: Renovation
Area: 124m2
Year: 2020

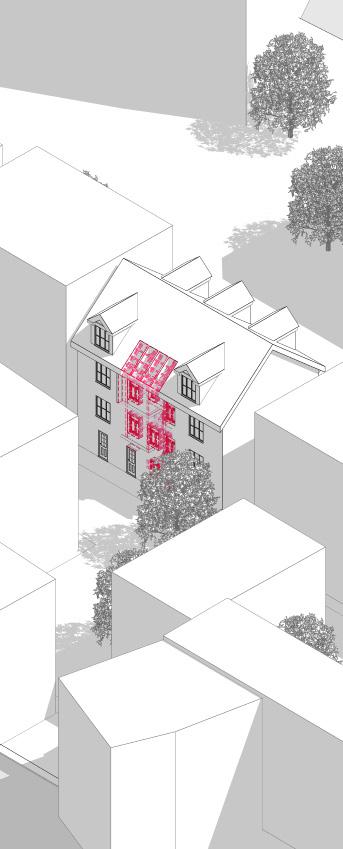

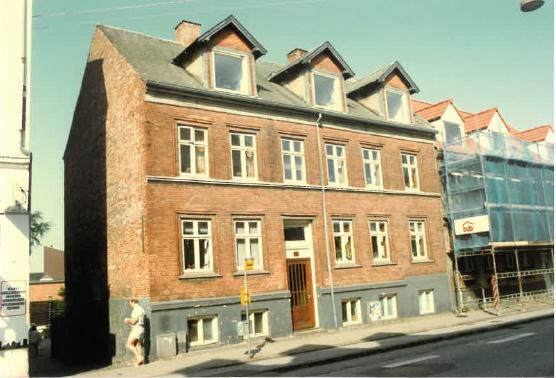

26 Hadsunvej is an apartment building that was built in the New Classicism period (1920-1930). The building was first a factory. As a result of some changes in the using permit, it has been transformed into an apartment with three floors and a basement.
The goal is to design and construct a lightweight extension structure on the back facade of the building as well as different modifications to improve the living standards of the residents. The SAVE system (Survey of Architectural Values in the Environment) was used as a baseline for the project.
Khanh Tran Selected Works 49

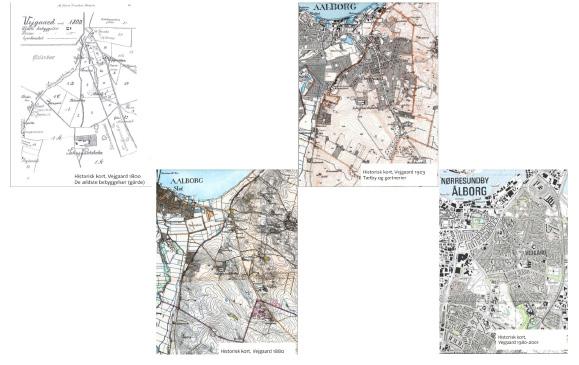

Vejgaard began to become a district of Aalborg in the late 1890s.
Until 1950, Vejgaard was part of Nørre Tranders Municipality, and they were both, at that time, included under Aalborg Municipality.
Vejgaard’s development into a district arose when the need for jobs grew in connection with the companies that were built in the area.
On 13 January 1986, Aalborg City Council adopted a municipal plan for the future development in the local authority. In the municipal plan, Vejgård Center has a bit of a special status. Vejgård Center is a neighborhood in Vejgård local area, but because of the close connection to the Aalborg urban area, it is also considered in the city’s urban area. 26 Hadsunvej is situated inside the Local Plan number 11-004 of Vejaard District under Aalborg Municipality.
Khanh Tran Selected Works 51
26 Hadsunvej - 02.09.93

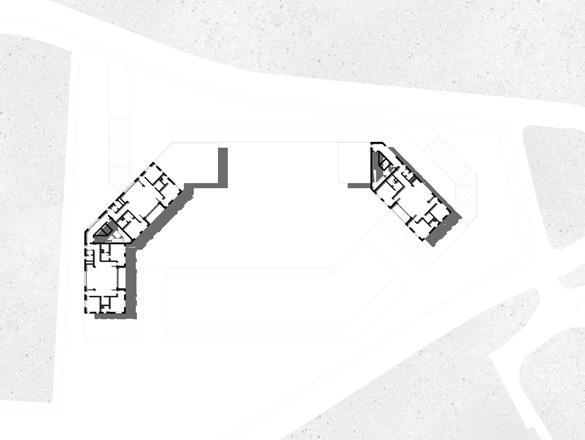

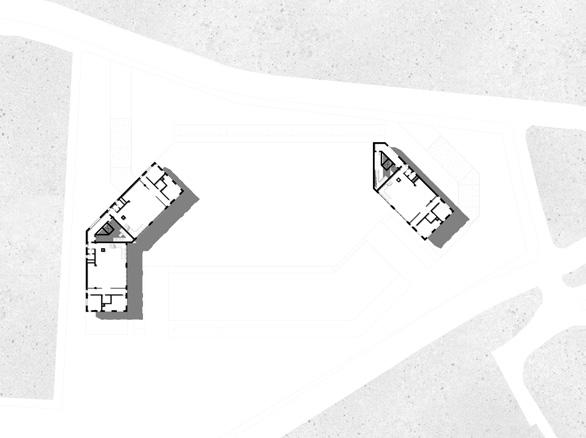

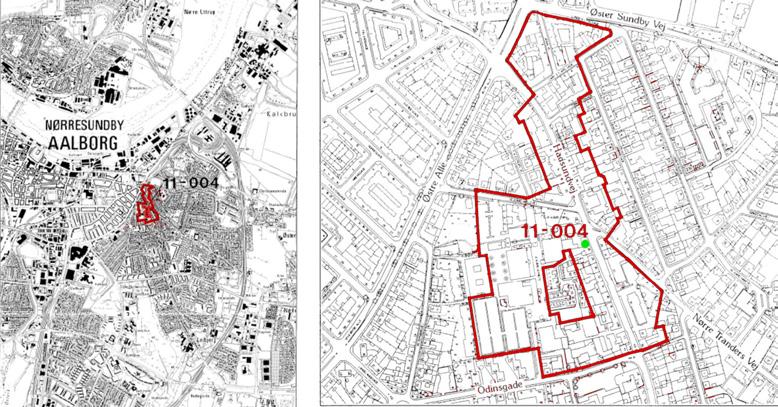

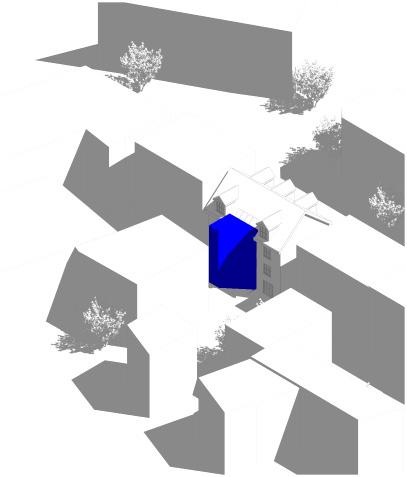

Local Plan
Khanh Tran Selected Works 53
1 4
2 5 3 6
Khanh Tran Selected Works 55

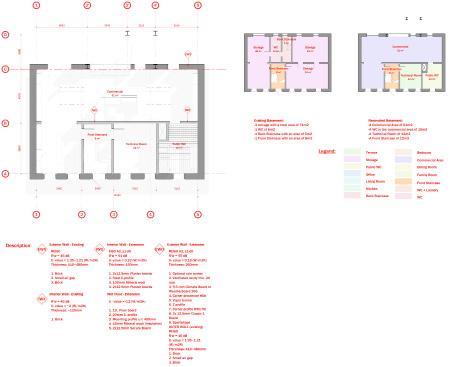

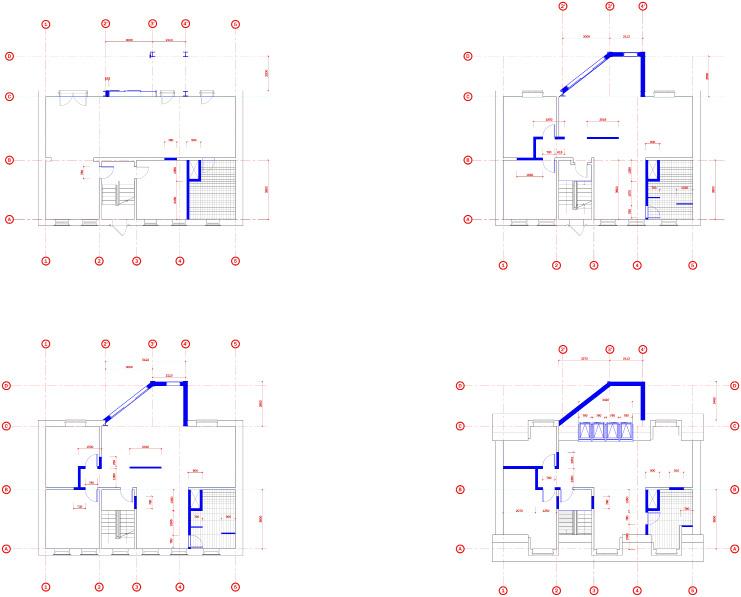

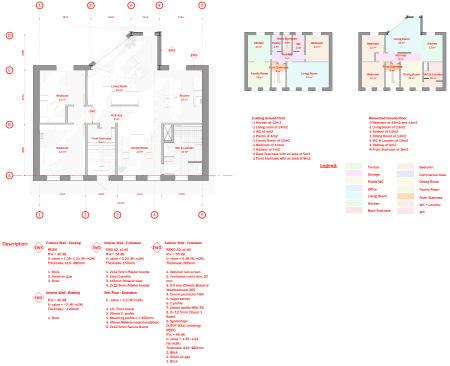

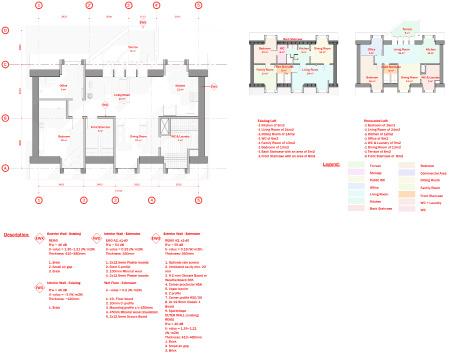

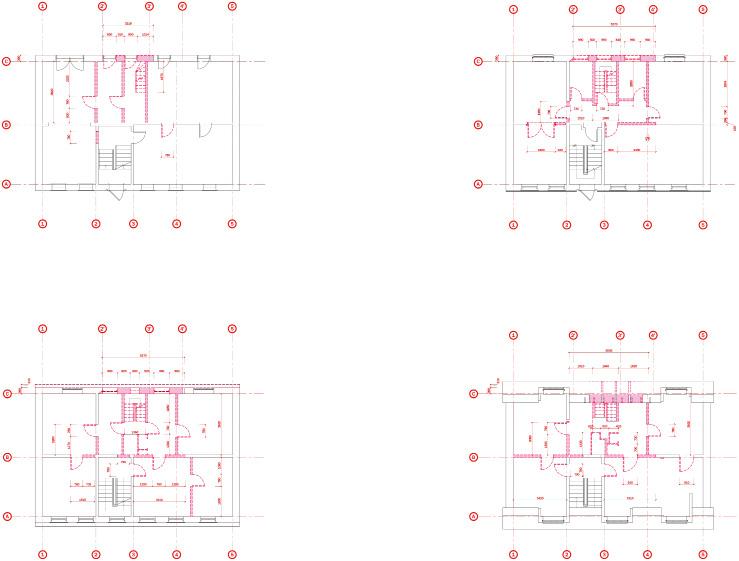

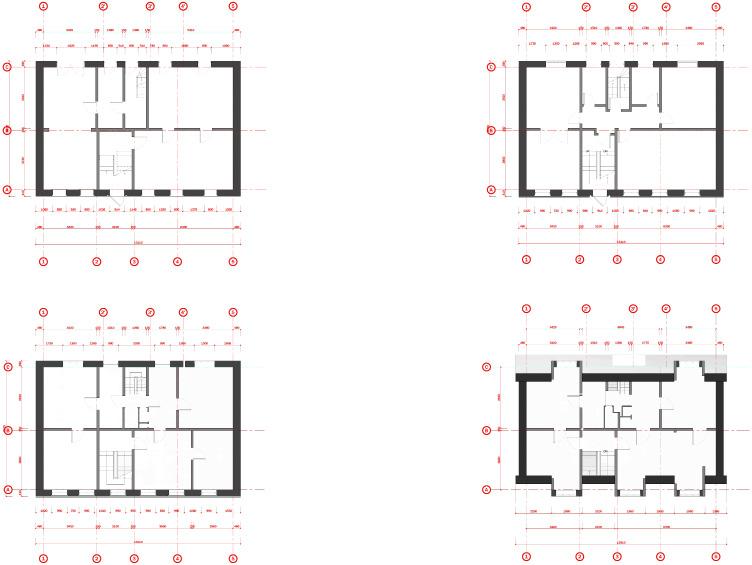

Existing Floor Plans

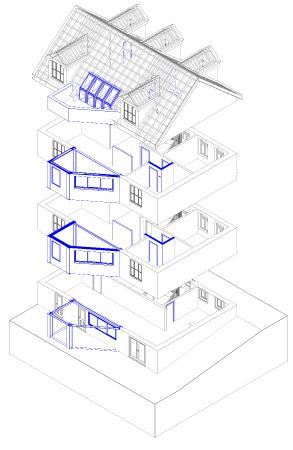

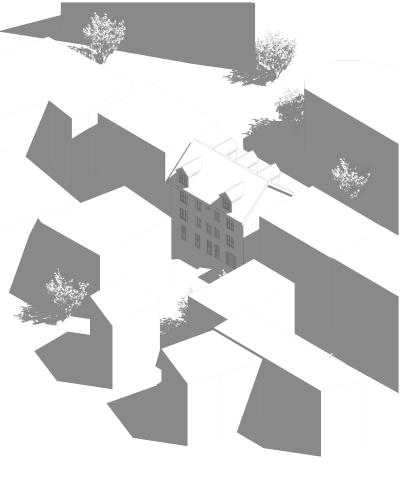

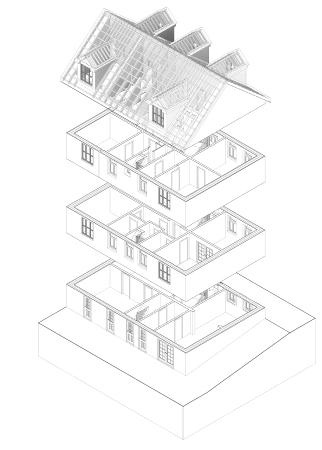

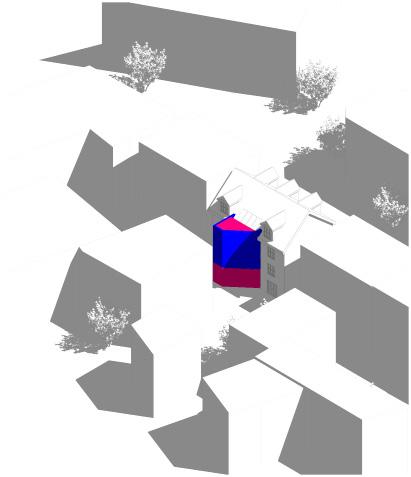

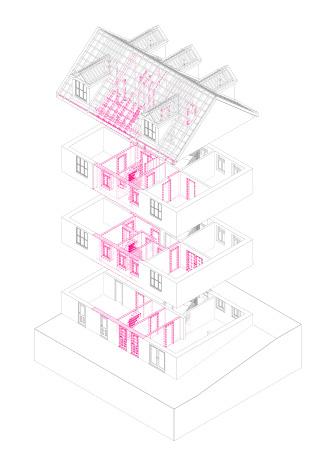

Existing - Exploded
Exploded
Khanh Tran Selected Works 57
Plans
Demolition -
Demolition
- Exploded
Khanh Tran Selected Works 59

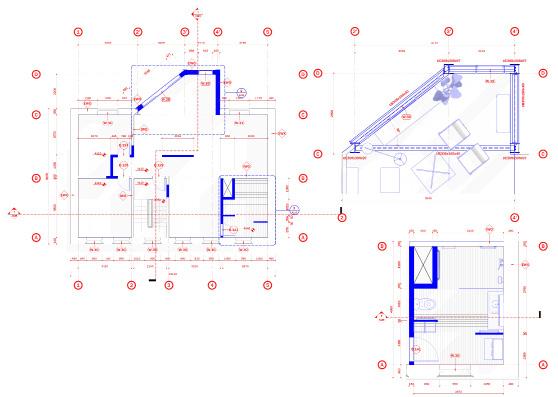

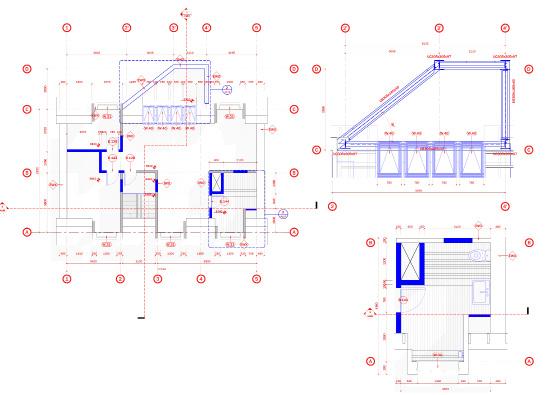

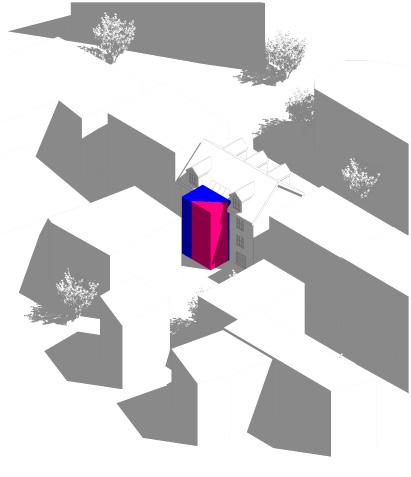

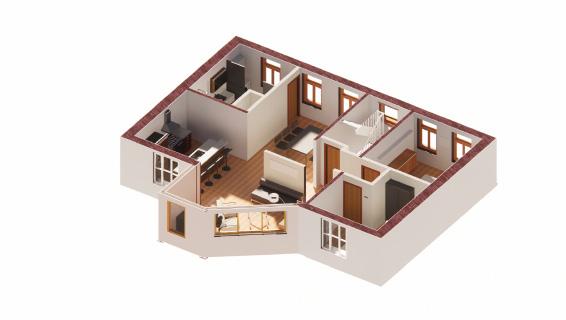

Extension Plans

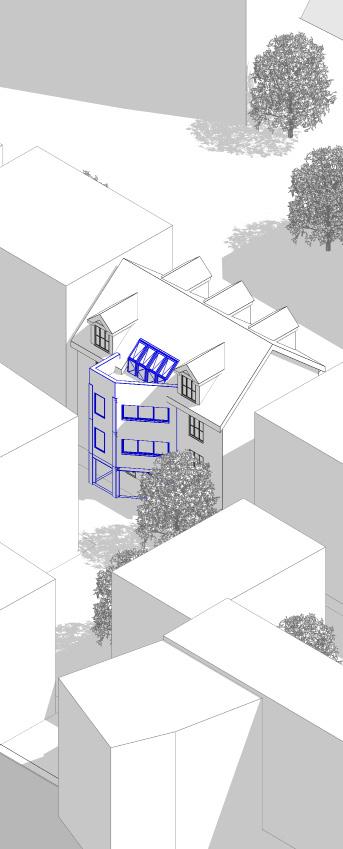

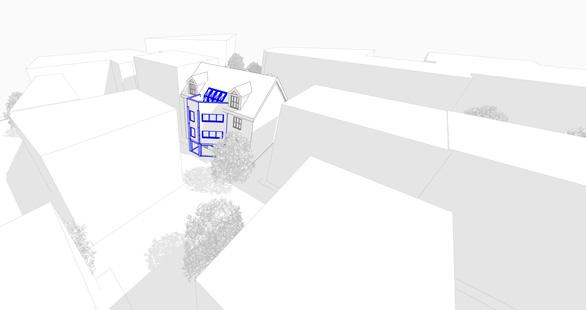

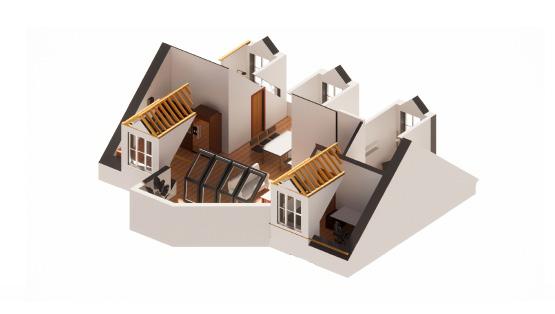

Extension
Khanh Tran Selected Works 61

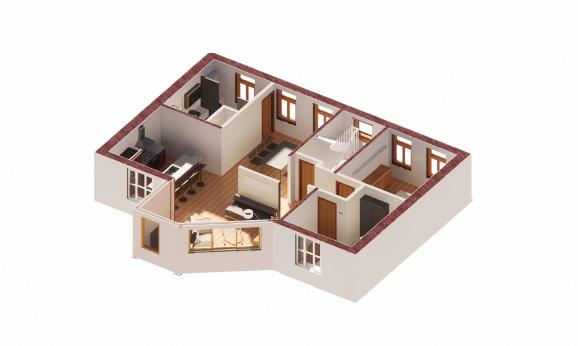

Plan Ground Floor - Furniture Plan
Basement - Furniture
Khanh Tran Selected Works 63 Level 1 - Furniture Plan Loft - Furniture Plan
Khanh Tran Selected Works 65

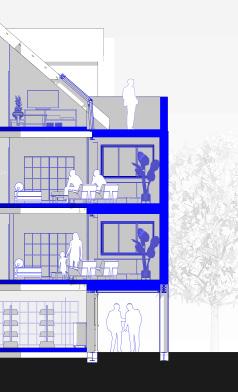

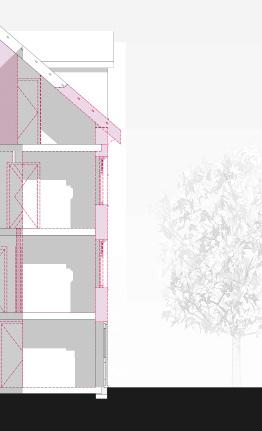

Demolition - Cross Section Extension - Cross Section
Khanh Tran Selected Works 67
Floor

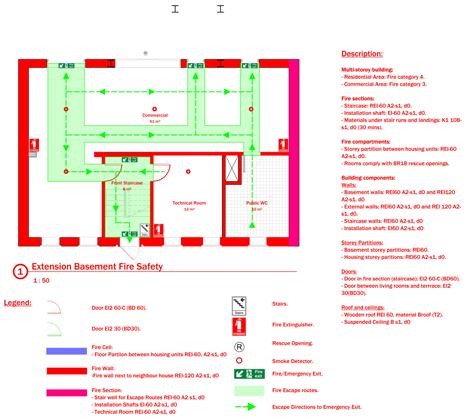

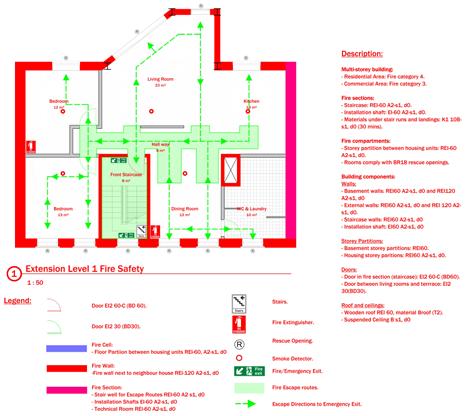

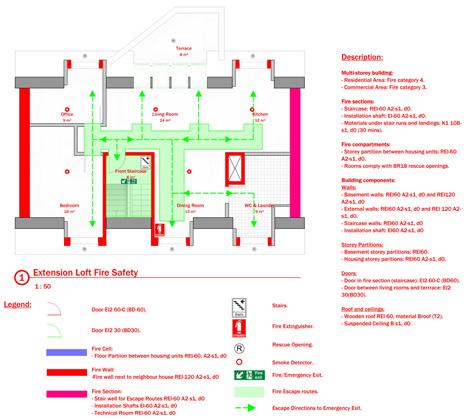

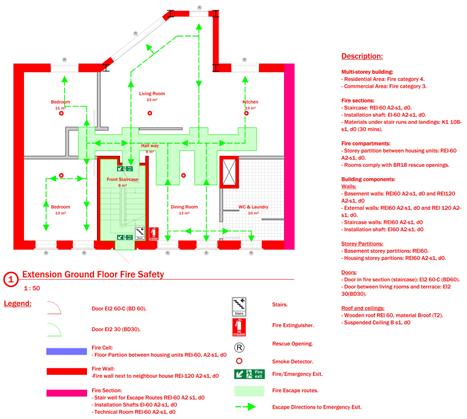

Loft - Fire Safety Level 1 - Fire Safety
Basement - Fire Safety
Ground
- Fire Safety

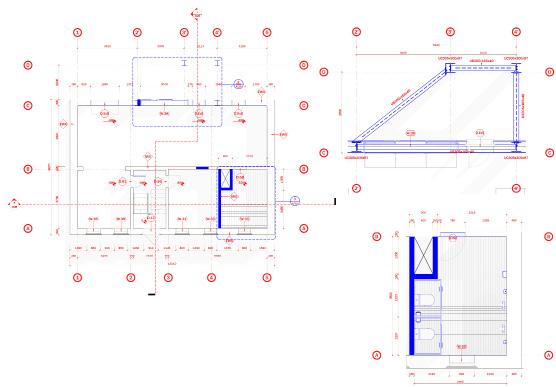

Khanh Tran Selected Works 69 Basement - Construction Plan Level 1 - Construction Plan Ground Floor - Construction Plan Loft - Construction Plan
Khanh Tran Selected Works 71

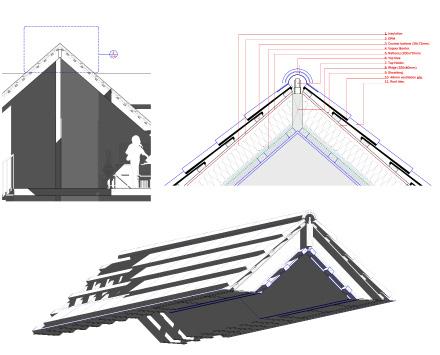

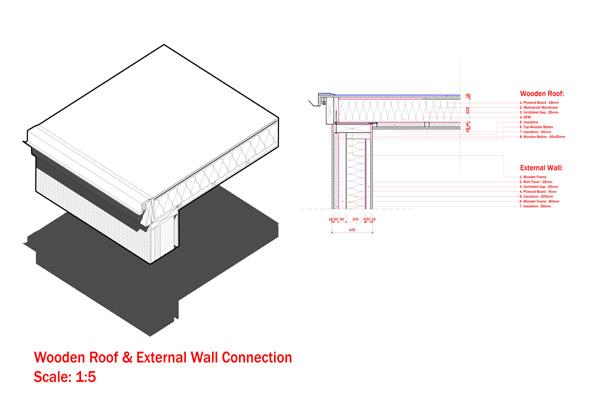

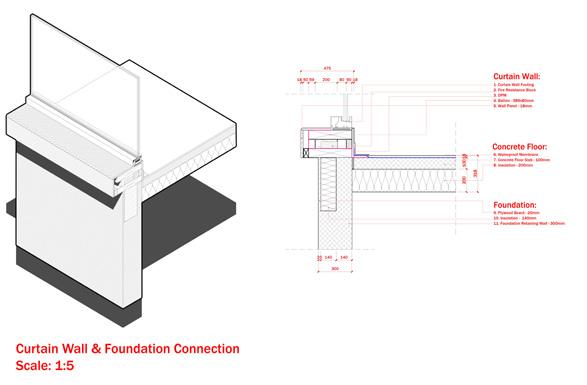

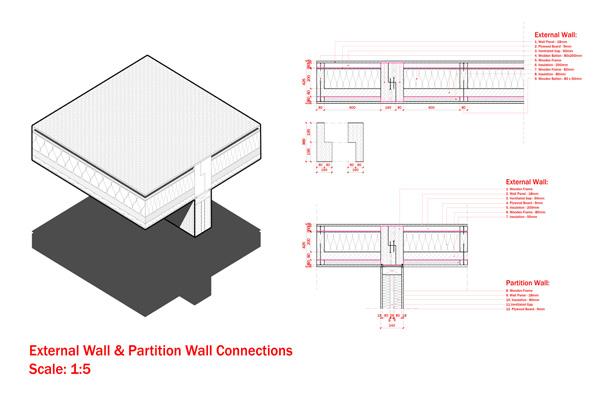

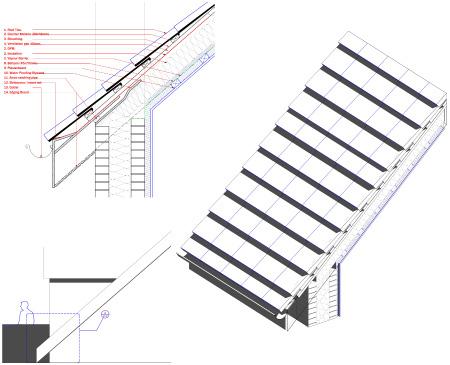

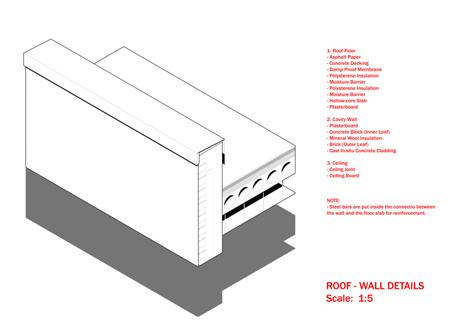

Roof Footing Details - 1:5

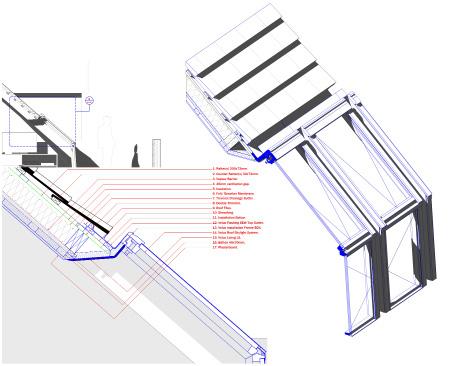

Roof Skylight Door Details - 1:5
Top Roof Details - 1:5

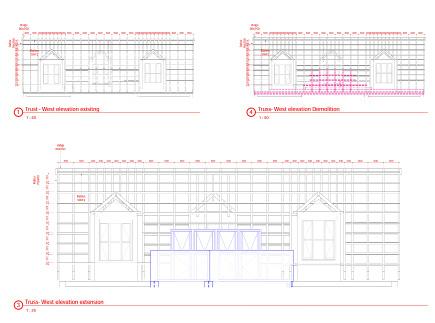

Truss Elevations
Khanh Tran Selected Works 73

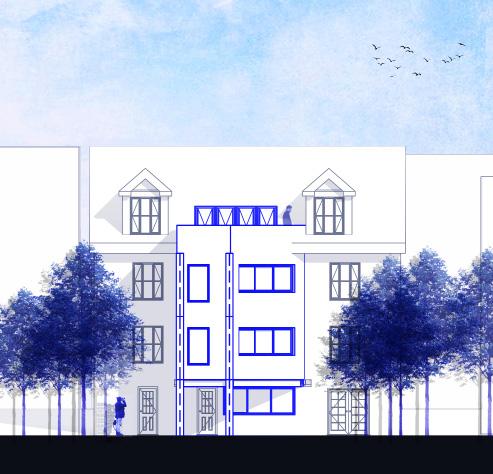

West Elevation
Extended -
