Community Harvest

Bethesda Community Think Tank

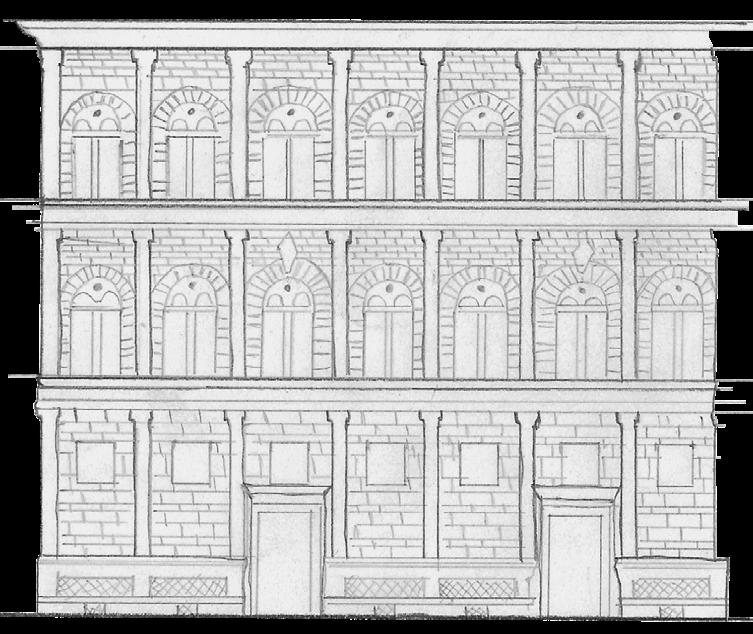

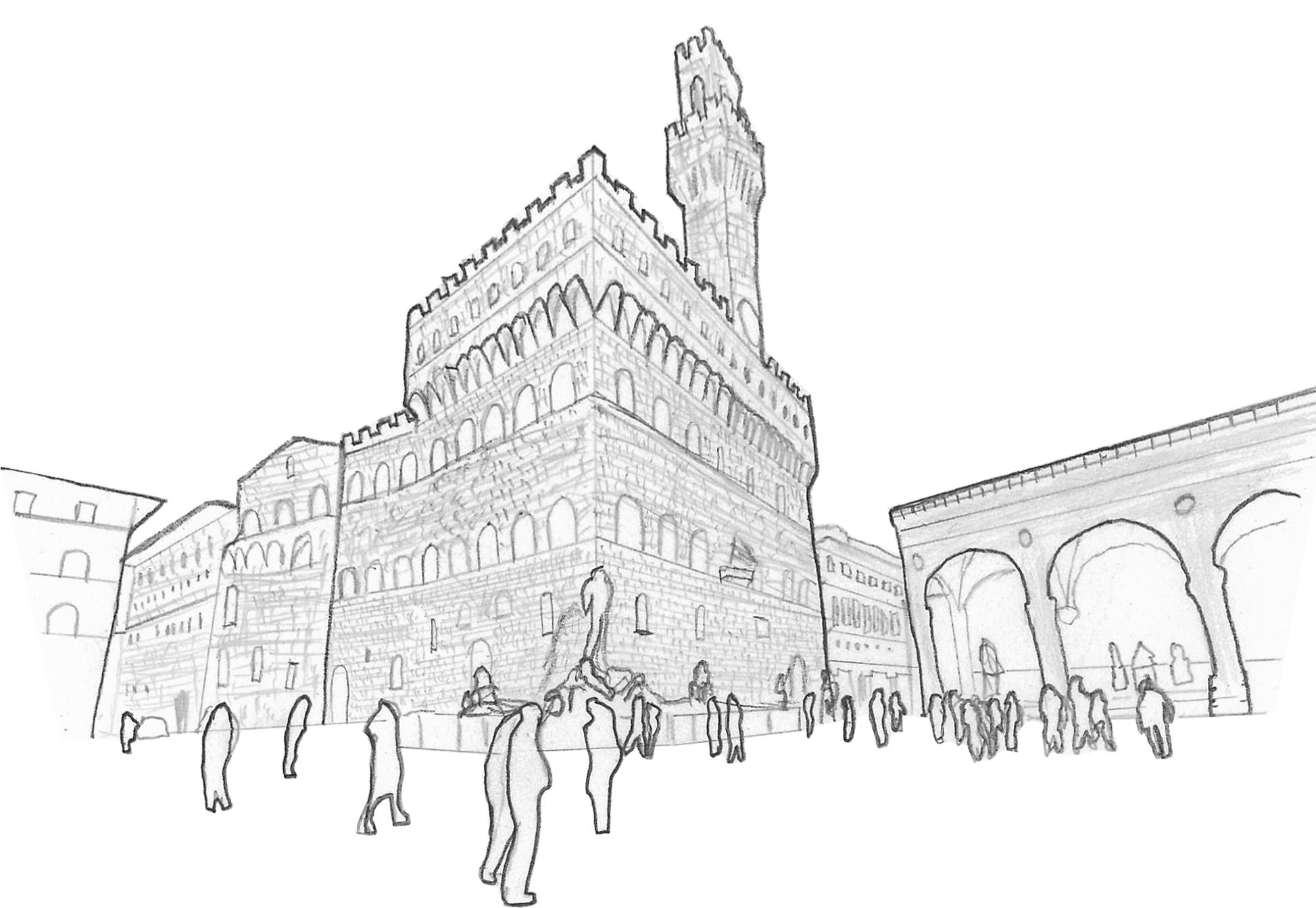

Artist Crossing Sketches

Community Harvest is a communal housing and marketplace project centered on collectively growing, cooking, eating, and sharing local produce to promote health, resilience, and sustainability. By creating a self-sufficient food system, it reduces reliance on industrial farming and food transportation, benefiting the neighborhood by giving back more than it consumes.

Community Harvest

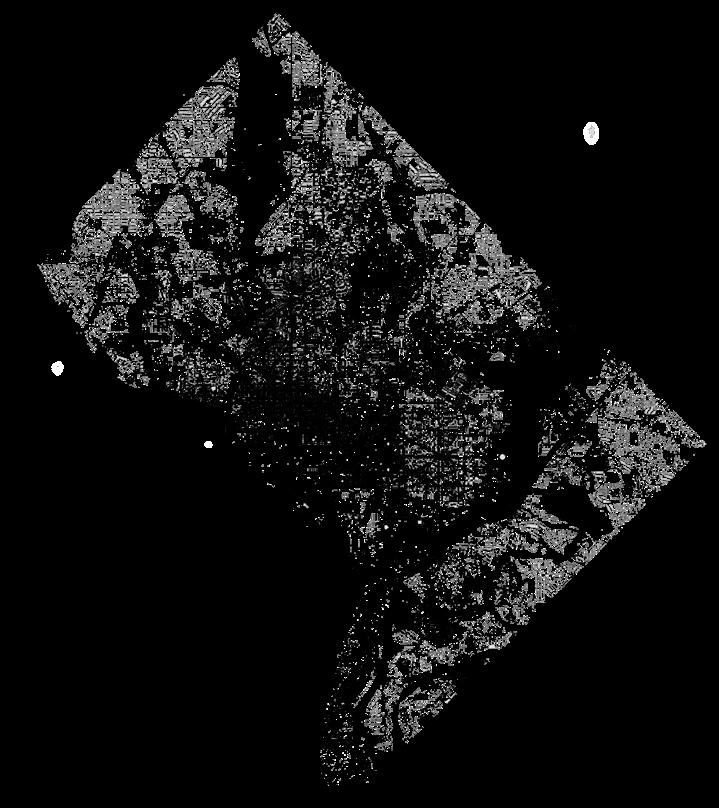

14th St. NW, Washington, D.C.

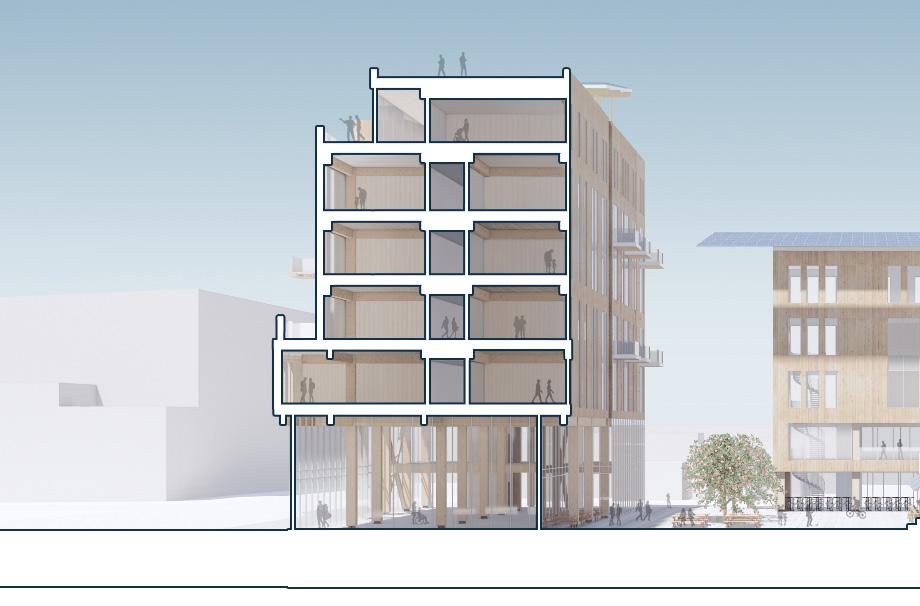

A submisison for the 2023 ACSA COTE Competition, Community Harvest is a communal housing and marketplace focused on community resilience. Guided by the COTE design framework, the project is designed to be a provider for both its residents and community. Located in a dense urban DC setting, Community Harvest integrates strategies such as mass timber construction and water recycling systems, acting as a replicable model for future urban development projects

In Collaboration with Maggie Boland, Aylin Garcia WALK

Drawings:

Renders: Revit, AutoCAD, Illustrator, Photoshop

Enscape, SketchUp, Photoshop

LOGAN CIRCLE

LEARN TRADE GROW

ECOSYSTEM

Characterized by its ability to create homes for all - including birds, bees, and other living organisms, the site gives back some of the urban space to the natural ecosystem.

PLANTS

pollinators & gallons of water collected per plant per year

WELL-BEING

Natural materials, biophilia, produce, and social amenities such as a lap pool and yoga studio all contribute to the well-being of all within Community Harvest.

EQUITABLE COMMUNITIES

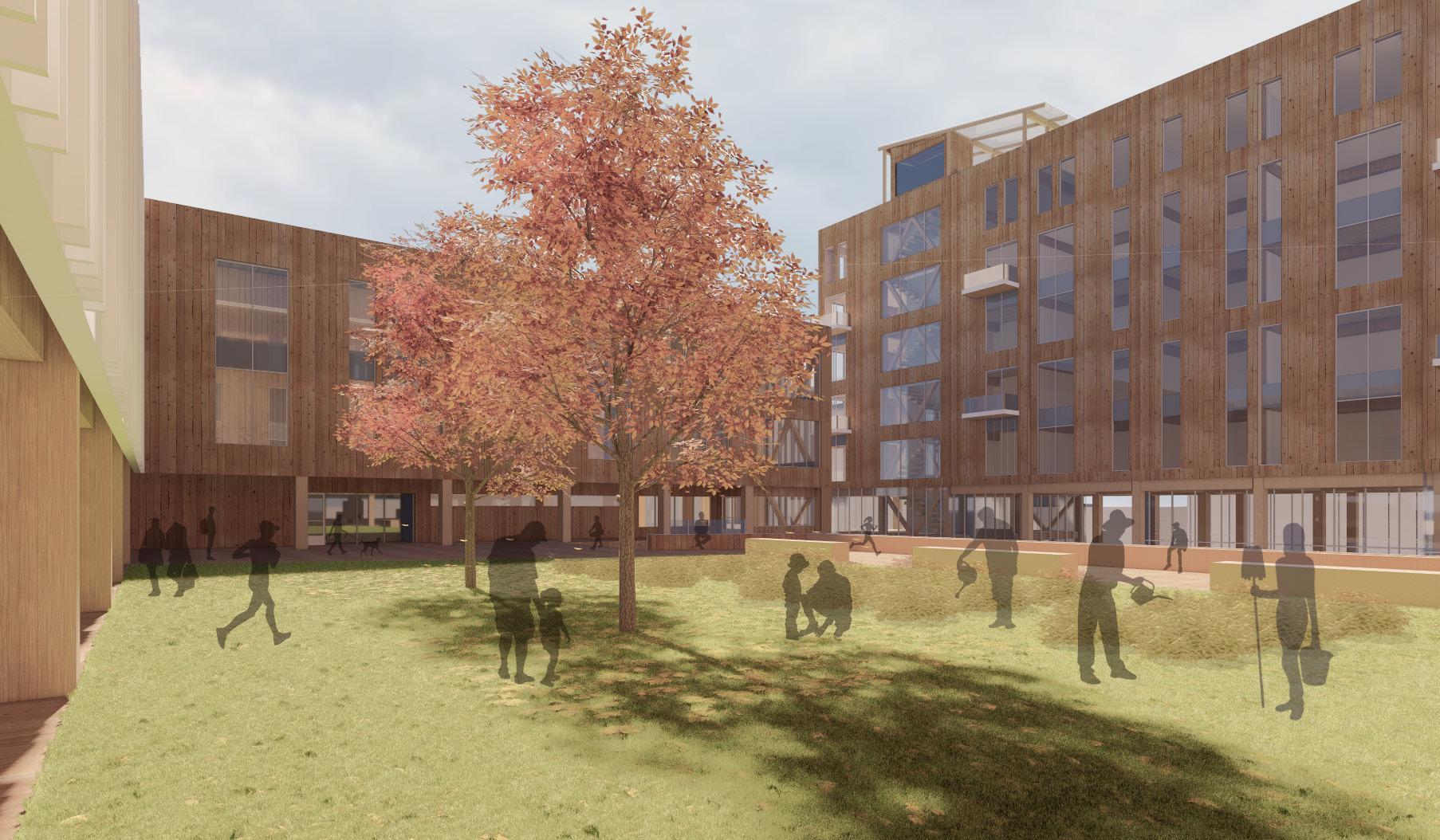

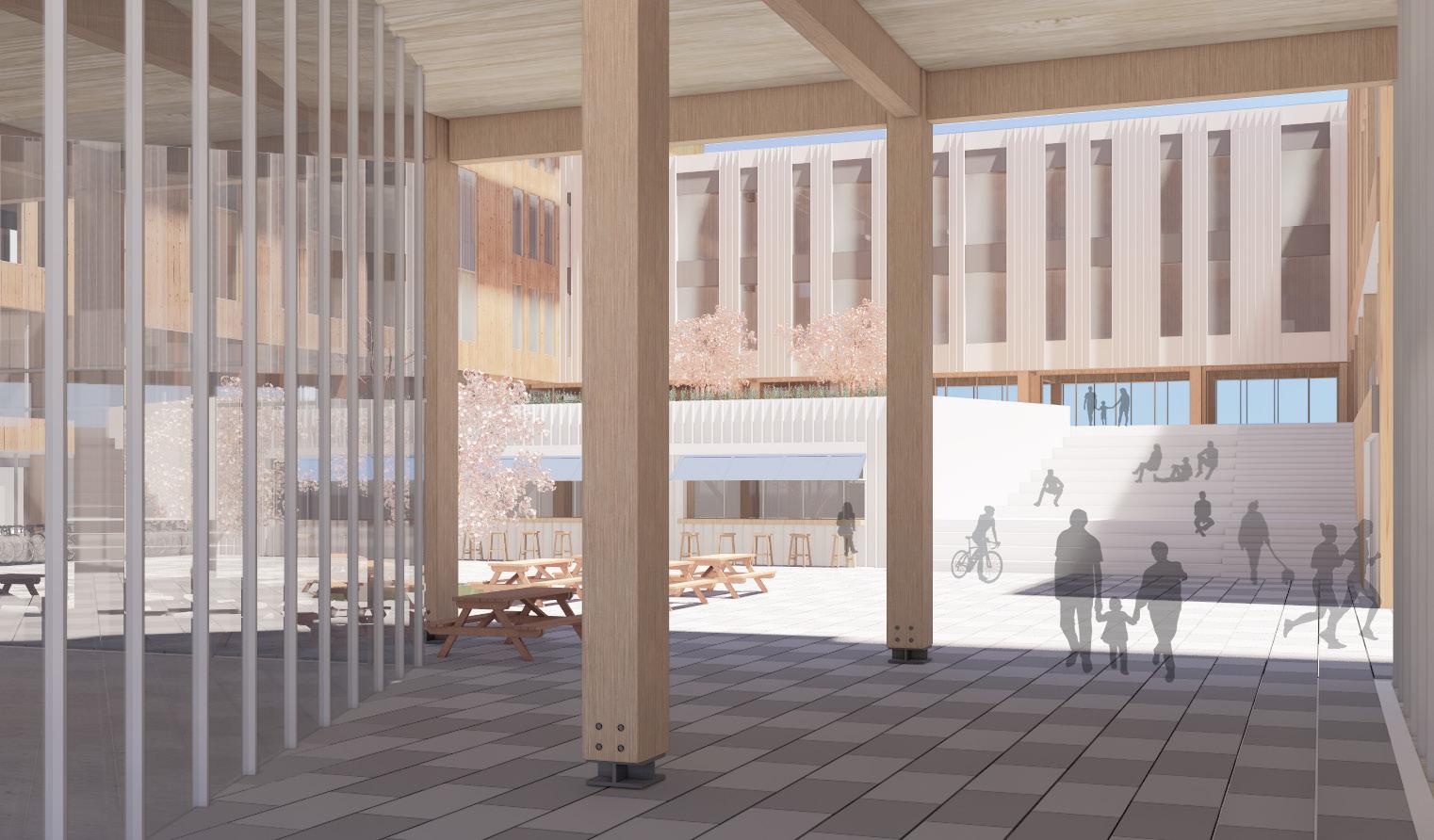

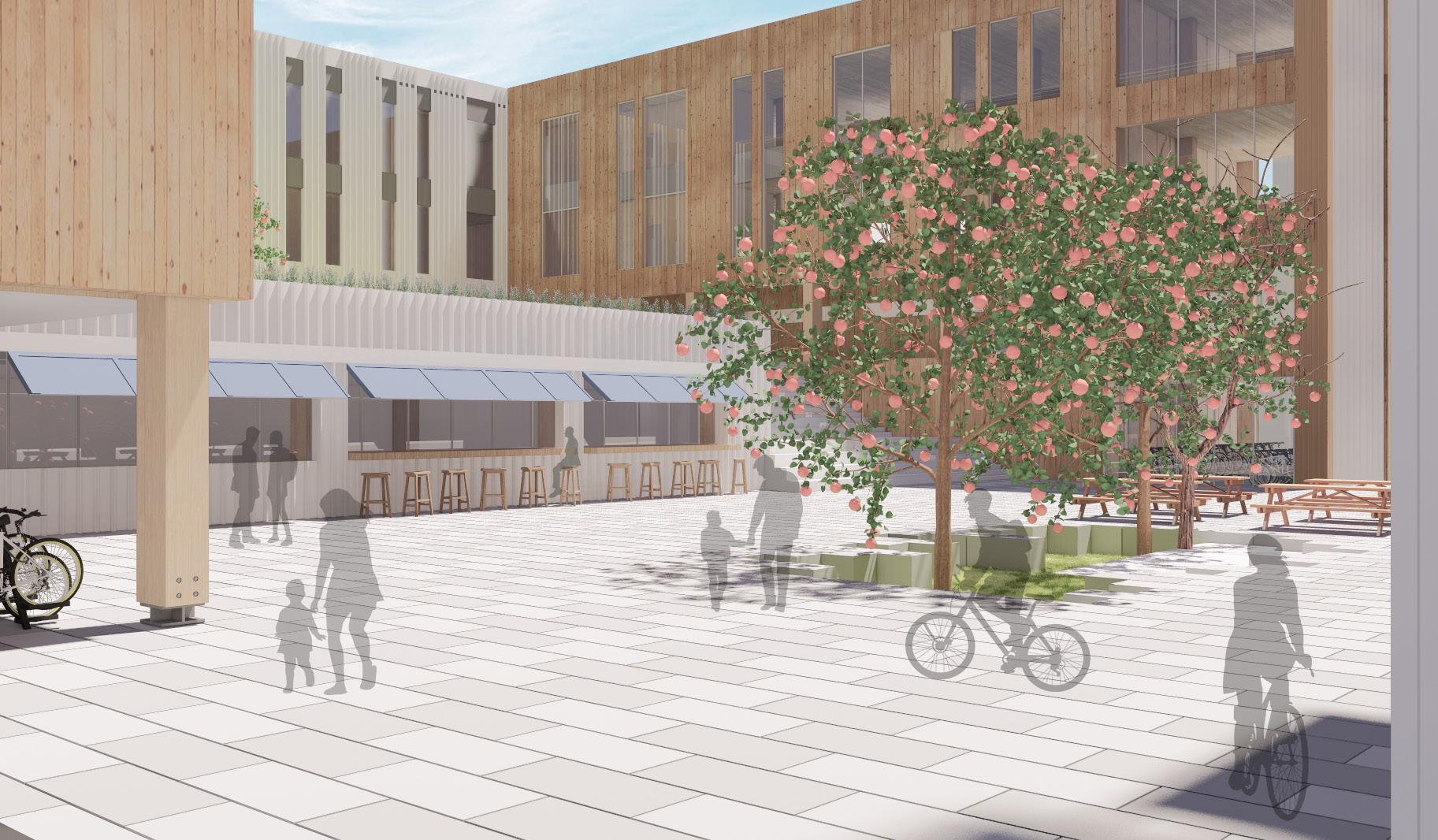

By replacing the existing parking lot with pedestrian pathways, a public gathering space forms between the two volumes. This space is then used to provide fresh, local produce to residents and the public. In doing so, the community garden promotes social interaction while also encouraging self-reliance.

S ST. NW N

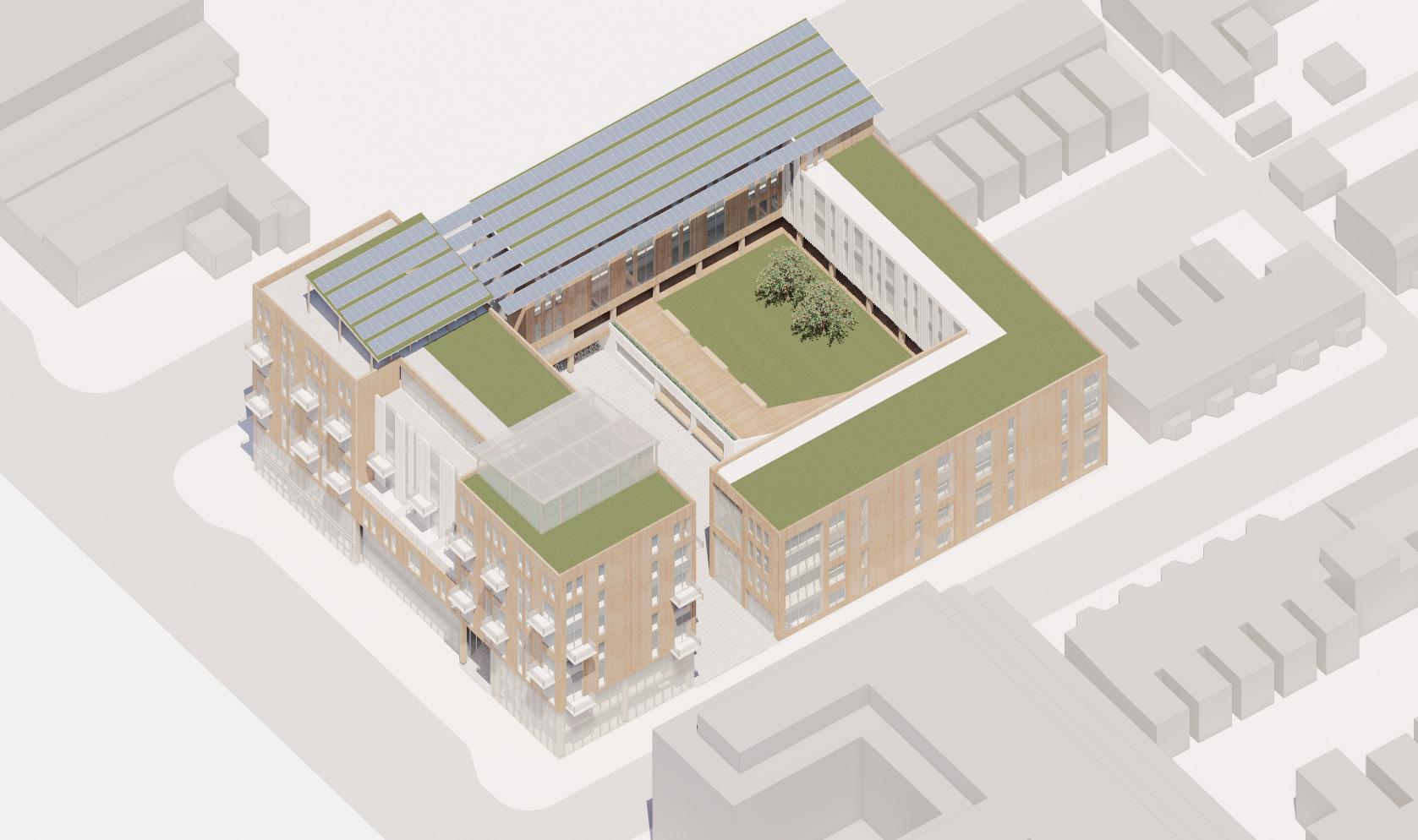

SITE AXON 14TH ST. NW RIGGS ST. NW

RESOURCES

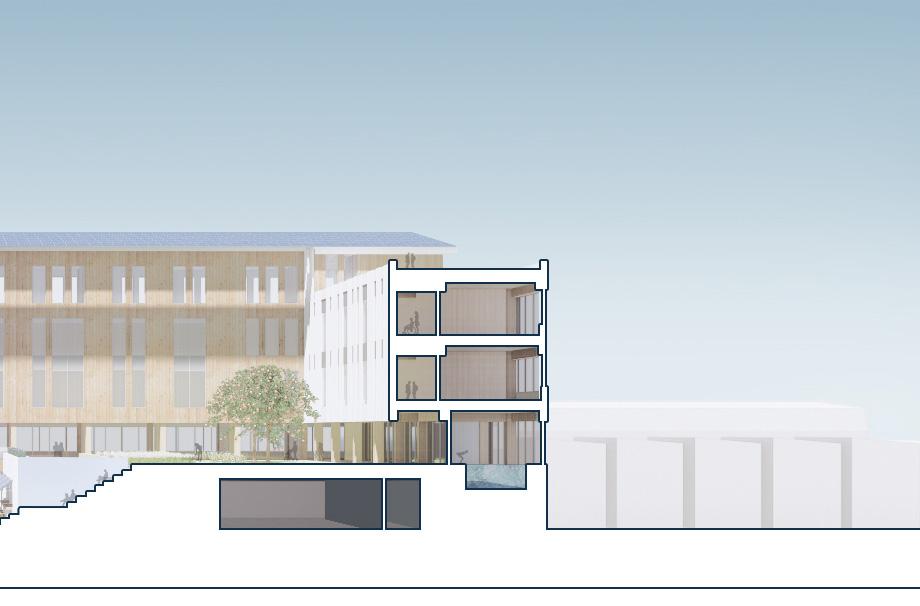

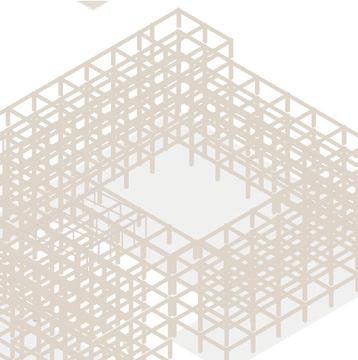

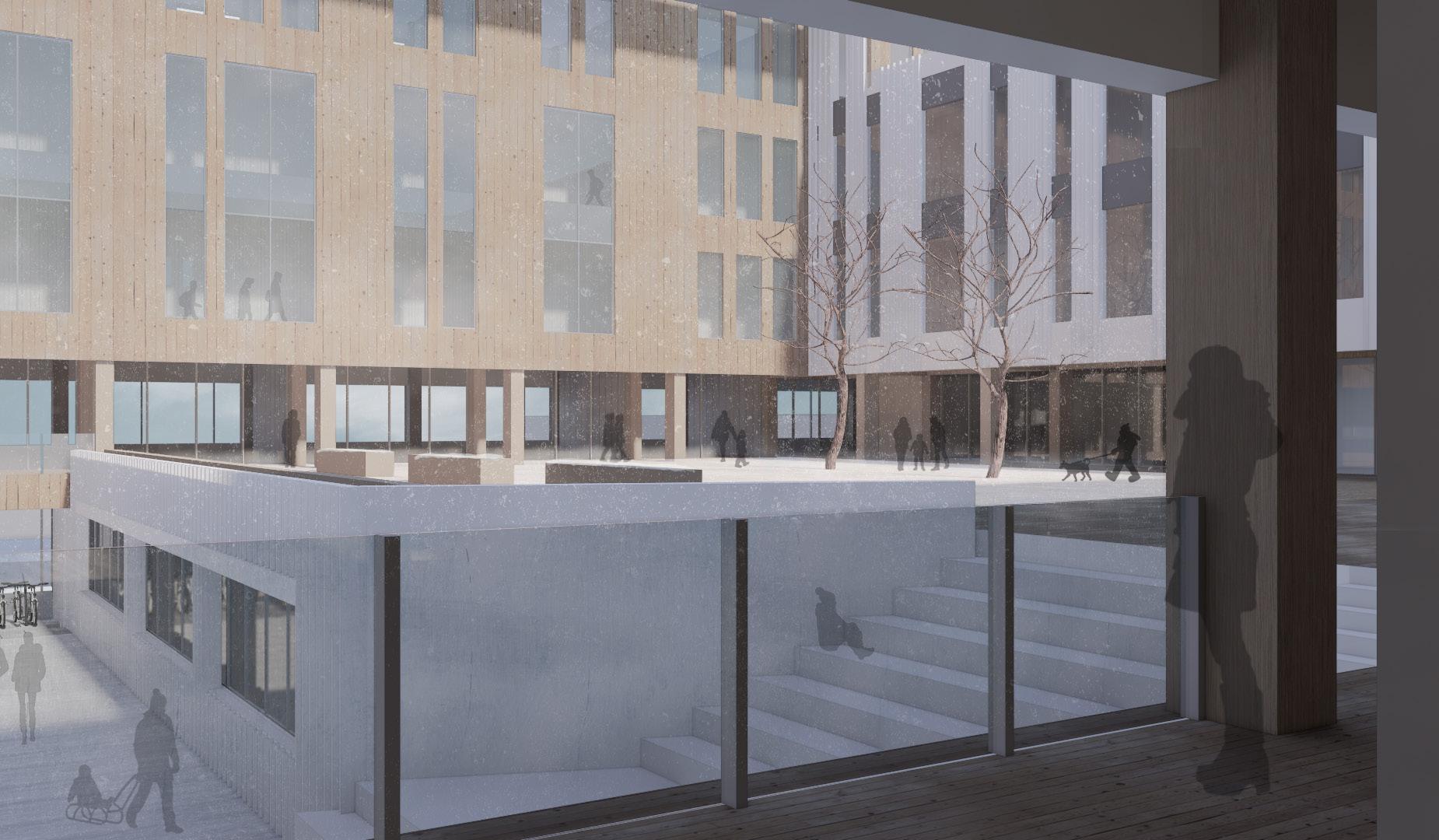

Community Harvest’s prefabricated mass timber structure reduces construction time and waste. Also, mass timber’s exceptional acoustic performance decreases sound transmissions between floors and walls, which allows for more privacy within individual units.

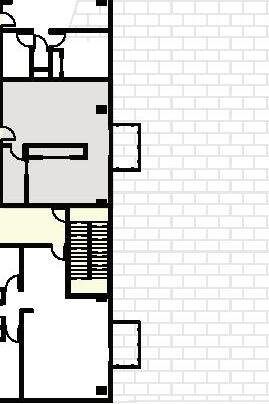

EXISTING

SITE

54 single family rowhomes built in the 1970s

INCREASE DENSITY max far: 3.7 mixed use: residential & communal spaces

ENERGY + ECONOMY

A hybrid solar panel green roof provides over 185,000 kwh per year, while Community Harvest’s role as a producer, retailer, and distributor of local produce reduces cost and shortens the food supply chain.

DISCOVERY

By integrating the character of its urban contect and natural eccosystem, Community Harvest invites residents and locals to explore the site and uncover new moments of connection

SUMMER

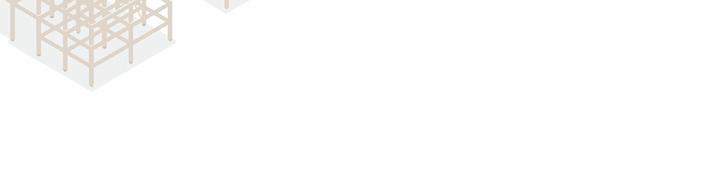

DLT panels connect with single surface spline

CHANGE

MASS TIMBER - $ 50

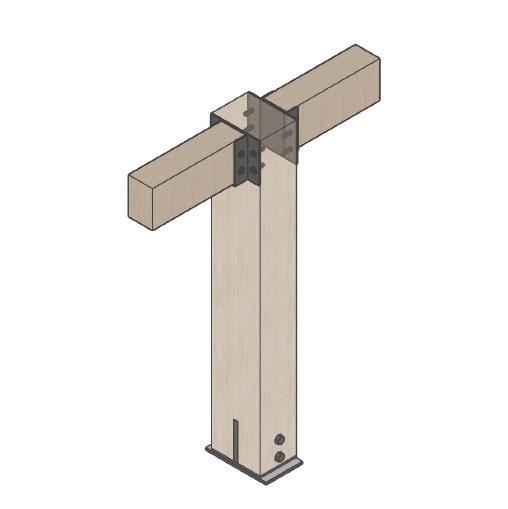

beams bracketed to columns with steel connection, bear the weight of the DLT panels column bears on plate connected to foundation

Bethesda Community Think Tank

Bethesda, MD, USA

The Bethesda Community Think Tank strives to create worthwhile experiences for it’s community through education, research, and public events. Visitors are invited to interact at various points such as the central event space, the outdoor green roof, and rear plaza. More than just a building, the Bethesda Community Think Tank aims to bring locals together to create a more enriched community.

In Collaboration with Ploy Pipatpongsa

Drawings: Renders: Revit, AutoCAD, Illustrator Sketching, Enscape, Photoshop

Leland St.

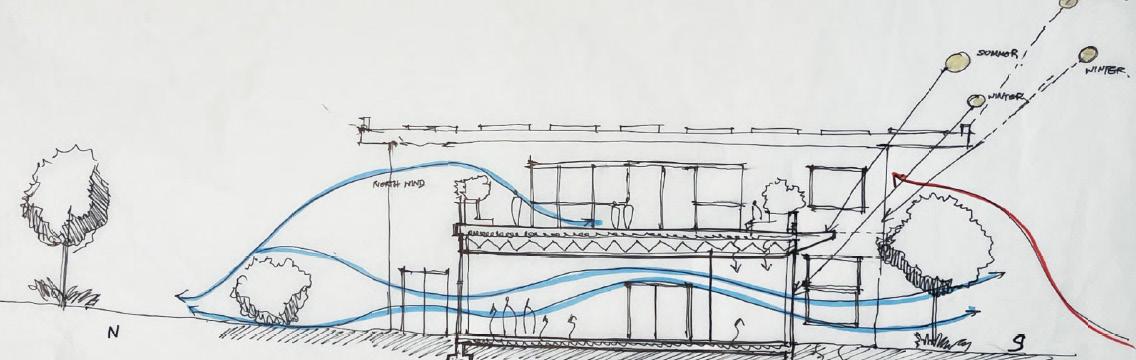

Early Design Concepts

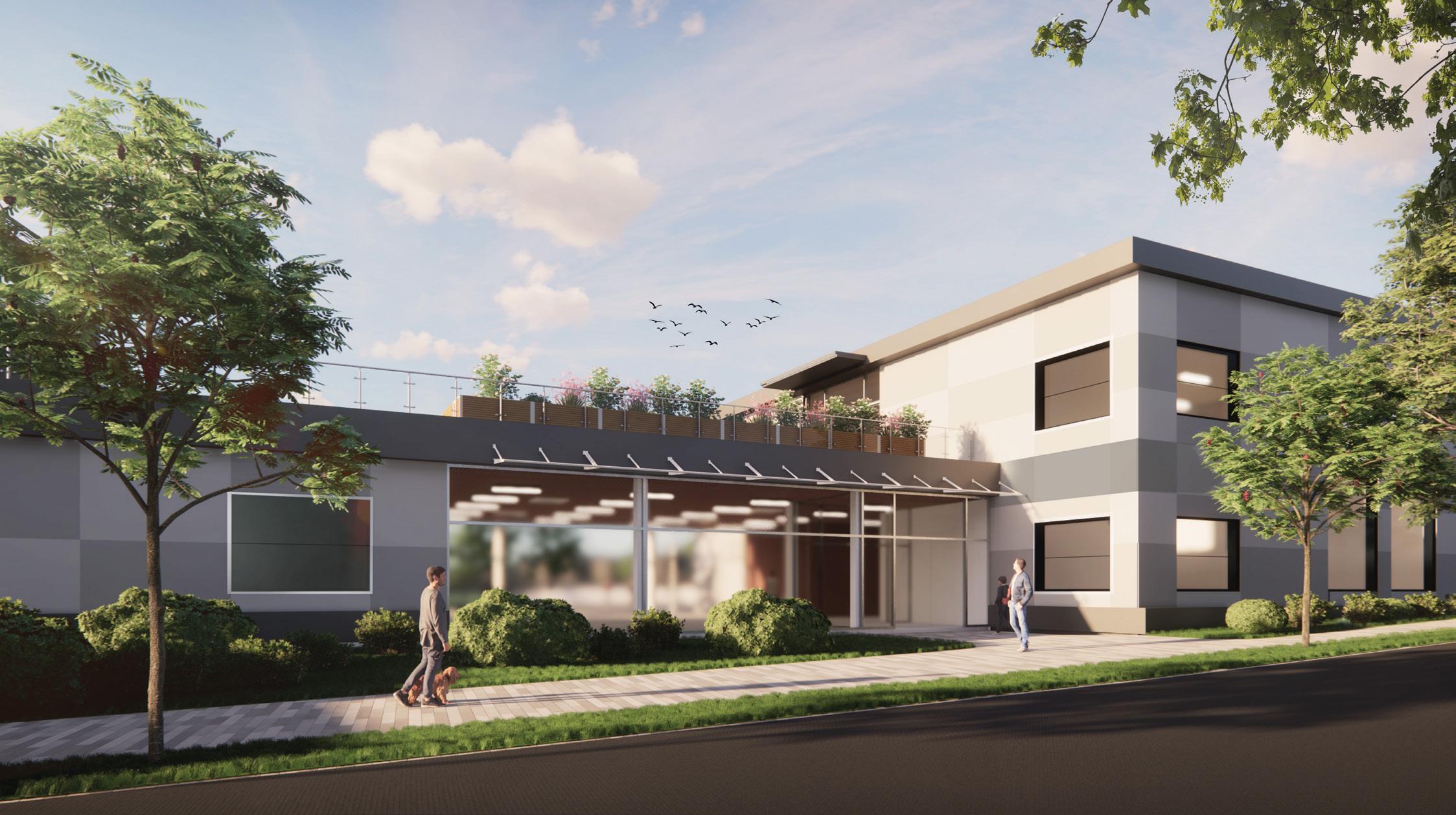

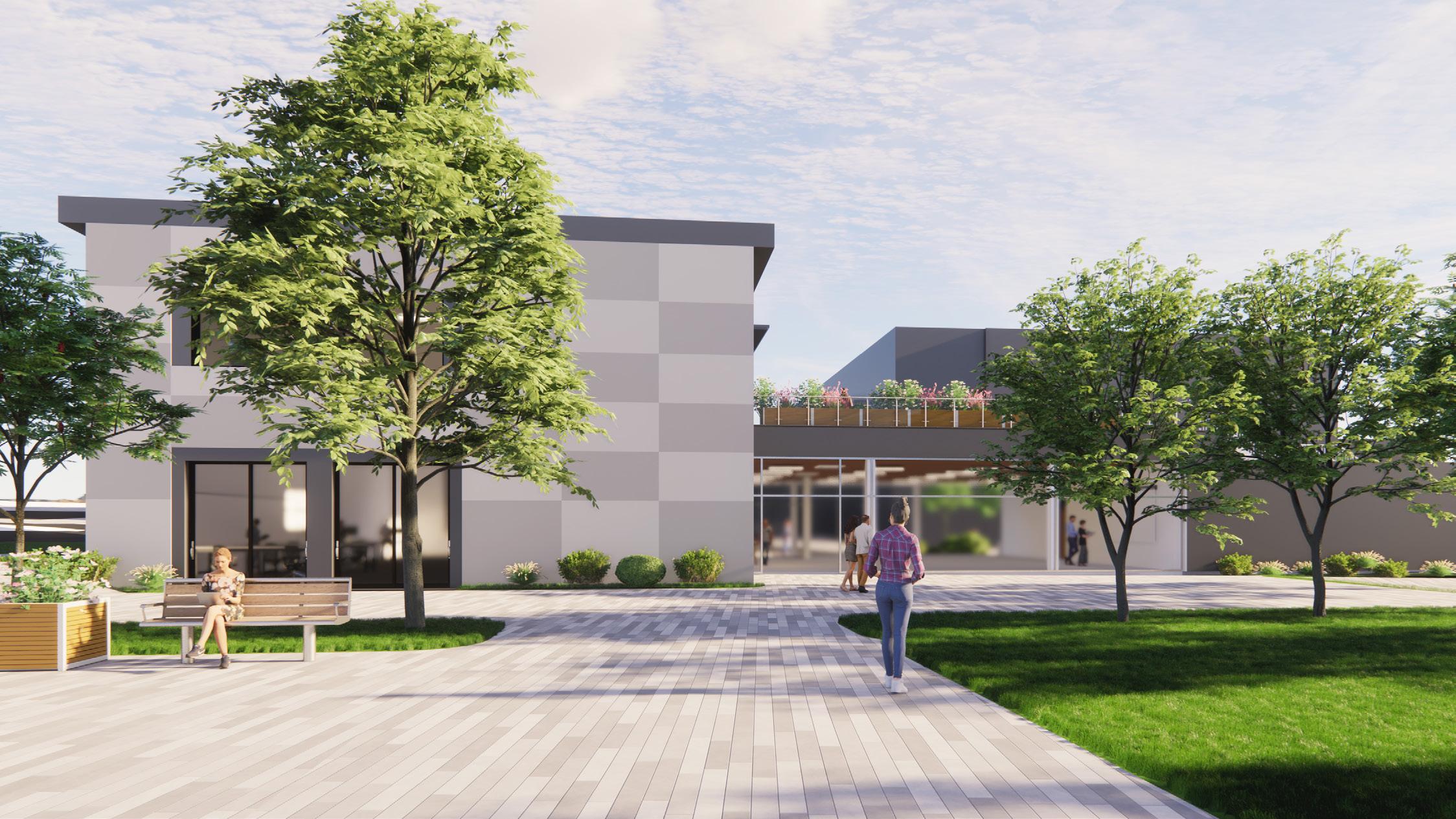

Front Entrance

Section - A

Section - B

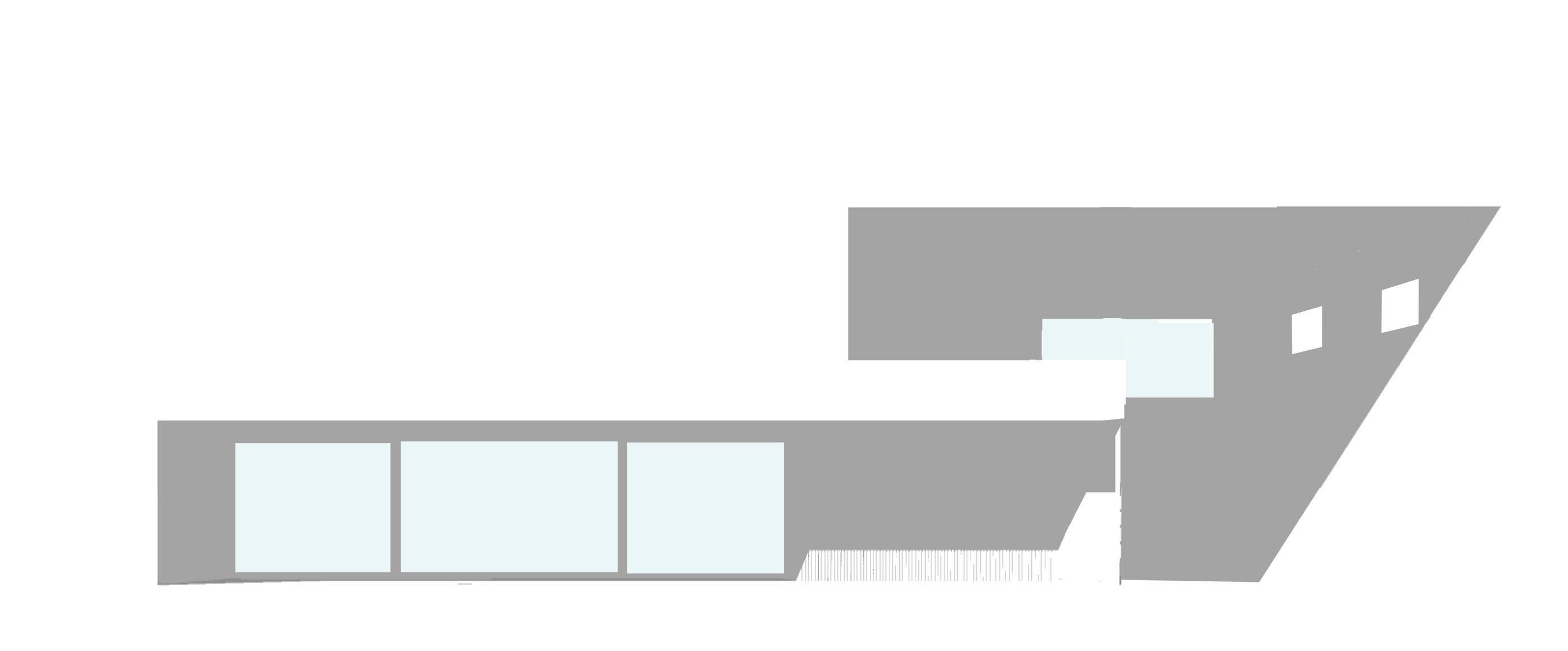

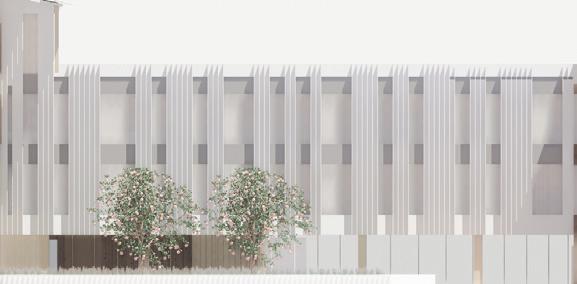

Elevation - Front

Elevation - Rear

Elevation - West

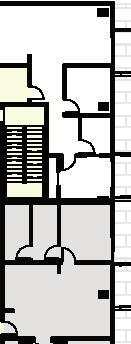

Elevation - East 1. Lobby

Public Event Space

Admin Office

Bathrooms

Research Library

Research Lab

Storage

Open Office

Loading + Trash

Mech Room

Mezzanine

Outdoor Space

Green + Solar Roof

C - Chanel Openings + Mass.

Rear Plaza

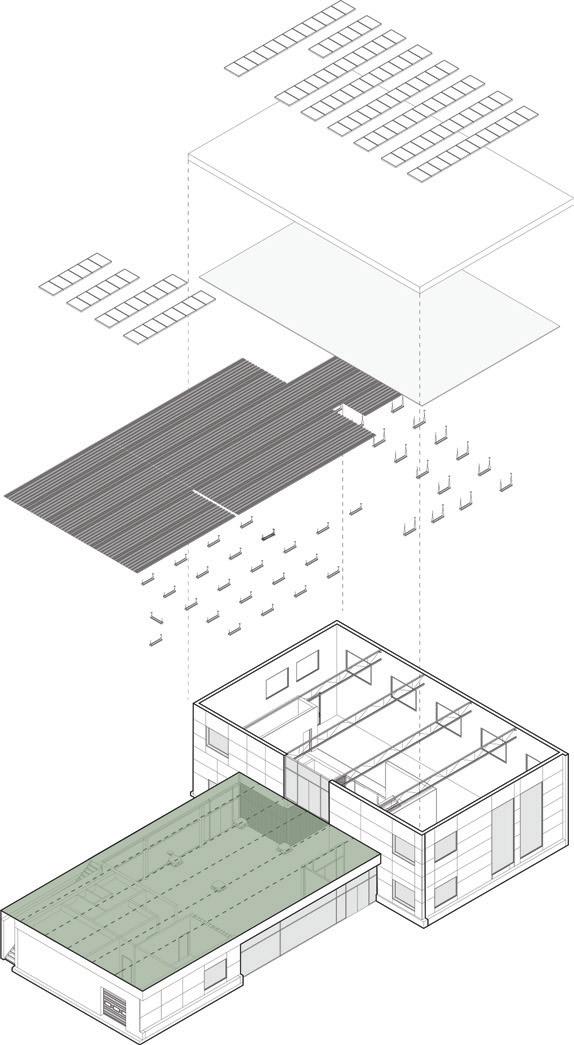

1. West Roof Canopy 2. 36” Webbing Joist

3. Wooden Ceiling

4. 30” Webbing Joist

5. 30” I-Beam

6. Polished Floor Sheathing

7. Concrete Floor

8. Concrete Slab Foundation 9. Rigid Insulation 10. Gravel Layer 11. 36” Concrete Footing 12. Operable Windows

A-1. Grass & Vegetation

A-2. Engineered Soil

A-3. Drainage Element, Root Barrier

A-4. Rigid Insulation

A-5. Waterproof Membrane

A-6. Protection Board

A-7. Vapor Retarder

A-8. Concrete Deck

B-1. Wood Nailer

B-2. Flashing Membrane

B-3. Roof Membrane

B-4. Cover Board Insulation

B-5. Thermal Rigid Insulation

B-6. Vapor Retarder Membrane

B-7. Metal Roof Deck

B-8. 36” I-Beam

C-1. Interior Drywall

C-2. Polyethylene Thermal Insulation

C-3. Sealant and Backer Rod w. Anchoring Bracket

C-4. Air and Moisture Barrier

C-5. Rigid Insulation

C-6. Metal Cladding Material Selection

The Bethesda Community Think Tank achieves energy efficiency with an EUI of 22.4 kBtu/ft²/year, surpassing the national median for community centers. Its sustainable design, featuring solar panels and green roofs, highlights its commitment to highperformance practices.

Glass L. Aluminum Cladding

D. Aluminum Cladding Wood Panels Light Concrete

Dark Concrete

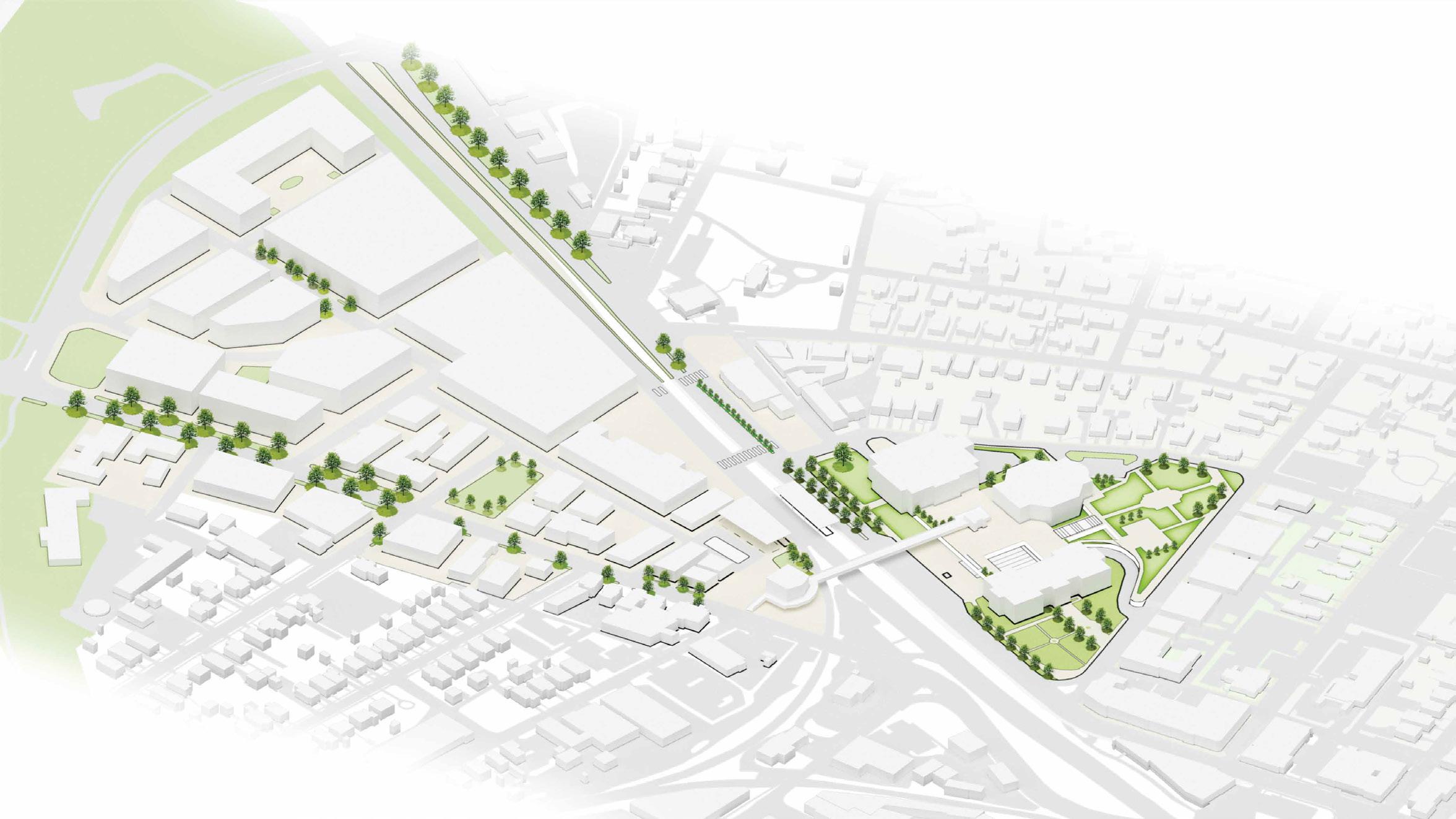

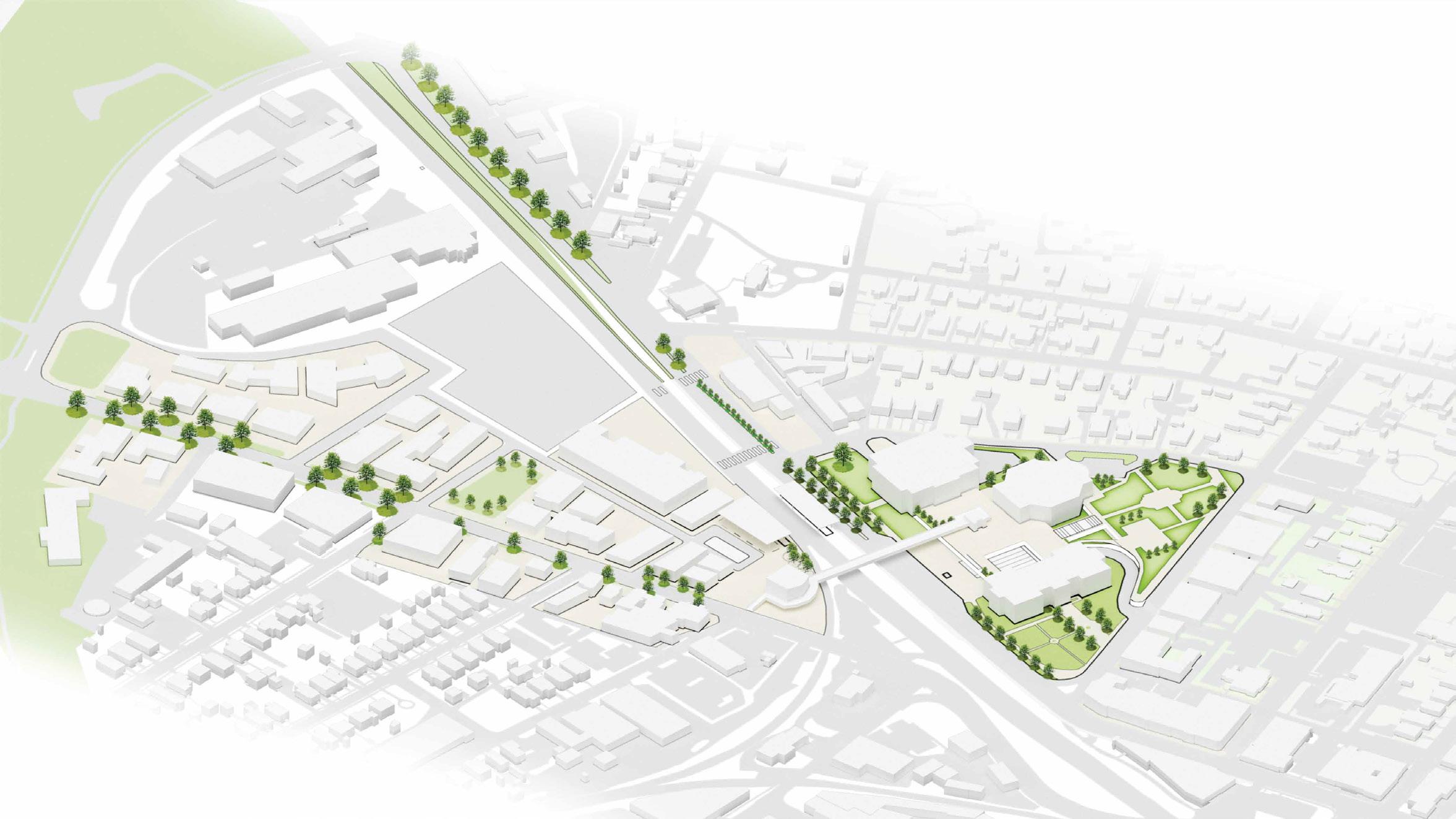

Master Plan Axon

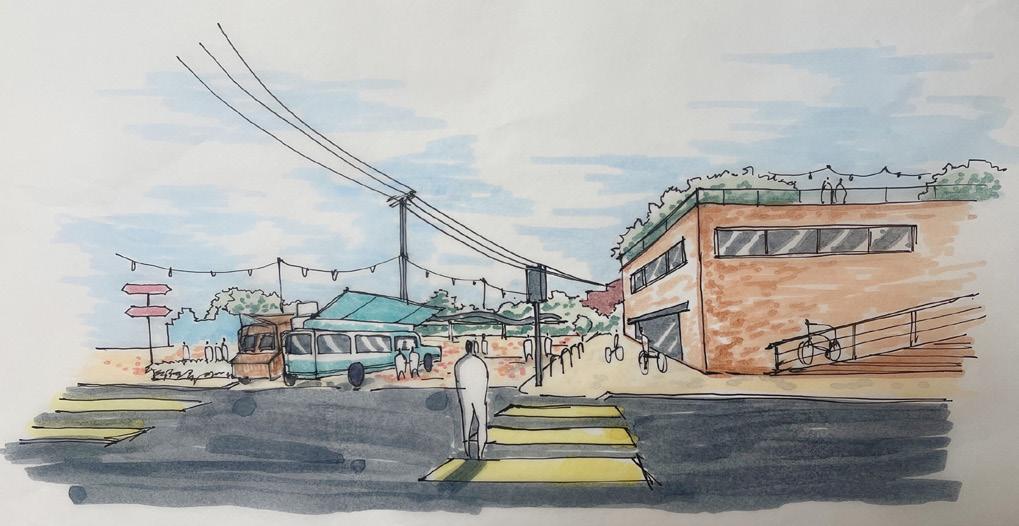

Artist Crossing

Hyattsville, MD, USA

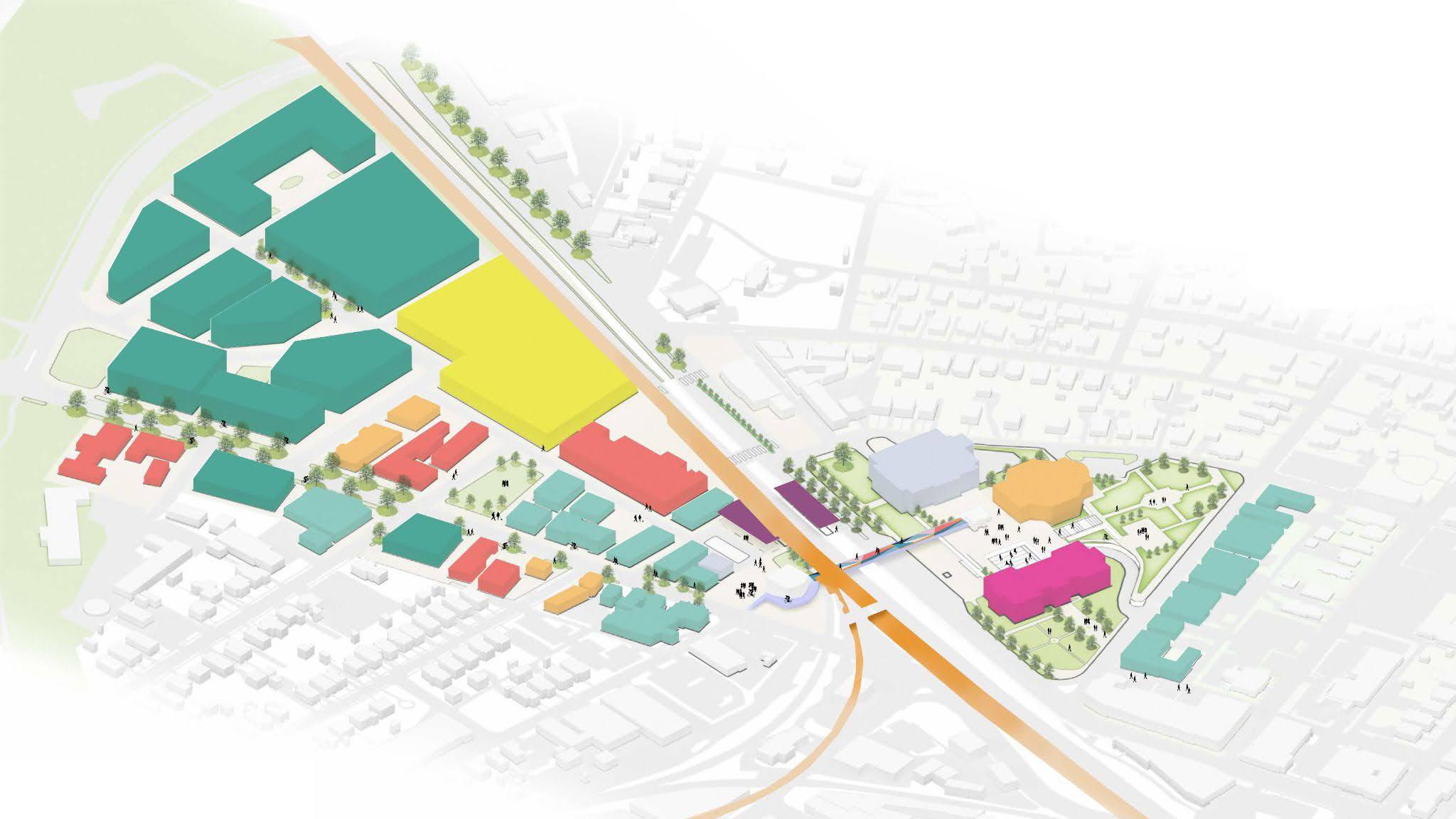

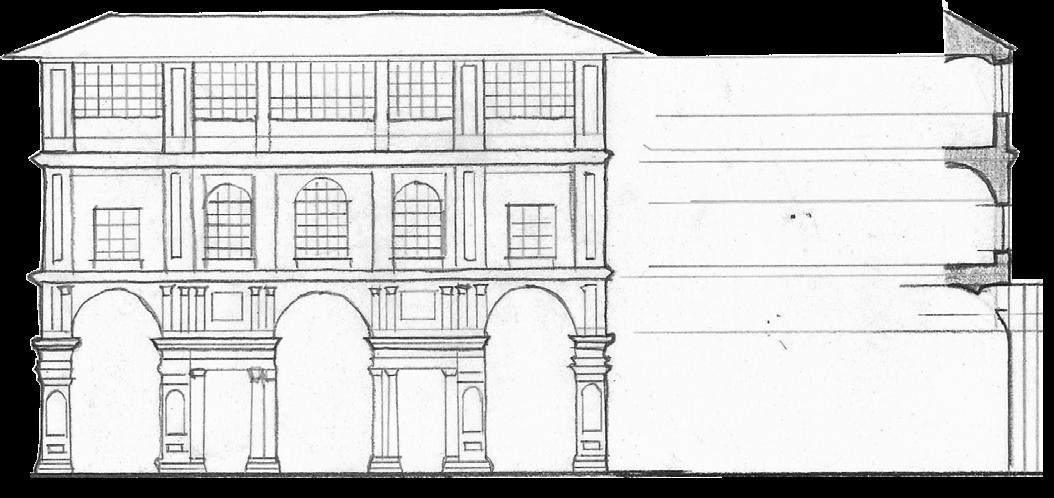

Artist’s Crossing transforms the vacant justice building and its immediate surrounding site while addressing the disconnect within the City of Hyattsville. With a prominent rail line separating two arteries, this project envisions a stop between both them, Artist’s Crossing. Aligning with the City of Hyattsville’s vision of a developed arts district, the proposed station addresses the need for increased development while also bridging the gap between both areas. Artist’s Crossing aspires to foster housing, commercial growth, and social interaction, making the City of Hyattsville a hub for art and community engagement.

In Collaboration with: Ploy Pipatpongsa, Sandra Marino, Abduref Hussien

Drawings: Renders: Revit, Rhino3D, Illustrator, Photoshop

Sketching, Photoshop

RhodeIslandAve. Baltimore Ave.

Promotional Posters

Hyattsville

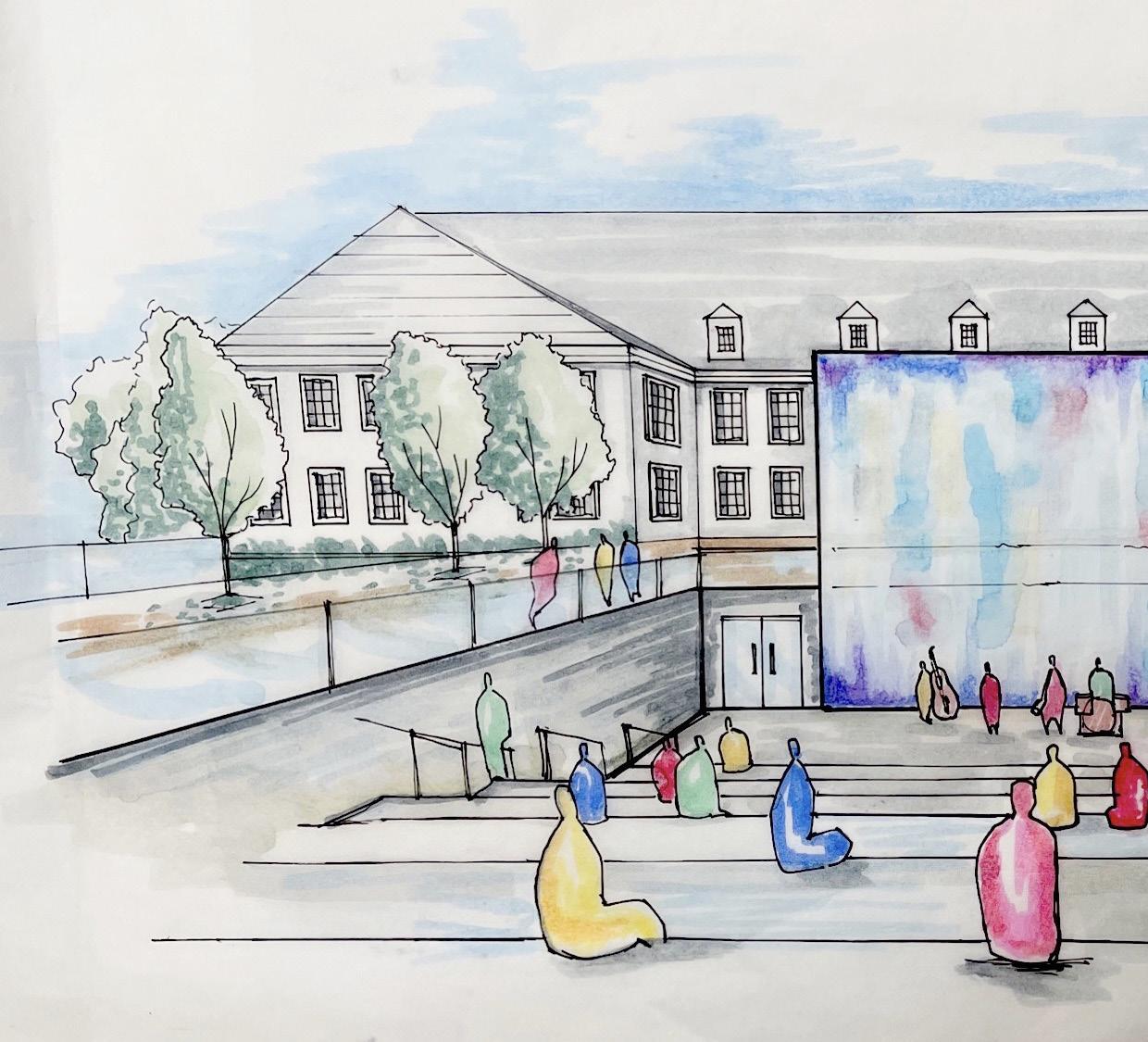

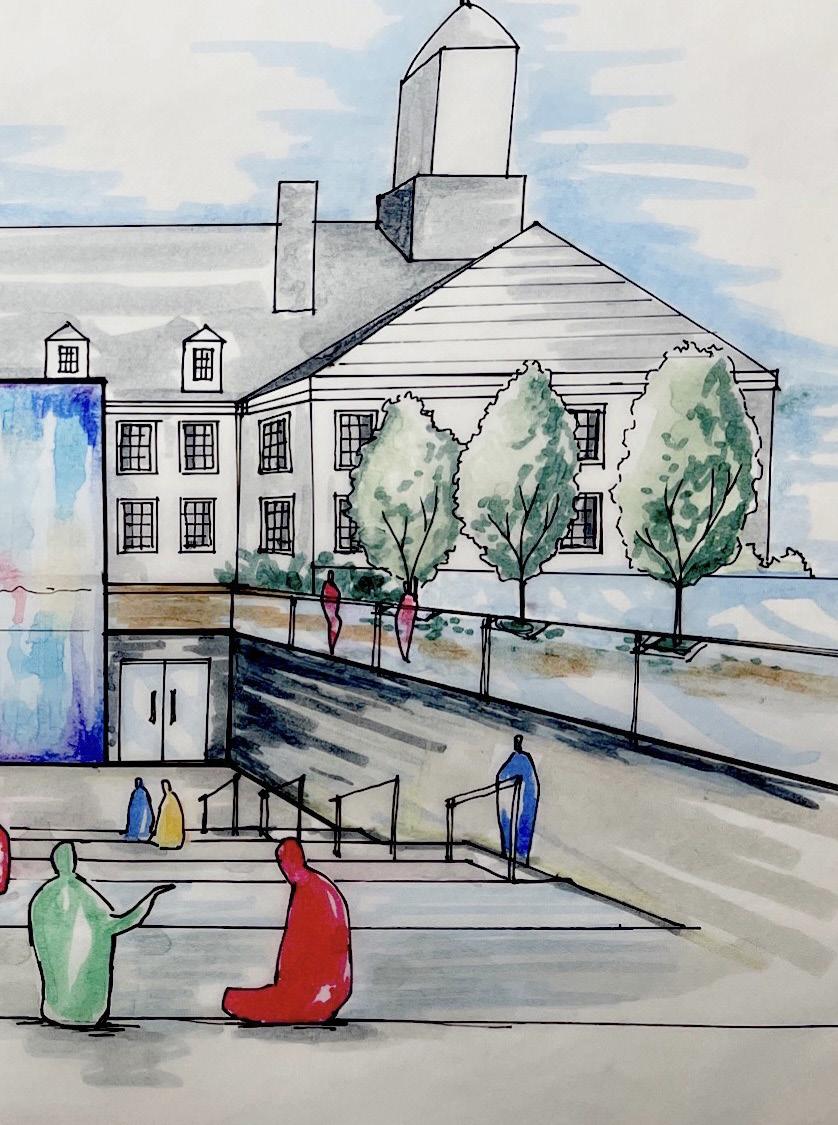

A - Performance Plaza

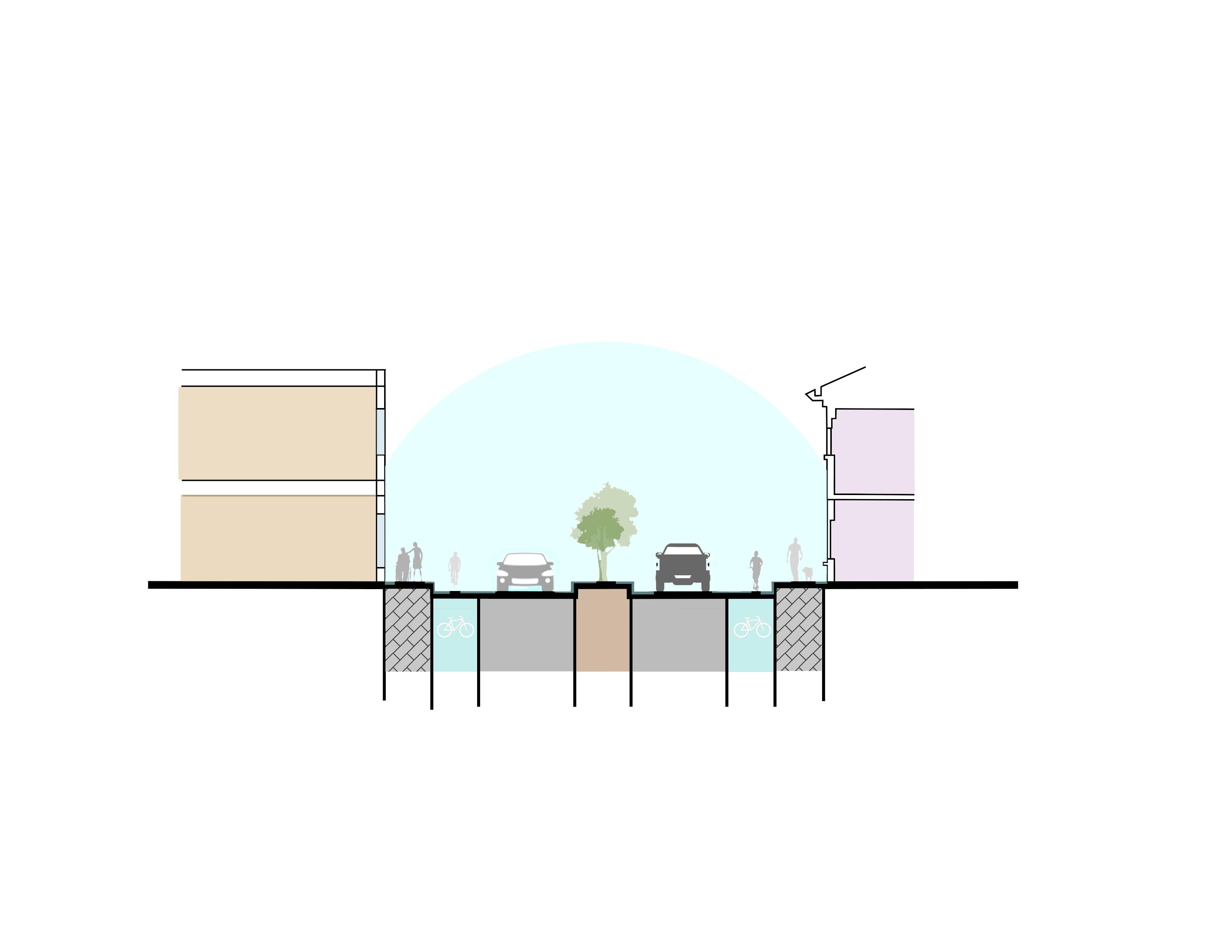

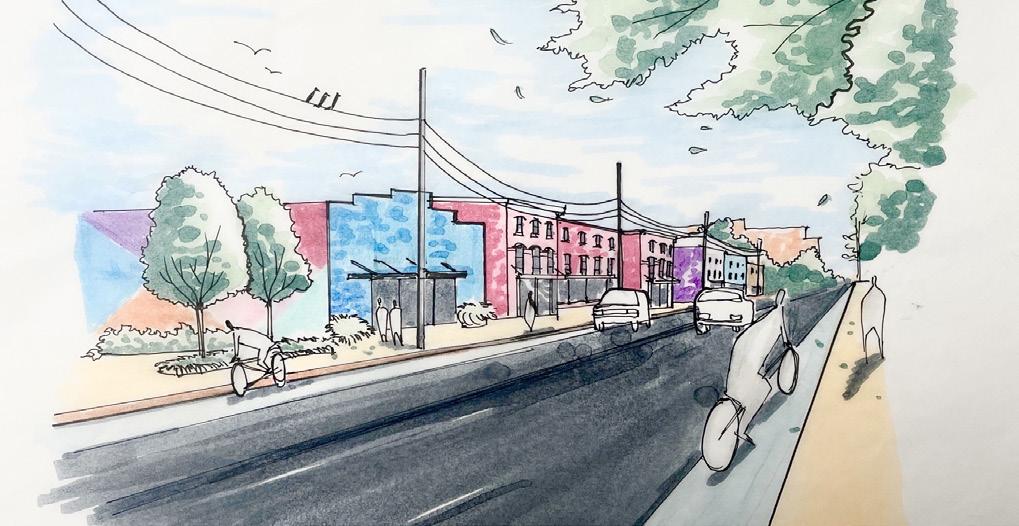

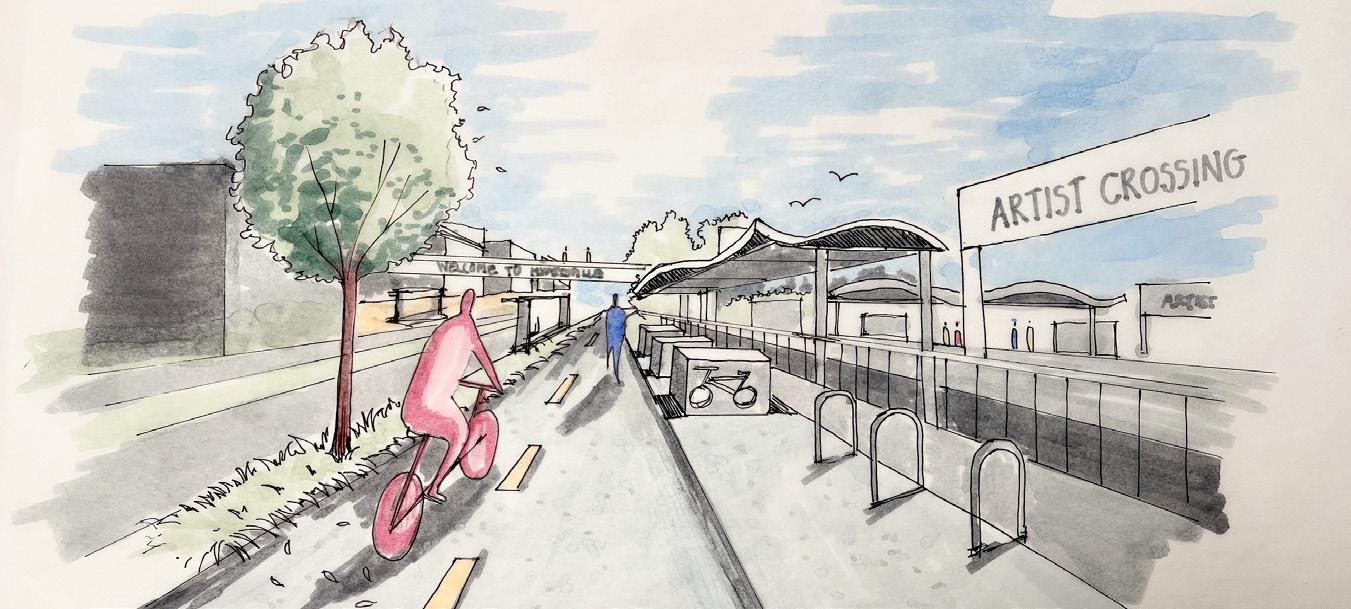

C - Station + Bike Lane

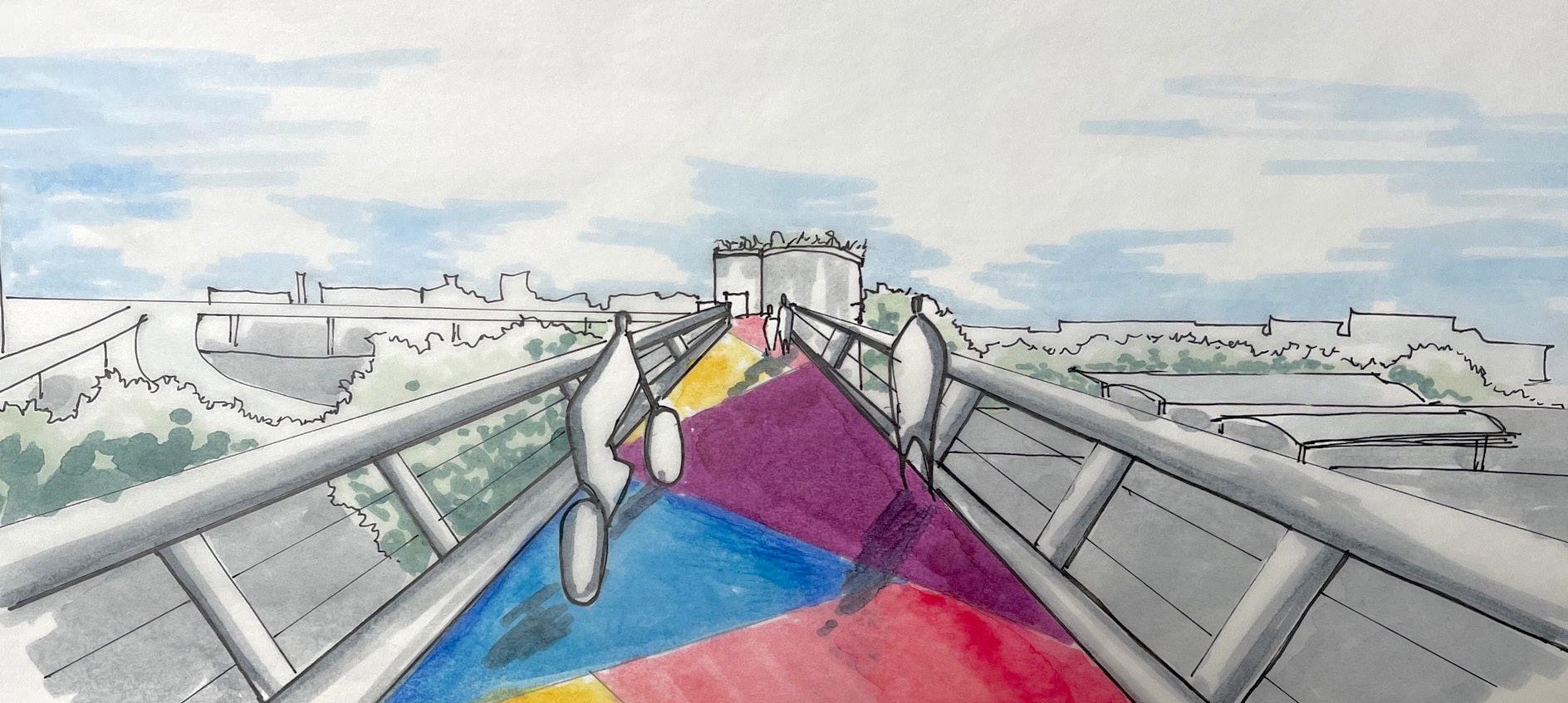

B - Pedestrian Bridge

Sculptor garden

The Transparent Gallery

The Transparent Gallery was designed to create spatial sequences that would allow for areas of movement within a fictional gallery setting. Through the use of planes, openings, and transparent partitions, the gallery creates points of interest that permits freedom of movement between them. A closed art hall holds traditional forms of art, while the statue gallery allows for light to enter. Both halls open into a park, which leads to an outdoor exhibition space for special or rotating works to be displayed.
