CENTRAL NORTH SIDE SELECTED WORKS

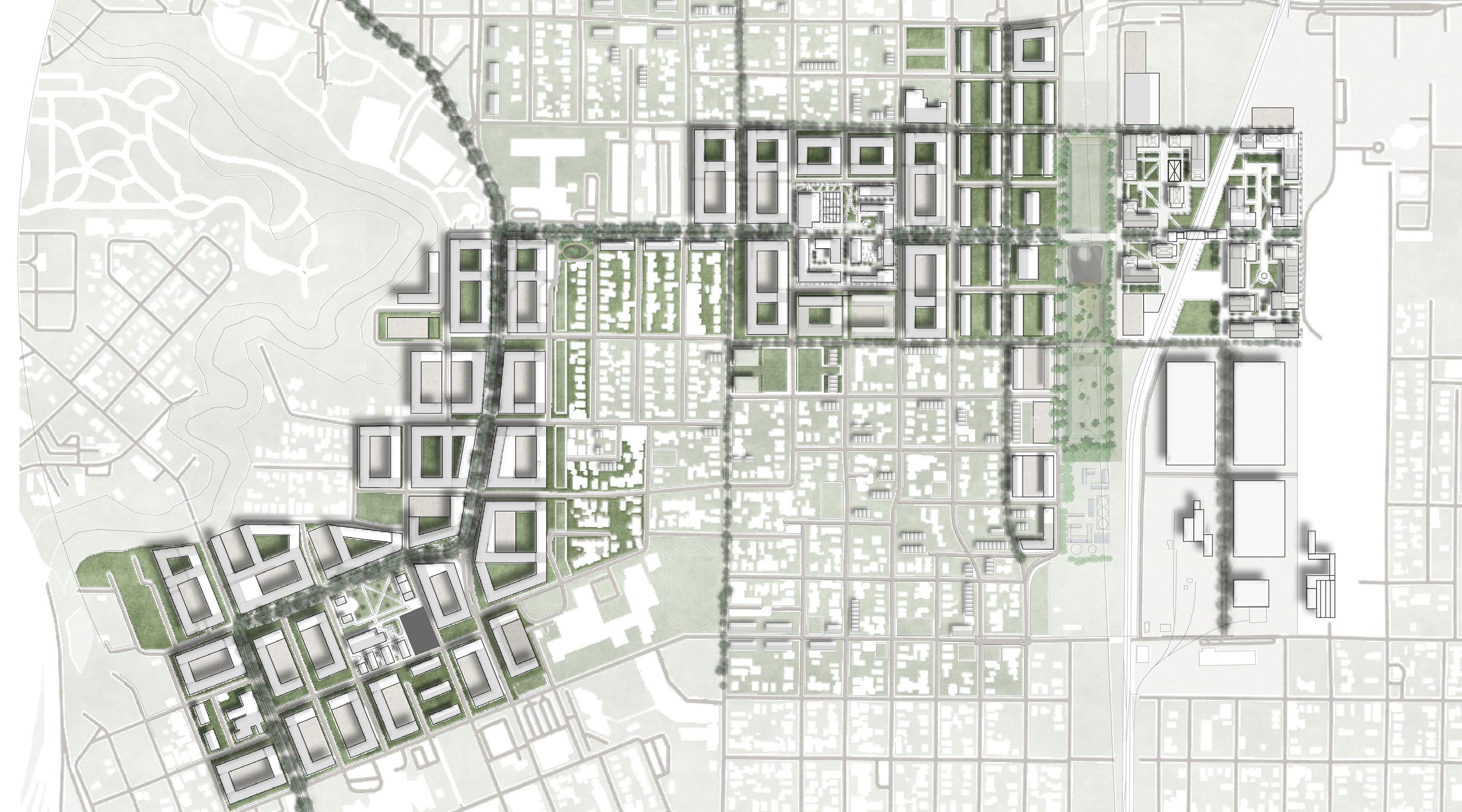

I. Central Northside Situated in Houston’s Near Northside neighborhood, this master plan seeks to preserve the existing community and its heritage, while pivoting towards future oriented energy and career pathways. Biotech labs, factories and schools will be created to provide long lasting education and careers for the community. With a focus on adaptive reuse, infill development, and community projects, this plan seeks to revitalize the existing neighborhood while upholding its essence.

Software Used: Rhino, AutoCAD, Illustrator, Photoshop, Midjourney Group Members: Khang Do, Flavie Giquel, Adil Mohammed, Salim Omar, Jehanne Bihan

PORTFOLIO

KHANG DO

Bio Campus

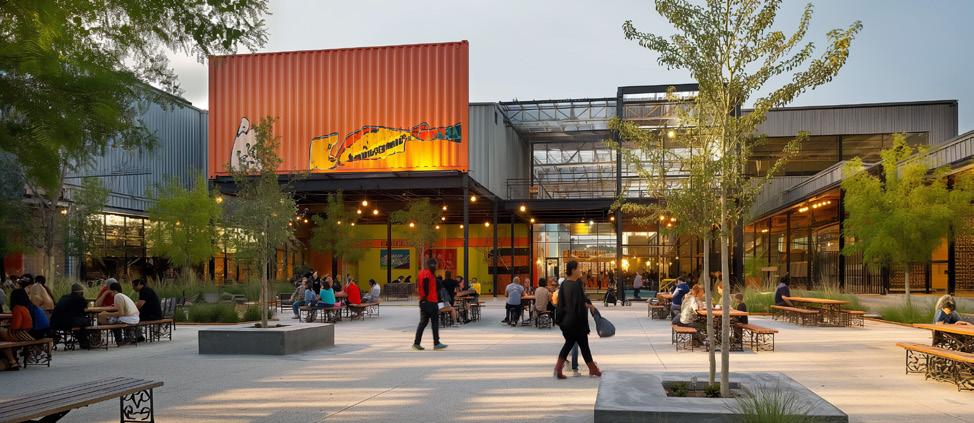

Museum Plaza

A campus for biotech students and professionals with a Satellite University, R&D Laboratories, Manufacturing Factory, and Supporting Industries

A cultural plaza with heavy adaptive reuse of warehouses and factories. Lush greenery, event spaces, commercial buildings, and restaurants surround the museum that acts as an anchor.

CENTRAL NORTH SIDE SELECTED WORKS

10’

8’

4’ 2’

11’

11’

2’

10’

4’

8’

70.00’

60.00

12.00

60.00

16.00

18.27

105.73

124.00

20.00

10.00

88.00

268.00

Street Sections

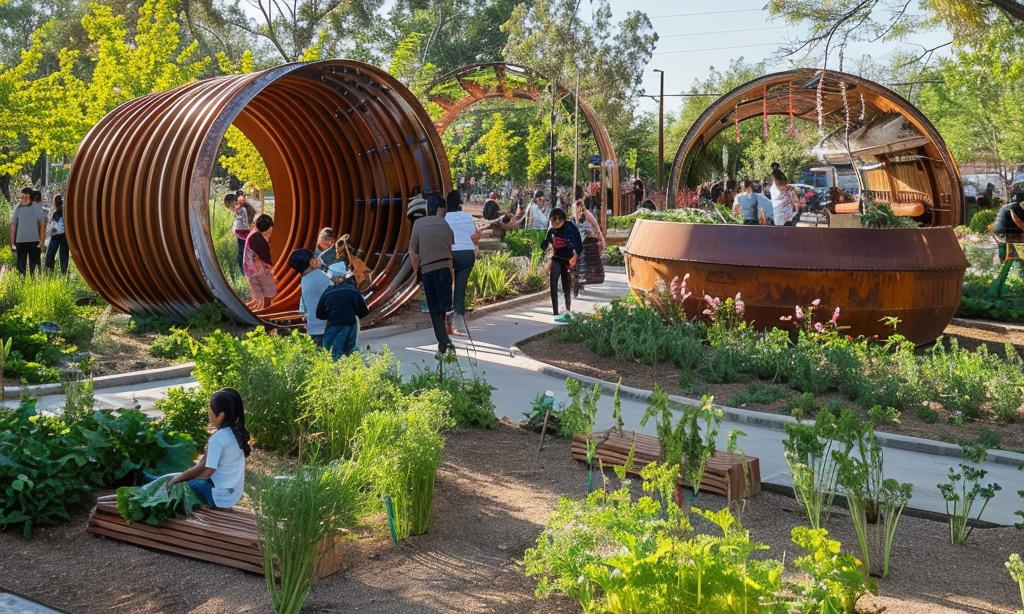

HeriTank Park A park with a community center, WIC center, artists lofts, art exhibits, and restaurants for the community. Old underground storage tanks are now used as sculptures and park fixtures.

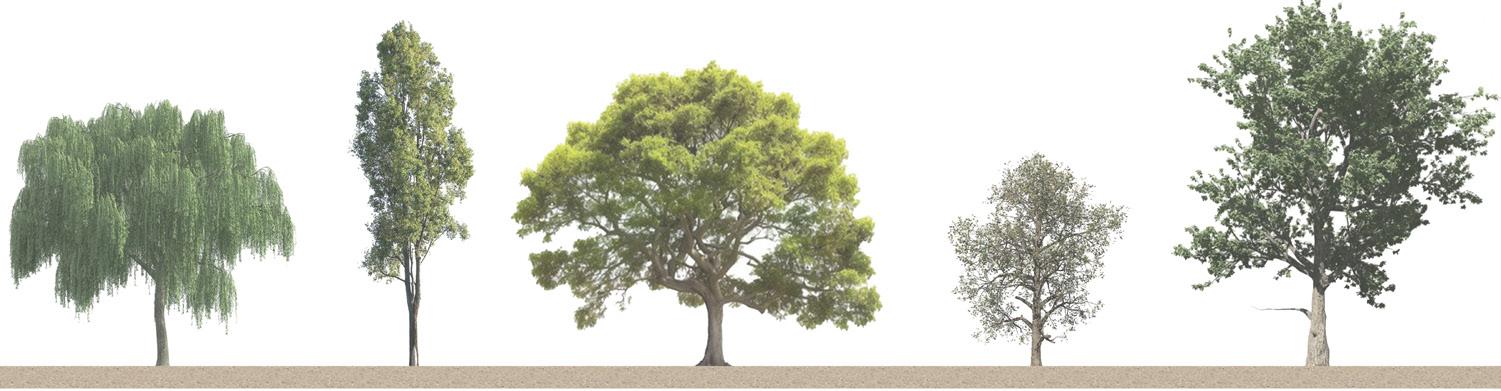

Willow

Poplar

Live Oak

Magnolia

Sycamore

Trees with dense root systems are planted on the side of the street, improving the shading and views for walkers. In addition, the deep roots will help with storm water detention and flooding issues in the area.

PORTFOLIO

KHANG DO

II. Bio Crossing Bio Crossing is a Satellite school for Life Science and Biotech majors of the University of Houston Downtown. The project is focused on providing the students as much access as possible that will allow them to have optimal and varied lab experiences, while still being a gateway for the surrounding community to have a long lasting biotech career. Focused on efficiencies and sustainability, the school seeks to optimize energy usage as much as possible without prohibiting the lab experience for students.

Software Used: Revit, AutoCAD, Illustrator, Photoshop, VRay Individual Project

BIO CROSSING SELECTED WORKS

m

riu At

s

rie

to ra bo La

Program Diagram

Cl ms

o sro as

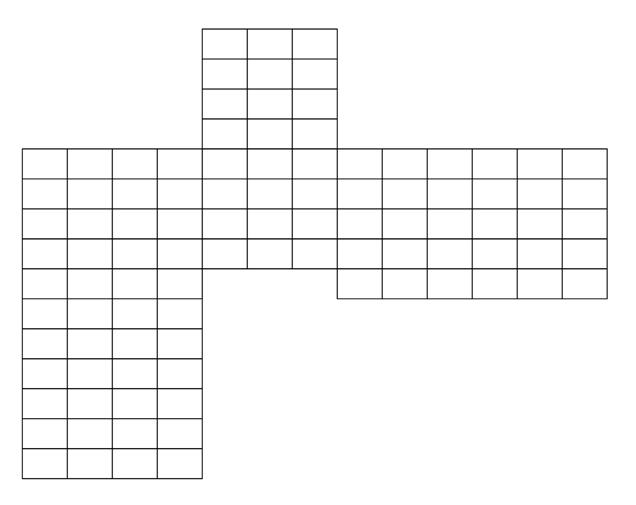

20’x30’ Structure Grid

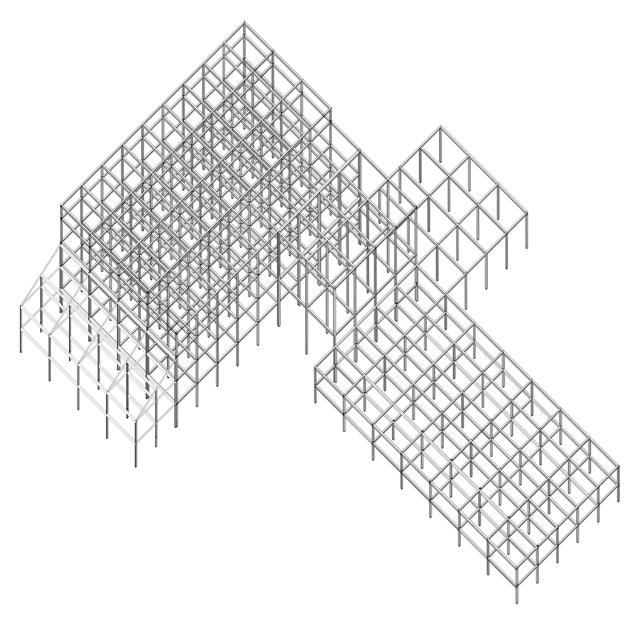

Steel Structural System

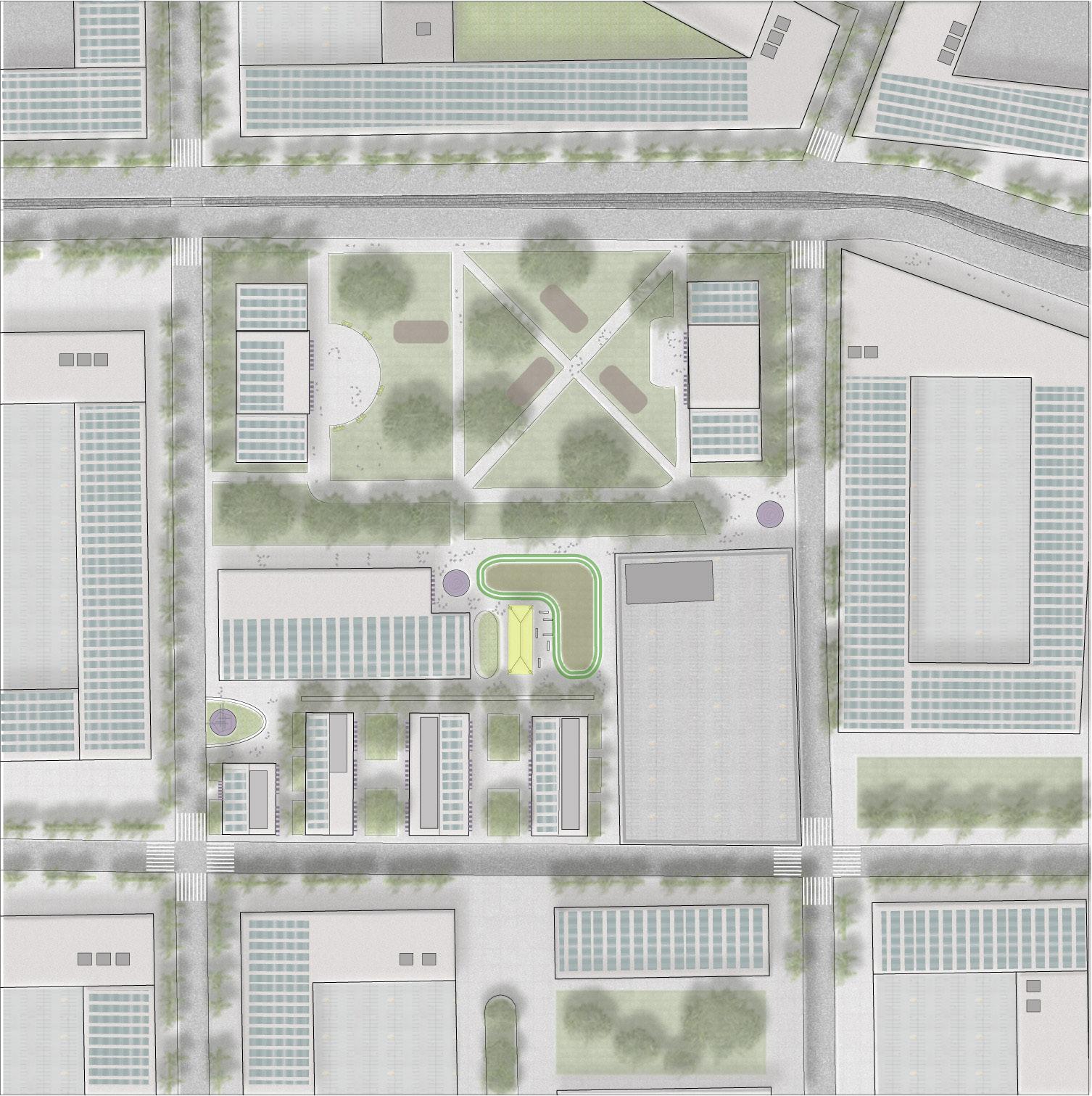

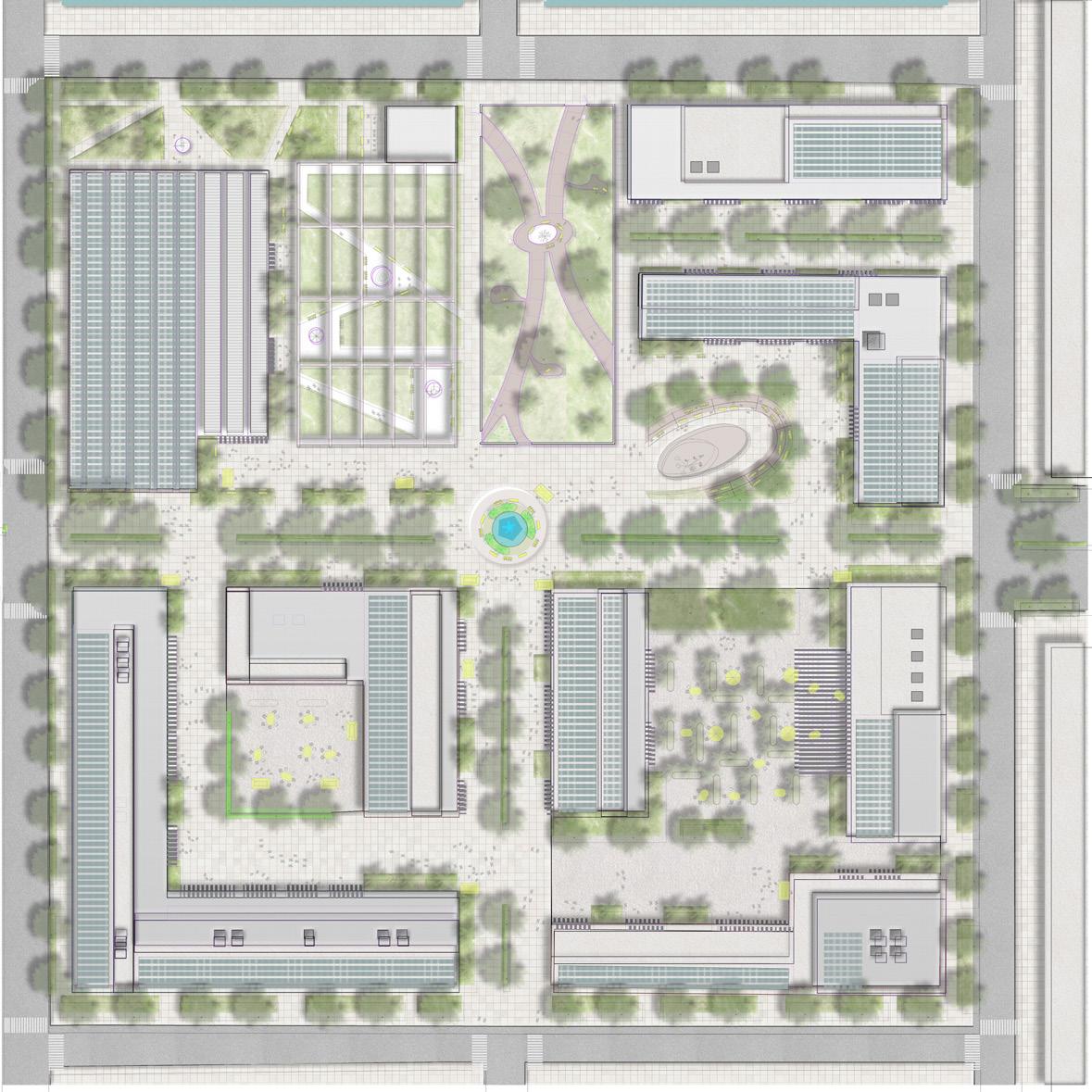

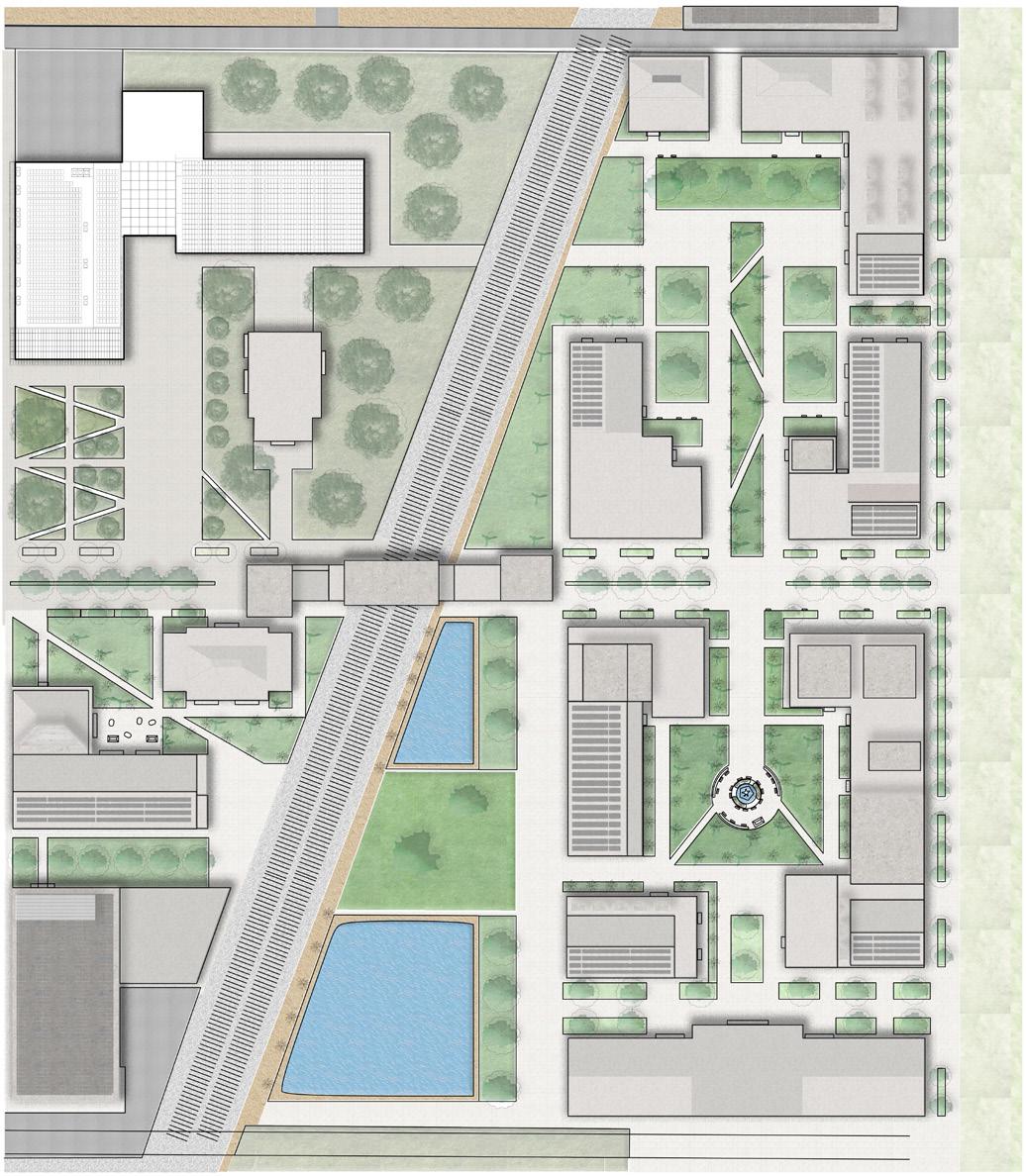

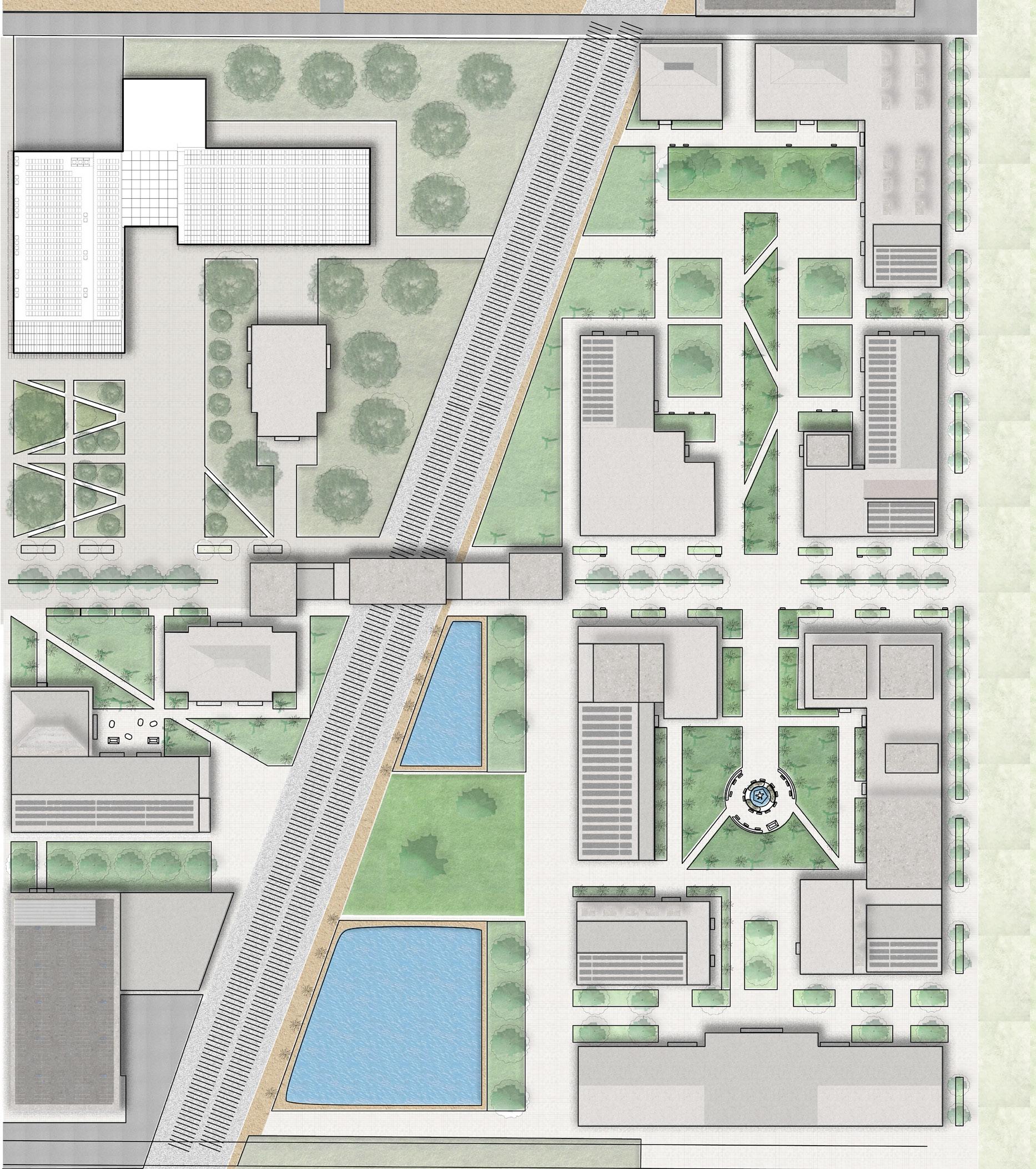

Bio Campus Site Plan

PORTFOLIO

KHANG DO

Social Areas

Office/Meeting/Admin

Laboratories

Classrooms

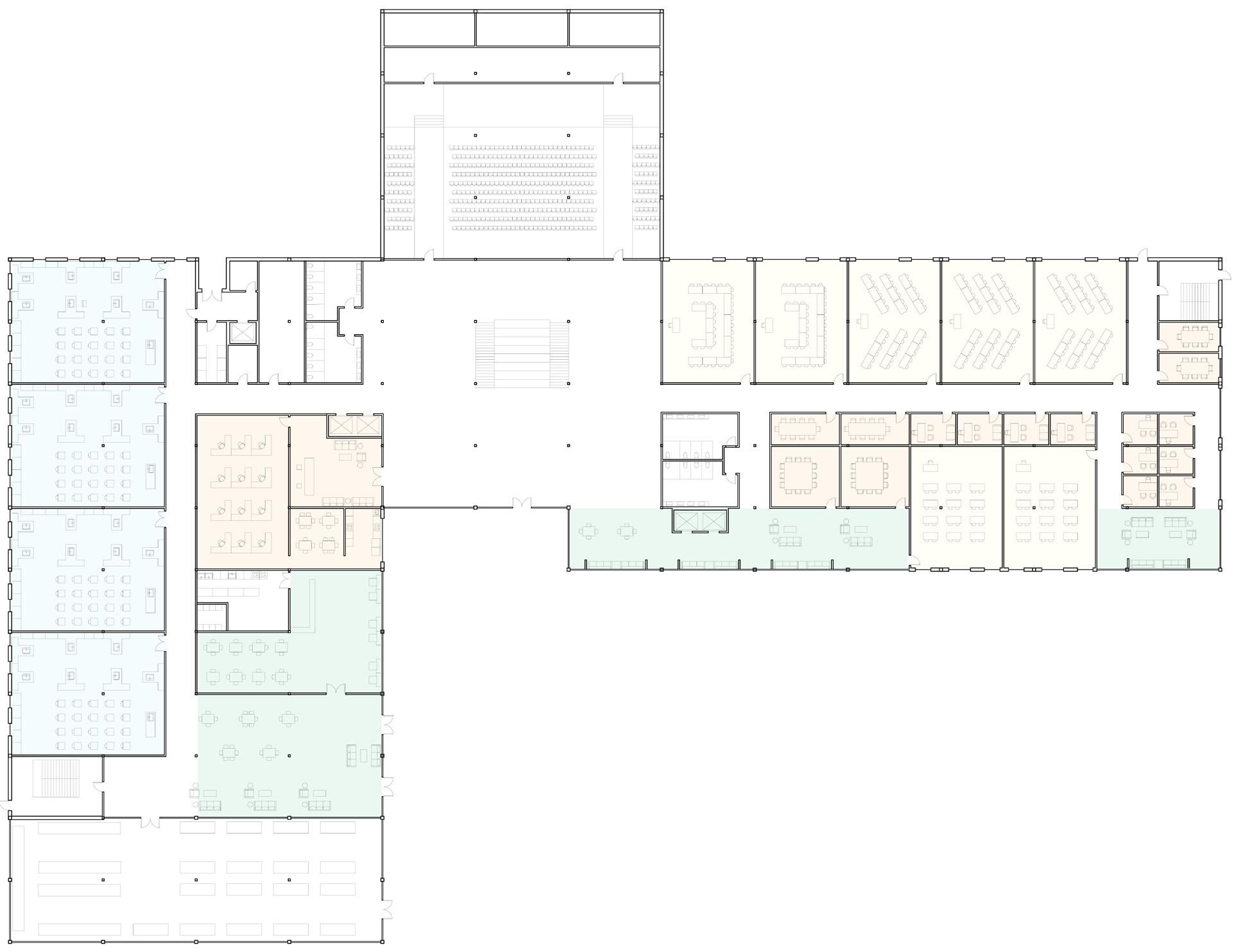

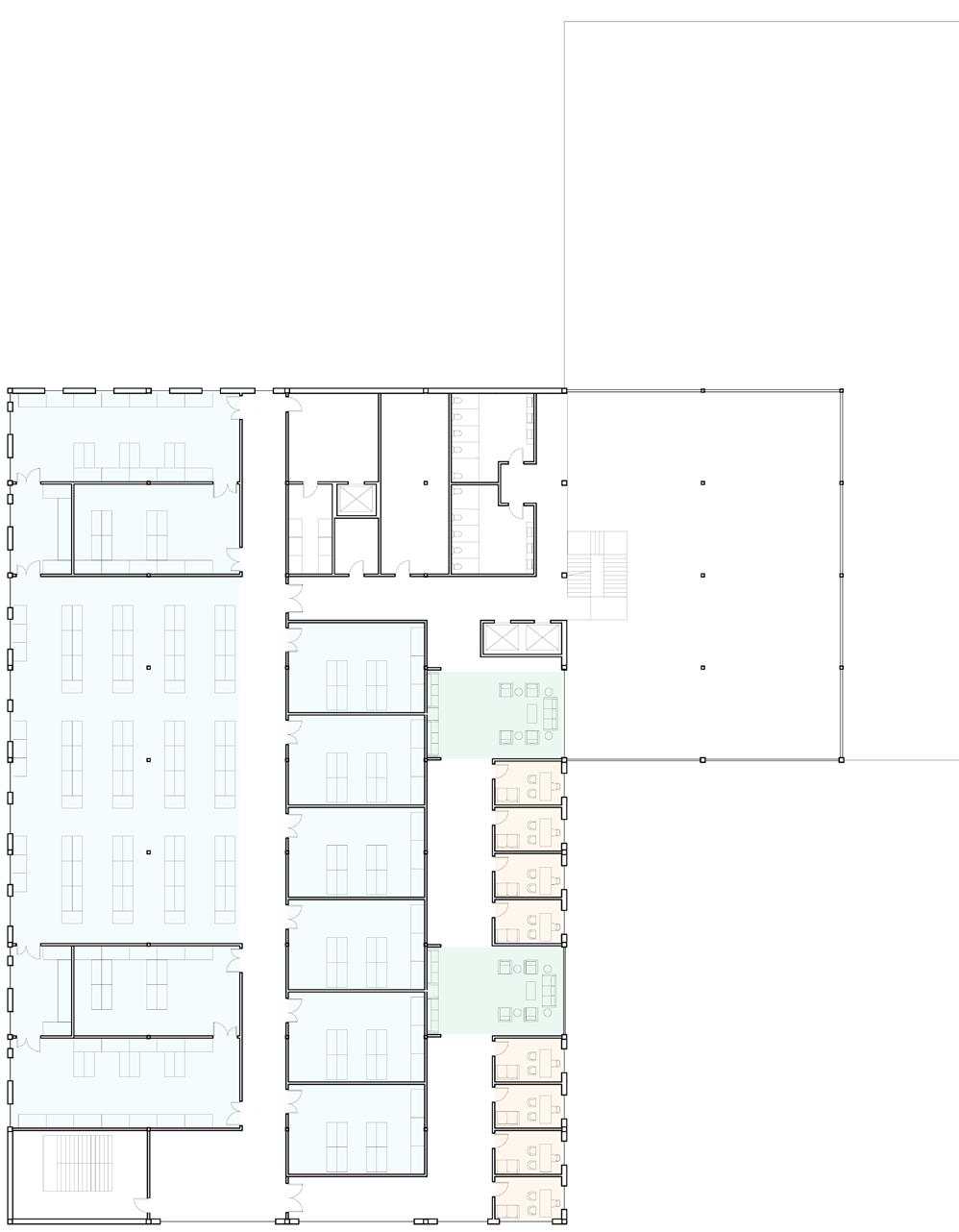

Level 1

Level 3 & 4

BIO CROSSING SELECTED WORKS

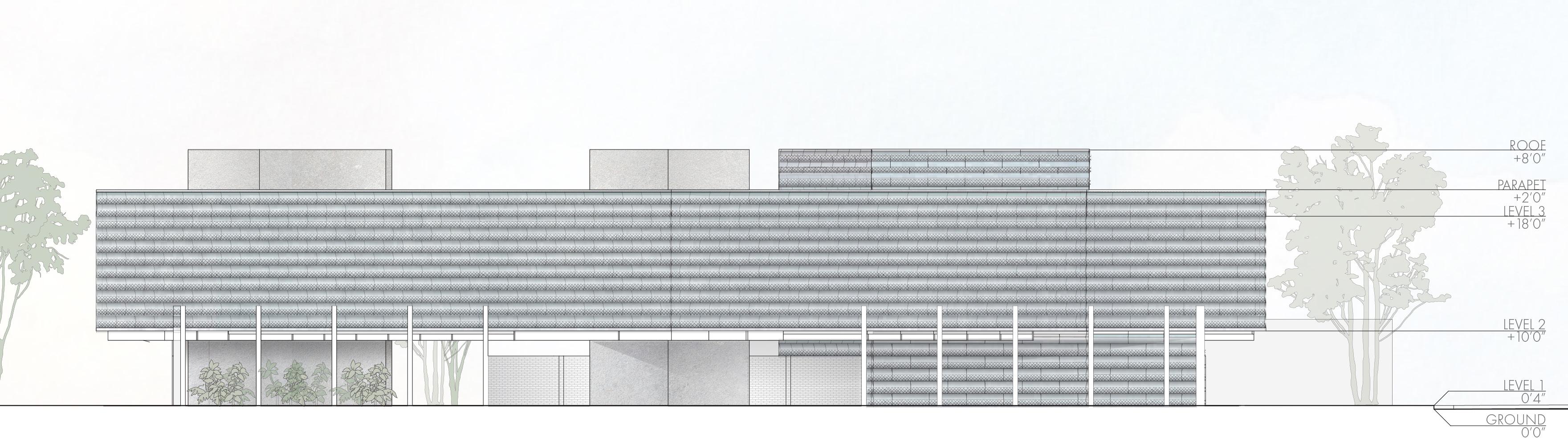

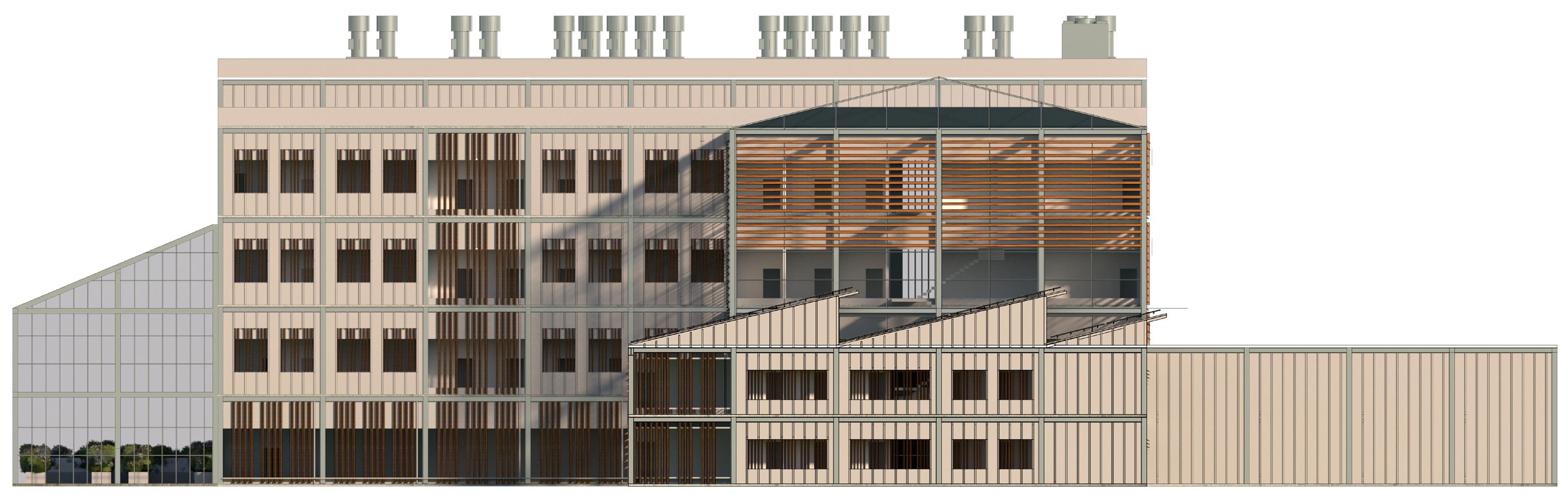

East Elevation

PORTFOLIO

KHANG DO

South Elevation

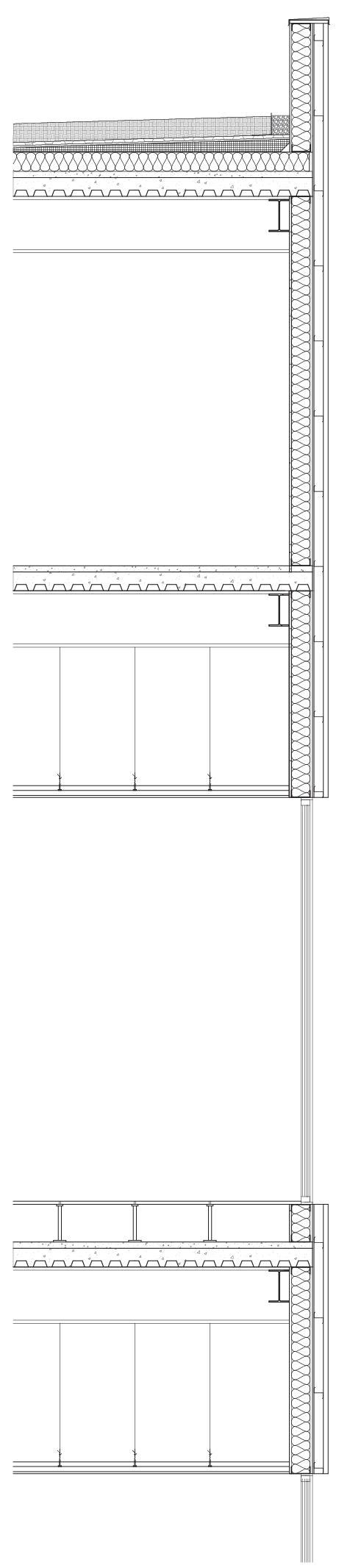

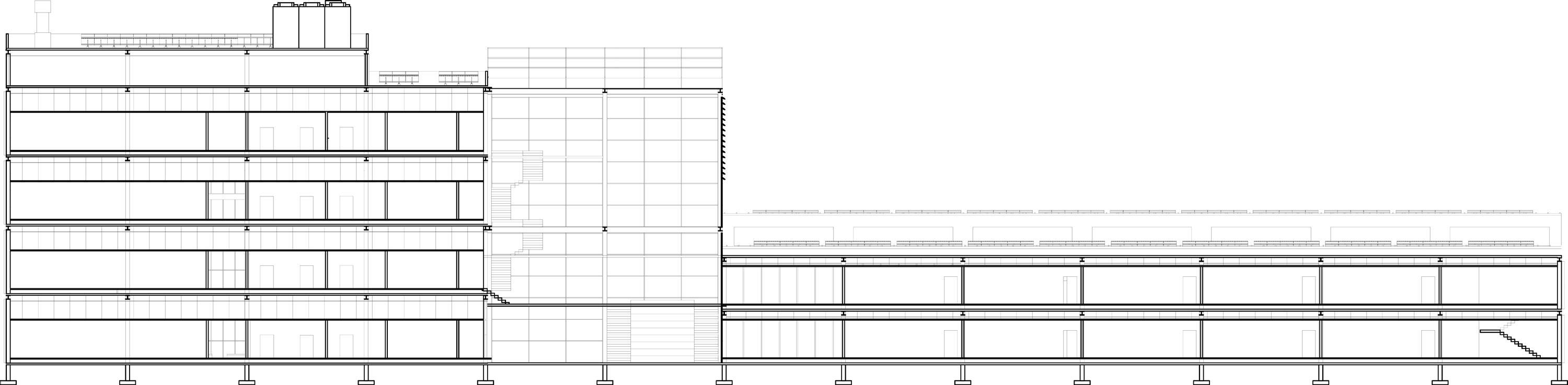

South Section

BIO CROSSING SELECTED WORKS

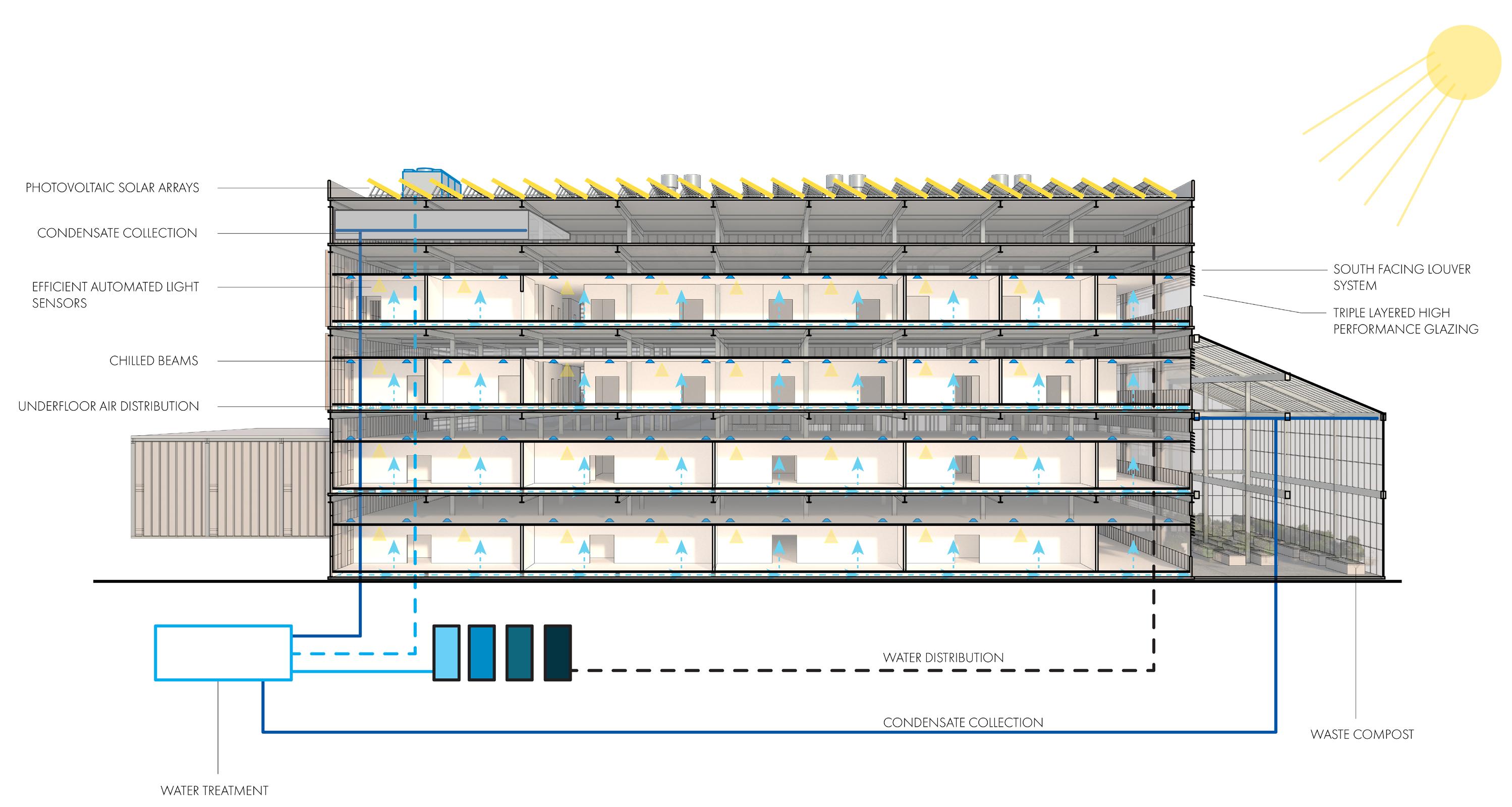

Sustainability Section

PORTFOLIO

KHANG DO

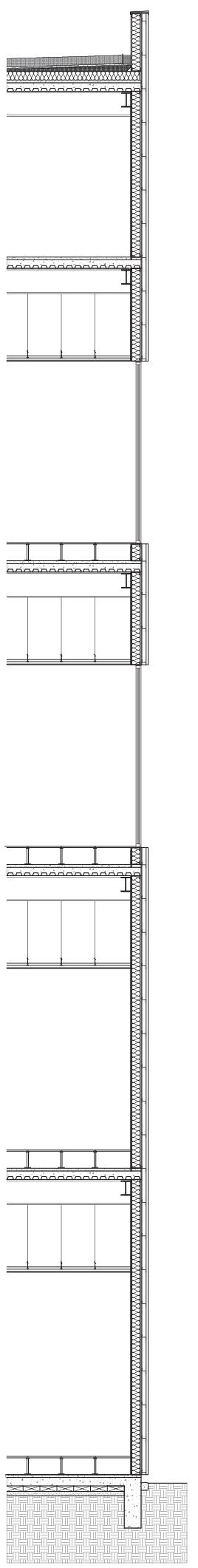

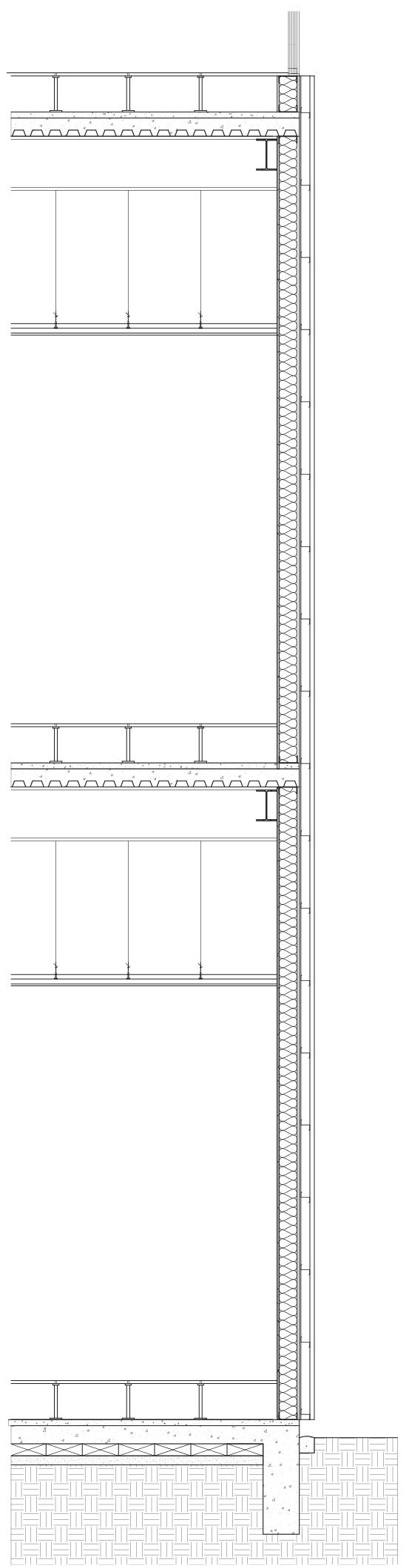

Wall Section

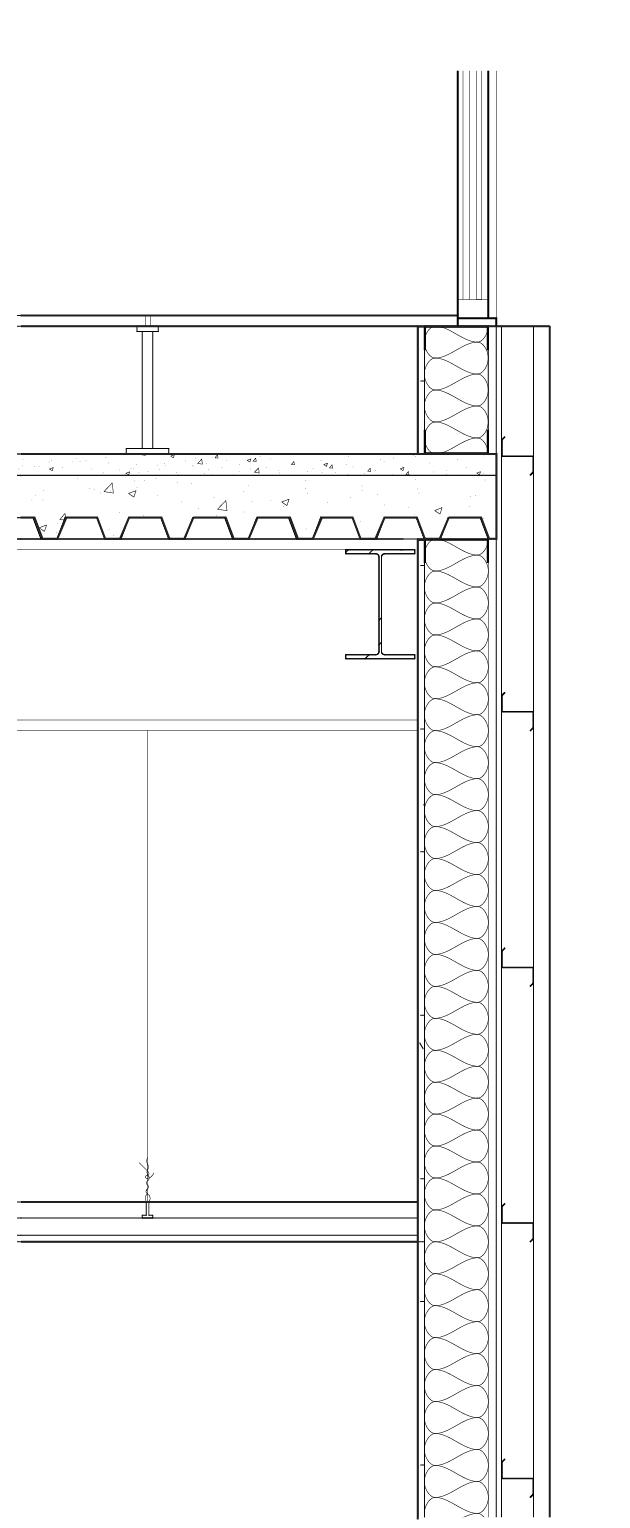

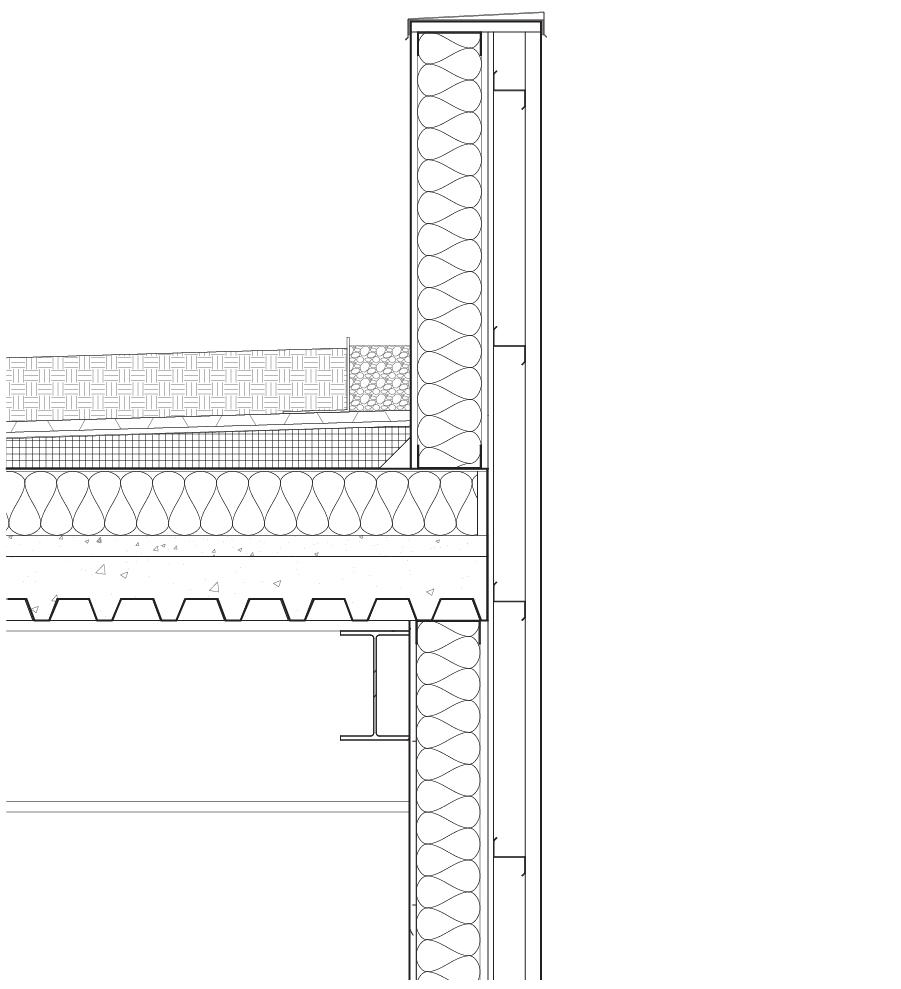

Wall Detail Level 1/2

Wall Detail Level 3/4

BIO CROSSING SELECTED WORKS Parapet Flashing Soil Gravel 1” Polystyrene Drainage Panel Gypsum Cover Board Sloped EPS Rigid Insulation (R-15) Cant Strip Roof Decking W/ Mineral Wool Insulation (R-30) 2” Bonded Concrete Screed 6” Composite Metal Deck

Triple Panel Glass W/ Pocket of Argon Gas

6’’ Metal Stud at 16” O.C. W/ Mineral Wool Insulation (R-25) 3” Z Furring Channel 3” EPS Rigid Insulation Board (R-13)

Luxury Vinyl Tile Flooring Steel Anti Static Raised Flooring

DensGlass Sheathing Board

Heavy Duty Steel Pedestal

Wall/Green Roof Detail

2” Bonded Concrete Screed 6” Composite Metal Deck 6’’ Metal Stud at 16” O.C. W/ Mineral Wool Insulation (R-25) 3” EPS Rigid Insulation Board (R-13)

Steel Beam Weather Barrier

3” Z Furring Channel DensGlass Sheathing Board Weather Barrier 2” Bonded Concrete Screed

6’’ Metal Stud at 16” O.C. W/ Mineral Wool Insulation (R-25) 3” EPS Rigid Insulation Board (R-13)

6” Concrete Mow Strip Ceiling Hanger Wire Suspension Ceiling Tee System 2x2 Ultima Airassure Ceiling Panels

4” x 12” Void Boxes 3” Sand

Corrugated Metal Wall Panel

Plastic Vapor Retarder

DensGlass Sheathing Board

Reinf. Conc. Foundation

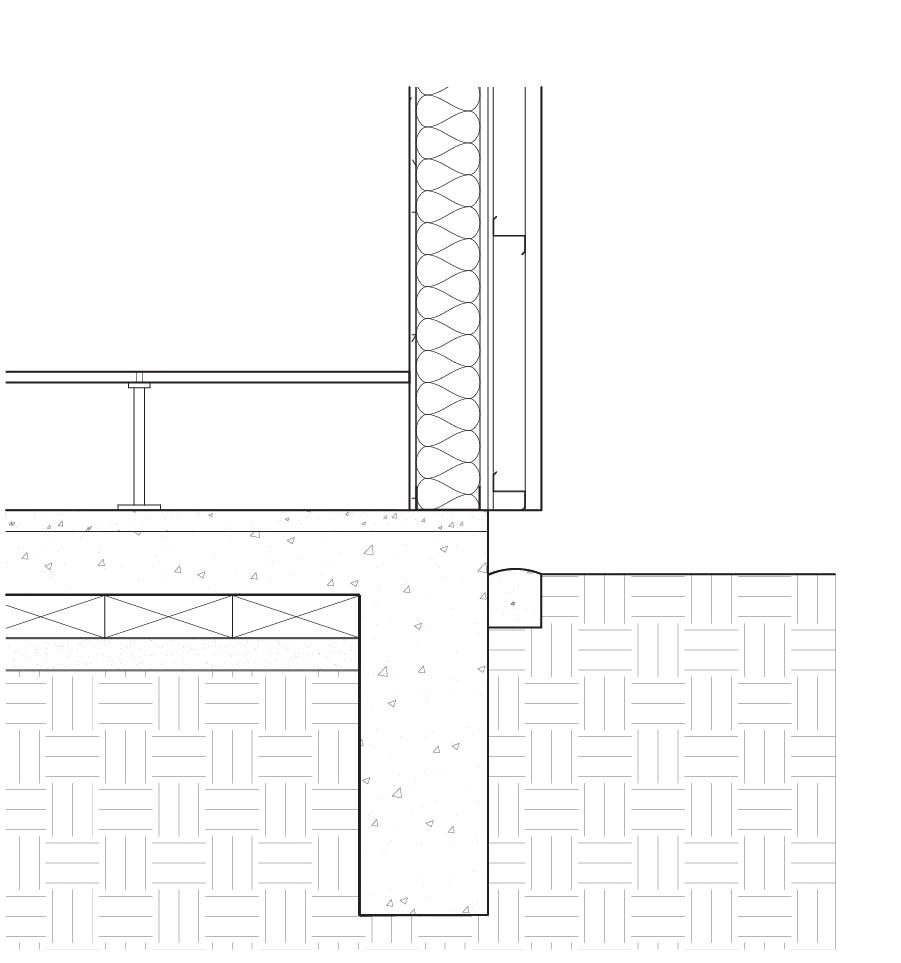

Wall/Foundation Detail

3” Z Furring Channel

Wall/Glass Detail

PORTFOLIO

KHANG DO

III. Sculpture’s Tap This mixture of beer gardens, art studios, and exhibition space seeks to uplift and represent local artists in Bellaire, Texas, while being a place of refuge for the rest of the community. The area has a noticeable lack of activity or entertainment, and deeply needed a focal point that can drive the community together. With the usage of sculpture gardens, roof gardens, and elegant frosted glass, it seeks to be an oasis from the average Houstonians daily life.

Software Used: Rhino, AutoCAD, Revit, Illustrator, Photoshop, VRay Group Members: Khang Do, Zachary Johnson, Victoria Melling

SCULPTURES TAP SELECTED WORKS

Punctured Fence Site

Hinge Form Site

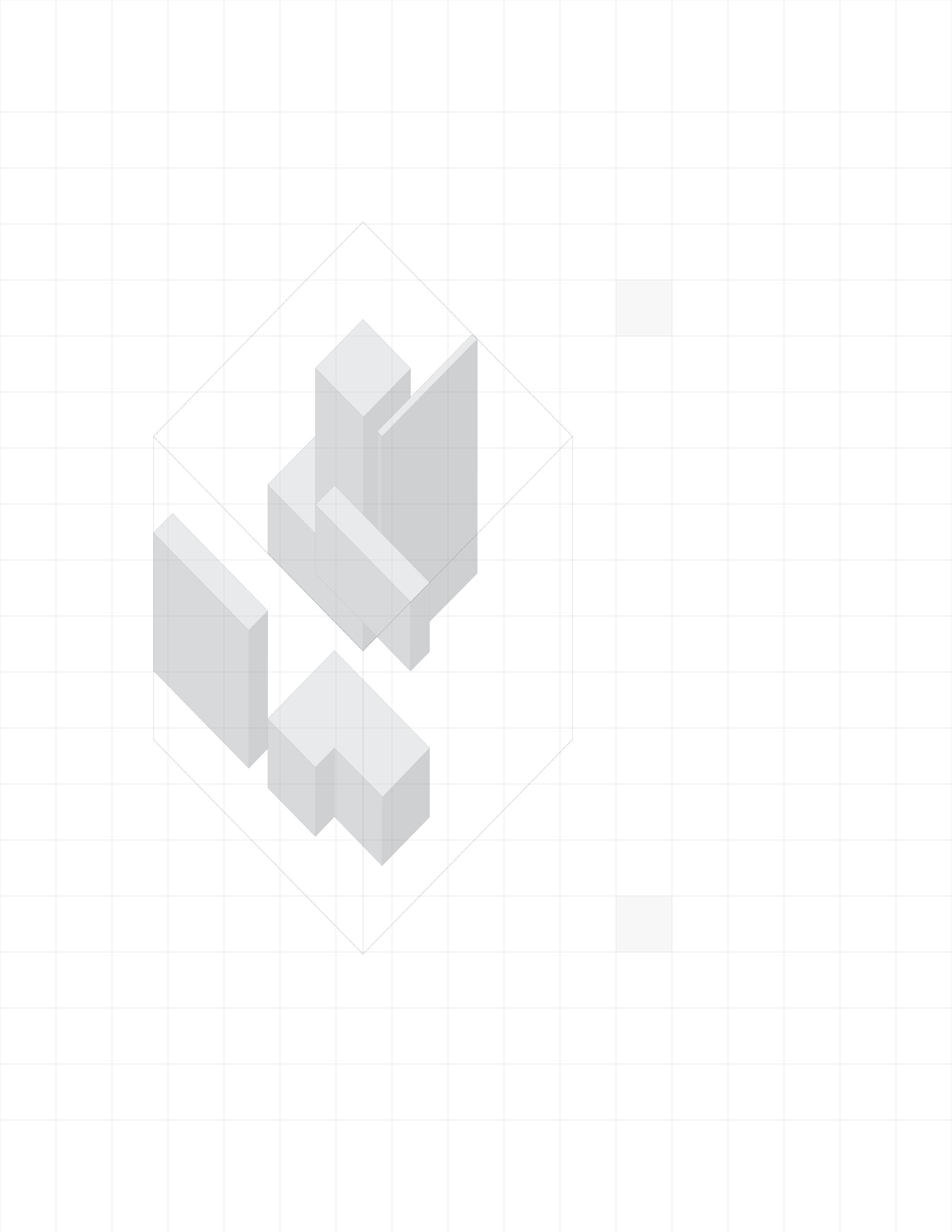

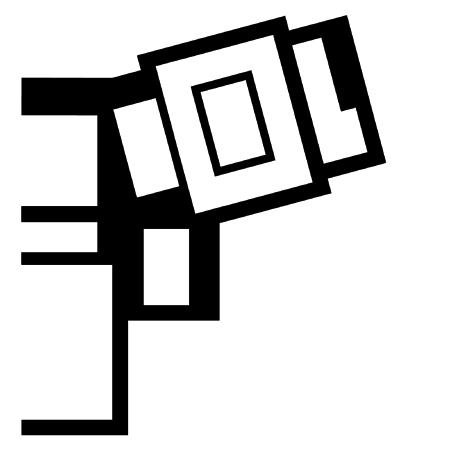

Massing

Elevated Form

Site

Massing

FORM DEVELOPMENT

Elevated

FORM DEVELOPMENTGround

Structure

Site

Massing

Cores

Elevated

Extended Corners

FORM DEVELOPMENT

Axon Site

Massing

Elevated

Cores

Intersect

PORTFOLIO

KHANG DO

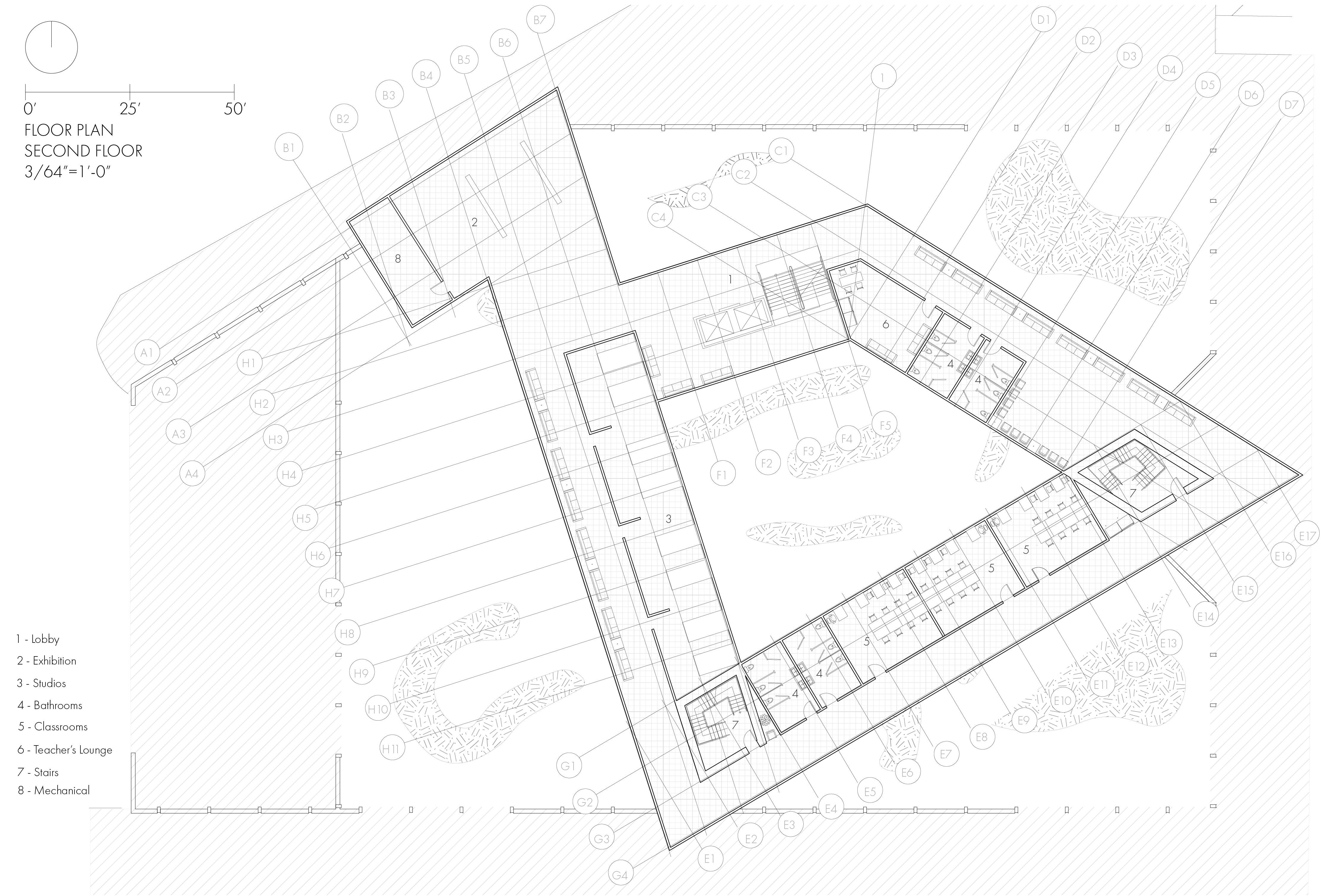

1 - Lobby 2 - Exhibition 3 - Studio 4 - Restrooms 5 - Classroom 6 - Teacher’s Lounge 7 - Stairs 8- Mechanical

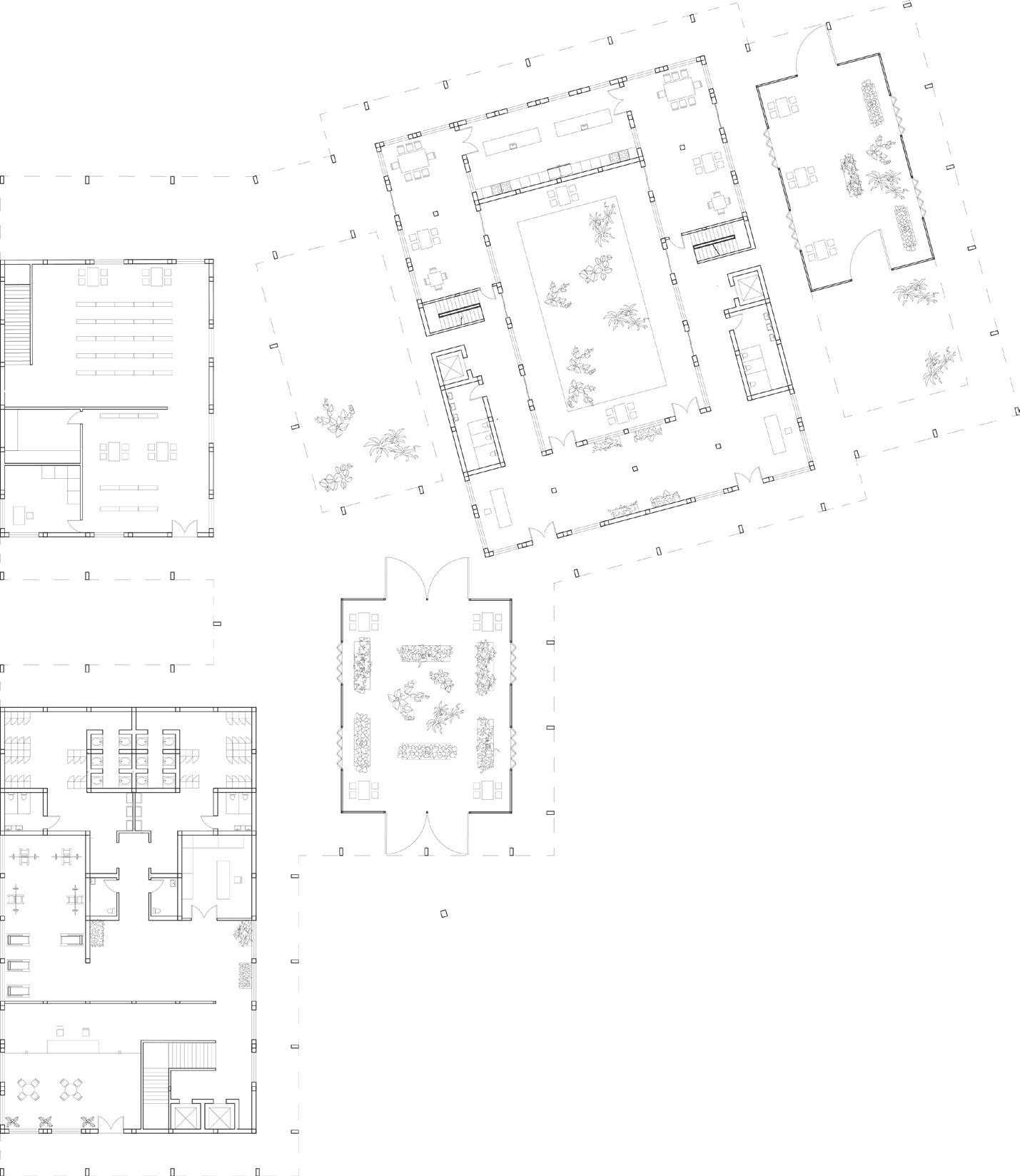

Level 2

SCULPTURES TAP SELECTED WORKS

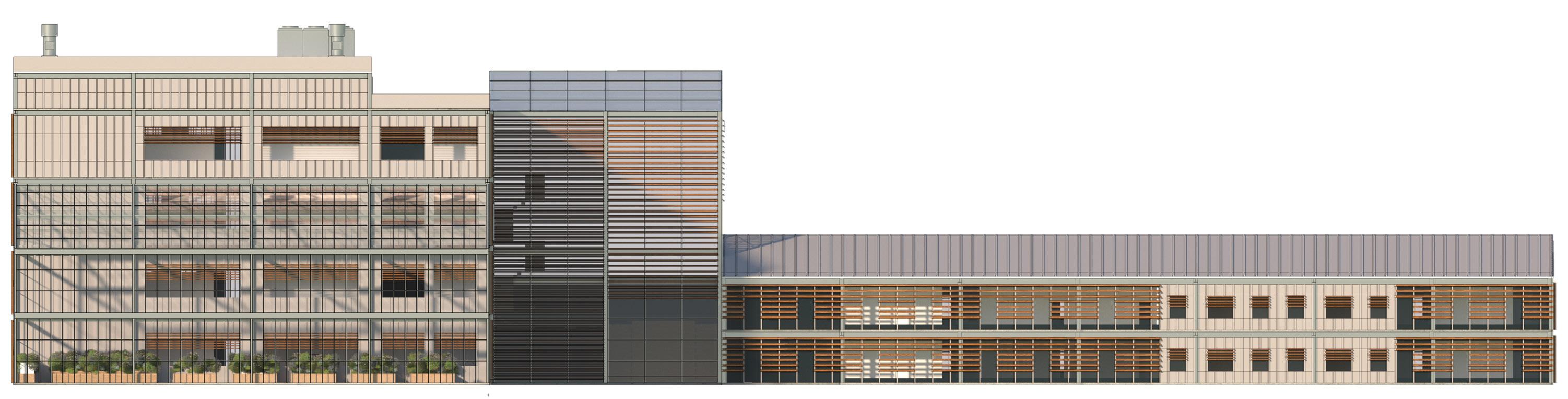

East Elevation

West Section

PORTFOLIO

KHANG DO

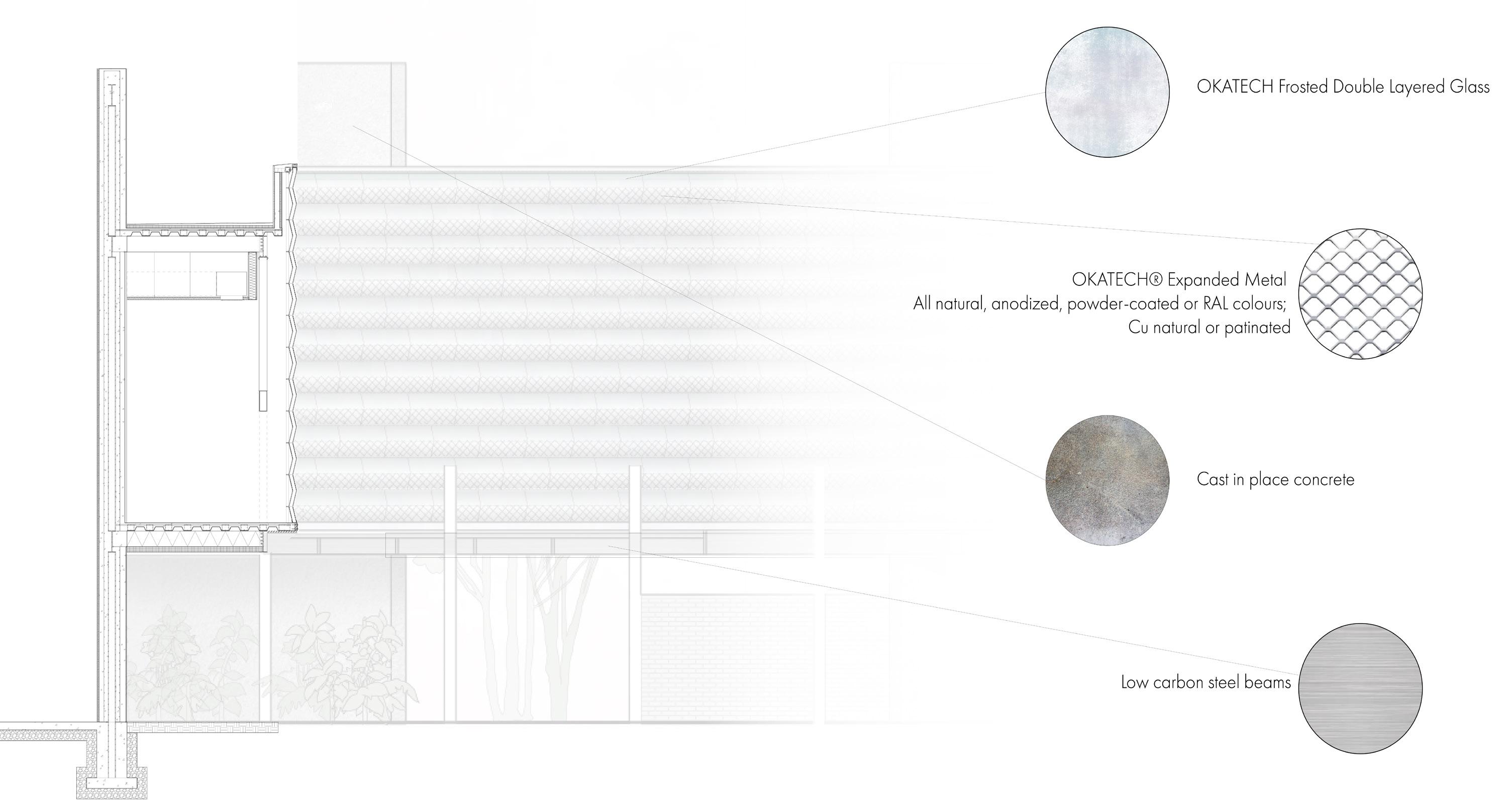

Material Section

SCULPTURES TAP SELECTED WORKS

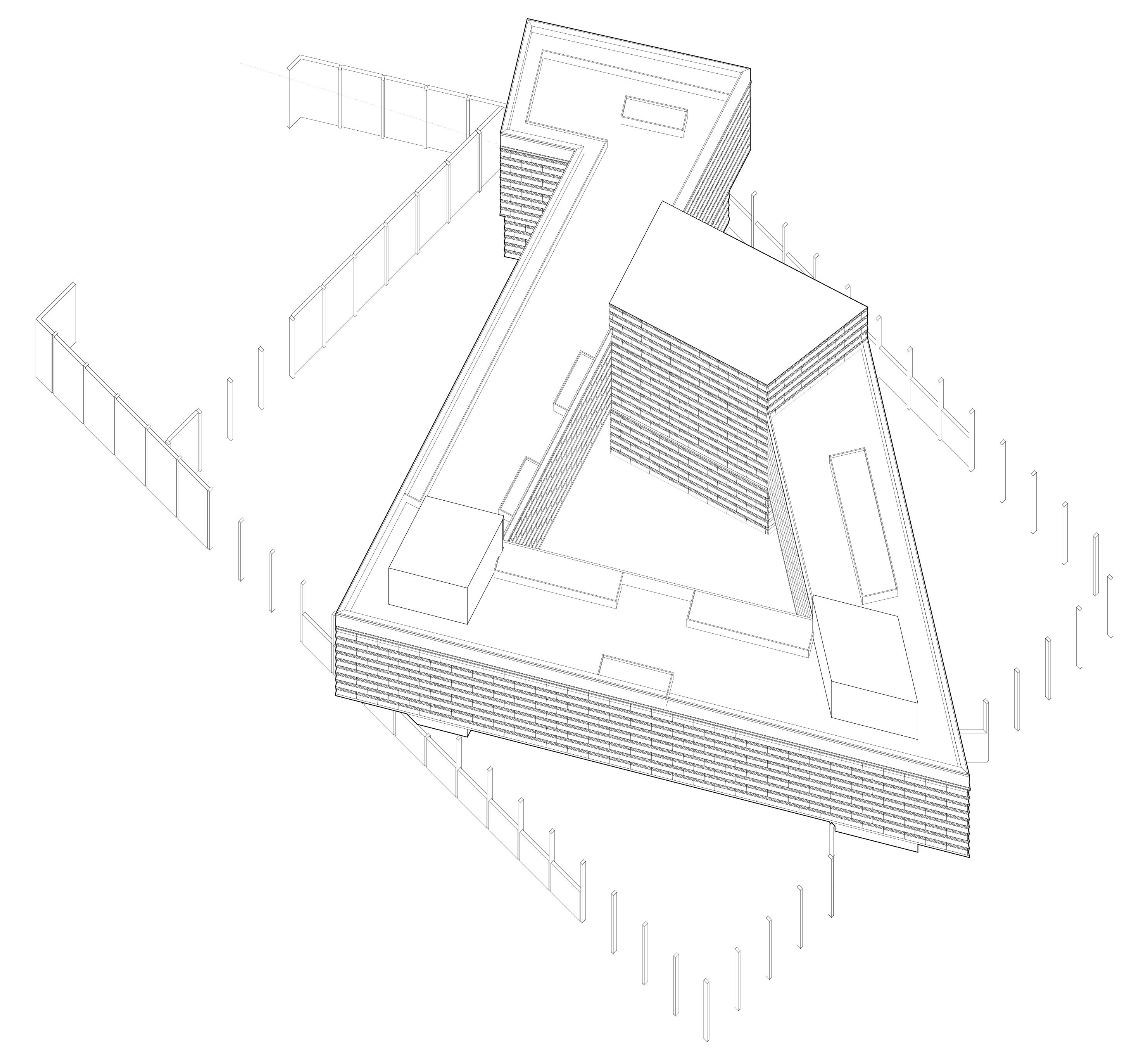

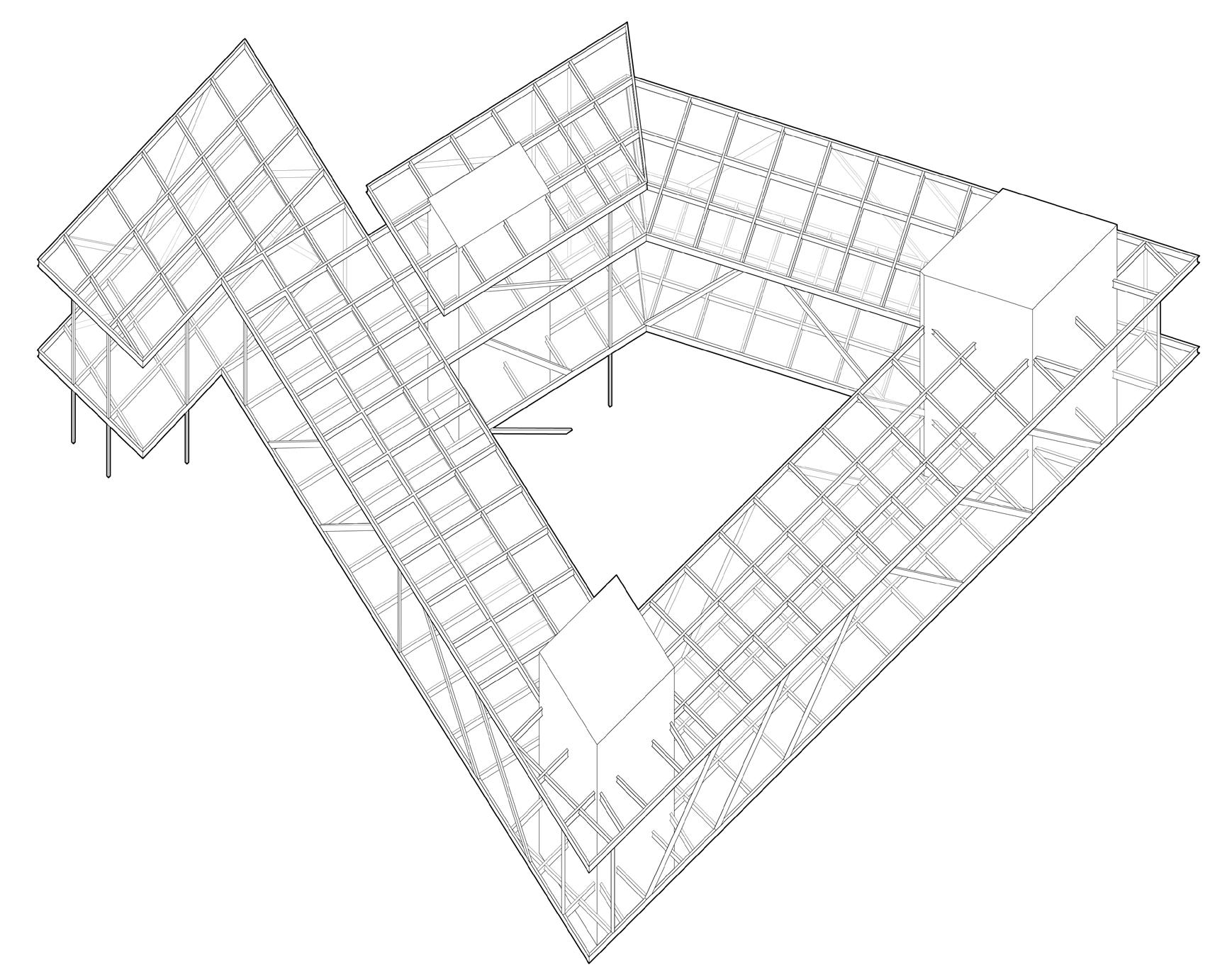

Structure Axon

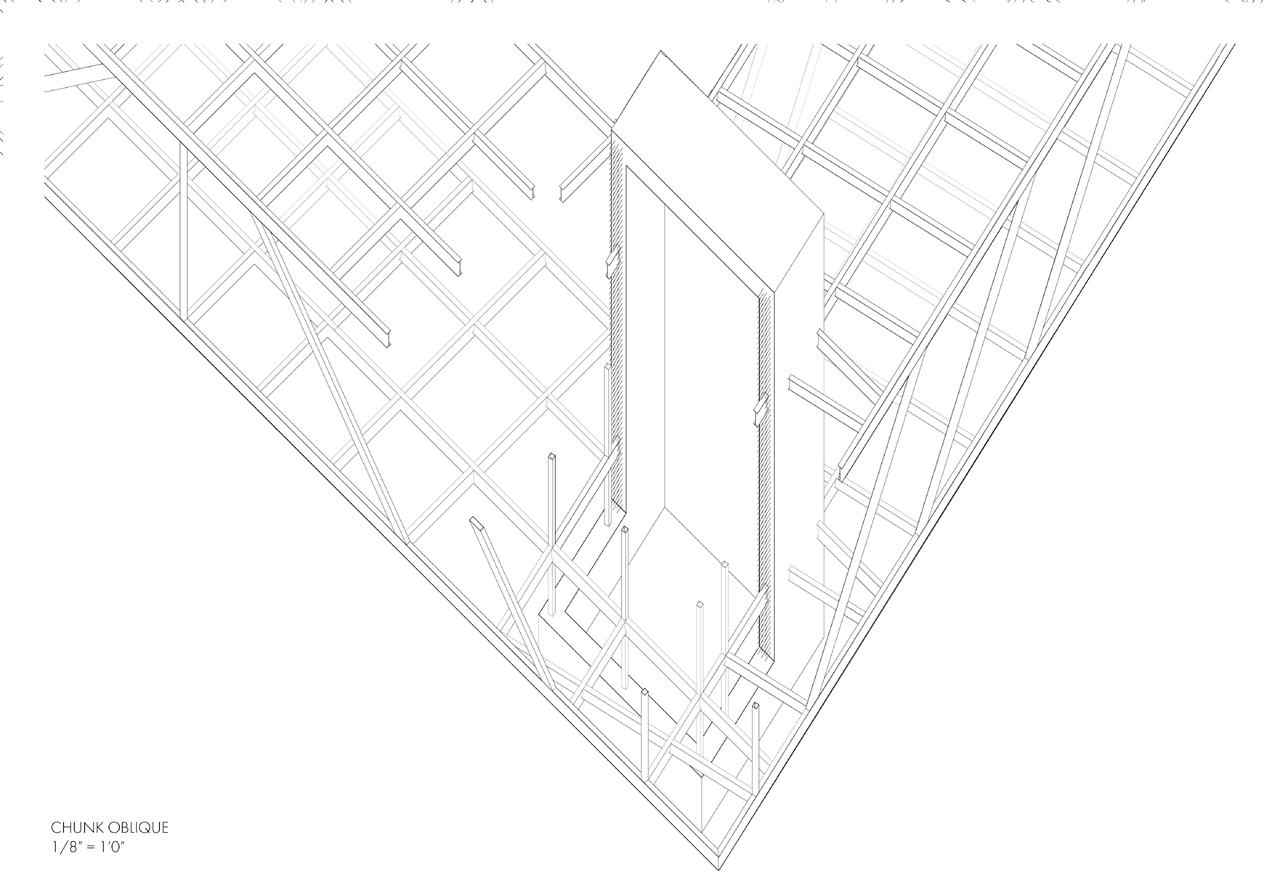

Column Chunk Oblique

PORTFOLIO

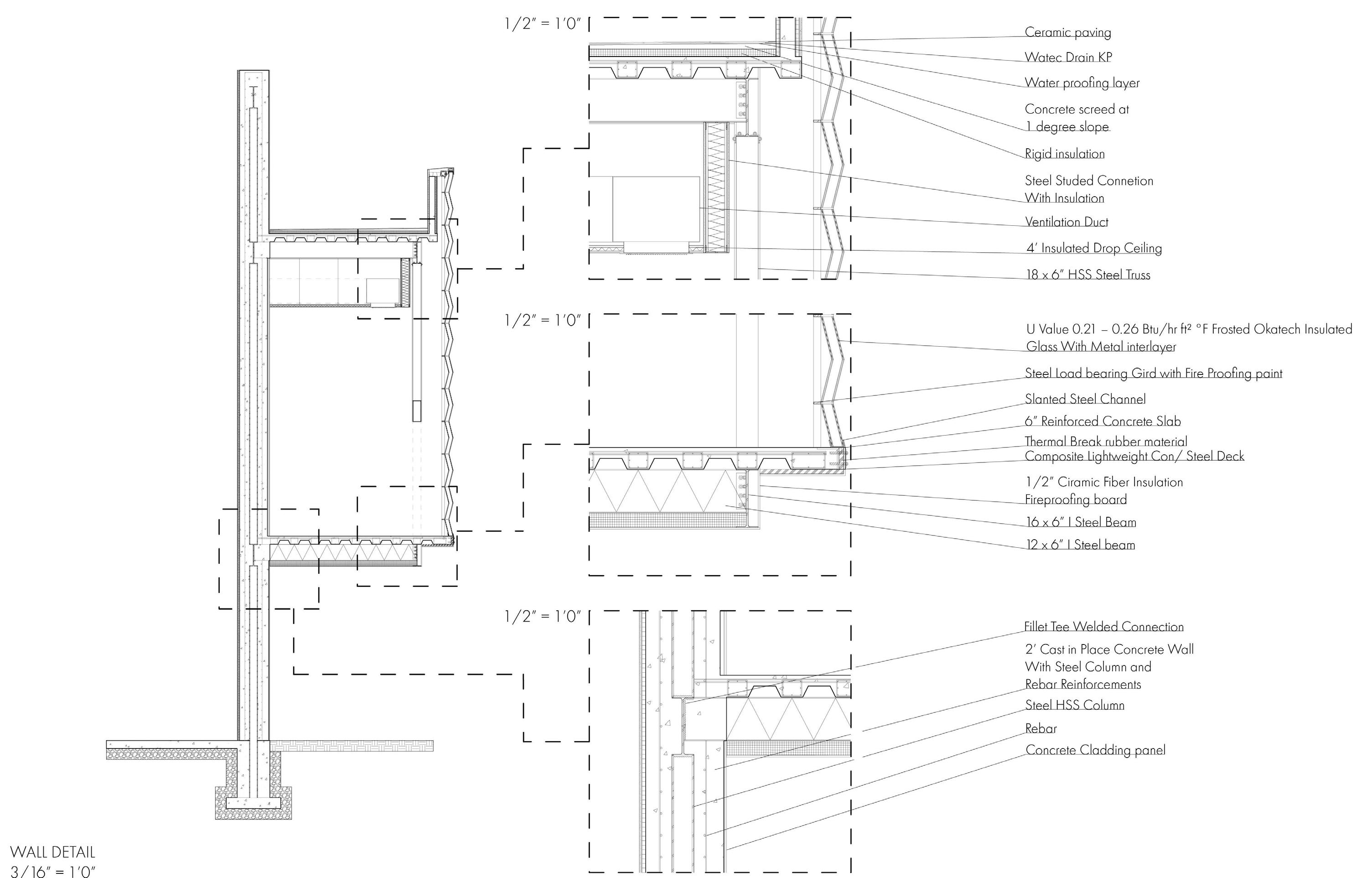

Wall Details

KHANG DO

SCULPTURES TAP SELECTED WORKS

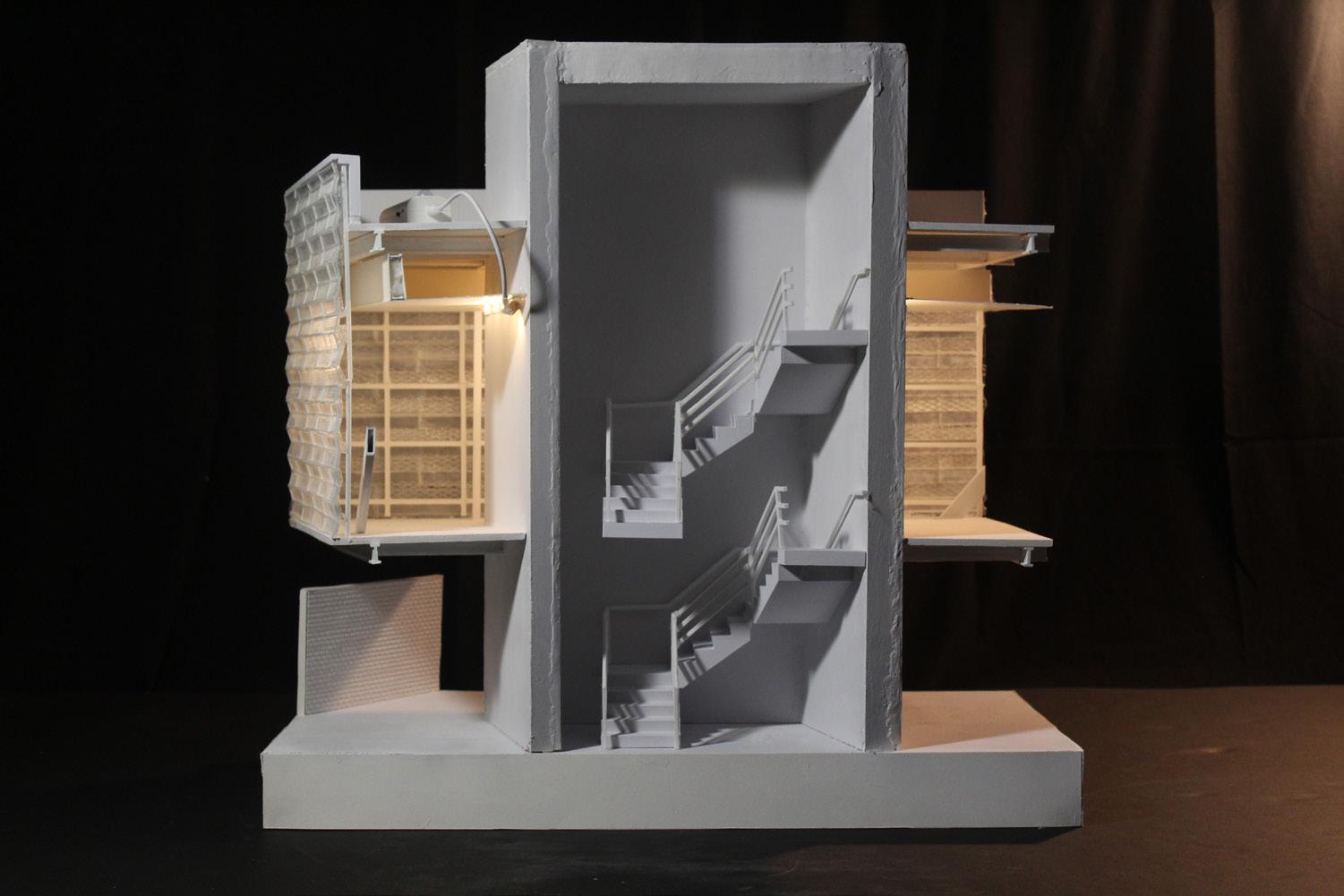

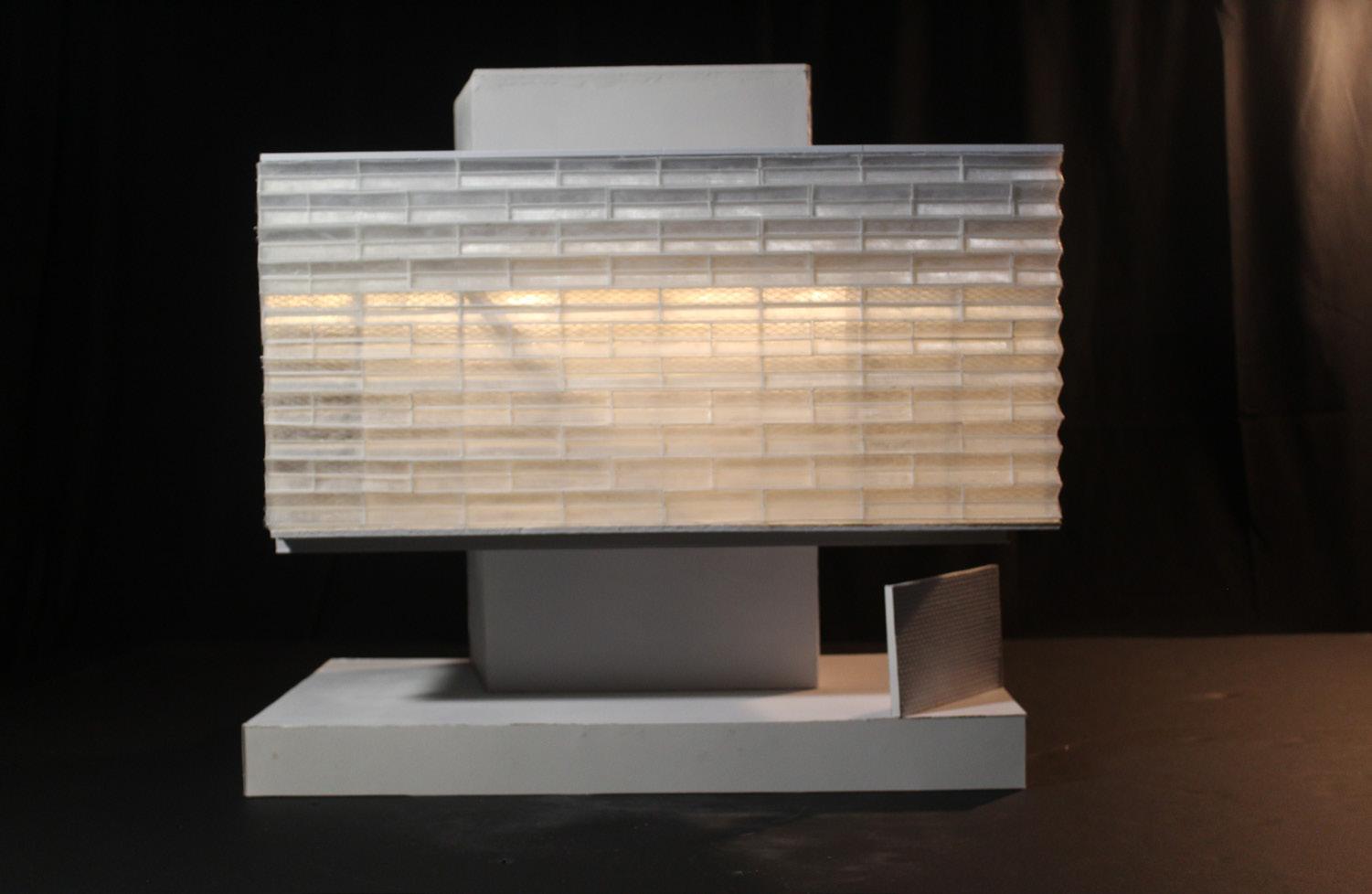

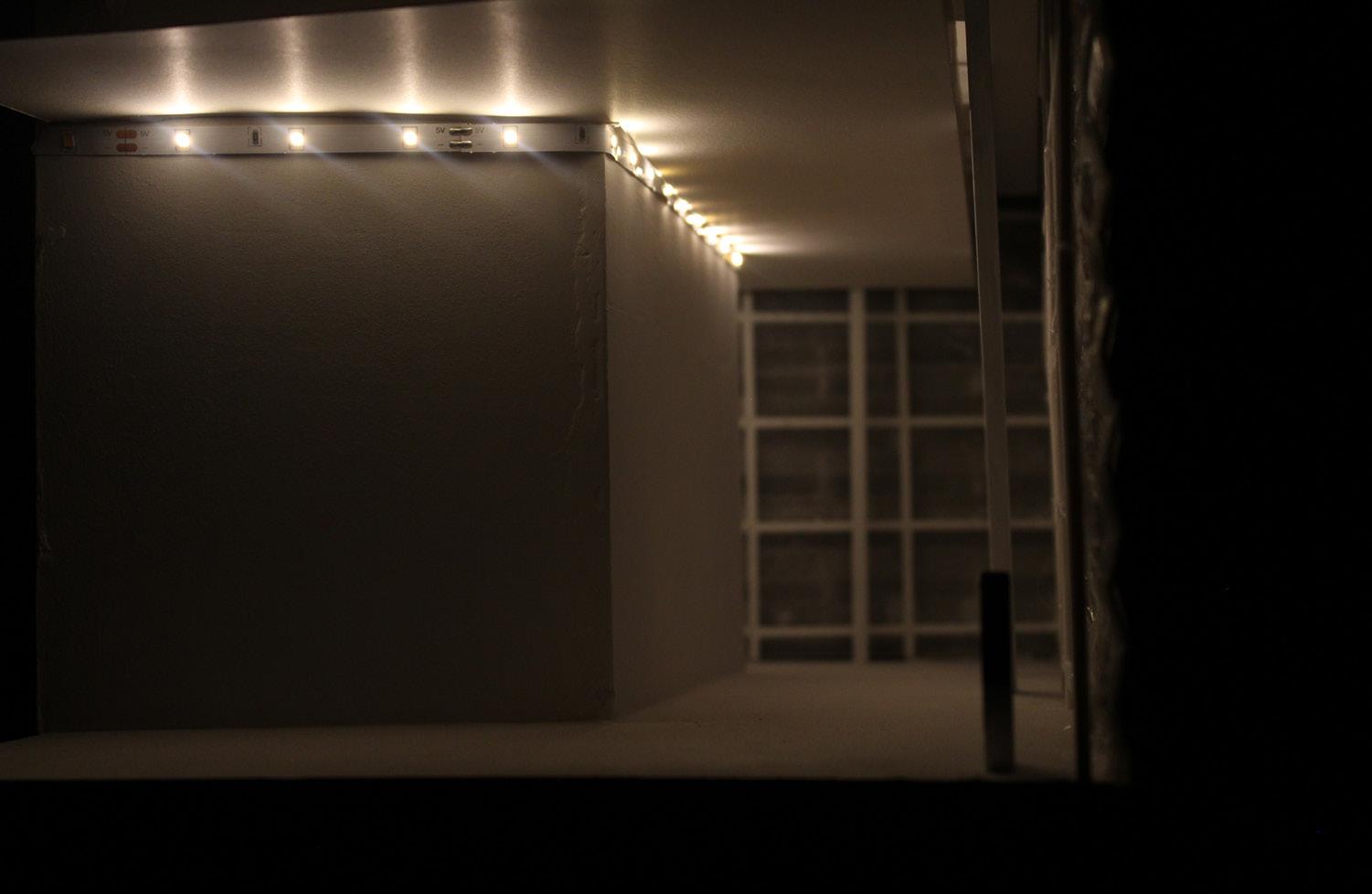

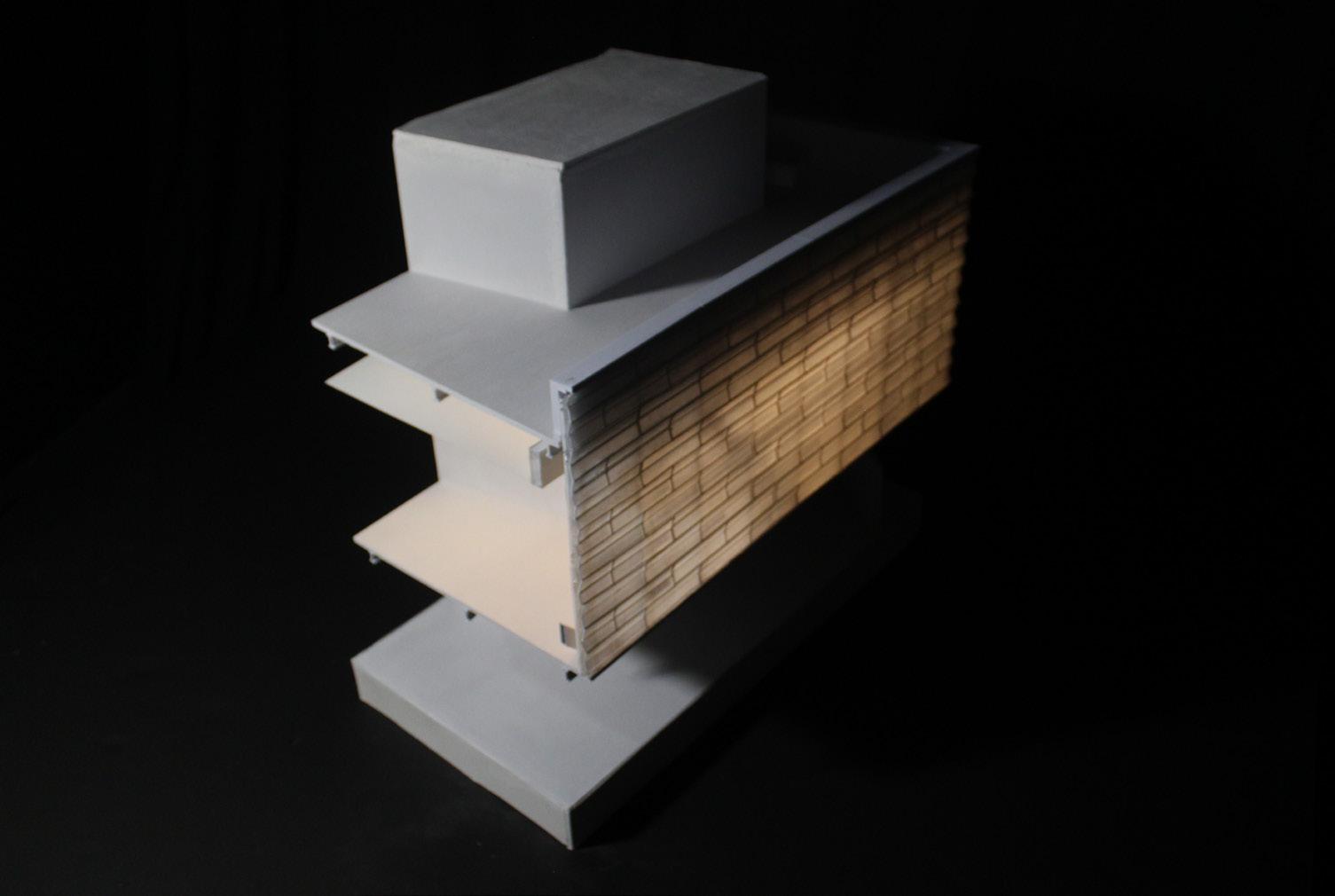

Physical Chunk Model

Scale: 1/2” = 1’-0”

PORTFOLIO

KHANG DO

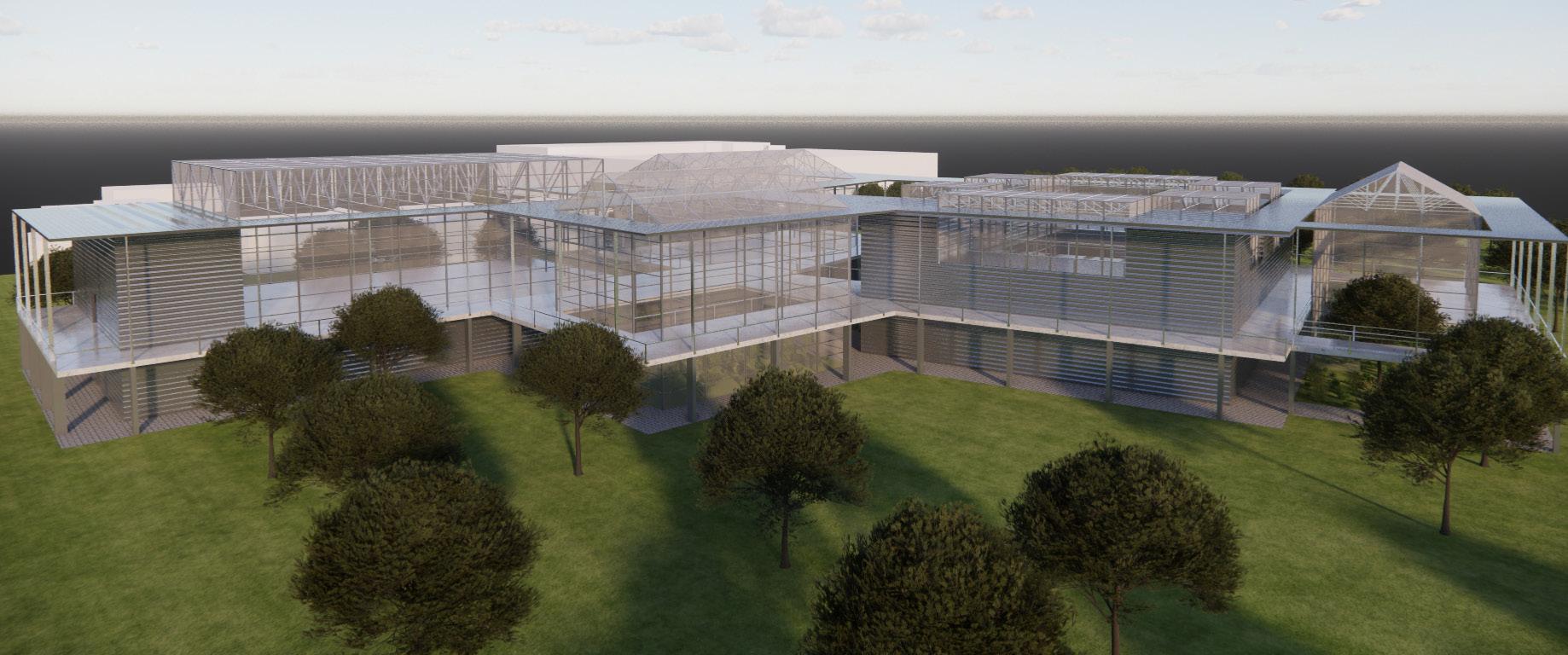

IV. Connected Exteriors Located across from the Menil Drawing Institute, the project is a combination is a student housing project with a gym, book store, and a cafe, The project utilizes multiple greenhouses and a large spanning balcony system as its design motif. In addition, the usage of these balconies and greenhouses connect the differing programs, provide exterior social spaces, and acts as a way to preserve all of the existing trees on the site.

Software Used: Rhino, AutoCAD, Illustrator, Photoshop, Enscape Individual Project

CONNECTED EXTERIORS SELECTED WORKS

Balconies

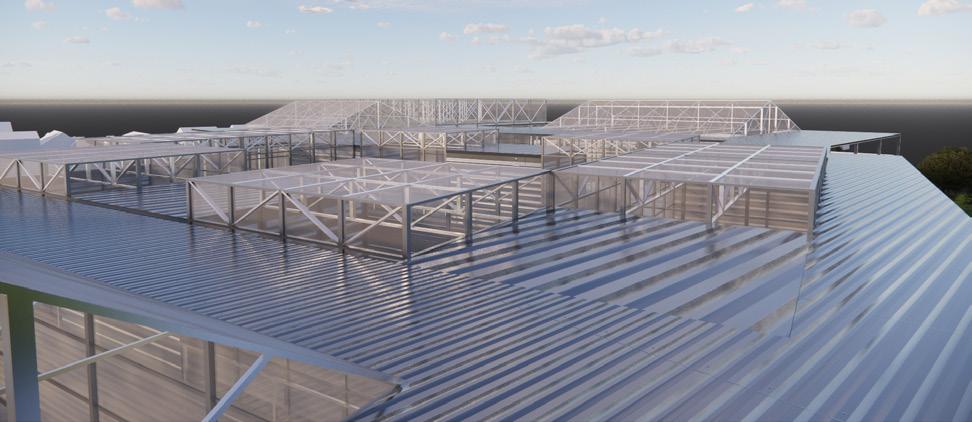

Greenhouses

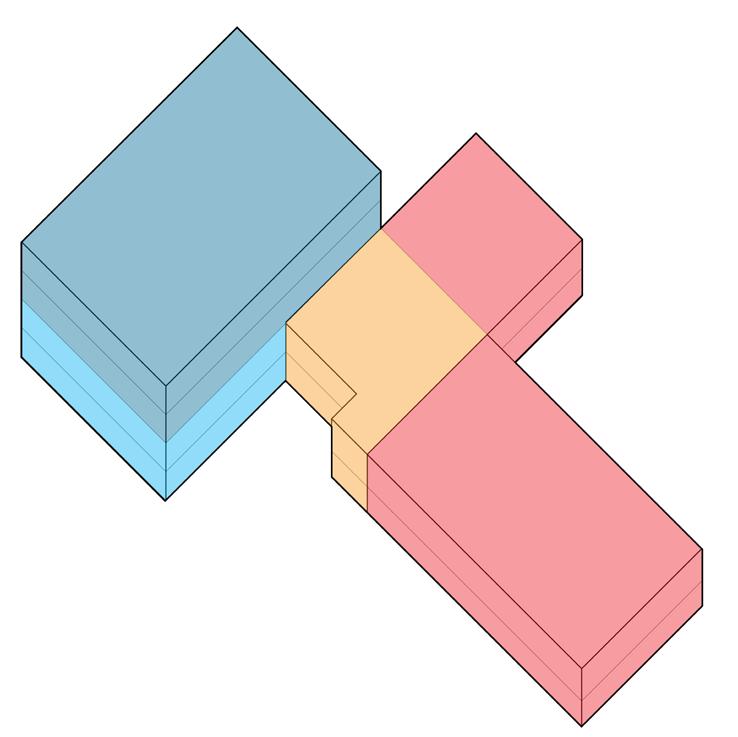

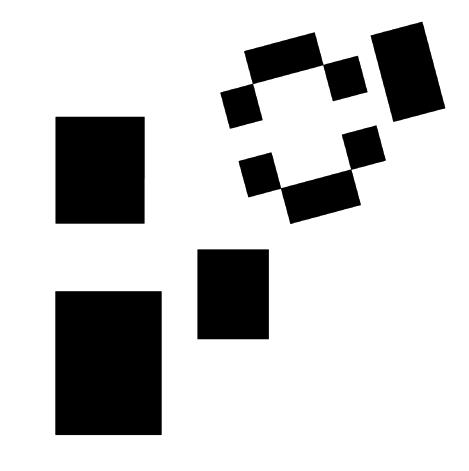

Program Spaces

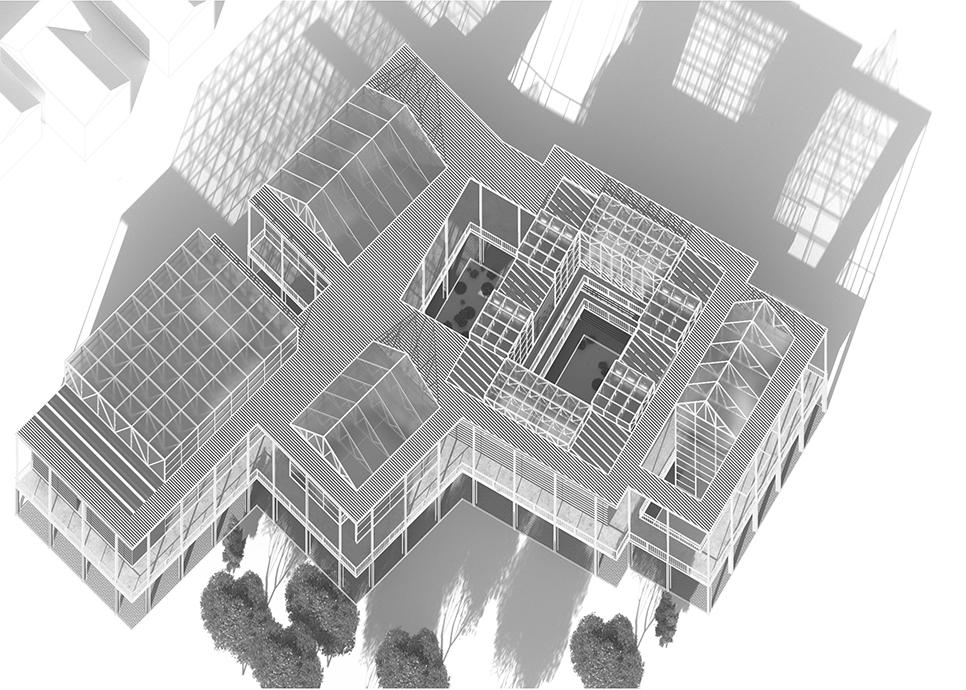

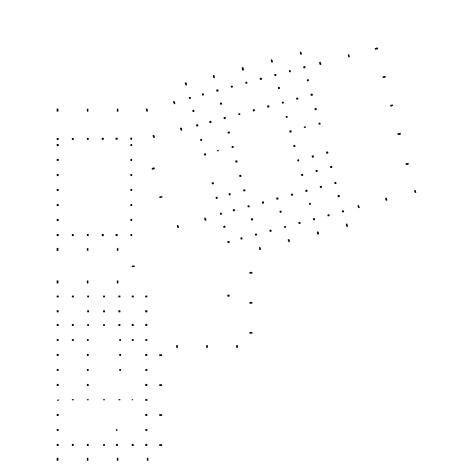

Columns Axon

KHANG DO

PORTFOLIO

1. Greenhouse Social Area 2. Book Store 3. Rec Center 4. Cafateria 5. Dorms

5 4 4

1

5

5

5

1 2

5

1 1

3

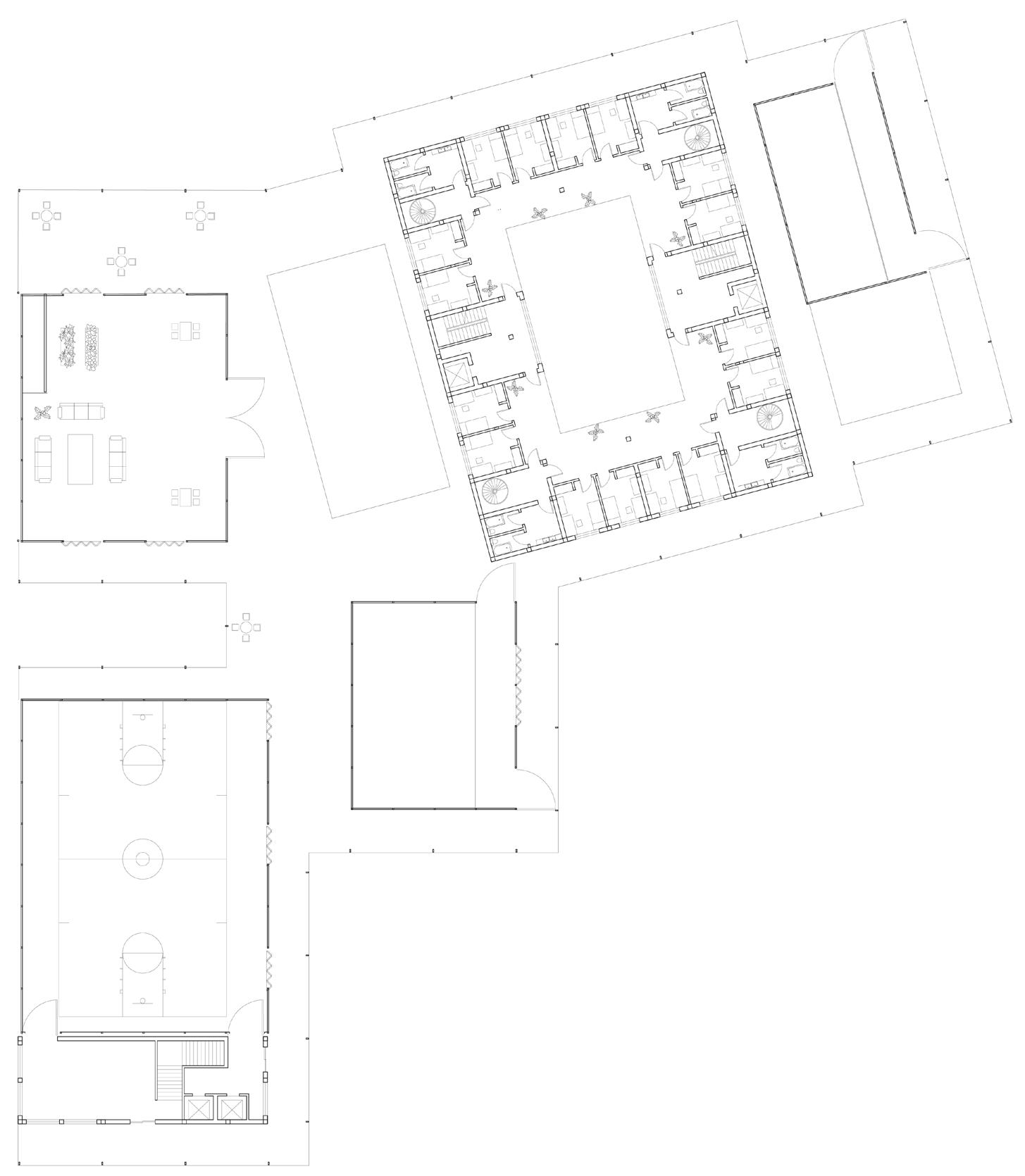

Level 1

3

Level 2

1

5

5

CONNECTED EXTERIORS SELECTED WORKS

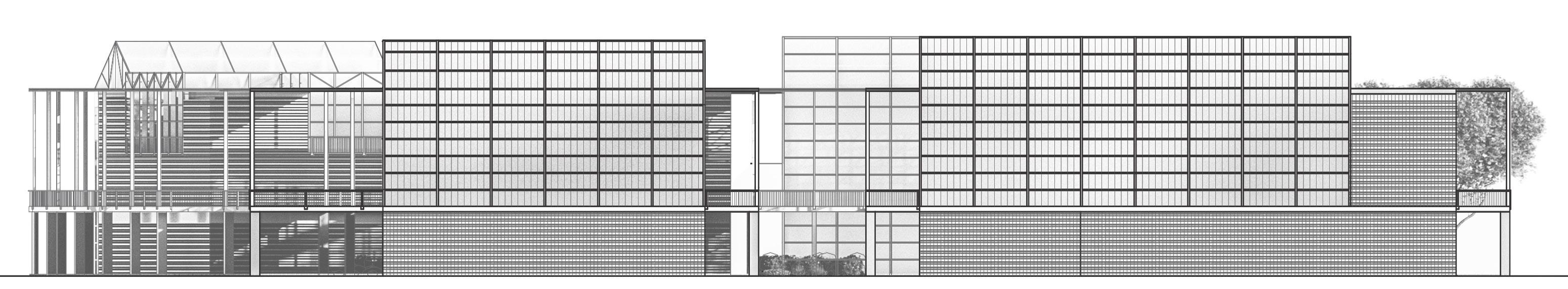

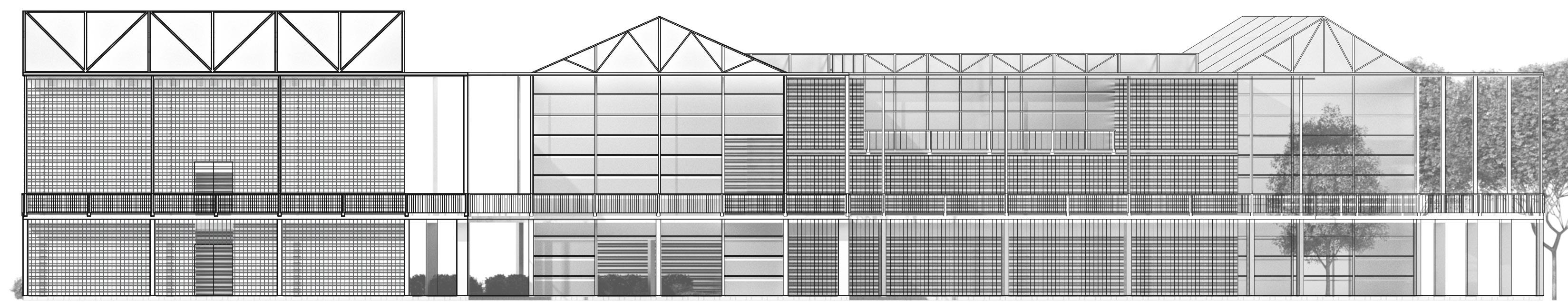

West Elevation

South Elevation

PORTFOLIO

KHANG DO

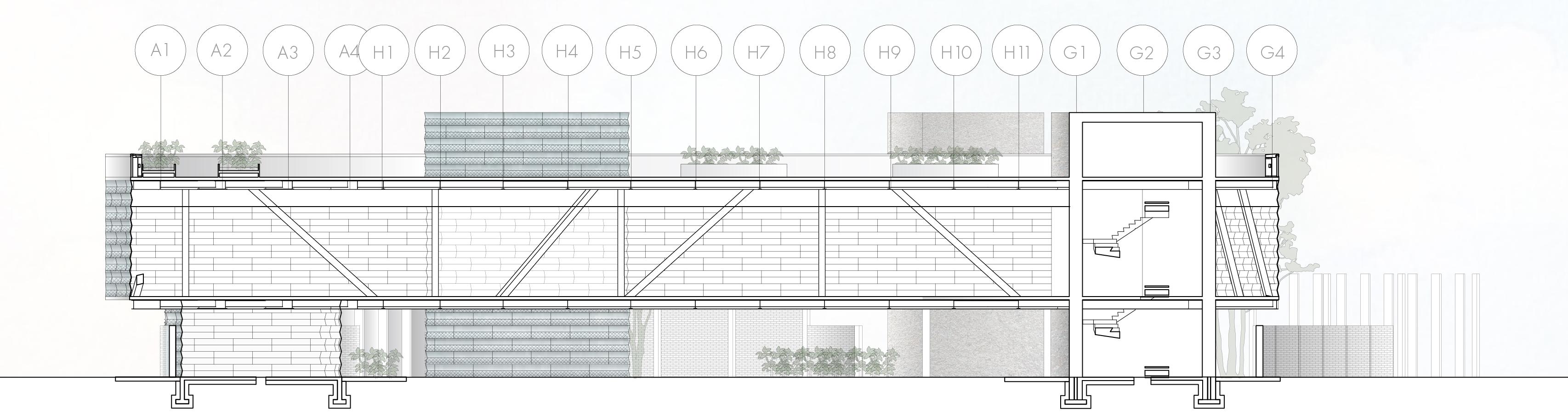

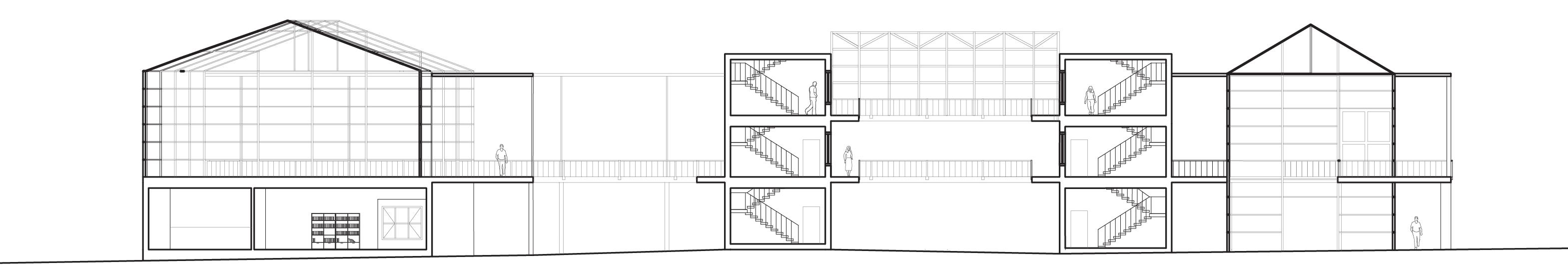

South Section

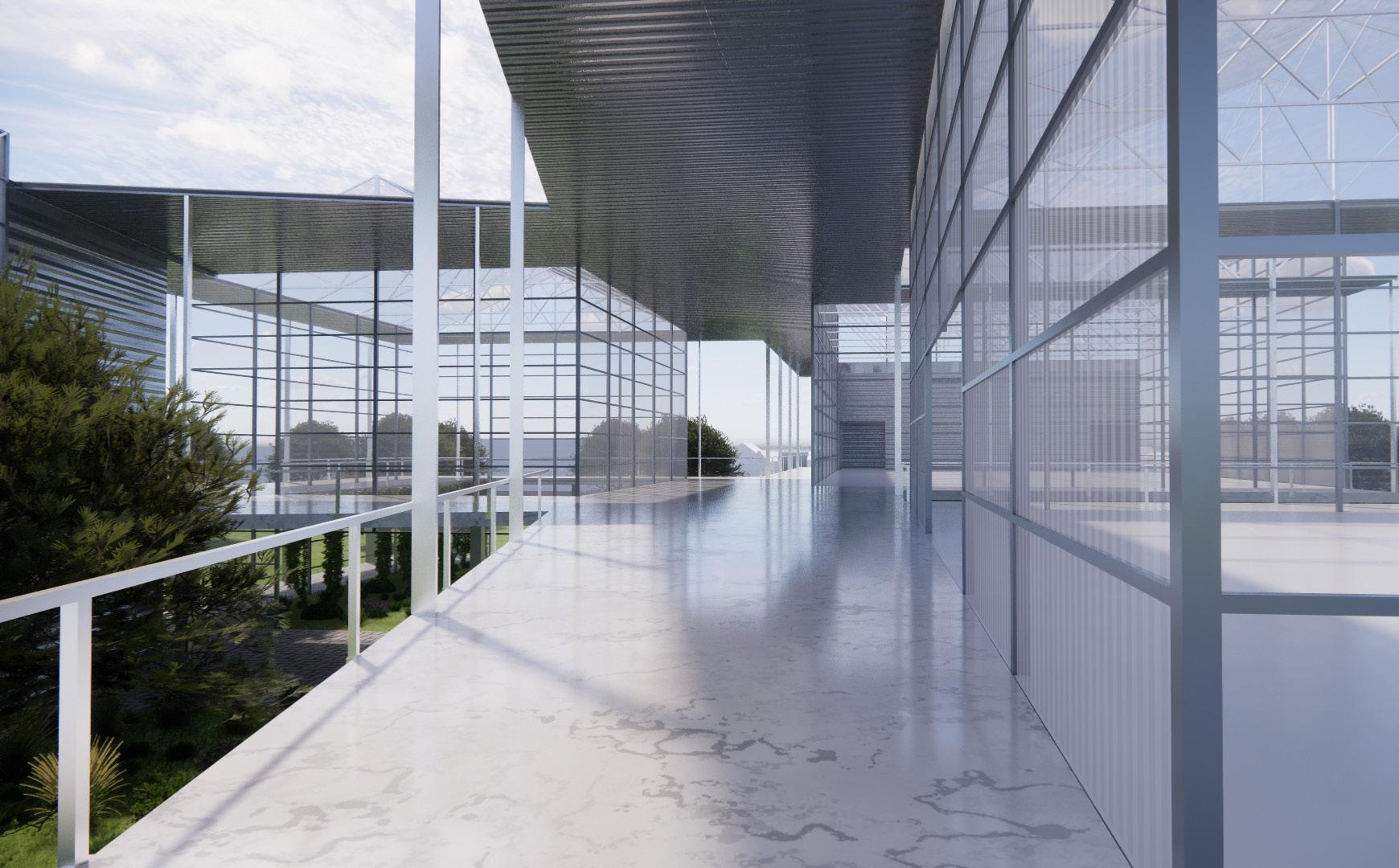

Balcony Corridor Render

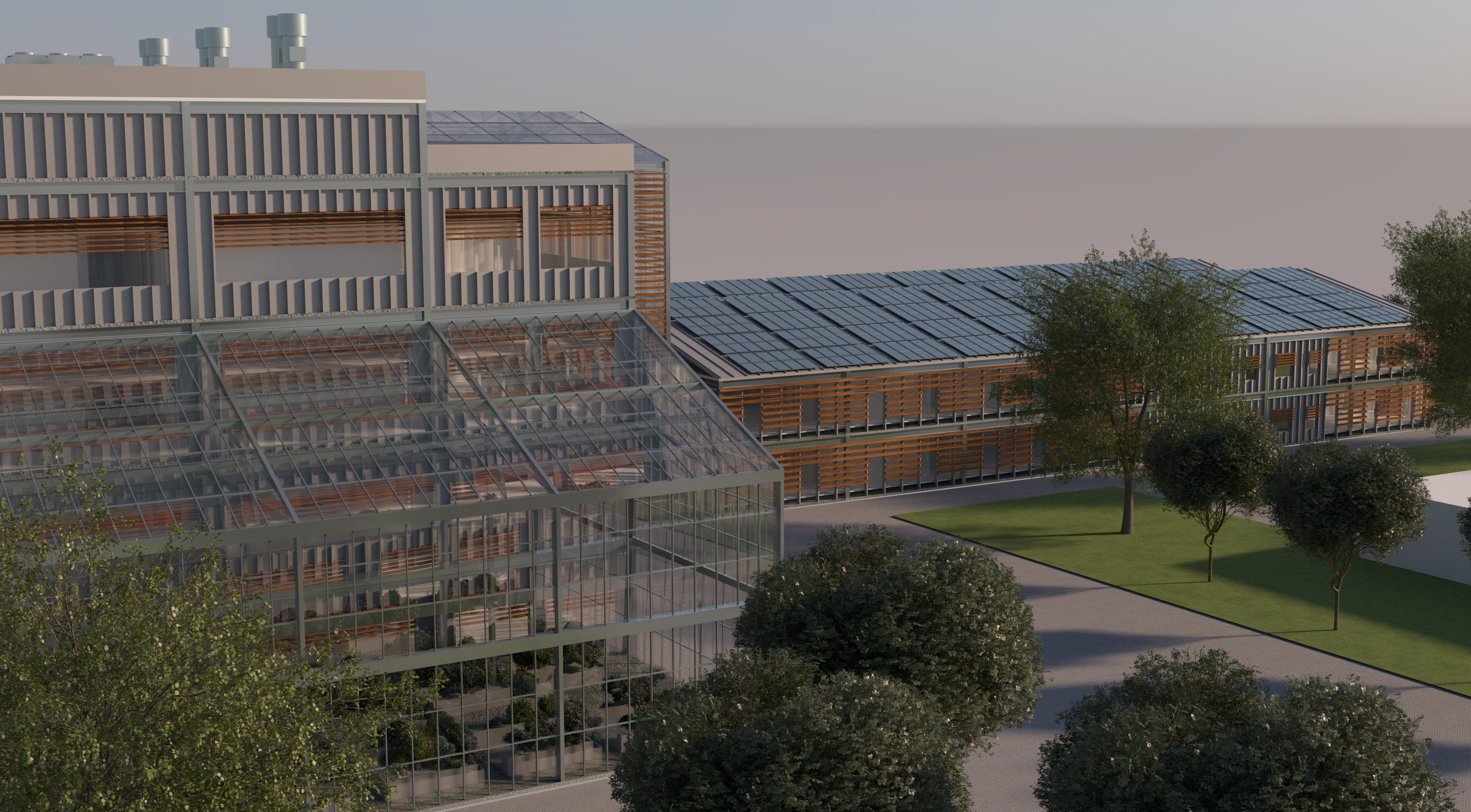

Entrance Greenhouse Render

CONNECTED EXTERIORS SELECTED WORKS
