AVERO 240 BGZ: 0105100 No. 0105100A Remark: Page 1

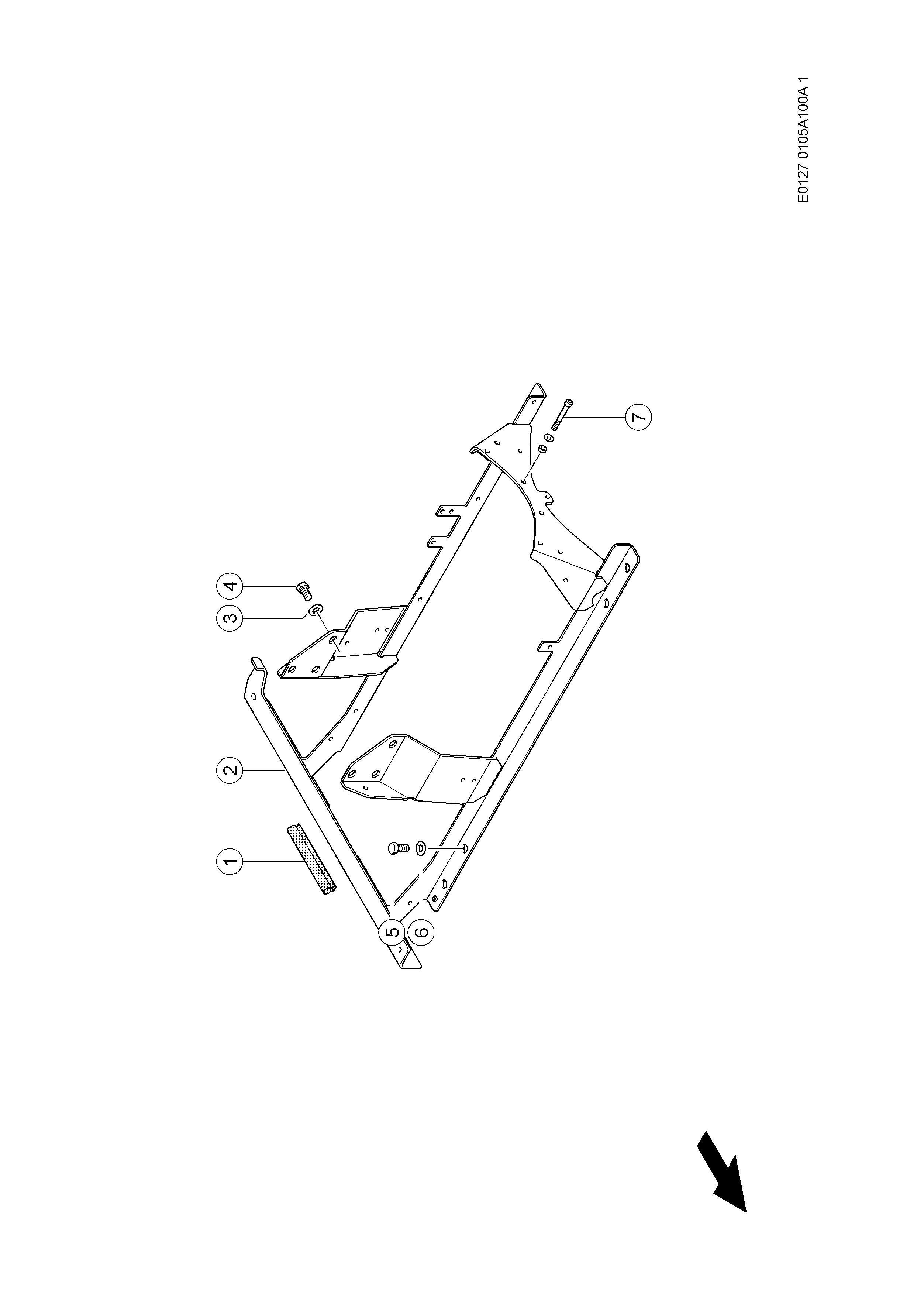

100 ENGINE SUSPENSION
BGZ: 0105100
Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0548 559 0 SEALING PROFILE 10M FIXLAENGE 1 1) 2 00 0530 093 2 ENGINE MOUNTING 1 3 00 0239 391 0 CONTACT WASHER A16 6 4 00 0237 376 0 HEXAGON HEAD BOLT M16X30 6 5 00 0236 230 0 HEXAGON HEAD BOLT M16X35 8 6 00 0239 391 0 CONTACT WASHER A16 8 7 00 0242 247 0 SOCKET HEAD SCREW M10X 80 4 7 00 0239 388 0 CONTACT WASHER A10-10,2X22,25X1,6 4 7 00 0236 171 0 HEXAGONAL NUT M10 4 1) Remarks 200 long AVERO 240 No. 0105100A Remark: Page 2
AVERO 240 BGZ: 0125100 No. 0125100A Remark: Page 1
100 FUEL TANK
BGZ: 0125100
Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0672 699 1 BANDAGE 2 2 00 0236 171 0 HEXAGONAL NUT M10 8 3 00 0550 789 2 FUEL TANK 1 4 00 0624 003 1 CAP DV 80 GL 1 4 00 0177 621 0 CAP D80 BELUEFTET, ABSCHLIES 1 1) 5 00 0736 238 0 TANK FILTER 1 6 00 0550 778 0 RETURN PIPE 1 7 00 0215 958 1 FLAT SEAL RING 30X40X3 1 8 00 0783 643 1 PLUG WASSER + G3/8" 1 9 00 0783 652 0 BALL-TYPE TAP DN8-I-G3/8XA-G3/8 1 10 00 0216 366 0 O-RING 10,50X1,5 NBR80 1 11 00 0783 644 1 ADAPTOR G3/8"- 1/2" SAE J 20441 12 00 0687 625 1 HEXAGON HEAD BOLT M8X17 F. TANK WASSERABLA 1 13 00 0681 855 0 LEVEL INDICATOR 1 2) 13 00 1811 800 0 LEVEL INDICATOR RADIUS 534MM 1 3) 1) Remarks LOCKING 2) machine no. CCN CCN-R035 + up to 45100705 fuel level current value potentiometer 3) machine no. CCN CCN-R035 + from 45100706 fuel level current value potentiometer AVERO 240 No. 0125100A Remark: Page 2
AVERO 240 BGZ: 0125120 No. 0125120A Remark: Page 1
BGZ: 0125120
Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0236 200 0 HEXAGON HEAD BOLT M8X20 2 1 00 0239 387 0 CONTACT WASHER A8-8,2X18X1,4 2 1 00 0236 170 0 HEXAGONAL NUT M8 2 2 00 0068 665 0 HAND PUMP H11K06 M16X1,5 1 2 00 0077 446 0 SEALING RING F. H11 K02 1 2 00 0077 447 0 INSPECTION GLASS 1 3 00 0798 664 0 ADAPTER M16X1,5 / 1/2" SAE J 204 2 AVERO 240 No. 0125120A Remark: Page 2
120 FUEL DELIVERY PUMP
AVERO 240 BGZ: 0125140 No. 0125140A Remark: Page 1
140 FUEL PIPES
BGZ: 0125140
Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0530 075 1 FUEL PIPE MOTOR-TANK 11X1,5 1 2 00 0215 409 0 GROMMET C 10-18X30X1,5 2 3 00 0216 117 0 CLAMP A 10 2 4 00 0242 442 0 HEXAGON HEAD BOLT M 6X30 3 4 00 0239 386 0 CONTACT WASHER A 6 3 4 00 0236 169 0 HEXAGONAL NUT M6 3 5 00 0723 910 1 SUPPORT 4X25X298 1 6 00 0625 072 1 SUPPORT 25X5X107 1 7 00 0697 807 0 RUBBER BEARING 12/12 2 8 00 0683 254 0 CLAMP BRACKET 2X18X25X3 2 9 00 0238 125 0 HEXAGON HEAD BOLT M8X40 2 9 00 0239 387 0 CONTACT WASHER A8-8,2X18X1,4 2 9 00 0236 170 0 HEXAGONAL NUT M8 2 10 00 0798 884 1 FUEL PIPE DC FILTER-HANDPUMPE 1 11 00 0530 074 0 FUEL PIPE HANDP-MOT 12,5X1, 25 1 12 00 0530 076 2 FUEL PIPE 1 13 00 0723 501 0 DOUBLE CLAMP B 12 1 14 00 0216 341 0 HOLDER CLAMP D1-12X20 2 15 00 0236 200 0 HEXAGON HEAD BOLT M8X20 2 15 00 0239 387 0 CONTACT WASHER A8-8,2X18X1,4 2 15 00 0236 170 0 HEXAGONAL NUT M8 2 16 00 0725 790 0 ANGLE 4X30X128 1 AVERO 240 No. 0125140A Remark: Page 2
AVERO 240 BGZ: 0125160 No. 0125160A Remark: Page 1
160 FUEL FILTER
BGZ: 0125160
Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0237 442 0 HEXAGON HEAD BOLT M8X25 2 1) 2 00 0798 664 0 ADAPTER M16X1,5 / 1/2" SAE J 204 2 1) 3 00 0796 211 0 FUEL FILTER 1 2) 4 00 0796 213 0 FILTER ELEMENT 1 1) 5 00 0796 789 0 SEALING RING 1 1) 6 00 0796 788 0 WATER CONTAINER 1 1) 7 00 0796 791 0 SCREW PLUG 1 1) 8 00 0796 790 0 PLUG 1 1) 9 00 0239 387 0 CONTACT WASHER A8-8,2X18X1,4 2 1) 10 00 0236 170 0 HEXAGONAL NUT M8 2 1)
Equipment MD_P06_0010 Additional fuel filter
Equipment Remarks MD_P06_0010 Additional fuel filter with Item 4 - 8 AVERO 240 No. 0125160A Remark: Page 2
1)
2)
AVERO 240 BGZ: 0125160 No. 0125160A Remark: Page 3
BGZ: 0125160
Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0530 056 0 FUEL FILTER 1 AVERO 240 No. 0125160A Remark: Page 4
160 FUEL FILTER
AVERO 240 BGZ: 0125160 No. 0125160A Remark: Page 5
160 FUEL FILTER
BGZ: 0125160
Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0236 200 0 HEXAGON HEAD BOLT M8X20 2 1) 2 00 0798 652 1 ADAPTER DN 12 - F-M22X1,5 2 2) 3 00 0796 212 1 SEPARATOR 1 2) 4 00 0796 024 0 WING SCREW 1 1) 5 00 0796 023 0 COVER 1 1) 6 00 0796 214 1 FILTER ELEMENT 1 1) 7 00 0067 328 1 SUPPORT 1 1) 8 00 0072 996 1 WATER CONTAINER 1 1) 9 00 0796 022 0 DRAIN VALVE 1 1) 10 00 0239 387 0 CONTACT WASHER A8-8,2X18X1,4 2 1) 11 00 0236 170 0 HEXAGONAL NUT M8 2 1) 1) Equipment MD_P06_0030 Additional fuel filter (OE) 2) Equipment MD_P06_0030 MD_P06_0040 Additional fuel filter (OE) Ultrafine filter AVERO 240 No. 0125160A Remark: Page 6
AVERO 240 BGZ: 0125160 No. 0125160A Remark: Page 7
160 FUEL FILTER
BGZ: 0125160
Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0530 173 0 CONNECTOR DN 8-NW 5/16"-90° 2 1) 2 00 0408 552 2 HOSE CLAMP A-12-22X9 4 1) 3 00 0460 436 0 FUEL PIPE ROLLE 40 M-8X3,5-2A 1 2) 4 00 0460 436 0 FUEL PIPE ROLLE 40 M-8X3,5-2A 1 3) 5 00 0530 174 0 CONNECTOR DN 8-NW 5/16"-0° 2 1) 6 00 0530 175 0 FUEL FILTER 1 1) 7 00 0610 099 1 COACH BOLT M 8X 25 2 1) 8 00 0239 393 1 CONTACT WASHER B 8 -8.2X22X1,9 2 1) 9 00 0236 170 0 HEXAGONAL NUT M8 2 1) 10 00 0214 406 0 CABLE TIE 2,5X142X1,1 3 1) 11 00 0530 056 0 FUEL FILTER 1 1) 1) Equipment MD_P06_0040 Ultrafine filter 2) Equipment Remarks MD_P06_0040 Ultrafine filter 950 mm 3) Equipment Remarks MD_P06_0040 Ultrafine filter 260 mm AVERO 240 No. 0125160A Remark: Page 8
AVERO 240 BGZ: 0130120 No. 0130120A Remark: Page 1
BGZ: 0130120 120 OIL FILTER Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0798 822 1 OIL FILTER 1 AVERO 240 No. 0130120A Remark: Page 2
AVERO 240 BGZ: 0130200 No. 0130200A Remark: Page 1
BGZ: 0130200 200 OIL DRAIN HOSE Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0408 554 3 HOSE CLAMP A-16-27X12 1 2 00 0237 442 0 HEXAGON HEAD BOLT M8X25 2 2 00 0239 387 0 CONTACT WASHER A8-8,2X18X1,4 2 3 00 0236 170 0 HEXAGONAL NUT M8 2 4 00 0215 394 0 HOLDER CLAMP D1-24X20 2 5 00 0689 567 0 SUPPORT 4X25X127 1 6 00 0689 060 0 CLAMP Z KP-3-R-25-25-PA 2 7 00 0236 213 0 HEXAGON HEAD BOLT M8X35 2 7 00 0239 387 0 CONTACT WASHER A8-8,2X18X1,4 2 7 00 0236 170 0 HEXAGONAL NUT M8 2 8 00 0738 465 0 HOSE PIPE 1 9 00 0236 200 0 HEXAGON HEAD BOLT M8X20 2 9 00 0239 387 0 CONTACT WASHER A8-8,2X18X1,4 2 9 00 0236 170 0 HEXAGONAL NUT M8 2 10 00 0668 879 0 SUPPORT 3,0X0110X0126 1 11 00 0077 529 0 STRAP 1,0X0026X0041 1 12 00 0215 080 0 SNAP RING A 14 1 13 00 0215 103 0 FLAT HEX NUT M22X1,5 1 14 00 0077 528 2 DRAIN FITTING D18,1X51,5 1 15 00 0633 589 1 UNION NUT A3 L15 1 16 00 0002 846 0 RING SPIRALFÖRMIG OFFEN 16 X 2 17 00 0002 848 0 KNOT CHAIN 1,8X 25X 6GL 1 18 00 0313 226 0 COVER PLATE Z DP-3-W3 2 AVERO 240 No. 0130200A Remark: Page 2
