Keystone Wood Specialties founder Sam Stoltzfus got into woodworking as a young boy. Having grown up the son of an Amish farmer and carpenter, he liked tinkering with wood and mimicking toys that his great-uncle Levi made. In 1972, at the age of 21, he founded his then one-man shop in Ronks, PA. Sam would make the cabinets, getting his doors from a supplier, and his father, along with his brothers and a friend, would install the kitchens. Sam shared numerous stories of the good times he had with his grandfather, also a farmer and carpenter, while making deliveries to customers.
From the beginning, Keystone Wood Specialties has been committed to making the highest-quality products. In 1977, Sam purchased machinery to begin making his own doors. Shortly thereafter, he began making doors for a few local cabinetmakers. From there, he saw an opportunity to grow into manufacturing cabinet components and stopped making cabinets altogether. In an interview, Sam mentioned, “That was a big switch, because it was like starting all over again. It was tough going for a couple years, to bring everything to the quality level we wanted.” And they did—Keystone’s quality continues to rank among the highest in the industry.
In 1984, Sam, along with about a dozen employees, moved into the current building on Old Philadelphia Pike. Keystone continued to grow its product line and was among the first to offer dovetailed drawers and to cater to the refacing industry.
Sam served as President and CEO of Keystone Wood Specialties, leading several additions and improvements to the building and workforce, until his passing in 2020. As the current President of Keystone Wood Specialties, Sam’s son, Nick Stoltzfus, is preserving the time-honored craftsmanship and work ethic established by his father, while incorporating new technologies and products that lay the groundwork for Keystone’s growth and success in the generation ahead.
WHY CHOOSE KEYSTONE
Whether driven by your own ideas or a customer’s unique desires, Keystone Wood Specialties promises to deliver the high-end custom components it takes to help you create beautiful cabinetry and furniture.
When you call Keystone, you will always be greeted by a live, knowledgeable customer service professional. Whether you have a question about our products, need assistance placing an order, or need to discuss an existing order, our staff is here to ensure that you and your customers are completely satisfied.
We have everything you need to complete your custom project— doors and drawer fronts, dovetailed drawer boxes, face frames, moulding, valances, wainscoting, turnings and corbels, radius doors, plywood and veneer, finishing options, and more. If you don’t see what you’re looking for, no problem. We pride ourselves on that one-of-a-kind custom order and have on-site machining capabilities to create all of the tooling needed to get the job done in a timely manner.
You can trust Keystone to give you the personal attention you and your customers require. We produce each order from the same lot of wood, ensuring the grains are similar for a perfect outcome. Whether you order one door or one thousand doors, we will treat your order with the same care and attention to detail—all with unmatched quality, all to help you build truly one-of-a-kind cabinetry your customers will love for a lifetime.
DRAWER BOXES CATALOG
DOVETAILED DRAWER BOXES
CUTLERY TRAYS, WINE STORAGE, AND OTHER SPECIALTY BOXES
LOGO LASER ENGRAVING
DRAWER SLIDES
PULL-OUT SHELVES
MOULDING & MORE CATALOG
BASEBOARD, CASING, CROWN MOULDING, AND MORE
MOULDING BUILDUPS AND PERIOD SUGGESTIONS
TURNED COLUMNS AND BUN FEET
FLUTED AND PLAIN PILASTERS
WHITE RIVER CORBELS AND ADORNMENTS
FINISHES CATALOG
RECOMMENDED STAINS ON MAPLE, CHERRY, AND RED OAK
PAINT COLOR PALETTE
FULL AND ACCENT GLAZING
DISTRESSING AND ANTIQUING EFFECTS
COLOR SAMPLES
CABINET REFACING CATALOG
REFACING OPTIONS
PULL-OUT SHELVES
VENEER AND PLYWOOD
RTA CABINETS

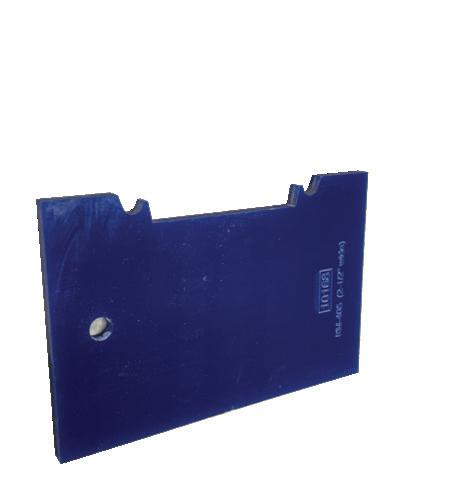

REFACING TOOLS AND SALES KIT
THINGS YOU NEED TO KNOW
SETTING UP AN ACCOUNT WITH US
Our customer service professionals will be happy to set up an account with you. They will gather all the needed information and assign you a customer number for use in all correspondence, including quotes and orders.
PLACING ORDERS WITH US
We allow several ways for you to place an order.
Online keystonewood.com
E-mail info@keystonewood.com
Fax Local: 717.299.9654
Toll-Free: 800.253.0805
US Mail Keystone Wood Specialties Inc. PO Box 10127 Lancaster, PA 17605-0127
Verbal Although we do not recommend verbal orders, we may accept them for simple orders. Most orders, especially with special instructions or custom features, cannot be accepted verbally and must be in writing.
Notes
• Keystone has preprinted order forms for your convenience for faxing, e-mailing, or mailing.
• Incomplete order forms may delay the quoting process and your order delivery time.
• Please do not submit an order more than once. Submitting the same order multiple times or by different methods may result in duplicated orders. Keystone cannot be responsible for duplicated orders.
TRADE DISCOUNTS
Orders over $200 of discountable items are subject to a trade discount if paid within 60 days. Certain items are not subject to trade discounts. Contact customer service for complete information.
SHIPPING, DELIVERY, AND PICKUP
We ship anywhere in the country, deliver locally, or welcome our customers to pick up their orders at our facility. While you are here, ask for a plant tour. We would be happy to show you what we do.
REMAKES AND ADD-ONS
When remakes and add-ons are needed, our goal is to do all we can to ensure your customer’s needs are met as quickly as possible.
TYPOGRAPHICAL ERRORS
We try very hard to avoid typographical errors, but sometimes they do occur. Keystone accepts no financial responsibility for inadvertent errors in this or any of our printed materials.
FREQUENTLY ASKED QUESTIONS
DO YOU SELL TO RETAIL CUSTOMERS?
No. We are strictly a wholesale, business-to-business manufacturer of wood products for the custom cabinet, furniture, and remodeling industries.
DO YOU MAKE PRODUCTS IN ANY AVAILABLE WOOD SPECIES?
Yes. See pages 46–48 for a list of our wood species. Other species may be available upon request.
DO YOU PROVIDE FINISHING FOR YOUR PRODUCTS?
Yes. See page 51 for a brief description of our finishing and polish sanding options. See our Finishes Catalog or our website for complete information.
WHAT ARE YOUR ESTIMATED LEAD TIMES?
Estimated lead times can vary according to many factors, including the size and complexity of your order. Our typical lead time is within a few weeks for most products. For detailed information on our current lead times, please call customer service.
HOW WILL I KNOW WHEN MY ORDER HAS SHIPPED?
Keystone will e-mail tracking information to you at the time of shipment.
DO YOU REQUIRE A MINIMUM QUANTITY TO PLACE AN ORDER?
No. A single door or a thousand doors, all orders receive the same personal attention.
WHAT ARE YOUR STANDARD RAIL AND STILE SIZES?
Unless otherwise noted in the Price & Specification Document, door rails and stiles are 21/4” wide. Drawer fronts have 11/2” rails and 21/4” stiles.
CAN I GET A “BALLPARK” ESTIMATE?
No. There are too many variables to give you useful information without an actual quote, which you can usually have within 24 hours. You can also figure your own cost by using the information in our downloadable Price & Specification Document.
CAN I SEND A DRAWING OR A PHOTO OF A CUSTOM DOOR I WANT?
Yes. We specialize in one-of-a-kind custom orders. See page 63 for more information.
CAN I SEND A BLUEPRINT OR PLANS FOR A JOB AND HAVE YOU PULL THE DIMENSIONS FOR WHAT I NEED?
We do not do takeoffs from plans or blueprints. You need to send us a list of items. Order forms are available online for your convenience.
CAN I MODIFY AN EXISTING DOOR DESIGN?
Yes. Page 14 explains how to customize a door the way you want it. And if an existing door does not allow for your customizations, call us or send us a drawing.
CAN ANY CUSTOMER SERVICE REPRESENTATIVE HANDLE MY ACCOUNT?
Yes. All of our friendly customer service professionals are knowledgeable, capable, and ready to assist you.
HOW CAN I GET A QUOTE?
Use the same method as placing an order, except request a quote.
DOOR & DRAWER FRONT NOMENCLATURE
FACE
LIP/EDGE PROFILE
RAIL/STILE
RAIL/STILE WIDTH (MEASURED FROM BACK)
FRAMING BEAD
PANEL RAISE PROFILE
FACE
RAISED PANEL
FRAMING BEAD
STILE (LEFT)
PANEL
PANEL RAISE PROFILE
RAIL (TOP)
LIP/EDGE PROFILE
STILE (RIGHT)
RAIL (BOTTOM)
APPLIED MOULDING DOORS (RAIL/STILE WIDTH IS TAKEN FROM THE BACK OF THE DOOR)
MOULDING APPLIED TO RAILS & STILES
REVEAL
MOULDING APPLIED TO FRAMING BEAD
REVEAL
MOULDING APPLIED TO PANEL
REVEAL
RAIL/STILE WIDTH
RAIL/STILE WIDTH
RAIL/STILE WIDTH
DOOR & DRAWER FRONT CONSTRUCTION TYPES
There are three basic types of construction for Keystone’s five-piece doors and drawer fronts. Any cope and stick or haunched door can also be made as a mitred door upon request.
COPE AND STICK CONSTRUCTION
The most traditional construction type. Choose from available framing beads listed on page 43.
HAUNCHED CONSTRUCTION
This construction type is used when the framing bead cannot be made using cope and stick construction.
MITRED CONSTRUCTION
This is the most versatile construction type. The entire face of the rail/stile can be custom drawn and we will make it.
MINIMUM SIZES FOR DOORS & DRAWER FRONTS
Minimum door and drawer front sizes vary depending on the widths of each item’s rails and stiles, as well as which panel raise you choose.
To calculate the minimum height and width of a door or drawer front, add the dimensions as shown in the drawing below (A + B + C + D + E).
*Rail and stile widths are listed by each door design. Otherwise, standard rail/stile widths are as follows:
• Doors have 21/4” rails and stiles.
• Drawer fronts have 11/2” rails and 21/4” stiles.
**Panel reveal and minimum flat dimensions for each panel type are shown on page 44.
CENTER RAILS
Unless otherwise specified on your order, doors over 48” high will automatically get a center rail as shown. This is done for stability purposes. You may request no center rail. However, we do not recommend it, and the door will not be guaranteed against warping.
DOUBLE PANEL
All doors over 24” wide will be made as double panel doors unless specified as single panel. Single panel doors over 24” wide will not be guaranteed.
CUSTOMIZING A DOOR
Start here. Customizing a door is a matter of seven basic choices:
1. Choose a door design (pages 18–42).
2. Choose a framing bead (page 43).
3. Choose a panel type (pages 44–45).
4. Choose a wood species (pages 46–48).
5. Choose a lip/edge profile (page 49).
6. Choose a finish (page 51, and see our Finishes Catalog).
7. Choose additional options (pages 52–53).
1. Door design: SRP-10
2. Framing bead: Traditional
3. Panel type: regular raise
4. Wood species: select white maple
5. Lip/edge profile: Q-2 edge
6. Finish: unfinished
7. Additional option: bore for European hinges
MULTI-LITE AND FRAME-ONLY DOORS
Nearly all Keystone doors are available as multi-lite or frame-only doors. For most designs, the mullion profile matches the framing bead (see page 43). Some exceptions apply. For more designs, see pages 38–41.

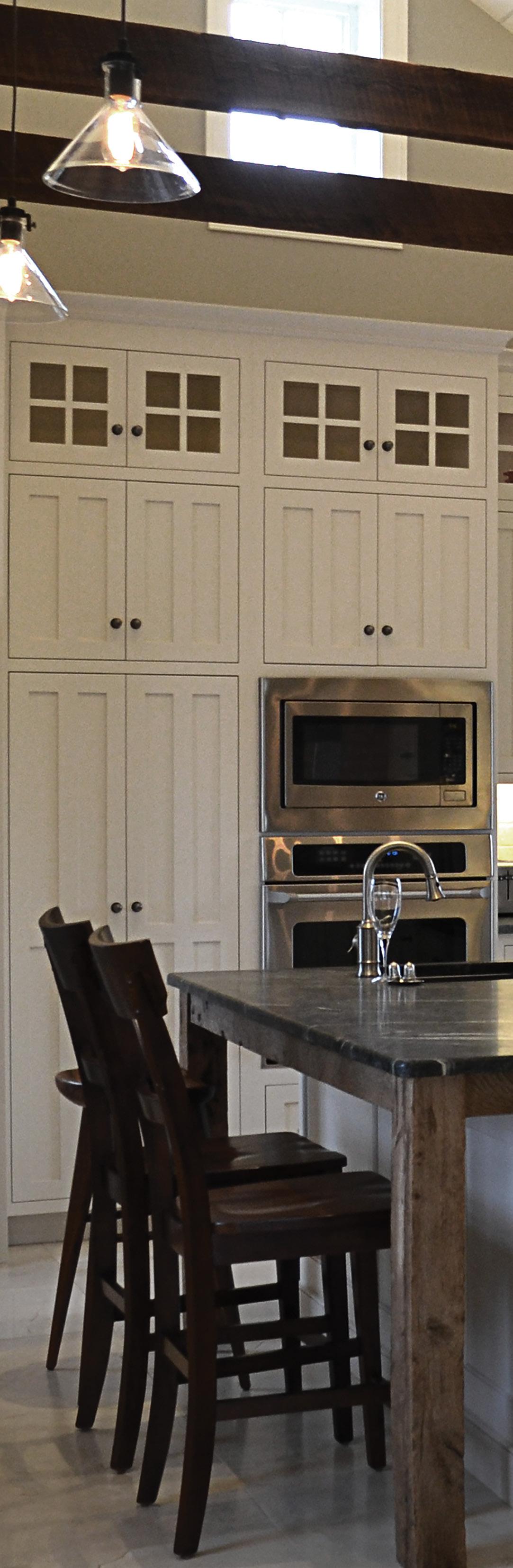

Marks Fine Woodworking Photography by Virginia Hamrick Photography
DOORS & DRAWER FRONTS
UNIVERSAL DRAWER FRONTS
There are five basic types of drawer front designs. Most doors in this catalog are shown with a matching drawer front. However, you can also choose from the universal designs shown below.

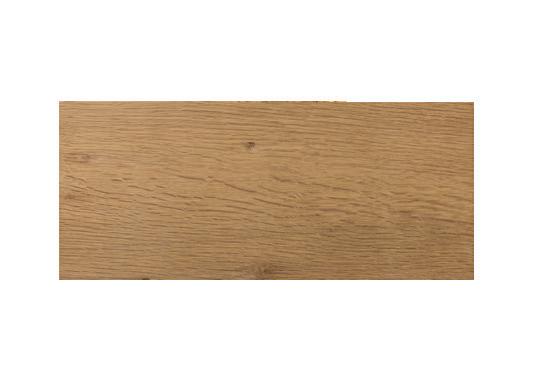

4/4 SLAB
SLAB: Match with almost any door design. Choose
4/4 RAISED
RAISED: Match with almost any door design except Shaker and Mission. Some raise and edge profile combinations may only be available with 5/4.

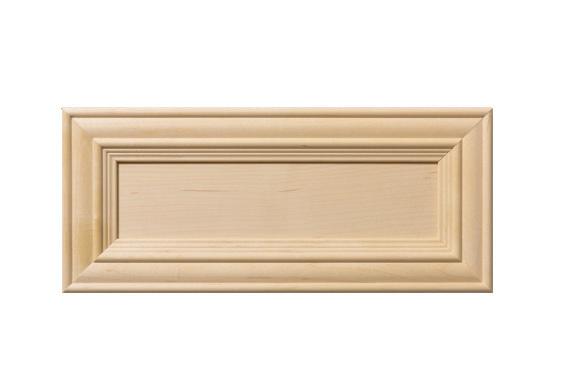

SRP-10-DF
TRADITIONAL: Match with almost any Traditional door design.
SDS-105-DF
APPLIED MOULDING: Each Applied Moulding door design has a specific drawer front to match that door.
KM-1205-DF
MITRED: Each Mitred door design has a specific drawer front to match that door.
TRADITIONAL

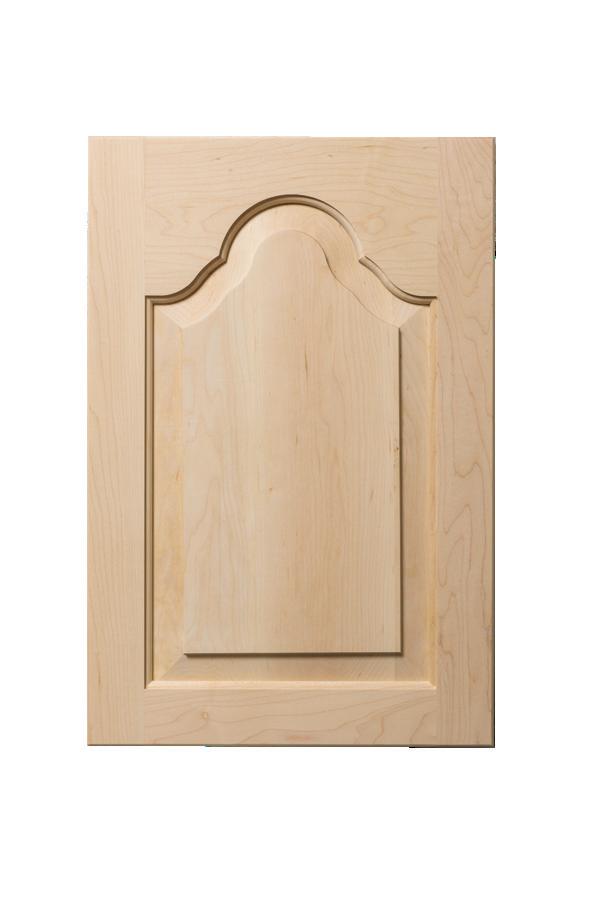

Keystone’s Traditional doors and drawer fronts offer a classic, timeless cabinetry look. Simple straight lines and gentle, elegant curves complement any decor, and the solid cope and stick construction ensures long-lasting quality.
TRADITIONAL
See page 29 for a mitred version of this door.
TRADITIONAL
SRP-9050HALF LEFT
SRP-9050HALF RIGHT SRP-50
(Formerly SRP-923) Now order as an SRP-10 with: Reverse Raise (7/16”) beaded panel 3/8” Bead 2” on center
For bead sizes, see page 44.
TRADITIONAL
SHAKER
Our Shaker doors and drawer fronts are based on the minimalistic style of furniture made by the Shaker religious sect in the 18th and 19th centuries. Their design focuses on function, with square edges, straight lines, and simple wooden hardware. Corner pegs, once functional, now appear as an aesthetic feature of Shaker cabinetry.

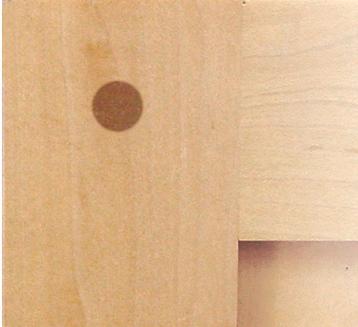

Contrasting corner pegs (single or double) are an option available upon request.
SHAKER
UNIVERSAL SHAKER DRAWER FRONTS
(Formerly SK-10-DF)
Now order as SRP-10 DF with: Square Framing Bead
Raised Panel
(Formerly SK-901 DF)
Now order as SRP-10-DF with: Square Framing Bead
3-PIECE-DF
4/4 BEADED SLAB
Beads are 11/4” from edges.
Shaker drawer fronts can be used interchangeably with many Shaker doors.
Choose from the profile options below.
(Formerly SK-902)
Now order as SRP-902 with: Square Framing Bead
(Formerly SK-903)
Now order as SRP-903 with: Square Framing Bead
(Formerly SK-901 shown above)
Now order as SRP-10 with: Square Framing Bead
(Formerly SK-905)
Now order as SRP-10 with: KS250 Framing Bead
Choose Choose Choose
(Formerly SK-904)
Now order as SRP-10 with: KS188 Framing Bead
(Formerly SK-10)
Now order as SRP-10 with: Square Framing Bead
Raised Panel
(Formerly SK-30)
Now order as SRP-30 with: Square Framing Bead
Raised Panel
SHAKER
Now order as SRP-10-DF with:
Square Framing Bead
Reverse Raise (7/16”) Beaded Panel
3/8” Bead (1 centered)
(Formerly SK-921)
Now order as SRP-10 with:
Square Framing Bead
Reverse Raise (7/16”) Beaded Panel
3/8” Bead (1 centered)
For bead sizes, see page 44.
NAVAJO
Not available as a multi-lite door.
Now order as SRP-10-DF with:
Square Framing Bead
Reverse Raise (7/16”) Beaded panel
3/8” Bead (2 per DF / 2” on center)
(Formerly SK-923)
Now order as SRP-10-DF with:
Square Framing Bead
Reverse Raise (7/16”) Beaded Panel
3/8” Bead (2” on center) Choose Choose Choose
(Formerly SK-922)
Now order as SRP-10 with:
Square Framing Bead
Reverse Raise (7/16”) Beaded panel
3/8” Bead (2 per door/ 2” on center)
For bead sizes, see page 44.
NAVAJO-DF
(Formerly SK-923)
Now order as SRP-10 with:
Square Framing Bead
Reverse Raise (7/16”) Beaded Panel
3/8” Bead (2” on center)
For bead sizes, see page 44.
CONTEMPORARY VG-DF
NARROW SHAKER
Narrow Shaker cabinet doors have been growing in popularity over the past several years. Also known as a Slim Shaker or Thin Shaker, this door style is a sleek twist on the traditional Shaker style door. The Narrow Shaker adds a streamlined, modern feel to any space.
Narrow Shaker Doors are currently available with a Square Frame.
Each door is constructed with our solid Pro Cor panels. The inner core of the panel is constructed of lightweight, multi-ply Northwest Whitewood, giving it a high screw hold rating of over 300 pounds. The outer crossbands are a high-quality, veneered medium-density fiberboard that acts to prevent telegraphing of the wood grain to the outer surface. It is available in most wood species and finishing options.
Choose from 18 frame widths: 7/16”, 1/2”, 9/16”, 5/8”, 11/16”, 3/4”, 13/16”, 7/8” 15/16”, 1”, 1 1/16”, 1 1/8”, 1 3/16”, 1 1/4”, 1 5/16”
1 3/8”, 1 7/16”, 1 1/2”
Choose from 5 door thickness: 7/8”, 15/16”, 1”, 1”, 1/16”, 1 1/8”
Thick Door Hinges may be required for doors over 7/8” thick.
The back of each door has a relief around the perimeter to create a clean finish and also prevent visible cracks in the finish.
MISSION (ARTS & CRAFTS)
UNIVERSAL MISSION DRAWER FRONTS
(Formerly MIS-801-DF)
Now order as SRP-10-DF with: Square Framing Bead
Similar in style to our Shaker doors and drawer fronts, Keystone’s Mission line offers a more formal look. This style of cabinetry is sturdy and stable, traditionally made from quarter-sawn white oak accented with black or metal hardware. Mission doors and drawer fronts are also appropriate for those looking for an Arts & Crafts look for their home. Mission drawer fronts can be used interchangeably with many Mission doors.
(Formerly MIS-801)
Now order as SRP-10 with: Square Framing Bead
(Formerly MIS-802)
Now order as SRP-902 with: Square Framing Bead
(Formerly MIS-803)
Now order as SRP-803 with: Square Framing Bead
Applied moulding is spaced 3/4” apart.
(Formerly MIS-804)
Now order as SRP-804 with: Square Framing Bead
(Formerly MIS-805)
Now order as SRP-805 with: Square Framing Bead
Applied center moulding is spaced 1” apart.
Contrasting corner pegs (single or double) are an option available upon request.
MITRED
The terms “modern” and “clean” define the style of Keystone’s Mitred doors and drawer fronts. So named for its mitred corners strengthened by mortise and tennon, this is the most versatile construction type we offer, open to a wide range of customization. Mitred cabinetry provides a sleek look head-on with a rich and varied profile.
KM-105-DF
KM-205-DF
Multi-lite version available with flat mullions only.
mullions require changing the design to a Traditional framing bead.
Multi-lite version available with flat mullions only.
Multi-lite version available with flat or traditional mullions only.*
Not available as a multi-lite door.
Multi-lite version available with flat mullions only.
KM-505
KM-605
KM-405-DF
KM-505-DF
KM-605-DF
KM-205
KM-305
KM-305-DF
KM-805-DF
KM-905-DF
KM-1305-DF
Not available as a multi-lite door. KM-1305
KM-905
Multi-lite version available with flat mullions only.
KM-1205
Multi-lite version available with traditional mullions only.*
KM-1405
KM-1505
KM-1405-DF
KM-1505-DF
KM-1205-DF
MITRED
KM-1605-DF
KM-10-DF
KM-1605
Not available as a multi-lite door.
KM-1705
Not available as a multi-lite door.
KM-1705-DF (Formerly SRP-10-MITRE) KM-10
KM-ROPE-DF
KM-PEGGED ROPE-DF
KM-ROPE
Rope moulding is not available in all wood species. Please call for availability.
Multi-lite version available with flat mullions only.
KM-PEGGED ROPE
Rope moulding is not available
Please call for availability.
Multi-lite version available with
KM-S/WEST-DF
KMSOUTHWESTERN
Not available as a multi-lite door.
APPLIED MOULDING
For the most elegant, luxurious cabinetry look, choose our Applied Moulding doors and drawer fronts. From simple to ornate, classic to modern, this style is perfect for a wide variety of looks. Paint and glaze options highlight the lines and depth of the wood, heightening the drama and lending an antique feel. Applied Moulding doors and drawer fronts can be comprised of either cope and stick or mitred construction.
APPLIED MOULDING
SDS-701 MULTI-LITE
SDS-101 MULTI-LITE
SDS-700-DF
SDS-101-DF
SDS-705-DF
SDS-105-DF
SDS-705
Multi-lite & two drawer fronts pictured above.
SDS-101 Multi-lite, two drawer fronts & two arched versions pictured above.
*Available with Superior Green reverse or 3/8” veneered flat panels only. **Not available with some panel raise profiles. Call customer service for details.
SDS-301
SDS-201
APPLIED MOULDING
SLAB KAM-950-DF
KAM-951-DF
KAM-950
4/4 SLAB
KAM-7014
Not available as a multi-lite door. (Formerly KE-100)
KAM-951
Not available as a multi-lite or frame only door.
KAM-EGG&DART-DF
KAM-7023-DF
KAM-7023
Not available as a multi-lite door. (Formerly SK-951)
(Formerly SK-EGG&DART)
KAM-EGG&DART
Egg & dart moulding not available in all wood species. Please call for availability.
Not available as a multi-lite door.
APPLIED MOULDING
KAM-7017 MULTI-LITE KAM-7018
DF
KAM-7017
& two drawer fronts pictured above.
SOLID DOORS
As the name implies, these doors are solid and sturdy. The straight lines of Solid doors give a simple, clean, contemporary look—perfect for modern homes. To go a bit more rustic, choose from our batten and grooved doors.
SOLID DOORS
PRO-COR-DF
PRO-COR-SE-DF
KAM-7049-DF
PRO-COR Square edge-banding.
VENEERED MDF-DF
PRO-COR-SE
1/8” thick layered real wood edge-banding with an 1/8” radius on both sides.
KAM-7049
Applied Moulding edge.
3/4” veneered PRO-COR panel
PRO-COR
VENEERED MDF
Solid MDF core with no edge-banding.
Available in cherry, red oak, maple, and paint grade.
The inner core is constructed of lightweight, multi-ply Northwest Whitewood, giving it a high screw hold rating of over 300 pounds. The outer crossbands are a high-quality, veneered medium-density fiberboard that acts to prevent telegraphing of the wood grain to the outer surface. It is available in most wood species and finishing options.
SOLID DOORS
Choose
SOLID BATTEN
Choose from the profile options below.
Random groove / bead spacing
(Formerly KE-500-DF)
Choose
DVG-500-DF
DEEP V-GROOVE BATTEN (SHOWN)
Choose
SOLID BEADED BATTEN
Choose
Choose
DVG-200
Random groove spacing
Choose
DVG-300
Random groove spacing
Choose
(Formerly KE-500)
DVG-500
QUARTER CIRCLE
Quarter Circle doors are especially appropriate for large, stately built-in or stand-alone cabinets and furniture. The formal left and right doors form a strong visual centerpiece.
KC-515-HALF LEFT (SHOWN)
KC-515-HALF RIGHT
KC-510-HALF LEFT (9 LITE OPTION SHOWN)
KC-510-HALF RIGHT
KC-535-HALF LEFT (SHOWN)
KC-535-HALF RIGHT
Lip/Edge: A-2, B-2, C-2, L-2, P-2, Q-2, R-2, Square Edge
KC-530-HALF LEFT (9 LITE OPTION SHOWN)
KC-530-HALF RIGHT
Lip/Edge: A-2, B-2, C-2, L-2, P-2, Q-2, R-2, Square Edge
MULTI-LITE DOORS
Keystone’s Multi-Lite doors provide a world of creative possibilities. These doors are typically designed to showcase what lies behind them and can suit any of our styles, from Traditional, to Shaker, to Mission, to Applied Moulding. Choose mitred or cope and stick construction, then straight or curved mullions. Or, provide your own custom drawing.
MULTI-LITE DOORS
SRP-10 FRAME ONLY
SRP-10 MULTI-LITE (6 LITE SHOWN)
SRP-9
SDS-701 MULTI-LITE
(Formerly SK-10 Multi-Lite)
SRP-30 MULTI-LITE (6 LITE SHOWN)
Now order as SRP-10 Multi-Lite with: Square Framing Bead (4 LITE SHOWN)
SDS-101 MULTI-LITE
(Formerly SK-9)
Now order as SRP-9 with: Square Framing Bead
SRP-10 MULTI-LITE (5 LITE SHOWN)
MULTI-LITE DOORS
ARCHED TOP MULTI-LITE (13 LITE SHOWN)
Lip/Edge: A-2, B-2, C-2, L-2, P-2, Q-2, R-2, Square Edge
ML-GOTHIC (12 LITE SHOWN)
NOTE: Some Multi-Lite doors with curved, solid wood mullions may not be guaranteed. Contact customer service for details. Paint grade MDF mullions are guaranteed.
HALF CIRCLE MULTI-LITE (13 LITE SHOWN)
ML-GOTHIC (7 LITE SHOWN)
MULTI-LITE DOORS
ML-GOTHIC HALF TOP (11 LITE SHOWN)
ML-CHIPPENDALE
ML-TOMBSTONE (9 LITE SHOWN)
ML-HALF CIRCLE (9 LITE SHOWN)
LOUVER DOORS
These accent doors allow light and air to flow through (or at least give the illusion of it). Louver doors are similar in style to old-fashioned shutters and feature cope and stick construction.
LOUVER
FRAMING BEADS & MULLIONS
Customize your door/drawer front by choosing a framing bead. Most door styles may be ordered as multi-lite doors. The mullion profile matches the framing bead as shown.
Profile renderings are actual size.
* Spray Stain not recommended with the Square Bead or the KS250 Bead
** KS188 and KS250 Beads are not available with a raised panel door.
FRAME ONLY/MULTI-LITE 1/8" GLASS
VINYL RETAINER MOULDING
PANEL RAISE PROFILES
Customize your door/drawer front by choosing a type of panel or raise profile.
5/8“ PANELS
11/8”
11/8”
113/16”
5/8”
SHORT ALPINE RAISE
11/8”
5/8”
11/8”
11/4”
15/8”
*Available only on square-cornered, non-arching doors (straight rails).
7/16“ PANELS
REVERSE RAISE
REVERSE BEADED
Bead choices: 3/8” (standard), 3/16”, or 1/8”
Standard 3/8” will be used unless otherwise specified.
Profile renderings are actual size.
11/8”
13/8”
NOTE: The minimum flat dimension for most raised panels is 3/4” except where indicated by **. SHORT COVE RAISE
RAISE*
13/8”
13/4”
**The minimum flat dimension is 1” for these panels.
NOTE: The minimum flat dimension for all reverse and reverse beaded panels is 13/4” .
Groove options available in Reverse Raise-see page 45.
VENEERED FLAT PANELS
3/8“ PANELS
3/8” VENEERED MDF PANEL
1/4“ PANELS
1/4” VENEERED MDF PANEL
GROOVE OPTIONS FOR FLAT
PANELS
1/4“ or 3/8“ PANELS
NOTE: 3/8” Veneered MDF Panels are available only in maple, red oak, quartersawn white oak, cherry, white birch, and paint grade. Other species may be available upon request. Call for more information. The minimum flat dimension for all flat panels is 1”.
Grooves are on 1” centers.
V-Groove and Channel-Groove options also available in Reverse Raise
(Solid color finishes are not recommended on MDF Groove Panels.)
SUPERIOR GREEN PANELS
(You must specify Paint Grade Superior Green when ordering.)
Keystone’s Superior Green Panels are a highquality paint grade option. These mediumdensity fiberboard panels are available in thicknesses of 1/4”, 3/8”, and 5/8”.*
They are moisture resistant and extremely stable. Machined edges are smooth and ready to finish.
• Available machined to any Keystone panel raise
• Smooth, unblemished surface
• Homogeneous core
• Attractive pricing—save on material and finishing costs
Paint grade doors with Superior Green panels are made with soft maple rails and stiles.
*Reverse panels will be 7/16” thick.
Profile renderings are actual size.
WOOD SPECIES
IMPORTANT DISCLAIMER The infinite varieties in color, grain,* and texture give wood its rich character and natural warmth. There are differences among varying wood species, and even within the same species, no two trees are alike. Climate, light, rainfall, and minerals in the soil all create diverse and unique grain and color patterns in each piece of wood. We’ve prepared the following guidelines to assist you in selecting the right wood for the desired result.
*Grain and color matching that is not acceptable to the customer is replaced at the customer’s expense.
WOOD SPECIES
ALDER
Color ranges from light tan to reddish brown, with almost no distinction between heartwood and sapwood. Alder has a fine texture with partly closed, straight grain similar to cherry. Pin knots are an acceptable characteristic.
ALDER, KNOTTY
Same as alder, except knots and burl are acceptable. Knots vary in size or shape and may be open, forming deep holes.
ASH
The color tones of ash consist of a wide range of cream to light brown with some dark streaks. Burl and pin knots are acceptable. Ash is not selected for color. Panel rips are arranged to form a reasonable blend of grain matching and wood color tones.
BIRCH, NATURAL
A mixture of sapwood and heartwood, it is suitable for dark stains only. Color selection is not available.
BIRCH, WHITE
A white to pale yellowish closed-grained wood, suitable for natural finish as well as light to dark stains. No red heartwood is acceptable.
CHERRY
Cherry may contain some white sapwood. Grain and color are matched to form a reasonable blend. Exposure to light causes cherry to darken with age, revealing a deep reddish-brown tone. Gum pockets are a natural characteristic of cherry.
CHERRY, CLEAR
Same as cherry, except sapwood is not used on face. Sapwood is allowed on backs. Cherry becomes very rich in color tones when finished natural and allowed to age.
HICKORY
Unlike most other wood species, hickory has a unique grain pattern and variety of color tones all its own. Our standard hickory has some pin knots, lots of character and is not selected for color.
HICKORY, KNOTTY
Same as hickory, but with some large knots.
MAHOGANY
Color varies from golden brown to light reddish color tones with occasional pin knots or burl. Mahogany is selected for uniformity in color per job. When ordering, please indicate Natural Finish Grade Mahogany if a specific color range is required.
*Please note: There is an additional cost if a new mahogany order needs to be matched to an existing mahogany cabinetry component.
MAPLE, HARD
Maple is a light brown to creamy tan wood with a subtle grain pattern and is suitable for light to dark stains. Some mineral is acceptable.
MAPLE, SELECT HARD WHITE
Same as maple, except reddish brown heartwood or mineral is not acceptable. Select white maple is recommended for light stains or natural finish.
MAPLE, SOFT
Used mostly for drawers and paint grade doors, soft maple has a range of creamy white to brown to gray color tones. Color is not selected. Soft maple is not recommended for stain or natural finish.
Continued on next page...
WOOD SPECIES
PAINT GRADE
Paint grade doors and drawer fronts are usually made from soft maple.
PAINT GRADE, SUPERIOR GREEN
Product rails and stiles are solid soft maple. Panels are made from Glacier GreenTM MDF engineered wood panels. They are highly valued for their smooth, unblemished surfaces and homogeneous cores and provide unsurpassed ease of finishing.
PAULOWNIA
Heartwood ranges from a pale, grayish brown to a reddish-purple hue and is not always easily distinguished from the pale white sapwood. Paulownia is a lightweight wood with a straight, open grain that is stable in various environments—making it the perfect selection for boating applications.
PINE, CLEAR
A completely clear grade of pine with no knots. Blue stain is not acceptable.
PINE, KNOTTY
Our knotty pine, a New England furniture grade, has tight red knots and is suitable for rustic-style cabinetry. Filled or loose knots and blue stain are not acceptable.
POPLAR
A soft hardwood, it has a pale yellowish to white color with some green and brown mineral. Not selected for color. Typically used as a paint grade.
PRO-COR
The inner core is constructed of lightweight multi-ply Northwest whitewood, giving it a high screw hold rating of over 300 pounds. The outer crossbands are a high-quality veneered medium-density fiberboard, which acts to prevent telegraphing of the wood grain to the outer surface. It is available in most wood species and finishing options.
RED OAK
Red oak is not selected for color. Defects such as knots and splits are removed. Character, such as burl and pin knots, is acceptable. Mineral is acceptable in the range of 1/8” wide x 5” long. Panel rips are arranged to form a reasonable blend of grain matching and color tones.
RED OAK, SELECT
Dark and medium-dark color tones and mineral are not used. Burl and pin knots are acceptable. Select red oak is recommended for light stains and natural finish.
WALNUT
Walnut may have up to 15% sapwood. Burl and pin knots are acceptable.
WALNUT, CLEAR
Sapwood is not acceptable on the face of a door.
WHITE OAK
A tight open-grained wood with light brown to greenish-gray color tones. Pin knots and burl are allowed. Not selected for color. Panel rips are arranged to form a reasonable blend of grain matching and color tones.
WHITE OAK, QUARTERSAWN
Quartersawn is different than plainsawn only in the way it is cut at the sawmill. Quartersawn is cut radially to the rings or parallel to the rays and produces an edge-grained appearance and is especially suited for reproductions of furniture or cabinetry.
WHITE OAK, RIFT CUT
Rift cut, like quartersawn oak, is different than plainsawn only in the way it is cut at the sawmill. Plainsawn has growth rings that are less than 30˚. Rift cut lumber has growth rings that have a range of 30˚ to 60˚, producing a tight vertical grain.
LIP/EDGE PROFILES
Customize your door/drawer front by choosing a lip/edge profile. All pre-finished doors and drawer fronts must have the lip/ edge profile specified. If no profile is specified on unfinished orders, edges will not be machined.
*Shaker bead is not available on horizontal edges of cope and stick doors and drawer fronts. **Boring for European hinges is NOT available for A, B, C, C-2-BB, CH-2, D, E-2, P, Q, R, or S.
Profile renderings are actual size.
/16 ”
3 /16 ” RADIUS AVAILABLE W/0 BACK BEVEL (SDS-2) (MACHINED EDGE)
POLISH SANDING & FINISHING
POLISH SANDING
After sanding with 180 grit on a wide belt sander, doors, drawer fronts, and face frames are sanded with a palm random orbit sander with 150 grit sandpaper to remove belt and cross-grain scratches.
We recommend that you prep your doors, drawers, and frames for finishing to ensure a uniform appearance with your cabinets.
FINISHING
Keystone has a fully equipped and staffed finishing department, offering a large selection of stains, glazes, and paint colors, as well as the ability to produce professional distressing effects. And if you don’t see the finish you want, we can custom color match your order to your supplied color sample.
See our Finishes Catalog or visit our website for more information.
What’s inside:
• Recommended stains shown on Maple, Cherry, and Red Oak
• Paint color palette
• Full and Accent Glazing
• Distressing and Antiquing effects
• Color Samples
OTHER OPTIONS
SLOTS FOR KNIFE HINGES
BORE FOR EUROPEAN HINGES
• 3” on center from the top and bottom of the door
• Not available with C-2-BB edge profile
• 31/2” on center from the top and bottom of the door
• 35mm bore
• • 2.5mm DBE standard*
• Not available with A, B, C, C-2-BB, CH-2, D, E-2, P, Q, R, or Shaker Bead edge profiles
• Addition boring for doors over 48” high 1/2” deep
Keystone carries Blum BLUMOTION, soft-closing European hinges, and Youngdale knife hinges.**
PLUGS AND PEGS
Round Plugs
• Square End Grain Pegs
1/2” diameter
* DBE = the distance from the edge of the door to the edge of the cup bore.
** These hinge pictures are for the purpose of illustration only and may not accurately represent the exact product you order.
•
3/8” x 3/8”
• Matching End Grain: Square holes are bored with a mortising chisel, creating a rustic appearance. Pegs may be slightly off square.
ROUT FOR FINGER PULLS
• Centered or 21/4” from the edge
• • 4” wide
3/8” deep
• Not available with A, B, C, C-2-BB, CH-2, D, E-2, L-2, P, S, or Shaker Beaded edge profiles.
• Not available on the 4/4 Raised Drawer Front
CORNER SUSAN DOORS
LOCK MITRE CONSTRUCTION
BI-FOLD
BUTT JOINT
CORNER
APPLIANCE PANELS
STANDARD APPLIANCE PANEL
There are a number of manufacturer specifications for appliance panels. The illustration below is an example of a more popular one that manufacturers use. Order panels according to the appliance manufacturer’s specifications.*
You may order only the appliance panel alone or with the backer panel and/or the spacer panel.
Please note: Keystone does not supply the 1/8” spacer panel or the 1/4” backer panel unless requested and specified.
Panels for dishwashers, refrigerators, trash compactors, and freezers are made in the matching door style and finish. Refrigerator panels over 24” wide require at least one center stile. Panels over 48” high require at least one center rail.
Order by giving us your exact measurements on a drawing.
*Keystone is not responsible for interpreting manufacturer specifications and drawings.
3/4” DOOR
1/8” SPACER PANEL
1/4” PLYWOOD BACKER PANEL
Mar-Van Industries, Inc.
Mar-Van Industries, Inc.
ARCH PANELS
Order arch panels in almost any door style. Flat panels will be used if the narrowest part of the arch is below the minimum size of that door style (see page 13 to calculate the minimum size).
3/4”
KAV-15
KAV-45
KAV-25
KAV-55
KAV-35
KAV-65
Conestoga Country Kitchens Inc.
WAINSCOTING & COLUMNS
Order almost any door style, fluted column, face frame, or custom design to use as a wainscot panel. Framing widths will match the standard dimensions of the door design unless otherwise specified.
LOCK MITRE CONSTRUCTION
Lock Mitre Construction is a solid, locked joint that can be specified in any angle from 90 to 140 degrees, for either inside or outside corners.
EXAMPLES:
DON’T SEE WHAT YOU WANT? NO PROBLEM. SEND US YOUR DRAWING.
Mike Dugan / Kitchen Tune-Up #226
FACE FRAMES
All custom requests are welcome. For your convenience, face frame order forms are downloadable from our web site.
Options:
Order face frames in any configuration you want or need, simple or complex. All custom requests are welcome. For your convenience, face frame order/quote forms are downloadable from our website, or contact customer service to send us your detailed drawings and specifications.
• Square Edge or
• Beveled Edge or
• Beaded Inset—Choice of 1/4ʺ or 3/8ʺ bead*
• Polish Sanding
• Square
• Assembled or unassembled
• Assembled or Knockdown
• Beveled
• All Wood Species
• Beaded: choice of 3/16”, 1/4”, or 3/8” bead*
• Pilot Holes for Hinges
• Polish sanding
*Bead sizes must be specified.
MORTISE & TENON CONSTRUCTION
• Finished (assembled only) or unfinished
• All wood species
3/8” BEAD
FACE FRAMES
ARCHED TOP RAIL
Face frame with an arched top rail.
lock mitre construction
Available in any face frame edge profile.
FACE FRAME SECTIONS JOINED WITH LOCK MITRE CONSTRUCTION
Any angle 90º to 140º
Lock Mitre Construction is a solid, locked joint that can be specified in any angle from 90 to 140 degrees, for either inside or outside corners.
Lock Mitre Construction is a solid, locked joint that can be specified in any angle from 90 and 140 degrees, for either inside or outside corners.
EXAMPLES
Examples:
Base cabinet face frame with baseboard moulding joined to a raised end panel by a fluted column.
cabinet face frame joined to a raised end panel.
cabinet face frame joined to a raised end panel.
Base cabinet face frame with a “bump out” cabinet.
Base cabinet face frame with a “bump out” cabinet.
DON’T SEE WHAT YOU WANT? NO PROBLEM. SEND US YOUR DRAWING.
Don’t see what you want? No problem. Send us your drawing.
Base cabinet face frame with baseboard moulding joined to a raised end panel by a fluted column.
Wall
Wall

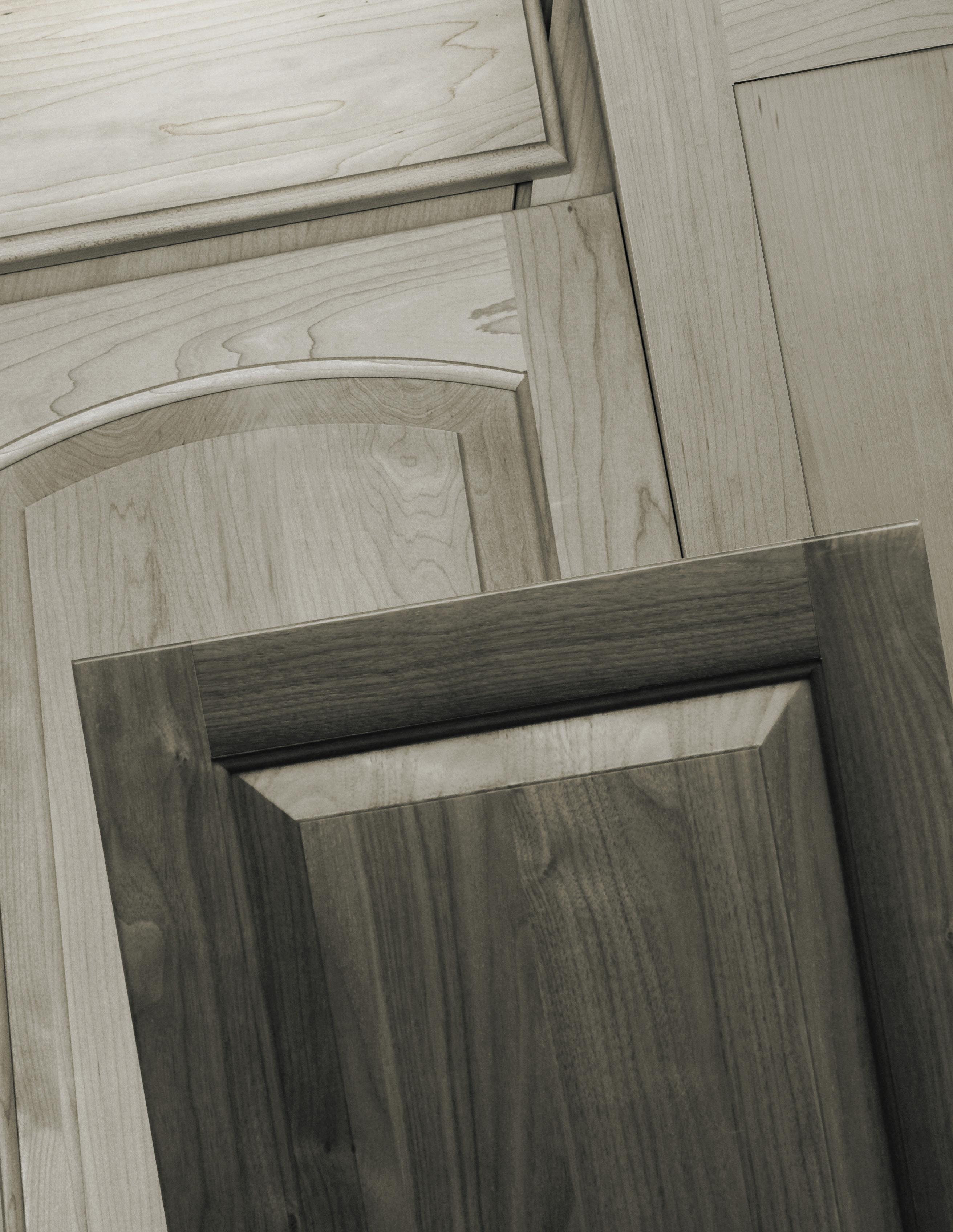

SAMPLE DOORS
ASK ABOUT OUR CURRENT SAMPLE DOOR PROGRAM
We offer small sample doors (12”x15”) at a discounted price for marketing purposes, available with optional dovetailed door rack as shown in the photo.
Our sample doors are great for:
• Stocking your showrooms and displays
• On the road (ask about our sample door carrying case)
• Samples of a custom selection in order to sell a job
CUSTOM REQUESTS
Haven’t found what you’re looking for? Don’t worry. Keystone specializes in one-of-a-kind custom designs.
SEND CUSTOMER SERVICE A PHOTO OR DRAWING OF YOUR DESIRED DESIGN.
Submit a photo or drawing of the exact design you would like via e-mail, snail mail, or fax, and be sure to include measurements. Keystone cannot create a design for you based on only an idea or concept.
KEYSTONE WILL MAKE THE NECESSARY DRAWINGS AND TOOLING FOR PRODUCTION.
Once your drawing or photo is received, Keystone will create the specific CAD drawings and tooling needed to build your custom piece.
KEYSTONE WILL THEN CREATE YOUR CUSTOM DESIGN. Our skilled team will then build the exact design according to your specifications. Contact customer service today to get started.
Old Dominion Woodworking
When you call during normal business hours, your call will be answered personally by a live staff person who will quickly direct your call.
CUSTOMER SERVICE
Phone Toll-Free: 800.233.0289
Fax Toll-Free: 800.253.0805
Phone Local: 717.299.6288
Fax Main Office: 717.299.9654
E-mail info@keystonewood.com Online keystonewood.com
MAILING ADDRESS
Keystone Wood Specialties Inc. PO Box 10127
Lancaster, PA 17605-0127
PHYSICAL SHIPPING ADDRESS
Keystone Wood Specialties Inc. 2225 Old Philadelphia Pike
Lancaster, PA 17602
NORMAL OFFICE HOURS
Monday–Friday, 7 am–5 pm EST
Fax lines are open 24 hours, 7 days a week.
