TEKNISET TIEDOT TECHNICAL DATA
CRANE CODE 90000430
2121Z-82 2121ZT-97
KÄÄNTÖVAIHTOEHDOT • SLEWING OPTIONS
5m
6m
7m
8m
9m
2121Z-82 2121ZT-97
4 350 4 200
3 600 3 450
3 050 2 950
2 650 2 550
2 250
5 500 5 300
kg kg
4 m
CRANE CODE 90000430
NOSTURIMITAT • CRANE DIMENSIONS
CRANE CODE 90000430
NOSTOARVOT • LIFTING CAPACITY
12.3.2018 9:50
Page 1/1

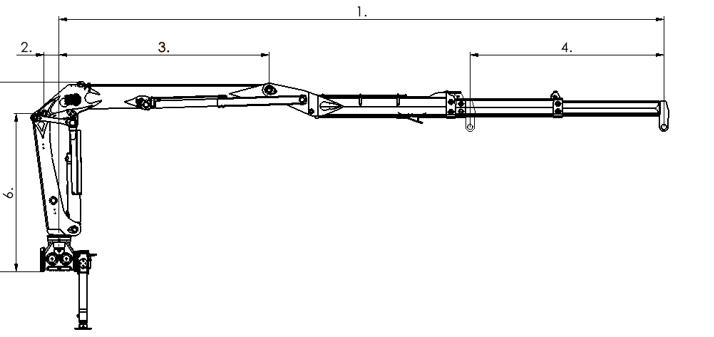

1.
ASENNUSMITAT • MOUNTING DIMENSIONS
2. 4.
7.
13.
6.
12.3.2018 9:50
8. 9.
TOP-SEAT
6 575
2.
8 165
9 675
3.
3 600
3 600
4.
4 805
6 315
5.
3 031
3 031
6.
2 525
2 525
7.
2 060
2 060
8.
850
850
9. 10.

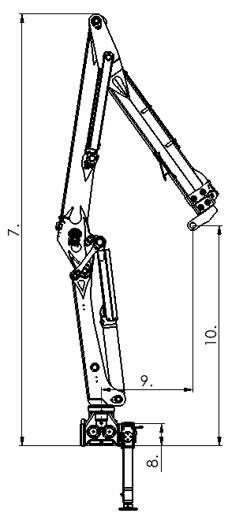

6 246
1 280
10. 15. 14. 14.9.2018 14:37
A. (min)
2121ZT-97
6 515
Page 5/1
C. (max)
6 246
16.
1 322
11.
320
320

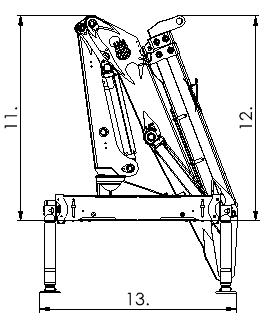

12.
3 235
3 185
13.
1 130
1 130
14.
1 482
1 428
15.
2 628
2 625
16.
778
778
17.
2 521
2 510
18.
907
907
19.
329
1 329
14.9.2018 14:37
17.
19.
Page 5/1
ALT. 1. (STD)
ALT. 2. (+)
A.
930
874
B.
1 520
1 474
c.
3 820
4 420
18.
17.9.2018 12:38
17.9.2
12.
B. (max)
2121Z-82 1.
Page 1/1
TUKIJALAT • STABILIZERS 11.
5.
2.
Page 5/1
2121ZT-97
(kNm)
-
-
Max. ulottuvuus • Max. outreach
(mm)
8 165
9 675
Jatkeen isku • Stroke of the extension
(mm)
1 700
2 x 1 550
Kääntömomentti • Slewing torque
(kNm)
38
38
Kääntökulma • Slewing angle
(o)
370
370
CRANE CODE 90000430
2121Z-82 Nostomomentti (netto) • Lifting capacity (net)
1-piiri • single circuit
(l/min)
-
-
2-piiri • double circuit
(l/min)
2 x 70-90
2 x 70-90
LS
(l/min)
min 180
min 180
Työpaine • Operating pressure
(MPa)
26
26
Paino sis. nosturin avohallintalaitteella ilman kahmaria, kääntäjää ja öljyjä. Weight including the crane with top-seat, without the grapple, rotator and oil.
(kg)
2 670
2 800
Erillisen tukijalkapalkiston paino • Weight of the separate stabilizers (L=3840)
(kg)
420
420
Updated: 9/2021
Suositeltava hydr. tuotto • Recommended oil flow
Classification according: EN12999:2011 HC1/HD4/B4 Valmistajan antamat arvot ovat ohjeellisia. Kesla pidättää oikeuden muutoksiin. The values provided by the manufacturer are indicative. Kesla reserves the right to make changes.
Kesla Oyj Kuurnankatu 24 FI-80100 JOENSUU. FINLAND Tel. +358 207 862 841 Fax +358 13 610 0521 www.kesla.com
