ANGLEDPOD ARRANGEMENT

Grid Lattice

The following digital experiment tests the concept of vertically stacking the pods along the facade. The three tests demonstrate the developmental steps in design progression from Test 01 - a condensed vertical packing system. Through to Test 03 - simplifying the design to Parks in the Sky which allow the natural light to still penetrate the dwelling in Robin Hood Gardens. The grid connects to the platform vertices. The platforms adjoin to the existing streets in the sky, extending the public pathways above the central green area.

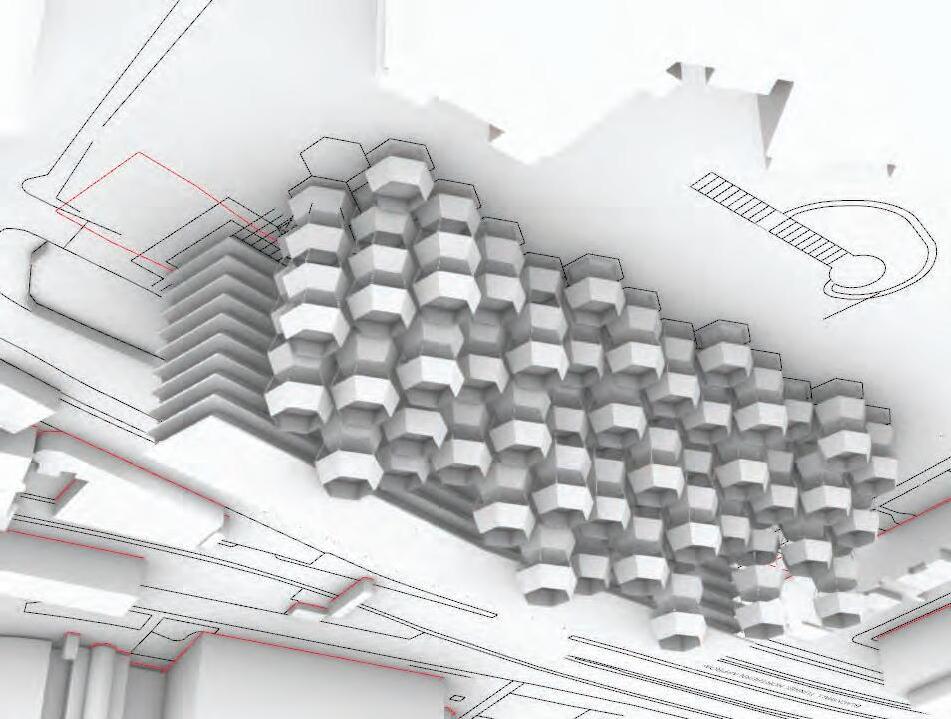

Test 01

Individual pods graduating up the facade. Varying activities on each level, some holding live-in pods, others as parks and public spaces. This system vary by having alternative levels which are accessible from the walkways.

PARKS IN THE SKY - DESIGN DEVELOPMENT PROCESS

Test 02

Variation of Test 01, with park and pod balcony spaces up the facade, reducing the depth of pods in the grid to allow light to enter Robin Hood Gardens and each Live-In Pod.

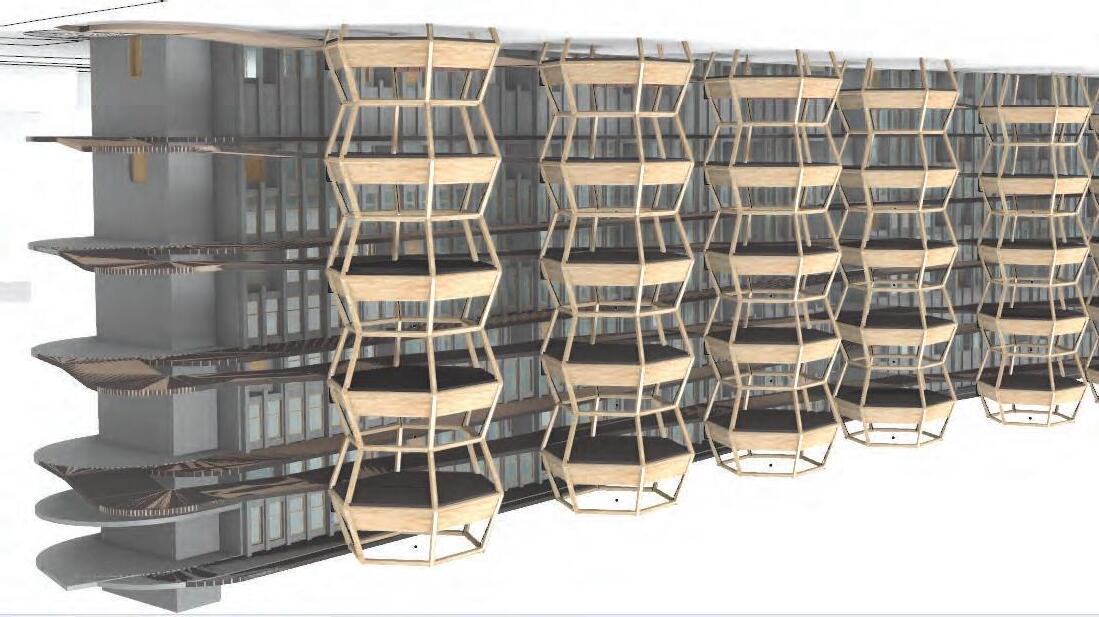

Test 03

Simplifying the stacking grid, reducing the depth to ensure the main structure, Robin Hood Gardens has enough access to sun light. The parks act as moments along the external walkways for residents to enjoy green spaces in the sky.
