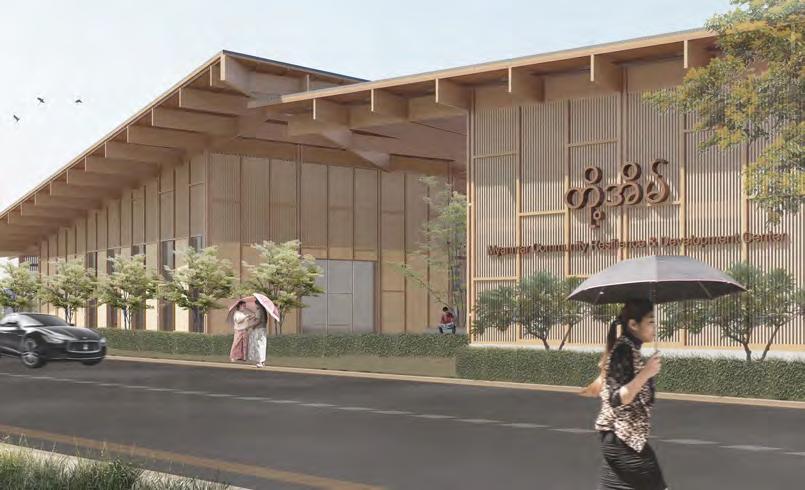

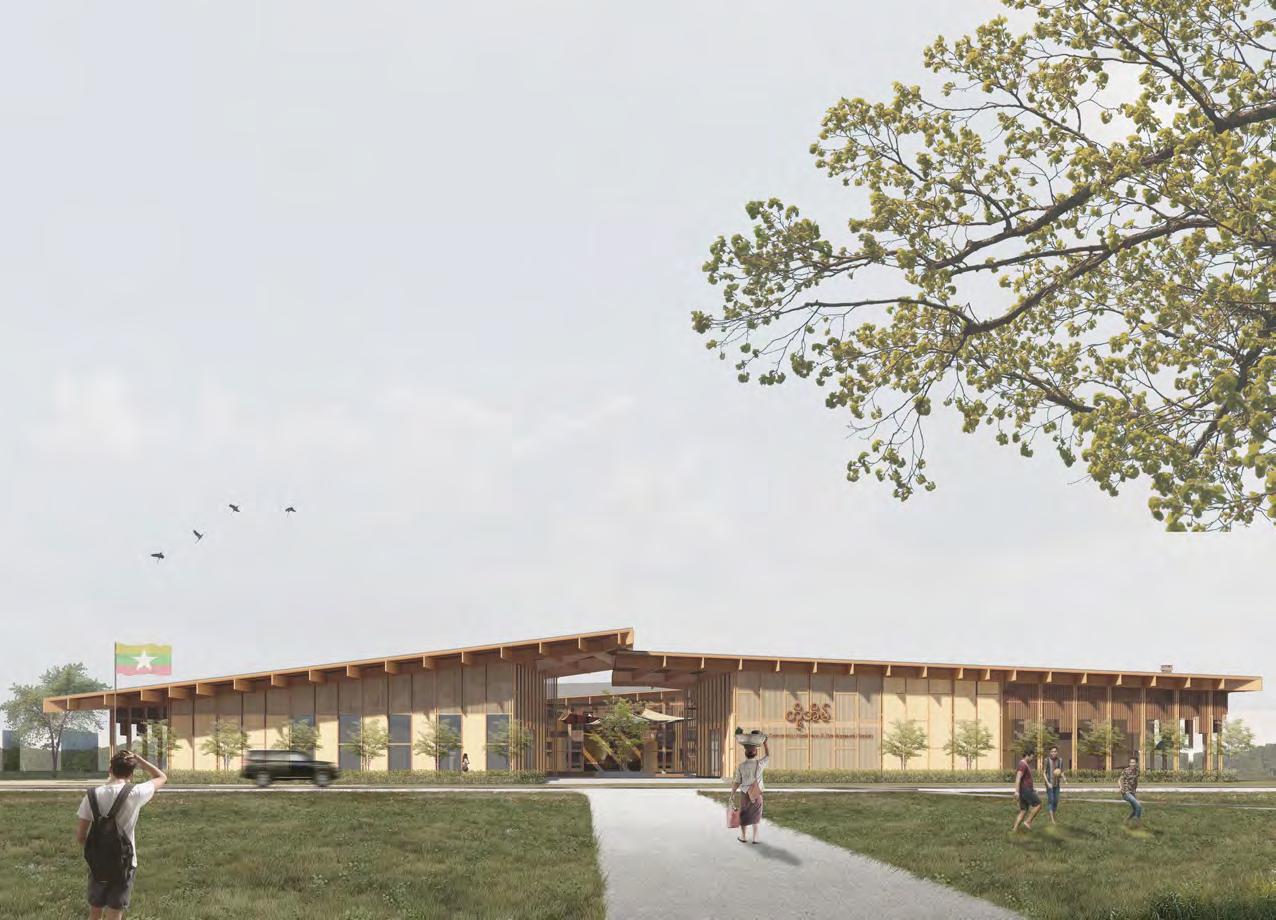

Community Resilience and Development Center| Bachelor Thesis Thesis Year - 2023/2024 Thesis Advisor - Asst. Prof. Dr. Martin Schoch

The ongoing revolutionary crisis in Myanmar has led to a significant influx of immigrants seeking refuge in neighboring countries, particularly Thailand. This thesis explores the challenges faced by Myanmar exiles in Mae Sot and proposes an architectural solution that transcends conventional paradigms by offering a transformative space fostering healing, empowerment, and community resilience. The emphasis is on addressing the immediate needs of these displaced individuals and facilitating their integration into a new societal fabric. Through a comprehensive analysis of the sociopolitical landscape of Myanmar and the migration motivations of the displaced community, this thesis aims to establish an environment that not only ensures the immediate well-being of these individuals but also contributes to their long-term stability and growth in the face of profound upheaval.

9

Design Concept

VIL LA

The architectural concept uses village-like spatial planning to evoke a sense of home for exiles. Clusters of buildings create a feeling of visiting each other’s homes, with a central courtyard for festivals and communal events, promoting bonding and a shared sense of belonging. This design encourages interaction and storytelling, reminding users of their common country and culture, fostering unity, trust, and strengthened connections in a supportive environment.

E G rs

hbou

Neig

Individual House

Neigh

bour

s

Individual House

Individual House

Neighbours

Neighbours

Individual House

Individual House

SHARED COURTYARD

Neighbours

Neighbours

Individual House

Individual House Neig

hbo

urs

Individual House

urs

hbo

Neig

10

Design Development One Whole Mass Highlighting the commonality behind different Ethnicities that bind its people together

4

4

15

14

15 17

Reminiscence of Village Living

16

18

18

UP

4

4

20

19 13

Mimicking the village layout to foster a sense of visiting each other’s homes

12 4 4

21

23 22 23 UP

11

Communal Space Integration

10 9

9

The courtyard as a common place that binds people with different intentions together.

4

3

7

UP

4

8

5

1

2

6

4

4

Everyone Under One Roof 17. Office 18. Meeting Rooms 19. Co-working Space 20. Release Space 21. Incubation Office 22. Resource Library 23. Consultation Room

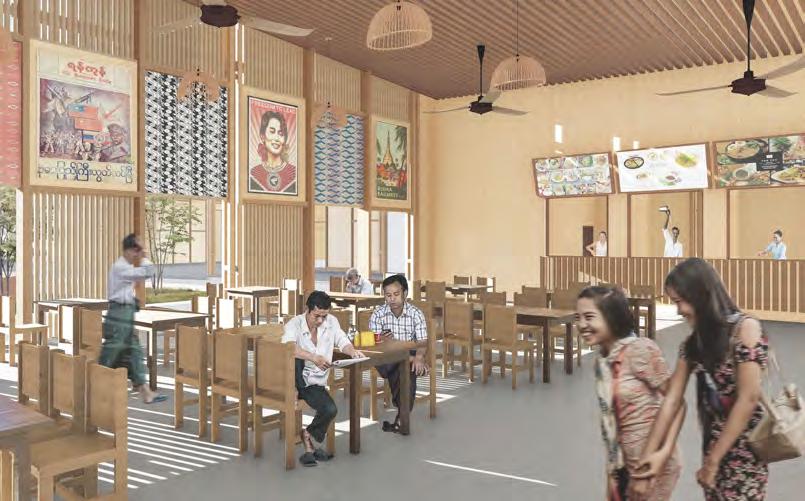

9. Kitchen & Dining 10. Kids Playroom 11. Myanmar Cuisine Canteen 12. Staircase Library 13. Knowledge Exchange Cafe 14. Semioutdoor Art Space 15. Classrooms 16. Workshop Room

1. Multipurpose Hall 2. Backstage Storage 3. Mechanical Room 4. Toilets 5. Community Lounge 6. Merchandise Store 7. Semioutdoor Game Area 8. Community Food Prep Area & Garden

Single roof connects all masses reminding their commonality despite their different stories and intentions to share their experiences and build trust in this center

W2

W1

Meeting Room

Toilet

10000

FL +5.0m CL +10.0m

FL +4.75m CL +10.0m

W1

W2

+5.00 m Floor Level

W1

4500

FL +5.0m CL +10.5m

9500

12000

Workshop Room

4500

+9.50 m Level

W1

Toilet

Co-Working Space

FL +0.5m CL +4.5m

FL +0.25m CL +4.25m

FL +0.5m CL +4.5m

+0.50 m Floor Level 500

Workshop Room

6000 mm

Q

49

6000 mm

48

6000 mm

47

6000 mm

46

6000 mm

45

6800 mm

44

6000 mm

43

6000 mm

42

+0.00 m GL

6000 mm

41

40

L

0

1

5

10

20

11

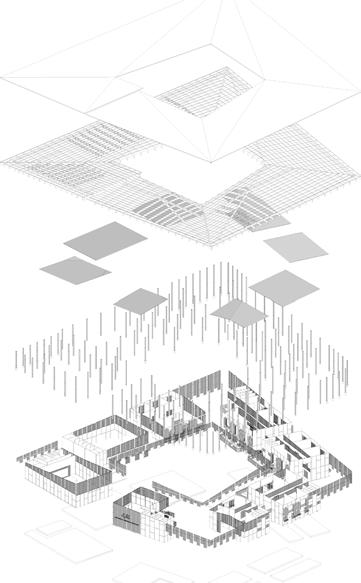

Exploded Structural Diagram

12

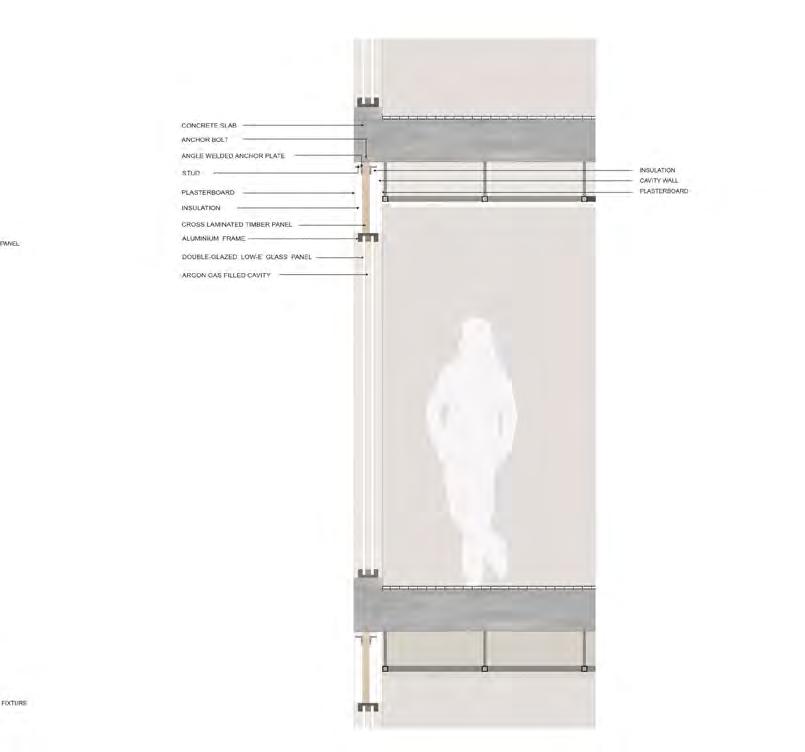

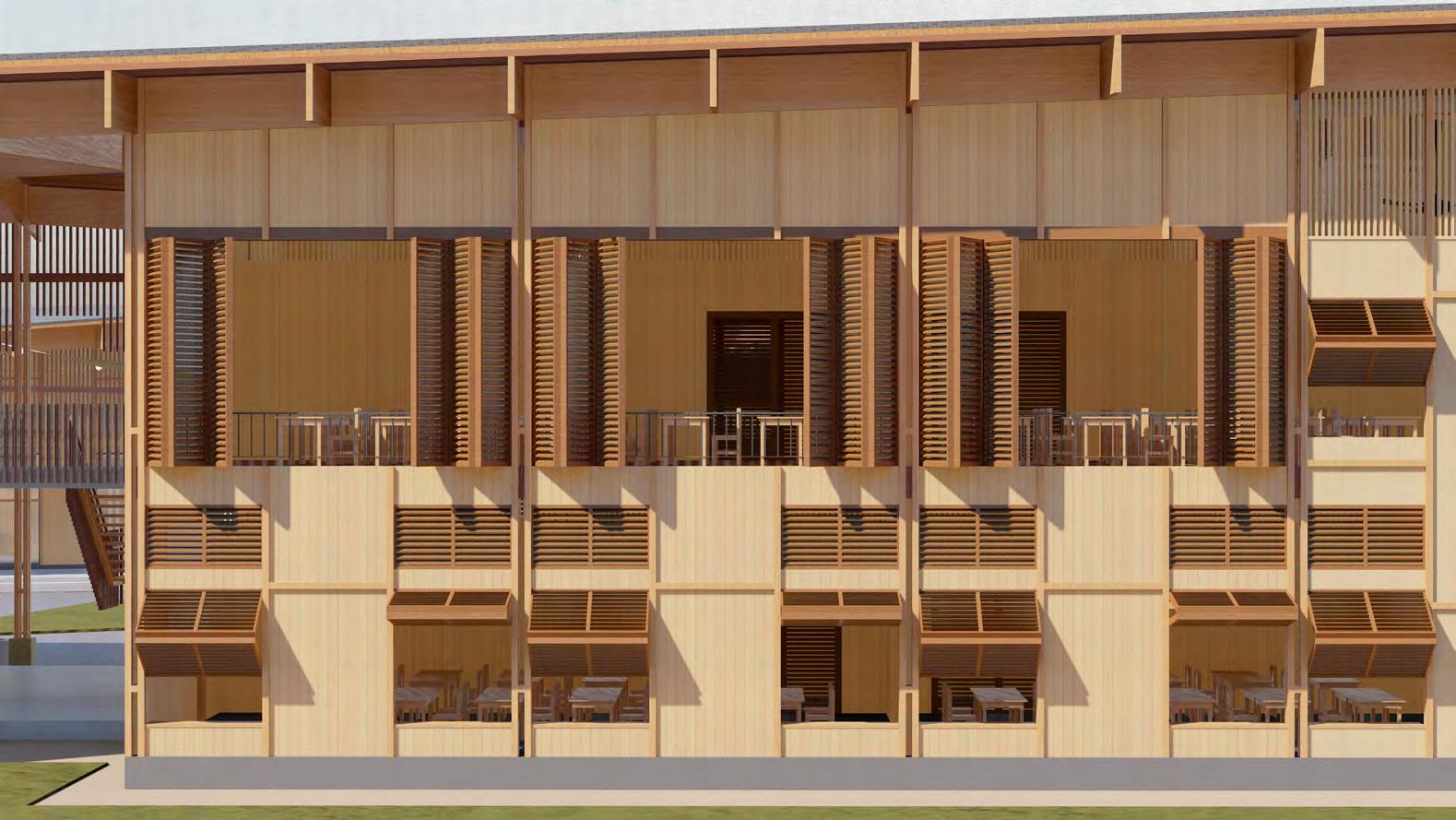

Facade Detail Section

Closing Panel 10mm 2-layered Shingle Roof 20mm OSB Board Rain Gutter

50mm Timber Purlin 100x800mm Timber Rafter 100x800mm Timber Roof Beam

4500 mm

Suspended Ceiling Cable

20mm Floor Plank 20mm OSB Board 20mm Subfloor Board 50mm Blocking 100x350mm Timber Beam 80x50mm Timber Wall Nogging 80x250mm Floor Joist 50mm Ceiling Framing

4000 mm

50mm Ceiling

Spray Foam Acoustical & Thermal Insulation (Filling Stud Cavity)

10mm OSB Board 10mm Wood Cladding Concrete Blockwall Foundation

13

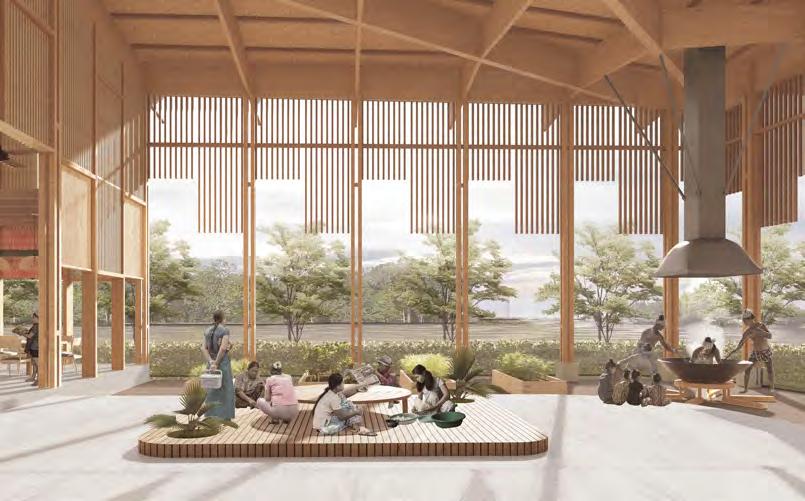

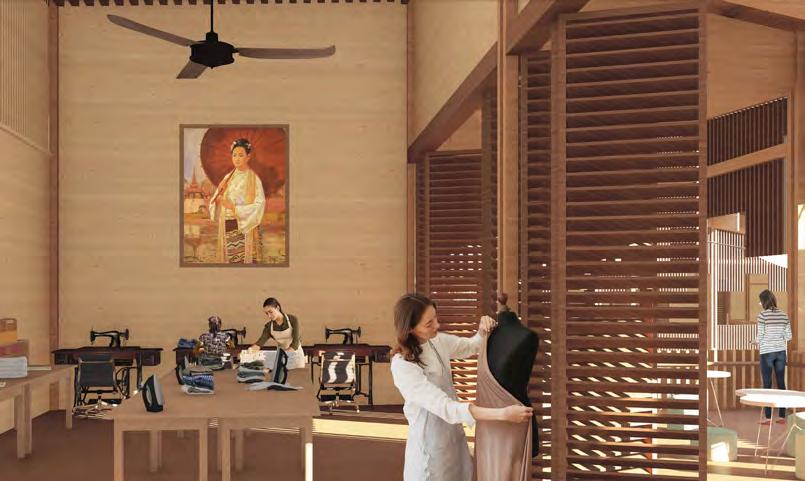

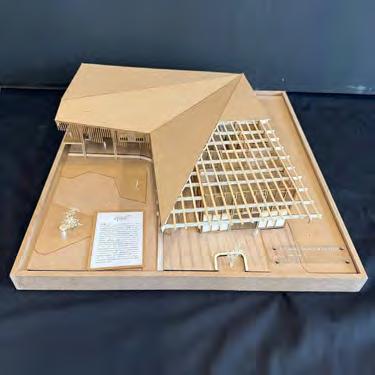

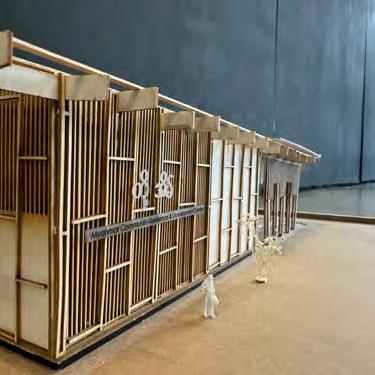

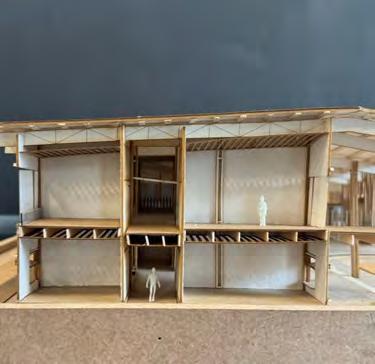

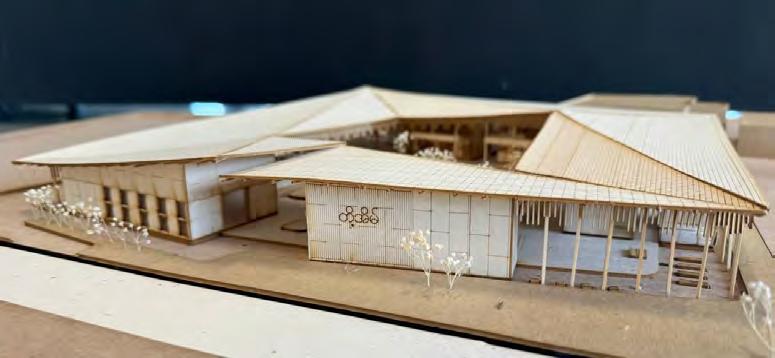

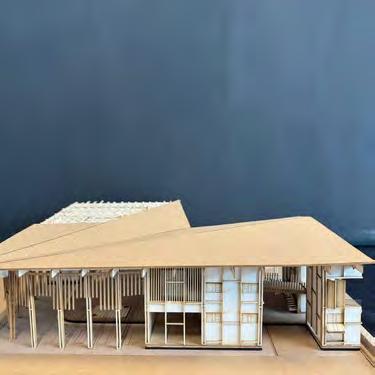

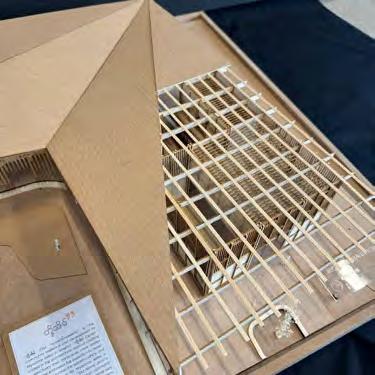

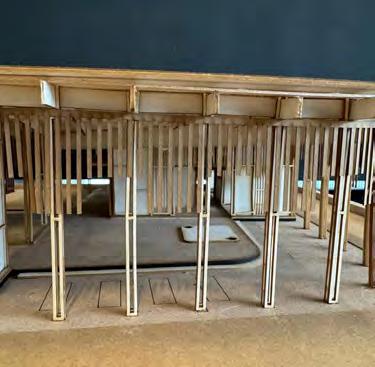

Physical Model

14

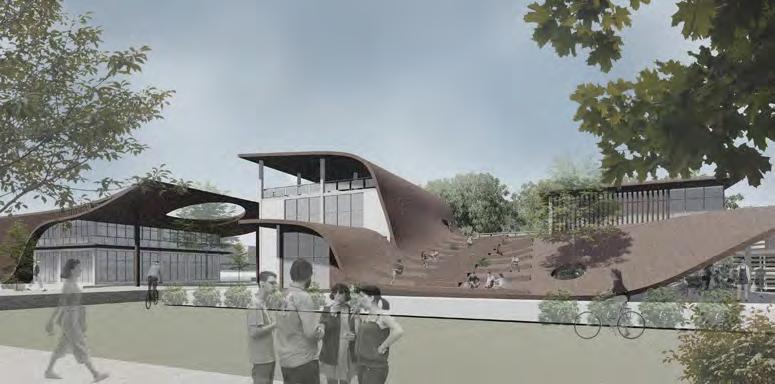

Aquaculture Knowledge Exchange Center| Design Studio Year IV Project Year - 2023 Project Advisor - Asst. Prof. Dr. Martin Schoch

The local communities in Bang Khun Thian rely on aquafarming as o vital business. Nevertheless, this sector can pose environmenta problems when not managed sustainably. This proposal advocates for a research and knowledge exchange center, which would be overseen by KMUTT, to leverage its resources and expertise towards developing innovative technologies for aquafarming that promote sustainability, cost-effectiveness, and efficiency. The center aims to provide opportunities for higher-income families to launch their aquafarming businesses by offering training, mentorship, and funding support. Moreover, the proposal entails constructing outdoor informal classroom pavilions, where visitors can acquire insights into the local community, aquafarming ventures, and mangrove ecosystems.

15

Site Characteristics Biking as tourist attraction Mangrove Trees

Bang Kradi (Mon) Community

Tourist Attraction Temples

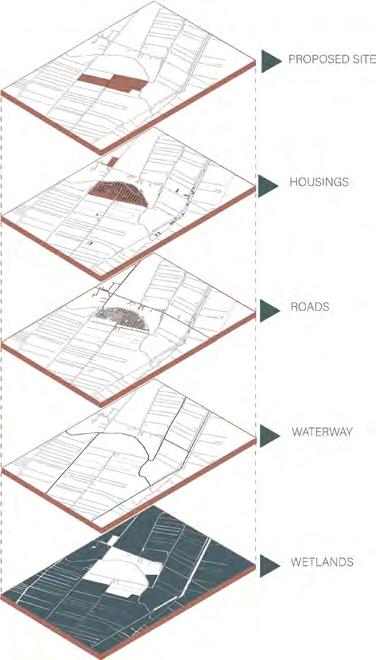

Site Analysis

Aquafarming as community business

Uneducated community cannot shift to other occuption

Tourist attraction floating market

Coastal erosion cause loss of income to farmers

Case Analysis Global sea level rise

Community lacking education and youth resources

Coastal erosion

Improper waste management

16

Design Concept REIMAGINED SYNERGISM

Mangrove Roots: Like mangrove roots stabilize trees, this program builds social cohesion and mutual support, helping individuals and communities withstand life’s challenges.

Social Interaction: Byencouraging connections across social classes, the program fosters an inclusive community where diverse backgrounds meet, learn, and thrive together.

L

Architecture Meets Nature: Adopting a sustainable approach, this program uses clusters of small buildings with minimal footprints, balancing wet and dry areas to promote mangrove growth and preserve the ecosystem.

Building interconnectivity in a zoned masterplan:

NING R EA RE SU

NING R EA

LE I

AMA Learning

L

The local communities in Bang Khun Thian rely on aquafarming as a vital business. Nevertheless, this sector can pose environmental problems when not managed sustainably.

This proposal advocates for a research and knowledge exchange center, which would be overseen by KMUTT, to leverage its resources and expertise towards developing innovative technologies for aquafarming that promote sustainability, cost-effectiveness, and efficiency. The center aims to provide opportunities for higher-income families to launch their aquafarming businesses by offering training, mentorship, and funding support.

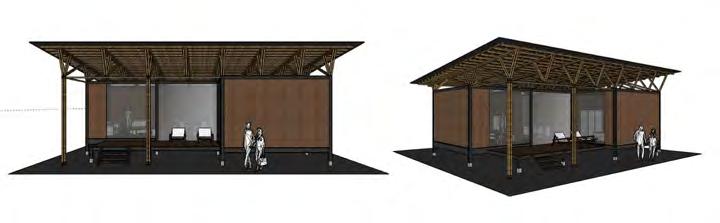

Moreover, the proposal entails constructing outdoor informal classroom pavilions, where visitors can acquire insights into the local community, aquafarming ventures, and mangrove ecosystems.

AMA Learning

PROGRAM PROPOSAL

e opportunities for higher-income families to launch ffering training, mentorship, and funding support. ructing outdoor informal classroom pavilions, where local community, aquafarming ventures, and man-

Structural Diagrams

Existing Building Floatation

Hydraulic piston

Seabed

INTERCONNECTION IN LE MASTERPLAN I RE SU

Nature Codependency: Integrating mangrove planting with aquafarming, this approach naturally filters water, provides habitats, and supports sustainable economic development while preserving the environment.

Buildings are arranged by purpose, with separate areas for learning and leisure. Like planets in a solar system, structures are interconnected. The community and visitor center, along with recreational pavilions, are centrally located for easy access, while learning buildings are positioned in the outer Balk circle.

RAS Learning

RAS Learning

INTERCONNECTION IN MASTERPLAN General Education

Existing Building Floatation

Walking General Education

Pontoon

Hydraulic piston

Anchor

Seabed

Space Frame Truss

GFRC Panels

Balk

Isolation Sheet Walking

Pontoon Space Frame Truss Anchor

17

Zoning

Learning zones and connection

Mangrove conservation zone and bike way

Mangrove conservation zone & Bike way

Inland pond and AMA pond and their connection

Community core zones and the connection to the neighborhood

Learning zones and connection

Learning zone &zoning Connection Learning zones and connection

Mangrove conservation zone and bike way

Community core zones and the connection to the neighborhood

Inland pond and AMA pond and their connection

Community core zones and the connection to the neighborhood

pond & ing Inland Associated Mangrove Aquafarming pond Learning zones and connection

zoning

Community core zones and the connection to the neighborhood

Community core zone & Connection to the neighborhood

18

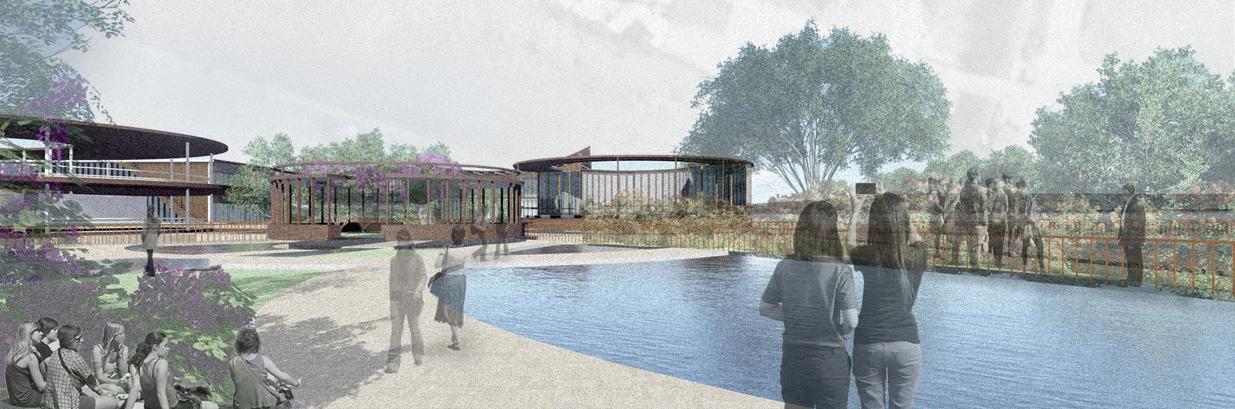

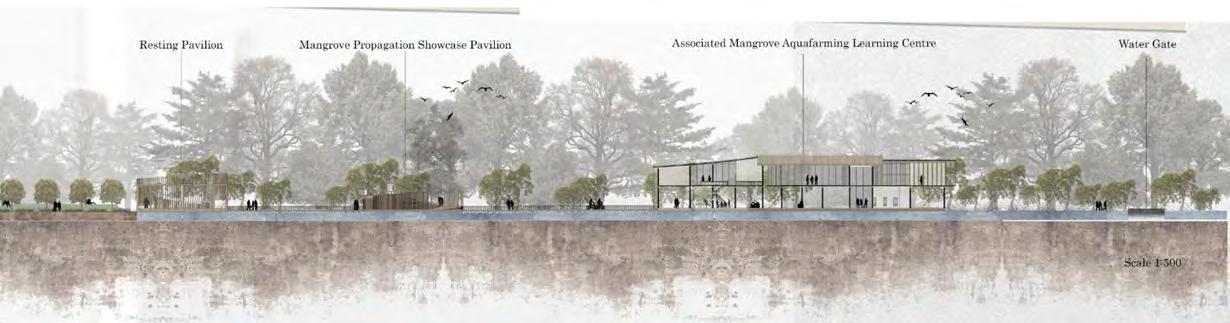

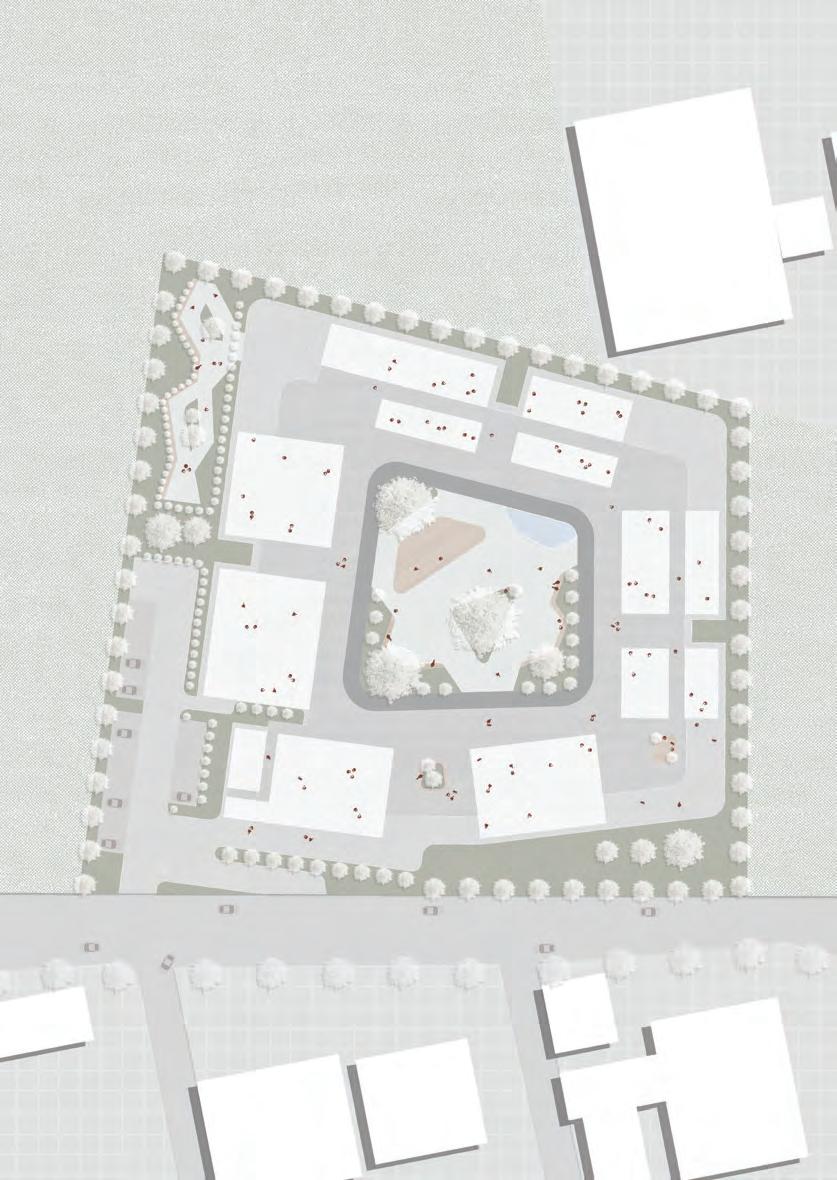

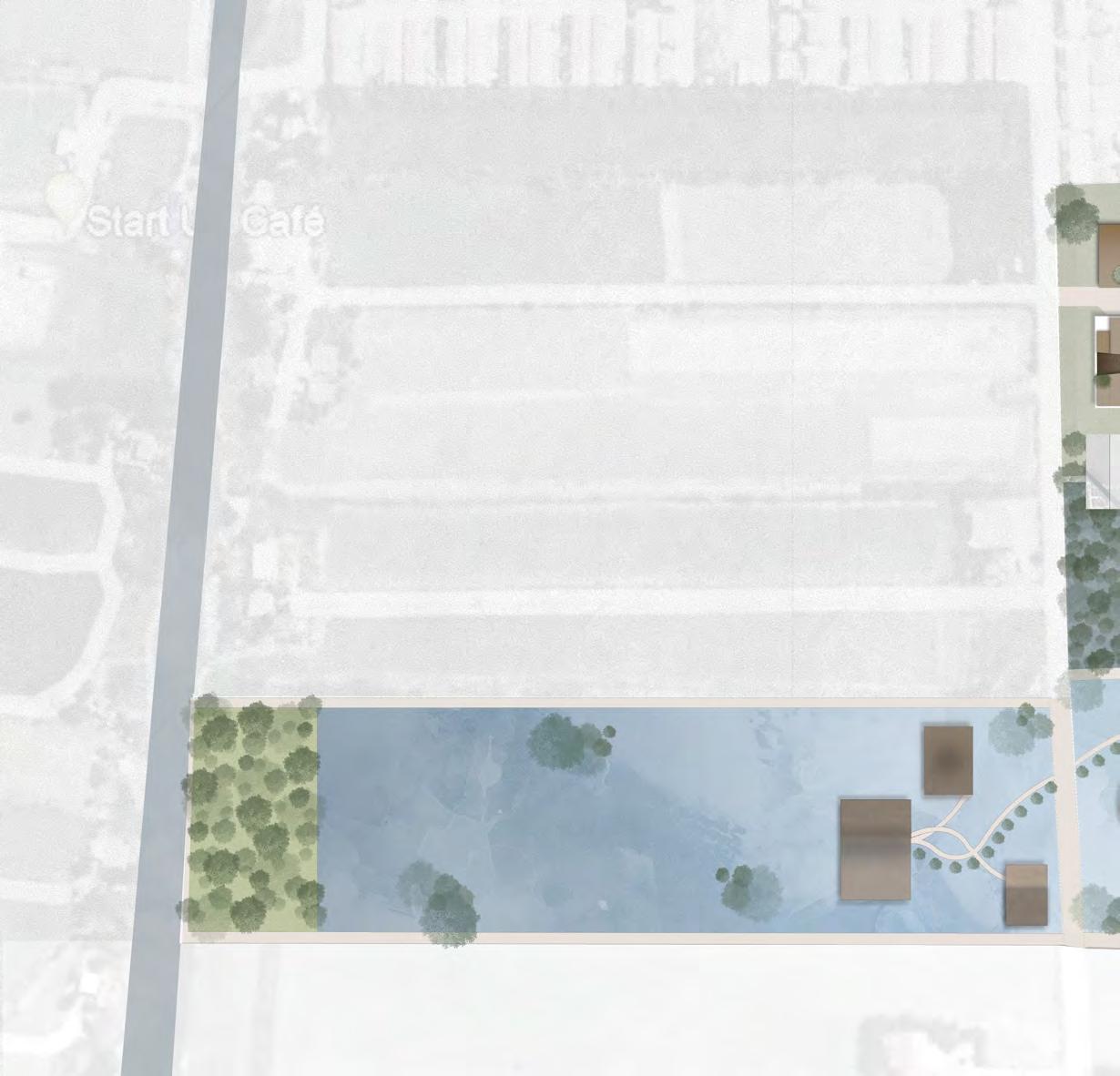

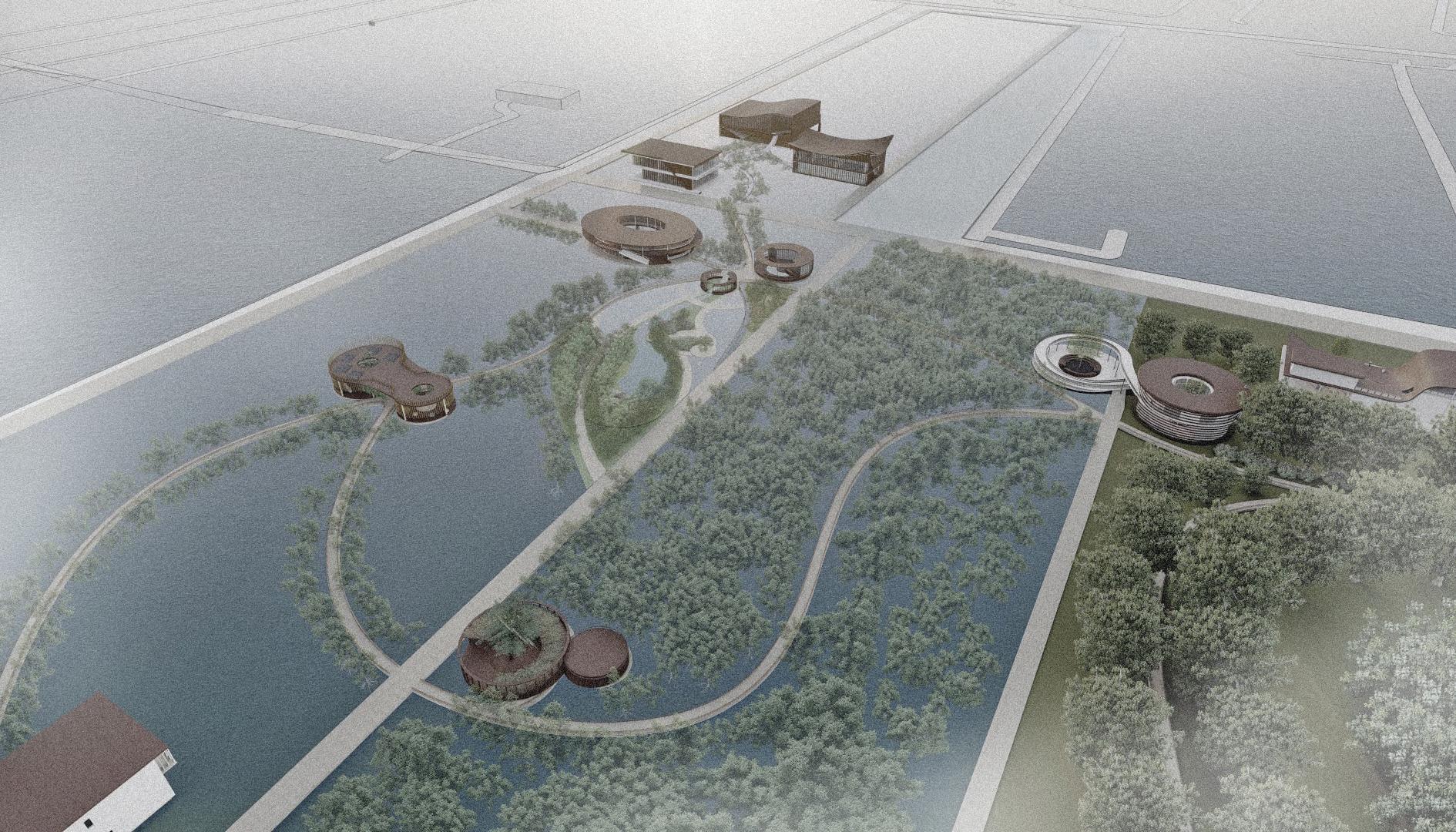

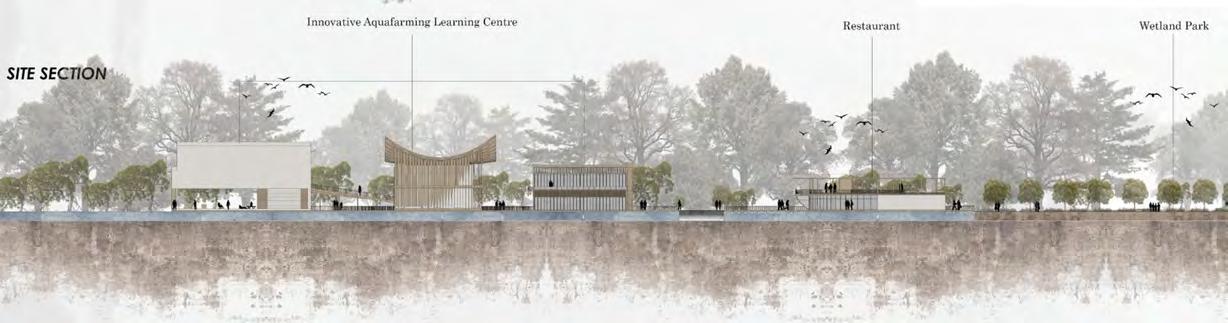

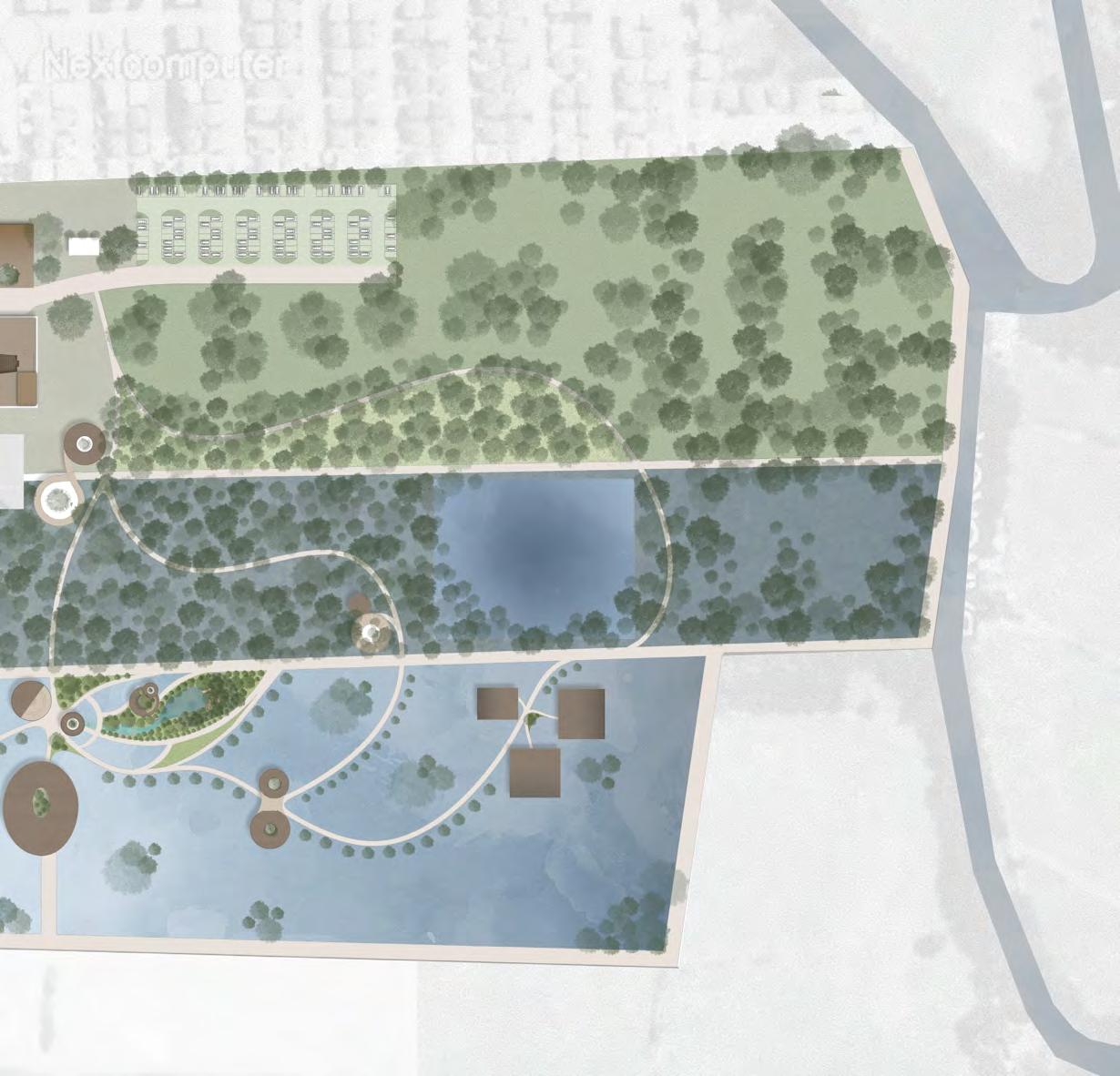

Masterplan

19

20

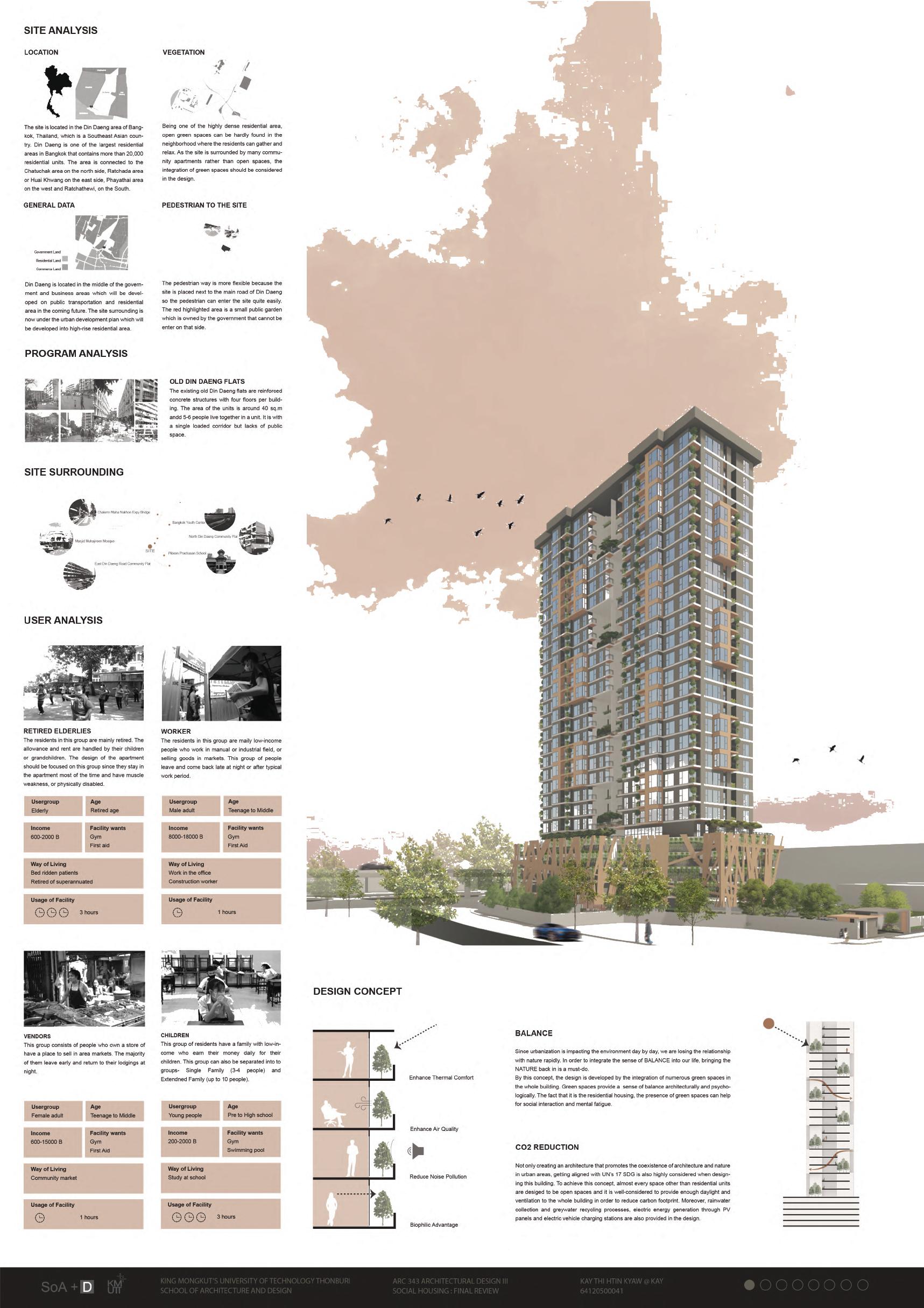

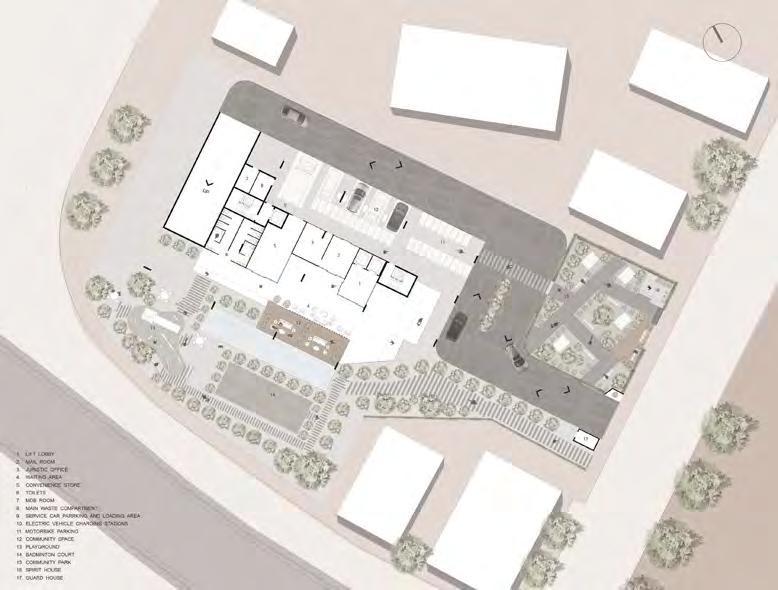

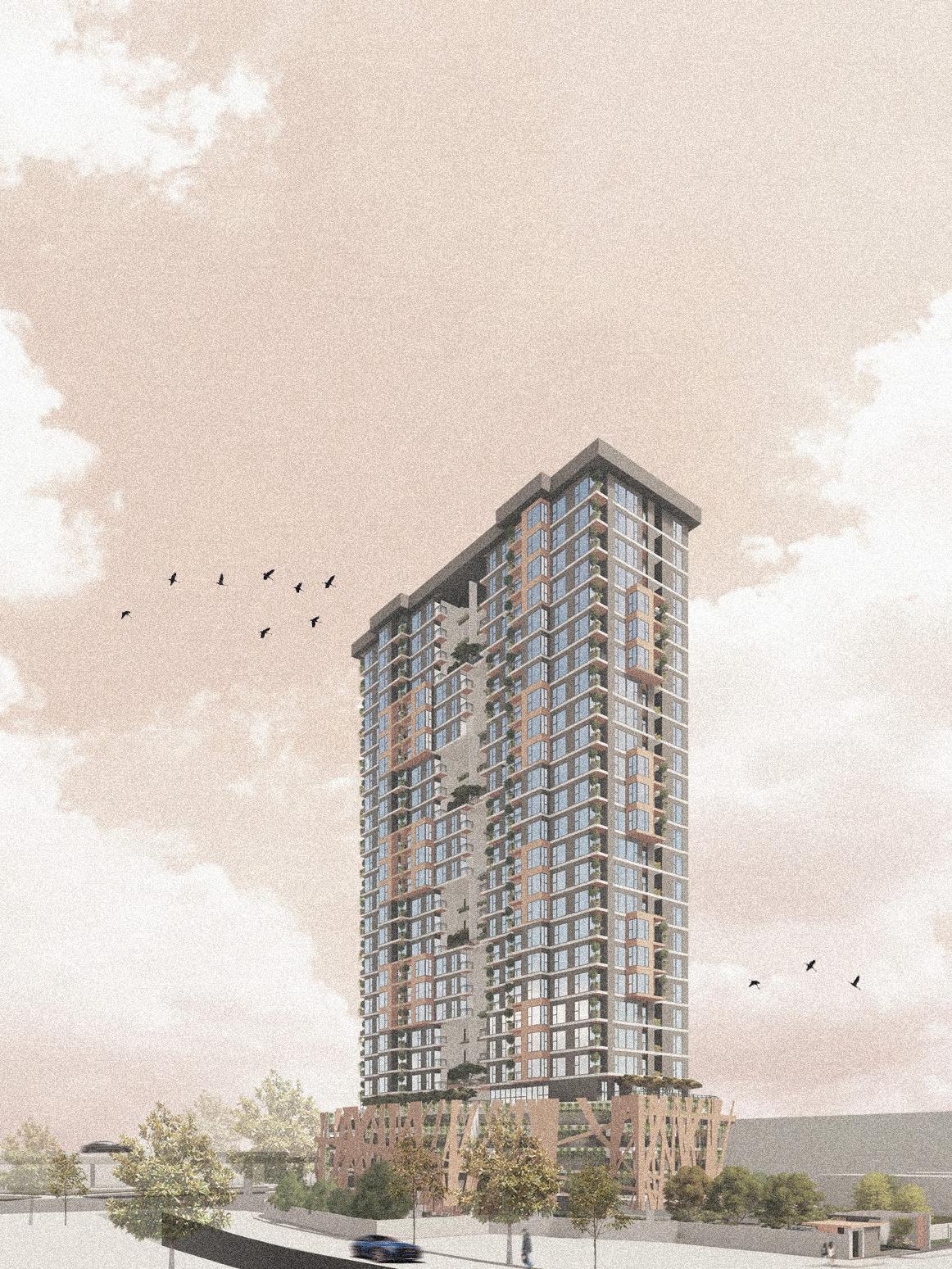

Social Housing [THE BALANCE]| Design Studio Year III Project Year - 2022 Project Advisor - Asst. Prof. Ms. Waraluk Pansuwan

This social housing project in DinDaeng district is designed to cater primarily to low to medium-income residents, focusing on providing a nurturing environment for elders and children who predominantly stay at home during the day. Located in a downtown area lacking green spaces for relaxation, the concept integrates extensive greenery throughout the building. This approach not only enhances the aesthetic appeal but also promotes social interaction and mental well-being among residents.

The design emphasizes the integration of open green and community spaces, aiming to create a balanced living environment that supports the needs of its diverse community while addressing urbanization’s impact on the environment.

21

Design Concept Urbanization

increasingly

disconnects us from nature, necessitating a reintegration of green spaces to restore balance in our lives. This residential housing project emphasizes architectural and psychological balance through abundant green spaces, fostering social interaction and reducing mental fatigue. Aligning with the UN’s 17 SDGs, the design features open spaces beyond residential units, optimizing daylight and ventilation to lower the carbon footprint. Additionally, sustainable practices like rainwater collection, greywater recycling, PV panel energy generation, and electric vehicle charging stations are integral to the design.

22

Form Development Breaking down: The rectangular mass is split into two parts to enhance interaction spaces and improve fire safety through easier evacuation.

Extrusion: Units are arranged and extruded to create corner rooms with panoramic views, enhancing both dimension and aesthetics.

Variation: Extrusions every three floors create open green and community spaces, shielding them from direct sunlight for resident comfort.

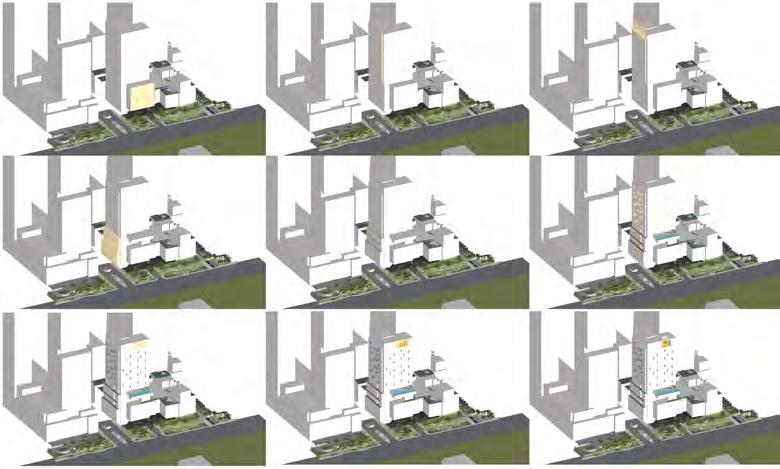

Integration: Vertical and horizontal circulation, along with the service shaft, are integrated into the mass. Corridors connect the two sides, fostering resident interaction.

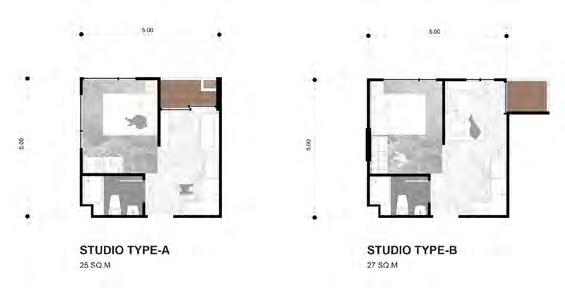

Unit Types

23

24

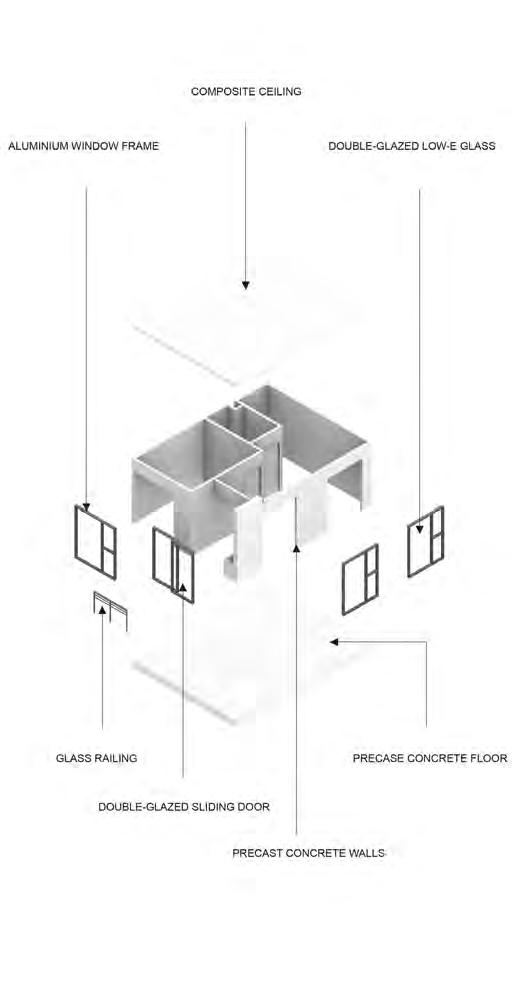

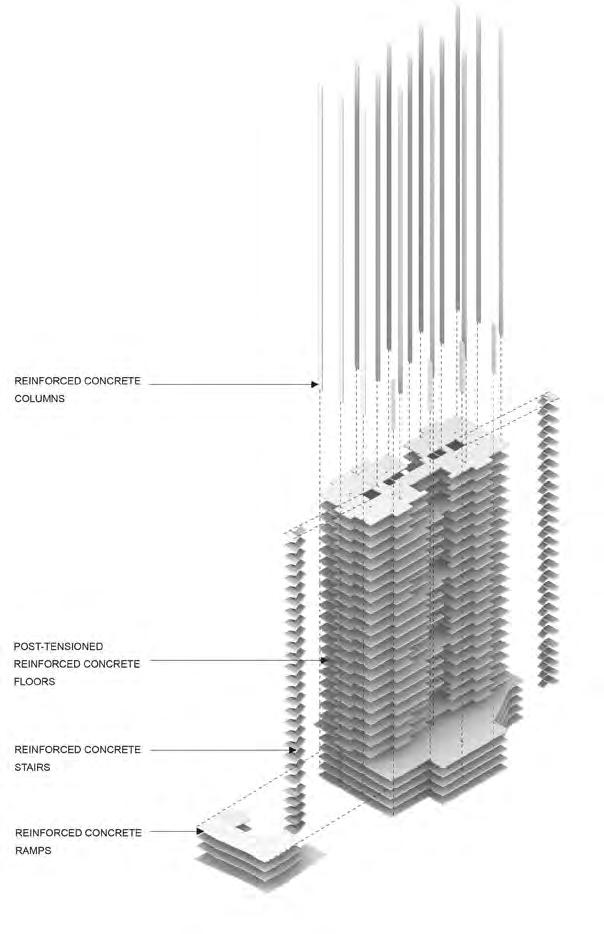

Exploded Structural Diagrams

25

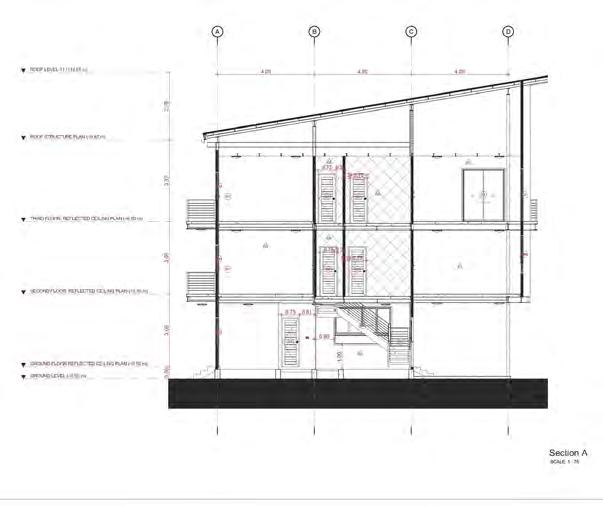

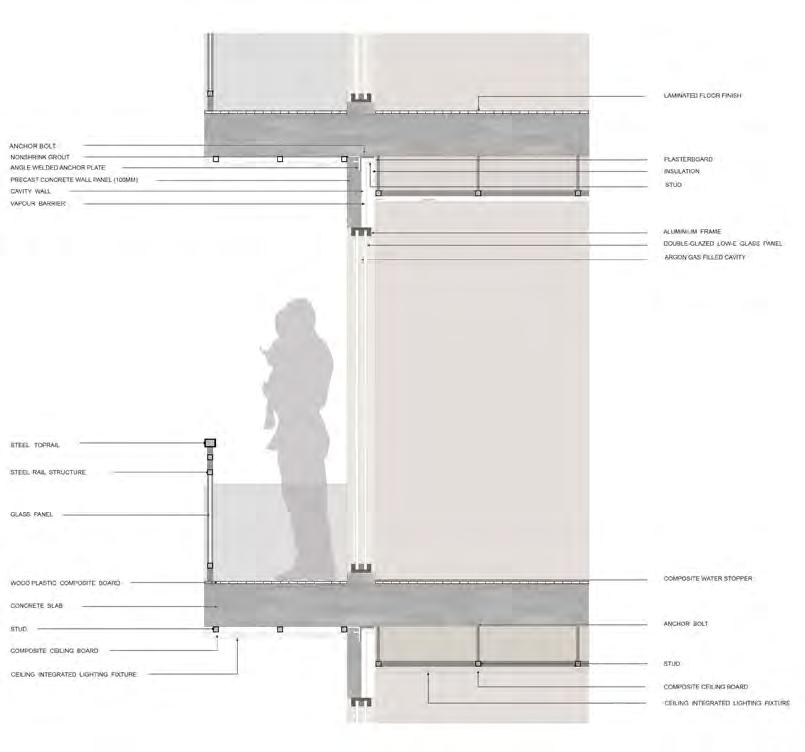

Detail Sections

26

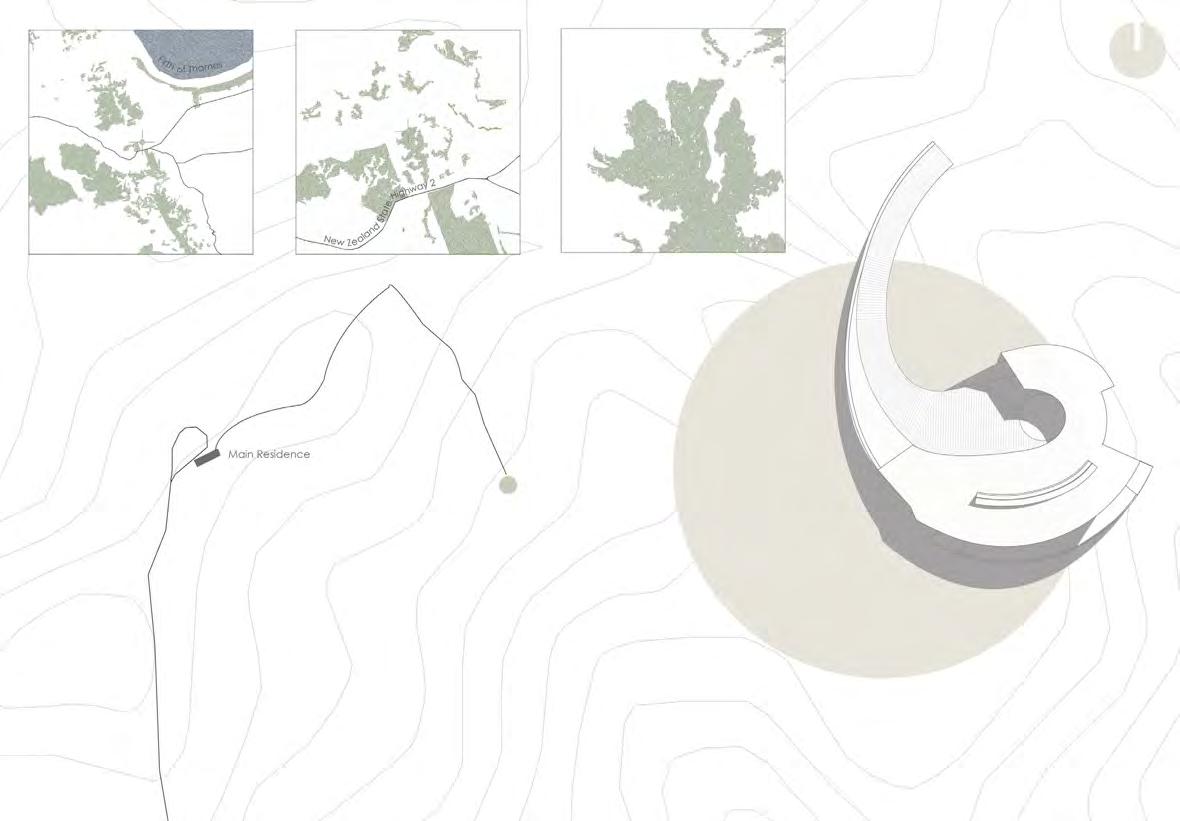

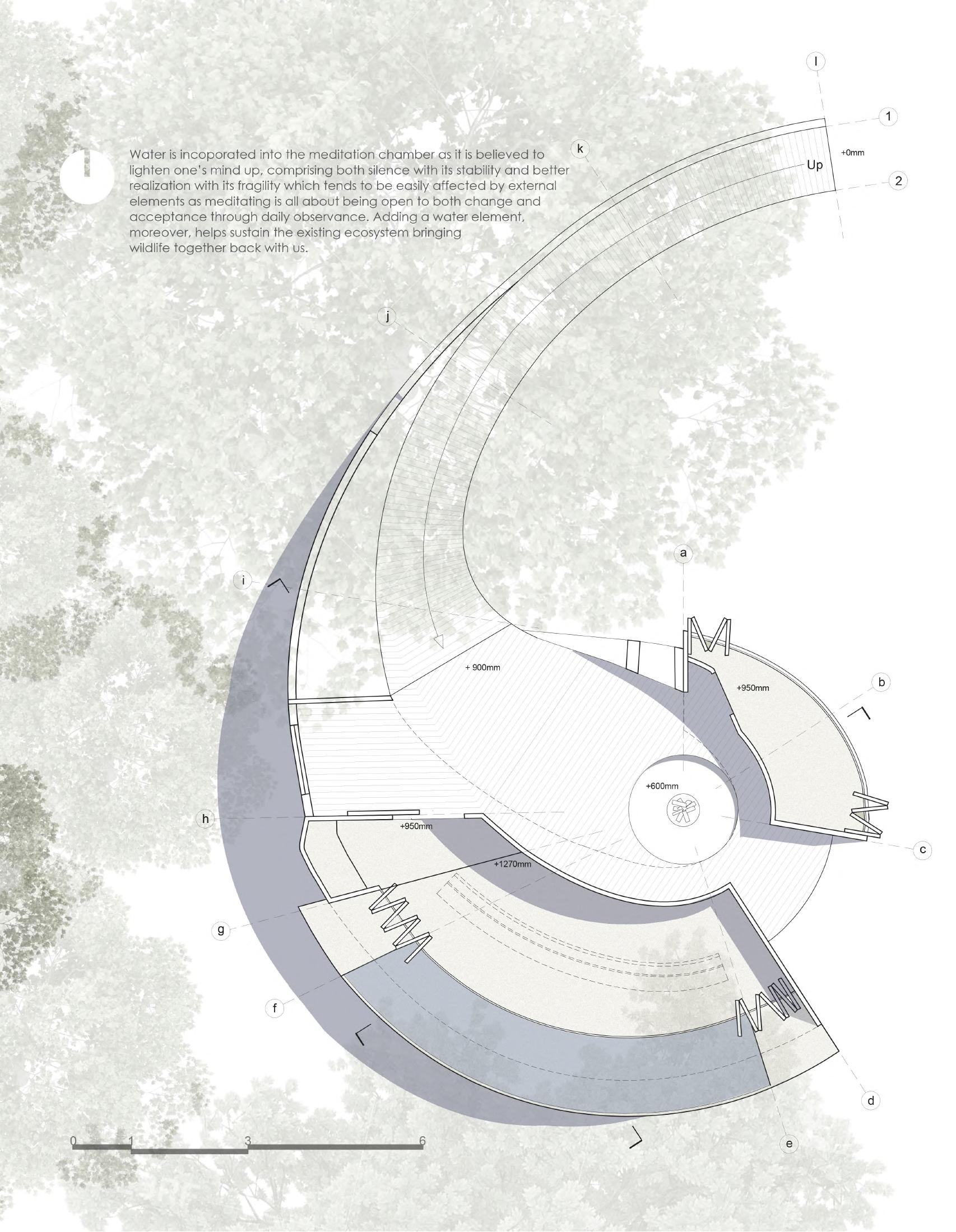

Meditation Cabin [THE KORU]| Bee Breeders Design Competition Project Year - 2021 Contributors - Ms. Phyo Thinzar Htet, Mr. Htet Lin Aung, Mr. Htut Waiyan

There is nothing simpler than meditation. How diverse and different meditation is perceived, the common ground of all is choosing to focus on one thing simultaneously, trying to concentrate as long as one can. The meditating experience we would like to deliver as in the cabin has no limit at all. The place will be accommodated by multiple people who would enter holding their own perspectives and thoughts. Some would prefer silence.

Some would go for better realizations.

Some would close their eyes while practising whereas some would keep looking at one specific thing to practice. But at the end of the day, they will take in what resonates in them and leave what does not. Our main goal is to be able to provide the environment where the recentering and rediscovering of oneself can be attained, without trying but with the aid of surrounded nature and a bit of human touch.

27

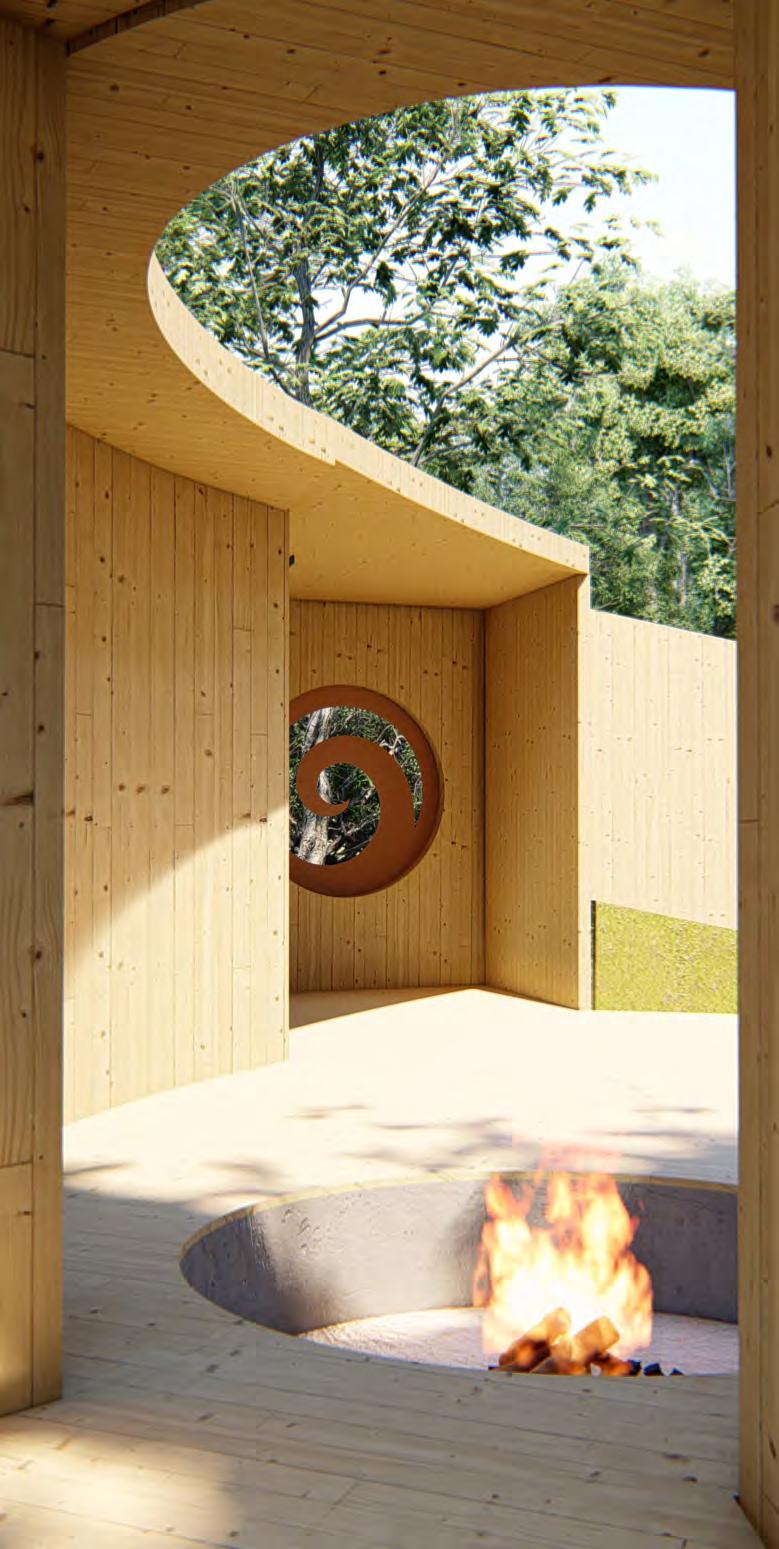

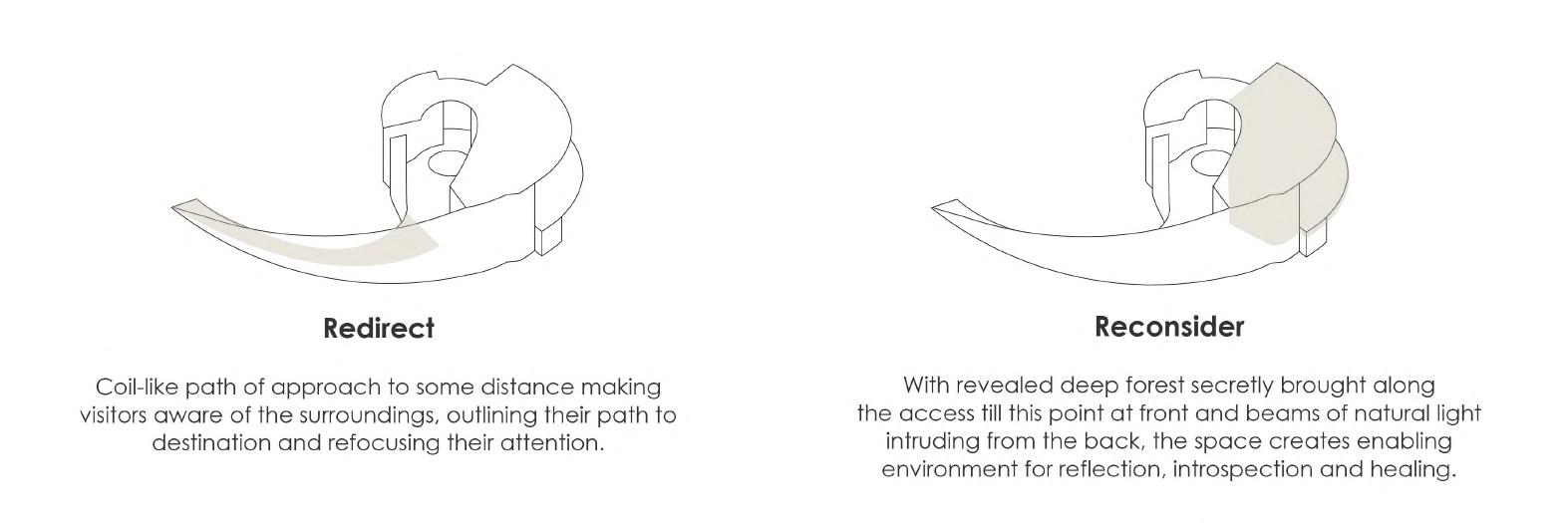

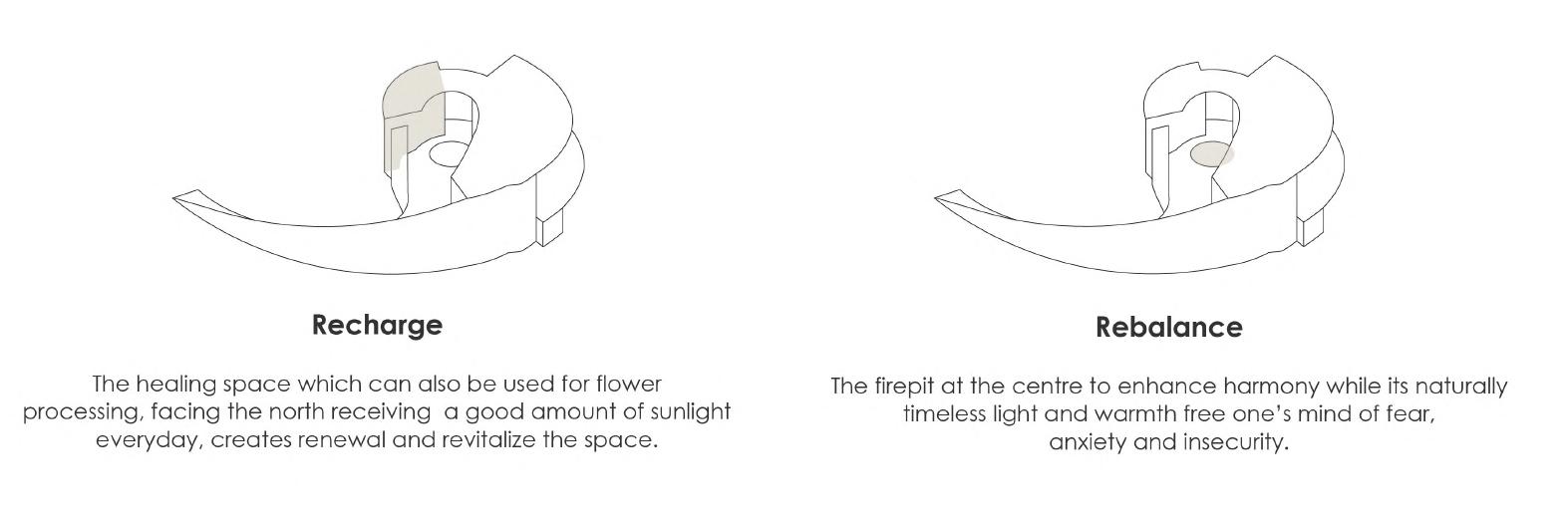

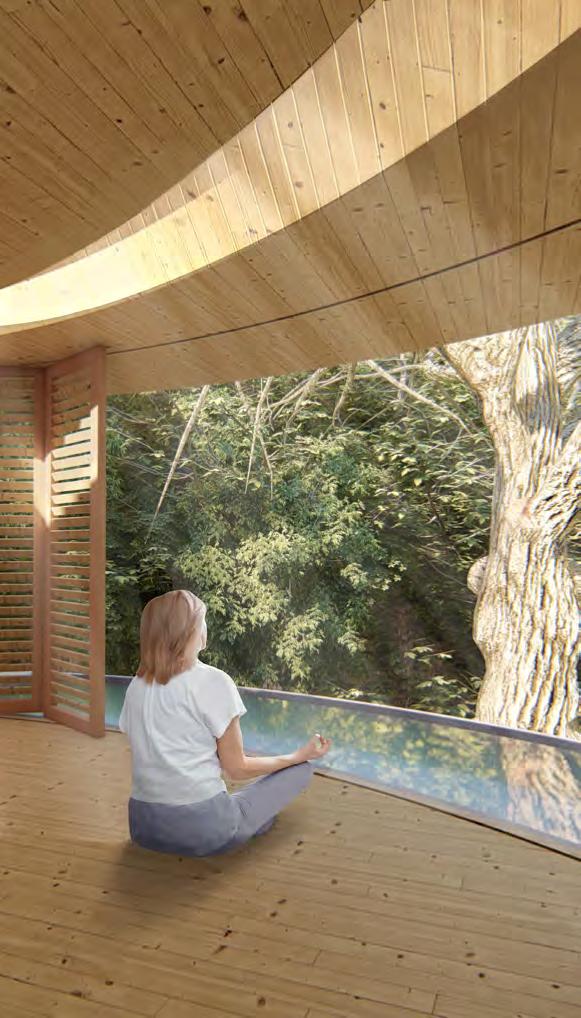

Meditation influences the people to reflect themselves and to find the point of origin where all kinds of energy come from. Considering the primary confent of culture and history of the land and the essence of life where the deep thoughts will be ongoing, the cabin was established to get inspired by the Koru of the Maori people which symbolizes the growth and the return to the point of origin. The organic curve embedding the soul of Koru was designed to get camouflaged with the encircling wood whereas its orientation and configuration were set in a position that can accumulate the concentration to a certain place alongside the welcoming carved ornament panel echoing back inside.

The fact that the meditation needs all the attention in one place avoiding all the distractions incoming inspires the cabin to get entwined with the four most fundamental elements of all beings. As where the nature is comprised of water, fire, air and earth, it is speculated that these, as well, cause the origin of human. The built environment was put up to be able to detect the distinct presence to contemplate within or around oneself while perceiving relationship between nature and humans.

28

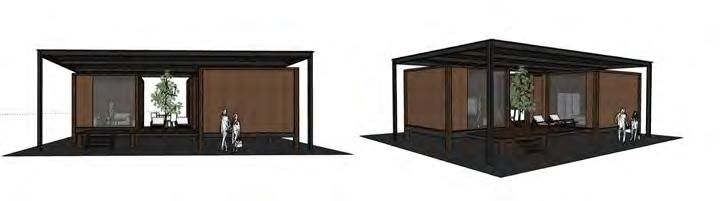

Design Development

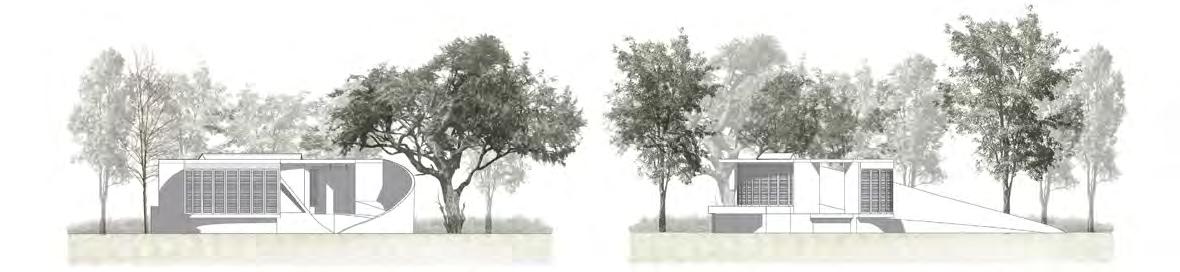

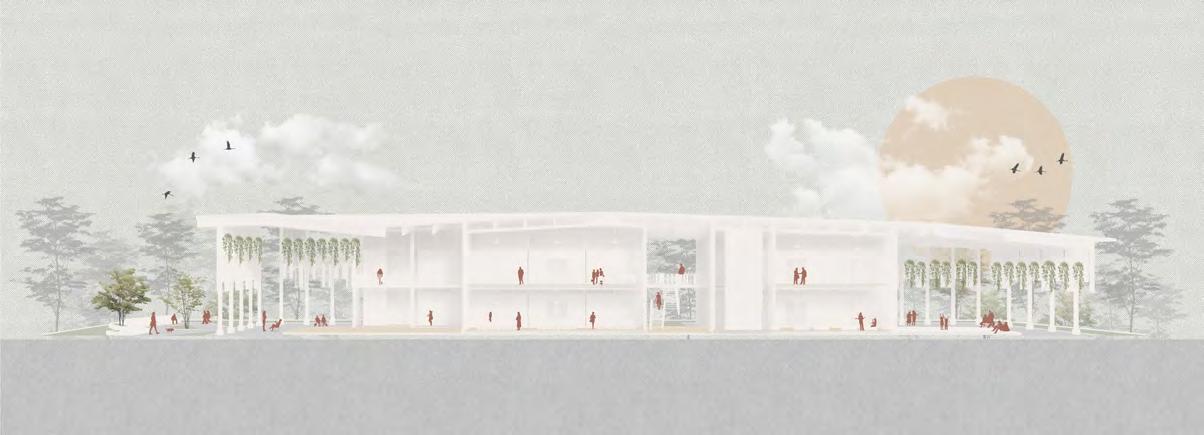

Elevations

Sections

29

30

31

32

Professional Experiences & Selected Works| Junior Architect/Internships

Position - Junior Architect I Studioort Project Type - Residential (Mountain Villas) Project Year - 2024

Role: Collaborated with the head architect to develop conceptual approaches in master planning and 3D design Key Contributions: Independently prepared client presentations & assist in the preliminary stage design development, ensuring alignment with design intentions and project goals Outcome: Successfully delivered a comprehensive conceptual framework that guided the project’s development

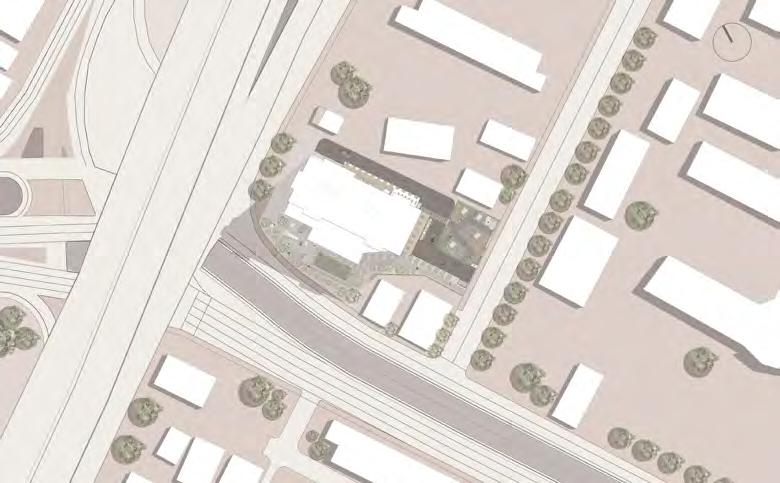

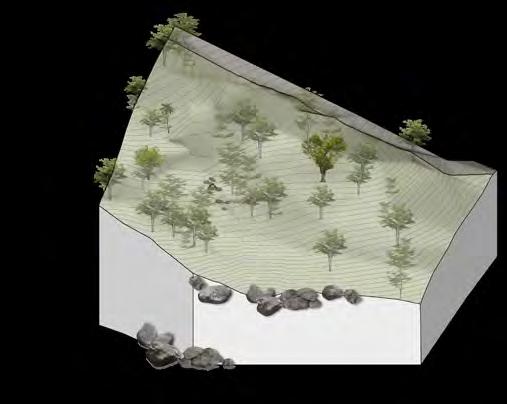

Site Study Stage

N Av gS (13 lope .22 • )

79.50 m 75.5

4m

74.00 m

To main

road

62.00 m

Foot

49

.49

m

Sunset

Path

61.00 m

Task: To study the topography of the site and develop a site context diagram

58.00 m Creek Waterfall

A

C

B

S S

D

E

S

S S SS S S

S

S S

S S SS S S

S

S S SS S S

S

S S SS S S

Task: To study the different possibilities of the site approach

33

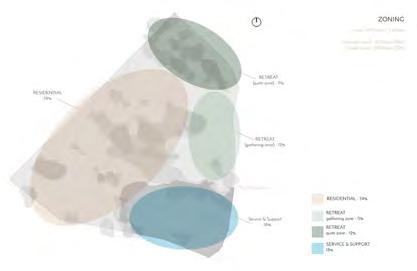

Planning Development Stage

15m 6m

15m

6m

15m

m

10

m

6m

17 m

17

m

6m

6m

17

6m

6m

8m

6m

4m

6m

6m

6m

5m

6m

11m

11m

11m

5m

6m

16m

16m

16m

5m

16m

10m

10m

10m

6m

10m

6m

10m

5m

6m

10m

5m

16m

5m

16m

6m

6m

6m

11m 11m

11m

0m

5m

20 m

50 m

0m

5m

20 m

0m

50 m

5m

20 m

6m

6m

6m

6m

14m

14m

14 m

14 m

6m

6m

m

m

14 10

m

14

4m

6m

11m

11m

6m

5m

5m

9m

11m

9m

11m

9m

5m

9m

15m

6m

15m

6m

15m

15m

0m

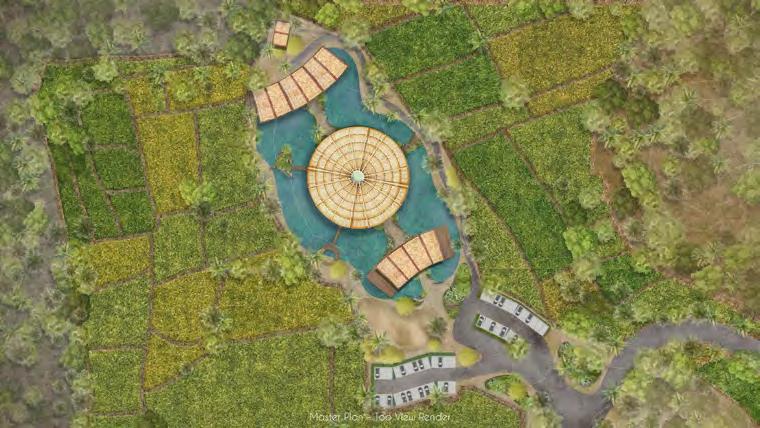

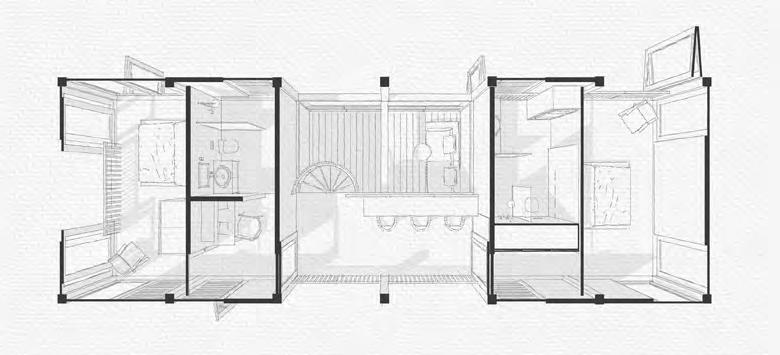

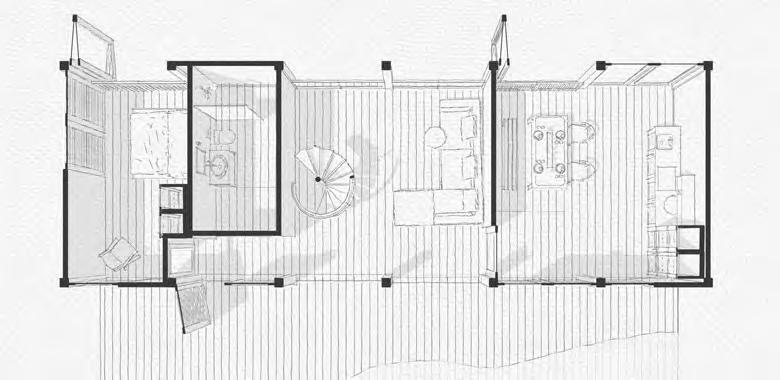

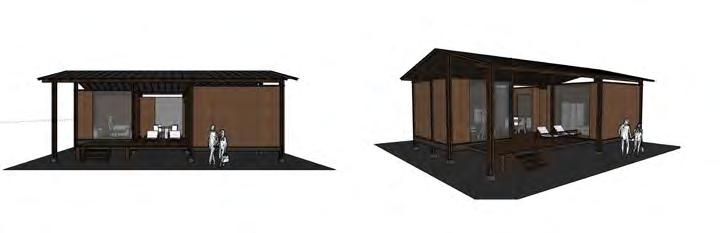

Task: To draft the layout of one villa and visualize the space

6m 6m

5m

Task: To develop the options for conceptual masterplanning according to the conceptual approach

6m 6m

5m

20 m

50 m

0m

5m

20 m

34

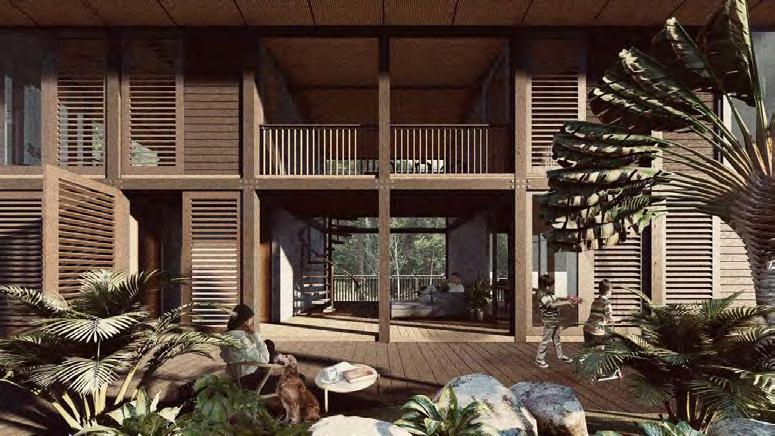

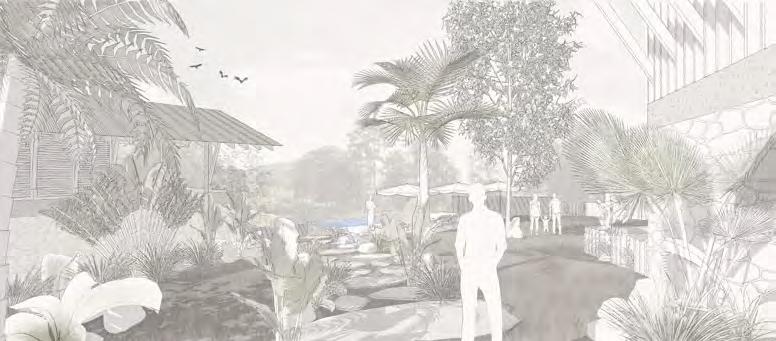

Visualizing the conept

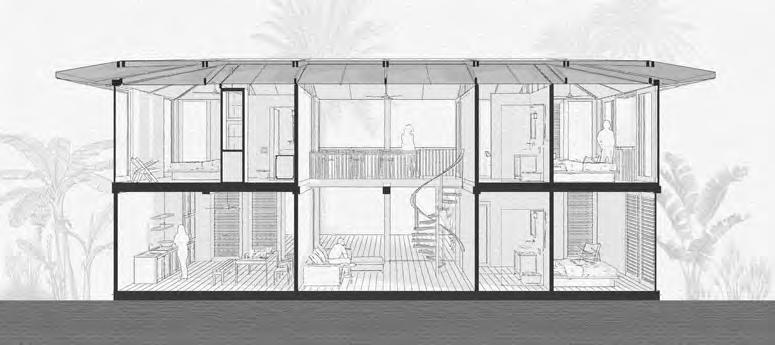

Task: To enhance the visualization of the space with perspective section

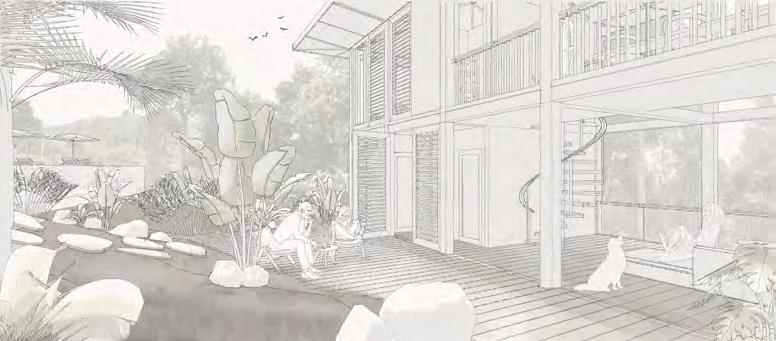

Task: To visualize the conceptual mood of the environment

Task: To render the private villa

35

Position - Junior Architect I Citizens ID

Role: Assisted senior architects during the design production stage, focusing on hotel projects.

Key Contributions: Took charge of the preliminary design and client presentation preparation, integrating feedback to refine and enhance design proposals.

Outcome: Delivered a polished and client-approved design proposal that moved the project into the next development stage.

Project Type - Commercial (Mountain Hotel) Project Year - 2023

Site Study Stage

Task: To study the site and develop diagrams of site analysis for client presentation

36

Task: To develop conceptual masterplanning following the slope analysis

Task: To develop massing of the restaurant, spa building, and reception building within the hotel

Project Type - Commercial (Restaurant) Project Year - 2023

Task: To render the preliminary design stage planning for client presentation

37

Task: To model the preliminary design of one building from restaurant zone

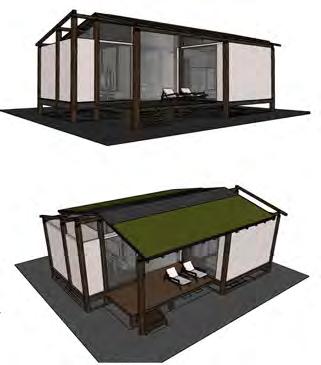

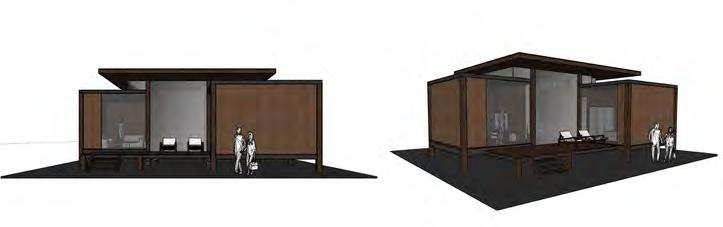

Task: To develop the different options of the massing development for the glamping cabin

38

Position - Internship I Architect49 Limited

Role: Contributed to commercial projects, including hotels, shopping malls, and airports, during various phases of design and planning Key Contributions: Focused on conceptual design, program calculation, and visual presentations that supported the project’s overall design vision.

Outcome: Developed a series of visual presentations that effectively communicated the design concept to stakeholders

Project Type - Commercial (Utapao Airport City) Project Year - 2023

Task: To develop the conceptual massing for hotel, shopping mall, and restaurant, and calculate the program requirements

Project Type - Commercial (One Bangkok Hotel) Project Year - 2023

Task: To visualize the design development diagrams

39

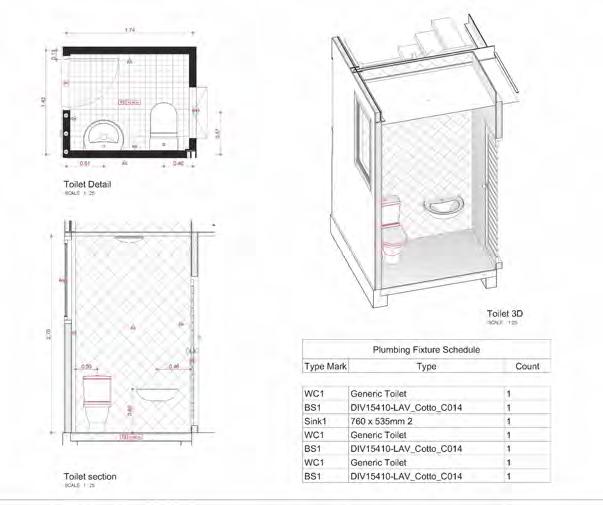

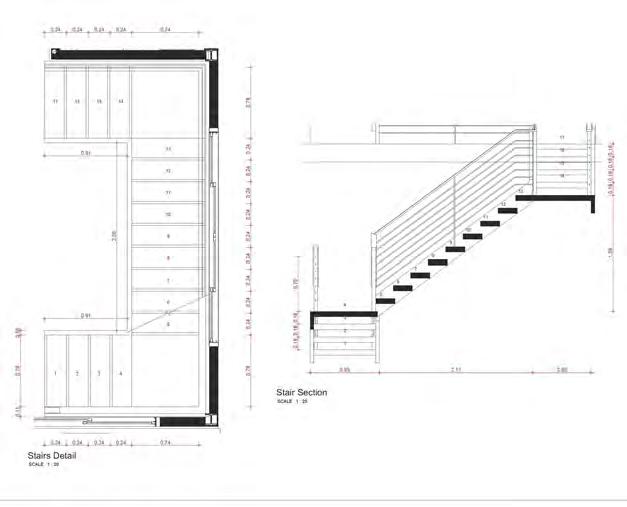

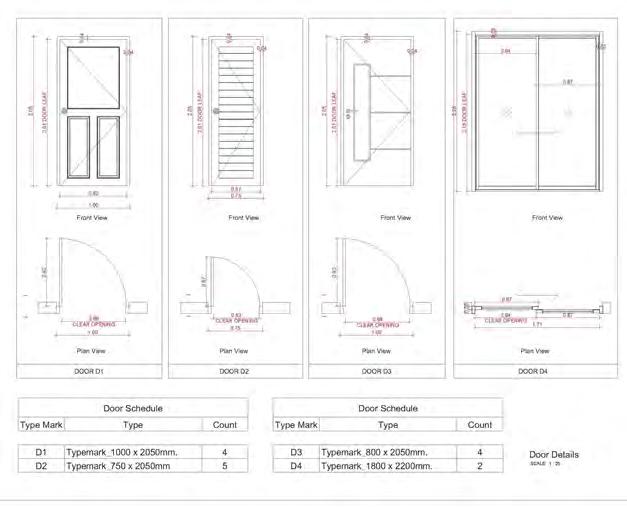

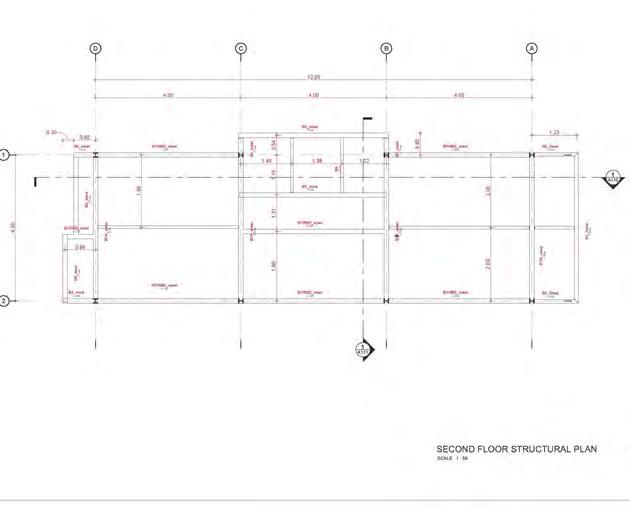

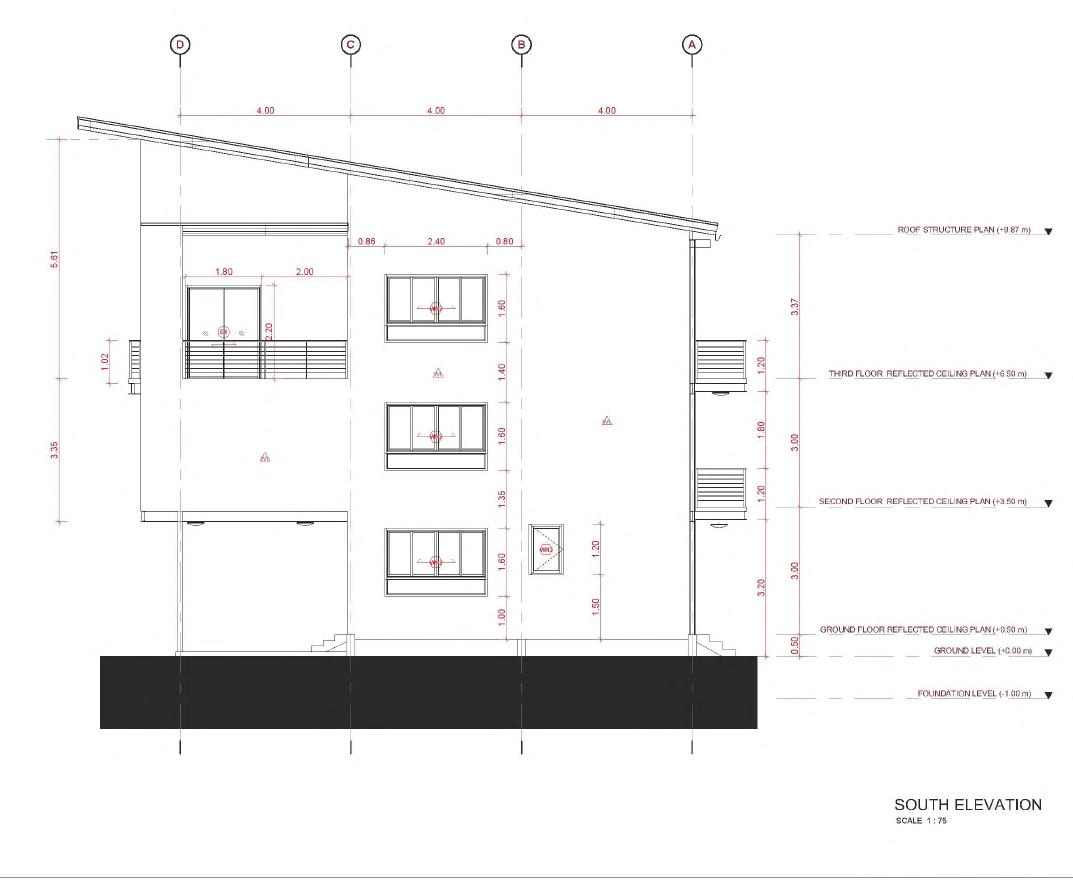

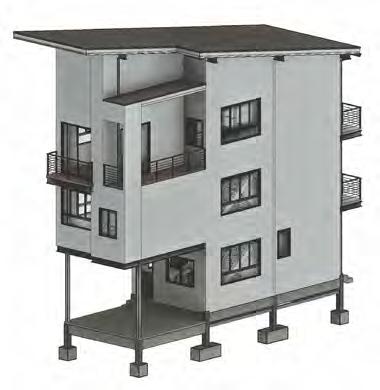

BIM Drawings| Building Construction Class Assignment Project Year - 2023

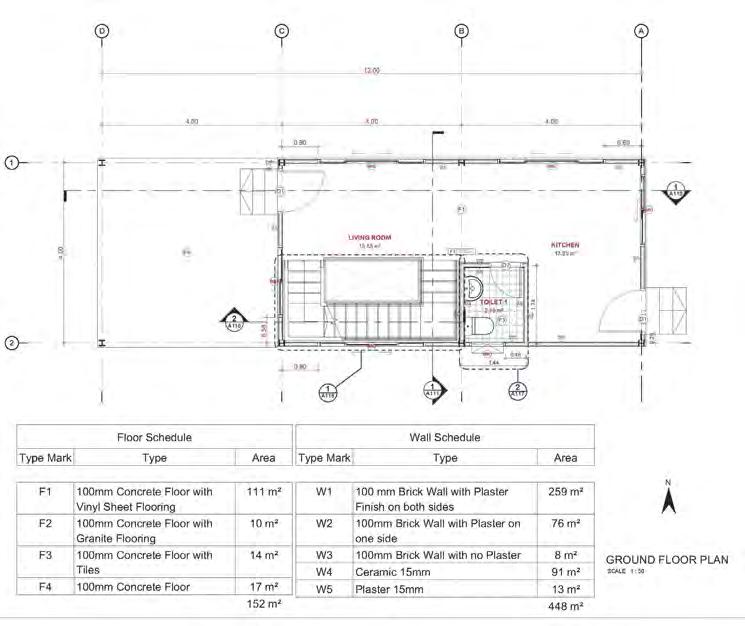

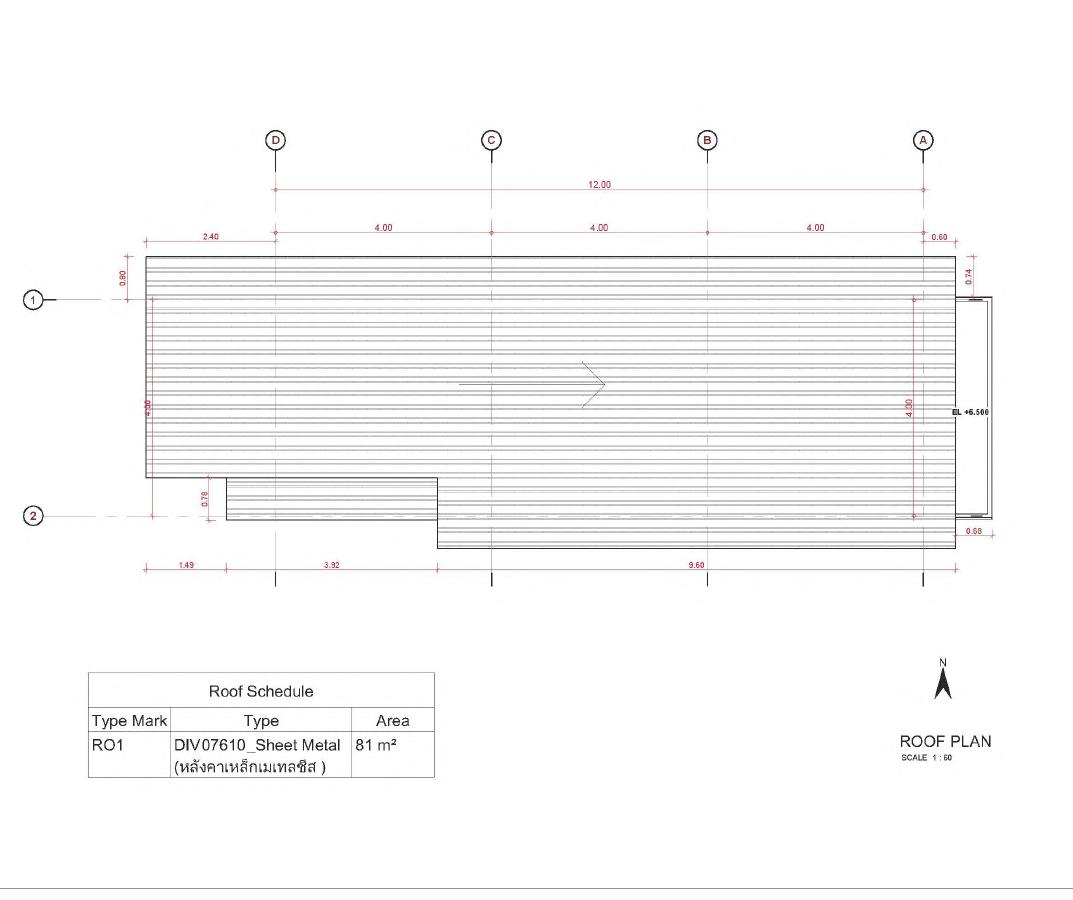

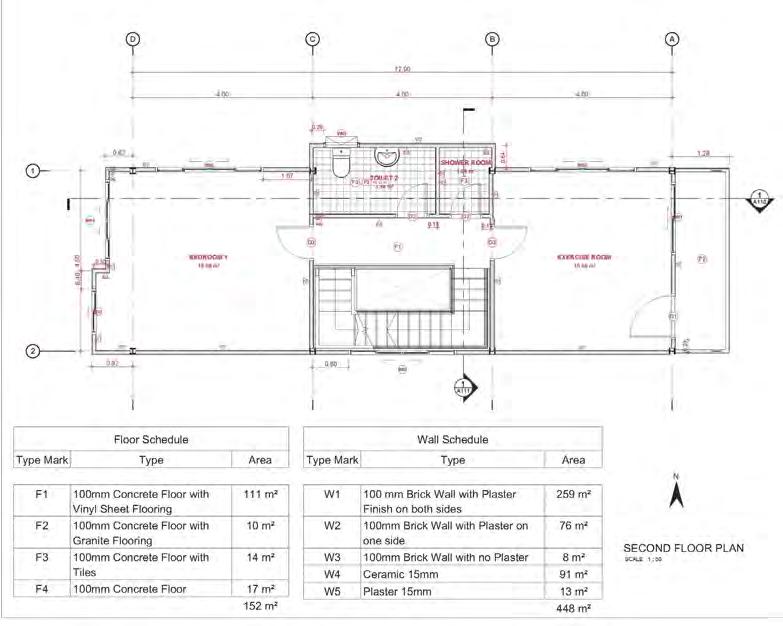

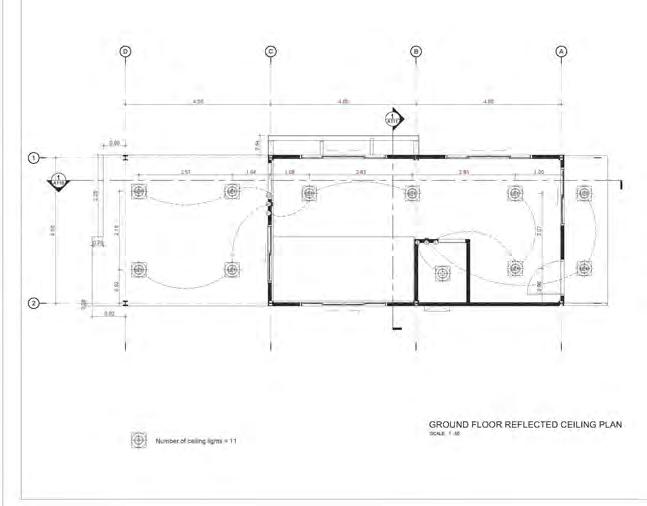

Ground Floor Plan

Second Floor Plan

40

Roof Plan

Elevation

41

Section

Reflected Ceiling Plan

Toilet Details

42

Door Schedule

Stairs Detail

Structural Plan

43

44

Kay Thi Htin Kyaw Portfolio 2024
