CAL-POLY POMONA SCHOOL OF ARCHITECTURE
CONTACT:
kayhanvasseghi@gmail.com +1(424)-425-6390
EDUCATION
California State Polytechnic University Pomona School of Enviornmental Design 2022-Present
SKILLS
Design: Rhinoceros, Revit, Adobe Suite
Media: Video/photography
Fabrication: CNC, 3D printing, Grasshopper, Hand Modeling
SPRING 2025 ARC 3021

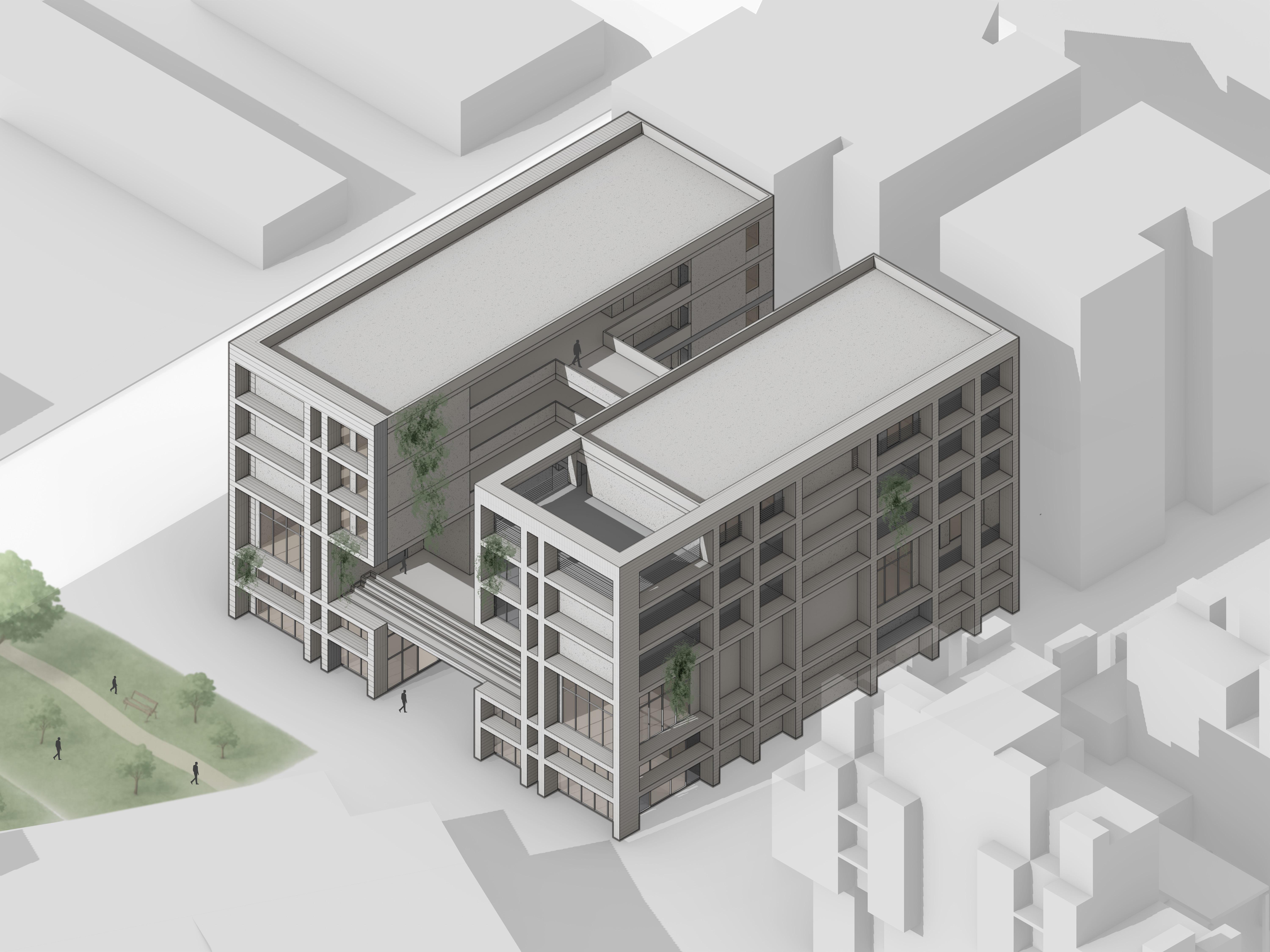

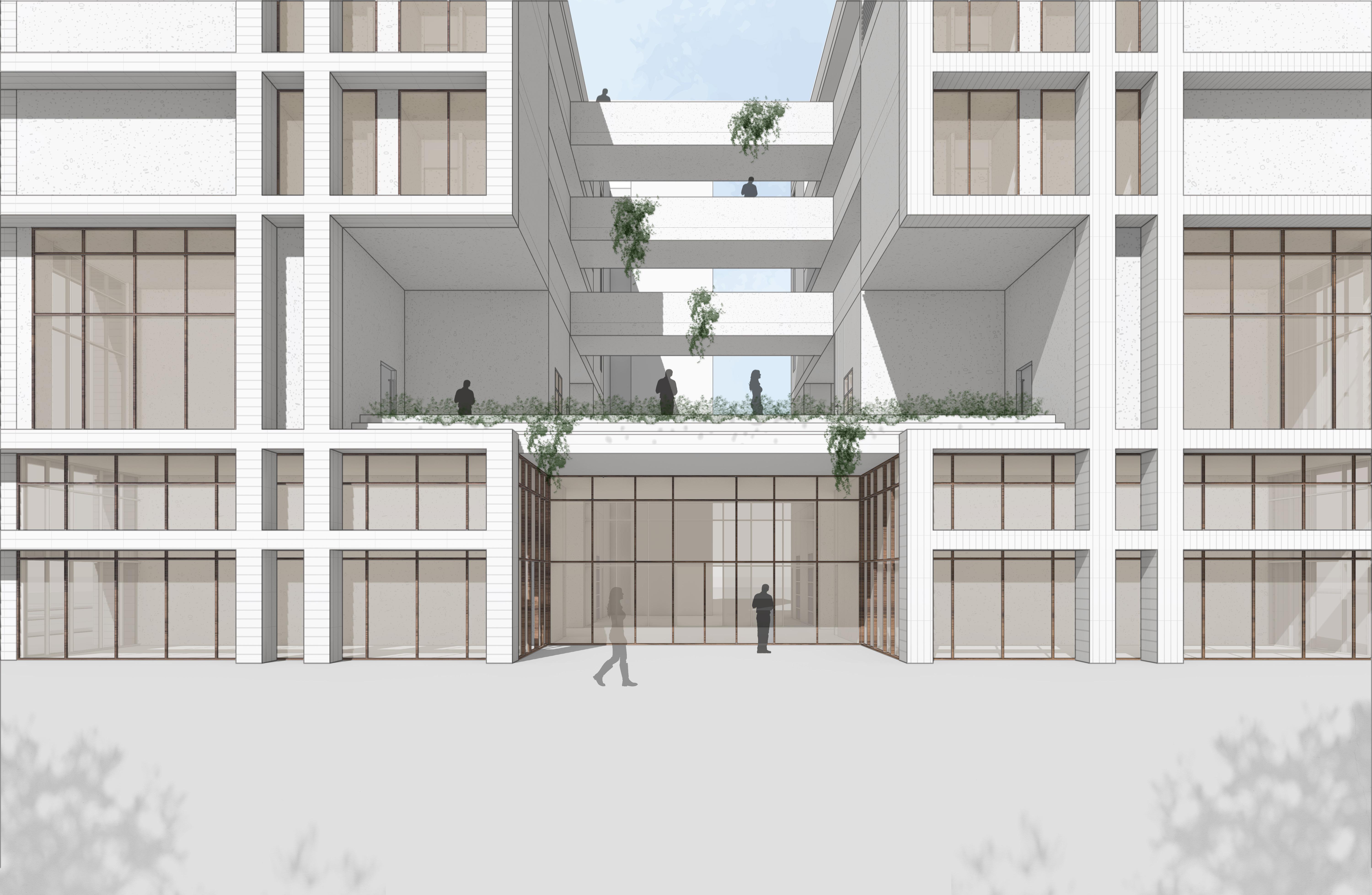

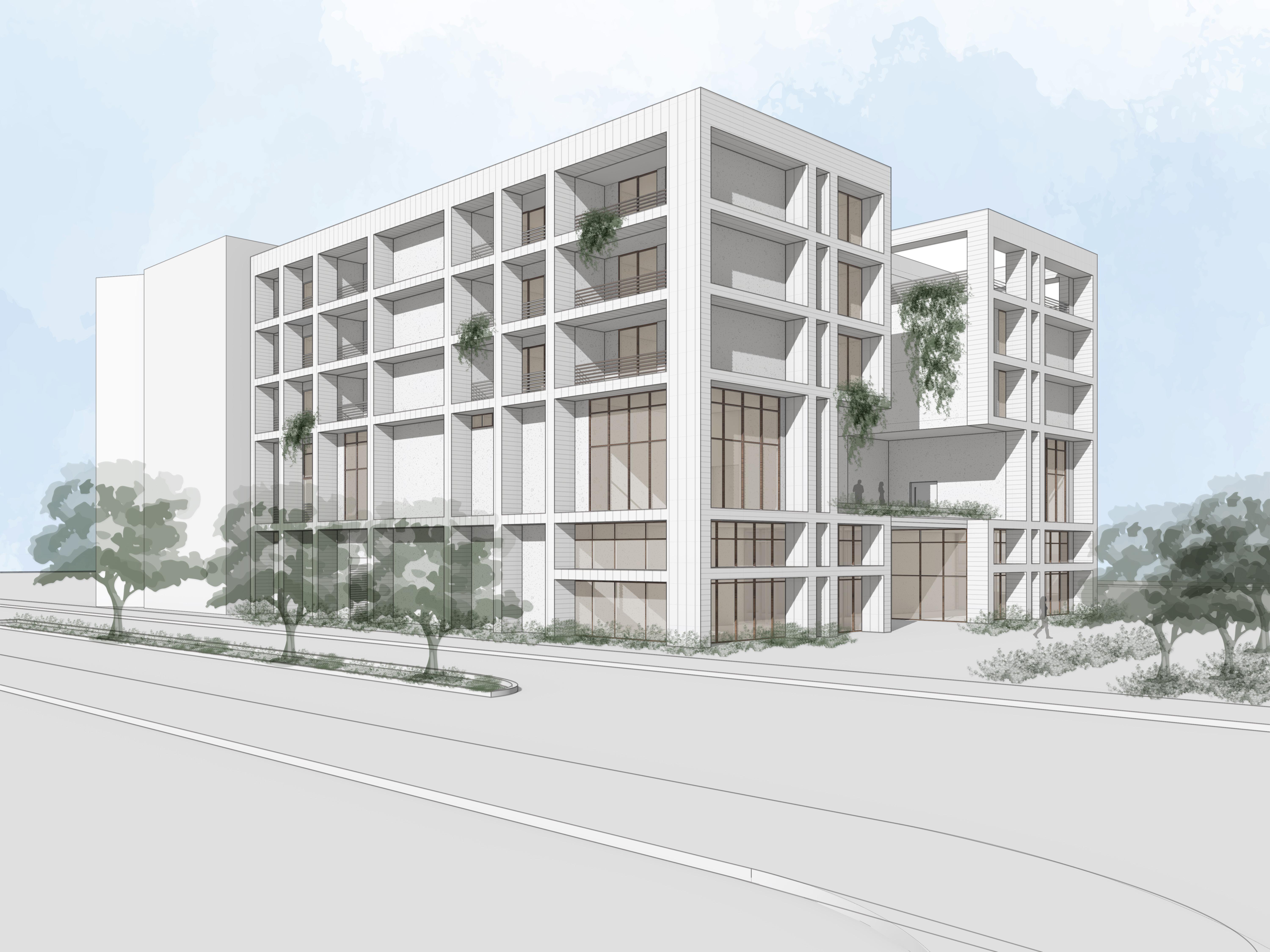

Located in the heart of Santa Ana—adjacent to the train station and one mile from both the historic French Park District and downtown—Lattice 5 is a 30-unit mixed-use housing development that aims to foster community through architecture.Situated on a park-adjacent lot, the building embraces openness and accessibility while maintaining residential privacy. Retail spaces line the park edge, creating an inviting and transparent frontage that encourages public engagement. A gallery and café animate the ground floor, while a public courtyard at the rear supports live-work units and extends the building’s relationship with the community. The massing is split into two towers, creating an elevated courtyard between them. This mid-level void hosts shared amenities—including a gym, laundry room, and communal lounge—offering residents a semi-private space for connection and retreat. Together, the ground floor and elevated courtyard form a dynamic buffer between public life and private residence. Floors three through five are dedicated to housing, with each unit oriented for optimal sunlight and natural ventilation. Generous balconies reinforce the indoor-outdoor connection, while elevation ensures comfort and privacy. The building’s identity is defined by its structural façade system: deep vertical columns that form a bold architectural lattice. These elements provide structure, rhythm, and scale, giving the building both a tactile presence and a strong visual identity. Lattice 5 is designed as a connective hub—one that reflects Santa Ana’s energy while supporting a diverse, community-driven future.
BATHROOM
BEDROOM
UNIT PLANS 1/4” - 1’-0” SCALE
LEVEL 3
LEVEL 2 LOFTED
LEVEL 2
GROUND LEVEL LOFTED
GROUND LEVEL 0’-0”
PERSPECTIVE SECTION 1/8” - 1’-0” SCALE
BEDROOM
LIVING
KITCHEN
BATHROOM
BATHROOM
KITCHEN
BEDROOM/LIVING
STUDIO UNIT(B) - 450 SQ FT
FA-1
FA-1
“ HK NON-COMPOSITE TIE
3-1/2 “ XPS (EXTRUDED POLYSTYRENE) (R5 PER INCH) 8“ CONCRETE ROOF SLAB SELF- ADHERED VAPOR RETARDER 5-1/2“ TAPERED POLYSIO INSULATION 1/4“ DENSDECK
6 “ INTERIOR LOAD-BEARING CONCRETE WYTHE
“ RUBBER ACOUSTIC SLAB 3/4“ STONE FLOOR FINISH 1/4 “ GYPSUM TILE 2-1/2 “ EXTERIOR ARCHITECTRUAL CONCRETE WYTHE
“ HANGER WIRES

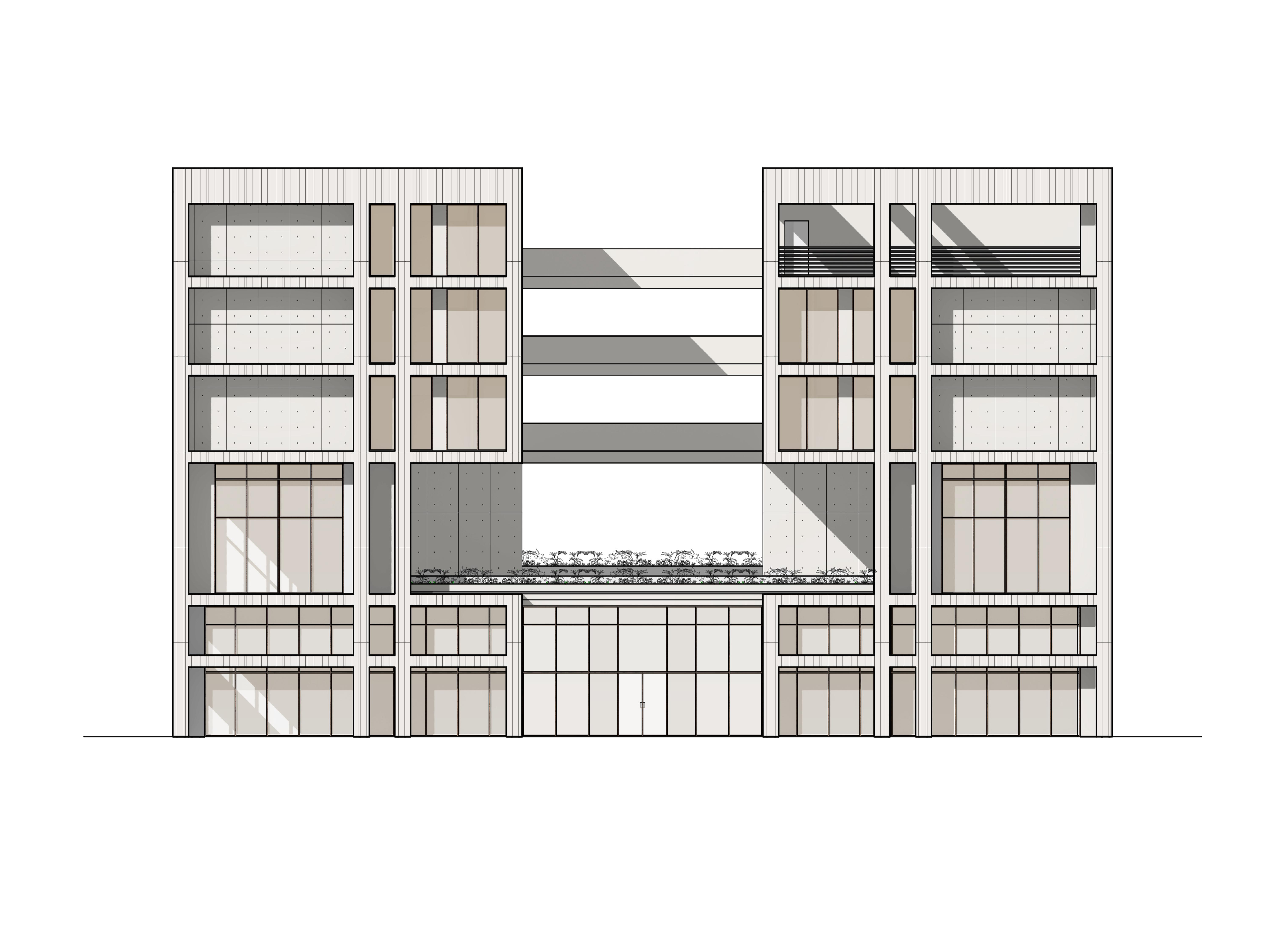

DETAILED ELEVATION - SECTION 1/4”- 1’0” SCALE

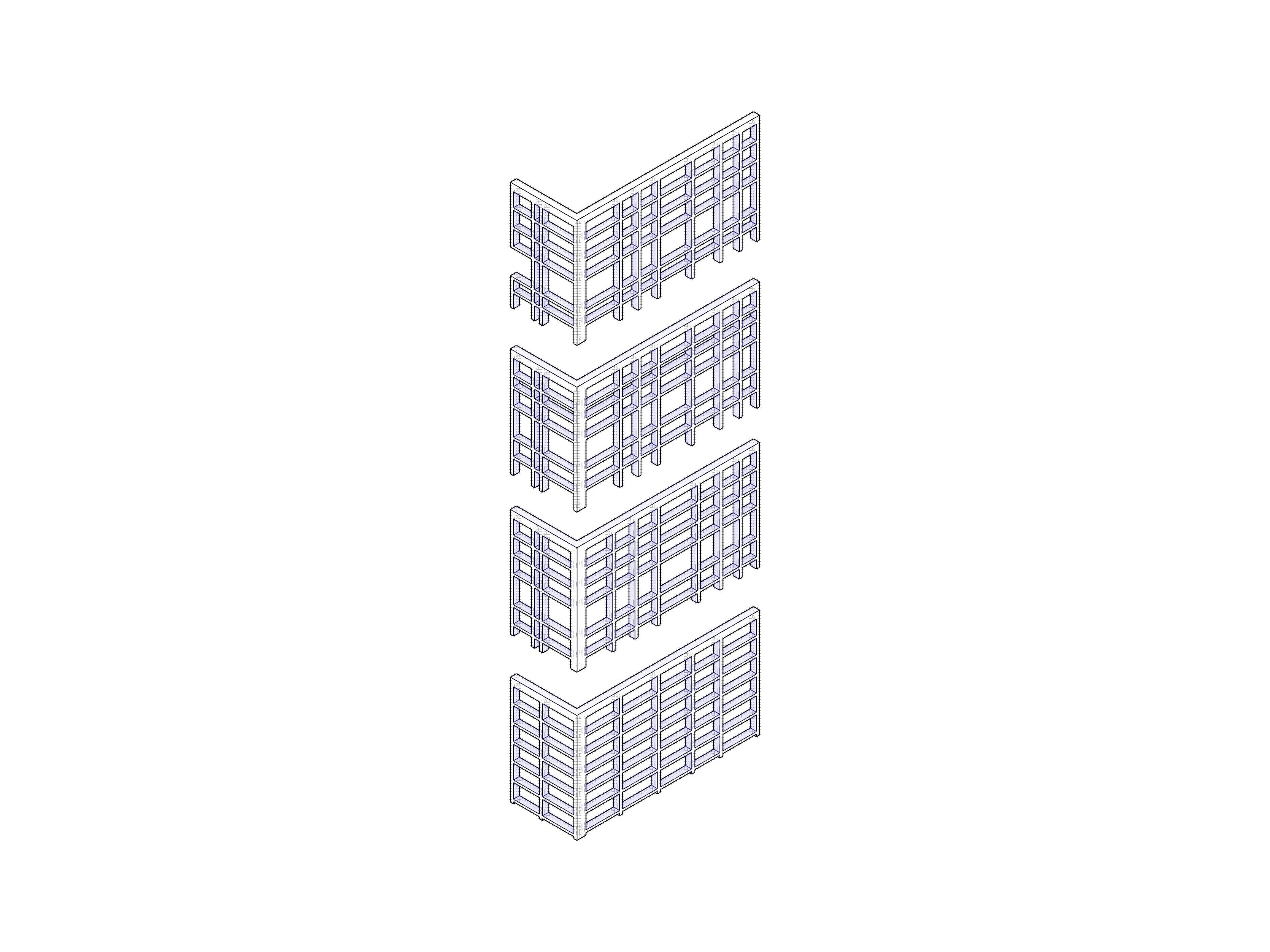

FACADE STUDY
GRID SPACING + ORGANIZATION
FINAL GRID
GRID UNIFORMITY
GRID DENSITY
COLUMN SPACING
RESEARCH & HOUSING FALL 2024 ARC 3011

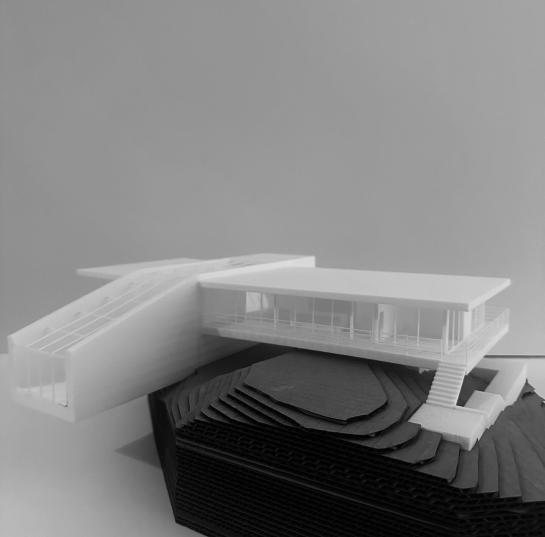

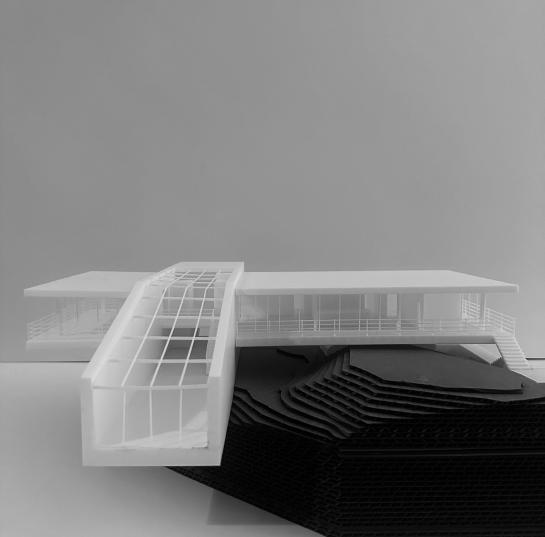

The proposed Mount Wilson project is a live and research center designed for scientists to stay near the observatory, providing spaces for work and rest. Upon entering the site, visitors are immediately captivated by the expansive views and natural topography. The location offers panoramic vistas of the surrounding national forest. To maximize views without disrupting the tree line, the two-story building employs cantilevered floors that accentuate the site’s beauty. The entrance and main office feature a panoramic glass roof that highlights the sky, while the second floor incorporates a glass curtain wall system that connects the interior to the forest. The building is divided both horizontally by the cantilever structure and vertically by function, with one half dedicated to work and the other to living spaces. Clean datum lines ensure the project seamlessly blends the outdoor environment with its workspace and living quarters.
FLOOR PLAN LEVEL 2
8x8 HSS COLUMN
4x4 W JOIST & BOLTED CONNECTION
2’ CONCRETE WALL
CONCRETE FOOTER
CHUNK MODEL
FALL 2023 ARC 2011

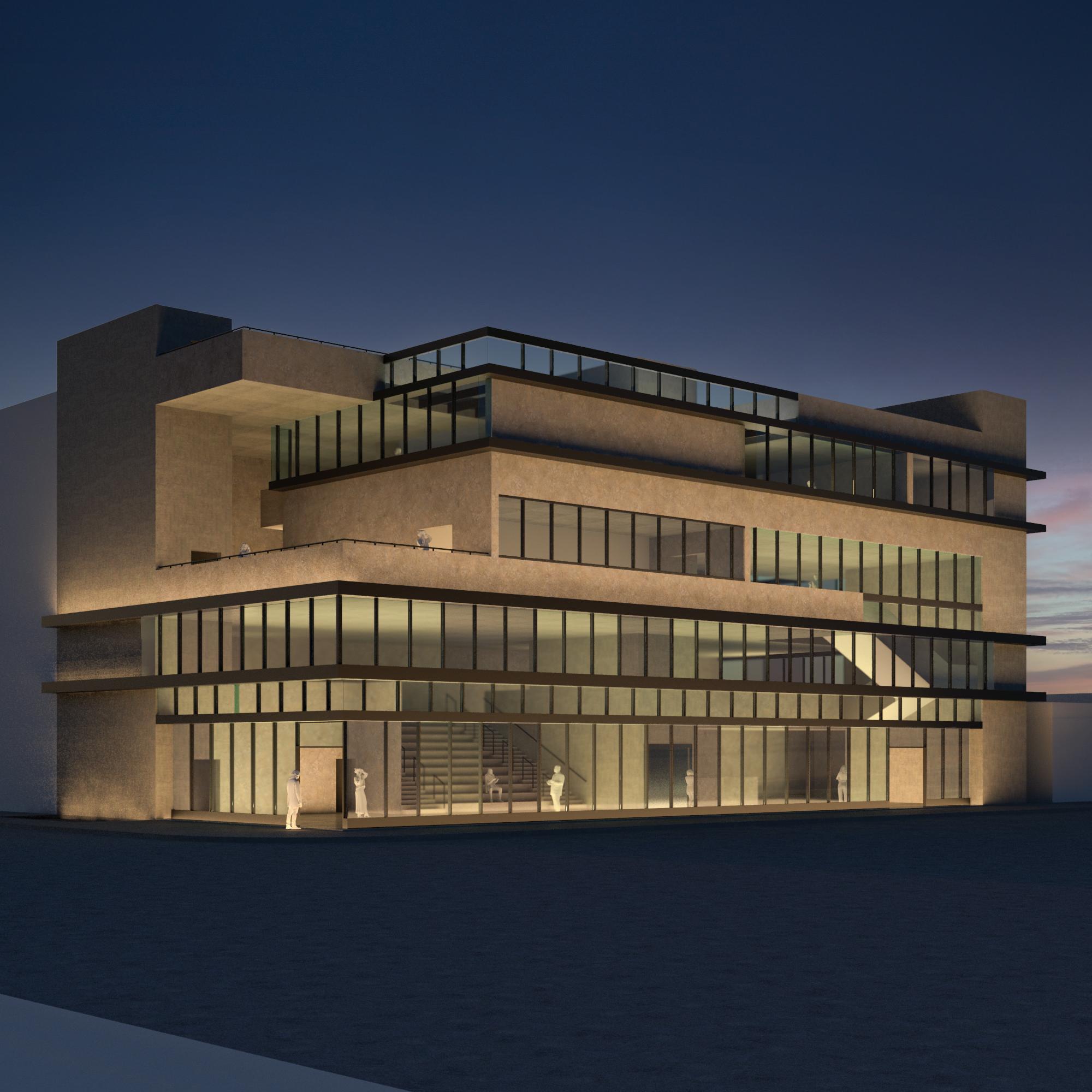

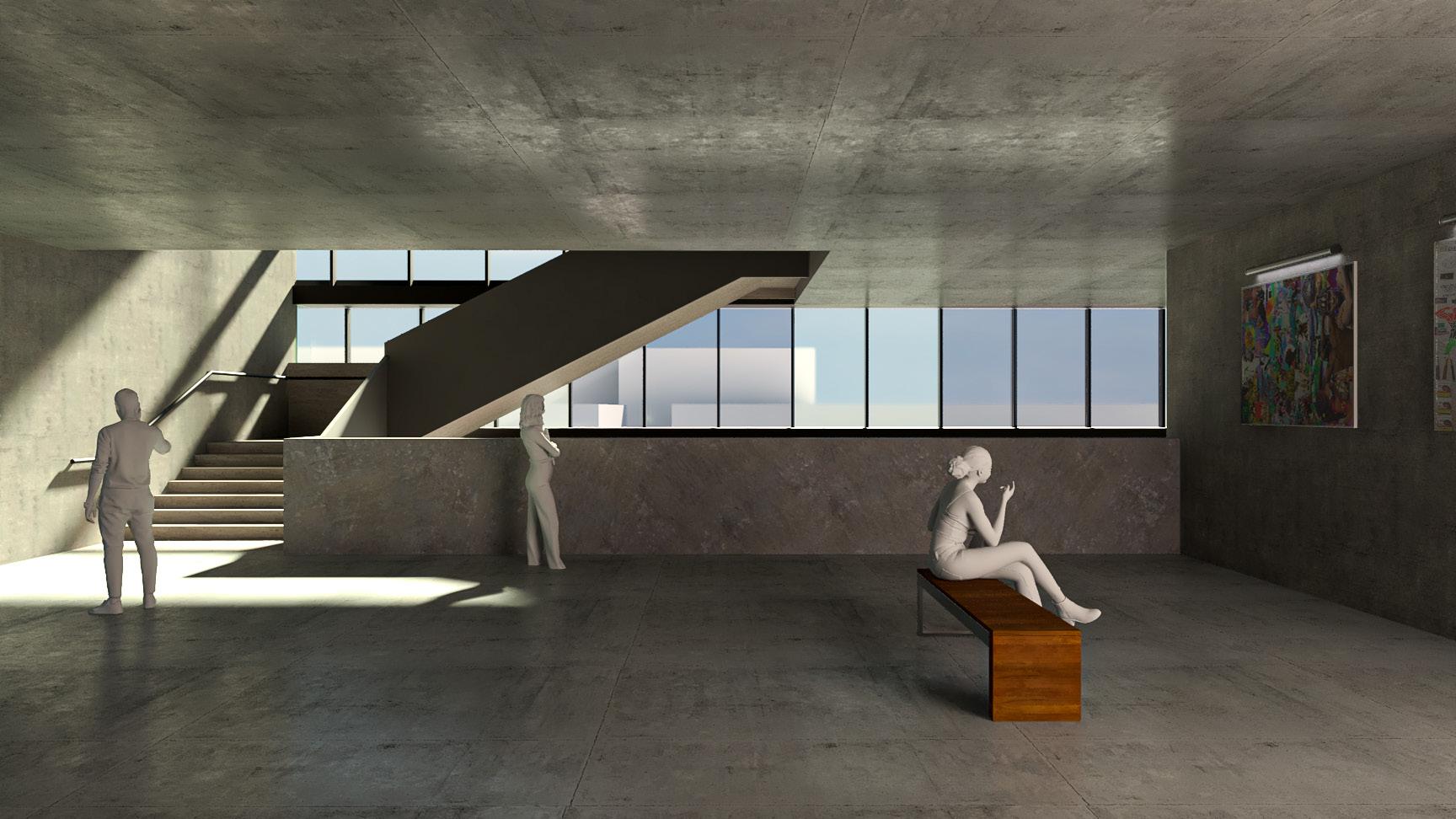

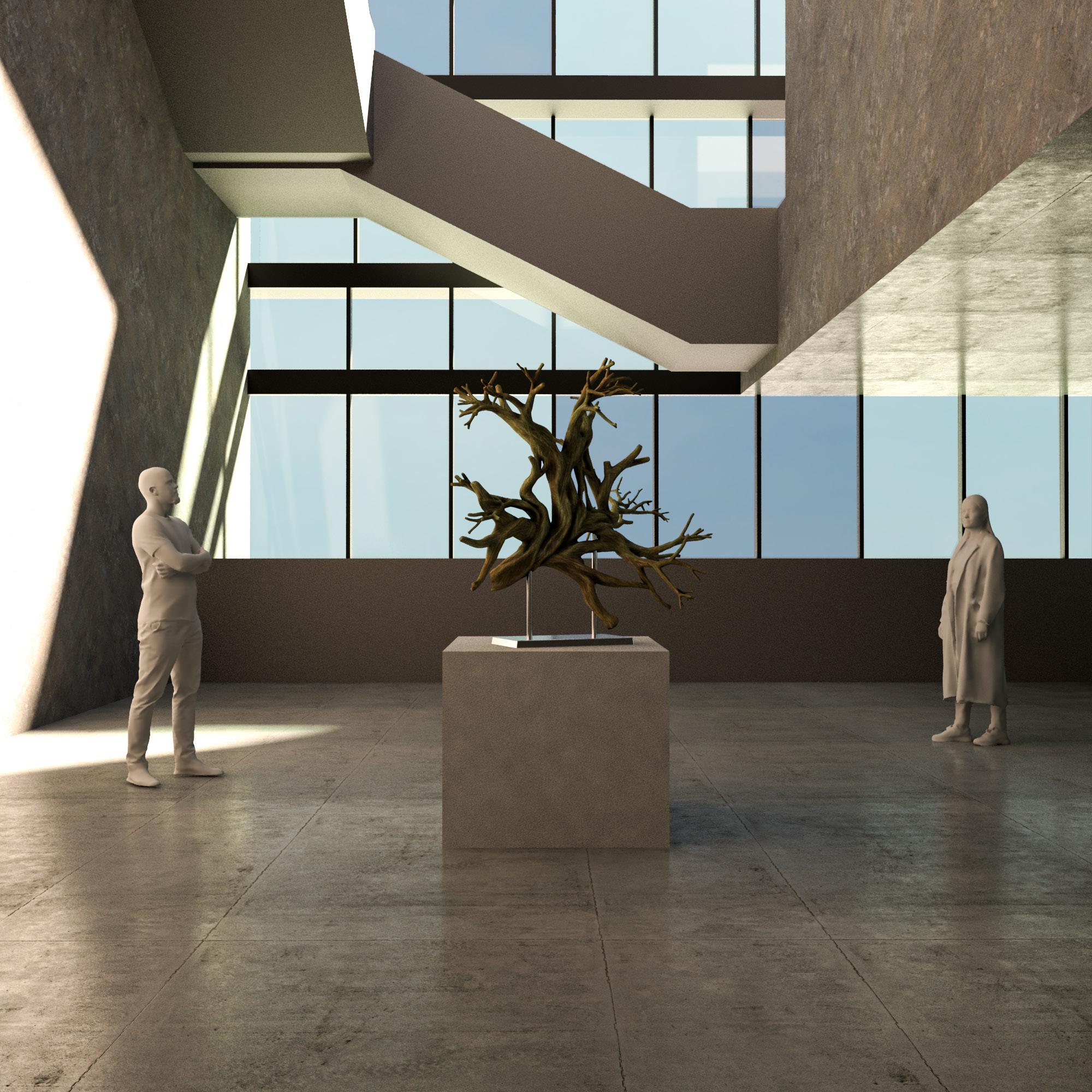

The design studio created a 14,000 sq ft, five-story community arts center in Leimert Park, Los Angeles, including a basement. Commissioned by a local non-profit focused on contemporary art and programs for transition-age foster youth, the project promotes local culture and empowers neighborhood children. The concrete and glass building features sleek, contemporary lines with a functional, open, and minimalist design that supports community engagement and artistic expression. Inspired by Le Corbusier’s free plan, the flexible interior accommodates diverse events and art installations. Three central cores define the structure and ensure effective circulation across six floors through strategically placed staircases, encouraging exploration and interaction. This arts center seamlessly blends community, art, and inclusive design, serving as a vibrant hub for creativity and cultural exchange in Leimert Park.
