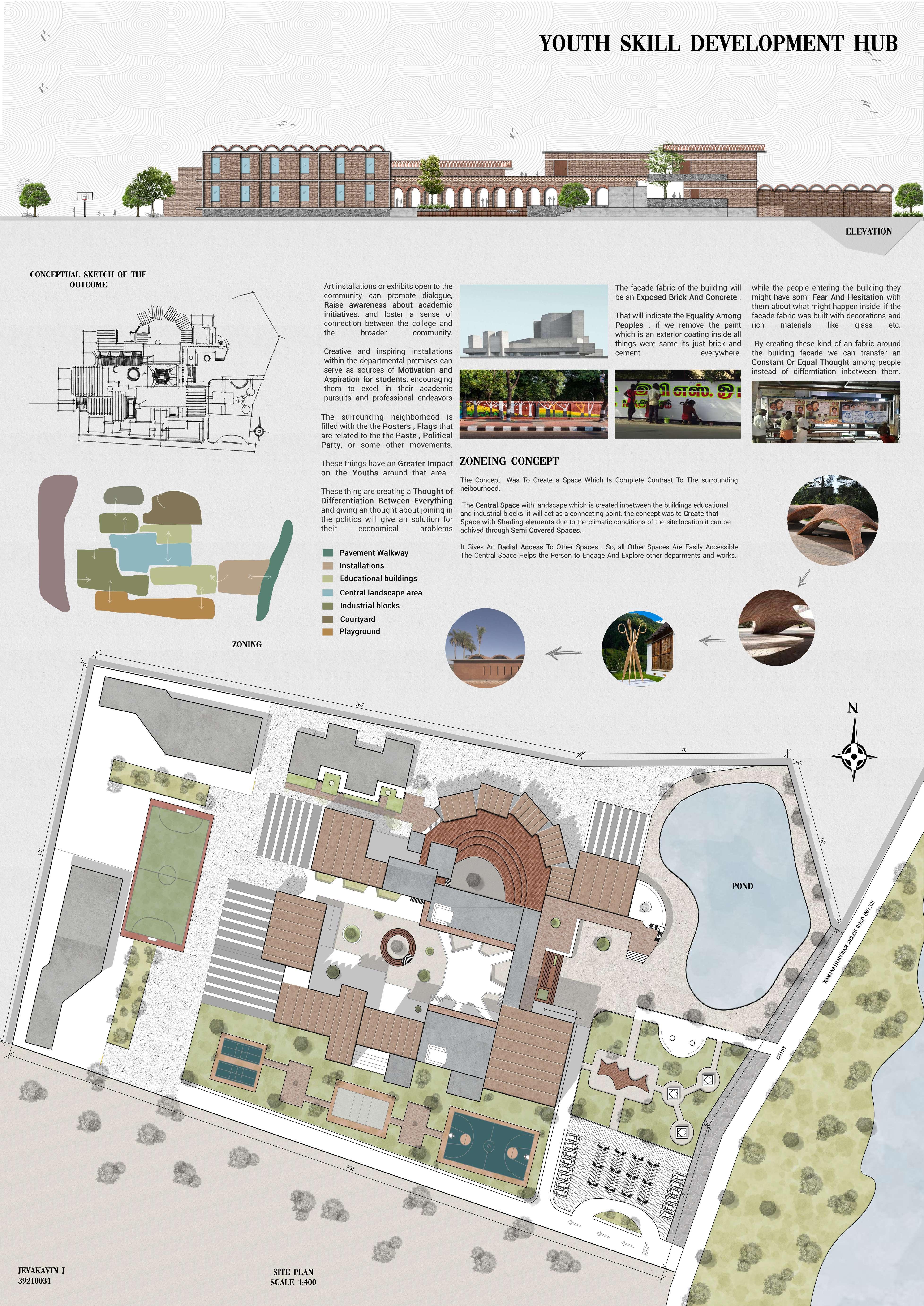

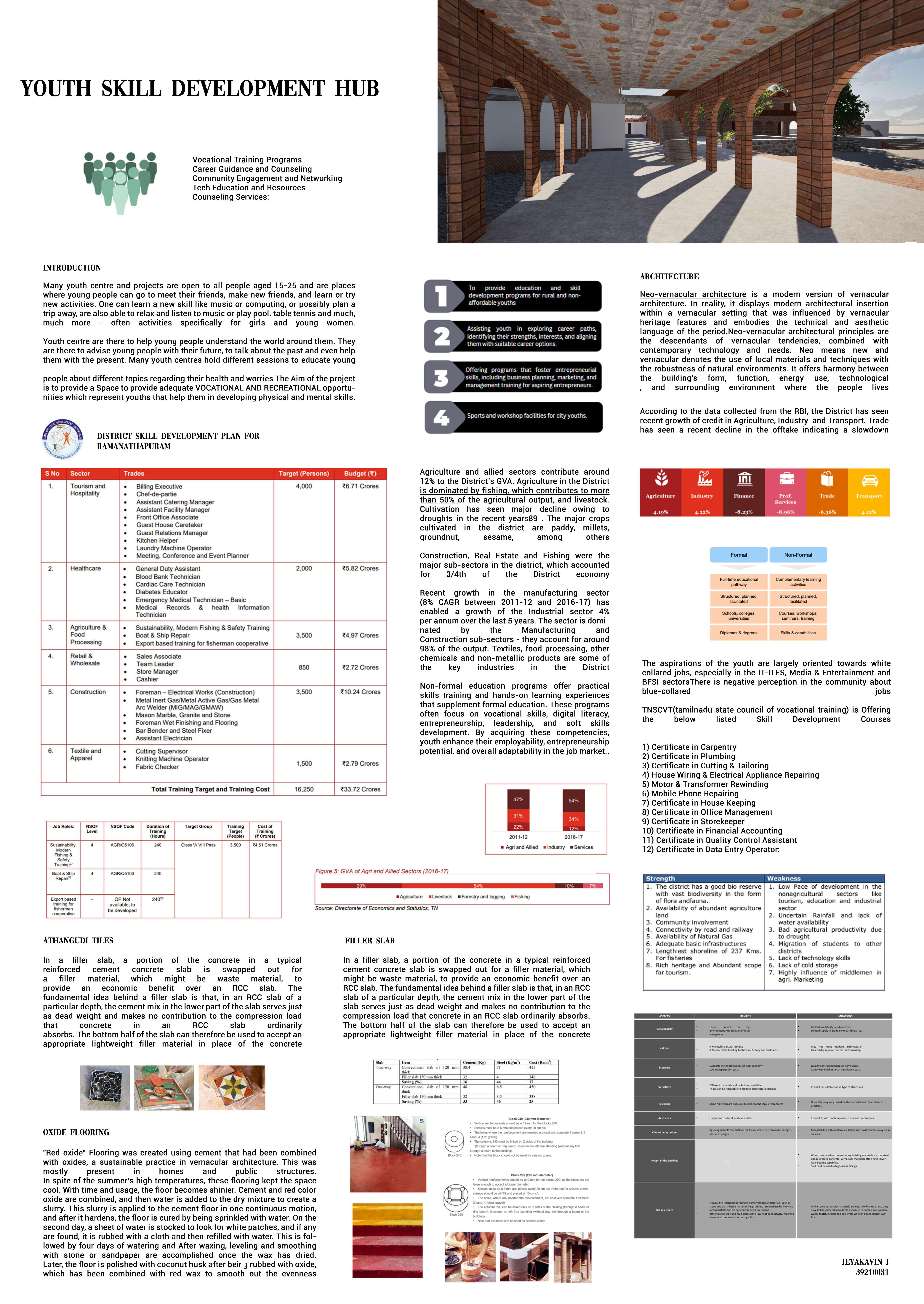

CONCEPT

The Concept Was To Create a Space Which Is Complete Contrast To The Indsustrial or Constructional Zone .

• So ,Site Was Divided Into Three Parts.

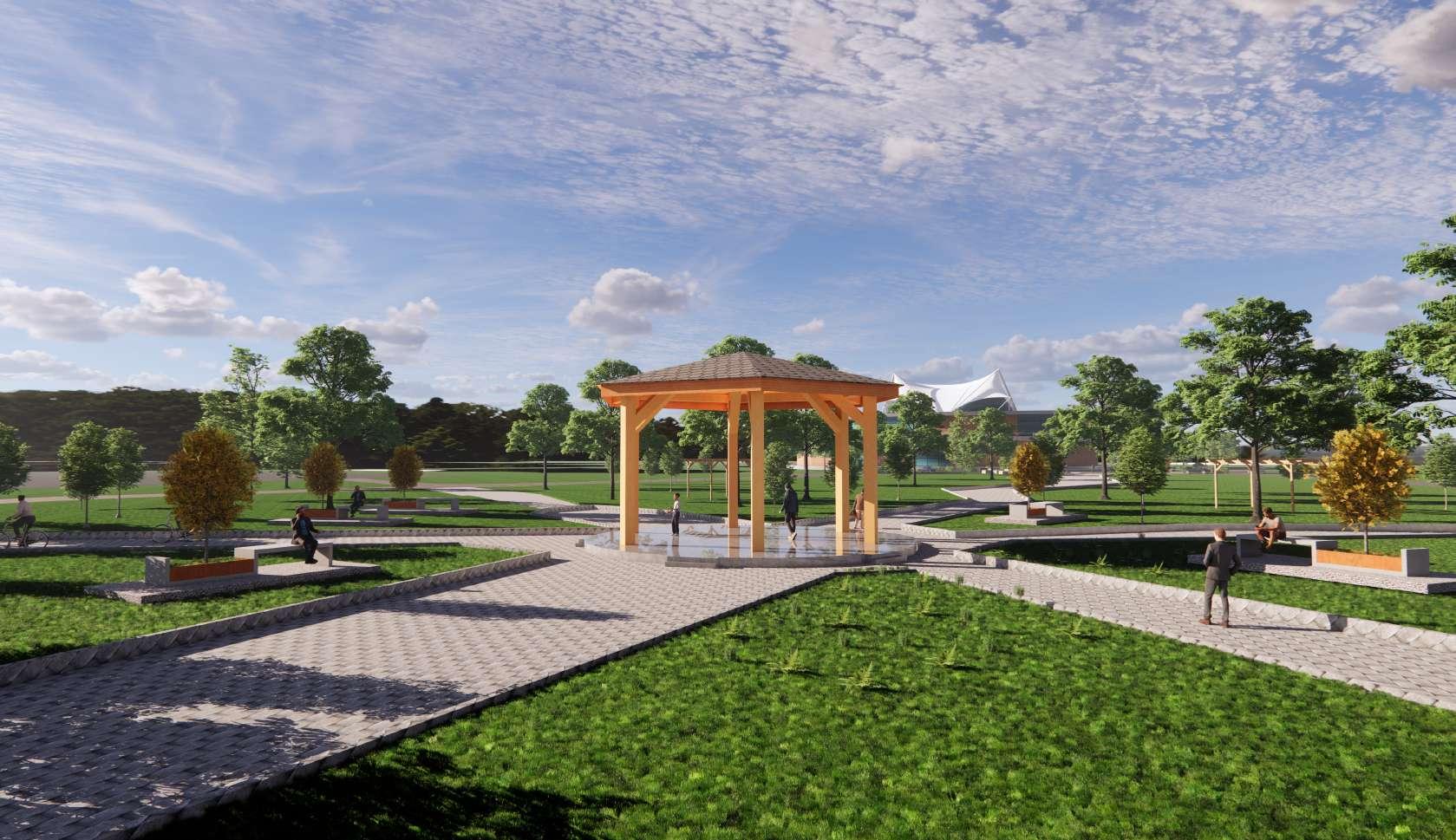

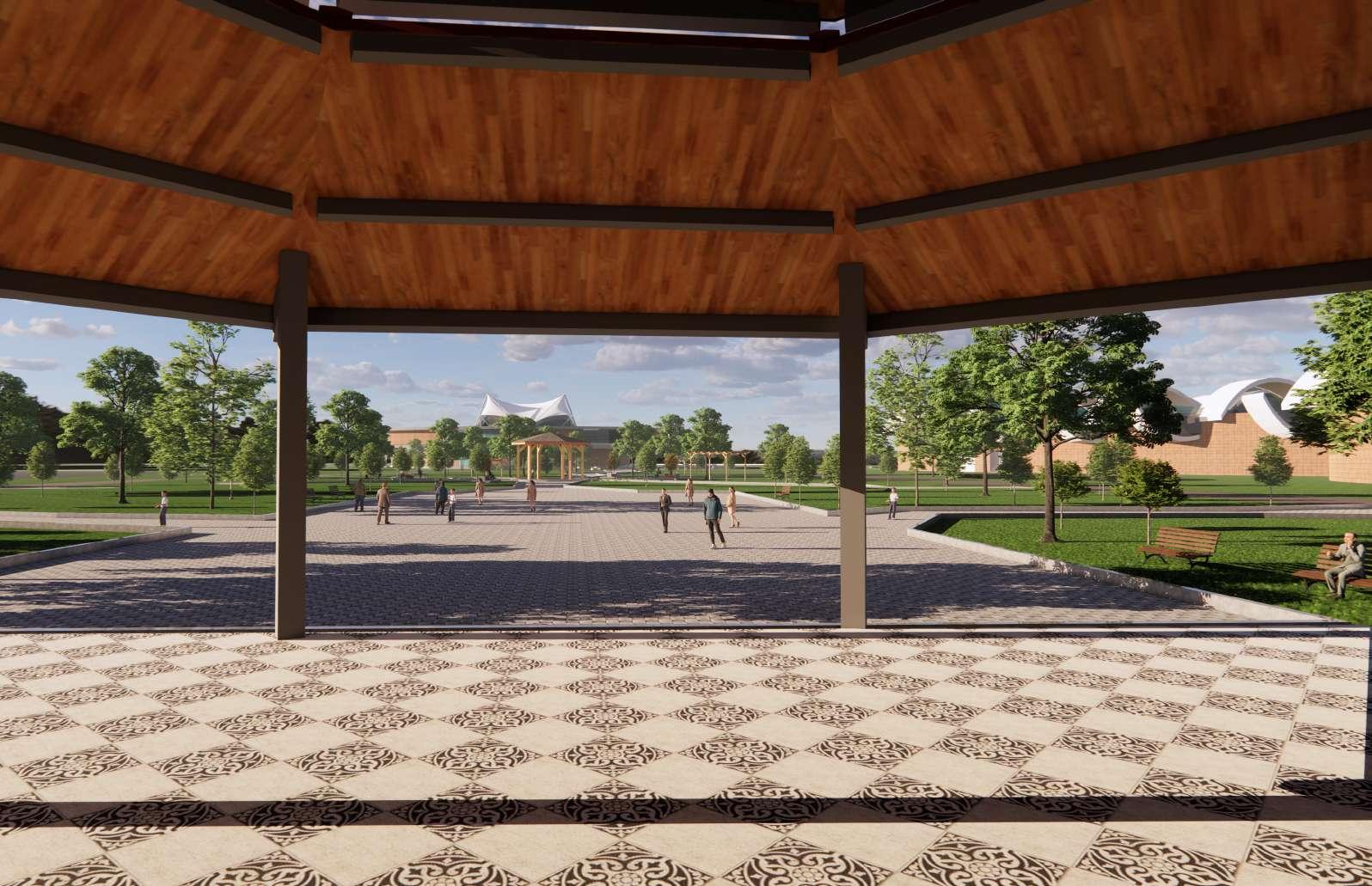

• The Two Sides Are Buildings and The Central Space Is Green Landscape.

• It Gives An Radial Acess To Other Spaces So, all Other Spaces Are Easily Accessible

• The Central Space Helps the Person to Engage And Explore The Entire Site.

The Circulation In The Site Was Divided Into Three Lane’s

• Two Lane’s For Vechicular Movement

• One for Pedestrian Movement

Structurally, the system is formalized by combining three elements: membranes, rigid structures such as pole and masts, and cables.

The cables, which are responsible for the distribution of the tensile stresses and the hardening of the canvasses. It Was Divided Into Two Based On Its Action’s .

• load-bearing

• stabilizing

The load-bearing cables are those that directly receive the external loads, fixed at the highest points

The stabilizing cables are responsible for strengthening the load-bearing cables and cross the loadbearing cables orthogonally

SITE

NAME : JEYAKAVIN J

NO. : 39210031

:

MICE DESIGN - AUTOMOBILE ORAGADAM

MICE DESIGN - AUTOMOBILE

NAME : JEYAKAVIN J

REG NO. : 39210031 ROLL NO. : 19S215095 BATCH :

NAME : JEYAKAVIN J

REG NO. : 39210031

ROLL NO. : 19S215095

BATCH : 2019-24

MICE DESIGN - AUTOMOBILE ORAGADAM

NAME : JEYAKAVIN J REG NO. : 39210031 ROLL NO. : 19S215095 BATCH : 2019-24 SECTION :

DESIGN - AUTOMOBILE ORAGADAM

NAME : JEYAKAVIN J

REG NO. : 39210031

ROLL NO. : 19S215095

BATCH : 2019-24

SECTION : A

MICE DESIGN - AUTOMOBILE ORAGADAM

NAME : JEYAKAVIN J

REG NO. : 39210031

ROLL NO. : 19S215095

BATCH : 2019-24

SECTION : A

NAME : JEYAKAVIN J

REG NO. : 39210031

ROLL NO. : 19S215095

BATCH : 2019-24

SECTION : A

ART MUSEUM

PASSIVE COMMUNICATION:

1.grqphic panels-incorporate text and images

2.object labels-for individual objects

3.E-labels-incorporate text,images,videos,audio and diagrams

ACTIVE COMMUNICATION:

1. Audio-spoken word, oral testimony ,music , foreign language.

2. Video-flim, interviews, archive film, moving images effects

REACTIVE COMMUNICATION:

1.lighting effect-sequenced presentation

2.flims-movies,documents and videos

INTERACTIVE COMMUNICATION:

1.low-tech interactives- incorprate text, film ,flip books, audio,

2. High-tech interactives -programmed and computerized

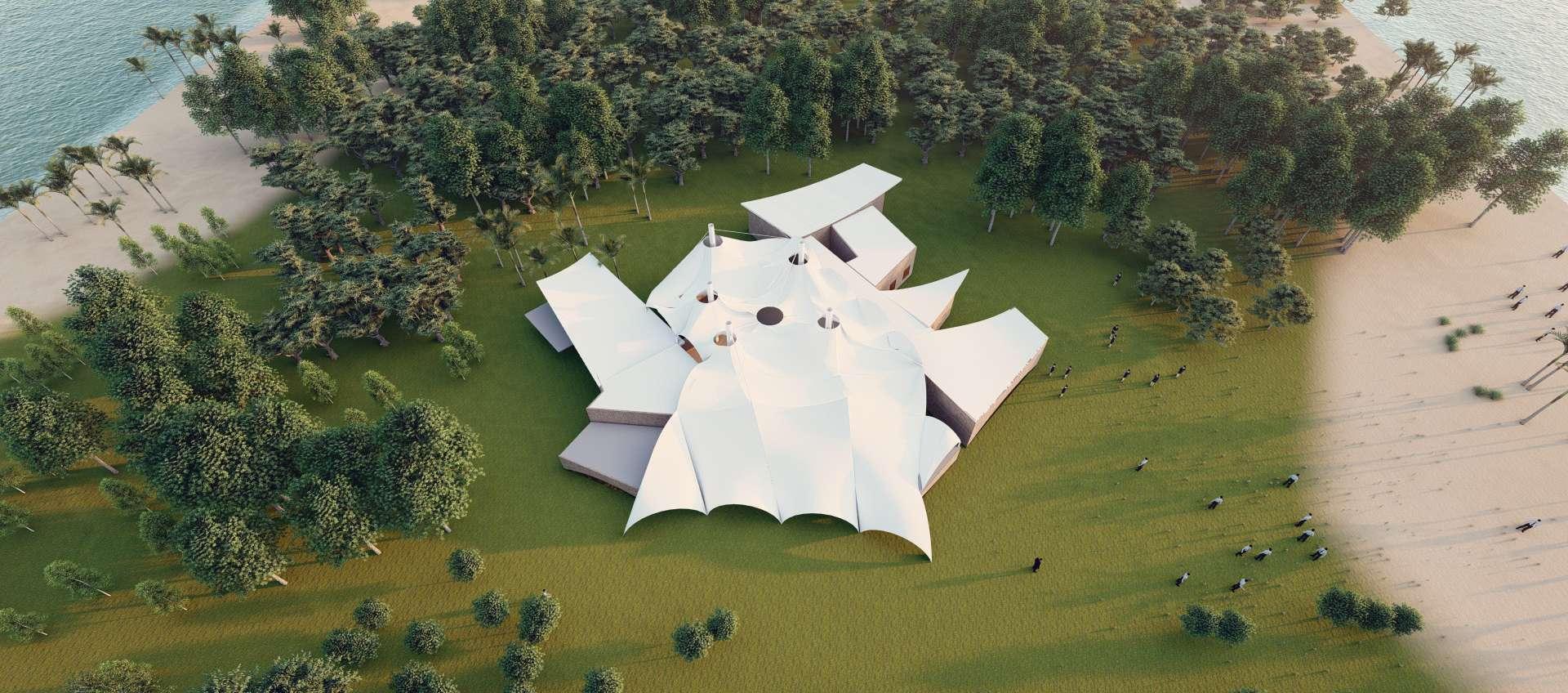

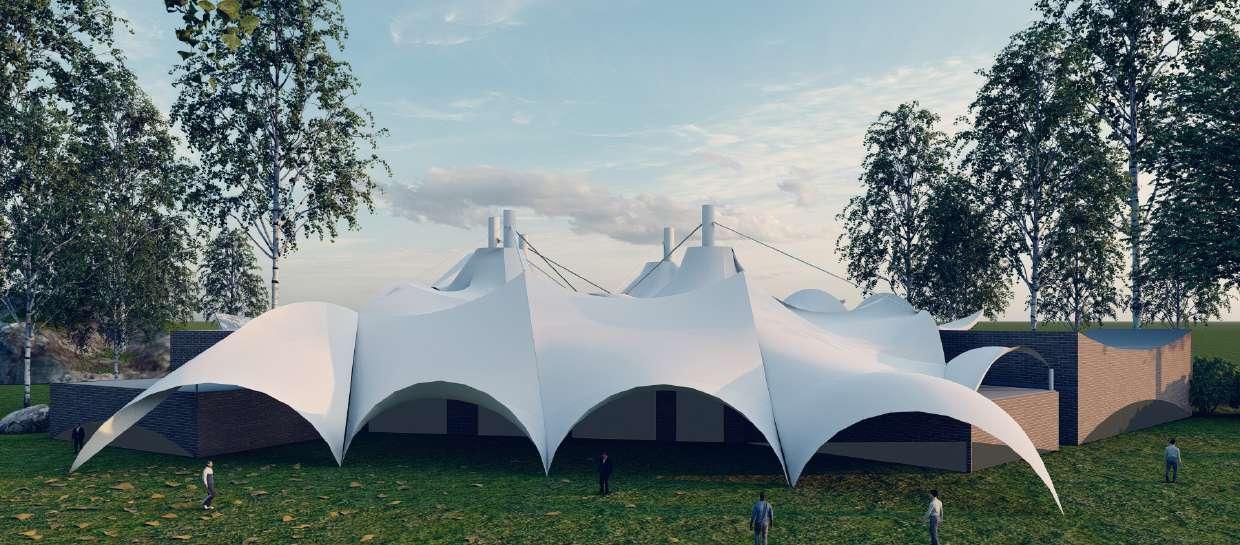

TENSILE STRUCTURE ROOF

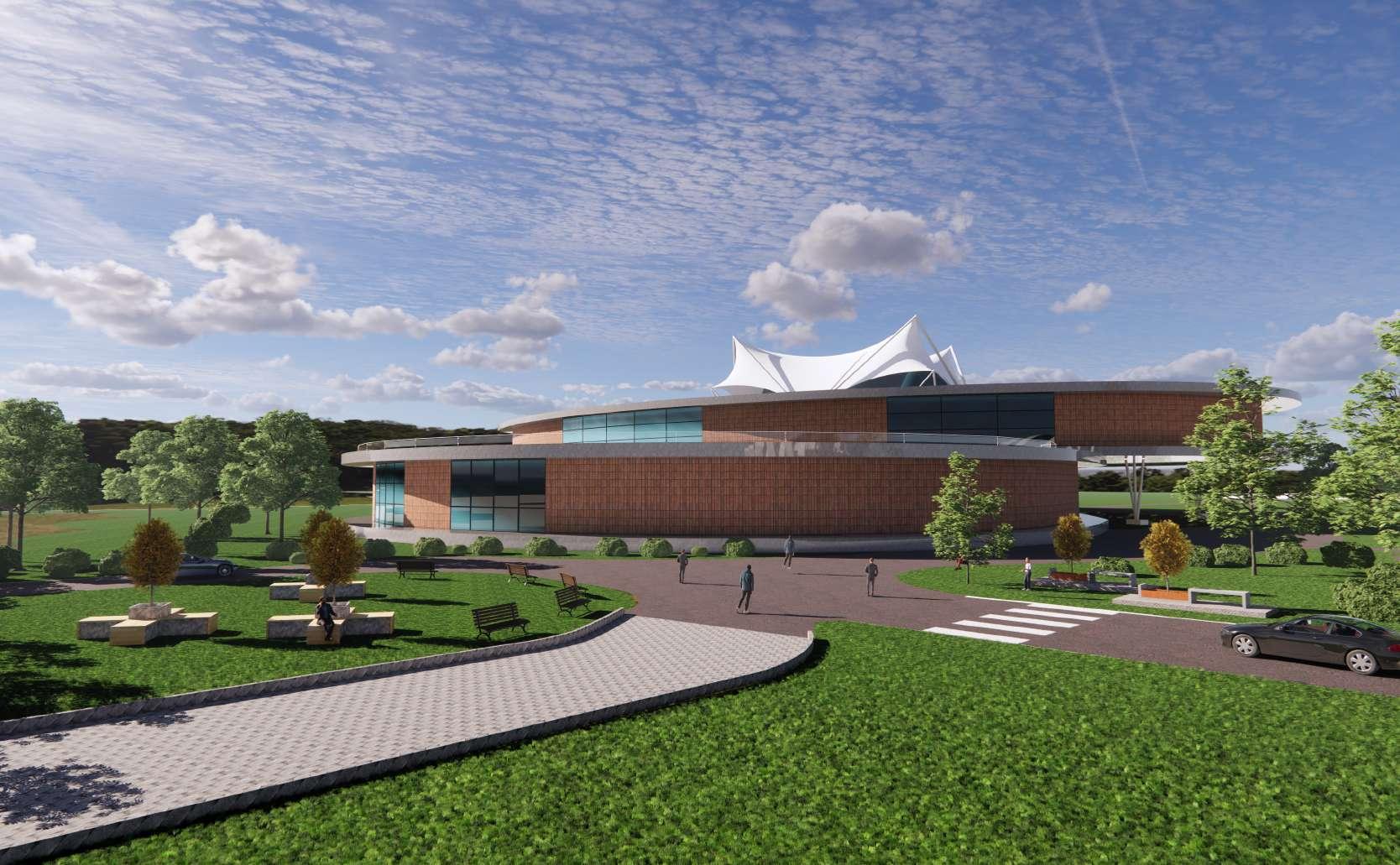

The Tensile Roof Covers The Centre Part Of The Museum , Which Includes The Lobby, Mordern sculpture Space And Gallery.

SECTION A A’

The Mast Act As The Main Support Of The Tensile Structure. Which Carries The Main Load Of The Roof

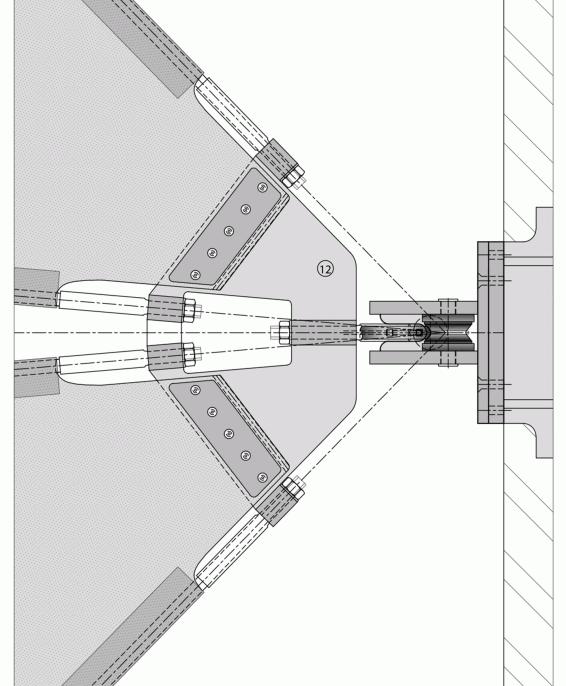

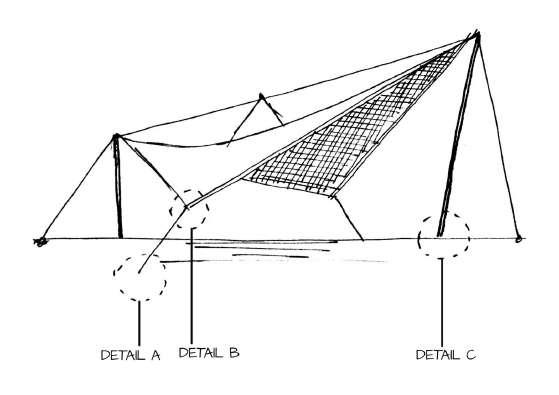

JOINERY DETAILS

Edge Joint Details

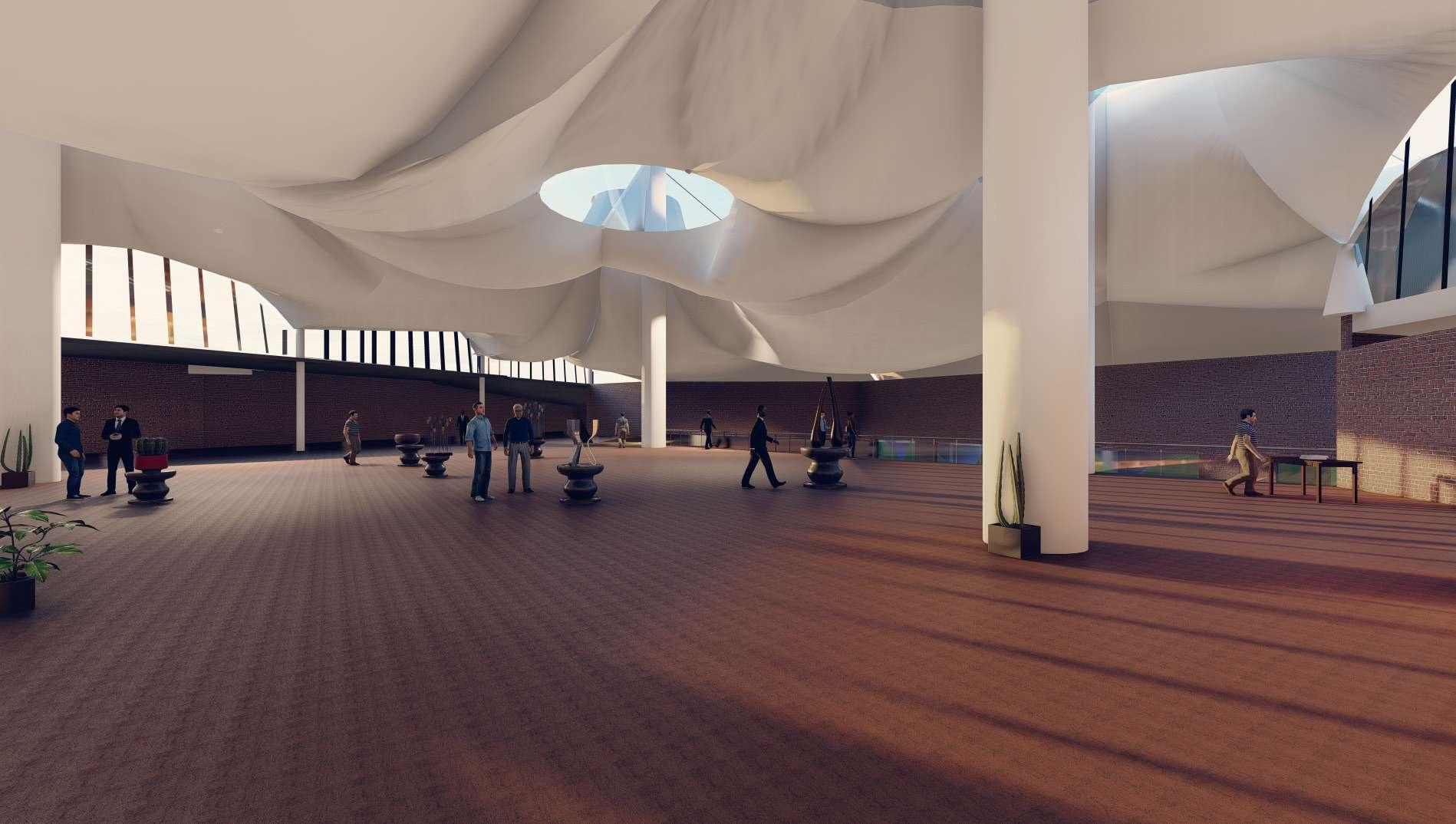

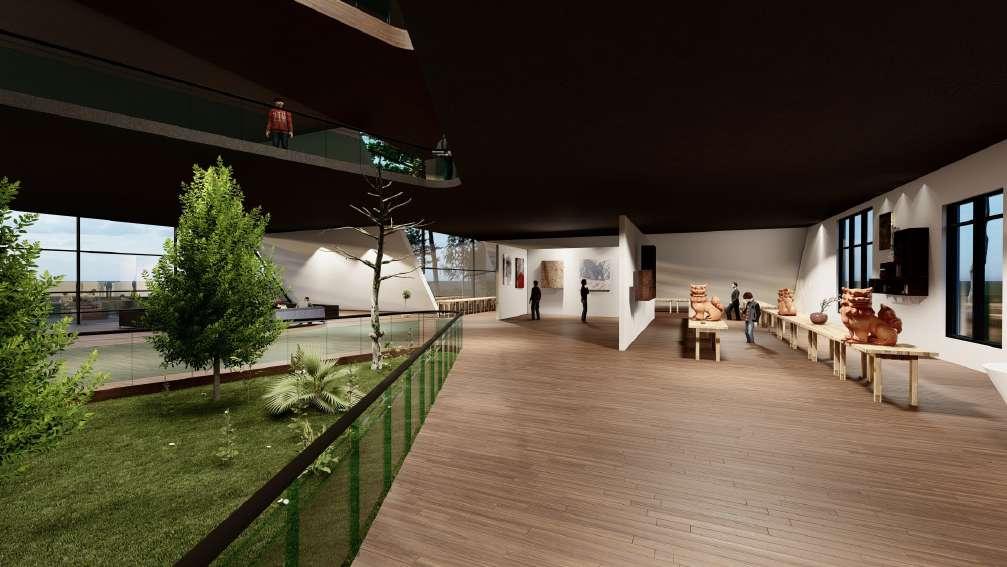

Lobby Space Which Contains The Main Art Works Of The Building

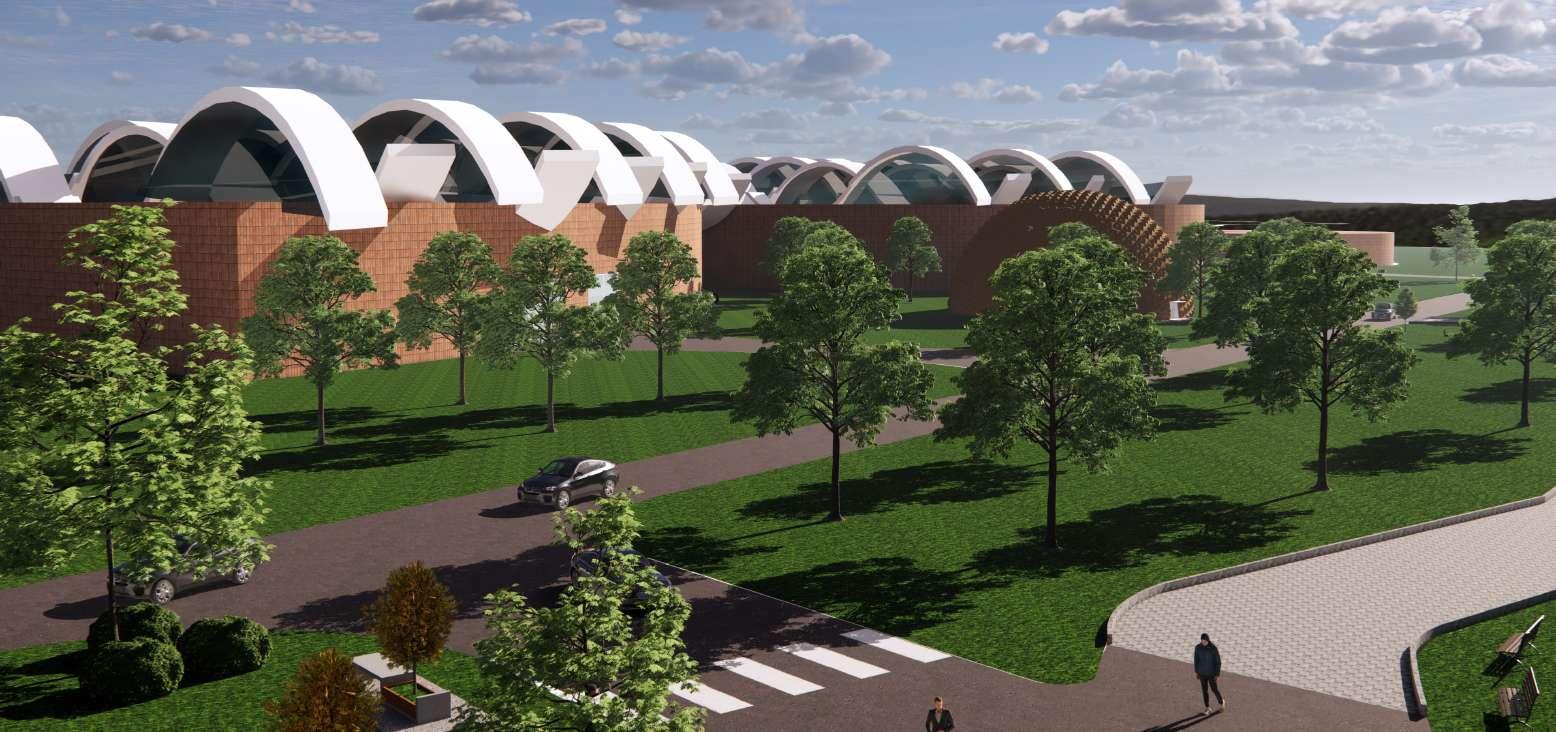

CURVED ROOF TRUSS

The Other Parts Of The Museum Is Covered By the Truss

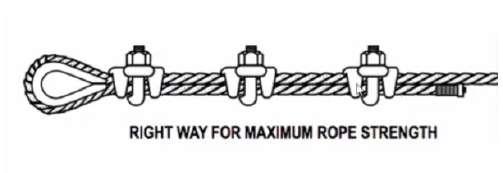

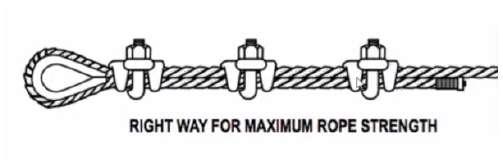

U Bolts Joint In Anchors

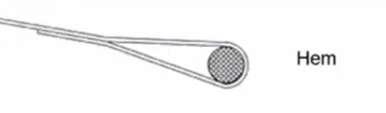

Type Of Joint Used The Tensile Fabrics

WELDED JOINTS

JOINERY DETAILS

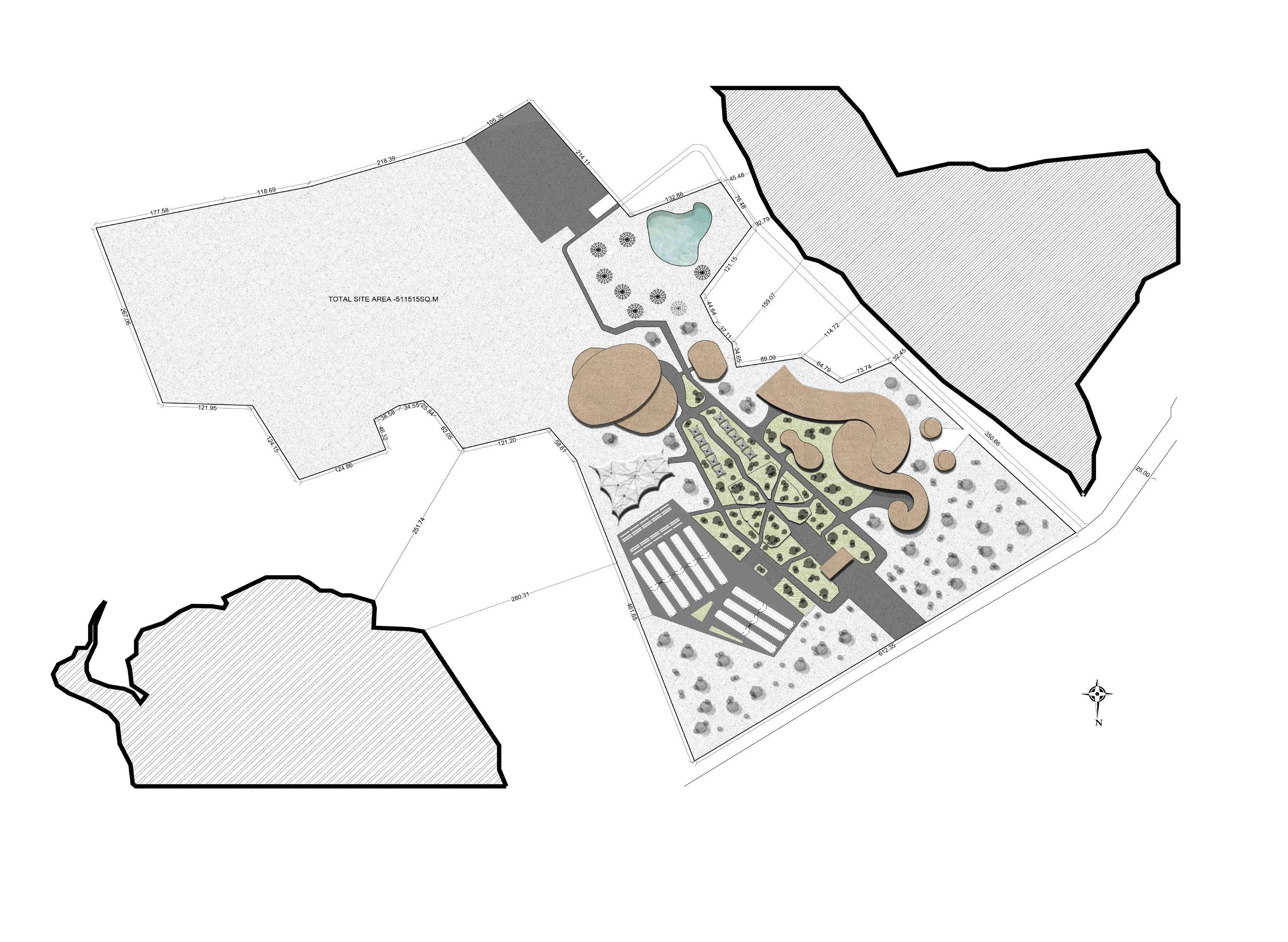

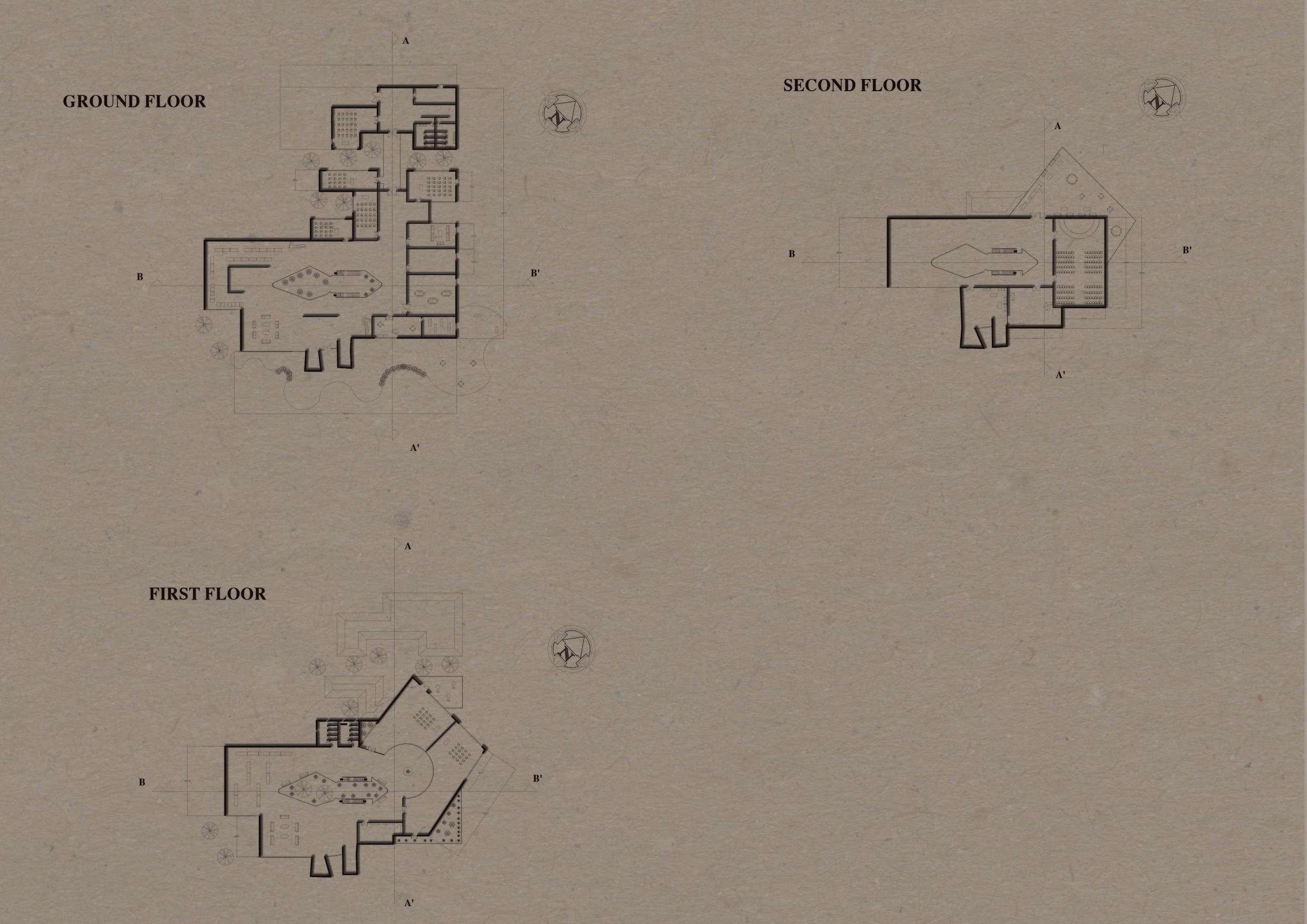

SITE PLAN

JOINERY DETAILS

ROOF DETAIL

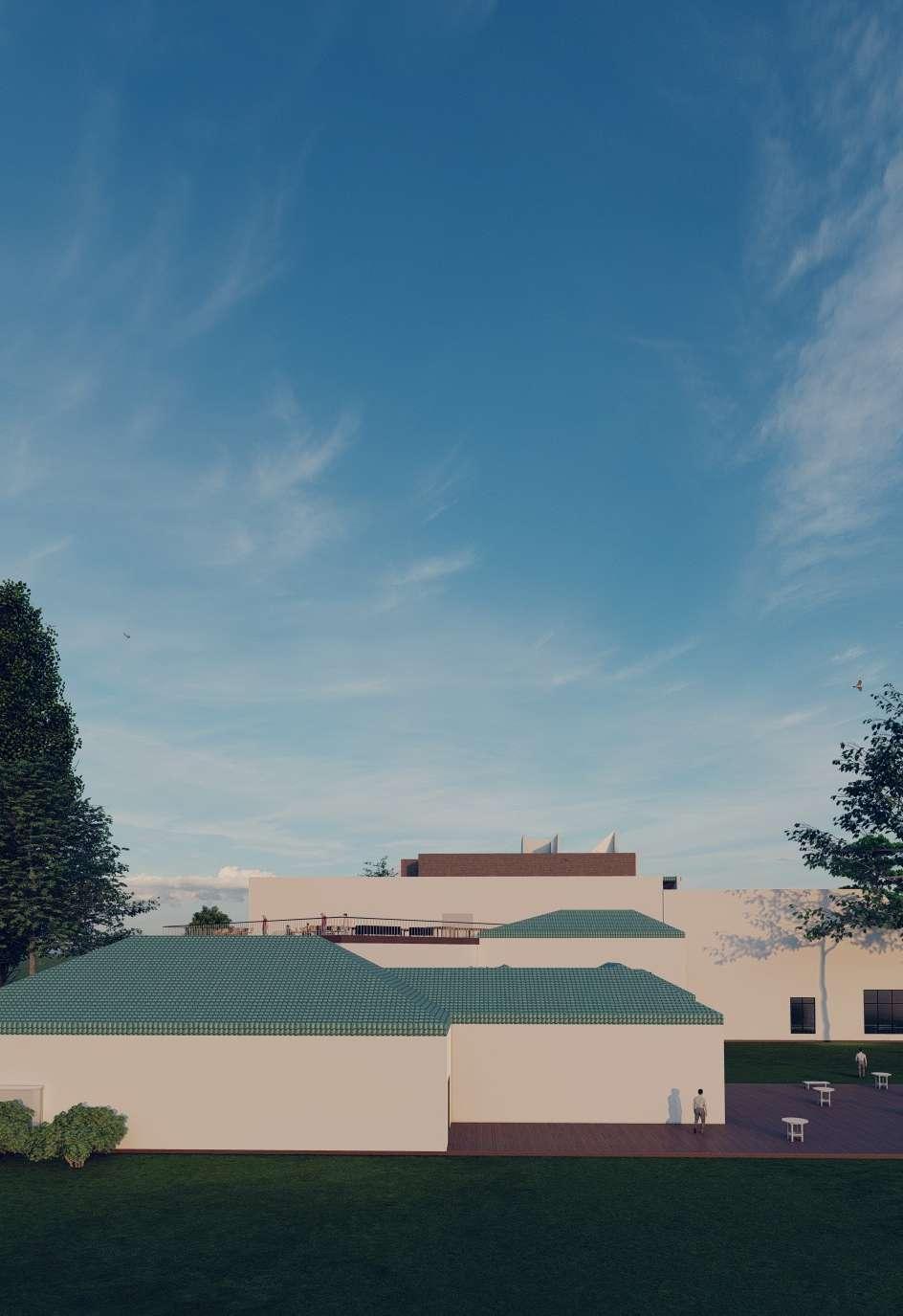

BACK ELEVATION

SITE PLAN

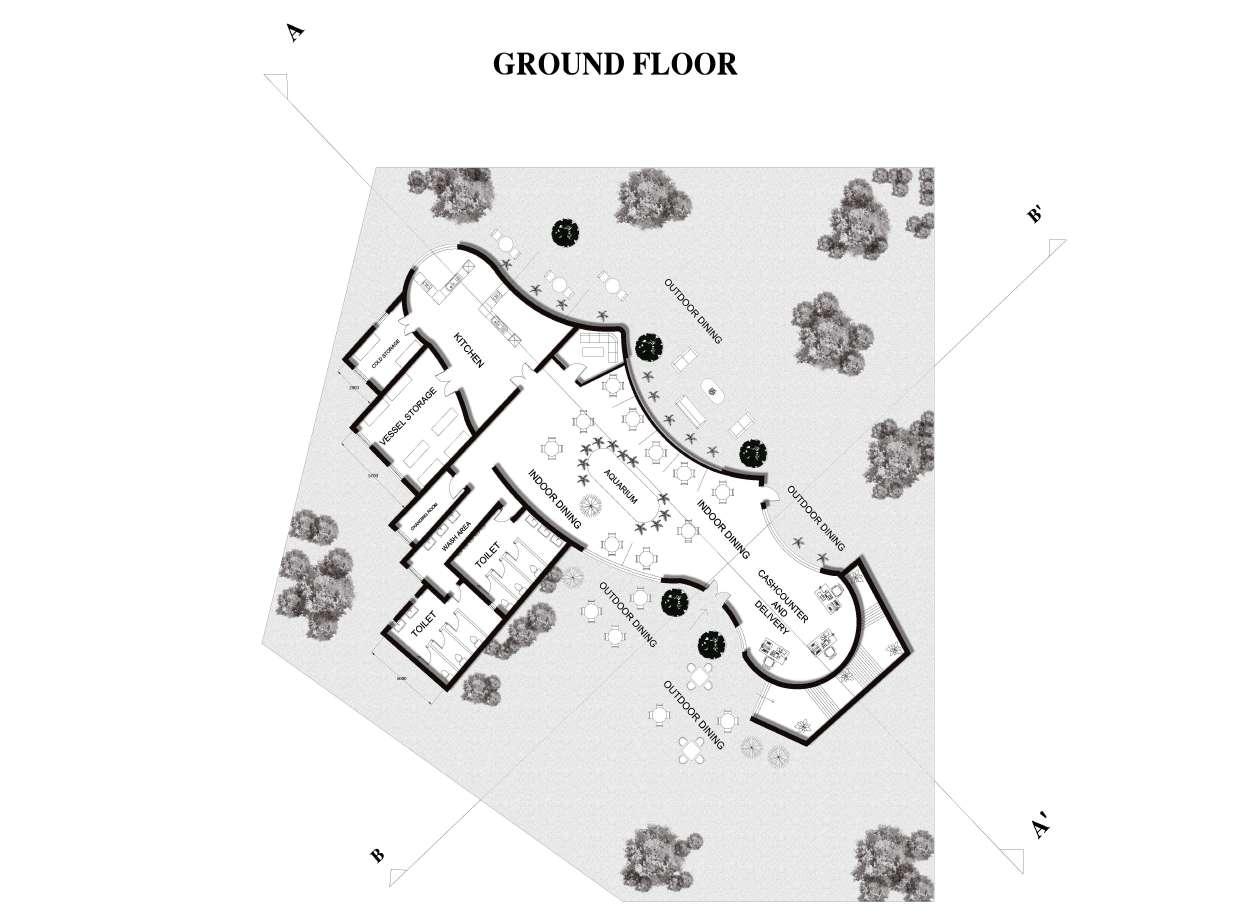

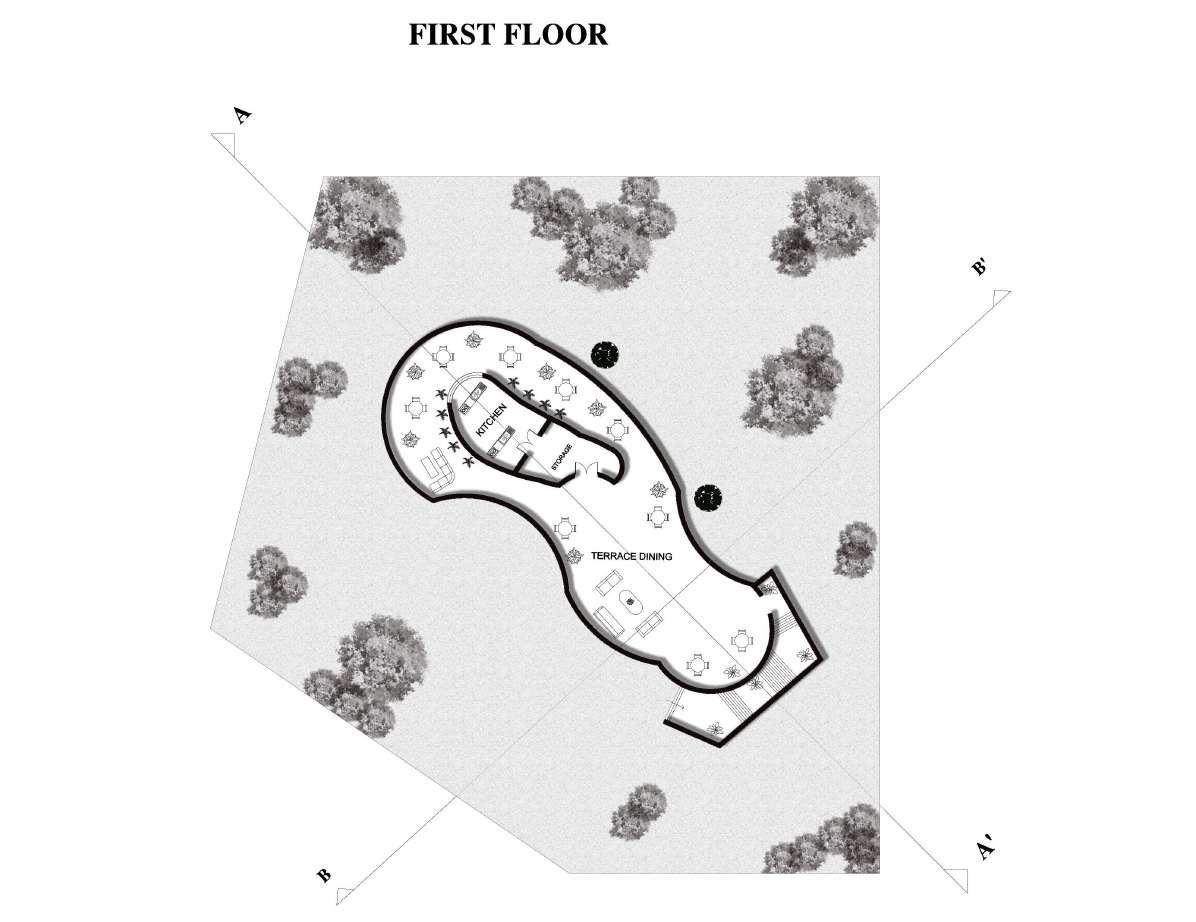

RESTAURANT

Chennai

TIME PROBLEM

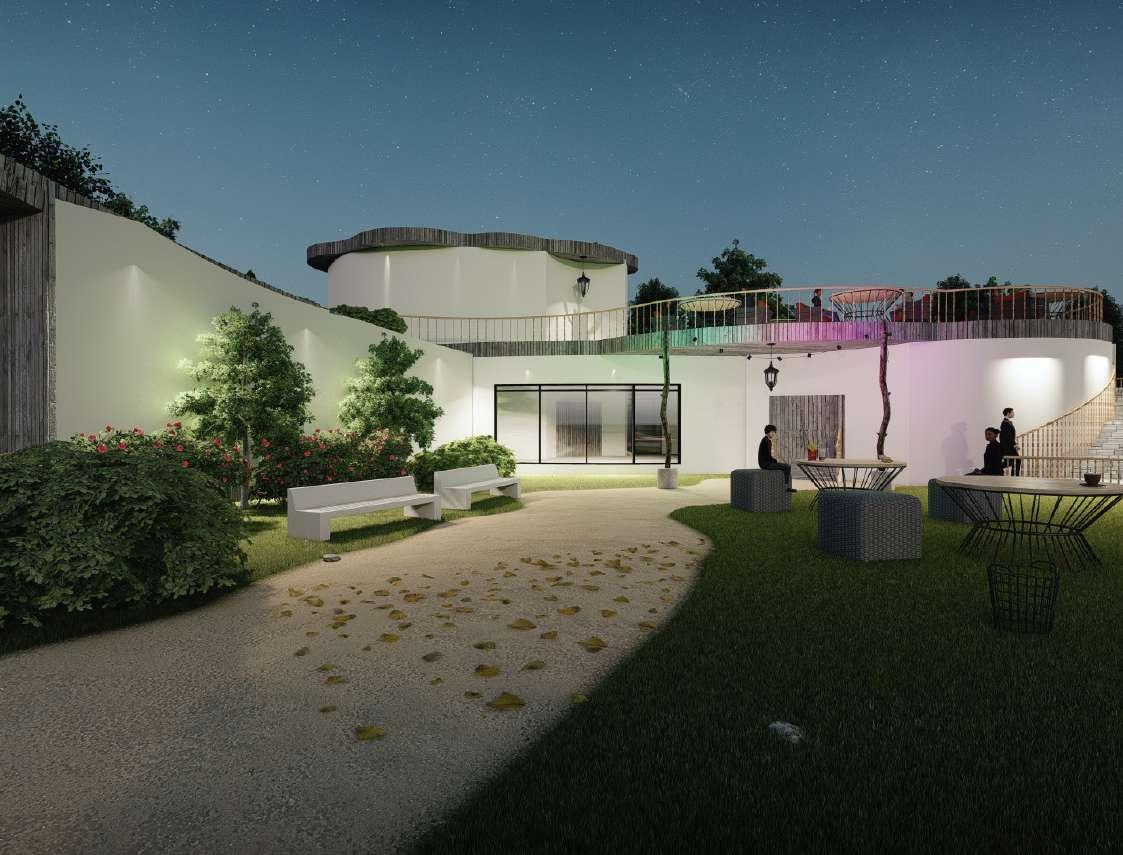

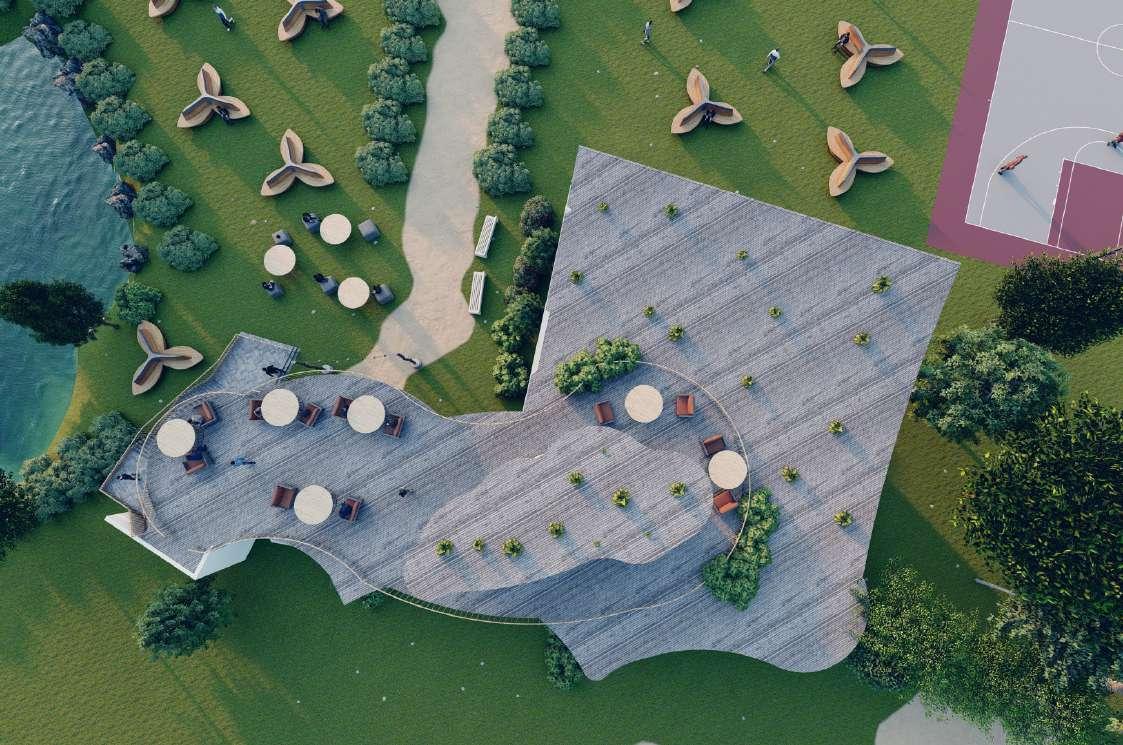

This restaurant was designed in 4 days . right top view 1 | Night view right bottom view 2| Top view

Back Elevation

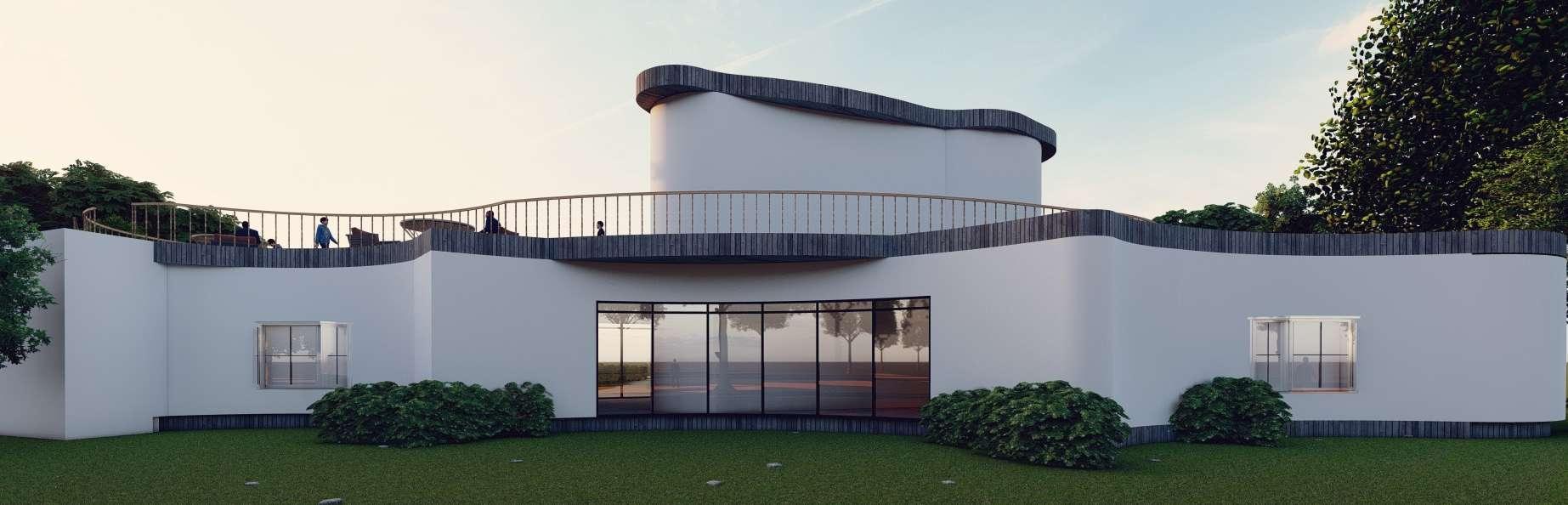

West Elevation

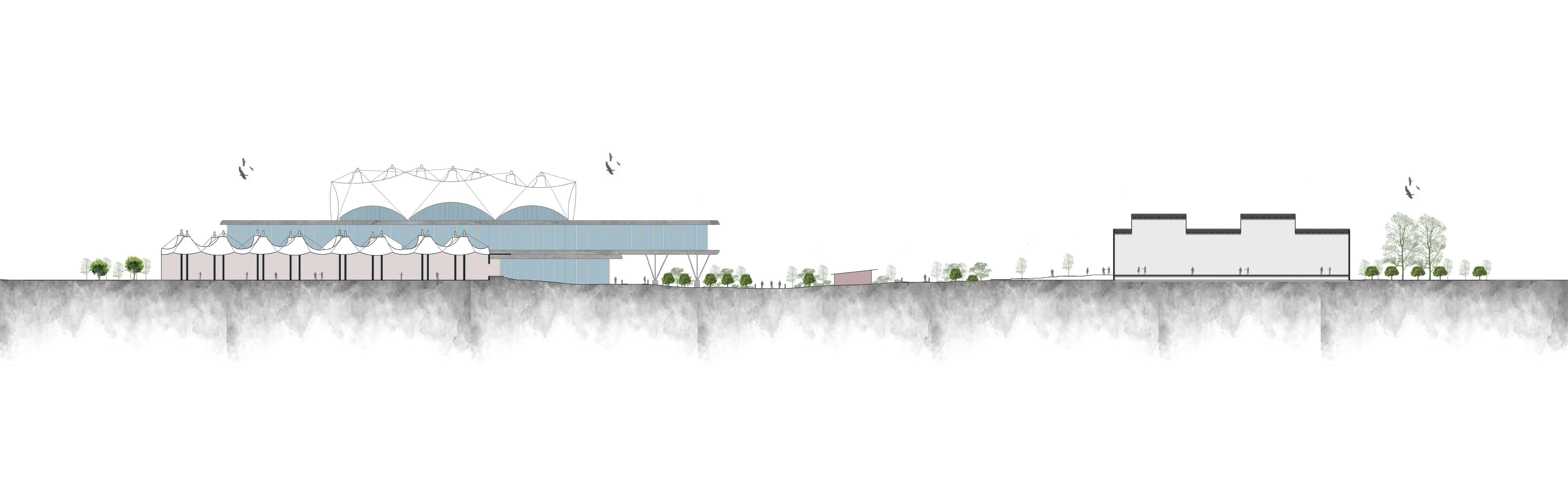

Section A A’

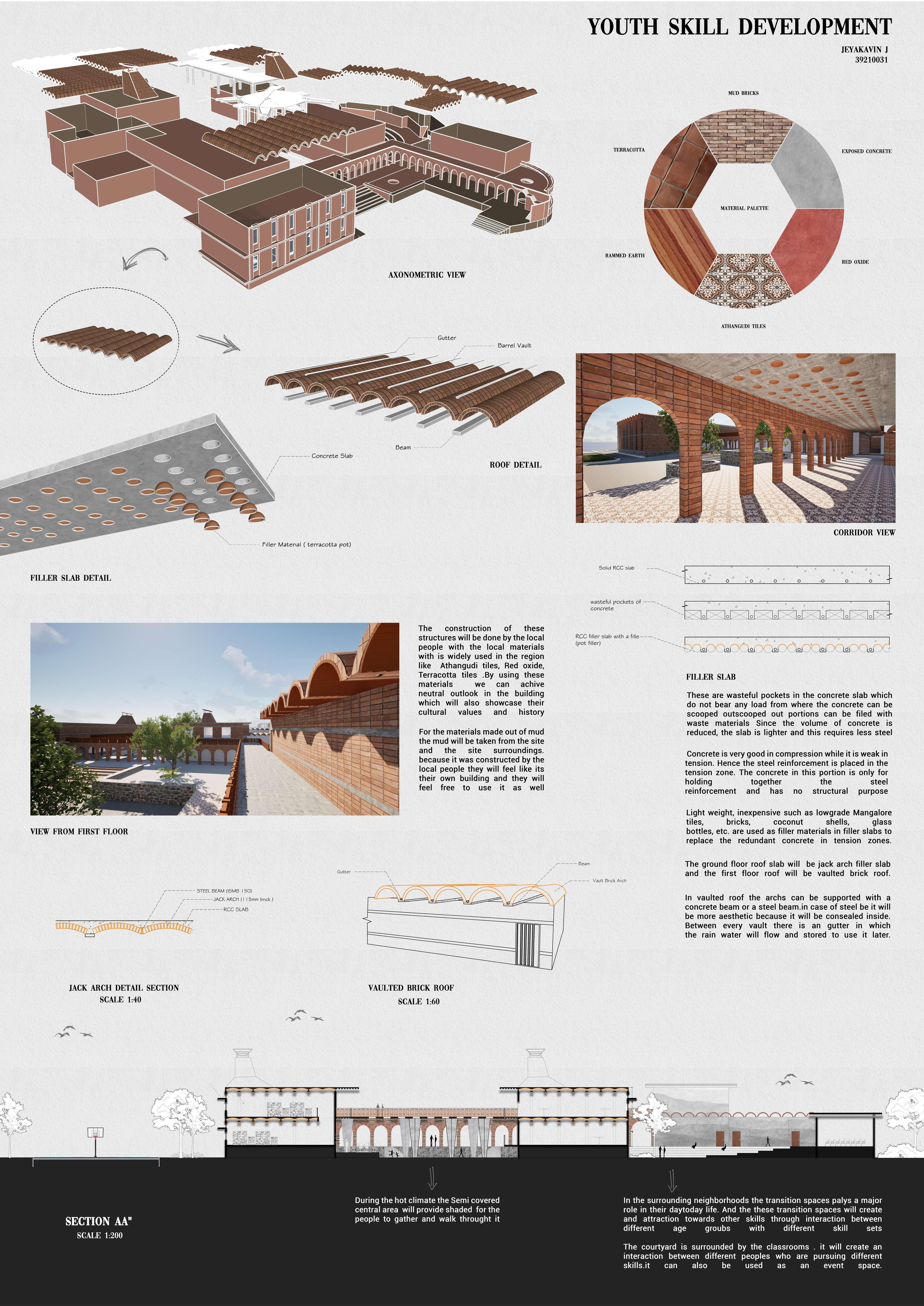

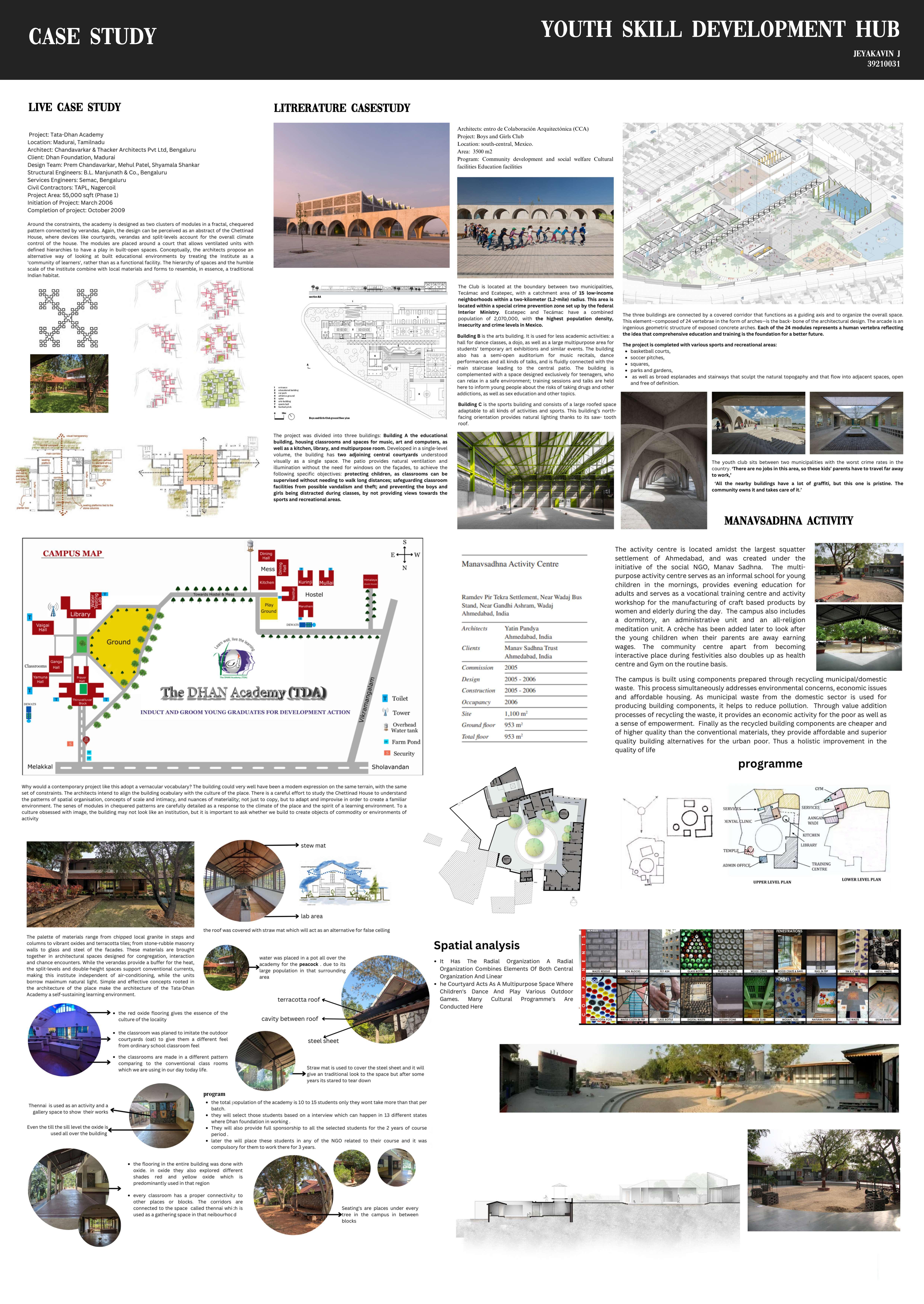

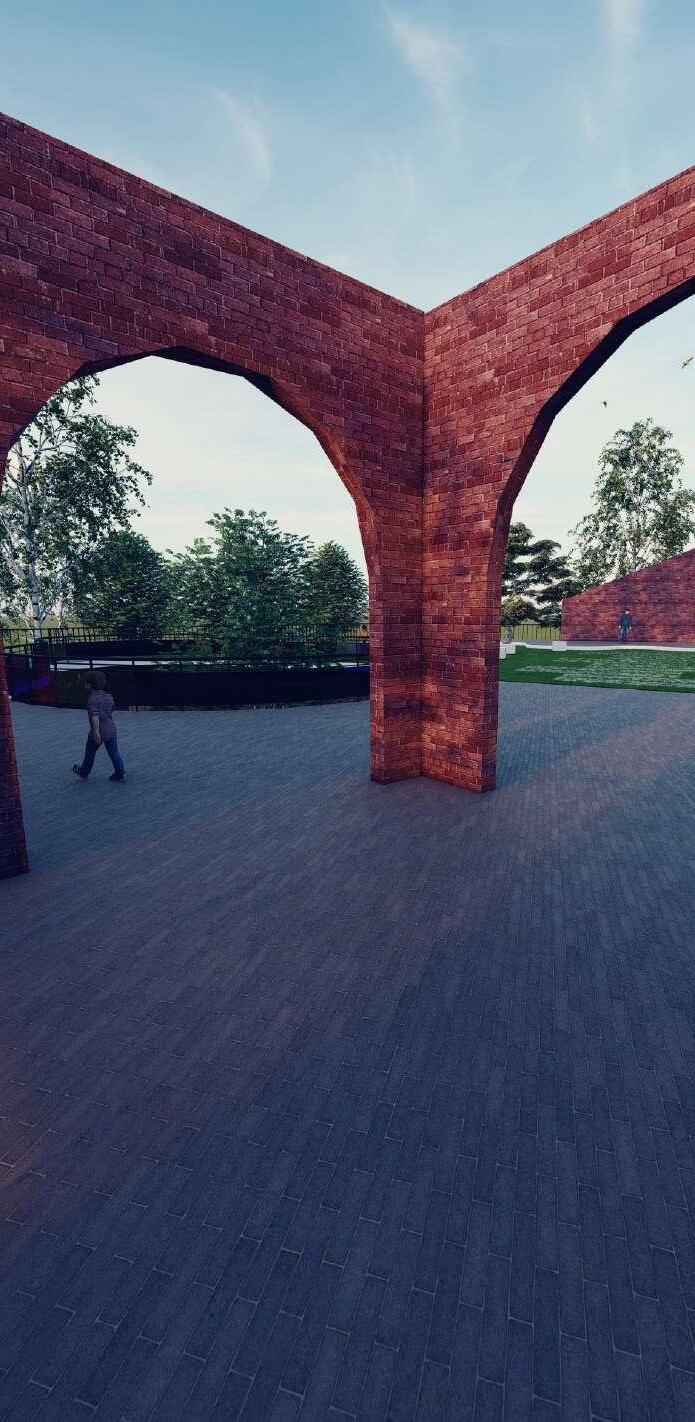

youthcentre

Youth Centers are facilities designed to provide a safe, informal and supervised environment for young people. They accommodate unstructured social interaction among different age groups and provide the space to offer more structured activities. By giving youth the opportunity to take part in recreational

and cultural activities or vocational counseling, these centers help them develop their physical, social, emotional, and cognitive abilities and to experience achievement, enjoyment, friendship, and recognition.

THANJAVUR

SPACES

SALES AREA

Sales area allow people to sell products like paintings,sculptures,artifacts,musical instruments which are made in their home or made by students who is learning in the youthcentre. by this they can improve their economy and also spread our culture around the world through the tourists who are visiting the city.

classrooms

There is different kinds of activities happening in the classrooms like counselling , Seminars,coaching classes,tuition classes,workshops, etc.

tamil library

Tamil library contains books about culture,traditional activities,Tamil literature,history of Tamil kingdoms and kings and their lifestyles. it helps the younger generation to know and learn about our history and achievements.

painting space

In painting space painting classes will be conducted for youths and they can sell their paintings in the sales area as well.

art and craft room

In art and craft space they can learn how to do toys like thalaiyatti bommai and some other cultural crafts

Musical space

Here they can learn music and how to make musical instruments like veena,etc.

concept

There are so many unemployed, unsuccessful youths living in the neighbourhood.

In mirror cube we have to solve the cube from its irregular,complicated and uneven shape to bring it back to normal shape.

Likewise The height of the building decreasces from the front to back and vice versa and it is in complicted, irregular shape that indicates them that we have to solve the problems and face the ups and downs to be successfull.

Back Elevation

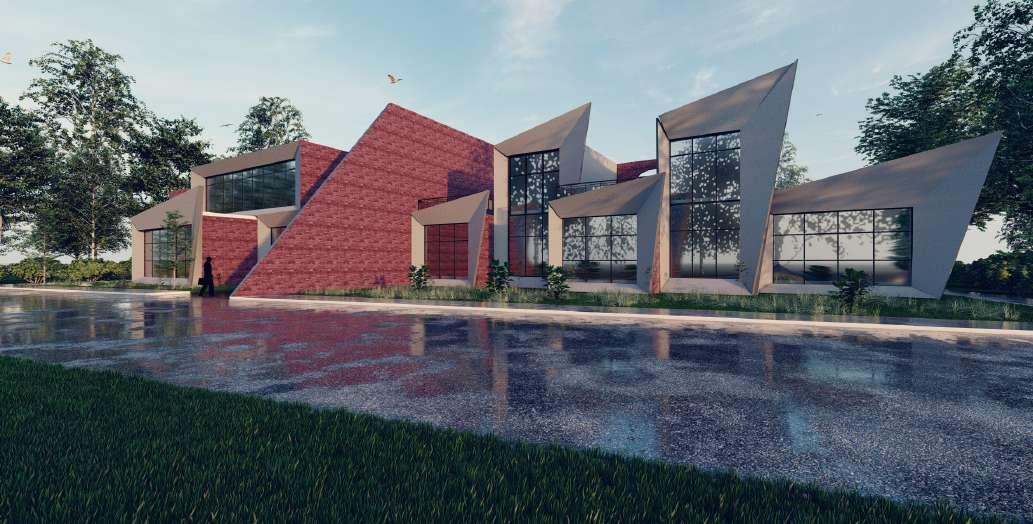

Front Elevation

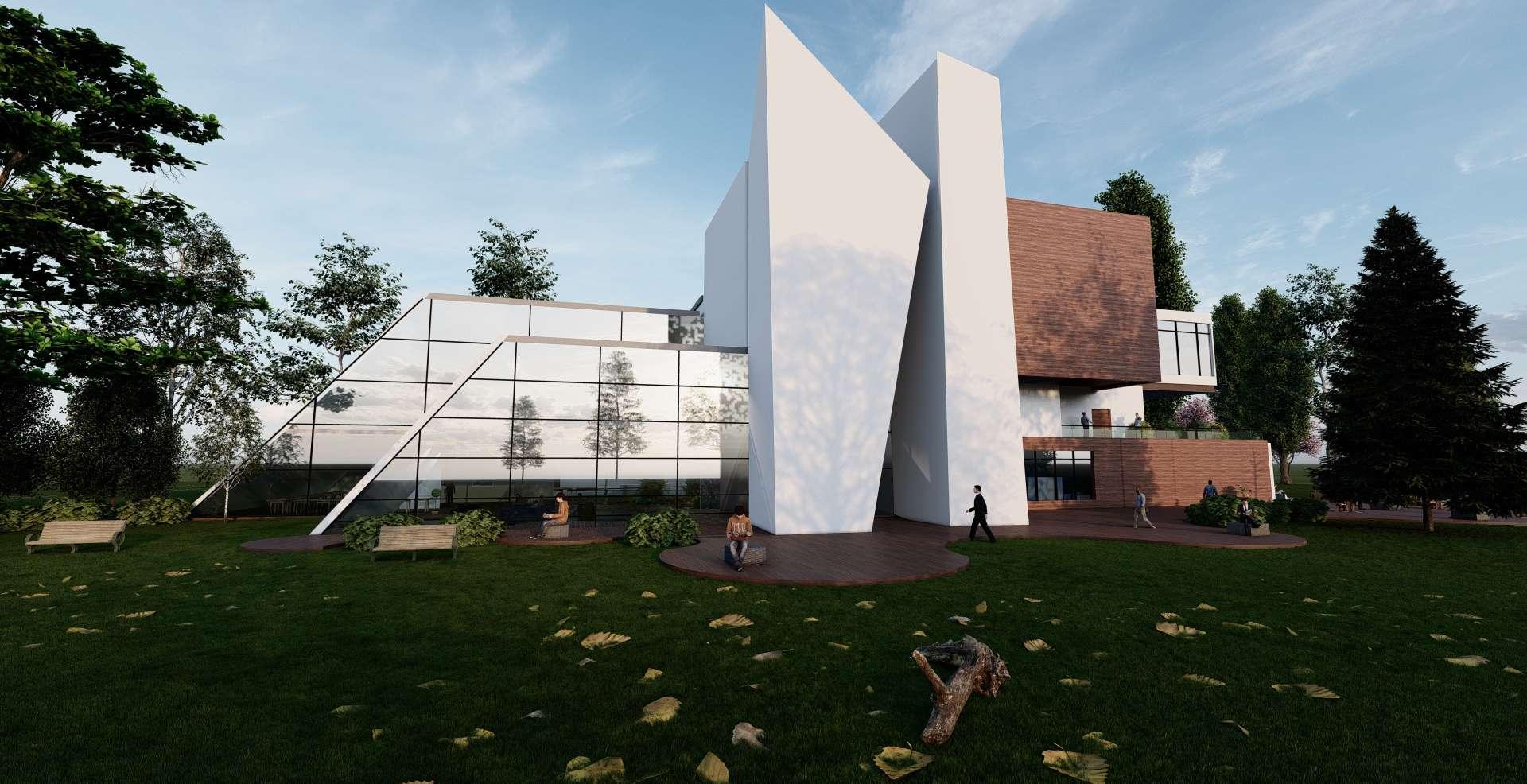

FRONT ELEVATION

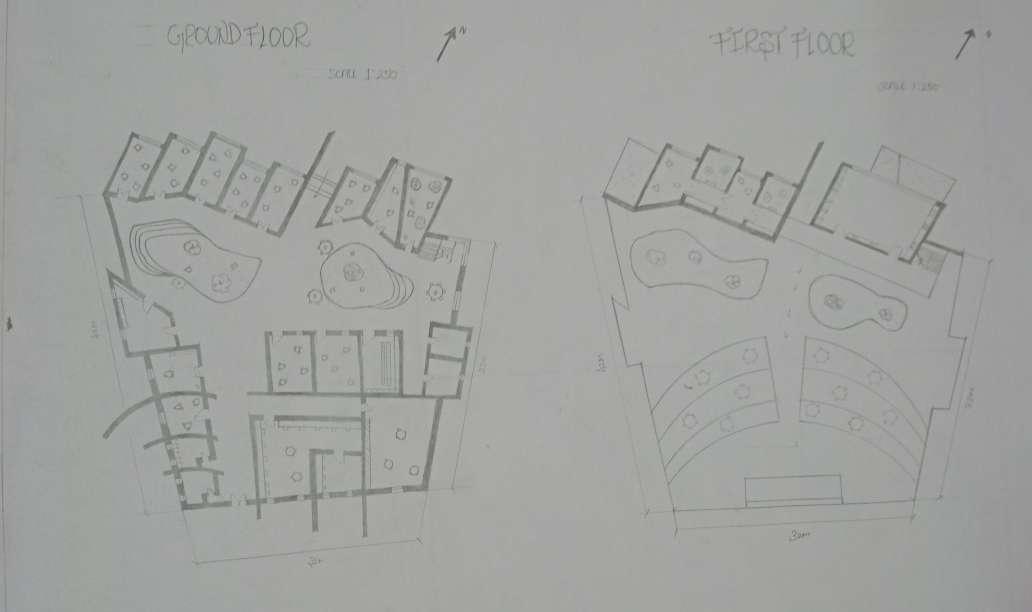

All classrooms and waiting spaces are overlook or open up into the break spaces in the form of courtyards and green spaces. Which act as a positive distraction and creates stress free atmosphere

It has a sales area and administration in the ground floor which helps the buyers to visit without disturbing any other activities happening in there.

It has a cafeteria over the roof of the first floor which help to relax themselves with good view and an atmosphere Further there is a sit out space all around the building which act as a hangout space for the peoples who lives in the neighbourhood.

Thanjore is know for their cultural activities so they can form several groups and encourage teenagers to engage with the famous cultural activities like paintings,musical instruments playing and making,sculpture making , making thalaiatti dolls,etc. through the community engagement. There are peoples who lives around the youth centre are completely dependent on agriculture so teaching new techniques and creating space for them to sell their products directly to the buyers will improve their economic level.

THE BRICK SCHOOL

Montessori Education

Unique features of the Montessori school

In a Montessori class, there is freedom within limits. Children work freely at their own pace, either alone or with others, with material they chose themselves.There are lot spaces in the school with some interesting activities like mountain climbing area, library,painting walls.

Young children learn best in a home like setting, filled with appropriate material that motivate and stimulate the child to learn and develop.There is a toy room were they can pick what ever they wanted and play with it and there is a kitchen also were they can cook .

The library contains lot of comic and activity books and there is a television were they can learn stuffs visually also. Every single children has a separate place where they can keep their stuffs.The furniture also made to their size and there are pillows and blankets which makes them feel like home.By using their blankets and some furniture they can create their own space in the classroom with their friends. The teacher just guide on their own way of learning based on their activities in the classroom and on which their interests lies.

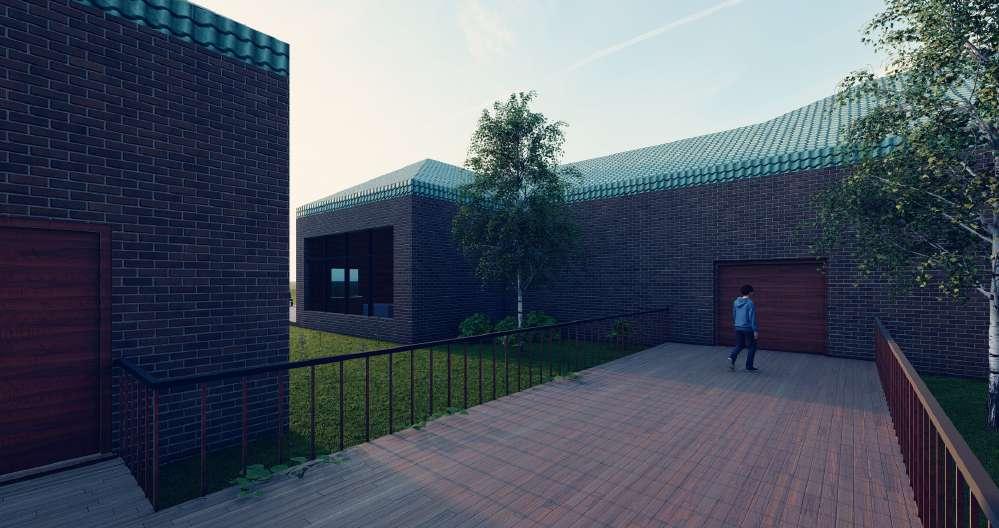

view 3 | terrace view

DESIGN INTENT

The site is located in chennai.so, according to the stereographic diagram the north direction has the lesser radiation comparing to the other directions.we can also get good natural lighting from the north as well.

The students are going to spend their most time in classrooms more than any other space in the school.so,by orienting the classroom in the north direction will bring good natural lighting into the classrooms with lesser radiations .

Further,creating some extended walls in the other direction will helps to make the spaces shaded form radiations.planting more plants will also creates more shadow and good positive atmosphere.

On the other side every classroom is connected to a courtyard or a green space which creates a good atmosphere for students to learn.

RAT TRAP BOND

The cavities in the act as thermal insulators. Thus, the interiors remain cooler in summer and warmer in winter.

Rat Trap masonry uses fewer bricks and mortar reducing the cost of masonry up to 30% when compared with conventional brick masonry.

Many buildings that were constructed decades ago have proved that this type of walling technology is durable and the maintenance costs are low.

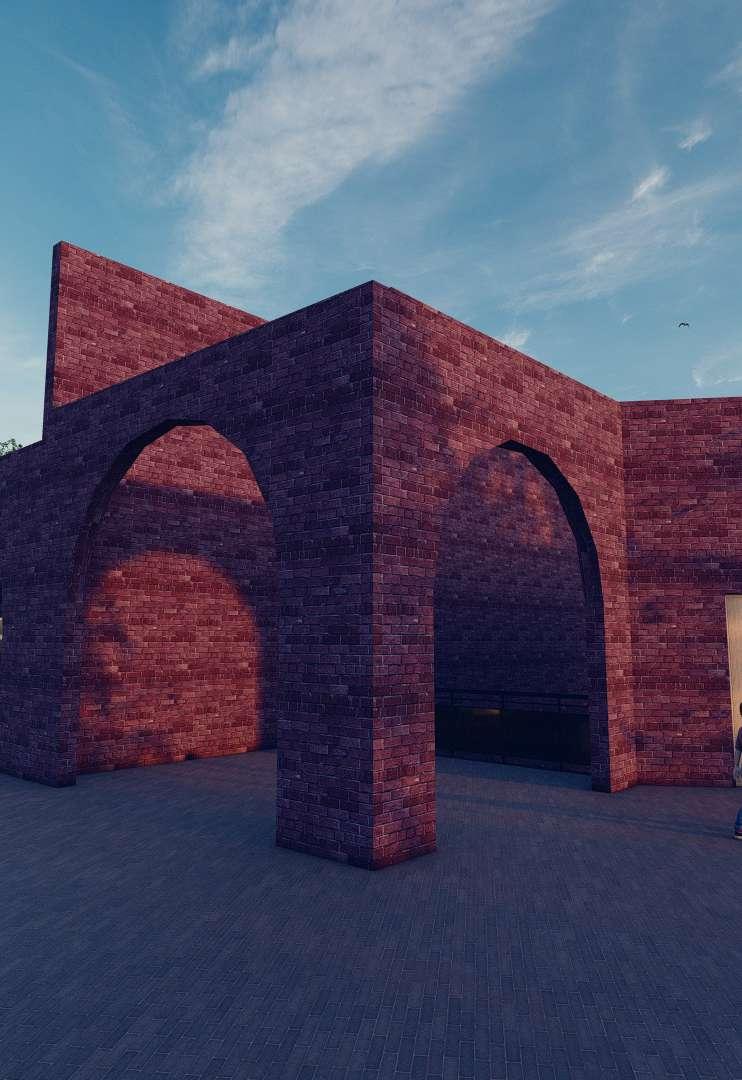

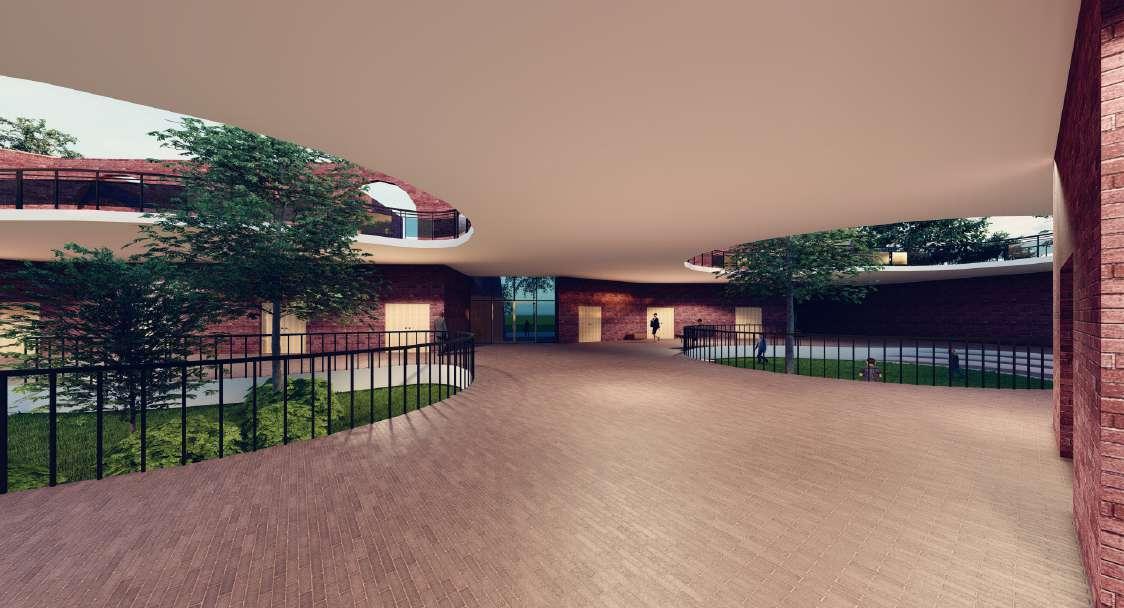

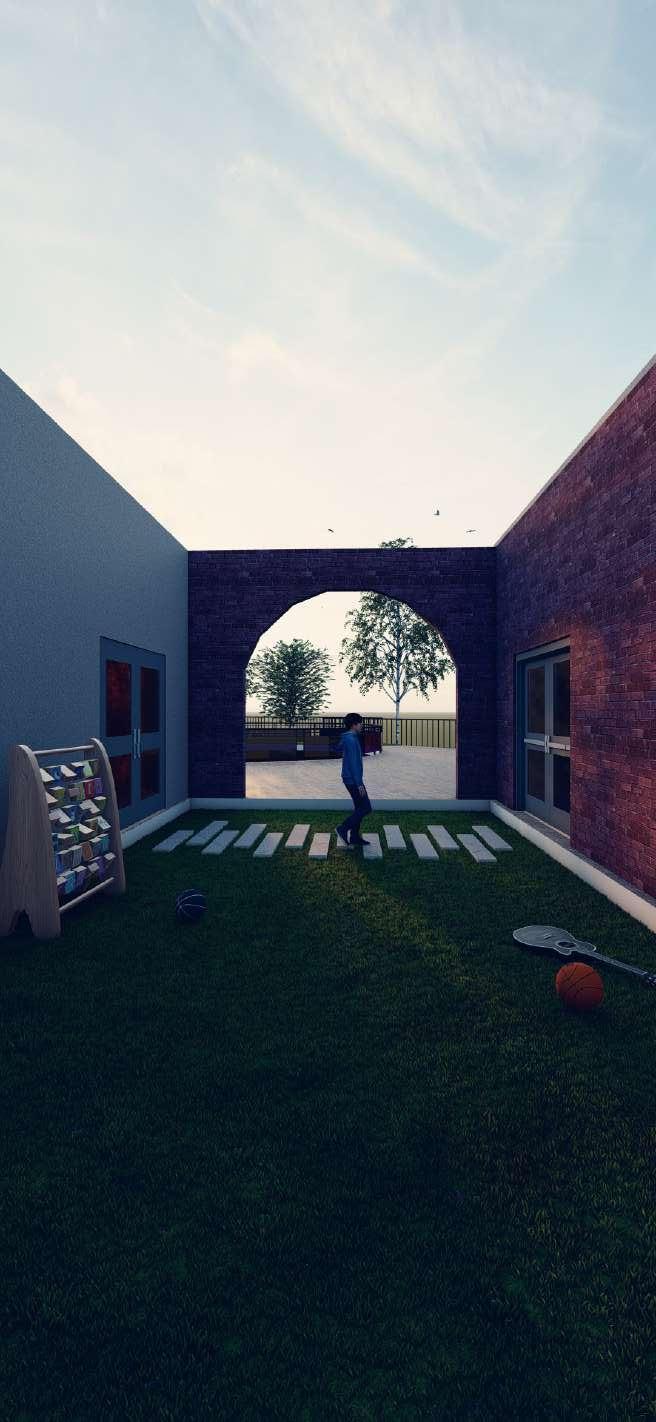

| courtyard view

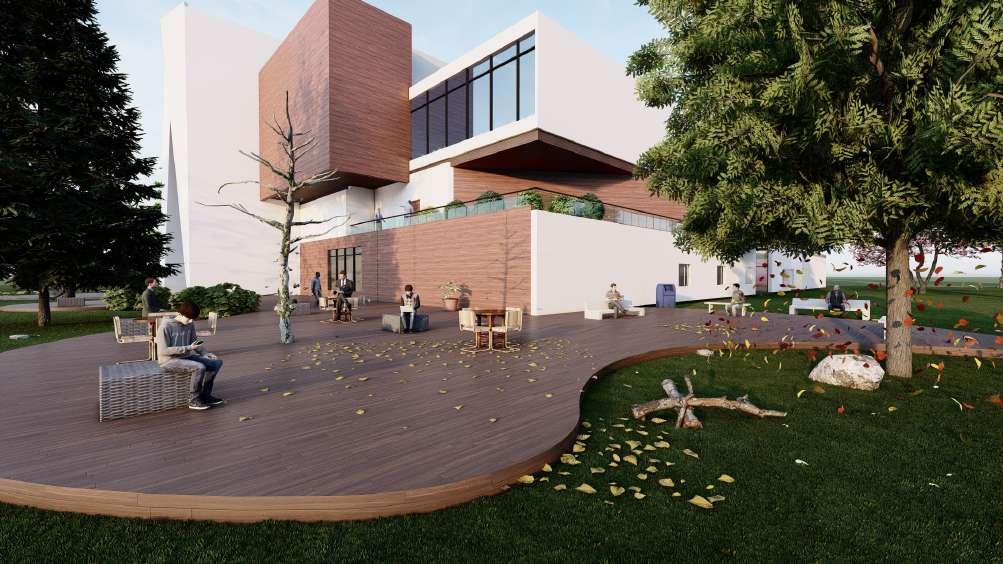

Front View

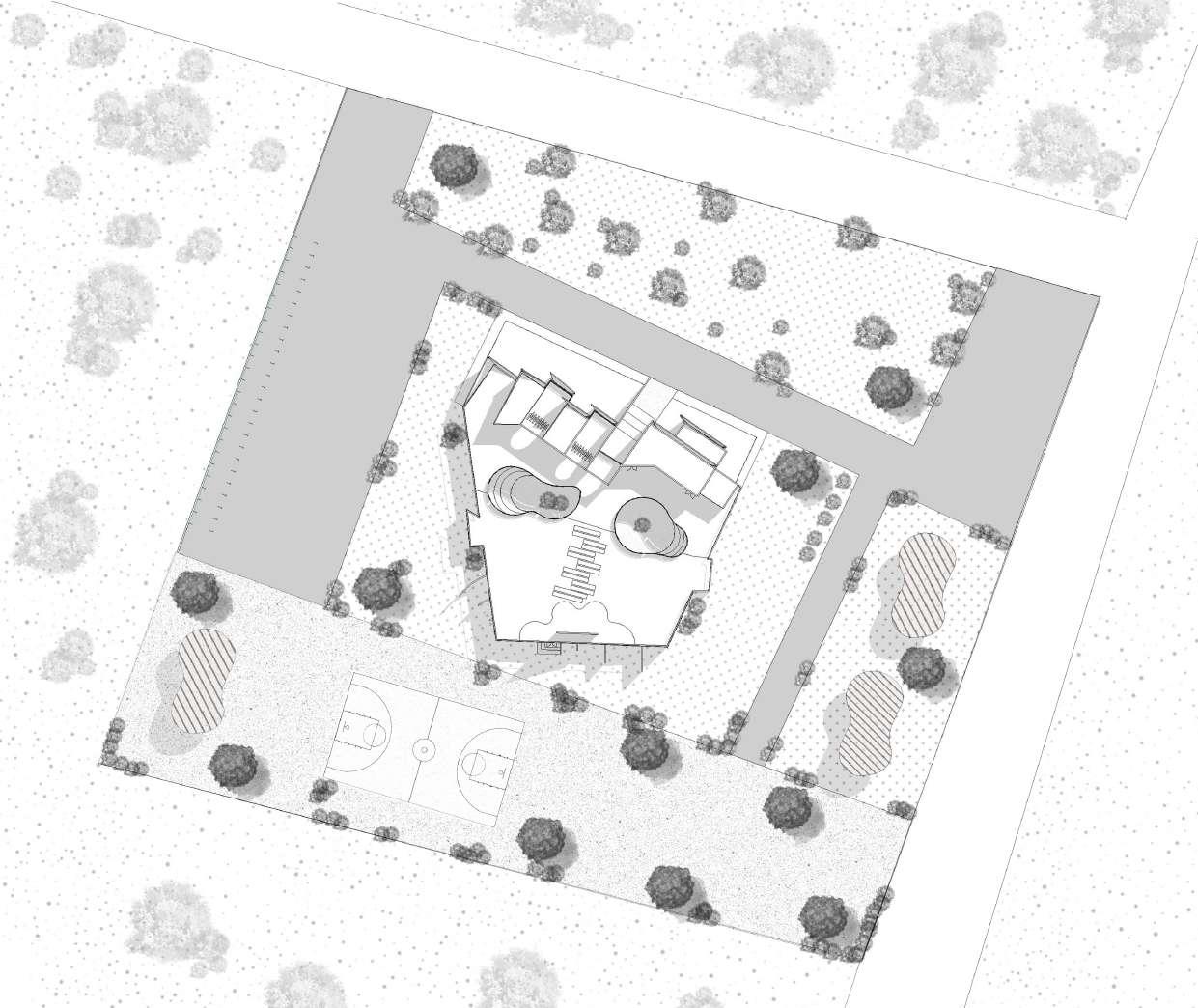

| Site plan

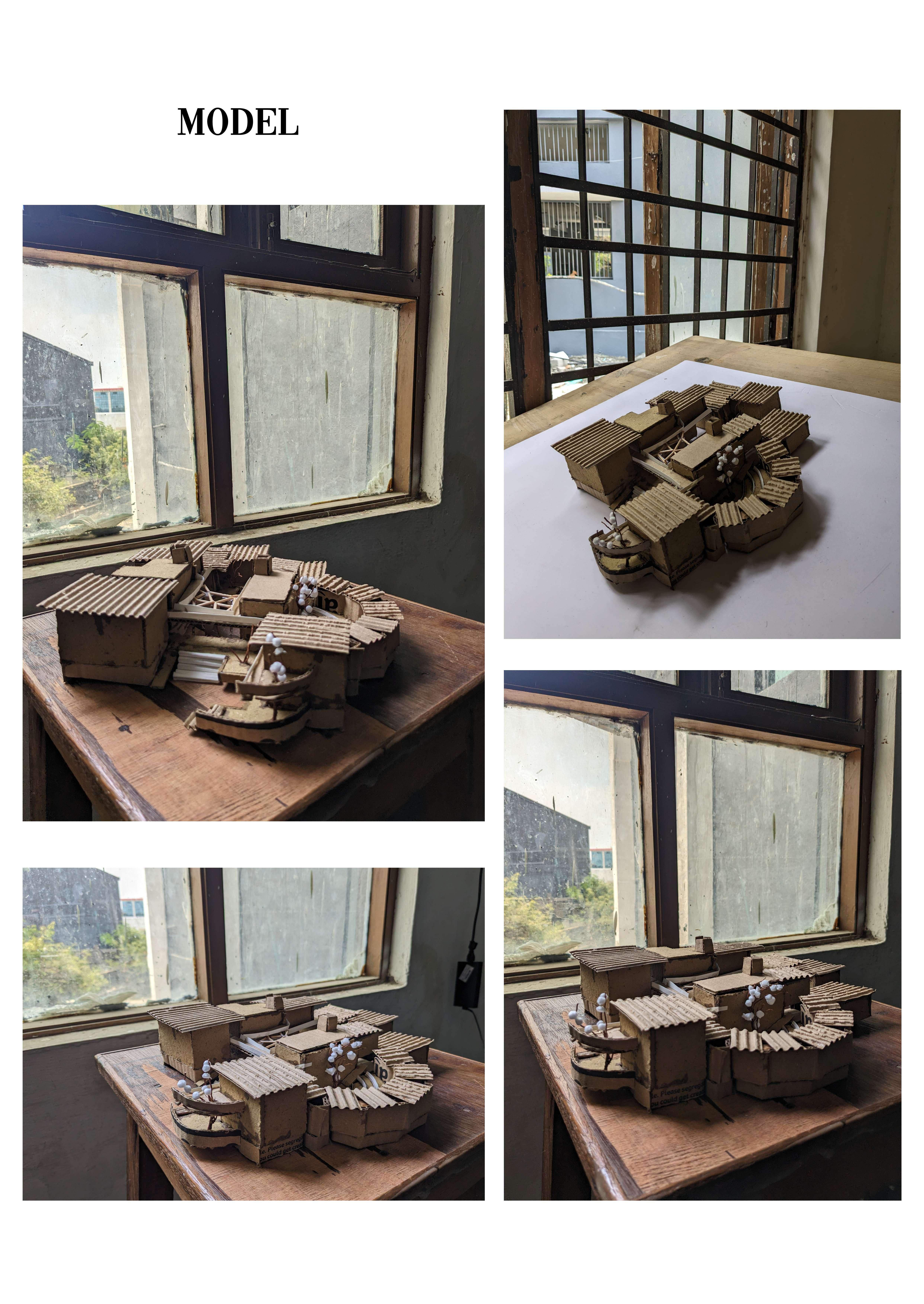

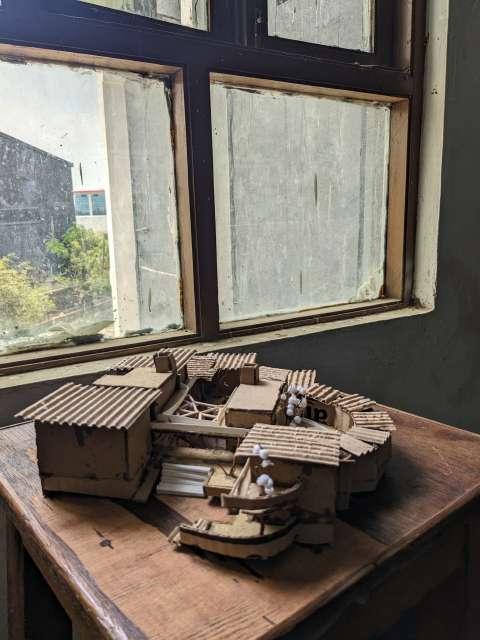

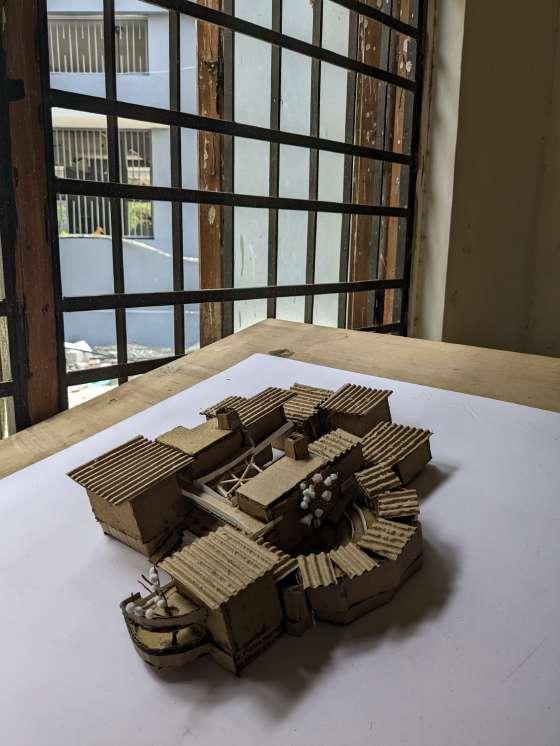

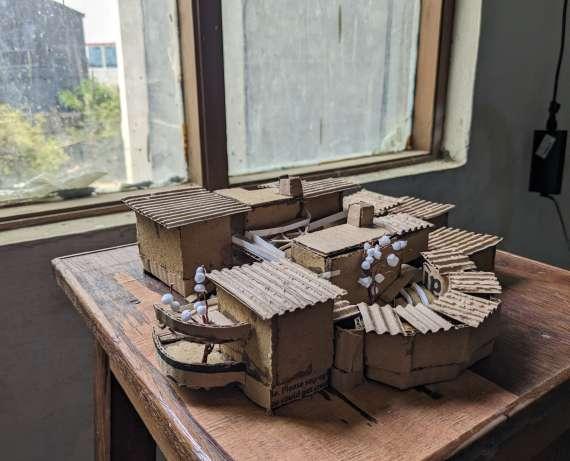

MODEL MAKING

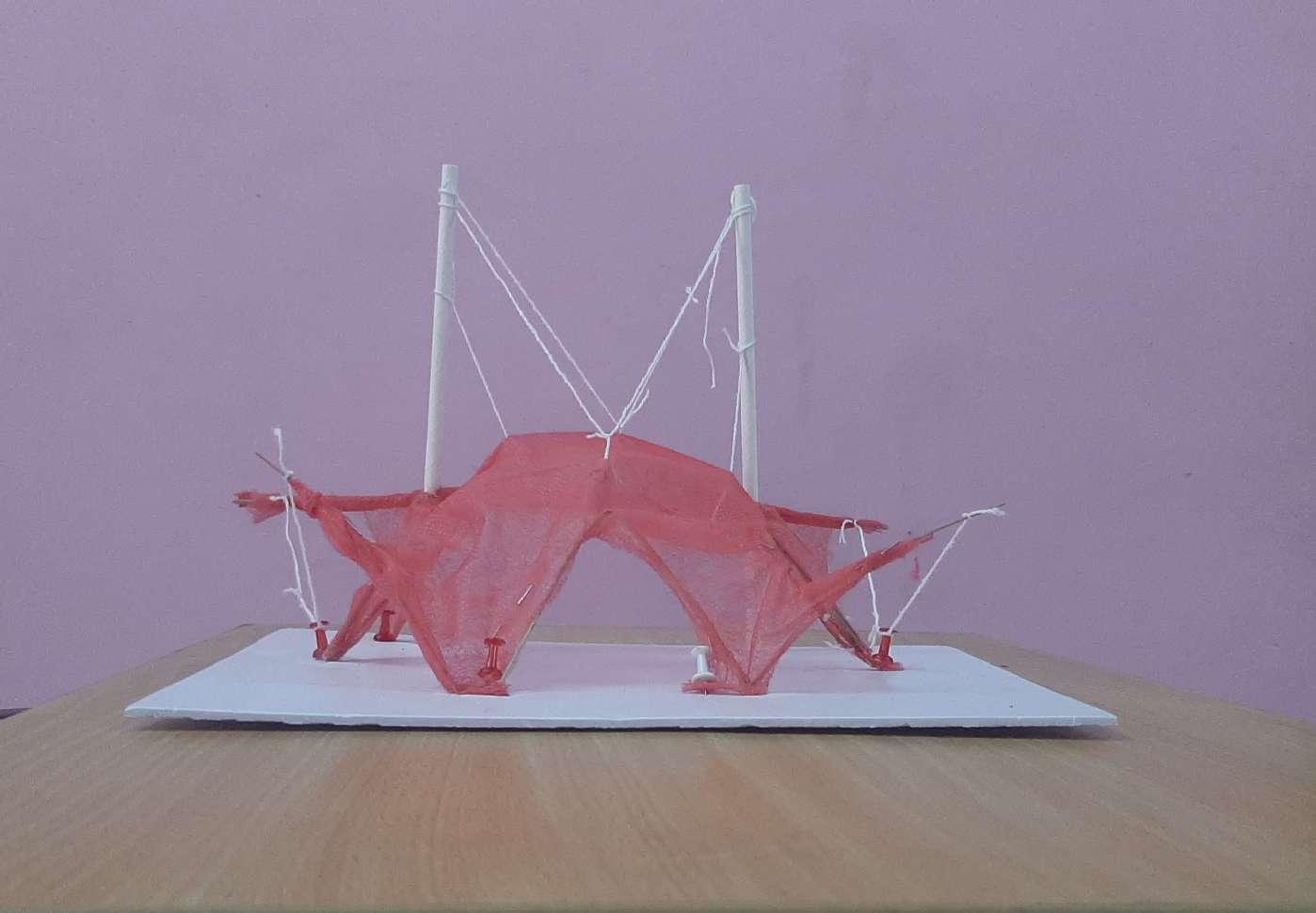

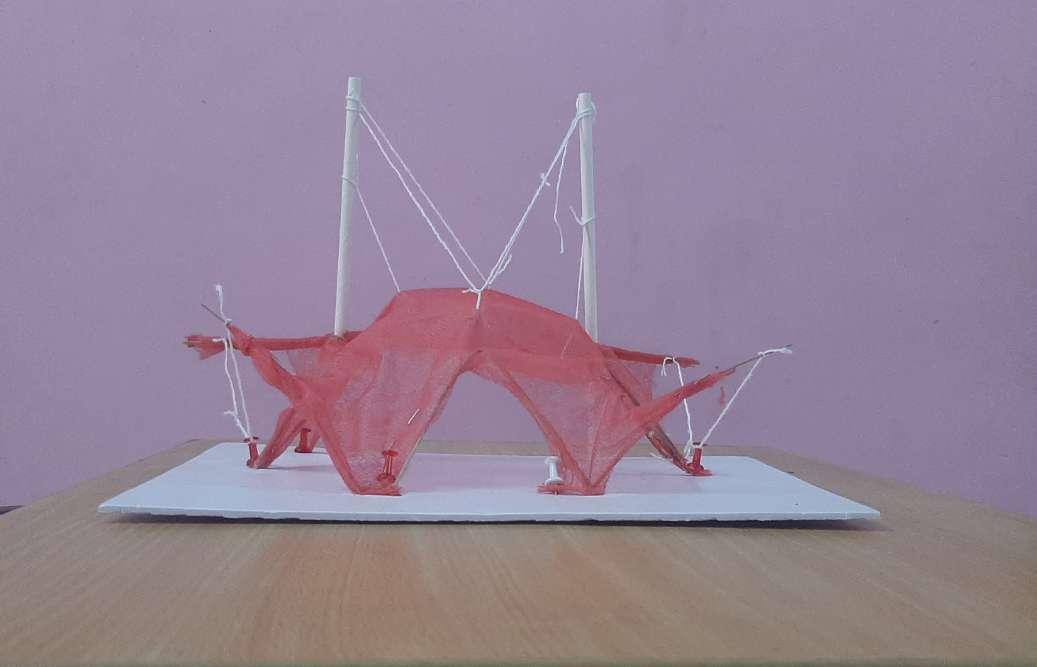

Picture 1 | Tensile Structure

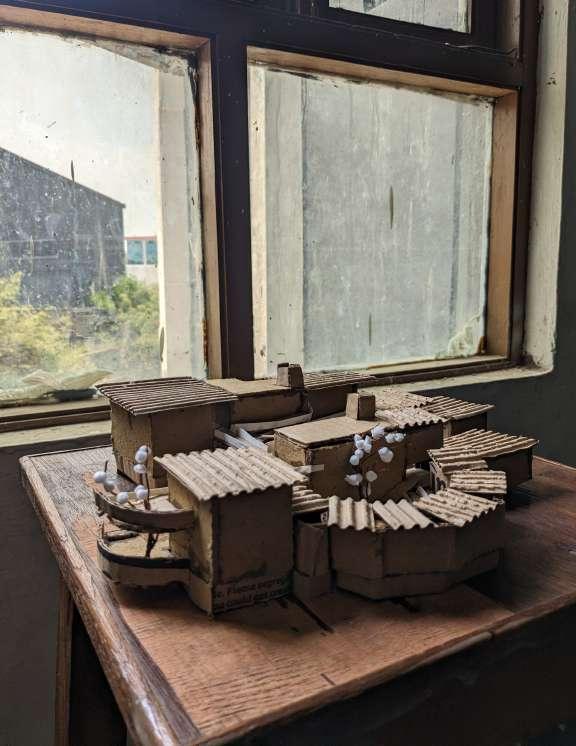

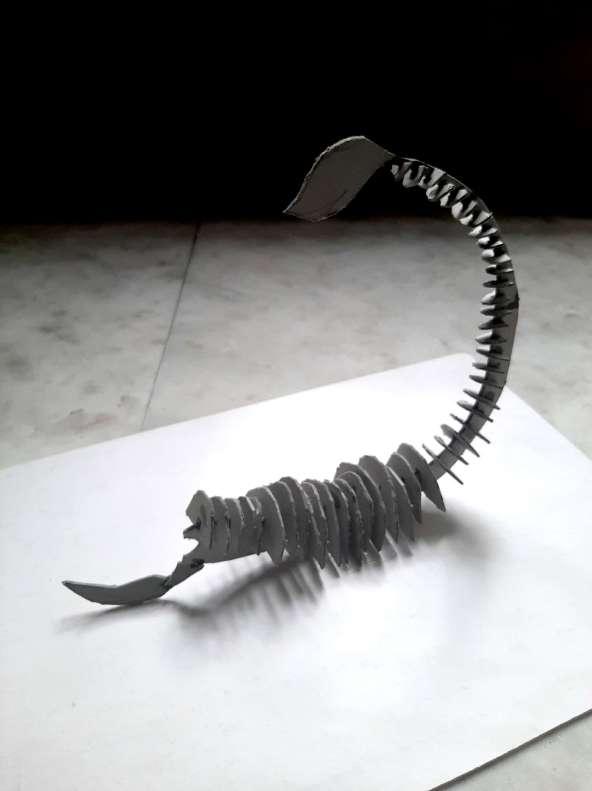

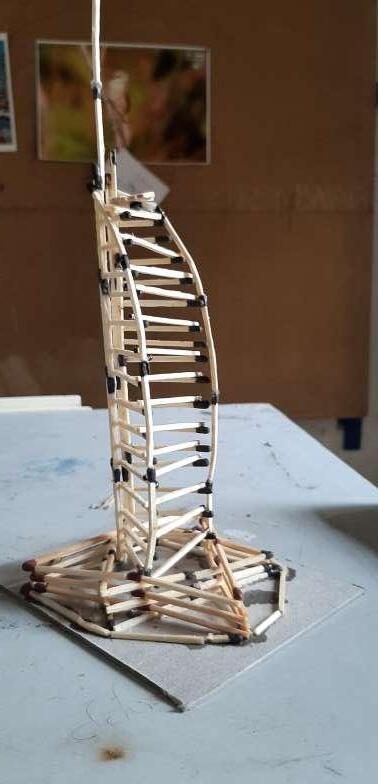

Picture 3 | Matchstick Model

Picture 2 | Parametric Model

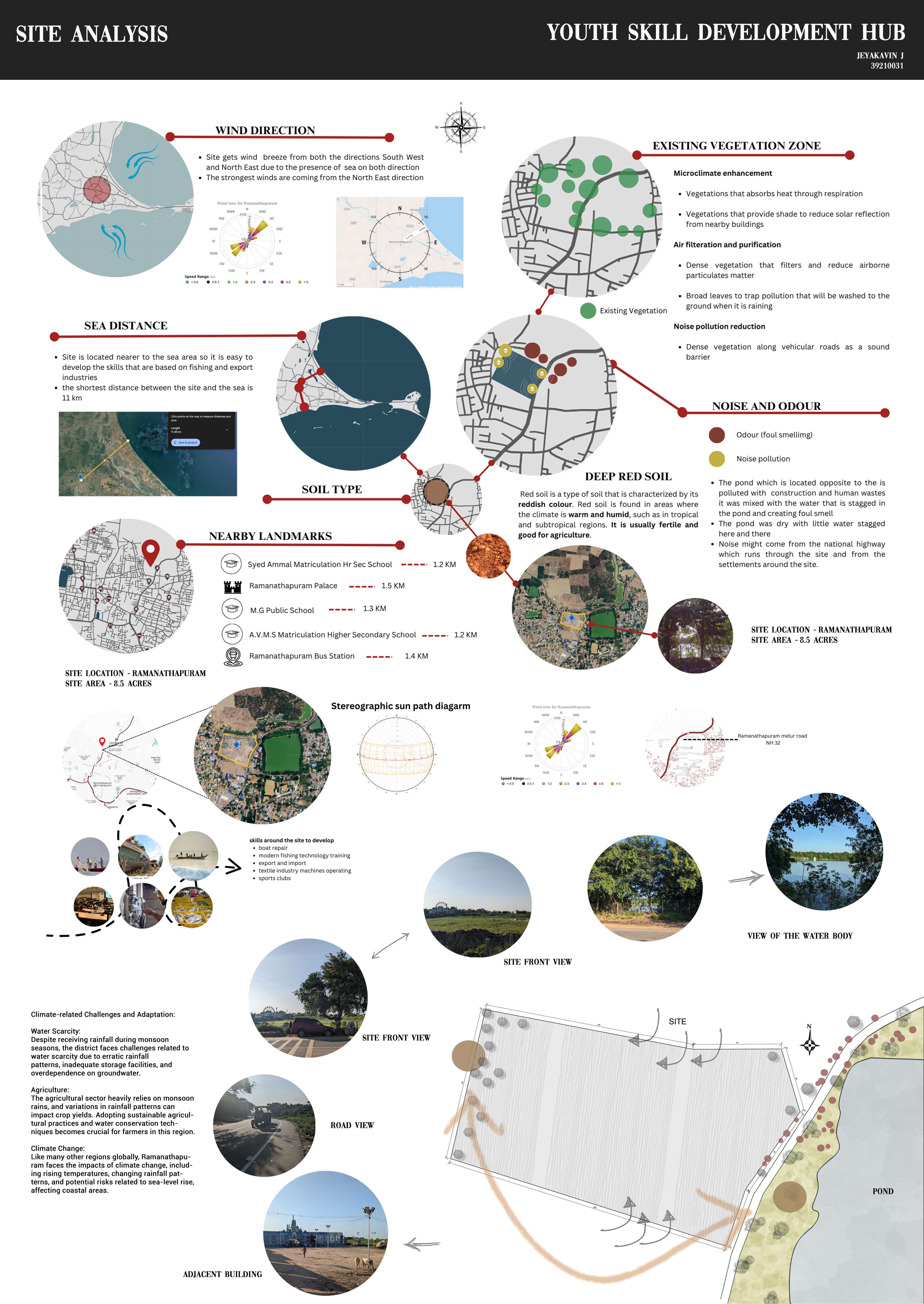

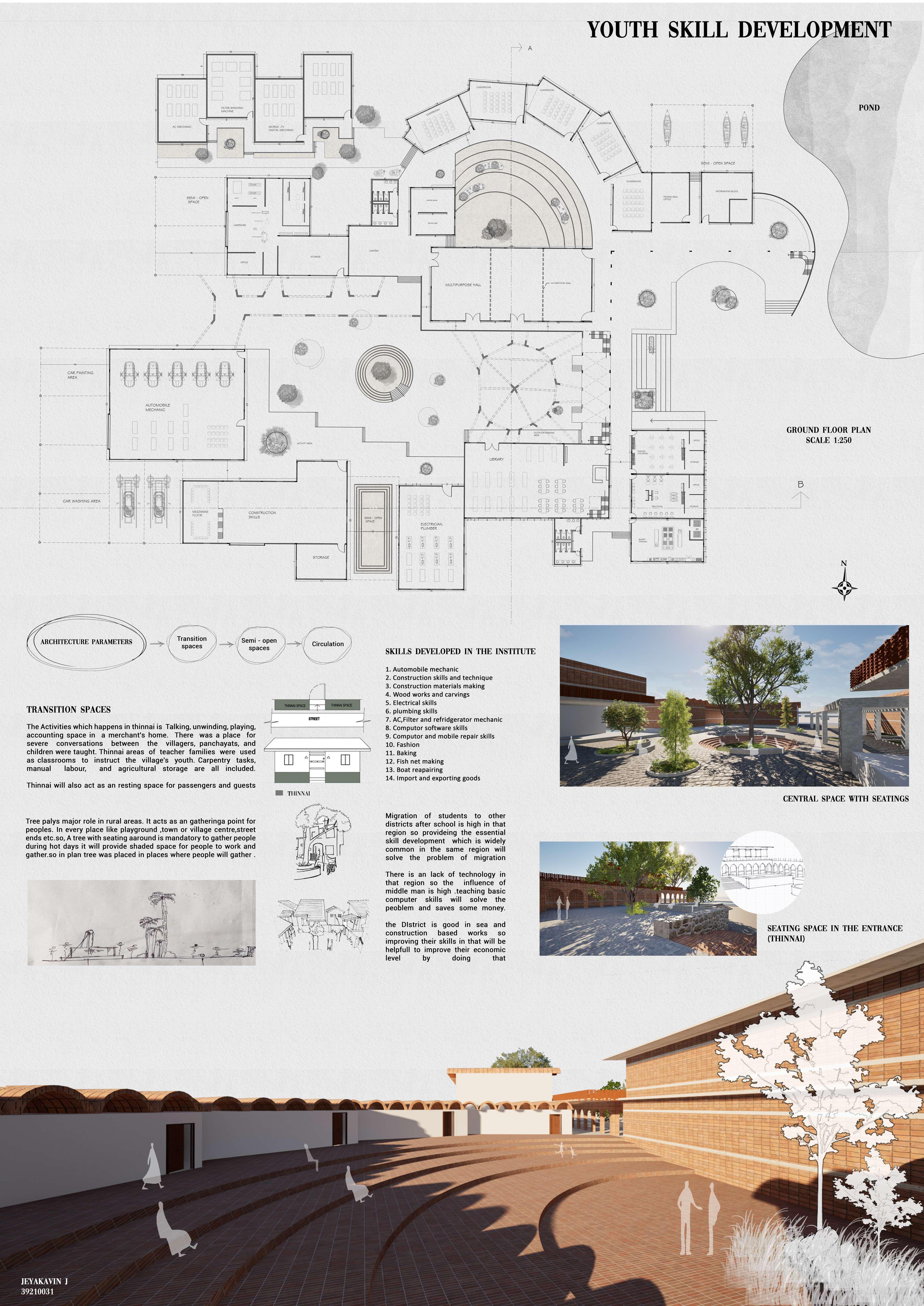

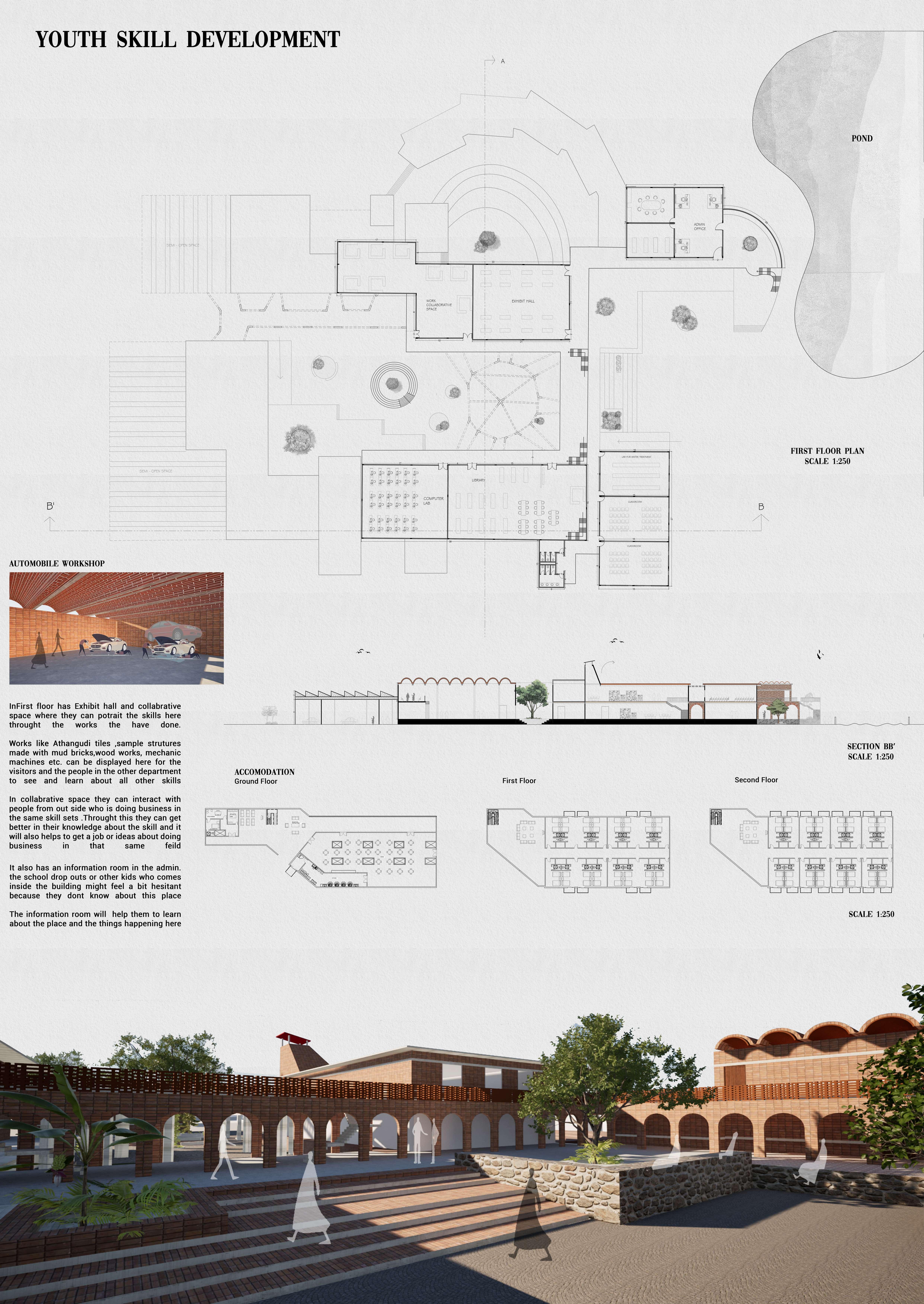

Thesis Model Vaulted Roof
