CONCEPT
The Concept Was To Create a Space Which Is Complete Contrast To The Indsustrial or Constructional Zone .
• So ,Site Was Divided Into Three Parts.
• The Two Sides Are Buildings and The Central Space Is Green Landscape.
• It Gives An Radial Acess To Other Spaces So, all Other Spaces Are Easily Accessible
• The Central Space Helps the Person to Engage And Explore The Entire Site.
The Circulation In The Site Was Divided Into Three Lane’s
• Two Lane’s For Vechicular Movement
• One for Pedestrian Movement

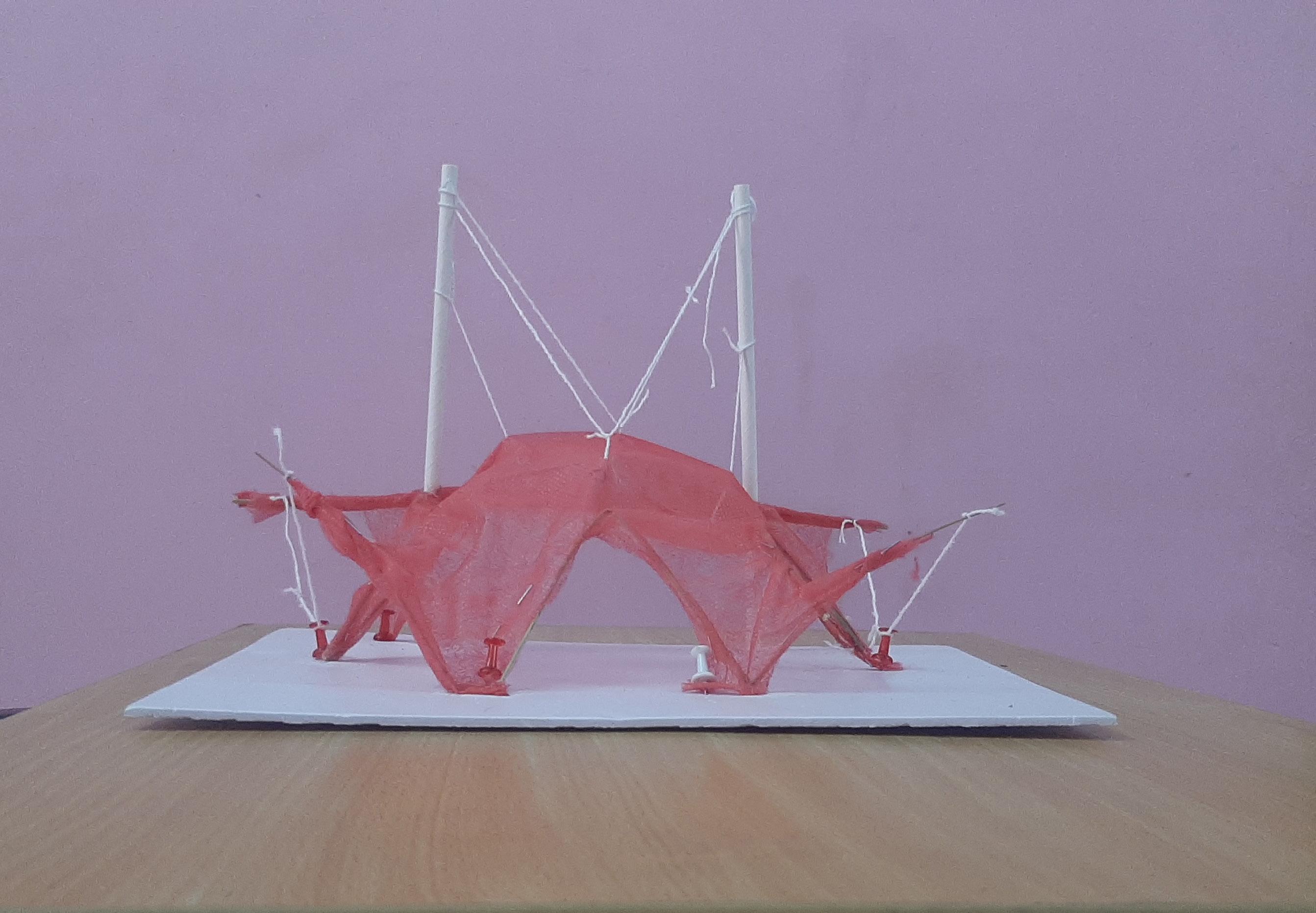

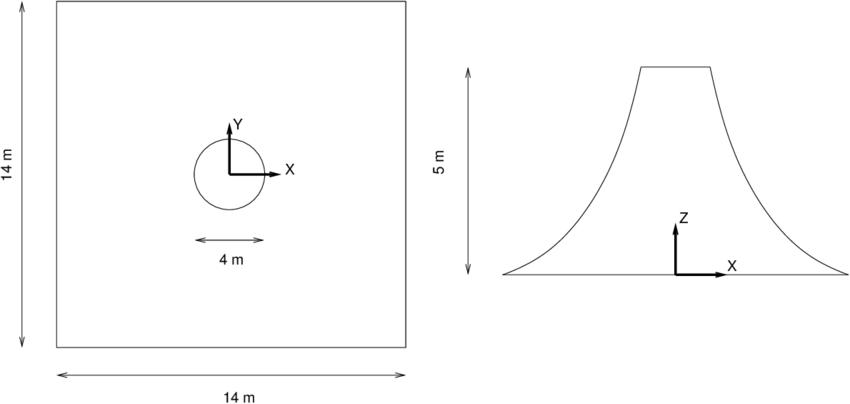

Structurally, the system is formalized by combining three elements: membranes, rigid structures such as pole and masts, and cables.
The cables, which are responsible for the distribution of the tensile stresses and the hardening of the canvasses. It Was Divided Into Two Based On Its Action’s .
• load-bearing
• stabilizing
The load-bearing cables are those that directly receive the external loads, fixed at the highest points
The stabilizing cables are responsible for strengthening the load-bearing cables and cross the loadbearing cables orthogonally

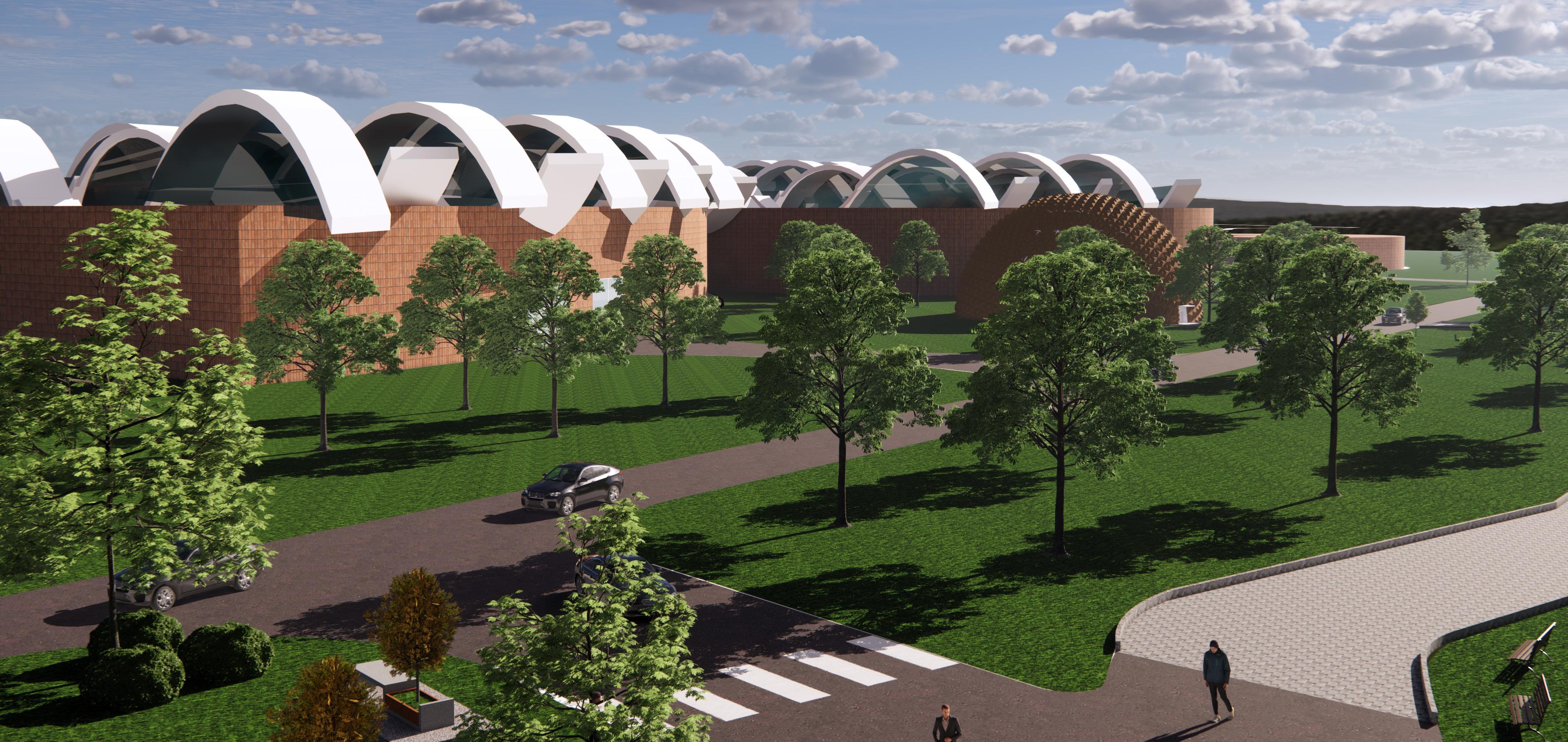

SITE

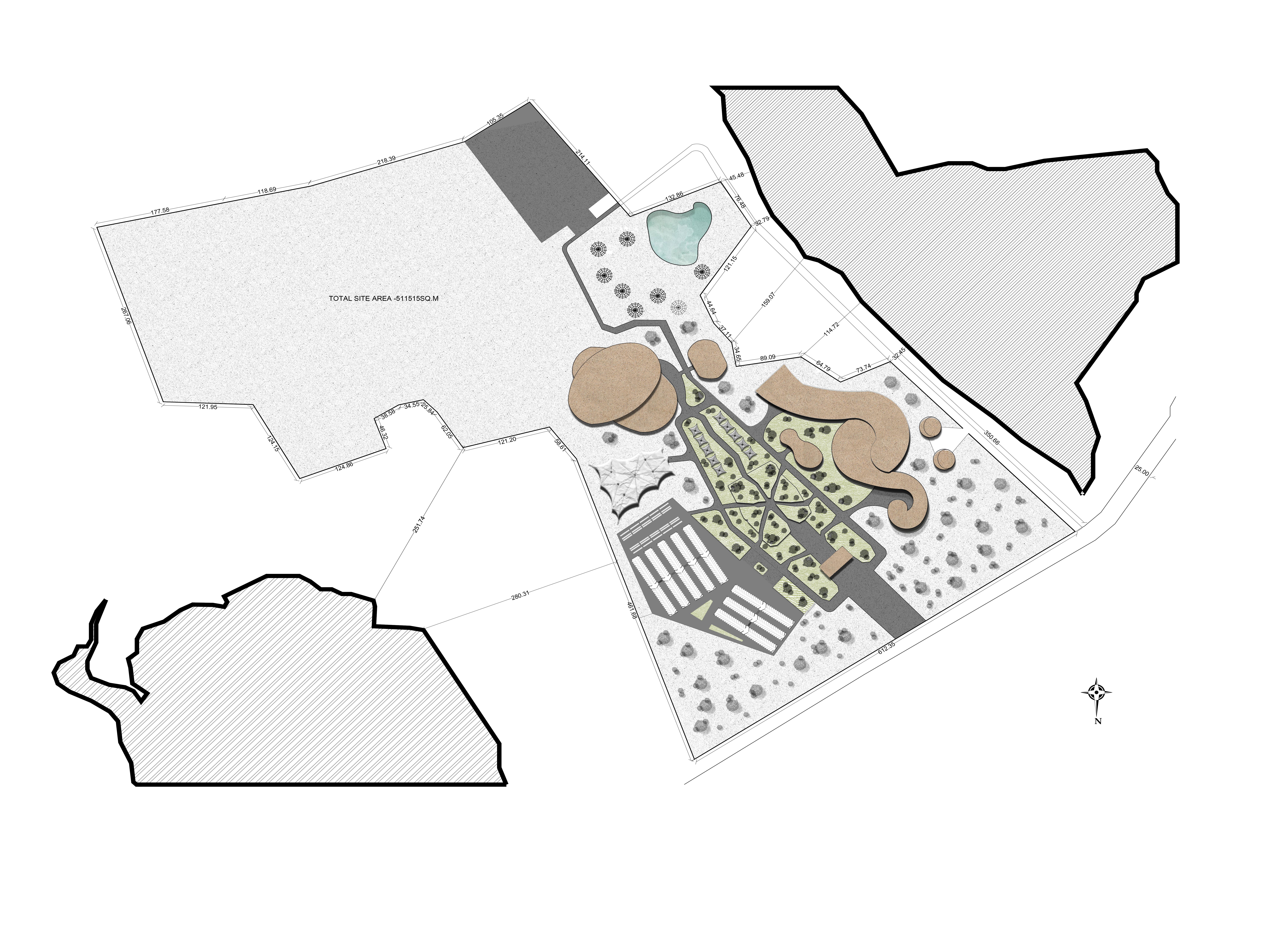

STRUCTURAL DETAIL ROOF DETAIL Vehicular Access Vehicular Access Pedestrian Access ServiceEntry Entrance CIRCULATION
PLAN SITE SECTION A A’ MICE DESIGN - AUTOMOBILE Scale- 1:3000 LEGENDS

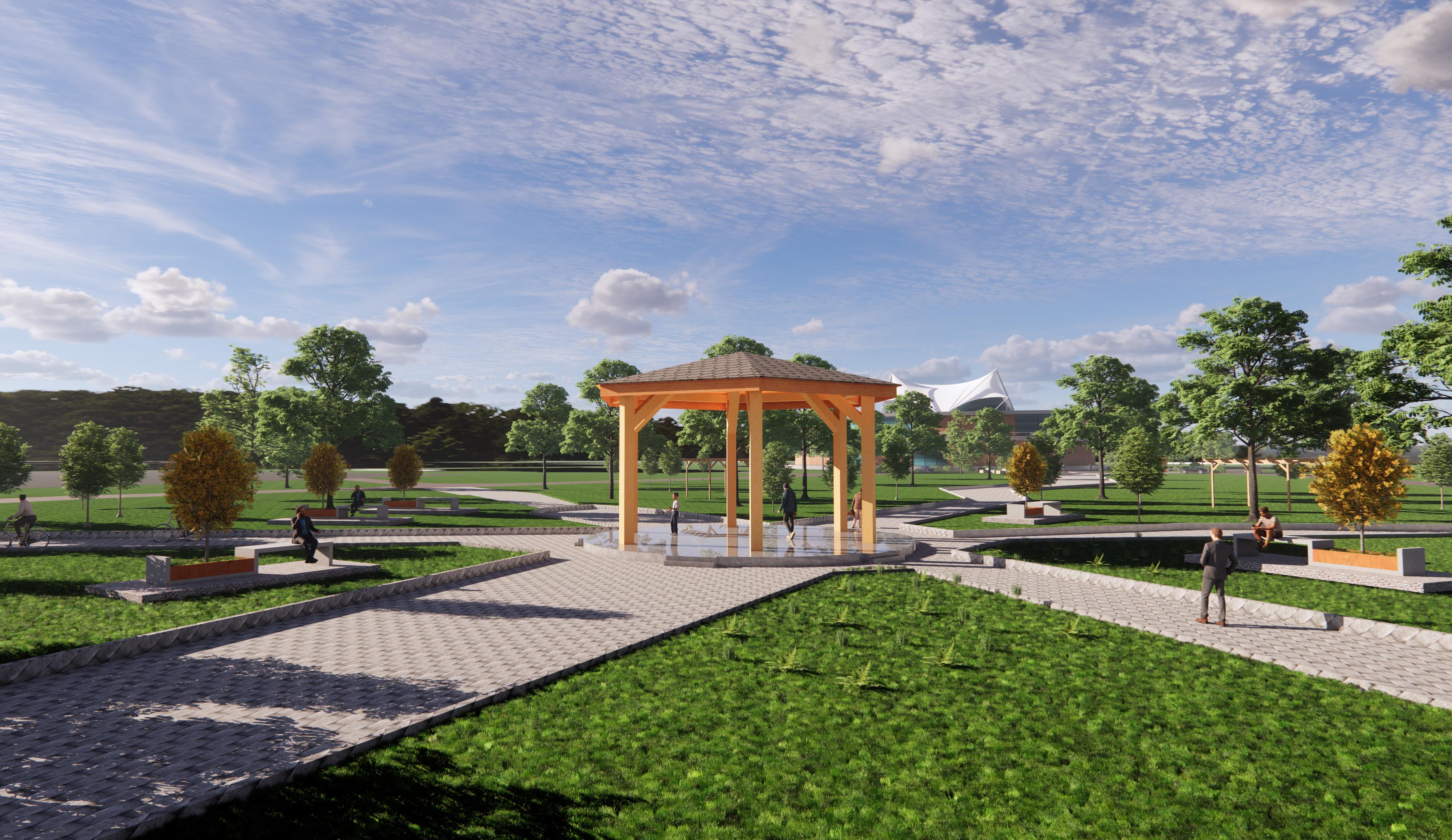

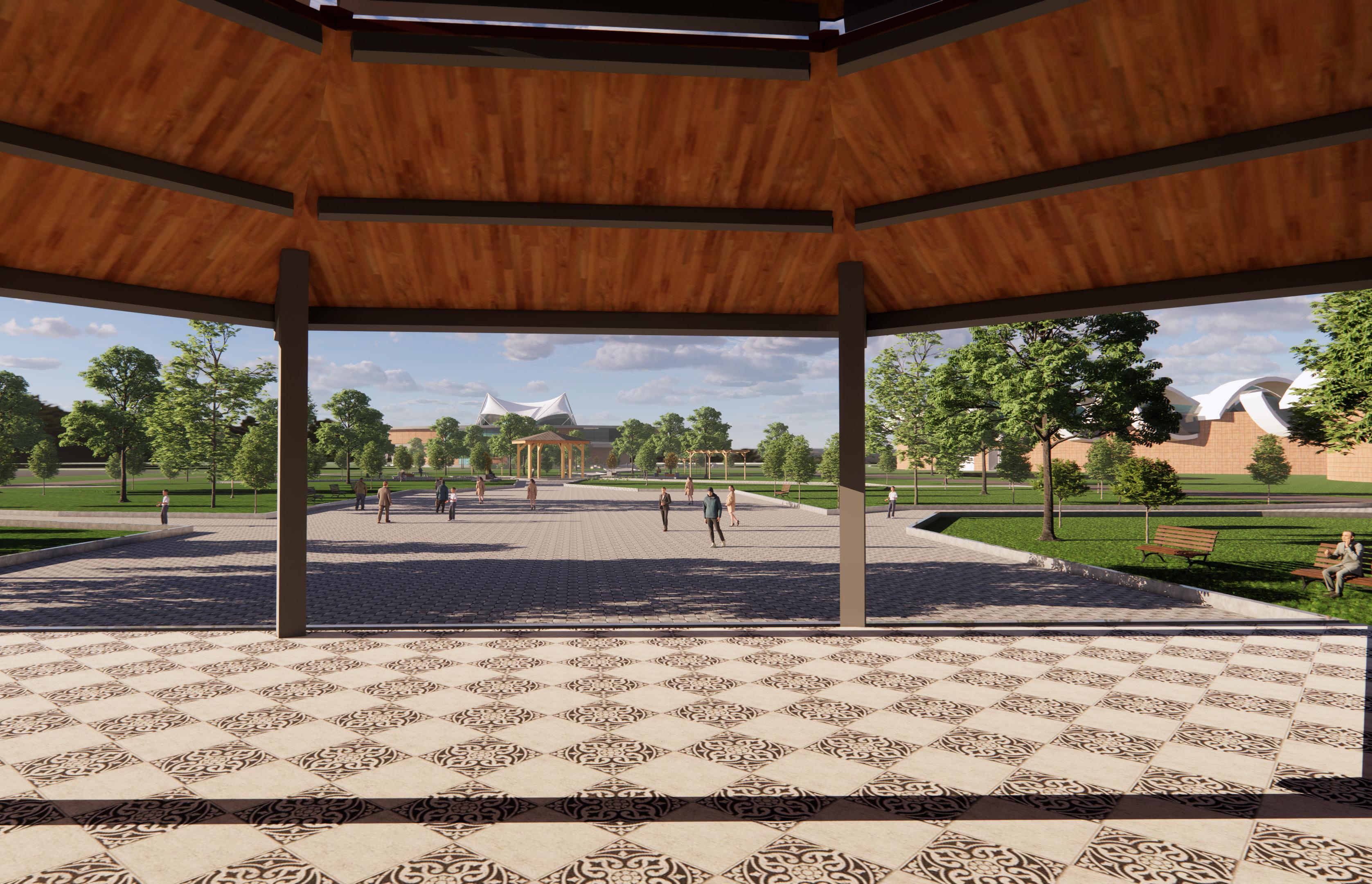

PAVILION
EXHIBITION
INVENTRY
ADMIN
ACCOMMODATION

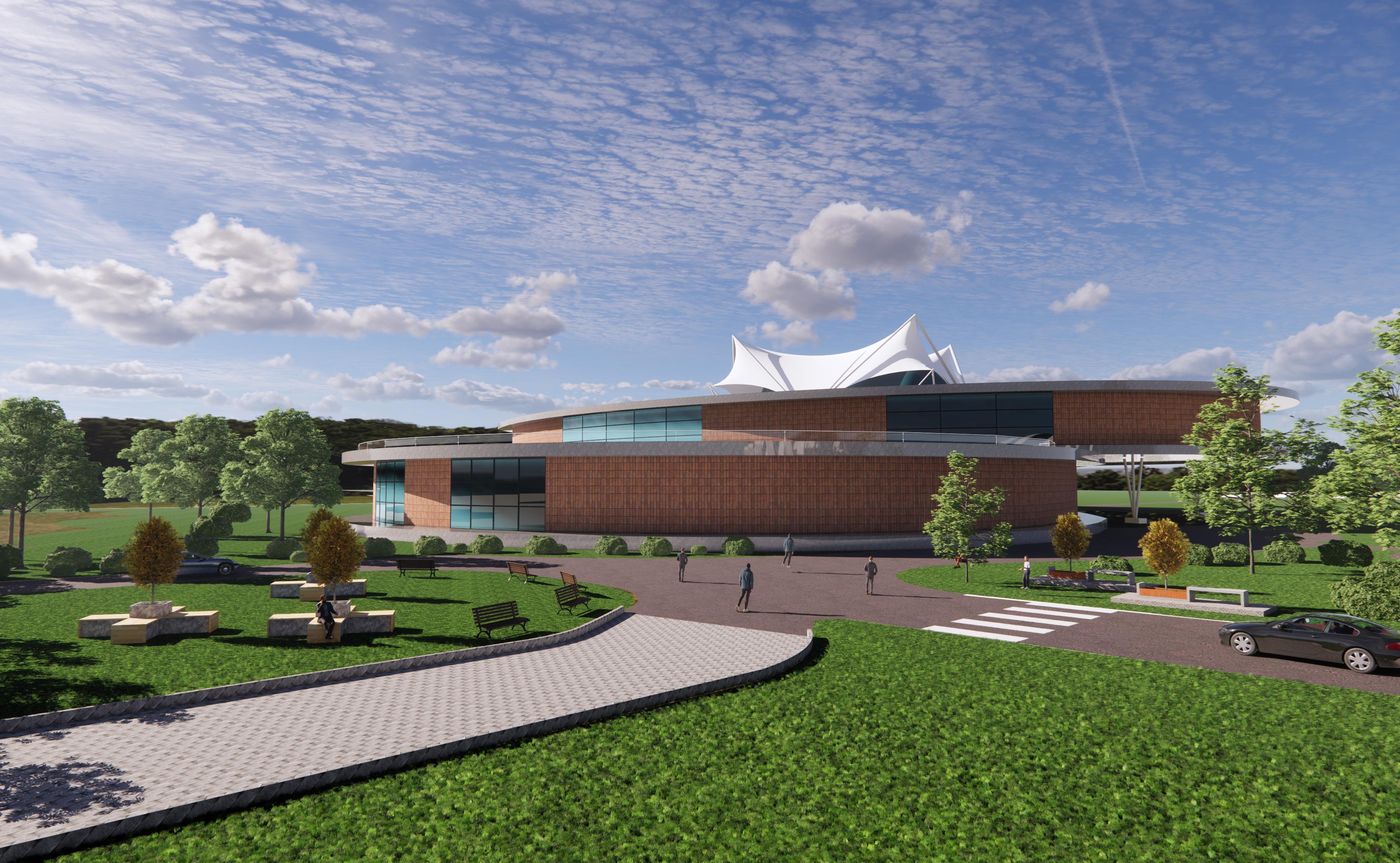

CONVENTION CENTRE
RESTAURENT
PARKING
TEMPORARY STALL’S 10. PARKING 1 2 4 3 5 6 7 8 9 10 Scale- 1:800
9.
AUTOMOBILE ORAGADAM
REG
ROLL
BATCH
2019-24 SECTION : A Meeting Space Cafeteria Studio 2 Studio 1 Men'sToilet VIP Room and Staff Room Reception Reception Green Room Green Room Stage VIP Room Reception A A' A A' GROUND FLOOR FRIST FLOOR Women'sToilet Toilet Locker water body B' B B' B 102 58 49 67 500 sq.m 300 sq.m 230 sq.m 250 sq.m 200 sq.m 270 sq.m 320 sq.m 300 sq.m 1500 sq.m 50 59 78 35 CONVENTION CENTRE Projector Room Kitchen MICE DESIGN - AUTOMOBILE ORAGADAM 2. NAME : JEYAKAVIN J REG NO. : 39210031 ROLL NO. : 19S215095 BATCH : 2019-24 SECTION : A MICE DESIGN - AUTOMOBILE ORAGADAM 3. NAME : JEYAKAVIN J REG NO. : 39210031 ROLL NO. : 19S215095 BATCH : 2019-24 Section AA' Courtyard cutout Glass covering Tensile Roof Structure Speakers CONVENTION CENTRE Scale-1:600 View 2 View 1
MICE DESIGN -
NAME : JEYAKAVIN J
NO. : 39210031
NO. : 19S215095
:
MICE DESIGN - AUTOMOBILE ORAGADAM
MICE DESIGN - AUTOMOBILE
NAME : JEYAKAVIN J
REG NO. : 39210031 ROLL NO. : 19S215095 BATCH :
NAME : JEYAKAVIN J
REG NO. : 39210031
ROLL NO. : 19S215095
BATCH : 2019-24
ORAGADAM
SECTION : A
3.
2019-24

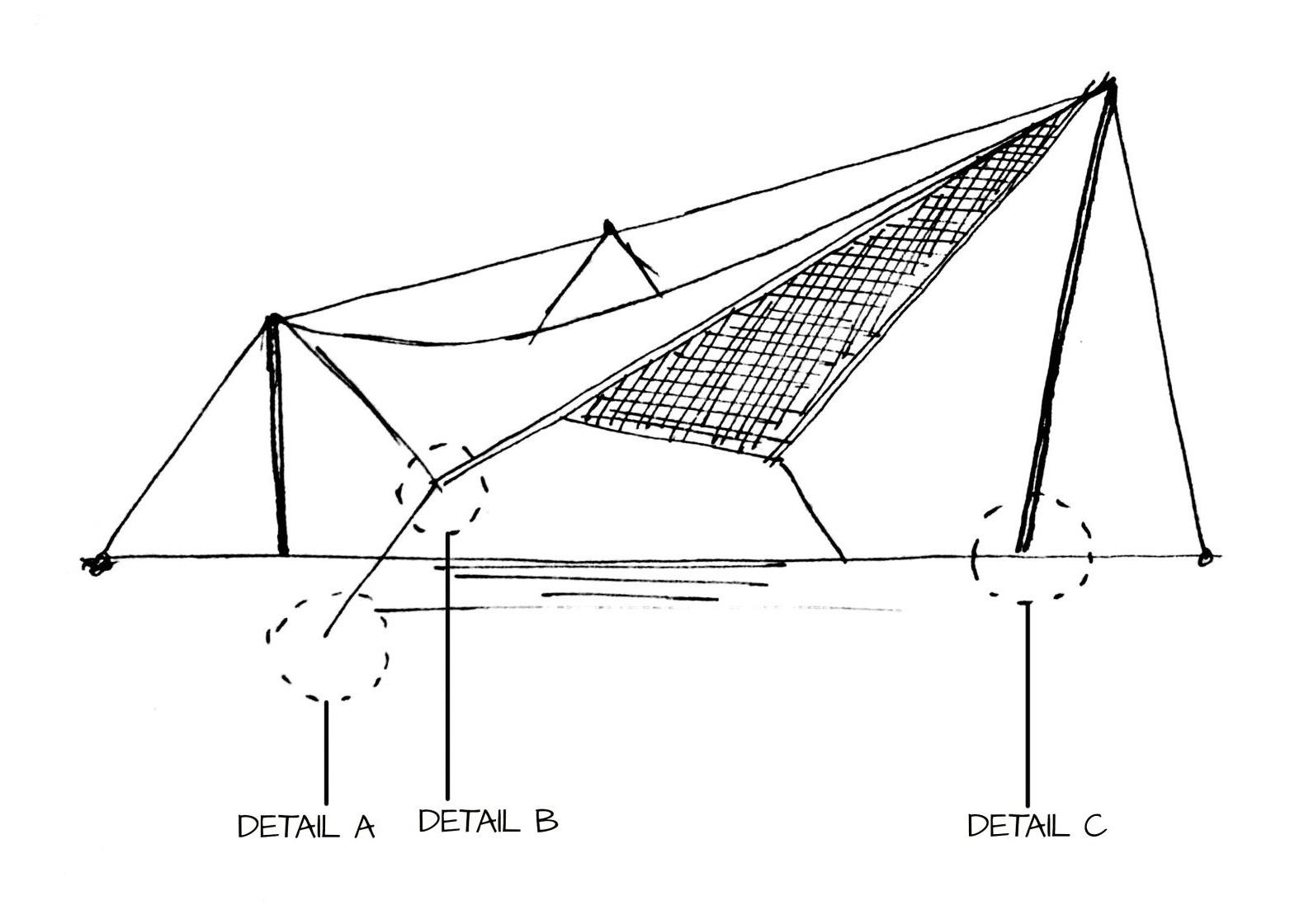

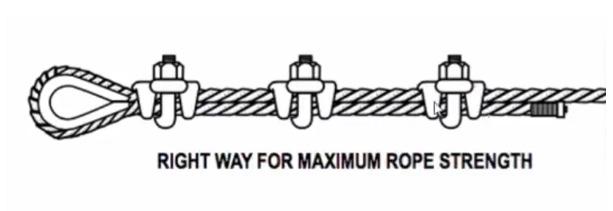

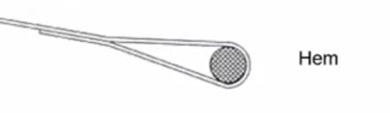

: A Elevation Section BB' Courtyard cutout Glass covering False Ceiling CONVENTION CENTRE JOINERY DETAILS model View 3 U Bolts Joint In Anchors Edge Joint Details Detail B Detail A The
