College of DuPage | Spring 2024
Interior Design Portfolio
Katherine Evans
College of DuPage | Spring 2024
Interior Design Portfolio
Katherine Evans
Building Blocks Coworking
Office Design
Coworking Office
Building Blocks Coworking is influenced by the idea that we all need similar resources for their work environment. This is a place for new companies and individual employers to come and share an office and the necessary building blocks to grow a business.
Design Considerations:
- Clear direction of egress through flooring material and ceiling features
- maximize daylight by placing shared open spaces along window line and private closed spaces at the core - incorporate branding through the use of the brand’s color scheme - use of Skyfold vertical folding wall between conference and collaboration room to allow the space to convert to a larger event space

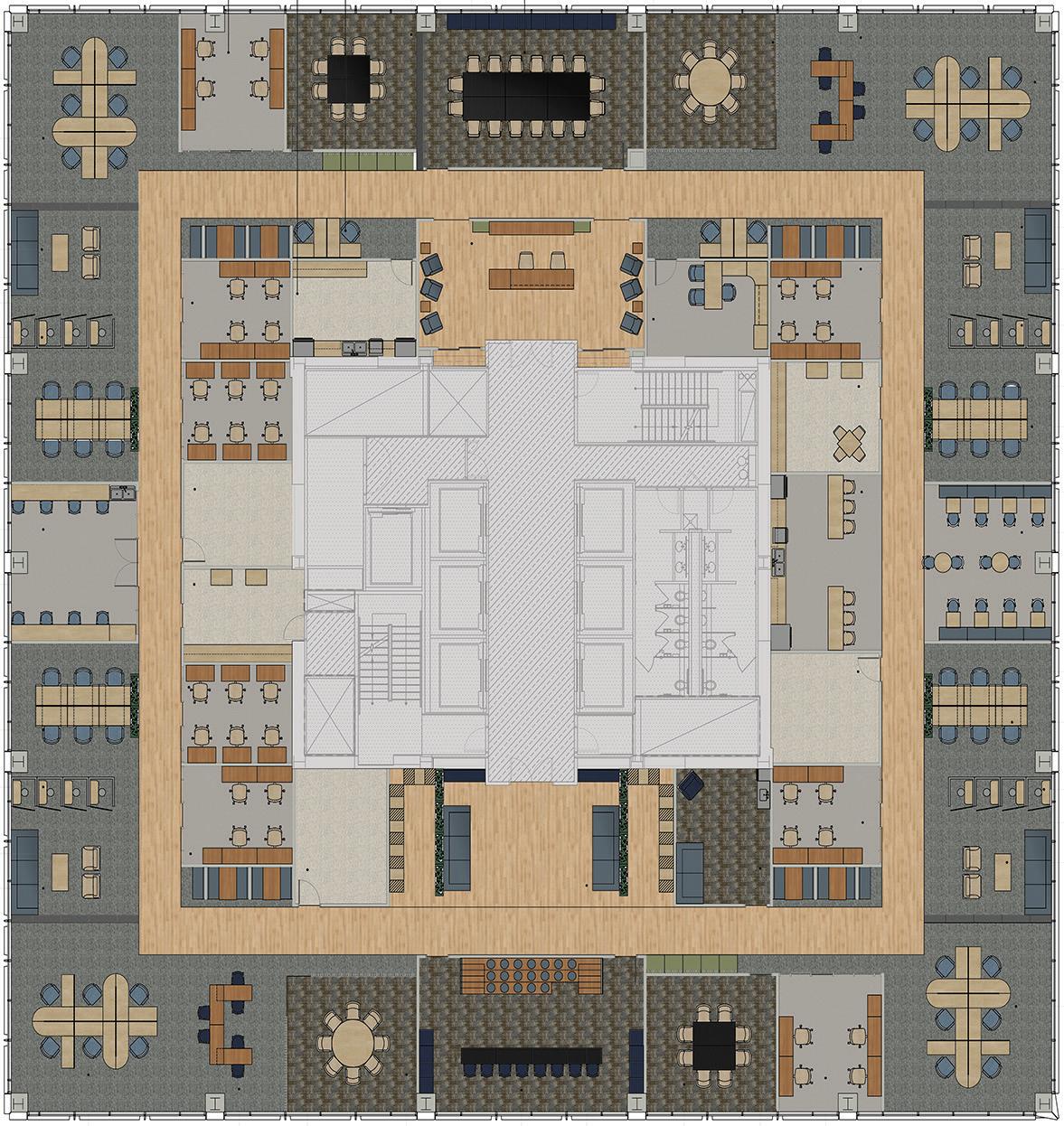

Rendered Floor Plan

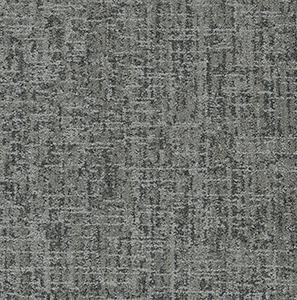

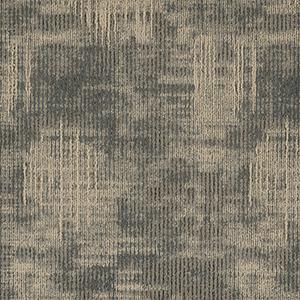

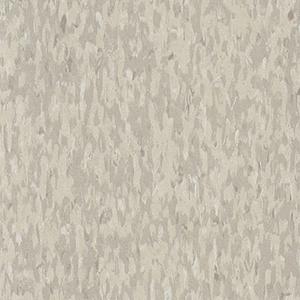

1. Flooring - Mohawk Group resilient sheet - Juniperus II Flaxen 2. FlooringMohawk Group carpet tile - Communal Path Stonehedge 3. Flooring - Mohawk Group carpet tile - Quiet Musings Charlotte 4. Flooring - Armstrong Flooring SDTExcelon SDT Beach 5. Flooring - Mohawk Group resilient sheet - Medella Dove
floor plan produced in AutoCAD and rendered in Adobe Photoshop Drawings available upon request | Drawings not to scale but representative of industry standard Drawings produced in Autodesk AutoCAD, rendered in Sketchup and Enscape and enhanced in Adobe Photoshop Mandatory Adjacency Convenient Adjacency Undesirable Adjacency Y - Yes N - No Adjacency matrix provided to show mandatory, convenient and undesirable adjacency between all of the rooms. The matrix provides information on plumbing and other adjacency related considerations.
Office Design | Office Studio 1. 2. 3. 4. 5.
Rendered

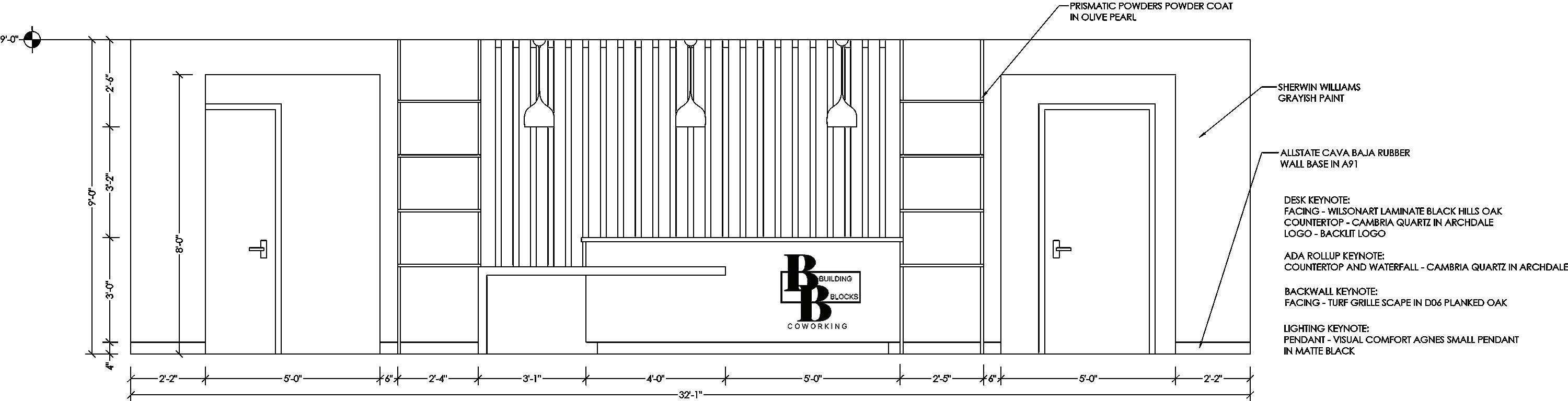

Reception Elevation
Scale: 1/2” = 1’-0”
Reception Two - Point perspective

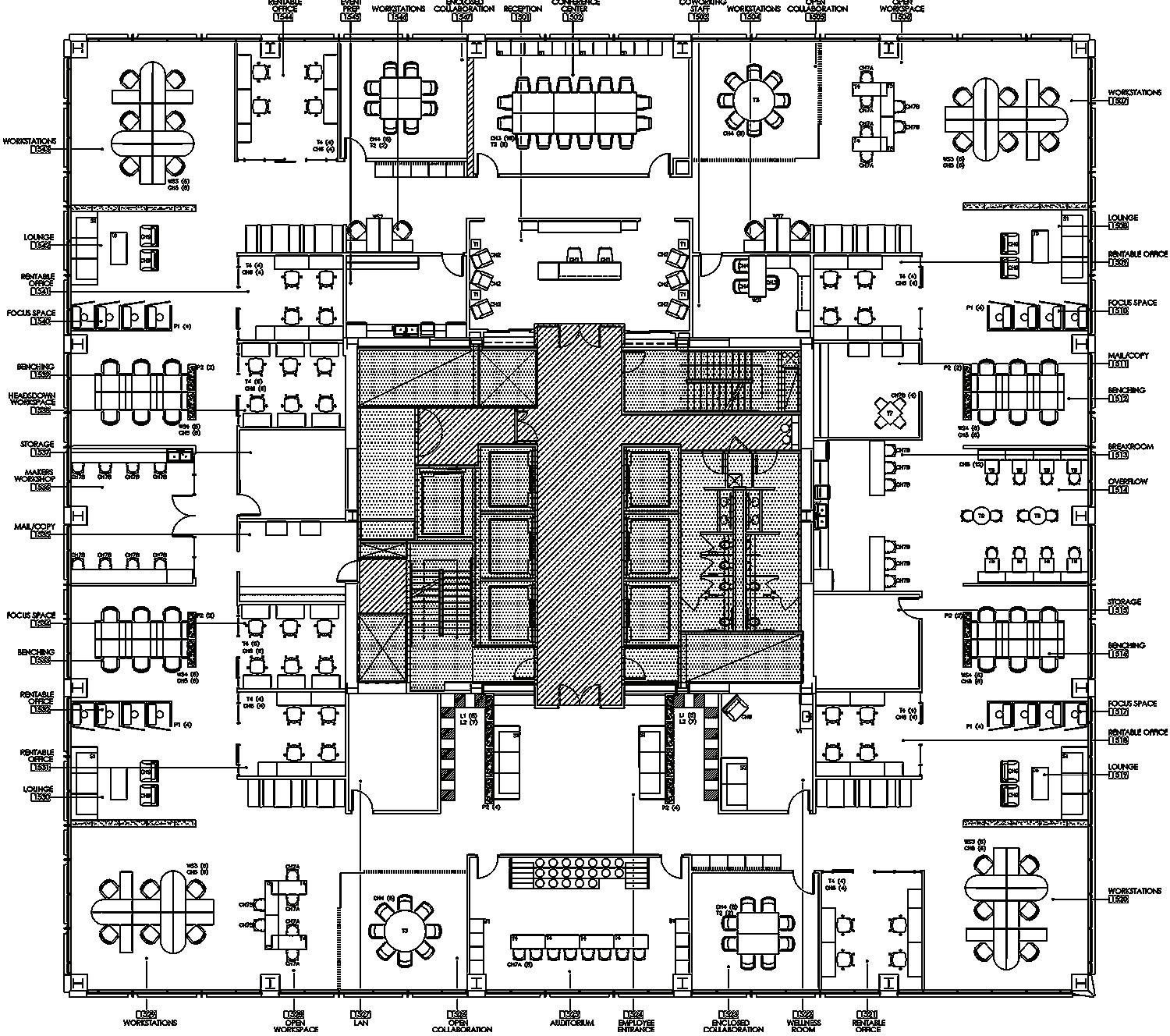

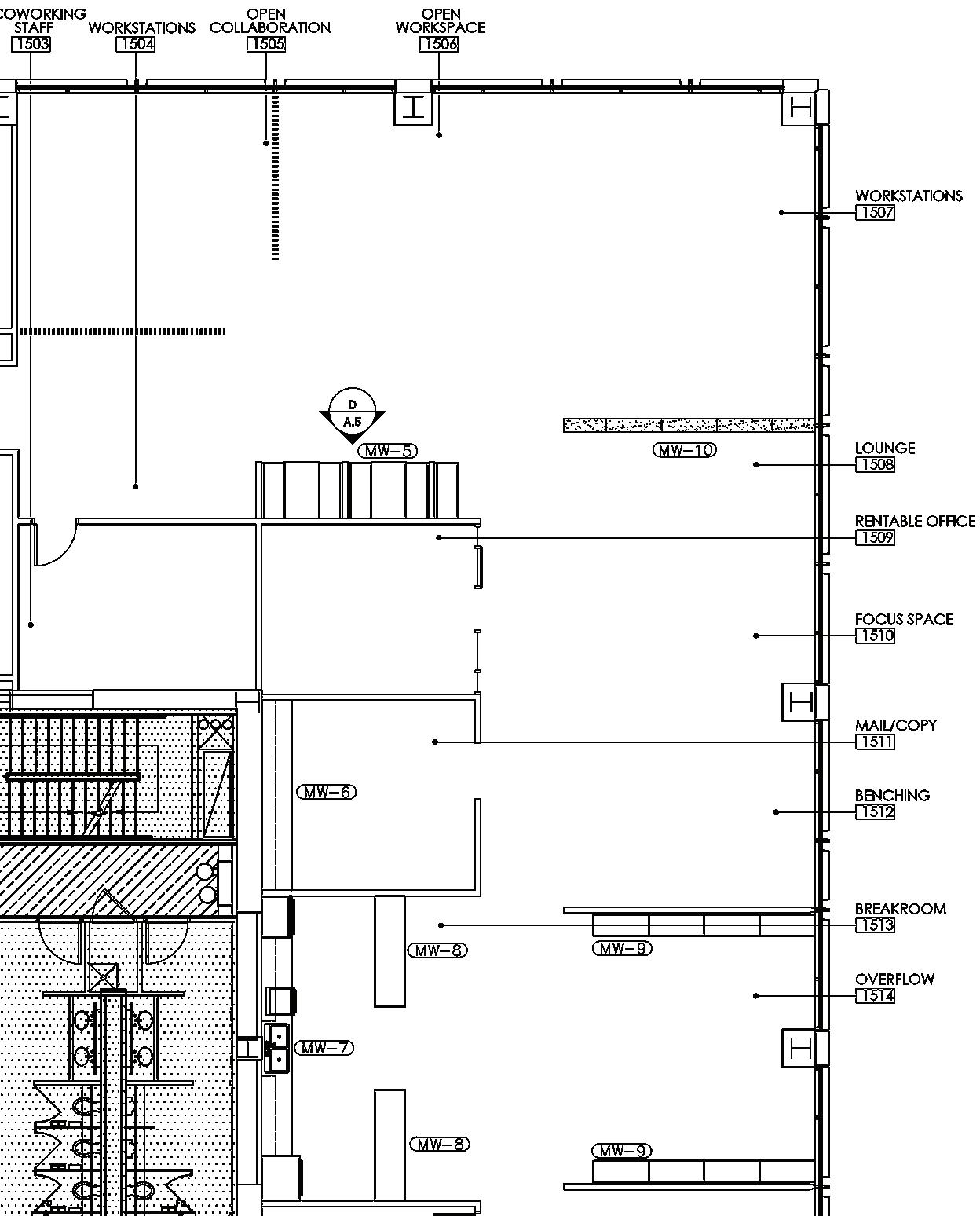

Space Plan
Scale: 1/8” = 1’-0”

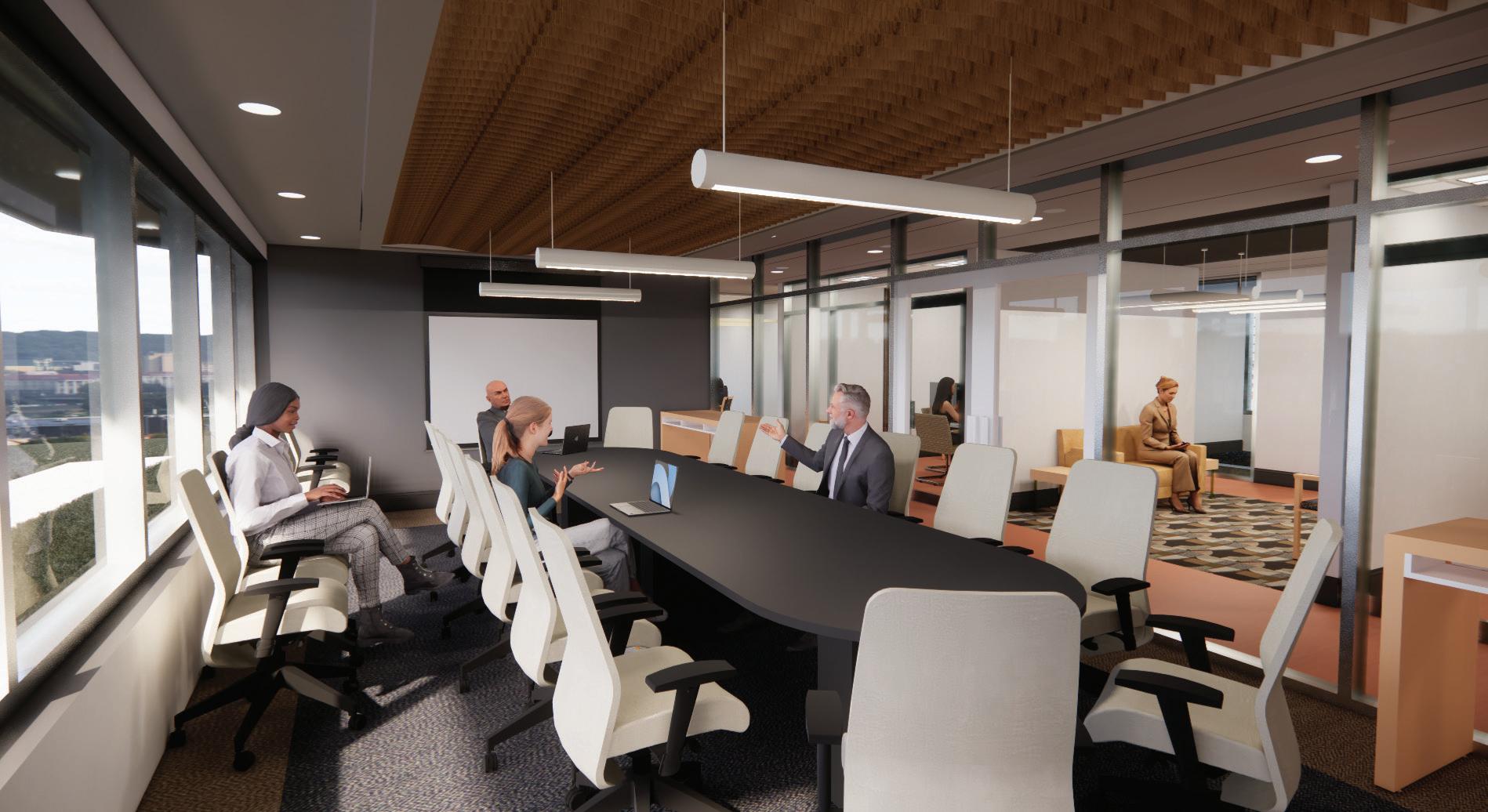

Conference Room Auditorium
Millwork Plan
Scale: 1/8” = 1’-0”
Scale: 1/8” = 1’-0”

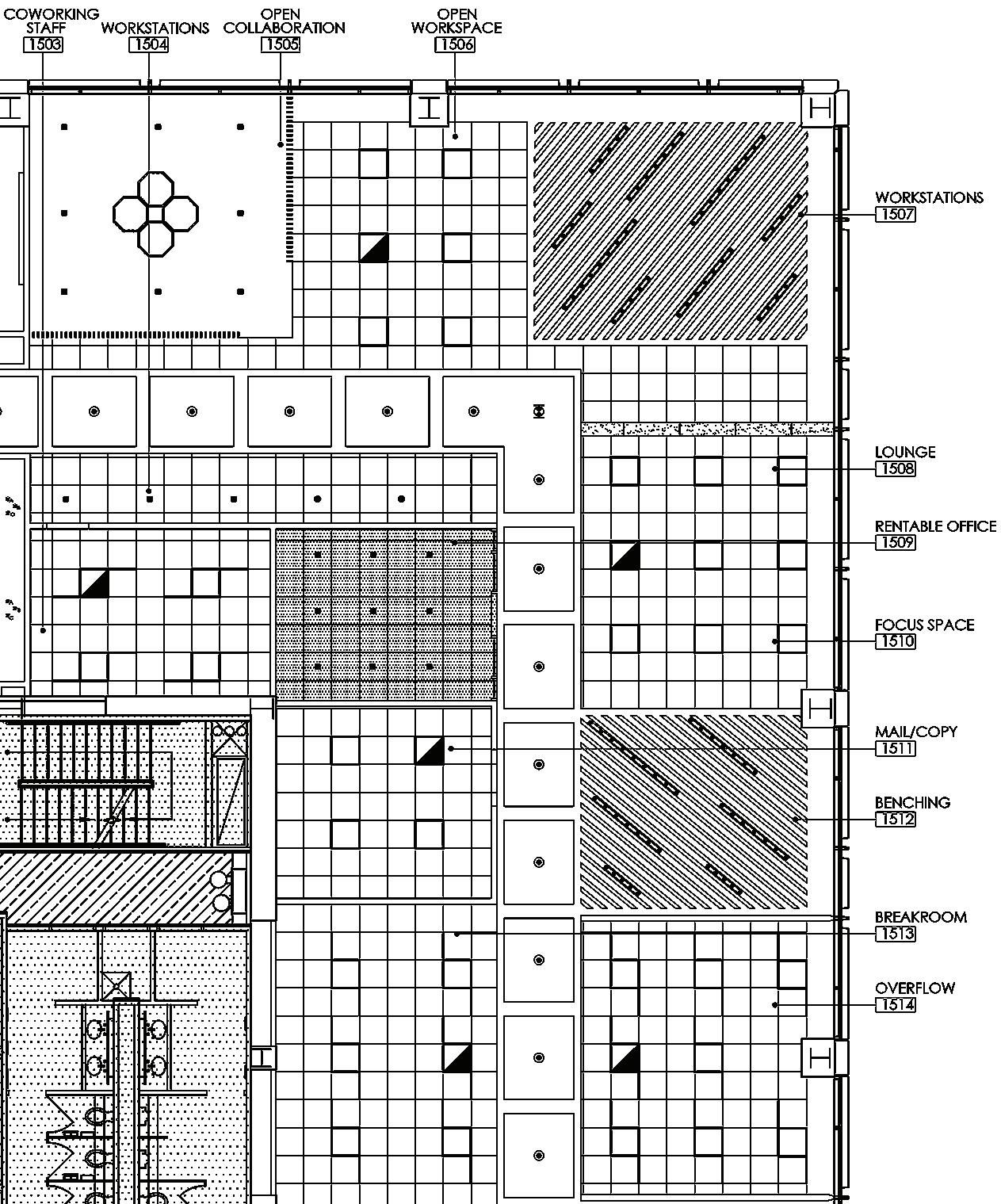

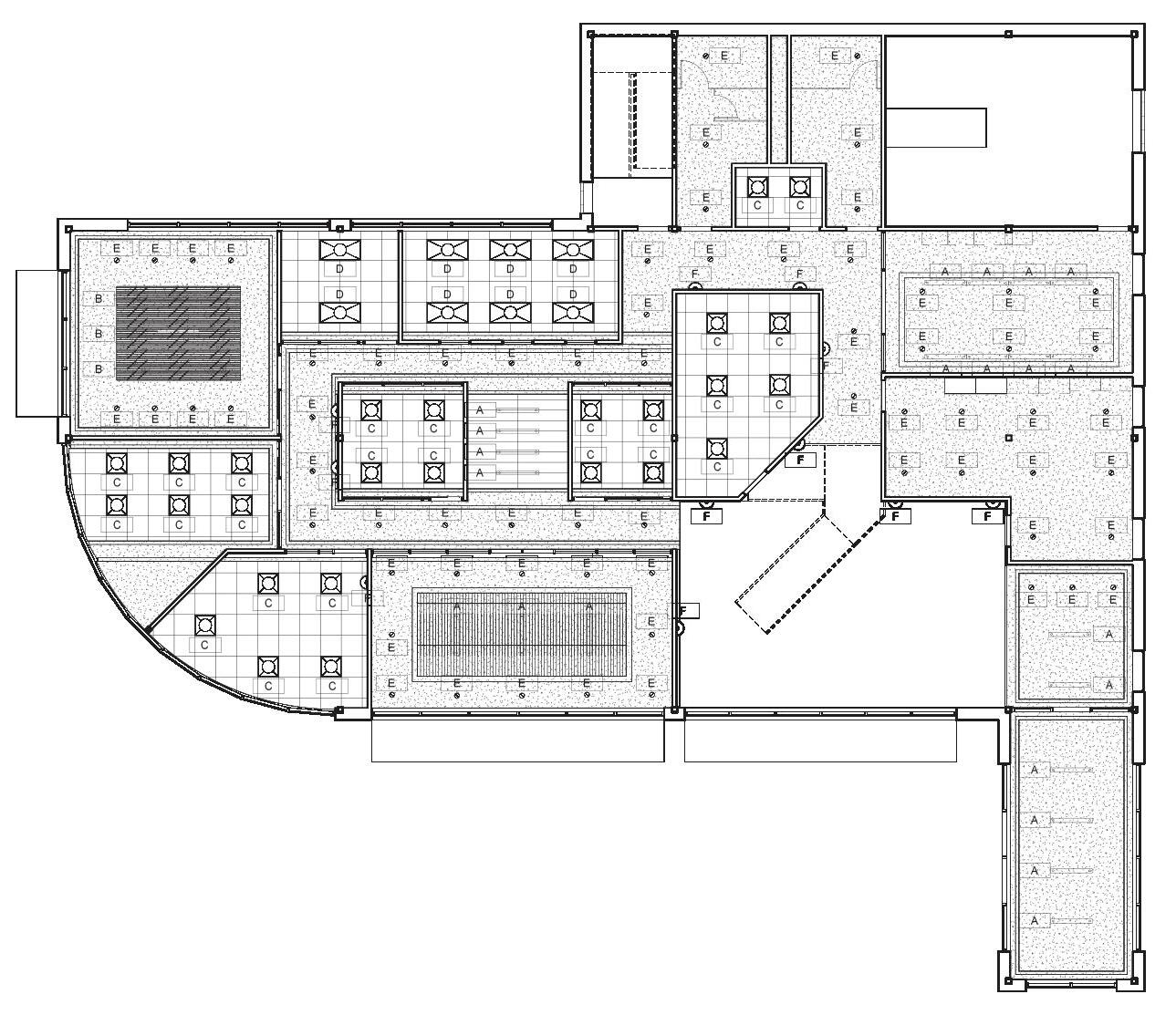

Ceiling Plan
Reflected

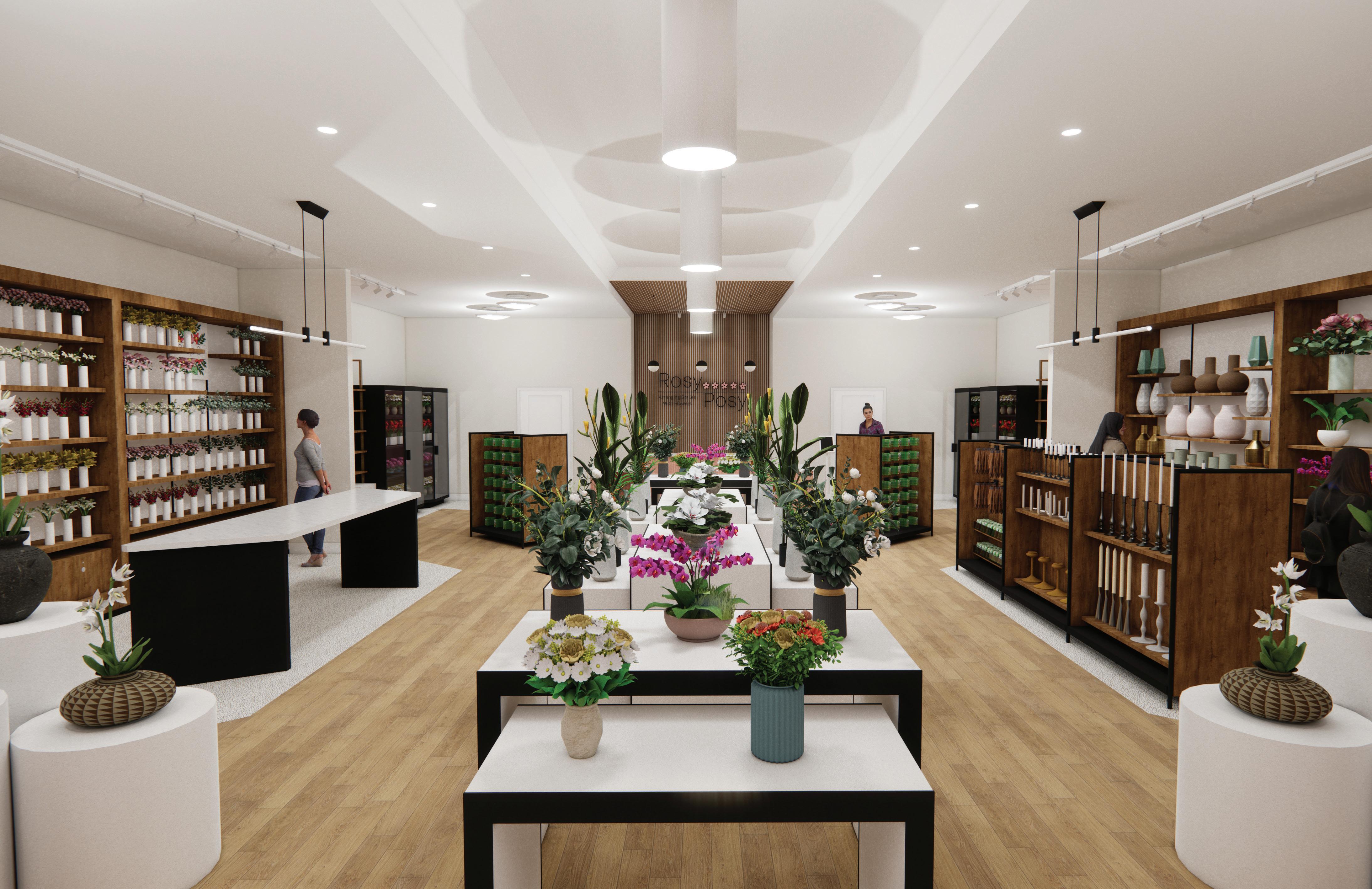

Rosy Posy
Contract
Retail Design
Rosy Posy is a local flower shop aiming to bring happiness to the community. The name is a play on the word Rose and the word Posy meaning a small bunch of flowers. Our mission is to spread kindness through giving to others
Design Considerations:
- Use of color to reinforce brand identity
- placing cash wrap and higher end products at the back of the store to pull customers in to the back to see more merchandise - strategically place merchandise to increase product sales, including placing impulse products near the cash wrap
Merchandise Plan

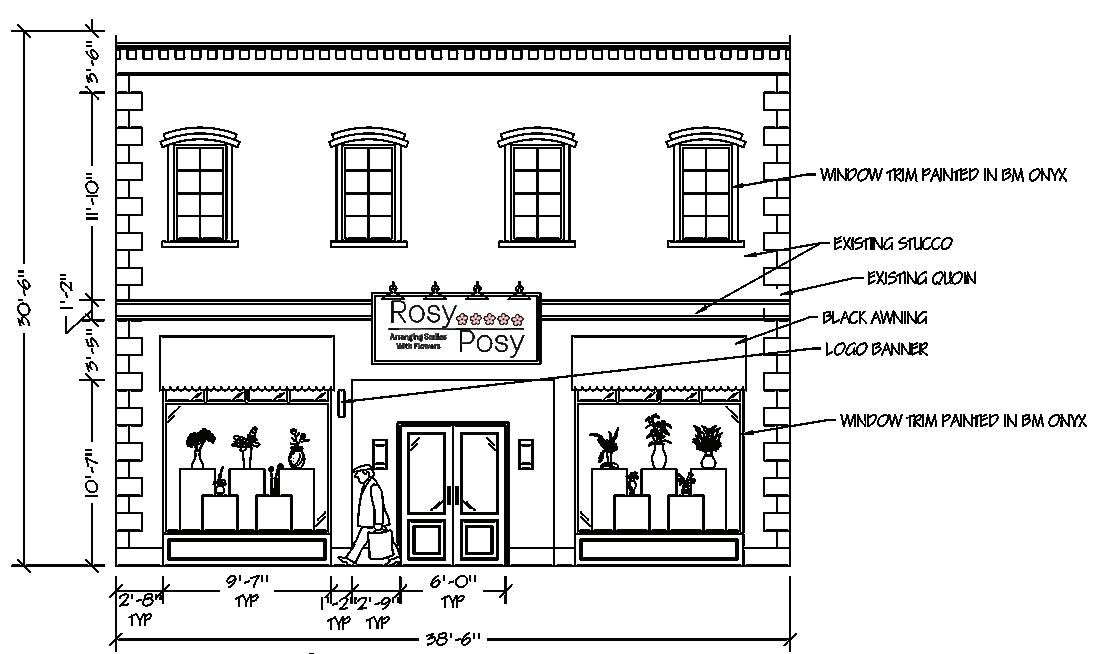

Exterior Facade Elevation
Scale: 3/16” = 1’-0”

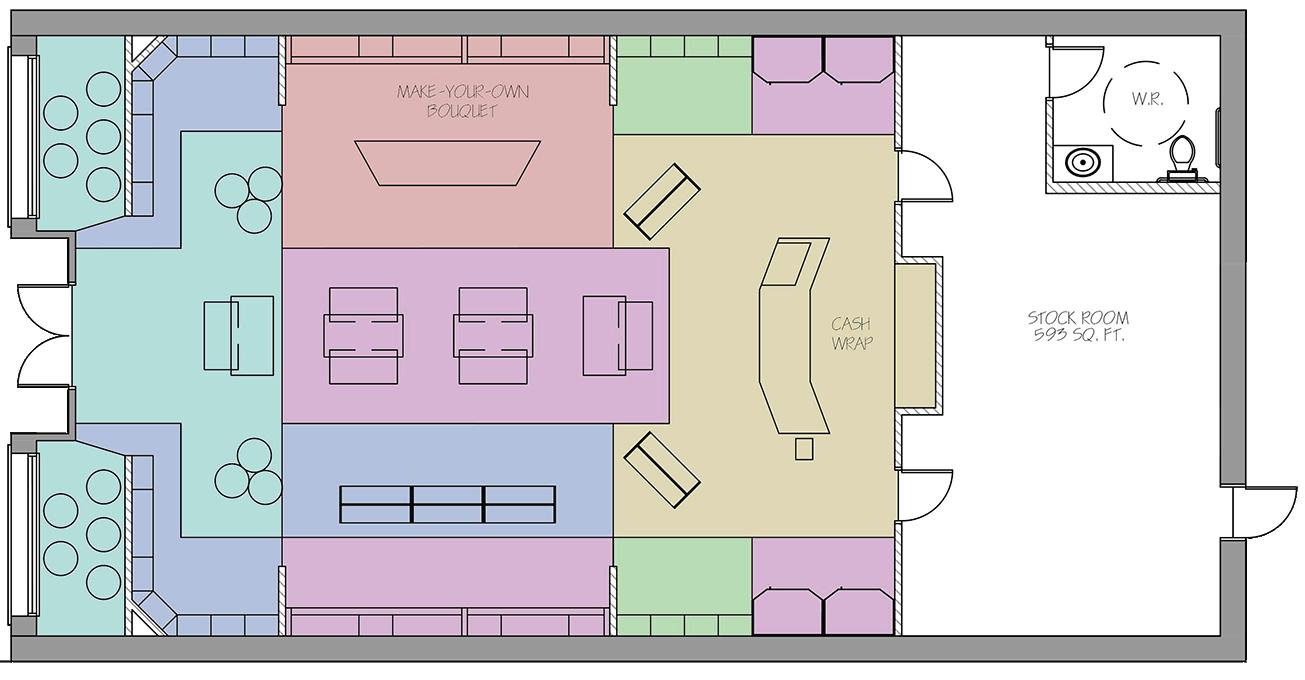

Merchandise plan is to show the placement of different merchandise throughout the space. You will see impulse products are strategically placed near the cash wrap to encourage impulse purchasing. You will also see seasonal products placed at the front to promote customers to enter the store.
Merchandise Plan
Scale: 1/8” = 1’-0”

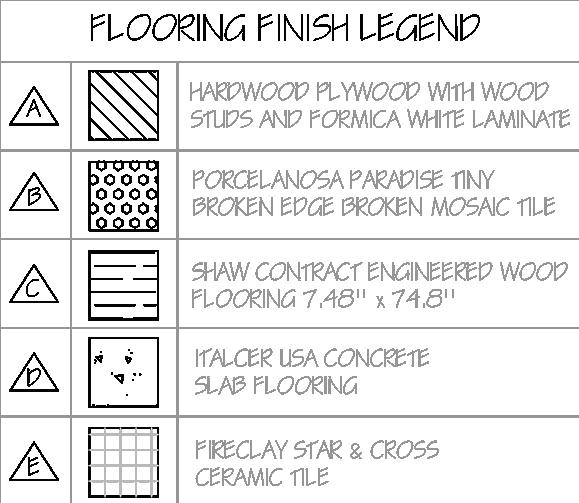

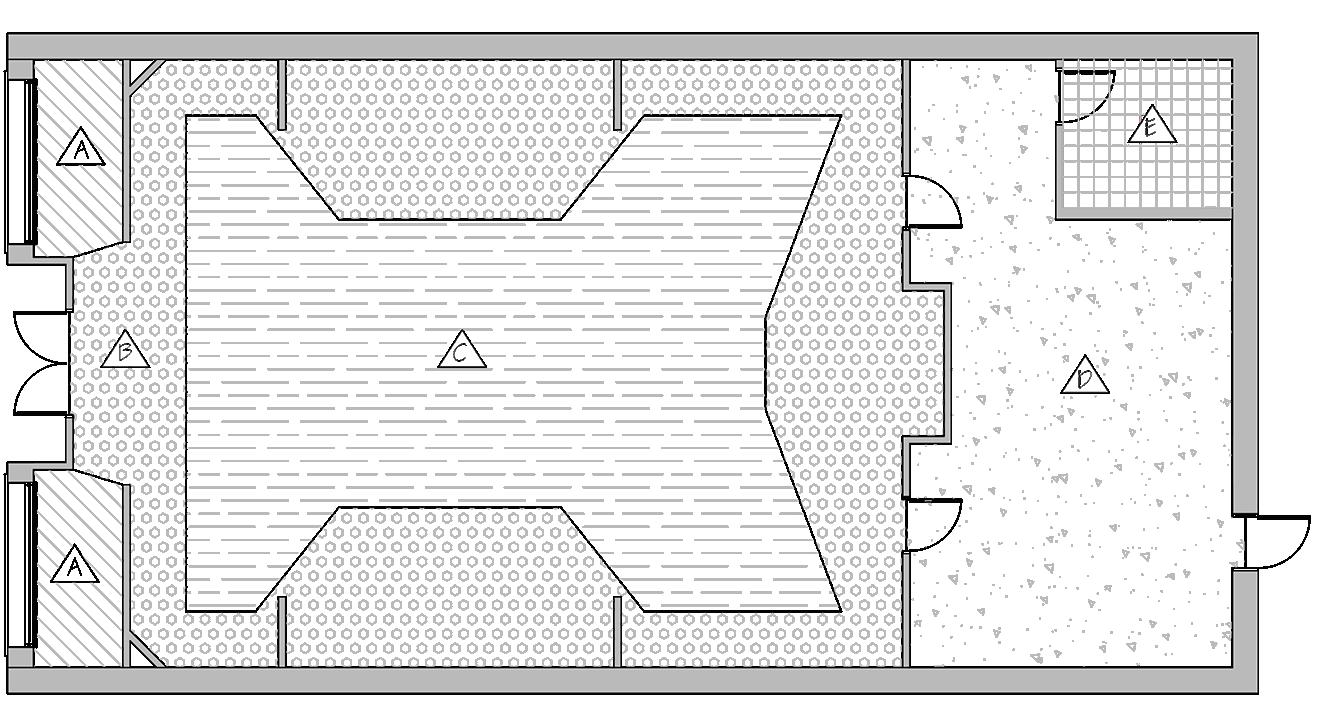

Flooring Finish Plan
Scale: 1/8” = 1’-0”
Retail Design | Contract Studio Drawings not to scale but representative of industry standard Drawings produced in Autodesk AutoCAD, rendered in Sketchup and Enscape and enhanced in Adobe Photoshop
Sunset Cafe
Sunset Cafe is a local high end cafe that transforms into an evening restaurant highlighting the bar area. It brings a natural element through the use of biophilic elements, natural wood tones, and natural lighting. The concept is to bring the outside environment into the design space. You will see green used throughout to include branding along with the science behind the color. Green is known as both a health color as well as a hunger inducing color.
Floor Plan
Design Considerations:
- ADA compliant design with 5% of seating being ADA seating, ADA compliant men’s and women’s restrooms, and proper ADA clearances - Include layered lighting through different forms of ambient lighting, task lighting, and accent lighting
- Use lighting to help wayfinding throughout the space
- Consistent color temperature by using different dimming levels for certain fixtures
Rendered Floor Plan
Scale: 1/8” = 1’-0”

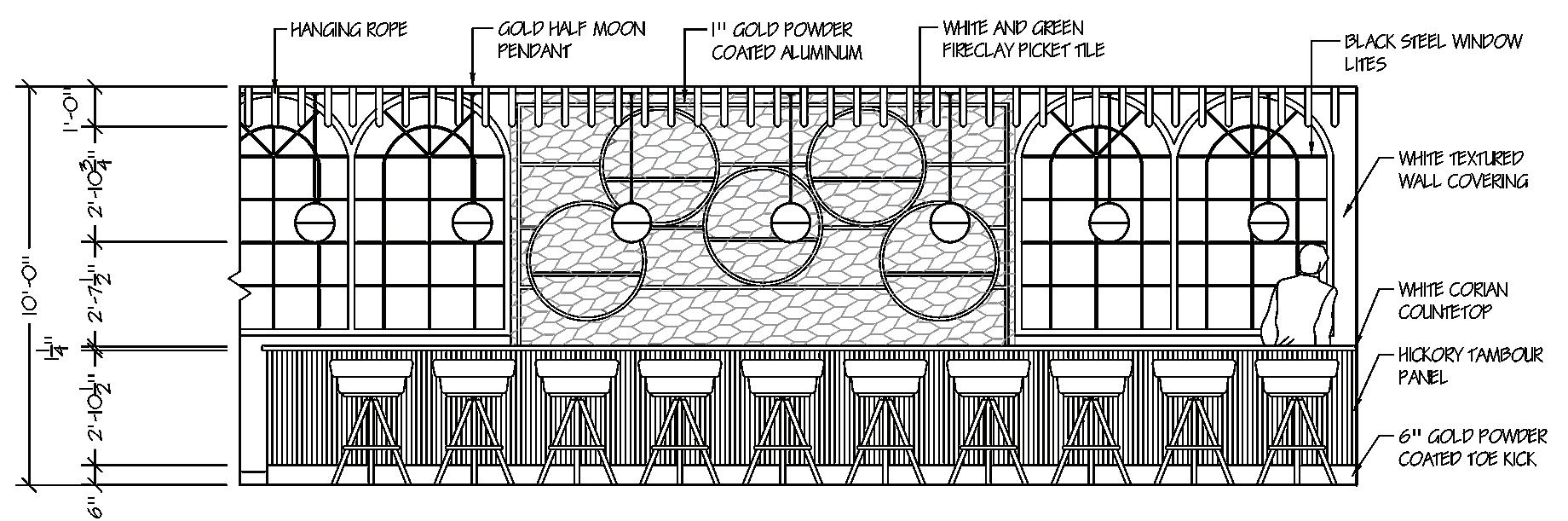

Bar Elevation
Scale: 3/8” = 1’-0”
Contract Restaurant Design

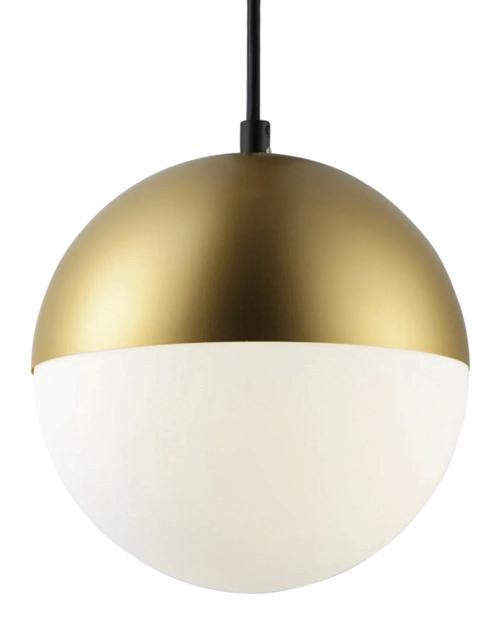

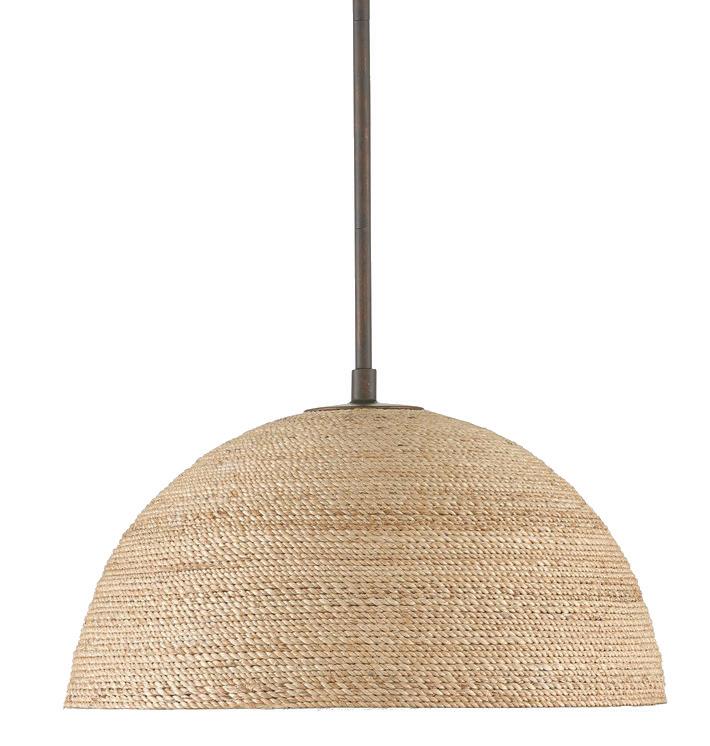

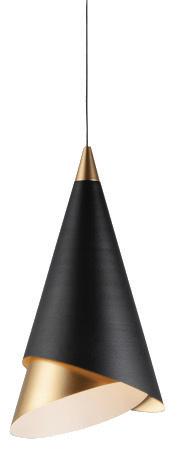

1. Currey & Company Tobago Pendant | paired with Philips LED bulb 2. ET2 Lighting Half Moon Pendant | LED 3. ET2 Lighting Mermaid Pendant | LED Rendered
Restaurant Design| Contract Studio Drawings not to scale but representative of industry standard Drawings produced in Autodesk AutoCAD, rendered and enhanced in Adobe Photoshop
1. 2. 3.

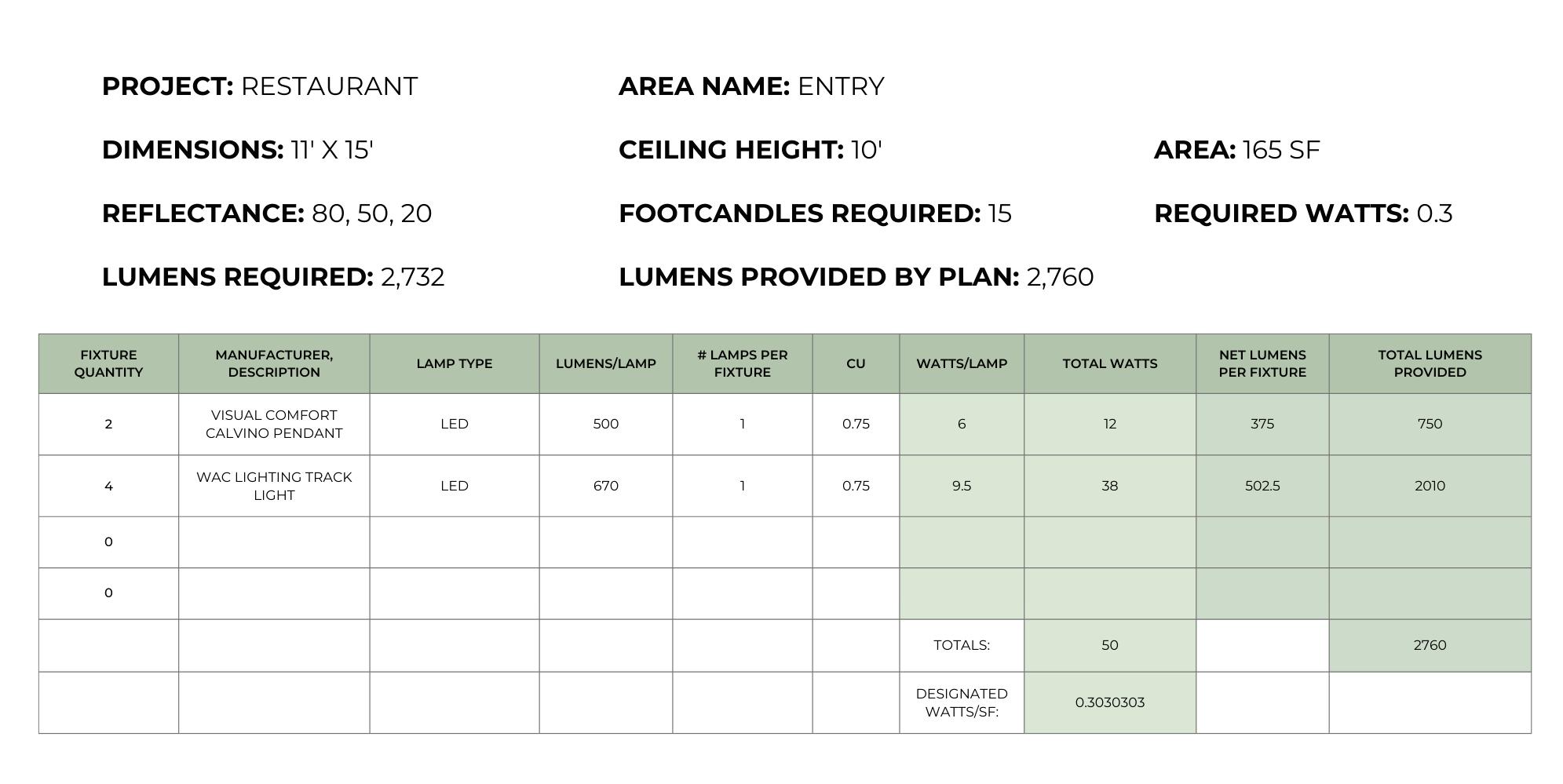

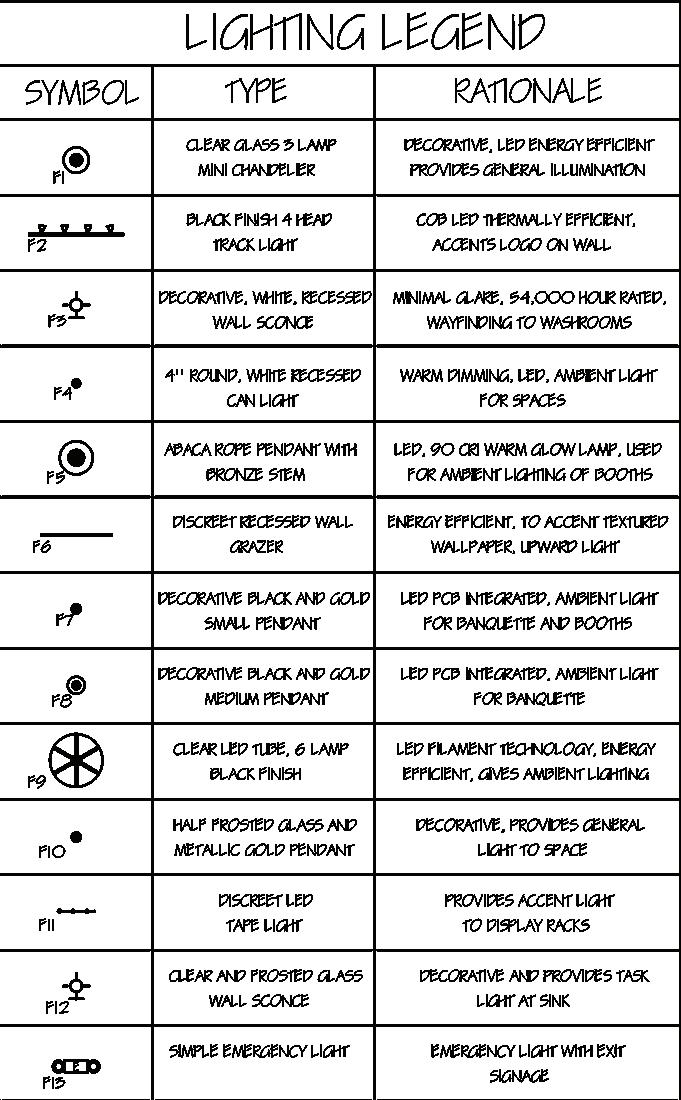

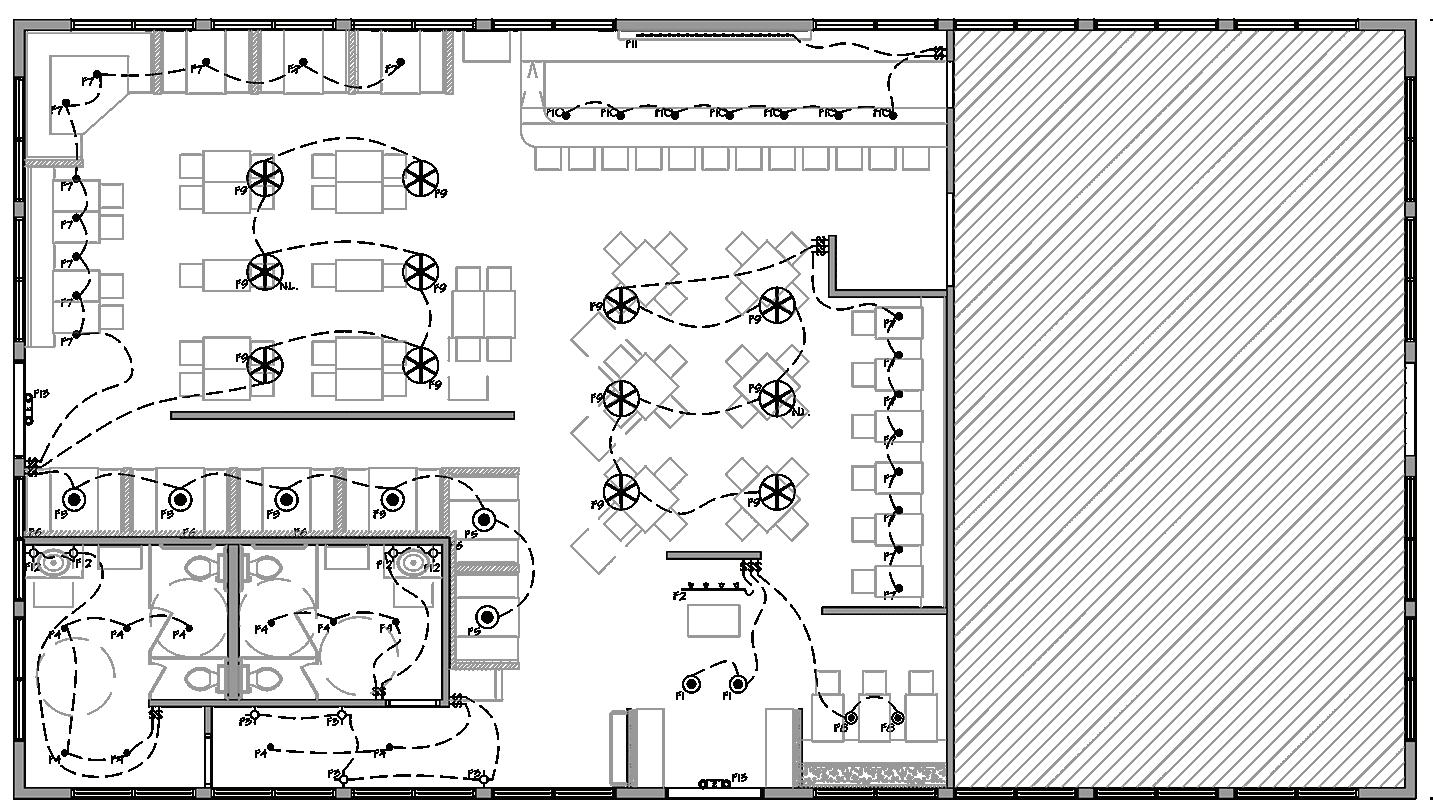

Lighting Plan
Scale: 1/8” = 1’-0”

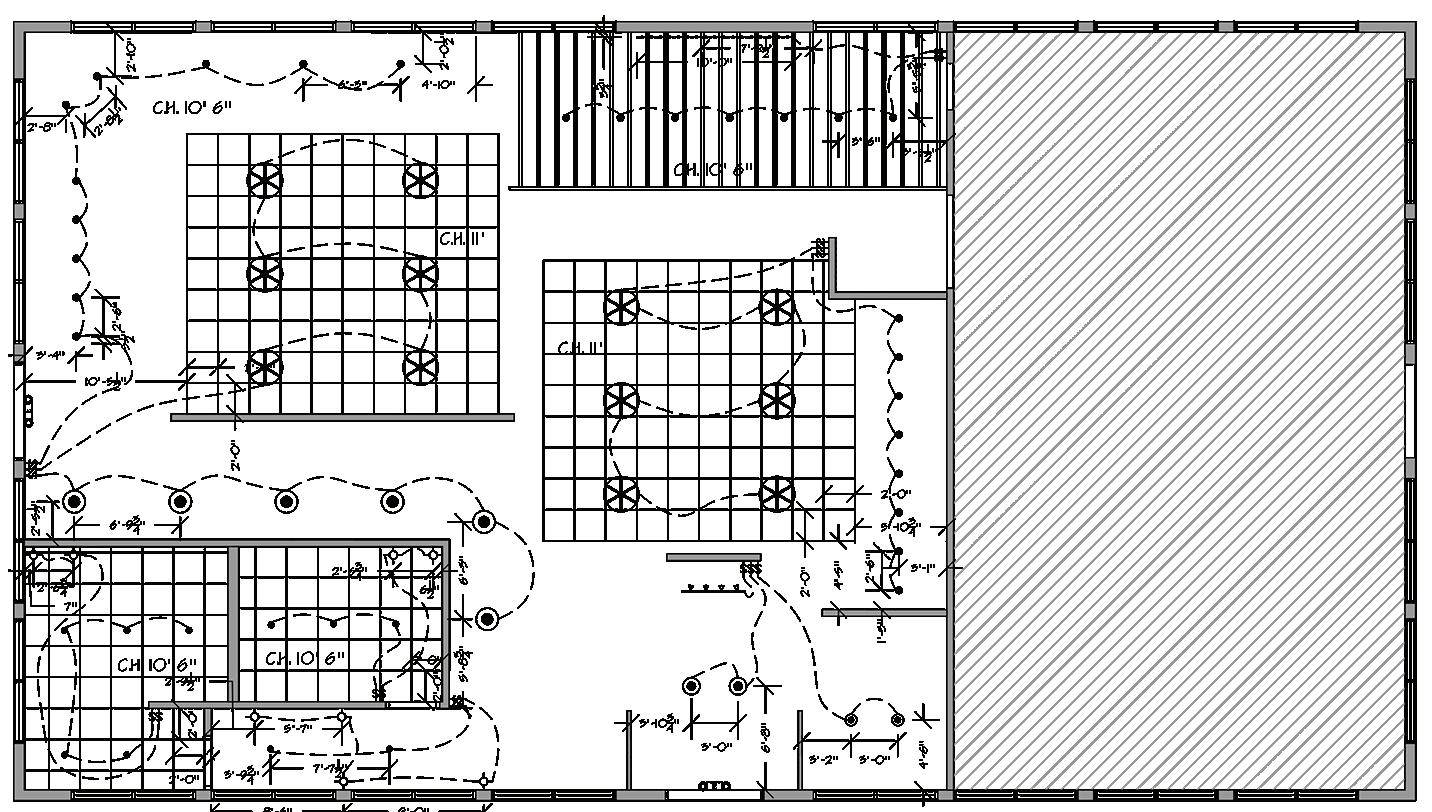

Reflected Ceiling Plan
Scale: 1/8” = 1’-0”
Bathroom
Remodel
Kitchen & Bath Design I
Andre and Simone were looking to renovate their main bath which needed to accommodate themselves, two children, and guests. They would like their complete remodel to include a soaker tub as well as taking a design risk. The layout was provided as part of the NKBA Student Design Competition in which certain standards and restrictions were required to be followed. This project was codesigned with a fellow student, Emilia Bielski
Design Considerations:
- Incorporate aging in place with shower and toilet walls prepped for grab bars as well as non-slip tile flooring
- Sustainability through various materials used
- Mid Century modern design spin with old Hollywood feel through the use of colors and textures
- Include proper clearances per NKBA standards

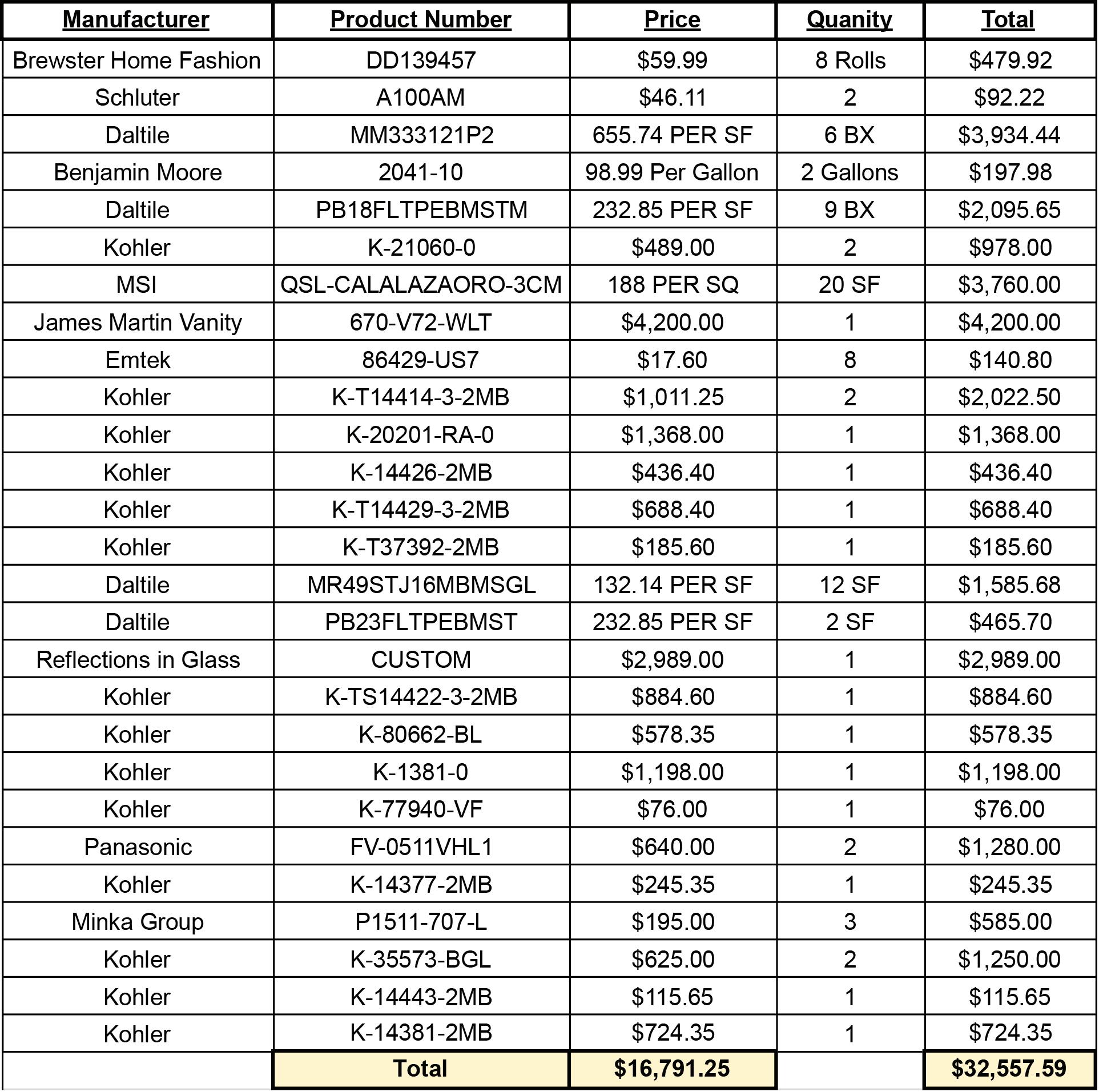

Budget provided to show products used in the space as well as pricing for each product and quantity of each product. This would be provided to the client as well as to keep for our own knowledge and organization
Drawings not to scale but representative of industry standard Drawings produced in Chief Architect, rendered in Sketchup and Enscape and enhanced in Adobe Photoshop
Plan Scale: 1/2”
1’-0”

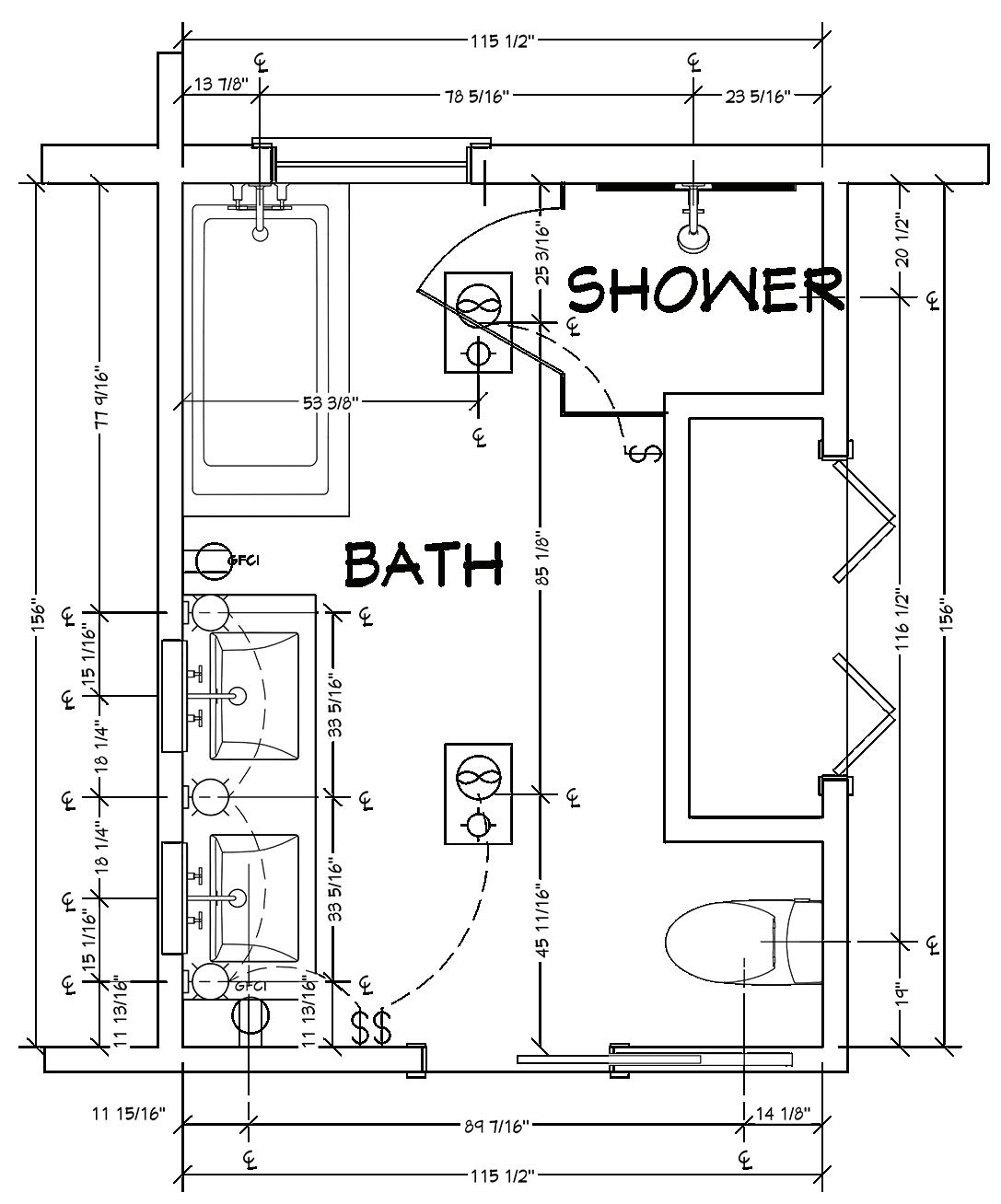

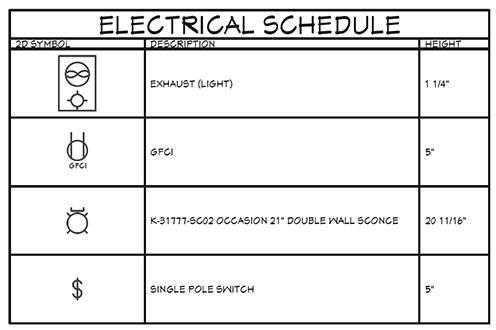

Mechanical
=
Budget Bathroom Remodel | Kitchen & Bath Design I

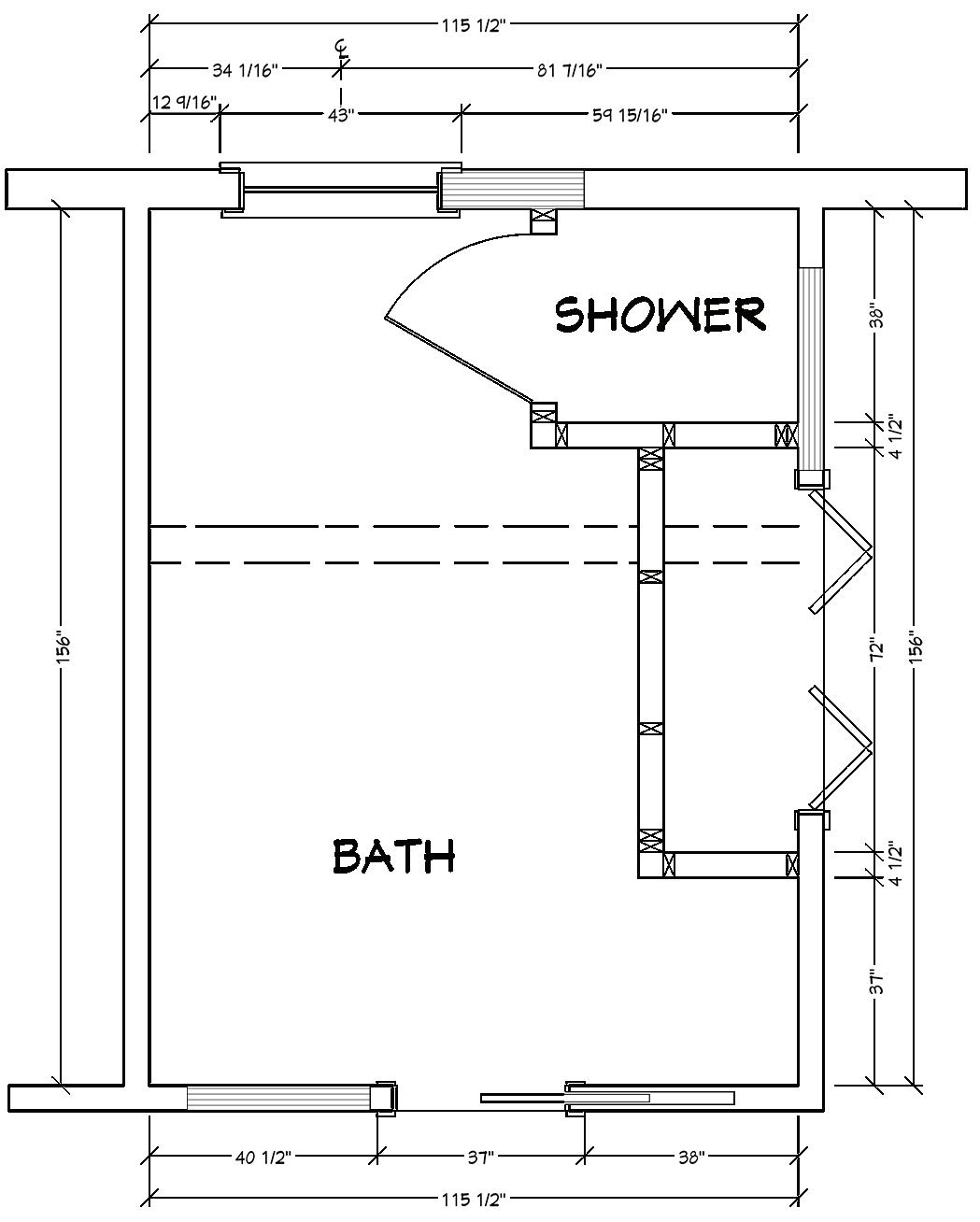

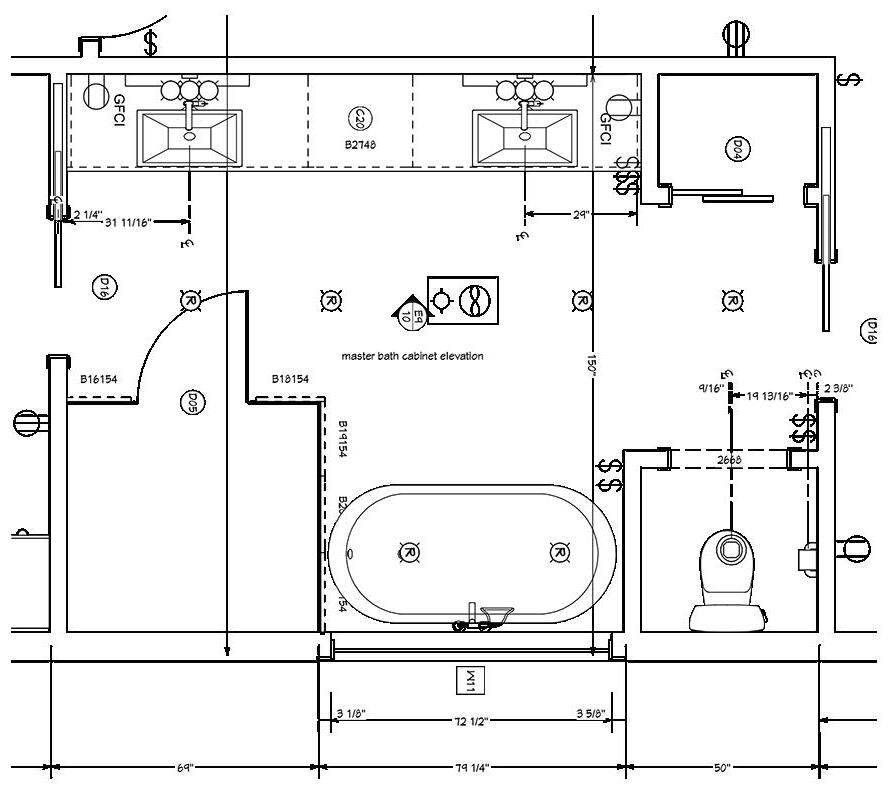

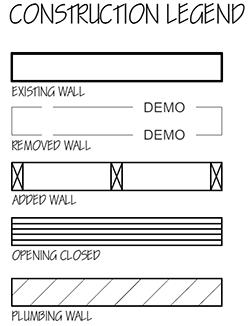

Construction Plan
Scale: 1/2” = 1’-0”
1. Allure Mesmerist - Daltile
|post and pre consumer recycled materials|

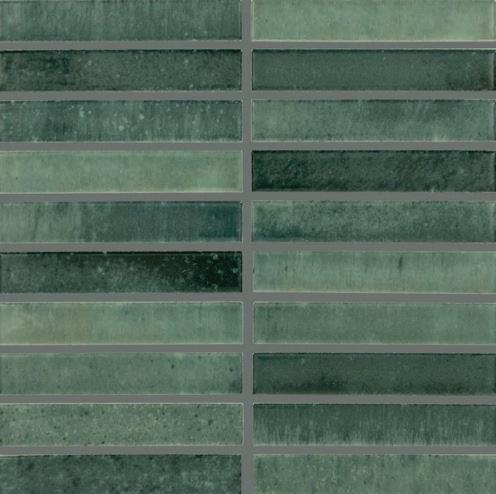

2. Miramo Reef - Daltile |post and pre consumer recycled materials and reveal imaging|
3. Eco Spec Hunter Green - Benjamin Moore |Zero VOC’s, certified asthma and allergy friendly, green seal certified|
4. Calacatta Laza Oro - MSI
|LEED and Greenguard Certified|

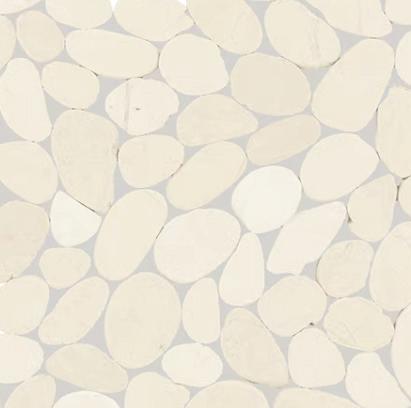

5. Pebble Oasis Icicle - Daltile
|Made in the U.S.A.|

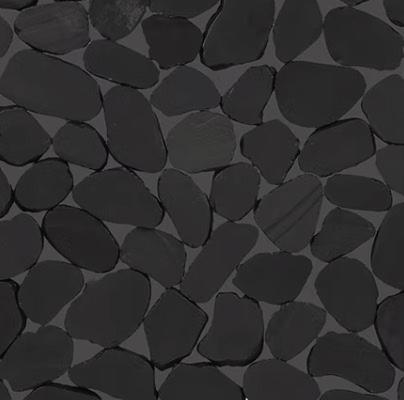

6. Pebble Oasis Stark - Daltile
|Made in the U.S.A.|
1. 2. 3. 5. 6. 4.
Kitchen & Bath Design II
This kitchen remodel was designed for the Evans Family. It is on the first level of a ranch style home. The family desired to change their cabinetry and appliances The design was inspired by a farmhouse style with a touch of cottage style included. They wanted to add a little color but not too bold. It was decided to use an off white gray with a tint of green color on the cabinets.
Design considerations:
- The design adheres to NKBA standards
- Farmhouse design with a spin of cottage included

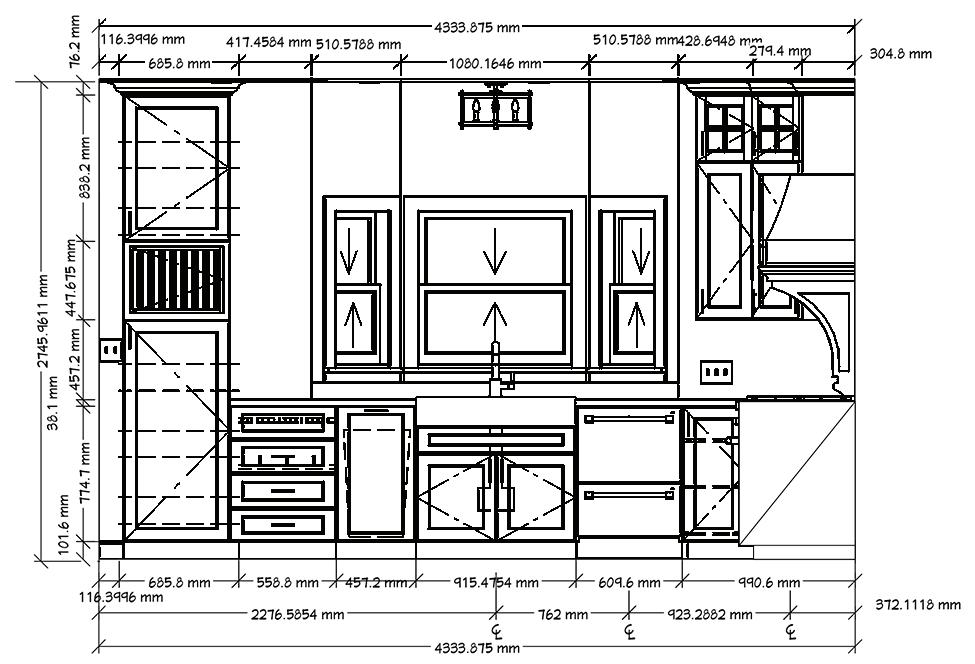

Sink Wall Elevation
Scale: 1/2” = 1’-0”

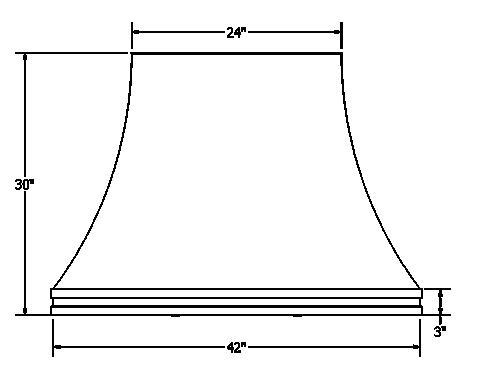

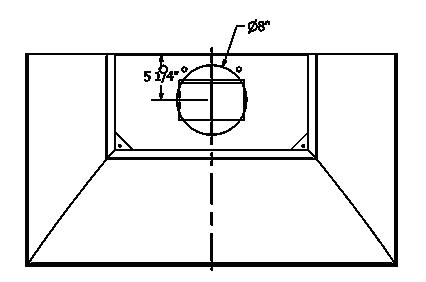

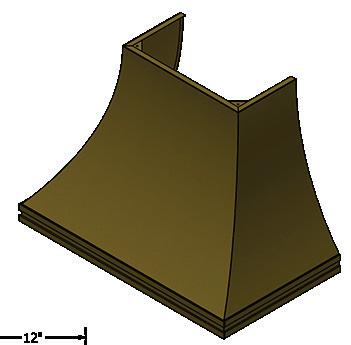

- Custom hood was designed with the proper codes and proper CFM per the range being used Floor
Elevations
Scale: 1/2” = 1’-0”
The elevations provided are to show where cabinets and materials are placed. It is also provided to show cabinet detail. We added detail lines on cabinets that have organization within the cabinet. You can see in the range wall elevation there is a spice rack in a wall cabinet and a lazy susan in the corner cabinet.
Section
1 3/4” = 1’-0”
Scale: 1/2” = 1’-0”
Kitchen Remodel
Kitchen & Bath Design II Drawings available upon request | Drawings not to scale but representative of industry standard | Drawings produced and rendered in Chief Architect and enhanced in Adobe Photoshop

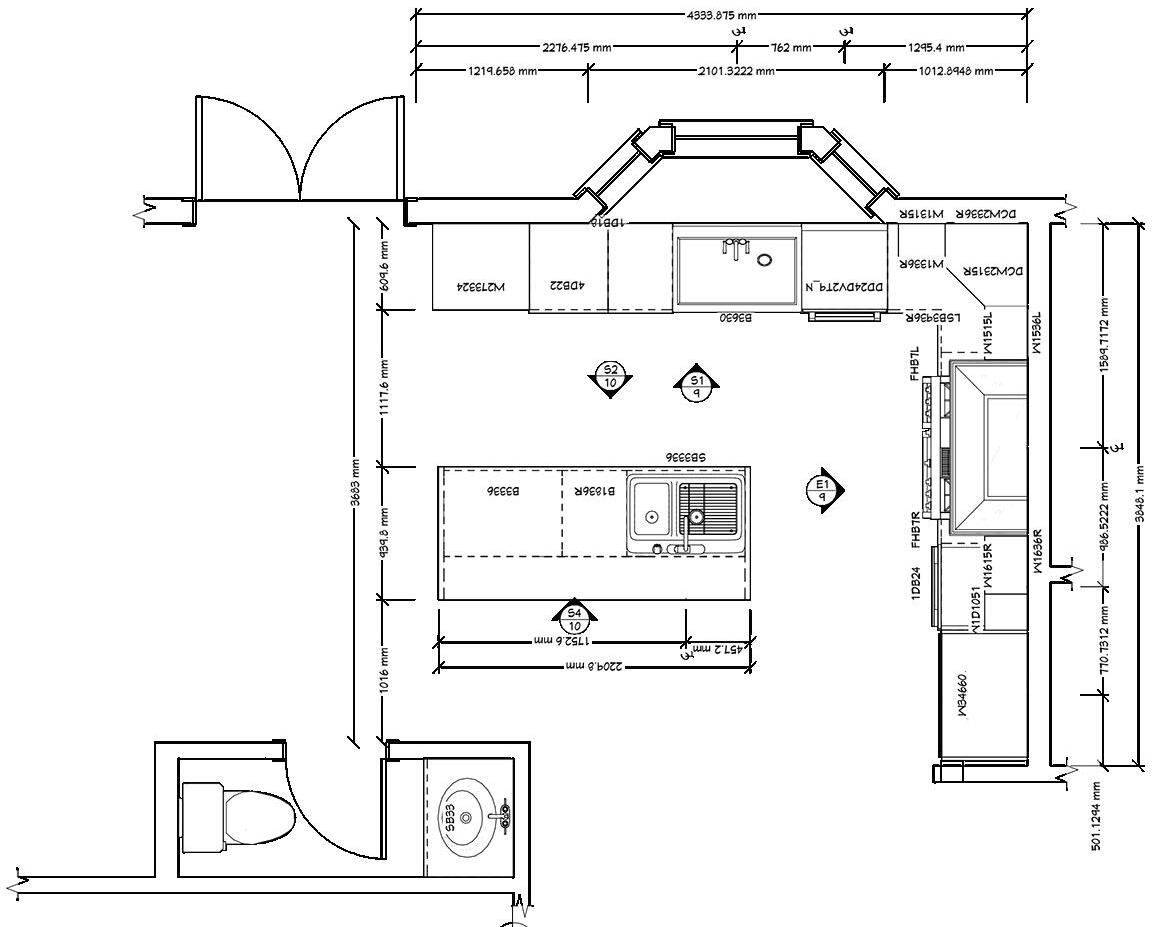

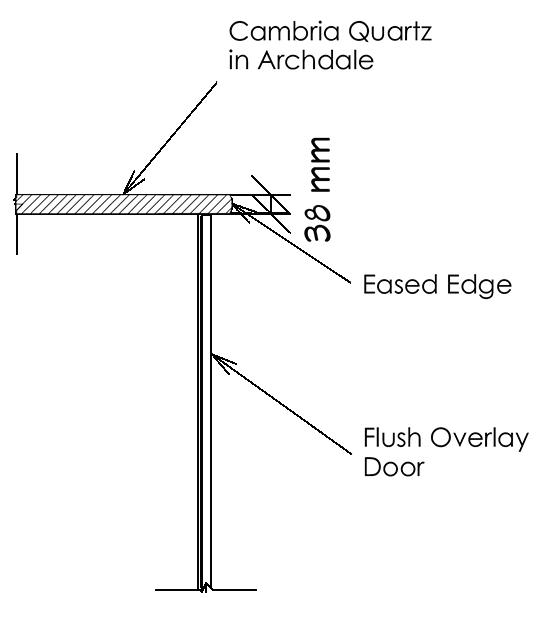

Countertop
Plan
Plan

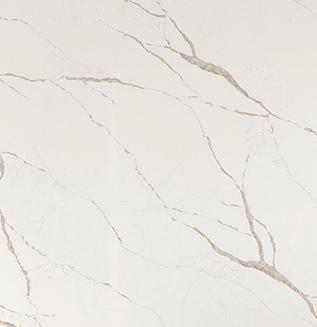

Cambria Archdale Quartz
Countertop
Scale:
Building Information
Modeling
AutoDesk Revit
Chief Architect

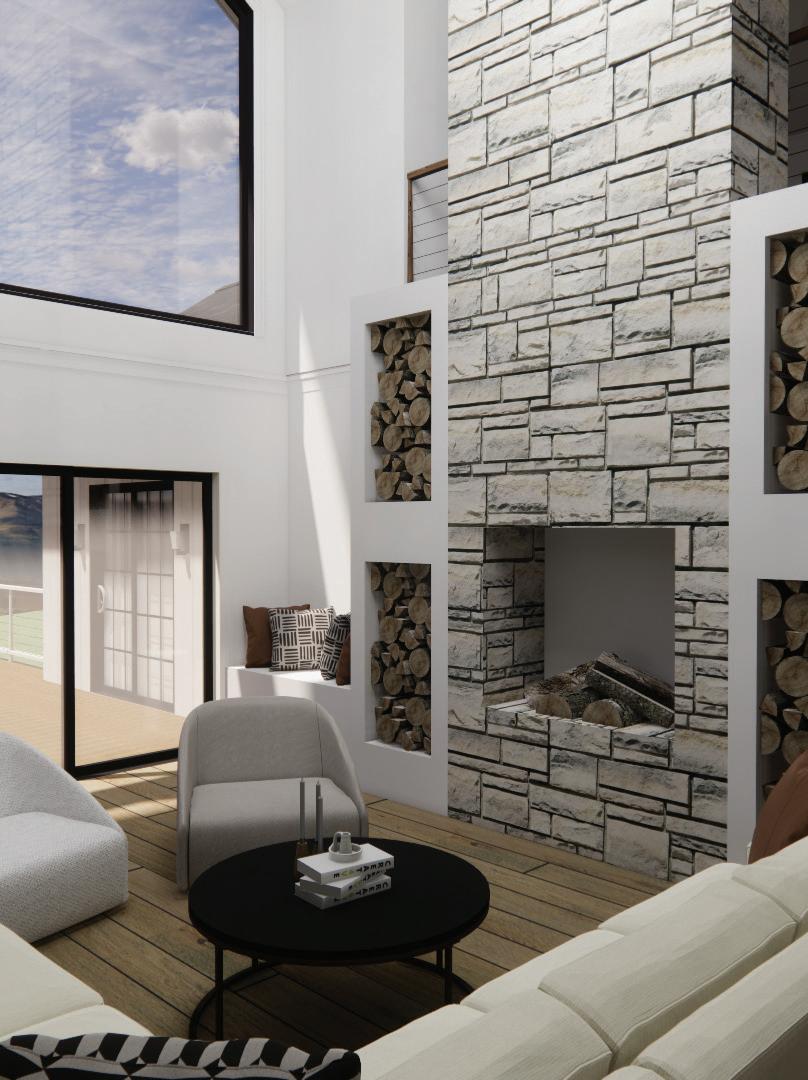

Autodesk Revit is a Building Information Modeling (BIM) software that aides in the production of building designs. Starting with detailed 2D construction drawings that simultaneously produce 3D models. Items are placed with parametric values giving it the ability to coordinate changes and maintain consistency through the entirety of a project. This software has the ability to create photorealistic renders through the software cloud or through plugins such as Enscape. Autodesk Revit also has the capability to create schedules that keep up with the changes made to different components within a project.
Chief Architect is a Building Information Modeling (BIM) software that is geared towards residential spaces with NKBA standards implemented. This software gives the ability to create anything from detailed 2D drawings, detailed elevations, to 3D models.

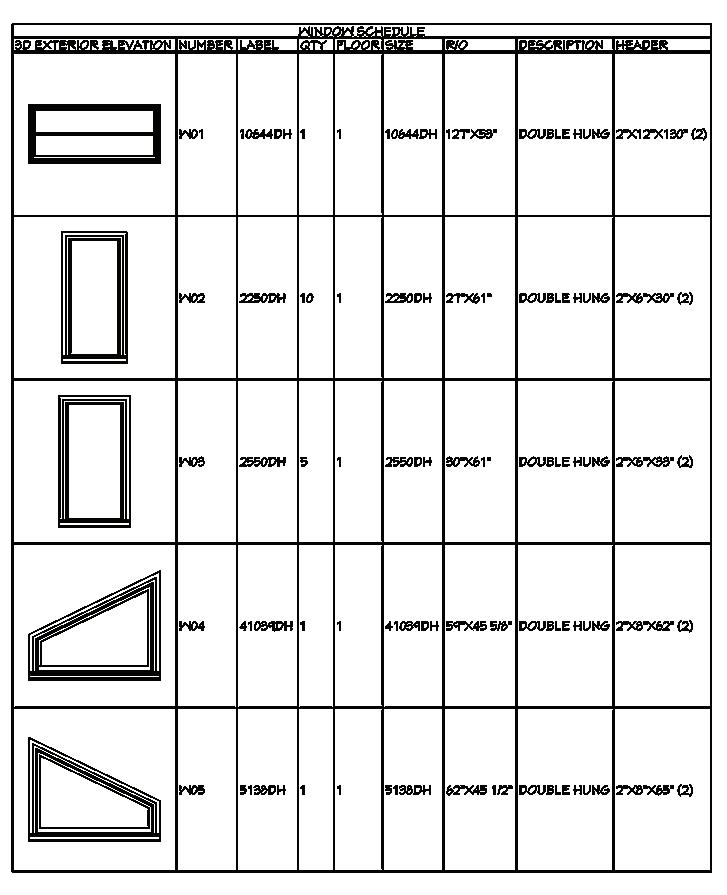

Chief Architect is able to create photo realistic renders through their ray trace feature within the software. This software is able to create schedules along with various detailed drawings of the structure of a home.

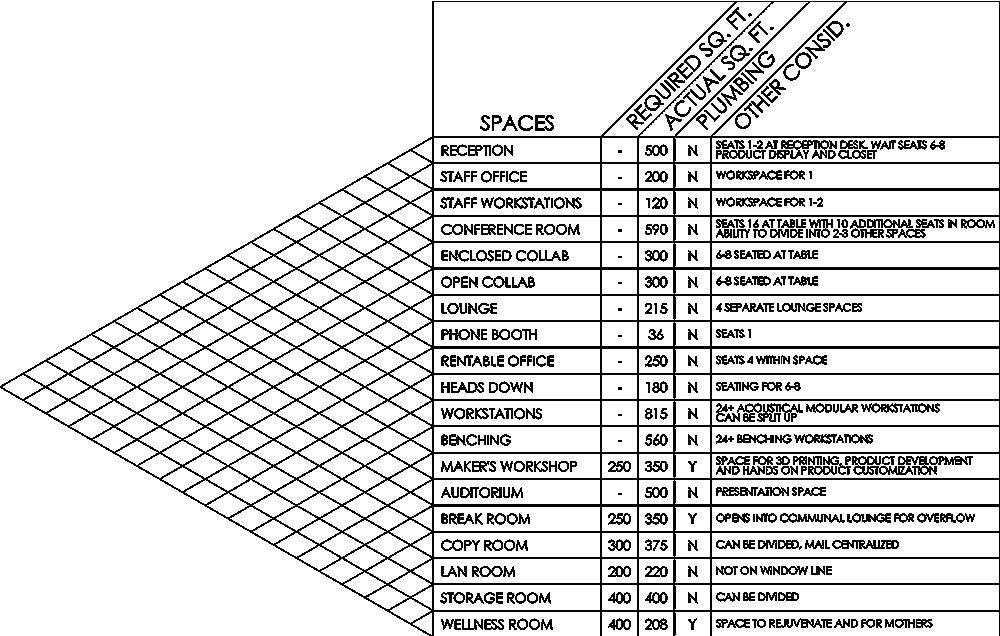

Space programming by department is predetermining required spaces. The project began by implementing the names and square footage. Once the floor plan was drafted a formula was implemented to differentiate between the required square footage and the actual square footage provided by the plan.
Autodesk Revit

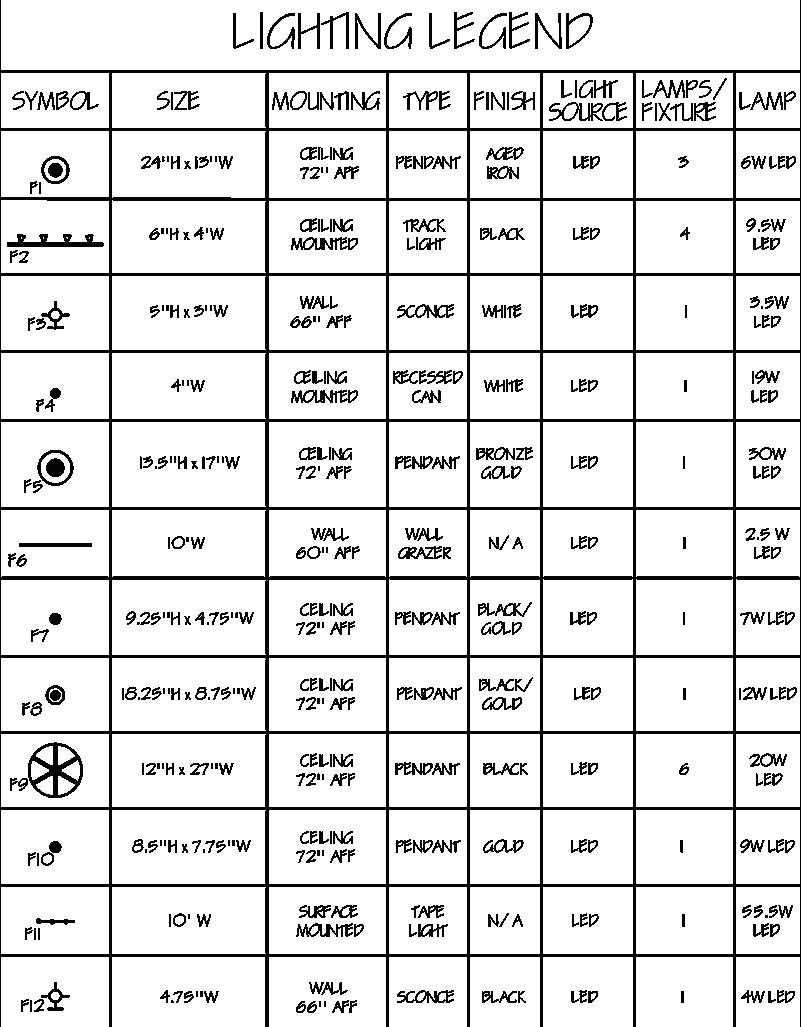

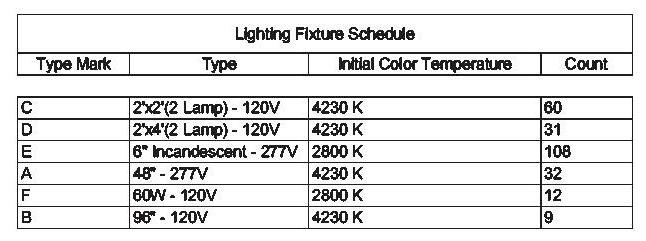

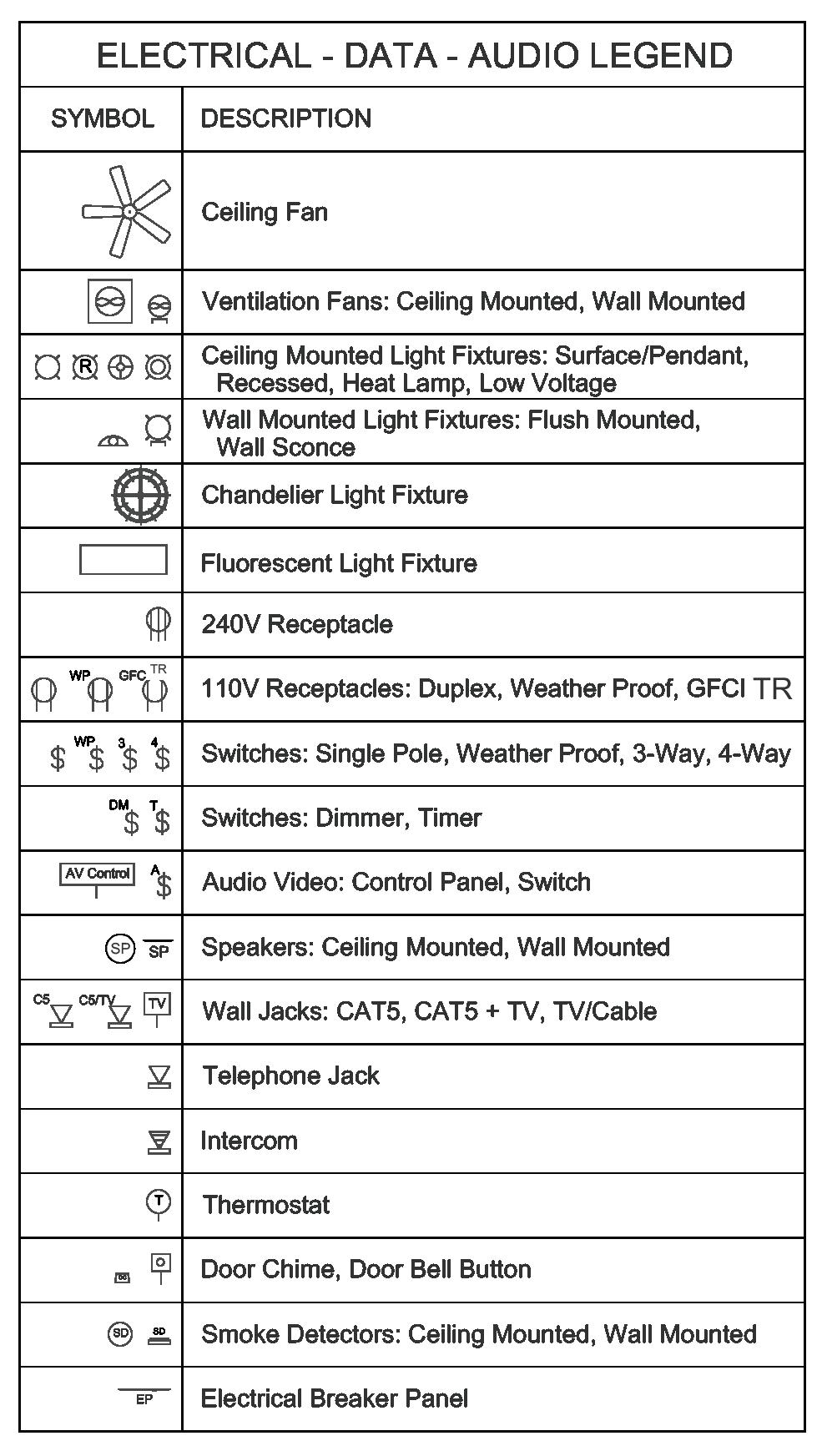

First Floor Lighting Plan

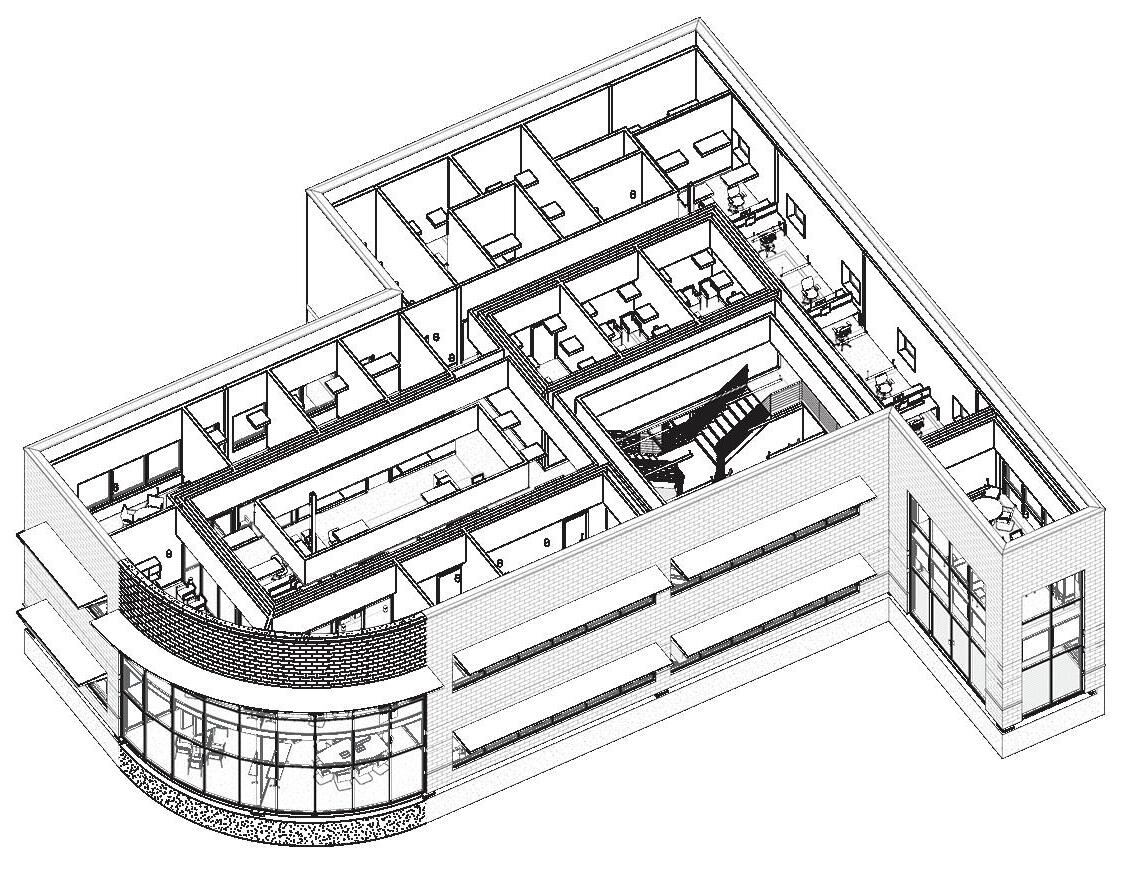

Isometric - Axonometric Scale: 1/32” = 1’-0”
Building Information Modeling Drawings not to scale but representative of industry standard Drawings produced in Autodesk Revit and rendered in Enscape
Sample of Programming
1/8” = 1’-0”
Scale:
Conference Room
Master Bath Floor Plan
Chief Architect Building Information Modeling
Drawings not to scale but representative of industry standard Drawings produced in Chief Architect Master Bathroom Upstairs Bathroom
Scale: 1/2” = 1’-0”

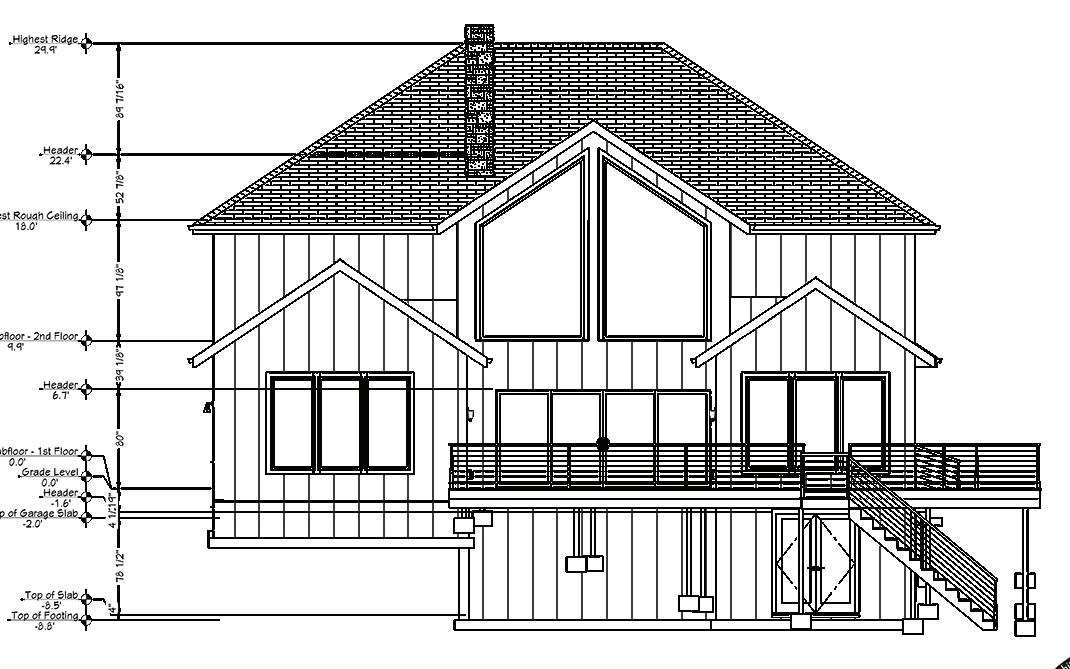

Exterior Elevation
Scale: 1/2” = 1’-0”
Project Scope
Adding a bathroom to a basement in ground plumbing is already existing. Add toilet, countertop, faucet, vanity, vanity light and exhaust fan, and shower. Fan will be ducted directly to the exterior. All fixtures will be water sense compliant. Handheld shower will be installed with a vacuum breaker. Add light protect. All lighting will comply with International Energy Conservation Code. Add GFCI/T.R. outlet. All 125 volt single phase 20 amp receptacles will be tamper resistant and installed with an arc fault circuit interrupter. Any existing walls that are opened will be properly insulated with R-15 insulation.
Downers Grove Building Codes:
2021 International Building Code
2021 International Residential Code
2020 National Electric Code
2021 International Mechanical Code
2021 International Fuel Gas Code
2021 International Energy Conservation Code with State of Illinois amendments
2021 International Property Maintenance Code
2021 International Fire Code
2021 International Swimming Pool and Spa Code
2015 Life Safety Code - NFPA 101
State of Illinois Accessibility Code
State of Illinois Plumbing code
Downers Grove Zoning Ordinance
Downers Grove Stormwater & Flood Plain Ordinance
Existing Plan
Scale: 1/2” = 1’-0”

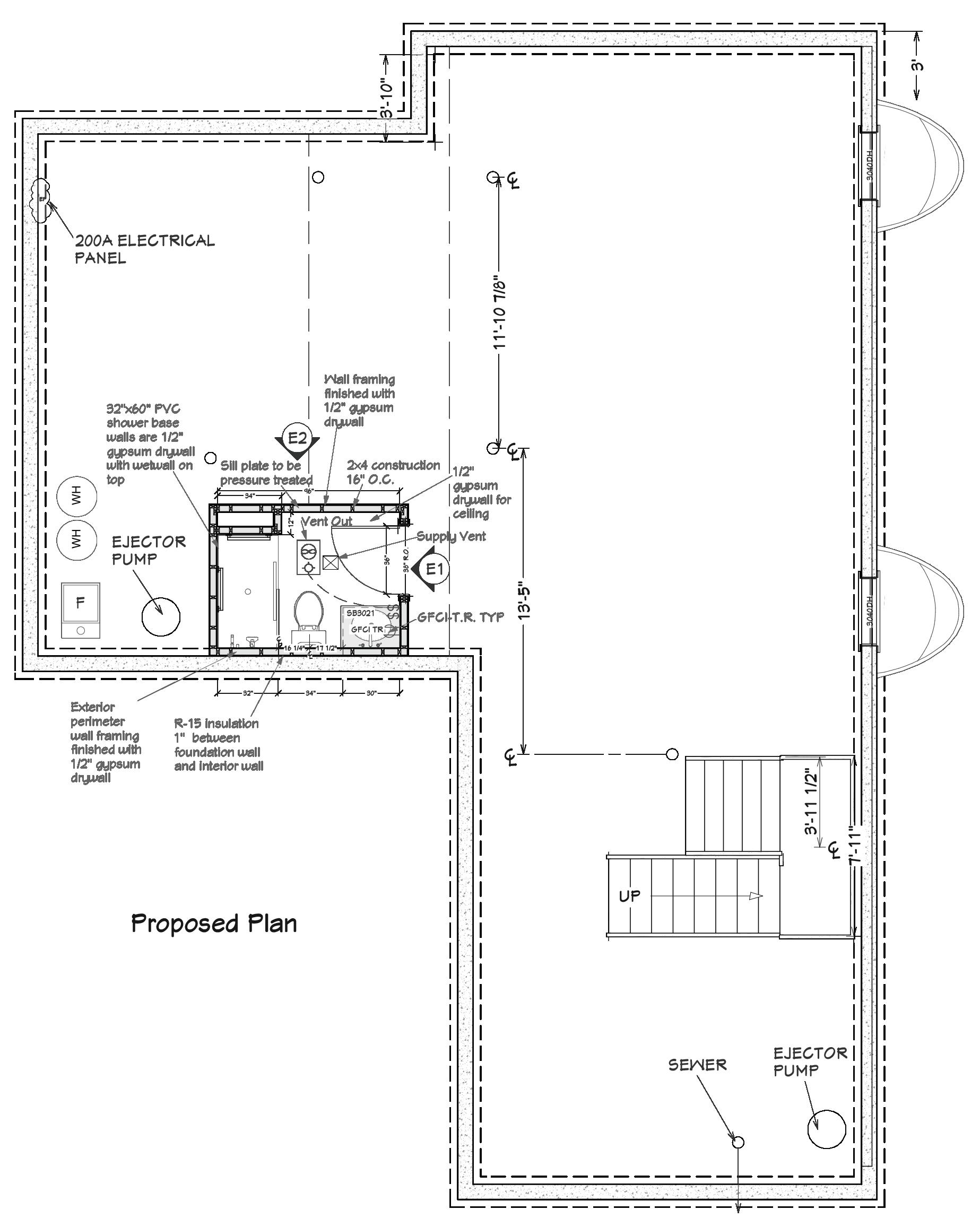

Proposed Plan
Scale: 1/2” = 1’-0”
Drawings not to scale but representative of industry standard | Drawings produced in Chief Architect, rendered in Sketchup and Enscape and enhanced in Adobe Photoshop This
along side Americraft Inc.
Permit Plan
project was completed
Sterling Studios

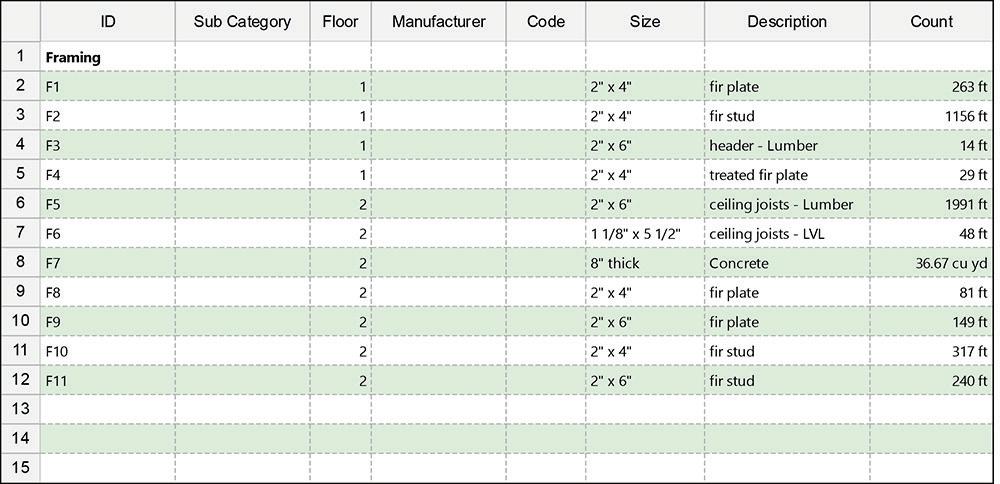

Lumber List
The lumber list was created in Chief Architect. The list was then provided to the lumber contractor so they would know the required material specifications for new walls to be built.

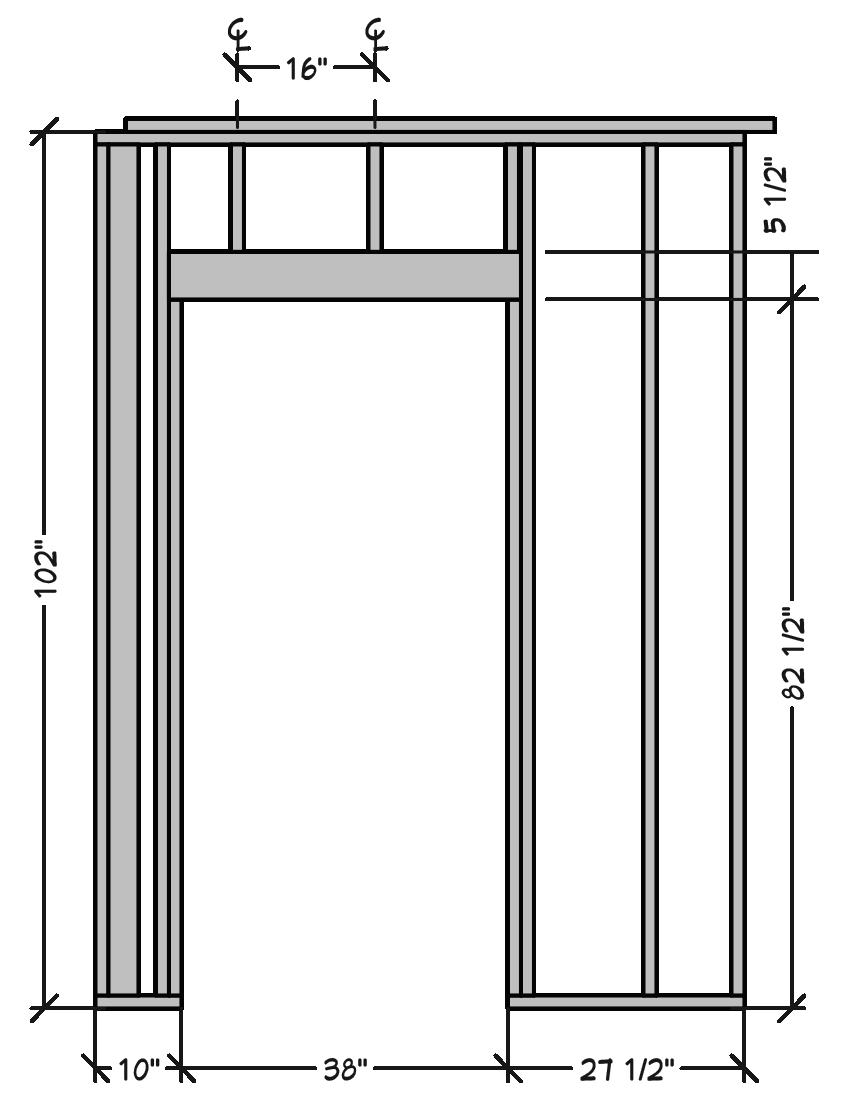

Wall Framing Elevation
The wall framing elevation was provided on the permit plan and submitted to the municipality. The municipality needs to approve that the construction of the new walls will be built to code to ensure the safety of the home owners and others.
Wall Framing Elevation
Scale: 3/4” = 1’-0”
3 Season Room Floor Plan
Scale: 1/2” = 1’-0”

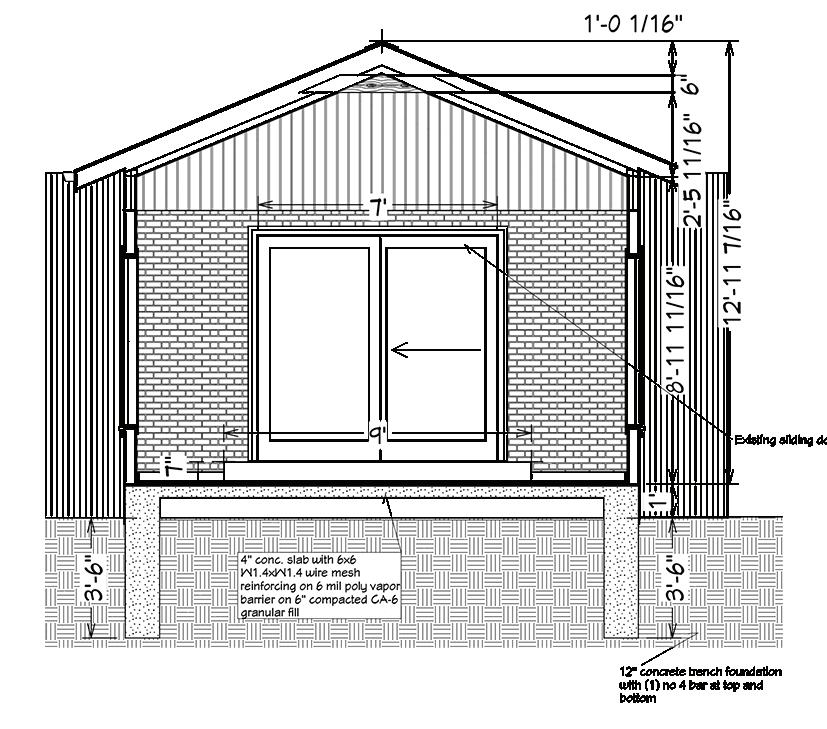

Section Detail
Scale: 1/2” = 1’-0”
Katherine Evans graduated from the College of DuPage with an Associates of Applied Science in Interior Design along with a Lighting Certificate, a Computer Applications Certificate, and a Kitchen and Bath Design Certificate. She prides herself on her ability to learn, attention to detail, organization, and communication skills. She has a passion to create spaces that improve the wellbeing of others and create designs that are influenced by research.
During her time at the College of DuPage she was a member of NKBA.
She served as the Secretary for COD’s NKBA Student Chapter. She also had the opportunity to give back to those interested in interior design by participating as a judge for the Family, Career and Community Leaders of America (FCCLA) Interior Design High School Competition.
She is proficient in software programs such as Autodesk AutoCAD and Revit, Chief Architect, Sketchup with plug-ins such as Enscape and V-Ray, and Adobe Photoshop and InDesign. Katherine is skilled in 2D technical drawing, 3D modeling and rendering, lighting calculations, space planning, material selection, and product specifications.
