PORTFOLIO

SELECTED WORKS 2021 - 2024

KATHARINA NIESING

Location: E-Mail:

LinkedIn: 52064 Aachen

katharina.niesing@web.de

https://www.linkedin.com/in/katharina-sophie-niesing-8b7033100/

EDUCATION

since 10/2022 Master of Science in Architecture at RWTH Aachen - scholarship „Deutschlandstipendium“ by Ford-Werke GmbH 2023-2024 - scholarship „Deutschlandstipendium“ by Ed. Züblin AG 2024-2025

02/2024 – 03/2024 aac Academy for Architectural Culture by gmp Architekten , Hamburg - International workshop with the task of designing a ‘City for Dreams’ on the film production site Hayfilm in Yerevan, Armenia.

09/2023 – 01/2024 Erasmus Exchange, M.Sc. Architecture at Delft University of Technology

10/2022 – 05/2023 Participant of the IDEA League Challenge Program - Interdisciplinary Exchange program between the five leading Eurpean universities in technology and science: TU Delft, ETH Zürich, Politecnico di Milano, Chalmers and RWTH Aachen.

10/2019 – 09/2022 Bachelor of Science in Architecture at RWTH Aachen - final grade 1.5: Dean’s List (among the top 5%)

WORK EXPERIENCE AND INTERNSHIPS

08/2024 – 10/2024 Internship at gmp GmbH , Hamburg - Working on the design (LPH3) of a subway station in Hamburg.

04/2023 – 07/2023 Internship at illiz architektur GmbH , Zürich - Developed two prize-winning designs for school extensions.

11/2022 – 02/2023 Working student at Borgmann Manke Architekten und Ingenieure - Working in construction management by carrying out quality controls, audits, and inspections.

03/2020 – 04/2020 Internship at Stuckateurmeister Sascha Buchenthal , Aachen

09/2021 – 10/2021 - Working in dry construction on different construction sites.

07 –08/2019 Internship at Walter Gebhardt Architekt , Hamburg - Insights into the activities of an architect.

SKILLS

Languages German (Mother tongue), English (fluent), French (basic)

Microsoft Office Word, Powerpoint, Excel

Adobe Cloud Photoshop, InDesign, Illustrator, Lightroom

CAD/BIM AutoCad, ArchiCad, Revit, Rhino, Grasshopper

Rendering Blender, Enscape, Lumion

02. HUIS AAN DE MARKT

04. THE CLIMBING FRAME

03. ELBLINK

01. IT TAKES A VILLAGE TO RAISE A CHILD.

ELEMENTARY SCHOOL FOR ANTAKYA

MA 2. Semester WS 2023/2024

University: TU Delft

Location: Antakya, Turkey

Chair for Architectural Engineering

Supervisors:

Job Schroën, Freek Speksnijder

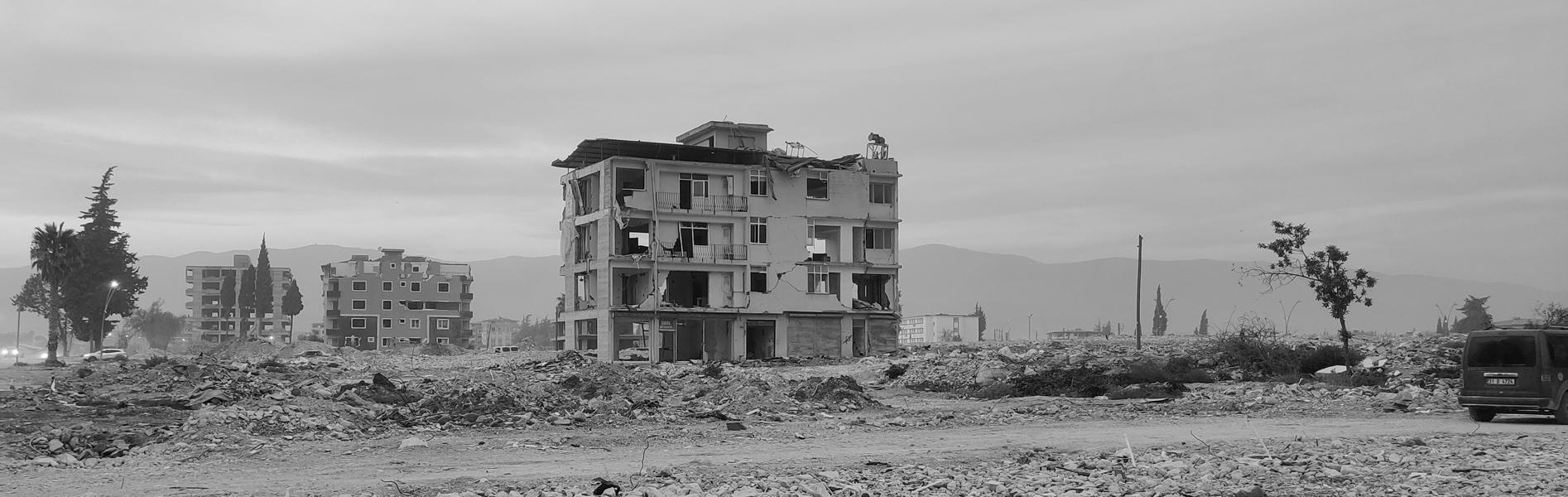

The devastating earthquake in Antakya on the 6th of February 2023 did not just destroy buildings. It destroyed communities, neighbourhoods, and families. Although those who were lost can never be replaced, the remaining need a space to heal and rebuild.

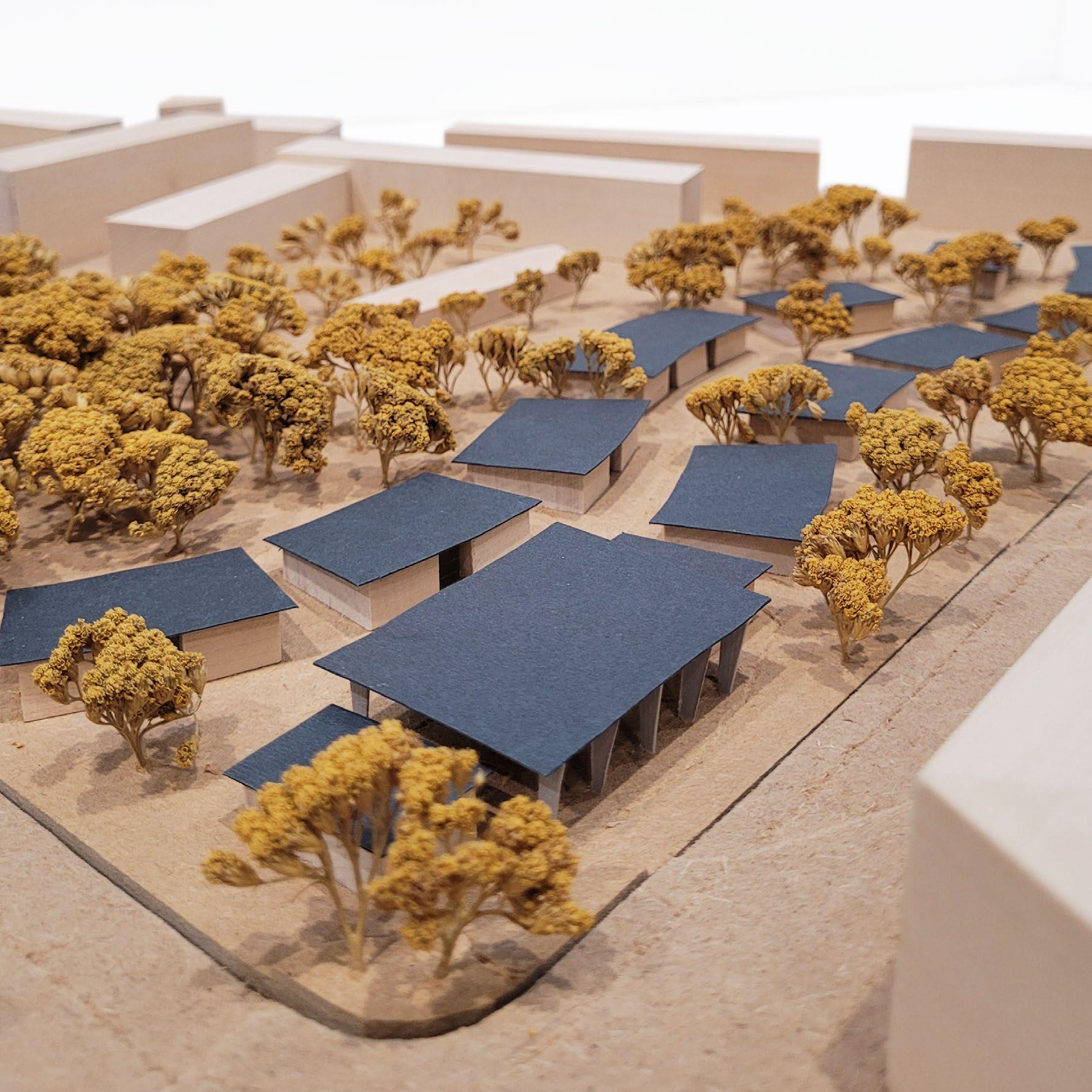

The design “It Takes a Village to Raise a Child.” is more than just an elementary school. To involve the local community, its facilities will be open and shared with residents from the area while catering to a child’s every need. Children love to play “grown-ups”. Building a school with the structure of a village gives them a safe space fit to their scale that calls for independent exploration and empowers them to cope with the experienced Trauma by regaining control of their surroundings.

Like a village, the school will not be a finished result, but rather a growing process that can adapt to the needs of its users. Currently, only a few people live in the destroyed city, so only a few classrooms are needed to continue the education of the remaining children. However, as more people return to the area, the demand for space will inevitably increase.

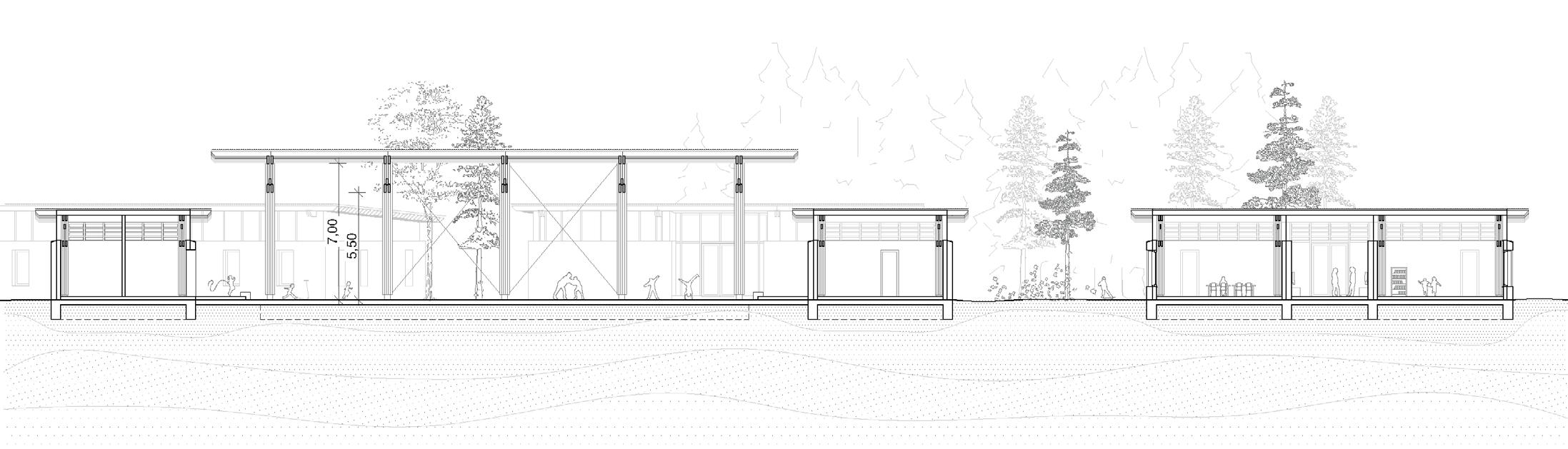

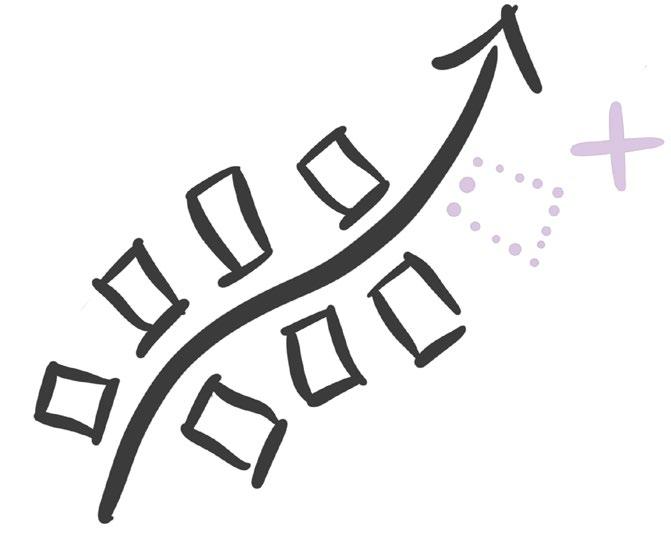

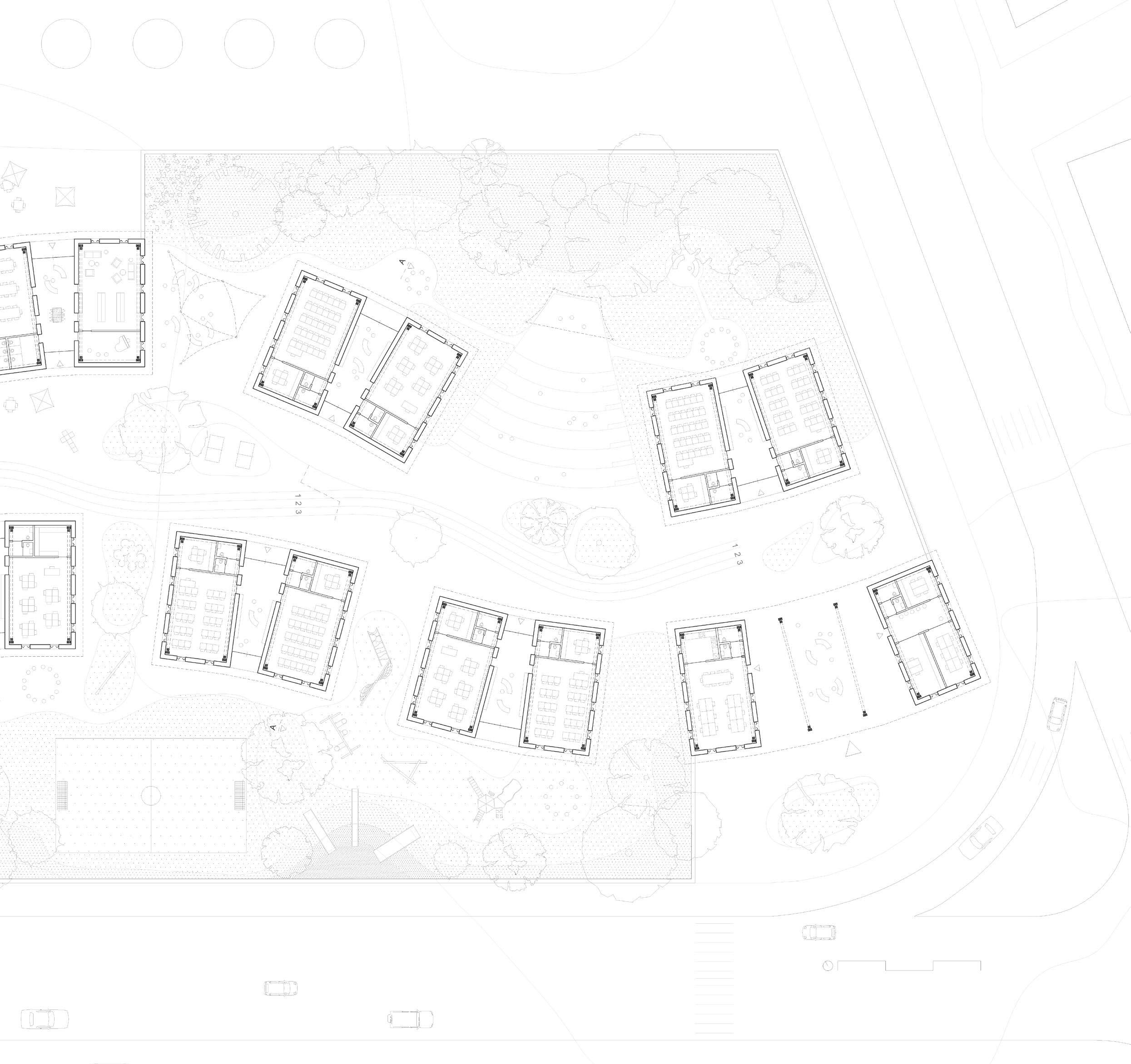

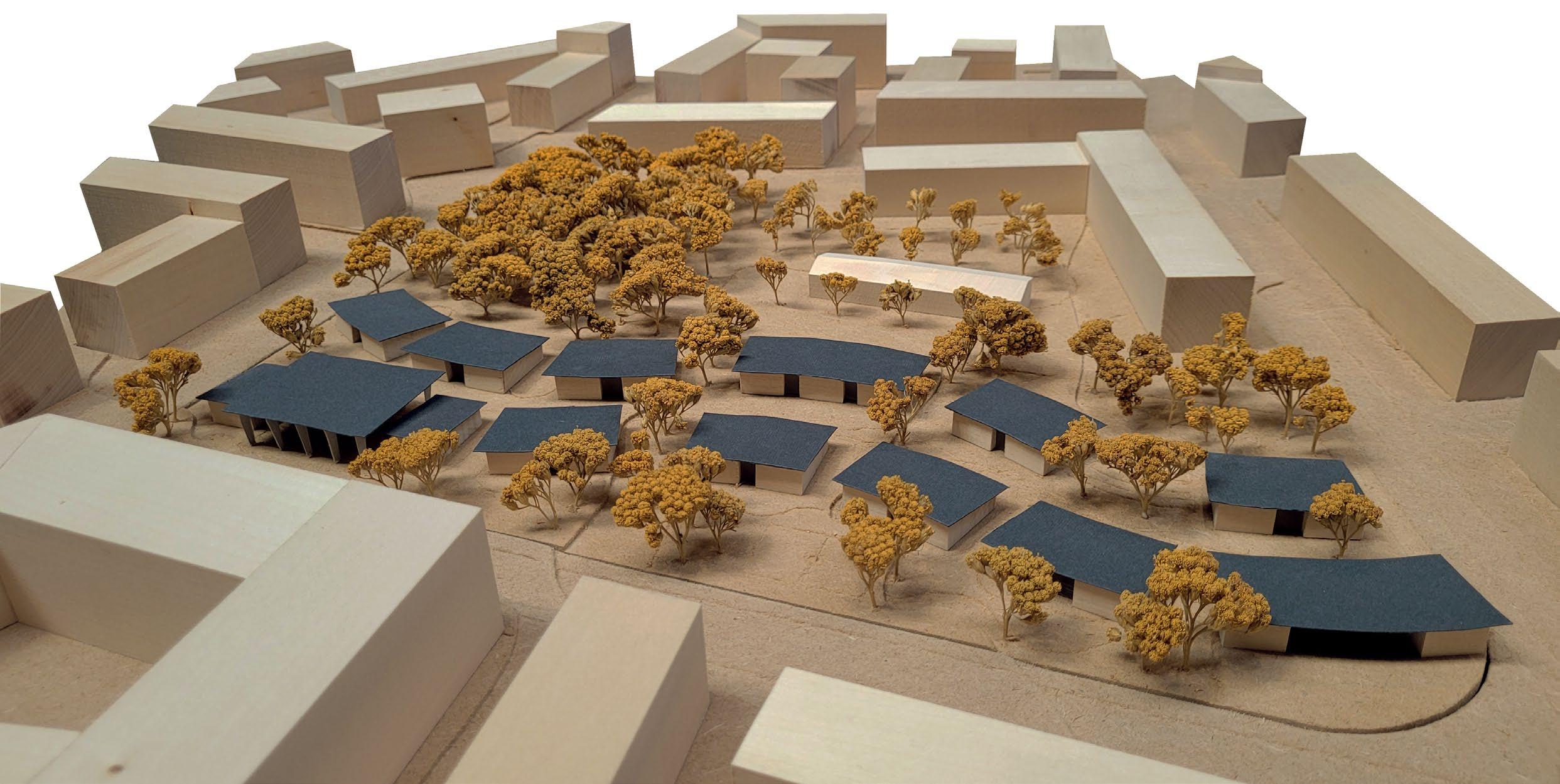

To meet this changing demand, the design proposes a modular structure that can be repeated multiple times to house different functions. The rectangular and trapezoidal modules can be either kept open, covered, transparent or solid, thus creating an interesting sequence of spaces along a village road.

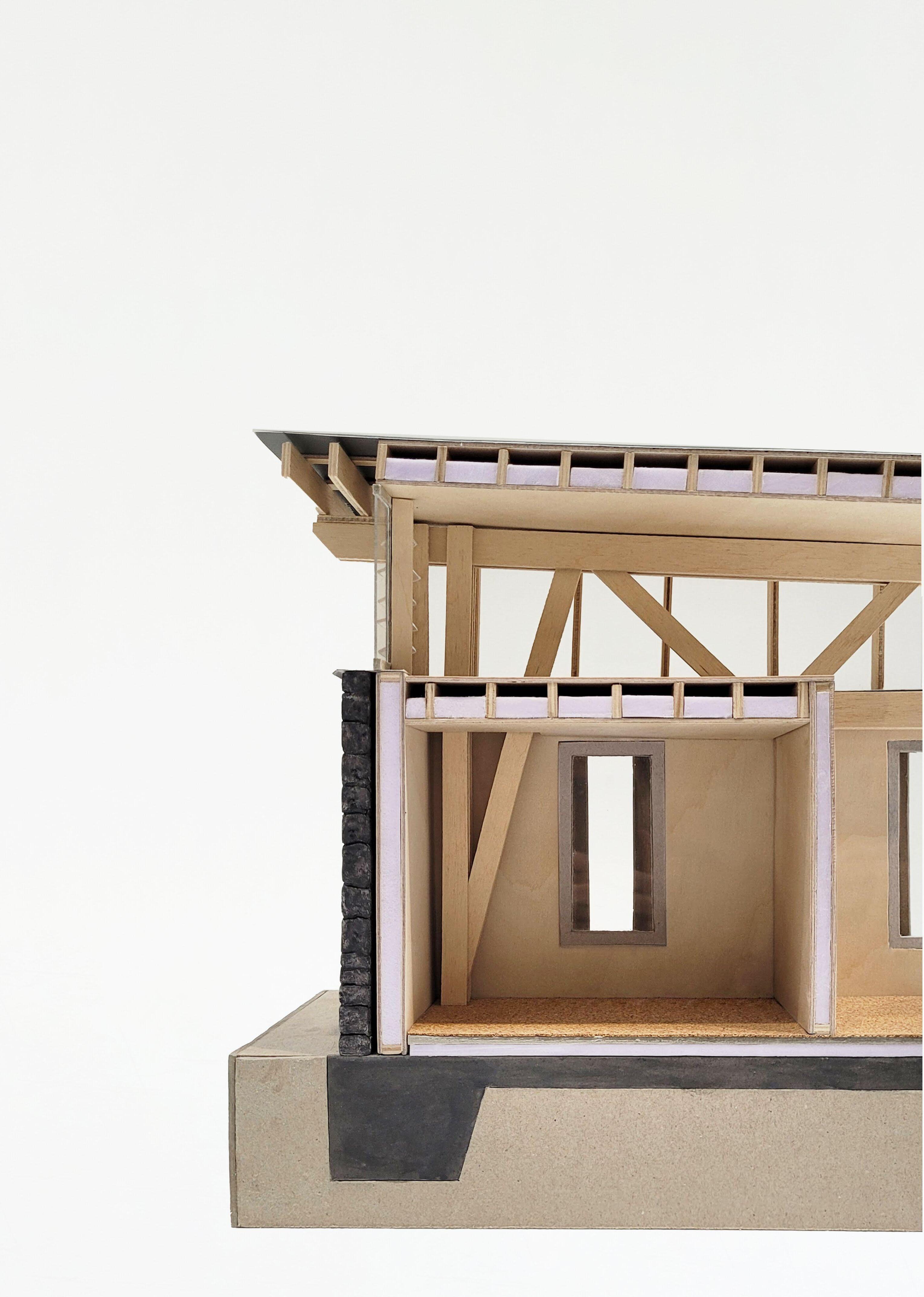

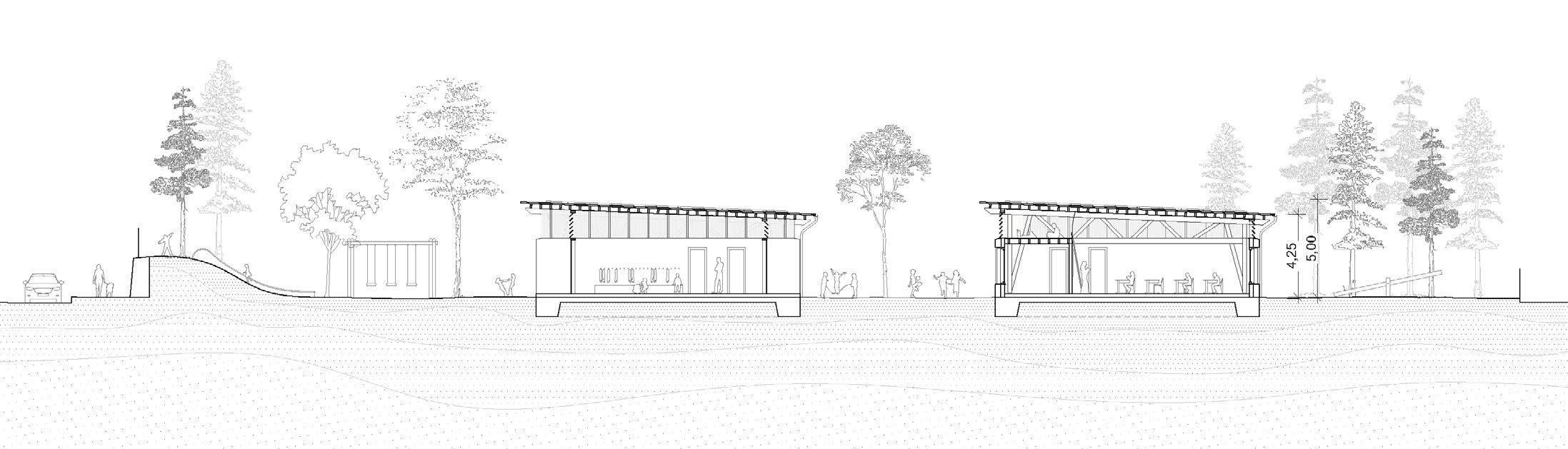

IT TAKES A VILLAGE TO RAISE A CHILD.

ROOF CONSTRUCTION

Wood planking 25mm

Insulation, Cellulose 16mm

Beam, glued laminated timber 75x240mm

vapor barrier 2mm

planking 20mm

battens 20/30mm

counter battens 20/30mm

corrugated iron 27mm

photovoltaic system on brackets

gutter d170mm

downpipe d100mm

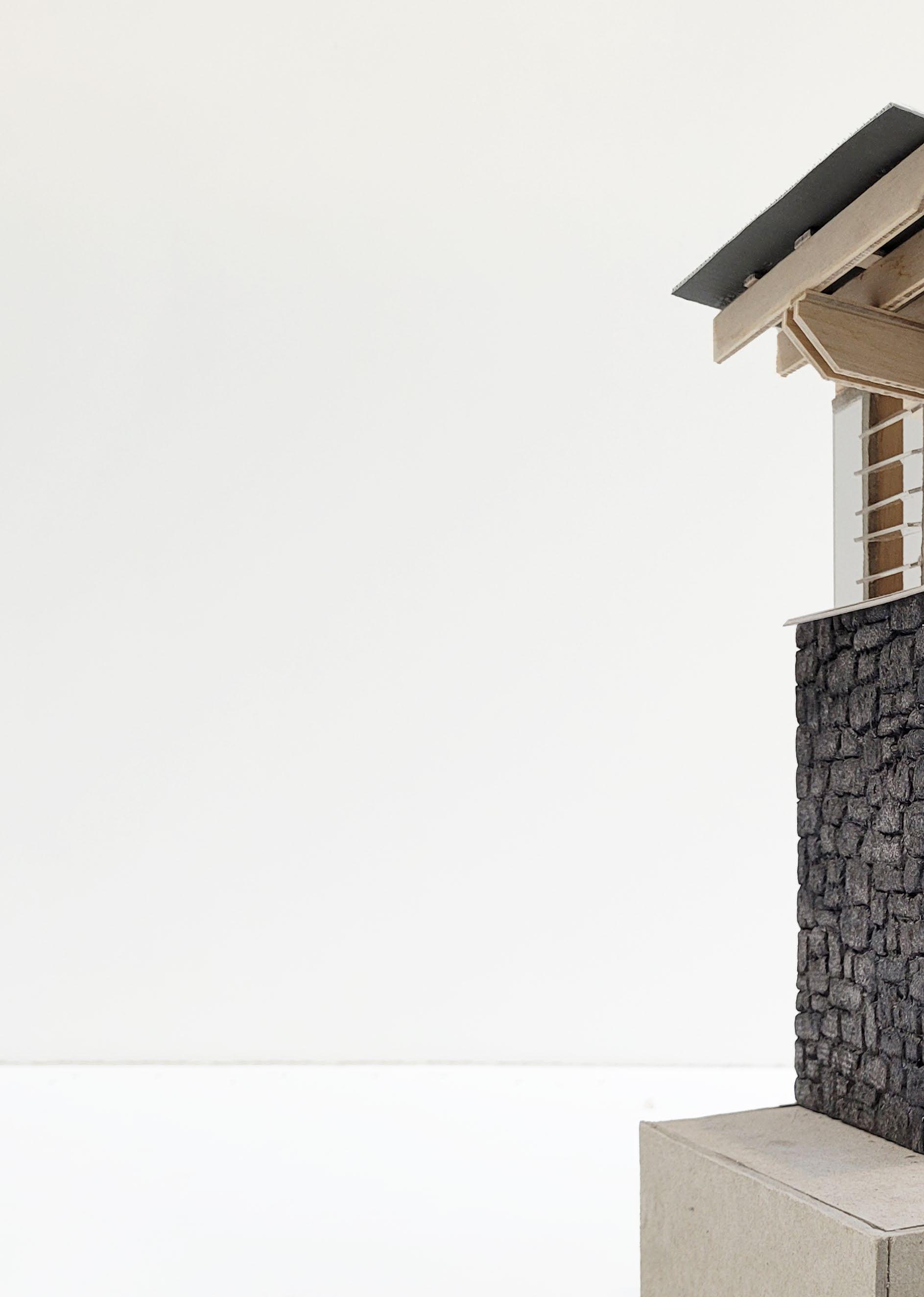

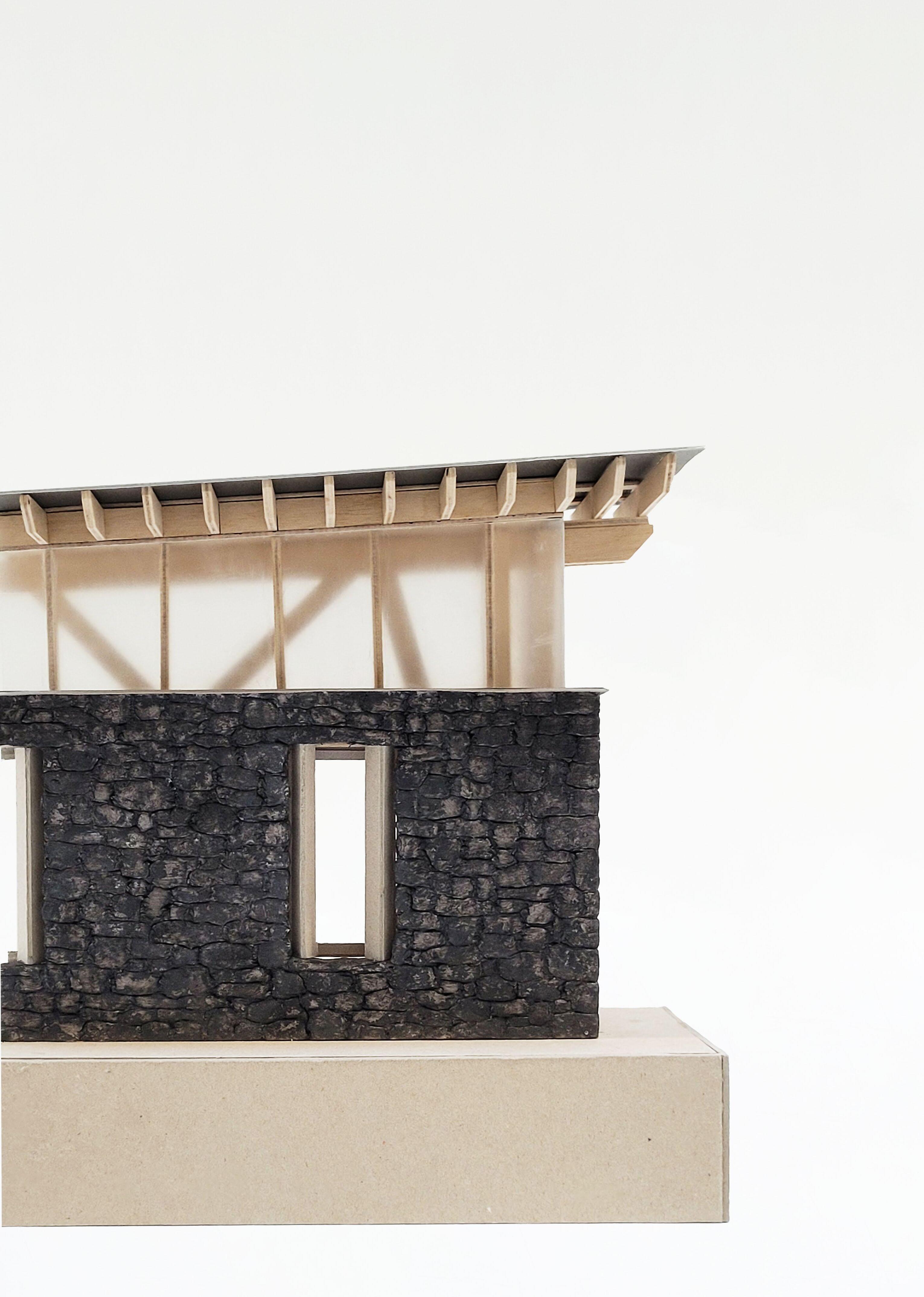

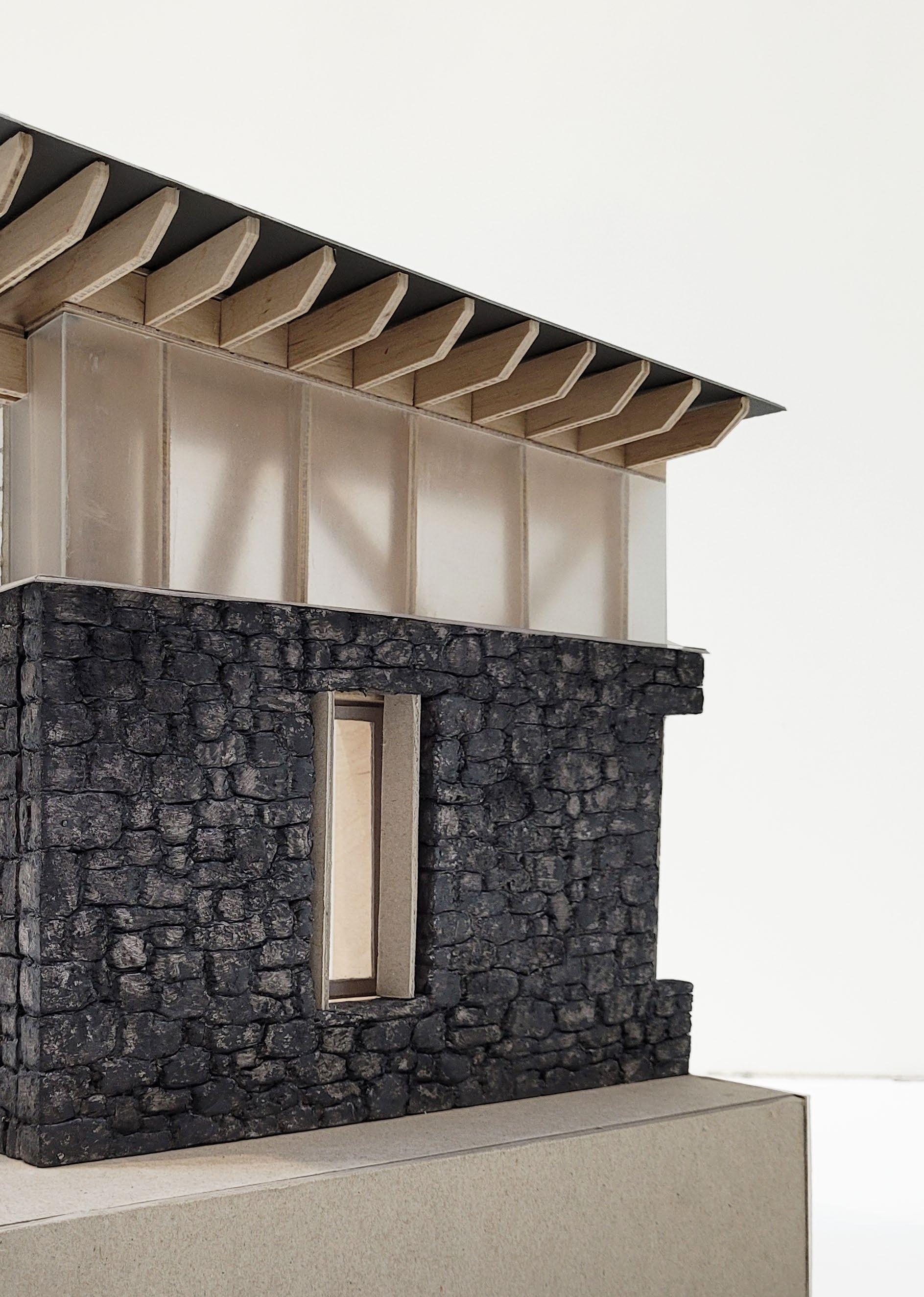

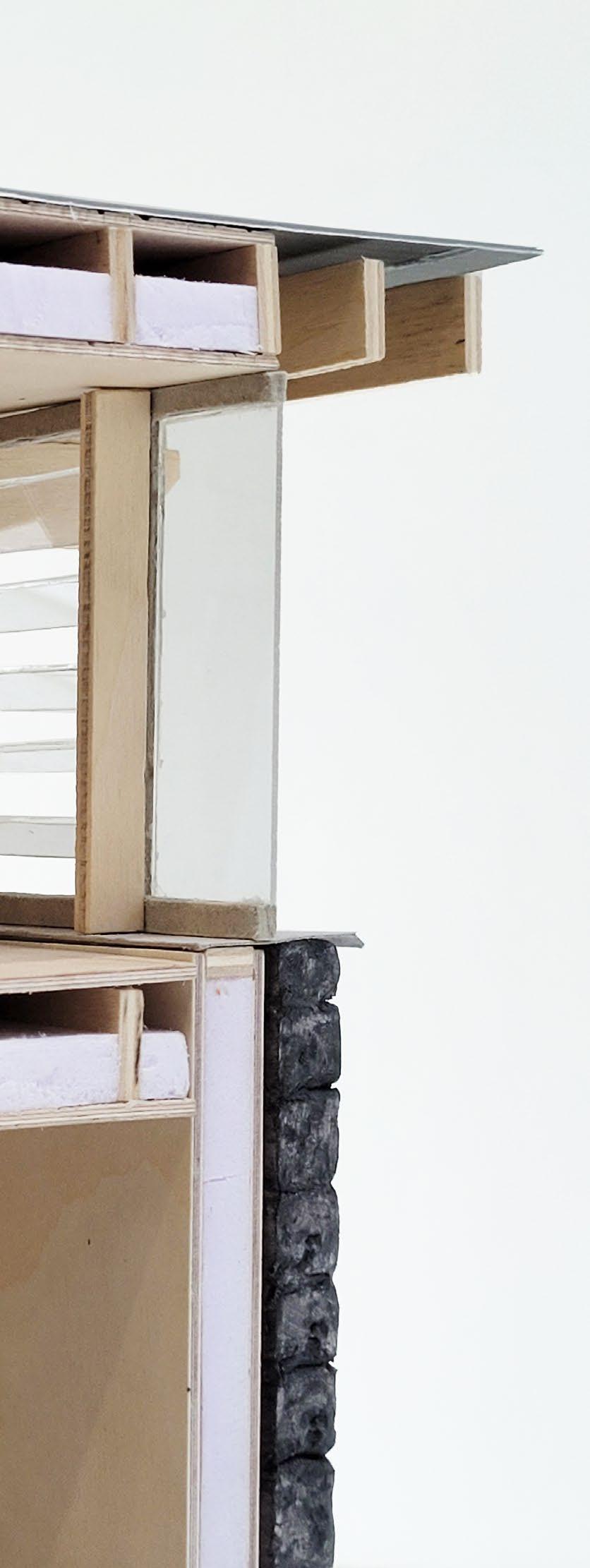

WALL CONSTRUCTION

Stone wall 250mm

vertical mortar joint 70% free for ventilation

steel cover plate 5mm

wall anchor air layer 50mm planking wood 20mm

vapor barrier 2mm

Insulation, cellulose 160mm with wooden framework 75/160mm planking wood 20mm

wooden aluminum windows with double glazing 20mm and wooden folding shutter in steel frame

Louvre windows held in mullion and transom construction

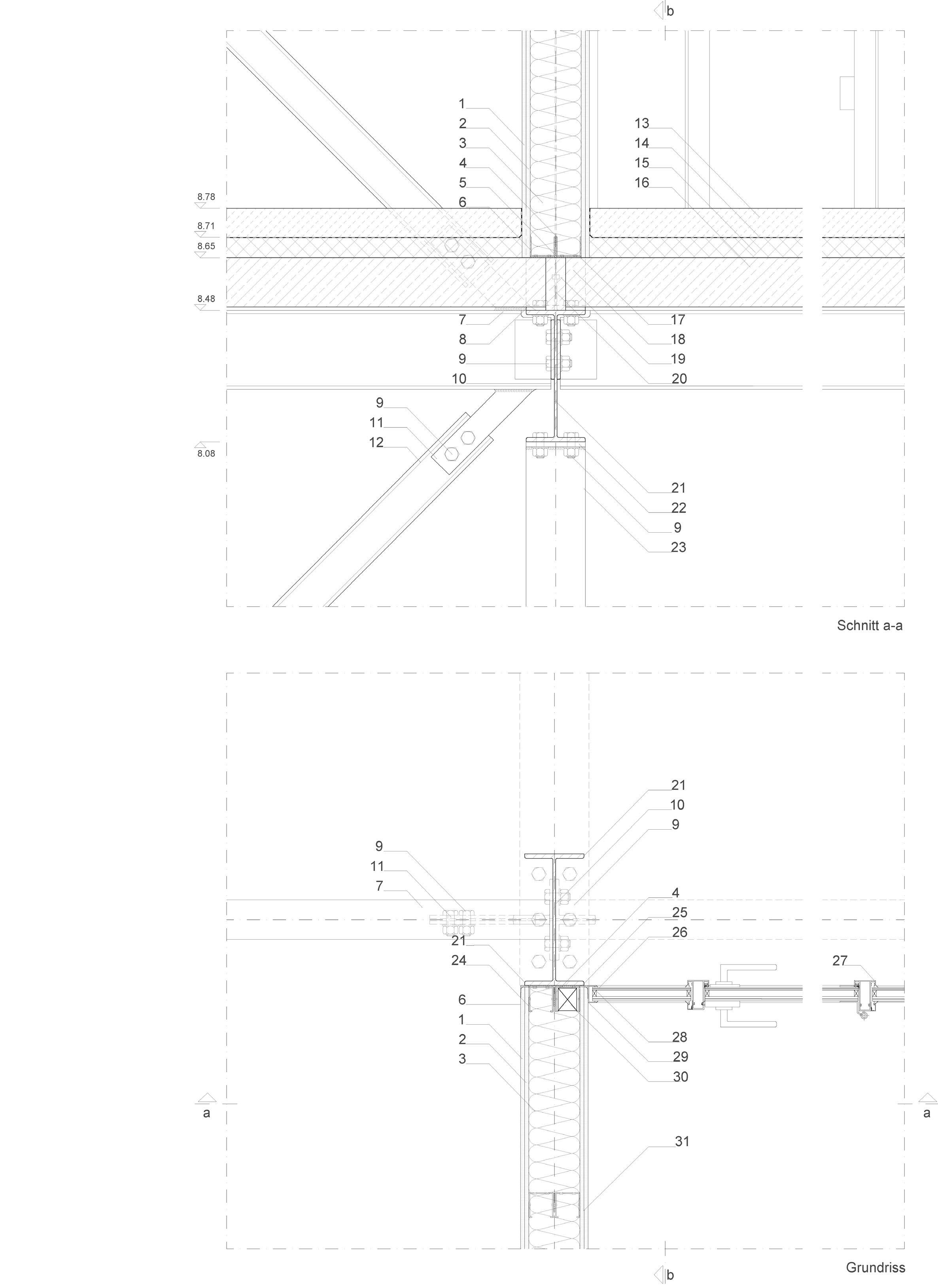

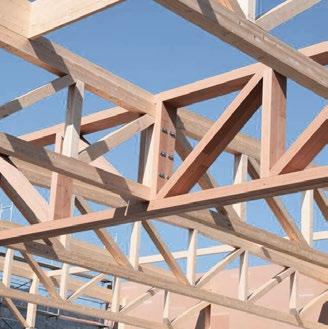

STRUCTURE

Steel base attached to the foundation with threaded anchors slotted plate 10 mm connected to column with bolts d24mm column, glued laminated timber 3 x 75/200mm diagonal column, glued laminated timber 2 x 75/200mm

wind bracing steel wire 20mm beam, glued laminated timber 2 x 75/280mm diagonal beams, glued laminated timber 75/160mm

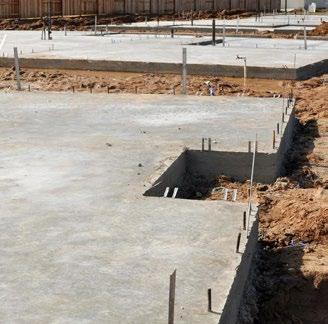

FLOOR CONSTRUCTION

Concrete Slab foundation 300mm With steel reinforcement d 2mm vapor barrier 2mm

Insulation, hard 100mm

Screed with installation level 50mm Cork 25mm

HARVEST MAP: USING LOCALLY SOURCED MATERIALS

= site

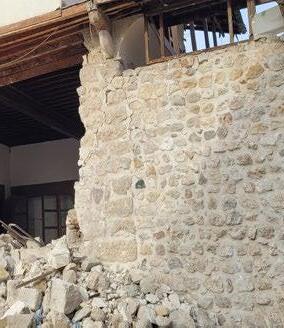

4. Repusposed Stone and bricks Antakya

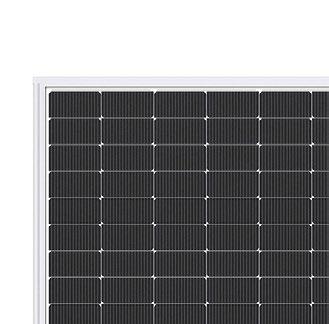

7. Solar panels CW ENERJi, Antalya

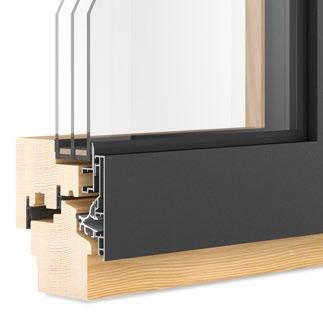

5. Windows and doors Aluwood Istanbul

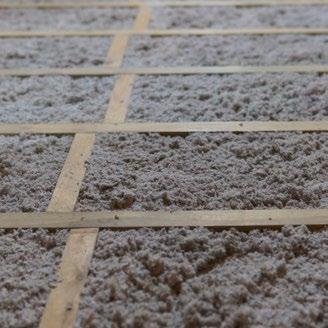

6. Cellulose Insulation Bor izolasyon Gölcük

2. Glue laminated wood Native pine Uzunpınar Timber Antalya

3. Polycarbonat panels Assan Panel Iskanderun

8. Concrete Mya Alsancak Ltd. Antakya

1. Metal fittings and corrugated iron Halbut Metal Trade Antakya

02. HUIS AAN DE MARKT

THE SITTARDERS ARE BUILDING A TOWN HALL

Bachelor Thesis

B.Sc. 6th semester SS 2022

Location: Sittard, Netherlands

Chair for architectural history

Supervisors:

Univ.-Prof. Dr. Ing. Anke Naujokat

Prof. I.V. Ir. Fred Humblé

Felix Martin

Tim Scheuer

02. Huis aan de Markt I Bachelor

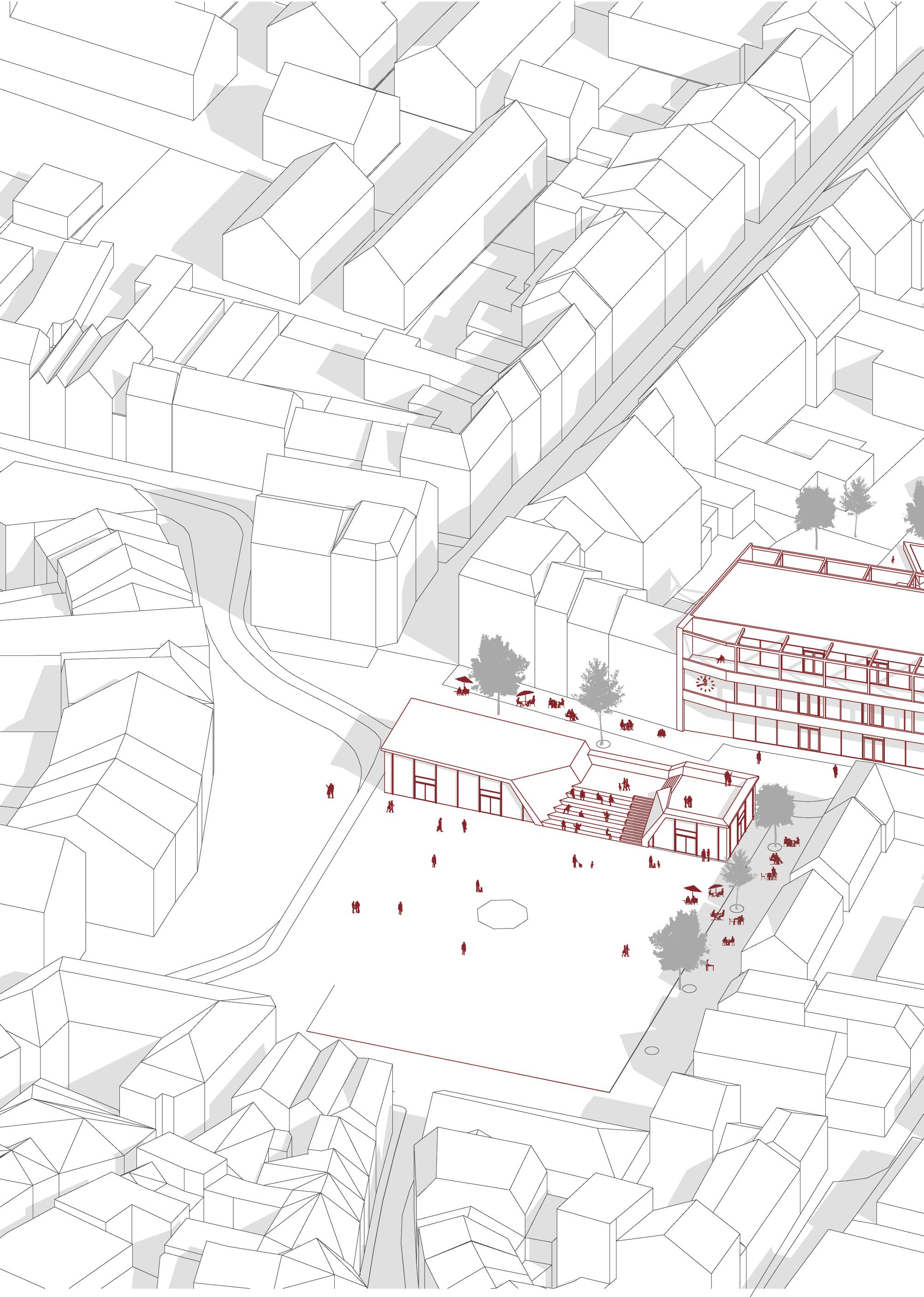

Buildings of local self-government have the potential to make democracy physically tangible. In times of global decline in democracy, architecture should bring the principles of representative democracy closer to citizens again. This studio aimed to design a new representative town hall for the city of Sittard while also proposing a solution for the vacant V&D department store next to the market square.

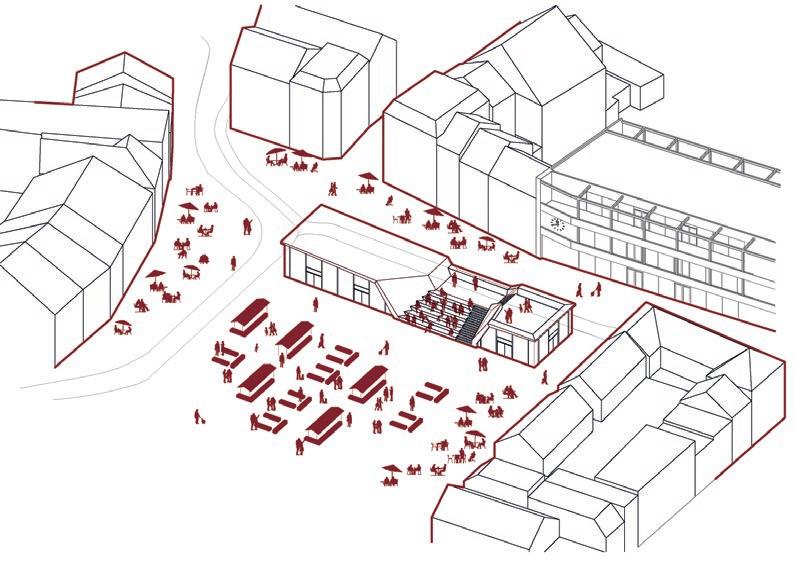

The new town hall in the city center will become the city’s new landmark with its striking shape. The building will be more than just a town hall. Its spacious interior will host city festivals, weddings, exhibitions, and conferences or serve as an indoor extension of the weekly farmer’s market. The building embodies the ideals of democracy: transparency, representation, and participation.

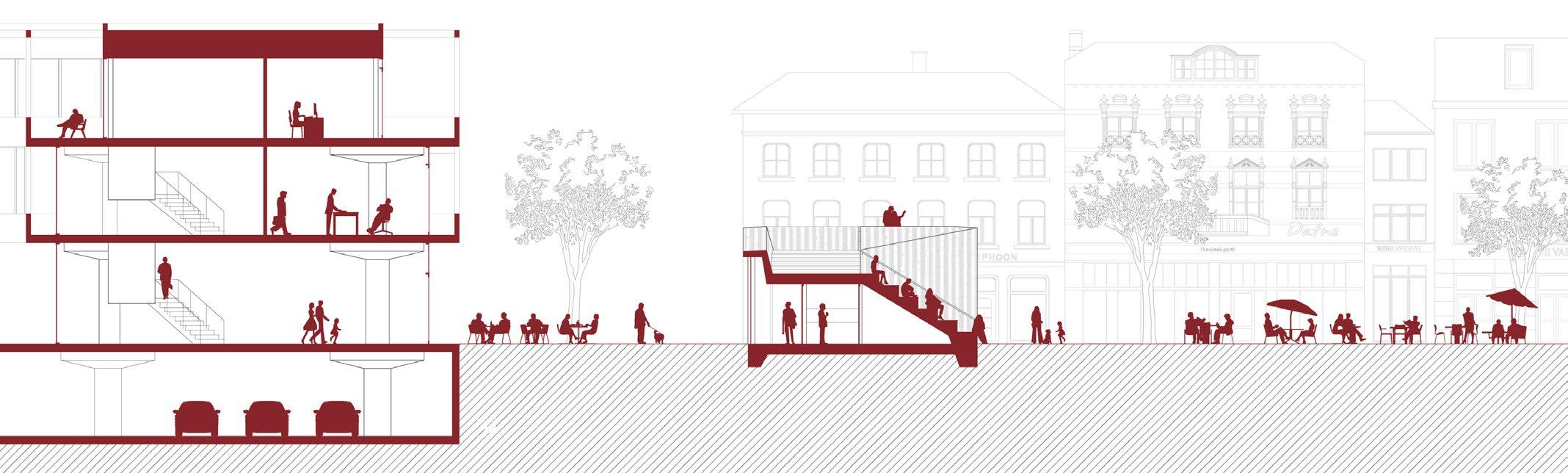

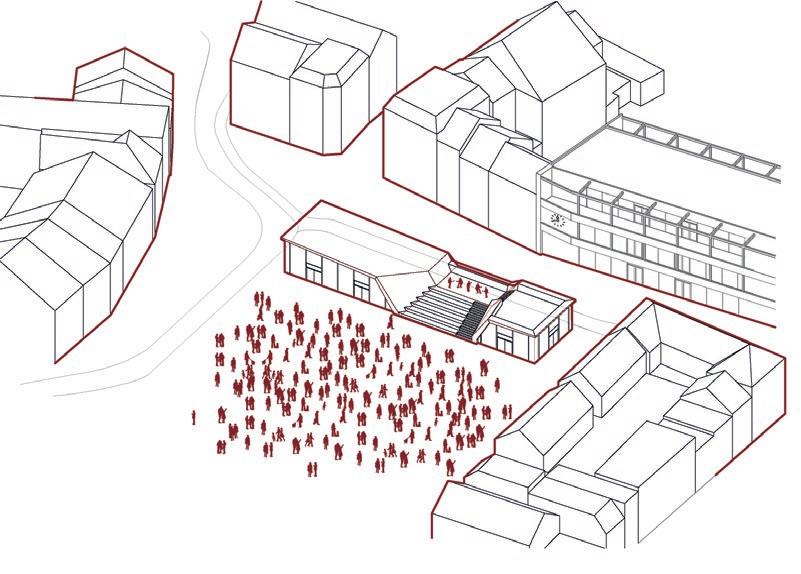

The glass pavilion‘s roof is shaped out of the market square and forms a grandstand for the city. From its steps, the everyday hustle and bustle on the market square can be observed. The walkable roof becomes a viewing platform and offers special outlooks on the highlights of the city while also functioning as a stage for events such as the yearly Karneval.

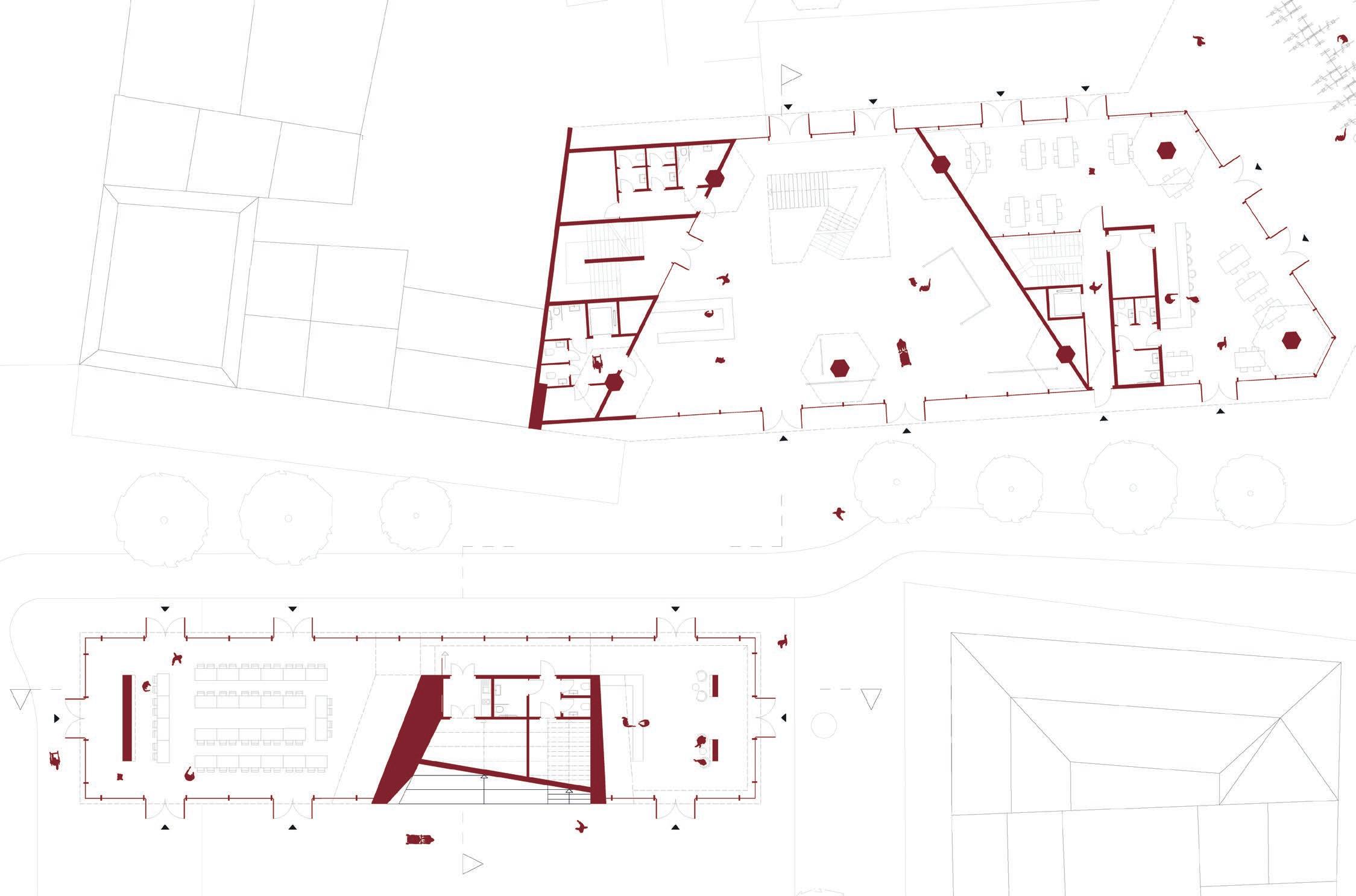

Together with the newly converted V&D department store building, the town hall is following the concept of a public ground floor zone. The complex will enrich and revitalize the neighborhood by housing the Zuid Limburg Experience, a restaurant, a daycare center, a public pocket park and bicycle parking spaces.

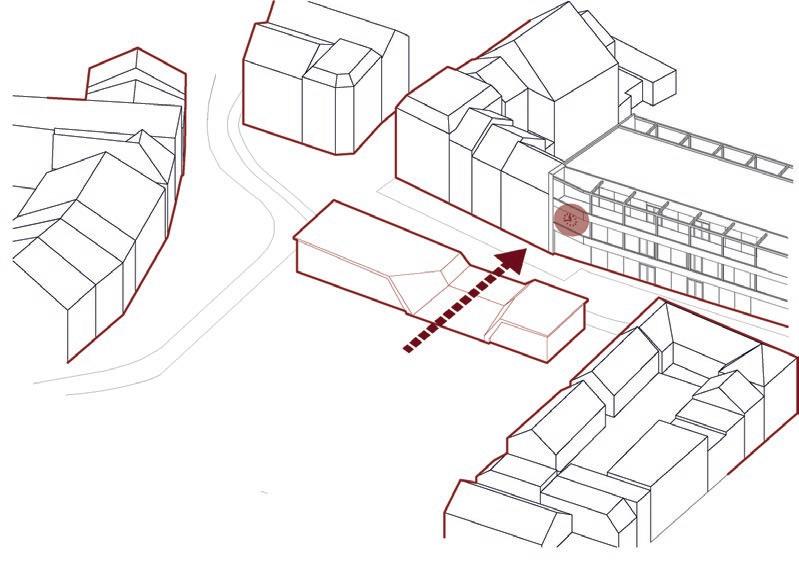

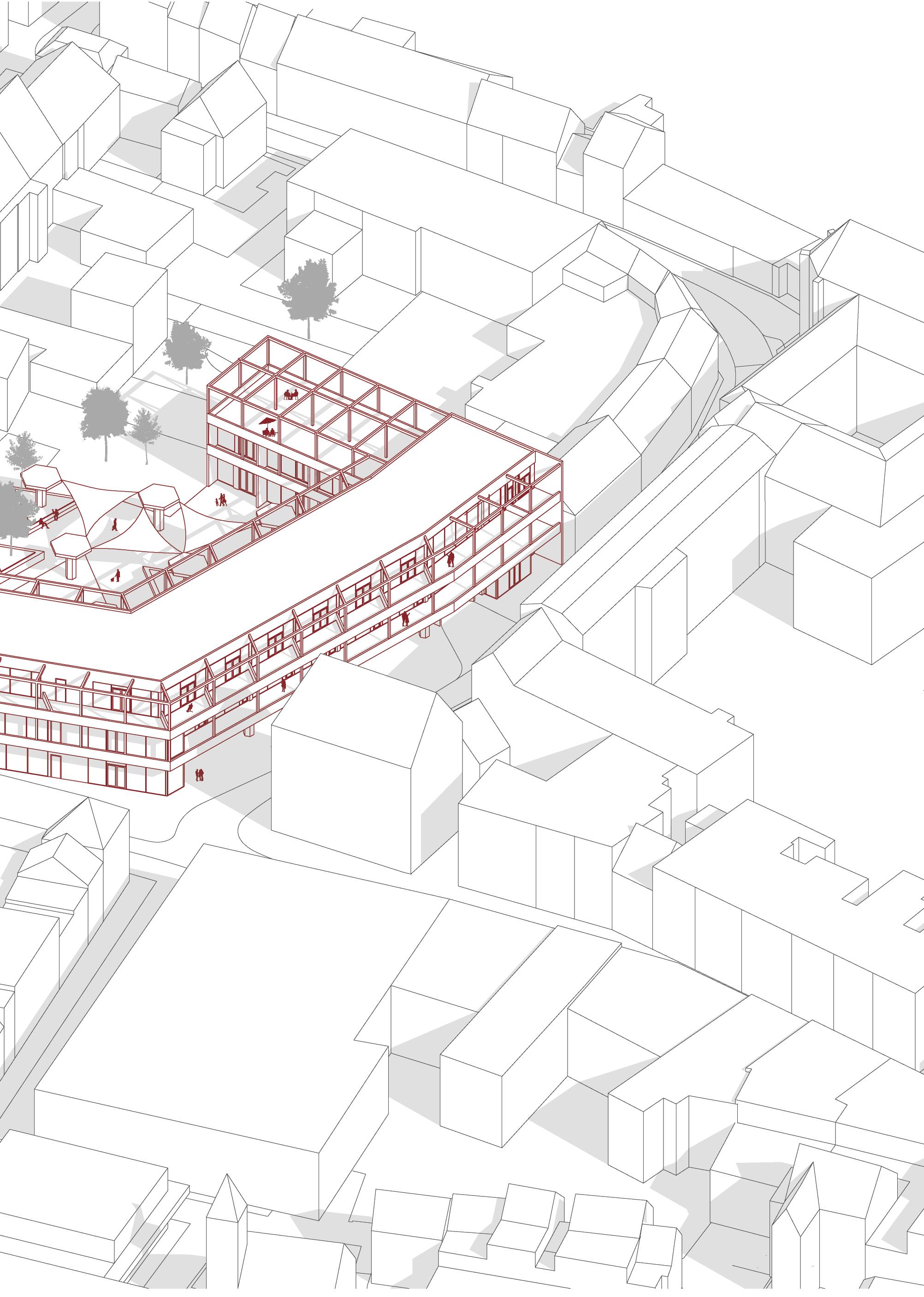

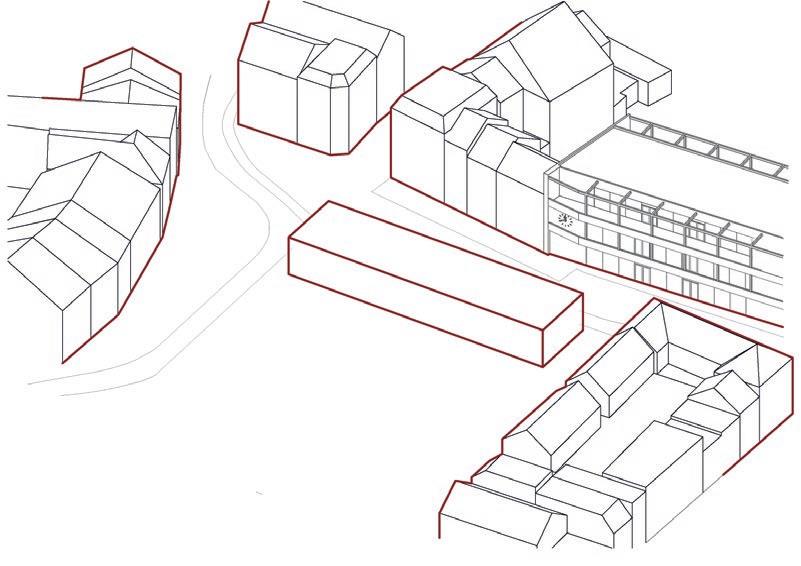

a clear urban edge

view of the famous V&D watch

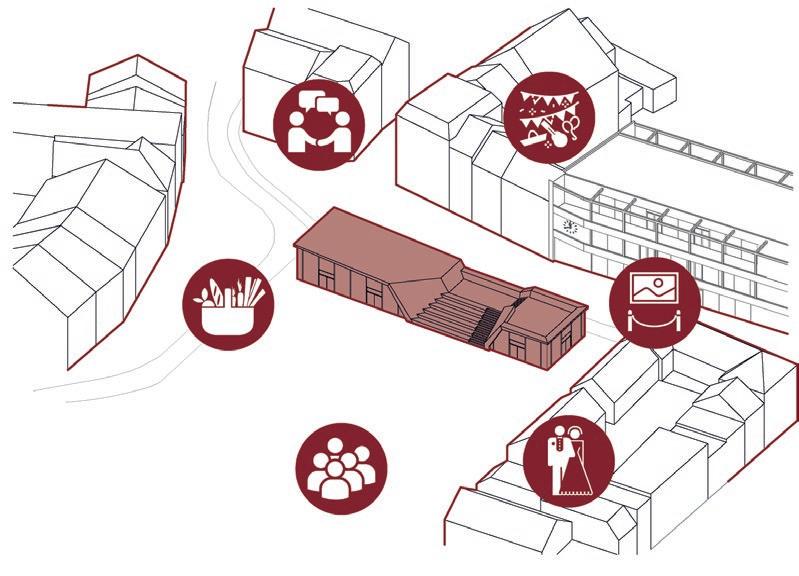

a building for different uses

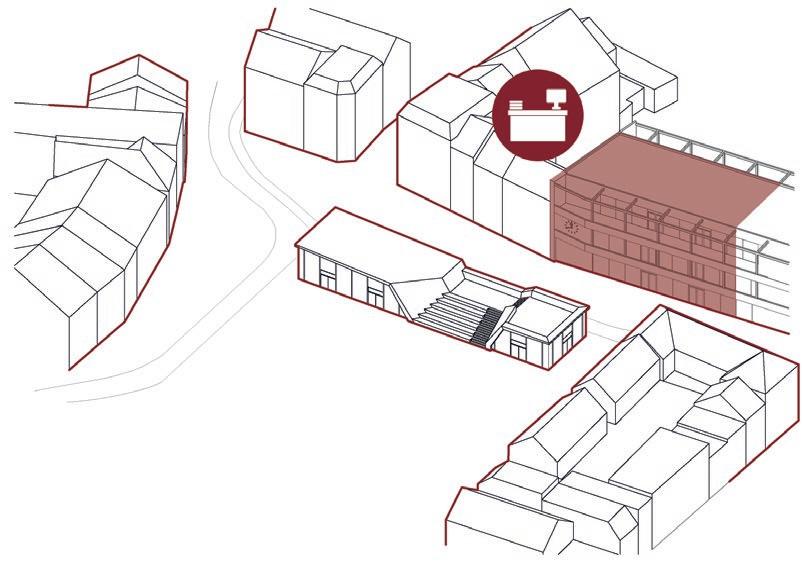

office extension in the existing V&D building

observing the life on the market square from the city steps the accessible roof turns into a stage for events

town hall extension

town hall

foyer

city grandstand

courtyard gastronomy and office space

town houses daycare, apartments, roof terrace

02. Huis aan de Markt I Bachelor

03. ELBLINK

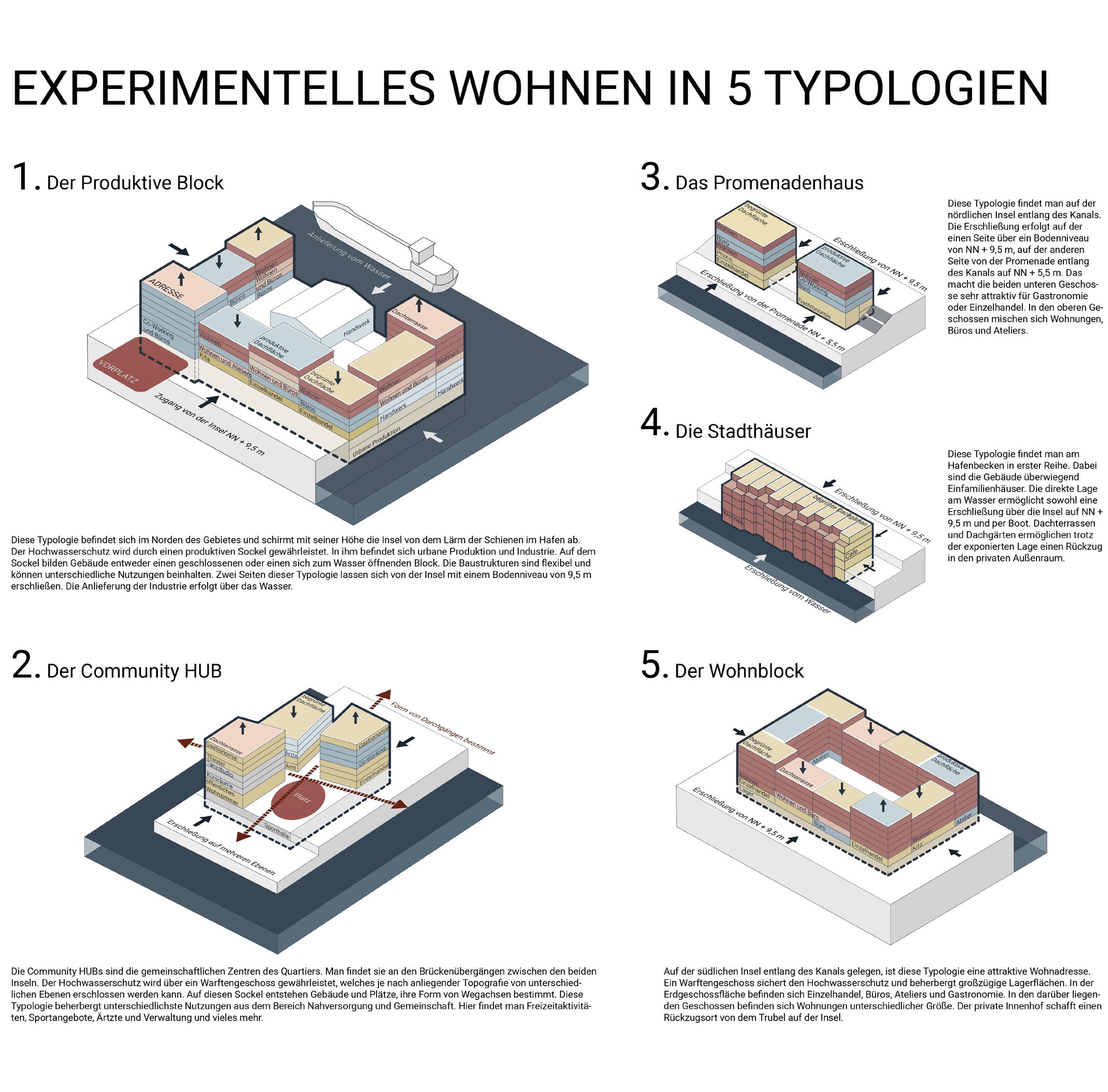

EXPERIMENTAL LIVING AT THE SPREEHAFEN

Free design

B.Sc. 5th semester WS 2021/2022

Location: Hamburg Deutschland

Chair of Urban Planning and Design

Supervision:

Univ.-Prof. Dipl.-Ing. Christa Reicher

Dipl.-Ing. Stefan Krapp

Bauass. M.Sc. Stadtplaner Christoph Klanten

Caner Telli

The Spree Island is a little-known commercial area situated between the inner-city port and Wilhelmsburg. The location in the harbor basin posed a significant challenge, as the design had to be adaptable to changing water levels due to the tides and potential storm floods.

The ElbLink design proposes an entire transformation of the shape of the Spreeinsel and the harbor basin. The concept is defined by the location between the expensive HafenCity and the iconic Wilhelmsburg. Under the guiding principles of „Building Bridges, Connecting Hamburg“ and „City for Everyone“, the quarter creates the currently missing spatial connection

between North and South Hamburg and acts as a social melting point with living, working, and leisure opportunities for a diverse range of people.

The district attracts with its unique access to the water. Here, people do not only live and work near the water but also on it and above it.

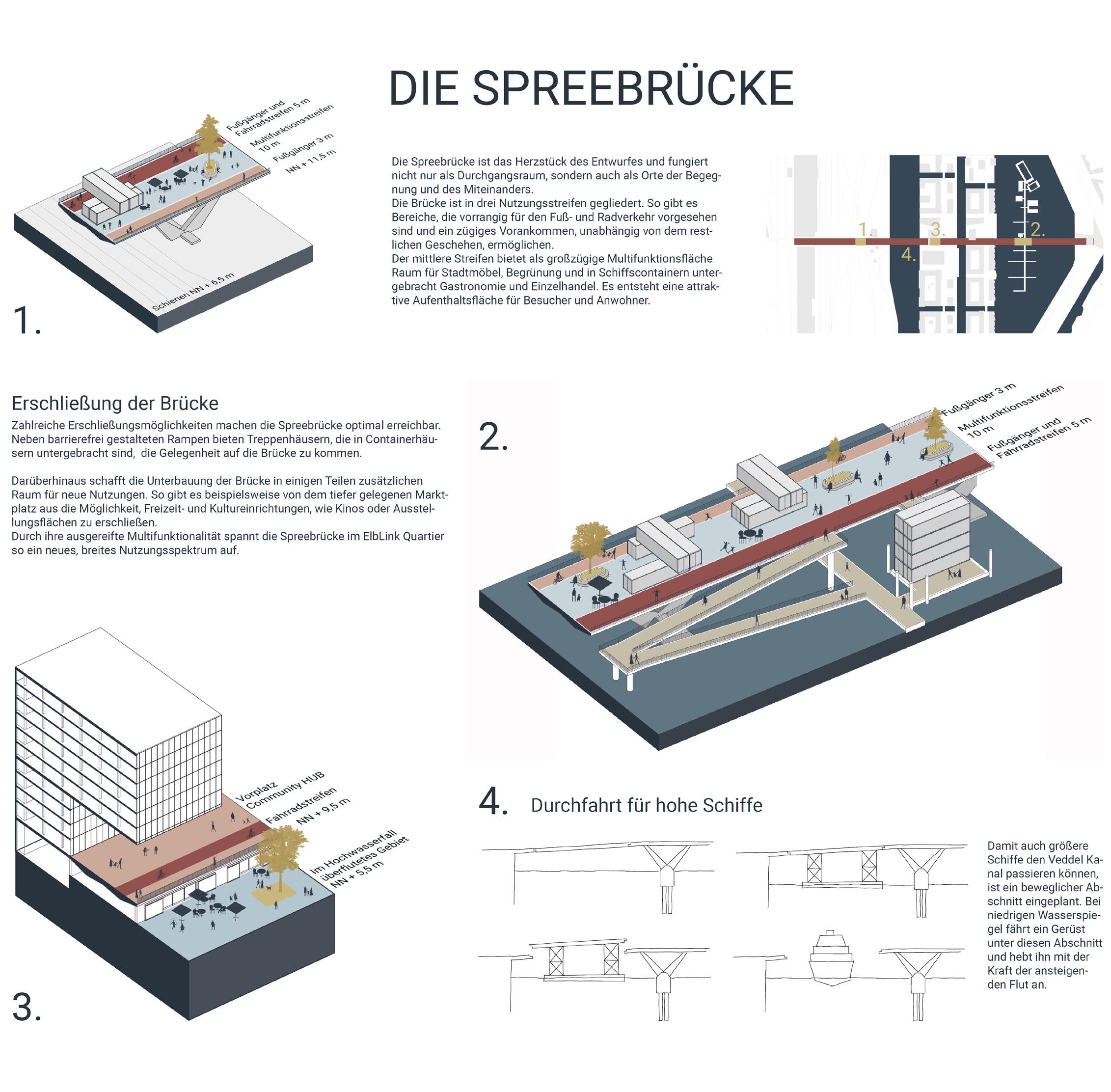

Other highlights include the Spreehafen Bridge, which features shops and cafes, the „Floating Island“ with its characteristic houseboats and the floating outdoor pool, the city beach on the side of the Wilhelmsburg dyke, the towering Spreehaus at the entrance of the Island, and the community center around the old market hall.

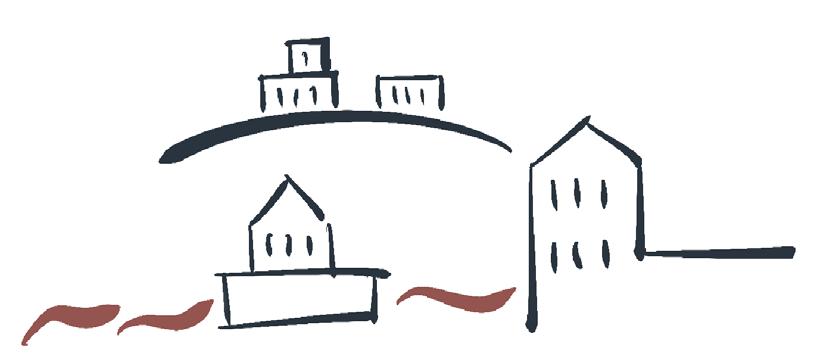

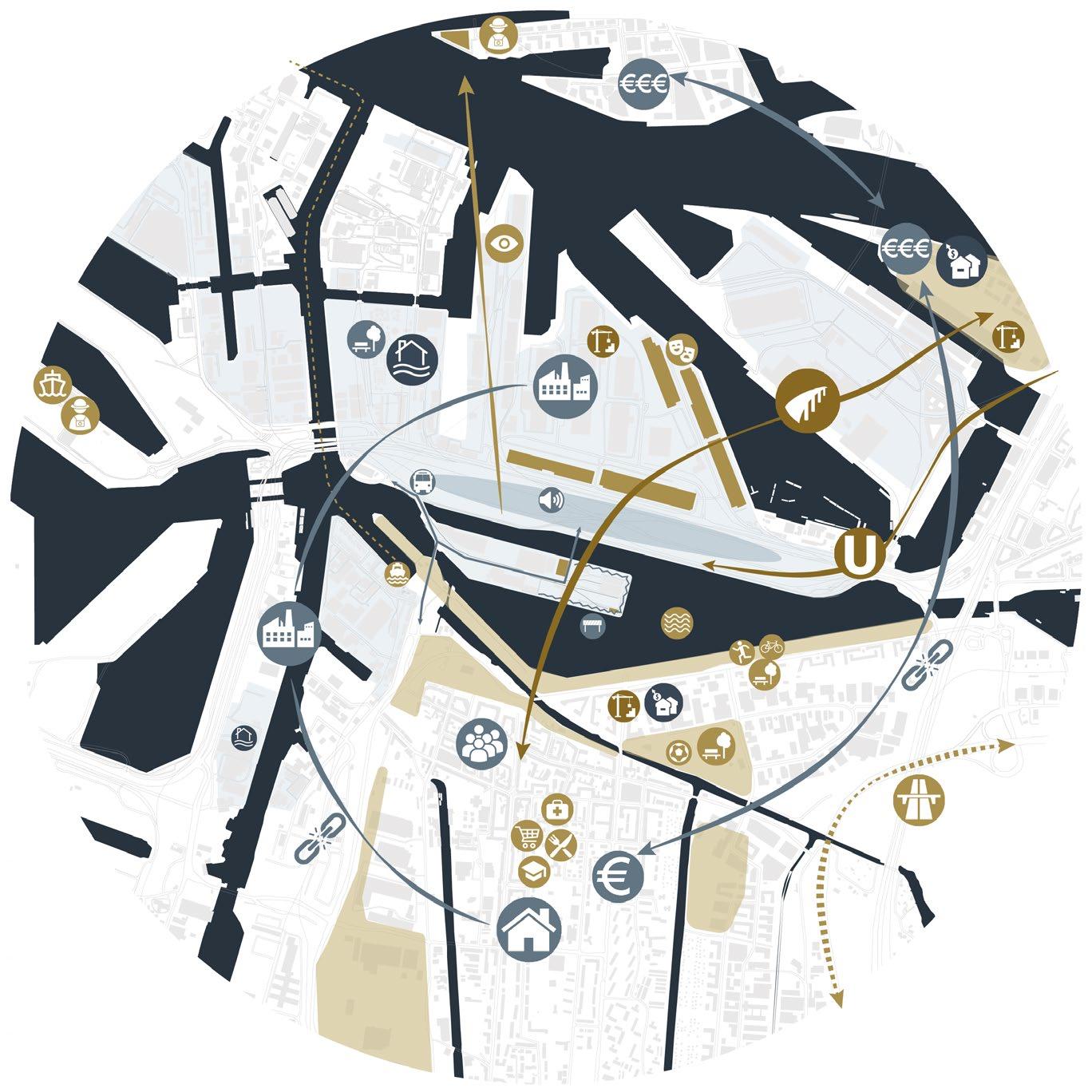

BUILD BRIDGES, CONNECT HAMBURG CITY FOR EVERYONE

USE EXISTING POTENTIALS

LIVING AT, ON AND OVER THE WATER

SHORT DISTANCES

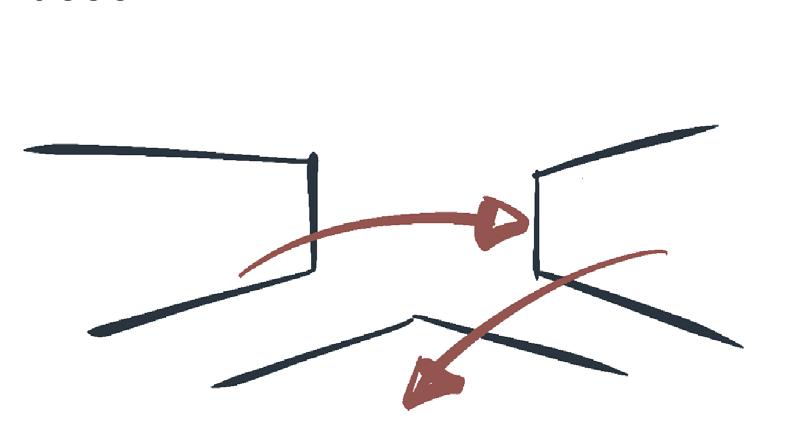

CREATE MEETING POINTS

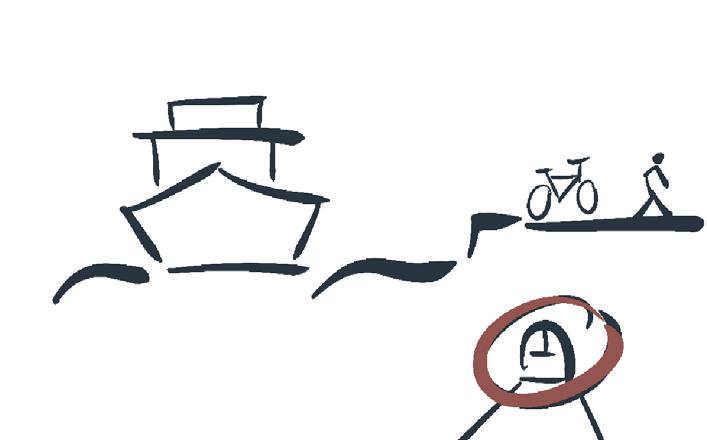

GOOD ACCESSIBILITY

MORE URBANITY

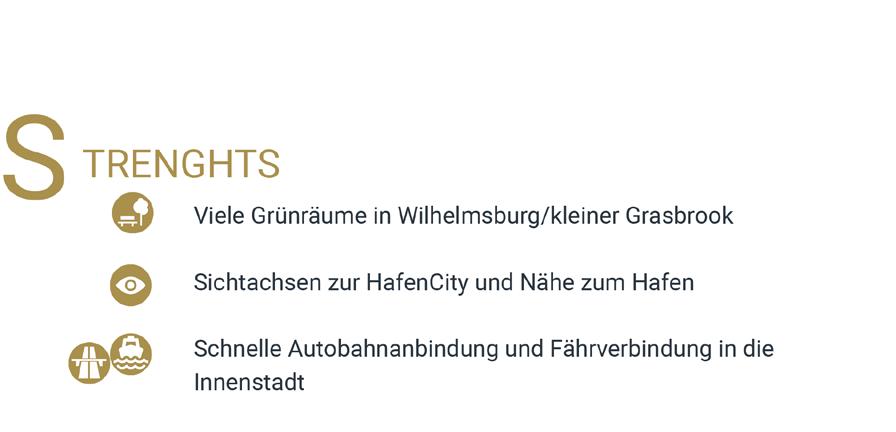

greenery in Wilhelmsburg/Kleiner Grasbrook

view-axis to HafenCity, proximity to harbor highway access, ferry to city center

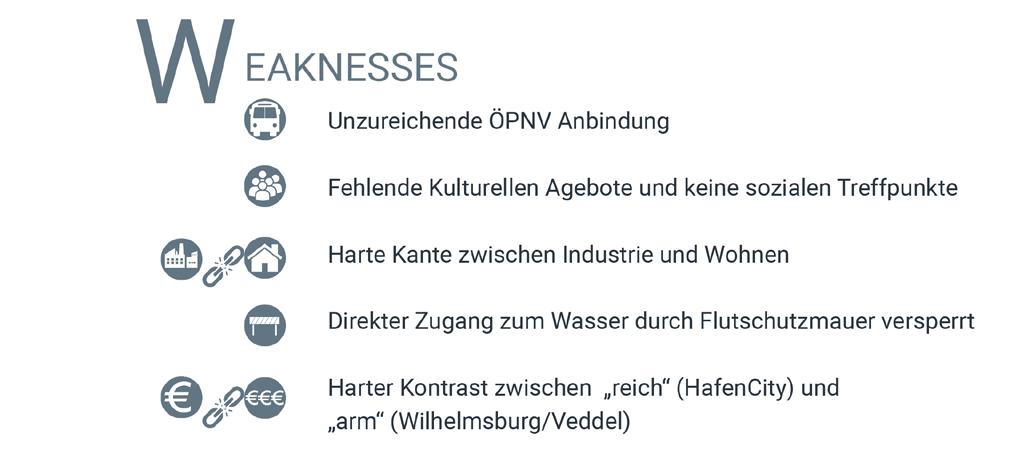

insufficient connection to public transport

lack of cultural offerings and meeting spots

direct water access blocked contrast between rich and poor

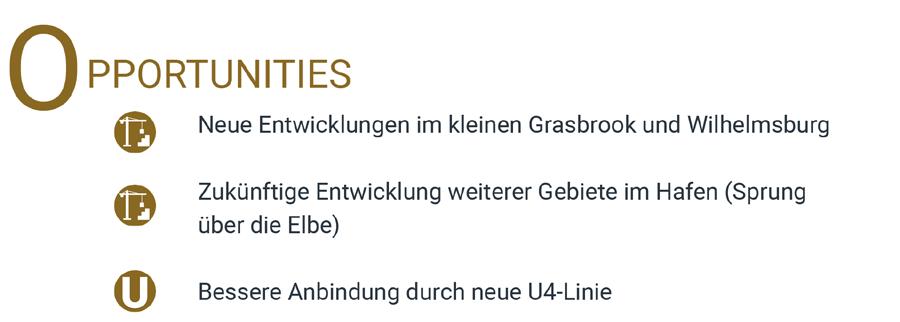

new developments nearby future developments in the port better access through the new U4

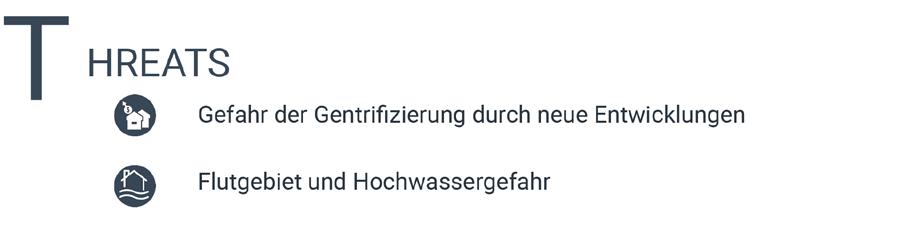

threat of gentrification floods and high water

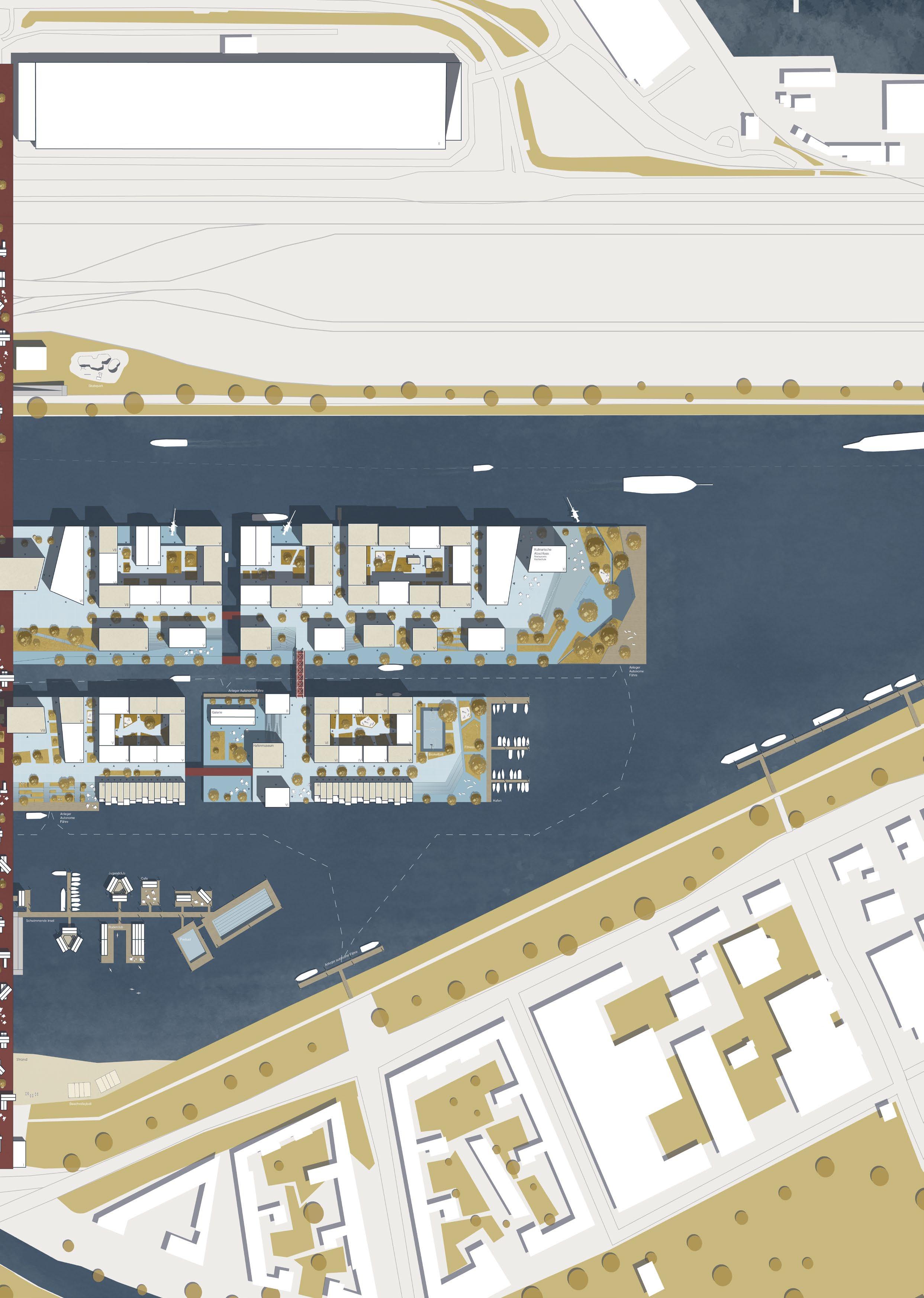

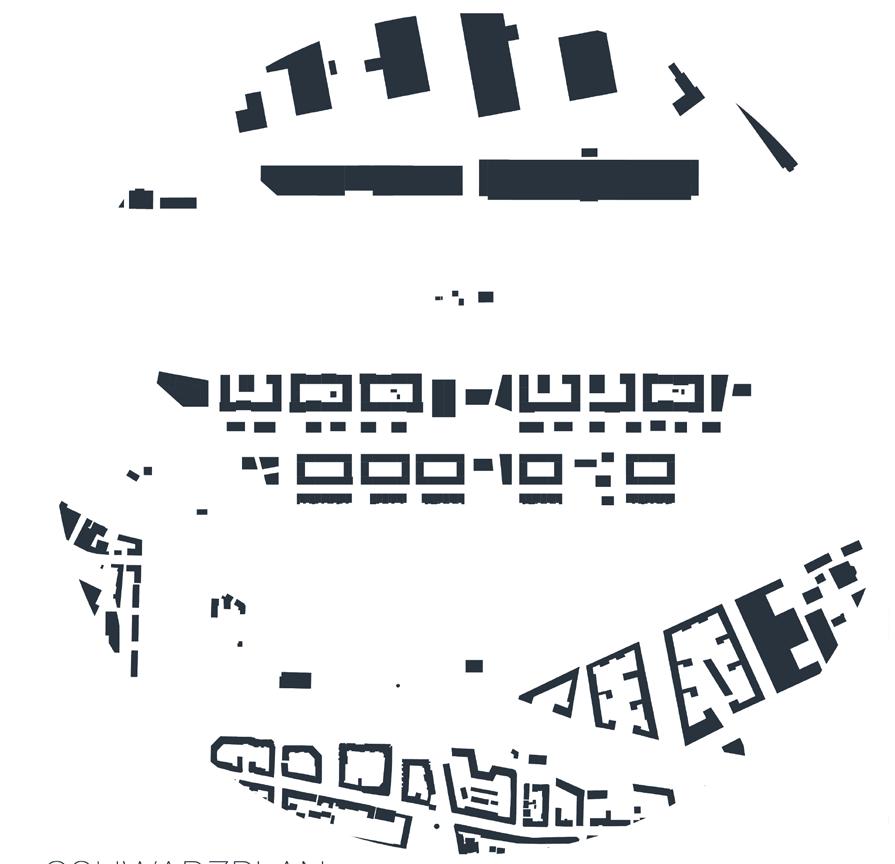

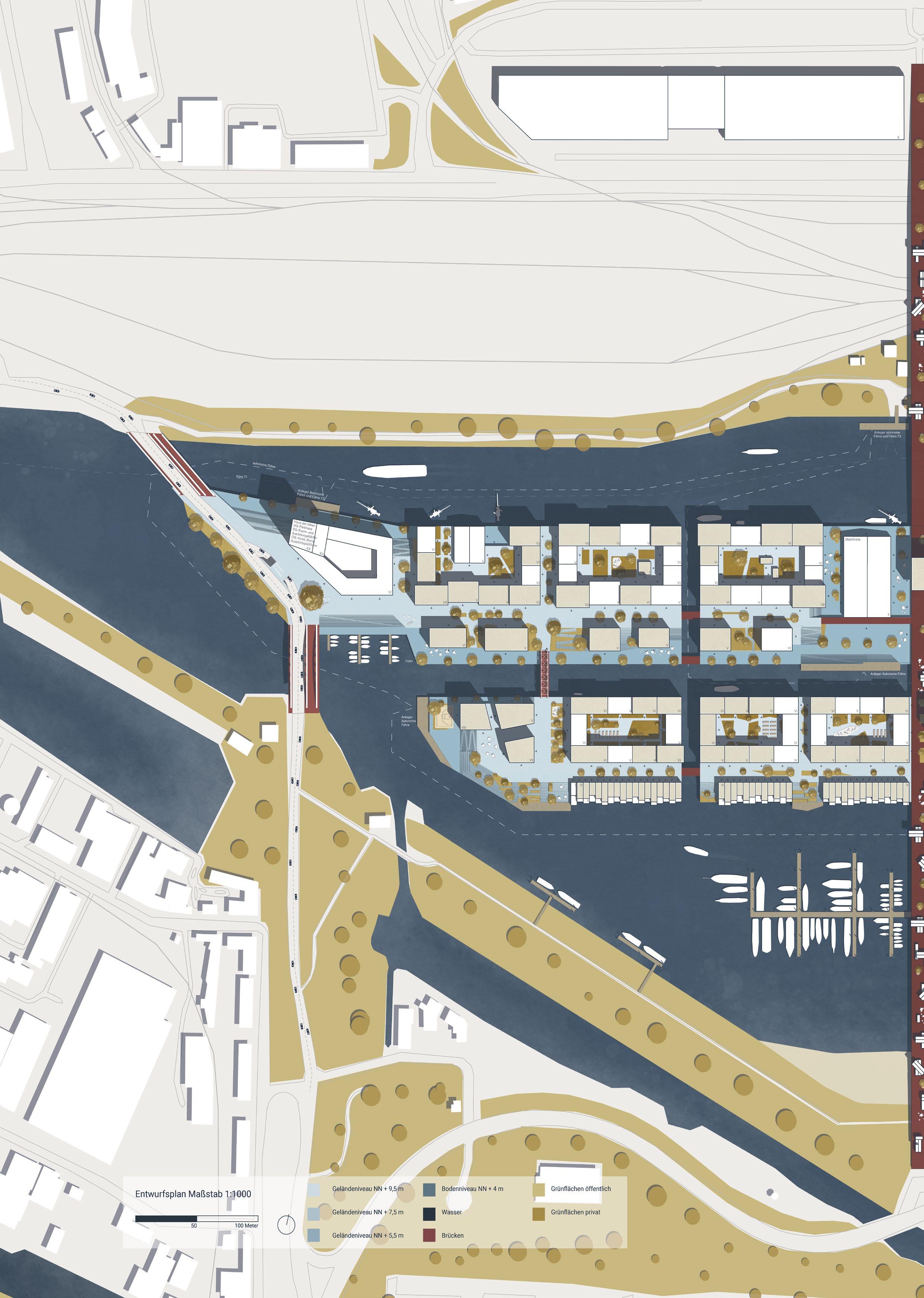

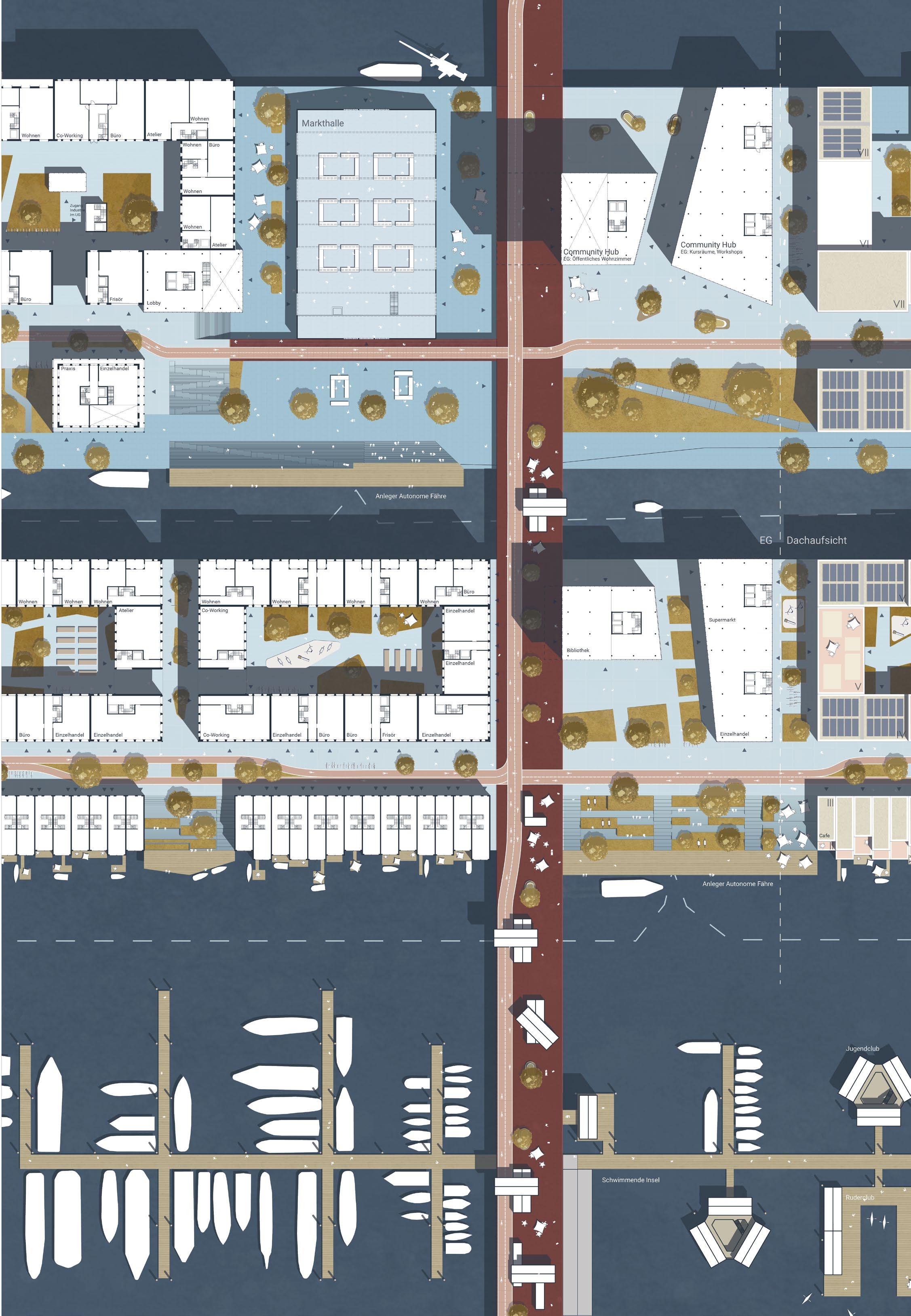

BLACKPLAN

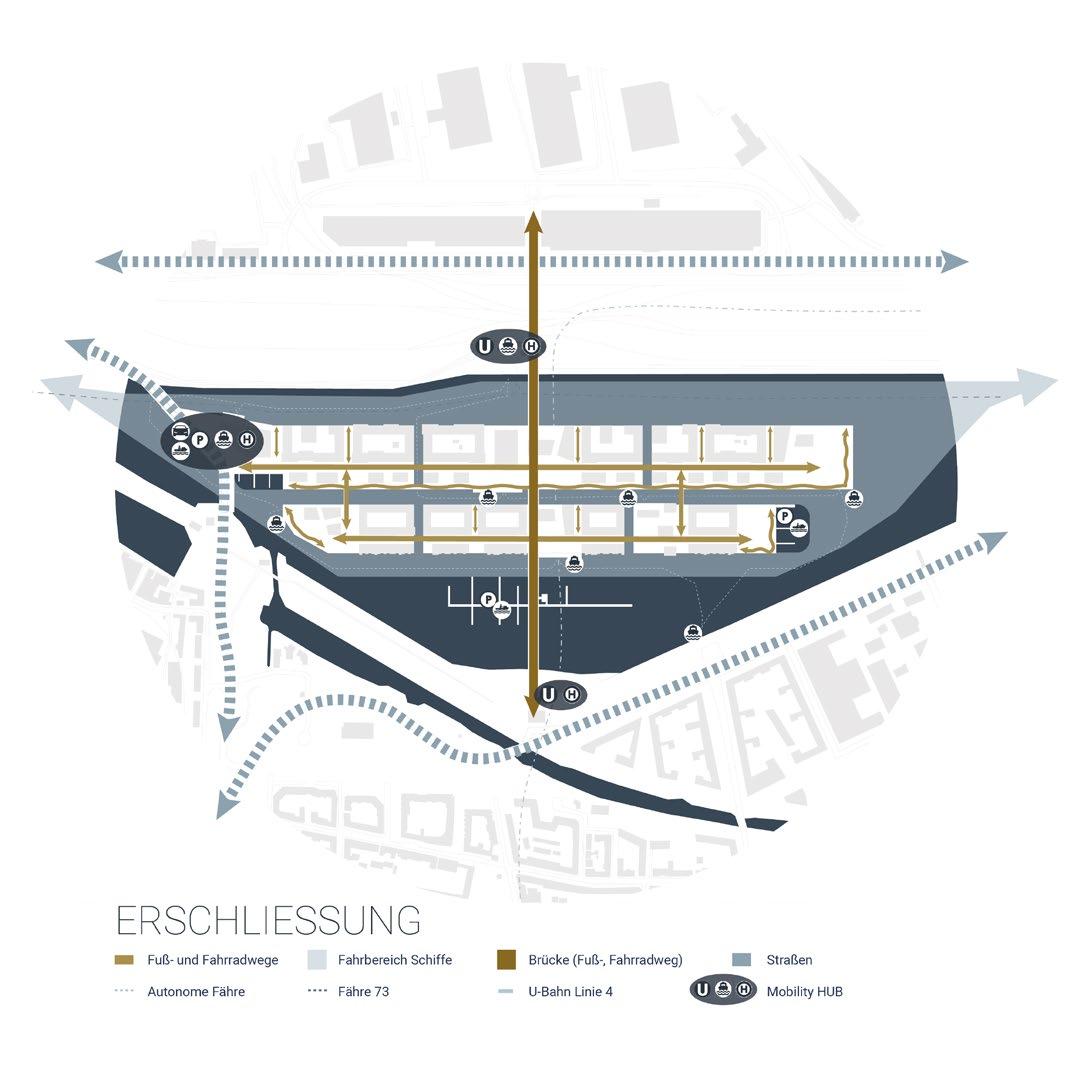

ACCESS

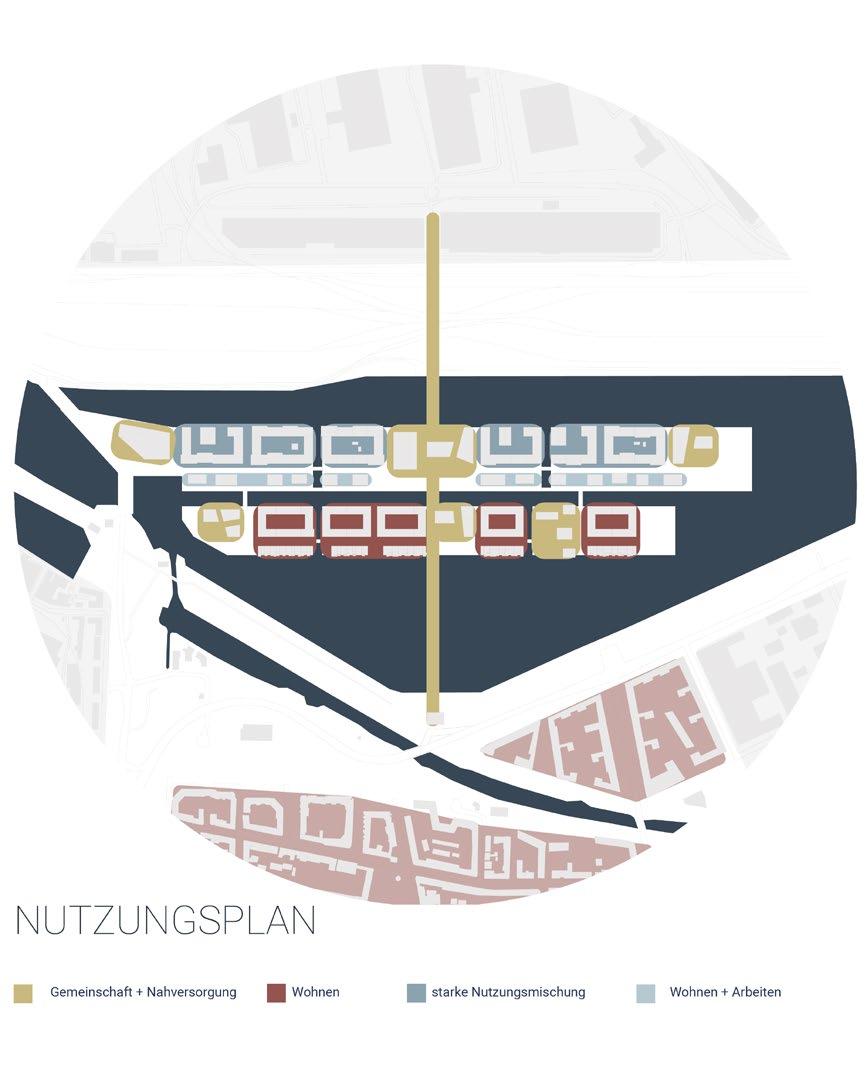

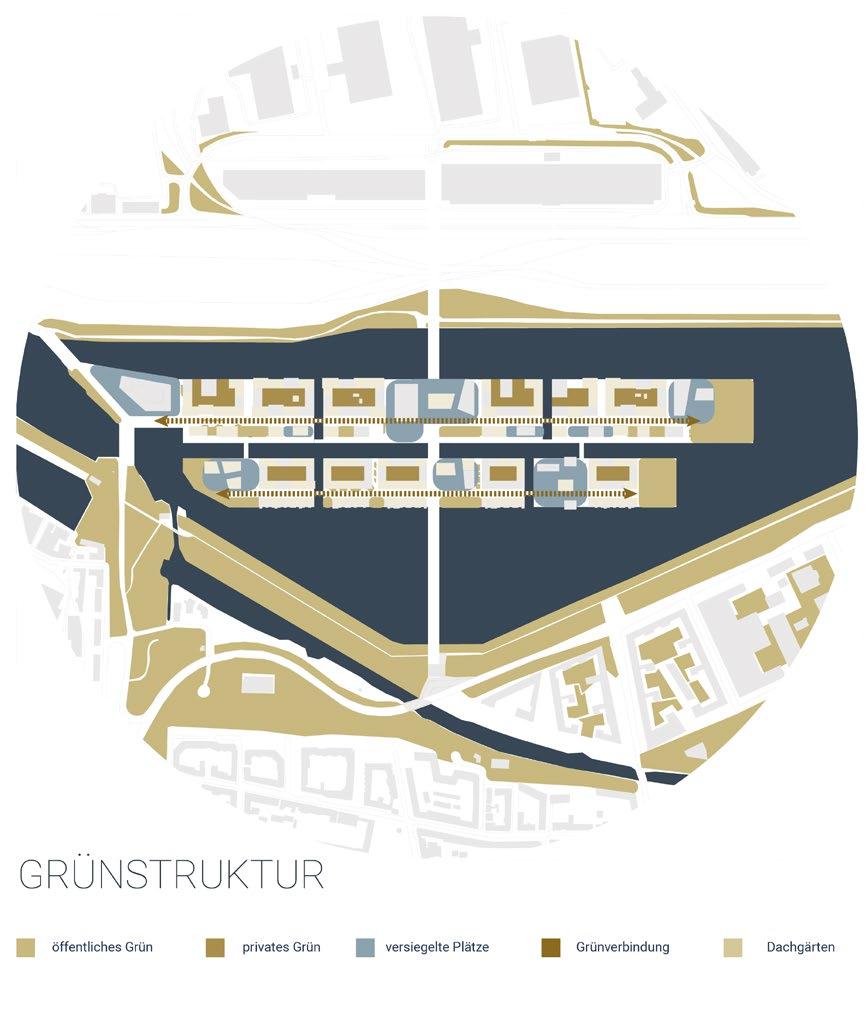

GREENERY FUNCTIONS

04. THE CLIMBING FRAME

A NEW CLIMBING HALL FOR AACHEN

Integrated project architecture and construction

B.Sc. 4th semester SS 2021

Location: Aachen, Deutschland

In collaboration with:

Emilia Grüne, Ana Ferretti Martarello, Carolin Schwabe, Benjamin Frevel, Lucas Reinbold

Chair of Building Construction

Chair of supporting Structures

Chair of Building Technology

Supervision:

Univ.-Prof. Dipl.-Ing. Architekt Hartwig

Schneider

Univ.-Prof. Dr.-Ing. Martin Trautz

Michel Kleinbrahm

Denis Grizmann

Tobias Schell

plan by Ana Ferretti Martarello

Climbing is becoming an increasingly popular sport and the demand for climbing facilities is growing in Aachen. To meet this demand, a new climbing hall is being built next to the Ludwigforum on Jülicher Straße in the east of the city.

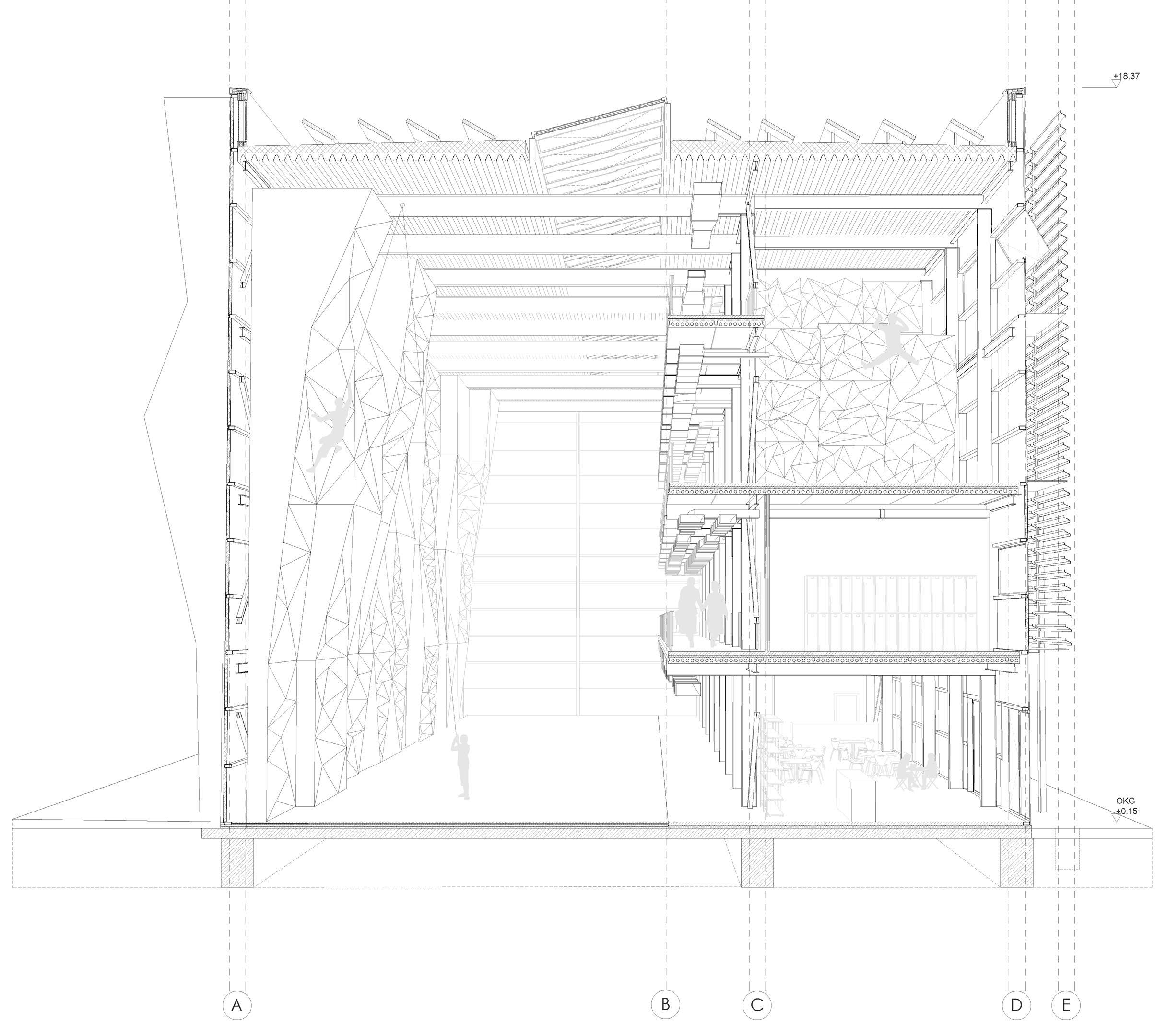

The new hall will have space for top-rope climbing up to 16 meters high and bouldering up to 5 meters high. It will also include a foyer with catering, changing rooms and sanitary facilities, seminar rooms, storage rooms, and rooms for the technical building equipment. The design of the building is based on a simple concept. All functions ex-

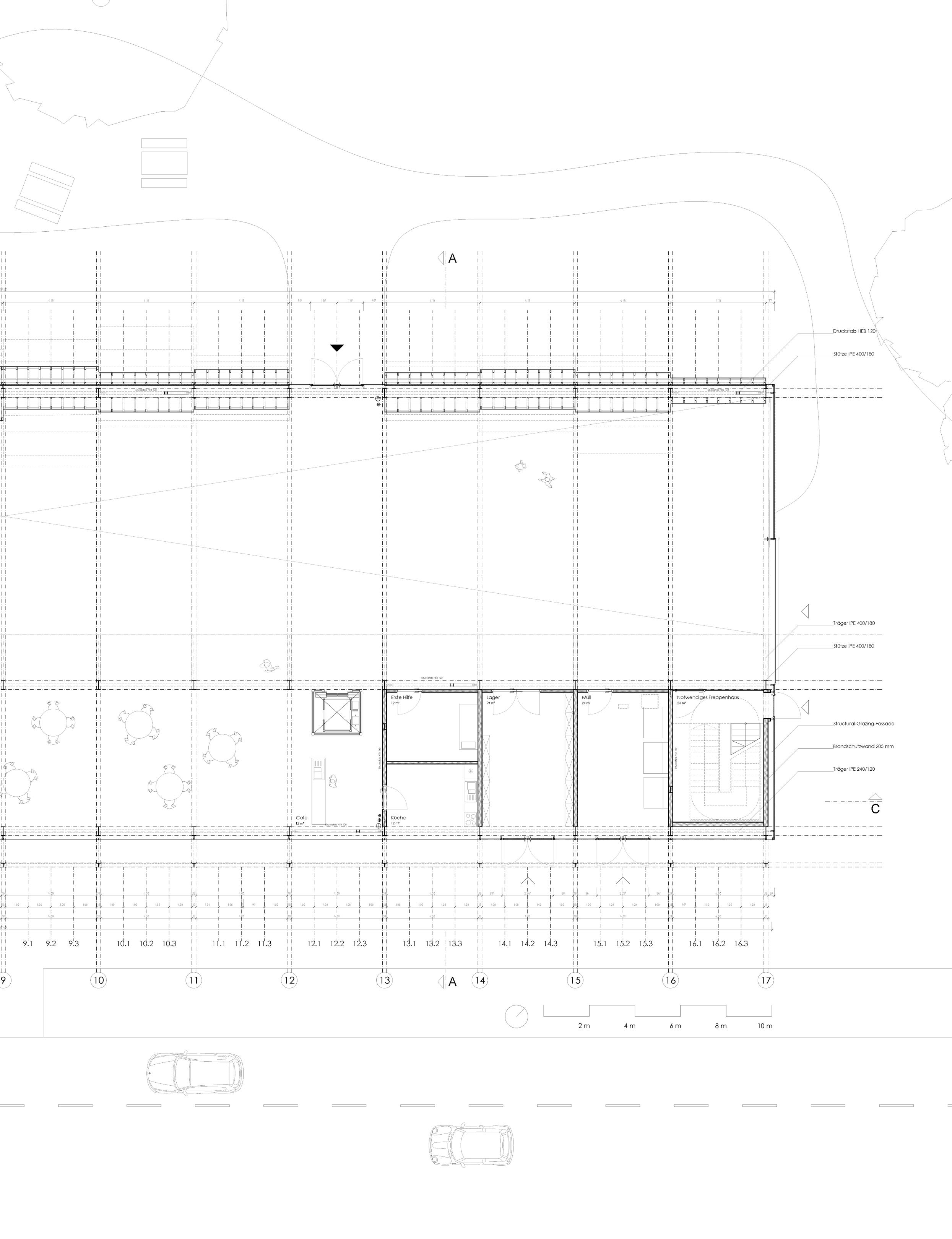

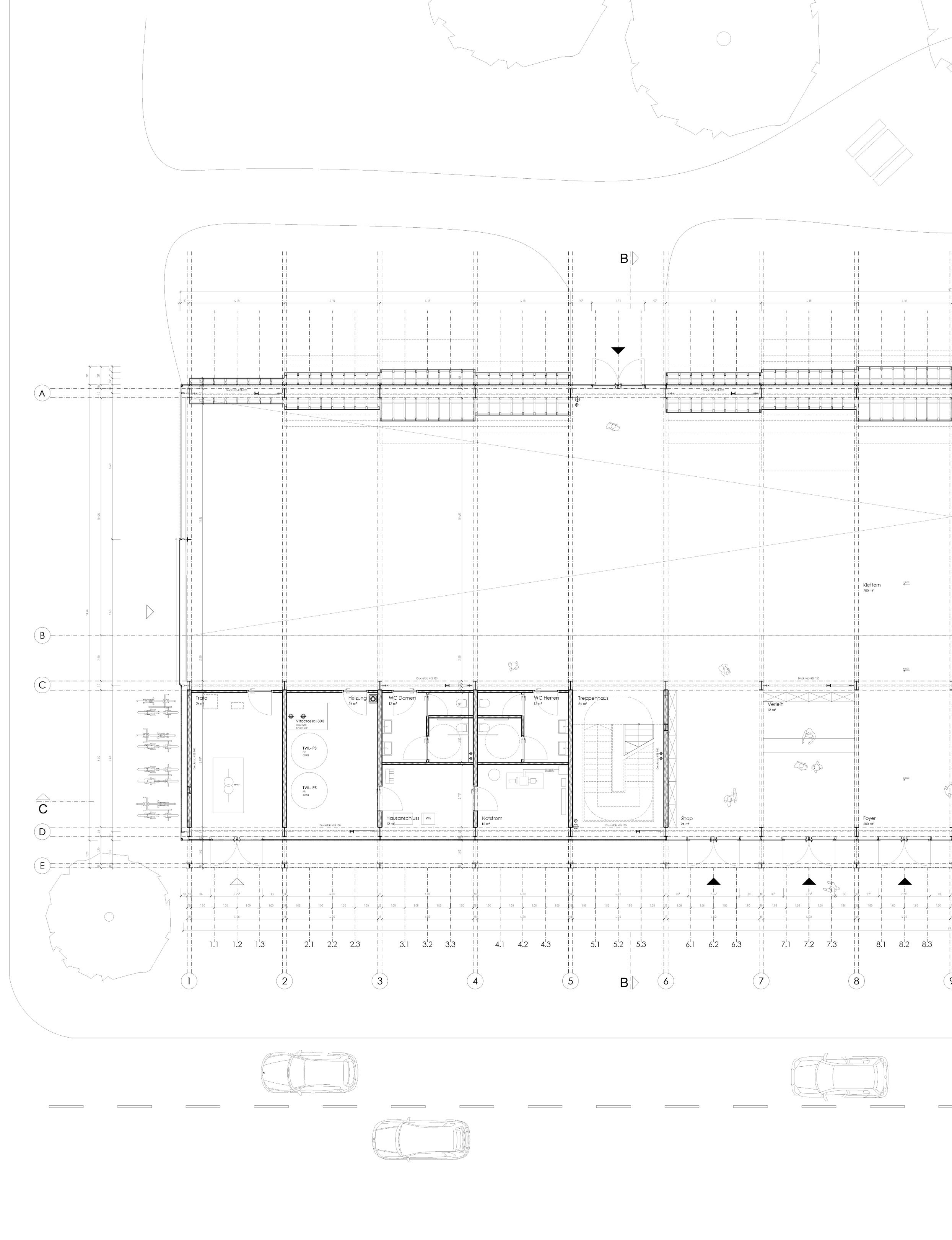

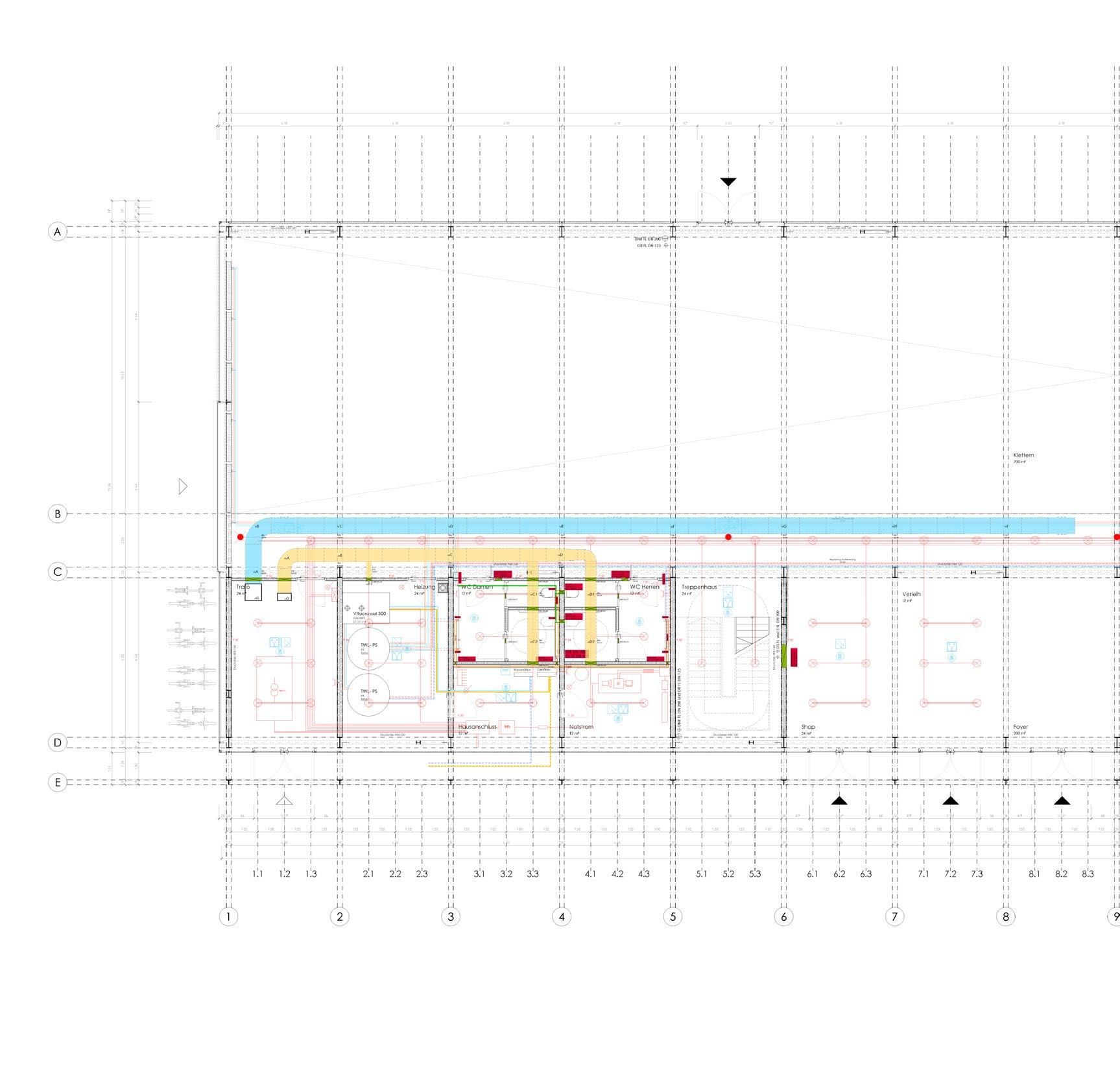

PLAN 1:500

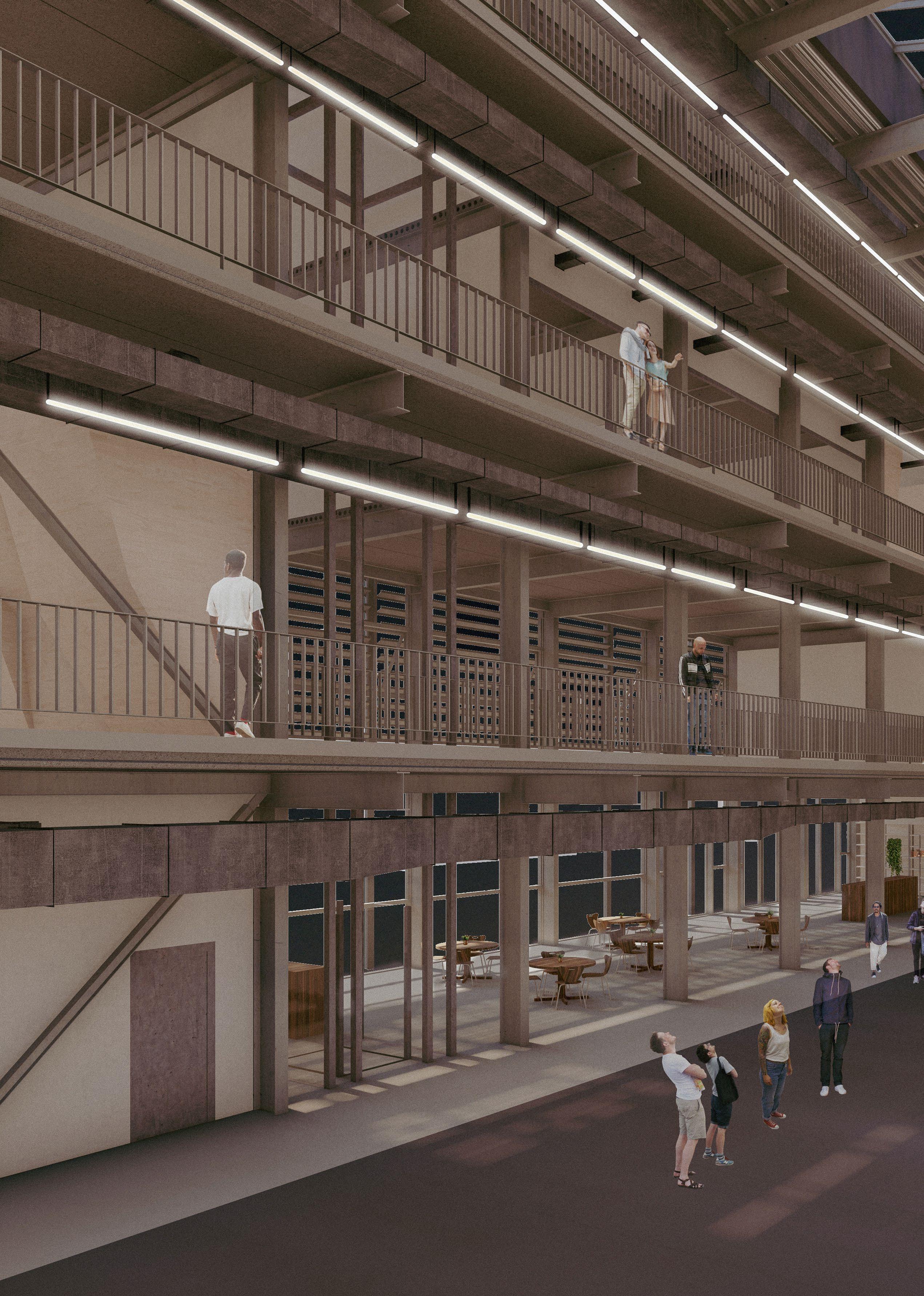

cept for top rope climbing will be housed in a four-story steel frame. Access will be via open corridors that connect the scaffolding to the climbing hall. Climbing will take place both indoors and outdoors on a climbing wall that runs parallel to the scaffolding.

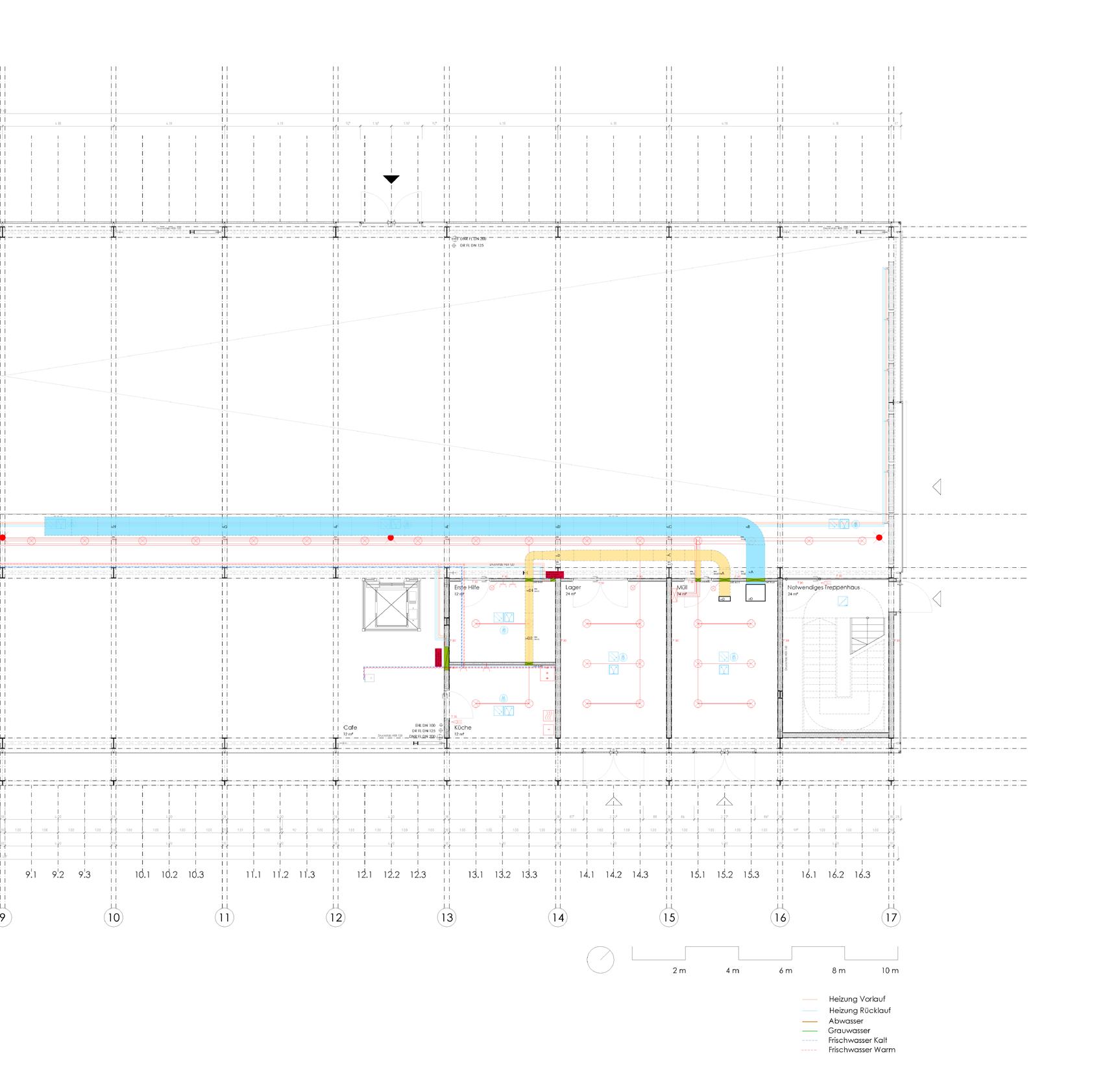

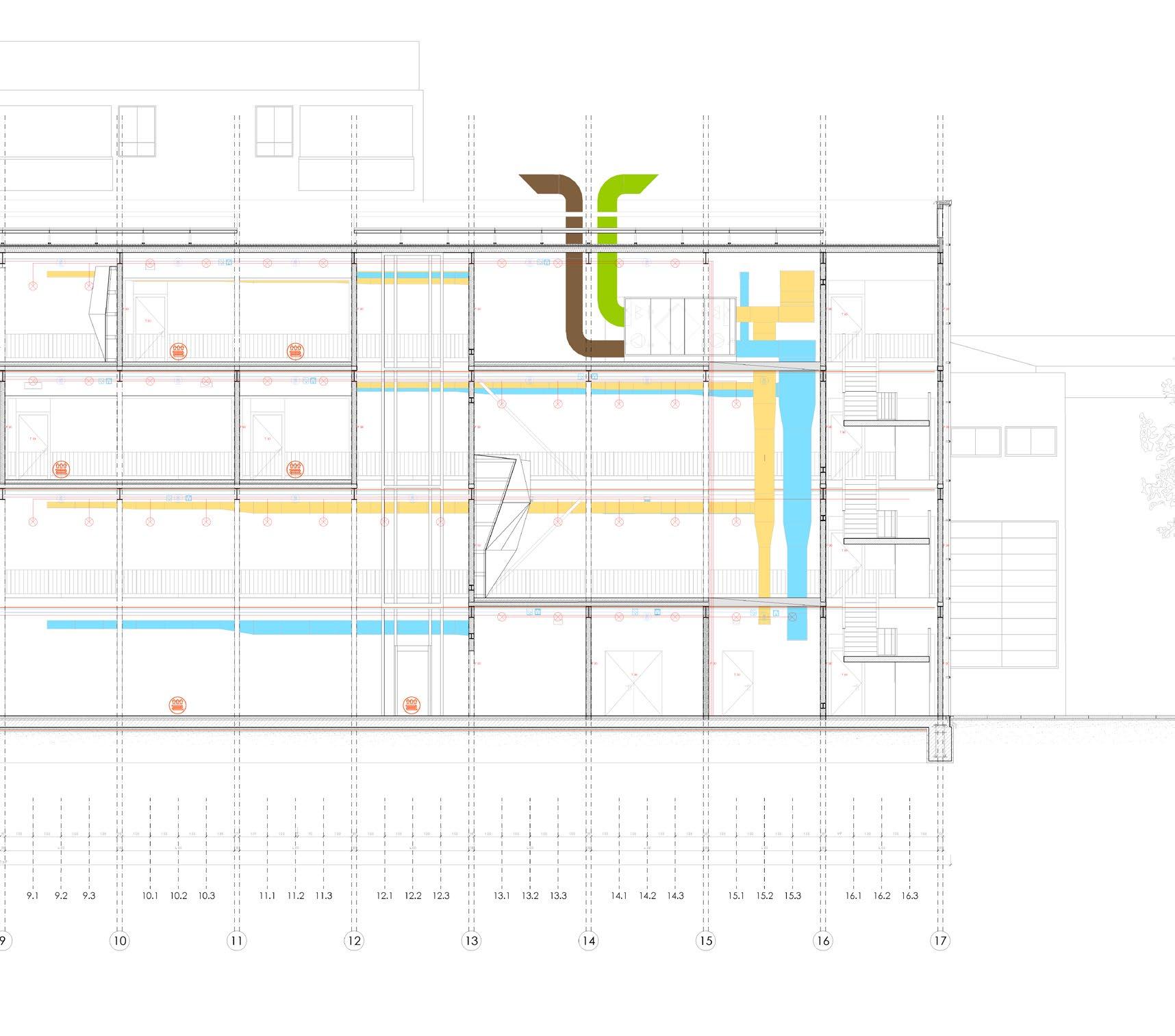

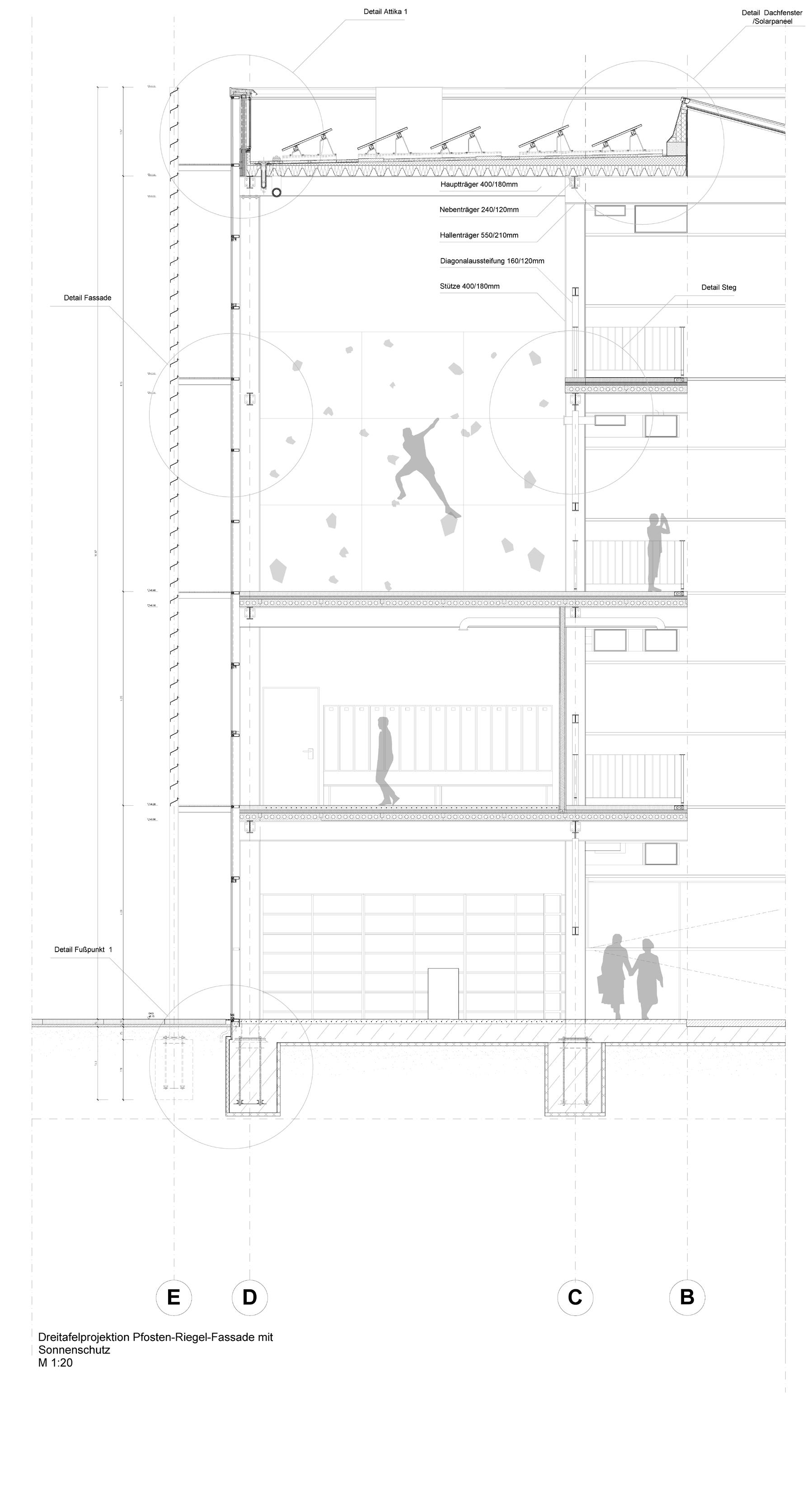

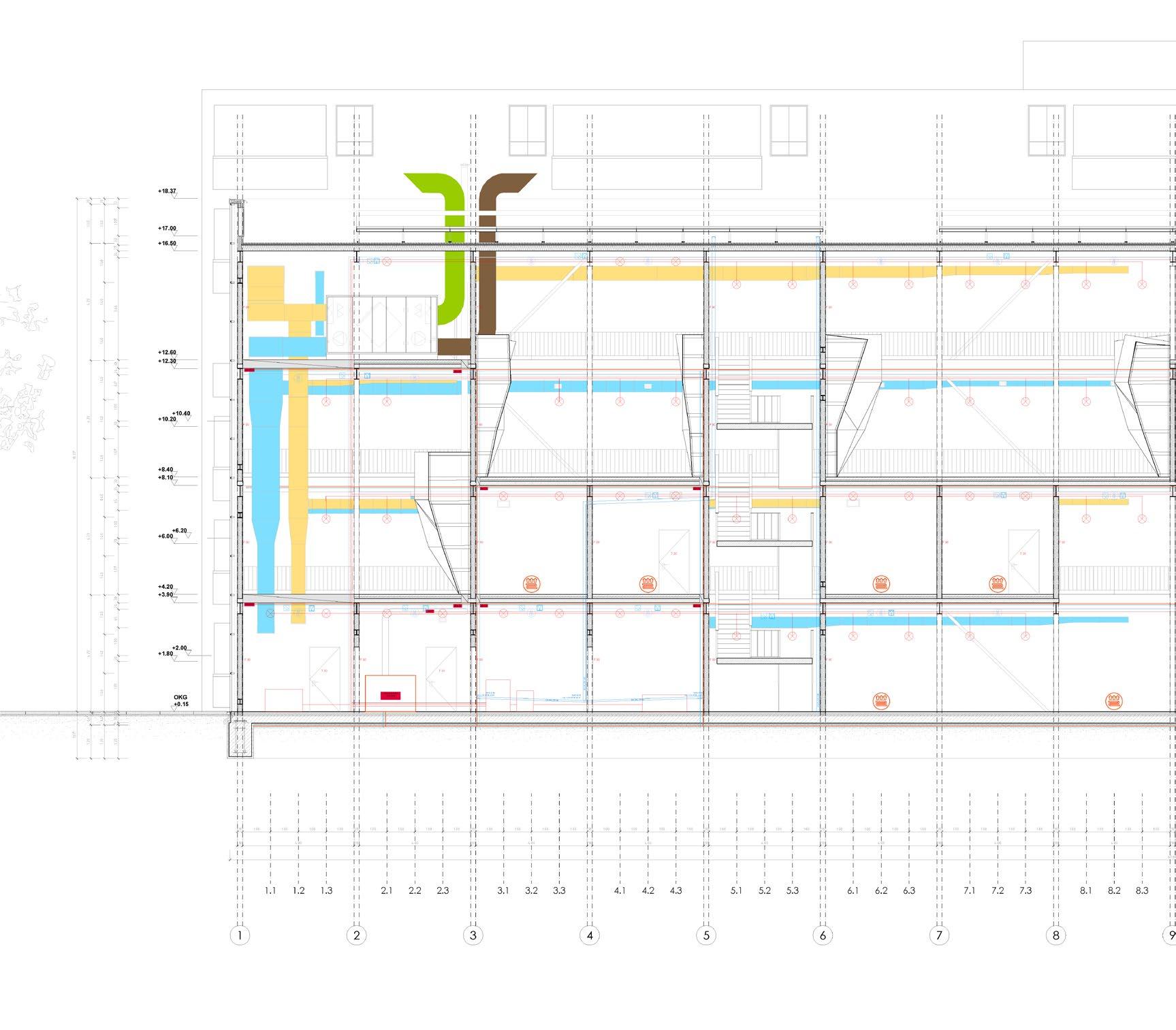

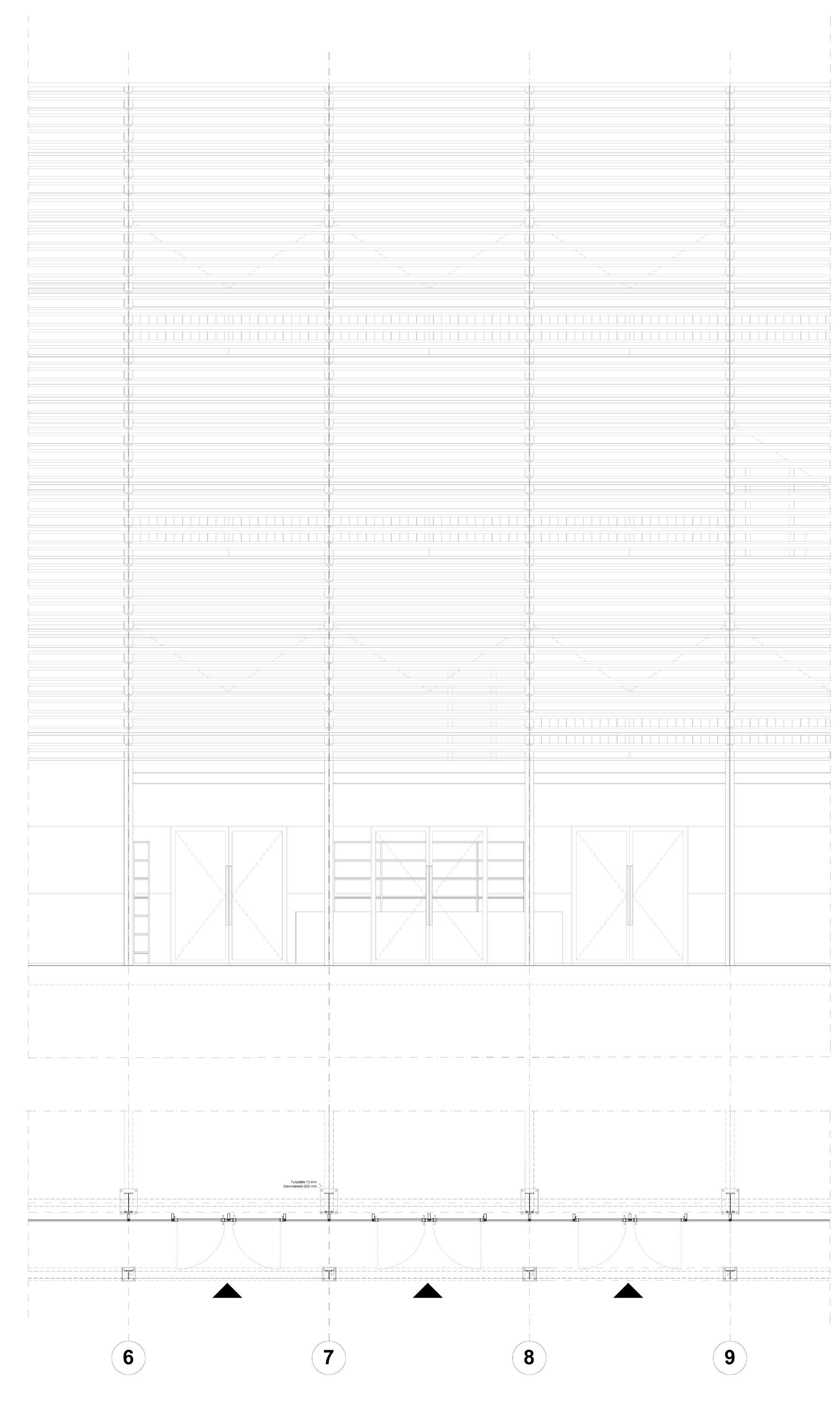

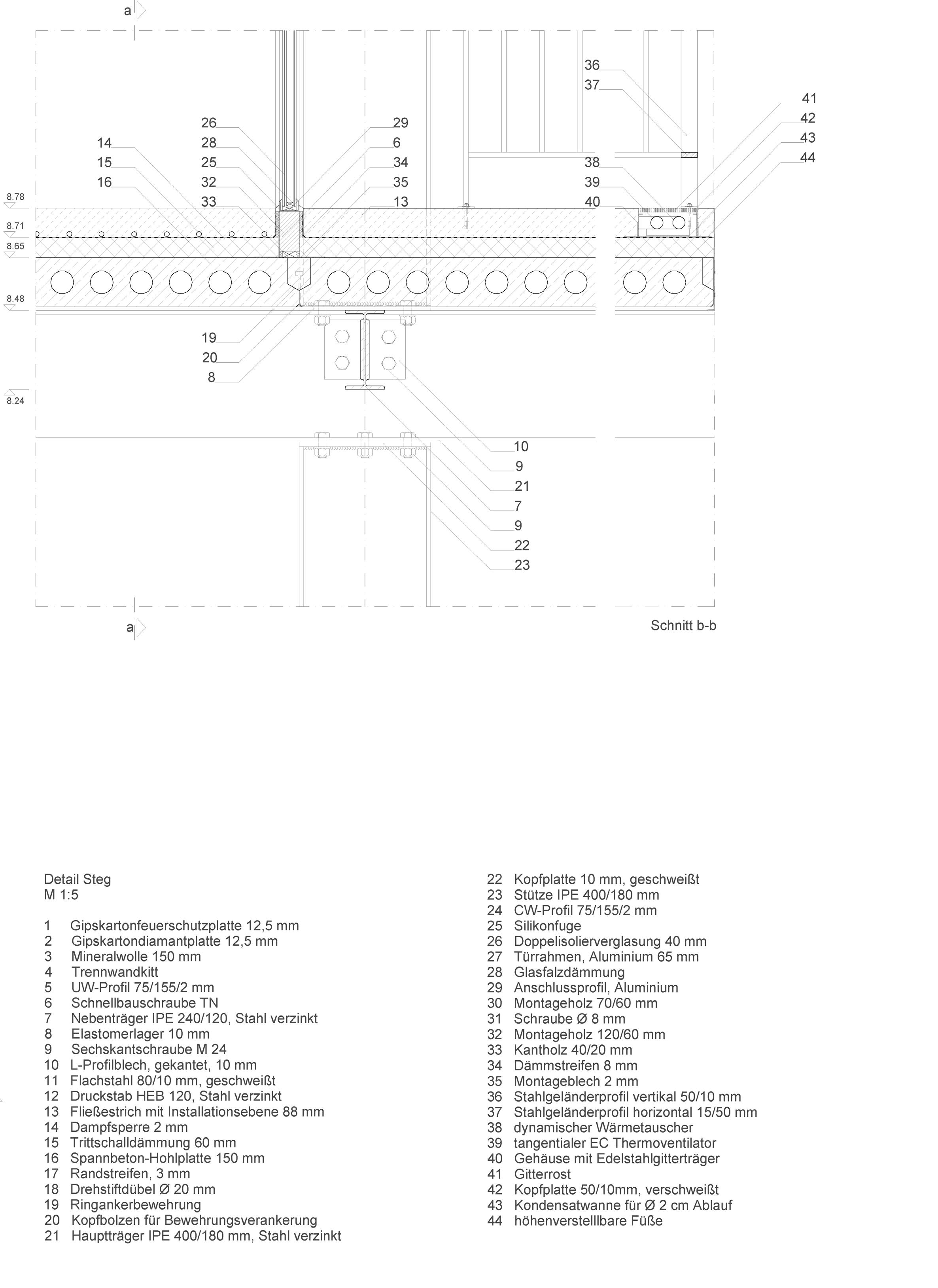

The building was planned down to the smallest structural and technical detail. The design is a collaborative work of a group of six students, each taking on the role of an expert on a different part of the project. I was responsible for the structural design and plans that I did not make myself will be marked.

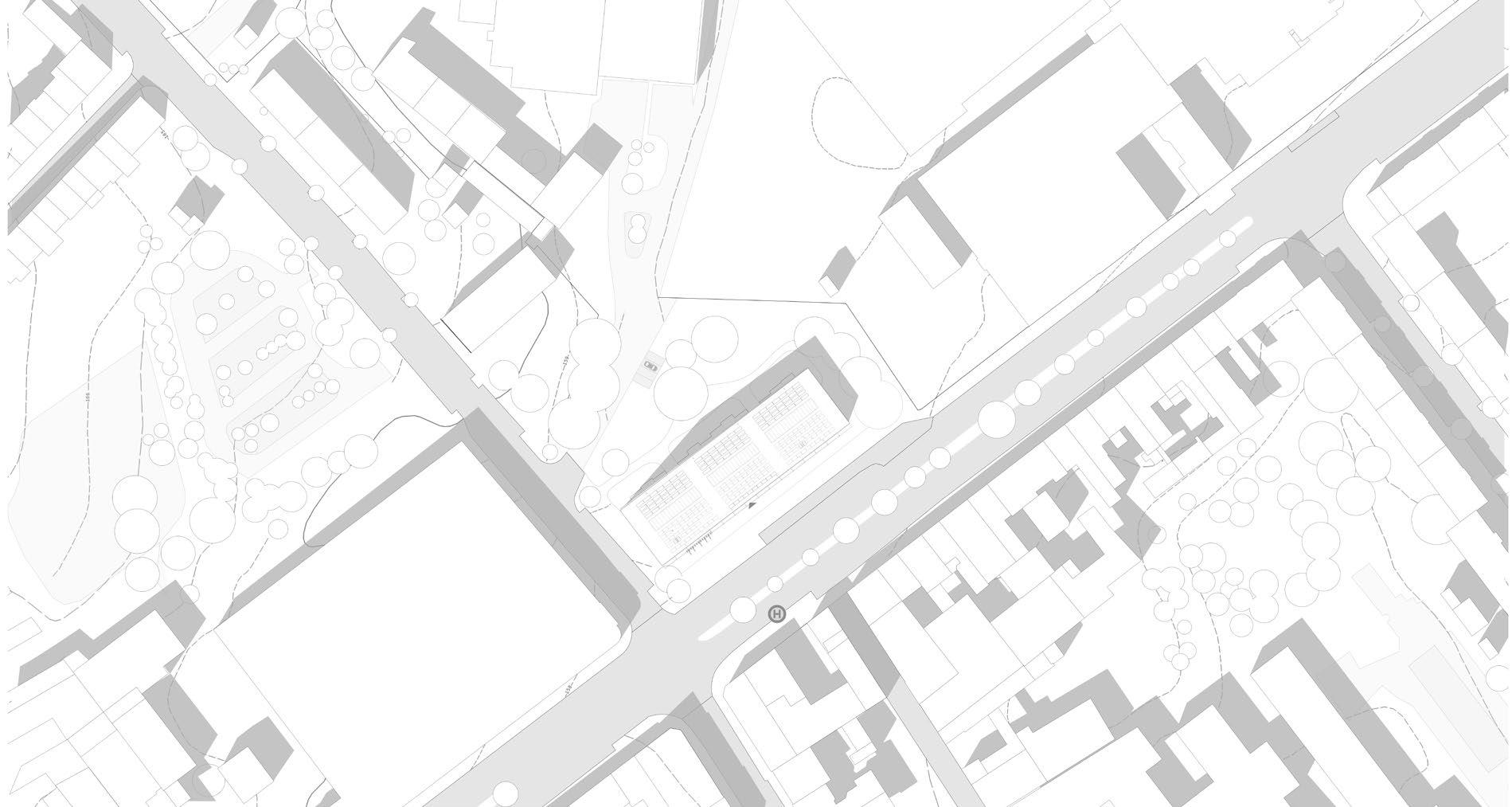

SITE
