AutoCAD- De La Garza Architecture

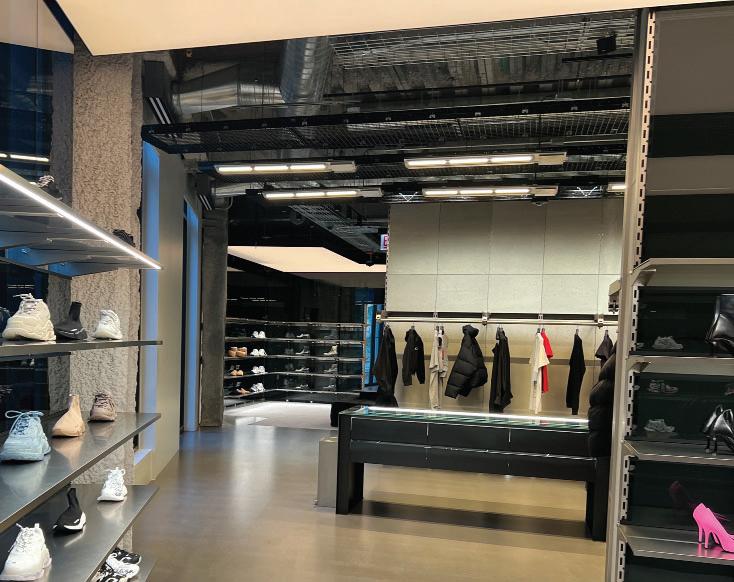

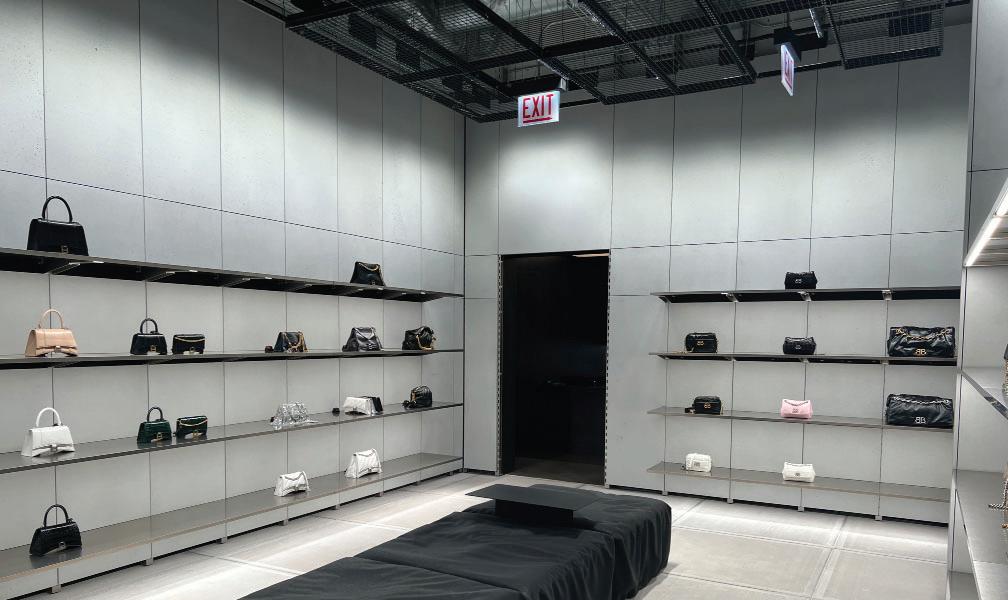

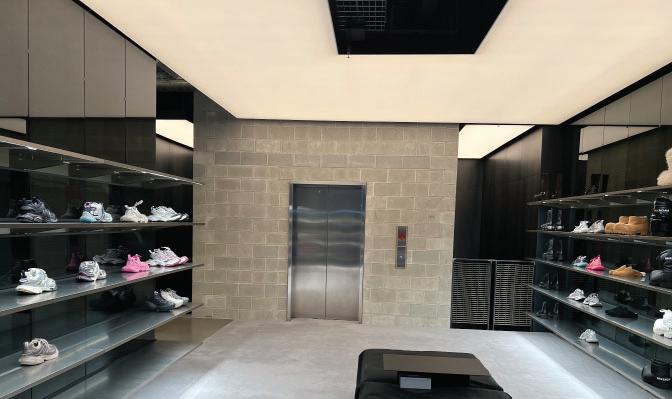

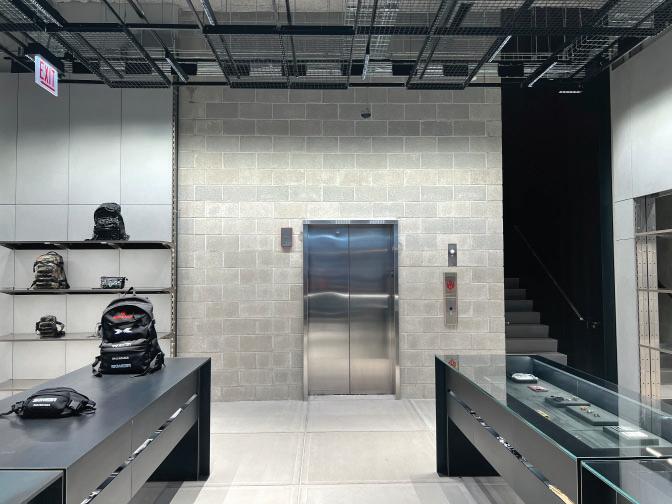

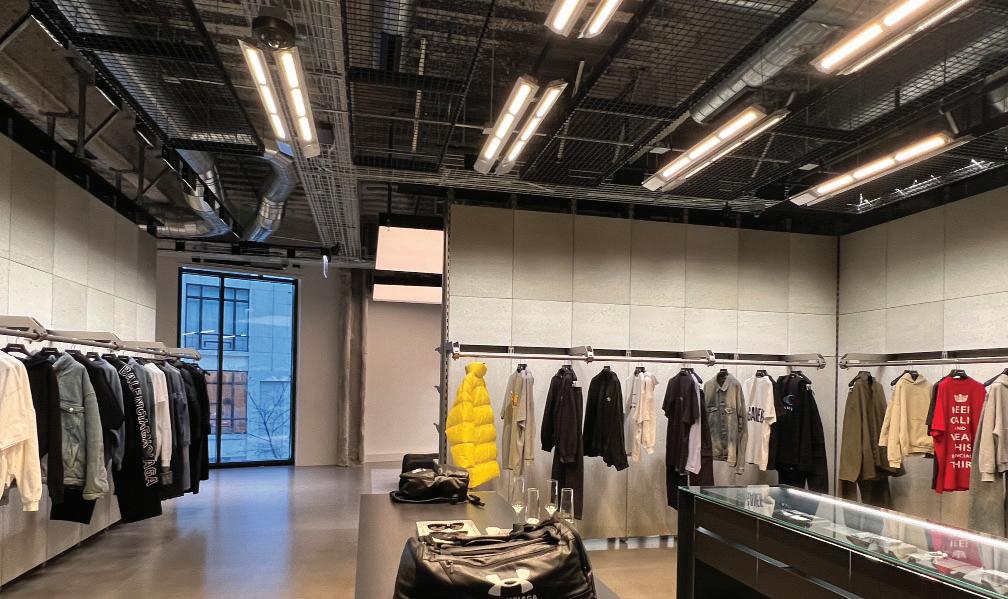

HIGH END RETAIL - CHICAGO BUILDING SECTIONS
AutoCAD- De La Garza Architecture
OFFICE FIT OUT-
SECTIONS
AutoCAD- De La Garza Architecture
AutoCAD- De La Garza Architecture

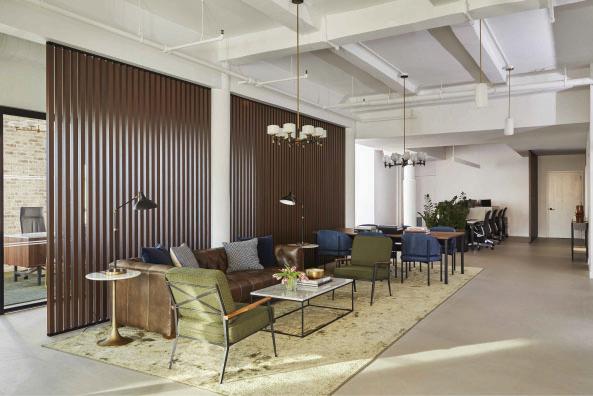

OFFICE FIT OUT- NYC

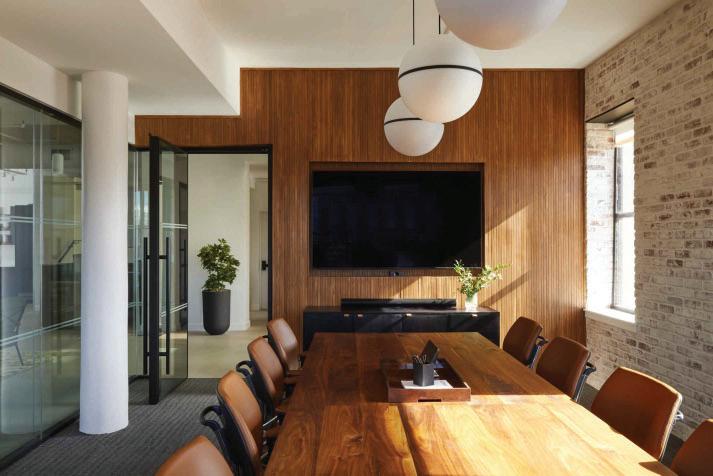

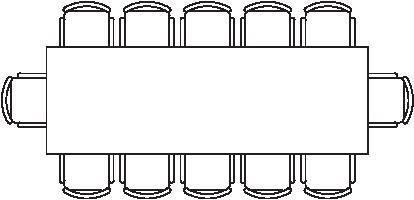

BOARDROOM SECTIONS & DETAIL
AutoCAD- De La Garza Architecture

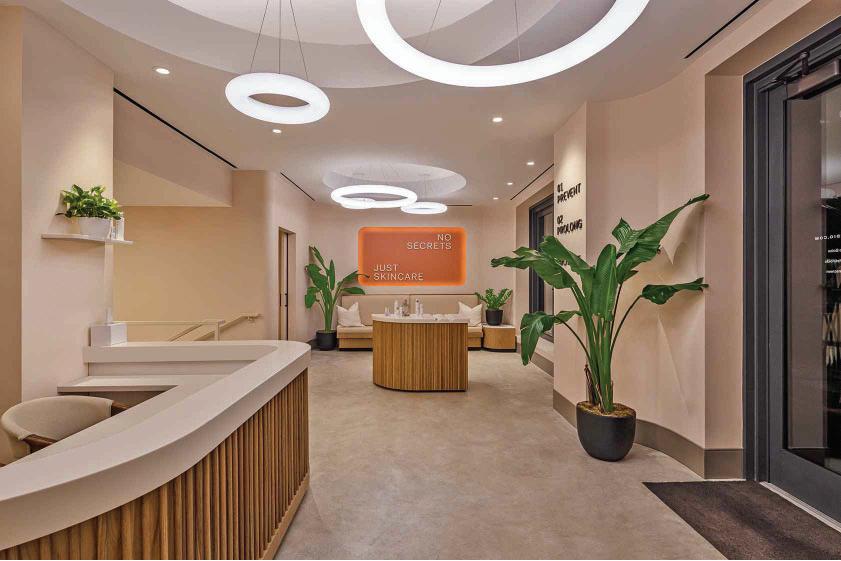

MEDICAL STUDIO - BROOKLYN CONSTUCTION PLAN
AutoCAD- De La Garza Architecture
MEDICAL STUDIO - BROOKLYN RCP
AutoCAD- De La Garza Architecture
AutoCAD- De La Garza Architecture

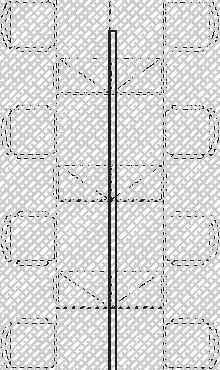

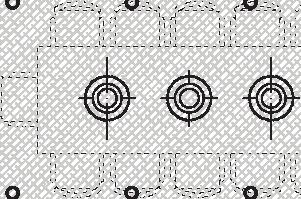

EXISTING THROUGH WALL EXHAUST VENT TO REMAIN
-APT 5B
DOB SUBMITAL PLANS NYC REVIT - ALLEGRA KOCHMAN ARCHITECTURE

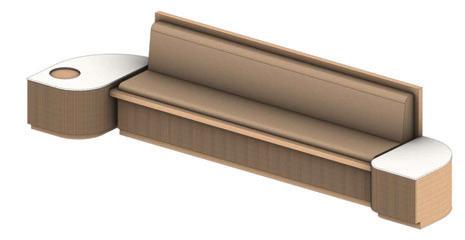

BUILT IN BENCH
EXISTING DRYER EXHAUST DUCT
EXISTING GAS METER
EXISTING GAS RISER
EXISTING CABINETRY TO BE REPLACED
RELOCATE EXISTING ELECTRICAL PANEL
LAUNDRY CLOSET -WASHER + VENTED DRYER
ABOVE TO BE REPLACED NEW THROUGH W EXHAUST VENT
BC 2506.3 MOLD RESISTANCE. GYPSUM BOARD OR CEMENT BOARD, USED IN AN ASSEMBLY FOR THE FOLLOWING AREAS, SHALL HAVE A MOLD RESISTANCE RATING OF 10 IN ACCORDANCE WITH ASTM D3273:
1. WALLS AND CEILINGS OF SPACES CONTAINING CONDENSERS, WATER TANKS, WATER PUMPS, AND PRESSURE REDUCTION VALVES; 2. WALLS AND CEILINGS OF LAUNDRY ROOMS;
3. PORTIONS OF WALLS WITHIN 2 FEET (610 MM) OF KITCHEN SINKS TO A HEIGHT OF 4 FEET (1219 MM) ABOVE THE FLOOR; 4. PORTIONS OF WALLS WITHIN 2 FEET (610 MM) OF KITCHEN STOVES TO A HEIGHT OF 4 FEET (1219 MM) ABOVE THE FLOOR; 5. WALLS OF BATHROOMS THAT ARE NOT SOLELY WATER CLOSET COMPARTMENTS, OTHER THAN WALLS SPECIFICALLY REQUIRED TO BE CEMENT BOARD;
EXISTING THROUGH WALL EXHAUSTS FOR GAS DRYER AND HOOD & RANGE
REF.
REF.
DUCT ABOVE REPAIRED FOR DRYER VENTILATION
EXISTING GAS METER
LAUNDRY CLOSET -WASHER + VENTED DRYER
3D SKETCHES FOR GENERAL SPATIAL RELATIONSHIPS, SEE 2D DRAWINGS FOR ACTUAL RELATIONSHIPS
11x17
= 1'-0" @ 8.5x11 1/2" = 1'-0" @ 24x36 1/4" = 1'-0" 1 KITCHEN -NORTH ELEVATION
11x17 1/8" = 1'-0" @ 8.5x11 1/2" = 1'-0" @ 24x36 1/4" = 1'-0" 3 KITCHEN -WEST ELEVATION @ 11x17 1/8" = 1'-0" @ 8.5x11 1/2" = 1'-0" @ 24x36
= 1'-0" 2 KITCHEN -PARTIAL EAST ELEVATION
3. REVIEW WHAT IS NOT GRAY GC NOTES:
1. SEE SCH008 FOR CORRECT
@ 11x17
1/8" = 1'-0" @ 8.5x11
1/2" = 1'-0"
-SOUTH ELEVATION
11x17 1/8" = 1'-0" @ 8.5x11
11x17 1/8" = 1'-0" @ 8.5x11 1/2" = 1'-0" @ 24x36 1/4" = 1'-0"
WASHER/DRYER
AND
COOP NOTE: PIPES STOP AT THIS FLOOR -THERE IS NO PLUMBING BELOW
COLD, DRAIN, AND
PLUMBING NOTES:
1. THE PLUMBING WORK WILL BE PERFORMED BY A LICENSED PLUMBER AND WILL BE FILED FOR AND SIGNED OFF
2. IF ANY WALL AREAS ARE OPENED AND EXPOSE THE RISER LINER, THE BUILDING SUPERINTENDENT WILL BE NOTIFIED AND INVITED FOR A TIMELY INSPECTION.
3. ALL PIPES SHALL HAVE ACCESSIBLE SHUTOFF VALVES.
4. WHERE THERE ARE NEW WET APPLIANCES AND OR SINGLE LEVER FAUCETS, BACK FLOW PREVENTER WILL BE INSTALLED.
5. WHERE WALLS ARE TO BE OPENED, ALL HOT AND COLD BRANCH FEED LINES WILL BE REPLACED
6. REPLACE RADIATOR BRANCH PIPES TO NEAREST JOINT -FLOOR TO BE REPAIRED
7. RELOCATE RADIATOR SUPPLIES ON CENTER WITH THE THICKNESS OF NEW WALL MOUNTED RADIATORS -NO MORE THAN 3" FROM RADIATOR
8. REPLACE BATHROOM PIPING TO RISERS
9. MODIFICATION TO THE MAIN SUPPLIES, VENTS AND DRAIN LINES WILL BE DONE UNDER SEPARATE CONTRACT BY BUILDING PLUMBER
10. SOLENOID SENSOR -ACTIVATED SHUT -OFF VALVE REQUIRED AT:
a. WASHER DRYER -CL 5-2
b. REFRIGERATOR -KITCHEN
c. SINK / DISHWASHER -KITCHEN
11. DISHWASHER SHALL BE HOOKED UP TO SINK
12. ALL PLUMBING SHALL BE INSULATED WITH PAPER-WRAPPED FIBERGLASS INSULATION AS PER COOP STANDARDS
13. GC SHALL NOTIFY ARGO MANAGEMENT (212)896-8600 FOR INSPECTION OF EXISTING AND NEW PLUMBING AND WATERPROOFING.
14. WASHER / DRYER SHALL BE ELECTRICAL NON -VENTING HIGH EFFICIENCY : MIELE W
3038 AND T 8023 C OR MATCHING MODEL AVAILABLE AT TIME OF PURCHASE
15. INSTALL WASHING MACHINE SPRING ISOLATOR ANTI VIBRATIONS PADS: ANTI-WALK
/ COLD SUPPLIES IN WALL WITH EXISTING DRAIN AND VENT
RCP NOTES: -ALL CEILING PAINTED "DECORATORS" WHITE UNLESS OTHERWISE NOTED -ALL CROWN MOLDING PAINTED SIMPLY WHITE SATIN
CLICK TRACK PICTURE RAIL BOIC -VERIFY DIMENSIONS IN FEILD Item #LocationLengthColorProduct #Notes
2AKitchen7'-6"SilverVB-BTD-400-SRCoordinate with plugmolds to the east of the stove
2BDining 8'-6"BlackGJ-WM501-P-BK
2CDining1'-8"BlackGJ-WM501-P-BK
2DDining3'-1"BlackGJ-WM501-P-BK
2EDining4'-8"BlackGJ-WM501-P-BK
3AL.R.1'-11"WhiteJC-LTM504-GR-WT
3BL.R.2'-3"WhiteJC-LTM504-GR-WT
3CL.R.3'-1" WhiteJC-LTM504-GR-WT
3DL.R.6'-11"WhiteJC-LTM504-GR-WT
3EL.R.2'-0"WhiteJC-LTM504-GR-WT
3FL.R.15'-7"WhiteJC-LTM504-GR-WT
5ACorridor5'-8"WhiteJC-LTM504-GR-WT
CLICK TRACK PICTURE RAIL BOIC PURCHASED
LocationItem #DescriptionQty
KitchenGJ-WM501-P-BKGallery Rail 6ft -black2 Need 1 more (5'11")
KitchenKD-JRPB-330-MMJ-Hook Cable -(Black) -Stainless Steel -726
KitchenAL-R224-SSCobra Cable -(Stainless Steel) -486
L.R + CJC-LTM504-GR-WTGallery Rail-8ft 243.84cm-White Powder Coated2 Need 3 more (21'5")
L.R + C.HS-WM501-P-WTGallery Rail 6ft -white2
L.R + CJHCW-72-183HJ-Hook Cable -(White) -Stainless Steel -7216
KitchenVB-BTD-400-SRClick-Track Rail / Classic -Silver -Satin Anodized-8ft / 243.84cm1
KitchenDTS-H-229Self-Gripping -(Small) -Picture Hook32
SUBFLOOR
SLEEPERS AND CINDER FILL
EXISTING STRUCTURE
STONE SADDLE -EASED EDGE TYP. NOBELSEAL SIS MEMBRANE NOBEL SEAL SHEET BOND
CEMENT BACKER UNIT
SUBFLOOR AS REQUIRED TO MAKE FLOORS LEVEL
STONE SADDLEEASED EDGE TYP.
EXISTING SLEEPERS AND CINDER FILL
STRUCTURE
SELF-LEVELING THINSET
LIQUID WATERPROOFING MEMBRANE
BACKER UNIT
COOP NOTES: WASHING MACHINE SHALL: -HAVE SOLENOID MOISTURE SENSOR AND VALVE SHUT-OFF -BE BALANCED BY GC -HAVE "PREMIUM ANTI-WALK WITH SILENT FEET INSTALLED" ON ALL FEET -LIQUID WATERPROOFING; MEMBRANE SHALL EXTEND 6" UP WALL IN NONSHOWER AREAS OF BATHROOMS AND IN LAUNDRY SUBFLOOR BUILD UP AS REQUIRED TO MAKE FLOORS LEVEL
1 SECTION AT FOYER / EXISTING WOOD FLOOR @ 11x17
6" = 1'-0"
@ 11x17
3" = 1'-0" @ 8.5x11 1'-0" = 1'-0" @ 24x36
3" = 1'-0" @ 8.5x11 1'-0" = 1'-0" @ 24x36 6" = 1'-0"
NEW LINOLEUM FLOOR ON MANUFACTURER'S RECOMMENDED BONDING AGENT
KITCHEN (EXISTING DINING ROOM / FOYER) DINING ROOM (EXISTING KITCHEN) EXISTING SUBFLOOR
EXISTING SLEEPERS AND CINDER FILL TO REMAIN LIQUID WATERPROOFING MEMBRANE PLYWOOD SUBFLOOR BUILDUP AS REQUIRED TO MAKE FLOOR LEVEL
EXISTING STRUCTURE
3 SECTION AT KITCHEN / DINING ROOM FLOOR
6" = 1'-0"
2 SECTION AT BATHROOMS & LAUNDRY / EXISTING WOOD FLOOR @ 11x17
3" = 1'-0" @ 8.5x11 1'-0" = 1'-0" @ 24x36

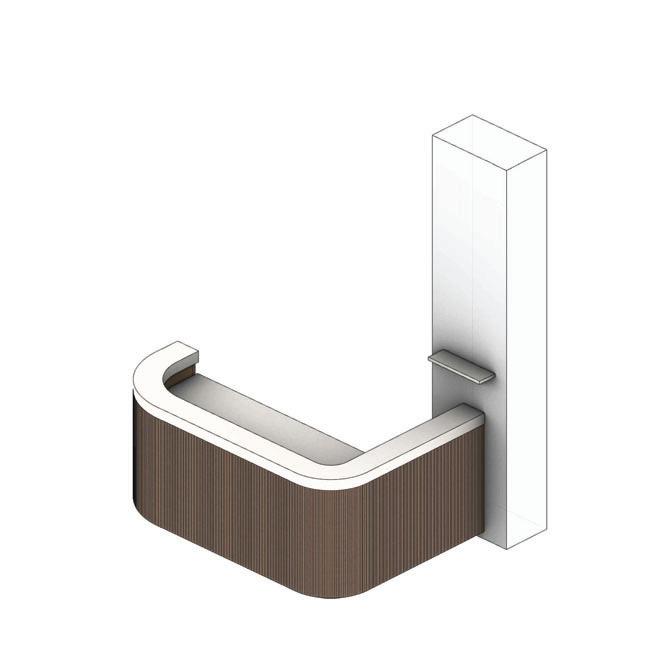

KITCHEN BAR PLAN UPPER
1/2" = 1'-0"
11x17
= 1'-0" @ 8.5x11
= 1'-0" @ 24x36
= 1'-0"
11x17 1/4" = 1'-0" @ 8.5x11
= 1'-0" @ 24x36
11x17 1/4" = 1'-0" @ 8.5x11 1" = 1'-0" @ 24x36 1/2" = 1'-0" 2 KITCHEN -NORTH CABINET SECTION @ 11x17
3" = 1'-0" @ 24x36 1 1/2" = 1'-0" 4 UNDERCABINET AT SINK
UNDERCABINET AT BAR NOTE: WHERE SHELVES ARE BEHIND SOLID DOORS, G3 SHELVES ARE ACCEPTABLE AKA NOTES: -CAN NOT ROTATE DIMS 3/A470 -SHOW ACCURATE PIPE LOCATION @ 11x17
3/4" = 1'-0" @ 8.5x11
1/2" = 1'-0"
11x17
= 1'-0" @ 8.5x11 3" = 1'-0" @ 24x36
BAR SIDE ELEVATION
3/4" = 1'-0" @ 8.5x11 3" = 1'-0" @ 24x36 3/4" = 1'-0"
CABINET CONFIGURATIONS\ -ALL GLASS ILLUSTRATED ON
SHEETHAS NOT BEEN DELIVERED TO SITE
NOSUBMISSIONDATE 201504.2 REMEDY11/28/18
KITCHEN CABINET CEILING DETAIL
1/2" = 1'-0"
11x17
= 1'-0" @ 8.5x11
= 1'-0" @ 24x36
