The cover sketch is of the Kendeda Building on Georgia Tech’s campus.
I. ACADEMIC WORK
01 PENN CENTER AMPHIBIOUS PLATFORM
Senior Studio, Fall 2024
Architecture Studio V
Instructor: Danielle Willkens
Partners: Kaylan Pham + Niknaz Tillavaldyyeva
Roles: My two teammates and I collaborated on all the elements of the project; however, I led the making of the digital model and the plans; Niknaz led the production of the renders; and Kaylan led the production of the physical models. We split up the production of the diagrams among the three of us.
Location: St. Helena, SC, U.S.A.
Project Type: Community Center
The project is a community center at Penn Center in St. Helena, South Carolina, situated along the coast of St. Helena Sound. Penn Center, formally known as Penn School, was the first school in the South for recently enslaved slaves and now operates to serve the St. Helena community. Prior to design, we engaged in extensive research into vernacular architecture, 19th-21st century wood joinery, mass timber (including attending a mass timber conference at Auburn University), the history of Penn Center and buildings on its campus, and St. Helena. In addition, my studio went on a five-day site visit, where we did field research, 3-D scanned the historic buildings and campus, and met with staff to hear their perspective on the needs, history, and signficance of Penn Center. Following our research, my team proposed a “village” of community functions that sit atop an amphibious platform that rises with floods. While it can offer refuge during storms, its main purpose is to provide spaces for art, exercise, building and preservation, and community events and collaboration. Once reached by boat, people may again need to arrive this way in the future, as the center remains a safe haven against rising waters.
Site Plan

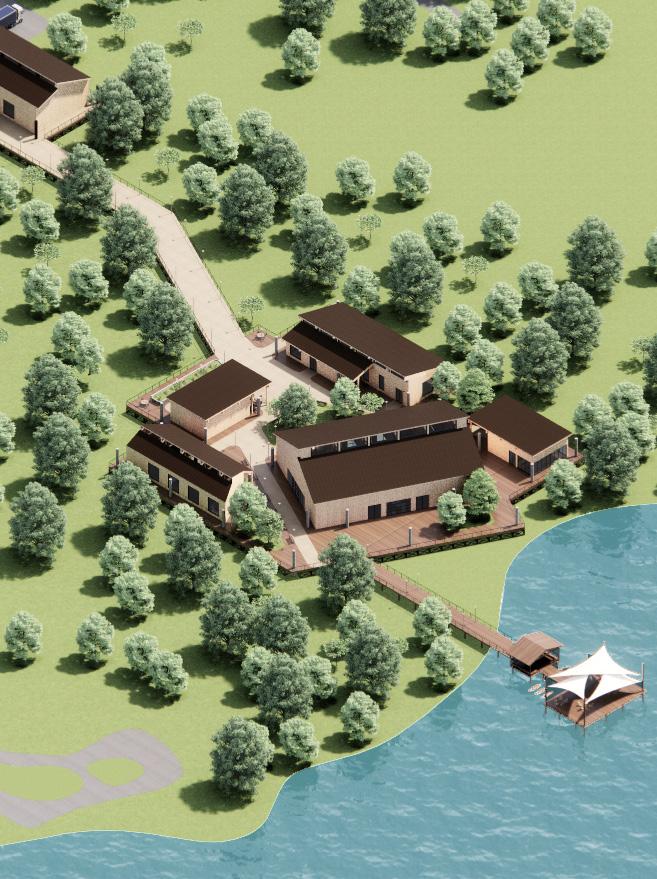

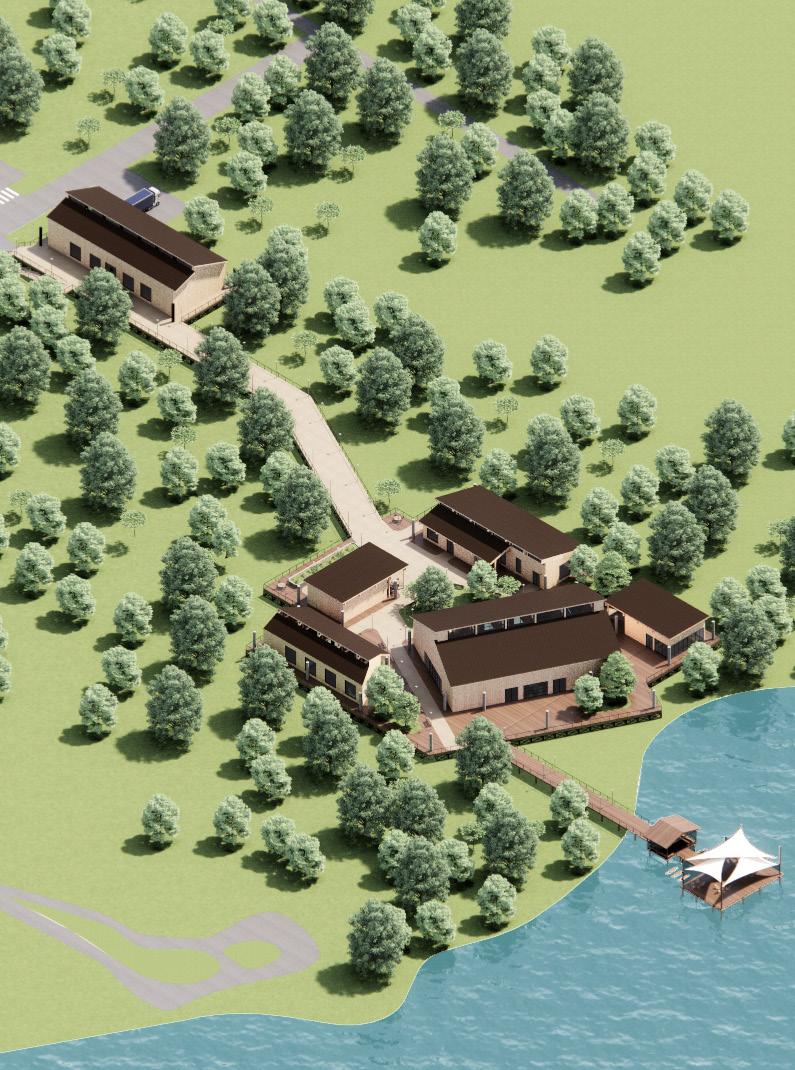

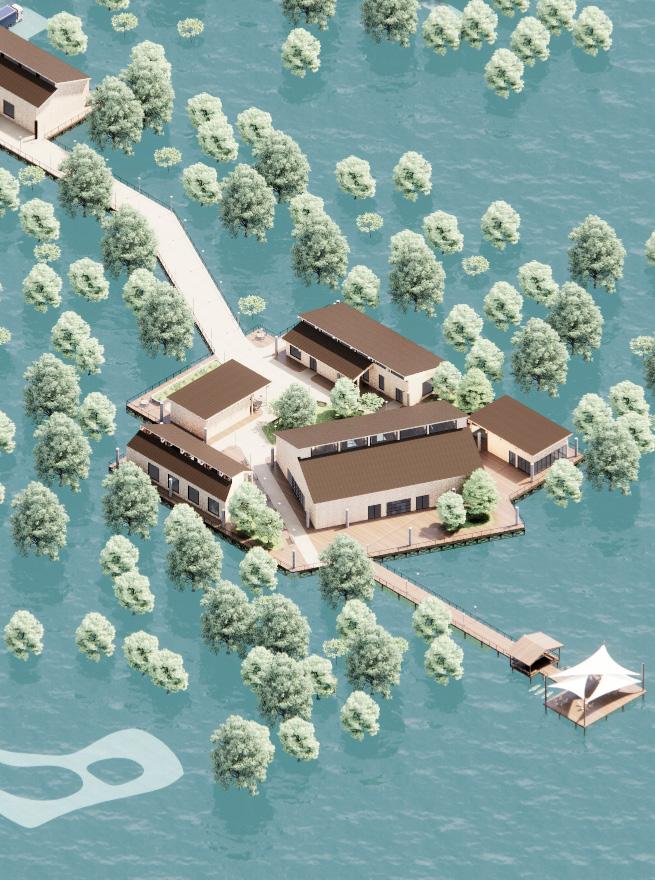

Northwest Ariel
Amphibious Structure Diagram

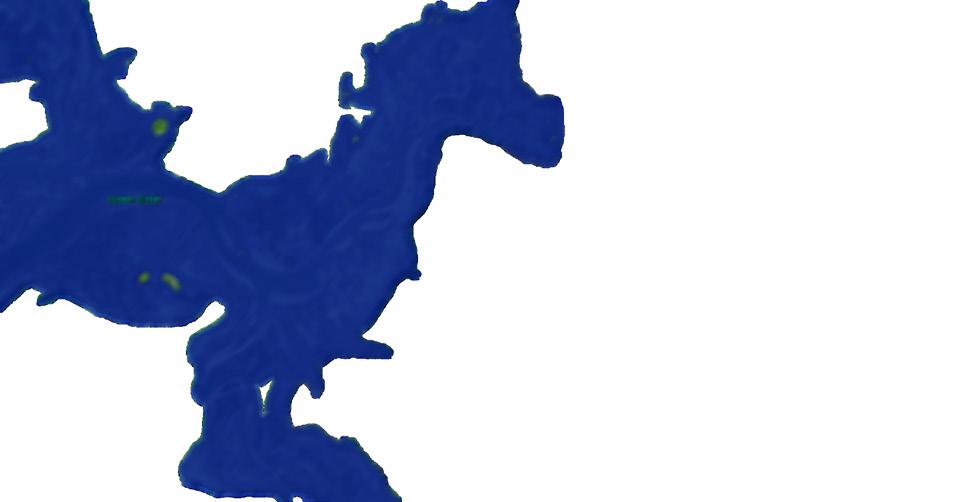

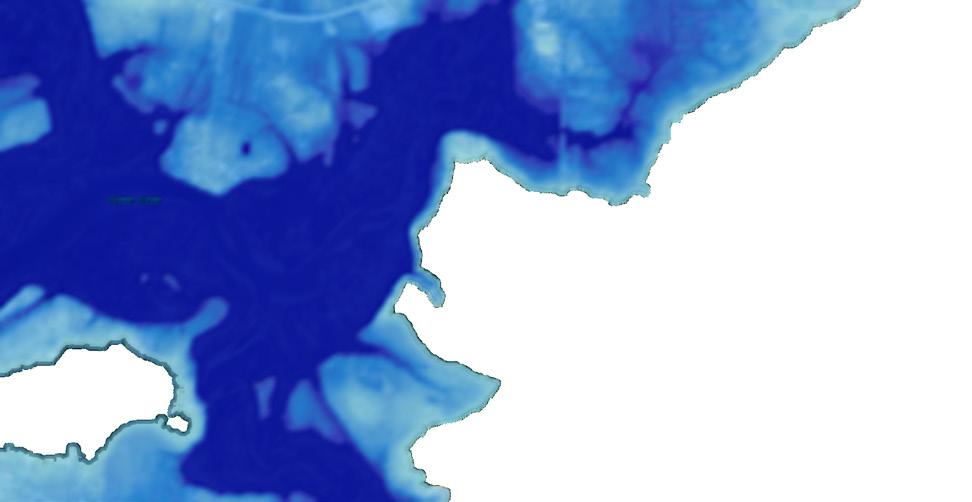

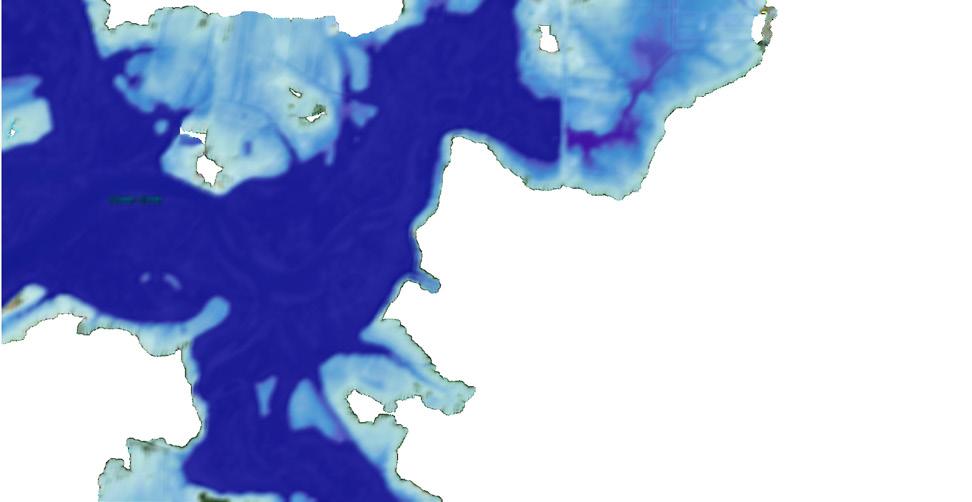

Flooding Vulnerability
- predicted sea level rise by NOAA Office for Coastal Management
Galvanized Steel - structural frame provides a corrosion resistant foundation
Wood Joists - distributes weight across the platform - allows easier modification of the floor layout
Timber Framing - encases the steel frame, creating a secure interface for attaching other components
Wood Cladding - finished with weather-treated wood
Flooding Diagram
Ground Plan

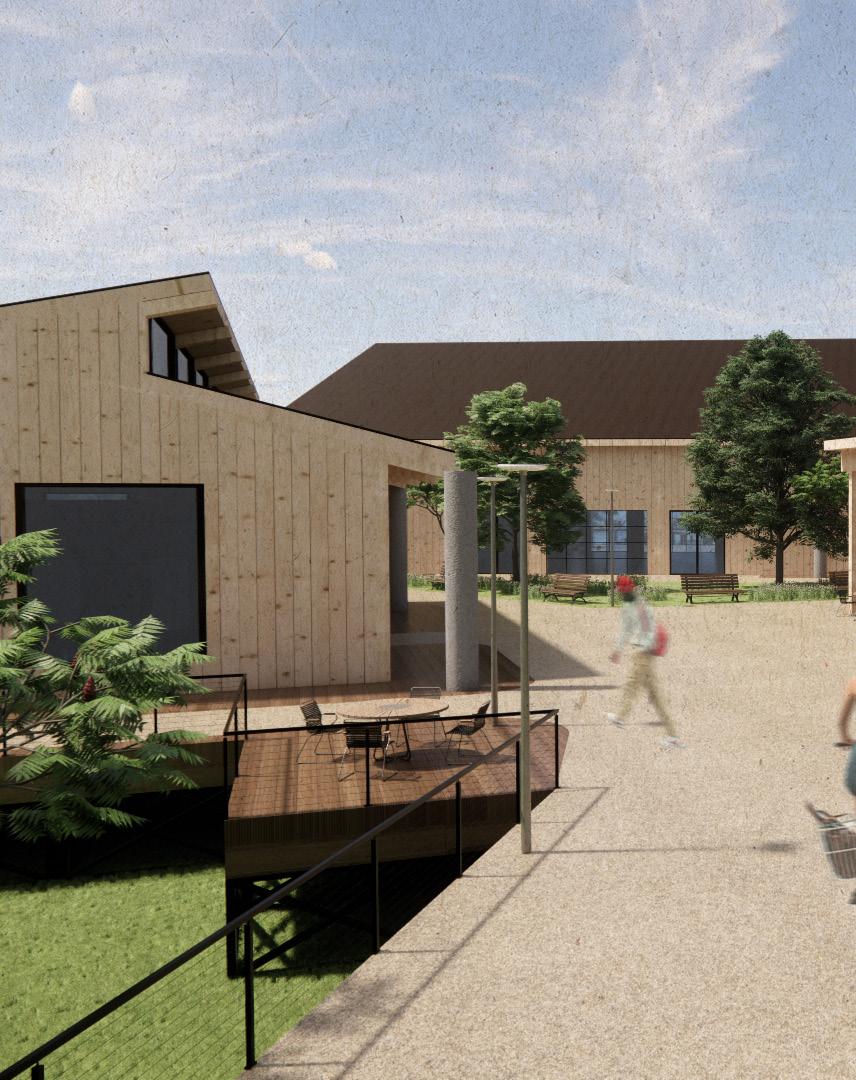

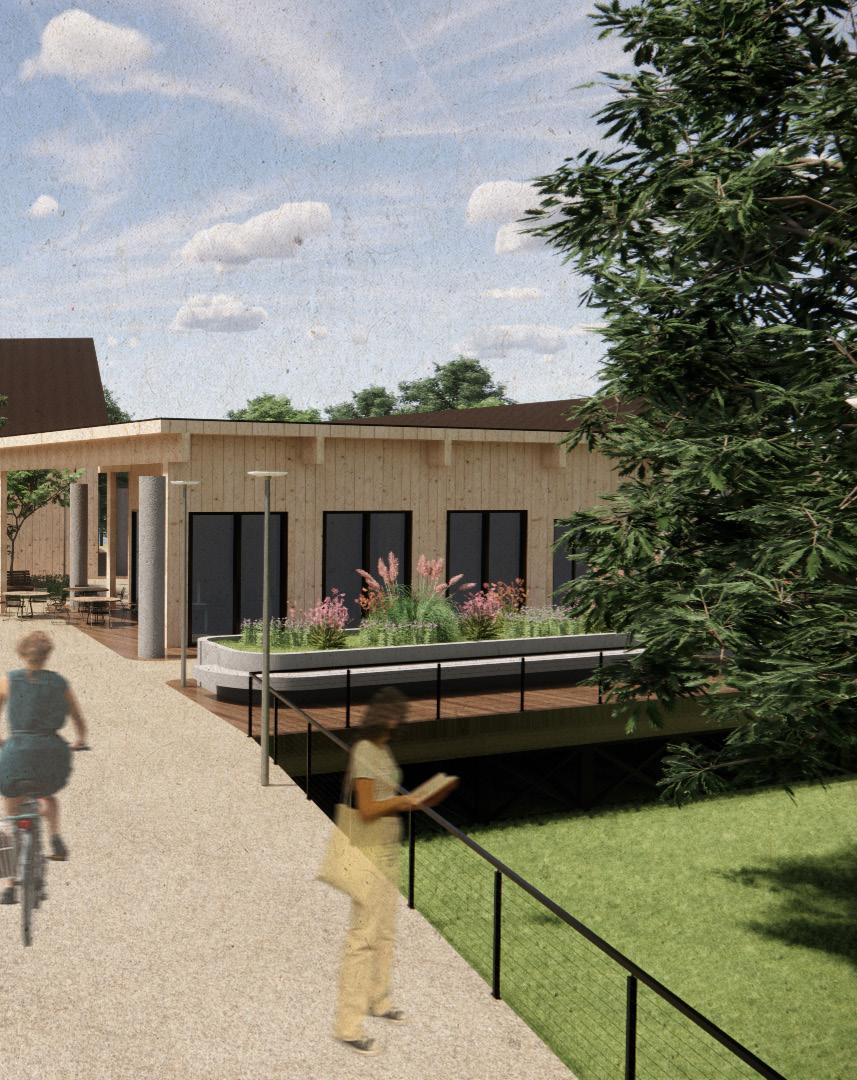

Main Entrance

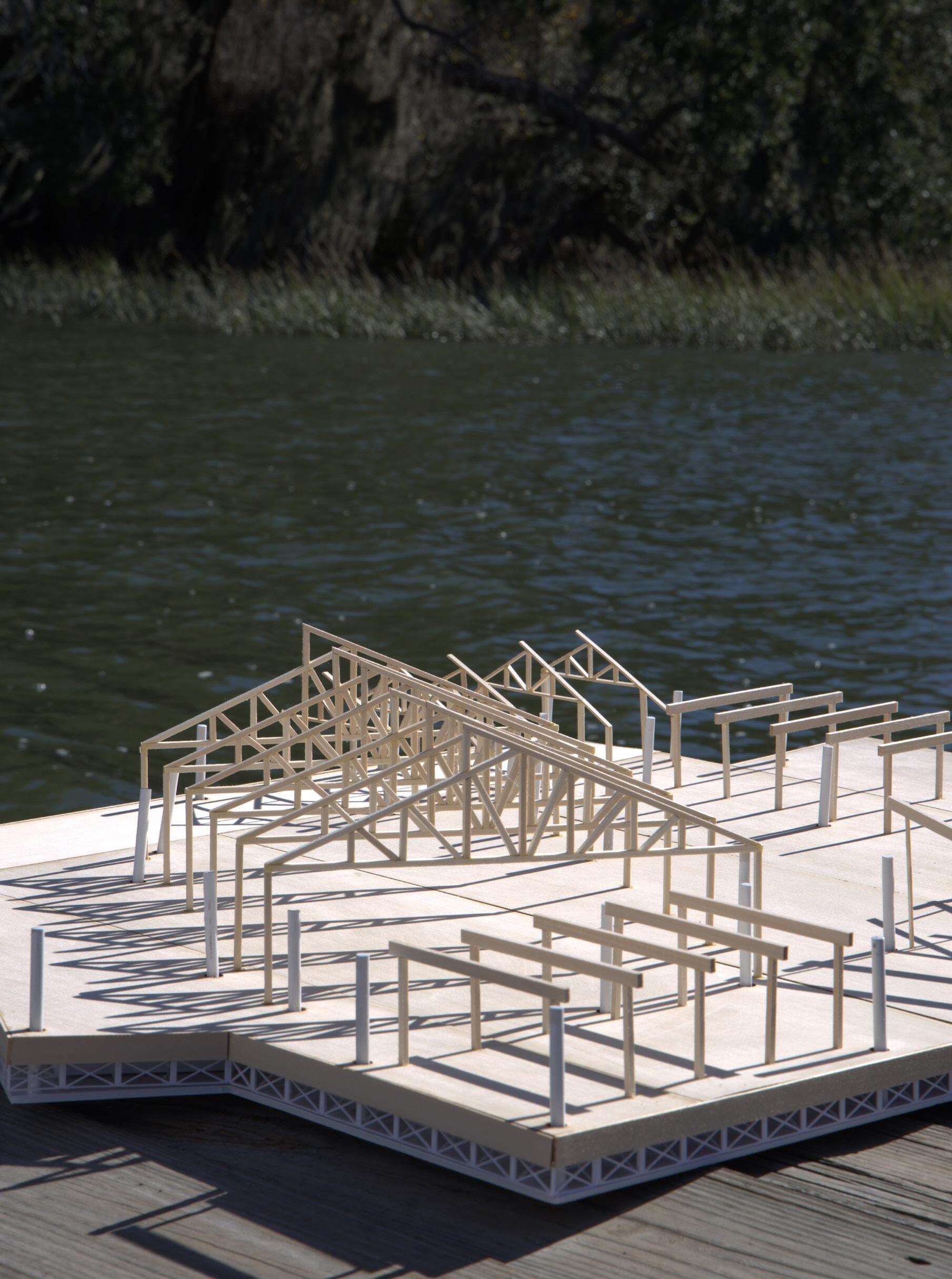

1/8” = 1’ model taken at Penn Center Dock
Exhibition Hall Program Flexibility Diagrams
Exhibition Hall Interior
02 D.C. STUDENT HOUSING COMPLEX
Junior Studio, Spring 2024
Architecture Studio V
Instructor: Katherine Wright
Partners: Lundell Wang
Roles: Lundell and I collaborated on all elements of the design and production. However, I led the production of the drawings and diagrams, and he led the production of the digital model and renders.
Location: Washington, D.C., U.S.A.
Project Type: Medium-density Residential

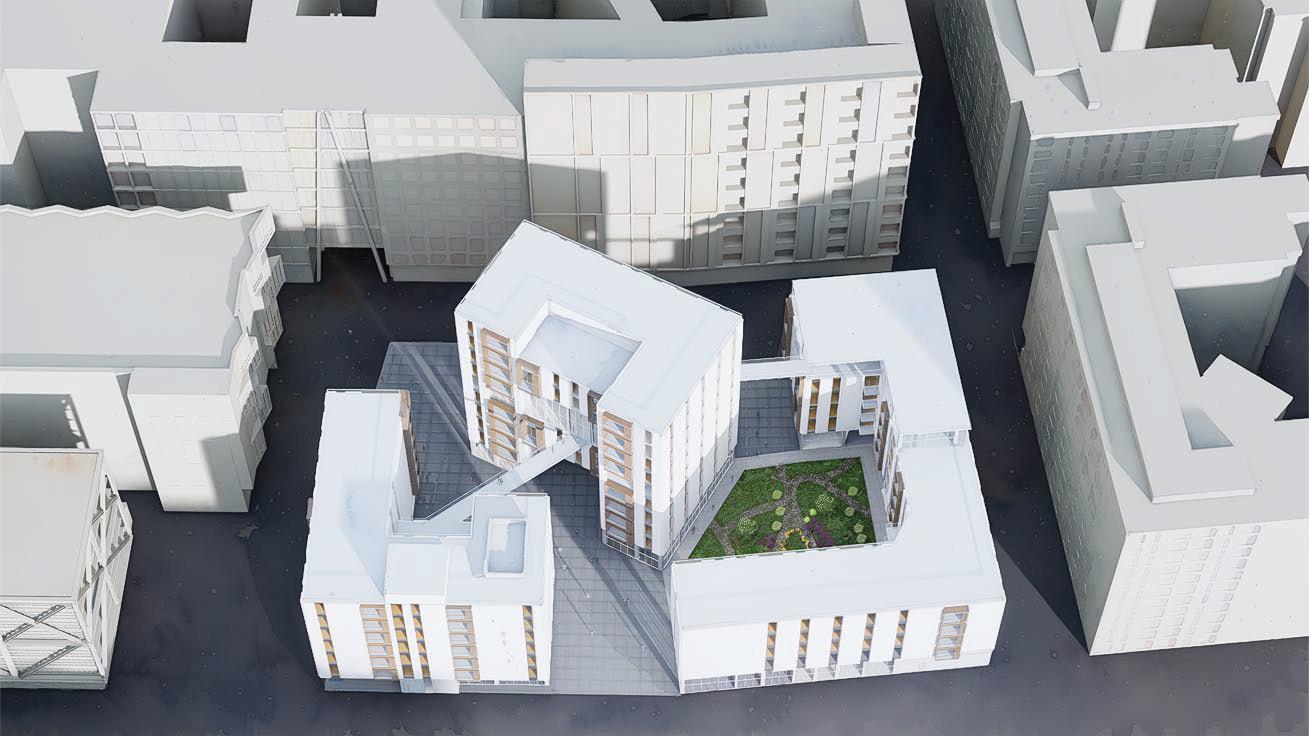

The project is a mid-rise student housing complex right outside the Howard University campus in the Shaw district of Washington, D.C. It is bordered by a Howard University residence hall to the north, as well as other apartments like the newly developed Wren to its west. The southern courtyard serves the public as a cut through to another corridor at the southwest end of the site. Through this courtyard are restaurants, a thrift store, a coffee shop, and the public reception to the apartment complex. In the northern courtyard, residents have access to green space, where they can relax and slow down before they enter their apartment. The housing complex includes units ranging from studios to four-room apartments. Amenities, including a gym, study and relaxation lounges, and a maker space, are located on the ground floor and fifth floor, where the buildings are connected by bridges.

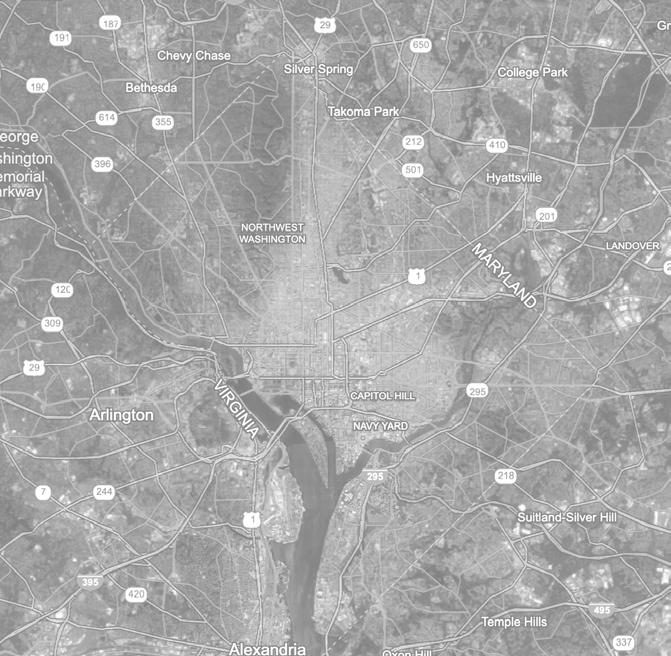

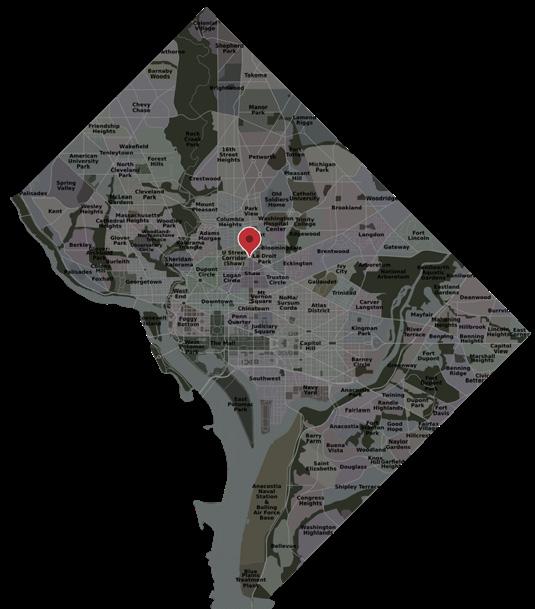

D.C. Map
Immediate Site Map
Northern Courtyard Site Plan

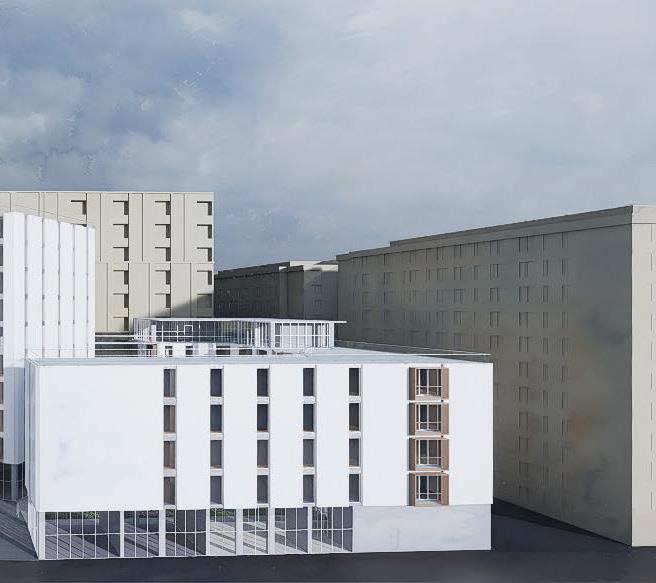

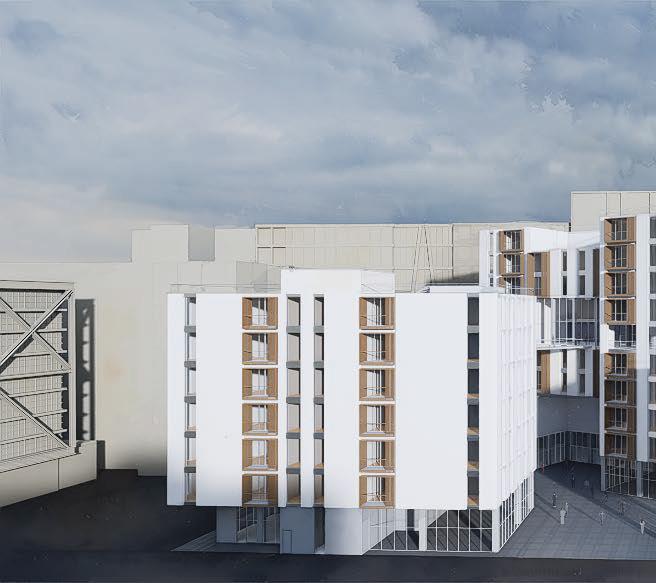

East Elevation
Ground Scheme
Reception
Shops + restaurants
Circulation
Ground Plan
0’ 10’ 20’ 50’
Residential Floor
Unit Plans
2-story, 2 Bedroom, 2 Bathroom
2 Bedroom, 2 Bathroom with Balcony

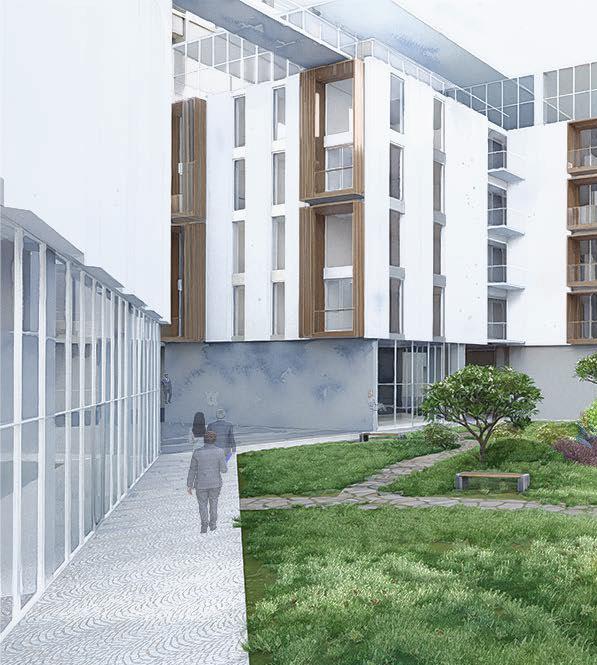

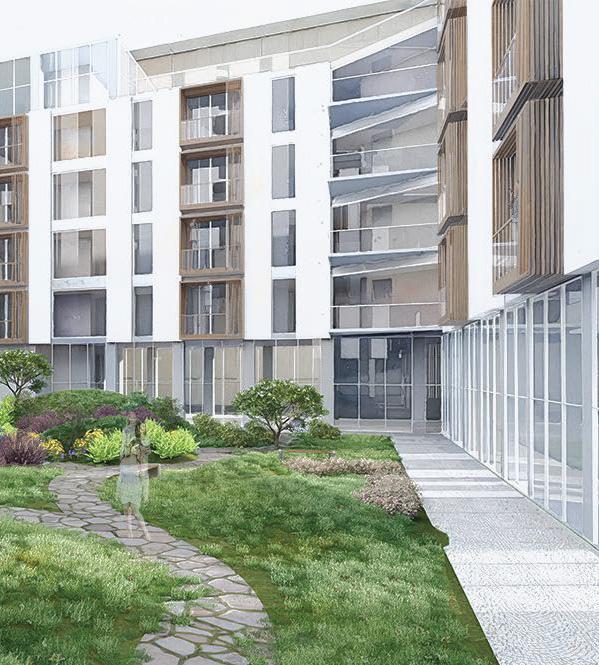

Courtyard
03 THE SKÚTUSTAÐAGÍGAR SKÁLI (LODGE)
Junior Studio, Fall 2023
Architecture Studio IV
Instructor: Hazem Ziada
Location: Skútustaðagígar, Iceland
Project Type: Beer Spa, Brewery, + Cafe
The project is a beer spa and brewery in the Lake-Myvatn region in Iceland— the land of fire and ice. The building is a transformation of the Viking longhouse, a historical building type that has been successful in Iceland and is reflective of the Icelandic cultural identity. The location is notable for its scenic views of Lake Myvatn and pseudocrators directly north of the site. Located next to Sel-Hotel Myvatn, the lodge (or skali in Icelandic), replaces an existing building that contains a cafe and brewery and expands its functions to include a beer spa. The lodge is a gathering place for locals and tourists, accommodating those interested in traditional tourism (such as hiking and bird-watching) and beer spa tourism.

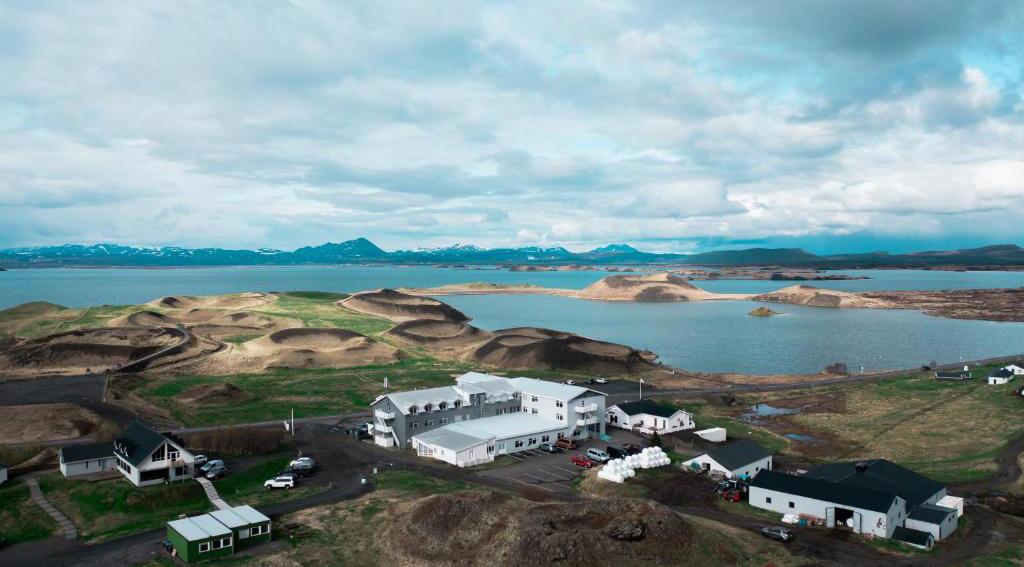

Immediate Context Map

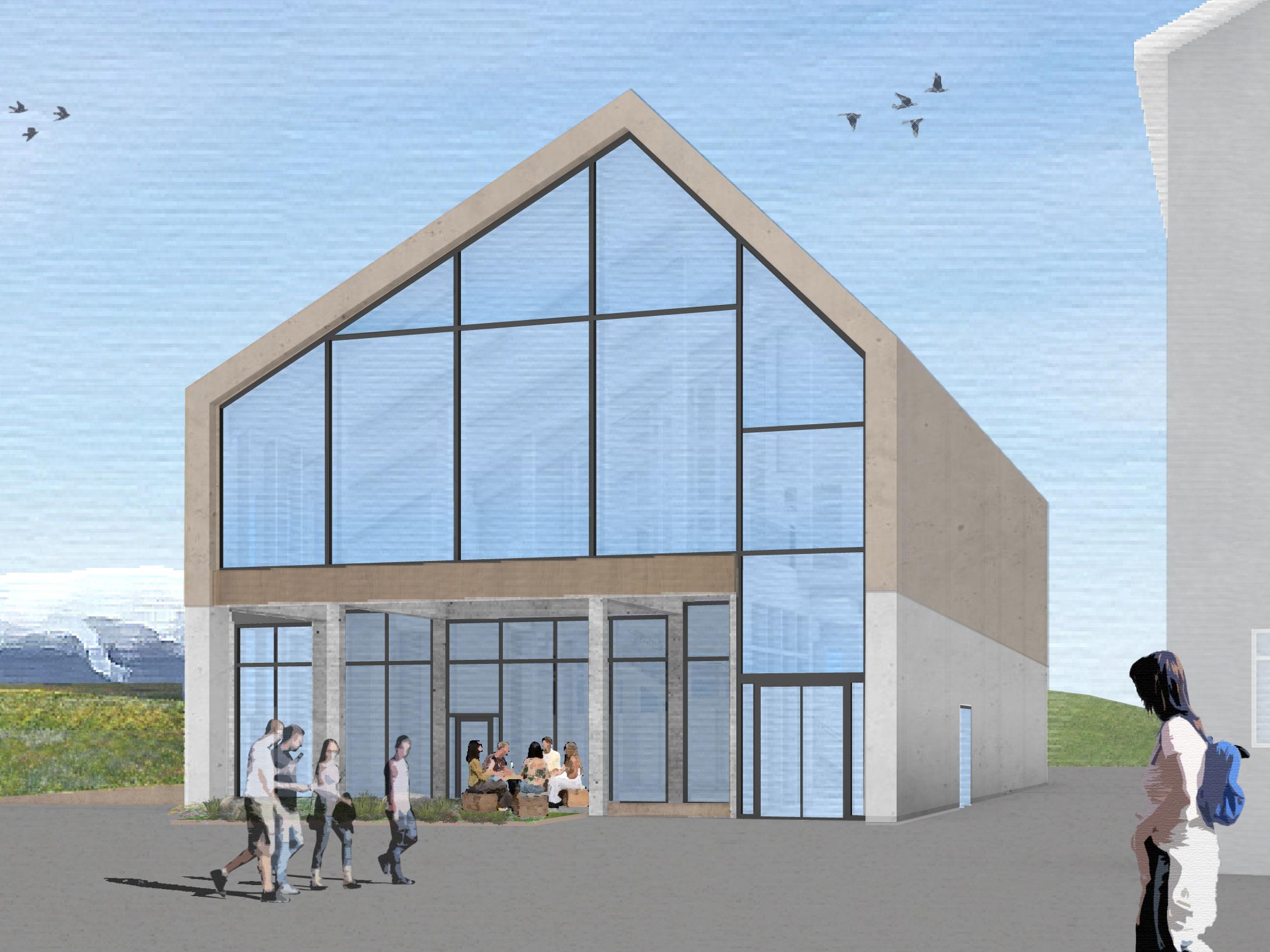

Northern Exterior Perspective
Skútustaðagígar Pseduocrators + Trails
Stakhólstjörn (pond)
Sel-Hotel Mývatn
Site: Existing Building (Kaffi Sel and Mývatn öl brewery)
Trailhead
Lake Mývatn
Concept Collage
Transformation Of The Longhouse Precedent
Basic Traditional Longhouse Scheme
Transformation Of Basic Longhouse Scheme
The structure divides the space into three “aisles.”
The longhouse is divided linearly among programmatic activities, with the center for sleeping and living and the other sections for storage and other functions.secondary
The essential part of the longhouse is the centralprominent linear axis.
The layers are stretched and shrunk.
The third aisle is removed.
The aislelarger is divided into layers of programmatic activities.
The scheme allows opportunities for future expansions.
Program Distribution
Program Organization: served + service
Floor Plans
Ground Floor
Section Isometric
Concrete Roof
Glass + Aluminum Mullions
Cmu Interior Walls
Glass Railings
Concrete Floors, Beams, + Columns 1. Beer Tasting
Brewery
Treatment Room
Beer Bath Room
04 LIVE-WORK ARTISTS DWELLINGS
Freshman Studio, Spring 2021
Architecture Studio I
Instructor: Danielle Willkens
Location: Cabbagetown, Atlanta, GA, U.S.A.
Project Type: Urban Residential
The project began with the exploration of vernacular architecture, including an in-depth exploration and analysis of the camelback shotgun house. Then, two live-work dwellings, one for a lithographer and the other for a weaver, were created to fit into the context and guidelines of the Cabbagetown historic district. The project included two shotguns, one an L-shape to create a storefront for the weaver, and the other a linear shotgun with a dogtrotinspired porch seperating the studio from the residential space.

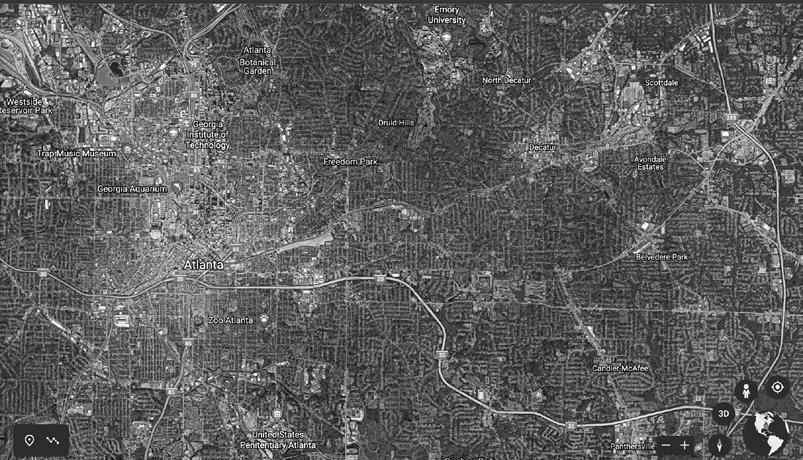

Cabbagetown in ATL Cabbagetown District Map
Site Plan
Gaskill St SE
Powell St SE
Isometric
Lithographer’s Space
Weaver’s Space
Dividing Boundary
Ground Plan
Site Divisions
Public/Private Space
Allocations
0’ 3’ 6’ 12’
Upper Plans
0’ 3’ 6’ 12’
Transverse Sections
Gaskill St SE Elevations
0’ 3’ 6’ 12’
Transverse Sections
Powell St SE Elevations
0’ 3’ 6’ 12’
05 FOLDED PLANES
Freshman Year, Fall 2020
Introduction to Design & the Built Environment
Instructor: Ryan Roark
The objective was to create a continous plane through a series of slicing and folding actions. The cardstock study models provide an inital exploration into the paper medium and how planes can be manipulated to create space. The folded plane was then photographed in various lighting conditions to explore its relationship with light and shadow.

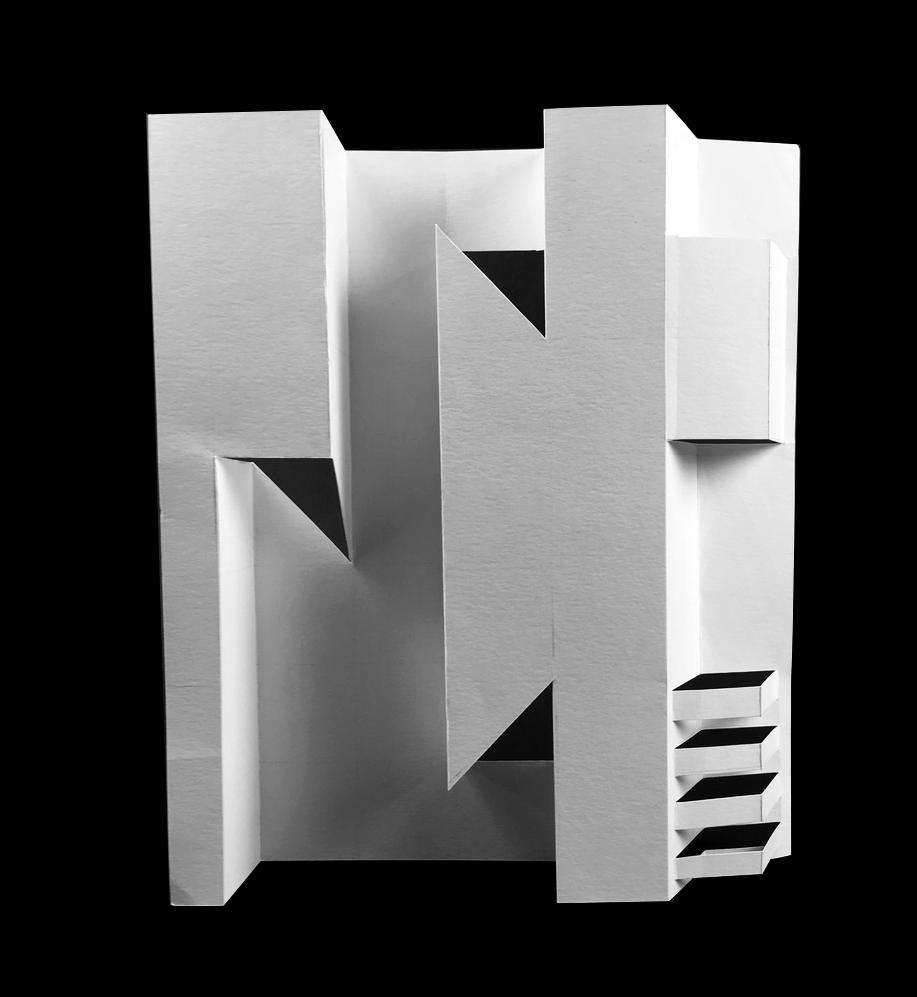

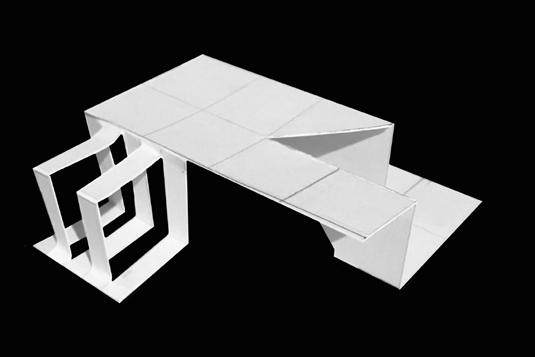

Folded Plane Composition

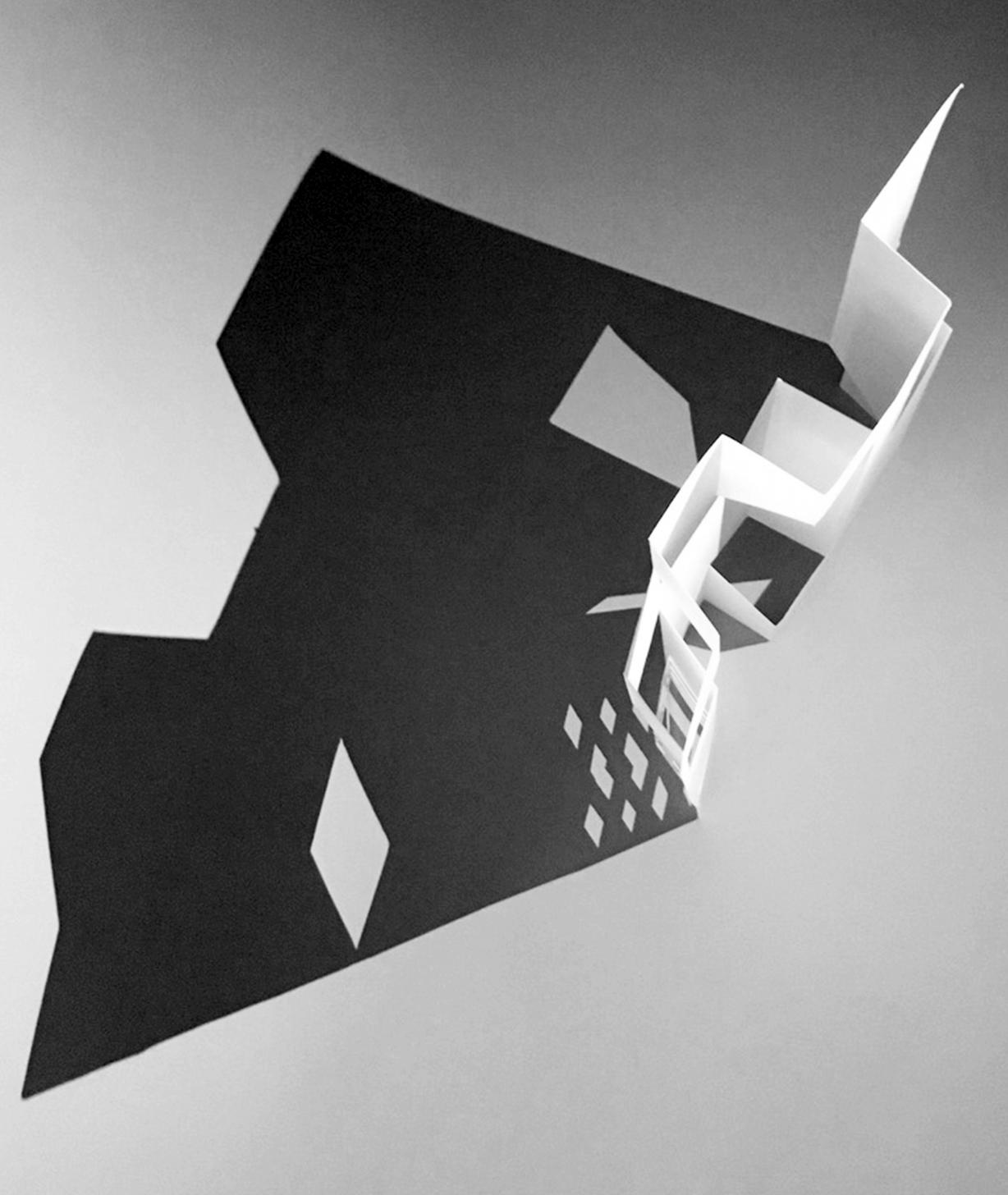

Direct Light Photograph of Folded Plan From Above
06 ANALOG ORTHOGRAPHIC DRAWINGS
Freshman Studio, Spring 2020
Architecture Studio I, Instructor: Danielle Willkens

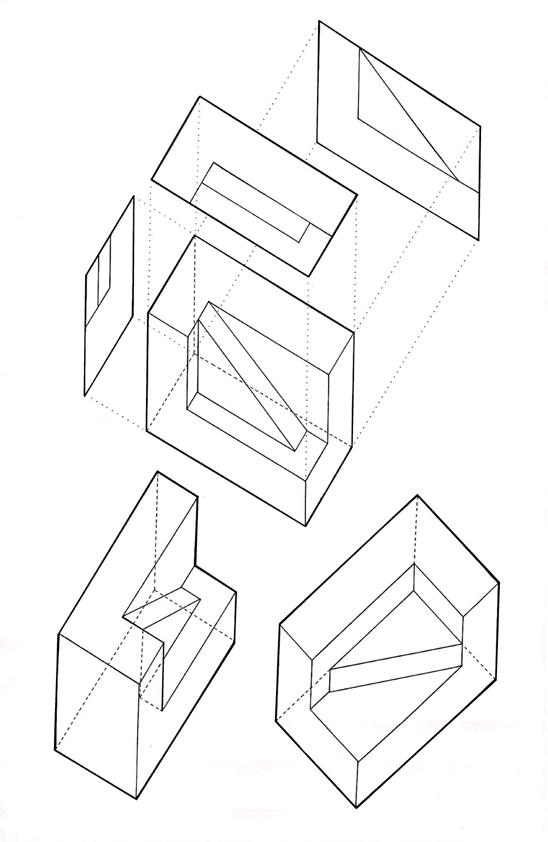

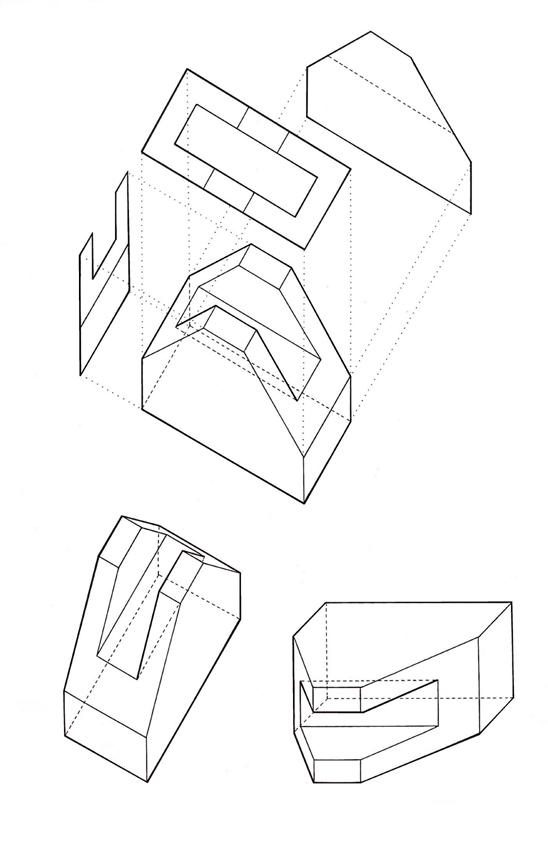

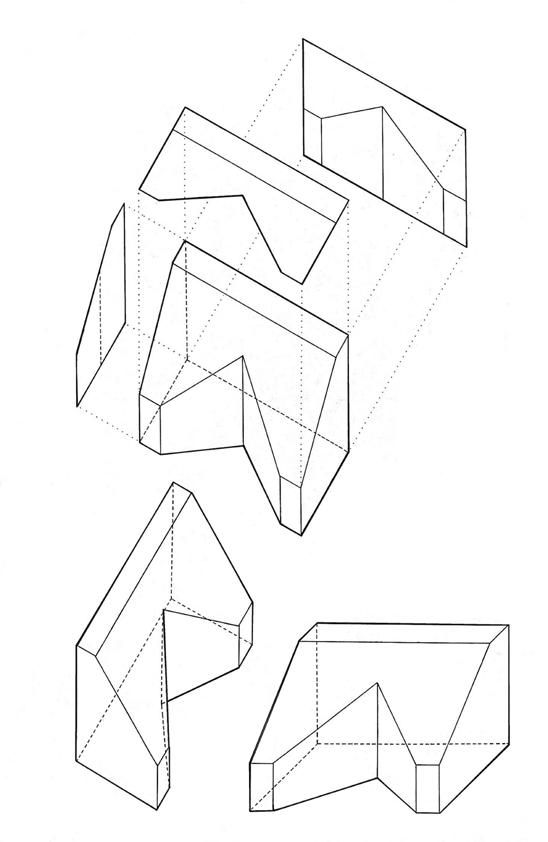

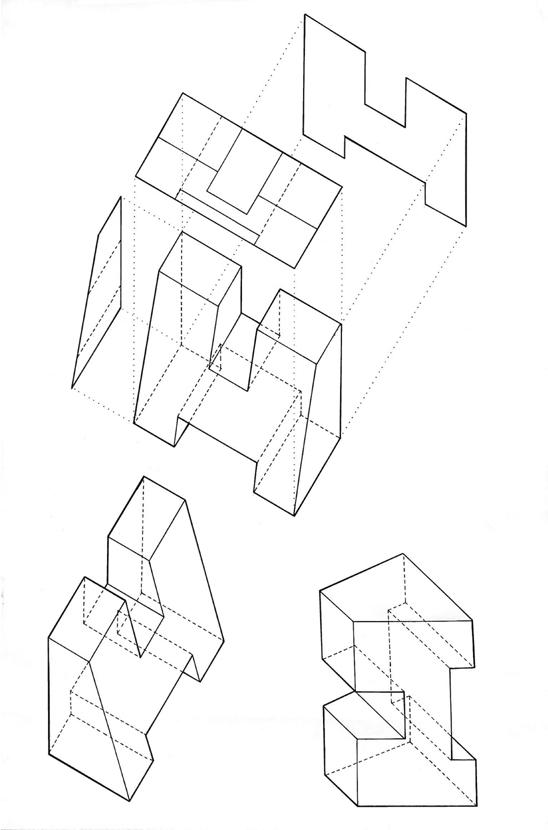

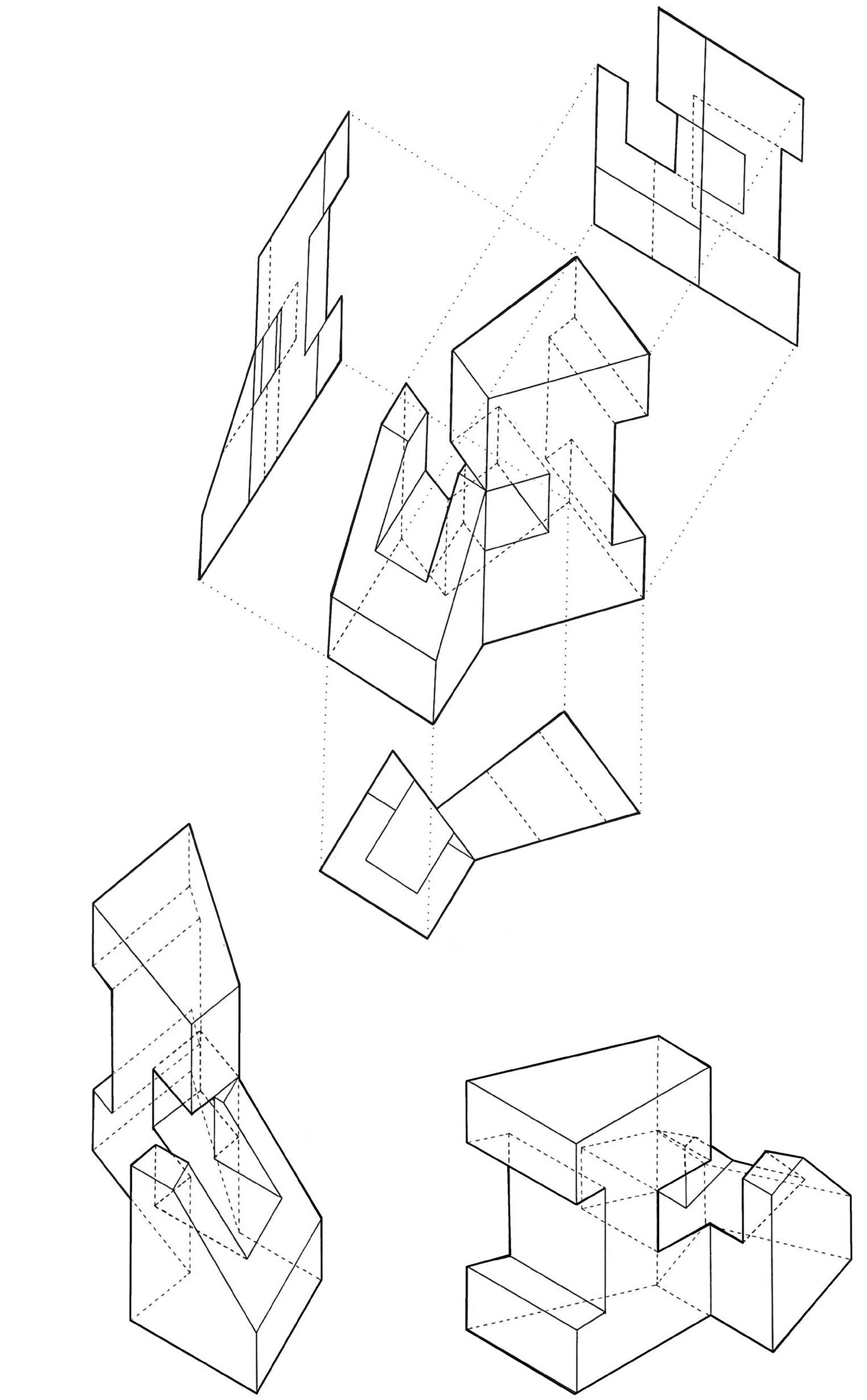

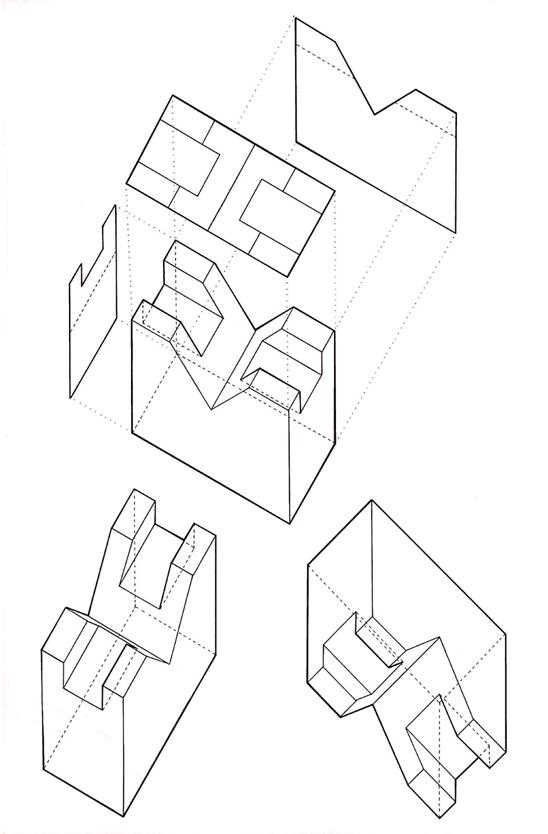

The project explored descriptive geometry as a representational method through analog drawings. Drawings were done using micron pens on vellum paper. First, multiview drawings of six objects were translated into various types of paraline drawings. Subsequently, a new object was created by combining two of the six objects. The original objects were treated as physical objects; that is, they could be welded together but could not merge into one another. The objects could be rotated to any degree, and one object could be sliced once in any place, whereby one piece would be kept and the other would be “discarded.”
1 2 3 4
Medium: micron pens on vellum

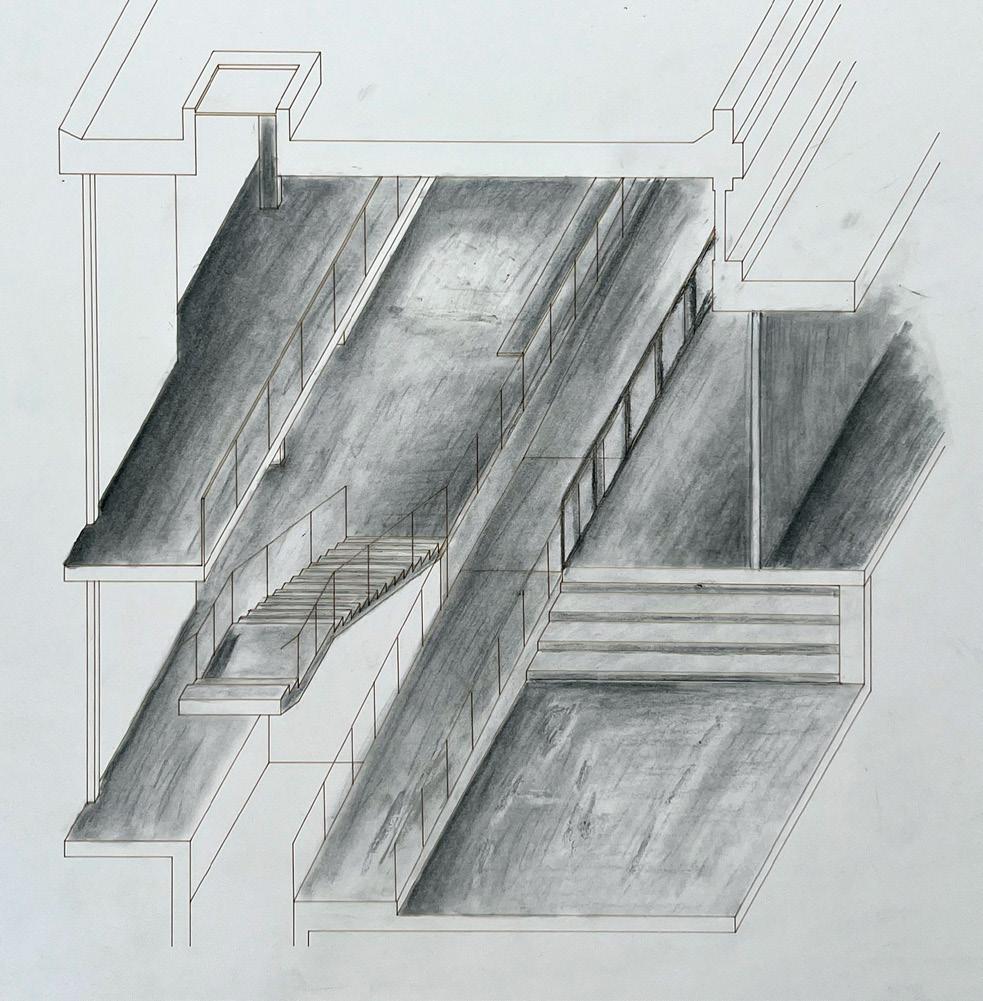

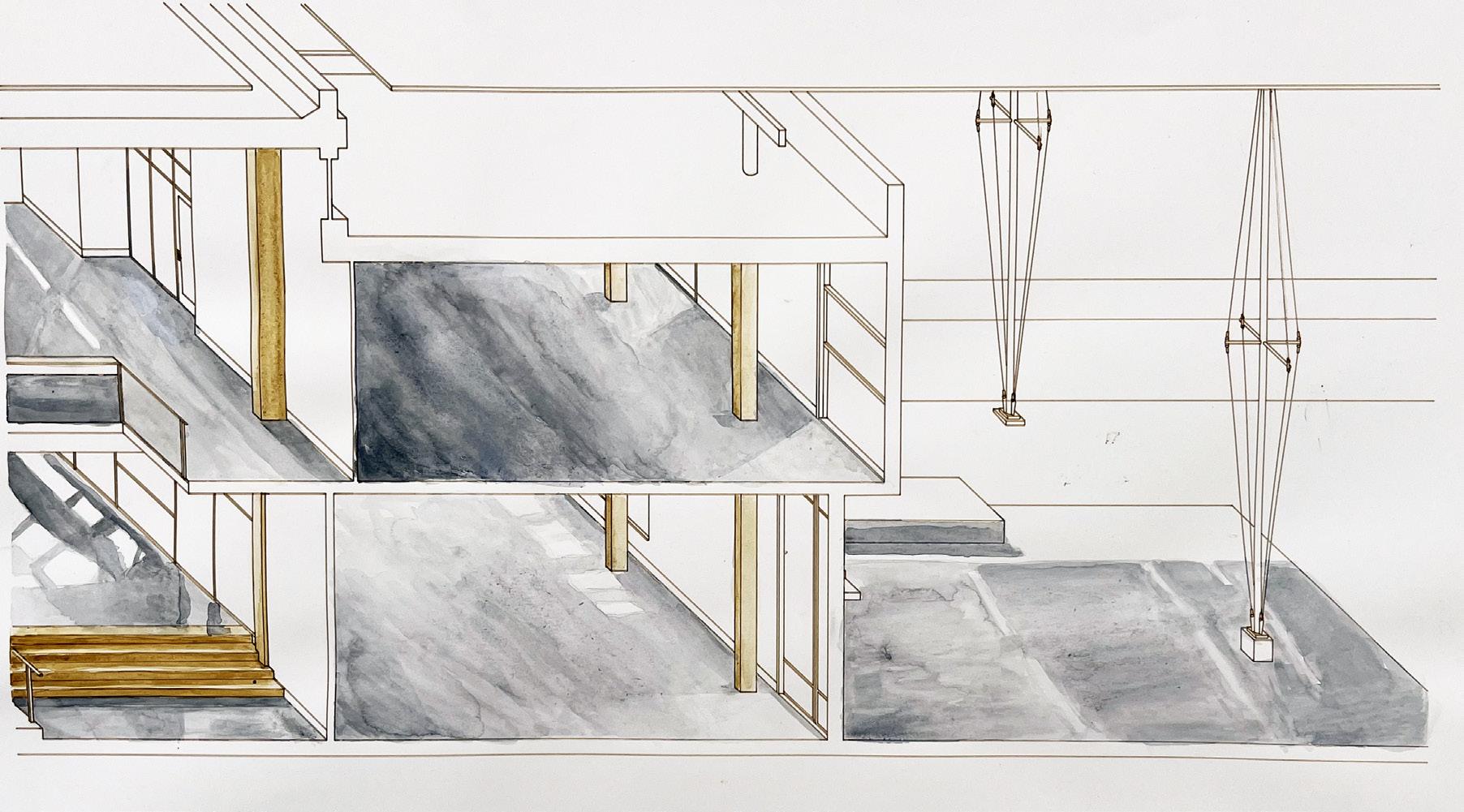

07 KENDEDA BUILDING LIGHT STUDIES
Sophomore Studio, Spring 2023
Architecture Studio III
Instructor: Mark Cottle

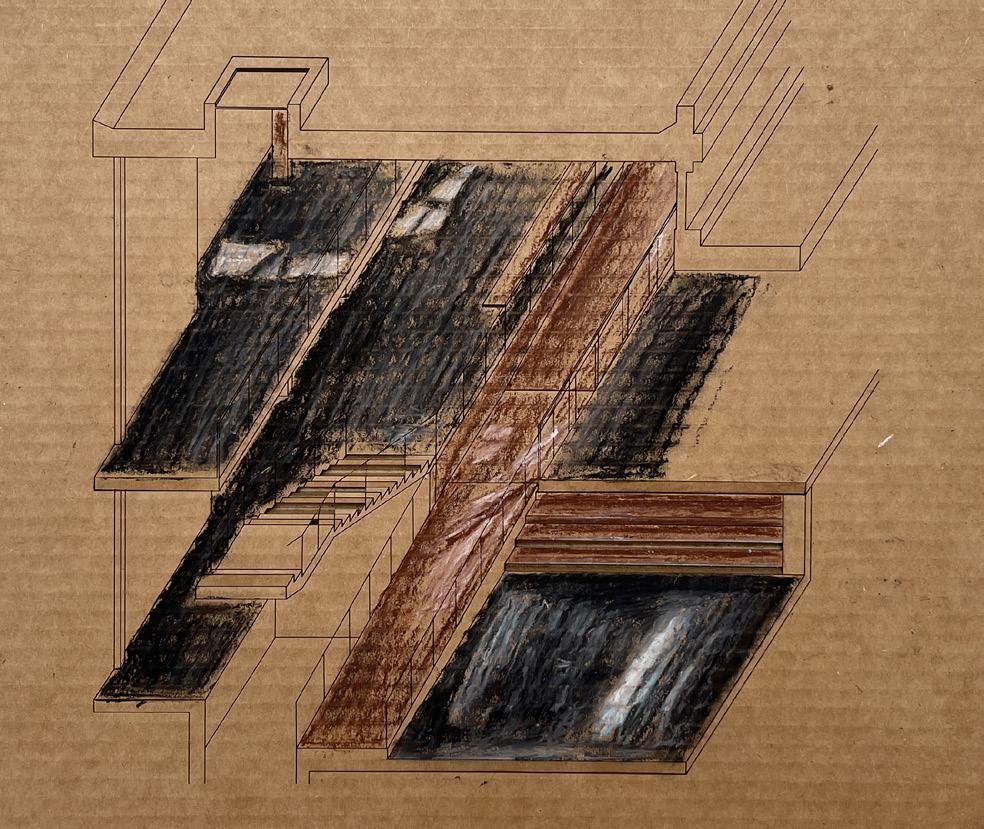

This project was a study of light in the Kendeda Building on Georgia Tech’s campus. Sections were created and etched (through a laser cutter) into cardboard and bristol paper. Then, light and shadows at varying times of day and weather were recorded through charcoal, pastel, and watercolor.
Jan. 31, 2 pm Cardboard + pastel
Jan. 2, 7:30 am Bristol paper + charcoal
Feb. 10, 5 pm
Cardboard + charcoal
Feb. 10, 1 pm
Bristol paper + watercolor
08 GEORGIA TECH BUS STOP
Sophomore Year, Fall 2021
Construction Tech
Instructor: Charles Rudolph

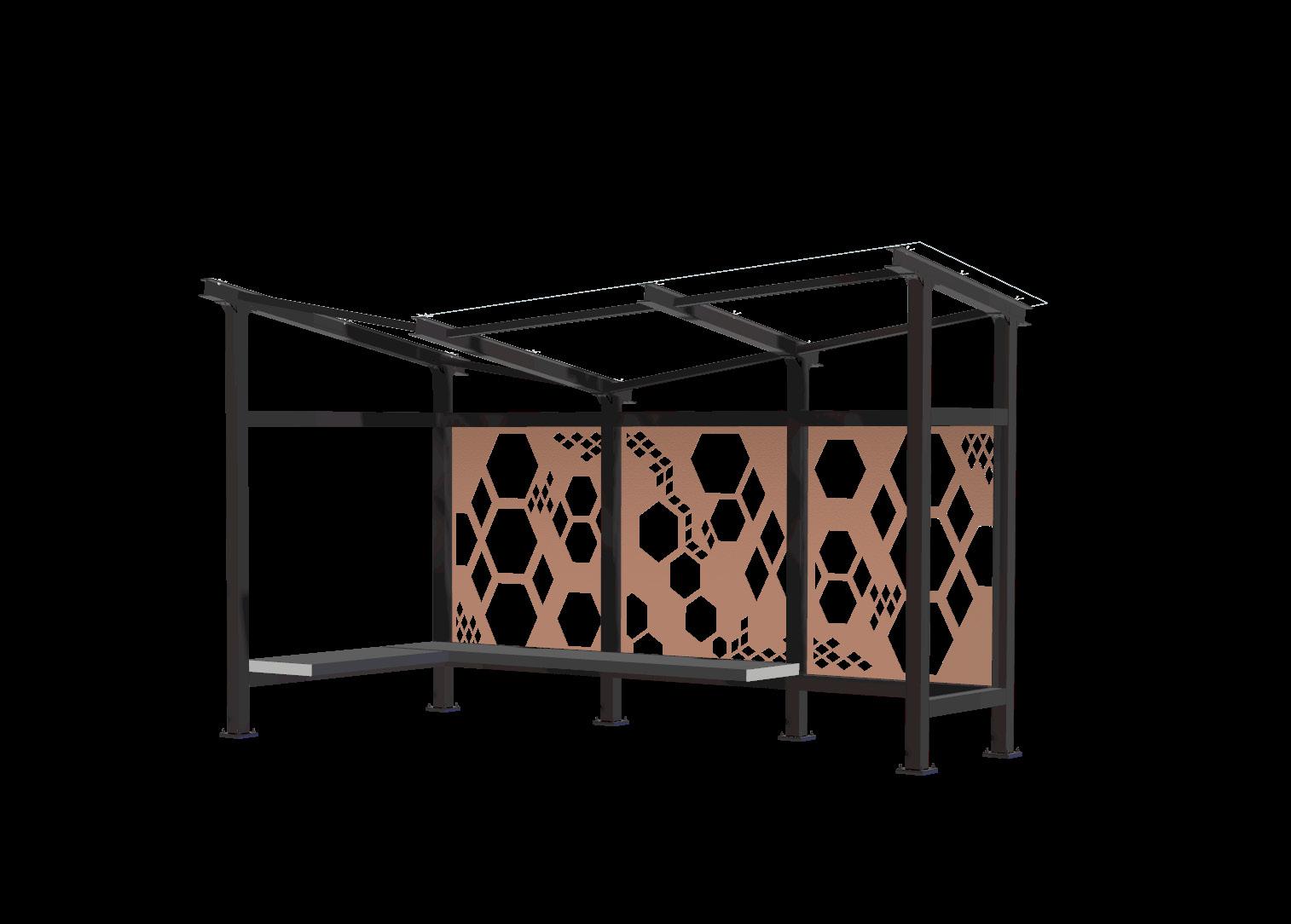

The bus stop is located on Georgia Tech’s campus, specifically on West Campus next to the Manufacturing Institute and across the street from the Eco-Commons and the Kendeda Building. These three sites greatly informed the bus stop’s material choices. The bus stop is made up of a steel frame, glass panels on its left and right sides, a glass roof connected to the steel w-shape beams via steel spider fittings, and perforated corten steel panels on its back side. Steel plates connect the HSS columns to concrete footings. The perforated corten steel panels feature a hexagon-based pattern inspired by Georgia Tech’s Yellow Jackets. The arrangement of the hexagon and rhombi voids implies motion and transformation, and the folded roof takes a position aken to flight.
Plan and Section
STEEL SPIDER FITTINGS
PERFORATED CORTEN STEEL
4X4 W-SHAPE STEEL BEAMS ( W 4 x 13)
4 x 4 x 1/4 SQUARE HSS STEEL COLUMNS
CONCRETE FOOTINGS
GLASS
5’
16’
9’
Beam-to-Column Connection
W-SHAPE STEEL BEAM
HSS STEEL COLUMN
Column-to-Footing Connection
GROUT FILLET WELD
CONCRETE FOOTING
DAMAGE THREADS
WEB STIFFENERS - FILLET WELD
BOLTS - FULL PENTRATION
BUTT WELD TO BASEPLATE
COLUMN BASEPLATE
BASEPLATE STIFFENERS
- FILLET WELD TO BASEPLATE
HSS STEEL COLUMN
NUT & WASHER
STEEL BASE PLATE ANCHOR ROD ANCHOR NUT
II. NON-ACADEMIC
NON-ACADEMIC WORK

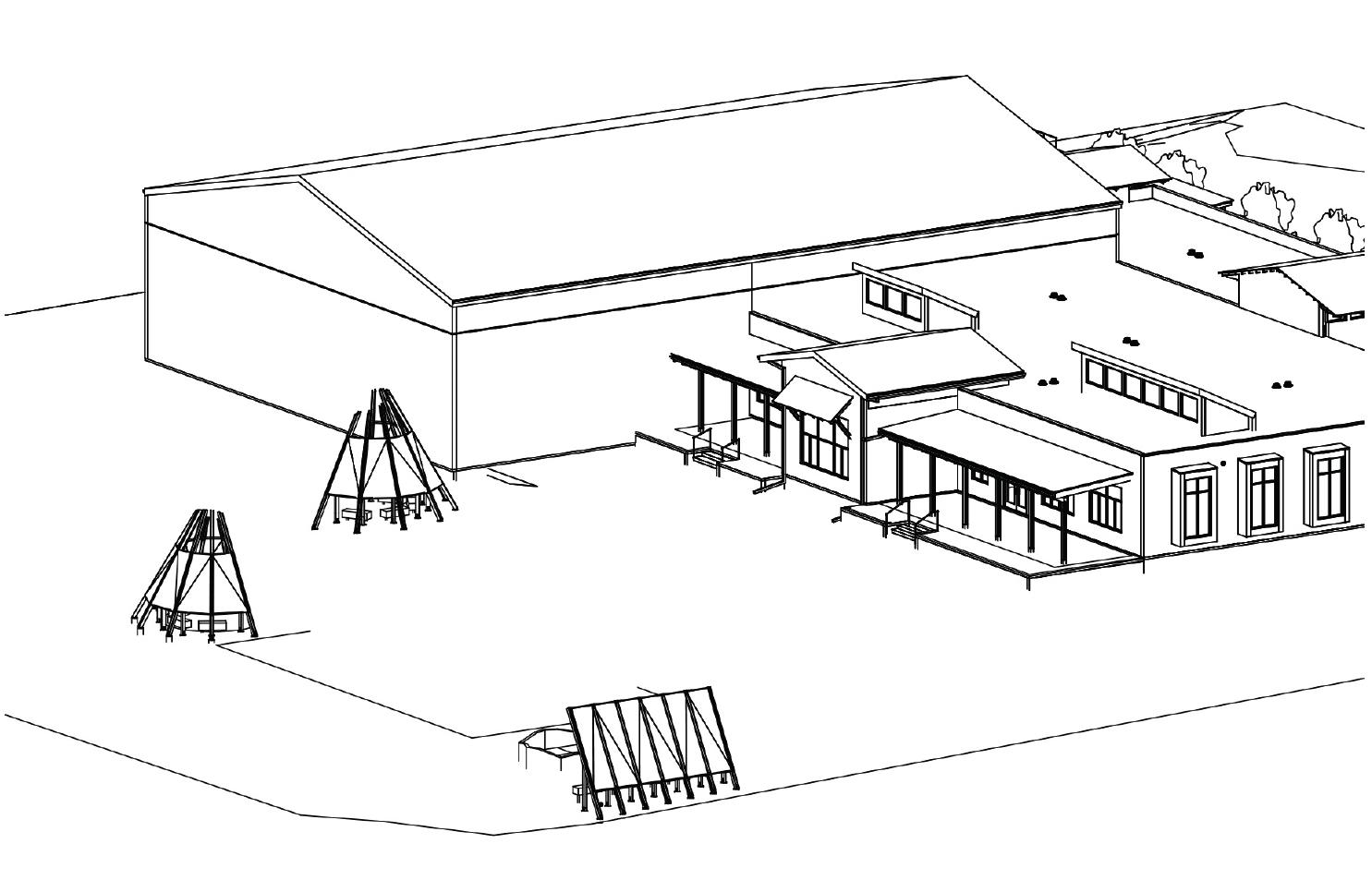

09 BOYS & GIRLS CLUB SHADE STRUCTURES, FLATHEAD
INDIAN RESERVATION
Junior Year, Summer 2024
100 Fold Studio
Location: Polson, Montana (within the Flathead Indian Reservation), on the playground of the existing Boys & Girls Club
Partners: Averi Urquhart, Daniela Hernandez, Andrea Martinez, Hannah Pinon, Kaden Vincelette, Sara Hambrick
Roles: My role was designing the structure based on the sun angles and testing shading performance. I was also in charge of modeling the structure and gaga pit at the far west of the playfield (shown in the shade structure type 2 render) and designing the structures’ ground connections. Others were in charge of drawings and renders.
At 100 Fold Summer Studio, my six teammates and I designed shade structures for the playground at the Boys and Girls Club in Polson, Montana. The project involved site analysis, site visits, client meetings, and design development. Located on the Flathead Indian reservation, the design draws on cultural motifs of the Indian tribes and on the geometry of the surrounding mountains. Our goal was to create seasonal places for play and rest. Sun studies were performed to block sun between 3 pm and 5 pm during the summer months (correlating when the sun is most intense and when the children are out on the playground), while letting in winter sun. The project will be built by the head of the Boys and Girls Club and volunteers.

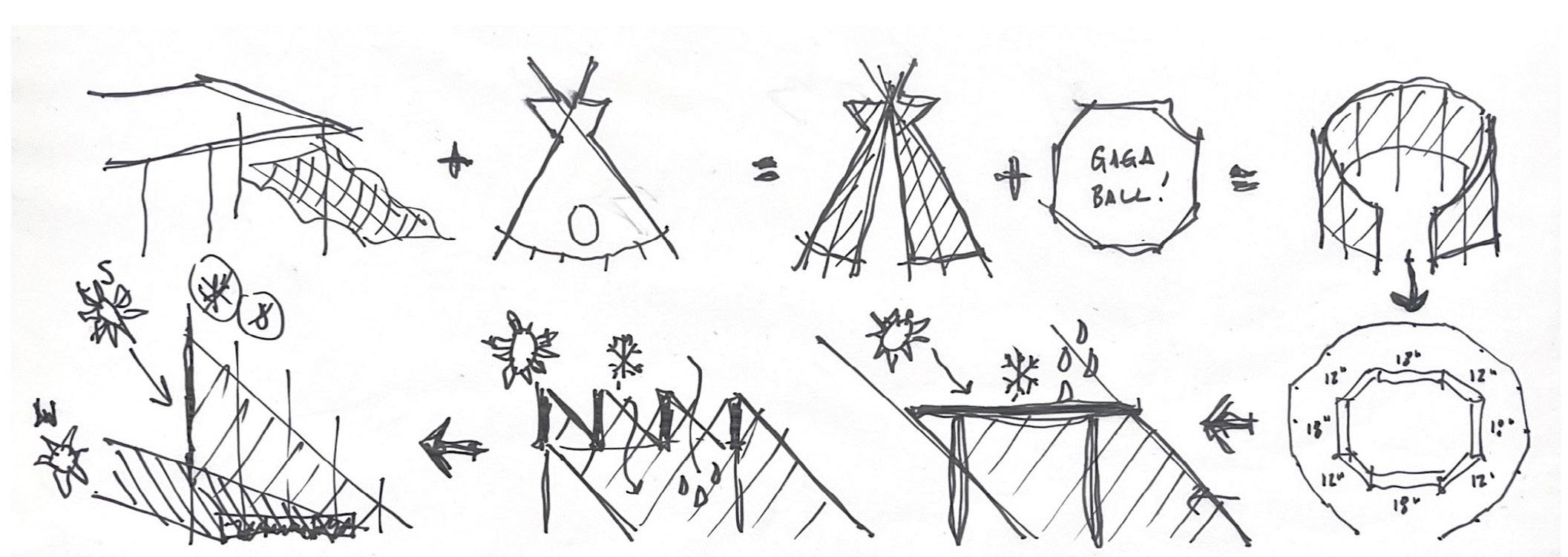

Concept Sketches

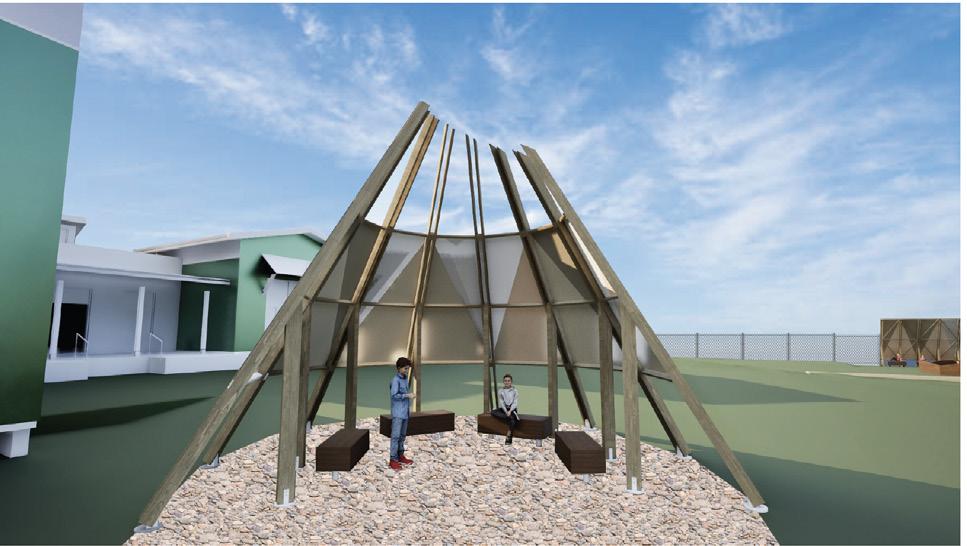

Shade Structure Type 1

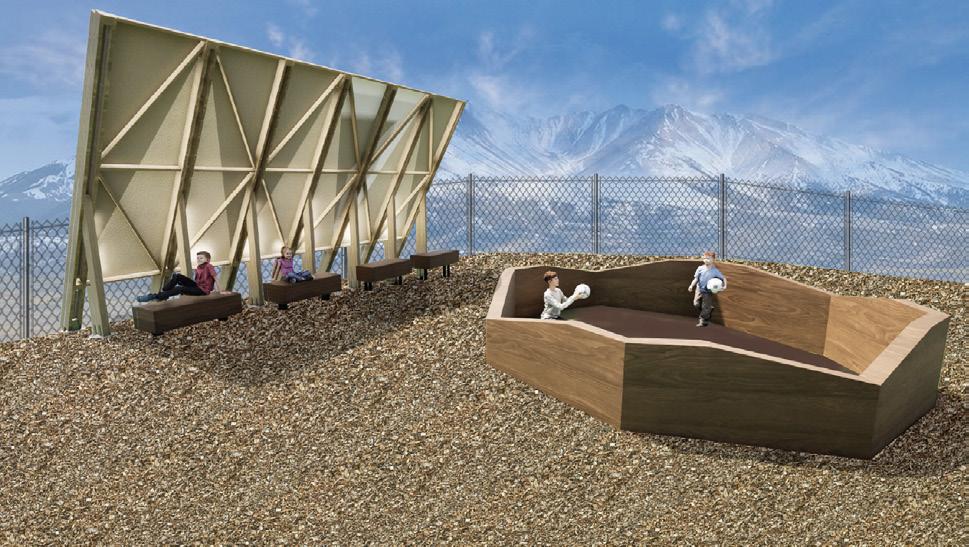

Shade Structure Type 2

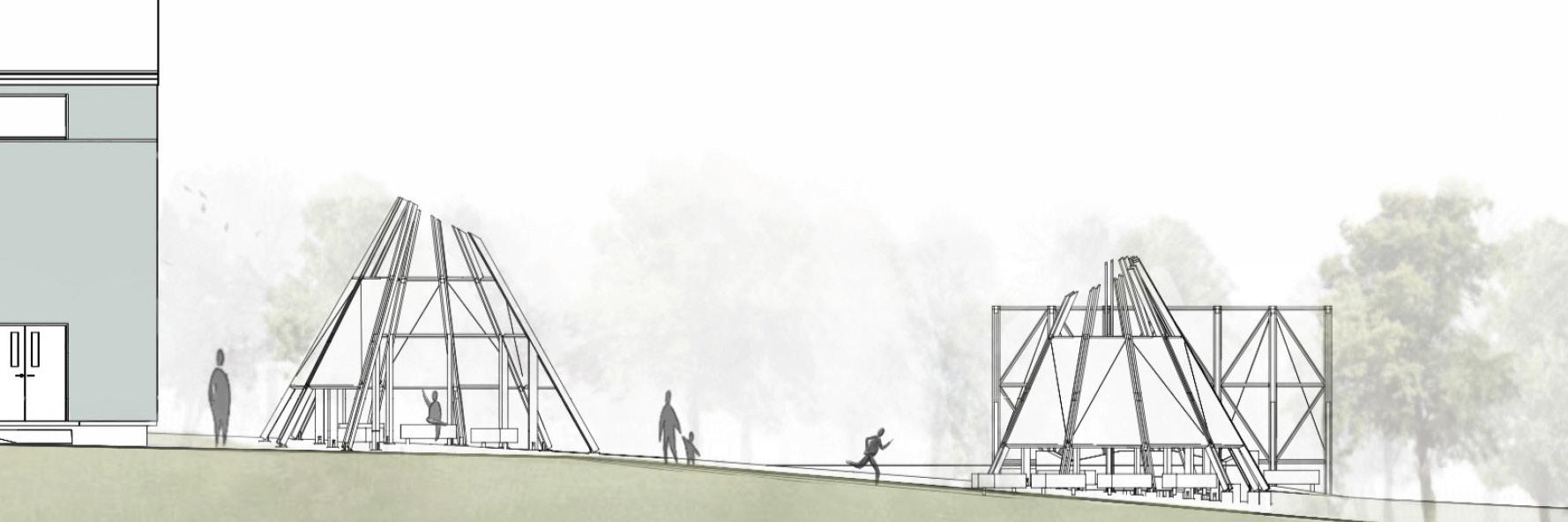

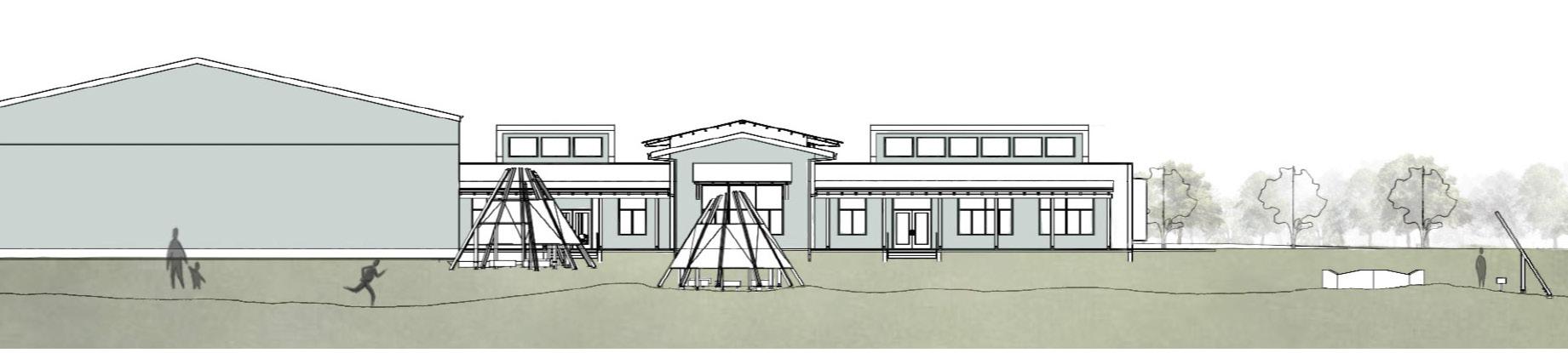

East Elevation
North Elevation
