PROTO# KW5
STYLE# 1
SEASON: Fall 2024
XYZProductDevelopment,Inc.

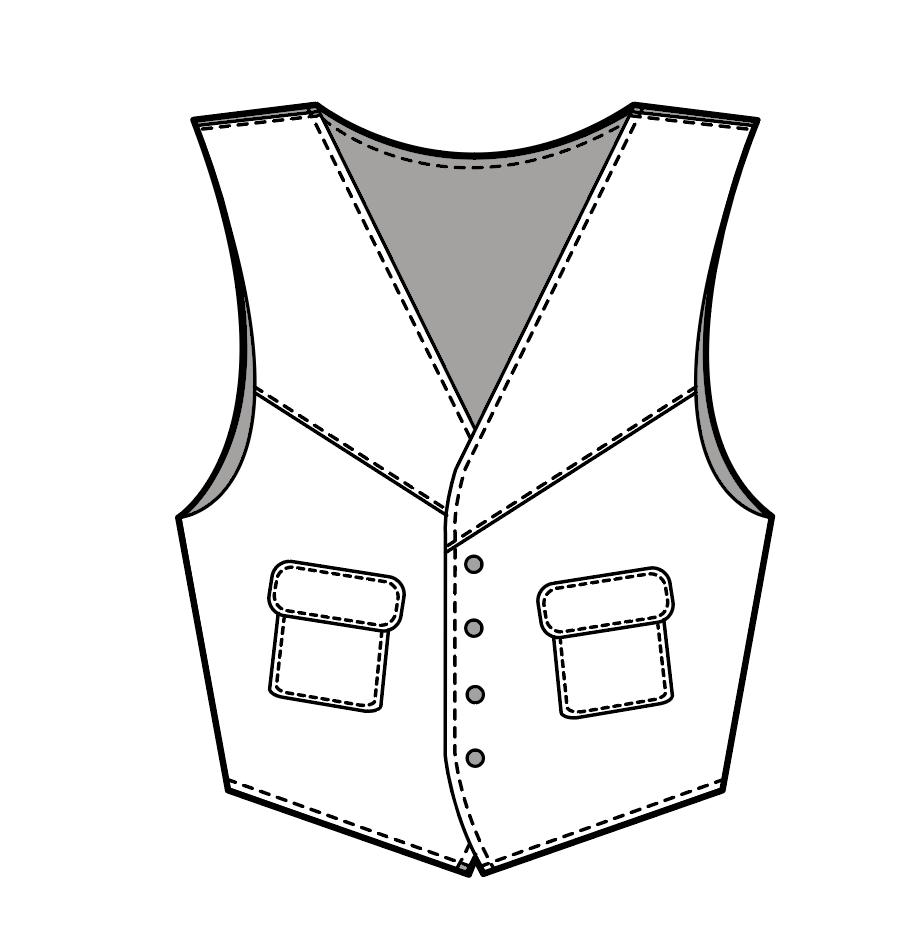

FRONTVIEW
SIZE RANGE: S-L
SAMPLE SIZE: L
DESIGNER: Kai Warouw
NAME: Vest DATE FIRST SENT: 2/2/2023
FIT TYPE: Natural
BRAND: XYZ, Career
STATUS: Prototype-1
DATE REVISED:
FABRICATION: 100% Cotton Corduroy
1 of

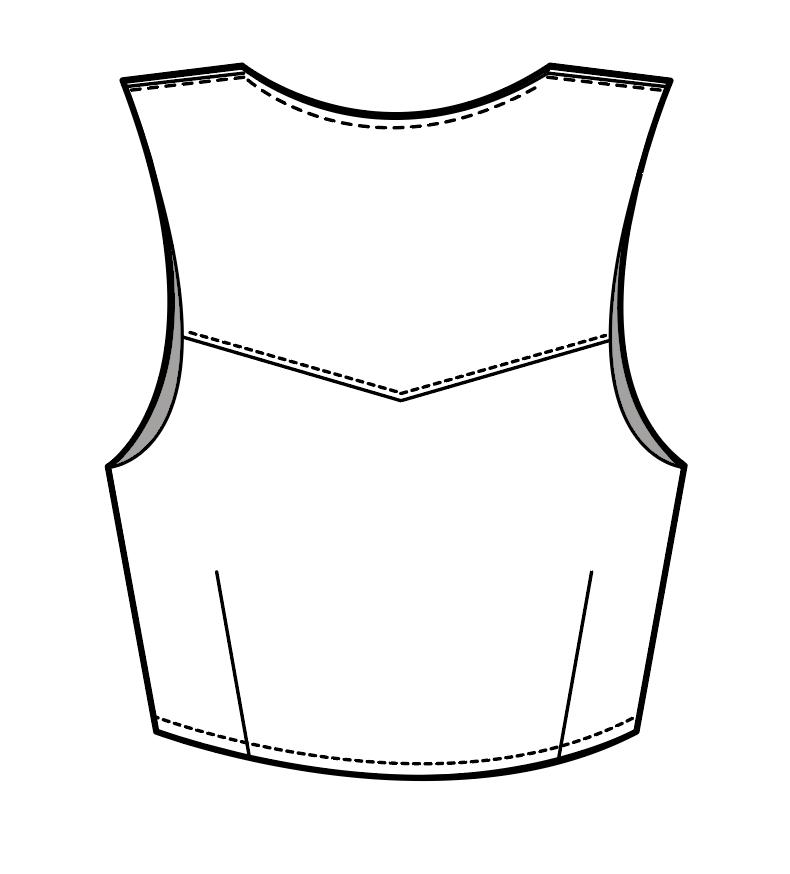

XYZProductDevelopment,Inc. BACKVIEW
PROTO# KW5 SIZE RANGE: S-L
STYLE# 1
SAMPLE SIZE: L
SEASON: Fall 2024 DESIGNER: Kai Warouw
NAME: Vest DATE FIRST SENT: 2/2/2023
FIT TYPE: Natural
BRAND: XYZ, Career
STATUS: Prototype-1
DATE REVISED:
FABRICATION: 100% Cotton Corduroy
2 of

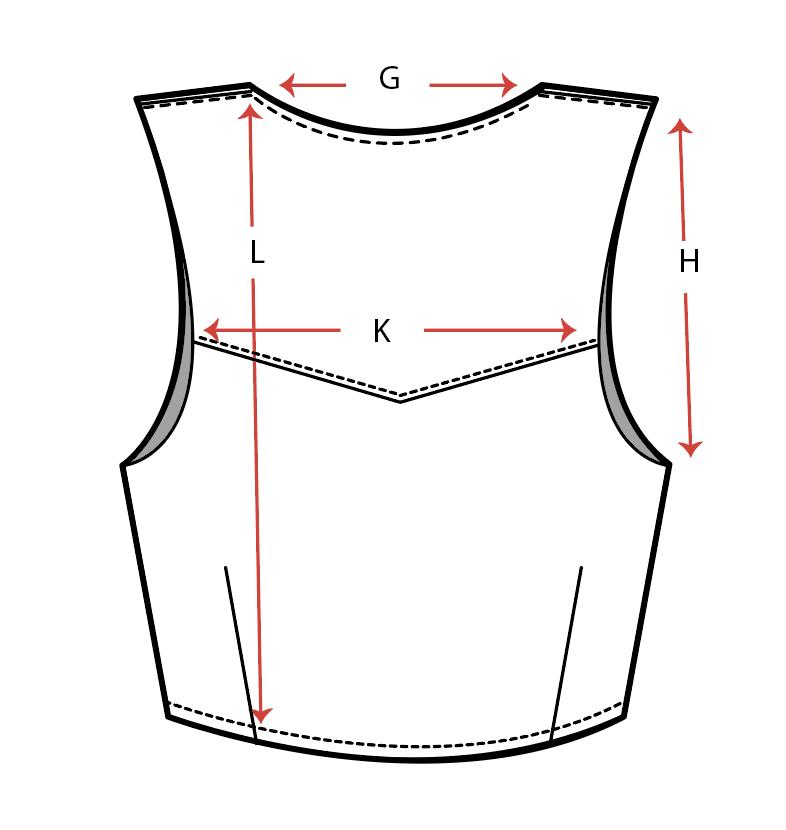

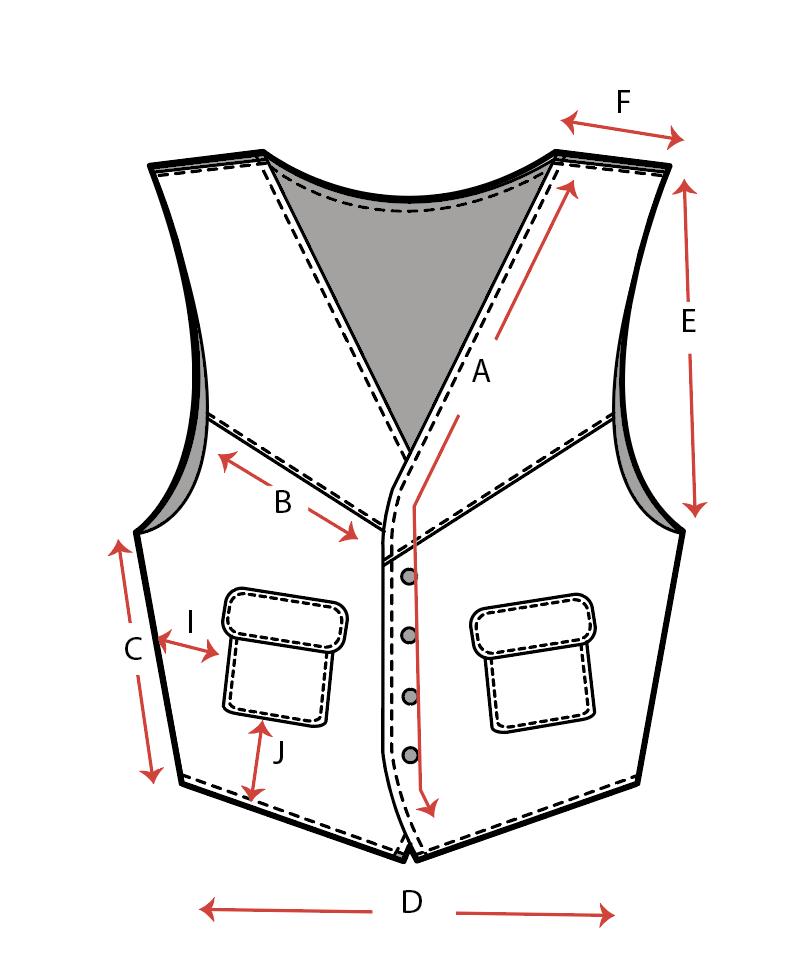

XYZProductDevelopment,Inc. POINTSOFMEASURE
STYLESPECmeasurements
SKETCHISFORREFERENCEONLY, NOTFORDETAIL
3 of
KW5 SIZE RANGE: S-L
1 SAMPLE SIZE: L SEASON: Fall 2024 DESIGNER: Kai Warouw NAME: Vest DATE FIRST SENT: 2/2/2023 FIT TYPE: Natural DATE REVISED:
XYZ, Career FABRICATION: 100% Cotton Corduroy
Prototype-1 Code SHORTSSPECmeasurements Tol (+) Tol (-) SAMPLE size A CENTER FRONT 1 1/4 1 23.91 B FRONT YOKE 1/4 1/4 9.82 C SIDE SEAM 1 1/4 1 5.00 D BOTTOM OPENING 1 1/4 1 40.90 E FRONT ARMHOLE 1 1/4 1 13.11 F SHOULDER SEAM 1 1/4 1 4.70 G BACK NECKLINE 1 1/4 1 9.20 H BACK ARMHOLE 1 1/4 1 10 1/2 I PATCH POCKET FROM SIDE SEAM 1 1/4 1 4.50 J PATCH POCKET FROM HEM 1 1/4 1 3.31 K VEST BACK GIRTH 1 1/4 1 17.29 L VEST BACK HPS TO HEM 1 1/4 1 21.48
PROTO#
STYLE#
BRAND:
STATUS:
XYZProductDevelopment,Inc. PIECELIST
Note:(1pair=rightandleftpieces)
4 of
KW5 SIZE RANGE: S-L STYLE# 1 SAMPLE SIZE: L SEASON: Fall 2024 DESIGNER: Kai Warouw NAME: Vest DATE FIRST SENT: 2/2/2023 FIT TYPE: Natural DATE REVISED: BRAND: XYZ, Career FABRICATION: 100% Cotton Corduroy STATUS: Prototype-1 PIECENAME QTY 1 FRONT YOKE 1 PAIR 2 FRONT BODICE 1 PAIR 3 BACK BODICE 1 4 FRONT FACING 1 PAIR 5 FRONT LINING 1 PAIR 6 BACK LINING 1 7 BACK NECK FACING 1 8 FRONT PATCH POCKET 1 PAIR 9 FRONT PATCH POCKET FLAP 2 PAIRS
PROTO#
PROTO# KW5
STYLE# 1
XYZProductDevelopment,Inc. BILLOFMATERIALS
SIZE RANGE: S-L
SAMPLE SIZE: L
SEASON: Fall 2024 DESIGNER: Kai Warouw
NAME: Vest DATE FIRST SENT: 2/2/2023
FIT TYPE: Natural DATE REVISED:
BRAND: XYZ, Career FABRICATION: 100% Cotton Corduroy
STATUS: Prototype-1 ITEM
5 of
/ description CONTENT PLACEMENT SUPPLIER WIDTH/ WEIGHT/SIZE FINISH QTY Cotton Corduroy Dark Brown 100% COTTON body Joann Fabrics 57" cuttable, 7 oz laundered 1 Cotton Corduroy Light Beige 100% Cotton body Joann Fabrics 57" cuttable, 7 oz laundered 1 Button, 4-hole imitation horn center front - 3/4" shiny 1 Lining 100% Polyester Inner vest - 57" cuttable 1 thread-DTM body 100% spun polyester join & overlock A & E 60's x 3 (tex 30) 1 thread-DTM body 100% spun polyester topstitch A & E 40's x 3 (tex 45) 1
