Western Chaps Tech Package

XYZ Product Development, Inc.

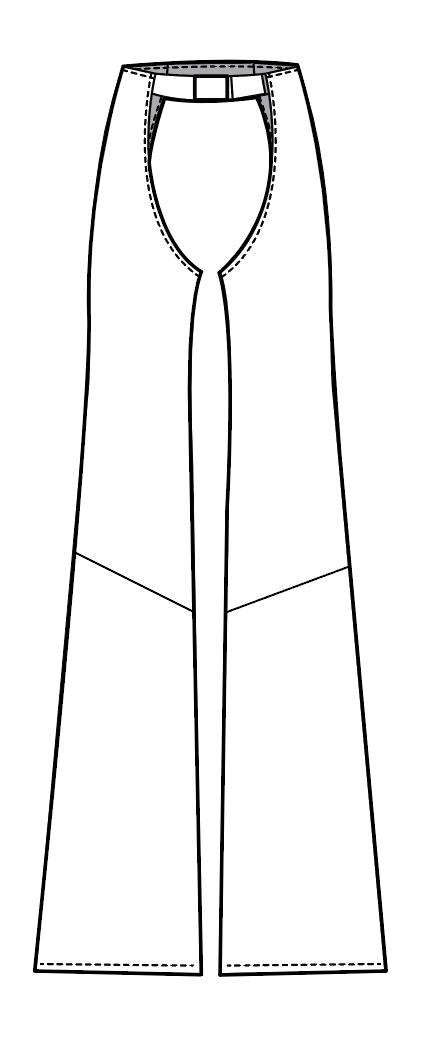

FRONT VIEW

PROTO# KW5

STYLE# 1

SEASON: Fall 2024

NAME: Chaps

FIT TYPE: Natural

BRAND: XYZ, Career

STATUS: Prototype-1

SIZE RANGE: S-L

SAMPLE SIZE: L

DESIGNER: Kai Warouw

DATE FIRST SENT: 2/2/2023

DATE REVISED:

FABRICATION: 100% Cotton Corduroy

1 of

XYZ Product Development, Inc.

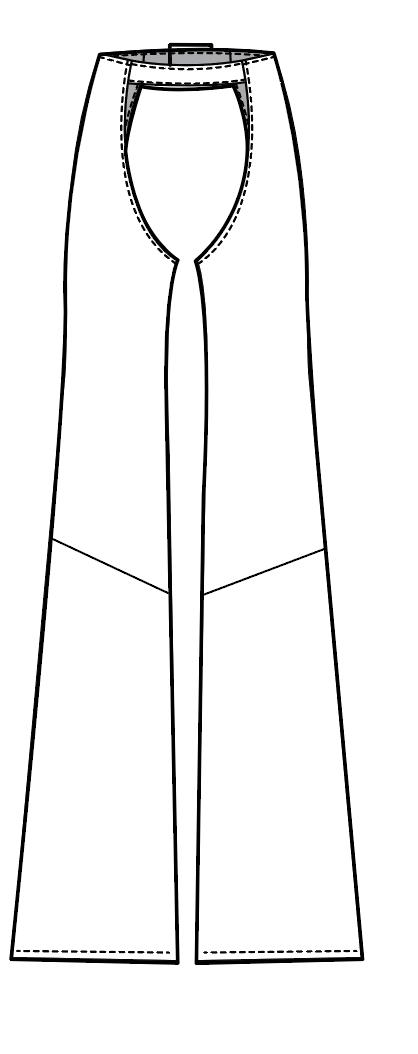

BACK VIEW

PROTO# KW5 SIZE RANGE: S-L

STYLE# 1

SEASON: Fall 2024

NAME: Chaps

FIT TYPE: Natural

BRAND: XYZ, Career

STATUS: Prototype-1

SAMPLE SIZE: L

DESIGNER: Kai Warouw

DATE FIRST SENT: 2/2/2023

DATE REVISED:

FABRICATION: 100% Cotton Corduroy

2 of

PROTO# KW5

STYLE# 1

SEASON: Fall 2024

XYZ Product Development, Inc. POINTS OF MEASURE

SIZE RANGE: S-L

SAMPLE SIZE: L

DESIGNER: Kai Warouw

NAME: Chaps DATE FIRST SENT: 2/2/2023

FIT TYPE: Natural

BRAND: XYZ, Career

STATUS: Prototype-1

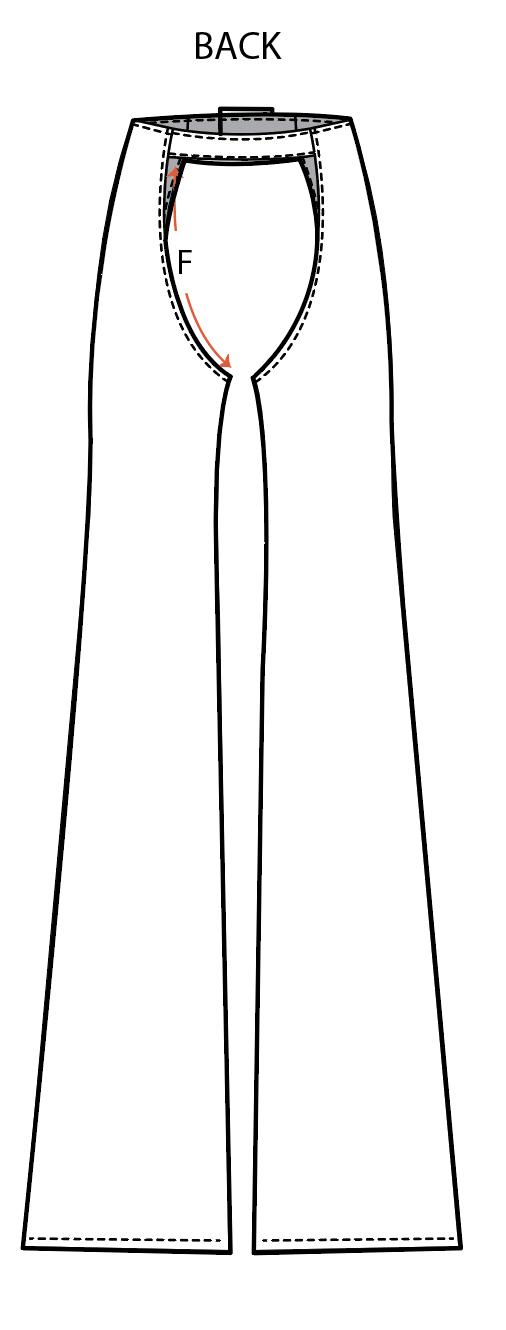

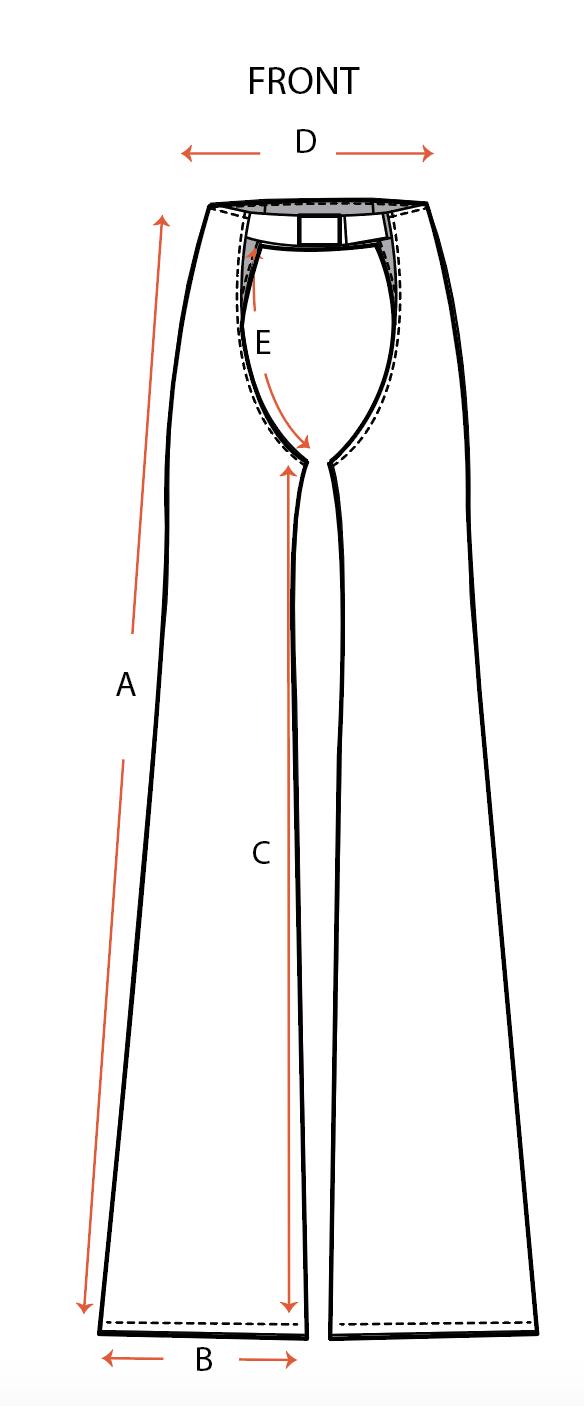

SKETCH IS FOR REFERENCE ONLY, NOT FOR DETAIL

DATE REVISED:

FABRICATION: 100% Cotton Corduroy

3 of

SHORTS SPEC measurements Tol (+) Tol (-) SAMPLE size A OUTSEAM 1 1/4 1 41.86 B BOTTOM CIRCUMFERENCE 1/4 1/4 25.50 C INSEAM 1 1/4 1 29.07 D WAIST OPENING CIRCUMFERENCE 1 1/4 1 31.97 E FRONT CROTCH OPENING 1 1/4 1 19.70 F BACK OPENING 1 1/4 1 19.09 STYLE SPEC measurements

Code

PROTO# KW5

STYLE# 1

SEASON: Fall 2024

NAME: Chaps

FIT TYPE: Natural

BRAND: XYZ, Career

STATUS: Prototype-1

XYZ Product Development, Inc. PIECE LIST

SIZE RANGE: S-L

SAMPLE SIZE: L

DESIGNER: Kai Warouw

DATE FIRST SENT: 2/2/2023

DATE REVISED:

FABRICATION: 100% Cotton Corduroy

Note: (1 pair=right and left pieces)

4 of

PIECE NAME QTY 1 FRONT LEG 1 PAIR 2 BACK LEG 1 PAIR 3 BELT 1 PAIR 4 FRONT LEG LINING 1 PAIR 5 BACK LEG LINING 1 PAIR

PROTO# KW5

STYLE# 1

SEASON: Fall 2024

XYZ Product Development, Inc. BILL OF MATERIALS

SIZE RANGE: S-L

SAMPLE SIZE: L

DESIGNER: Kai Warouw

NAME: Chaps DATE FIRST SENT: 2/2/2023

FIT TYPE: Natural

BRAND: XYZ, Career

STATUS: Prototype-1

ITEM

DATE REVISED:

FABRICATION: 100% Cotton Corduroy

5 of

/ description CONTENT PLACEMENT SUPPL IER WIDTH / WEIGHT / SIZE FINISH QTY Cotton Corduroy Dark Brown 100% COTTON body Joann Fabrics 57" cuttable, 7 oz laundered 1 Cotton Corduroy Light Beige 100% Cotton body Joann Fabrics 57" cuttable, 7 oz laundered 1 Button, 4hole imitation horn center front - 3/4" shiny 1 Lining 100% Polyester Inner vest - 57" cuttable 1 thread-DTM body 100% spun polyester join & overlock A & E 60's x 3 (tex 30) 1 thread-DTM body 100% spun polyester topstitch A & E 40's x 3 (tex 45) 1 BELT INTERFACING 100% Polyester Inside belt Joann Fabrics 20" CUTTABLE 1 BELT BUCKLE PVC CENTER FRONT BELT - 2" SHINY, TORTOISESHELL PATTERN 1

PROTO# KW5

STYLE# 1

SEASON: Fall 2024

XYZ Product Development, Inc.

PROTOTYPE PAGE

SIZE RANGE: S-L

SAMPLE SIZE: L

DESIGNER: Kai Warouw

NAME: Chaps DATE FIRST SENT: 2/2/2023

FIT TYPE: Natural

BRAND: XYZ, Career

STATUS: Prototype-1

DATE REVISED:

FABRICATION: 100% Cotton Corduroy

POINTS OF MEASURE, WOVEN (GIRTH MEASUREMENTS AND TOLERANCE ARE WHOLE MEASURE)

6 of

CODE SPEC MEASUREMENTS TOL (+) TOL (-) SAMPLE SIZE FIRST PROTO DIFFERE NCE MEETS SPEC? Y/N ACTION : RTS OR REVISE A OUTSEAM 1 1/4 1 46.74 41.86 4.88 Y RTS B BOTTOM CIRCUMFERENCE 1/4 1/4 26.68 25.50 1.18 Y RTS C INSEAM 1 1/4 1 28.83 29.07 -0.24 N REVISE D WAIST OPENING CIRCUMFERENCE 1 1/4 1 40.00 31.97 8.03 Y RTS E FRONT CROTCH OPENING 1 1/4 1 24.06 19.70 4.36 Y RTS F BACK OPENING 1 1/4 1 24.20 19.09 5.11 Y RTS
