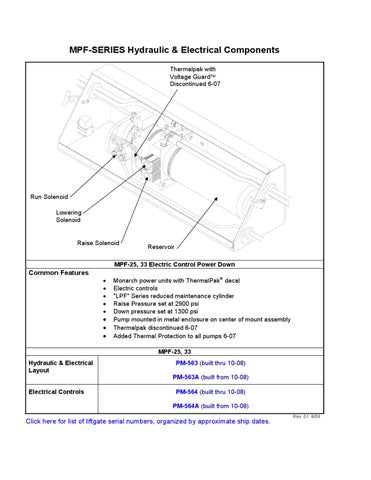

MPF-SERIES Hydraulic & Electrical Components Thermalpak with Voltage Guard$ Discontinued 6-07
Run Solenoid Lowering Solenoid
Raise Solenoid
Reservoir
MPF-25, 33 Electric Control Power Down
Common Features # # # # #
# # #
Monarch power units with ThermalPak! decal Electric controls "LPF" Series reduced maintenance cylinder Raise Pressure set at 2900 psi Down pressure set at 1300 psi Pump mounted in metal enclosure on center of mount assembly Thermalpak discontinued 6-07 Added Thermal Protection to all pumps 6-07 MPF-25, 33
Hydraulic & Electrical Layout Electrical Controls
PM-563 (built thru 10-08) PM-563A (built from 10-08) PM-564 (built thru 10-08) PM-564A (built from 10-08)
Click here for list of liftgate serial numbers, organized by approximate ship dates.
Rev. 01 8/09
