Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 416 00530600-00530999 9802/2720 \ C ELECTRICS-MACHINE CAB & ENGINE \ C03 ELECTRICS, CAB
9802/2720 C3-11-1 RADIO INSTALLATION 24 VOLT
Item Part # Change No Description Usage Code QTY 1 717/04700 Speaker loud, set 1 2 265/00884 Plate clamping Notrequired 2 3 719/89100 Harness speaker 1 4 717/00500 Aerial 1 5 717/04900 Lead aerial extension 1 6 717/05100 Carrier radio Din E 1 7 JHR0052 Radio AM/FM/LW 1 8 826/01246 Nut 'U' 8 9 826/10583 Screw Tosecurespeakers 8 10 718/20088 Lead radio earth 1
9802/2720 C3-12-1 ASHTRAY & LIGHTER
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 416 00530600-00530999 9802/2720 \ C ELECTRICS-MACHINE CAB & ENGINE \ C03 ELECTRICS, CAB
Item Part # Change No Description Usage Code QTY 1 265/00590 Ashtray 1 2 717/13000 Lighter cigarette 24 volt 1 2 265/02188 Bracket 1
9802/2720 C3-14-1 CONTROL UNIT TRANSMISSION
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 416 00530600-00530999 9802/2720 \ C ELECTRICS-MACHINE CAB & ENGINE \ C03 ELECTRICS, CAB
Item Part # Change No Description Usage Code QTY 1 04/600799 Unit control 1 1 04/600800 Unit control no 4th gear 1 1 04/600801 Unit control no 3rd/4th gears 1
9802/2720 C3-15-1 IN CAB CONVERTER
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 416 00530600-00530999 9802/2720 \ C ELECTRICS-MACHINE CAB & ENGINE \ C03 ELECTRICS, CAB
Item Part # Change No Description Usage Code QTY 1 717/14700 Convertor 24/12 volt 1 2 817/05199 Label 12 volt output 3 3 817/05200 Label 12V 1 4 1315/0101Z Screw 4 5 1420/0005Z Washer (M5) 4 6 1370/0003Z Lock Nut M5 4 7 7214/0002 Housing 4 way pin 1 8 7214/0004 Retainer 4 way pin 1 9 7210/0003 Seal wire 2.2-2.9mm OD brown 4 10 7204/0002 Terminal male (2.0) 4 11 717/12900 Lighter cigarette 12 volt 1
9802/2720 C3-19-1 HEATER HOSES
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 416 00530600-00530999 9802/2720 \ C ELECTRICS-MACHINE CAB & ENGINE \ C03 ELECTRICS, CAB
Item Part # Change No Description Usage Code QTY 1 25/221626 Tap heater 1 2 816/90678 Adapter 2 3 834/10612 Hose elbow 1
4 834/00834 Hose return heater 2 5 2201/0008 Clip Jubilee 6 6 826/01453 Tie cable Double Head 3
9802/2720 C3-20-1 AIR CONDITIONING INSTALLATION
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 416 00530600-00530999 9802/2720 \ C ELECTRICS-MACHINE CAB & ENGINE \ C03 ELECTRICS, CAB
Item Part # Change No Description Usage Code QTY 1 **** 'See Remark' SeepageC3-21-1 1 2 **** 'See Remark' SeeCompressor 1 3 **** 'See Remark' SeeIndexB1forcondensermountingdetails 1 4 649/51080 Hose compressor-condenser 1 4 :993/99561 O Ring No.6 2 5 649/51279 Hose condenser receiver drier 1 5 :993/99610 O Ring No.12 2 6 649/51124 Hose receiver drier C/W filler valve 1 6 :993/99610 O Ring No.12 2
7 649/51126 Hose evap. to compressorL 1 7 :993/99562 O Ring No.10 2 8 264/36400 Plate Harness Tie 1 9 826/01144 Tie Cable 200mm 1 11 821/10091 Clamp body 4 12 821/00428 Plate clamp cover 2 13 1315/3316Z Bolt (M8 x 70) 2 14 1370/0203Z Nut Nut M8 2 15 265/02808 Bracket mounting P clip 2 16 821/00410 Clip P 10mm 1 17 1420/0006Z Washer (M6) 1 18 821/00181 Clamp Base 1 19 821/00180 Clamp Top 1

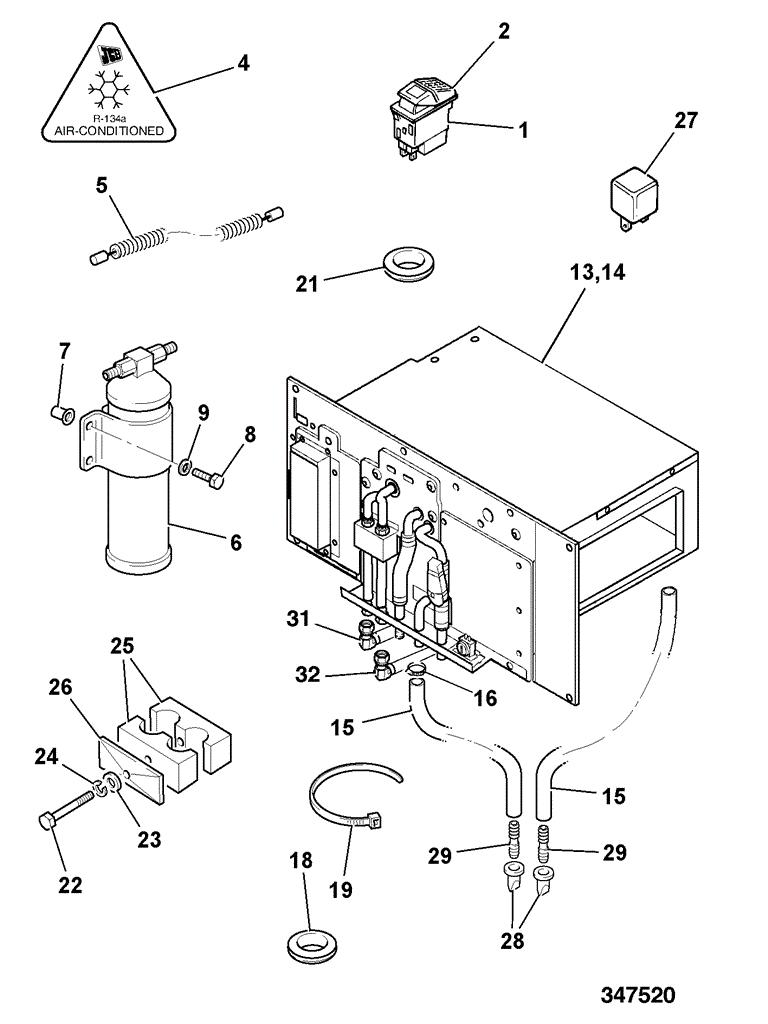

9802/2720 C3-21-1 AIR CONDITIONING COMMON PARTS
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 416 00530600-00530999 9802/2720 \ C ELECTRICS-MACHINE CAB & ENGINE \ C03 ELECTRICS, CAB
Item Part # Change No Description Usage Code QTY 1 701/60031 Panel Switch 24V 1 2 701/58710 Cover switch air conditioning 1 4 817/04257 Label Air Conditioning 1 5 718/20020 Wire link 1 6 30/925337 Drier Receiver, Assembly 1 6A :331/40645 Bracket receiver drier 1 6B :30/926859 Clamp Hose 2 7 826/01099 Rivet Nut M6 2 8 1315/0210Z Bolt M6 x 40mm long 2 9 1420/0006Z Washer (M6) 2 13 30/925795 Superseded Heater Unit 1 13 30/926655 Unit heater 1 14 30/925794 Superseded Unit air-con AirCon.componentspageC3-22-1 1 14 30/926654 Unit air-con AirCon.componentspageC3-22-1 1 15 647/03203 Hose 900mm long 2 16 2201/0003 Clip Jubilee 2 17 2410/0011 Grommet 2 18 2410/0013 Grommet 3 19 121/77603 Tie Cable 300mm 3 21 2410/0115 Grommet 44.4 x 3.5 1 22 1315/3314Z Bolt (M8 x 60) 1 23 1420/0007Z Washer (M8) 1 24 1425/0007Z Washer Washer 1 25 821/00334 Clamp 2 26 821/00335 Clamp Plate 2 27 716/11100 Relay 24V 20A 1 28 30/925338 Adapter Duckbill 2 29 30/925339 Adapter Drain 2 30 1414/0013Z Washer (0BA) 4
9802/2720 C3-22-1 AIR CON. UNIT COMPONENTS
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 416 00530600-00530999 9802/2720 \ C ELECTRICS-MACHINE CAB & ENGINE \ C03 ELECTRICS, CAB
Item Part # Change No Description Usage Code QTY A 30/925794 Superseded Unit air-con A 1 A 30/926654 Unit air-con B 1 9 :30/925352 Evaporator core 1
10 :30/925353 Heater matrix 1 13 :30/925355 Heater blower - AC-2 1 13A :30/926045 Resistor 24V 1 14 :830/10419 Tube outlet A 1 14 332/C4777 Tube outlet B 1 15 :701/80231 Switch binary 1 16 :331/14049 Thermostat heater/air con. 1 17 :25/220402 Valve expansion 1 18 :25/220403 Valve water 1 19 :30/925356 Knob control 3 20 :701/80173 Switch rotary 1 23 :30/925357 Unit control, cable with nut 2 24 :910/60075 Cable control 2 25 :32/925229 Filter wire mesh 1 26 :32/925230 Filter internal at angle, paper 1 27 :580/12120 Filter carbon CarbonfilterOption 1 27 :580/12119 Filter long fresh air FullfilterOption 1 28 :830/10418 Tube inlet A 1 28 332/C4776 Tube inlet B 1 29 :331/29780 Cover 1 30 :826/01311 Fastener 1/4 turn 30,33and34shouldbereplacedassset 1 31 :331/14278 Plate control panel 1 32 :817/16594 Label control panel 1 33 :826/01025 Clip quick release 1 34 :826/01223 Washer retaining 1 35 826/01488 Screw Button Head M5 x 12 4
9802/2720 C3-23-1 HEATER UNIT
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 416 00530600-00530999 9802/2720 \ C ELECTRICS-MACHINE CAB & ENGINE \ C03 ELECTRICS, CAB
Item Part # Change No Description Usage Code QTY A 30/925795 Superseded Heater Unit 1 A 30/926655 Unit heater 1 9 :30/925352 Evaporator core 1
10 :30/925353 Heater matrix 1 13 :30/925355 Heater blower - AC-2 1 13A :30/926045 Resistor 24V 1 14 :830/10419 Tube outlet 1 15 :701/80231 Switch binary 1 16 :331/14049 Thermostat heater/air con. 1 17 :25/220402 Valve expansion 1 18 :25/220403 Valve water 1 19 :30/925356 Knob control 3 20 :701/80173 Switch rotary 1 23 :30/925357 Unit control, cable with nut 2 24 :910/60075 Cable control 2 25 :32/925229 Filter wire mesh 1 26 :32/925230 Filter internal at angle, paper 1 27 :580/12120 Filter carbon Carbonfilter - Option 1 27 :580/12119 Filter long fresh air FullfilterOption 1 28 :830/10418 Tube inlet 1 29 :331/29780 Cover 1 35 826/01488 Screw Button Head M5 x 12 4
9802/2720 C3-24-1 RECIRCULATION FILTER AND DUCTING
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 416 00530600-00530999 9802/2720 \ C ELECTRICS-MACHINE CAB & ENGINE \ C03 ELECTRICS, CAB
Item Part # Change No Description Usage Code QTY 1 580/12117 Filter recirculation 1 2 1315/0205D Setscrew M6 x 20 9 3 1420/0006D Washer (M6) 4 4 1412/0001D Washer (1/4" Large) 7 5 926/01300 Strip sealing 0 6 265/00256 Guide hose 1 7 1370/0303D Nut Self Lock M10 2 8 1420/0008D Washer (M10) 1 9 817/04971 Label Heater Pipes 1 10 157/14704 Foam seal 2 11 824/50011 Strip edging 1 12 926/09905 Strip foam 25 X 38 X 50 2 13 926/43201 Foam strip, 25 x 25 x 420 self adhesive 1 14 826/01488 Screw Button Head M5 x 12 4 15 331/16512 Elbow duct 1 16 331/16504 Bracket duct elbow 1 17 331/16505 Bracket location 1 18 1430/0202 Screw No 8x1/2" 6 19 331/16895 Duct front 1 20 331/17043 Panel Control, Aircon 1 21 331/16895 Duct front 1 22 331/17540 Gasket Front Duct 1
9802/2720 C3-25-1 HEATER DOOR HEAVY DUTY FILTER
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 416 00530600-00530999 9802/2720 \ C ELECTRICS-MACHINE CAB & ENGINE \ C03 ELECTRICS, CAB
Item Part # Change No Description Usage Code QTY 1 335/05343 Door heater 1 2 826/10926 Hinge metal door 1 Filter air assembly
3 580/12146 Seeenginesectionforcomponents 1 4 32/925398 Bracket air filter mounting 1 5 32/925399 Cap rain 1 6 834/10699 Hose 1 7 1315/0307D Setscrew M8 x 25 mm 2 8 1420/0007D Washer (M8) 2 9 1370/0203D Nut Lock M8 2 10 2201/0017 Clip Worm Drive 110-140mm 1 11 2201/0016 Clip Worm Drive 91-114mm 1 12 2201/0015 Clip Worm Drive 78-102mm 1 13 1315/0303D Setscrew M8 x 16mm 2 14 335/05373 Plate air intake 1 15 813/10230 Gasket 1
9802/2720 C3-26-1 FACE LEVEL FAN INSTALLATION SALES
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 416 00530600-00530999 9802/2720 \ C ELECTRICS-MACHINE CAB & ENGINE \ C03 ELECTRICS, CAB
SPECIAL Item Part # Change No Description Usage Code QTY 1 717/20143 Fan face, 24V Salesspecial6246 1
Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL.NOWAITING
NOTE:
If there is no response to click on the link above, please download the PDF document first and then clickonit.
GET MORE OTHER MANUALS https://www.aservicemanualpdf.com/ GET MORE OTHER MANUALS https://www.aservicemanualpdf.com/
4 721/11114
1
Harness fan, face, twin
9802/2720 D1-2-1 CONTROL PARKING BRAKE
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 416 00530600-00530999 9802/2720 \ D CONTROLS-MACHINE ENGINE & STEERING \ D01 CONTROLS, MACHINE
Item Part # Change No Description Usage Code QTY 1 331/21033 Gaiter Hand Brake 1 2 331/17991 Lever Parking Brake 1 2A :252/18501 Grip hand black 1
3 331/21066 Plate Gaiter 1 4 826/01560 Screw M6x25 6 5 2410/1113 Grommet 31.8 2 6 701/72500 Switch Red Top 1 7 1315/3312Z Bolt M8x50 2 8 1370/0203Z Nut Nut M8 2 9 1420/0007Z Washer (M8) 2 10 910/50400 Cable Parking Brake 416 1 11 :913/02300 Clevis assembly 2 12 :2000/0030 Gaiter 2 13 :826/00627 Clip 'E' 2 14 :1340/0102Z Nut 2 15 826/10836 Screw Shouldered 1 16 1420/0006Z Washer (M6) 1 17 1370/0103Z Nut Self Lock M6 1 18 826/10837 Screw Shouldered M6 x 30 1 19 1420/0006Z Washer (M6) 1 20 1370/0103Z Nut Self Lock M6 1 21 335/01751 Bracket Handbrake 1 22 1315/0305D Setscrew M8 x 20mm 3
