9822/0240 A775-1-1 SNOW PLOUGH ASSEMBLY 66"
Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 150T T4 02201002-02206002 TRACKED RADIAL 9822/0240 \ A ATTACHMENTS \ A07 UTILITY ATTACHMENTS
Item Part # Change No Description Usage Code QTY A 333/L8499 Blade snow,ABI, 60" 1 1 :333/C3013 Spring Tension 2 2 :335/A7079 Plate Plate 1
3 :335/A7083 Plate Wear Edge 1 4 :332/L7088 Gasket hose,F/SNB-3000 1 5 :332/L7090 Casting Shoe F/SNB-3500 2 6 :333/C3017 Pin 2 7 :333/C3018 Bolt 2 8 :333/C3019 Bolt 5 9 :333/F0843 Bolt shipping 2 10 :333/C3020 Eye Bolt 2 11 :332/L7111 Pin Lynch Pin 0.44-1.63 LRG Ring 2 12 :332/L7083 Washer 5/8 SAE GRS PLD 22 13 :335/A7084 Plate Raduis 1 14 :335/A7085 Blade Snow Blade 1 15 :333/C3009 Tube Outer 2 16 :333/C3010 Tube Inner 2 17 :333/C3011 Pin 1 18 :332/H9837 Label Lift Point 1 19 :332/H9420 Decal read manual 1 20 :333/C3012 Label Crushed Legs 2 21 :333/C0962 Bolt 1 22 :332/L7011 Washer Lock 5 23 :332/H7612 Nut 9 24 :332/H7844 Washer 2 25 :335/14238 Nut locking 1 26 :333/C2999 Cotter Pin 4 27 :333/C2166 Nut 2 28 :332/L6577 Washer Flat 4 29 :335/A7087 Tie Strap 2 30 :333/C3007 Hitch Pin 2 31 :335/14262 Tube manual 1 33 :332/L6288 Decal JCB Logo 1 34 :333/C3008 Clevis Pin 4
9822/0240 A900-5-1 MISCELLANEOUS ABI 76" CONST
SCRAP GRAPPLE JCB
Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 150T T4 02201002-02206002 TRACKED RADIAL 9822/0240 \ A ATTACHMENTS \ A09 MISCELLANEOUS
Item Part # Change No Description Usage Code QTY 1 332/H7240 Hose . 2
2 332/H7241 Hose . 1 3 332/H7243 Hose . 1 4 **** 'See Remark' 335/D1811Hose 2 5 332/L5979 Setscrew .31-18 UNC X 2.25 2 6 332/L6574 Capscrew 6 7 332/L6588 Ram Assembly 2 8 332/L6581 Pin cylinder 2 9 332/H7244 Pin . 2 10 332/H7245 Pin . 2 11 332/H7246 Grab L/H 1 12 332/H7247 Grab R/H 1 13 332/H7254 Frame 76 1 14 332/L5987 Washer Flat .31 4 15 332/H7273 Washer . 12 16 335/14236 Nut locking 6 17 332/H7274 Nut . 2 18 332/L5991 Nipple Grease 2 19 332/L5992 Coupling Male .50 1 20 332/L5996 Coupling Female Quick Coupler .50 1 21 332/H7275 Adapter 90deg. 6 22 332/H7276 Adapter . 2 23 332/H7277 Adapter 90deg 2 24 332/H7278 Adapter T 2 25 332/H7280 Rubber Strip 2 26 332/L6587 Spacer 0.62 x.385 x .44,PLD 6 27 332/L6013 Valve Check 1 28 333/H8635 Toeplate 76" wide (Weld-On) 1
9822/0240 B110-30-1 CHASSIS FASTENERS COVER PLATE,FRONT
Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 150T T4 02201002-02206002 TRACKED RADIAL 9822/0240 \ B BODYWORK \ B01 BODYWORK/FRAME
Item Part # Change No Description Usage Code QTY 2 1315/0307Z Setscrew M8 X 25 4
3 1420/0007Z Washer (M8) 4
9822/0240 B110-100-1 CHASSIS ASSEMBLY RADIAL LIFT,TRACKED,JCB,YELLOW,TIER 4
Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 150T T4 02201002-02206002 TRACKED RADIAL 9822/0240 \ B BODYWORK \ B01 BODYWORK/FRAME
Item Part # Change No Description Usage Code QTY 1 333/X2127 Chassis Radial Lift,Tracked,Yellow 1
2 332/X6538 Cover Tool box radial lift,JCB Yellow 1 3 333/X2160 Plate Cover Oil Pan 1 4 332/X2274 Plate Cover Front,Yellow 1 5 333/X2202 Plate Cover Engine Mount 1 6 333/X2963 Plate Cover Left Side QP,JCB 1

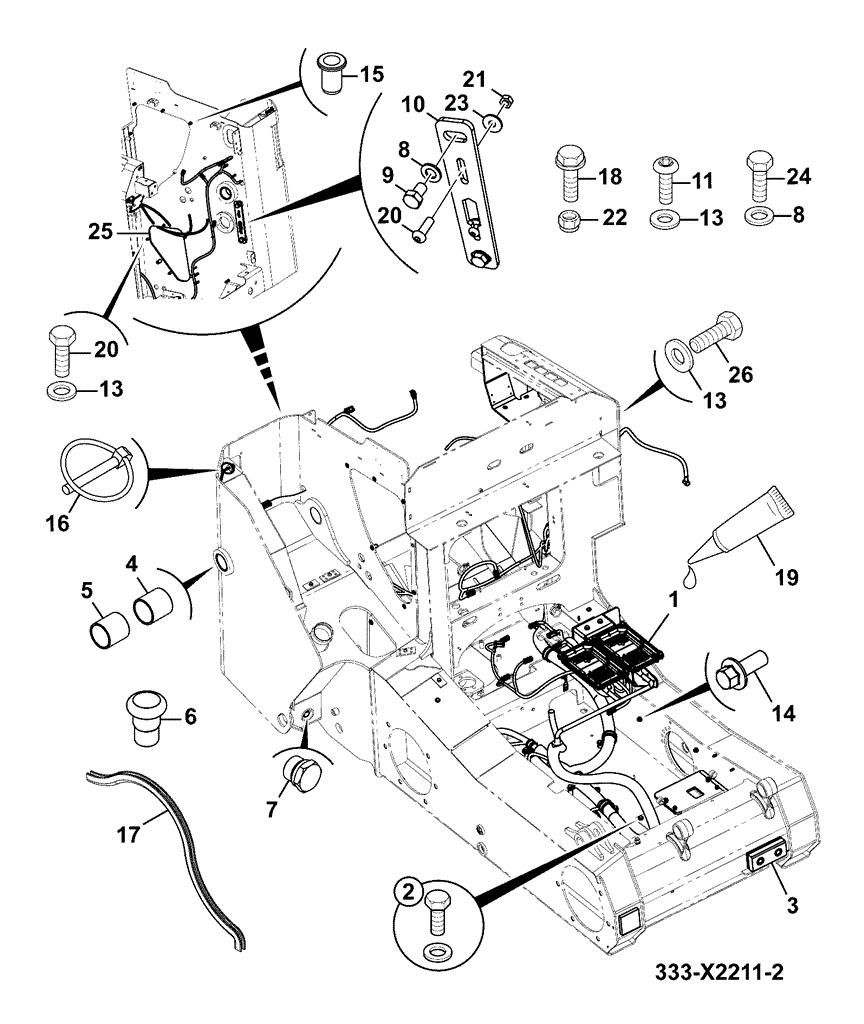

9822/0240 B110-120-1 CHASSIS FITTINGS & MOUNTINGS
RADIAL LIFT,TIER 4
Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 150T T4 02201002-02206002 TRACKED RADIAL 9822/0240 \ B BODYWORK \ B01 BODYWORK/FRAME
Item Part # Change No Description Usage Code QTY 1 **** Electrics Mainframe Assembly,T4 1
2 **** Front Cover, Fittings Assembly 1 3 **** Pad Stop Assembly,T4 1 4 332/L3544 Bush Bi-Metallic 1 5 332/L3550 Bush Bi-Metallic 1 6 335/B1629 Breather 2 7 333/X2647 Plug Blanking 1 8 1420/0009Z Washer (M12) 7 9 1315/0505Z Bolt M12x20 2 10 332/X8328 Plate Latch mount 1 11 826/11046 Screw M8x20 2 13 1420/0007Z Washer (M8) 10 14 1317/3305Z Bolt Flanged M8 x 20 lg 4 15 826/01254 Nut Rivet 7 16 826/00600 Pin linch 1 17 334/L7531 Strip edging,45.7mm 2 18 1317/3405Z Bolt M10 X 20 Flange Reduced 1 19 4101/1100 Loctite 243 ASREQUIRED 0 20 826/01554 Bolt 7 21 1370/0201Z Nut Standard M8 2 22 1340/1801Z Nut 1 23 823/00322 Washer (8.5mm x 24mm x 2mm) 2 24 1316/0507Z Screw 5 25 333/L2873 Grille Bottom intake,SP, Black 1 26 1315/0307Z Setscrew M8 X 25 3
9822/0240 B110-130-1 CHASSIS STOP
PAD,ASSEMBLY,TIER 4
Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 150T T4 02201002-02206002 TRACKED RADIAL 9822/0240 \ B BODYWORK \ B01 BODYWORK/FRAME
Item Part # Change No Description Usage Code QTY 1 333/X3884 Pad Stop 1
2 247/00367 Spacer 6mm thick ASREQUIRED 1 3 247/00366 Spacer 4mm thick ASREQUIRED 1 4 1420/0008Z Washer (M10) 2 5 1316/3414 Bolt M10 x 60 2
9822/0240 B120-5-1 FUEL TANK PROTECTION CAP,ASSEMBLY
Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 150T T4 02201002-02206002 TRACKED RADIAL 9822/0240 \ B BODYWORK \ B01 BODYWORK/FRAME
Item Part # Change No Description Usage Code QTY 1 333/X3153 Cover Fuel Cap 1
2 333/X3157 Hinge Cover,Fuel Cap 1 3 826/00600 Pin linch 1 4 1315/0205Z Setscrew M6 x 20mm 2 5 1420/0006Z Washer (M6) 6 6 1370/0103Z Nut Self Lock M6 4 7 1315/0207Z Screw M6x25 2
9822/0240 B120-100-1 FUEL TANK FILLER CAP,ABI,VENTED
Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 150T T4 02201002-02206002 TRACKED RADIAL 9822/0240 \ B BODYWORK \ B01 BODYWORK/FRAME
Item Part # Change No Description Usage Code QTY 1 332/F8215 Cap Filler,Vented Diesel Locking 1
2 333/X2709 Chain Retaining 1
9822/0240 B130-5-1 HYDRAULIC TANK ASSEMBLY TIER 4
Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 150T T4 02201002-02206002 TRACKED RADIAL 9822/0240 \ B BODYWORK \ B01 BODYWORK/FRAME
Item Part # Change No Description Usage Code QTY 1 332/X9981 Hydraulic Tank ABI 1 2 320/04555 Sensor Temperature coolant (2 pin) 1 3 1751/0406 Adapter ORFS M -06/S 1
4 333/X2590 Cap Tank connector 1 5 333/X2589 O Ring For Tank Connector 1 6 333/X2588 Connector Lock 1 7 1412/0004Z Washer (7/16" Large) 6 8 333/X2759 Hydraulic Tank Fittings ABI 1
9822/0240 B130-10-1 HYDRAULIC TANK ABI FITTINGS
Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 150T T4 02201002-02206002 TRACKED RADIAL 9822/0240 \ B BODYWORK \ B01 BODYWORK/FRAME
Item Part # Change No Description Usage Code QTY 1 333/X2747 Element Filter 10 Micron 1 2 333/X2746 Cap Filter 1 3 333/X3491 Seal Filter Cap 1
4 333/X2879 Indicator
1 5 333/X0748 Screw M10 6
Level Gauge Frame
9822/0240 B130-15-1 HYDRAULIC TANK ASSEMBLY ABI
Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 150T T4 02201002-02206002 TRACKED RADIAL 9822/0240 \ B BODYWORK \ B01 BODYWORK/FRAME
Item Part # Change No Description Usage Code QTY 1 333/X2766 Tank Hydraulic Moulding Base 1 2 333/X2764 Breather 1 3 333/X2767 Plug Drain Hydraulic 1
4 333/X2765 Cap Filler Hydraulic Tank 1
Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL.NOWAITING
NOTE:
If there is no response to click on the link above, please download the PDF document first and then clickonit.
GET MORE OTHER MANUALS https://www.aservicemanualpdf.com/ GET MORE OTHER MANUALS https://www.aservicemanualpdf.com/
9822/0240 B160-105-1 MOUNTING BRACKETS ENGINE
FITTINGS,3 CYLINDER
Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 150T T4 02201002-02206002 TRACKED RADIAL 9822/0240 \ B BODYWORK \ B01 BODYWORK/FRAME
Item Part # Change No Description Usage Code QTY 1 **** Mounting Engine Assembly,3 Cylinder 1
3 **** Drive Coupling Assembly,T4 1 4 **** Transmission Support Assembly 1 5 **** Assembly Coolant,Remote Drain 1 6 **** Oil Fill Adaptor Assembly 1 7 **** Dipstick Assembly,3 Cylinder,T4 1 8 **** Oil Drain Remote Assembly 1 9 333/X3274 Pressing CAC Holder 1 10 1420/0007Z Washer (M8) 1 11 1315/0307Z Setscrew M8 X 25 1 12 826/00562 Screw Hammer Drive 4 13 333/X3447 Shield Heat,Rear Cab 1
9822/0240 B160-115-1 MOUNTING BRACKETS ENGINE
MOUNTING,3 CYLINDER
Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 150T T4 02201002-02206002 TRACKED RADIAL 9822/0240 \ B BODYWORK \ B01 BODYWORK/FRAME
Item Part # Change No Description Usage Code QTY 4 1370/0603Z Nut lock M16 2
