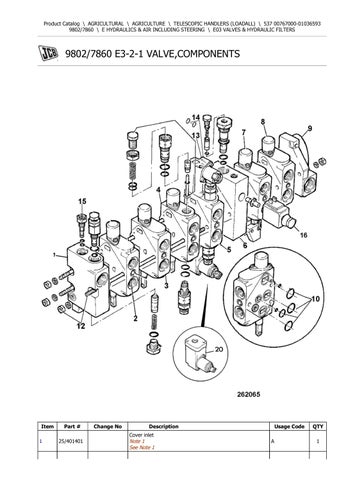

Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 537 00767000-01036593 9802/7860 \ E HYDRAULICS & AIR INCLUDING STEERING \ E03 VALVES & HYDRAULIC FILTERS 9802/7860 E3-2-1 VALVE,COMPONENTS Item Part # Change No Description Usage Code QTY 1 25/401401 Cover inlet Note1 SeeNote1 A 1
1 25/401602 Cover Inlet Note2 SeeNote2 B 1 1 25/401501 Cover Inlet Note3 SeeNote3 C 1 2 25/401402 Valve Section MainLift.Seenote1. 1 3 25/401402 <M772365 Valve Section Ext.for25/408400E3-1-7 1 3 25/401402 <M772296 Valve Section Ext.For25/408500E3-1-8 1 3 25/401402 <M772175 Valve Section Ext.For25/408700E3-1-6 1 3 25/401424 >M772366 Valve Section,Motor Spool Extfor25/408400E3-1-7 1 3 25/401424 >M772297 Valve Section,Motor Spool Extfor25/408500E3-1-8 1 3 25/401424 >M772175 Valve Section,Motor Spool Extfor25/408700E3-1-6 1 4 25/401403 Valve See Service Manual for valve settings Tilt.Seenote1. 1 5 25/401404 Valve Section (Motor Spool) Sway/AuxSeenote1 A 1 5 25/401604 Valve Section 6SpoolAux/Stab B 1 5 25/405501 Valve Section (Externally Fed) 6SplSway/StabExternalPilot C 1 5 25/401502 Valve Section Without Solenoids Aux/Stabwithoutsolenoids D 1 5 25/220866 Valve Valve Section SOLENOID(25/708500) 1 5 25/222558 Valve Section,Motor Spool FOR25/408400 1 6 25/401603 Valve Section,Unloader Unloaderslice.Seenote1. 1 7 25/401605 Valve Section R/HStab.Seenote1. 1 8 25/401605 Valve Section L/HStab.Seenote1 1 8A :25/221583 Kit Valve Spool Cap spring, spring caps,shoulder screw, washer, cap and screws 1 9 25/401405 Cover Outlet 1 9A :25/221583 Kit Valve Spool Cap spring, spring caps,shoulder screw, washer, cap and screws 1 10 25/401408 Kit-seal 2 x Seals (Intersection seals) Sealkit. 1 10 25/924103 Kit seal intersections 1 10A 25/929305 Kit-seal spool 1 12 25/401406 Rod Assy Kit 4 Spool (3 Tie Rods) TieRods.4Spool A 1 12 25/401407 Rod Assy 6 Spool 6Spool B 1 13 25/401415 Kit-solenoid c/w capscrews 2 14 25/401416 Kit Seal 1 15 25/401601 <M768957 Valve Pressure Reducing 1 15 25/401413 >M768958 Kit Pressure Reducing 1 16 25/401418 Solenoid Kit Unloader Section 1
Note 1: 25/406100,406200,408000,408100,408400,408500
Note 2: 25/401600,25/405500
Note 3: 25/401500,25/408700
Note 4: External piloted hose.Early m/c's.
Note 5: Internal Piloted Balnce Hose.Early m/c's.
20 25/993201 Cap End Assy NOTE2.SeeTI5/151 SeeNote4 1 20 25/205000 Kit Valve Block Conversion NOTE1.seeTI5/151 SeeNote5 1
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 537 00767000-01036593 9802/7860 \ E HYDRAULICS & AIR INCLUDING STEERING \ E03 VALVES & HYDRAULIC FILTERS 9802/7860 E3-2-2 VALVE,COMPONENTS MANUAL AUX, 6 SPOOL Item Part # Change No Description Usage Code QTY 1 25/401001 Cover inlet 25/411800 1
2 928/60111 Valve section MainLift.Seenote1. 1 3 25/220469 Valve Section Extend,MotorSpool 1 4 25/220467 Valve Valve, Section Tilt 1 5 25/220468 Valve Section AUX 1 6 25/220470 Valve Valve Section Unloader Unloaderslice.Seenote1. 1 7 25/401605 Valve Section R/HStab.Seenote1. 1 8 25/401605 Valve Section L/HStab.Seenote1 1 9 25/401405 Cover Outlet 1 10 25/401408 Kit-seal 2 x Seals (Intersection seals) Sealkit. 1 10 25/924103 Kit seal intersections 1 10A 25/929305 Kit-seal spool 1 12 25/221896 Kit Tie Rod Kit 6Spool 1 13 25/401415 Kit-solenoid c/w capscrews 2 14 25/401416 Kit Seal 1 15 25/401601 <M768882 Valve Pressure Reducing 1 15 25/401413 >M768883 Kit Pressure Reducing 1 16 25/401418 Solenoid Kit Unloader Section 1 16A :25/221077 Coil Coil 12Volt 1 20 25/993201 Cap End Assy 1 20 25/205000 Kit Valve Block Conversion NOTE1.TI5/151 SeeNote1 1 20 25/205100 Kit Valve Block Conversion NOTE2.TI5/151 SeeNote2 1 Note 1: Internal piloted balance hose.Early m/c's. Note 2: External piloted hose. Early m/c's.
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 537 00767000-01036593 9802/7860 \ E HYDRAULICS & AIR INCLUDING STEERING \ E03 VALVES & HYDRAULIC FILTERS 9802/7860 E3-3-1 VALVE,SECTION
Item Part # Change No Description Usage Code QTY 3 25/924127 Plate seal retainer 1 4 25/926907 Screw assembly 2 5 25/929305 Kit-seal spool 1
COMPONENTS
6 25/924127 Plate seal retainer 1 6A 25/407306 Kit-end mechanism 1 7 25/924130 Seat spring 2 8 25/942820 Spring 1 9 25/924131 Spacer 1 10 25/924133 Screw shoulder 1 11 25/924134 Cap 1 12 25/932107 Capscrew 2 13 25/926908 Kit-repair check valve 1 14 :25/924138 O Ring 1 15 :25/924139 Ring back-up 1 16 :25/924137 Spring 1 17 :25/924136 Valve poppet 1
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 537 00767000-01036593
\ E HYDRAULICS & AIR INCLUDING STEERING \ E03 VALVES & HYDRAULIC FILTERS 9802/7860 E3-4-1
STEERING Item Part # Change No Description Usage Code QTY 1 35/411700 Valve steer with anti-shock WITHANTI-SHOCKGERMAN 1 1 35/411800 Valve steer without anti-shock 1
9802/7860
VALVE
2 **** None serviced part 1 2A :35/408801 Valve dual shock 2 3 :35/404202 Superseded Kit-repair 1 3 35/412202 Kit-seal 1 3A :35/404902 Bearing complete 1 7 :35/400502 Ring 1 8 :35/400507 Pin cross 1 9 :35/400508 Ball 1 10 :35/400510 Bush 1 11 :35/412301 Drive 1 12 **** 'See Remark' Notfittedorrequired. 1 13 :35/409301 Plate distributor 1 14 :35/405706 Kit-gear 1 15 :35/400511 Plate end 1 16 **** None serviced part Partoritem17 1 17 :35/408903 Screw with bore 1 18 :35/408904 Screw 6 19 :35/407009 Spring kit 1 20 :35/408802 Ball 2 21 :35/408803 Pin 2 22A :35/409303 Valve relief assembly 1 23 1620/0004 Adapter 3/4 2 24 816/17072 Adapter 2 25 2401/0506 O Ring Componentpartofitem23,24 1 26 1620/0001 Adapter 1 27 :828/00237 O Ring 1/4"BSP Componentpartofitem26 1
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 537 00767000-01036593 9802/7860 \ E HYDRAULICS & AIR INCLUDING STEERING \ E03 VALVES & HYDRAULIC FILTERS 9802/7860 E3-5-1 VALVE BLOCK MOUNTING PLATE INSTALLATION
Item Part # Change No Description Usage Code QTY 1 162/02865 Plate Mounting 532 1 1 162/02866 Plate Mounting 537SWAY(550N/AM) 1 1 162/02864 Plate Mounting 537STAB(550N/AM) 1
2 162/02513 Bracket 2 3 1315/0305Z Setscrew M8 x 20 1 4 1420/0007Z Washer (M8) 1 5 1391/3409Z Capscrew M10 x 35mm 1 6 826/01684 Capscrew 2 7 1425/0008Z Spring Washer 3
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 537 00767000-01036593 9802/7860 \ E HYDRAULICS & AIR INCLUDING STEERING \ E03 VALVES & HYDRAULIC FILTERS 9802/7860 E3-5-2 VALVE BLOCK MOUNTING PLATE INSTALLATION
Item Part # Change No Description Usage Code QTY 1 162/03314 <M775401 Bracket Valve Block 532 1 1 162/03781 Superseded Bracket Valve Block 532 532 1 1 162/03314 Bracket Valve Block 1 1 162/03395 Bracket Valve Bracket 1
1 162/03315 <M775401 Bracket Valve Block 1 1 162/03782 Superseded Bracket Valve Block 537/550 1 1 162/03315 Bracket Valve Block 1 2 162/03323 Bracket Support 1 3 1315/0305Z Setscrew M8 x 20 1 4 1420/0007Z Washer (M8) 1 5 1391/3409Z Capscrew M10 x 35mm 1 6 826/01684 Capscrew 2 7 1425/0008Z Spring Washer 3
537STAB(550N/AM)
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 537 00767000-01036593 9802/7860 \ E HYDRAULICS & AIR INCLUDING STEERING \ E03 VALVES & HYDRAULIC FILTERS 9802/7860 E3-6-1 VALVE,STEERING MODE & MOUNTING
Item Part # Change No Description Usage Code QTY A 35/901900 <M770303 Valve Steer Mode + C/bal 1 A 35/902500 >M770304 Valve Steer Mode & C/bal SEETI5/180 1 1 :35/901903 Block 1 2 :1391/3108Z Capscrew M5 X 30mm 8 6 :35/900700 Valve steer mode crab/4w steer 1 7 :35/900600 Valve steer mode 2ws/4ws 1 8 ::35/101001 Kit-seal 1 9 ::35/900601 <M770303 Coil solenoid, round 63mm x 45mm x 19.41H (ROUND)JFP 1 9 ::35/901902 >M770304 Coil Solenoid, round 54mm x 45mm 19.2mm H (ROUND)JFP 1 9 ::477/00824 Coil (SQUARE)VICKERS 1 13 :35/901901 Cartridge Counterbalance Anti-Cav 1 13A :35/901904 Kit Seal 1
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 537 00767000-01036593 9802/7860 \ E HYDRAULICS & AIR INCLUDING STEERING \ E03 VALVES & HYDRAULIC FILTERS 9802/7860 E3-6-2 VALVE STEERING MODE & MNTG
Item Part # Change No Description Usage Code QTY A 35/903500 Valve assembly, steer mode 1 1 :123/05521 Superseded Block 1 1 :NLA No Longer Available ORDER35/903500 1 2 :1391/3108Z Capscrew M5 X 30mm 8 6 :35/900600 <M773820 Valve steer mode 2ws/4ws 1 6 :25/220642 >M773821 Valve assembly 2ws, aws 1 7 :35/900700 <M773820 Valve steer mode crab/4w steer 1 7 :25/220641 >M773821 Valve assembly crab, aws 1 8 ::903/04052 Kit-seal solenoid valve 1 9 ::477/00824 Coil 2 10 1315/3320Z Bolt (M8 x 100) 2 11 1425/0007Z Washer Washer 4 12 826/01106 Nut Rivet,M8 USEWITHITEMS10&11 2
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 537 00767000-01036593 9802/7860 \ E HYDRAULICS & AIR INCLUDING STEERING \ E03 VALVES & HYDRAULIC FILTERS
Item Part # Change No Description Usage Code QTY 1 25/996300 <M768807 Valve Aux/Sway Change Over 1 1 25/998300 <M770614 Valve Divertor 1 1 25/996300 >M770614 Valve Aux/Sway Change Over 1 1A :25/996301 Coil Solenoid 1
9802/7860 E3-7-1 VALVE,AUX/SWAY CHANGEOVER
