Massey Ferguson 8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446 1637446 Engine & Equipment Page010-0000
MF 8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446
1-WA06-022-D 18 18 18 18 15 32 32 32 12 36 36 36 36 30 30 30 30 30 30 30 30 30 30 30 22 31 31 31 31 31 31 31 31 34 34 34 34 29 35 35 35 3 2 39 39 1 4 4 17 17 46 20 20 19 44 40 40 41 41 27 45 28 28 9 5 8 33 33 42 37 37 23 26 43 7 38 6 10 13 14 21 11 16 25 24 RefWA061022-1 Page010-0005
FOOTNOTE[A] INCLUDES FLYWHEEL FOOTNOTE[B] NOT ILLUSTRATED
8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446 1637446 Engine And Equipment Page010-0005 Item Part NumberQtyDescription Comments 1 V8329615171 Engine [A] MF 8470 84 ETA V862961517X1 Short Engine [B] MF 8470 V8329615181 Engine [A] MF 8480 84 ETA V862961518X1 Short Engine [B] MF 8480 2 3823621M911 Startermotor See Page - Reference Number 010-0020/1 3 339402X13 Nut M10 4 339009X14 Hex. Sock. ScrewM8 X 35 5 4275545M3 1 Belt Length 1950 MM 6 4274233M11 Fan Diameter 715 MM 7 3789258M11 Clutch 8 1441932X16 Nut Metric M10 9 3011339X16 Stud M10 X 22 10 4276881M31 Support 11 4272811M31 Harness 12 3778469M11 Spacer Thickness 15 MM 13 339560X12 Hex. Sock. ScrewM6 X 16 14 339030X12 Nut Metric M6 15 4276108P911 Panel Right Hand 16 4275844P911 Panel Left Hand 17 3800376M12 Buffer 18 725024094 Rubber 19 4270244M51 Support 20 3783047M52 Support 21 4270660M31 Support Up to Serial or Engine Number P207000 22 4270260M21 Support 23 3780947M11 Stop 24 4270673M21 Support 25 4273770M11 Support 26 4274073M21 Support Up to Serial or Engine Number P207000 27 4274076M21 Support Up to Serial or Engine Number P210016 28 3783347M22 Cable 29 4275845M11 Protector 30 390972X121 Washer Diameter 8-17 X 1,7 31 390971X19 Washer Diameter 6-12 X 1,5 32 339124X17 Hex. Sock. ScrewM8 X 16 33 339761X14 Hex. Sock. ScrewM8 X 25 34 391074X14 Hex. Sock. ScrewM6 X 12 35 339169X15 Nut M8 36 339804X14 Hex. Sock. ScrewM6 X 25 37 339030X13 Nut Metric M6 38 339666X12 Hex. Sock. ScrewM6 X 20 39 3010934X12 Rivet 40 339560X13 Hex. Sock. ScrewM6 X 16 41 1441500X13 Top Locknut M6 42 4281581M11 Support From Serial or Engine Number P207001 43 4281580M11 Support From Serial or Engine Number P207001 44 4281865M11 Support From Serial or Engine Number P210017 45 4276812M41 Cowl 46 1441932X11 Nut Metric M10
Massey Ferguson
14 28 15 26 27 16 23 24 25 13 29 10 53 8 8 1 1 1 1 1 9 11 30 33 12 34 32 32 20 31 21 54 2 42 40 19 41 37 6 5 22 36 35 39 44 44 44 49 49 49 4 38 3 51 17 50 50 45 7 18 48 48 52 47 47 55 46 43 RefWH011005-1 Page010-0025
MF 8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446 1-WH01-005-A
8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446 1637446 Cylinder Block Page010-0025 ItemPart NumberQtyDescription Comments 1 V8368670461 Cylinder Block 2 V8368660691 Bush (1) V8368660361 Bush (1) Thickness +0,4 MM 3 6 Bearing Carrier (1) Not serviced,order REF. 1 4 V83621447812 Bush (3) 5 1 Bearing Carrier (1) Not serviced,order REF. 1 6 V8362144782 Bush (5) 7 V52990318014 Screw (1) 8 V8368524602 Bush (1) 9 V8368524591 Bush (1) 10 V8368524611 Bush (1) 11 V6400160181 Plug (1) 12 V6400160405 Plug (1) 13 V8368527441 Plug 14 V8368670486 Liner V836867050X Liner Thickness 9,08 MM V836867051X Liner Thickness 9,13 MM V836867052X Liner Thickness 9,23 MM 15 V83685544612 O Ring 16 V8368554476 O Ring 17 V8368462316 Pipe 18 V8363386016 Valve. 19 V8360143341 Pipe 20 V6158818241 Seal 21 V8360197561 Plug 22 V6400160164 Plug 23 V5288013624 Screw M8 X 16 24 V8368669571 Cover 25 V8368669581 Gasket 26 V8368556781 Cover 27 V8363228521 Gasket 28 V5288013805 Screw M8 X 20 29 V5468013601 Bolt M8 X 16 30 V5468014001 Bolt M8 X 25 31 V6403251105 Plug 32 V6155710146 Seal 33 V8361190791 Plug 34 V6158816201 Seal 35 V6403250141 Plug 36 V6158814201 Gasket 37 VHC93264 Screw M8 X 20 38 V8368556291 Sleeve 39 V8368555541 Gasket 40 VKH70701 O Ring 41 V5000508421 Washer 42 V5288013621 Screw M8 X 16 43 V8368591531 Nipple 44 V5106008024 Nut M8 45 V8366523231 Sleeve 46 V8368671341 Bracket 47 V8366660953 Knob 48 V5818046303 Screw M8 X 30 49 V8366660943 Bush 50 V5818045802 Screw M8 X 16 51 V5818046801 Screw M8 X 55 52 V5725041724 Screw M6 X 12 53 V836866613 1 Sensor 54 V836866392 1 Eng.Speed Sensor 55 V8368647451 Control Unit MF 8470 V8368691651 Control Unit MF 8480
Massey Ferguson
8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446
2 5 22 23 6 1 30 19 3 3 24 24 27 4 28 29 21 25 26 20 7 9 12 8 15 14 13 18 11 17 10 16 RefWH201004-1 Page010-0030
MF
1-WH20-004-A
Massey Ferguson 8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446 1637446 Timing Gear Housing Page010-0030 ItemPart NumberQtyDescription Comments 1 V8368664201 Housing 2 V8366474191 Gasket 3 V52880140015 Screw M8 X 25 4 V5983598502 Pin 5 V5818046201 Screw M8 X 25 6 V8368591531 Nipple 7 V8368591511 Cover 8 V8368591521 Gasket 9 V8368591601 Restrictor 10 V8368408831 Oil Seal 11 V8368556361 Gasket 12 V5298014304 Screw M8 X 40 13 V52880141013 Adjusting ScrewM8 X 30 14 V5299027301 Screw M14 X 90 15 V8368591611 Bridle 16 V5818045703 Screw M8 X 12 17 V8361367171 Cover 18 V8361299461 Gasket 19 V5468018404 Bolt M10 X 45 20 V5983598602 Pin 21 V8368595881 Angle. 22 V6403250181 Plug 23 V6158818221 Seal 24 V8368591651 Gear 25 V8368591631 Gear (24) 26 V6100710792 Ball Bearing (24) 27 V8368591641 Flange (24) 28 V5288013804 Screw (24) M8 X 20 29 V8368591621 Shaft (24) 30 V6146030242 O Ring
MF 8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446 1-WH02-007-A 6 7 12 11 9 8 1 10 5 4 3 2 18 13 14 15 16 17 RefWH021007-1 Page010-0035
Massey Ferguson 8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446 1637446
Piston & Connecting Rods Page010-0035 ItemPart NumberQtyDescription Comments 1 V8368664771 Crankshaft 2 V8368555591 Gear 3 V8368555581 Gear 4 V8368555251 Key 5 V8363363026 Bearing STANDARD V836338650X Bearing Diameter 72,731 MM 72,750 MM V836338651X Bearing Diameter 72,481 MM 72,500 MM V836338652X Bearing Diameter 71,981 MM 72,000 MM V836338653X Bearing Diameter 71,481 MM 71,500 MM 6 V8368661826 Piston 7 V8368408871 Kit, Piston Ring (6) 8 V836340948X Conrod Replace and repair. Old not interchangeable with new V836864104 V836864101X Conrod 2230-2249g E V836864102X Conrod 2250-2269g F V836864103X Conrod 2270-2289g G V836340948X Conrod 2290-2309g H Replace and repair. Old not interchangeable with new V836864104 V836864105X Conrod 2310-2329g I V836864106X Conrod 2330-2349g J V836864107X Conrod 2350-2369g K 9 V8368642881 Bush (8) V836338606X Bush (8) Diameter + 0,5 MM 10 V8368641412 Screw (8) 11 V8368409447 Main Bearing STANDARD V836840978X Main Bearing Diameter 89,735 MM 89,770 MM V836840979X Main Bearing Diameter 89,485 MM 89,520 MM V836840980X Main Bearing Diameter 88,985 MM 89,020 MM V836840981X Main Bearing Diameter 88,485 MM 88,520 MM 12 V8368409452 Thrust WasherSTANDARD V836840982X Thrust Washer0,10 MM V836840983X Thrust Washer0,20 MM 13 V8368556371 Ring 14 V8368556411 Hub 15 V8368408821 Shock Absorber 16 V8368556901 Pulley 17 V5289022306 Screw M12 X 40 18 V8363222211 Nut
Crankshaft,
MF 8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446
8 7 1 6 5 2 3 9 4 10 20 11 12 13 19 18 14 17 15 16 RefWH221001-1 Page010-0040
1-WH22-001-A
FOOTNOTE[A]

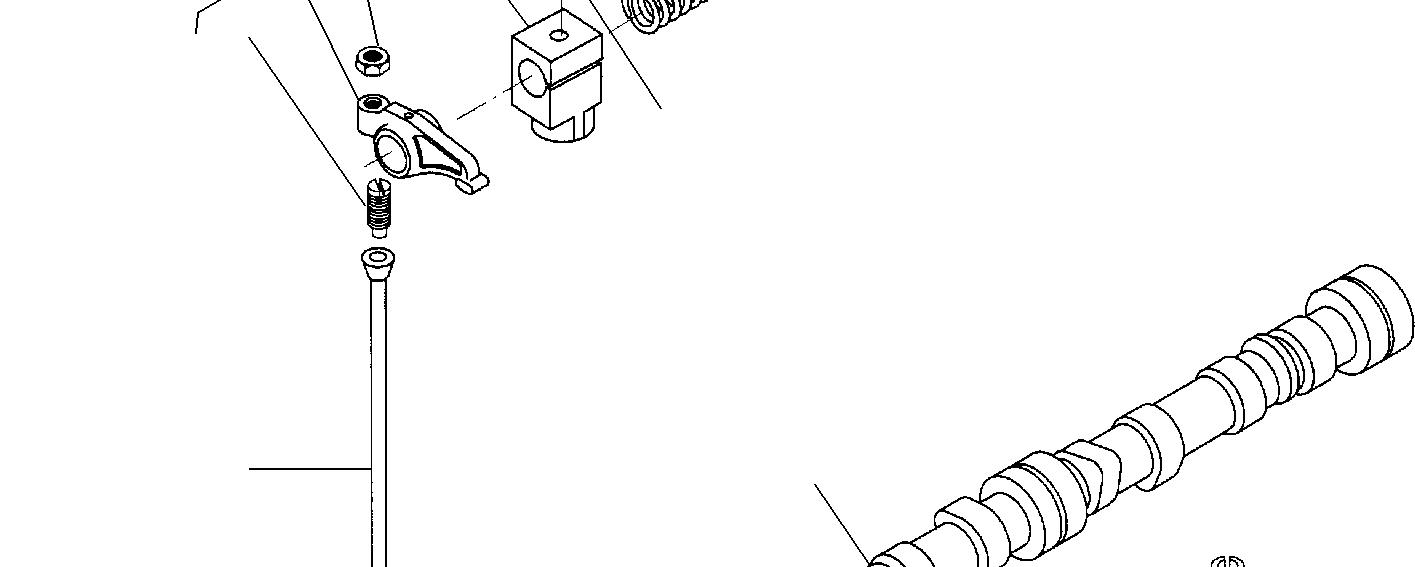

Massey Ferguson 8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446 1637446 Valve Mechanism And Camshaft Page010-0040 ItemPart NumberQtyDescription Comments 1 V8366666102 Rocker Shaft 2 V83666660812 Rocker (1) 3 V51286100012 Nut (2) 4 V83665586612 Adjusting Screw (2) 5 V8366666096 Bracket (1) 6 V8366558844 Spring (1) 7 V8366558702 Shaft (1) 8 V8366558994 Plug (1) 9 V8366554064 Nut 10 V5298019102 Screw M10 X 80 11 V8368625281 Camshaft Replace and repair. Old not interchangeable with new V836866054 12 V83664638224 Cotter 13 V83664638112 Cup V836855347X Ring [A] Diameter +0,20 mm V836652269X Ring [B] Diameter +0,20 mm 14 V83664638012 Spring 15 V8366463566 Inlet Valve 16 V8366463576 Exhaust Valve 17 V8368555681 Gear 18 V6033057601 Key 19 V83601426412 Tappet 20 V83635587212 Rod
FOR VALVE INLET FOOTNOTE[B] FOR VALVE EXHAUST
8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446
21 21 17 17 11 11 12 12 22 22 13 14 15 15 10 8 8 16 6 7 9 2 1 1 1 1 18 25 24 19 23 4 20 3 5 RefWH031005-1 Page010-0045
MF
1-WH03-005-B
Ferguson 8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446 1637446 Cylinder Head Page010-0045 ItemPart NumberQtyDescription Comments 1 V8368553812 Cylinder Head 2 V83664760112 Guide (1) 3 V8366476006 Valve Seat (1) 4 V83664794210 Plug (1) 5 V8366479366 Valve Seat (1) 6 V8368553481 Connector 7 V8368673901 Gasket Replace and repair. Old not interchangeable with new V836866214 8 V6400160452 Plug 9 V5959591402 Pin 10 V5288018304 Screw M10 X 40 11 V8368553502 Plate 12 V8368673911 Gasket 13 V83685910432 Screw 14 V8361198371 Union 15 V6158818222 Seal 16 V54690143512 Stud M8 X 40 17 V8368597222 Plate 18 V5288018002 Screw M10 X 25 19 X Not Used 20 V8370702902 Head GasketReplace and repair. Old not interchangeable with new V836666302 21 V5048010004 Nut M10 22 V8366597854 Stud 23 V6363596761 Adaptor 24 V6158710141 O Ring 25 V836864360 1 Temp. Sensor
Massey
MF 8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446
16 5 3 4 13 17 15 12 1 7 14 6 8 2 10 9 11 RefWH231003-1 Page010-0050
1-WH23-003-B
Ferguson 8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446 1637446 Cylinder Head Cover Page010-0050 ItemPart NumberQtyDescription Comments 1 V8366668011 Valve Cover 2 V836667243 2 Cover Gasket 3 V8366672061 Valve Cover 4 V6020885321 Band 5 V8367550071 Hose Flexible 6 V5288017601 Screw M10 X 16 7 V8366595391 Band 8 V5468019004 Stud M10 X 75 9 V8368591092 Stud 10 V8368591102 Nut 11 V8366408972 Cylinder Head 12 V8366478352 Nut Special 13 V5288017804 Screw M10 X 20 14 V5001513022 Washer 15 V6149010304 O Ring 16 V8366591031 Spring 17 X Not Used
Massey
MF 8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446 1-WH11-006-A 34 34 36 35 35 35 40 18 18 18 18 24 25 32 2122 38 38 30 39 29 37 27 26 23 2 19 20 41 33 31 1 12 15 14 42 10 11 8 9 13 7 6 4 5 3 17 16 28 RefWH111006-1 Page010-0055
Ferguson 8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446 1637446 Oil Sump Page010-0055 ItemPart NumberQtyDescriptionComments 1 V8368668401 Oil Sump 2 V8363221831 Gasket 3 V5009508002 Washer 4 V5817048402 Screw M8 X 170 5 V5297019506 Screw M10 X 100 6 V52970188016 Screw M10 X 65 7 V5817052002 Screw M10 X 130 8 V615881827 1 Seal 9 V8366554931 Plug M18 10 V6146032301 O Ring 11 V8368554001 Breather 12 V8366596971 Cap 13 V5288013621 Screw M8 X 16 14 V8366554011 Support 15 V5818058001 Screw M14 X 20 16 V5288013802 Screw M8 X 20 17 V8363386371 Dipstick 18 V8368553001 Oil Pump 19 V8361229101 Washer (18) 20 V8363386671 Gear (18) 21 V8363381861 Frame (18) 22 V8363229091 Bush (18) 23 V8363229061 Shaft (18) 24 V5288013804 Screw (18) M8 X 20 25 V8363381821 Gear (18) 26 V8363381801 Gear (18) 27 V8363229092 Bush (18) 28 V8363381881 Gasket (18) 29 V8368552971 Cover (18) 30 V8363229091 Bush (18) 31 V5048610001 Nut (18) M10 32 V836007871X Shim 33 V5818050502 Screw M10 X 40 34 V8360084492 Gasket 35 VHC93266 Screw M8 X 20 36 V8368556731 Pipe 37 V8363382011 Gasket 38 V5001508402 Washer 39 V5288013621 Screw M8 X 16 40 V8368673461 Pipe 41 V5299030906 Screw M16 X 70 42 V5299043302 Screw M22 X 90
Massey
MF 8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446
1 1 1 1 1 1 1 2 2 3 5 6 4 7 7 14 15 23 23 8 9 10 20 27 27 16 17 22 21 24 24 11 19 18 25 28 26 34 33 29 36 30 31 35 32 12 13 RefWH261003-1 Page010-0060
1-WH26-003-B
Ferguson 8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446 1637446
Oil Cooler And Filter Page010-0060 ItemPart NumberQtyDescription Comments 1 V8368591821 Oil Cooler 2 V58180462013 Screw (1) M8 X 25 3 V8368555191 Housing (1) 4 V8368555211 Guide (1) 5 V8368555201 Gasket (1) 6 V836855484 1 Element (1) 7 V6146020304 O Ring (1) 8 V6146007244 O Ring (1) 9 V8368555174 Washer (1) 10 V5818046904 Screw (1) M8 X 60 11 V5818047301 Screw (1) M8 X 80 12 V6158812161 Gasket (1) 13 V6403050121 Plug (1) 14 V6403250183 Plug (1) 15 V6158818223 Seal (1) 16 V8361190791 Plug (1) 17 V6158816201 Seal (1) 18 V8368591871 Filter Head (1) 19 V8368591051 Nipple (18) 20 V5818046902 Screw M8 X 60 21 V5048008002 Nut M8 22 V5468014902 Bolt M8 X 70 23 V6146020303 O Ring 24 V6146024303 O Ring 25 V8368591341 Pipe 26 V5298014602 Screw M8 X 55 27 V5818046202 Screw M8 X 25 28 V836862582 1 Oil Filter 29 V8366621301 Control Valve 30 V8366676501 Kit, Valve (29) 31 V8368640561 Spring (30) Up to Serial or Engine Number ...... Not serviced,order REF. 30 32 V8366595221 Plate (30) Up to Serial or Engine Number ...... Not serviced,order REF. 30 33 V8366595241 Cover (29) 34 V5288013802 Screw (29) M8 X 20 35 V8366595211 Valve Seat (29) 36 V8363221901 Gasket (29)
Massey
Lubricating
MF 8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446 1-WH28-006-A 47 47 29 27 28 43 30 31 32 34 38 37 44 44 35 35 36 48 45 33 46 41 25 25 42 40 39 26 1 1 1 1 1 1 1 3 22 15 14 12 13 7 10 9 24 23 2 17 20 16 19 18 21 8 4 6 5 11 RefWH281006-1 Page010-0065
Ferguson 8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446 1637446 Water Pump Page010-0065 ItemPart NumberQtyDescription Comments 1 V8368662291 Water Pump 2 V8368591701 Housing (1) 3 V5288013624 Screw (1) M8 X 16 4 V8368556251 Gasket (1) 5 V6403050121 Plug (1) 6 V6158812161 Gasket (1) 7 V8368594561 Shaft (1) 8 V8368667351 Impeller (1) 9 V8368594521 Gasket (1) 10 V6147032471 Oil Seal (1) 11 V6146062301 O Ring (1) 12 V6173300521 Circlip (1) 13 V6100720502 Bearing Assy (1) 14 V8368555691 Gear (1) 15 V5046016001 Nut (1) 16 V6403250181 Plug (1) 17 V6158818221 Seal (1) 18 V6400451261 Plug (1) 19 V6158926311 Seal (1) 20 V8368594581 Body (1) 21 V5298015303 Screw M8 X 90 22 V6146049582 O Ring 23 V6411760181 Union 24 V8368674151 Union 25 V6158818222 Seal 26 V8361198371 Union 27 V8368557771 Pipe 28 V5298014304 Screw M8 X 40 29 V5298014702 Screw M8 X 60 30 V8368556031 Gasket 31 V836331590 1 Thermostat 32 V836015156 1 Thermostat 33 V8368556011 Housing 34 V8366463931 Gasket 35 V8363221902 Gasket 36 V5298015502 Screw M8 X 100 37 V6403251101 Plug 38 V6158710141 O Ring 39 V6403250141 Plug 40 V5048008001 Nut M8 41 V6403250181 Plug 42 V6158814181 Seal 43 V8368556391 Pipe 44 VHC93264 Screw M8 X 20 45 V8368556721 Pipe 46 V5468015801 Stud M8 X 130 47 V6146024304 O Ring 48 V8368622711 Kit, Repair
Massey
MF 8470 / 8480 TRACTORS (TIER 2) - --->| P318036 / --->| P325044 - 1637446 1-WH09-010-A 24 29 29 18 18 30 30 30 23 37 22 31 35 35 21 28 36 26 19 33 34 32 38 25 13 27 14 15 16 17 1 9 8 39 12 4 5 3 3 6 7 2 11 10 20 RefWH091010-1 Page010-0070
