GRADUATE ARCHITECTURE PORTFOLIO
K atie Chandler
CONTACT INFORMATION
Phone: (402) 990-1893
Email: kchandler@ksu.edu
KATIE CHANDLER
I believe that architecture has the ability to influence peoples’ lives both consciously and subconsciously through the experiences they have in a space created by intentional design; and that intentional architecture can positively impact the wellbeing of the occupants within a space.
Outside of my studies and design endeavors, I often enjoy photography, traveling, spending time in the outdoors, baking, and other creative outlets as well as connecting with others. These activities deepen my knowledge of concepts such as design, culture, people, and help me grow as a well-rounded individual. They also are a way for me to express myself and engage in wellbeing practices.
SCAN HERE TO VIEW FULL RESUME
WELLNESS & PEOPLE CENTRIC DESIGN
Design that promotes the holistic wellbeing of people and their environment and enhances their experiences has the ability to create a more lively, connected, and positive community.

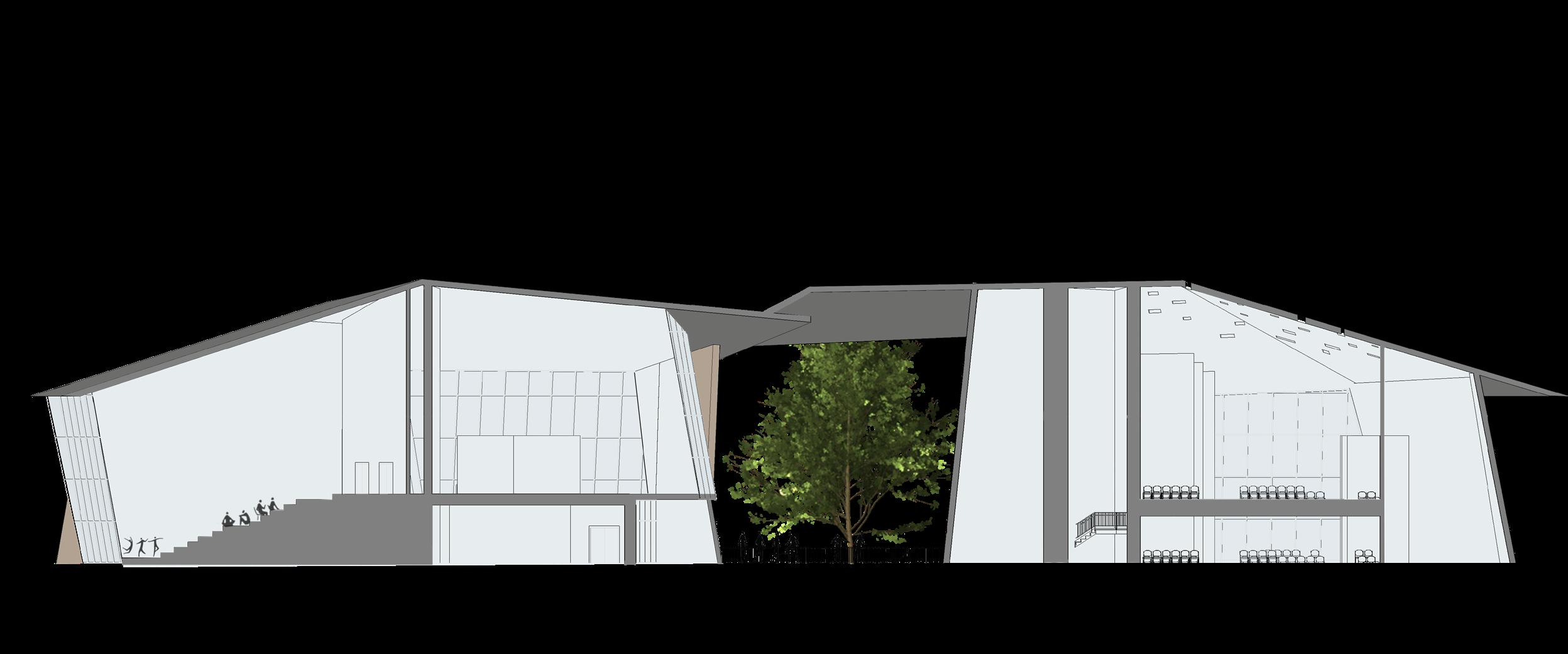

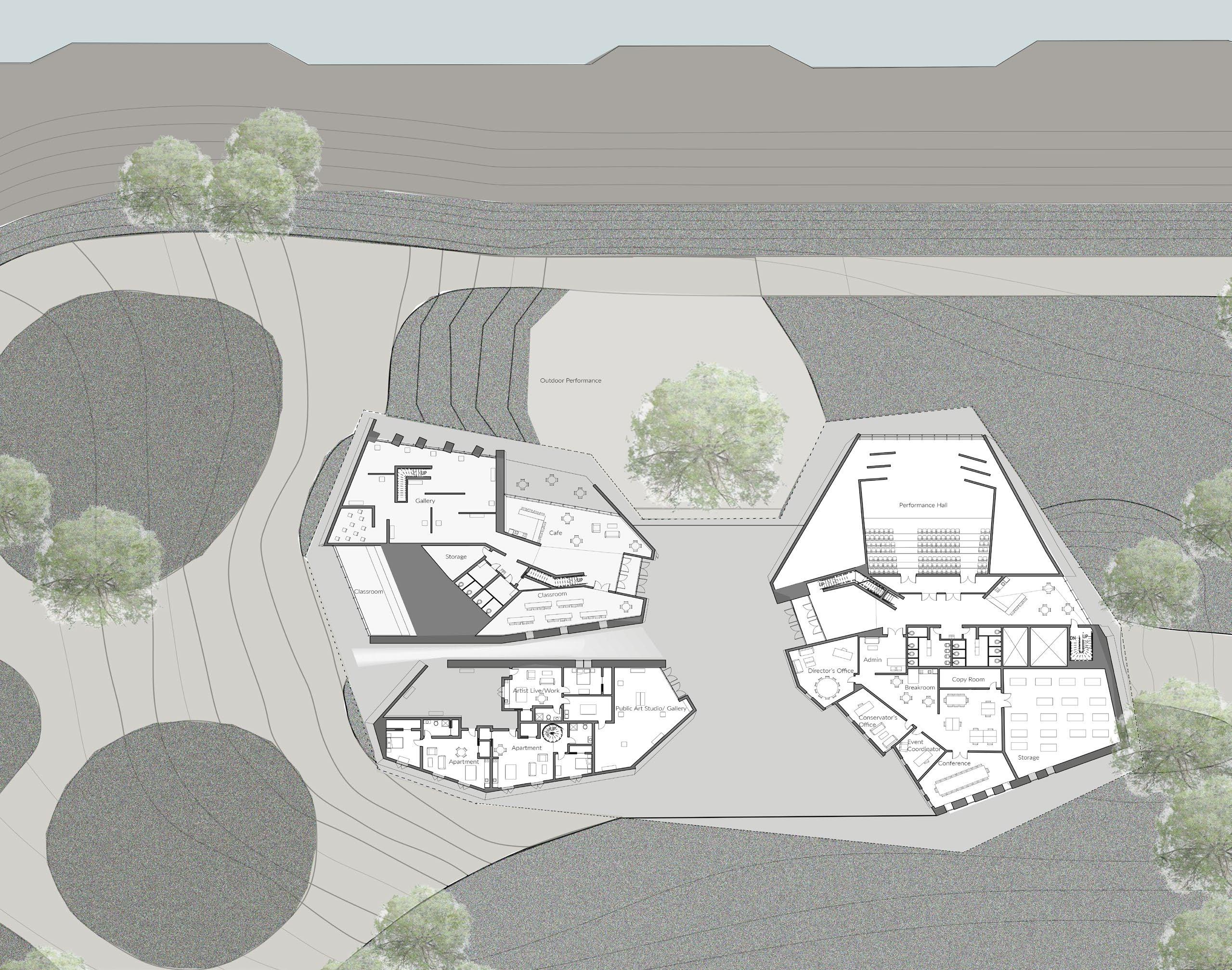

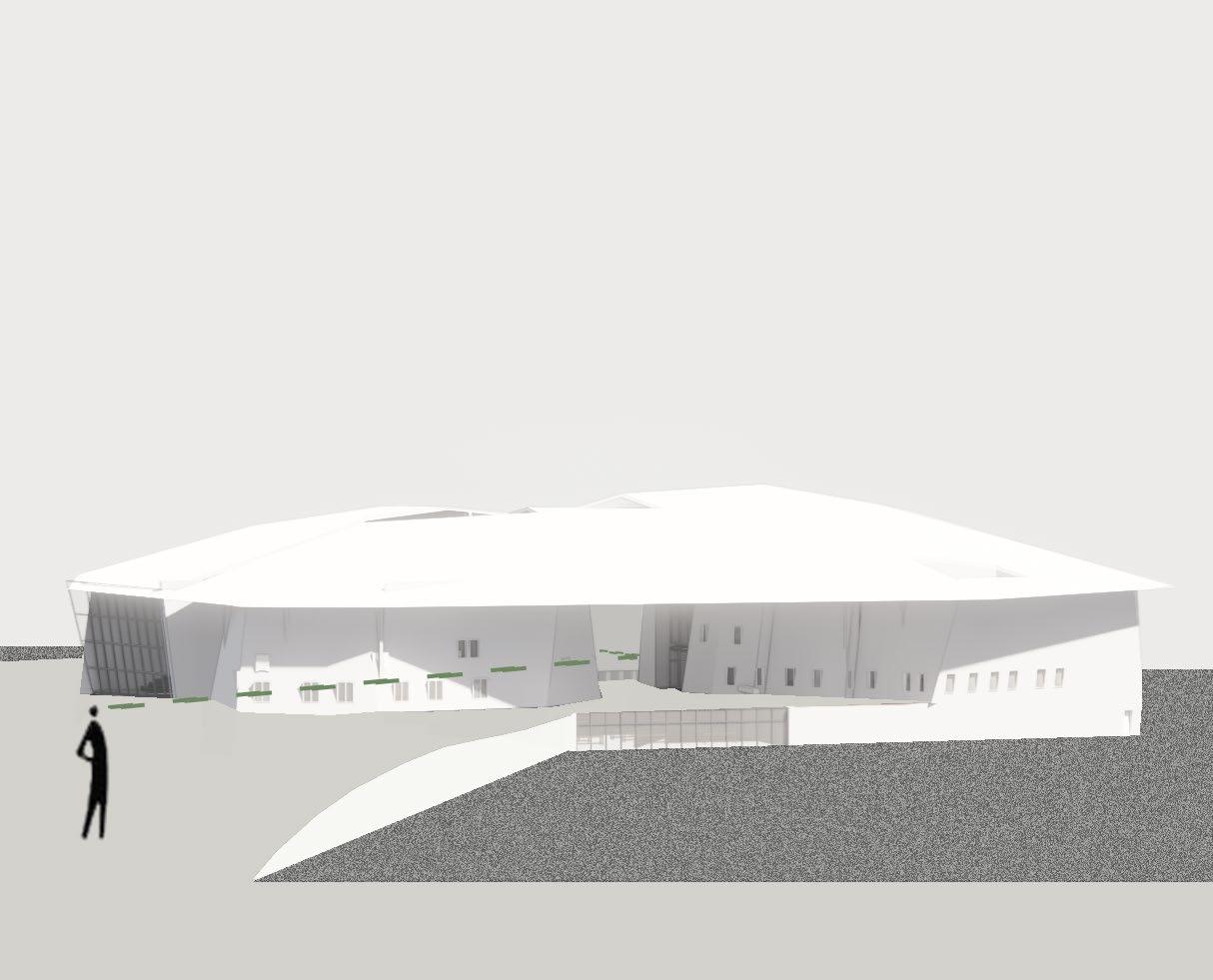

KAW RIVER CULTURAL CENTER
Fall 2023
Cultural Center
LearningandConnectingthroughCuriosity
Location: Topeka, Kansas
Software Used: Revit, Adobe Photoshop, Illustrator, and InDesign
Estimated Time Frame: 8 Weeks
Takeaway: Developed an understanding of site to building relationship and an understanding for the importance of empathetic design practices.

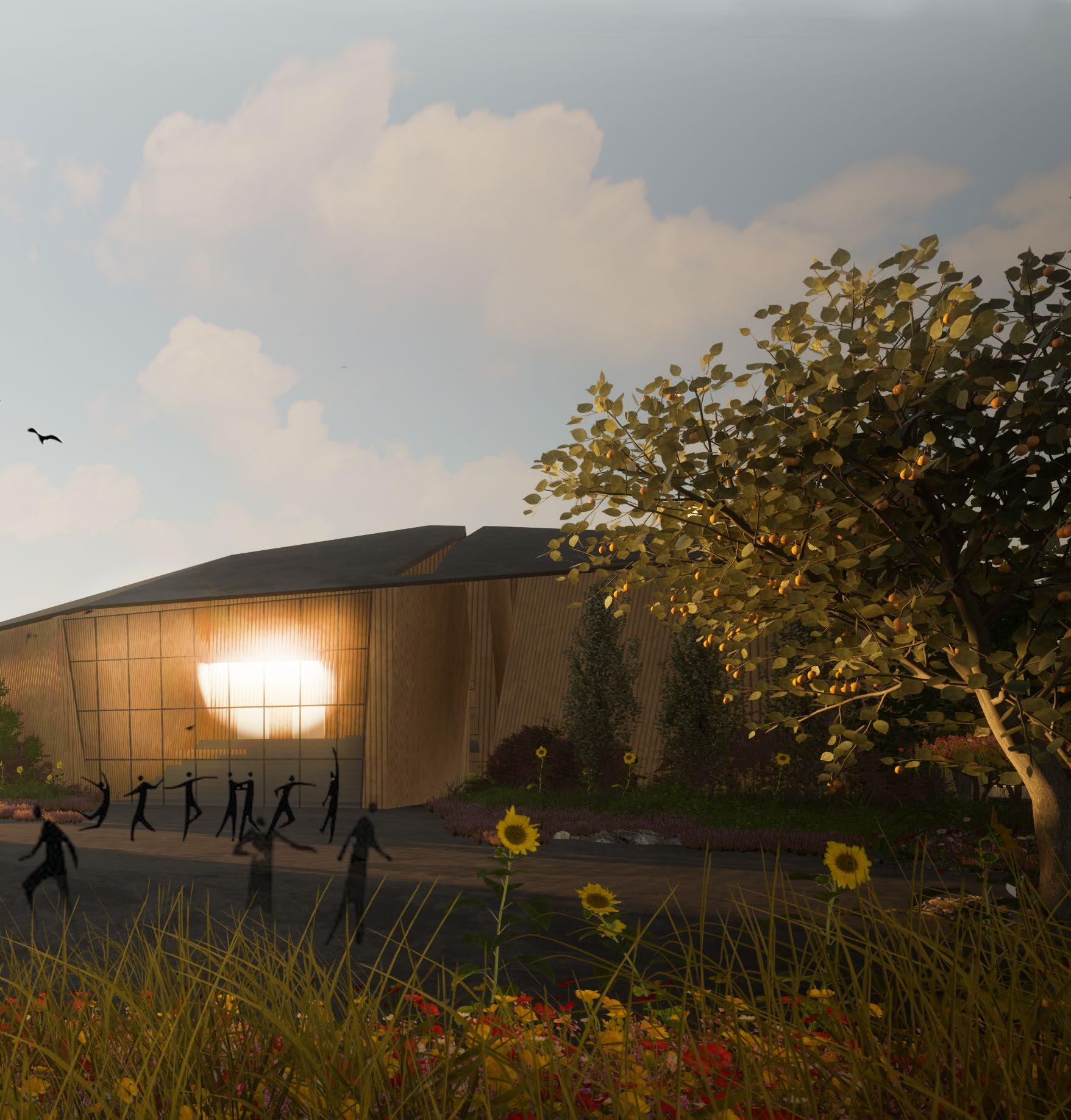

Perform Exhibit
Curiosity as a Form of Learning

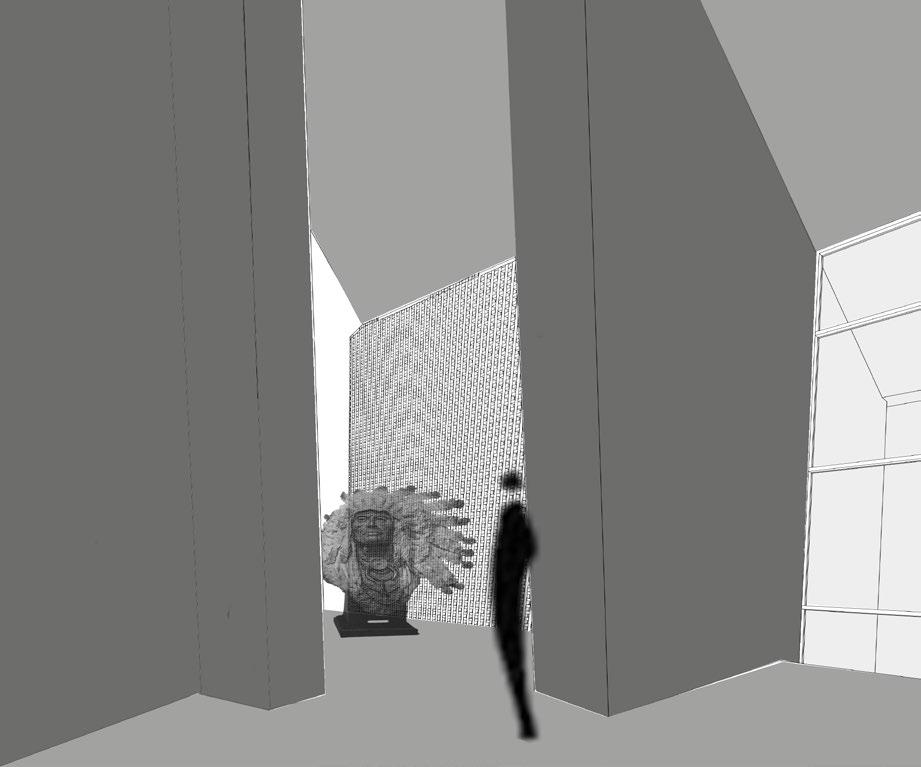

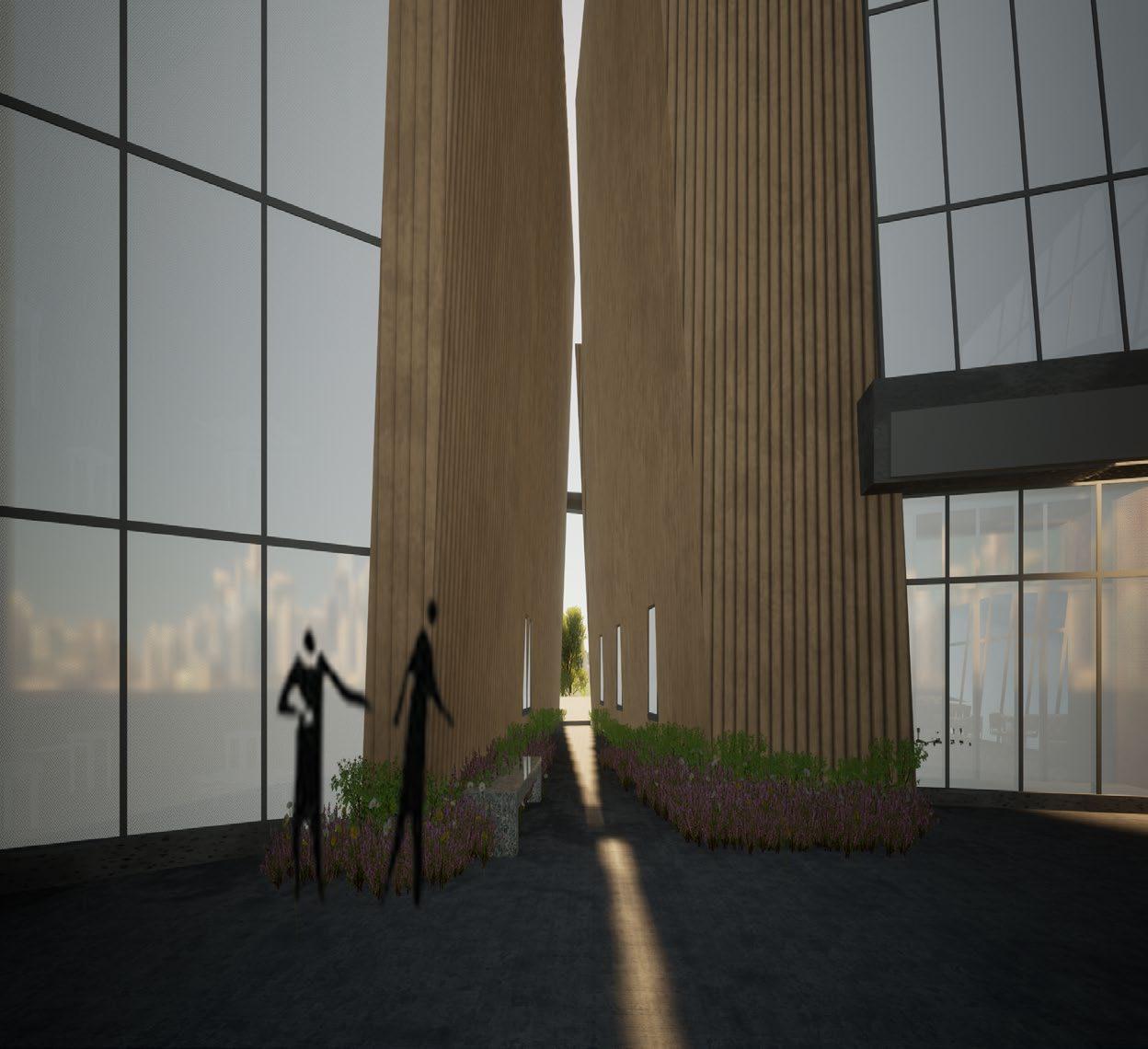

View Through Corridor
View to River from Entry Courtyard
RESEARCH & EVIDENCE BASED DESIGN
Design that has a strong research and evidence based approach has the ability to create a more lively, connected, and positive community by growing from past experiences, learning from current studies, and applying the knowledge to promote a positive outcome.

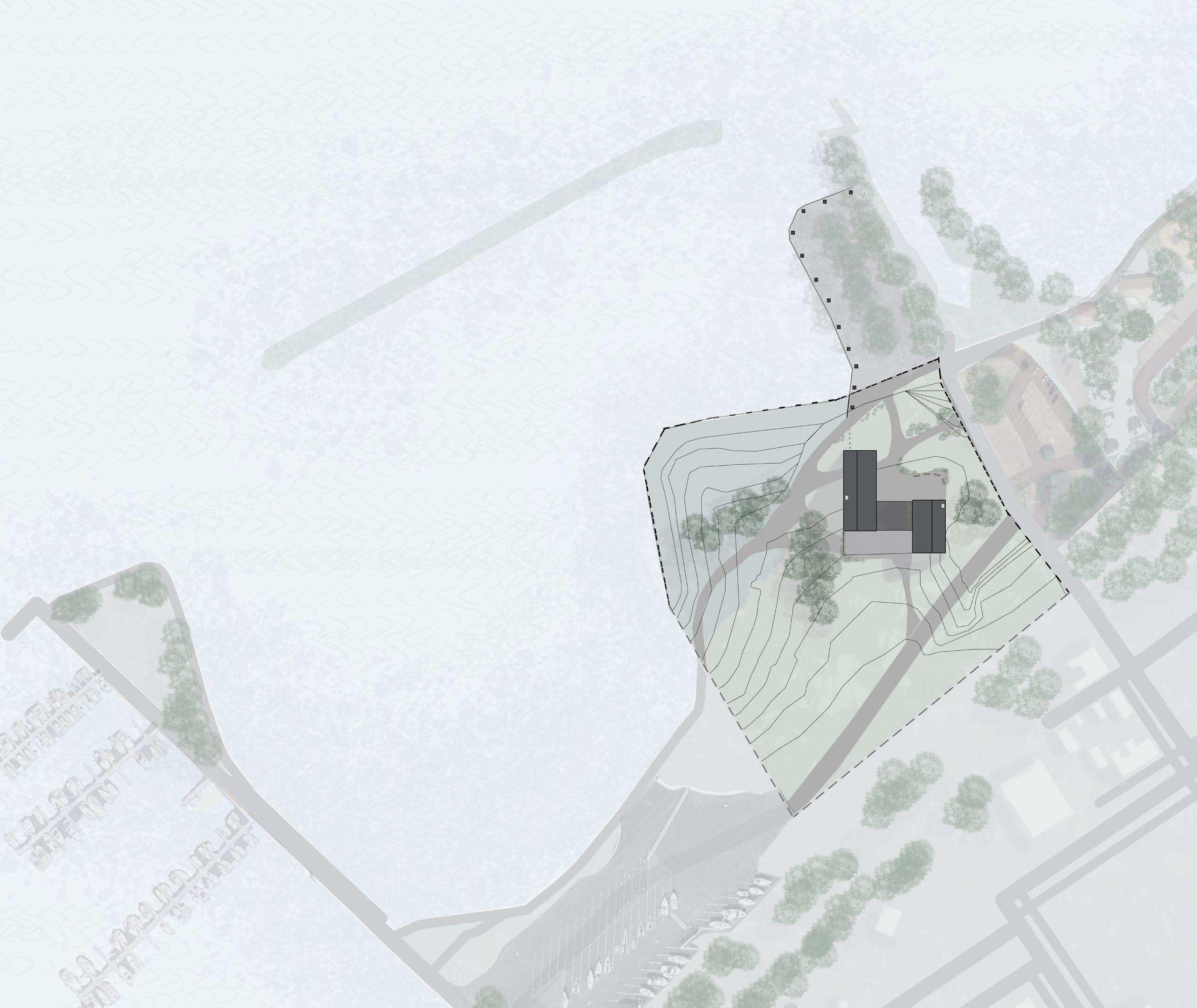

Location:
Ashland, Wisconsin
SouthernCoastofLakeSuperior
EVENT
A FLEXIBLE + FUNCTIONAL SPACE FOR A VARIETY OF EVENT OPPORTUNITIES
SERVICE
SERVICE BARS LOCATED FOR EASE OF USE
EXHIBITION
EXHIBITION SPACES FLOW THROUGH SECOND FLOOR
EDUCATION
EDUCATION SPACE CONNECTS DIRECTLY TO THE OUTDOOR CLASSROOM SPACES
LOBBY
LOBBY IS ON THE NORTH END OF THE BUILDING FOR EASY EXCURSION ACCESS

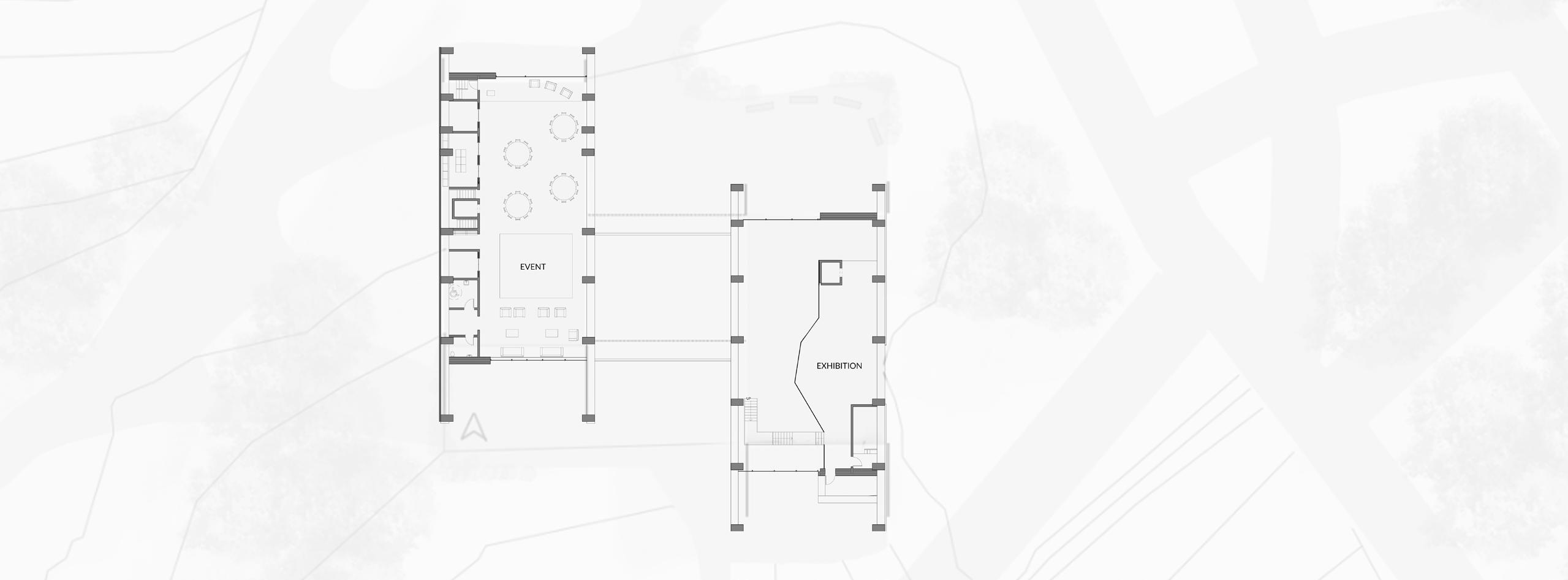

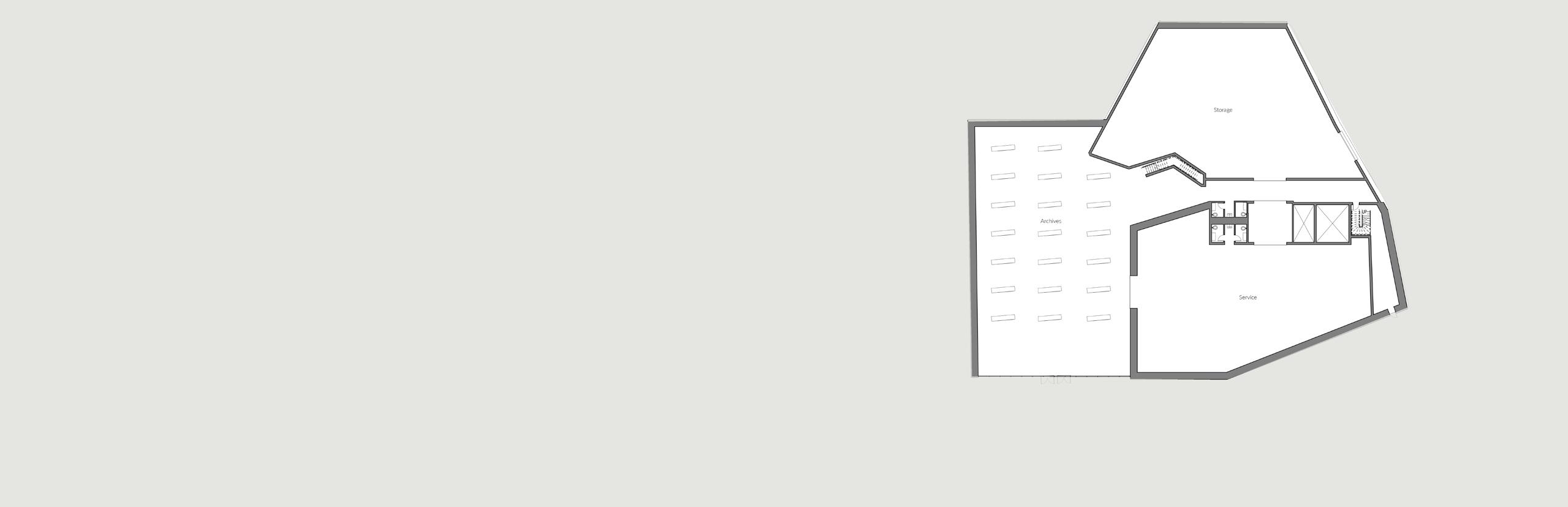

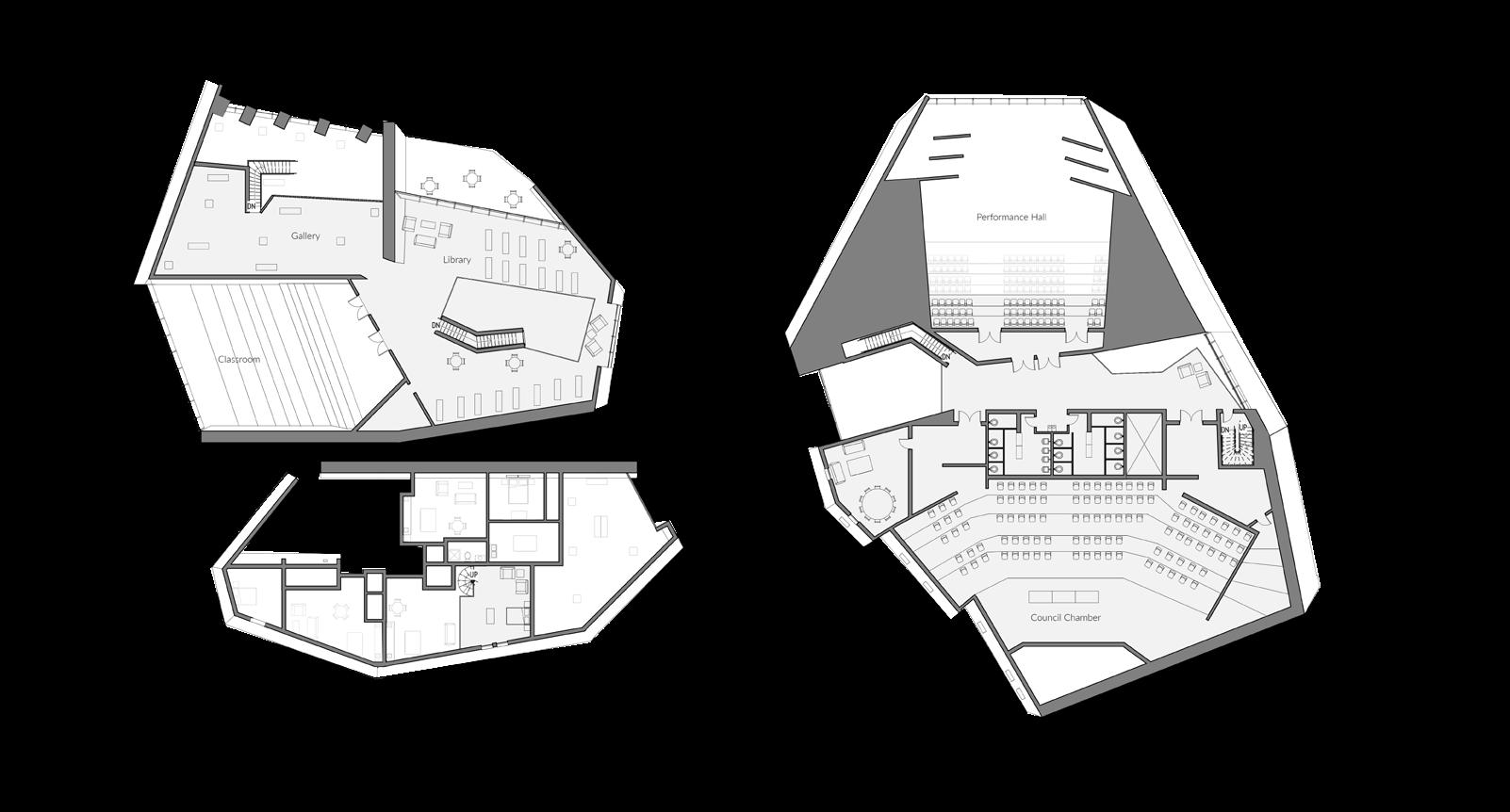

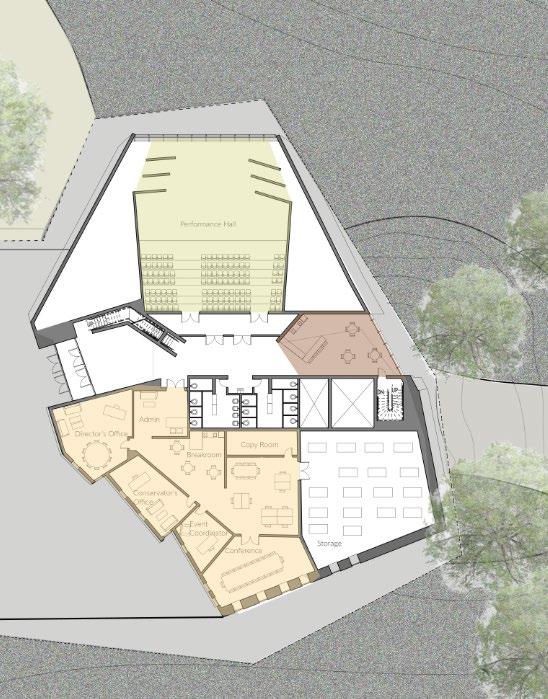

Third Floor Plan
Second Floor Plan

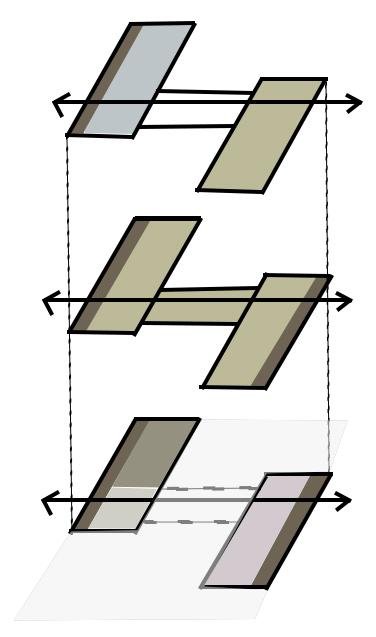

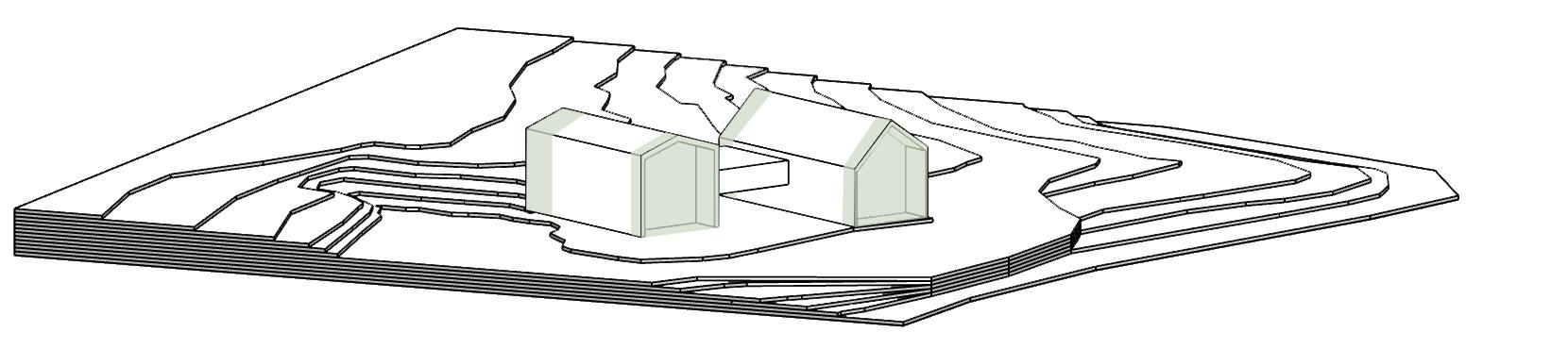

Form + Materiality Development
Architectural Form Additions
Form Inflections
Spatial Form Strategy
Ties to traditional Stick style architecture often seen in Ashland, Wisconsin.
Exterior spaces allow for people to learn and interact with each other and the environment.
Natural materiality, such as stone and wood are sourced locally, promoting environmental responsibility and harmony within the environment.
What are the primary marine life characteristics within Lake Superior, specifically near Ashland, Wisconsin?
CLARITY + DEPTH
Allows sunlight to penetrate further, supporting more diverse marine life.
SEASONAL CHANGES
Warmer months support more biological activity while ice cover limits light penetration and biological activity
ROCKY SHORES + SHALLOWS
Rocky and shallow areas are warmer and more productive, rich in biodiversity
HUMAN IMPACT
Humans impact the environment in both positive and negative ways.
View of Lakeview Lounge
How can these characteristics be translated into architectural moves?
CLARITY + DEPTH
Sunlight penetration into the building, especially in more active areas.
SEASONAL CHANGES
Incorporation of variety in lighting, volume, activity level, and public/private spaces.
ROCKY SHORES + SHALLOWS
Natural materiality, and compression/release for emphasis.
HUMAN IMPACT
Interactive exhibits, occupant control, and low environmental impact.

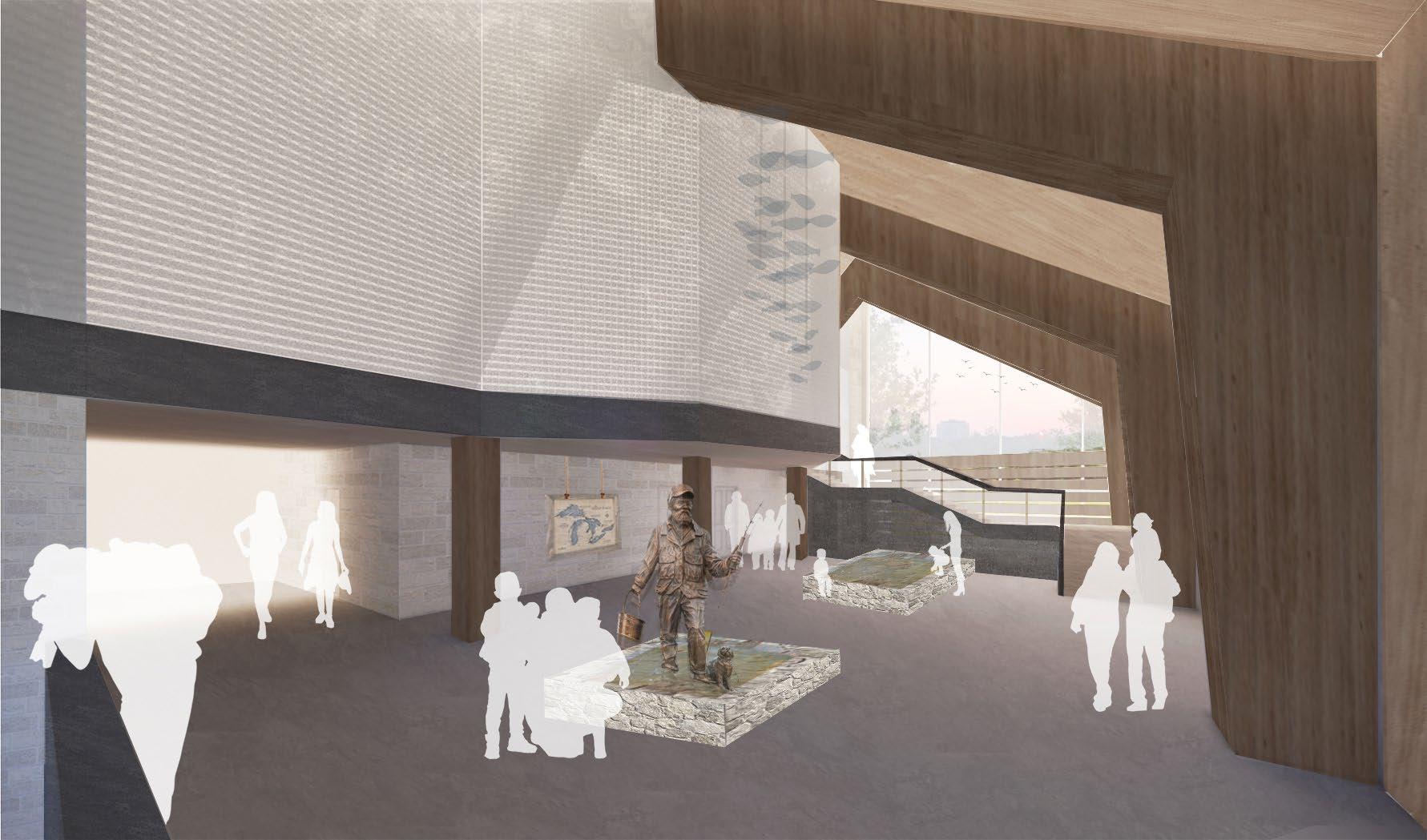

View of Primary Exhibition
How can these characteristics be translated into architectural moves?
CLARITY + DEPTH
Sunlight penetration into the building, especially in more active areas.
SEASONAL CHANGES
Incorporation of variety in lighting, volume, activity level, and public/private spaces.
ROCKY SHORES + SHALLOWS
Natural materiality, and compression/release for emphasis.
HUMAN IMPACT
Interactive exhibits, occupant control, and low environmental impact.

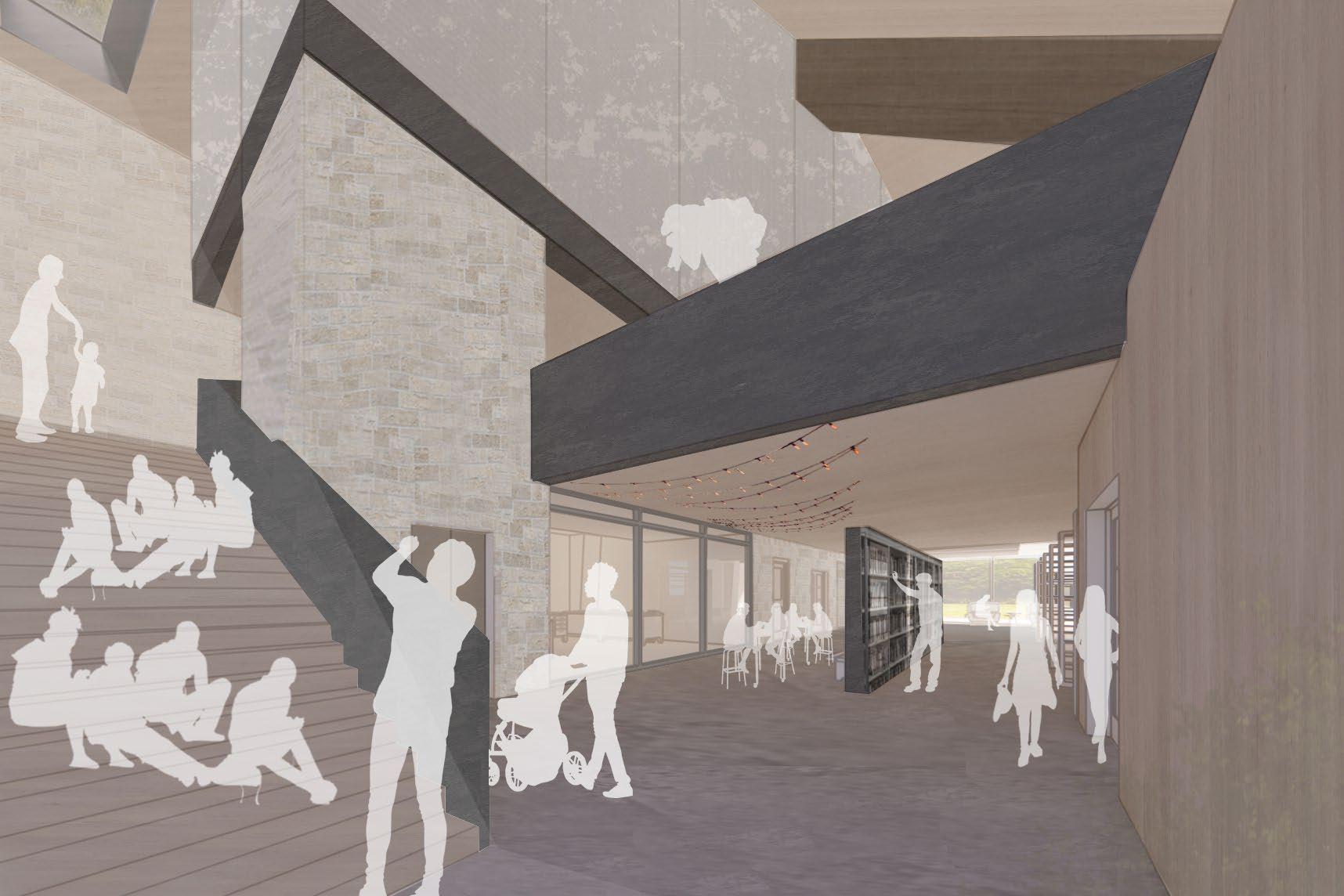

View of Education Commons
Experiential Connection to Local Marine Life Characteristics
CLARITY + DEPTH
Sunlight penetration into the building, especially in more active areas.
SEASONAL CHANGES
Incorporation of variety in lighting, volume, activity level, and public/private spaces.
ROCKY SHORES +
SHALLOWS
Natural materiality, and compression/release for emphasis.
ACTIVE
CALM
COMPRESSION

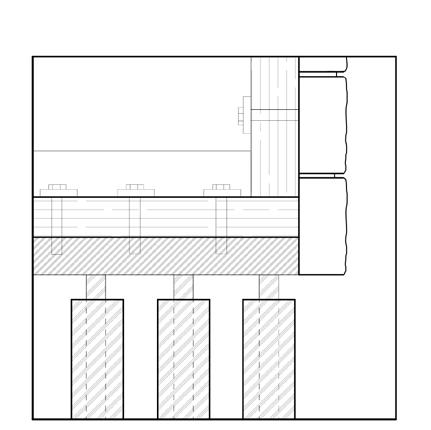

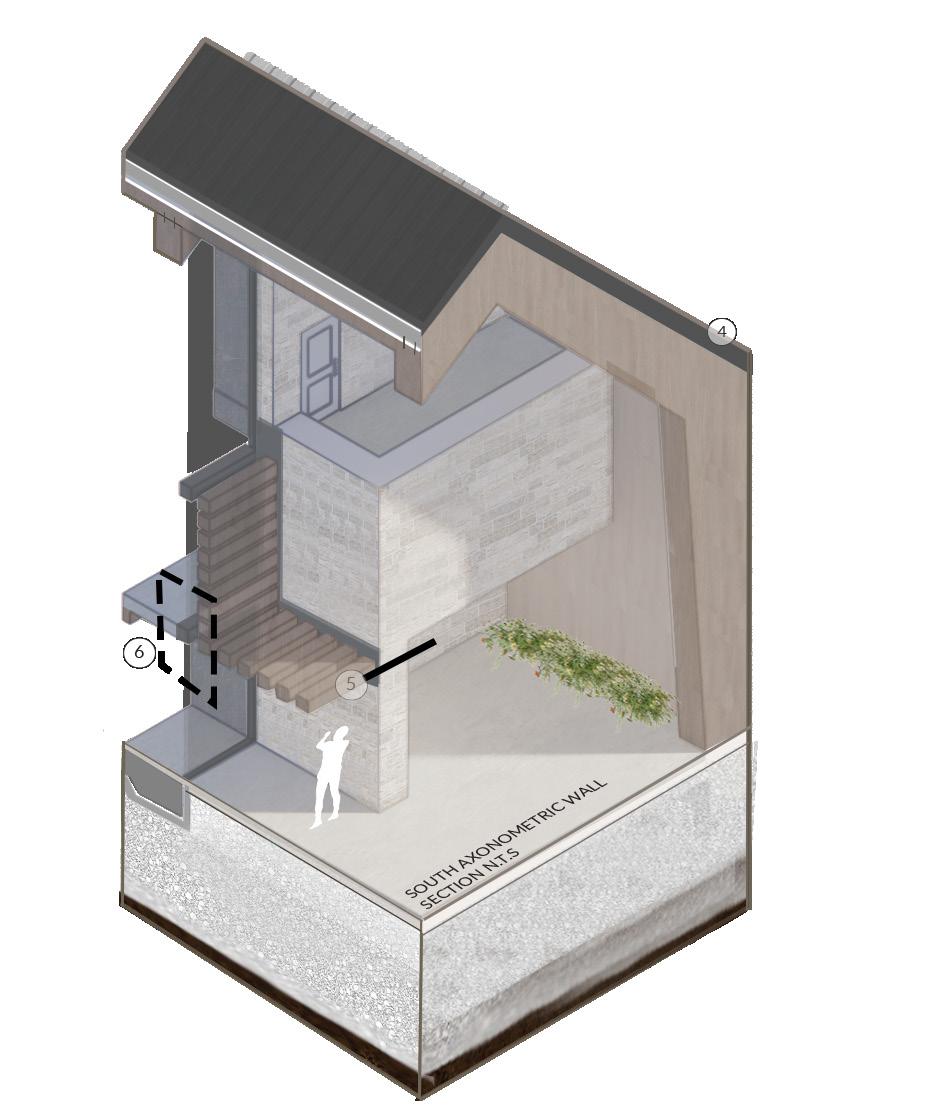

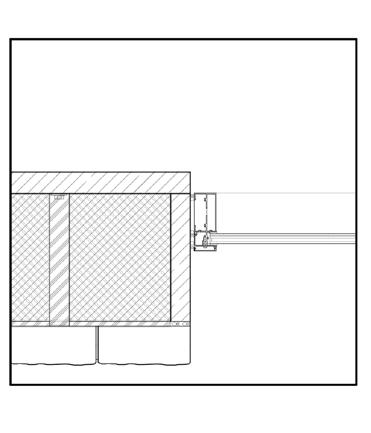

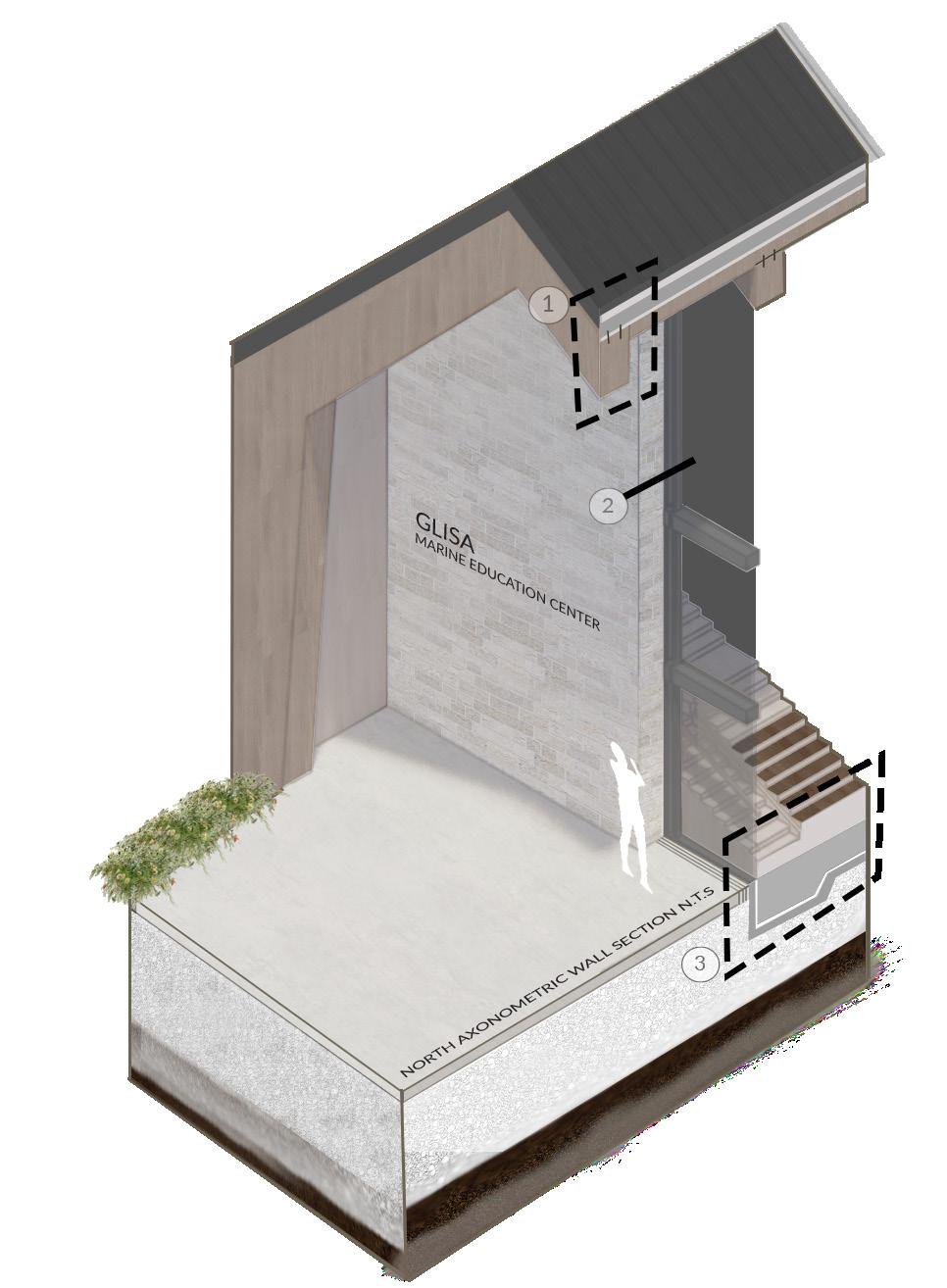

Structural System
Cross Laminated Timber + GLULAM Pointed
KAWNEER Triple Glazing Curtain Wall System
Stone Veneer + RHEINZINK Standing Seam
RHENZINK Standing Seam Panel
Air Barrier
Air-foam Korolite Rigid Polystyrene Insulation
Vapor Control Membrane
3-Ply Cross Laminated Timber
KAWNEER 1630 SS IR Curtain Wall System
2-Ply Cross Laminated Timber
Masonry Anchor
KAWNEER 1630 SS IR Curtain Wall System
Air-foam Korolite Rigid Polystyrene Insulation
Stone Veneer with Mortar Joint
KAWNEER 1630 SS IR Curtain Wall System

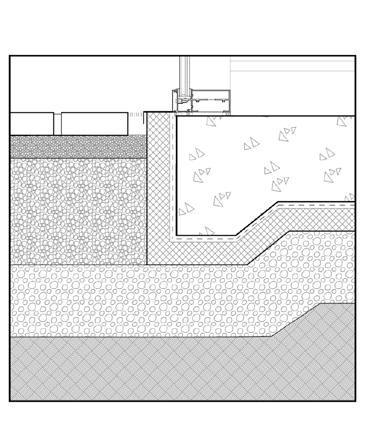

Trench Drain
Precast Concrete Foundation
Air-foam Korolite Rigid Polystyrene Insulation

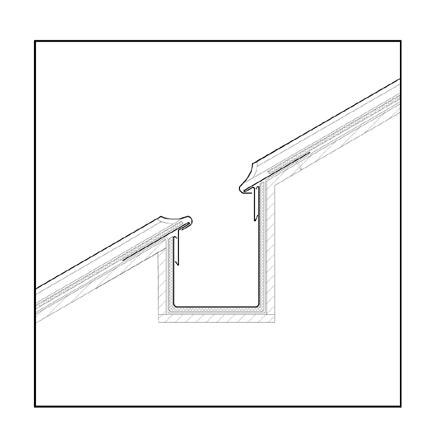

HIDDEN GUTTER SYSTEM 4
RHEINZINK Standing Seam Panel
Flashing
Sheathing
RHEINZINK Box Gutter Sloped to Seam
Water Proof Membrane
3-PLY Cross Laminated Timber
Stone Veneer with Mortar Joint and Masonry Anchor
Wood-Look Aluminum Louver Shading System
KAWNEER 1630 SS IR Curtain Wall System
Precast Concrete Floor Slab
Aluminum Bracket Anchor

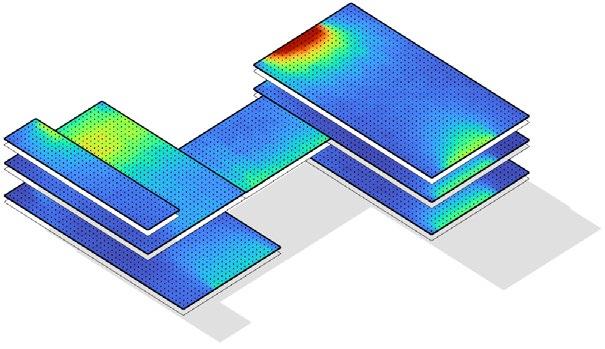

Bioclimatic Design Analysis + Strategies

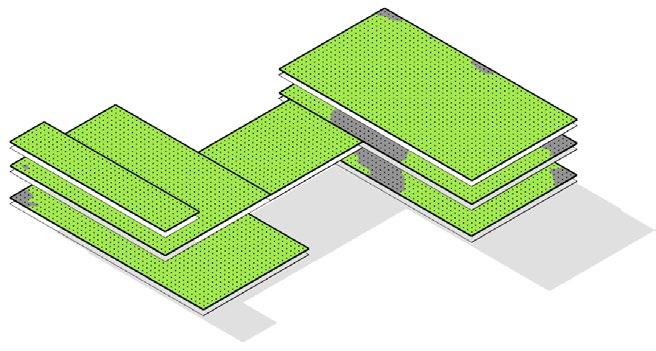

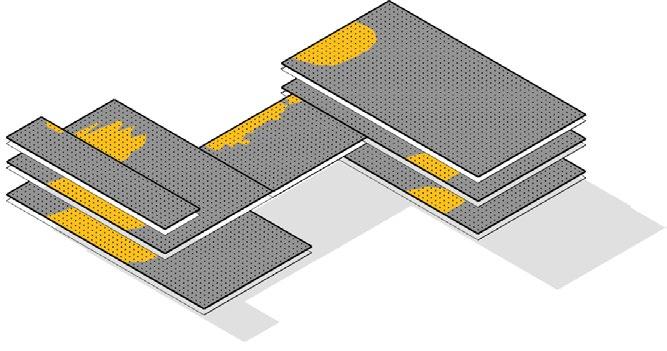

DAYLIGHT AUTONOMY
DAYLIGHT AUTONOMY
80.9% Of the building’s regularly occupied spaces receive sufficient daylight for at least 50% of occupied hours annually, leaving the building to minimally rely on artificial lighting.
80.9% Of the building’s regularly occupied spaces receive sufficient daylight for at least 50% of occupied hours annually, leaving the building to minimally rely on artificial lighting.
AVERAGE ILLUMINANCE
AVERAGE ILLUMINANCE
The building has an average ILLUMINANCE of 1526 lux, reflecting a well-lit environment that exceeds typical daylighting requirements, ensuring ample natural light distribution.
The building has an average ILLUMINANCE of 1526 lux, reflecting a well-lit environment that exceeds typical daylighting requirements, ensuring ample natural light distribution.
ANNUAL SOLAR EXPOSURE
ANNUAL SOLAR EXPOSURE
14.9% of regularly occupied spaces receive direct sunlight exceeding 1000 lux for more than 250 hours annually, indicating controlled solar exposure within acceptable thresholds.
14.9% of regularly occupied spaces receive direct sunlight exceeding 1000 lux for more than 250 hours annually, indicating controlled solar exposure within acceptable thresholds.
Glazing is primarily placed on the North and South facades of the building, with the South glazing being shaded with an outdoor pavilion space and a horizontal aluminum louver system. Shading is strategically placed to respond to the high summer sun and low winter sun angles, ensuring thermal comfort, reducing energy loads, and maximizing daylighting.

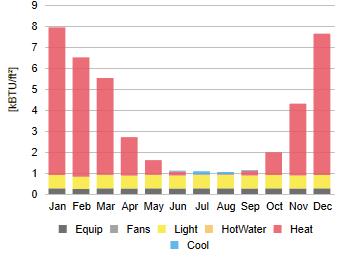

THERMAL ANALYSIS
The thermal analysis indicates a Site Energy Use Intensity (EUI) of 43 kBtu/ft2/year. This reflects efficient energy performance relative to typical benchmarks for an Environmental Education Center in Ashland, Wisconsin.
Adding skylights, adjusting the depth of the shading, and adding additional glazing improved the thermal performance in the simulation by optimizing solar heat gain and overall energy efficiency.
Fall 2024
Marine Education Center
AnEnvironmentallyResponsibleHubforLearning,Connection,andExploration
Location: Ashland, Wisconsin
Software Used: Revit, Enscape, Adobe Photoshop, Illustrator, InDesign
Estimated Time Frame: 15 Weeks
Takeaway: Developing architectural detailing can allow the designer to have more control over the project and impact the user’s experience on a smaller scale.

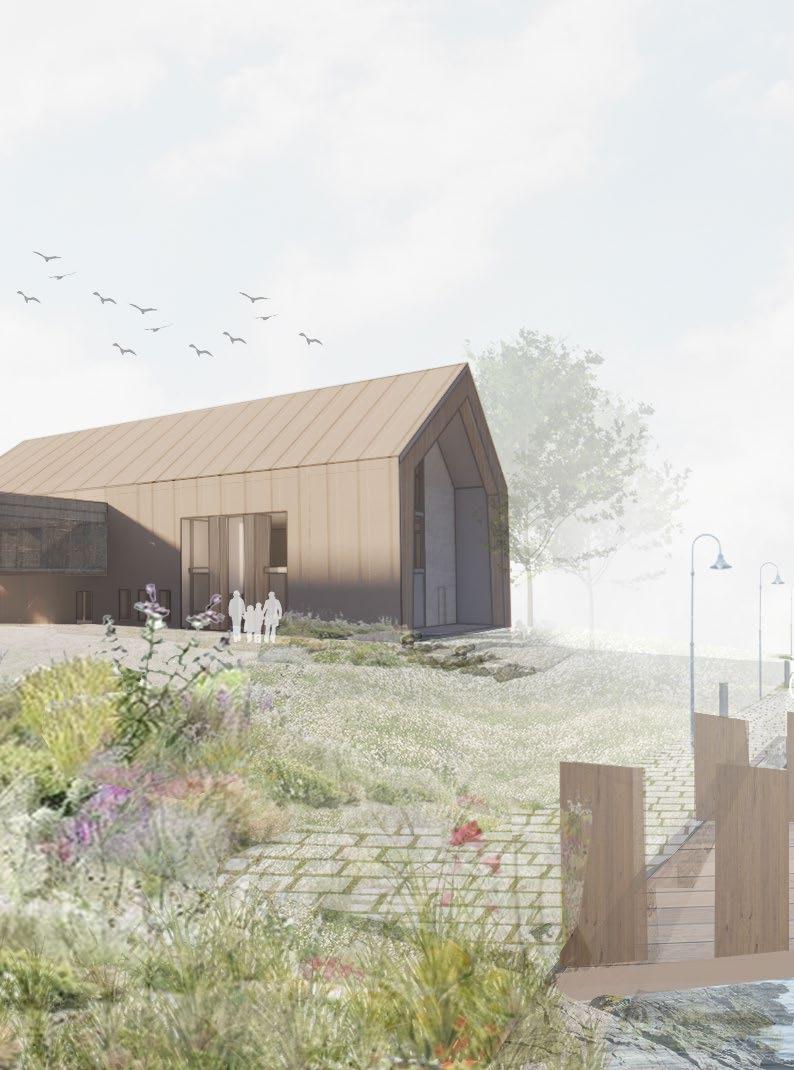

Visitors should feel as though they are immersed into the local marine environment.
COMMUNITY ENGAGEMENT
Design that stems from community engagement efforts leads to a stronger sense of community identity and influence which has the ability to create a more lively, connected, and positive community.
EUREKA PARK APARTMENTS

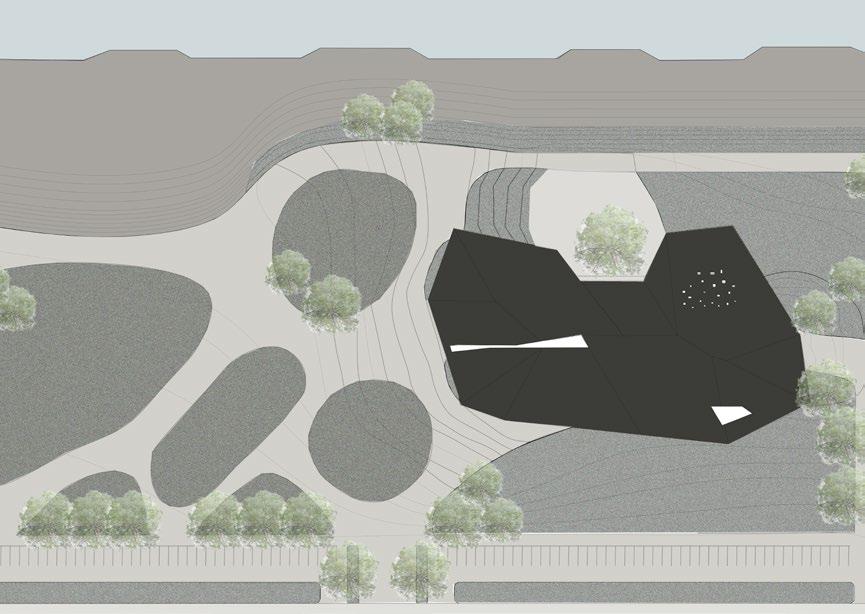

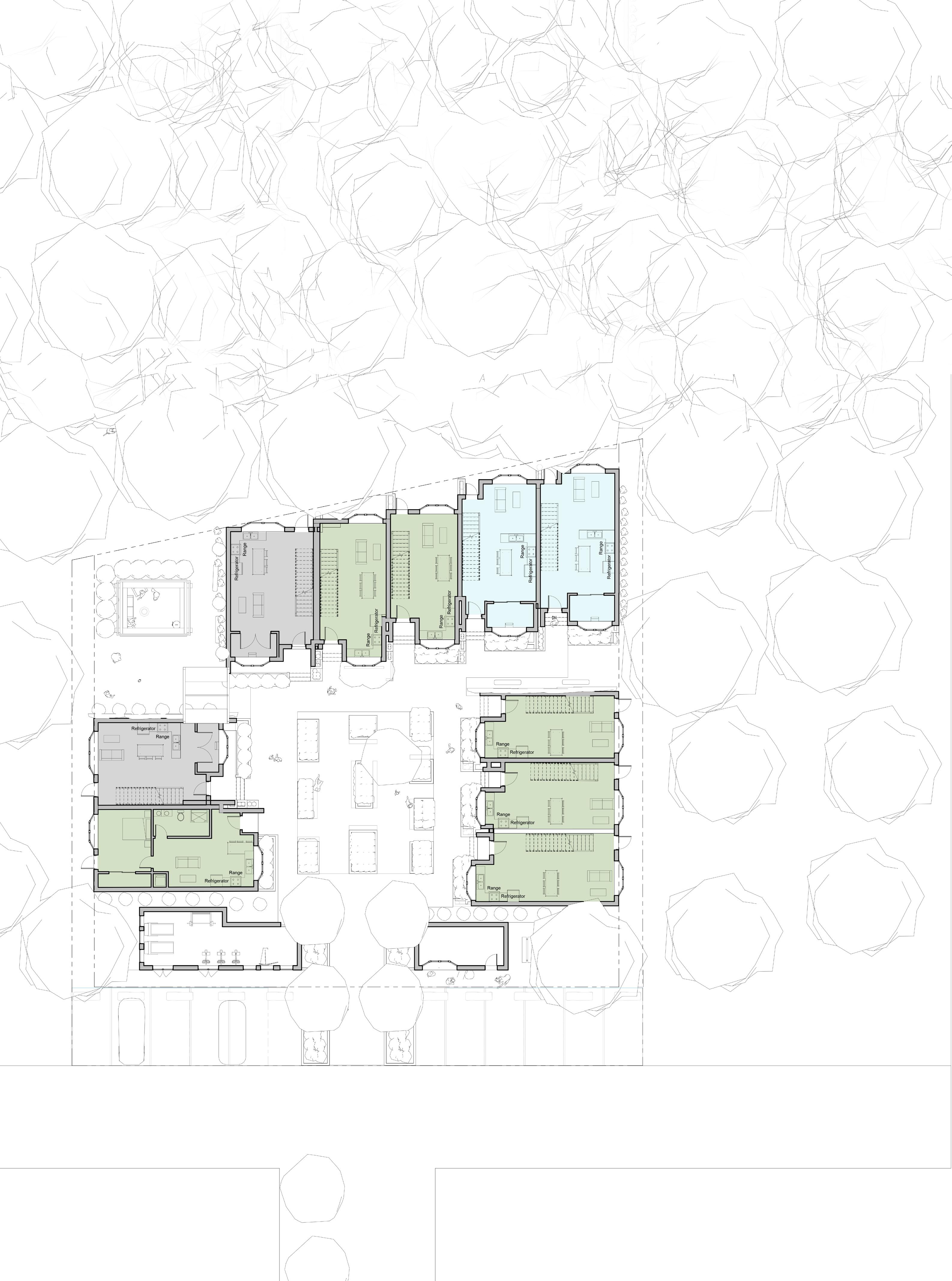

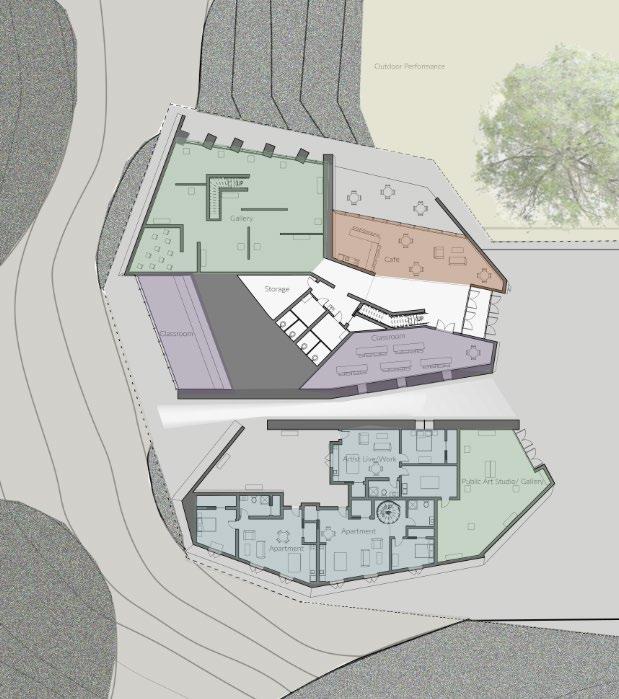

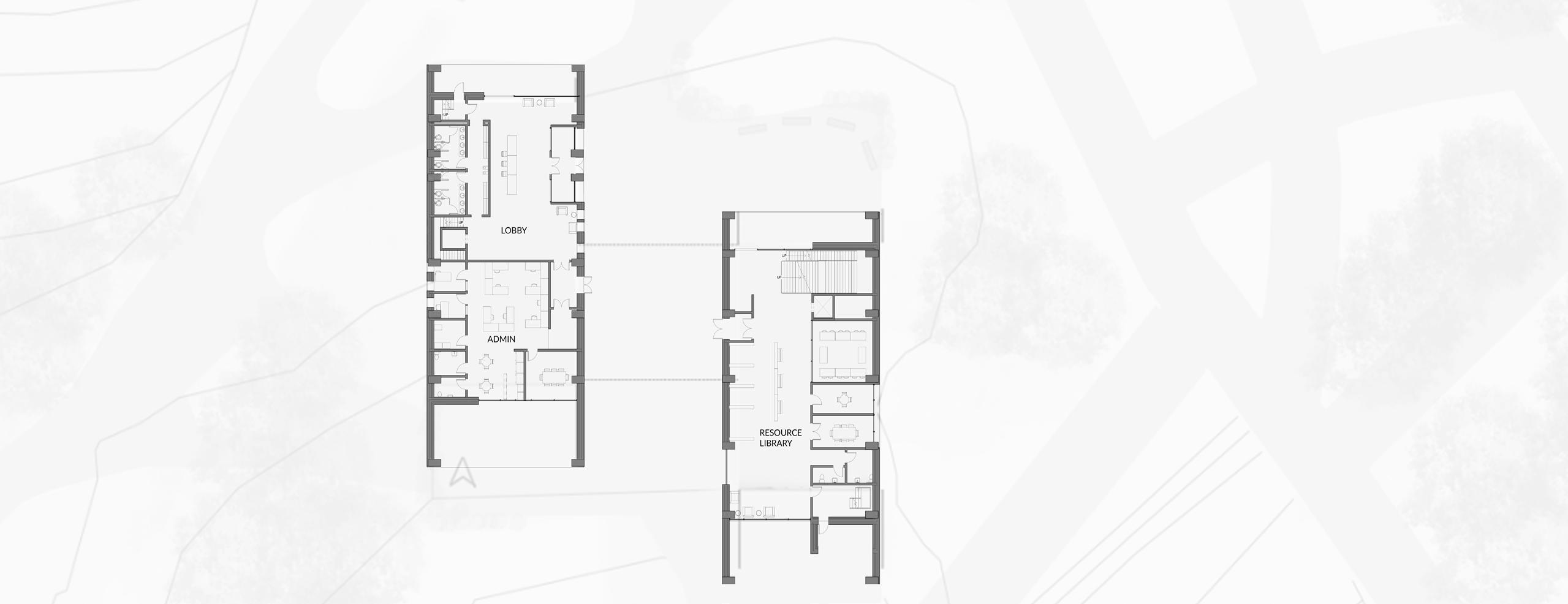

First Floor Site Plan
Second Floor Plan
Fall 2023
Rural Housing
HousingthatBuildsCommunity
Location: City Park- Eureka, Kansas
Software Used: Revit, Adobe Photoshop, Illustrator, and InDesign
Estimated Time Frame: 6 Weeks
Takeaway: Gained experience with community engagement in design development.
Levels of Privacy Home Work Space

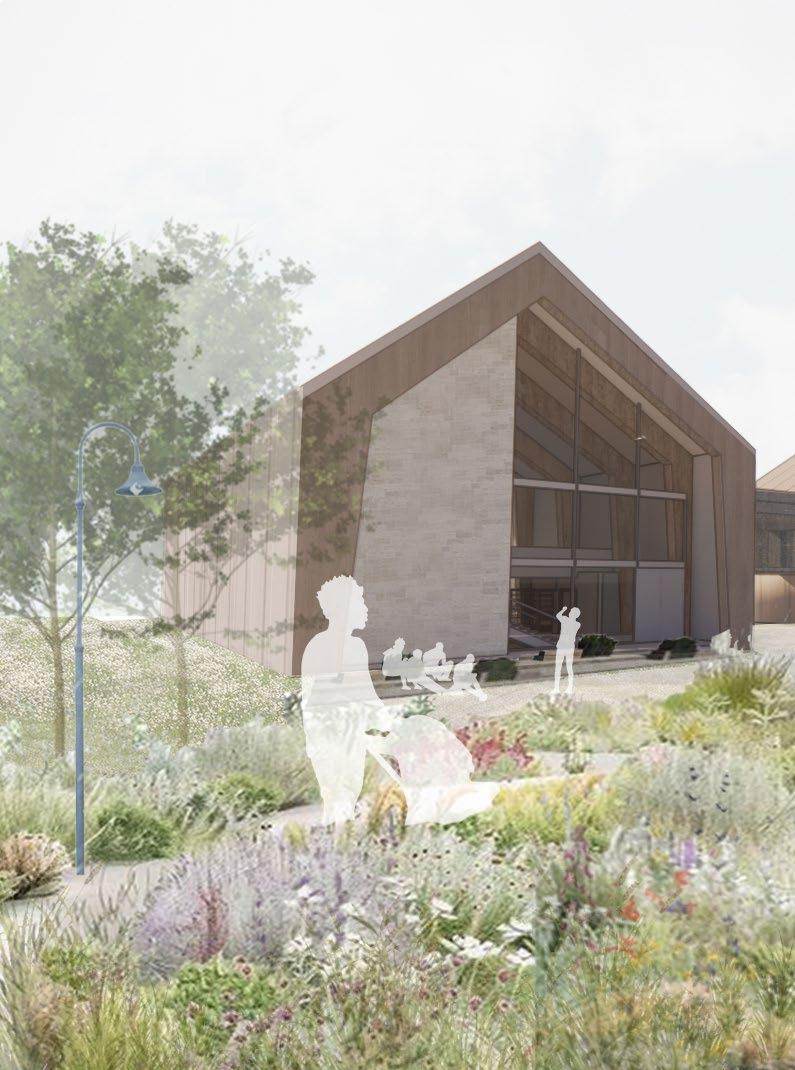

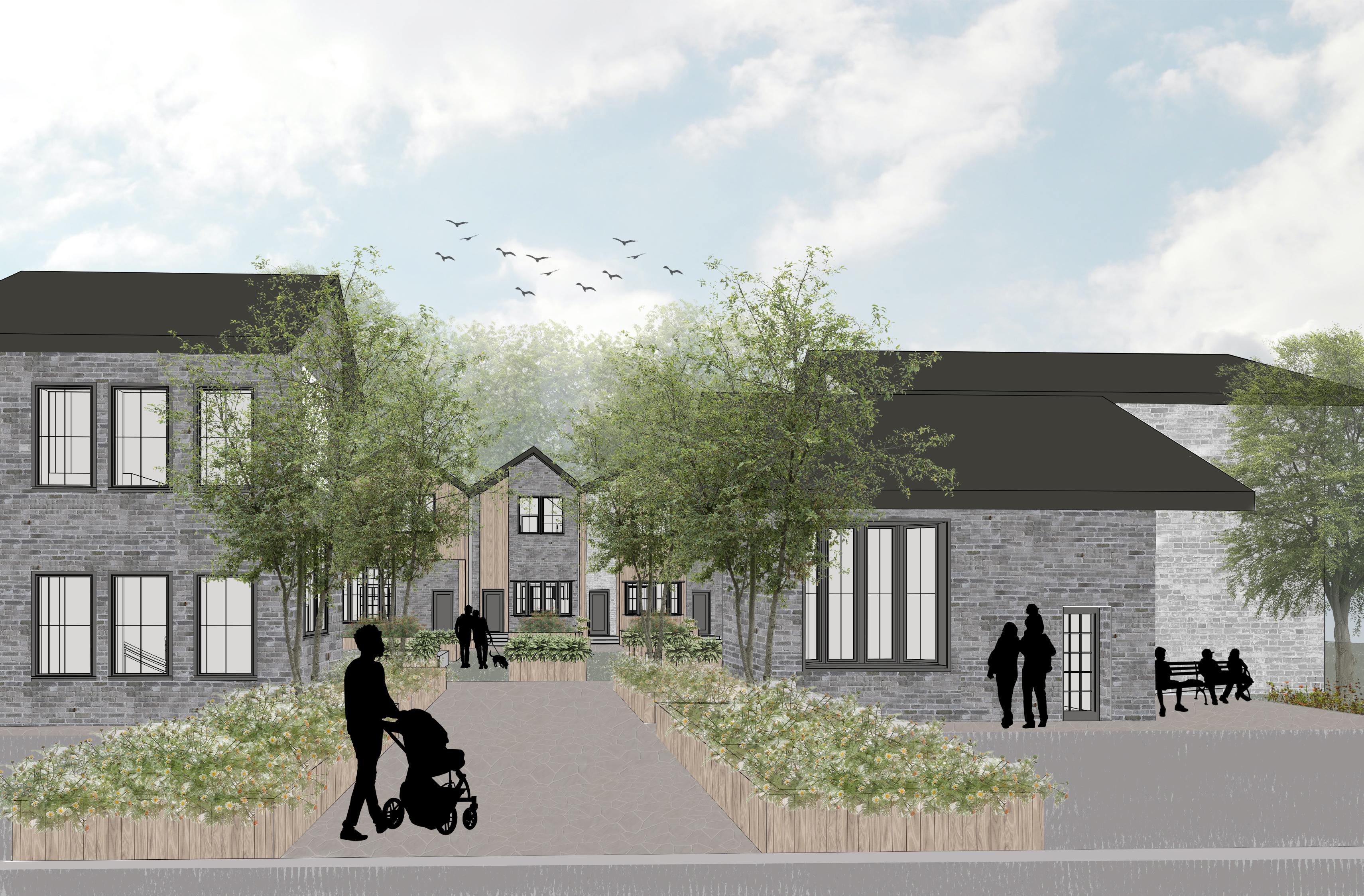

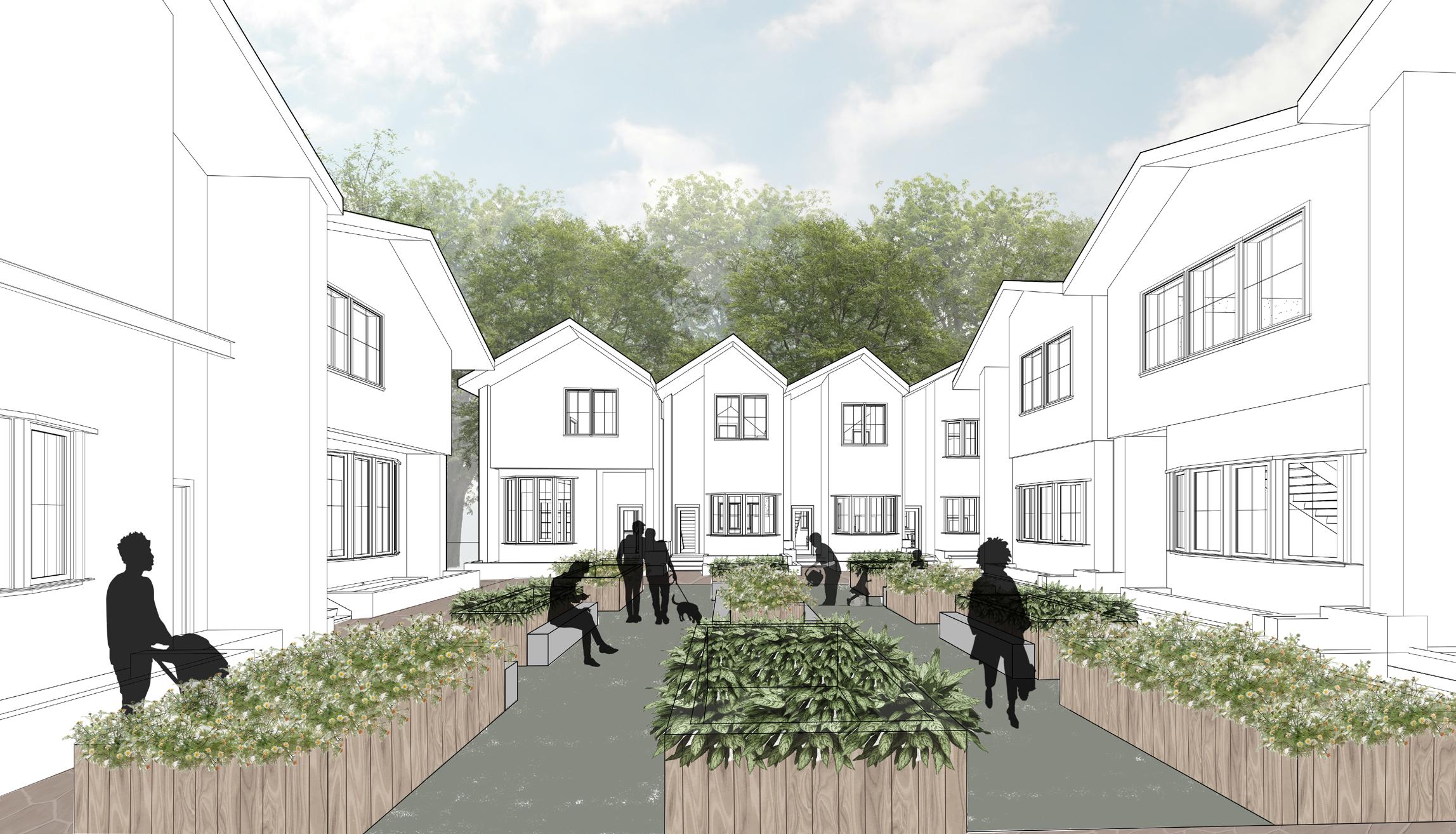

View to Community Patio

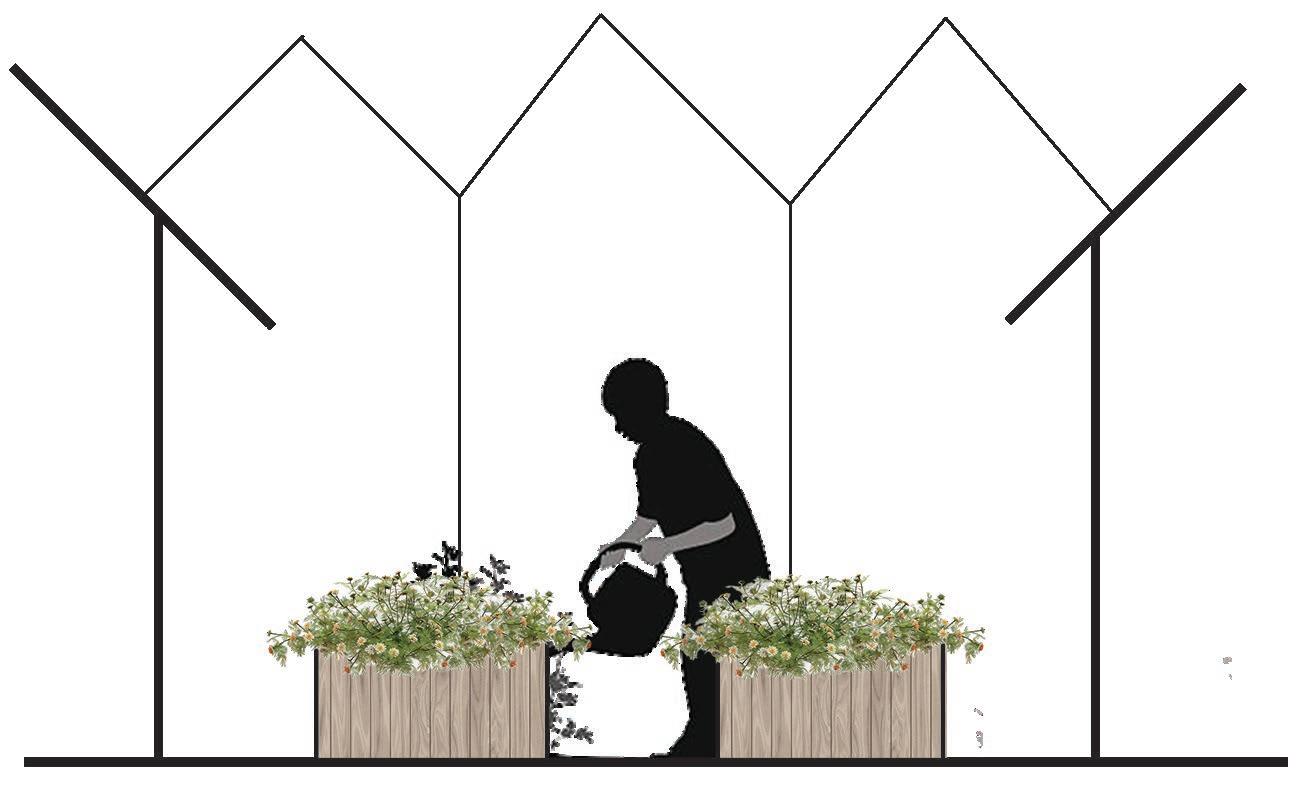

Community Garden
Mass Timber Structure
Vie of Community Garden

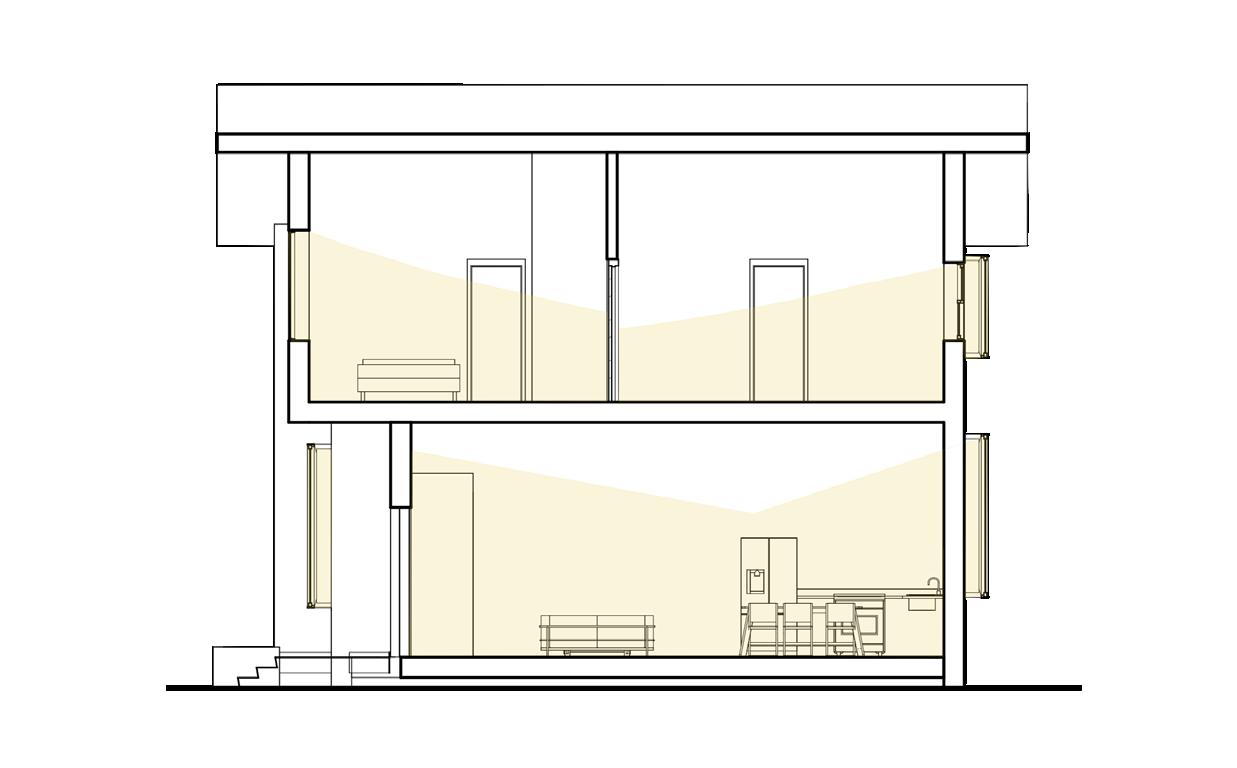

Runoff Collection Natural Lighting
View to City Park Interior View to Woods

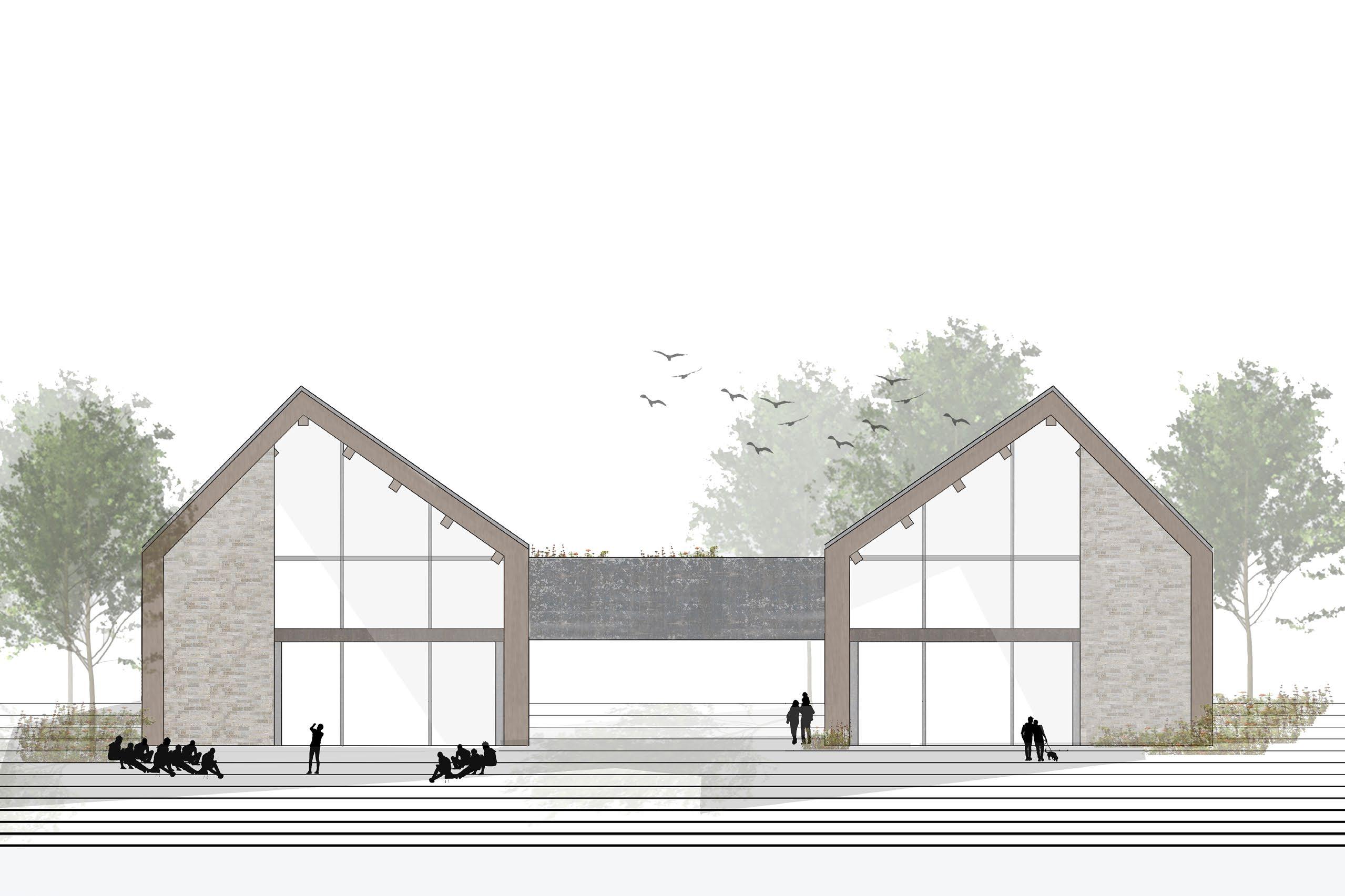

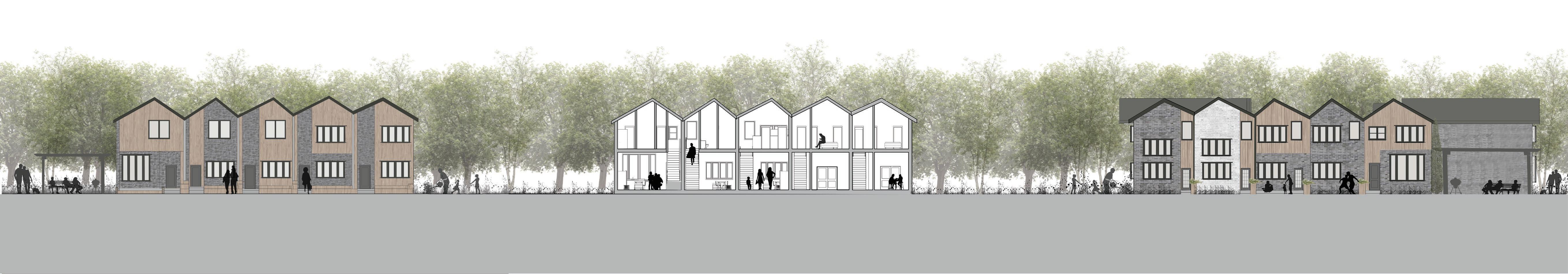

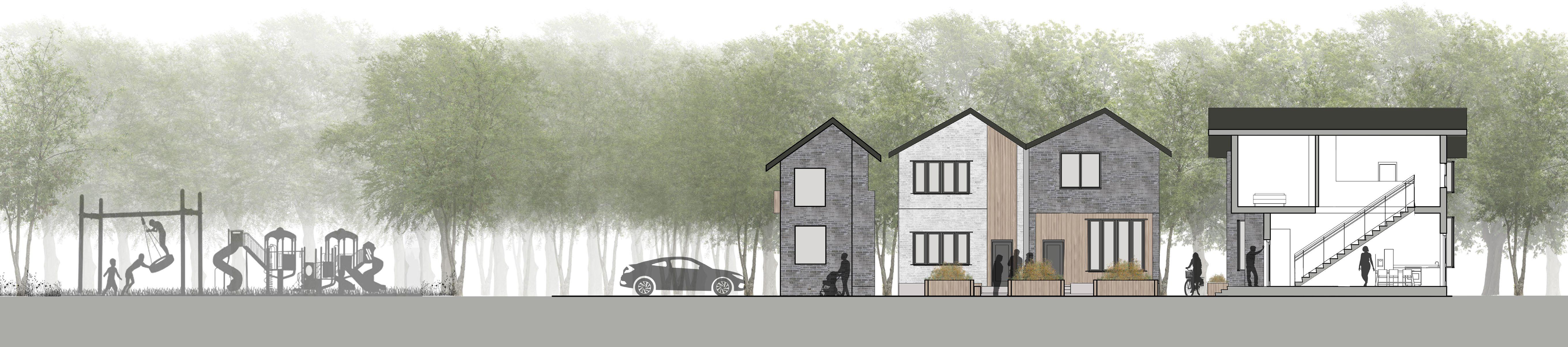

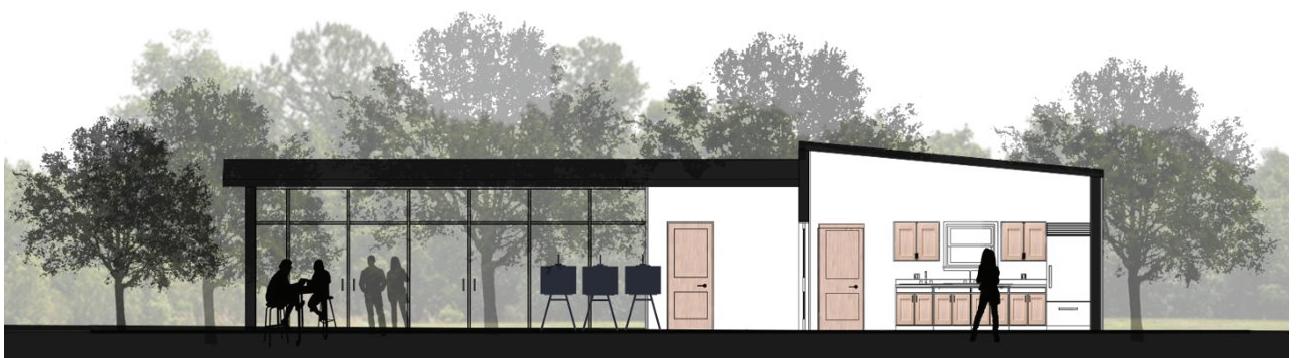

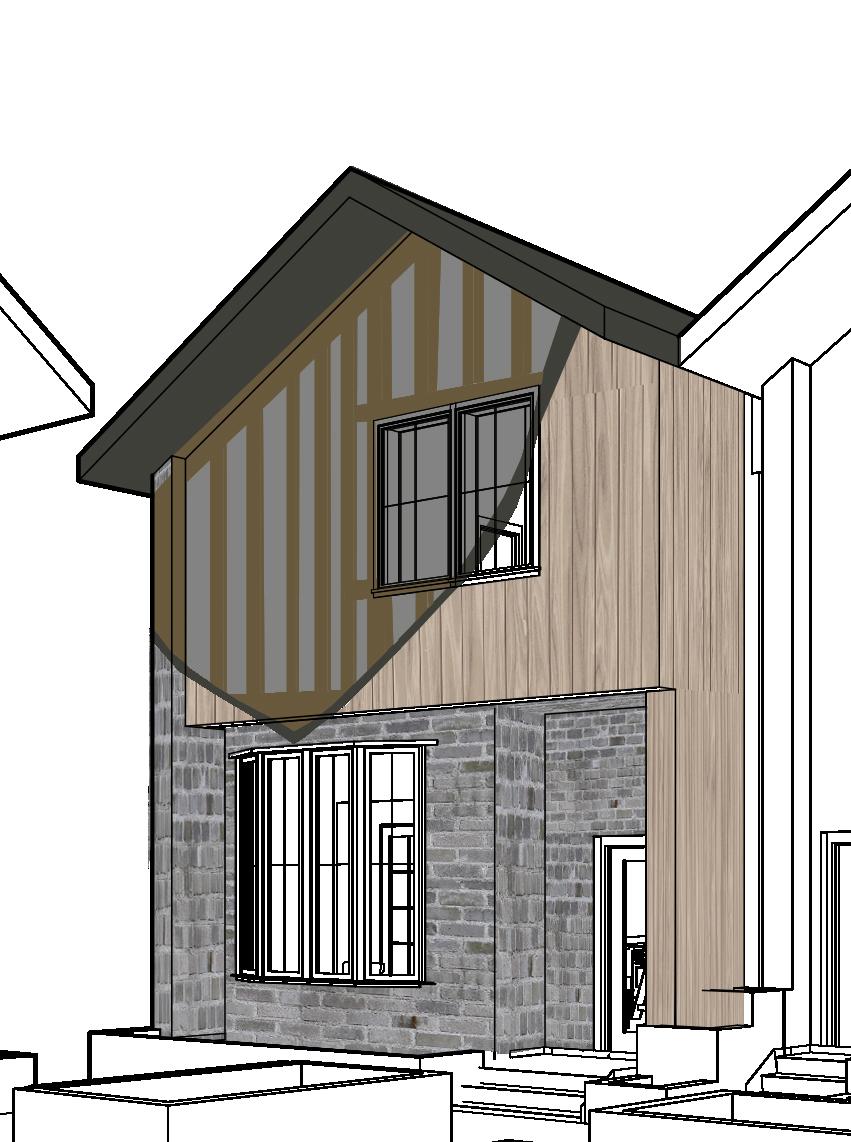

Building A Rear Elevation
AIAS FREEDOM BY DESIGN

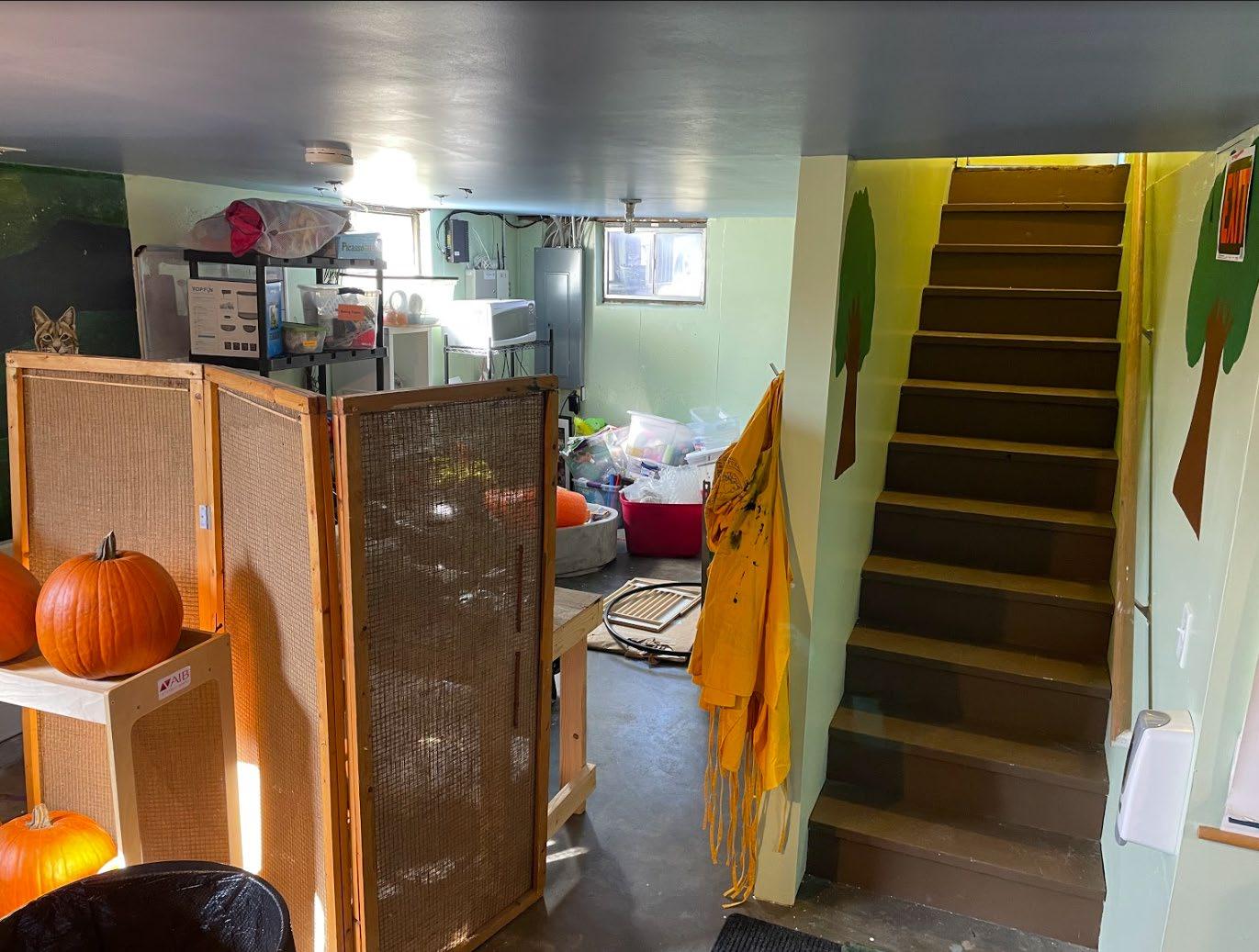

WONDER WORKSHOP-NONPROFIT CHILDREN’S MUSEUM

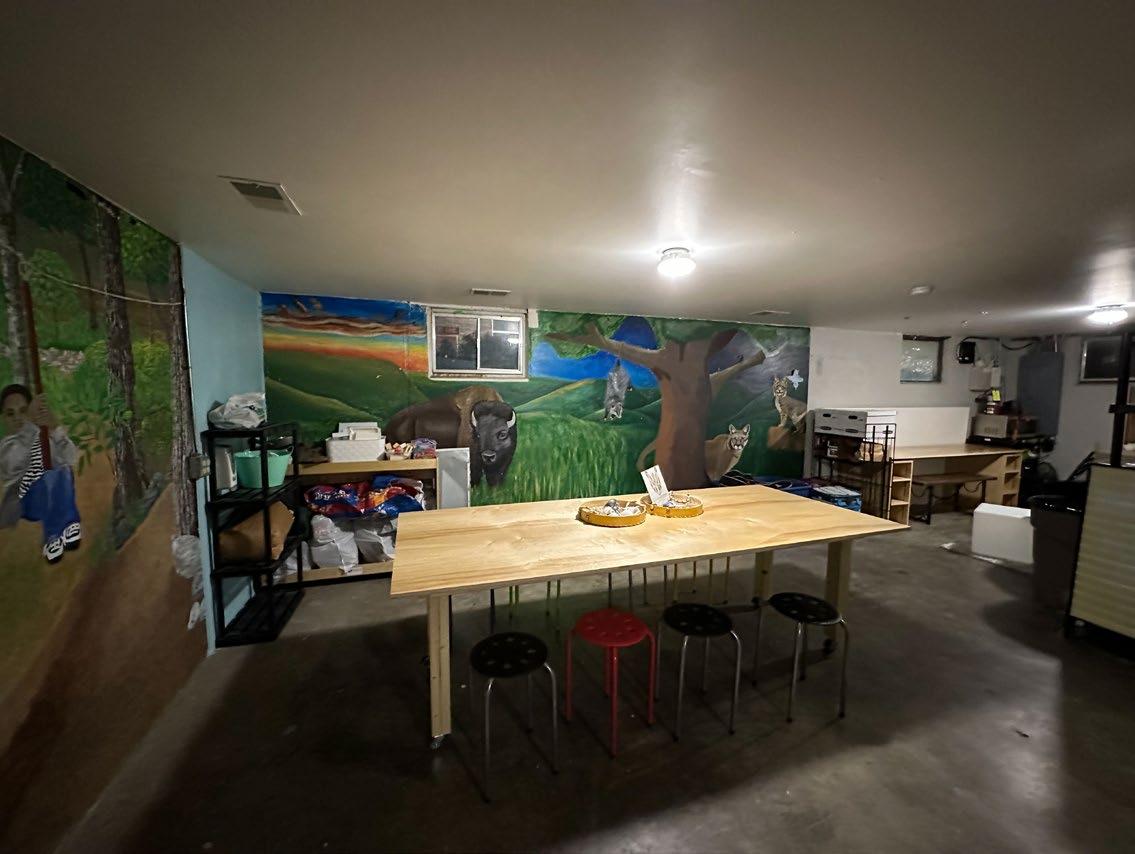

K-State’s AIAS Freedom by Design partnered with Wonder Workshop to renovate their basement to create a more practical and enjoyable space for their teen volunteers.
KANSAS ASSOCIATION FOR CONSERVATION & ENVIRONMENTAL EDUCATION

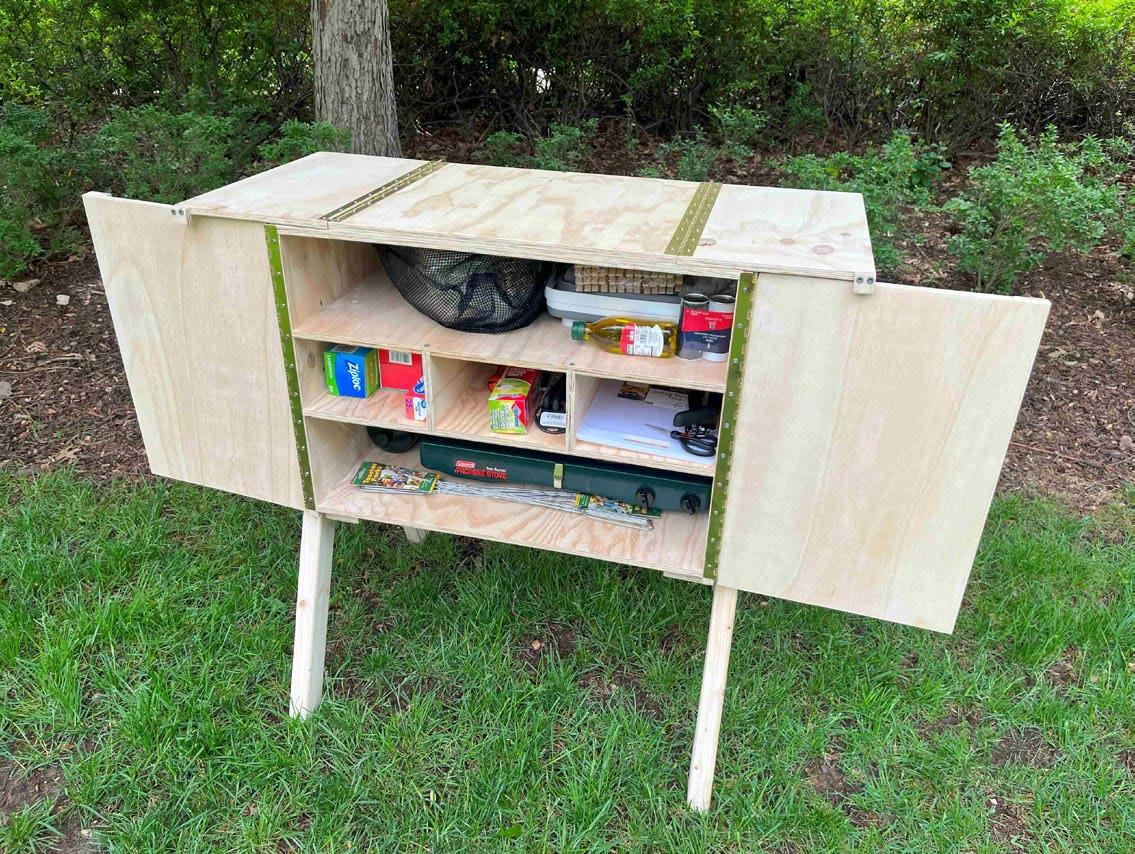

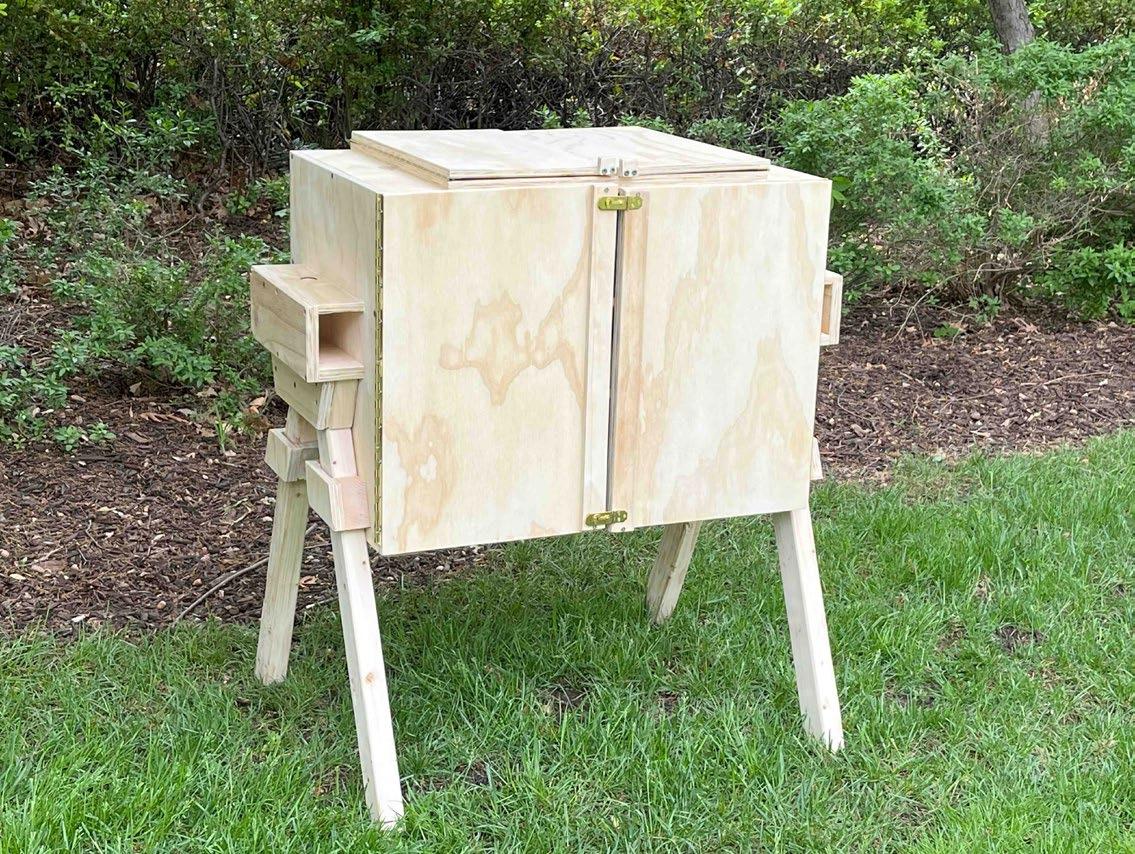

Freedom by Design partnered with KACEE for the spring 2022 and fall 2023 project to build Camp Kitchen Boxes for elementary age students in and around the Manhattan, Kansas area.
Fall 2021
Fall 2022
ANNUAL PIE A PROFESSOR FUNDRAISER
Est. Fall 2021
Pie a Professor is held annually as a fundraising effort to support the projects Freedom by Design works on. Each year the Freedom By Design Fundraising Chair and team work together to bring students, faculty, and the community together. The non-profit organization that Freedom by Design is working with during the fundraiser is invited to join in the fun. All fundraising profits go towards current and future design-build efforts by Freedom by Design.
PROFESSIONAL EXPERIENCE
I am grateful to have had the opportunity to gain experience within the professional field of architecture. I enjoy learning about how the profession is similar and different to my education as well as the wide variety of paths architecture and design can take you.
HOEFER WELKER
Summer 2023 Internship
Kansas City, MO
Hoefer Welker-Healthcare Studio
Passport Program
The passport program at Hoefer Welker has been a great experience for me to connect with and be inspired by leaders in the firm and improve my professional communication skills. I have enjoyed connecting with everyone and I look forward to staying connected with them as I continue my education and career.
AEC Partnership Program
The AEC Partnership Program was a great way to connect with professionals in similar fields of work. I enjoyed visiting job sites and learning how our roles compliment each other in the workforce.
experience for me to connect with inspired by leaders in the firm and professional communication skills. I enjoyed connecting with everyone and I to staying connected with them as continue my education and career.”
Clark & Enersen
I even had the opportunty to attend the groudbreaking for this project! could be exposed to something I may be interested doing once I graduate.
something I may be interested doing once I graduate.
detail.
OPH Mental Health Hospital
CHI GEORGIA

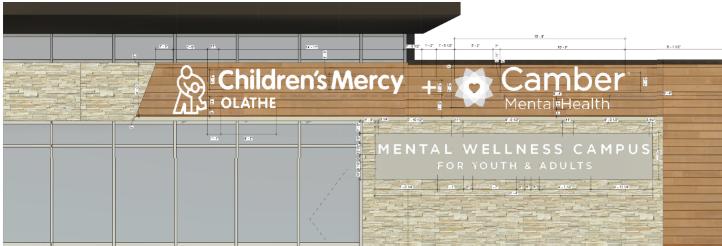

I had the opportunity to work on signage for the Olathe OPH Mental Health Facility, improving my skills in Revit and y attention to detail. I was thrilled to have the opportunity to attend the groundbreaking ceremony for this project.
Clark & Enersen
CHI
Georgia City, MO
PARTNERSHIP PROGRAM Partnership Program was a great way to professionals in similar fields of work. I job sites and learning how our roles each other in the workforce.
WORKSHOP workshop was a great way to gain directly with a client as well as designers and engineers. I develop the site organization and opportunity the Health
I gained experience working on redlines for the CHI Memorial Hospital in Georgia. It has been amazing to work on hospital designs during my time here so that I could be exposed to something I may be interested doing once I graduate.
SUSTAINABILITY WORKSHOP
I gained experience working on redlines for the CHI Memorial Hospital in Georgia. It was a great opportunity to work on healthcare design during my time with Hoefer Welker.
The sustainability workshop was a great way to gain experience working directly with a client as well as working with a team of designers and engineers. I helped the team develop the site organization and created a building section to showcase the quality and occupant experience of the space we designed. to attend the groudbreaking for this project!
SUSTAINABILITY WORKSHOP
Rendering made by Hoefer Welker.
The sustainability workshop was a great way to gain experience working directly with a client as well as working with a team of designers and engineers. I helped the team develop the site organization and created a building section to showcase the quality and occupant experience of the space we designed.
Clark & Enersen
Sustainability Workshop
The sustainability workshop was a great way to gain experience working directly with a client as well as working with a team of designers and engineers. I helped the team develop the site organization and created a building section to showcase the quality and occupant experience of the space we designed.
CLARK & ENERSEN
Summer 2024 Internship
Kansas City, MO
Clark & Enersen
Internship Experience
Gained experience working with clients and learned more about interdisciplinary coordination and what the initial steps of a project can look like.
Connected with others through various wellbeing activities within the firm.
Project Highlight:

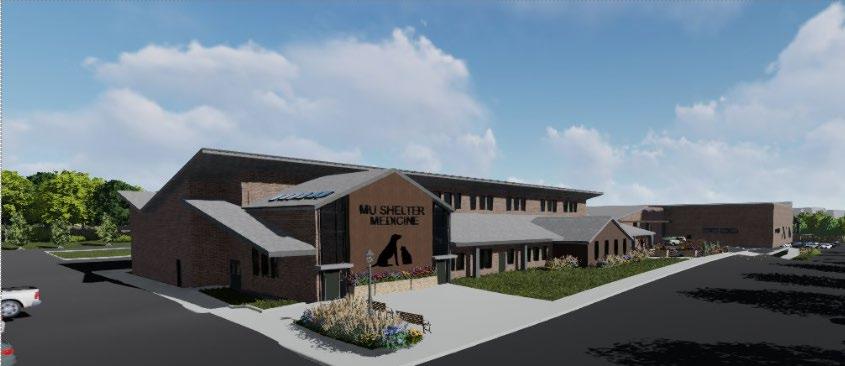

MU Shelter Medicine Program New Building Study
Columbia, MO

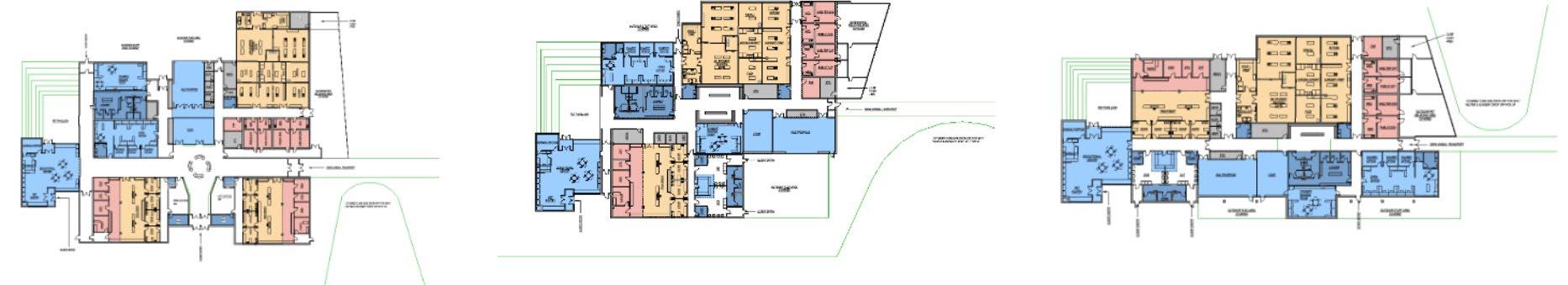

Worked directly with the Project Manager to develop studies for a new MU Shelter Medicine Building in Columbia, MO. Had the opportunity to sit in on client meetings and further develop studies through collective feedback.
Clark & Enersen

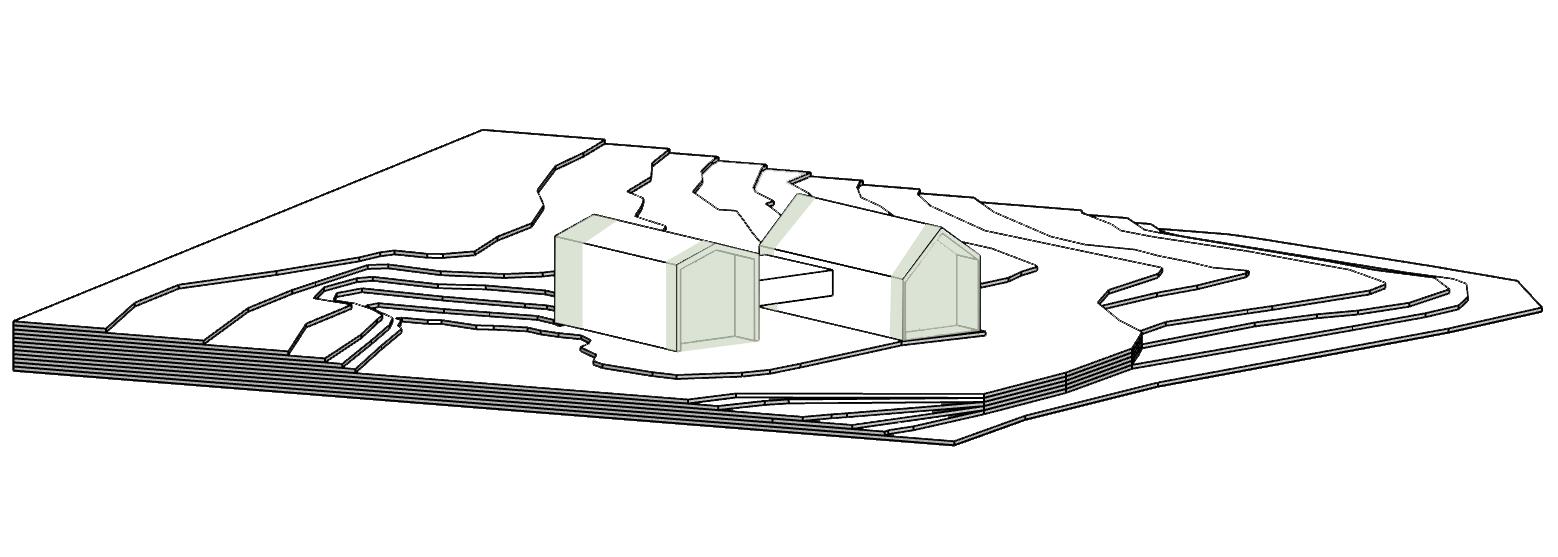

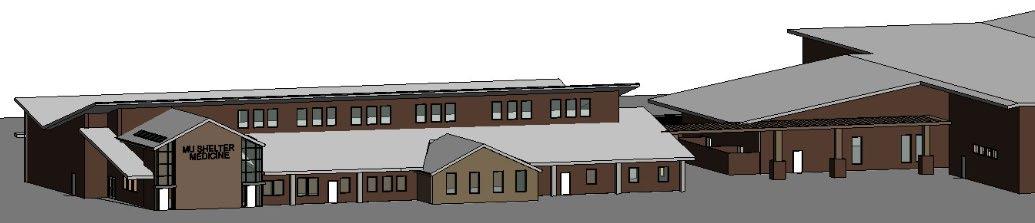

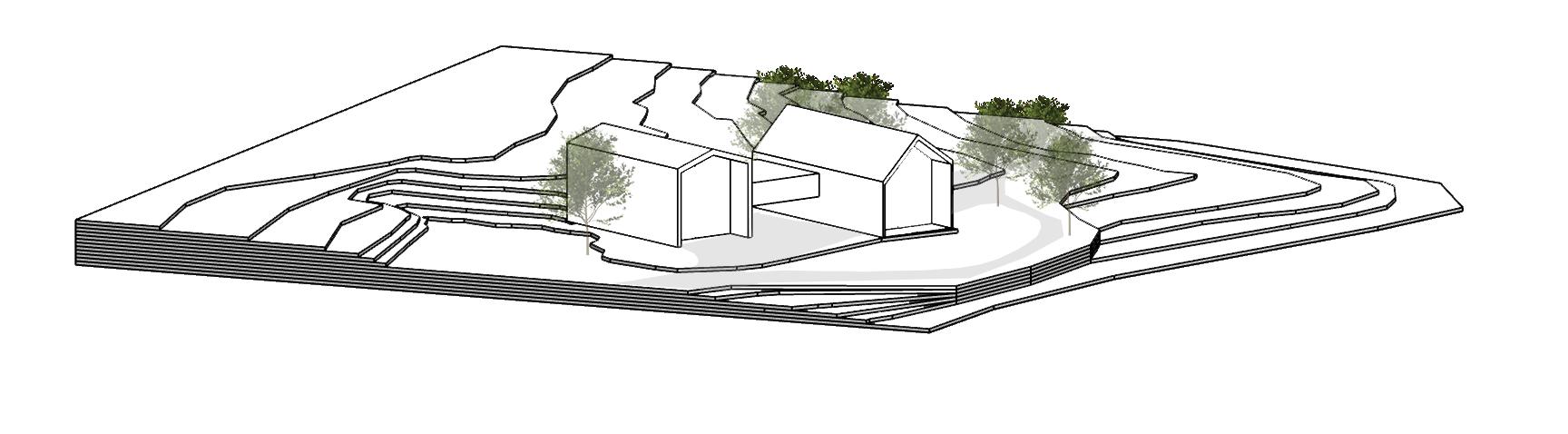

3D Massing Study
Used a combination of sketching and Revit to create a variety of massing studies. Incorporated daylighting and sun shading strategies and referenced adjacent structure and client preferences to inform the massing and form strategies.
Clark & Enersen
Programming Study
Kansas City, MO
Developed a wide variety of programming options to share and discuss with the client. Consolidated and adjusted programming options according to project manager and client requests.
Clark & Enersen

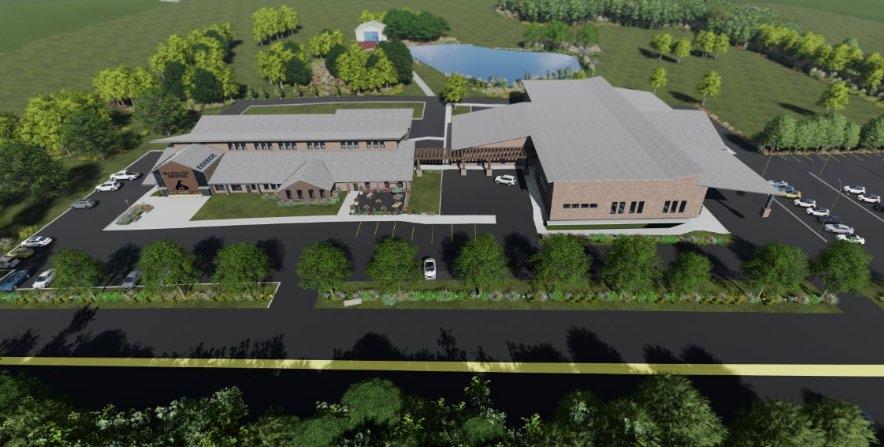

3D Site Modeling & Rendering
Experimented with Lumion and Revit to create models and renderings of the massing study and existing site.
GRADUATE ARCHITECTURE PORTFOLIO KATIE CHANDLER
I sincerely appreciate you taking the time to review my work and consider the qualities I could bring to your team. I look forward to connecting with you soon.
I strive to leave a positive impact on peoples lives through architectural design by incorporating health, well-being and community engagement into design initiatives.
