ARCHITECTURAL PORTFOLIO

D.Jyothirmai

D. JYOTHIRMAI 2

D. JYOTHIRMAI 4 VV VV VV VV VERTICAL NEIBOURHOOD 5TH Semester Pg: 6 - 9 CONTENTS... 1. 2. 3. 4. 4- STAR HOTEL 6TH Semester Pg: 10 - 13 HIGHWAY AMENITY CENTRE 8TH Semester Pg: 18 - 21 CO-LIVING & CO-WORKING SPACE 7TH Semester Pg: 14 - 17

WORKING DRAWING

3RD Semester

5TH Semester

Pg: 22 - 24

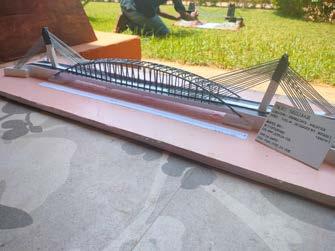

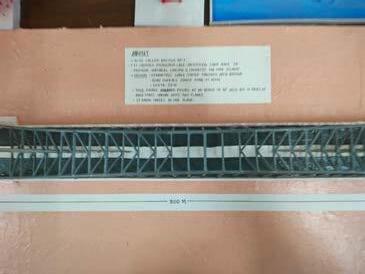

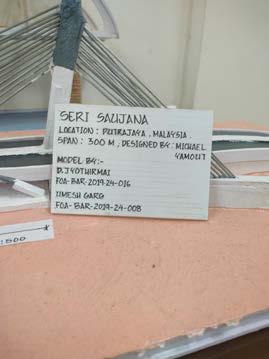

CONSTRUCTION MODEL

Semester

Pg: 26 - 29

MISCELLANEOUS

Pg: 30 - 31

SELECTED WORKS 5 VV VV VV VV

COMPETITIONS

8TH

Pg -

5. 6. 7. 8.

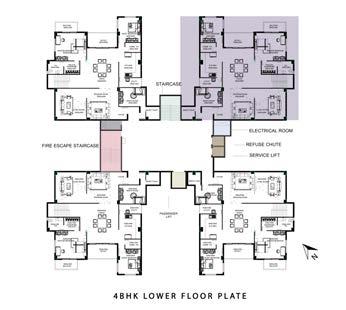

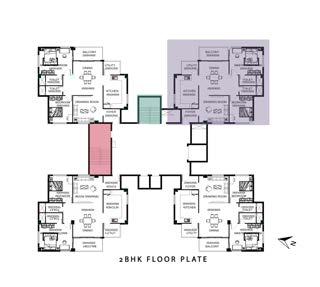

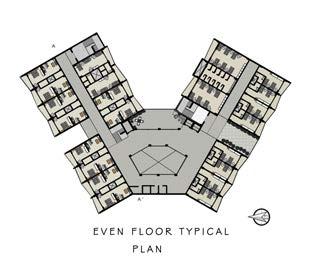

VERTICAL NEIGHBORHOOD

Location : Berhampur, Odisha

Site area : 4.35 acres

Type : Vertical housing

About The Project

Design Problem : In creating a sense of community in a neiborhood or in a building we needed to, design a central node, a boundary, an image of similarity of buildings, oppurtunities for community activities, safety for children from vehicular traffic inside the campus. It is often said that children are the true neighborhood people, neutraliing possibilities of vertigo, structural simplicity as well as structural innovativeness, climaticcally suitable for the area.

SELECTED WORKS 7

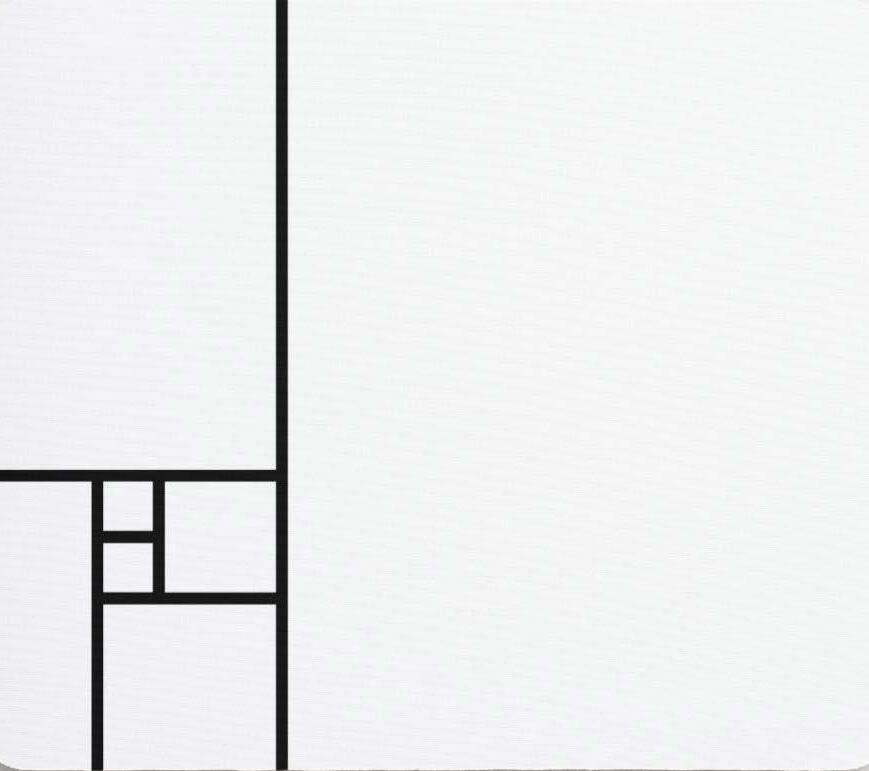

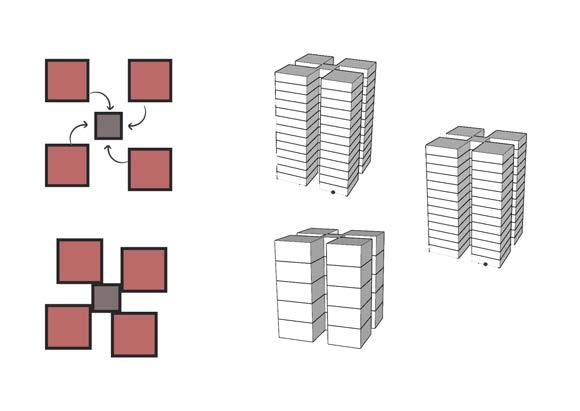

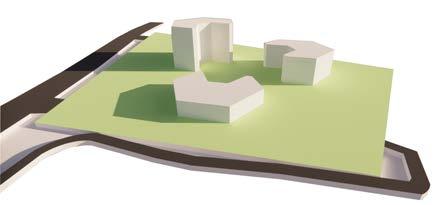

CONCEPT DEVELOPMENT

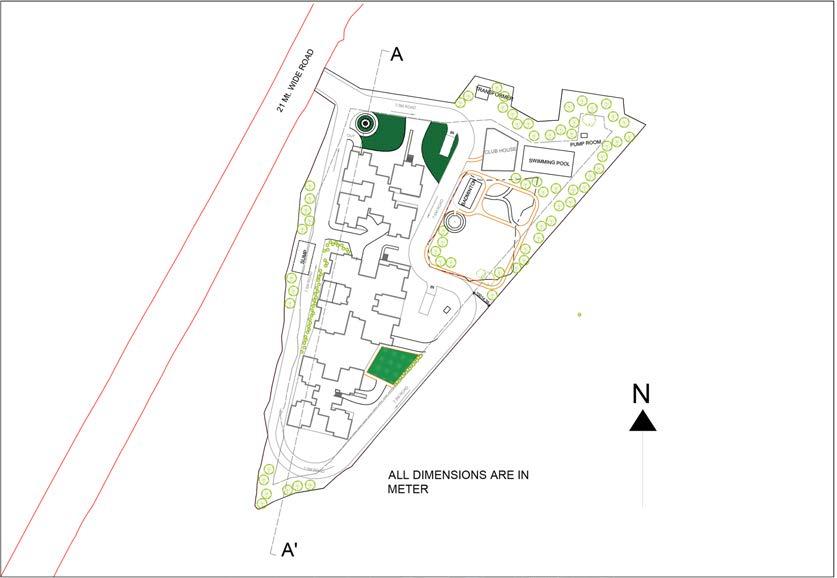

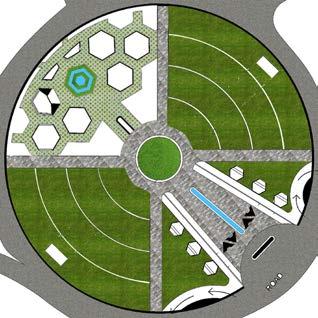

D. JYOTHIRMAI 8 SITE PLAN SITE SECTION AA’

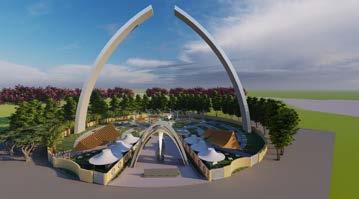

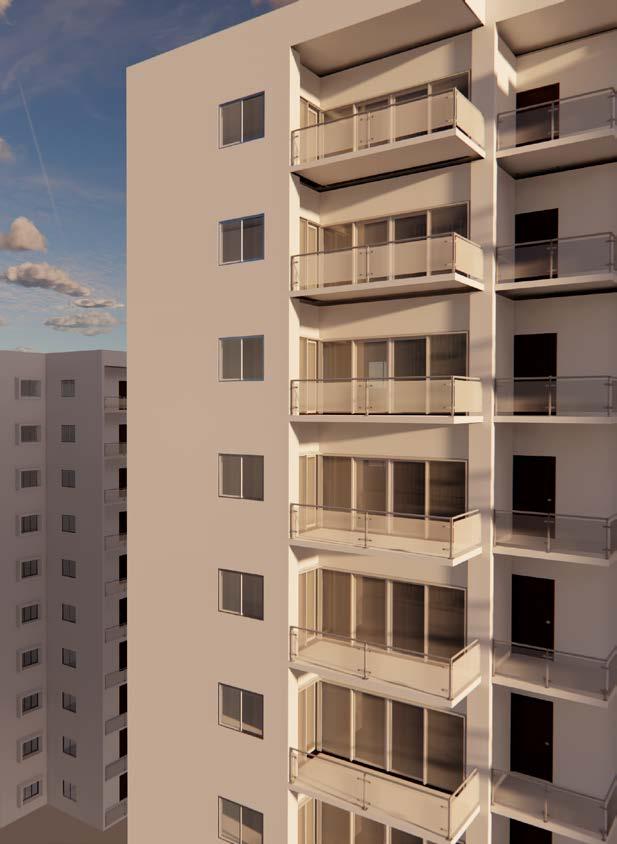

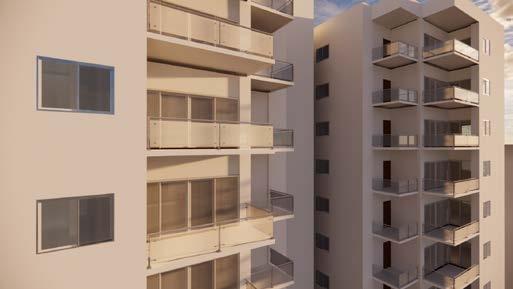

VIEWS

SELECTED WORKS 9

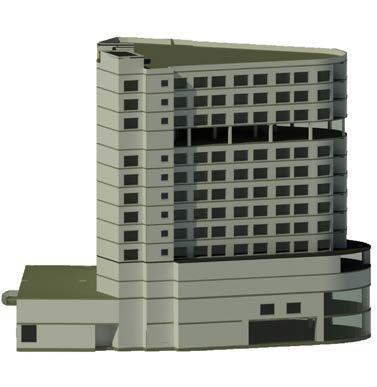

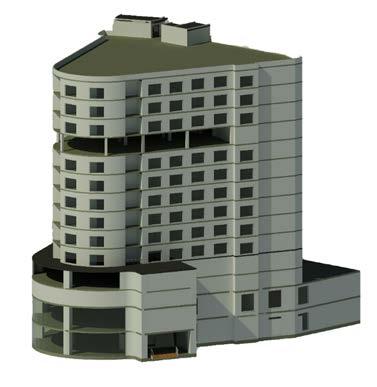

4-STAR HOTEL

Location : Puri, Odisha

Site area : 1.28acres

Type : Commercial Building

About The Project

Design Problem : Puri, both as a city and a district, has been a tourists’ paradise as a prominent center of pilgrimage that is simultaneously endowed with the natural blessings of azure seas and lush forests in the vicinity. Puri hosts millions of pilgrims and tourists around the year, with the concentration reaching its peak during the annual Rath Yatra festival, when millions of devotees throng to Puri from across the world, to pay homage to Lord Jagannatha. The escalating prospects of the Tourism industry in Puri shows the demand of hotels for accomodation. To design a hotel which demanded for 15-20 excecutive occupancy, 70-80 delux occupancy, 2 presidential suits, 4 delux suits and ample of amenities to help the tourists and have them engaged.

SELECTED WORKS 11

D. JYOTHIRMAI 12

SELECTED WORKS 13

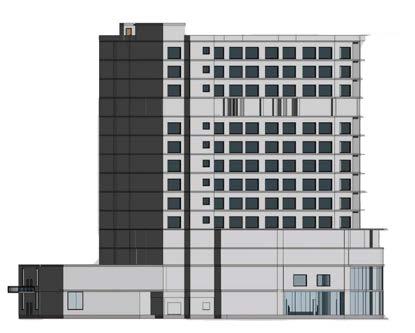

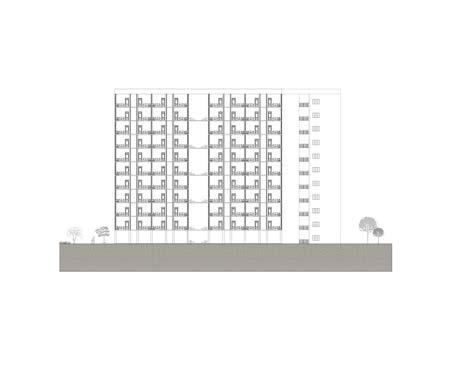

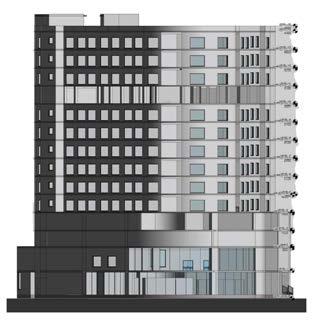

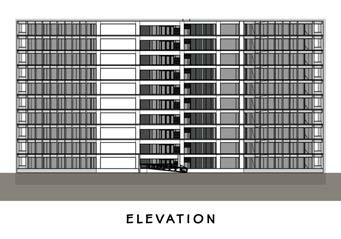

FRONT ELEVATION VIEWS SIDE ELEVATION

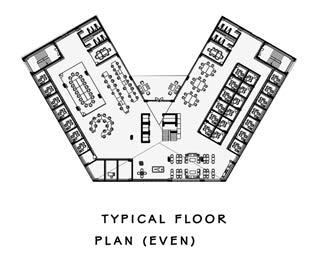

CO-LIVING & CO-WORKING SPACE

Location : Mangalore, Karnataka

Site area : 5acres

Type : Mixed Used Project

About The Project

Design Problem : To design a mixed-use development program which are beacons for their sustainable design and planning. Projects that represent the aspirants of the youth; that are examples of good architectural interventions and invoke qualities of wellbeing, inclusivity, and a integrated approach.

An oppurtunity to design innovative futuristic mixeduse hubs specifically for towns (Tier 2,3,4 cities). The global pandemic and lockdowns have boosted technological advancemnts in our live-work patterns, the companies have opted for hybrid modes. This has given the oppurtunity for the young proffesionals to stay close to their family and work from home and have a better work life balance.

SELECTED WORKS 15

CONCEPTUAL MODEL

D. JYOTHIRMAI 16

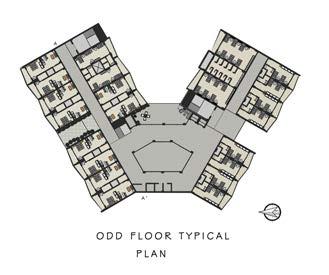

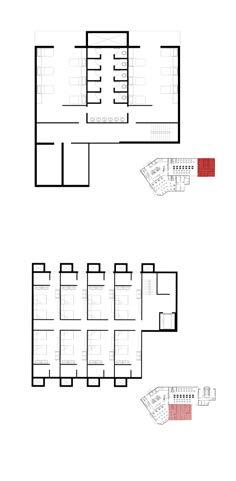

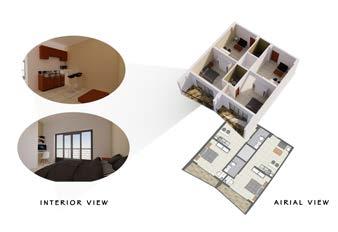

DORMETORY STUDIO APPARTMENT

CO- LIVING

THREE SHARING UNIT TWO SHARING UNIT

SECTION AA’

SELECTED WORKS 17

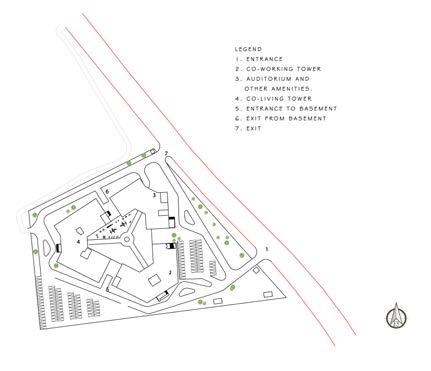

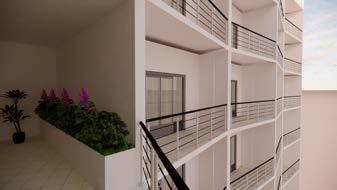

VIEWS SITE PLAN

CO-WORKING INTERIOR VIEWS

HIGHWAY AMENITIES

Location : Near Fatehpur, Uttar Pradesh

Site area : 15.2 acres

Type : Mixed Used Project

About The Project

Design Problem : To design a center which helps to improve long distance travelling experience for commuters. To create employment oppurtunities for local youth. A platform for farmers to sell their produce. To encourage frequent breaks during the journey. To reduce driver fatigue related accidents. Helipad to expedite evacuation during medical emergencies and providing disaster relief. Highway village is a mega-project which is proposed to be constructed across 183 sites in the country by the government. It will be developed through the Public-Private Partnership (PPP) model.

SELECTED WORKS 19

D. JYOTHIRMAI 20

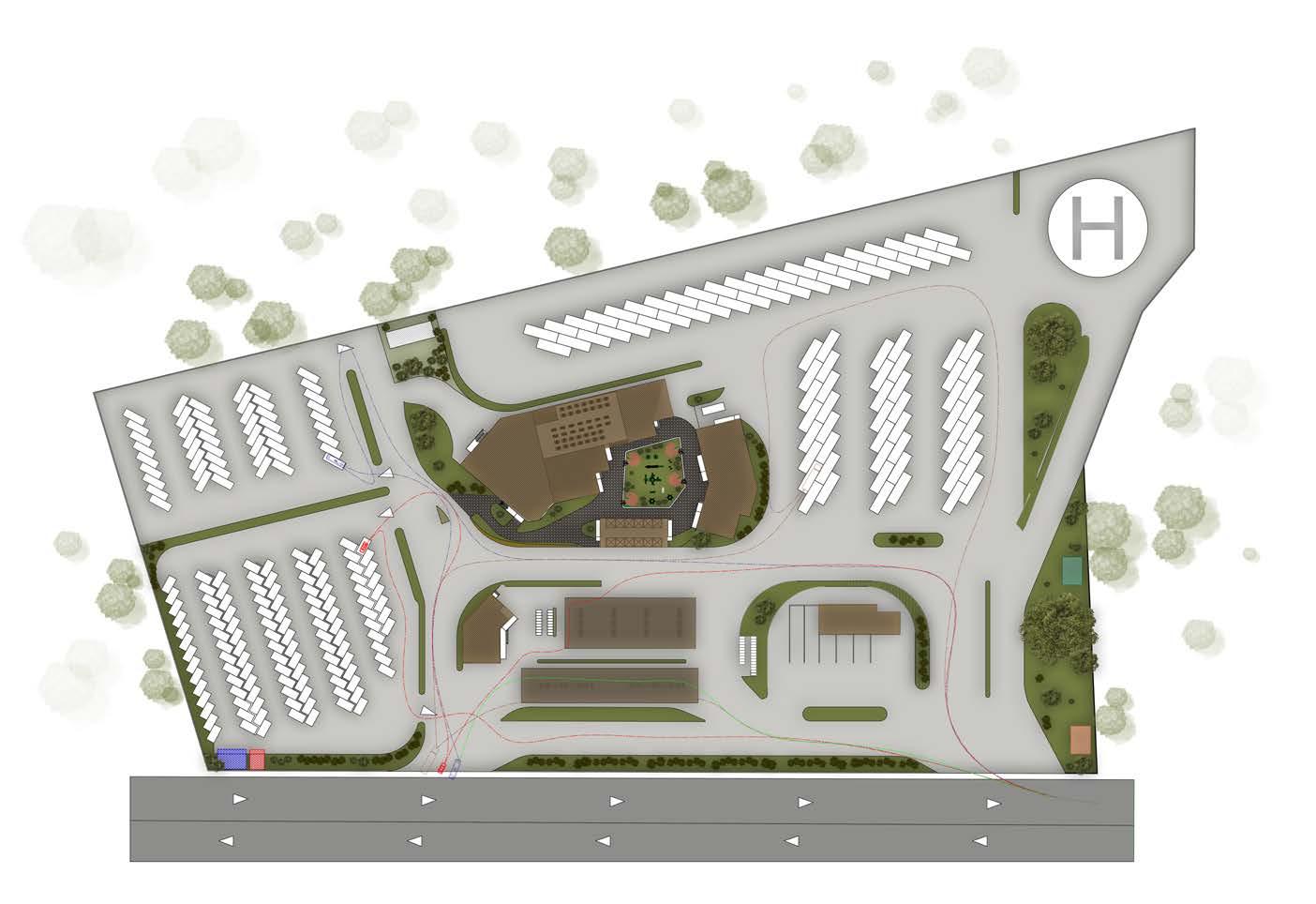

SITE PLAN

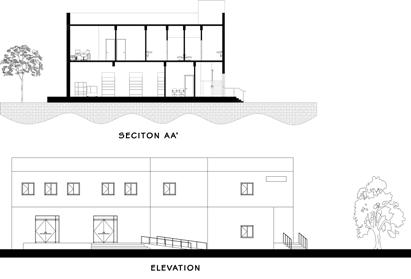

SITE SECTION AA’

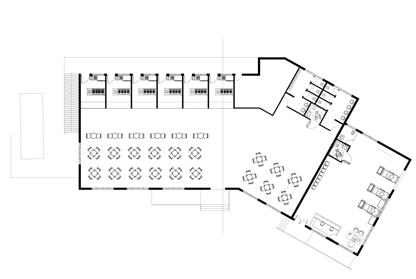

SELECTED WORKS 21 M A I N A M E N I T I E S B L O C K A’

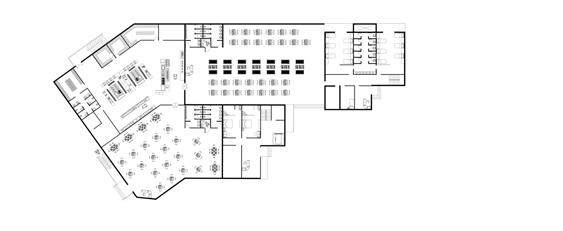

D. JYOTHIRMAI 22 ENTRY / EXIT +195.22 lvl Pathway +195.22 m Lvl +195.52 m Lvl Entrance Ramp Up Planter Landscape Double Storey Height Waiting & Reception 6.47 X 5.90 6.57 X 5.17 Electrical Room 3.99 x 4.00 Rolling Shutter Elec Shaft MRL LIFT 6PPL 1.80 x 1.80 Up Dn Shower Shower Wc Changing Room Ledge Female Shower Rooms +195.52 m Lvl Fire Shaft Canteen 4.00 X 5.90 Cut out in with removable 2.2 x 2.2 Filtration PHE Shaft Kitchen 3.94 Changing Room Changing Room Male Shower Rooms 4130 1565 4120 2075 3400 6770 4100 1925 1480 3800 4100 1825 Tread Riser Flight Width 300mm 150mm 1500mm Length Width 3600 1800mm Ramp for Differently A Facade Treatment 200 1500 200 600 1025 450 1000 5835 600 1025 Facade Treatment 450 900 Facade Treatment Staircase 1 Ref -Section EE 2000 5200 Portico Slab Above FD O RS D3 D3 D3 D3 V2 D1 V4 V4 GD D1 MD MD W2 DD W2 PHE Shaft 1.5m ht Exhaust Shaft with Louvered & Cover Slab Above +195.22 RampUp Gradient 1:12 Planter +195.22 m lvl RampUp Length Width 3600 mm 1800mm Ramp for Differently Abled Gradient 1:12 300 mm Sunken Slab Shower Shower D3 Wc Changing Room Manhole 1500 Ramp For Electrical Room As insisted by M/S TCE for Easy Machine Handling 3050 500 EQ EQ 200 1678 200 1250 1200 1400 1200 1400 1200 1400 1200 1400 4295 4980 930 1375 1630 1295 1630 D3 1530 1300 1100 EQ 4301 3400 600 5173 1030 EQ EQ 1225 2110 1400 1436 2251 1200 1250 1200 1250 7749 702 1030 1625 600 596 1625 5833 eq +195.52 m Lvl +195.20 m Lvl +195.20 m 150 200 629 1825 EQ 650 1220 200 850 200 eq 200 300 1150 850 Pantry SD 1700 900 1850 SD1 495 650 450 SD1 397 GLAZING 1444 A B C D E F G H J eq eq eq eq 1275 MS1 MS2 MS1

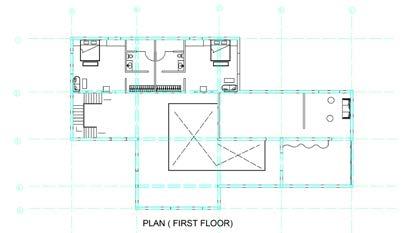

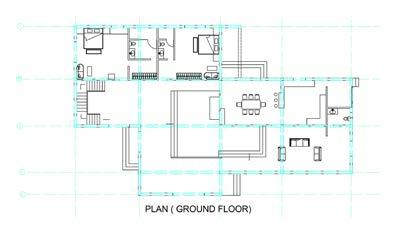

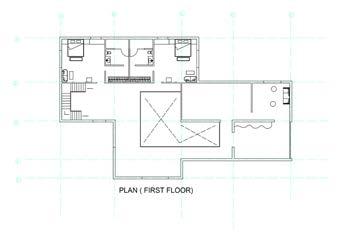

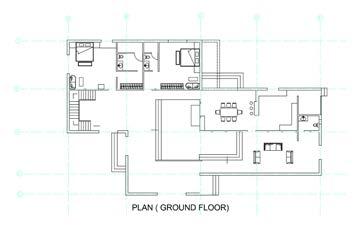

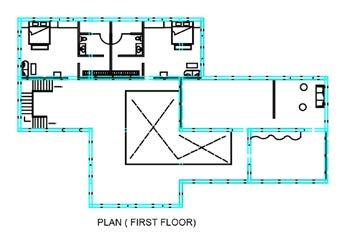

RESIDENCE

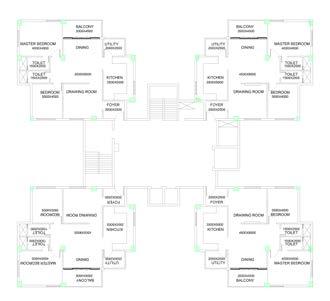

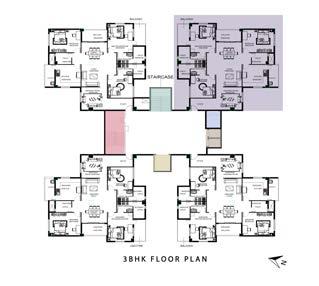

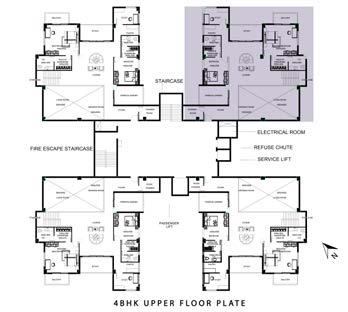

HIGHRISE APPARTMENT(VERTICAL HOUSING)

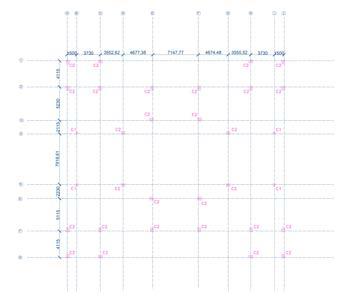

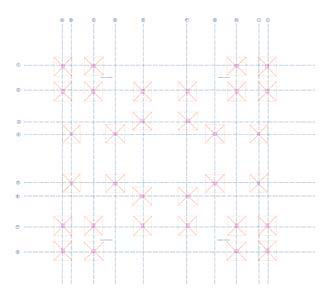

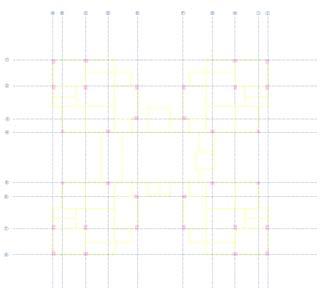

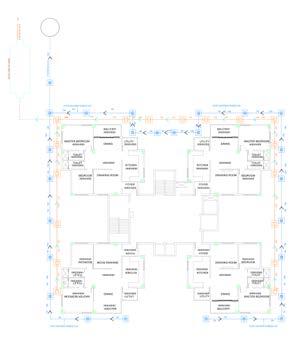

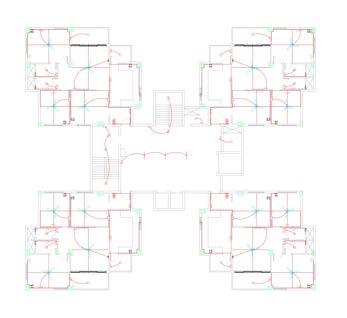

WORKING DRAWING 1.
