TABLET COMPRESSION MACHINE

R&D LAB PRESS cGMP Model Number of Stations Type of Tooling Output - Tablets/Hr. Turret RPM (Min. / Max) Max. Operating Pressure Max. Tablet Dia. Maximum Depth of fill Power Overall Dimensions (mm) Net Weight (Approx.)

JSK-LAB-8 D

JSK-LAB-10 B

8 10 D B 2000 TO 14,000 2,000 TO 18,000 10-30 10-30 6 Tons 6 Tons 23mm 16mm 17.5mm 17.5mm 2.0 HP X 1440 RPM X 415 V. X 50 Hz 840 x 635 x 1200 H 375kg

JSK-LAB-12 D-B-BB 12 D-B-BB 2,000 TO 7,200 10-30 6 Tons 23mm 17.5mm

SINGLE ROATRY TABLET PRESS MACHINE Model

JSK-16

JSK-20

JSK-12

Tooling

"D”

"D”

Bolus / Slugging

No. of Station

16 Stn.

20 Stn.

12 Stn.

Operating Pressure

10 Ton

10 Ton

12 Ton

Max. Tablet Diameter

23 mm

23 mm

40 mm

Max. Depth of Fill

20 mm

20 mm

25 mm

Output - Tablets/Hr.

14,400 to 40,300

21,600 to 50,400

10,800 to 15,840

1.5 to 8 mm

1.5 to 8 mm

1.5 to 8 mm

Upper Punch Penetration Main Electric Motor

3Hp / 1440 RPM / 415 V / 50 Hz / 3 Ph

JSK ENGITECH INDUSTRIES | INFO@JSKENGITECH.COM | WWW.JSKENGITECH.COM

DOUBLE SIDED ROTARY TABLETING MACHINE Model

JSK-D-27

JSK-B-35

JSK-BB-45

Number of Stations

27

35

45

Type of Tooling

D

B

BB

58,320 to 1,36,000

75,600 to 1,76,400

57,200 to 2,26,800

Upper Punch Penetration

1.5 to 8 mm

1.5 to 8 mm

1.5 to 8 mm

Max. Operating Pressure

10 Tons

6.5 Tons

6.5 Tons

Max. Tablet Dia.

23mm

16mm

11mm

Maximum Depth of fill

20mm

17.5mm

17.5mm

Output - Tablets/Hr.

Main Electric Motor

5Hp / 1440 RPM / 415 V / 50 Hz / 3 Ph

Overall Dimensions (mm)

1980 (L) x 1830 (W) x 1988 (H)

Weight (Approx.)

Gross Weight - 1,400 kgs. / Net Weight (Approx.) 1800 kg

HIGH SPEED TABLET PRESS Model

JSK-Press-37D

JSK-Press-45B

JSK-Press-55BB

JSK-Press-61BB

Tooling

D

B

BB

BB

No. of Station

37

45

55

61

Max Operating Pressure

10 Ton

6.5 Ton

6.5 Ton

6.5 Ton

Max. Tablet Diameter

23 mm

16mm

11mm

11mm

Max. Depth of Fill

20.5mm

17.5mm

17.5mm

17.5mm

Output - Tablets/Hr.

79,920 to 2,80,600

97,200 to 2,70,000

1,18,800 to 3,43,000

1,31,760 to 3,80,600

3.2 to 8 mm

3.2 to 8 mm

3.2 to 8 mm

3.2 to 8 mm

Upper Punch Penetration Main Electric Motor

7.5 Hp / 1440 RPM / 3 Ph

JSK ENGITECH INDUSTRIES | INFO@JSKENGITECH.COM | WWW.JSKENGITECH.COM

GRANULATION MACHINES OCTAGONAL BLENDER MACHINE CAP IN KGS

CAP IN LTRS

GROSS VOLUME

DISCHARGE VALVE

MOTOR

OVERALL DIMENSIONS L X W x H

100 165 200 250 265 335 400 500 650 850 950 1200

300 500 600 750 800 1000 1200 1500 2000 2500 2800 3400

375 600 725 875 950 1150 1300 1700 2200 2700 3500 4000

1.5 2 2 3 3 5 5 5 7.5 7.5 10 10

1.5 200 200 200 200 250 250 250 300 300 300 300

2165 X 1535 X 2585 2250 X 1800 X 2700 2300 X 1800 X 2800 2300 X 1850 X 2800 2350 X 1000 X 2800 2700 X 2100 X 3050 2800 X 2270 X 3050 2850 X 2525 X 3120 2800 X 2800 X 3350 2800 X 2800 X 3450 2800 X 2900 X 3500 2900 X 3000 X 3700

DOUBLE CONE BLENDER Gross Cap. in Liters

Working Cap. in Liters

Discharge Ht. in mm

Discharge Valve

H.P

JSK50

150

100

450

100

2

1400

800

1500

JSK100

300

200

450

100

3

1850

900

1900

JSK150

470

300

450

200

5

2000

1100

2000

JSK200

615

400

450

200

5

2100

1200

2100

JSK250

770

600

450

200

7.5

2200

1300

2200

JSK300

1000

600

450

200

7.5

2300

1400

2300

JSK500

1500

1000

450

200

10

2350

1450

2350

Model

JSK ENGITECH INDUSTRIES | INFO@JSKENGITECH.COM | WWW.JSKENGITECH.COM

Overall Dimensions in Length Width Height

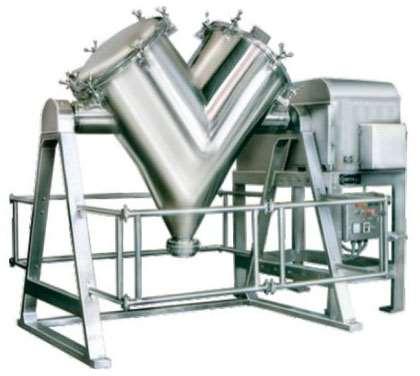

V-TYPE BLENDER MODEL

GROSS CAP IN LTRS

WORKING CAP IN LTRS

H.P

OVERALL DIMENSIONS L X W X H

JSK-25

50

30

1.5

1100 X 760 X 1375

JSK-50

500

600

2

1400 X 760 X 1575

JSK-100

600

725

2

1525 X 1000 X 2450

JSK-250

750

875

3

1850 X 1100 X 2770

JSK-500

800

950

3

2000 X 1250 X 3800

JSK-1000

1000

1150

5

2300 X 1400 X 4200

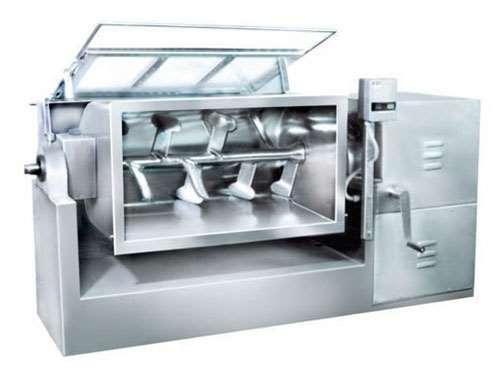

MASS MIXER cGMP Model

JSK - MM 50

JSK - MM 100

JSK - MM 150

JSK - MM 200

Capacity

50 Kgs.

100 Kgs.

150 Kgs.

200 Kgs.

Over flow capacity

110 Ltrs

220 Ltrs

330 Ltrs.

440 Ltrs.

Working capacity

88 Ltrs

156 Ltrs

234 Ltrs.

309 Ltrs.

Speed of stirrer

35 RPM

35 RPM

30 RPM

30 RPM

3 HP / 3 Ph.

5 HP / 3 Ph.

7.5 HP / 3 Ph.

7.5 HP / 3 Ph.

Main Electric Motor

JSK ENGITECH INDUSTRIES | INFO@JSKENGITECH.COM | WWW.JSKENGITECH.COM

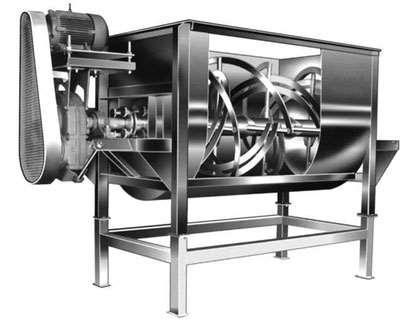

RIBBON BLENDER Model

Useful Module (Liters)

Motor (HP)

JSK-500 JSK-1000 JSK-1500 JSK-2000 JSK-3000 JSK-4000 JSK-5000 JSK-6000 JSK-8000 JSK-10000

500 1000 1500 2000 3000 4000 5000 6000 8000 10000

5-7.5 7.5-10 10-12.5 10-15 15-20 20-25 20-25 25-30 30-40 30-40

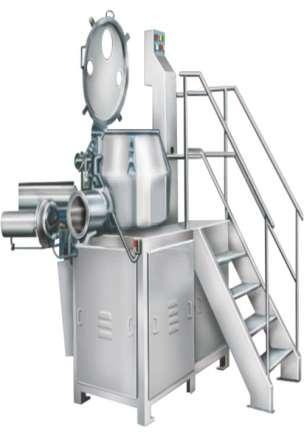

RAPID MIXER GRANULATOR Gross Cap Ltrs

Work Cap Ltrs

Main Motor 750 / 1500

Gear Box

Chopper Motor 1500 / 2880

Discharge Height

Space Required L x b x h mm

25 100 150 250 400 600 1000

20 80 120 200 320 480 600

03-May 7.5 / 15 7.5 / 15 25 / 30 30 / 40 40 / 50 63 / 85

4' 5” 5” 7” 8' 10' 12'

1.5 / 2 2/3 3/5 3/5 5 / 7.5 5 / 7.5 10/15

600 780 780 1055 1200 1200 1200

650 X 1200 X 1100 (1250) 1500 X 2200 X 1800 (2175) 1800 X 2500 X 1875 (2300) 2000 X 2800 X 1920 (2450) 2500 X 3000 X 2300 (3000) 2700 X 3200 X 2300 (3000) 2900 X 2900 X 2500 (3200)

JSK ENGITECH INDUSTRIES | INFO@JSKENGITECH.COM | WWW.JSKENGITECH.COM

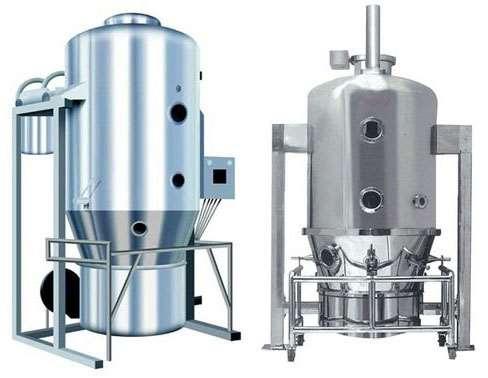

FLUID BED DRYER cGMP ✓ In compliance with cGMP guidelines ✓ Modular Design ✓ Uniform Drying with reducing Drying time ✓ Quick Dismantling of Dutch Sieve & Perforated Sheet at the Product container ✓ Online Sampling Device (optional) ✓ Fully Automatic Operation through Programmable ✓ Logic Controller (optional) ✓ Product Container with Stirrer (optional) ✓ Flameproof Construction (optional) ✓ The blower motor of higher capacity will be required in the machine if supplied with HEPA, Scrubber & ducting length above 5 meters.

JSKFBD15

JSKFBD30

JSKFBD-60

JSKFBD-120

JSKFBD-200

JSKFBD-300

JSKFBD-400

JSKFBD-500

JSKFBD-600

46

71

142

280

475

650

870

1055

1350

O to 15

20 to 30

40 to 60

80 to 120

160 to 200

200 to 300

300 to 400

400 to 500

500 to 600

Blower Motor HP**

7.5

7.5

10

20

25

30

40

50

50

Air Flow (CFM)± 10 %

430

706

1060

1880

2590

3235

3825

4000

4705

MODEL Container Gross Volume Ltr. Max. Batch Capacity (0.5 bd) kg*

Steam Pressure (kg/cm2)

3.5

Steam Consumption (kg/hr)

30

50

80

140

216

250

288

344

384

Electric Heater (kW)

18

20

36

60

N.A.

N.A.

N.A.

N.A.

N.A.

Compressed Air Pressure (bar)

8

Drying Temp (°C)

35-80

Electrical Supply**

415 V±10%, AC,3 ∅,50 Hz

JSK ENGITECH INDUSTRIES | INFO@JSKENGITECH.COM | WWW.JSKENGITECH.COM

MULTI MILL MODEL Output Rotor assembly dia Rotor speed Beaters Screen dimensions Motor Starter Material charging height Overall Dimensions (mm) Net Weight Gross weight

JSK-MM200 50 Kgs To 200 Kgs/hour 250 mm (approx.)

750 / 1500 / 2300 / 3000 r.p.m.

12 knife & impact edges & 2 scrapper blades Inner diameter-260 mm, ht-135 mm TEFC, 3 h.p., 1440 .p.m., 440 v., 50 cs, 3 hp, a.c. supply 'Dol' with reversible switch 1445 mm (Approx) 870 x 965 x 1630 mm Ht. 275 Kgs. (approx) 425 kgs. (approx)

COMMINUTING MILL MODEL

JSK-M - 16

JSK-MM - 32

Output Speed

50 to 800 kg (Depends on product, speed and sieve size)

Up to 2000 kg (Depends on product, speed and sieve size)

Blades

Fixed / swinging type with knife and input edge

Blade

16 Nos.

32 Nos.

Rotor Speed

1000 / 2200 / 4400 RPM

1000 / 2200 / 4400 RPM

Screen Area

495 mm X 135 mm

495 mm X 270 mm

Electric Motor

7.5 HP / 5.5 kW/3 ph A.C

15 HP / 11 kW/ 3 ph / AC

JSK ENGITECH INDUSTRIES | INFO@JSKENGITECH.COM | WWW.JSKENGITECH.COM

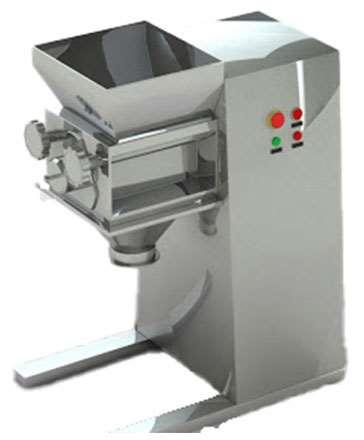

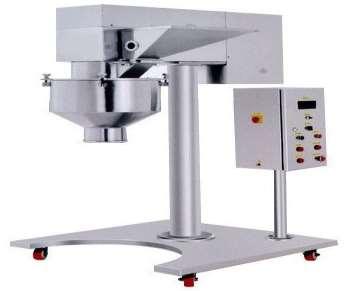

OSCILLATING GRANULATOR MODEL

JSKOG-250

JSKOG-500

Output Oscillating Speed Motor Power

Up to 250 Kg / Hour 180 per minute 2 hp 1.5 Kw/3 ph/415 V/50 Hz

Up to 500 Kg / Hour 180 per minute 2 hp X 2 Nos. 3 Kw/3 ph/415 V/50 Hz

✓ ✓ ✓ ✓ ✓ ✓

Design is cGMP - Current Good Manufacturing Practices compliance All Product contact parts AISI 316 & non-contact parts AISI 304.

Uniformly granulation & fewer fines of wet material and dry materials.

Rotor move oscillating motion with 180 stroke per minute.

Easy to operate; move, clean, convenient An Inline granulation & user friendly.

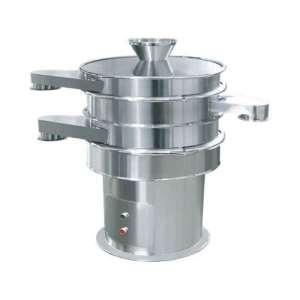

VIBRO SIFTER Model

12"

20"

30"

36"

48"

SCREENS

SS 316/304

SS 316/304

SS 316/304

SS 316/304

SS 316/304

SCREEN DIA.

335 mm

520 mm

750 mm

950 mm

1220 mm

CAPACITY/HOUR* CHARGING HEIGHT DISCHARGE HEIGHT

20 to 70 Kgs

20 to 140 Kgs

30 to 250 Kgs

80 to 300 Kgs

200 to 400 Kgs

1080 mm

1200 mm

1200 mm

1200 mm

1050 mm

625 mm

750 mm

750 mm

750 mm

500 mm

0.25 HP Vibratory Motor 70 Kgs

0.25 HP Vibratory Motor 150 Kgs 1120 mm x 1120 mm

0.5 HP Vibratory Motor 170 Kgs 1360 mm x 1360 mm

0.5 HP Vibratory Motor 200 Kgs 1550 mm x 1550 mm

1.5 HP Vibratory Motor 225 Kgs 1950 mm x 1950 mm

ELECTRIC MOTOR NET WEIGHT* MACHINE DIMENSION

750 mm x 750 mm

JSK ENGITECH INDUSTRIES | INFO@JSKENGITECH.COM | WWW.JSKENGITECH.COM

COATING MACHINE Size

18"

30"

36"

42"

48"

60"

72"

Loading Capacity in Kg.

25

45

80

100

150

210

350

Main Electric Motor

0.5

1

1

2

2

5

7.5

Blower Ph. 0.5

0.5/ 2800 RPM/3 Ph.

0.5 / 2800 RPM / 3 Ph.

0.5 / 2800 RPM / 3 Ph.

0.5 / 2800 RPM / 3 Ph.

0.5 / 2800 RPM / 3 Ph.

0.5 / 2800 RPM / 3 Ph.

0.5 / 2800 RPM / 3 Ph.

Heater Capacity in Kw.

3

6

6

6

6

10

10

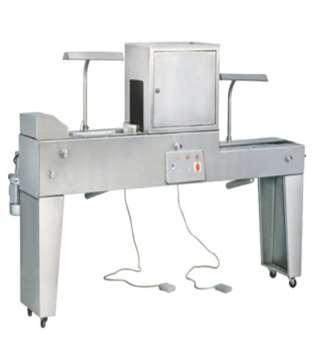

TABLET INSPECTION MACHINE Model

JSKTI - 18

Motor Gear Box Inspection Belt Tube Light Dimension of the Machine Conveyor Speed All Contact Parts Inspection

¼ HP, 220Volts, 1 Phase, 50 Hz YESH 40:1 Nylon Endless 2 Nos. -1/2 Feet Length.

L6.5'x W1.2'x H4.6' 0.25Mts./Sec. (Speed Can be Varied) Stainless Steel 316 Quality Both side of the tablet can be inspected.

JSK ENGITECH INDUSTRIES | INFO@JSKENGITECH.COM | WWW.JSKENGITECH.COM

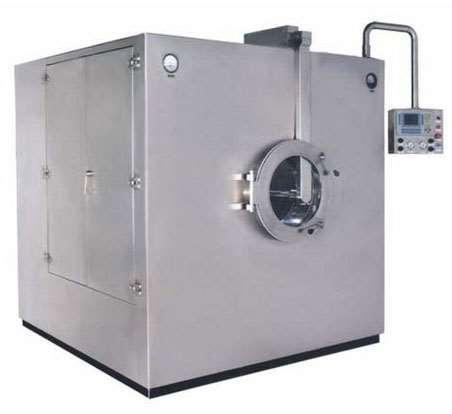

Auto Coater Machine ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

Automated process Conforms to cGMP Flexible batch operations Product protective handling to prevent clipping of tablets Complete separation of production and technical area Extremely user-friendly software and operation through PLC Excellent mixing and tumbling by a unique design of baffles Made up entirely of S.S. 316 Advanced CIP system Treatment of exhaust for pollution-free operation AVAILABLE CAPACITIES: 12 “, 15″, 18″, 24″, 36″, 48”, 60 “, 66″, 72″, and 96″ dia.

MODEL

JSK-ACM 24”

JSK-ACM 36”

JSK-ACM 48”

JSK-ACM 60”

Approximate working capacities

10 Kgs

75 Kgs

150 Kgs

350 Kgs

Pan Diameter

610 mm

915 mm

1220 mm

1575 mm

Drive Motor (Flame proof)

1 HP

2 HP

3 HP

7.5 HP

Exhaust Fan Capacity

350 cfm at 150 mm KW

1350 cfm at 200 mm KW

2750 cfm at 200 mm KW

6000 cfm at 200 mm KW

Hot Air Fan Capacity

300 cfm

1200 cfm

2550 cfm

5500 cfm

Hot Air Fan Motor (Flame proof)

1 HP

3HP

5HP

10 HP

Steam Consumption (Steam pressure 3 to 5 Kg / cm²)

25 Kgs / hr or 9 KW

50 Kgs / hr or 36 KW

100 Kgs / hr

200 Kgs / hr

Compressed Air requirement at 7 Kgs / cm² pressure

15 cfm (25 NM³ / hr)

30 cfm (51 NM³ / hr)

40 cfm (68 NM³ / hr)

50 cfm (85 NM³ / hr)

JSK ENGITECH INDUSTRIES | INFO@JSKENGITECH.COM | WWW.JSKENGITECH.COM

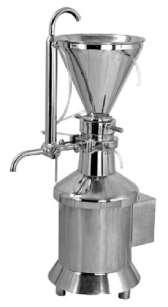

COLLOID MILL MODEL

JSKCM - 250

JSKCM -500

JSKCM - 1000

Output - Litre / Hour

150 to 1500

150 to 2500

250 to 5000

Drive type Option

Vertical OR Horizontal

Vertical OR Horizontal

Vertical OR Horizontal

Rotor Speed- RPM

2800

2800

2800

Hopper Capacity- Litre

15

15

25

Rubber Silicon

Rubber Silicon

Mechanical

Partial Size Reduction- Micron

5 to 10

5 to 10

5 to 10

Electric Motor HP/ KW

3 / 2.25

5 / 3.75

10/7.5

Seal Type

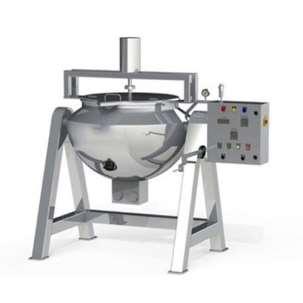

STARCH PASTE KETTLE

Model

Gross Cap. in Ltrs.

Motor HP

Overall Dimensions in mm

Approx. Wt. in Kgs

JSK-SP-50

50

1

900L x 1000W x 1250Ht.

150

JSK-SP-100

100

2

1250L x 1200W x 1650Ht.

210

JSK-SP-150

150

3

1800L x 1400W x 1850Ht.

315

JSK-SP-200

200

5

1900L x 1500W x 1850Ht.

385

JSK-SP-250

250

5

2000L x 1650W x 2050Ht.

450

JSK-SP-350

350

7.5

2250L x 1800W x 2350Ht.

580

JSK-SP-500

500

10

2400L x 1950W x 2550Ht.

750

JSK ENGITECH INDUSTRIES | INFO@JSKENGITECH.COM | WWW.JSKENGITECH.COM

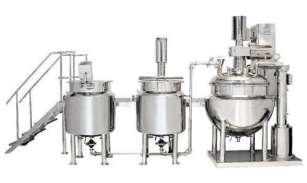

LIQUID SECTION LIQUID MANUFACTURING PLANT CAPACITIES AVAILABLE: 250 litres to 25000 litres Liquid Syrup Manufacturing Plant THE LIQUID SYRUP PLANT FACILITY CONSISTS OF: ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

Sugar Syrup Vessel Online sugar syrup prefilter Manufacturing Vessel Storage Vessel Vacuum system for transfer of sugar syrup Filter press / Inline Homogeniser Product piping Control panels

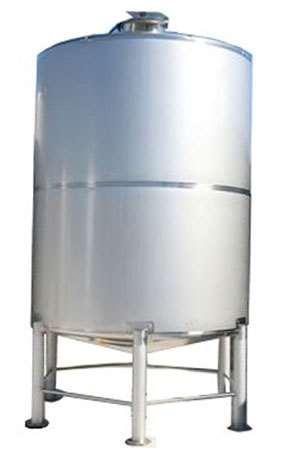

LIQUID STORAGE TANK Characteristics of the Equipment’s ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

Capacity up to 500 to 50,000 Liter.

Product Contact AISI 316L. Vertical & Horizontal design Atmospheric, Vacuum or Pressure Operation.

Plain, Jacket for heating & cooling.

Option for Heating by steam, hot water or thermic fluid oil & Electric heater Thermal Insulated.

Mechanicals or Electro polishing of internal surface.

Welded, flanged or hinged type cover Integrated Cleaning in Place-CIP.

Sterilizing In Place-SIP as an Option.

JSK ENGITECH INDUSTRIES | mounting INFO@JSKENGITECH.COM Option for on legs or flange. | WWW.JSKENGITECH.COM

OINTMENT/COSMETIC/CREAM SECTION ✓ All contact parts are SS 316 L, and non-contact parts are SS 304. ✓ ointment Manufacturing vessels have an opening arrangement of top dish hydraulically operated. ✓ We use silicone food grade gaskets. ✓ We make the top-mounted mixer with SS 316 L anchor with a mirror polish, and PTFE arranged baffles/scrapper. ✓ The high-speed homogenizer at the bottom arrangement with a mechanical seal. ✓ High sanitary standard Design & Manufacturing. ✓ All material transfers are done by vacuum or by transfer pumps. ✓ The entire plant is equipped with CIP & SIP connections. ✓ The jacket has heating & cooling with a temperature controller. ✓ VFD for Anchor agitators to vary the RPM as per Recipe and required process. ✓ The vacuum system helps transfer product from one vessel to another vessel and zero retention in a pre-phase vessel & interconnecting pipeline. ✓ Vessel design as per ASME guidelines. ✓ AVAILABLE CAPACITIES: 5 ltrs to 10,000 ltrs.

JSK ENGITECH INDUSTRIES Office D – 21, Adishwar Gold, Nikol-Kathwada Cross Road, SP Ring Road, Ahmedabad-382350, Gujarat, India Mfg Unit

211, Plot No.123-123/A Pushpam estate, Nika Tube Cross Rd, Compound, Phase I, Vatva GIDC, Ahmedabad, Gujarat 382440

Sales & Marketing +91 99250 13098 Technical Support +91 99048 13098 Email info@jskengitech.com Website www.jskengitech.com

JSK ENGITECH INDUSTRIES | INFO@JSKENGITECH.COM | WWW.JSKENGITECH.COM
