[ background ]

MATT FAJKUS ARCHITECTURE | DESIGN ASSOCIATE 2022.01__2024.03 Austin, TX

20152020

• • •

Experienced in designing, documenting, and overseeing a variety of residential and commercial projects, with a focus on both new constructions and renovations/additions, accross different scales and scopes.

Engaged in all phases of production in the design process from initial concept developement, permitting, consultant coordination, and the creation of construction documents Took initiative in introducing new workflows and continually developed and improved existing workflows to enhance effiency and productivity.

Successfully integrated new tools into the office to streamline processes and optimize project management and developement.

2020

• • • •

Collaborated and managed several residential projects, ranging in scale and scope from addition/renovations to new construction.

Participated in all phases of the design process from pre-design to construction documentation.

Prepared and presented comprehensive client presentations Performed code analysis for life safety, ADA accessibility, and all applicable laws and codes for permit reviews Coordinated project documents with MEP and other project consultants.

3SIX0 | Architectural Intern 2020.01__2020.03, Providence, RI • • •

Produced 2D/3D models and renderings, facilitating the visualization of design concepts Contributed to the generation of design iterations for a high profile interactive 3D logo sculpture competition for Nvidia Headquarters.

Organized presentations for client projects.

HUGH JEFFERSON RANDOLPH | Architectural Intern 2019.06__2019.08, Austin, TX • •

Worked directly with principle architect, assisting with schematic design, design development, and construction documents for various private residence projects.

Conducted on-site measurements and prepared renderings for presentations to clients.

IN LOCO DESIGN/BUILD | Design + Construction Intern 2018.07__2018.08, Maseru, Lesotho • •

201_468_1568 joycevkim@gmail.com https://joycekim.work

Collaborated closely with non-profit organization In-Loco and principal architect for Argot ou la Maison Mobile Spearheaded design and construction efforts for new dormitories, facilities, and external play areas at the God’s Love Center (GLC) orphanage

Rhode Island School of Design Bachelor of Architecture (NAAB) | May 2020 Bachelor of Fine Arts, Architecture | 2019 Nature, Culture, & Sustainable Studies Minor

[ exhibitions + shows]

[ courses ]

20232022

2019

2018

Harvard Business School: CORe

2017

2021

RISD CE (Continuing Education) Rome: Mapping and Narratives 4-week intensive course exploring 2D and 3D mapping and historical narratives of the Eternal City of Rome.

2020

[ skills+capabilities ] software + tech Macintosh + PC, Revit, Rhino, CAD, SketchUp Adobe Suite (Photoshop, Illustrator, Indesign, Lightroom) Vray, Enscape, ArcGIS, Bluebeam, Acrobat, Microsoft Suite (Word, Powerpoint, Excel), Miro other skills

2019

2018

Specialized in the construction and manipulation processes of wood, metal, plaster, and acrylic forms.

Comfortable working with wood-shop, 3D printing, and laser cutting tools for model making at any scale.

Deadline Pop-up Exhibition Austin, TX Contributed to the “Deadline” art pop-up exibition, a dynmic showcase of contemporary artworks exploring themes of time. Featured a sculpture work title, NUBE. Collaborated with fellow artists and event organizers to ensure seamless setup, promotion, and execution of pop-up event.

•

Sprezzatura Exhibition Palazzo Cenci in Rome, Italy Displayed master-plan project of Reconnecting Tiber River to Rome completed during independent residency.

2017

Time. Space. Place.

Woods-Gerry Gallery in Providence, RI Displayed collection of sketchbooks and drawings completed during studies in Rome.

2016

Experimental Studies Triennial Woods-Gerry Gallery in Providence, RI Selected to present collection of paintings, drawings, and 3D works completed during experimental foundations courses.

Adept drafting, sketching, and rendering.

Working in groups on a building research/analysis project, followed by a comprehensive building systems design project.

Created complete drawing sets, models, and analysis.

Skills: Revit, Rhino, SketchUp, Safeira 2018

Designing Resiliency for the Urban Landscape •

•

Worked closely with the City of Providence’s Sustainability Office, community activists, artists and scientists in contributing important new visions and strategic scenarios to the city’s proposed planning for increasingly frequents storms and coastal sea level rise.

Travel to Copenhagen and Malmö to learn first-hand about multiple innovative resiliency strategies in the extended Skåne/Øresund Region of Scandinavia.

Skills: Master planning, Sustainability 20182017

Architecture(-ish) Bayard Ewing Gallery in Providence, RI Curated and designed layout for group exhibition, displayed select sculptures, furniture, books, models, and drawings from 2015-2020.

LARGE FORMAT: Architecture Triennial Woods-Gerry Gallery in Providence RI Selected to present a collection of physical skyscraper and tower models.

Integrated Building Systems •

Selection Commitee (2023) Participated in a commitee of local leaders in the Art and Design community to review 100+ installation submissions and select eight to participate in the annual Creek Show Austin.

RISD European Honors Program Fall 2018, Honors GPA above 3.75 5-month long independent study/residency in Rome, Italy.

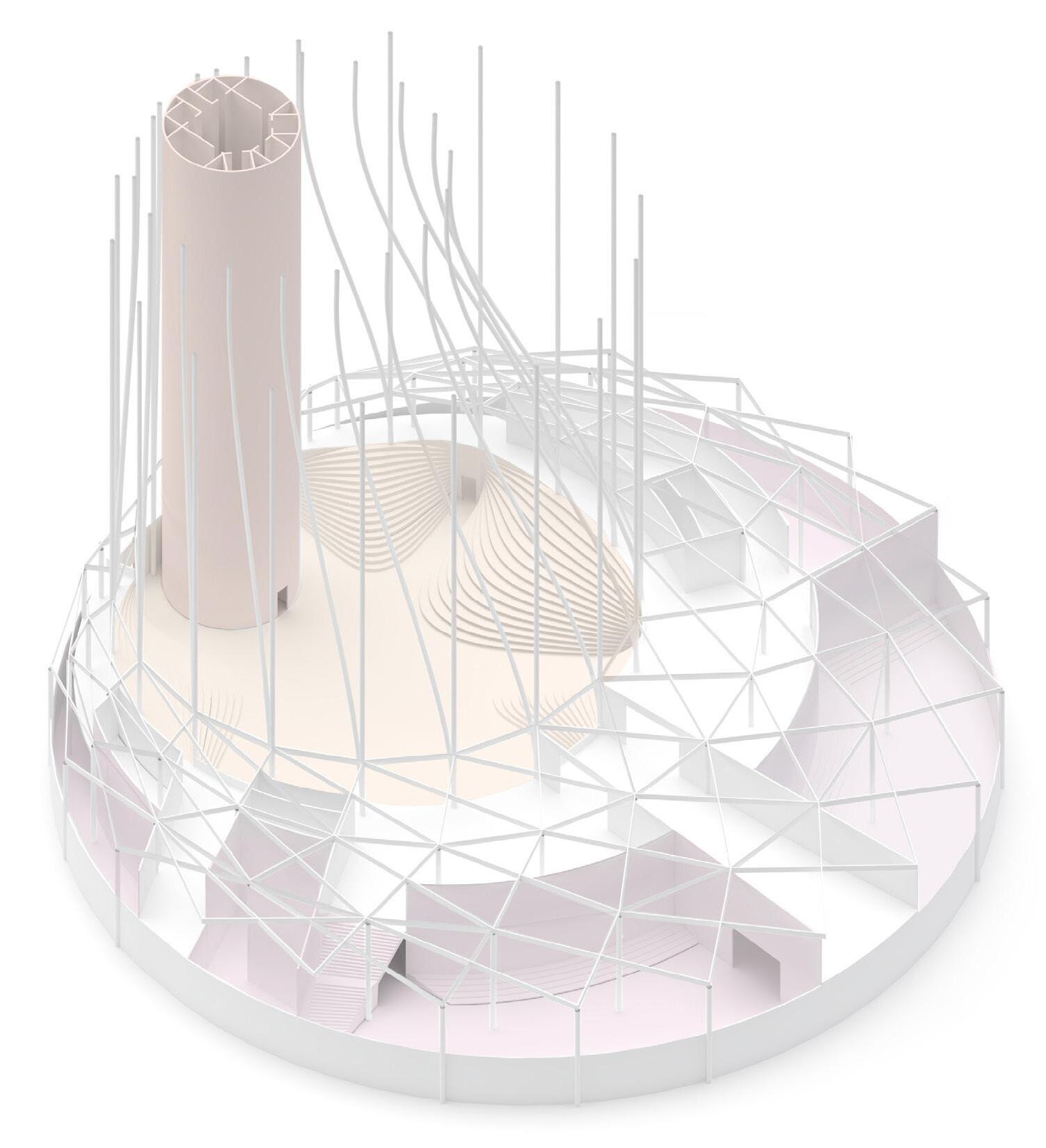

Waterloo Greenway Creek Show Austin, TX Co-Design Lead (2022) Managed a design team with NOMA (National Organization of Minority Architects), spanning Austin and San Antonio, to create and construct an immersive light-based art sculpture. This project, featured in a multi-night display, celebrating Waterloo Greenway’s mission; enriching connections between nature, art, and culture.

CORe (Credential of Readiness) is a 150-hour certificate program on the fundamentals of business from Harvard Business School.

CORe is comprised of three courses— Business Analytics, Economics for Managers, and Financial Accounting

STEVE ZAGORSKI ARCHITECT | DESIGNER 2020.12__2021.12, Austin, TX •

6401 Rialto Blvd, Apt 1535 Austin, TX 78735

Feed green tea 2x daily for best results.

[ experience ]

•

[ contact ]

With a love for investigating the boundaries between disciplines, searching for possibilities, and seeking to create experiences that confuse and connect our expectations of architecture and design. Joyce is interested in exploring the interconnected phenomena of contemporary life and its lived experience within our environments.

Environmental Design I & II • • •

Utilize digital and hands-on analysis techniques to test, evaluate, and enhance the environmental performance of design project.

Examined the principles and applications of natural light, electric lighting, and acoustics in architectural design.

Optimized environmental interactions: climate, energy, thermal comfort, and water cycle.

Skills: Rhino, Grasshopper, DIVA, Photosphere

20182016

Structural Analysis: Concrete, Wood, Steel Analysis of elementary structures by mathematical and graphical methods. Understanding strain and the strength of and the mechanics of simple structural elements.

Skills: Rhino, Grasshopper, DIVA, Photosphere

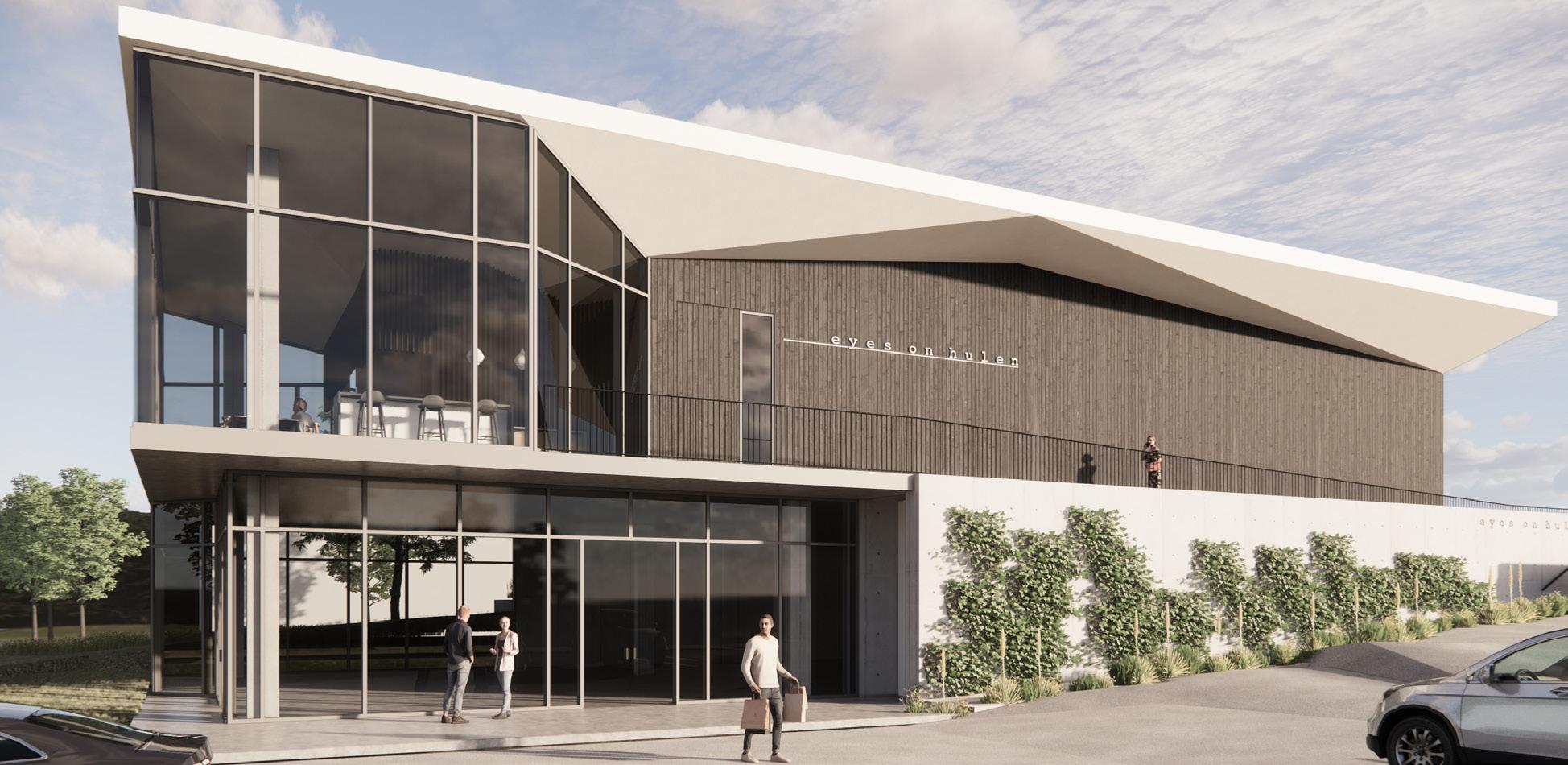

Eyes Fort Worth

Background + Design Intent

Eyewear + Optometry Clinic

Built on a sloped lot, the optical practice and frame shop is placed along Hulen Street. The structure

20212023

Matt Fajkus Architecture Professional Work

negotiates the topography by merging traditional and

Team:

Tony Marco, Alyson Beaton

viewed from the street, the design proposes a classic

Info:

Commerical, 7,203 sqft

Role:

Project Designer, Interiors, Revit/BIM, Rendering

Involvement:

PD SD DD VE CD

contemporary styles requested by the client. When

style that reflects the neighboring homes.

This is a new construction project comprised of two single story buildings connected by an open breezeway and steel trellis structure. The south portion of the project includes a ground-up building shell with interior finish out for an Optometry Office.

All images are original, unless otherwise credited.

3

Eyes FW

Schematic Design In the schematic phase of this project, the design integrates both lease space and an optical eyewear/ optometry clinic within the same building. The lease space is thoughtfully tucked underneath, while the optical clinic is nested above, establishing a harmonious vertical relationship. Playful, articulated ceilings invert and reflect the silhouette of traditional gable-roofed homes, creating a dynamic interior that fosters a connection with the existing residential neighborhood.

Design Developement/ VE During the design development phase, significant changes were made to the project. We proposed separating the lease space and optical/clinic programs into distinct buildings. The massing of the clinic and optometry buildings was simplified, yet they retained their aesthetic coherence with the neighborhood through the use of asymmetrical gabled roofs. This design decision preserved the architectural language and harmony with the surrounding residential fabric, ensuring that the new structures would blend seamlessly into the existing community while providing modern, efficient spaces for their intended uses.

VE Continued In the VE, the design was refined to enhance both functionality and cost-effectiveness. The project adopted a simple gable roof, featuring bold punctures that allow natural light to flood the interior and create visually striking moments, framing views into the building like eyes. To unify the separate structures, a trellised walkway was introduced, stitching the buildings together and providing a cohesive pathway for movement.

4

Eyes FW

Materiality and Interior Design Collaborator: Alyson Beaton The clients envisioned their front of house space, optical, as a signature space that creates a warm and spa-like experience. The wood-tones, easy wayfinding, and variety of comfortable seating convey an atmosphere that is more consistant with a spa than an optometry office. The patient experience take precedence throughout as the entry flows to the optical and clinic and exam spaces. A balance of privacy, serenity, and functionality are achieved through the inclusion and definitions of wood elements. The wood interior defines the buildings various programmatic elements of display, reception, pre-test areas, and offices.

The exterior of the building is an efficient framework for the interior. Limited direct sunlight and an abundance of natural daylighting provide varying degrees of privacy. Only a small amount of direct sunlight enters the treatment areas, while the optical/eyewear area is soaked in natural light.

Want to see more?

5

Eyes FW

su

b

co n

tr a

ct

or

s

Construction Site

(2A) - VERSATILE CONFIGURATIONS

ana

ger

s

(1A) - WALL/DECK/CANOPY COMPONENTS

p ro

je c

tm

+

Rest

r in

t

en

+

t

Work Space

en

Meeting

gin

ee

rs

s

e up

d en

SUPERSTRUCTURE

Collaboration

(1B) - CONTROLLED MODULAR ENVIRONMENT

(2B) - PERFORMATIVE FORM THROUGH ADJACENCIES

INDOOR WORKSPACE

n ow

Entry

er s

h a rc

i te

c ts

Flex

Private

Service

Welcome

Site Entry (3) COMPACT COMPOSITION

BartlettCocke Growth Hub Modular Jobsite Structure

2023

Matt Fajkus Architecture Design Proposal/Competition

Collaborator: Shelby Taubenkimmel

Background + Design Intent Reimagining the jobsite trailer, the Growth Hub is a landmark hub of information, people, resources, and collaboration on the jobsite. The Hub’s collection of diverse spaces are created by extendable structure that modulate the surrounding environment to provide enhanced techinal and experiental performance.

(4+) ADAPTABILITY THROUGH GROWTH

All images are original, unless otherwise credited.

6

BCBG Growth Hub

GROWTH HUB | EXPERIENCE + PERFORMANCE

7

PERFORMATIVE CANOPY

MOVABLE WALLS

FLEXIBLE WORKSPACES

COLLABORATIVE ENVIRONMENT

SUSTAINABLE SYSTEMS

PLANTERS

SOLAR COLLECTION

ADAPTABILITY

DIVERSITY

GATHERING

REUSE/RECYCLE WATER COLLECTION NET ZERO FOCUS

BIOPHILIC ENRICHMENT

COVERED DECK

TRANSPORTATION

OPTIMIZED DAYLIGHTING

NATURAL MATERIALS

MULTIPLE USER GROUPS

OUTDOOR GATHERING

QUICK MOBILIZATION

WELLNESS

COMFORT + CALMNESS

CONNECTION

BCBG Growth Hub

Sitopia Designing Resiliency for the Urban Landscape

2018

Rhode Island School of Design

Critics Anne Tate & Nadine Gerdts All images are original, unless otherwise credited.

Background + Design Intent

Design Methods + Progress

Deriving from the Greek word sitos (food) and topos (place), Sitopia emphasizes the dynamic relationship between food and place; changing our relationship with food and providing access to a healthier lifestyle in the area of Field’s Point in Providence, Rhode Island.

The process begins with a thorough analysis of city data to understand the average income levels of the surrounding neighborhoods and to map out the existing markets and grocery stores. This analysis revealed limited access to healthy food resources. Consequently, the project’s focus is to convert the harmful industrial site into a thriving area centered around food, agriculture, and recreation. Additionally, travel to Copenhagen, Denmark, and Malmo, Sweden, to observe and learn about various sustainable and environmental infrastructures enriched the research, providing valuable insights and innovative ideas for designing a resilient masterplan. This transformation aims to harness these elements to foster community engagement, promote sustainability, and enhance the overall quality of life for residents.

Field’s Point, historically a prime area for commerce and industry along the Providence waterfront, is now a brownfield site requiring revitalization. This redevelopment project seeks to transform it into a safe, vibrant community space that supports economic, community, environmental, and public health goals.

Food has the power to shape our cities. The modern food networks we have are damaging the balance of human existence. We need to recognize the central role that food plays in our lives and harness its potential to shap the world in a better way.

8

Sitopia

Income & Affordability Food/Dining

Markets/Stores

Dunkin Donuts Little Candy Store Subway La Roca Restaurant El Mogote Quisqueya Liquors Taco Bell Olympic Pizza New China Cafeteria La Rueda McDonald’s J P Spoonem’s Al Mall’s Pizza Nonna Scopa Wai Wai House Vivaldi’s Pizza Edgewood Cafe The Cupcakery

Savers Mart Family Dollar Broad Market Nunez Frutis Dollar General Edgewood Market New Stop Meat Market Tropical Products Market Interfaith Food Ministry Inc.

Median Household Income $20,000 – $30,000 $30,000 – $40,000 $40,000 – $50,000 $50,000 – $60,000 $60,000 – $70,000 $70,000 – Above

9

Sitopia

Strategic Maps

Polluted Soil Salt Pile

Cars Cars

rF

l ow

Fields

Se

s

a

el v e L

Ris e

du

st

ry

Agriculture

Majo

in Re p l a c

gH

ar m

f

I ul

n

Recreation

10

Sitopia

Program

What are the basic needs for a family of four per year?

Food production to ensure a year round yield:

Home Area: 120m2

Seasonal Garden Area: 40m2

Aquaponics Area: 300m2 Seasonal Garden

+ +

Area: 100m2

Area: 25m2

Farming is the single most powerful driver of deforestation and loss of biodiversity.

70% of global water consumption is used for farming, causing rivers, and lakes to dry up.

Using aquaponic farming systems, we can decrease land use by 98%

...freeing up space for biodiversity and permaculture.

Solar Cells Area: 34m2

At the same time decreasing our water consumption by 90%

Water Storage Area: 20m2

= 11

Aquaponics

Livestock

+ +

Heated Greenhouse

Greenhouse

+ +

Greenhouse

...and eliminating transportation by enabling farm-to-table.

Total area: 639m2 Sitopia

Program Layout Precedents: Streetmekka Viborg Regen Village Climate Ready Boston Union Kitchen DC Ostermalm Saluhall

12

Sitopia

Master Plan

13

Views The southern end of the volume is faced in the direction of the bay, framing the view and respecting the undisturbed views of JWU housing.

Massing

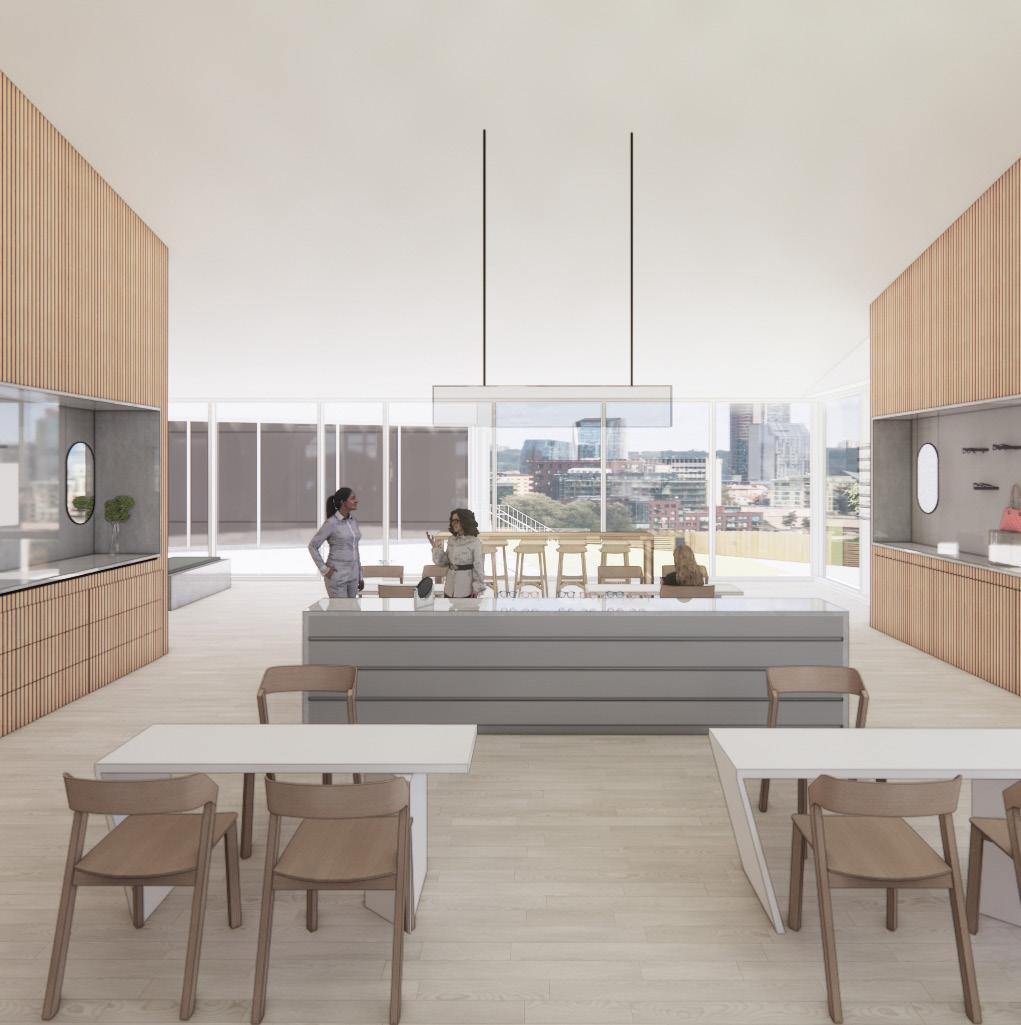

Food Hall +Market Plan

Program is arranged with social spaces facing towards the bay, while eating and buying take place closer to the streets.

14

Sitopia

Distant Tower Recontextualizing Underrepresented Histories 2019

Rhode Island School of Design

Critic

Ajay Manthripragada

All images are original, unless otherwise credited.

QUITUB MINAR

CHULLPA FUNERAL TOWER

DELHI, INDIA, 1192

cURAHUARA DE cARANGAS, BoLIVIA, 1000-1400

STUDENT: joycE kIm

STUDENT: joycE kIm

Background + Design Intent In “Radical Thought,” Vittoria Di Palma argues for the value in studying the faraway in time and place to defamiliarize our preconceptions of architectural precedent. This project is primarily concerned with the under-explored design potentials of these under-represented histories, especially as they bear on questions of the tall building in an “alien” setting such as New York City today.

QUITUB MINAR QUITUB MINAR

CHULLPA FUNERAL CHULLPA FUNERAL TOWER TOWER

PoLoNNARUWA, SRI LANkA, 12TH cENTURy

DELHI, INDIA, DELHI, 1192 INDIA, 1192

cURAHUARA DEcURAHUARA cARANGAS,DE BoLIVIA, cARANGAS, 1000-1400 BoLIVIA, 1000-1400

STUDENT: joycE kIm

STUDENT: joycE STUDENT: kIm joycE kIm

STUDENT: joycE STUDENT: kIm joycE kIm

SATHMAHAL PRASADA

15

Distant Tower

Part ONE: Design Reseach

Design inspiration rises in extra-canonical examples from geographic locations that are historically undervalued in design studio pedagogy. Within the framework, the project proposes new modes of office distribution as related to the precedent’s formal and organizational traits. Through studying the design potential of ancient tall structures from the global south, such as the Qutb Minar in India and the Sathmahal Prasada in Sri Lanka, the relationship between an “alternate canon” and the specificities of the site unfolds in the design of hybrid office and gallery tower among the Manhanttan east skyline, along the FDR Driveway.

A new architectural form is created for the skyscaper proposal. This design manifest primarily through an intricate beam structure, forming a skeletal framework that defines the building’s unique stepped massing.

16

Distant Tower

Observation Deck

Office / Gallery

Office

Gallery / Welcome Office

Part TWO: Design Located on East 42nd Street and 1st Avenue, Manhattan, NY. The form of the skyscraper is informed by the geometrical and spatial fragments from each ancient tower study to form the overall hybrid office tower proposal. A series of actions are taken to combine the elements from the Yahkchāl structures of Iran and the Qutb Minar in Delhi, India into one hybrid proposal.

The skeletal framework of the design and intricate beam system serves a dual purpose: it supports the office program below while also embodying the geometric and cultural essence derived from traditional architectures.

By translating these elements into a modern structural form, the design harmoniously blends cultural heritage with innovative engineerings, resulting in a visually compelling skyscaper.

Office / Gallery

17

Gallery

Distant Tower

1) Disolving Grid Strategy

2) Skeletal Framework + Stepped Structure

Core

Atrium

Gallery

18

Distant Tower

19

Lynndale L COURTYARD Residence Expanding Home and Family 20222024

Matt Fajkus Architecture Professional Work

Team:

Andrea Alvarez

Info:

Addition/Renovation, 3,769 sqft

Role:

Project Designer, Interiors, Revit/BIM, Rendering

Involvement:

SD DD VE CD CA

4 LYNNDALE RESIDENCE Concept Design - July 1, 2021

Background + Design Intent The Lynndale Residence is a renovation and expansion in the heart of Austin, TX. With a respect for its existing 2,816sqft disposition, this project marries the existing steel-clad cube structure with a fresh 953 sqft volume, forging two distinct architectural identities.

The renovation preserve the essence of the original building while infusing it with a newfound warmth, tailored to cater to the diverse needs of its occupants. Here, spaces for entertainment, focus, and relaxation seamlessly coalesce, creating an atmosphere ideal for a blossoming family.

All images are original, unless otherwise credited.

20

Lynndale Residence

05 porch

04 living

03 office

1'-0" 5'-0"

12'-0"

3'-8" 0'-0" 0'-8"

17'-5"

33'-0"

3'-6"

7'-5"

02 bar SETBACK REF SKYLIGHT

12'-5"

03

SKYLIGHT

FIRE

4'-6"

GAS GRILL

OFFICE 9'-6" X 6' 665.23'

STOR

LAWN

04

GREAT ROOM 16' X 16'-8"

FRONT GARDEN

7'-6"

05

COVERED PORCH 17'-9" x 12'

SHELVING

WC

663.6'

EXISTING COVERED PORCH 24' X 10'

OUTDOOR LIVING 16' X 12'

16'-7"

665'

GRAVEL 663.6' HOT TUB

POOL 10' X 22'-6"

EXISTING SLIDING DOOR

664'

NEW SIDING TO MATCH ADDITIONS

CONCRETE PATIO

HEARTH BENCH FIRE

CASED OPENING

6' X 6' 665.23'

2'-6"

663'

664'

664'

4'-0"

4'-11"

REF

BAR 02

EXISTING DINING & KITCHEN 665.23'

01 entry mudroom

7'-11"

CASED OPENING

FILL EXISTING STAIR

ENTRY / MUDROOM 7'-6" X 11'

01

665.23' BENCH BENCH

4'-5" 21'-0"

GARAGE 20' X 20'

33'-8"

EXISTING PORCH

FILL EXISTING STAIR

COAT CABINETS

12'-0"

19'-10"

664'

SETBACK

SETBACK

EV CHARGING

SETBACK

3'-0"

N

0'-0"

21'-4"

FLOOR PLAN - LEVEL 1

SCALE: 1/8” - 1’-0”

12 LYNNDALE RESIDENCE Concept Design - July 1, 2021

21

Lynndale Residence

C

7' - 0 5/8"

1

101

A4.00 4 CNC-1

3

1 1/2"

2' - 1"

4' - 6 7/8"

SFC

3' - 0"

3' - 0"

MW-1

MW-1

FLOOR PLAN LEGEND D

101A

2

CORE WALL CUT CORE WALL CUT WITH SOUND INSULATION

FLOOR FINISH LEGEND

6

SMOOTH FINISHED CONCRETE FLOOR

ENLARGED PLAN, MUDROOM 1/2" = 1'-0"

4

PROJECT TITLE

5

3' - 5 1/4"

1' - 10 3/4"

104A

2' - 11 1/4"

7' - 0 1/8"

8' - 4 3/4"

1' - 4"

1' - 11 1/4"

A-2

2' - 6 3/4"

2' - 5"

W L. F HE

KUS AJ

4' - 6"

MATT

3' - 3 3/4"

A

STEP

www.mfarchitecture.com

GENERAL PLUMBING NOTES: 1. ALL PLUMBING WORK SHALL CONFORM TO LOCAL AND COUNTY HEALTH DEPARTMENT REQUIREMENTS. 2. FIELD VERIFY FINAL LOCATIONS OF ROUGH-IN WITH ARCHITECT PRIOR TO INSTALLATION. 3. REFERENCE PLUMBING FIXTURE SCHEDULE FOR COMPLETE INFORMATION.

1 1/2"

5

900 EAST 6TH STREET SUITE 100 AUSTIN, TX 78702 TEL: 512.432.5137

5 0 0 4 LY N N D A LE D R , A U S T IN T X

2

mf LYNNDALE RESIDENCE

101A

GENERAL PLAN NOTES: 1. ALL DIMENSIONS ARE FROM FACE OF FRAMING UNLESS NOTED OTHERWISE. 2. ALL FIXTURE DIMENSIONS ARE TO CENTERLINE OF FIXTURE UNLESS NOTED OTHERWISE. 3. ALL FLOOR ELEVATIONS ARE TOP OF FINISH FLOOR UNLESS NOTED OTHERWISE. 4. ALL OPENINGS THROUGH FLOOR SLABS AND WALLS SHALL BE SEALED OFF WITH APPROVED SEALANT SYSTEM. 5. MECHANICAL EQUIPMENT IS SHOWN FOR COORDINATION PURPOSES ONLY. REFER TO MECH DWGS FOR DESIGN AND SPECIFICATIONS. 6. ALL WINDOW OPENINGS TO BE PREPPED TO RECEIVE WINDOW TREATMENTS, HARDWARE, AND SUPPORT.

MATT FAJKUS ARCHITECT

3' - 0"

PRIOR TO THE COMMENCEMENT OF THE WORK AND NOTIFY THE ARCHITECT OF ANY DISCREPANCIES. 3. CONTRACTOR TO NOTIFY THE ARCHITECT IN WRITING IN THE EVENT OF A DISCREPANCY BETWEEN THE DRAWINGS AND THE FIELD CONDITIONS. IF IN THE COURSE OF CONSTRUCTION, A STRUCTURAL ISSUE EXISTS WHICH DISAGREES WITH THAT AS INDICATED ON THE DRAWINGS, THE CONTRACTOR SHALL STOP WORK AND NOTIFY THE ARCHITECT. SHOULD THE CONTRACTOR FAIL TO FOLLOW THIS PROCEDURE, THE CONTRACTOR SHALL ASSUME ALL RESPONSIBILITY AND LIABILITY ARISING THERE FROM. 4. ANY DAMAGE TO EXISTING AND OR NEW WORK IN PLACE BY THE CONTRACTOR’S OR SUBCONTRACTOR’S NEGLIGENCE SHALL BE REPAIRED AT NO ADDITIONAL COST TO THE OWNER. 5. ALL NOTES ARE APPLICABLE TO ALL TRADES AND RESPECTIVE CONTRACTORS. ALL NOTES TO BE REVIEWED AND APPLIED TO RELATED BUILDING COMPONENTS. ALL SHEETS ARE TO BE REVIEWED AND ALL APPLICABLE NOTES TO BE APPLIED. 6. UNREFERENCED WINDOWS AND DOORS TO REMAIN.

20652

1' - 4"

MW-3

11/09/2022

3

CNC-1

2' - 7 7/8"

MW-3

A4.02 2

1' - 11 3/4"

SEAL

1' - 0 1/2" 3' - 3 1/4"

2' - 8 7/8"

1 4

5' - 3 3/4"

These plans, drawings and specifications are the property of Matt Fajkus Architecture and any use and/or reuse thereof in part or in whole without the written permission of the Architect is prohibited.

MW-4

MW-4

1' - 2"

M-2

2' - 1 5/8"

1' - 7 1/4"

1' - 11 1/4"

MW-3

STEP

1 1/2"

CNC-1

1' - 4"

1' - 4"

5 8

A4.00 6

7

B 102A

1 22

Description

Revision 1

CONCEALED COVE LIGHTING

Here, a curated blend of functionality and form converges, WP

3' - 0" 3' - 11 1/4"

3' - 4 3/8"

3' - 6"

3' - 2 1/8"

08/22/2022

B

REF

SS-1

L-1

1' - 10 1/2"

REVISIONS Date

crafted to serve as the epicenter of activity.

M-2

A-2

SHEET PRINT DATE: 11/09/2022

At the core of the design lies a central nucleus, meticulously

M-2

ENLARGED PLAN, BAR/OFFICE 1/2" = 1'-0"

4 1/8" 1 1/2"

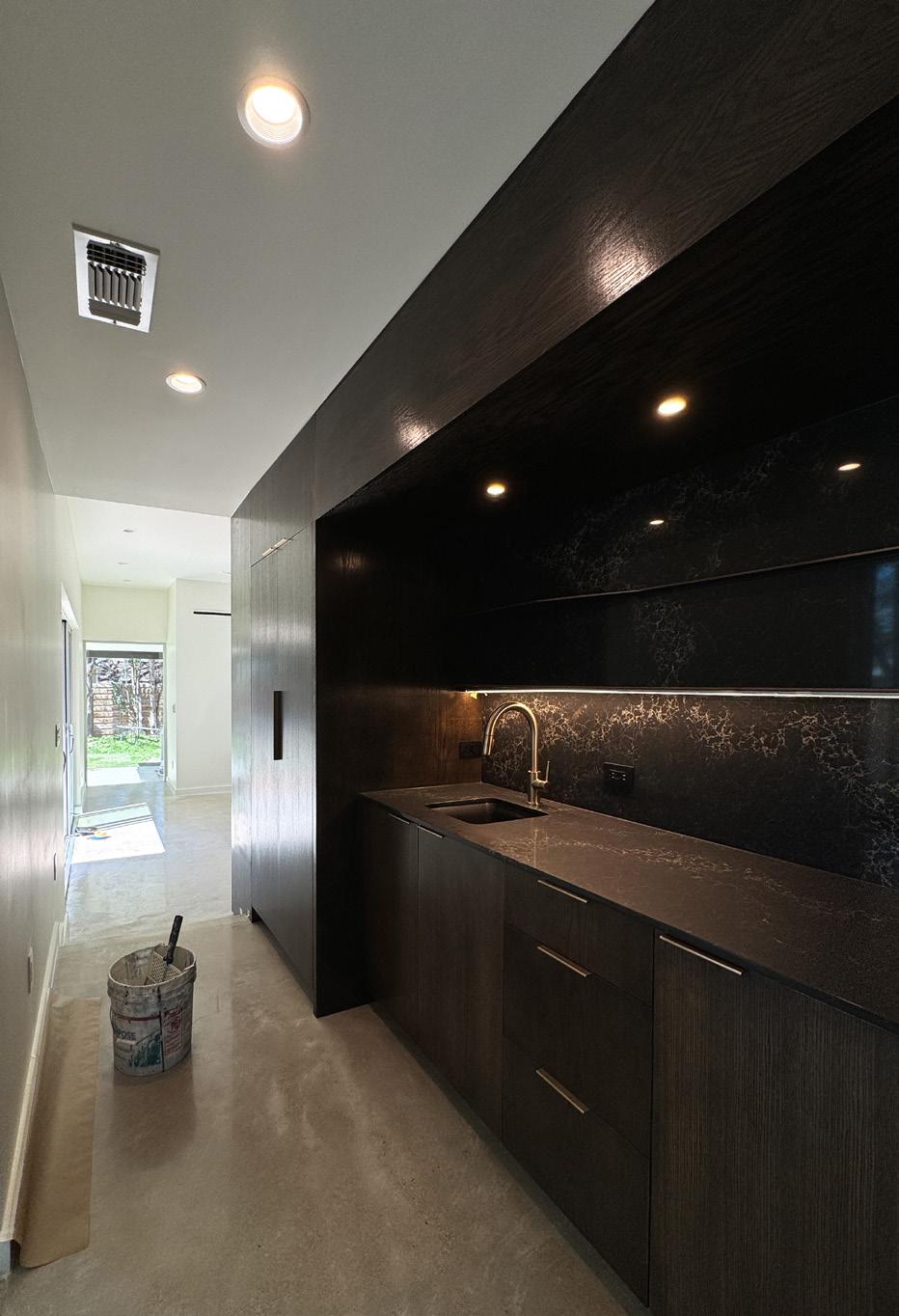

housing a bespoke bar, an entertainment media center destined to house the couple’s burgeoning record

PROJECT NUMBER:

collection, and a discreet yet invigorating private office

CURRENT PHASE:

21130 CD

enclave, designed to inspire focus and productivity.

SHEET INFORMATION

2' - 0 7/8"

2' - 7 3/8"

Copyright © 2022 Matt Fajkus Architecture

DRAWING TITLE:

PLAN, FLOOR ENLARGED

A1.40

mfarchitecture

Lynndale Residence

1' - 8 1/2"

_________________

CONCRETE SITE WALL

5

1 A3.01

2' - 8"

9' - 0"

1' - 6"

A3.01

www.mfarchitecture.com

CD

LVL 1 - T.O. FOUNDATION 100' - 0"

PLYWD SHEATHING

DRAWING TITLE:

ELEVATIONS, EXTERIOR

A2.01

mfarchitecture MATT

F-1

CONCRETE SITE WALL

10' - 4 3/8"

7' - 9"

EXISTING WOOD FENCE

LIVING 103

103B

REF

102

FIREPLACE

STEEL EDGE PLANTER

9 1/2"

LVL T.O SLAB 98' - 4" 1 A5.10

PROJECT TITLE

EARTHCORE 36" STANDARD UNIT

2' - 4"

9 1/2"

L-1 BAR 102

SIM 5 A5.00

_________________

_________________

ROOF DETAIL, SECTION - SKYLIGHT

A

1 1/2" = 1'-0" 2 A3.01

_________________

SECTION - BAR

3 A3.01

1 A3.01

_________________

1 A3.02

_________________

1' - 8 1/2" 1' - 6"

SEAL

21130

_________________

AL FL

MATT

PROTECTION BOARD PARAPET CAP

CURRENT PHASE:

CD

DRAWING TITLE:

SECTIONS, BUILDING

A3.00

GENERAL NOTES: 1. DO NOT SCALE DRAWINGS. EXPLICIT DIMENSION SHALL HAVE PRECEDENCE OVER SCALE. THESE DOCUMENTS HAVE BEEN FORMATTED TO BE PRINTED ON 24” X 36” SHEET SIZES, DRAWINGS PRINTED AT OTHER SIZES ARE NOT NECESSARILY TO SCALE. 2. GENERAL CONTRACTOR SHALL FIELD VERIFY ALL DIMENSIONS AND ALL OTHER EXISTING CONDITIONS PRIOR TO THE COMMENCEMENT OF THE WORK AND NOTIFY THE ARCHITECT OF ANY DISCREPANCIES. 3. CONTRACTOR TO NOTIFY THE ARCHITECT IN WRITING IN THE EVENT OF A DISCREPANCY BETWEEN THE DRAWINGS AND THE FIELD CONDITIONS. IF IN THE COURSE OF CONSTRUCTION, A STRUCTURAL ISSUE EXISTS WHICH DISAGREES WITH THAT AS INDICATED ON THE DRAWINGS, THE CONTRACTOR SHALL STOP WORK AND NOTIFY THE ARCHITECT. SHOULD THE CONTRACTOR FAIL TO FOLLOW THIS PROCEDURE, THE CONTRACTOR SHALL ASSUME ALL RESPONSIBILITY AND LIABILITY ARISING THERE FROM. 4. ANY DAMAGE TO EXISTING AND OR NEW WORK IN PLACE BY THE CONTRACTOR’S OR SUBCONTRACTOR’S NEGLIGENCE SHALL BE REPAIRED AT NO ADDITIONAL COST TO THE OWNER. 5. ALL NOTES ARE APPLICABLE TO ALL TRADES AND RESPECTIVE CONTRACTORS. ALL NOTES TO BE REVIEWED AND APPLIED TO RELATED BUILDING COMPONENTS. ALL SHEETS ARE TO BE REVIEWED AND ALL APPLICABLE NOTES TO BE APPLIED. 6. UNREFERENCED WINDOWS AND DOORS TO REMAIN.

mfarchitecture

W L. F HE

KUS AJ

EXISTING MTL PANEL

Description

Revision 1

PROJECT NUMBER:

LVL 1 - T.O. FOUNDATION 100' - 0" LVL T.O SLAB LOWER 99' - 1"

FIXED SKYLIGHT REF WINDOW SCHED

1/4" = 1'-0"

08/22/2022

LVL 1 - T.O PLATE 109' - 6"

SHEET INFORMATION

F F

REVISIONS Date

LVL 2 - T.O. SUBFLOOR 111' - 0"

9' - 6"

1/8" / 1'-0"

SHEET PRINT DATE: 11/09/2022

11"

1' - 6 5/8" 1' - 1 7/8"

1 A5.31

_________________

T.O. PLATE CANOPY 106' - 10"

6' - 9 1/2"

2' - 8"

4 A5.10

_________________

Copyright © 2022 Matt Fajkus Architecture

EXISTING 2 STORY RESIDENCE TO REMAIN

TPO ROOF

These plans, drawings and specifications are the property of Matt Fajkus Architecture and any use and/or reuse thereof in part or in whole without the written permission of the Architect is prohibited.

20652

ROOF TPO

EXISTING STRUCTURE TO REMAIN

REF. FINISH SCHED

PLYWD SHEATHING

WD BLOCKING AS REQ'D

WRB

TAPERED INSULTATION PLYWD SHEATHING REF. STRUCT

ROOF TPO

SEAL

11/09/2022

LVL 2 - T.O. SUBFLOOR 111' - 0"

JOINT AT DRIP PER MNFT

7/8" STUCCO

FLASHING W DRIP EDGE

These plans, drawings and specifications are the property of Matt Fajkus Architecture and any use and/or reuse thereof in part or in whole without the written permission of the Architect is prohibited.

PROTECTION BOARD TAPERED INSULATION

Copyright © 2022 Matt Fajkus Architecture

PLYWD SHEATHING

SHEET PRINT DATE: 11/26/2019

2X6 ROOF RAFTER REF STRUCT

REVISIONS Date

1/4" STL PLATE

1

MATT FAJKUS ARCHITECTURE, LLC

3 A5.31

_________________

20652

11/09/2022

5 0 0 4 LY N N D A LE D R , A U S T IN T X

2 A5.31

_________________

PTD STEEL PROFILE REF STRUCTURAL

W L. F HE

LVL 2 - T.O PLATE 120' - 0"

9' - 0"

LVL 1 - T.O PLATE 109' - 6"

EXISTING LVL BEAM

ROOF - T.O PARAPET 686' - 11 67/256"

22' - 7 1/2"

2X FRAMING REF. STRUCT

HVAC SPACE

7' - 9"

5004 LY NND A LE

21130

REF FINISH SCHED

2

LYNN

PROJECT NUMBER:

1/4" = 1'-0"

ADDITION LVL 1 - T.O.PLATE 109' - 6"

Revision 1

CURRENT PHASE:

LVL T.O SLAB LOWER 99' - 1"

6

1 A3.02

_________________

LVL 2 - T.O. SUBFLOOR 111' - 0" LVL 1 - T.O PLATE 109' - 6" ADDITION LVL 1 - T.O.PLATE 109' - 6"

9' - 6"

2 A5.00

_________________

Description

08/22/2022

T.O. PLATE CANOPY 106' - 10"

LVL T.O SLAB 98' - 4"

98' - 0 1/2"

664.00 HPT1

_________________

SEAL

1' - 8 1/2" 2' - 0 1/2"

98' - 3 1/2"

T.O. PLATE CANOPY 106' - 10"

23' - 5 1/4" 1' - 0 1/2" BUILDING HEIGHT 7' - 9" FROM A.A.G EXISITNG

32' - 0"

BUILDING TENT HEIGHT 6' - 1 1/2" 7 1/2"

3' - 0"

STEEL EDGE PLANTER

SHEET PRINT DATE: 11/09/2022

REVISIONS Date

5 0 0 4 LY N N D A LE D R , A U S T IN T X

4

3

LVL 2 -A3.01 T.O. SUBFLOOR 111' - 0"

PTD STEEL COLUMN

CONCRETE STEPS 98' - 10"

These plans, drawings and specifications are the property of Matt Fajkus Architecture and any use and/or reuse thereof in part or in whole without the written permission of the Architect is prohibited.

LYNNDALE RESIDENCE

2 A3.01

_________________

PTD STEEL PROFILE REF STRUCTURAL

SHEET PROJECT INFORMATION TITLE

3

11/09/2022

ADDITION LVL 1 - T.O.PLATE 109' - 6"

TPO ROOF

11"

5' - 3"

2

LVL 2 - T.O PLATE 120' - 0"

_________________

A3.01

2X FRAMING REF. STRUCT

Printed: 11/9/2022 5:11:25 PM

_________________

_________________

F

BATHROOM 106

LVL T.O SLAB 98' - 4"

1

SOUTH ELEVATION

mf 3' - 1 1/4"

9"

3' - 0"

GATE

7' - 0"

_________________

ROOF - T.O PARAPET 686' - 11 67/256"

Copyright © 2022 Matt Fajkus Architecture

1/8" / 1'-0"

663.74 HPT2

REF FINISH SCHED

3

www.mfarchitecture.com

20652

HVAC SPACE

LYNNDALE RESIDENCE

ATION

_________________

663.40 HPT3

1

900 EAST 6TH STREET SUITE 100 AUSTIN, TX 78702 W L. F TEL: 512.432.5137 HE

KUS AJ

Printed: 11/9/2022 5:11:25 PM

ING UCT

FENCE HEIGHT FROM LOW POINT

SFC

C

MIN 4" L

1/4" = 1'-0"

MINIMUN

9' - 6" 13' - 3 3/4"

ADDITION HEIGHT FROM A.A.G

D

SKYLIGHT SIZE REF SCHEDULE

1/4" / 1'-0"

_________________

1/8" / 1'-0"

SECTION- LIVING ROOM/OFFICE

TPO ROOF

GENERAL NOTES: MINIMUN MT-1 1. DO NOT SCALE DRAWINGS. EXPLICIT DIMENSION SHALL HAVE PRECEDENCE OVER SCALE. THESE DOCUMENTS HAVE BEEN FORMATTED TO BE PRINTED ON 24” X 36” SHEET SIZES, DRAWINGS PRINTED AT OTHER SIZES ARE NOT NECESSARILY TO SCALE. 2. GENERAL CONTRACTOR SHALL FIELD VERIFY ALL DIMENSIONS AND ALL OTHER EXISTING CONDITIONS PRIOR TO THE COMMENCEMENT OF THE WORK AND NOTIFY THE ARCHITECT OF ANY DISCREPANCIES. OFFICE 3. CONTRACTOR TO NOTIFY THE ARCHITECT IN WRITING IN THE EVENT OF A DISCREPANCY BETWEEN LIVING THE 104 DRAWINGS AND THE FIELD CONDITIONS. IF IN THE COURSE OF CONSTRUCTION, A STRUCTURAL103 ISSUE 103 EXISTS WHICH DISAGREES WITH1THAT AS INDICATED ON THE DRAWINGS, THE CONTRACTOR SHALL A5.10 STOP WORK AND NOTIFY THE ARCHITECT. SHOULD THE CONTRACTOR FAIL 100' - TO 0" FOLLOW THIS WW-1 FIREPLACE 99' - ARISING 6 1/2" PROCEDURE, THE CONTRACTOR SHALL ASSUME ALL RESPONSIBILITY AND LIABILITY THERE 99' - 1" EARTHCORE 36" FROM. STANDARD UNIT 4. ANY DAMAGE TO EXISTING AND OR NEW WORK IN PLACE BY THE CONTRACTOR’S OR WW-1 SUBCONTRACTOR’S NEGLIGENCE SHALL BE REPAIRED AT NO ADDITIONAL COST TO THE OWNER. STU 5. ALL NOTES ARE APPLICABLE TO ALL TRADES DAND RESPECTIVE CONTRACTORS. ALL NOTES TO BE 102A 101A REVIEWED AND APPLIED TO RELATED BUILDING COMPONENTS. ALL SHEETS ARE TO BE REVIEWED AND 3 ALL APPLICABLE NOTES TO BE APPLIED. A5.40 900 EAST 6TH STREET 6. UNREFERENCED WINDOWS AND DOORS TO REMAIN. 103 SUITE 100 STU AUSTIN, TX 78702 1 1 3 TEL: 512.432.5137 2 A3.02 A3.01

4 F

4 A5.30

_________________

103A

1/4" / 1'-0"

10' - 0"

1 PROPOSED NEW COVERED PORCH

3 A5.30

104B

MIN

7' - 7 7/8"

9' - 0" 21' - 8 1/2"

NEW FIREPLACE FLUE

LVL 1 - T.O. FOUNDATION 100' - 0" LVL T.O SLAB LOWER 99' - 1" EXISTING WOOD FENCE

ION

mf

_________________

1 A5.30

_________________

6" MTL GUTTER

PTD STEEL COLUMN REF STRUCTURAL

EQ'D

2. GENERAL CONTRACTOR SHALL FIELD VERIFY ALL DIMENSIONS AND ALL OTHER EXISTING CONDITIONS PRIOR TO THE COMMENCEMENT OF THE WORK AND NOTIFY THE ARCHITECT OF ANY DISCREPANCIES. 3. CONTRACTOR TO NOTIFY THE ARCHITECT IN WRITING IN THE EVENT OF A DISCREPANCY BETWEEN THE DRAWINGS AND THE FIELD CONDITIONS. IF IN THE COURSE OF CONSTRUCTION, A STRUCTURAL ISSUE EXISTS WHICH DISAGREES WITH THAT AS INDICATED ON THE DRAWINGS, THE CONTRACTOR SHALL STOP WORK AND NOTIFY THE ARCHITECT. SHOULD THE CONTRACTOR FAIL TO FOLLOW THIS PROCEDURE, THE CONTRACTOR SHALL ASSUME ALL RESPONSIBILITY AND LIABILITY ARISING THERE FROM. 4. ANY DAMAGE TO EXISTING AND OR NEW WORK IN PLACE BY THE CONTRACTOR’S OR SUBCONTRACTOR’S NEGLIGENCE SHALL BE REPAIRED AT NO ADDITIONAL COST TO THE OWNER. 5. ALL NOTES ARE APPLICABLE TO ALL TRADES AND RESPECTIVE CONTRACTORS. ALL NOTES TO BE REVIEWED AND APPLIED TO RELATED BUILDING COMPONENTS. ALL SHEETS ARE TO BE REVIEWED AND ALL APPLICABLE NOTES TO BE APPLIED. 6. UNREFERENCED WINDOWS AND DOORS TO REMAIN.

TENT PORTION 1

EXISTING RAINCHAIN TO BE REPLACED BY NEW

STEEL BEAM REF STRUCTURAL

1

1

EXISTING PTD METAL SCUPPER

PTD MTL FASCIA TO MATCH COLUMNS

ARD

2

BUILDING ELEVATION AND SECTION NOTES: 1. HATCH PATTERNS ARE REPRESENTATIONAL ONLY LOCATING MATERIALS AND MATERIAL SYSTEMS. THEY DO NOT INDICATE EXACT PANEL SIZES OR CONFIGURATIONS. COORDINATE COA2.BUILDING LINE LOCATION OF WINDOW ANCHORS, SEALANT POSITION AND CONTINUITY AND COMPATIBILITY OF SEALANTS WITH ADJACENT WORK INCLUDING MATERIALS AND OTHER CONTIGUOUS SEALANTS.

1' - 6"

LVL 1 - T.O PLATE 109' - 6"

WRB

3

2 A3.01

_________________

KUS AJ

LVL 2 - T.O. SUBFLOOR 111' - 0"

TPO

3 A3.01

_________________

TENT PORTION 2

LVL 2 - T.O PLATE 120' - 0"

L FL

4

1/4" = 1'-0"

TENT PORTION 3 ROOF - T.O PARAPET 686' - 11 67/256"

GHT HED

1 A3.01

_________________

MATT

WEST ELEVATION

5 EXISTING COLUMN TO BE REFINISHED

MATT FAJKUS ARCHITECTURE, LLC

2

1 A3.02

_________________

EXISTING SLIDERS

MATT FAJKUSPROJECT ARCHITECTU TITL

6

mf 900 EAST 6TH STREET SUITE 100 AUSTIN, TX 78702 TEL: 512.432.5137 www.mfarchitecture.com

Description

2X FRAMING REF. STRUCT LVL 1 - T.O PLATE 109' - 6"

T.O. PLATE CANOPY 106' - 10"

SPRAY-IN INSULATION

PLYWD SHEATHING

21130

SIMPSON JOIST HANGER REF STRUCT.

CURRENT PHASE:

MILLWORK REF FINISH SCHED SPRAY-IN INSULATION FURRING STRIP

5

ROOF DETAIL, SECTION - SKYLIGHT SHAFT

23

1 1/2" = 1'-0"

1

HSS BEAM REF. STRUCT HSS COLUMN REF. STRUCT

DRAWING TITLE:

DETAILS, ROOF SKYLIGHTS ROOF DETAIL, SECTION - CANOPY FASCIA 1 1/2" = 1'-0"

A5.30

4

2 mfarchitecture EXISTING MTL PANEL WRB

Lynndale Residence JECT TITLE

REF FINISH SCHED

SHEET INFORMATION

CD

SIMPSON RAFTER TO BEAM CONNECTION REF. STRUCT

NNDALE RESIDENCE

PROJECT NUMBER:

LY N N D A LE D R , A U S T IN T X

GYP SOFFIT LVL BEAM REF STRUCT.

s k r o W r e h t O

24

Rainscapes

2019

Rhode Island School of Design

Critic:

Christine Park

Visualizing Data, Bookbinding

All images are original, unless otherwise credited.

25

Rainscapes

Floods are no stranger to Rome. Throughout my 3 month residency, I was able to witness the unexpected cloudbursts and hailstorms.

Rainscapes (2019), is a handmade artist book detailing the rainfall data collected during my experience living in the Eternal City.

Historically, Rome is linked to great floods due to its geographic location.

Sitting in a flood plain, the city is surrounded by seven hills, which create low lying valleys that are quick to contain water. With its Mediterranean climate, the city experiences the heaviest of rain during the fall season. November experiencing the most rainfall.

26

27

Rainnscapes

NUBE Impossibility of Reality 28

2018

Rhode Island School of Design

Critics Christian Berman All images are original, unless otherwise credited.

We feel uncomfortable by the things that

Nube

are beyond our control. We like things that are concrete, things we can grasp and point to and be able to know what it is. We feel frustrated by the things that we can not hold on to or change. As an architecture student, I began to realize just how much

Winter 2018 Critic: Christian Berman

power and control architects have over the lives of people and things. In my piece I wanted to explore this need of wanting to controlling/containing nature and the impossibility of containing an object such as a cloud, which by nature is ephemeral and elusive to touch. The containment is an illusion, where the viewer is presented with three clouds perfectly captured and permanently encased in a moment which in nature would be fleeting.

29

Nube

Joyce Kim joycevkim@gmail.com +1.201.468.1568
