JOST Fifth Wheel JSK52 Flyer

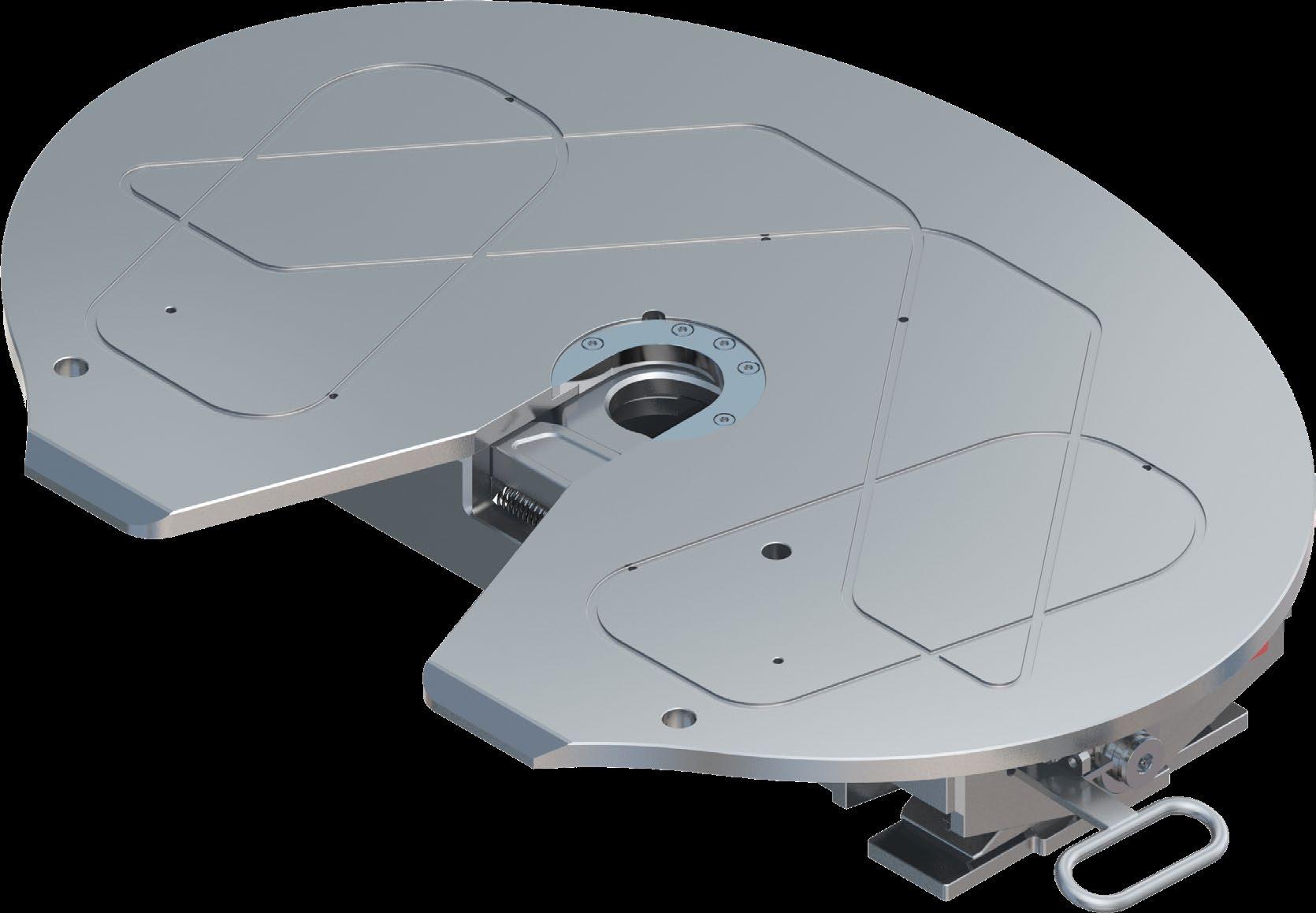

JOST 3.5’’ Fifth Wheel

JSK 52

» Highest rated ADR 62/02 compliant fifth wheel

» Designed for extreme applications, such as mining and side tippers

» Pivot bearing for ease of oscillation

» Weldable pedestals for mounting

» JOST E-Coating for state of the art corrosion protection

» Weight 450kgs, height 196mm

» Replaceable wear ring and adjustable locking mechanism

Technical Data

Type JSK 52

King Pin 3.5” / 90mm

Imposed Load 75t

D-Value 400kN

CRN 46422
