THE FRENCH ORANGE

LANDSCAPE DESIGN SEMESTER VII

St. Francis De Sales Cathedral in Nagpur is a city landmark and religious hub. It’s Landscape Design required to accomodate the large congregation of devotees while also maintaining a sense of serene sanctity.

Location: St. Francis De Sales Cathedral, Nagpur

Site Type: Religious

Site Area: 5400 sqm (approx)

Project Brief: To design the Landscape for a site of a given typology (Religious type).

The site would be designed analysing the current site condition and context, while providing for the main activities of the site and an appropriate concept.

ST. FRANCES DE SALES CATHEDRAL

The Church Complex is found in the heart of the Kamptee Region adjacent to a loud and bustling commercial market area with restaurants, bars, shops, etc. This removes the feeling of peace and tranuility needed for a church compound.

EXISTING FEATURES

SPIRITUALITY

A BIBLICAL JOURNEY

Gate of Heaven

The point at which we go from the chaotic world (Kamptee Road) to the peaceful afterlife (SFS Complex).

ENTRYWAY

Four Gospels

Central theology of Christianity is given in the four Gospels: Matthew, Mark, Luke and John, which form the central spine of the complex.

COMMUNITY ZONE

Garden of Eden

A utopian concept of paradise with a variety of fruits, flowers, plants and animals.

PRAYER ZONE

Neutral color palette with light textures to not impose on main church building.

Only lawns, vegetation with no height to enhance openness of space.

Restricted path movement to church with direct circulation paths

Line of shrubs and short, small vegetation that do not block Church view but can be used to direct movement.

Large Grand Entry that responds to the axis and symmetry of the building

Organic growth of small scaled, dense vegetation with large number of leaf textures, tree forms and flowering types.

Winding path circulation with access to church ending with quiet gathering spot.types.

SITE PLAN

INDEX

1. PRIESTS GARDEN

2. FOUR WHEELER PARKING

3. TWO WHEELER PARKING

4. WEST PLAZA

5. COMMUNITY GARDEN

6. FRONT PLAZA

7. CHRIST THE KING FOUNTAIN

8. GROTTO

9. EDEN GARDEN

10. STATUE DISPLAY

11. OUTOOR ALTAR

12. CENTRAL COURT

13. MAIN ENTRY

14. SECURITY CABIN

15. ENTRY PLAZA

16. GROTTO

17. CATHOLIC INSTITUTE

113

Attached

52

42

21

Used

PLANTING PLAN

CA N N A LILY

The Lily represents the Church, spirituality and purity while the bright orange color of the flowers (summer and early Autum) are reminiscent of The Orange City.

Canna Lily can be used as a recurring thematic plant throughout the site.

AND GRASSES

4 nos Azadirachta Indica EXISTING

17 nos Juniperus @ 3m c/c

5 nos Azadirachta Indica EXISTING

3 nos Millingtonia Hortensis @ 3m c/c Community Graden contains Vegetable and Fruit Plants and Herbs

Encourages community to grow edible plants that can produce food for the poor.

KEY PLAN

Part 2

MR. BANKS GOES TO COLLEGE

INTERIOR DESIGN SEMESTER VIII

The campus of Visvesvaraya National Institute of Technology requires a new Corporate Bank Brancg on campus for students and faculty. The interiors would need to support the main function of the bank and fit the aesthetics of professionalism and liveliness.

Location: VNIT, Nagpur

Project Type: Corporate Bank

Space Area: 275 sqm (approx)

Project Brief: To design the interiors for Oscar Chartered Bank, a corporate bank for the Visvesveraya National Institute of Technology, Nagpur.

Oscar Chartered Bank is reuqired to set up a branch in Visvesvaraya National Institute of Technology, Nagpur for students and faculty only. The bank will practice limited functions regarding the opening of University Bank Accounts, handling tuition fee payments and daily cash withdrawals and transactions.

MID CENTURY MODERNISM

Mid Century Modernism was a movement widely popularized in the 50’s and 60’s as a product of Simple designs, vibrant forms and colors and maximal functionality.

VNIT Nagpur was set up in the 1960’s and so reflects design principles and elements of the Mid Century Modern aesthetic, which in its time was the basis of Office/ Corporate environment design.

Some common features are:

• Basic geometric forms

• Neutral Color Palette with Pops of Color

• Hghly functional

• Visually Stimulating but not overpowering

View from Main Lobby with natural lighting

View from Entry with artificial light

Part 3

RAJASTHANI GRANDSTAND

PUBLIC BUILDING DESIGN SEMESTER VI

The city of Jaipur required a Convention Center to house a diverse range of activities, from Private conferences to Public expos. The solution, a community space that merged functionality, with aesthetics, marbled through the city’s local culture.

UDYOG MAIDAN

Location: Jaipur, Rajasthan

Site Climate: Hot and Dry

Site Area: 5 acre (approx)

Project Brief: To design a Convention Center for the city of Jaipur as a beacon of SocioCultural events and a professional Business venue.

The building would attracts visitors, both local and foreign and serve the major aspects of a Convention Center.

COMMUNITY

Site is found in Udyog Maidan. It is a sector shaped area adjoining Statue Circle in a central commercial district of Jaipur.

PROXIMITY: The C scheme area of Jaipur houses a number of government institutions with a number of hotels, restaurants, and parks

1.

2.

3.

CORPORATION

CULTURE

4.

5.

6.

7.

8.

STATUE CIRCLE is a central commercial district and community spot of the city.

CONNECTIVITY Site is well connected by vehicular and pedestrian routes

PRIVACY is more towards the open field to the Northeast and less privacy towards the road and residences.

Statue Circle

Royal Haveli

Income Tax Department

Birla Planetarium

Central Park

Park Prime

Pallacia Apartment

Bureau of Indian Standards

1. Place main functions

2. Join major functions

3. Add architectural and design elements

The building design and elements will have direct connections to the local history and culture of Jaipur.

Maintaing functional connection throughout buildings for seamless functioning of Convention Center.

Centering on Community factor by incorporating several community elements and zones throughout design.

1. Central Axis : Courtyard uses central axis to maintain circulation order and directive movement

2. Central Courtyard : Acts as central regulating factor in clustered organization of spaces

3. Smaller Open Spaces: Acts as non functional community spots.

SUPPORTING SPACES

1. Employees: Admin offices, Reception, Caretakers Quarters, Back of House

2. Ancillary: Dressing Rooms, Green Rooms, Technicals Rooms, Lounges, Pre Function Areas

3. Services: Toilets, Store Rooms, Back of House space, Housekeeping Space, Elevators (Guest / Service)

1. ENTRY BLOCK

2. RESIDENTIAL BLOCK

3. RECREATIONAL BLOCK

4. CORPORATE BLOCK

5. ADMIN BLOCK

6. TERRACE SEATING

7. OPEN AIR THEATRE

8. STATUE FOUNTAIN

9. OUTDOOR GATHERING

PLANS

MAIN ACTIVITIES

Semi Private Block:

• Cafeteria

• Banquet Halls (2)

Private Block

• Lobby

• Lounge (with Pool)

• Restaurant (with Kitchen)

• Caretakers Quarters (2))

Public Block

• Exhibition Arena

• Gift Shop

• Lounge (2

Admin

• Reception (x2)

• Offices (4)

• Tourism Kiosk

• Cafe

GROUND LEVEL

MAIN ACTIVITIES

Semi Private Block:

• Grand Ballroom

• Meeting Rooms (2)

• Seminar Rooms (3)

Private Block

• Guest Rooms (16)

• Suites (4)

• Business Center

Public Block

• Auditorium

• Backstage (Green Room, Technical Room, Dressiing Rooms, Workshops, Storage)

• Pre Function Area

• Lounges (2)

FIRST LEVEL

MAIN ACTIVITIES

Semi Private Block:

• Conference Rooms (4)

Private Block

• Guest Rooms (16)

• Suite (4)

• Busieness Center

Public Block

• Auditorium Seating

BACK OF HOUSE

Semi Private Block:

• Waiting Area for Staff

• Waiters corridors

Private Block

• Service corridors

• Houskeeping movement

Public Block

• Backstage

SECOND LEVEL

SECTIONS

SECTION AA’

SECTION BB’

SECTIONS

SOUTH SITE SECTION

ELEVATIONS

ELEVATIONS

MAIN ROAD ELEVATION HOTEL ELEVATION

NORTH

Part 4

EAGLES IN THE MOUNTAINS

CAMPUS DESIGN SEMESTER VII

The city of Dehradun is setting up a new campus for the state’s IIM and requires an interactive campus that strives for community interaction and lively academics. Nestled in the mountains, students must be able to thrive in the campus, and fulfil all aspects fo their student life.

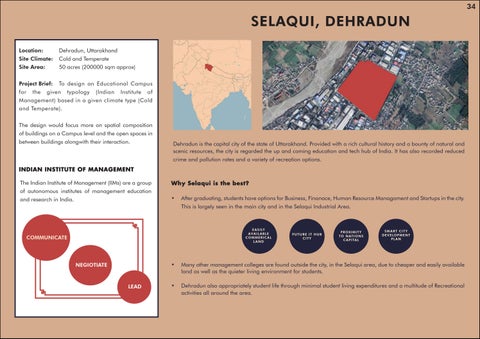

SELAQUI, DEHRADUN

Location: Dehradun, Uttarakhand

Site Climate: Cold and Temperate

Site Area: 50 acres (200000 sqm approx)

Project Brief: To design an Educational Campus for the given typology (Indian Institute of Management) based in a given climate type (Cold and Temperate).

The design would focus more on spatial composition of buildings on a Campus level and the open spaces in between buildings alongwith their interaction.

INDIAN INSTITUTE OF MANAGEMENT

The Indian Institute of Management (IIMs) are a group of autonomous institutes of management education and research in India.

Dehradun is the capital city of the state of Uttarakhand. Provided with a rich cultural history and a bounty of natural and scenic resources, the city is regarded the up and coming education and tech hub of India. It has also recorded reduced crime and pollution rates and a variety of recreation options.

Why Selaqui is the best?

• After graduating, students have options for Business, Finanace, Human Resource Managament and Startups in the city. This is largely seen in the main city and in the Selaqui Industrial Area.

• Many other management colleges are found outside the city, in the Selaqui area, due to cheaper and easily available land as well as the quieter living environment for students.

• Dehradun also appropriately student life through minimal student living expenditures and a multitude of Recreational activities all around the area.

GEDDESIAN TRIAD

The theory, given by Sir Patrick Geddes set forth the relationship between people and places.

The proposition states that the planning/ layout should create organic relations among people, place and work.

This idea can be translated for Campus Design by transforming these three elements based on University life.

IIM DEHRADUN CURRICULUM

COLLEGE INTERACTION

STUDENTSTUDENT

STUDENTTEACHER STUDENTPUBLIC

BUILDING FORM

“RIGID”

BALANCED

Formal Spaces (Admin, Incubation Center etc.) have forms with straight and rigid lines to maintain a more formal outward appearance.

The interiors though are formed by contrasting dynamic curves in paths and axes.

FIELDS OF

IIM FINAL ZONING

College campus design is based on diferent levels of interaction between students and their community.

Spaces are then designed based on these interactions.

Semi Formal Spaces (Auditorium, Library, etc.) have forms with a minimal number of curves to show a balance between forms and dynamic.

Informal Spaces (Student Activity Center, OAT, etc) have forms with more curves to highlight the relaxing nature of the space and the function.

RESIDENCE

• Open Air Theatre

• Student Activity Center

• Student Housing

• Community Garden

ACADEMIC

• Library

• Classroom Complex

• Incubation Center

• Startup Space COMMUNITY

• Auditorium

• Indoor Sports Complex

• Outdoor Sports Complex

• Canteen

The Campus is segregated based on primary function as - Academic, Community, Residence.

The central area is occupied by one building from each typology that supports a more public , larger interaction (ie. Open Air Theatre in Resdience, Library in Academic, Auditorium in Community)

SITE PLAN

INDEX

1. MAIN ENTRY

2. CAMPUS PARK

3. FOUNDERS STATUE

4. ADMINISTRATION BLOCK

5. CAMPUS LIBRARY

6. AUDITORIUM

7. CANTEEN

8. INDOOR SPORTS COMPLEX

9. HEALTH CENTER

10. OPEN AIR THEATRE

11. ACADEMIC BLOCK

12. INCUBATION CENTER

13. STUDENT ACTIVITY CENTER

14. DINING HALL

15. HOSTEL BLOCKS

16. COMMUNITY GARDEN

17. CAMPUS CHAPEL

18. FACULTY HOUSING

ENTRYWAY

Columnaded pathway on either side of entry road to visually and functionally direct towards the Admin building and the rest of the campus.

FACADE TREATMENTS

Facade treatments like Colored Glass, Large Windows, Jaalis help invite the outdoors to the interiors throuugh light, ventilation and views. This helps revitalize indoor spaces from boring, dingy ones

OPEN LAWNS

• Wide open green lawns promote outdoor learning due to pleasant view and climate.

• Trees offer shade during sunny months

STUDY SPINE

• Encourages outdoor learning in a community setting in pleasant outdoor environments.

COMMUNITY GARDEN

• Promotes gardening amongst students for fresh food, aromatics and healthy plants.

COLORED GLASS

FOUNTAINS

• Invites students to relax and socialize as a gathering and performing spot.

PERFORATED WINDOWS (JAALIS)

Part 5

COOL FOR THE SUMMER

COMPETITION

Organized by the Nagpur Municipal Corporation, the competeiton aimed to reviatlize an underutilized public space and tranform it promote community and boost the Urban landscape.

Nagpur’s markets are perennially abuzz with activity, encompassing a heterogeneous cohort of stakeholders such as peddlers, street vendors, retailers, shoppers, and tourists. These markets, having been founded informally a significant duration ago, are devoid of fundamental amenities such as public seating areas, restrooms, potable water dispensers, and areas to cool down, especially essential during the sweltering summer months. This lack of essential infrastructure can prove detrimental for the urban poor and vulnerable populace who have no option but to earn their livelihoods by working in these markets.

This was the primary motivation for an intervention.

Using

Conceptual Development:

The plan seeks to simplify the market’s intricacies while attempting to create a lively environment that maintains safety and comfort for the local community. The conceptual model includes elements that enhances the shopping experience, meet the needs of the immediate stakeholders and promote communal gathering.

Conceptual Elements

Introduction

From among the numerous markets, Sitabuildi Market has been chosen as the focal point of the proposed urban intervention.

The site is situated above the primary thoroughfare and is flanked by the Khadi Gramodyog Bhavan and Chandak Nursing Home.

Originally intended to serve as a pay and park facility with a central fountain, this site has been identified as an urban void that feels disconnected from its otherwise dynamic setting.

Presently, the designated use of the site is as a paid parking lot, but it fails to fulfill its intended purpose.

Instead, the area is predominantly utilized as an ad-hoc vending location. Consequently, the parking lot is usually unoccupied. During peak hours, the site becomes overcrowded and congested, becoming an overflow space for the vendors. Furthermore, after the operational hours, the area serves as a depot for their carts and kiosks.

In addition, with the upcoming parking facilities near Apna Bazaar and the new Glocal Mall, it is imperative to explore alternative applications for the current site. The site is a wide open space that has the potential to support more opportune social activities

The location has the potential to be rejuvenated as an urban plaza, featuring a dynamic and vibrant public space that is currently missing from the Sitabuildi CBD locality. This could encompass a compact community centre, a thermally comfortable landscaped outdoor seating area, interactive tactical installations, as well as safe restrooms and drinking water stations.

Additionally, there is an opportunity to reconsider cooling centres in multi-use spaces as a financially viable model for the municipal corporation in a suitable setting such as a market, which could be incorporated as part of the heat action plan to mitigate mortality and morbidity.

Mixed-mode access: Accessible by pedestrians and vehicules but away from main street traffic.

Blindspot: The site is located behind the existing market, with no immediate view and signage.

Macroclimate: The city of Nagpur experiences drastic heat waves, from April to July.

Microclimate: Overcrowding adds to the ambient temperature, causing overheating and fatigue.

Seating Areas

Seating provides a comfortable place for people to rest and relax, especially as people may be standing for long periods of time in the market place.

Lack of Accessibility: The site lacks properly maintained paths, universal accessibility and public facilities.

Playground and Gym Playgrounds offer a fun and safe space for children and adults to engage in physical activity alongside shopping. 42

Outdoor Stage A space which can bring people of all ages together for entertainment, recreation, and interaction.

Materials and Construction

Heat Action Plan Modular design Use

modular design for easy fabrication and replication.

of

Bamboo framed structure for the shading canopy (along with dry mist).

BAMBOO MAT WALL PANELS TERRACOTTA SCREENS

Allows for light and airflow through the building while being self shading.

M Scale of intervention

neglected infrastructure as a framework for the regeneration of inner city voids

Objective

SITABUILDI MARKET

Using neglected infrastructure as a framework for the regeneration of the inner city voids

The plaza was designed along a central winding path directing users through several points of community interaction and visual focus. It also maintains the use of cool blue shades throughout the landscape, to cognitively strengthen the centers main function of cooling. The space is divided into a series of public sectors with diverse functions: shaded seating area, cooling/ community centre, performance space, playground and gym, all of which catering to different age groups. Tactical Urbanism approach was kept in mind for the planning of the site.

Tactical Urbanism is premised on using low-cost and scalable interventions as a way to catalyse long-term change to improve the built environment in a city. This approach is being employed on site inorder to inspire action and expedite project implementation. It can also broaden public engagement and give more insight on the topic of heatwaves and climate change that we are trying to address in the proposal, at the same time create interactive and safe public spaces.

1. Entry to the plaza

2. Entry pathway with arches

3.Bicycle stand

4. Seating area (with and without shade)

5. Entry to Public toilets

6. Retail fronts and water dispenser

7. Entry to Cooling/ Community centre

8. Playground and gym

9. Outdoor Stage

Planting

Plan of the Cooling/ Community Center:

SITABUILDI MARKET

Using neglected infrastructure as a framework for the regeneration of the inner city voids

Working Schedule:

Cooling Center:

Time schedule : 8:30am- 5:00pm (During the months of March to May)

Availability of paramedic : 23rd May to 2nd June (Heat Wave Period)

Capacity: 40

No: of Employees: 2

Facilities provided during this period:

Community Center:

Time schedule : 8:30am- 10:00pm (During other months)

Misting Station:

Time schedule : 8 am - 7 pm (During the months of March to June)

Section of the Cooling Wall

Views of the proposal:

View from the entrance of the plaza

View towards the outdoor stage and playground

Cross Section A-A’ Long Section B-B’

Views of the proposal:

SITABUILDI MARKET

Using neglected infrastructure as a framework for the regeneration of the inner city voids

Specification and Estimation

Impact Assessment:

The center would offer resources to preserve the health and wellbeing of visitors, especially in response to Nagpur’s harsh summers ( from March to May).

• The Cooling Center would offer multiple amenities to withstand these summer months, including Water Coolers, Misting Platforms and Shaded seating.

• In case of dire circumstance, proper recovery areas and immediate paramedic access would help the affected.

Promoting Community interaction

Safeguarding health and well being 1 2 3 4

The center would boost community based activities amongst the visiting public, through leisure gatherings, cultural events, and informative meets.

• The Open Air Stage would be an open platform for informal performances and recreation, while the various seating would encourage socialization amongst visitors.

• The Cooling Center itself would be transformed into a community center (during off months), with its multi use spaces that would hold workshops, conferences and performances.

Supporting Market stakeholders

The center would support several demographics of the markets’ stakeholders.

• Shopkeepers and Vendors would be able to cool down, remain hydrated and have constant access to lavatory and paramedic facilities, whenever needed.

• Shoppers would use the center as a rest stop, to rejuvenate and refresh while shopping.

• For visiting families, the elderly would benefit from ample shaded seating, while children would be occupied by fun playground games

Creating a Landmark

The center would create a vibrant Landmark in the neighborhood as a functional, yet entertaining hub.

• Cool and bright colors would help enliven the space, while also contributing towards a relaxing feel of “Cognitive Cooling”.

• Proper landscape lighting and signage would allow the space to remain functional for longer periods while maintaining safety and comfort.

Net zero performance:

If the daily energy consumption in Nagpur is 5.4 units, we will need 17 solar panels, to generate 27 units of energy per day in Nagpur. the calculations to find the amount of energy that needs to be generated by the solar panels is as follows:

Daily energy generation = Daily energy consumption / Efficiency of solar panels

Assuming an efficiency of 20%: Daily energy generation = 5.4 / 0.2 = 27 units

A standard of 320 W Solar Loom panel measures around 1.67 meters in length and 1.0 meter in width, with a thickness of around 3.5 centimeters. The price of which is around ₹ 9,500 - ₹ 10,000. The use of solar panels is an option proposed and can be omitted.

View towards the shaded seating area

Part 6

HOW TO PASS THE TIME ?

MISCELLANEOUS

WITH ART

Art has always been an integral part of my life. I love to explore and analyse any of the 7 art forms in my free time.

Visual Arts is my constant comfort though, as I usually delve into recreating famous and varied art styles. I usually tend to incorporate some form of this Art Appreciation in my architectural projects as well, either in actual design or presentation.

College Election Illustration Qatar USA Year of Culture Winning Entry

Furniture Installation

Furniture Design

PHOTOGRAPHY WITH WRITING

I have aways sought to writing to express myself, views, interests, and all.

Luckily, I have presented with opportunities with Rethinking The Future and Volume HQ, to process this interest into content creation where I could showcase my admiration for architecture and pop culture.

WITH RENDERING

Rethinking The Future Architectural Writing Program

Airspace Architecture Series
