ARCH 609 Documentation

Orchard Arts Exploration School Final Documentation

ARCH 609 | 610

Coral Aboud & Jordyn Knox Nilou Vakil Spring 2024

SC 5: Design Synthesis at an ability level.

How the program ensures that students develop the ability to make design decisions within architectural projects while demonstrating synthesis of user requirements, regulatory requirements, site conditions, and accessible design, and consideration of the measurable environmental impacts of their design decisions.

SC 5.1 Design Decisions that Synthesize Multiple Factors

SC 5.2 User Requirements

SC 5.3 Regulatory Requirements

SC 5.4 Site Conditions

SC 5.5 Ecological Concerns and Consider Measurable Environmental Impacts (understanding Level)

SC 5.6 Accessible Design

SC. 6: Building Integration at an ability level.

How the program ensures that students develop the ability to make design decisions within architectural projects while demonstrating integration of building envelope systems and assemblies, structural systems, environmental control systems, life safety systems, and the measurable outcomes of building performance.

SC.6.1 Integrated Decision-Making Design Process

SC.6.2 Integrate Building Envelop Systems

SC.6.3 Integrate Building Assemblies

SC.6.4 Integrate Structural Systems

SC.6.5 Integrate Environmental Control Systems

SC.6.6 Integrate Life Safety Systems

SC.6.7 Measurable Outcomes of Building Performance

Teamwork, Collaboration, and My Contribution

Teamwork

This project was developed in collaboration with Coral Aboud. Throughout the process of design and production, we each brought our own individual skills and interests by drawing from our personal backgrounds in various studios, other classes, and professional experiences. By sharing our knowledge with each other, we were able to leverage our individual strengths while creating an environment for mutual learning, allowing us to acquire new skills and insights along the way.

Collaboration

Coral Aboud and I worked closely on all stages of the design process, and each contributed our own personal ideas and abilities. In the early stages of the project, I produced a number of hand sketches to graphically communicate our design intent, and Coral Aboud used her advanced knowledge of Revit to create a site model and translate our early ideas to a preliminary building model. This model then became crucial in the production of technical drawings and diagrams by both of us. During the creation of graphics and diagrams, we consulted each other frequently to ensure visual consistency. Along with this, our professor, Nilou Vakil, aided us in developing and refining our design in order to successfully execute our goals.

My Contribution

Revit: 3D modeling and technical drawings

Sketchup: 3D modeling of building and site

Illustrator: Site & roof plans, elevations, and diagrams

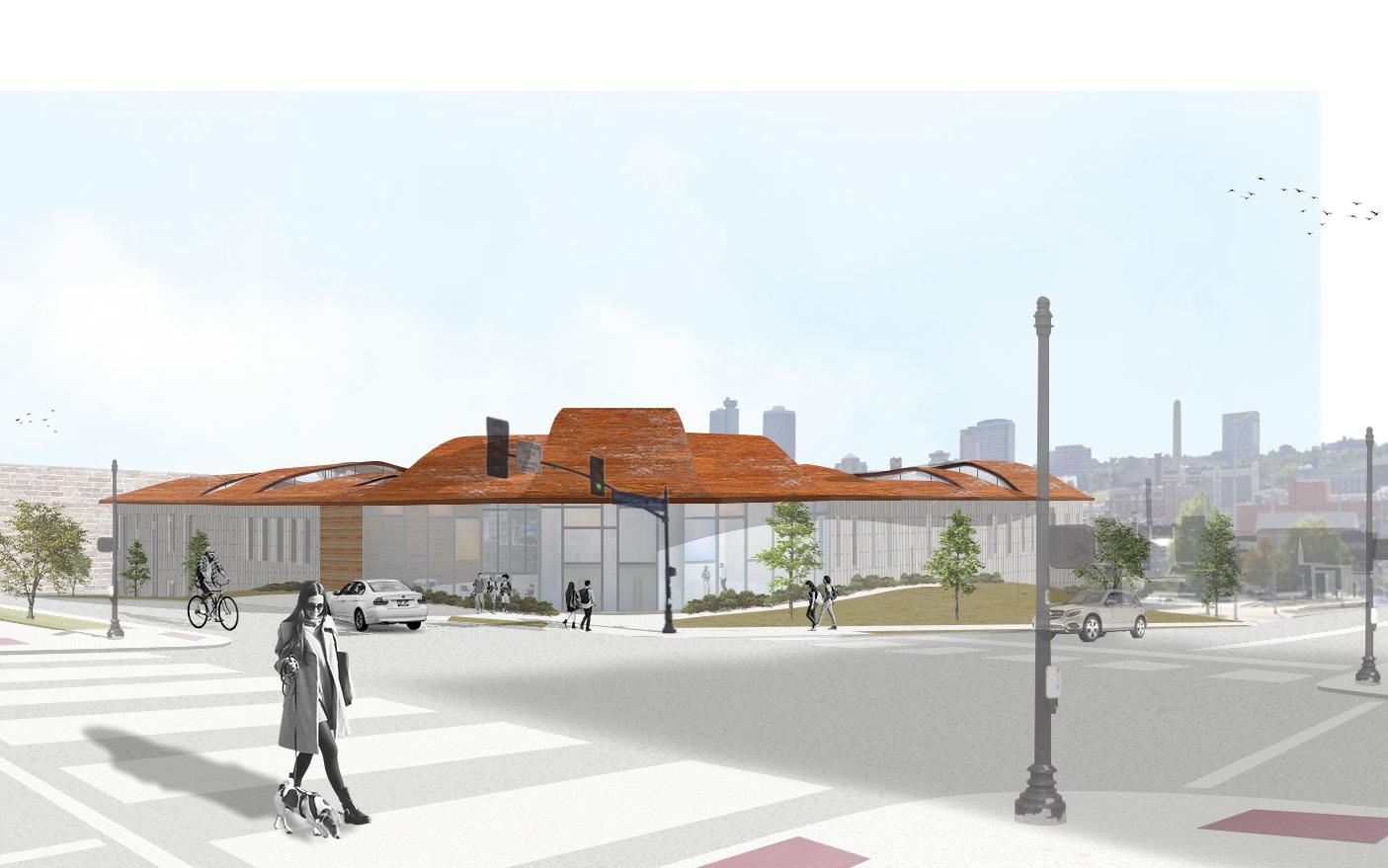

Photoshop: Interior & exterior renders

Enscape: Interior & exterior renders

Indesign: Presentation documents

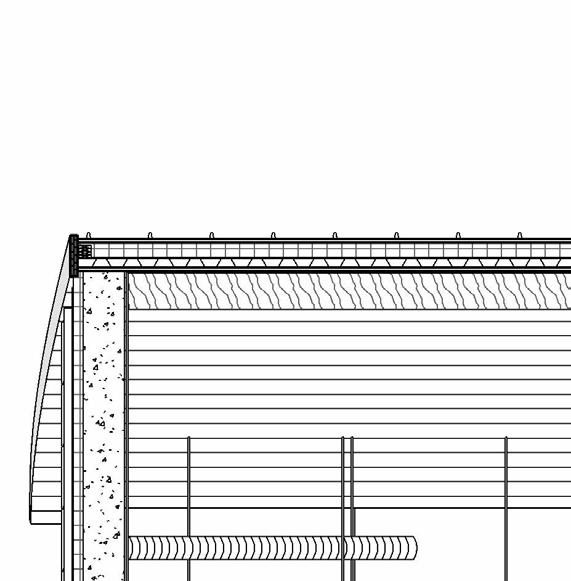

Technical Drawings: Wall sections

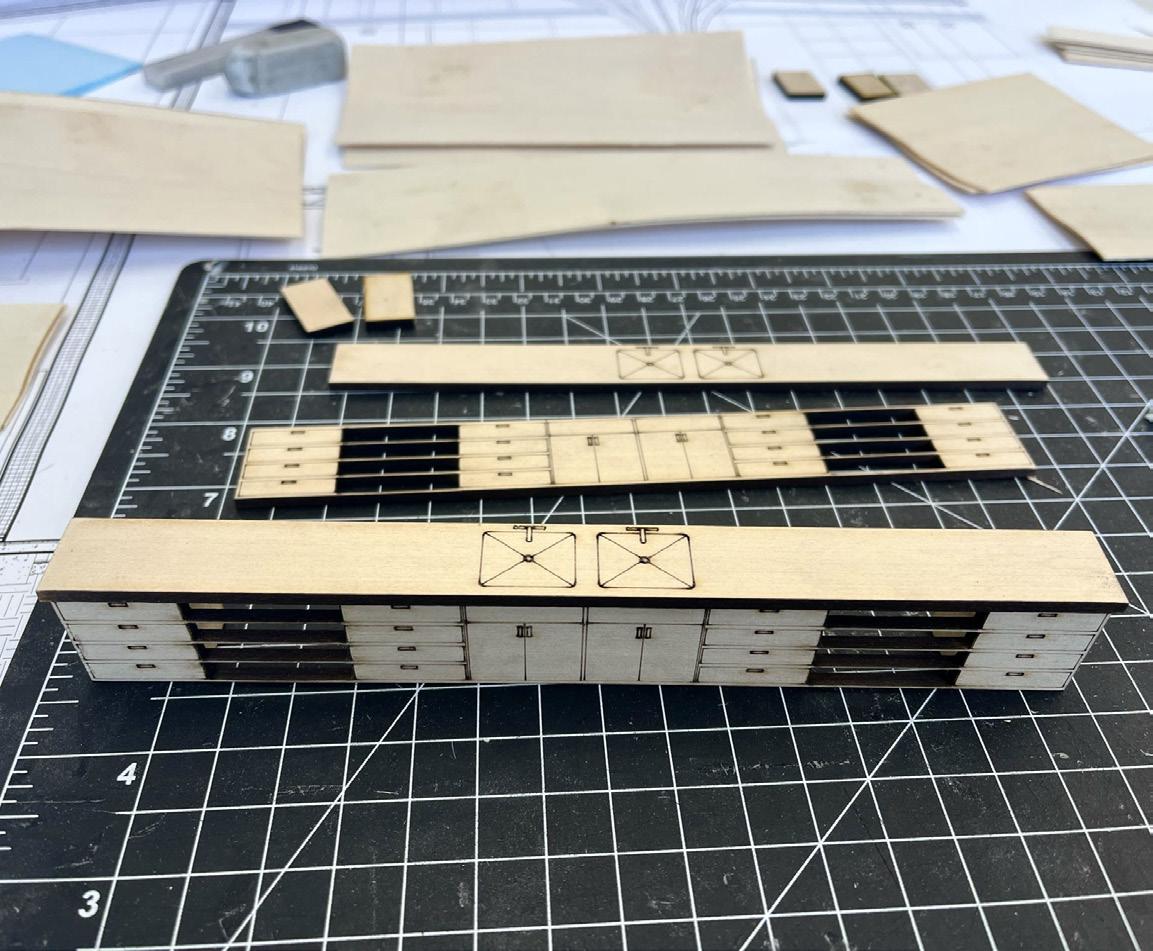

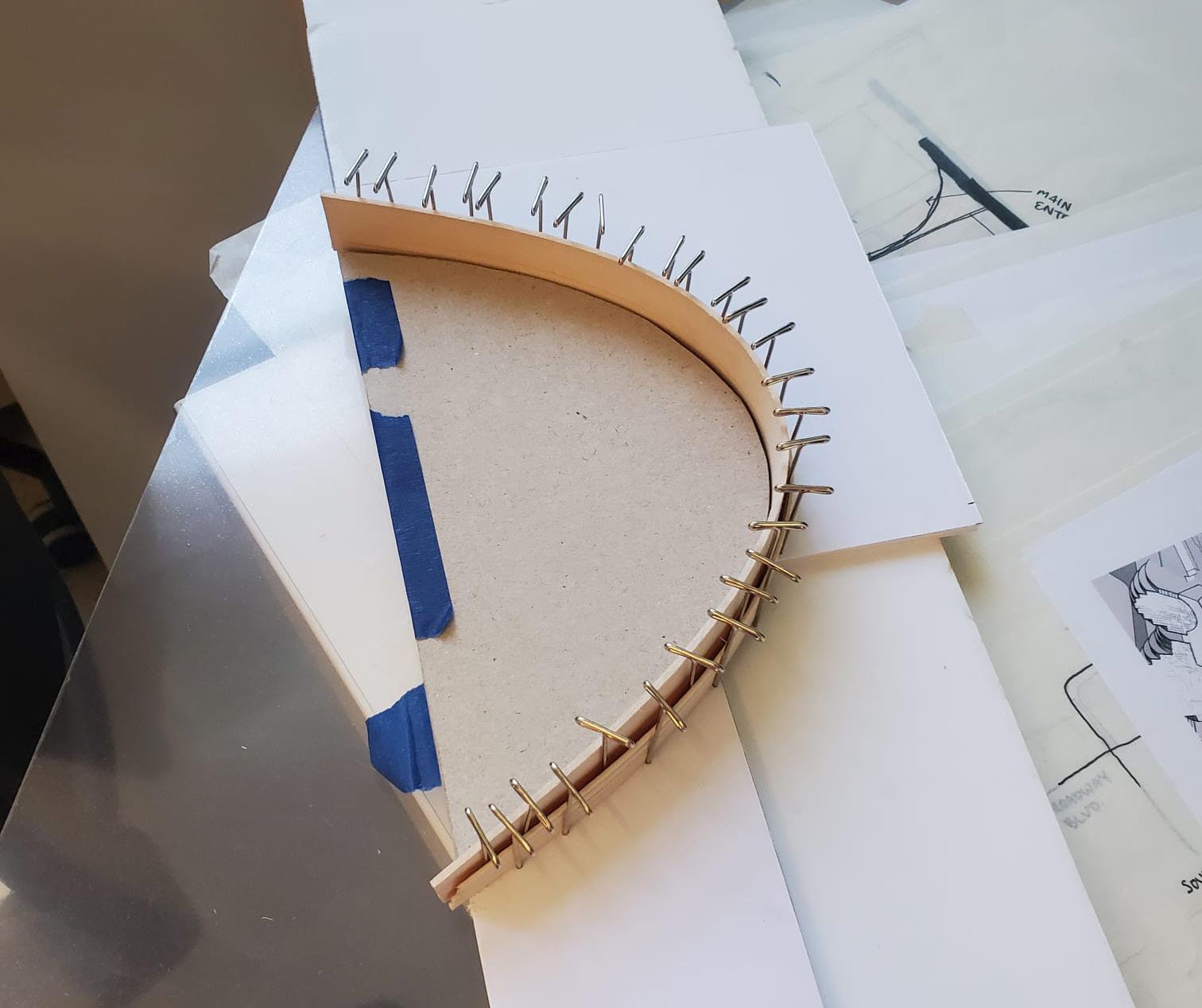

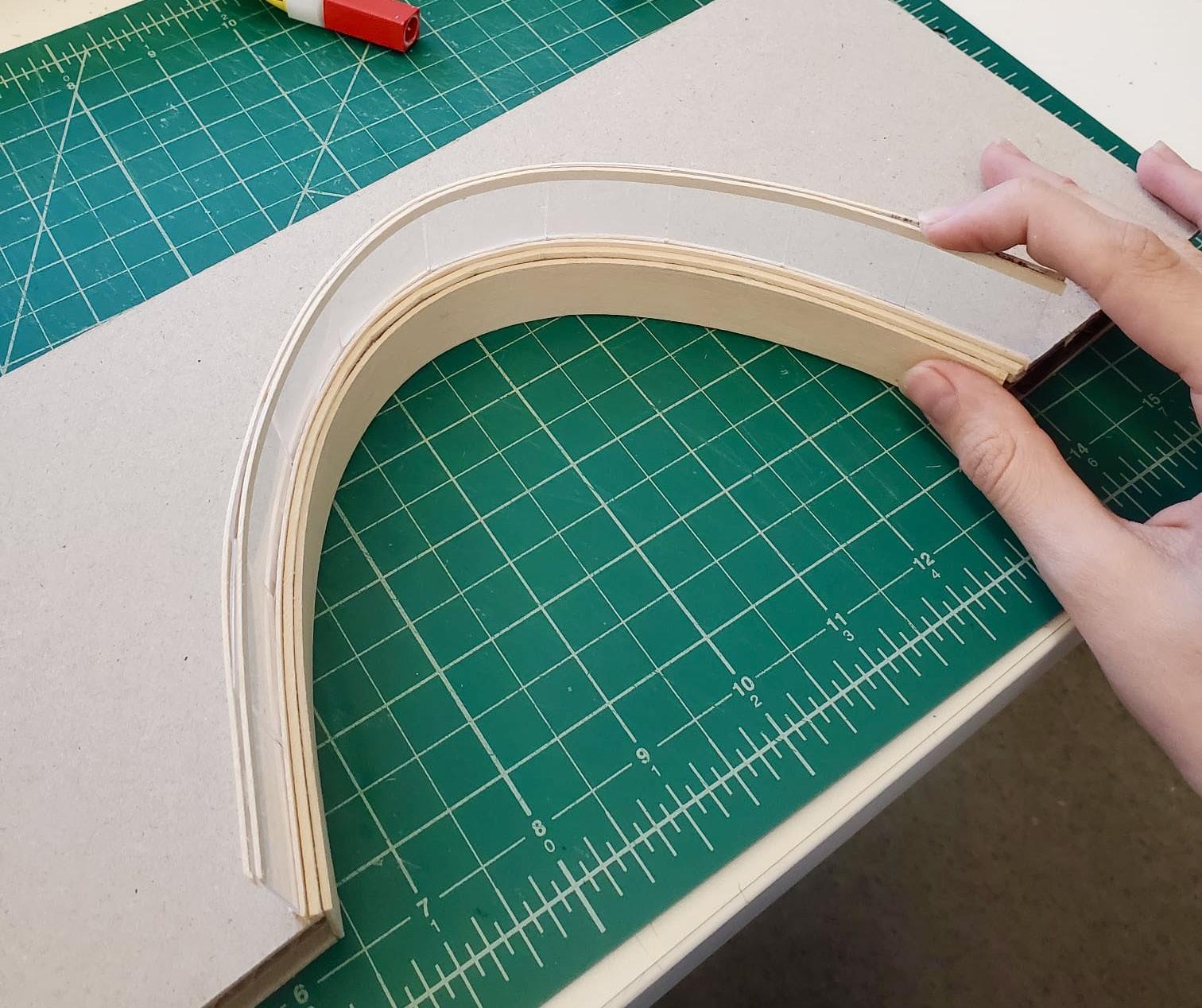

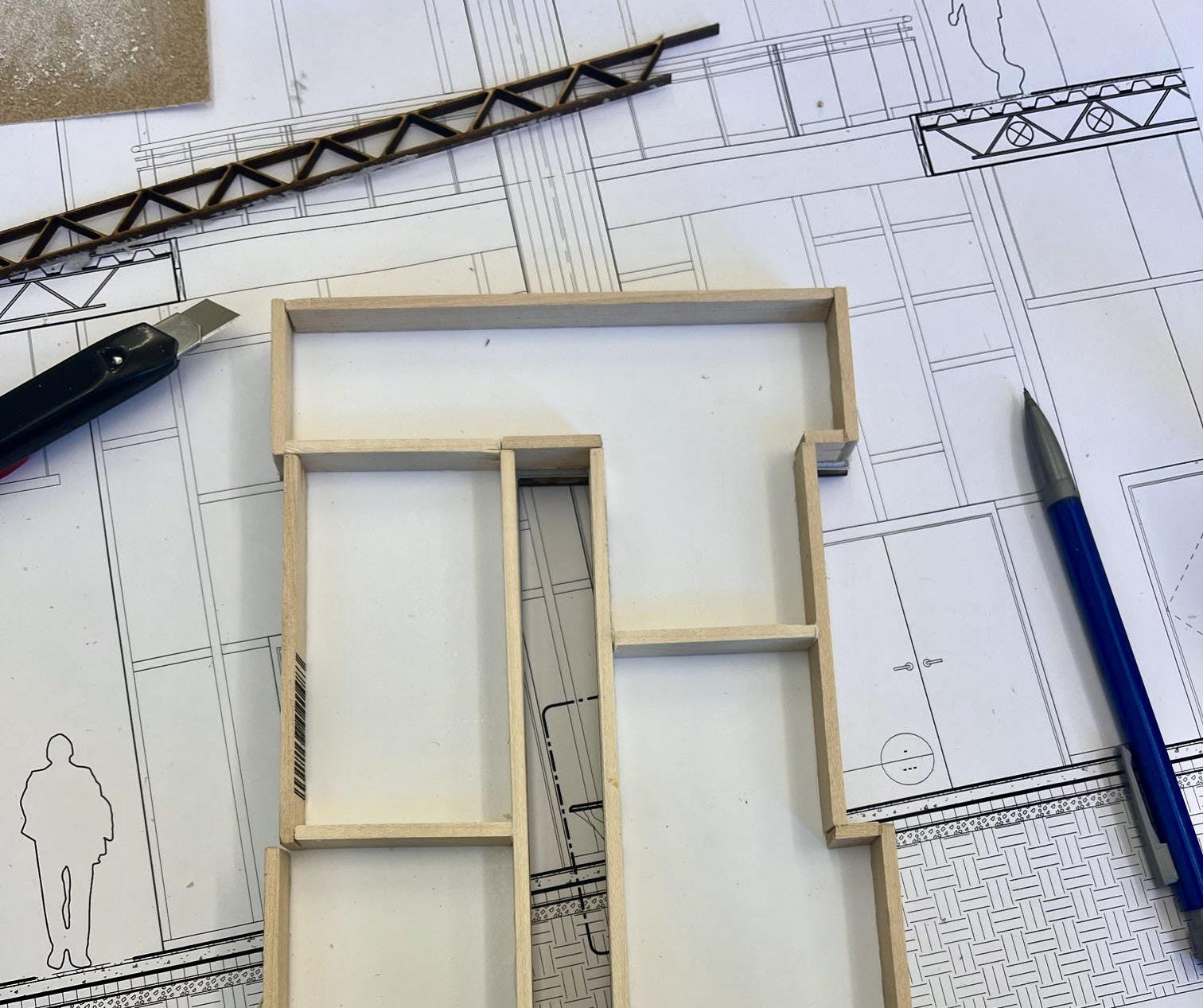

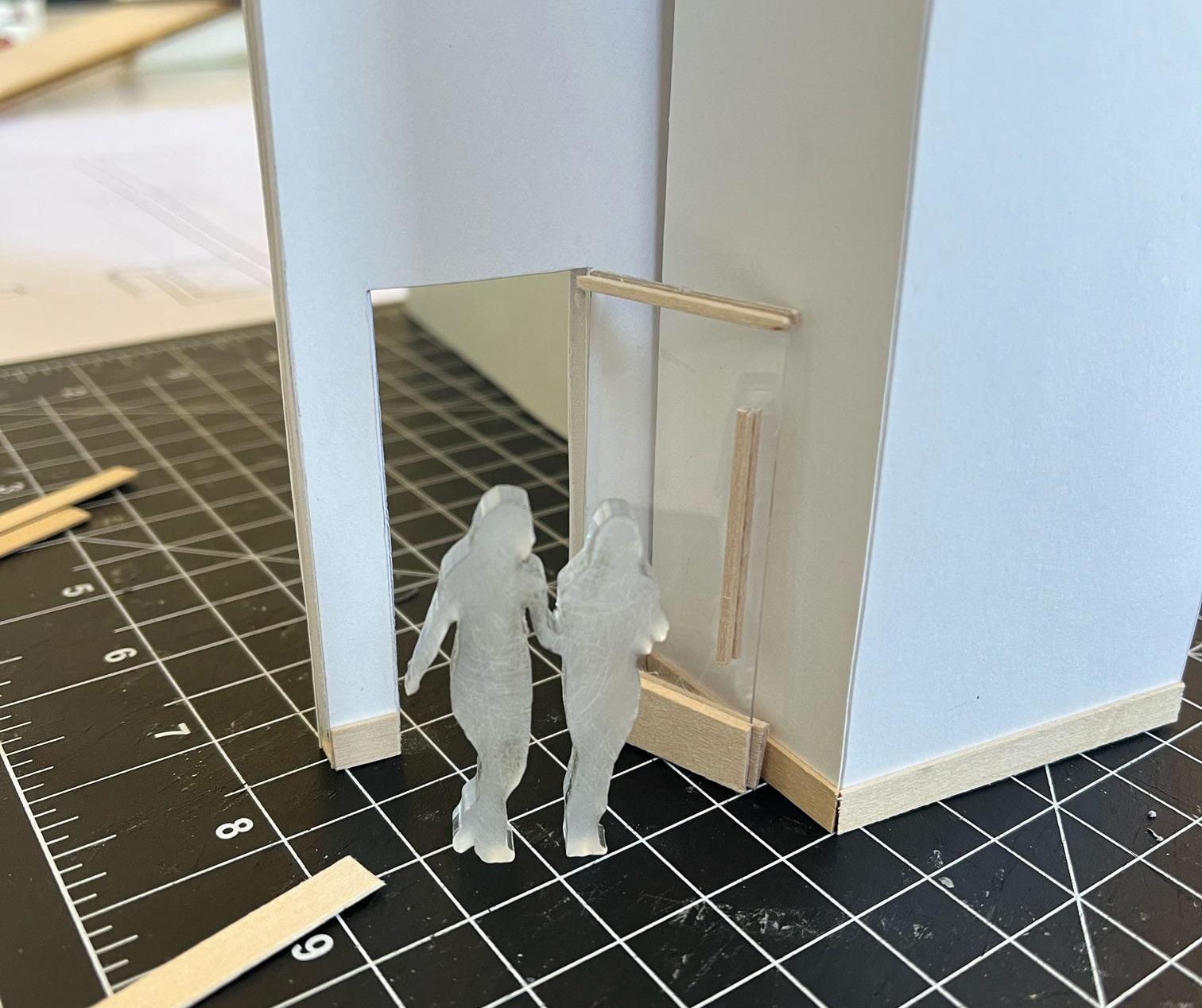

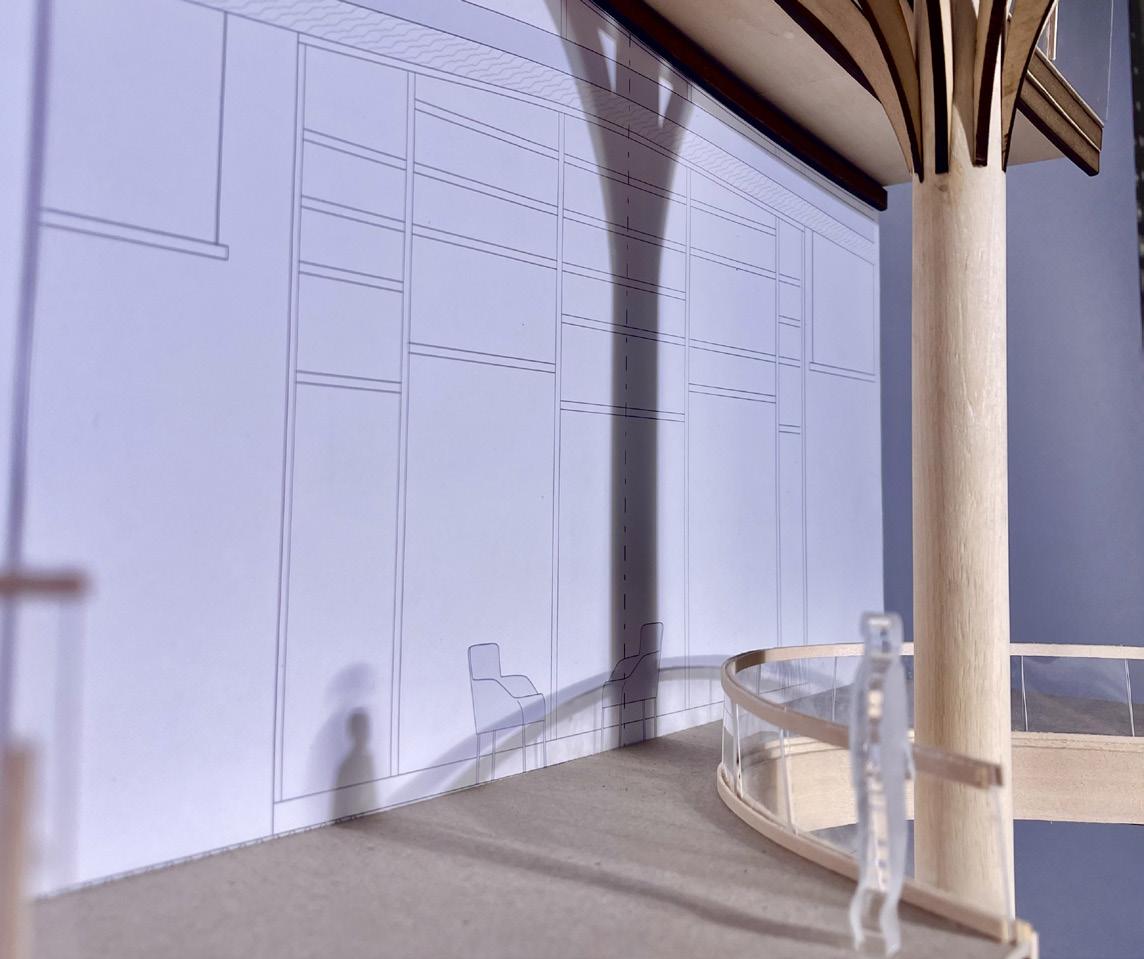

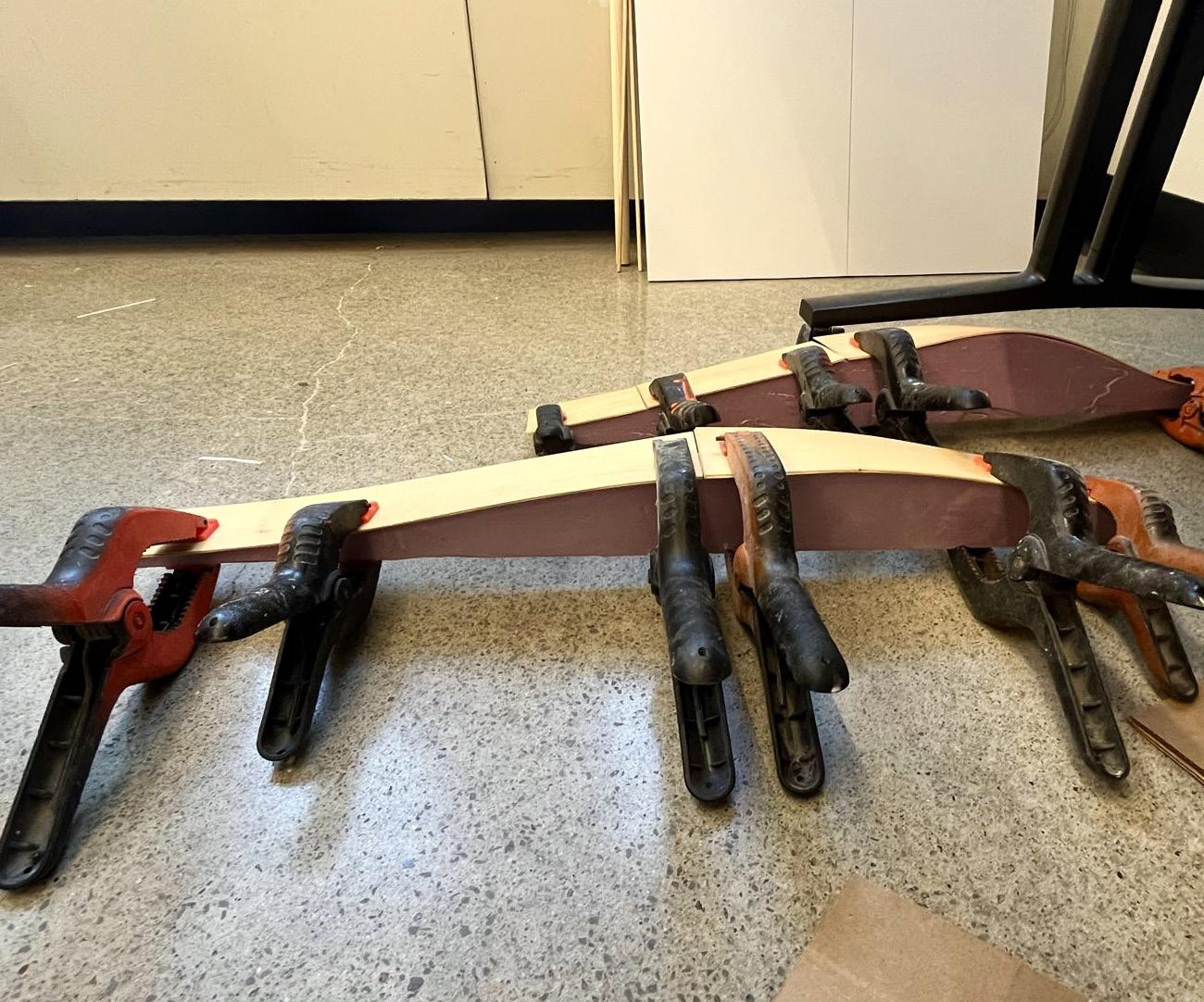

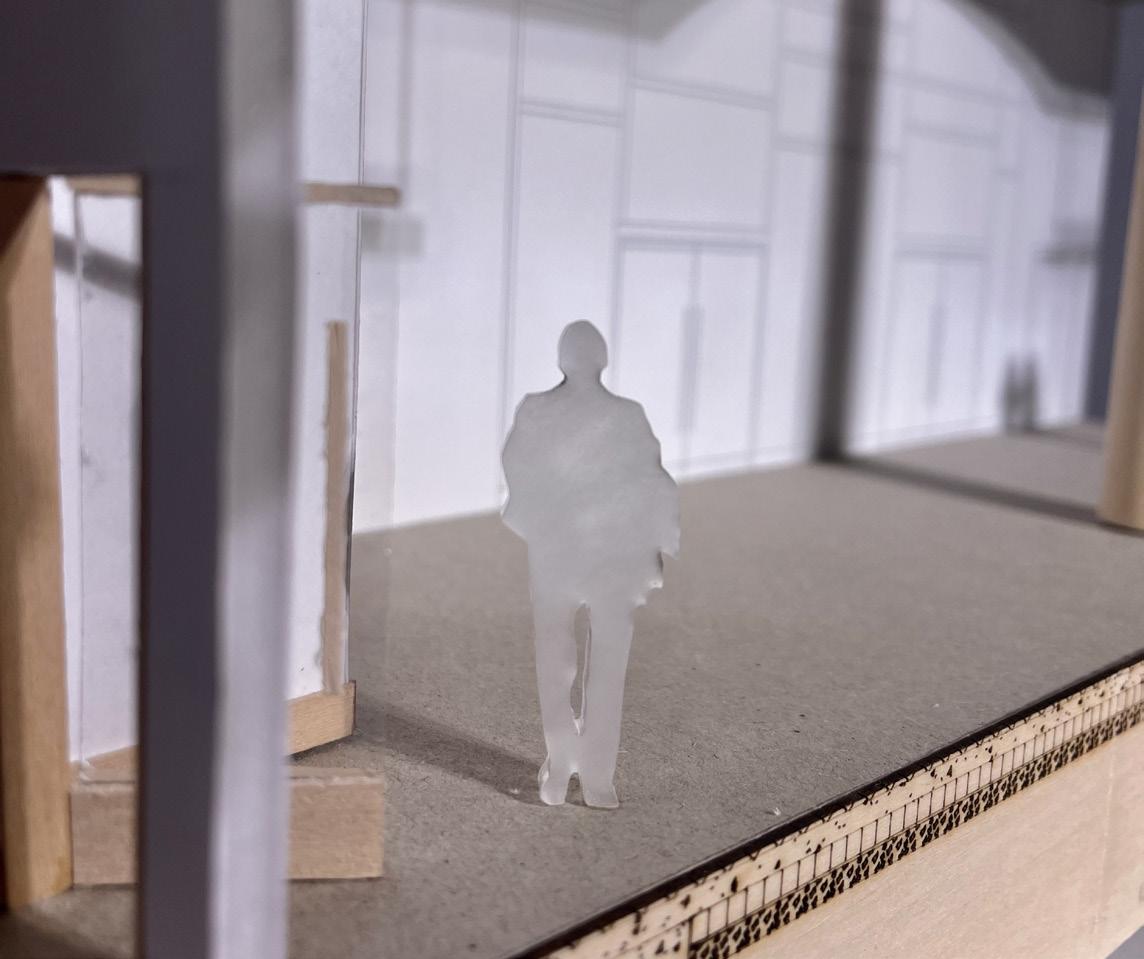

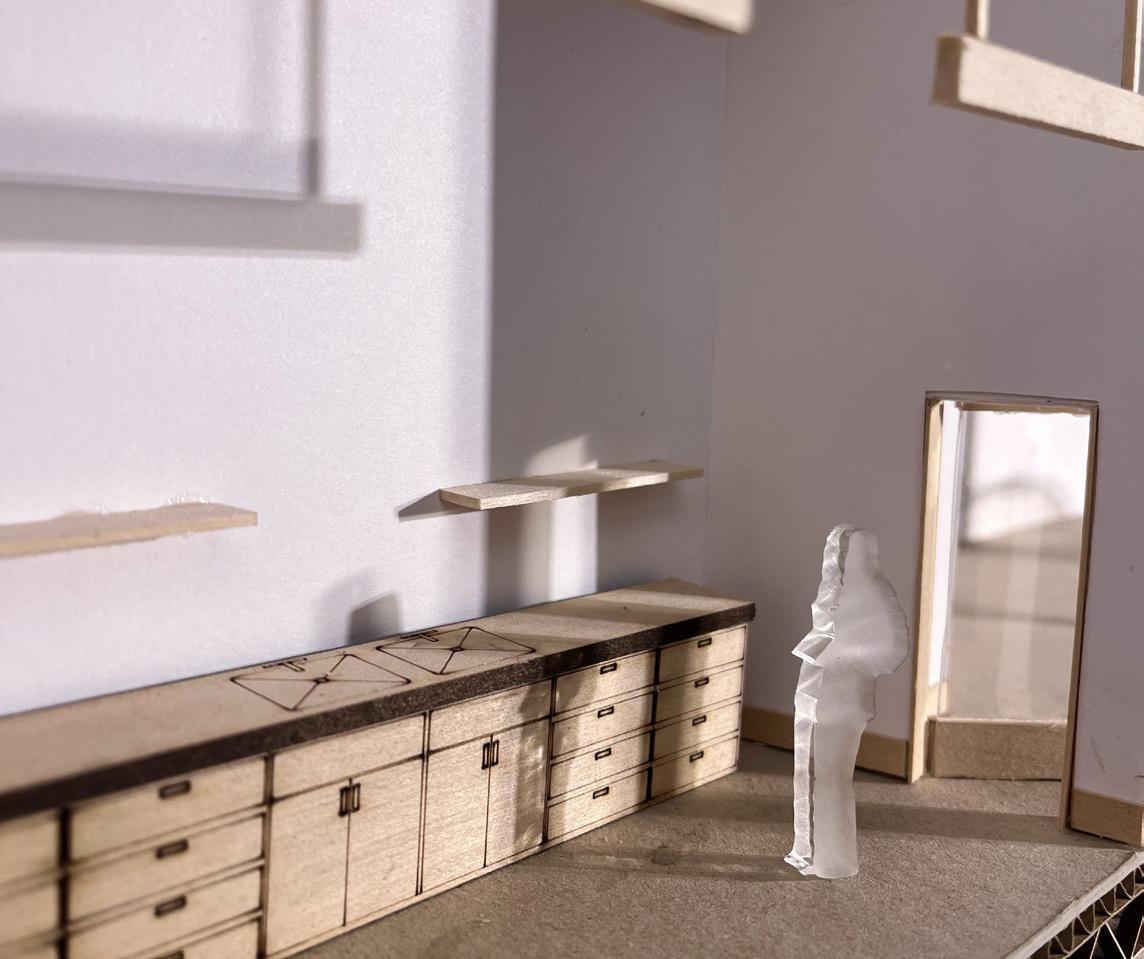

Physical Model: Hand modeling & laser cutting

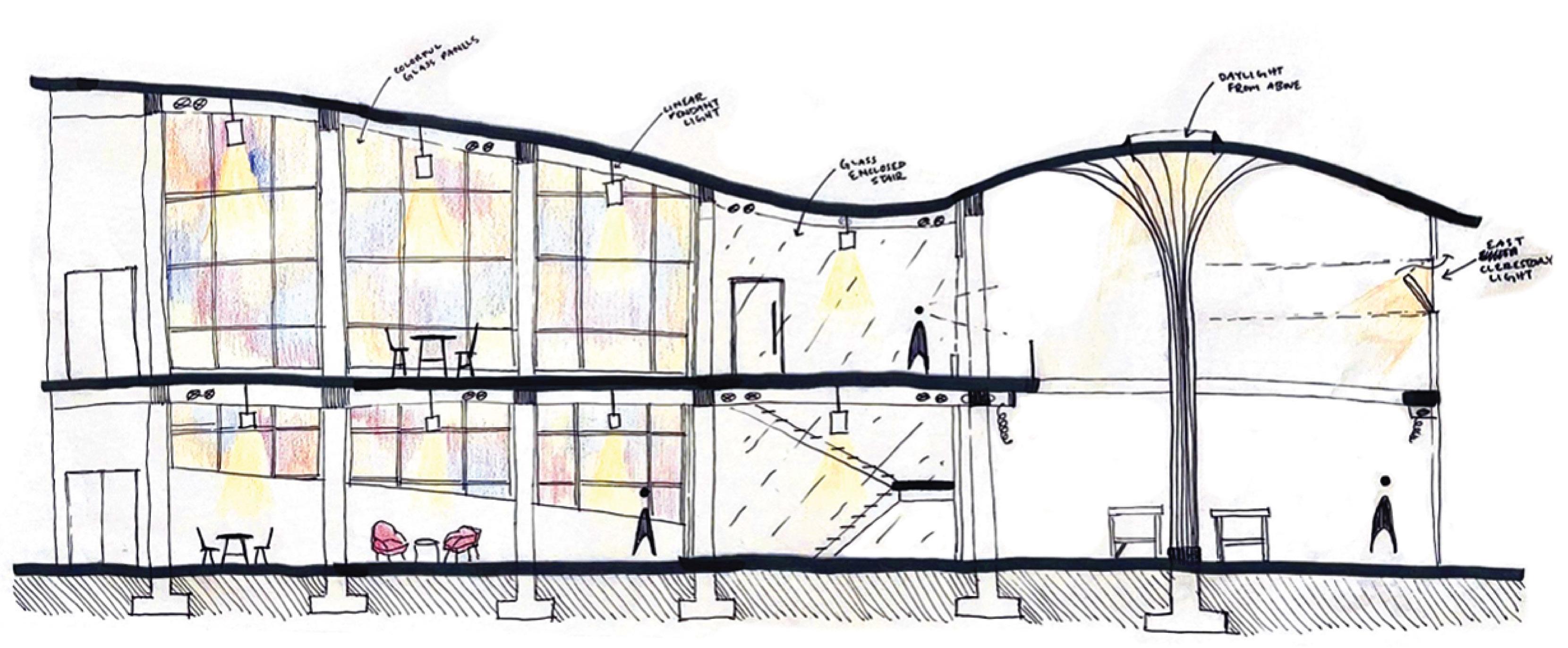

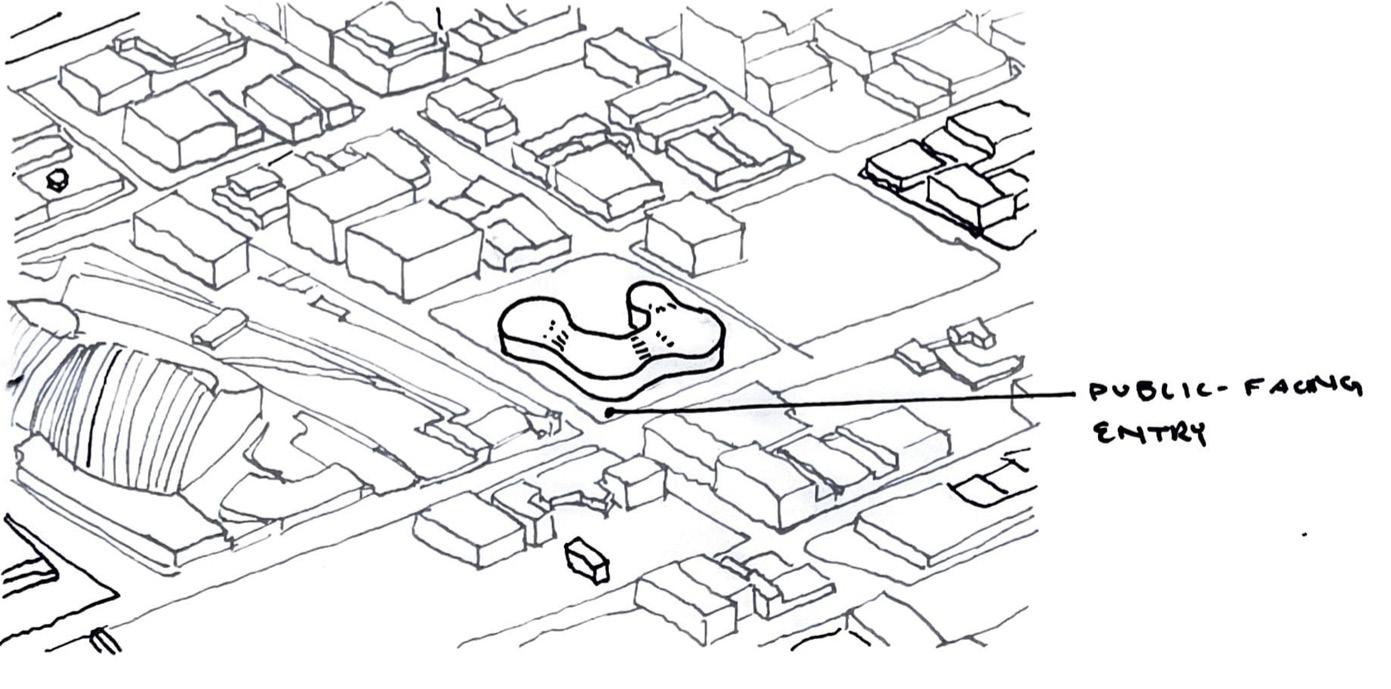

Hand Sketches: Conceptual design visualization

History of Kansas City

Early 1800s

French fur traders arrive

1861

Civil War begins, creating a divide between the free state of Kansas and the slave state of Missouri

Early History

Area inhabited by the Kansa, Osage, Otos, and Missouri tribes

1880s

Cable car system established with massive popularity

1820s-1840s

Indigenous tribes displaced by the federal government

Early 1900s

Beginning development of suburban neighborhoods southward

Post Civil War

Population boom and development of downtown; establishment of cattle industry centered in the West Bottoms neighborhood

1960s

Many historic buildings demolished in favor of car infrastructure, transforming the inner city into a car-dependent and business-oriented place

Late 19th C.

Building boom leading to many of KC’s iconic buildings, construction industry flourishes

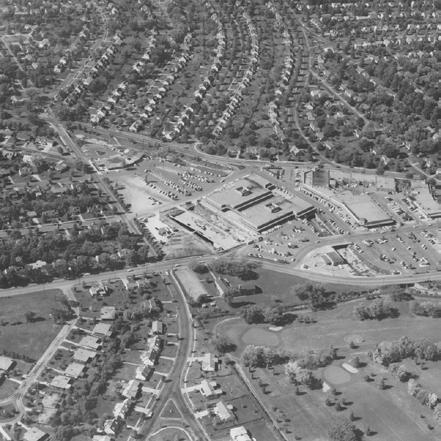

1950s

Rapid suburbanization & white flight begins, while historically Black neighborhoods see disinvestment

1990s

City sees population growth for the first time in two decades 21st C.

Continued population growth along with investment into downtown cultural centers such as the Power & Light district

Demographics

Crossroads Neighborhood

History of the Crossroads Neighborhood

1920s-1970s

The Crossroads Neighborhood was home to distribution centers for film companies such as MGM, Warner Brothers, and Disney 1970s

Rising popularity of home video ends traditional film distribution, and KC’s Film Row becomes more or less obsolete

1985

Artist and Professor Jim Leedy opens the LeedyVoulkos Art Center, with the goal of cultivating an artistic community in the neighborhood

1970s-1980s

Area populated by neglected warehouses and empty lots, generally overlooked by the community

1980s-1990s

Gradual transformation of industrial buildings into art spaces

1999

Union Station reopened and restored after 31 years of closure

2000

First Fridays established by gallery owner John O’Brien, contributing to a sense of community and bringing livelihood to the neighborhood

2000s-2010s

The Crossroads Neighborhood continues to gain a unique personality as arts flourish and businesses are increasingly attracted to the area

2016

Streetcar reestablished, further increasing visits to the Crossroads

2011

Kauffman Center opened as part of overall development of KC

2010s-now

The neighborhood is flourishing culturally and economically, but faces impact of gentrification

Climate, Ecology, & Sustainability

Kansas City is part of the north temperate climate zone and experiences all four seasons. Summers are relatively hot and humid, while winters are usually moderately cold with some snowfall.

Summer avg. humidity 70%

Winter avg. humidity 67%

Summer avg. precipitation 16 in.

Winter avg. precipitation 5 in.

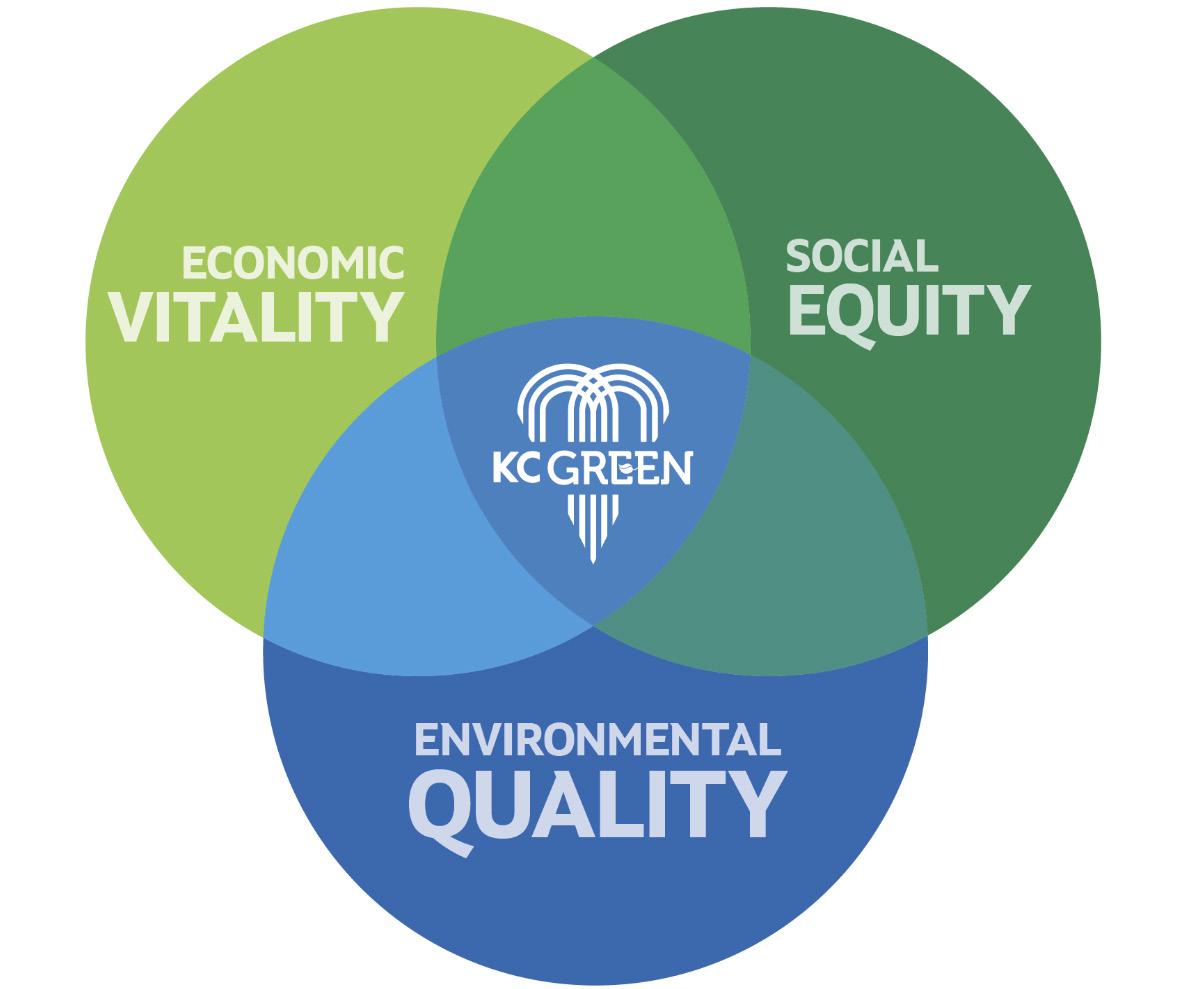

Sustainability initiatives, at a glance...

• Environmental Management Department established in 2006, with sustainability as a core principle

• Adoption of the 2008 Climate Plan

• Increased funding and use of renewable energy

• Investment in walkability and public transit, particularly the streetcar

Urban Forest Master Plan - adopted 2018

Goals include:

1. Increasing the city’s tree canopy from 31% to 35%

2. Managing invasive species

3. Reducing effects of climate change

4. Promoting the ecological health of the city

Butterfly Milkweed Gray Dogwood Big Bluestem Indian Grass image credit: Jordyn Knox

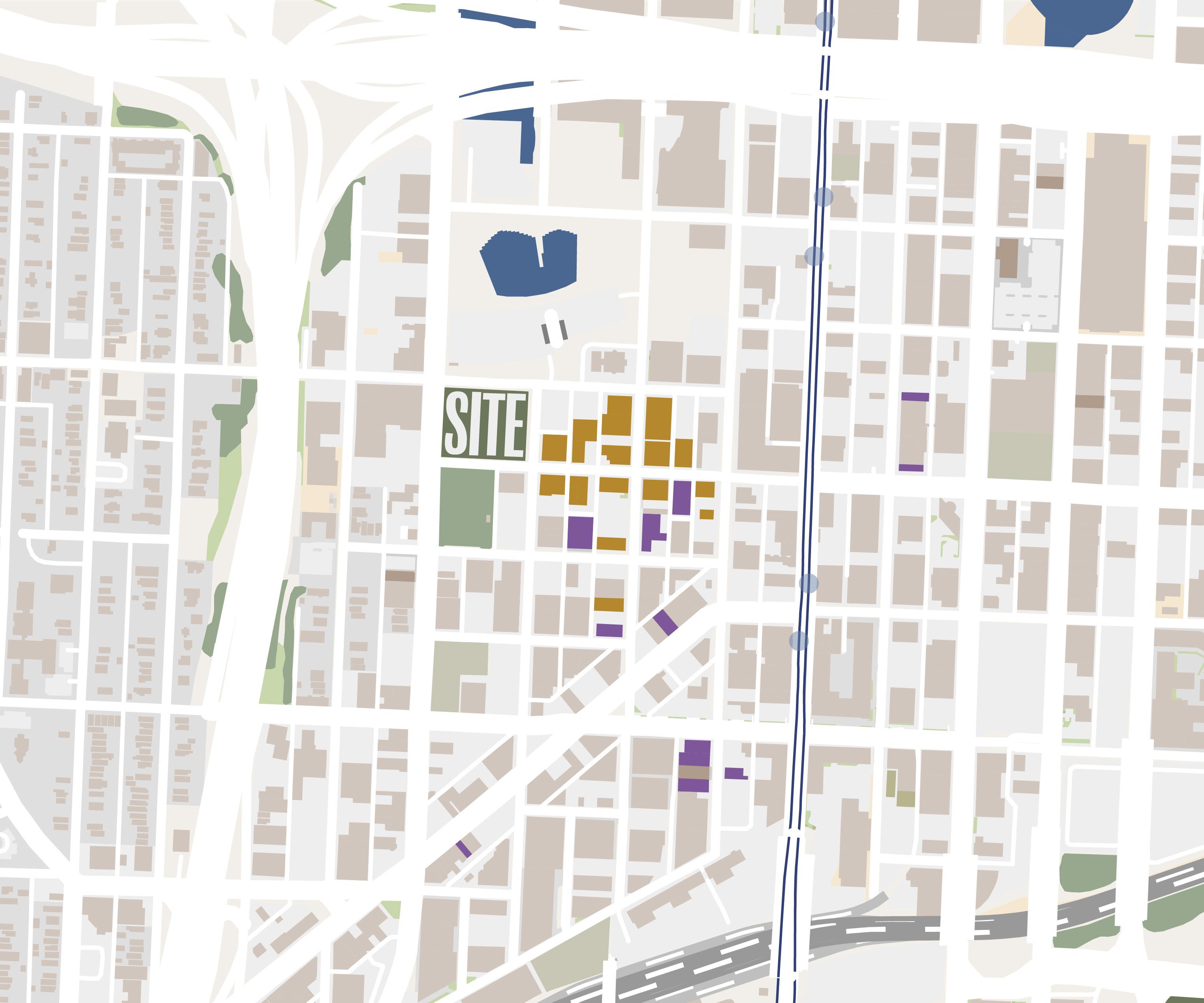

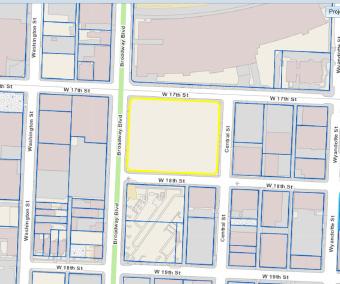

Site Adjacency & Zoning

KC Streetcar route

KC Streetcar stops

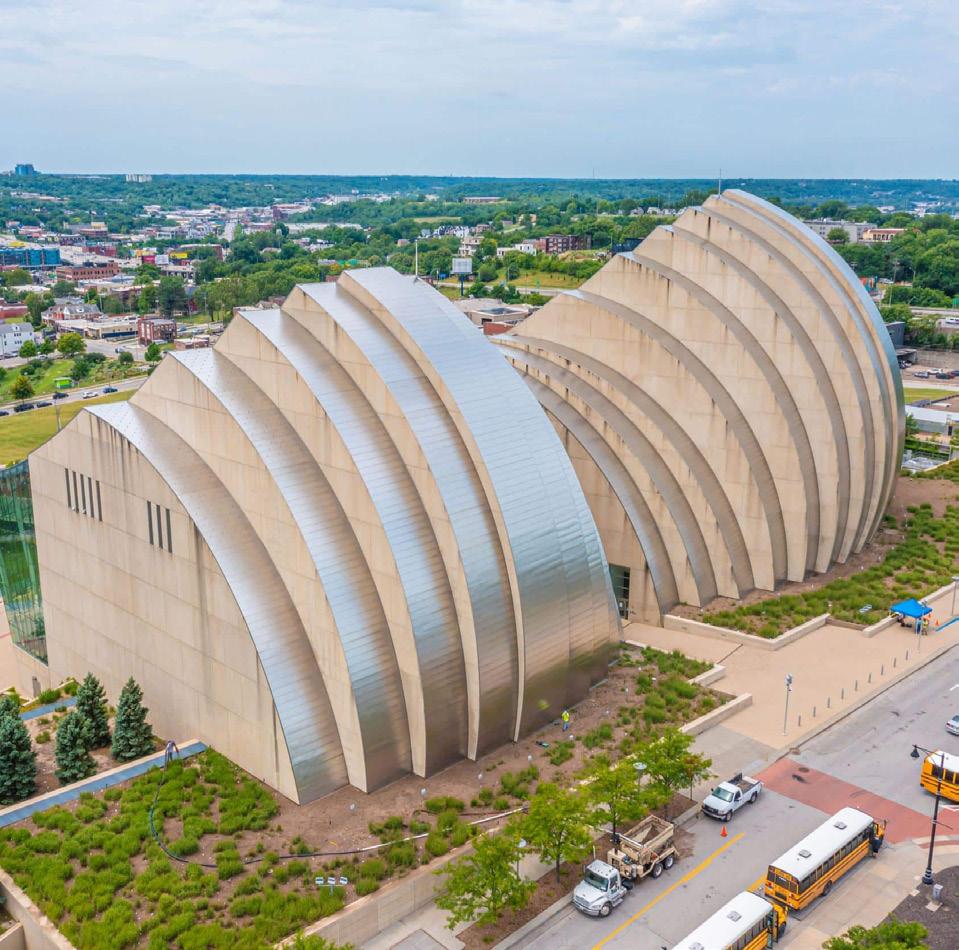

Kauffman Center

17th St.

18 Broadway Urban Garden Rail tracks Broadway Blvd.

Film Row buildings

Art galleries

Cultural & event spaces

image credit: Jordyn Knox

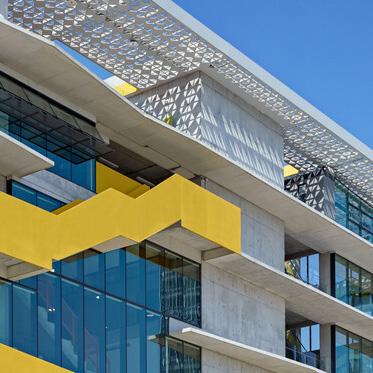

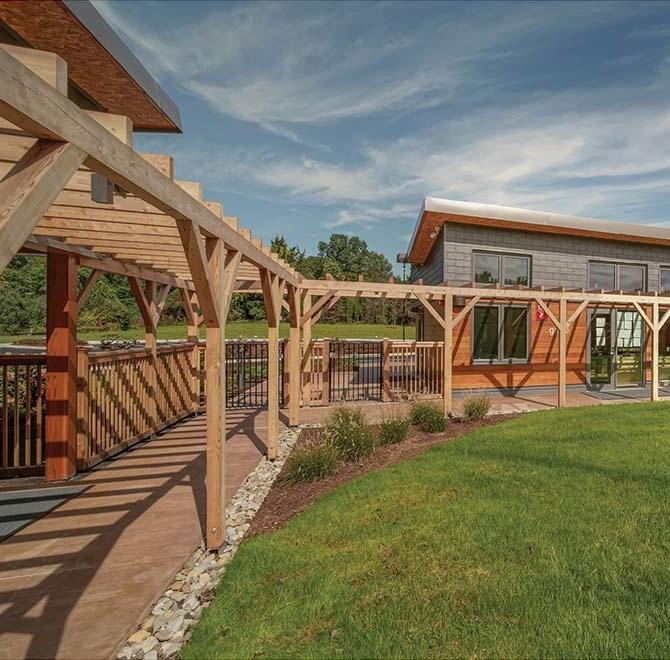

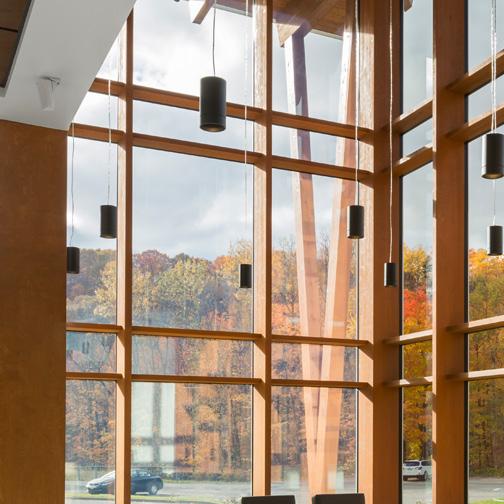

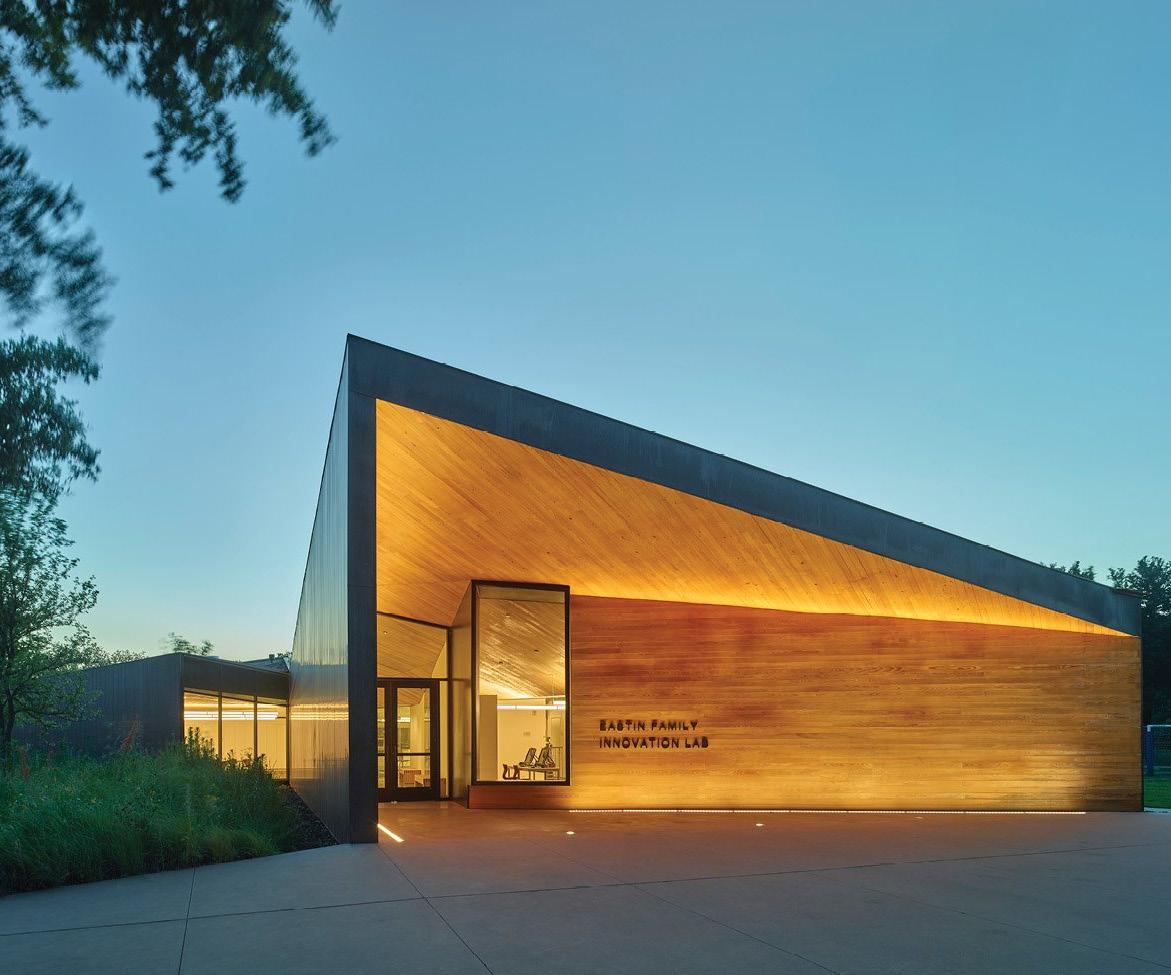

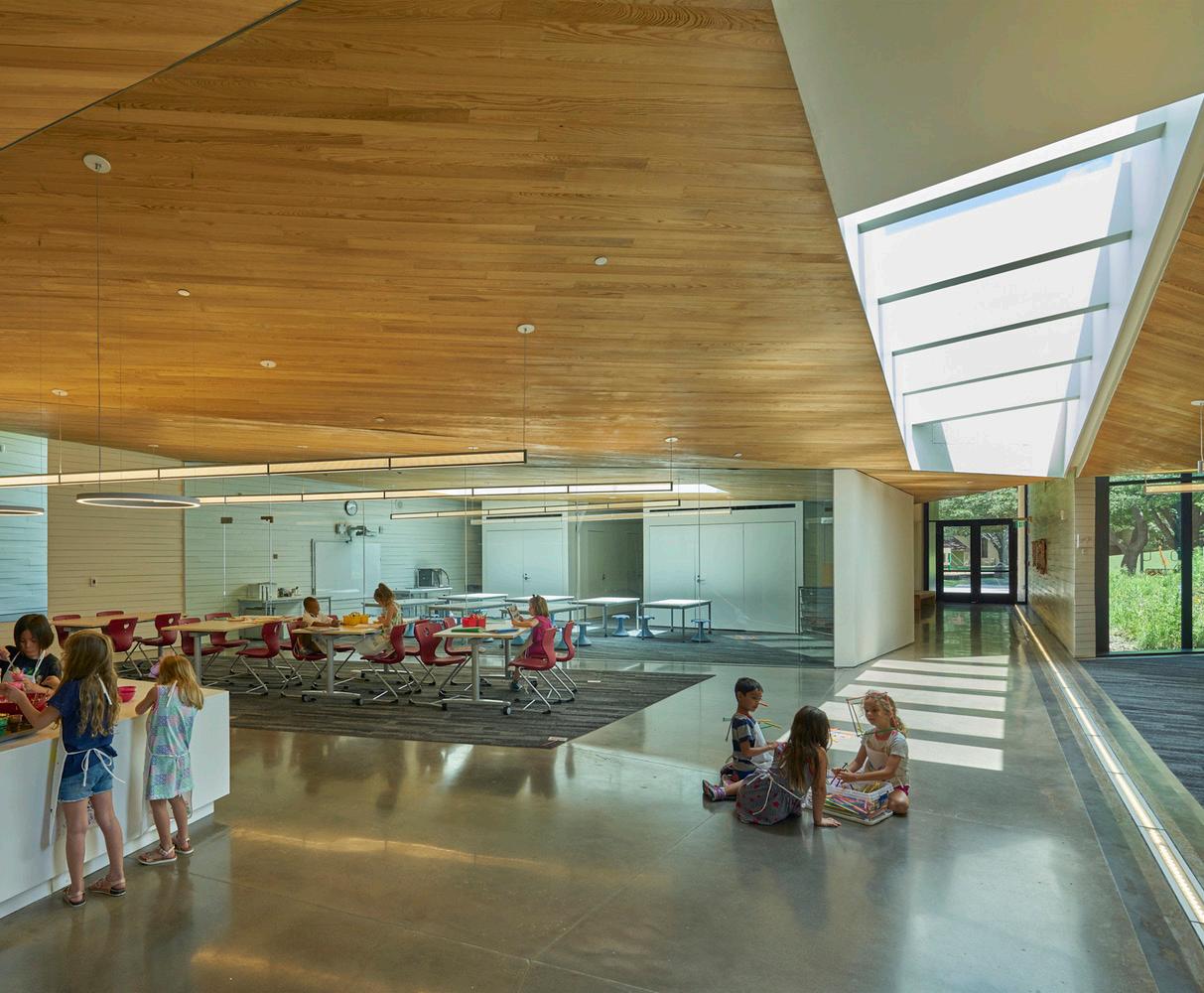

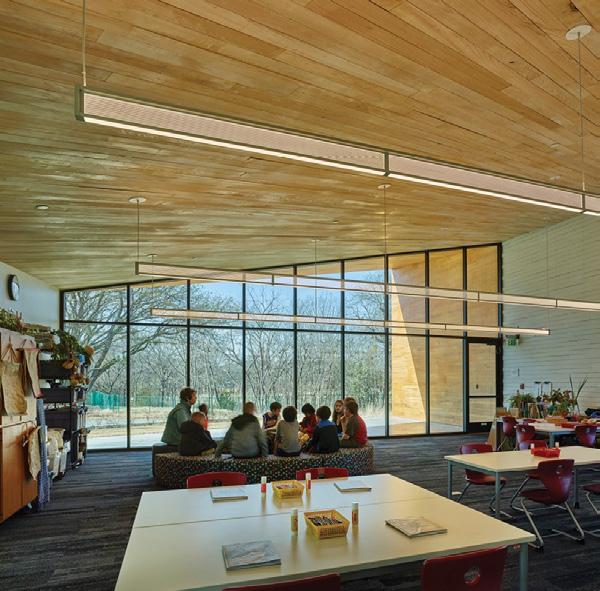

Precedent | Lamplighter School Innovation Lab

Marlon Blackwell Architects Dallas, TX

18,000 sf Completed 2018

Connection to nature

Encouraging exploration through spatial layout

Learning environment supports collaboration

Tactile nature of materials and wayfinding

Focus on user experience

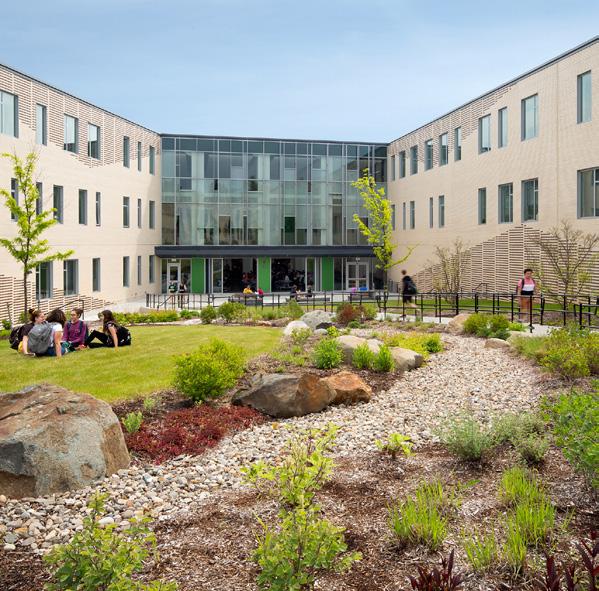

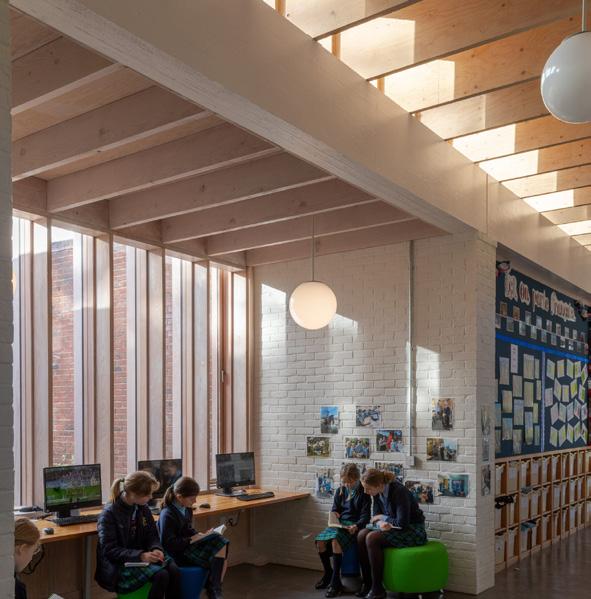

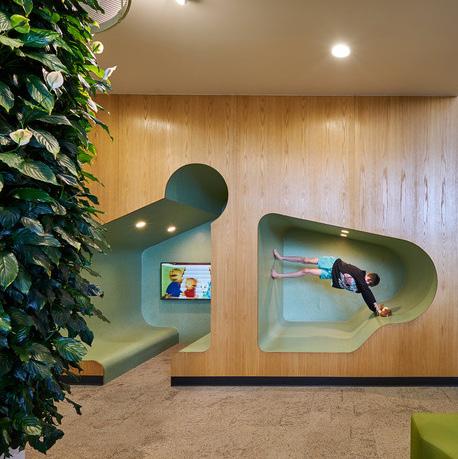

Learning Environment DNA

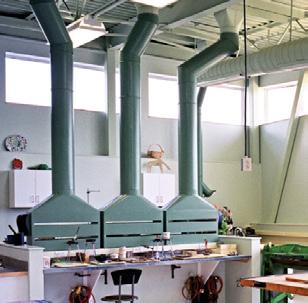

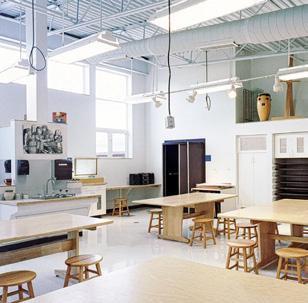

Makers’ shop

Warehouse feel, connecting to KC’s industrial history

• Exposed structural & mechanical systems

• High ceilings & natural light from above

• Use of natural, local materials

• Variety of flexible studios and structured demonstration

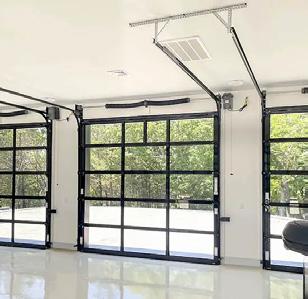

• Operable partition walls

• Exposed plumbing, warehouse feel

• Gathered around central gallery

image credit: Jordyn Knox & Coral Aboud

Design Thesis

“A tree lives by its roots. Change the roots and you change the tree. Change the trees and you change the forest.”

-Jane Hirshfield

The concept for our project is a forest. Inspired by Kansas City’s adoption of the Urban Forest Master Plan, we want to think of the project as a natural ecosystem that provides a place of refuge for its users and fosters the growth of students. Supporting the site’s ecological health will be an important aspect of the project, as well as providing a connection to nature through architectural design, and all project decisions will tie back to this concept.

The primary ideas that we will draw from the forest concept include growth, exploration, and sanctuary These ideas will influence the scale of the spaces within the building, circulation and wayfinding, and interaction with place. Growth can include the way that the building expands, compresses, and moves through the site, while also considering students’ mental and physical growth throughout their education. Exploration will encourage students to interact with their environment, both indoors and outdoors, and the building’s materiality should be tactile in nature. The school must also provide a sense of sanctuary from its busy urban surroundings, while considering the need for safety and security, just as a forest canopy provides shelter from the elements.

This concept can be translated architecturally in a number of ways. Creating an open, indoor-outdoor feel will be essential, and this can be achieved through strategies such as courtyards, outdoor shade structures, and filtered natural light throughout interior spaces. The materiality should feel organic, and potential materials include timber or rammed earth. Along with this, the four layers of the forest (the forest

floor, the understory, the canopy, and the emergent layer) could be used as a way to order spaces and respond to the site’s steep topography. Ultimately, the project should evoke the sanctuary-like nature of the forest through all aspects of its design.

In the classroom, using biophilic design in a functional way will be important to the success of the project. This can include incorporating green walls as acoustic barriers, providing natural light and ventilation, and using soothing colors and materials. This not only ties to the forest concept, but also improves learning outcomes, as access to nature within a learning environment has been proven to increase focus and memory.

In thinking of the school as a refuge from city life, it is important to not shut out the surrounding neighborhood. Exterior spaces, such as a courtyard, urban garden, or amphitheater, can provide a community connection that is open to all. Along with this, the school itself can host public events such as music performances and art exhibitions. The school’s community presence should prioritize equal access to one’s natural surroundings, and serve as a positive asset for the neighborhood.

Overall, by using the forest as an overarching idea for the project, our mission is to create a space that allows students to thrive. As the above quote argues, one’s roots are essential to the value one brings to a community. Following this idea, we will strive to encourage a sense of community for both students and the public, thus cultivating the next generation as a force for positive change.

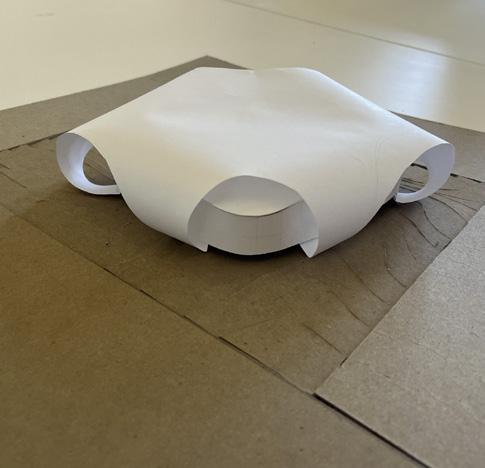

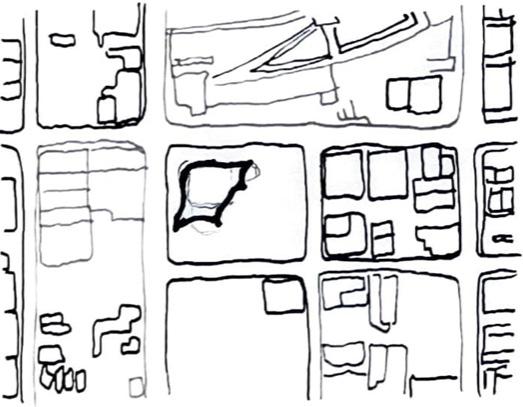

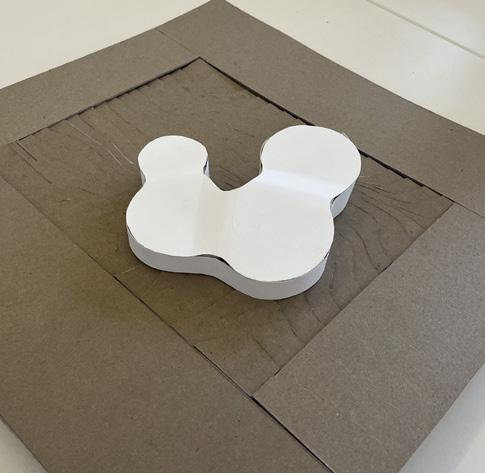

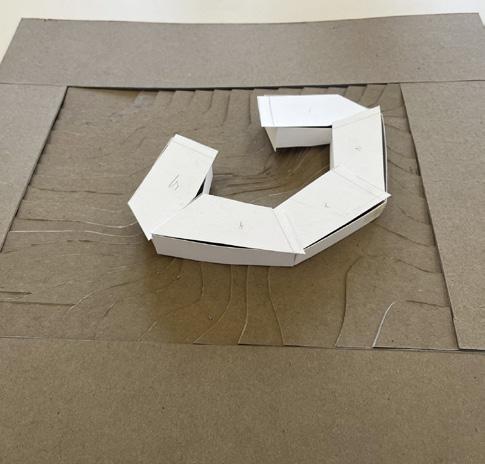

Massing Iterations

image credit: Jordyn Knox

image credit: Coral Aboud

image credit: Jordyn Knox & Coral Aboud

Concept & Form Derivation

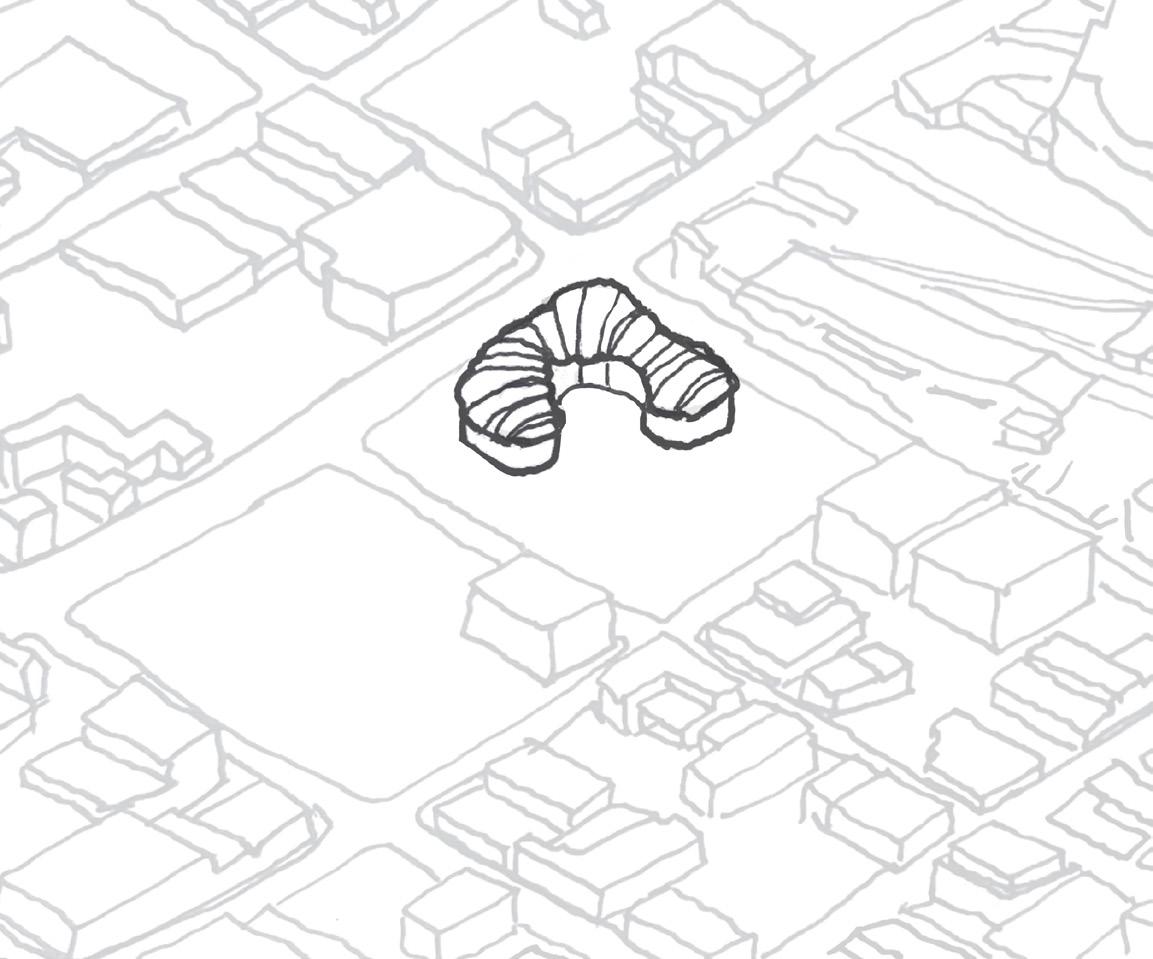

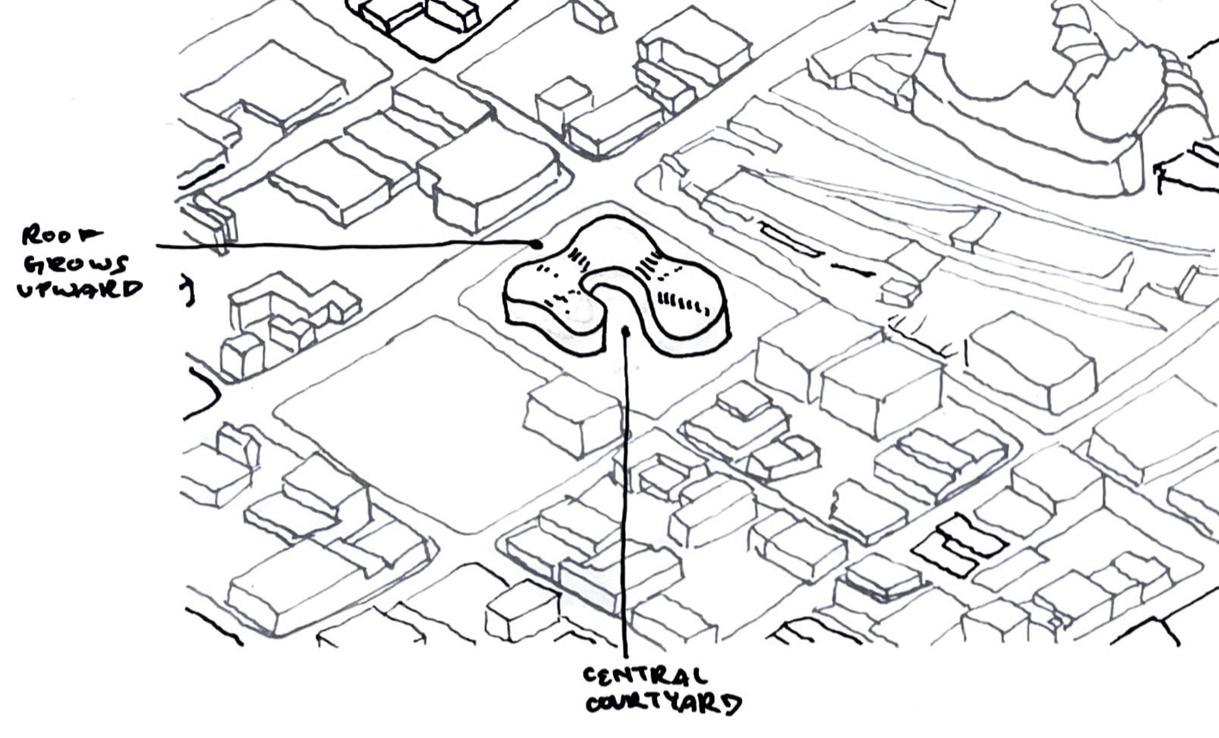

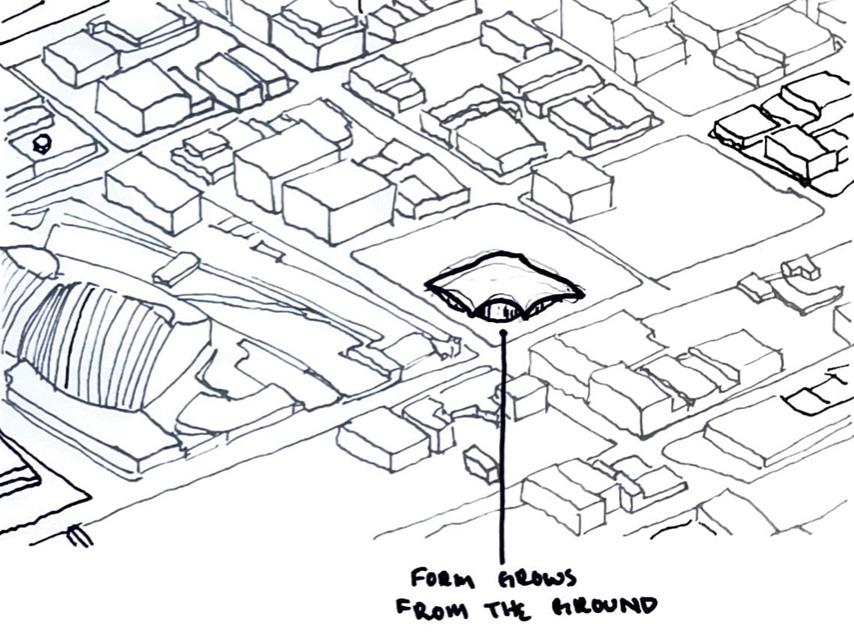

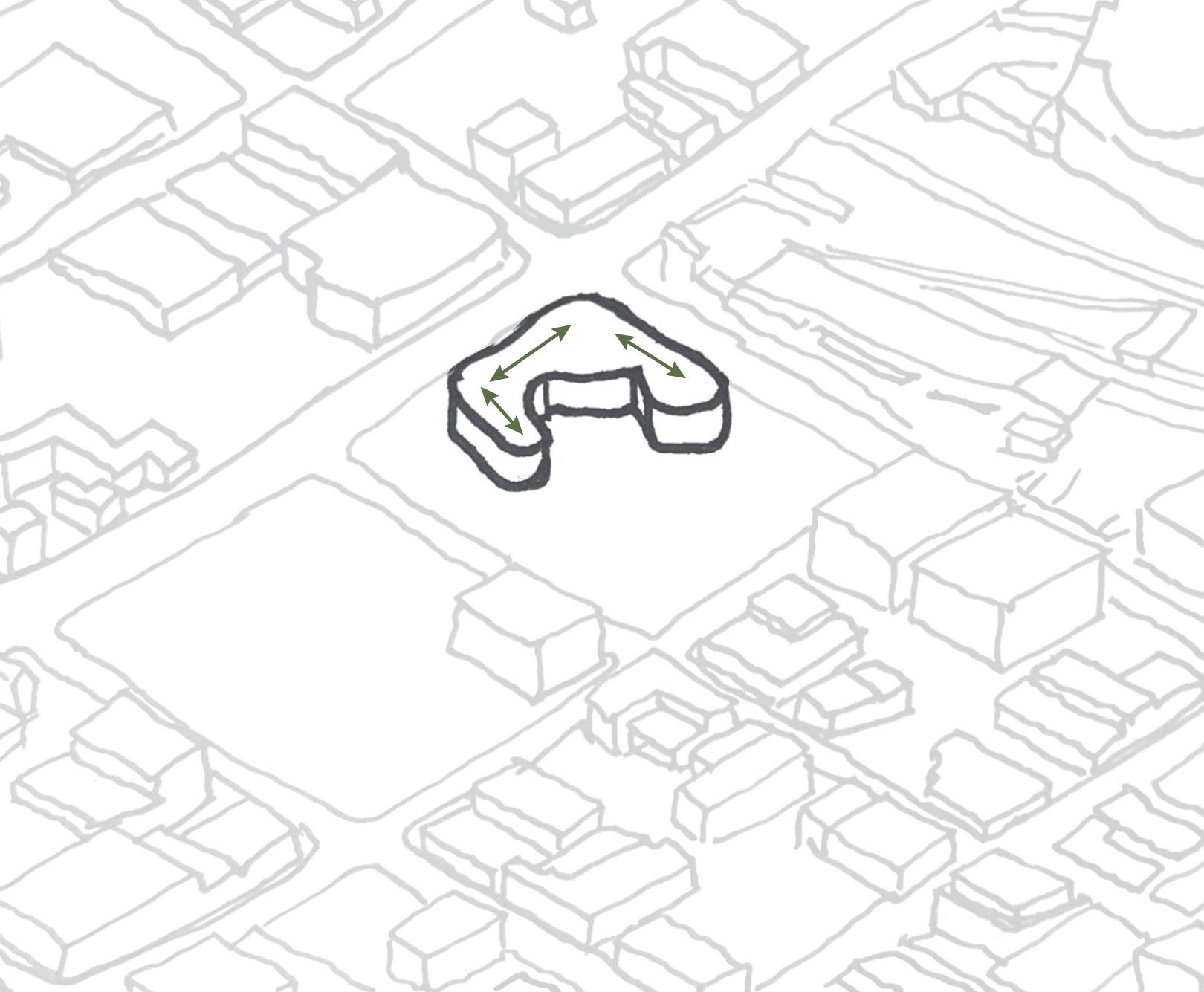

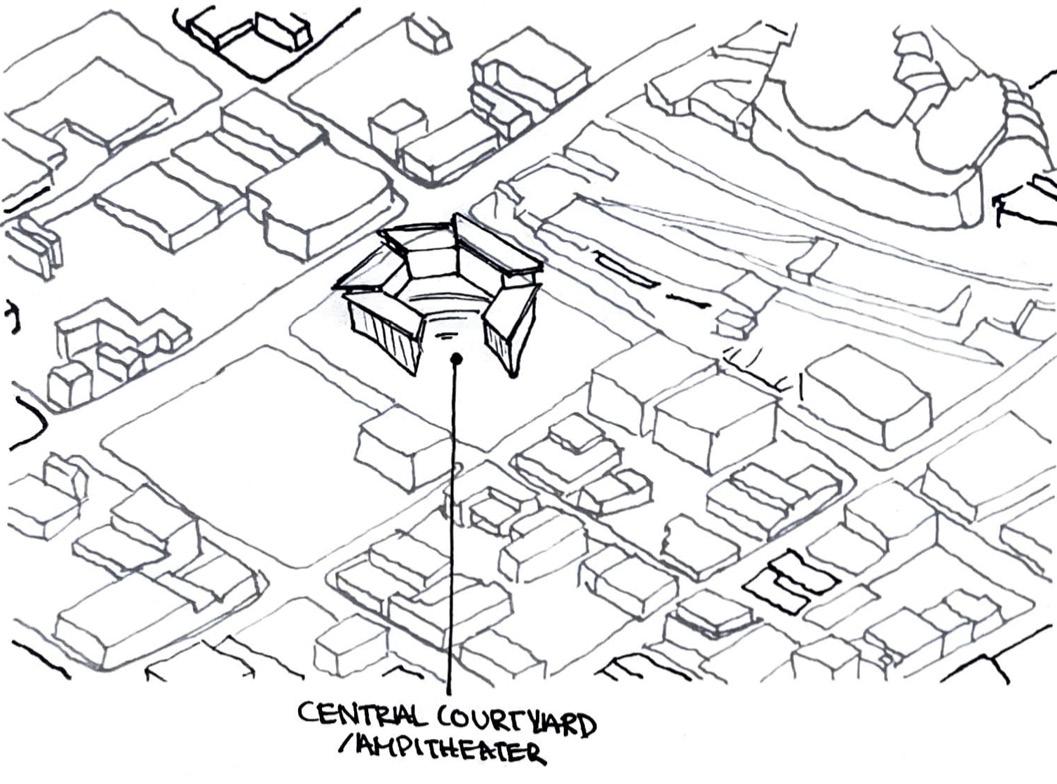

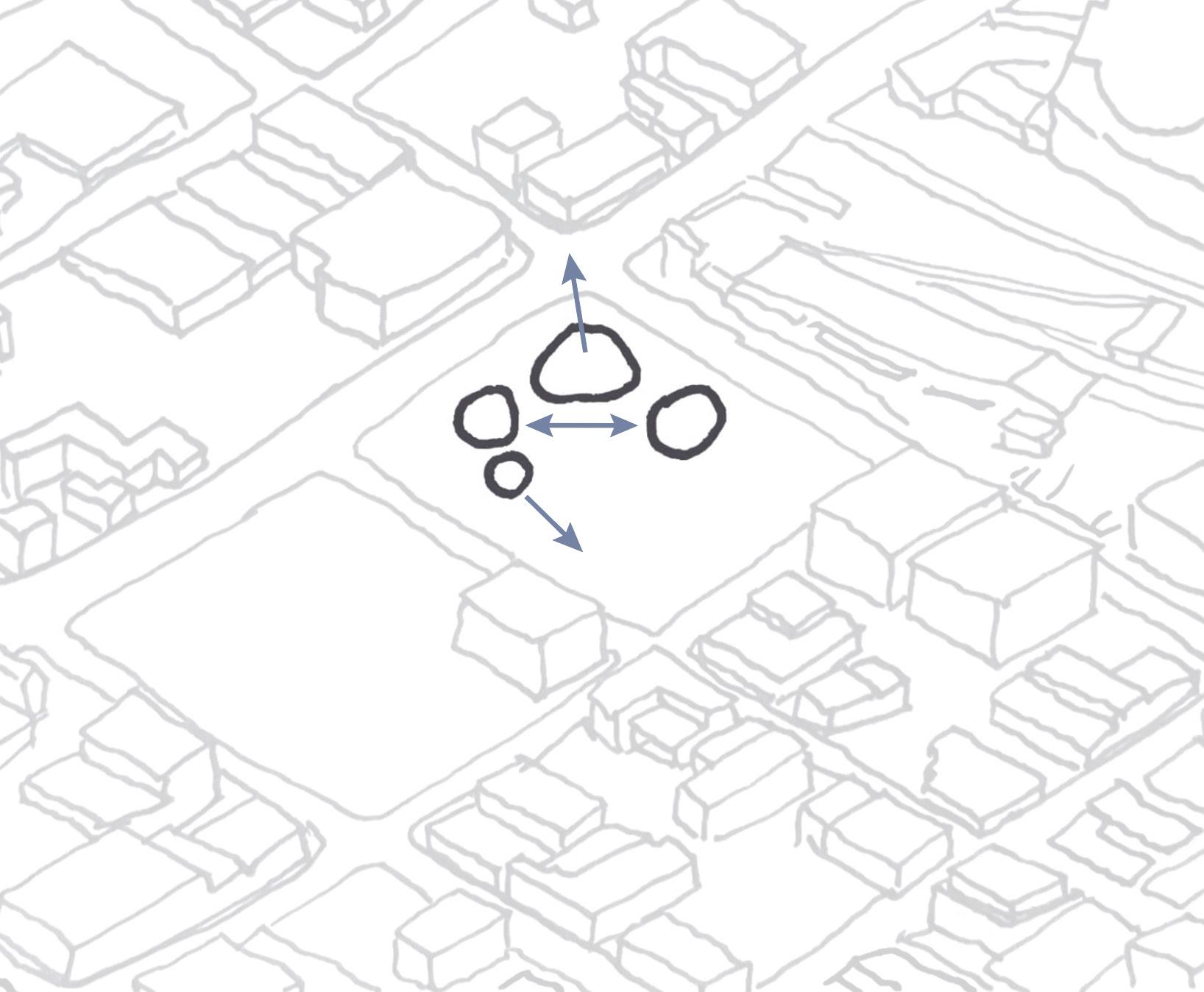

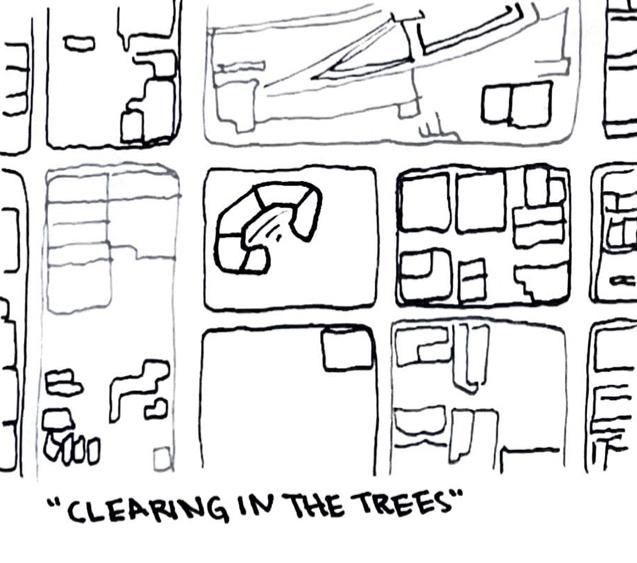

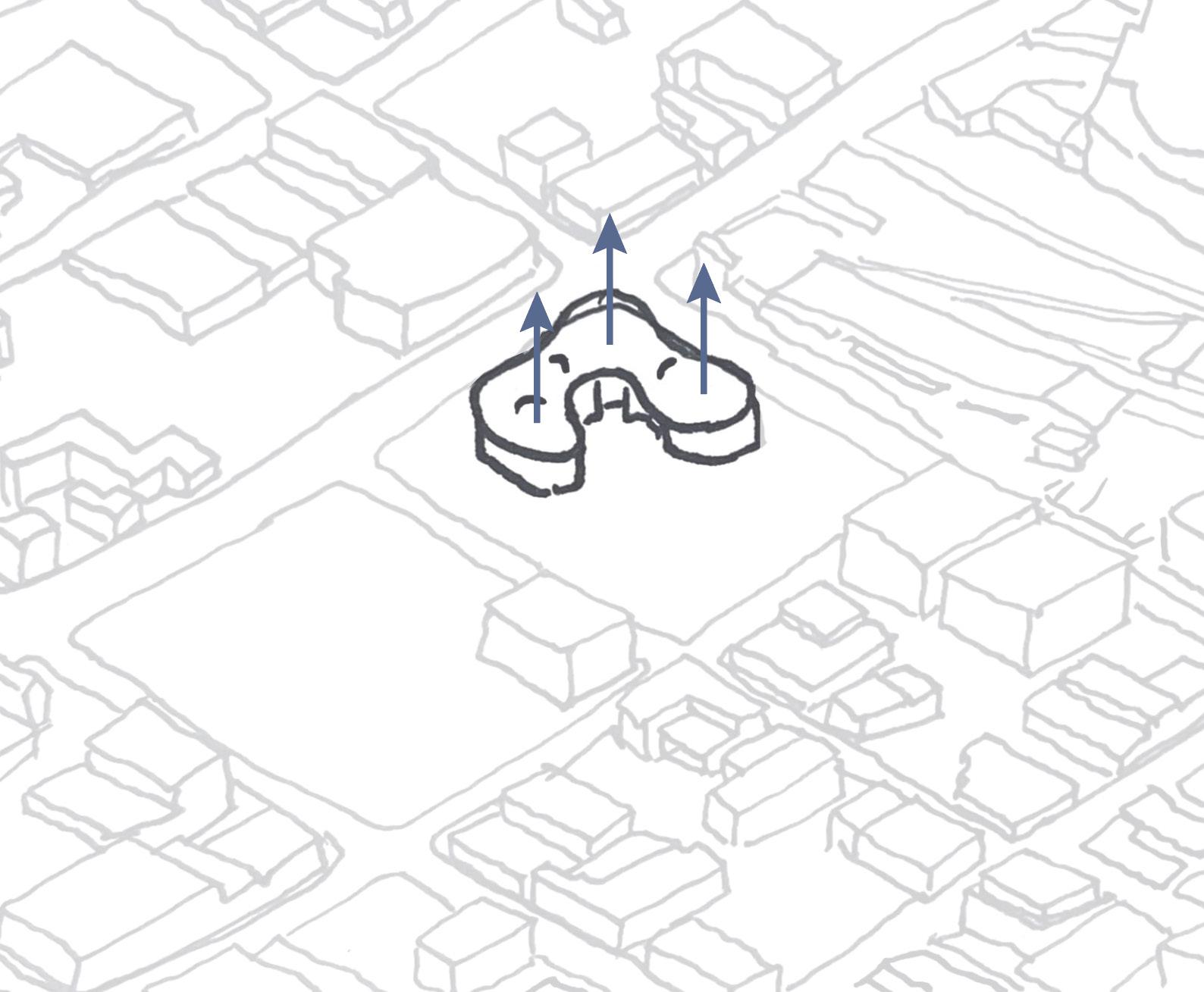

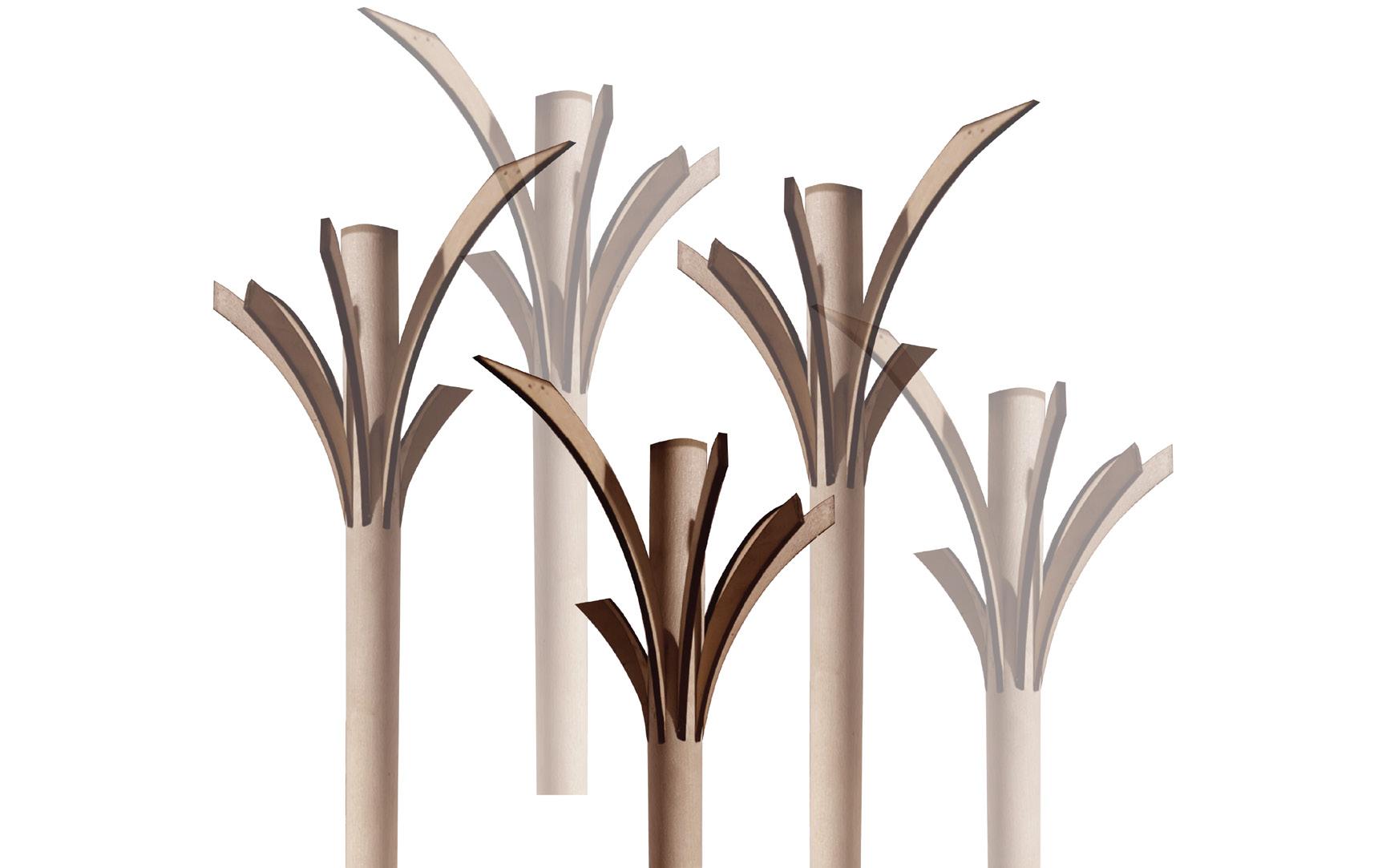

Use four forms to connect to urban surroundings, form courtyard, and embrace the site’s topography

Connect and extrude forms with organic lines

Four layers of the forest: floor, undergrowth, canopy, emergent

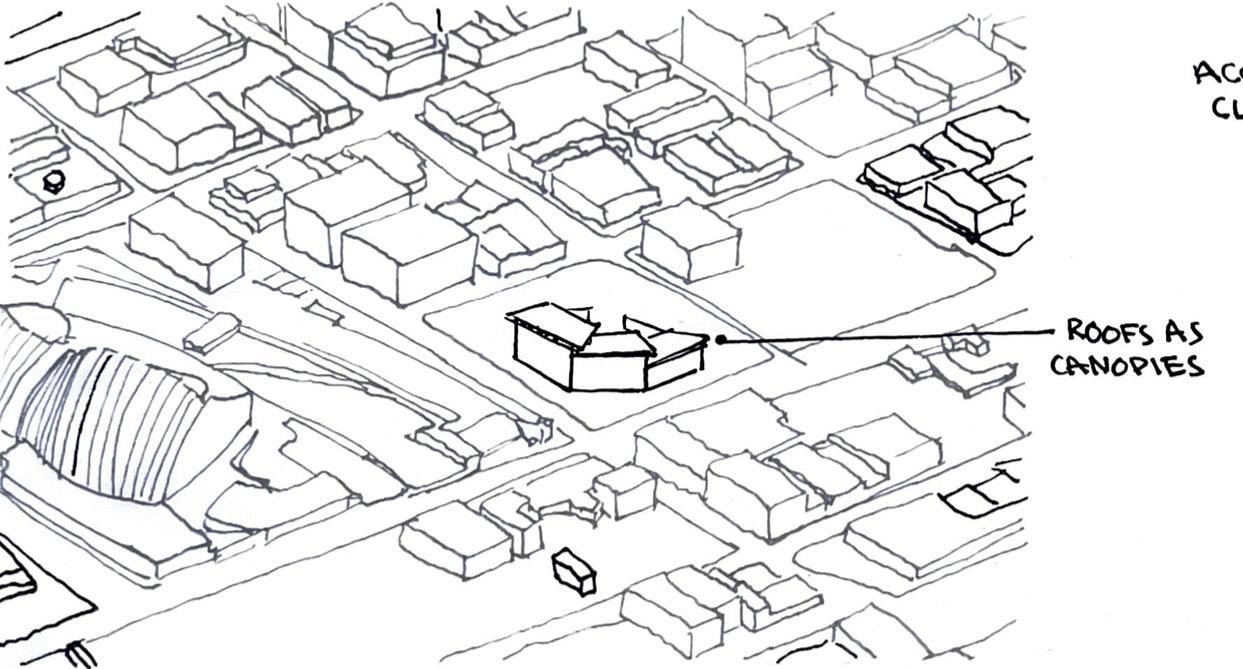

Articulate roof to form a “canopy”

Define roof with arching panels

image credit: Jordyn Knox

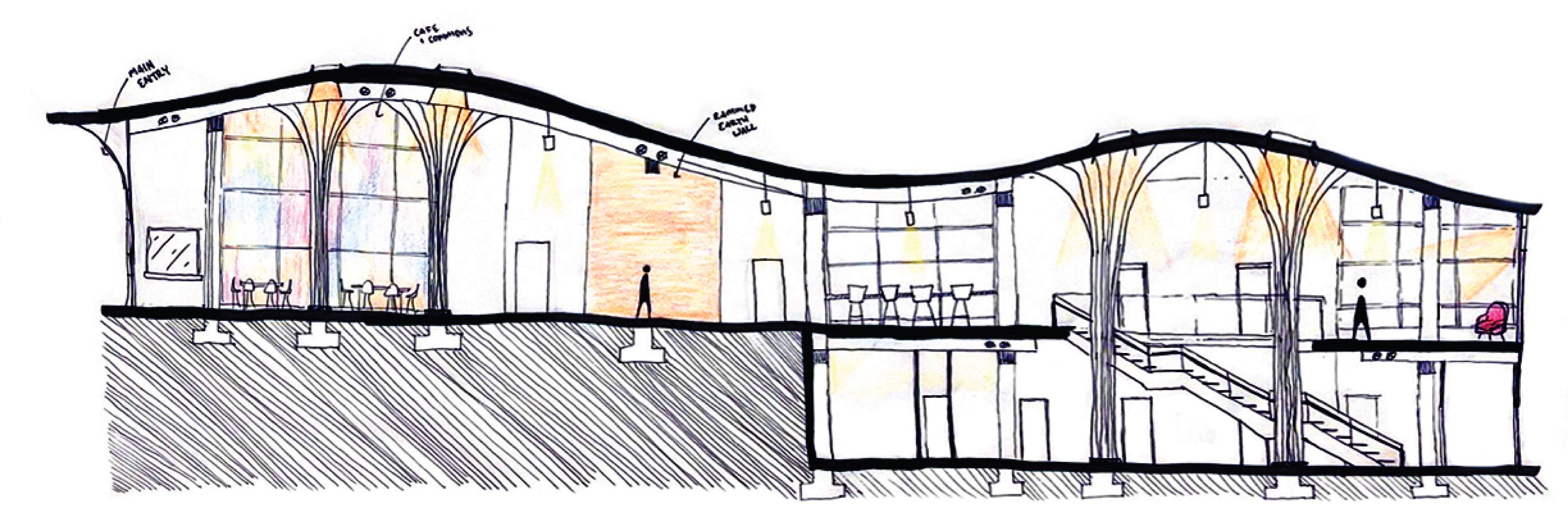

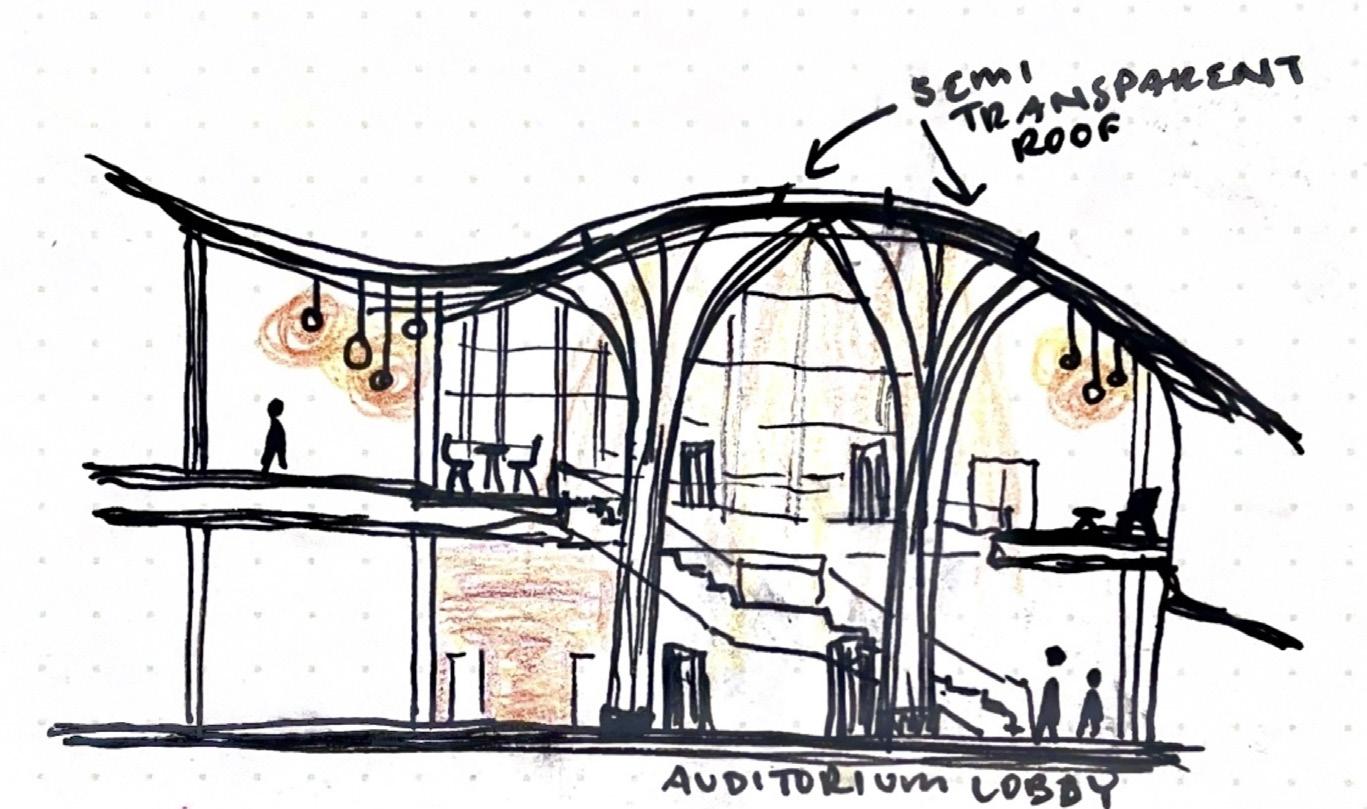

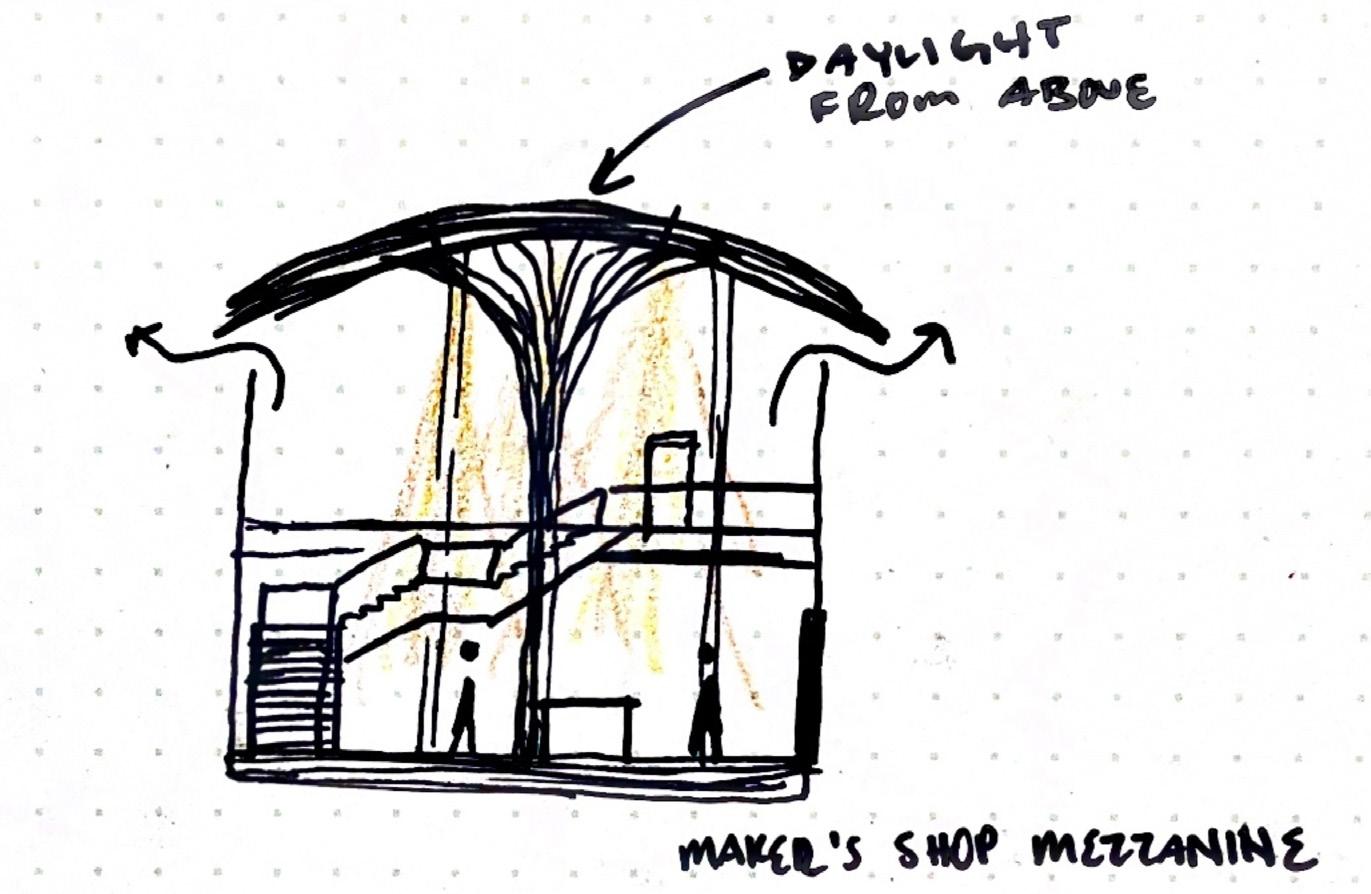

Design Process

image credit: Jordyn Knox

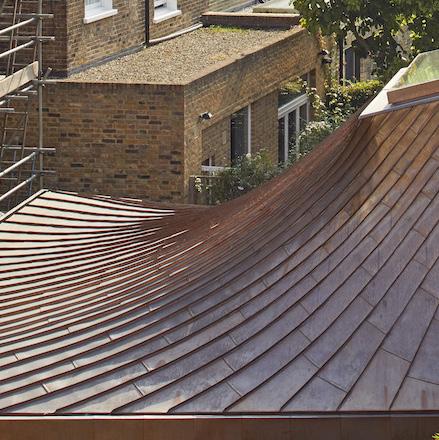

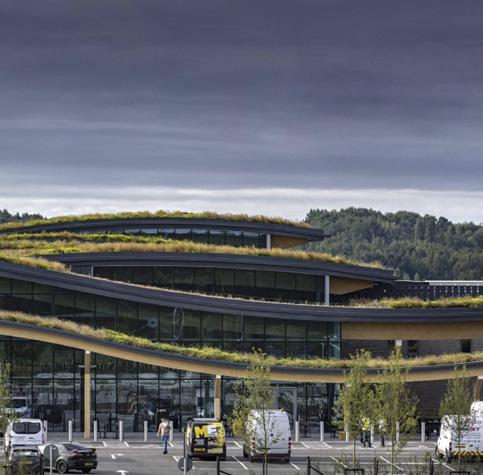

Roof Design

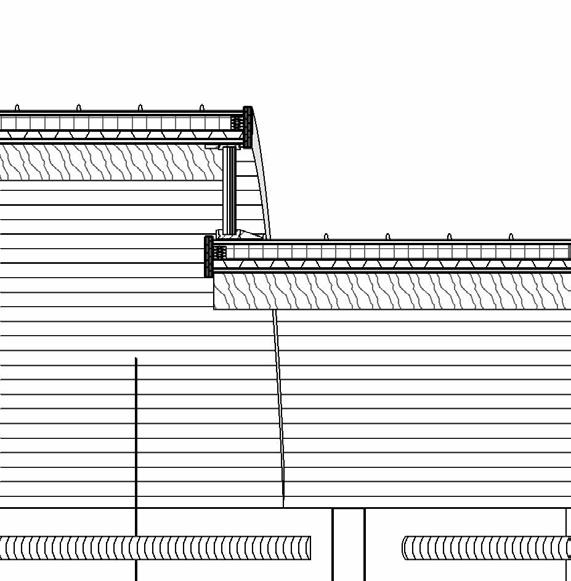

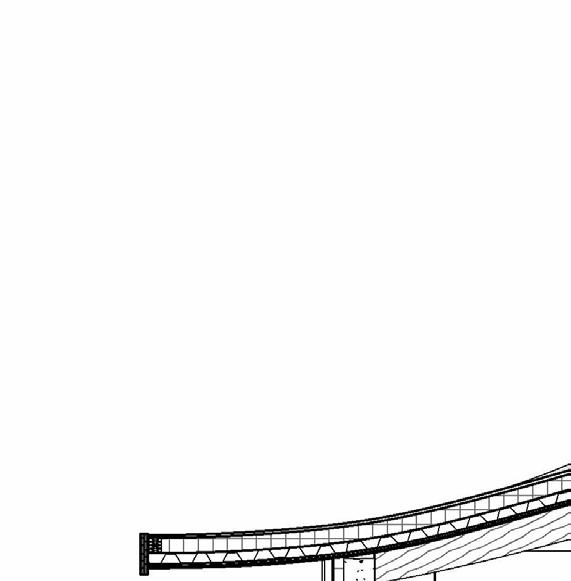

Standing seam copper roof

Source: MAS Service

Skelton Lake Services

Corstophine & Wright

image credit: Jordyn Knox & Coral Aboud

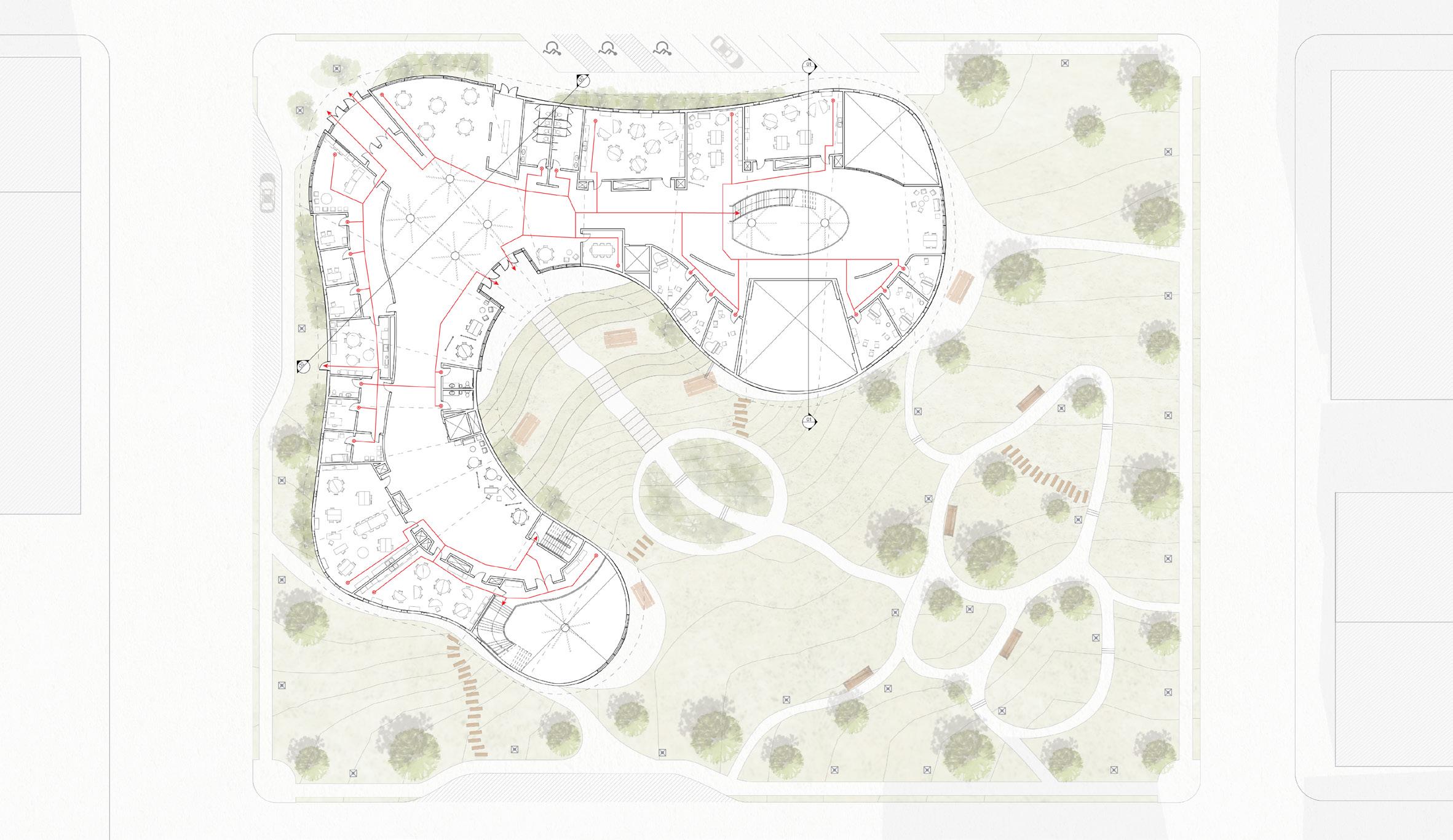

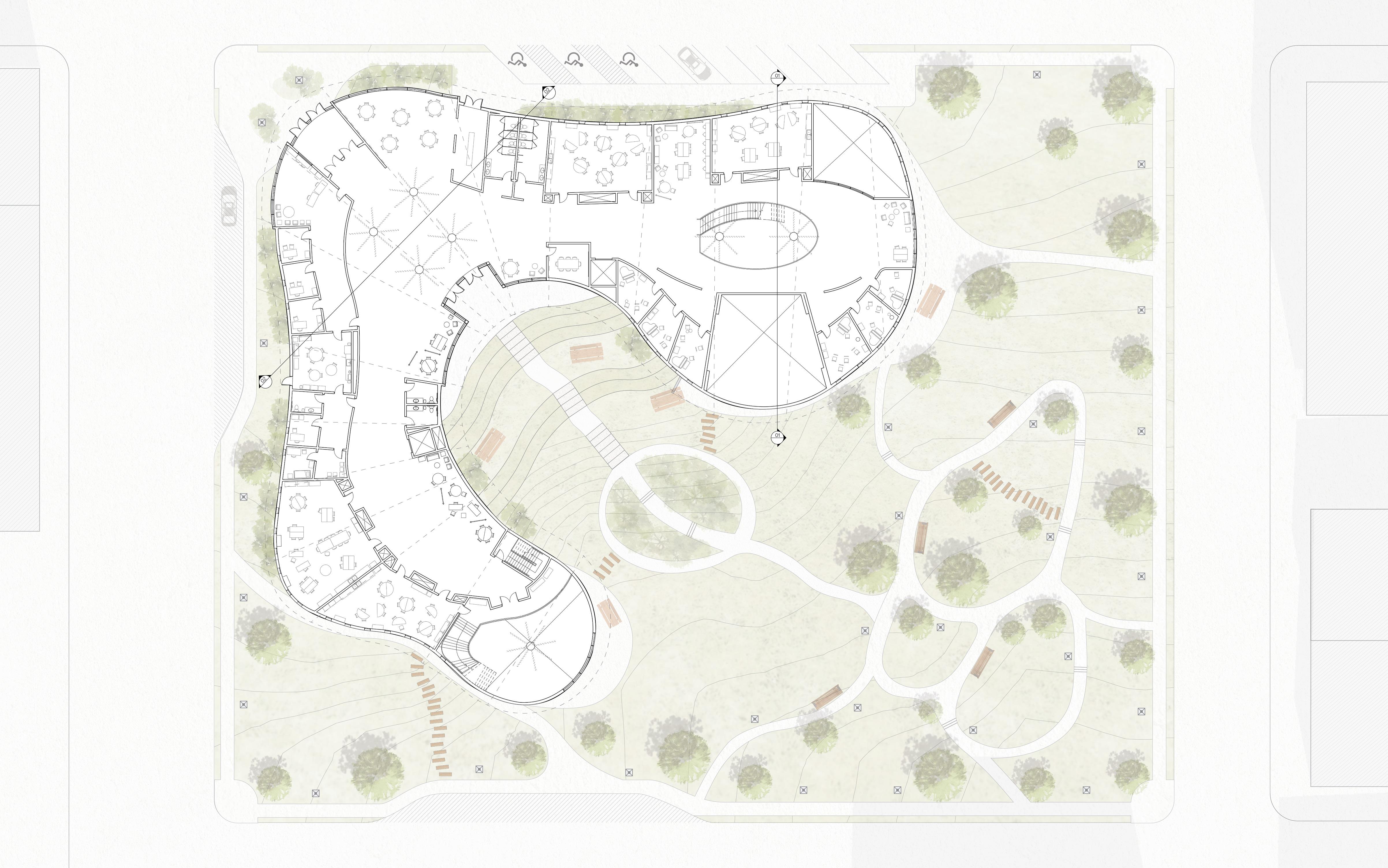

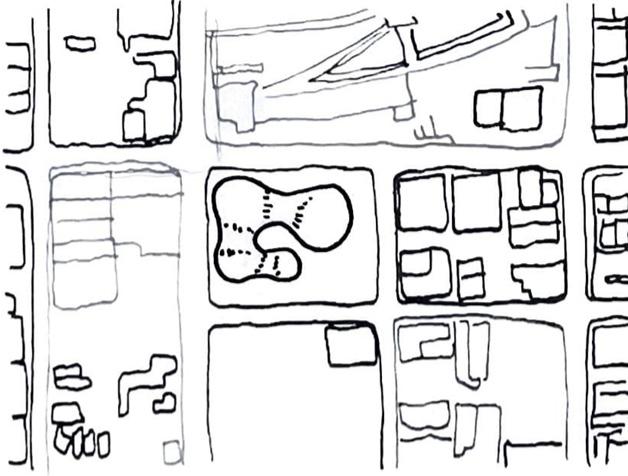

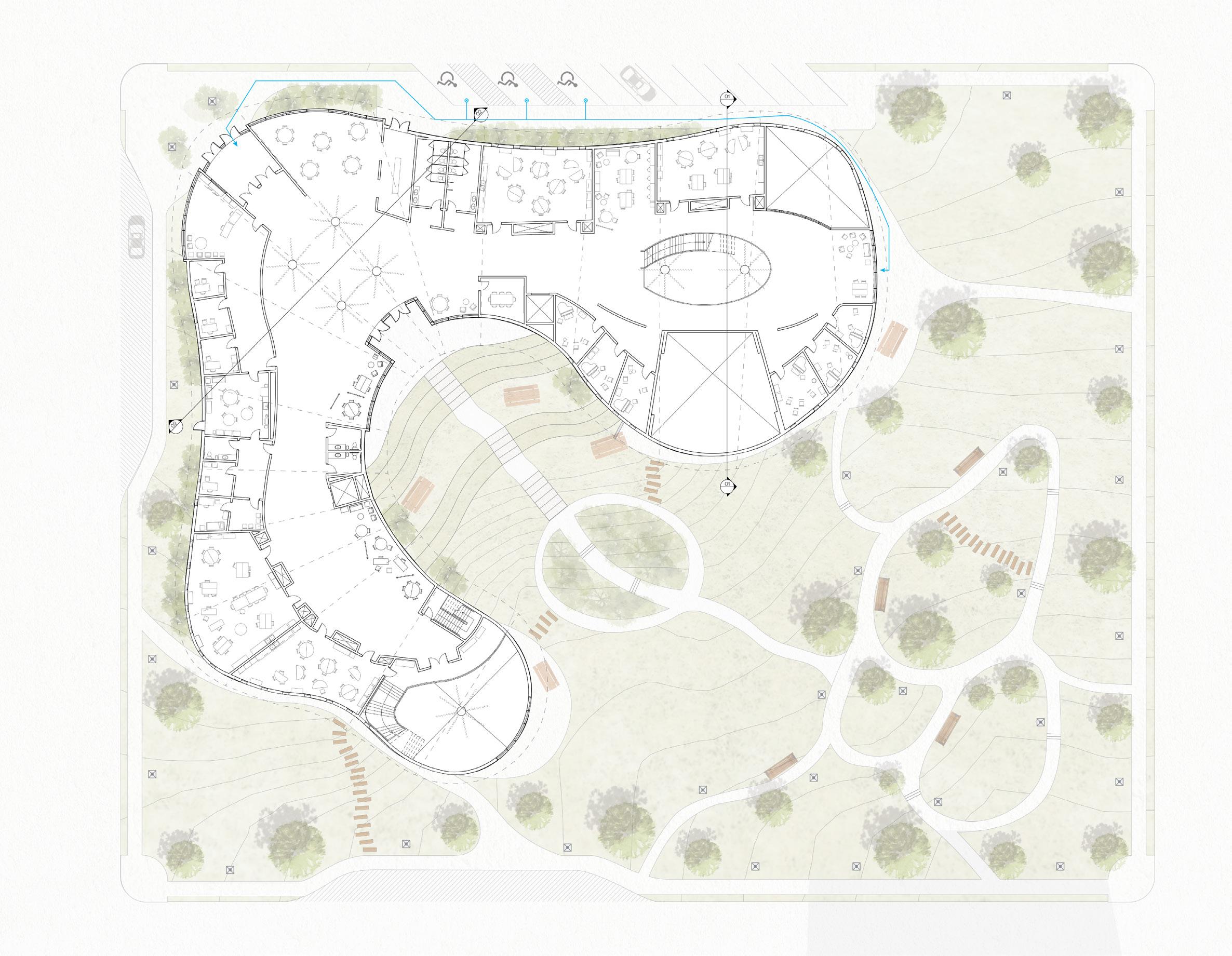

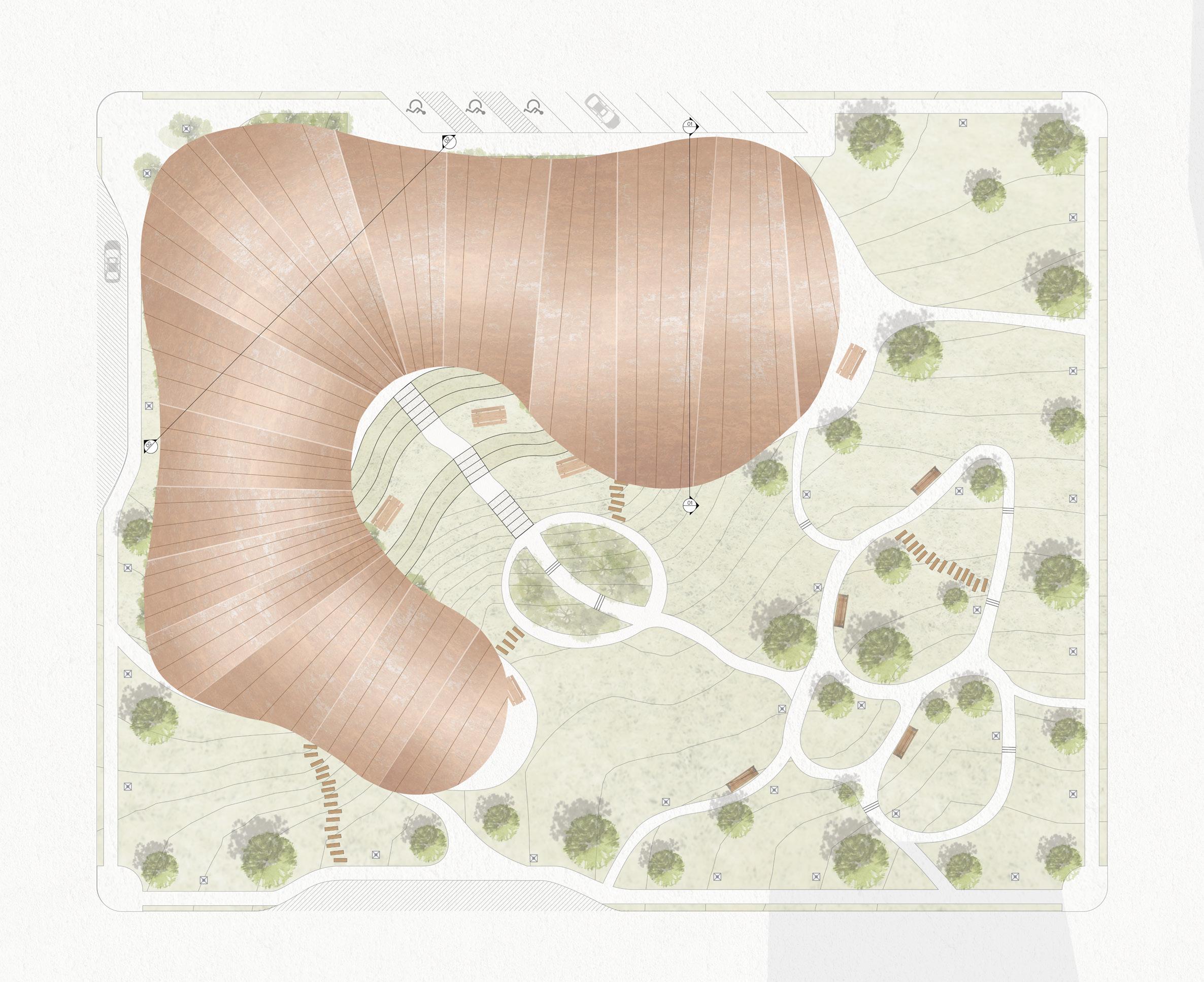

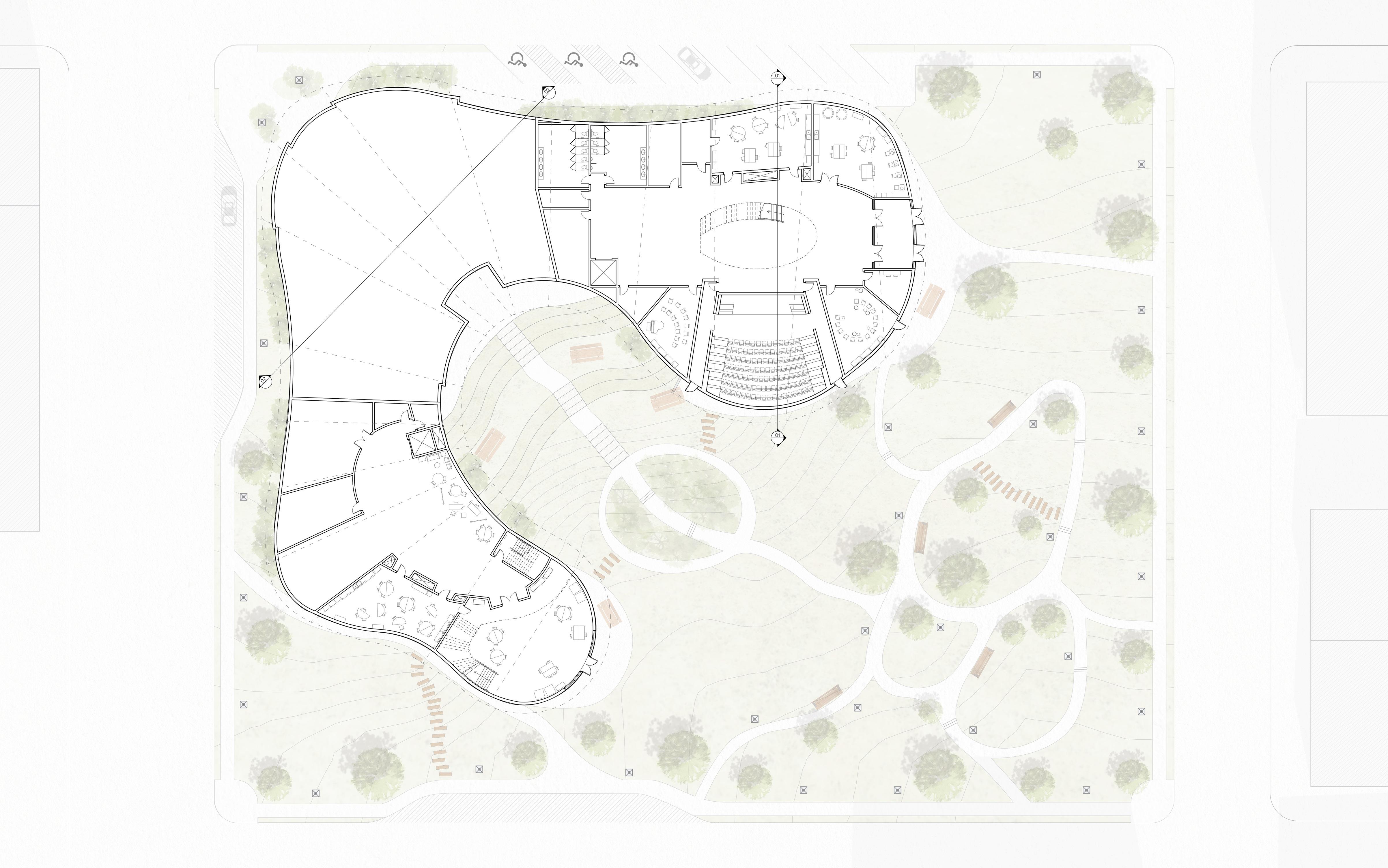

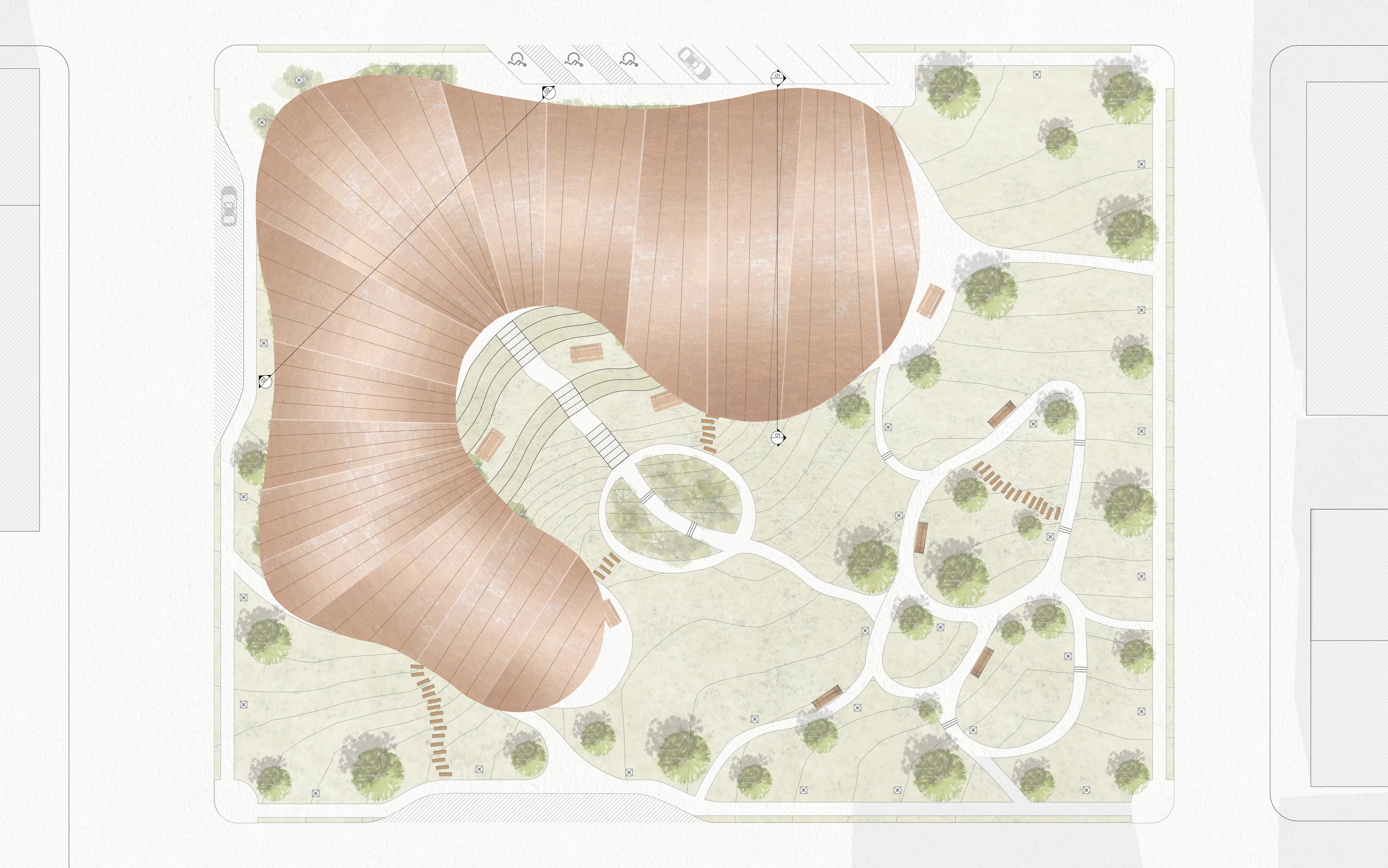

Site & Roof Plan

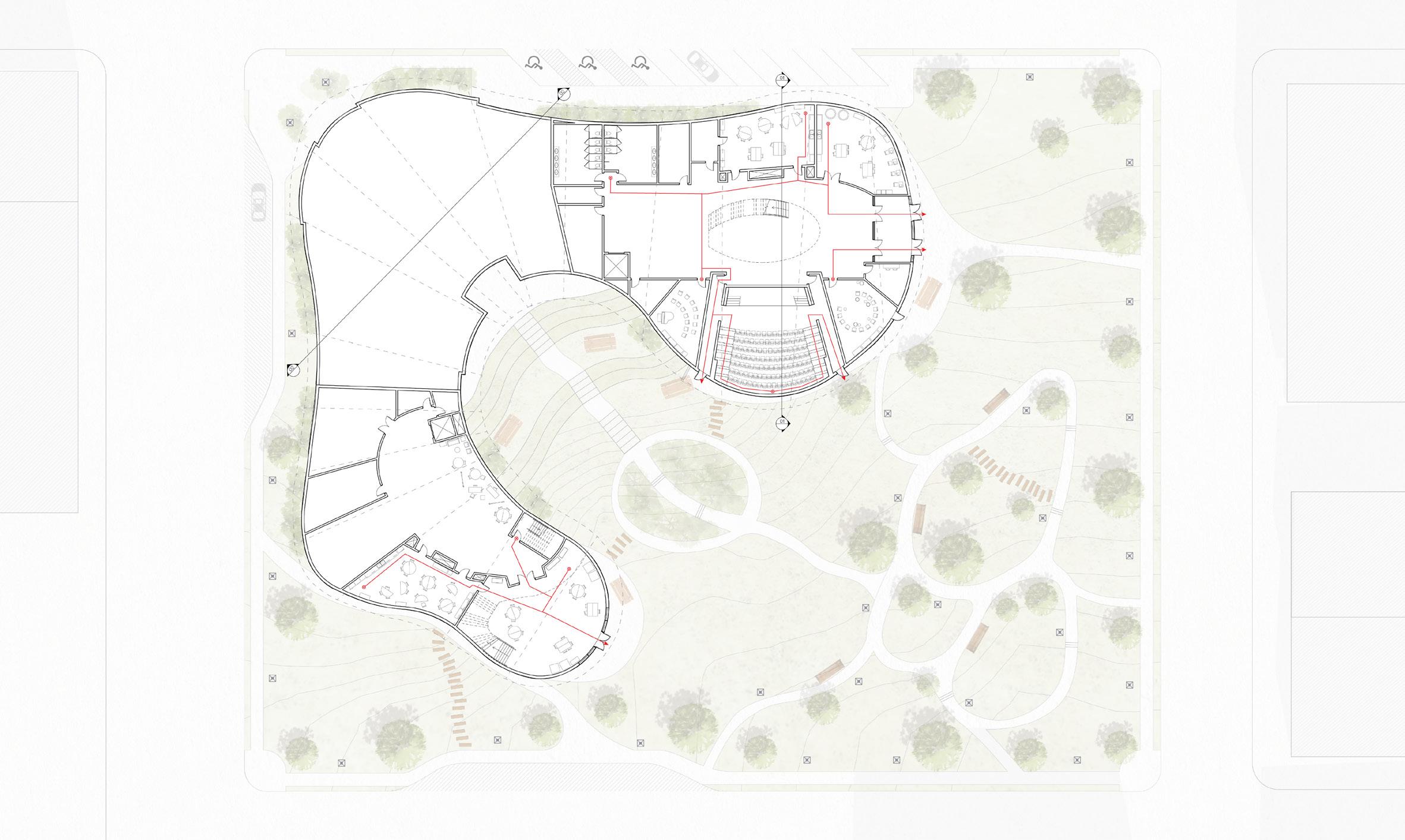

Upper Level Plan

image credit: Jordyn Knox & Coral Aboud

Lower Level Plan

image credit: Jordyn Knox & Coral Aboud

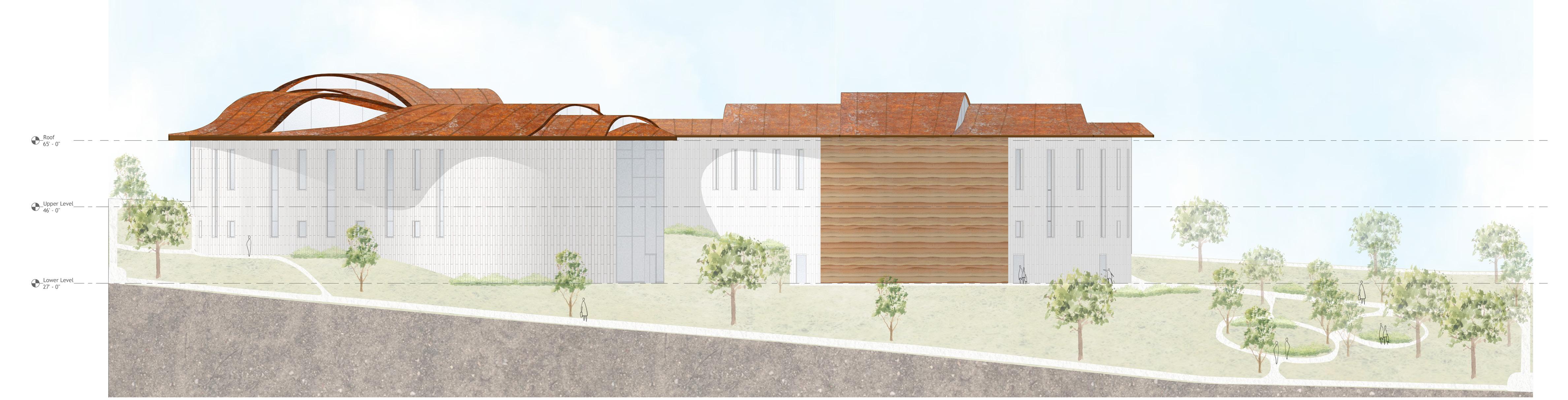

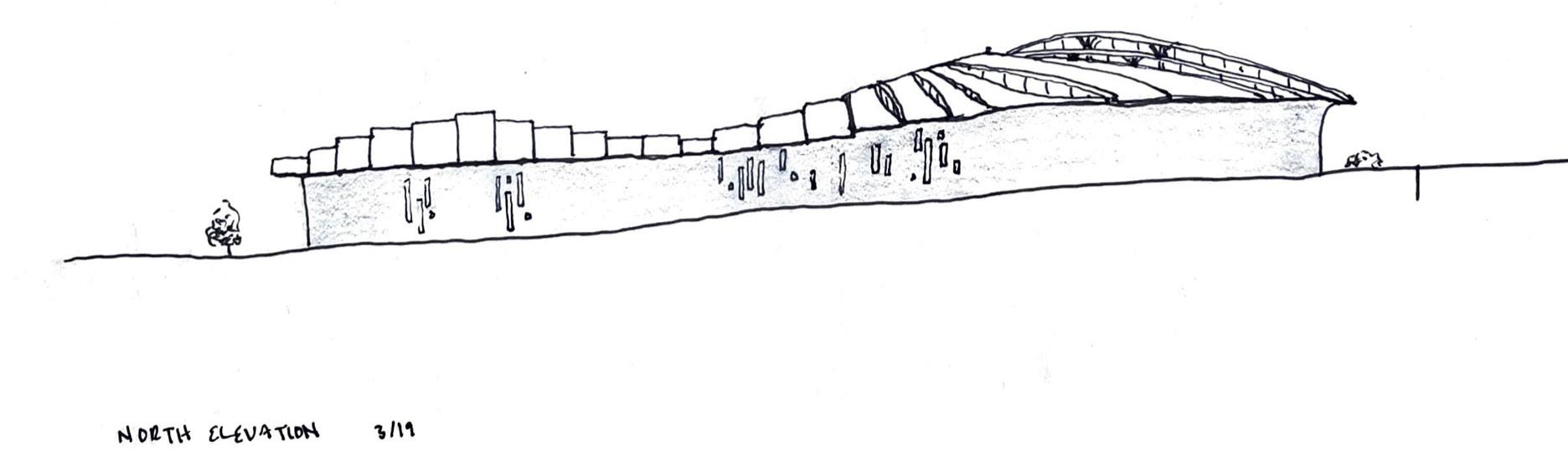

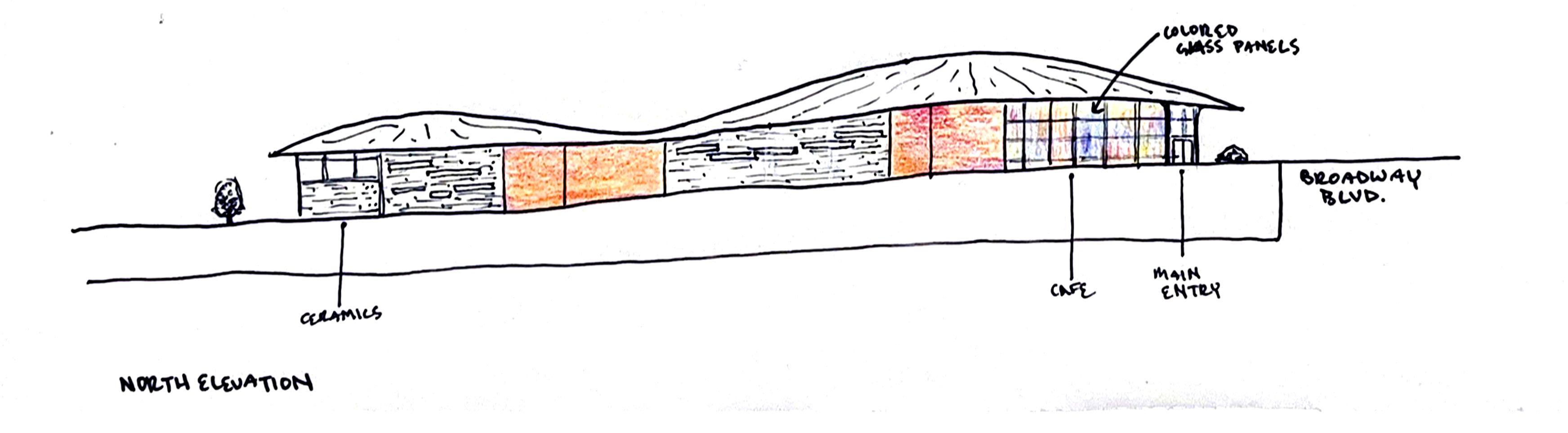

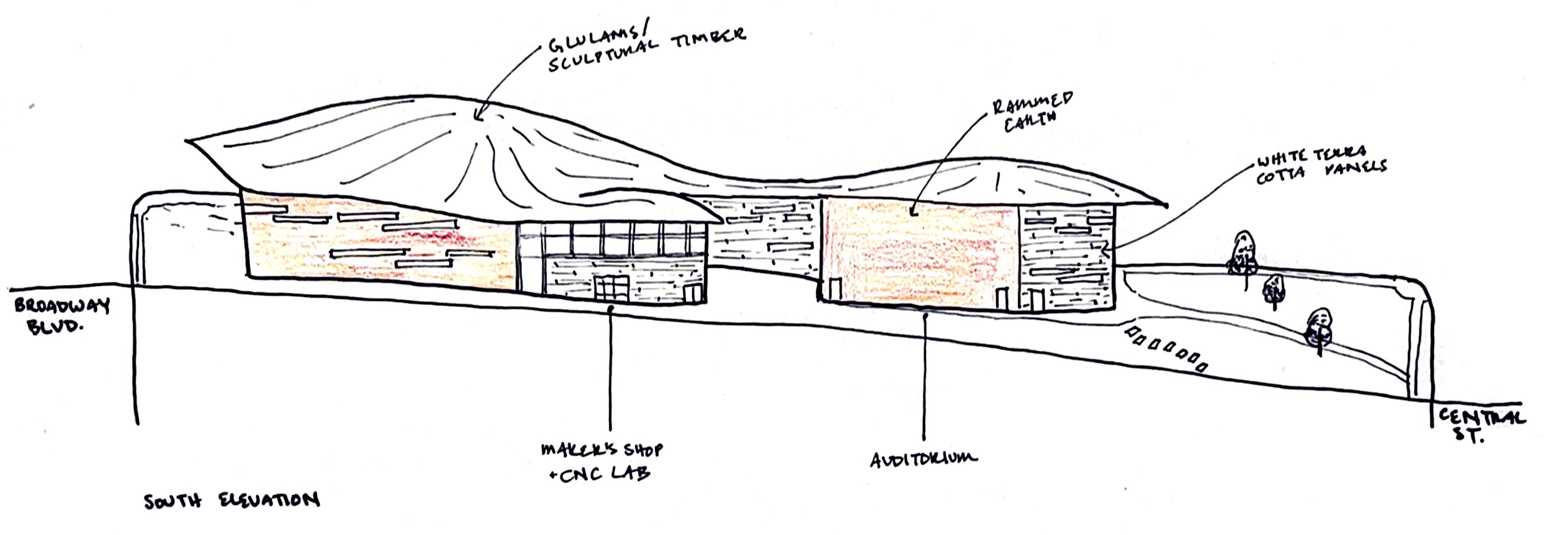

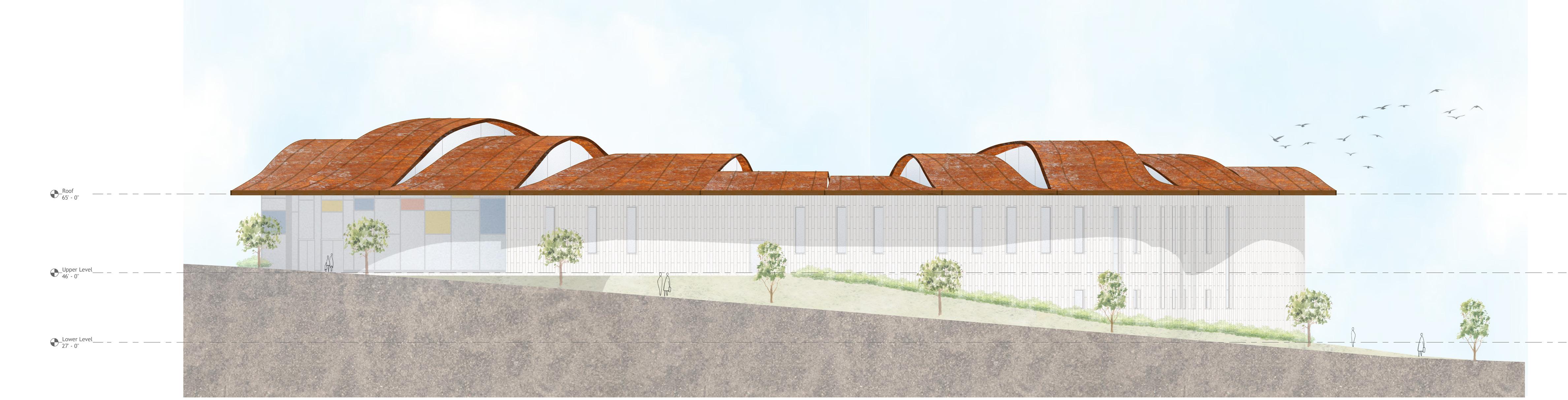

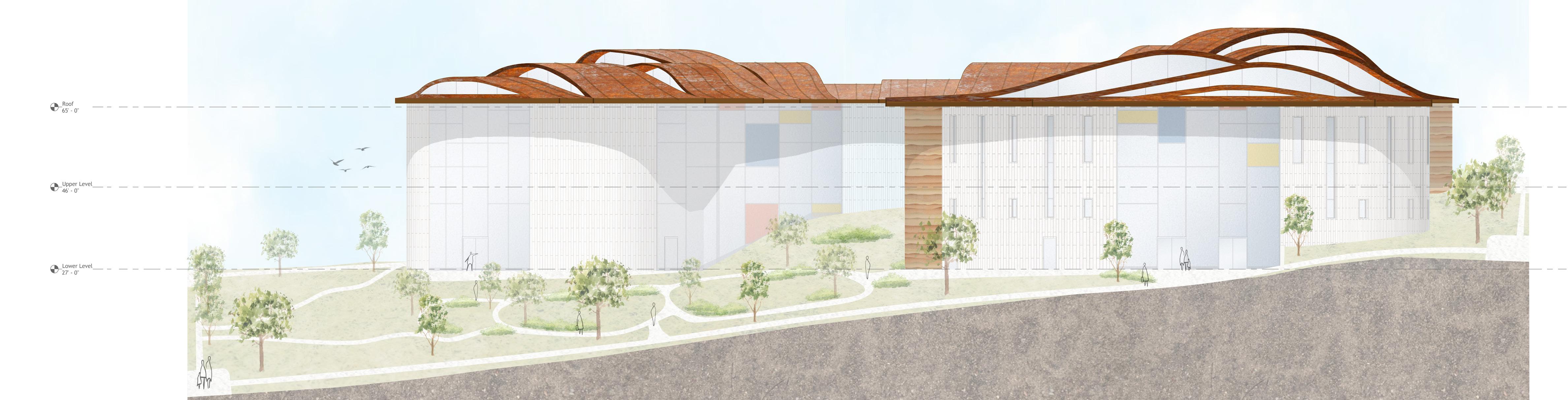

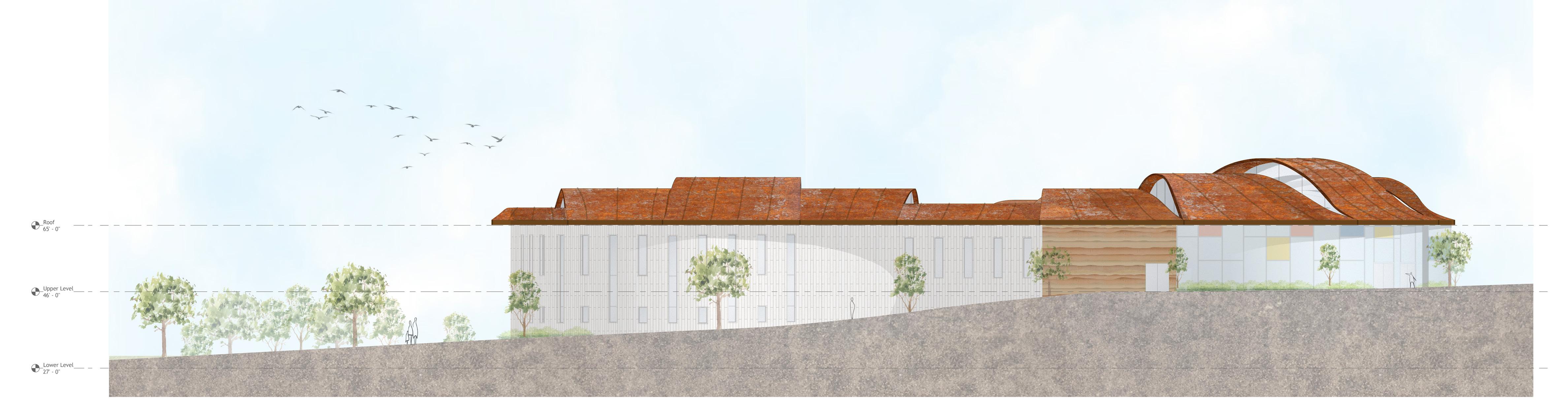

North Elevation

South Elevation 0’

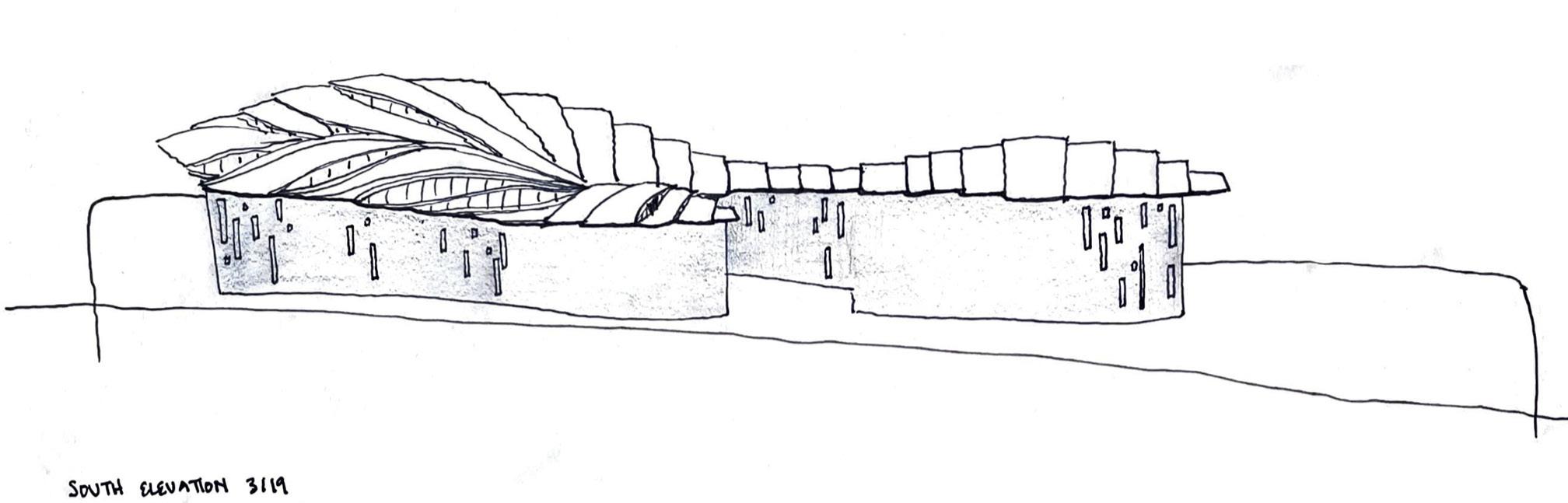

East Elevation

Elevation

0’ 15’ 30’

image credit: Jordyn Knox

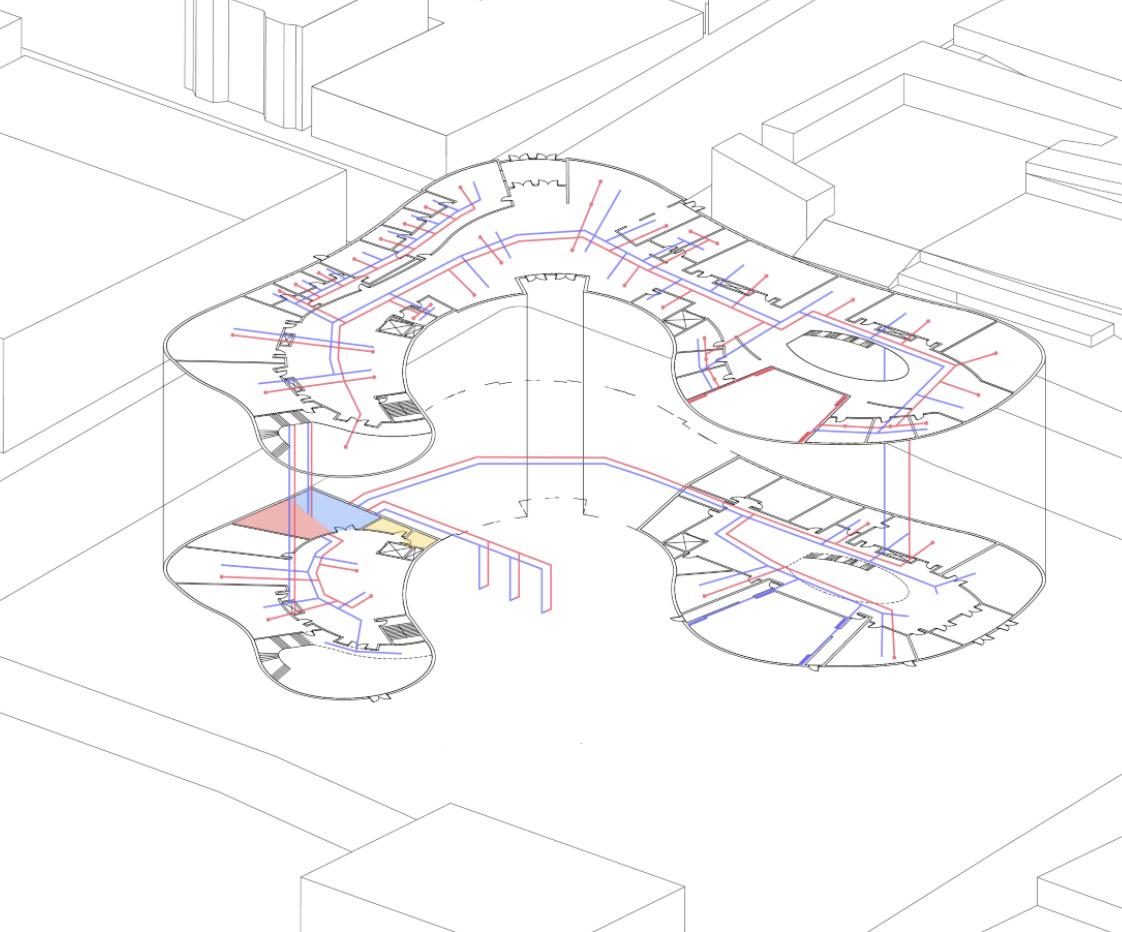

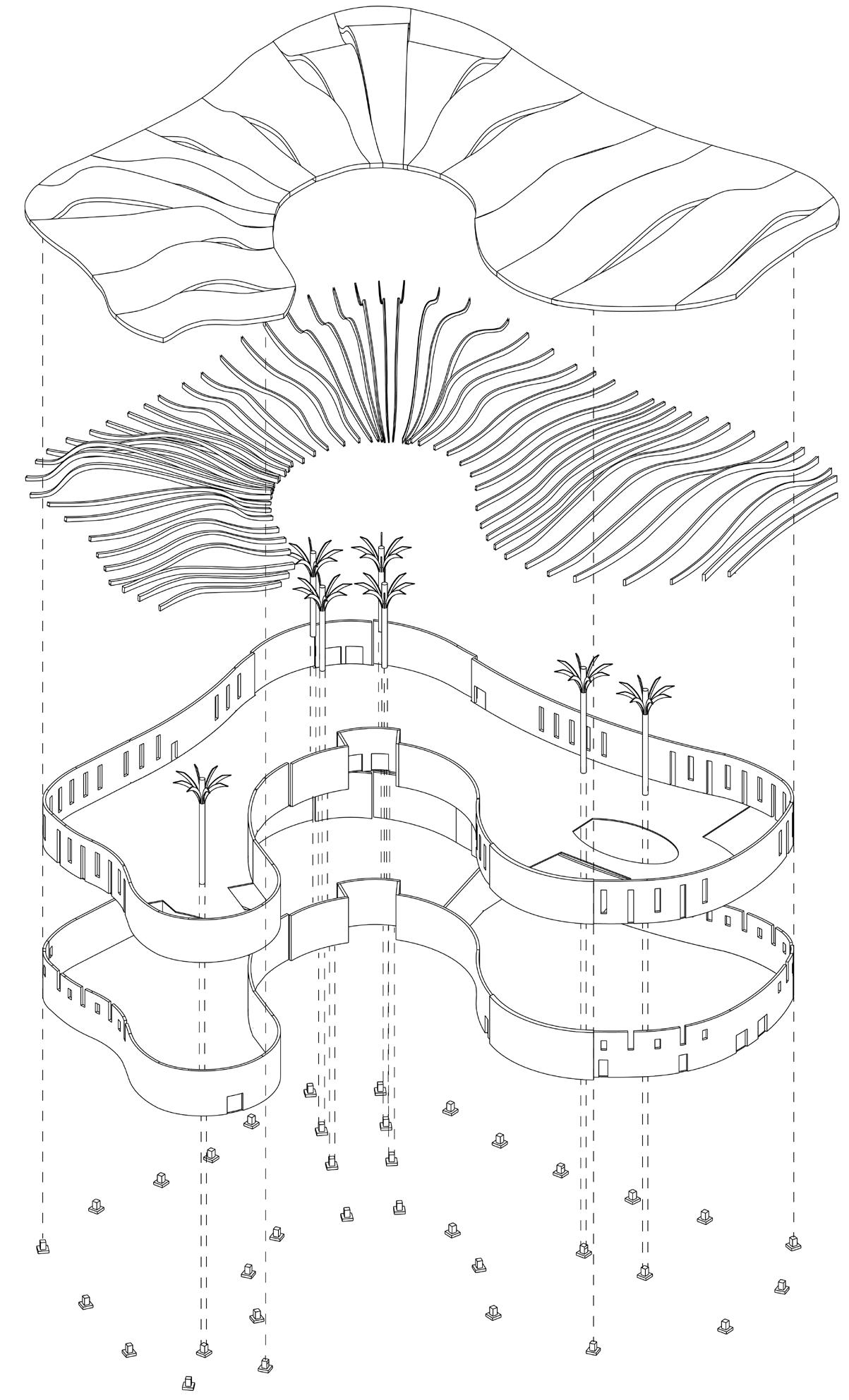

Systems & Structure

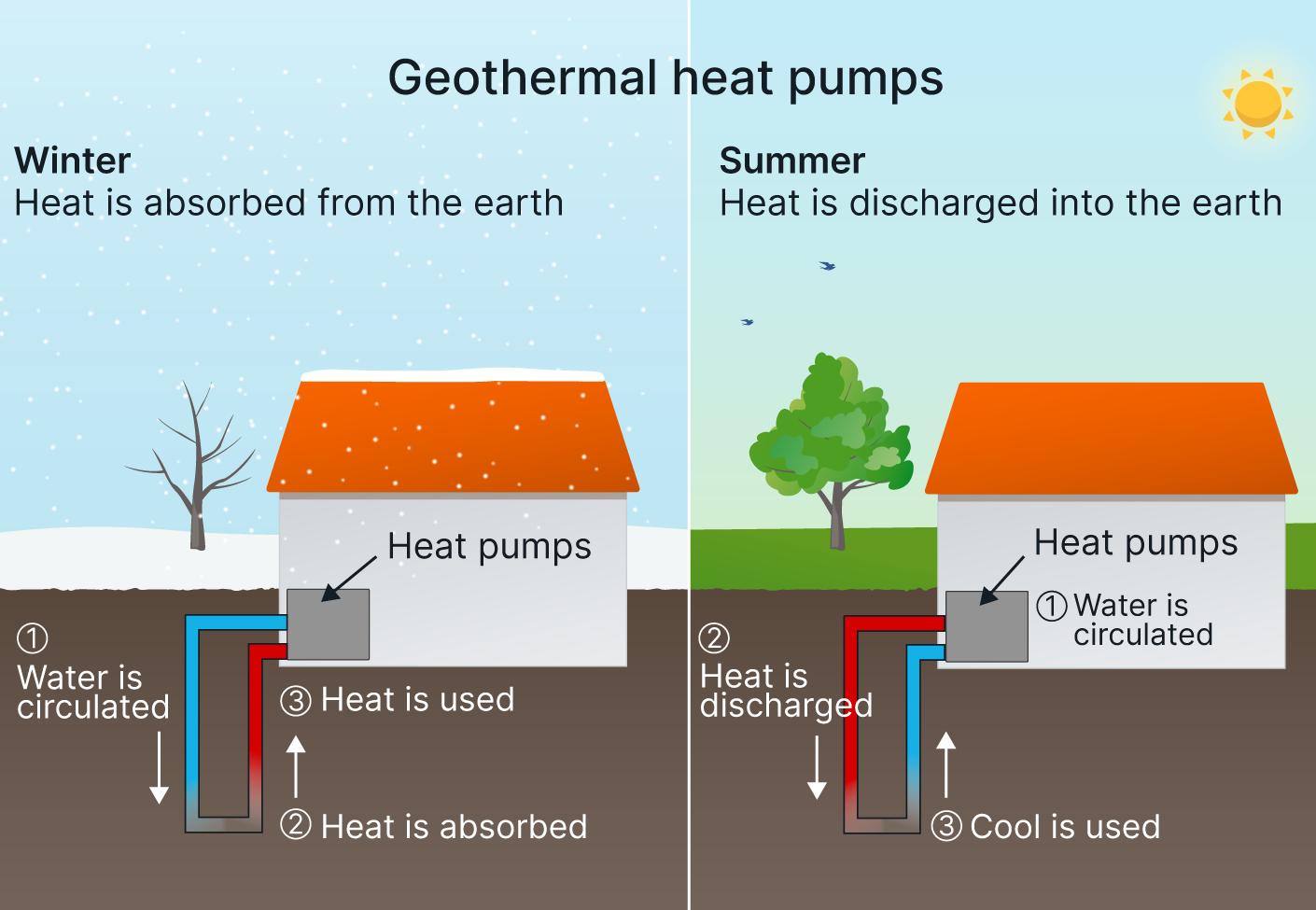

Geothermal energy system

Auditorium: displacement ventilation

Copper roof panels

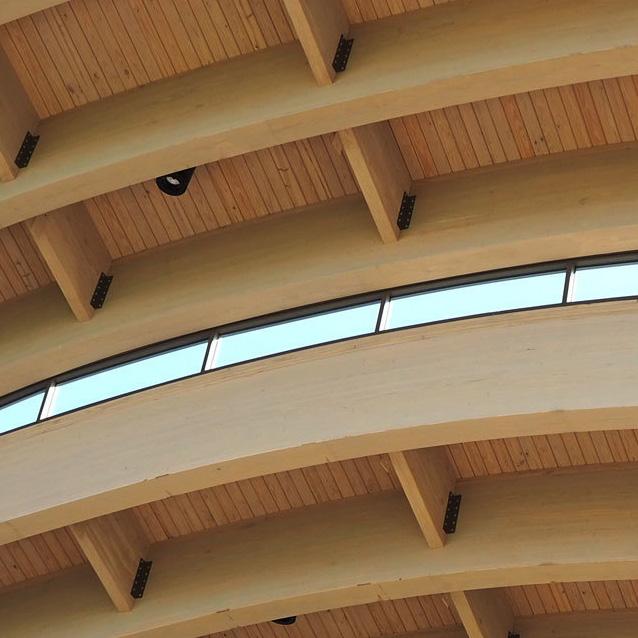

Glulam roof beams

Glulam columns

Concrete shear wall

Concrete footings Supply Return

image credit: Jordyn Knox

image credit: Coral Aboud

Source: Montana

Design for Integration

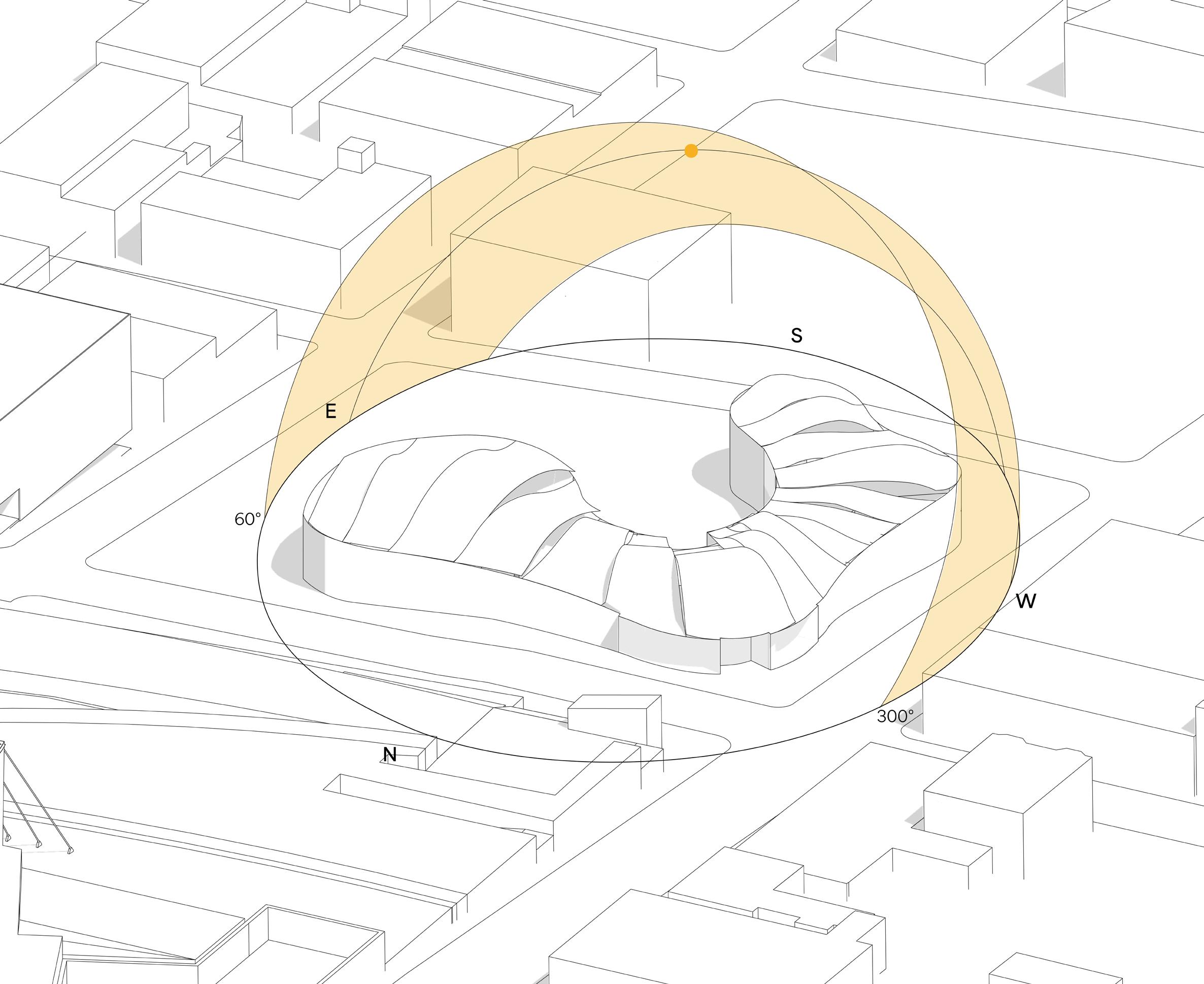

greater roof overhangs toward south & west

courtyard enclosed from southern exposure

Kansas City has taken on a number of sustainability initiatives, such as establishing the Office of Environmental Quality and the Urban Forest Master Plan. These initiatives seek to solidify sustainability as a core principle of the city’s development, encouraging growth within ecological limits, and increasing the density and health of the city’s tree canopy. Our project seeks to align with these goals through passive design by...

• Optimizing building orientation to allow for a comfortable level of natural light

• Utilizing roof overhangs to prevent excessive solar gain

• Incorporating native landscaping to support the local ecosystem

• Utilizing a geothermal energy system to reduce building emissions

Percentage of year occupants will be comfortable using passive systems: 40%

image credit: Jordyn Knox

Design for Ecosystems & Water

The site’s current conditions fail to adress stormwater runoff, as all rainwater flows toward the southeast corner of the site with no plans for drainage. Along with this, the site’s landscaping does not respond to the local ecosystem or Kansas City’s sustainability goals. Our design adresses this issue with:

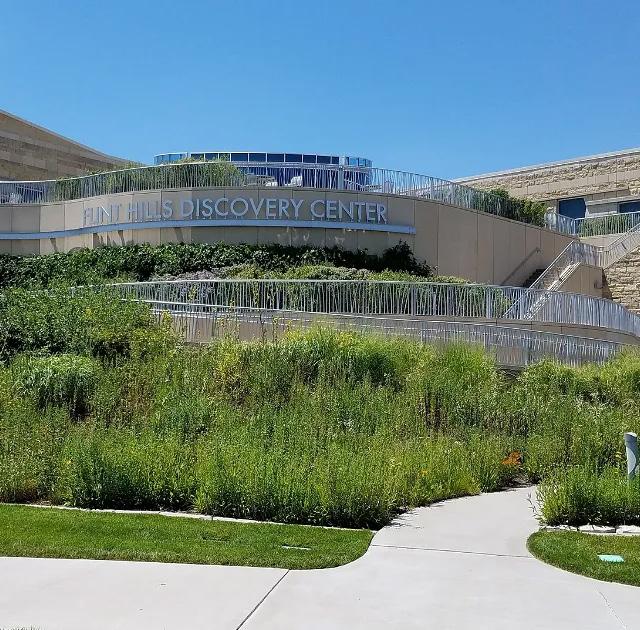

• Incorporating native plantings to support the area’s flora and fauna (shown below)

• Utilizing tree canopy aligning with the Urban Forest Master Plan

• Adding onsite drainage systems such as bioswales to absorb runoff

• Promoting healthy air quality through landscaping and efficient mechanical systems

Percentage of site area supporting vegetation: 60%

Butterfly Milkweed Gray Dogwood Big Bluestem Indian Grass

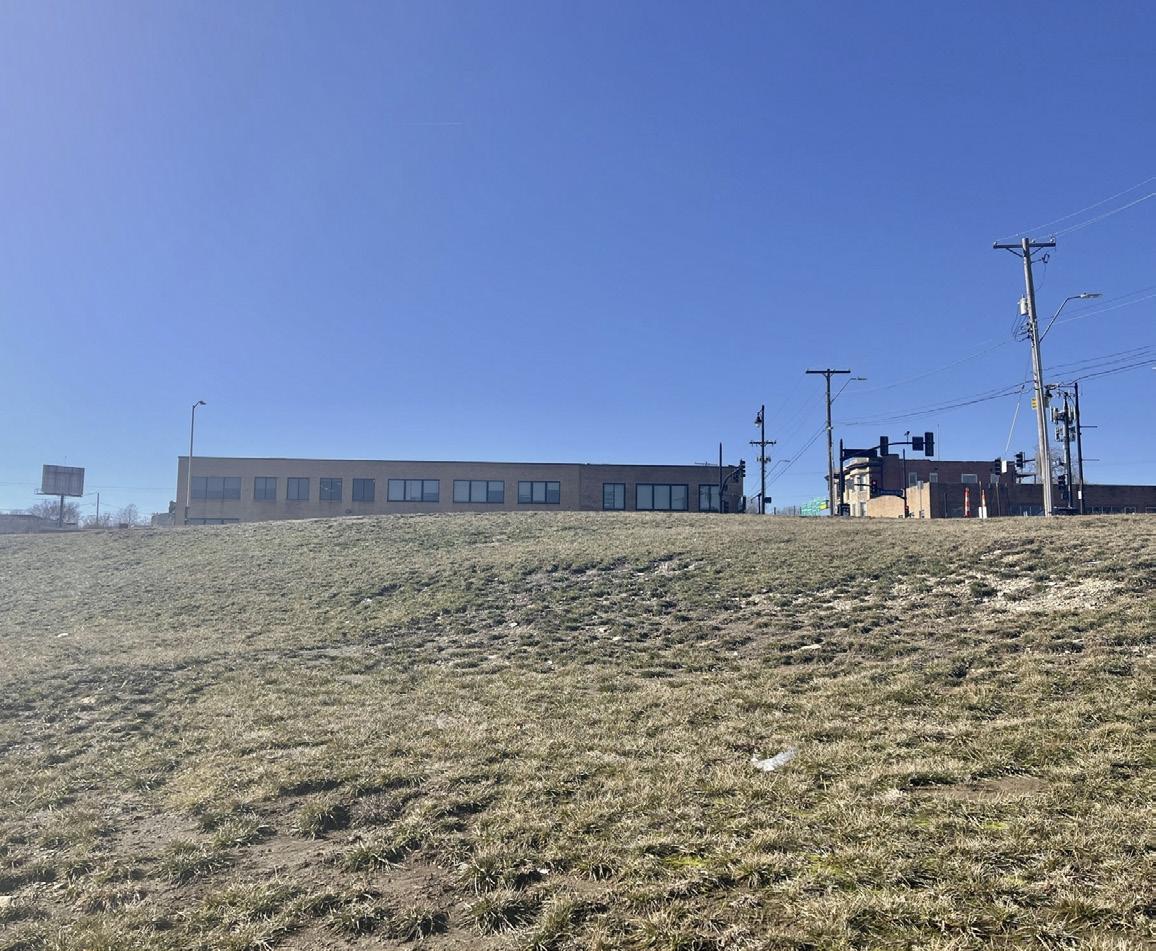

Current site conditions

social stair: terrace system permeable pavement bioswales between sidewalks and street

image credit: Jordyn Knox

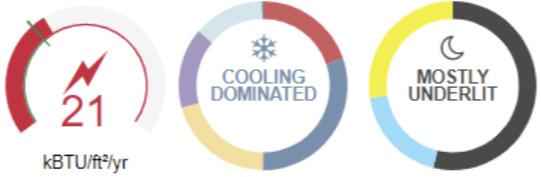

Design for Energy & Wellbeing | Baseline

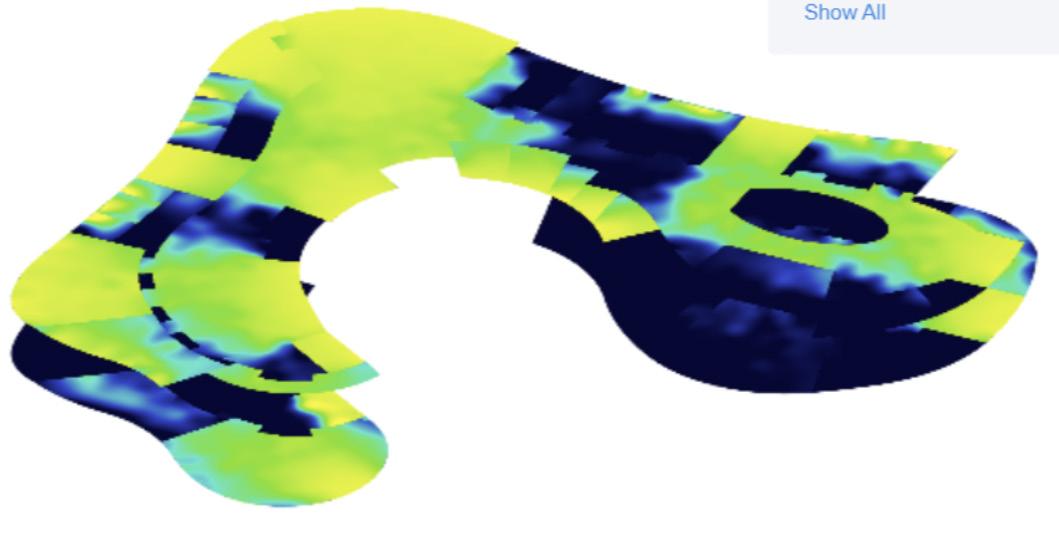

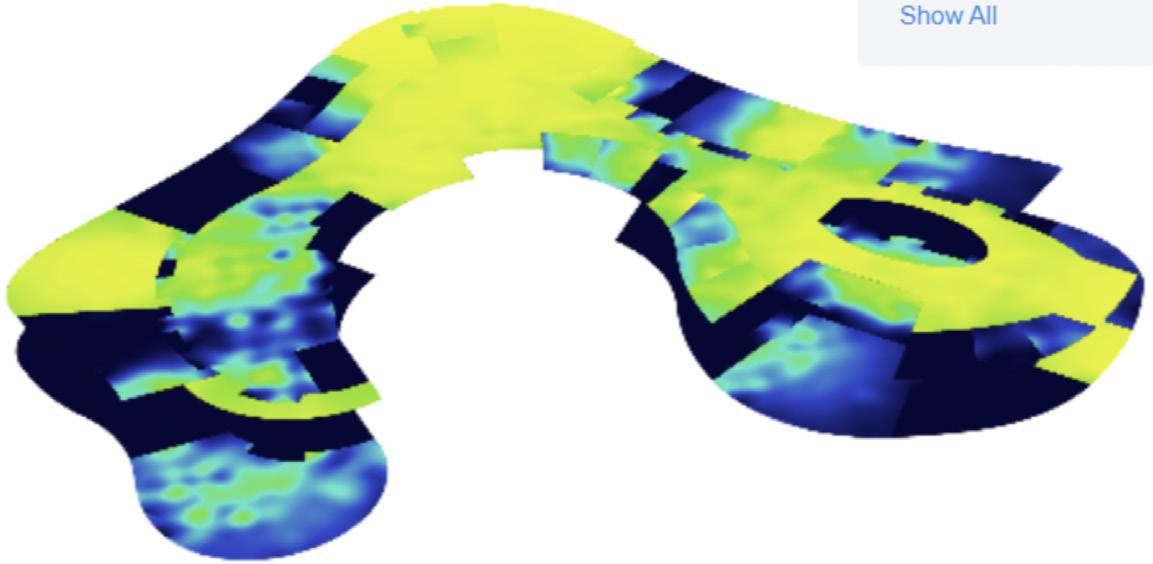

Full building analysis

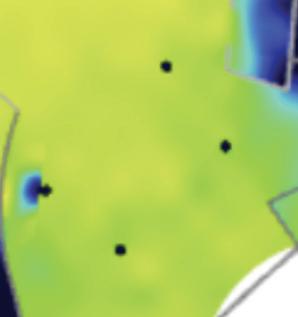

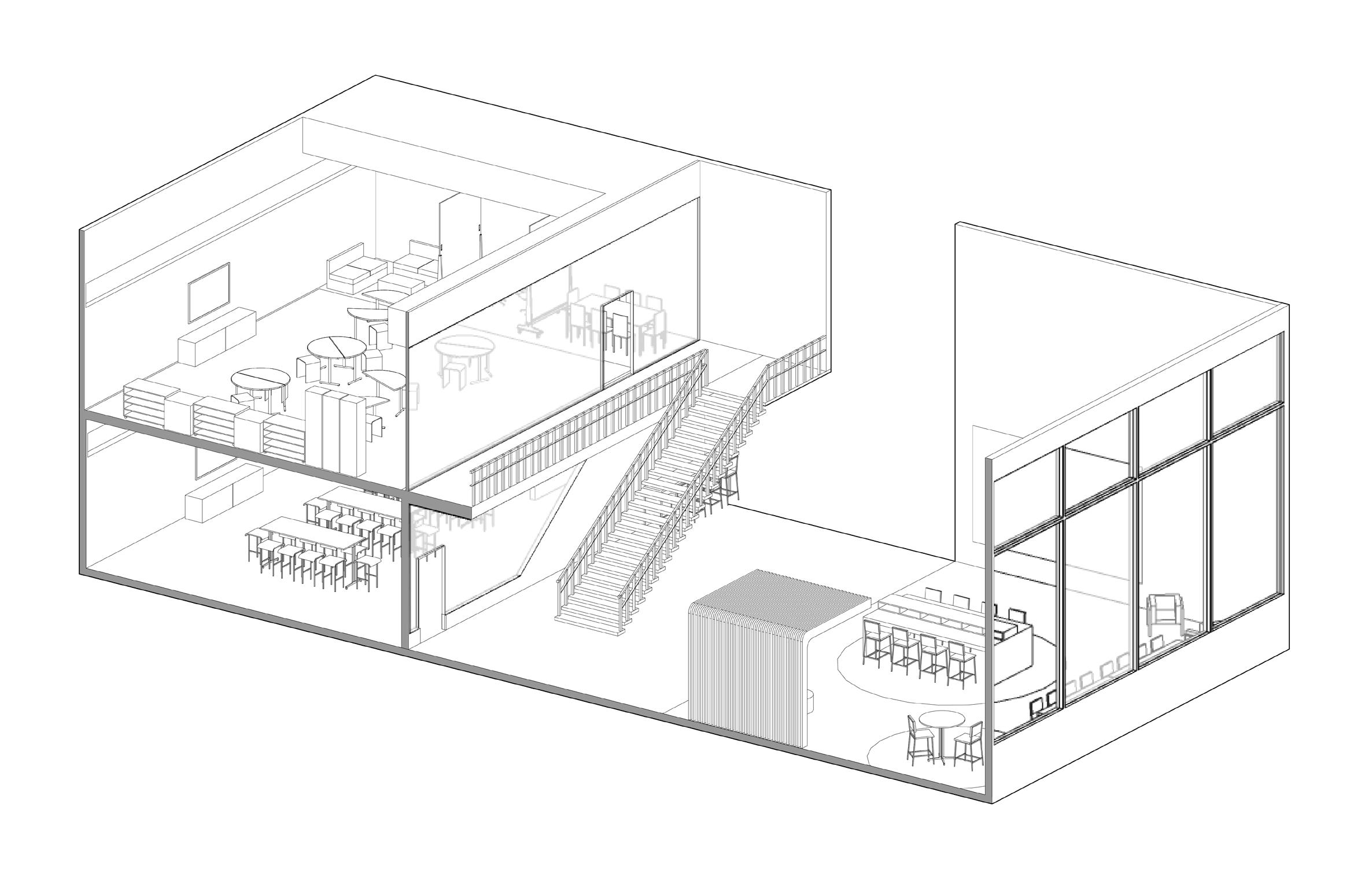

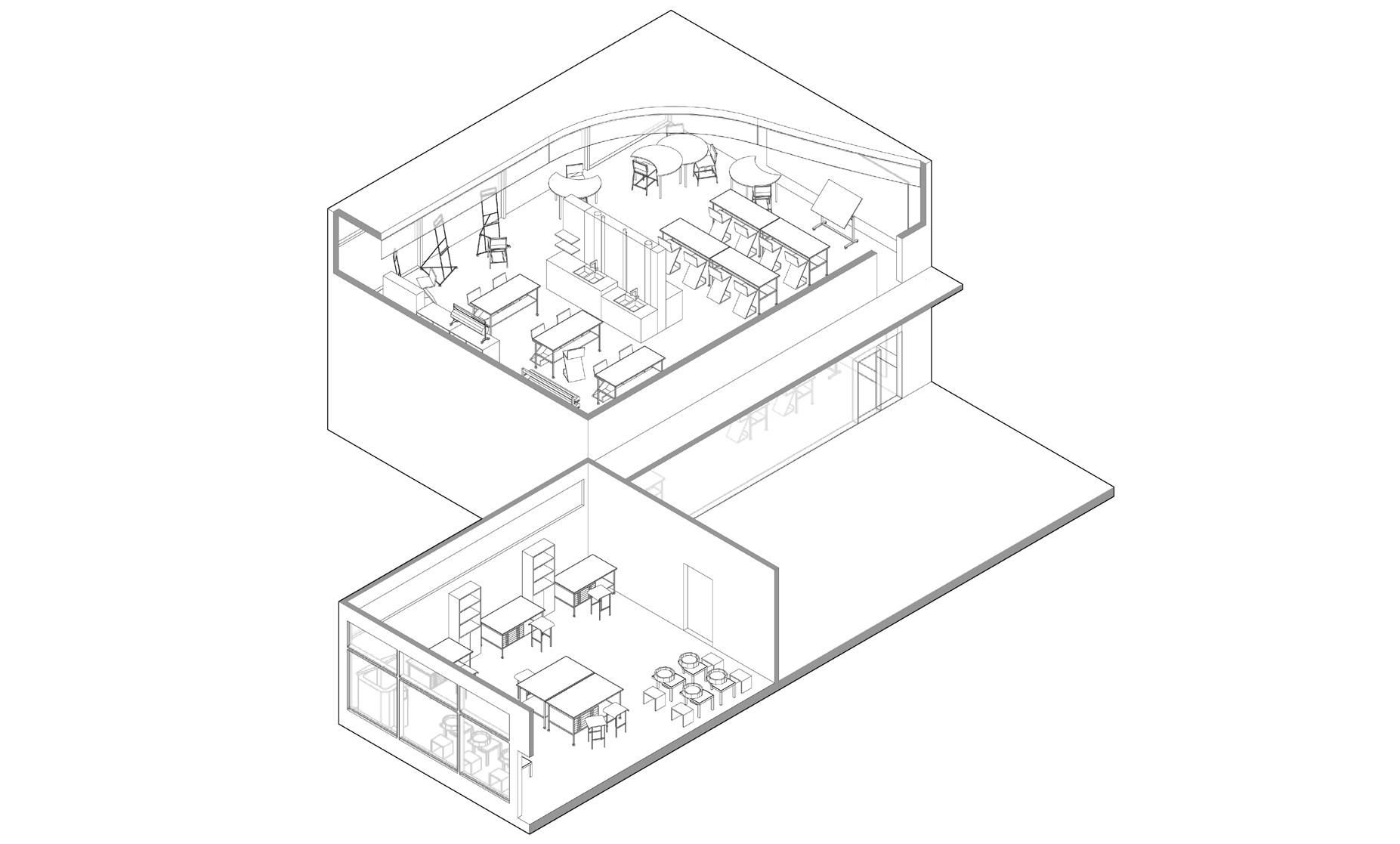

Makers’ studio analysis

Coral Aboud

Design for Energy & Wellbeing | Improvement

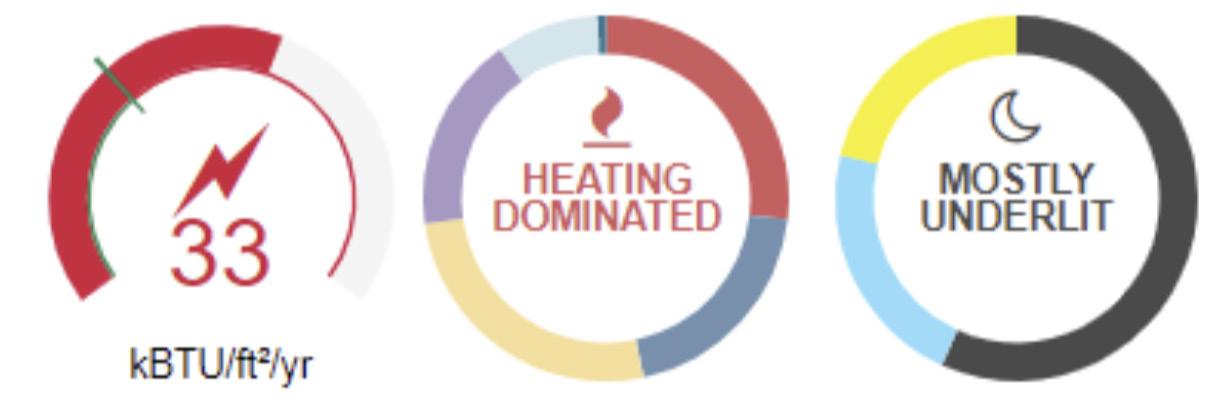

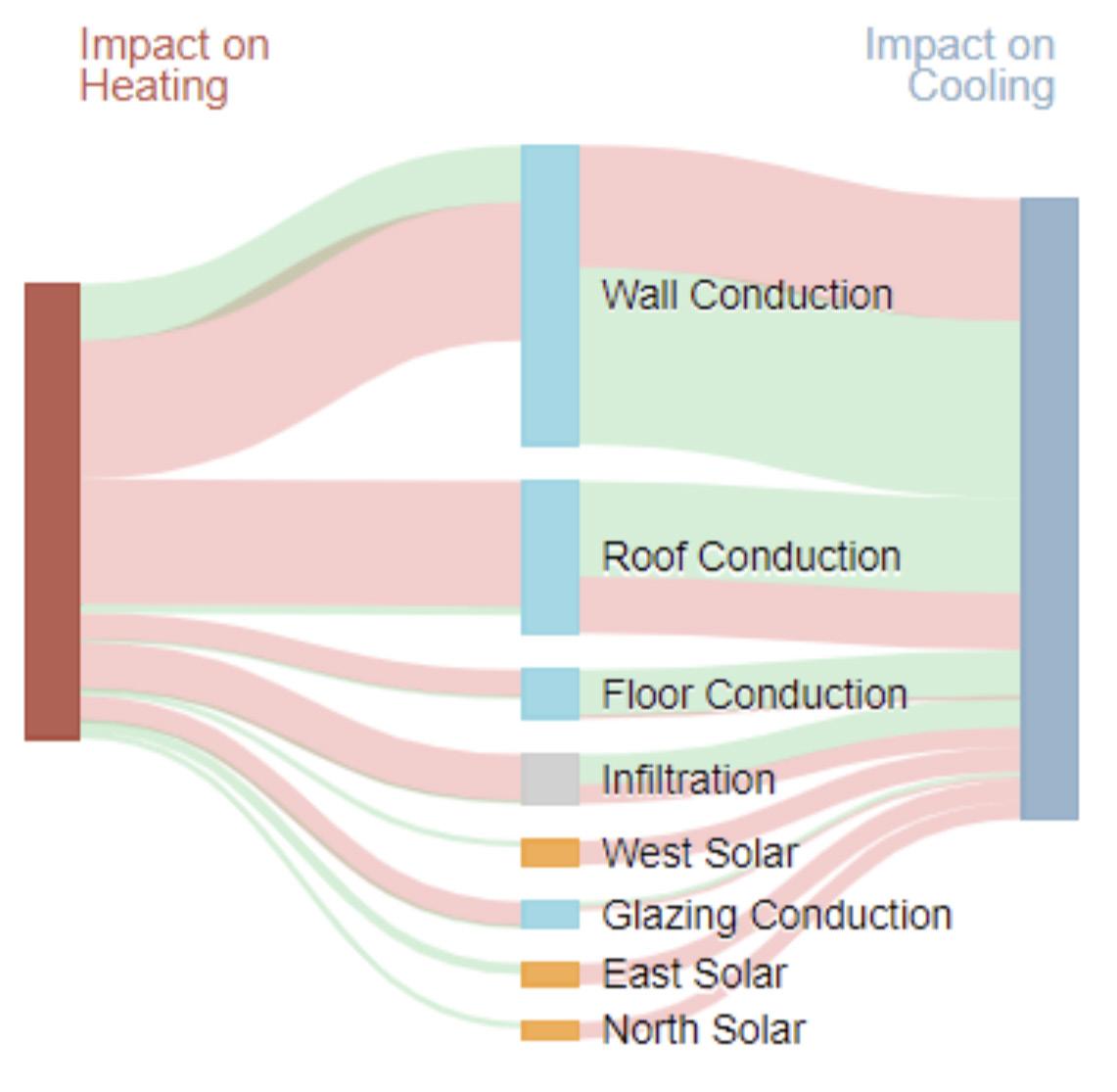

In reaction to our baseline energy models, which studied impact of natural lighting from above and from curtain walls, our priorities moving forward include:

Balancing daylight levels throughout spaces through efficient window layout

Adding appropriate roof overhangs to reduce impact of overlighting

Reducing impact of wall & roof conduction with material & assembly choices

Emphasize efficiency of mechanical systems in order to reduce heating and cooling load

Decreased natural lighting by adding roof overhang; considered shading from columns Increased natural lighting by adding windows to southwest wall and widening roof window

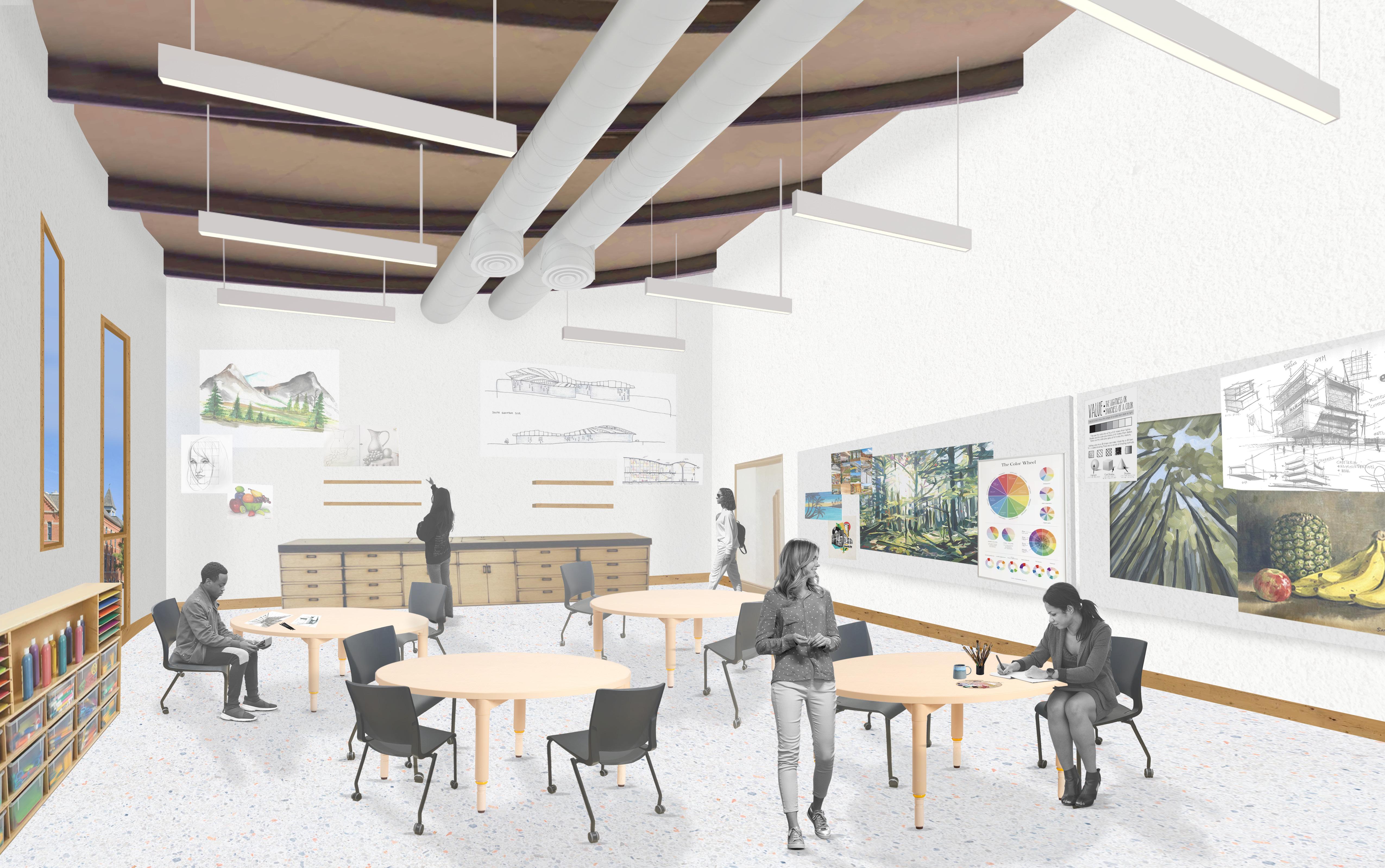

Makers’ studio analysis

image credit: Coral Aboud

Egress & Occupancy

diagrams: Coral Aboud

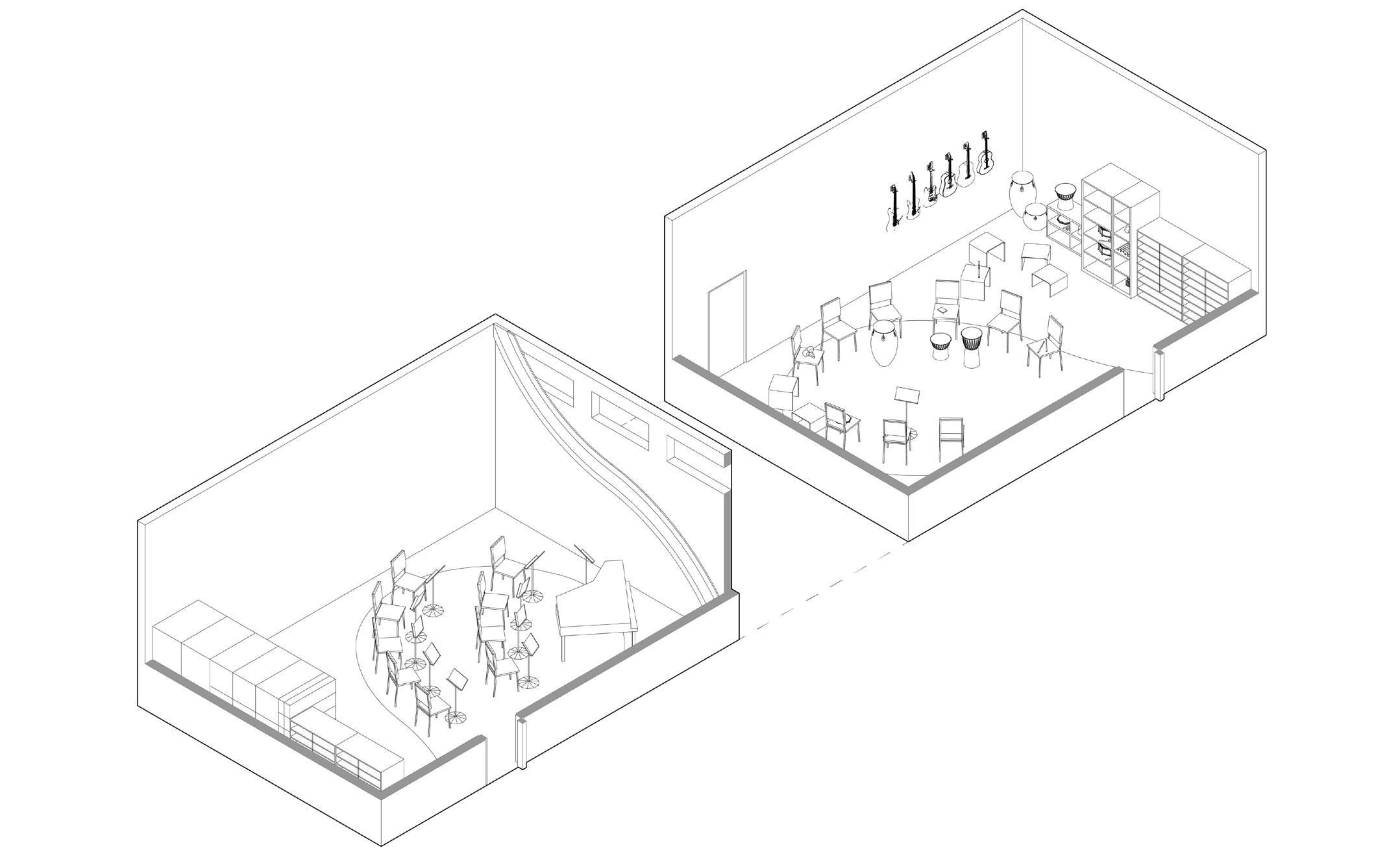

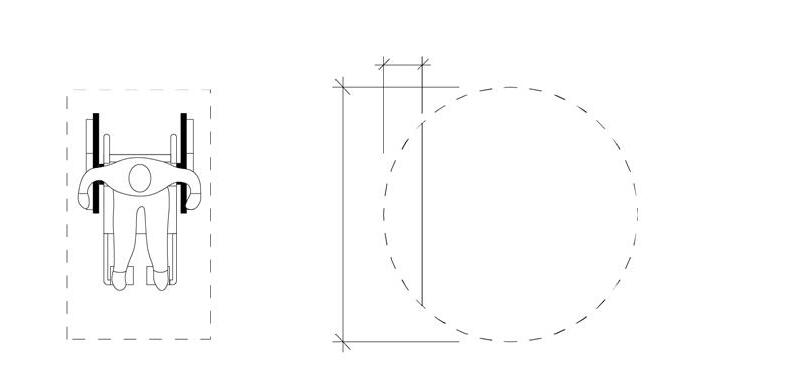

Classroom Analysis

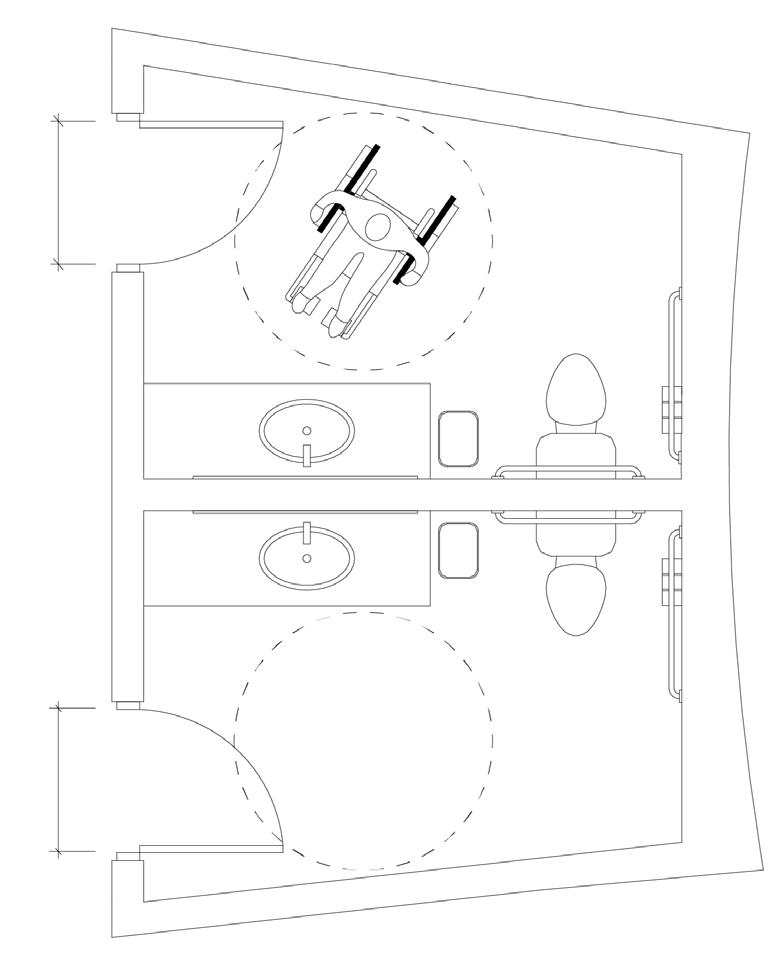

Restroom Analysis ADA Parking Plan

Parking to main entry: 117’

Parking to auditorium entry: 154’

Measurements Used*

*Complies with ICC A117.1-2017

diagrams: Coral Aboud

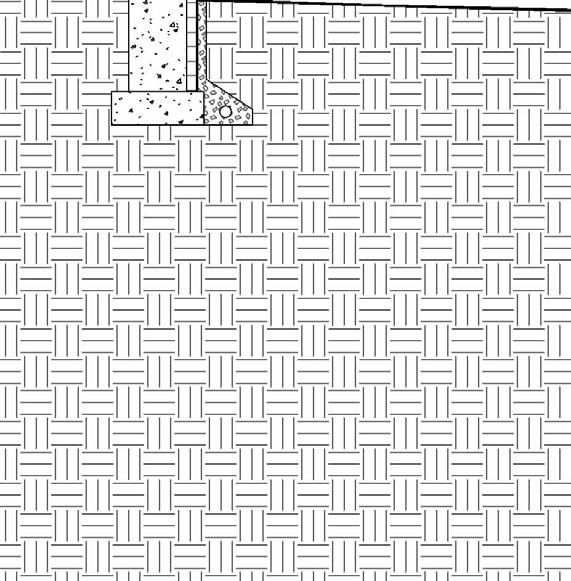

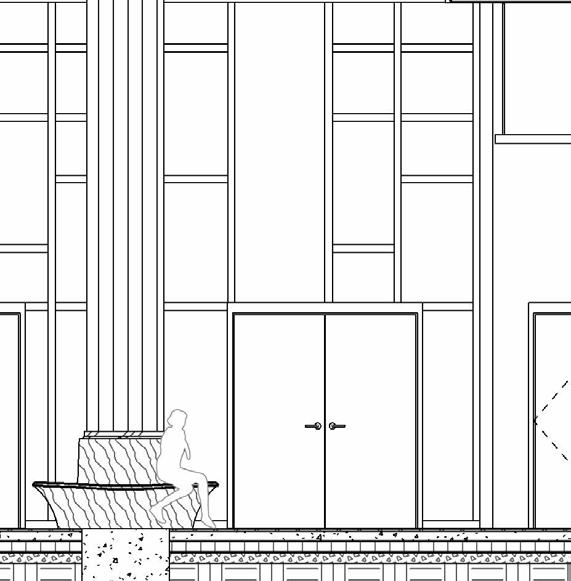

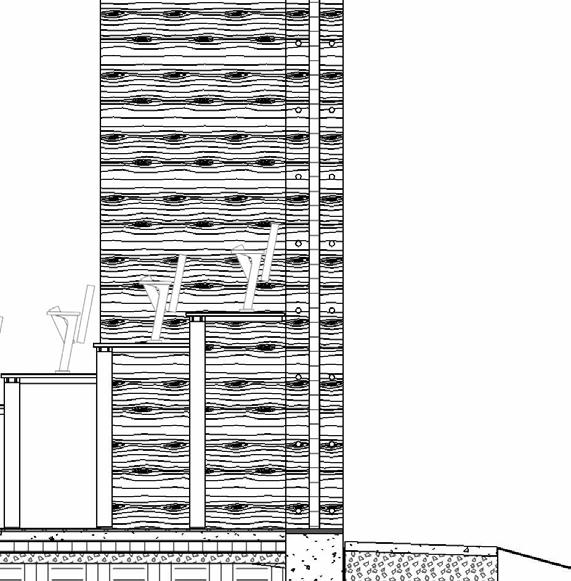

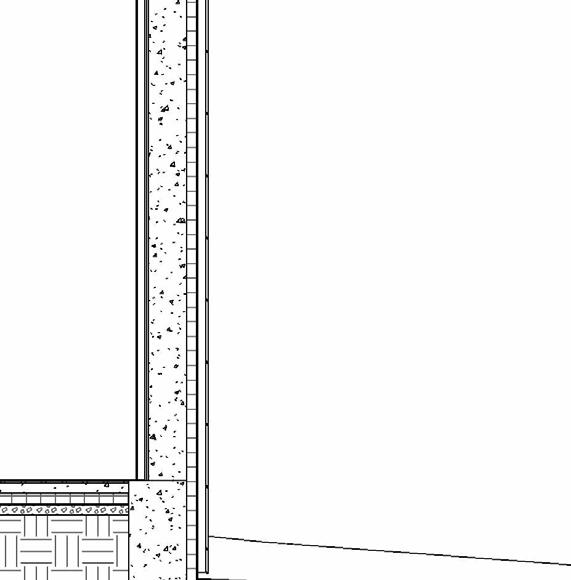

Materials & Tectonics Studies

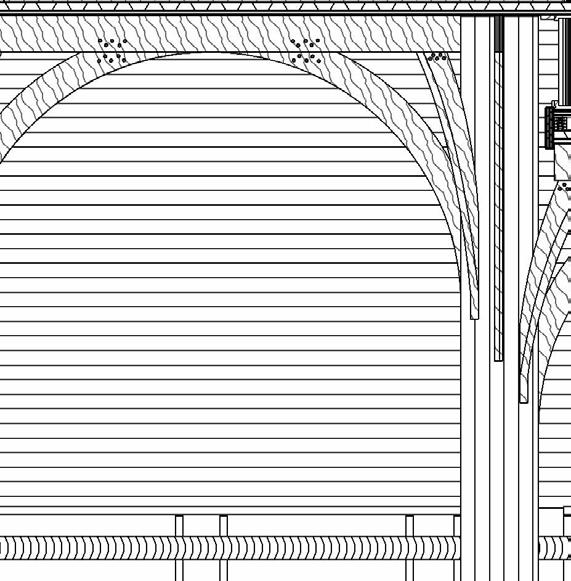

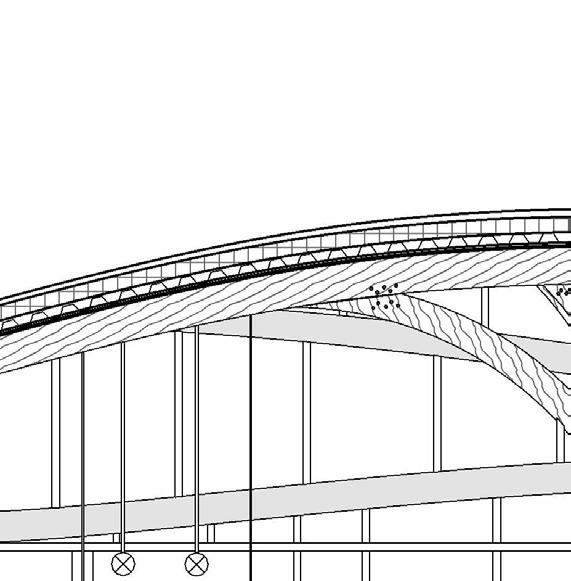

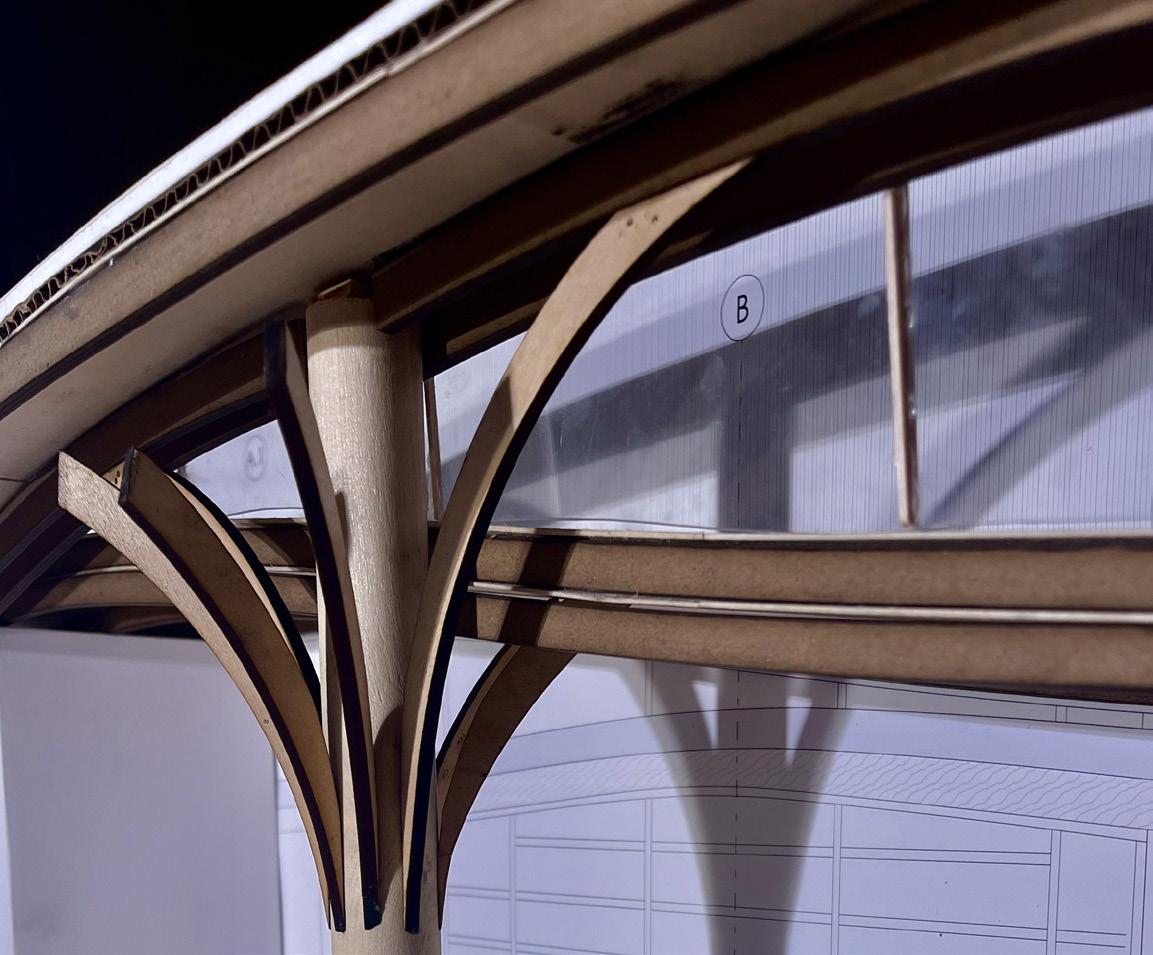

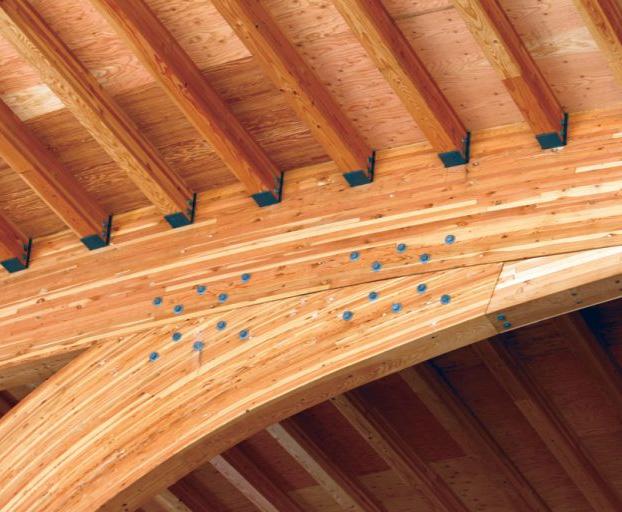

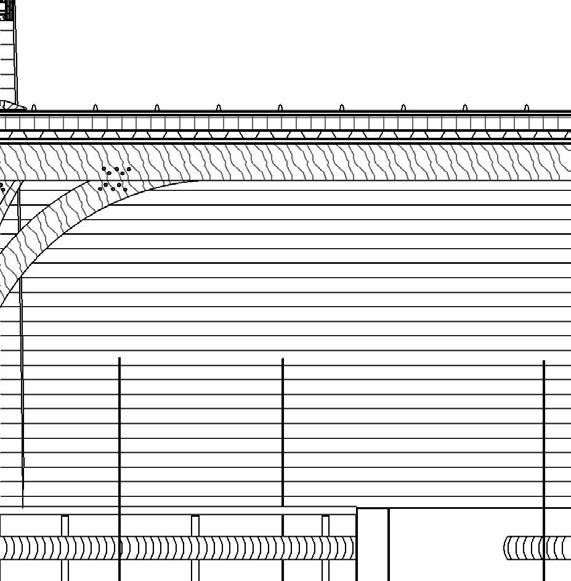

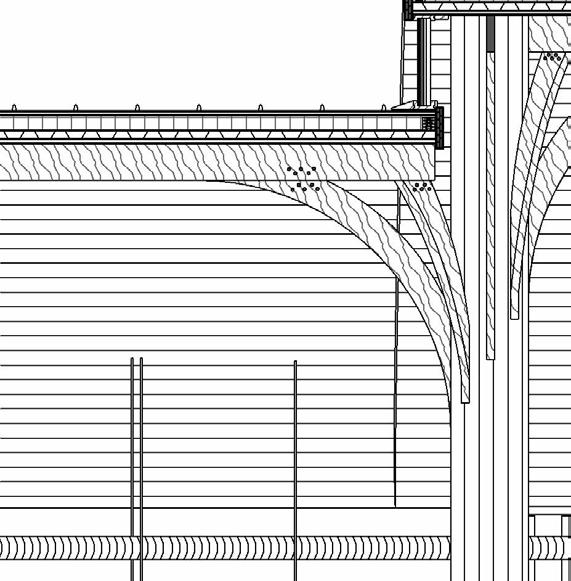

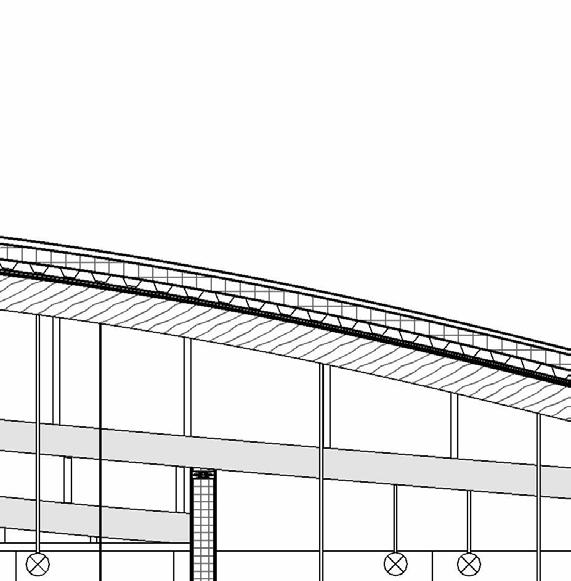

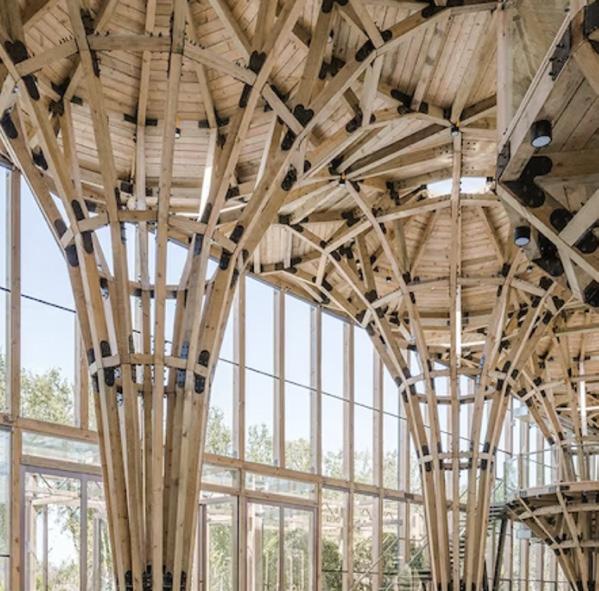

Glulam column to ceiling connection

Source: STRUCTURE Magazine

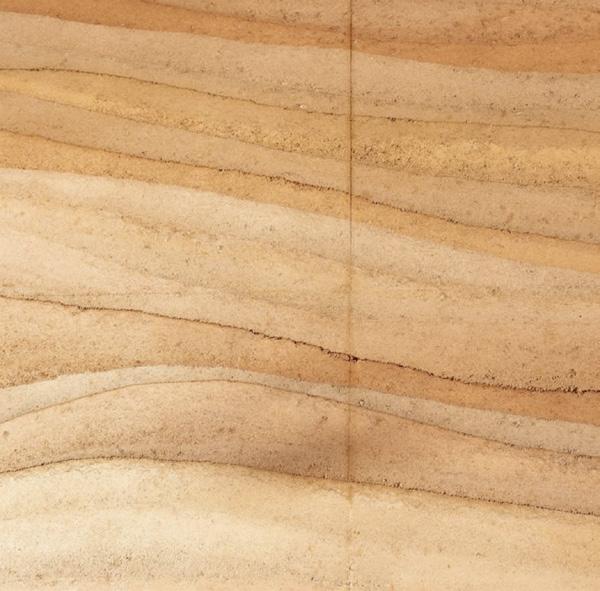

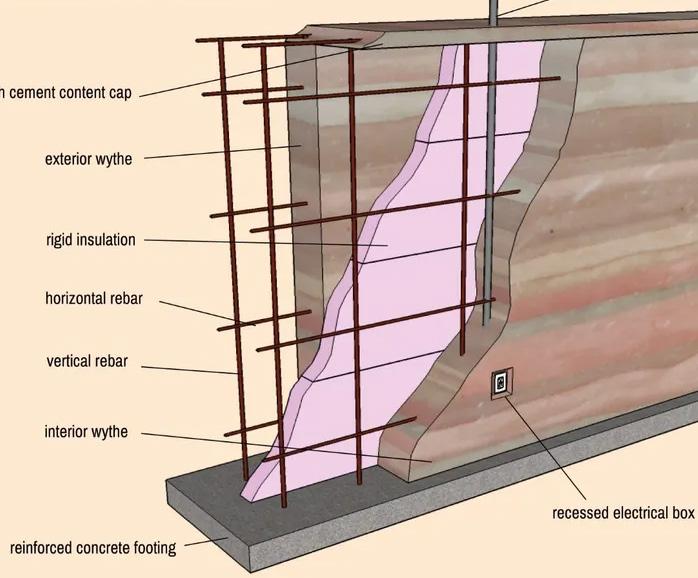

Rammed earth cutaway

Source: Rammed Earth Artisan

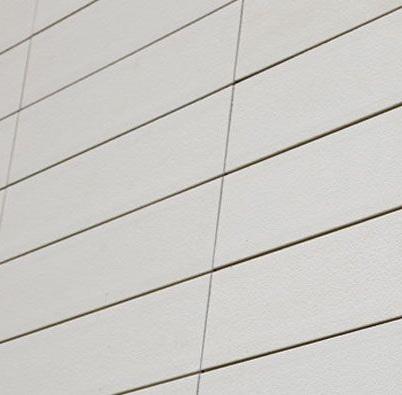

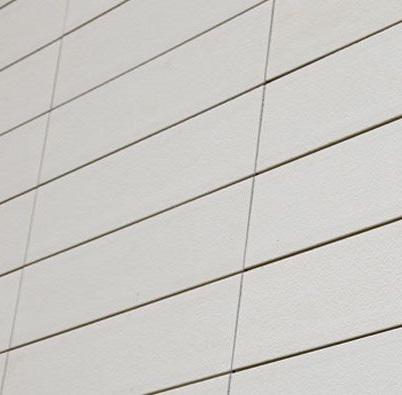

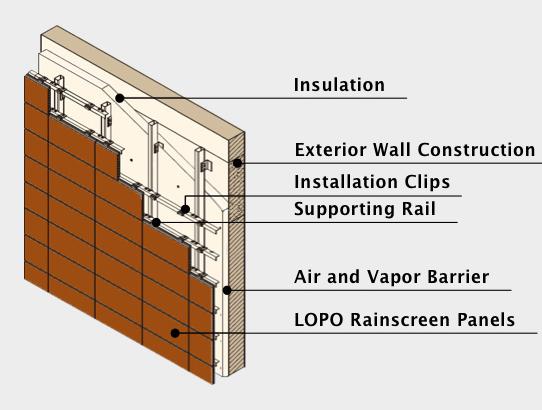

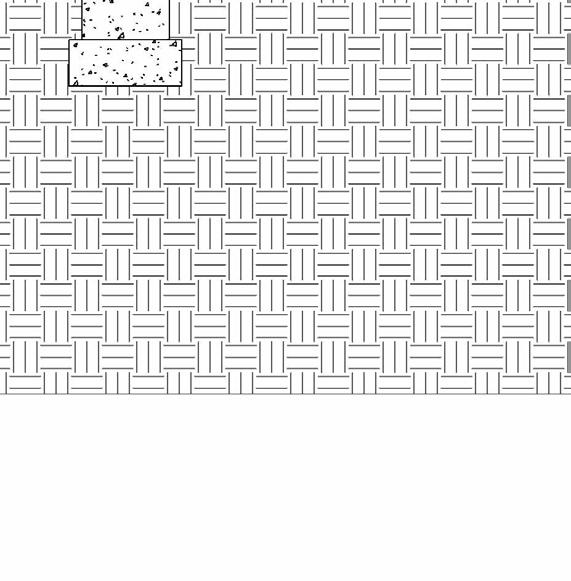

Terracotta rainscreen cutaway

Source: LOPO

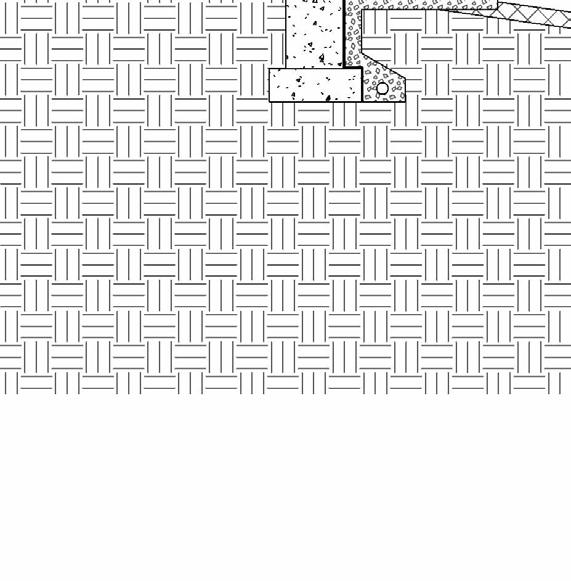

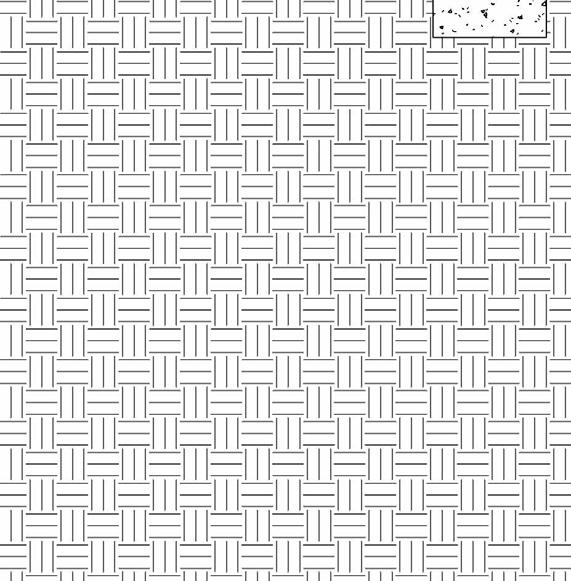

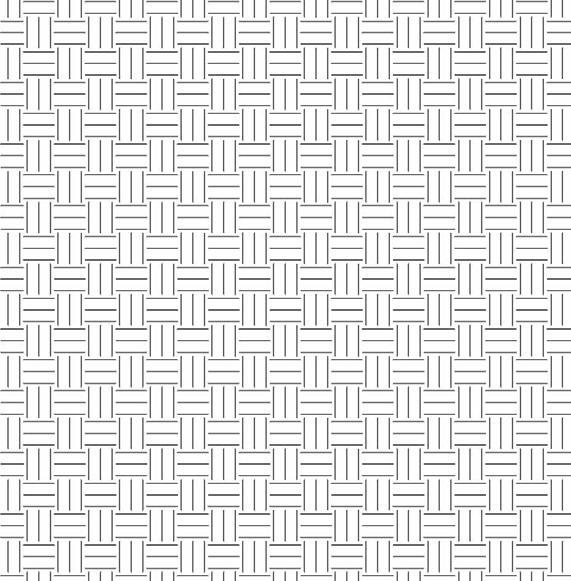

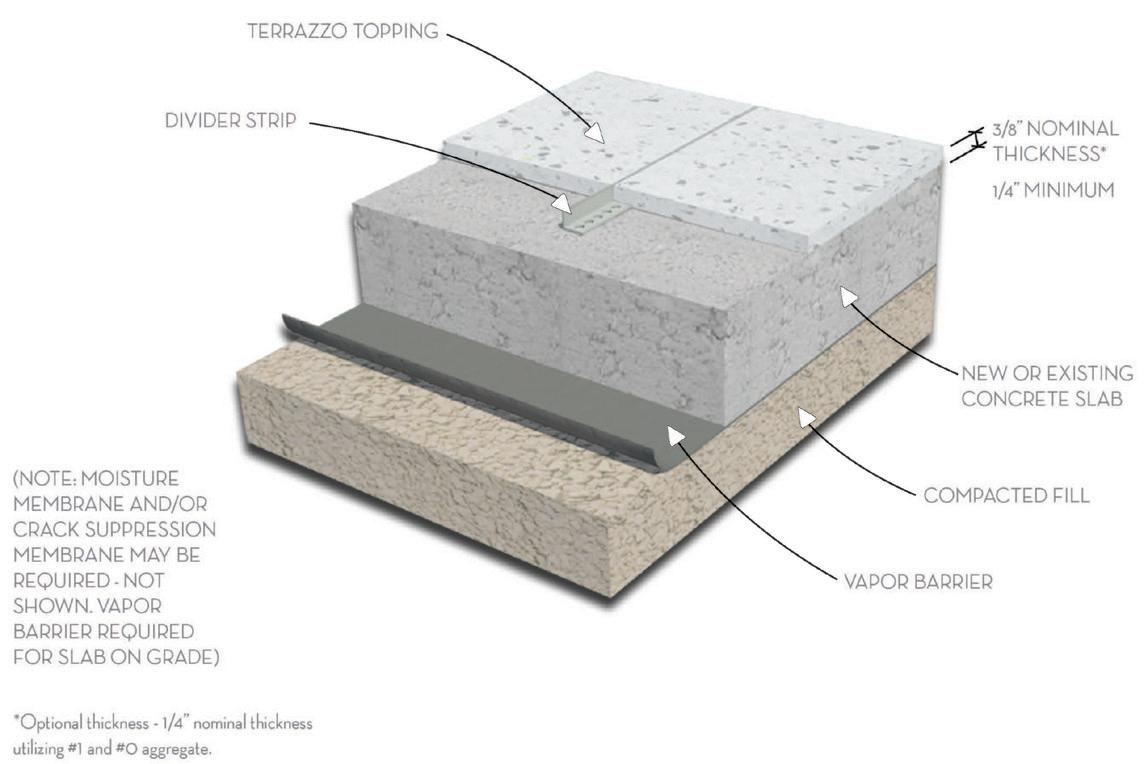

Terrazzo floor construction

Source: National Terrazzo & Mosaic Association

White terra cotta panels Glass curtain wall

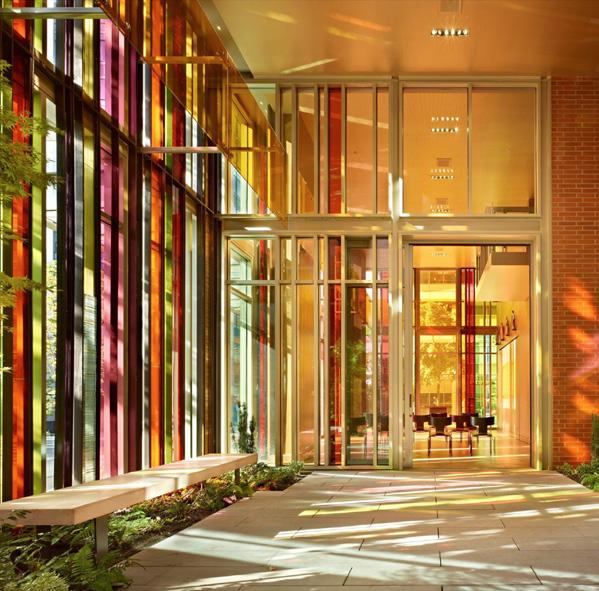

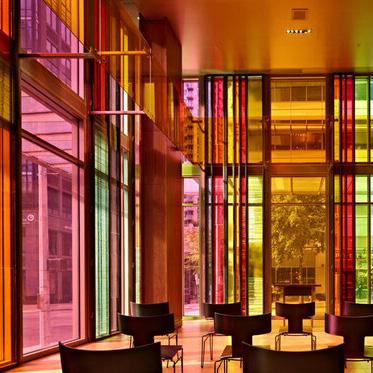

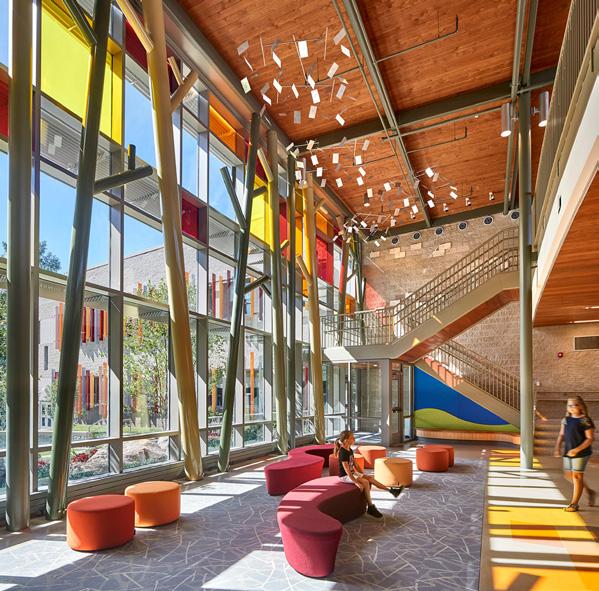

Rammed earth Glulam timber Colored glass panels

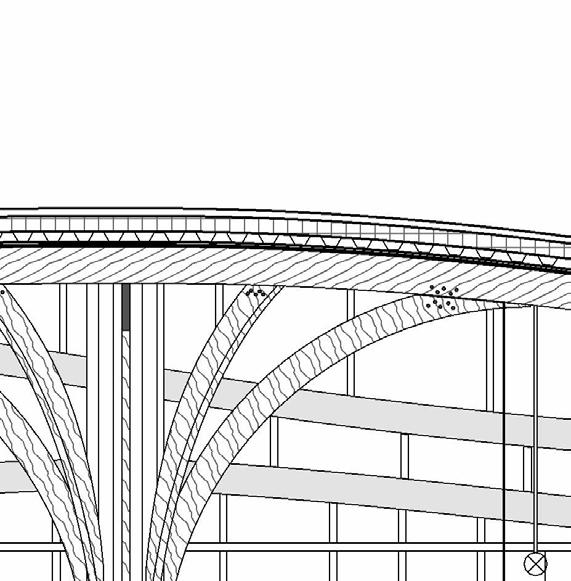

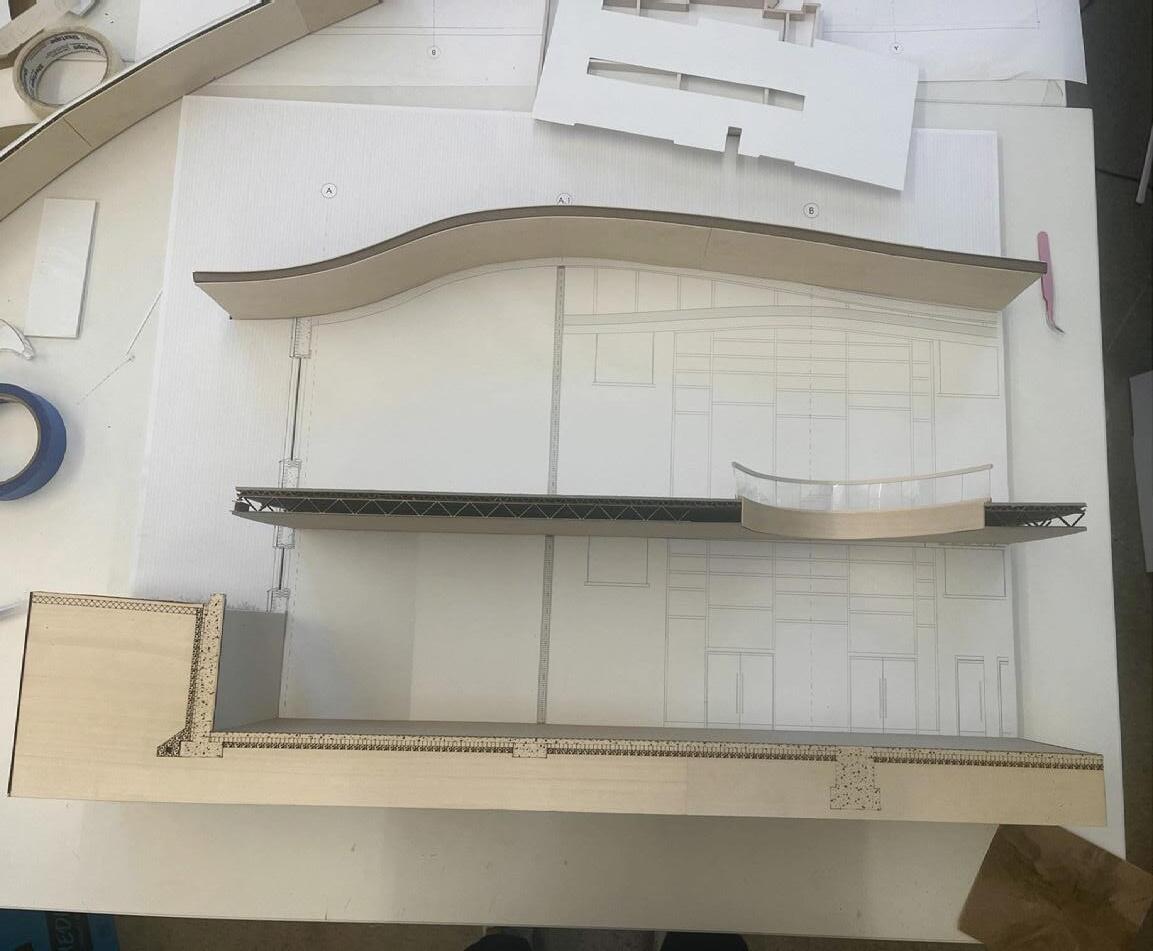

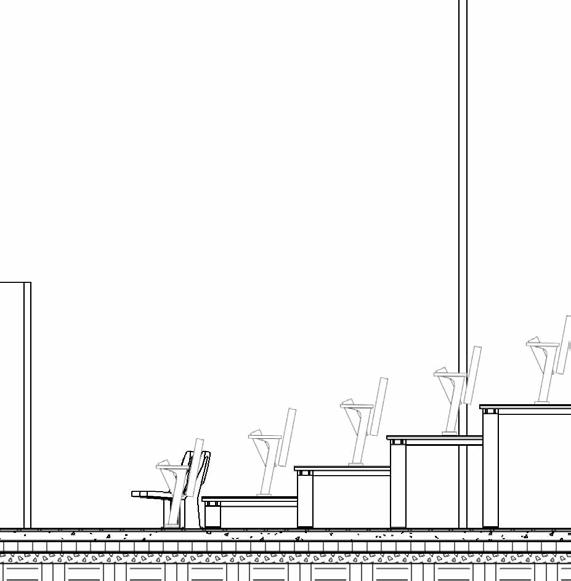

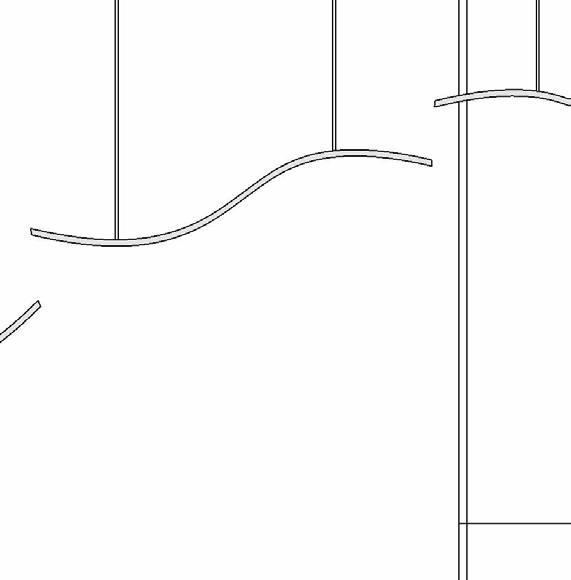

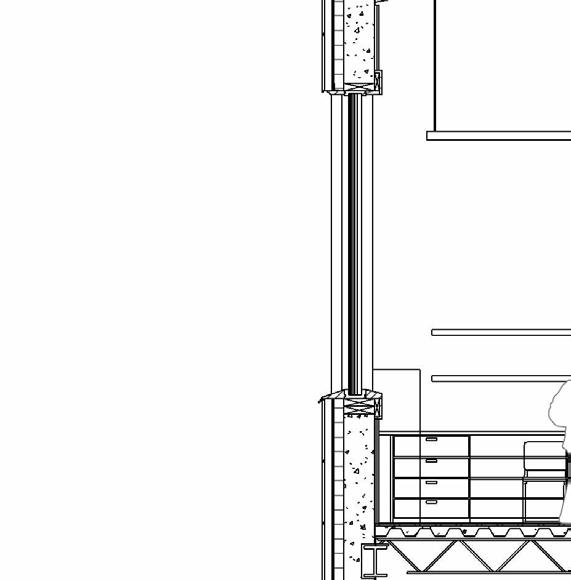

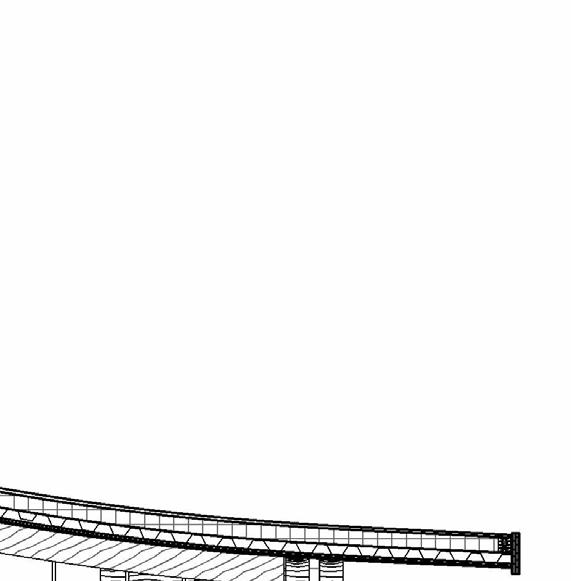

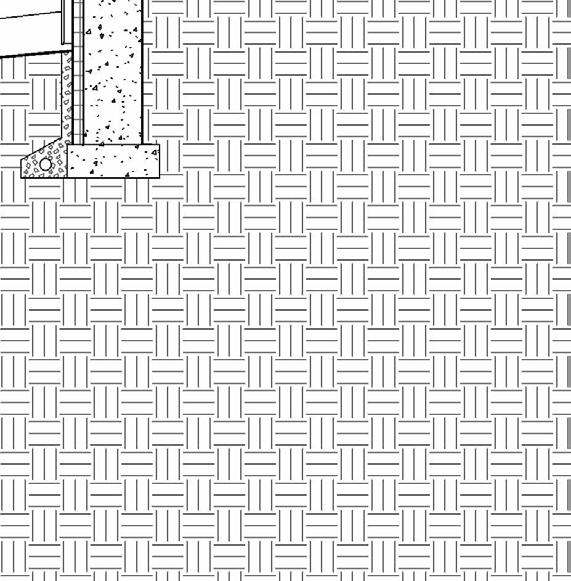

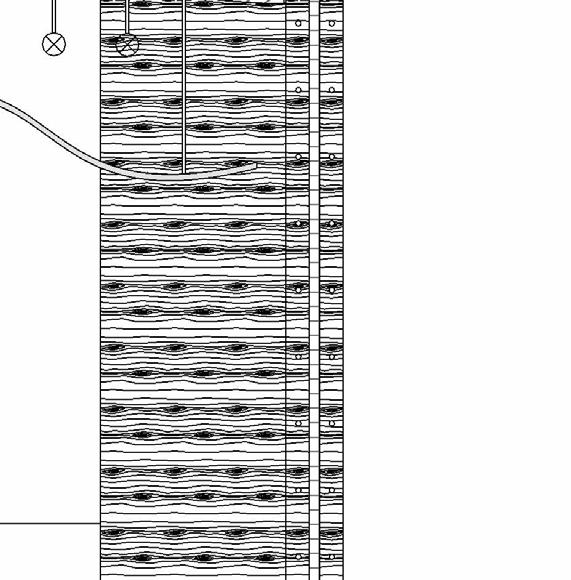

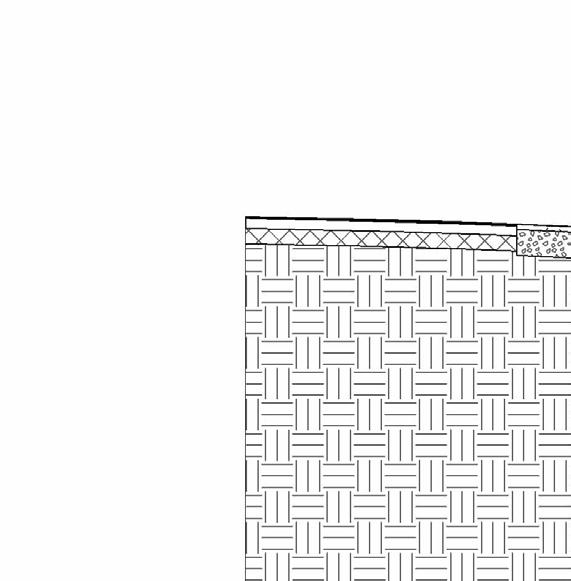

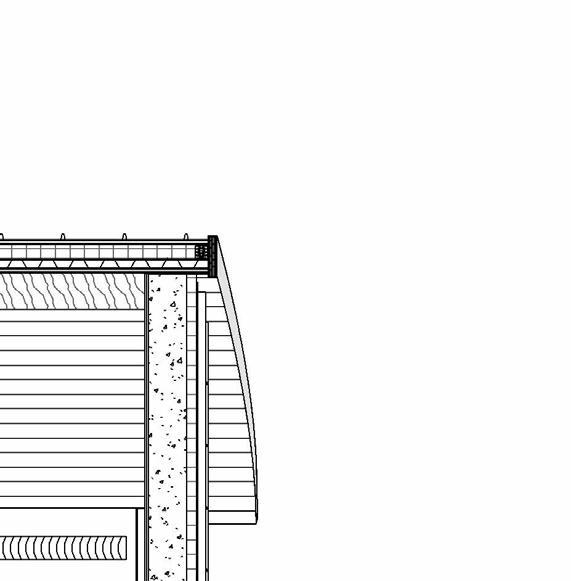

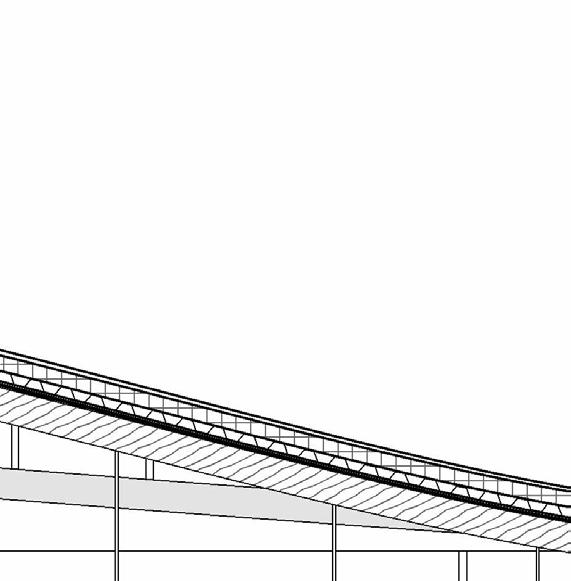

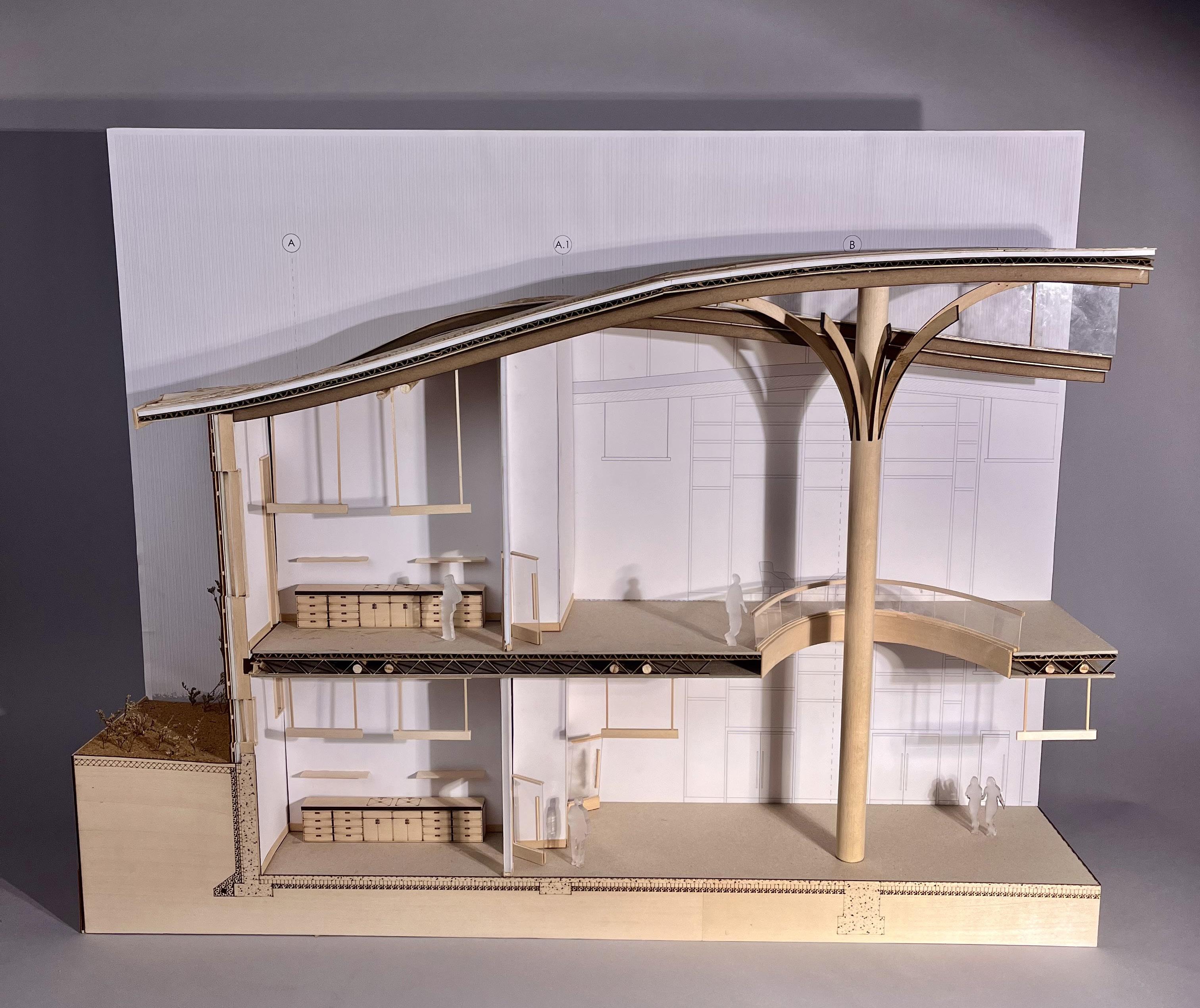

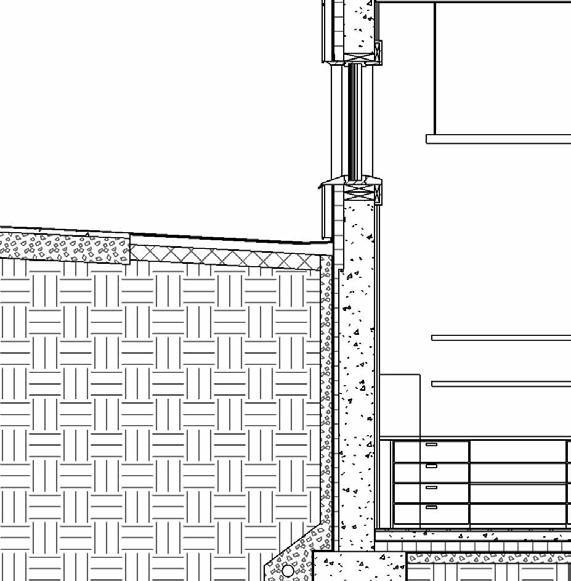

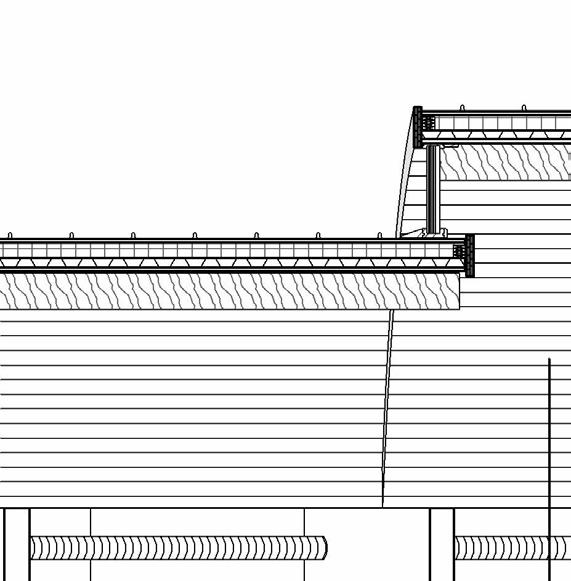

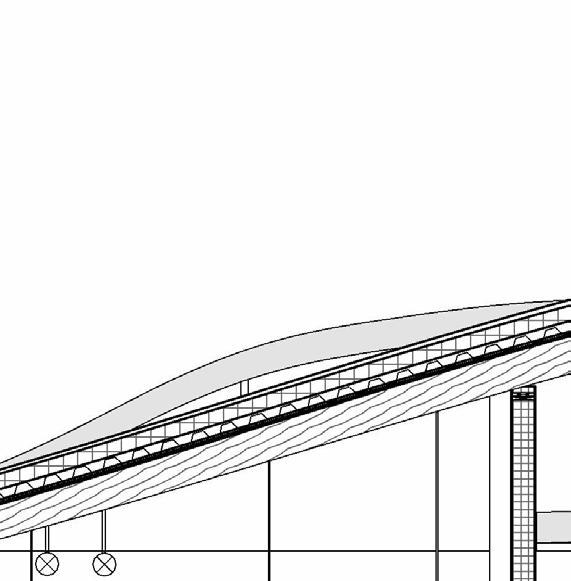

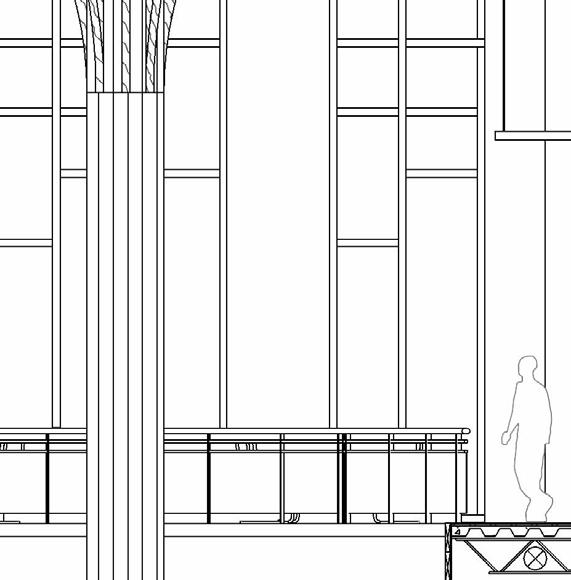

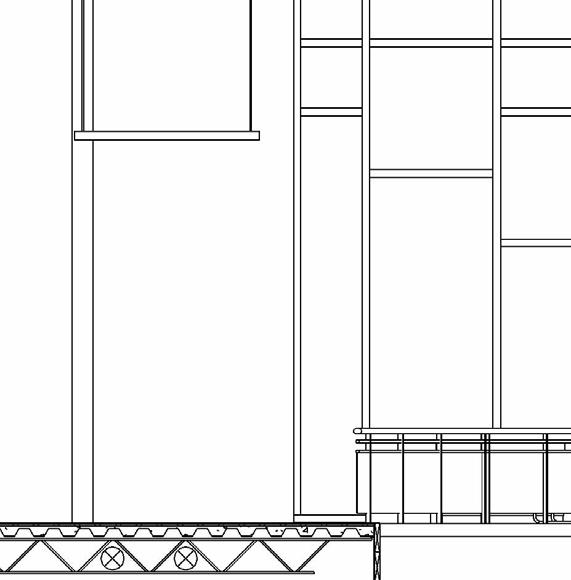

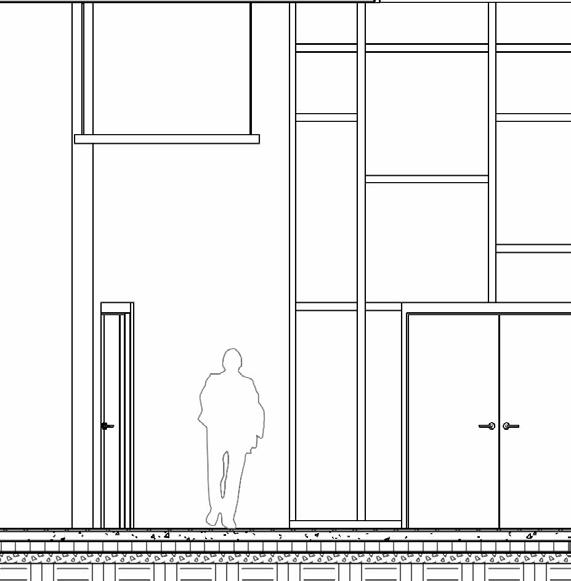

Section | Auditorium Balcony

image credit: Jordyn Knox & Coral Aboud

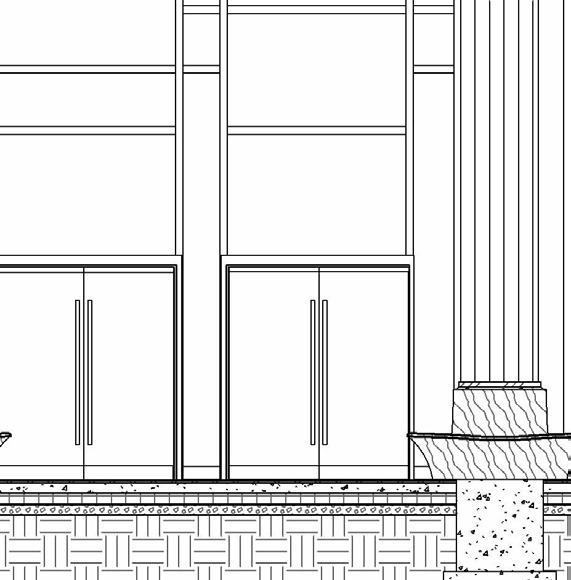

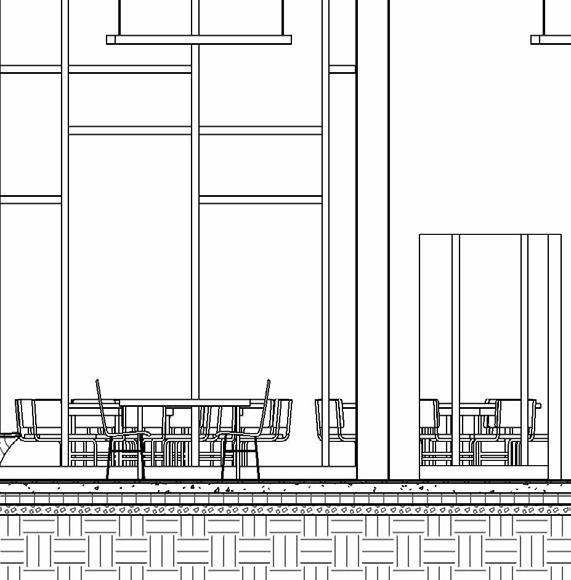

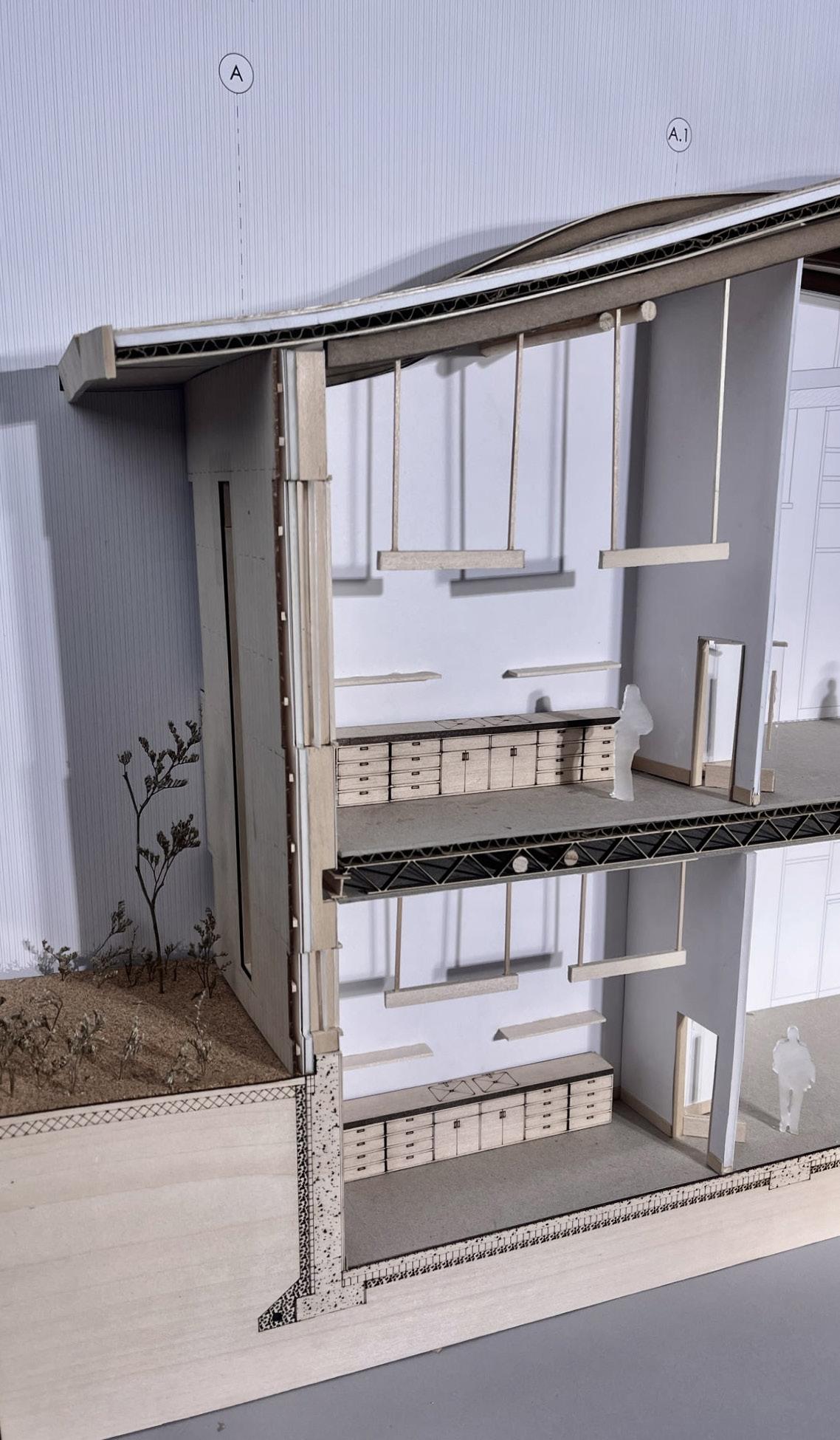

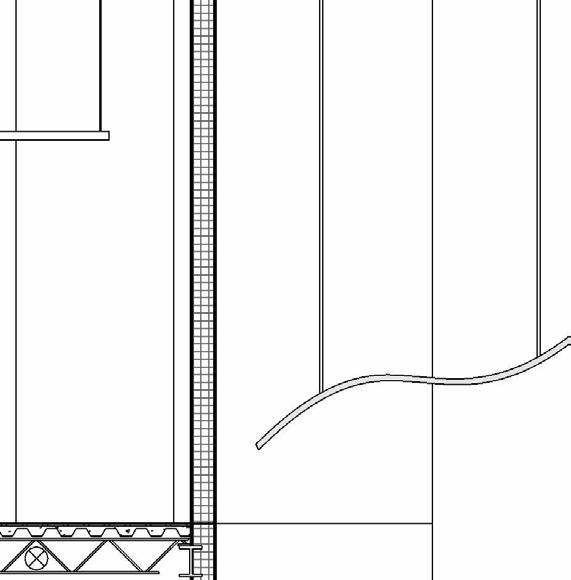

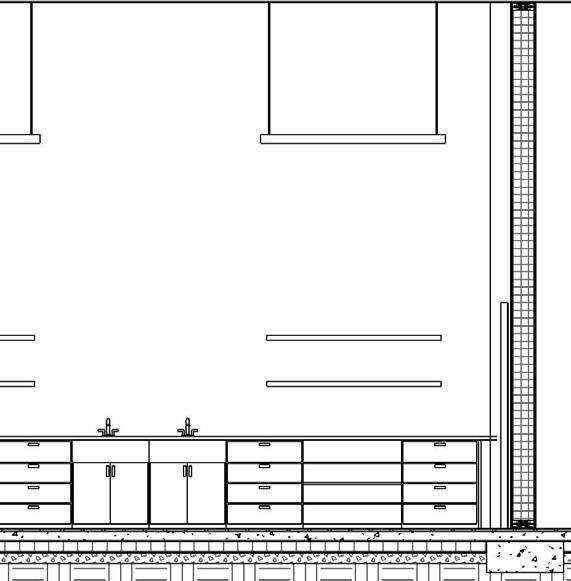

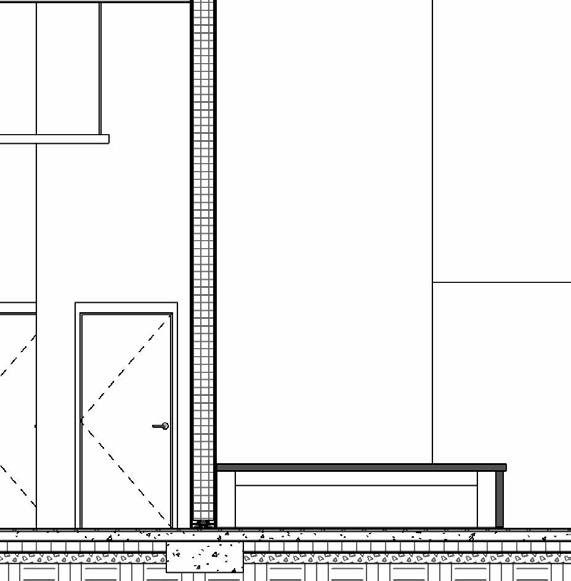

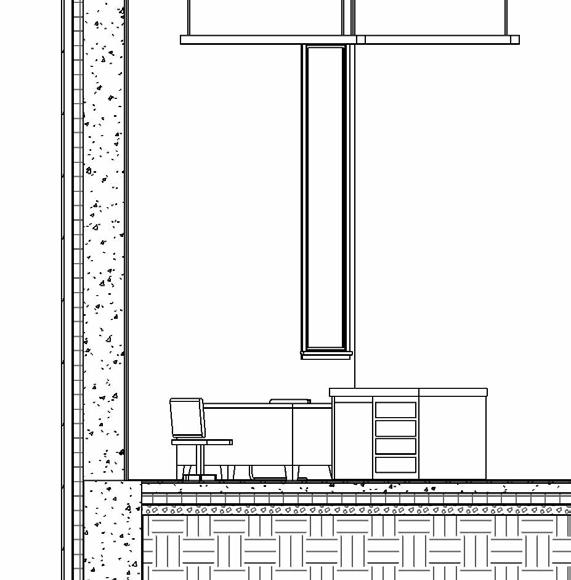

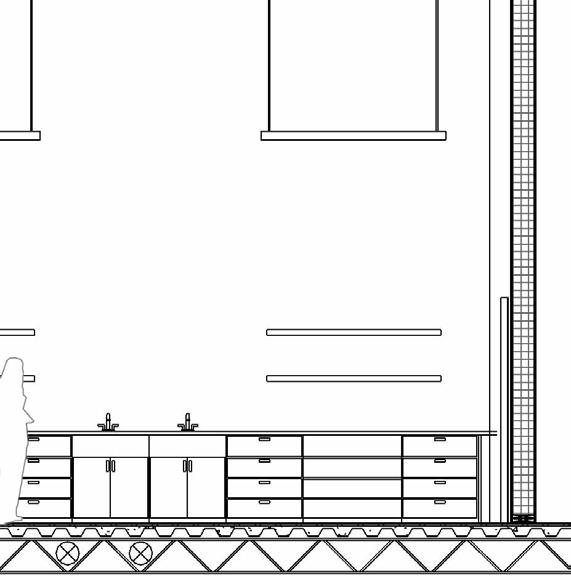

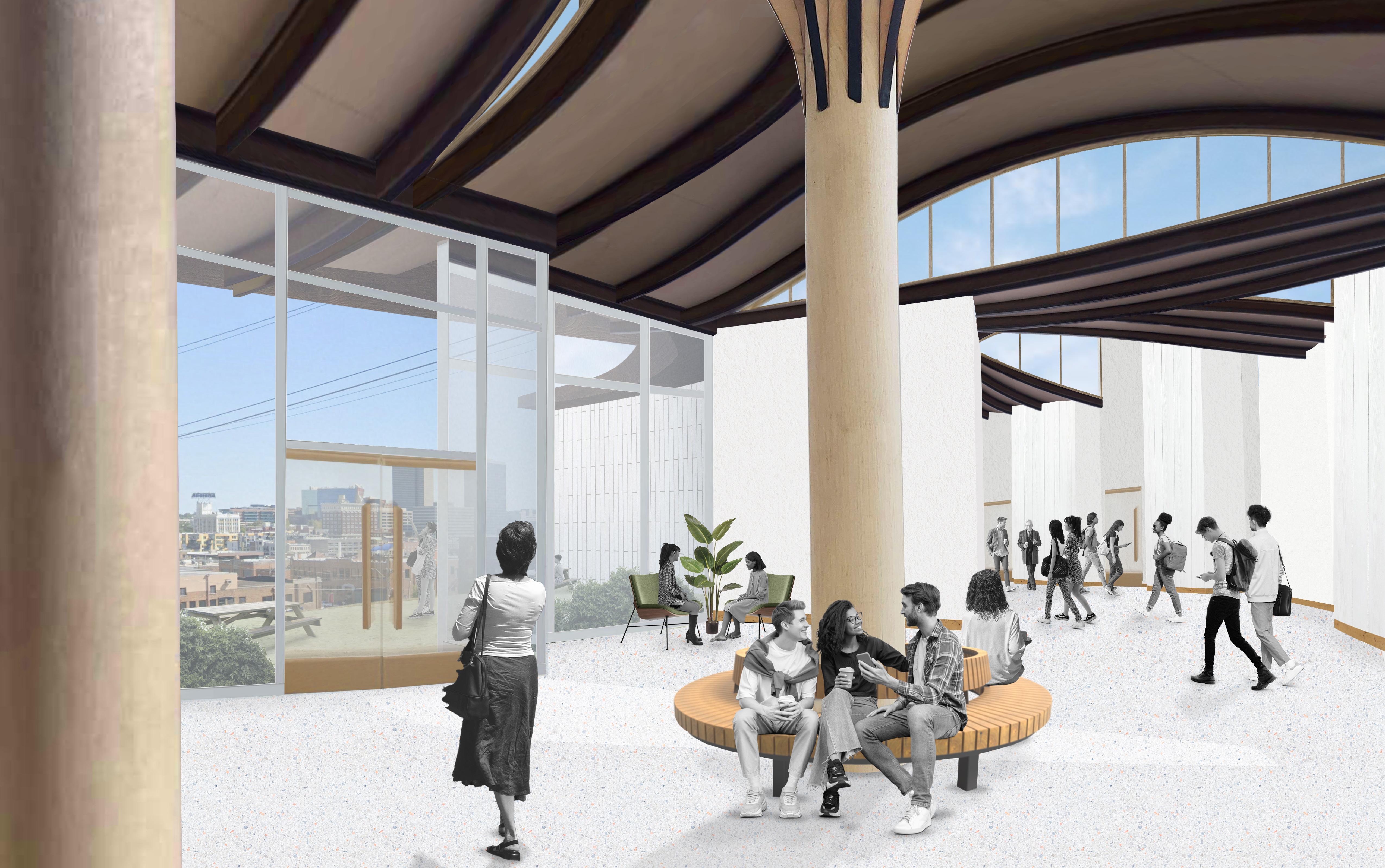

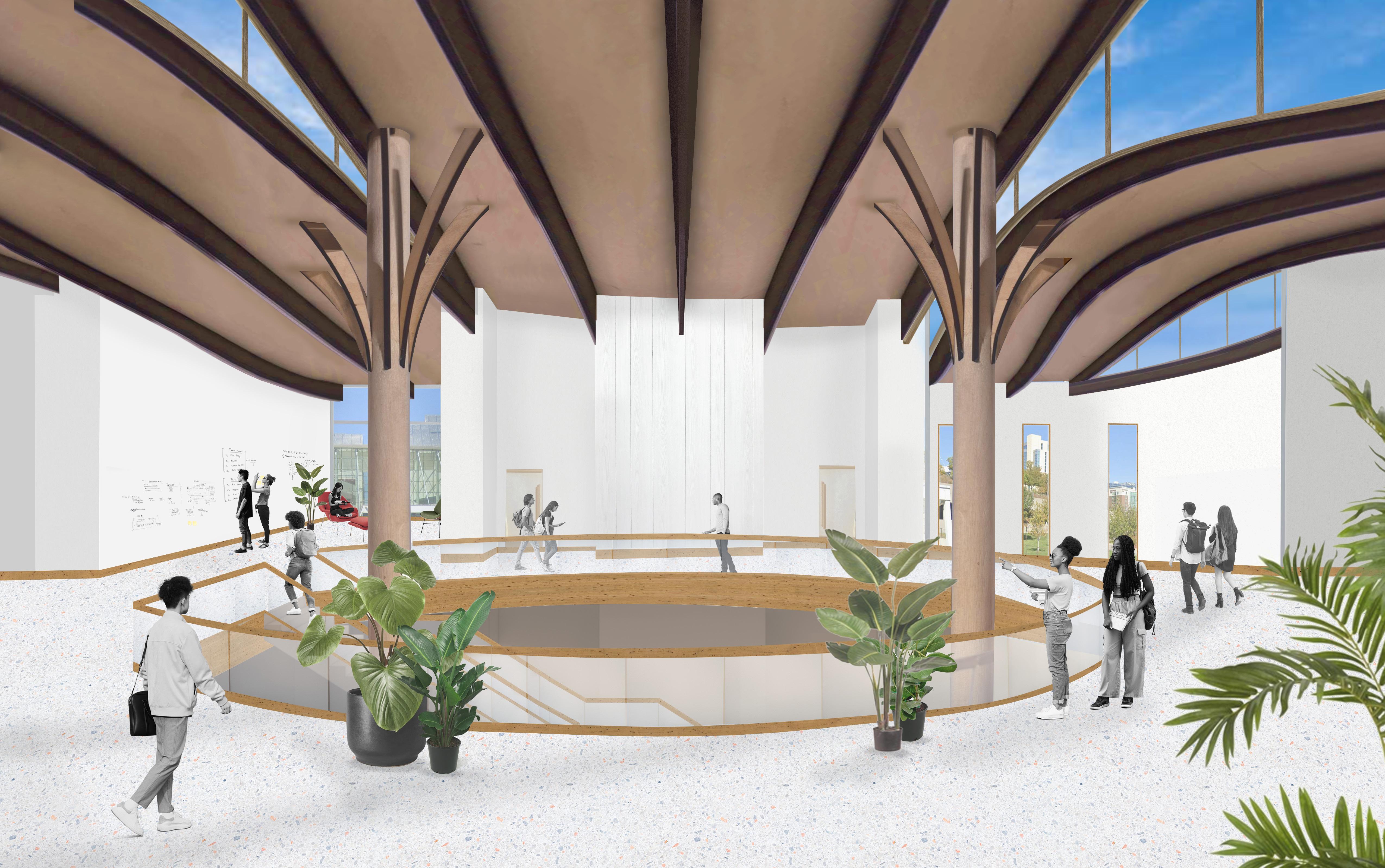

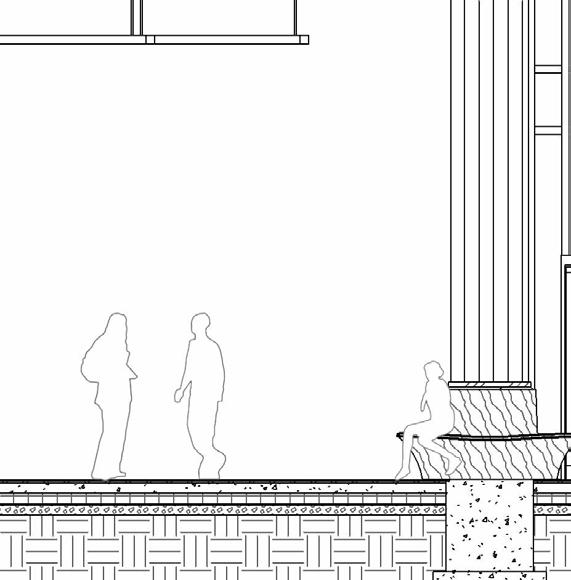

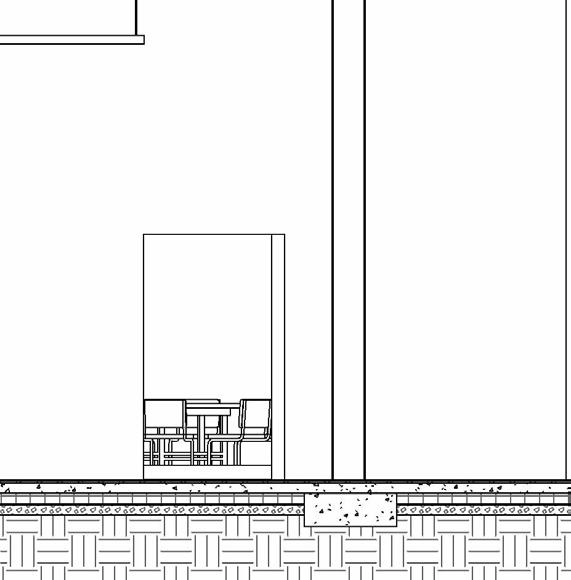

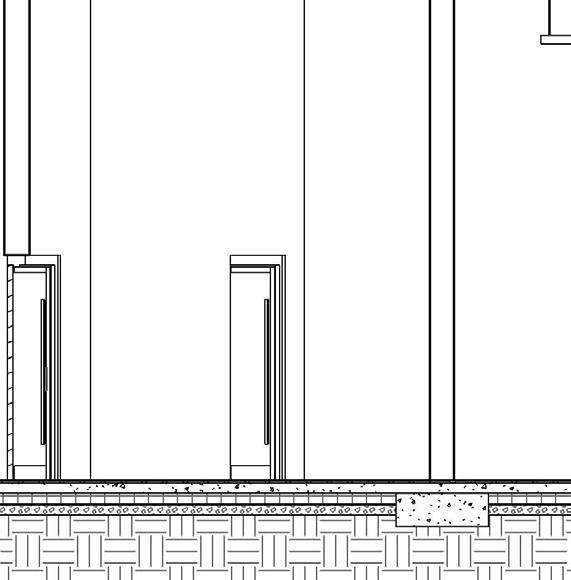

Section | Commons

photos: Jordyn Knox & Coral Aboud

photos: Jordyn Knox & Coral Aboud

image credit: Jordyn Knox

image credit: Coral Aboud

image credit: Jordyn Knox & Coral Aboud

image credit: Jordyn Knox & Coral Aboud

image credit: Jordyn Knox & Coral Aboud

Liz Putnam, BECK Group

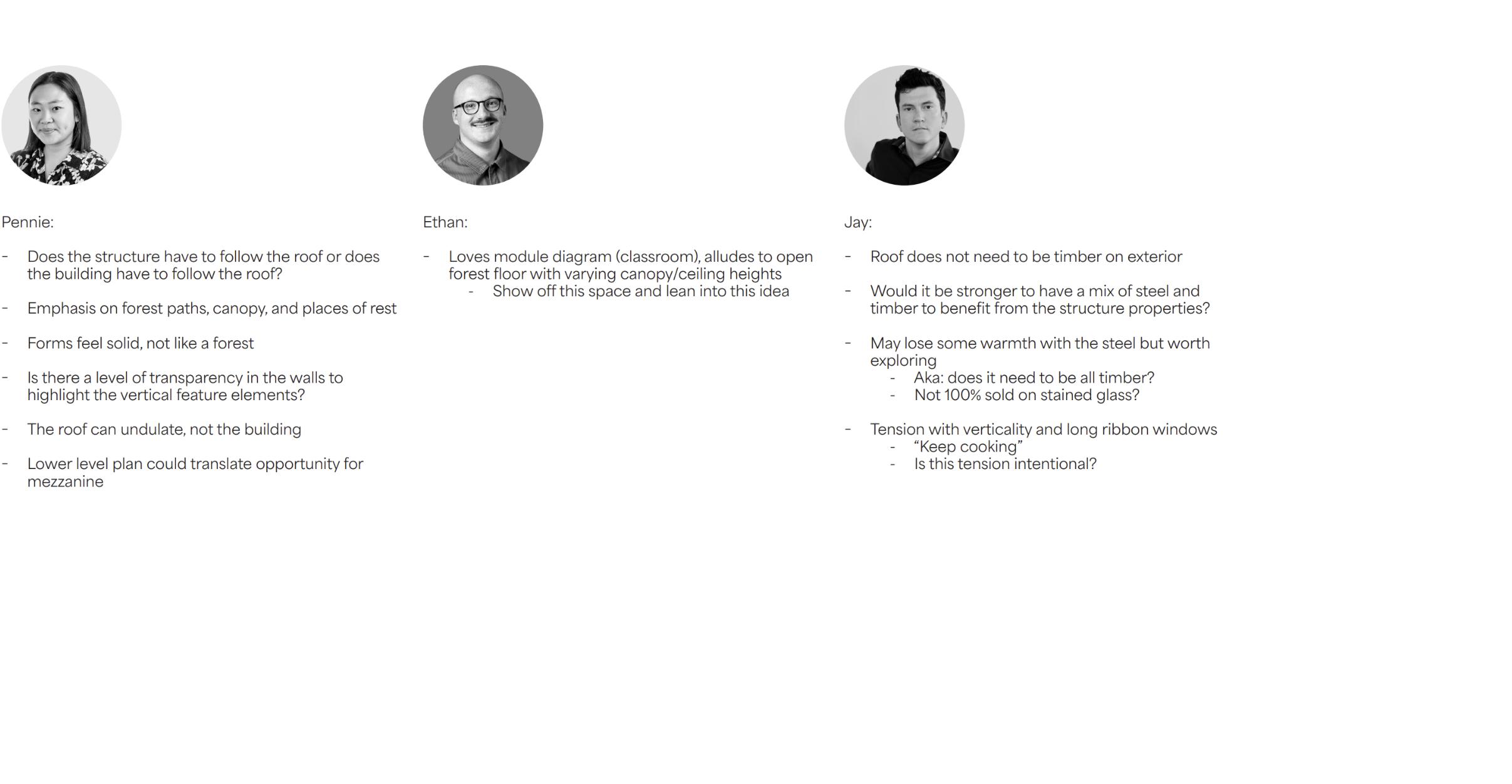

• Likes inspiration from forest and creation of shelter using roof

• “Sections are stunning”

• Likes use of physical model in photoshop renders

• Good nod to Kauffman with roof form

• Loves strong roof element

• Facade can get busy with different colors of glass and rammed earth

• If choosing between the two: go with colored glass

• Could also have colored glass in roof windows

• Exterior could use some warmth

• Could change level of roof line throughout the building

Bridget Espino, Burns & McDonnell

• Likes how light filters down from the roof windows

• Could weave rammed earth into rainscreen

• Rammed earth is competing with the roof

• In exterior render, the streetlight blocks the building entry

• Good presentation

Keith Van de Riet, KU

• Intriguing project

• Roof is the most exciting part of the project, but could be doing too much

• Could simplify roof outside of central space

• Think about how the roof form affects watershed and HVAC layout

• Could reconsider copper as roof material

• Make facade material selections meaningful

• Likes colored glass

• Good work with roof

Thank you!
