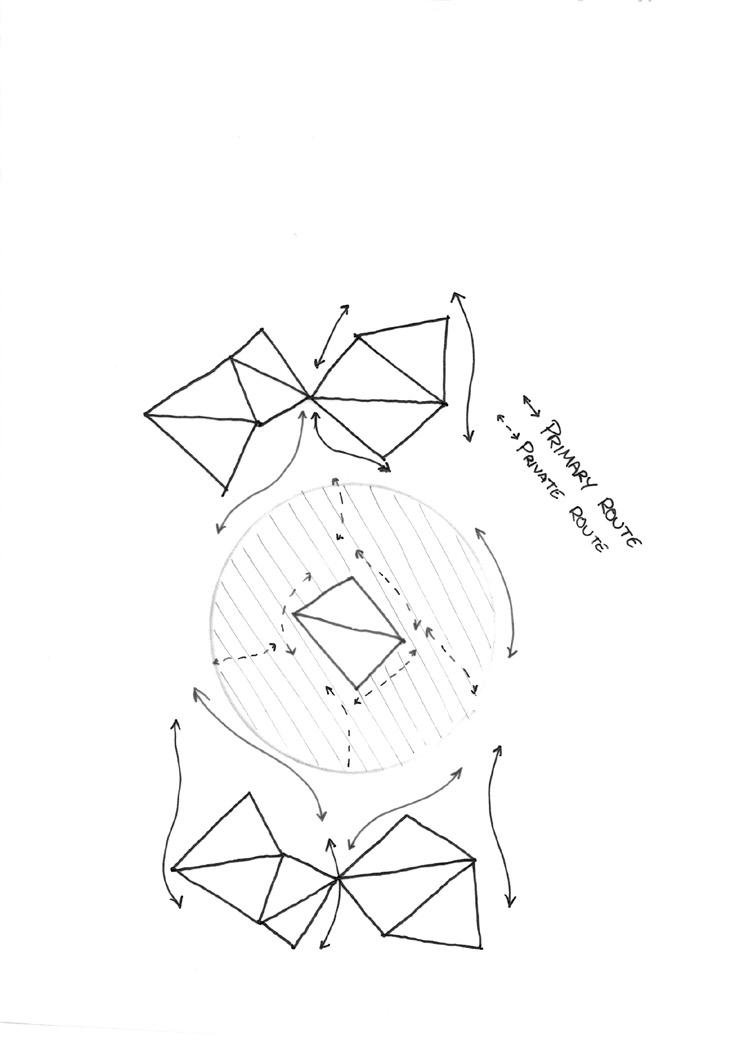

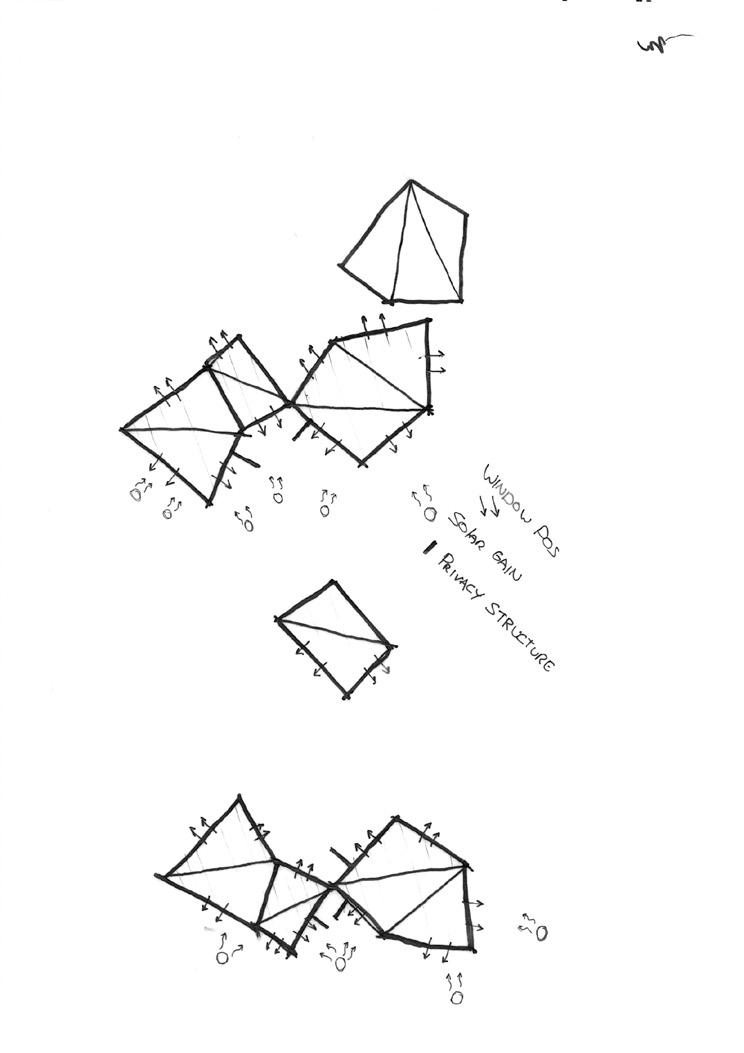

Arrangement Sketch

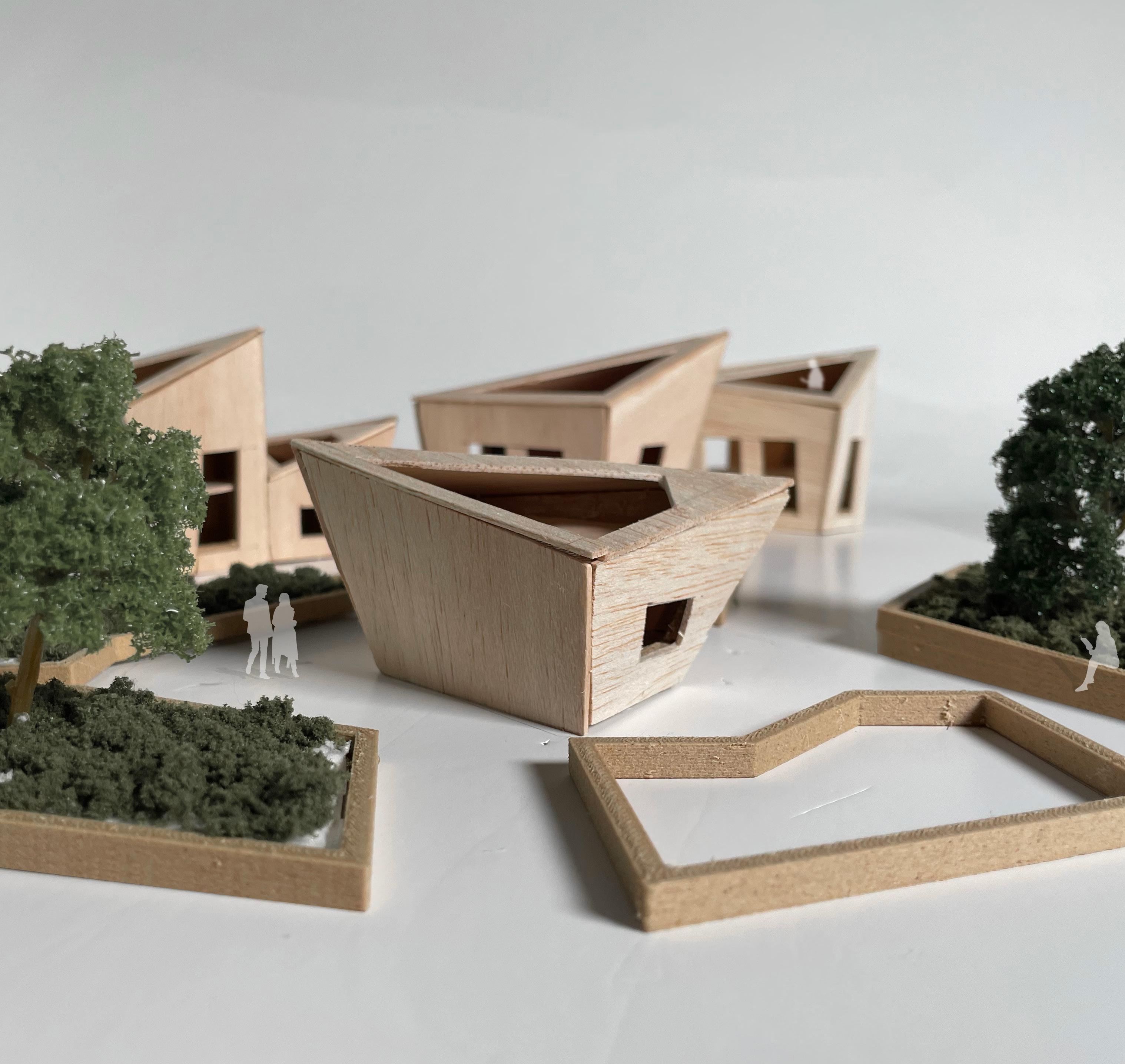

Physical Model
Growing Medium
Drainage Element + Root Barrier
Waterproof Membrane
200mm Reinforced Concrete
Damp Proof Membrane
130mm Insulation
Vapour Control Layer
12.5mm Plasterboard

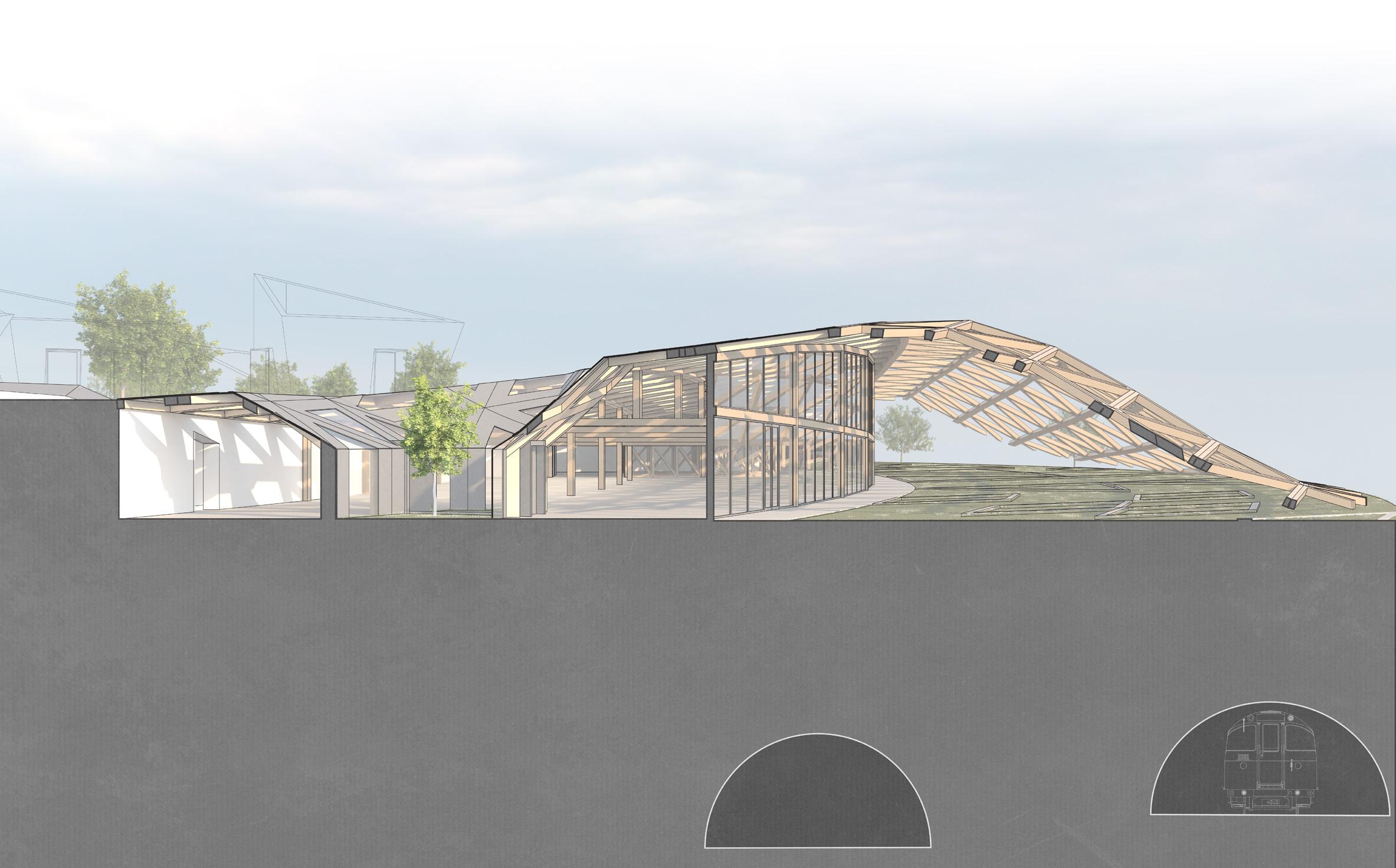

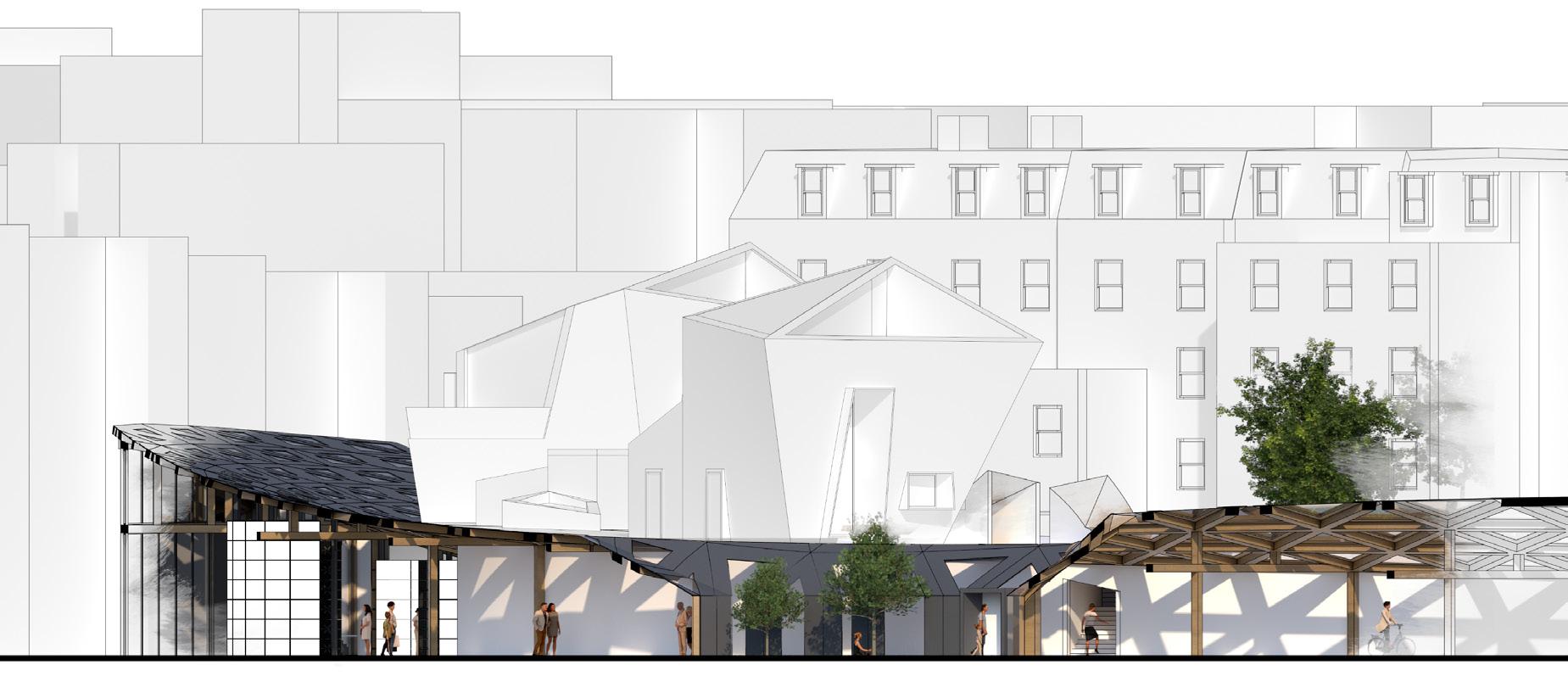

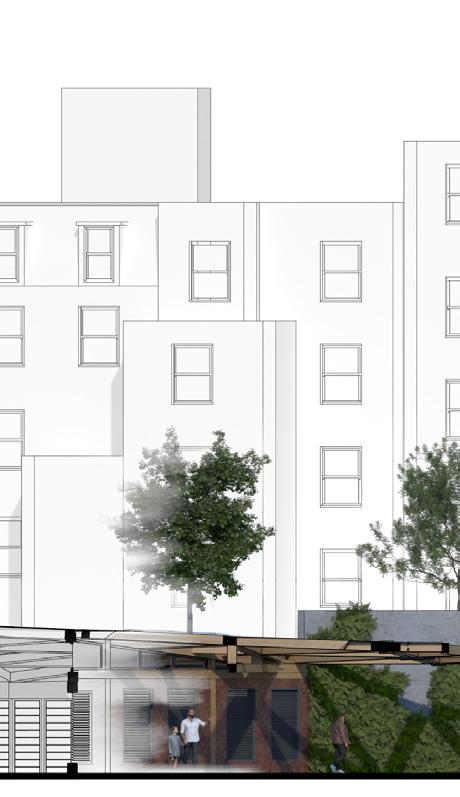

Site Section
200mm Reinforced Concrete
Concrete Thermal Break
Damp Proof Membrane
130mm Insulation
Vapour Control Layer
12.5mm Plasterboard
3mm Skim Finish
90mm Insulated Timber Frame
90mm Insulated Timber Frame
Double Glazed Aluminium Window
35mm Insulation
200mm Reinforced Concrete
Double Glazed Aluminium Window Aluminium Window Surround
Damp Proof Membrane
200mm Insulation
Vapour Control Layer
12.5mm Plasterboard
3mm Skim Finish 3mm Skim Finish

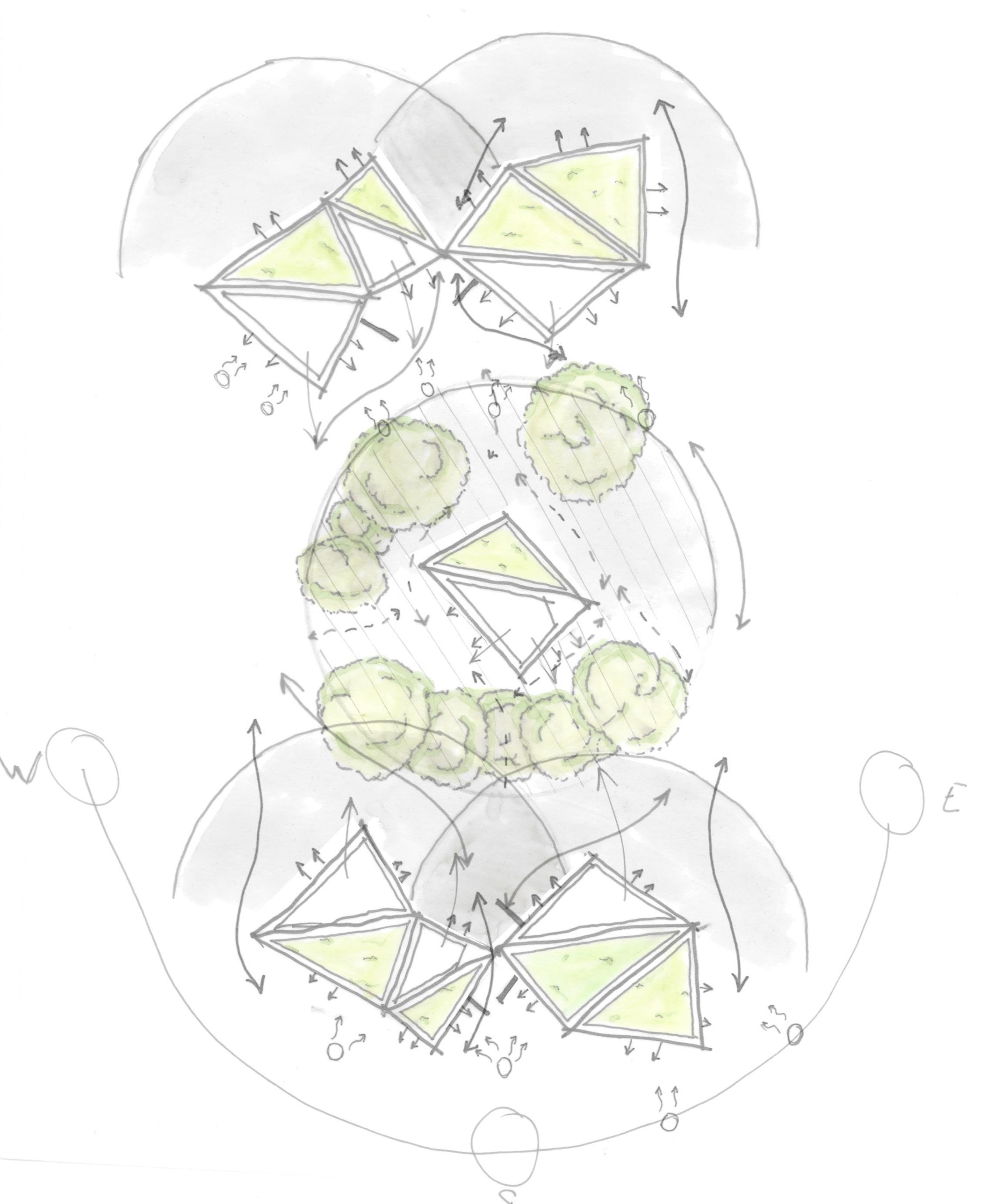

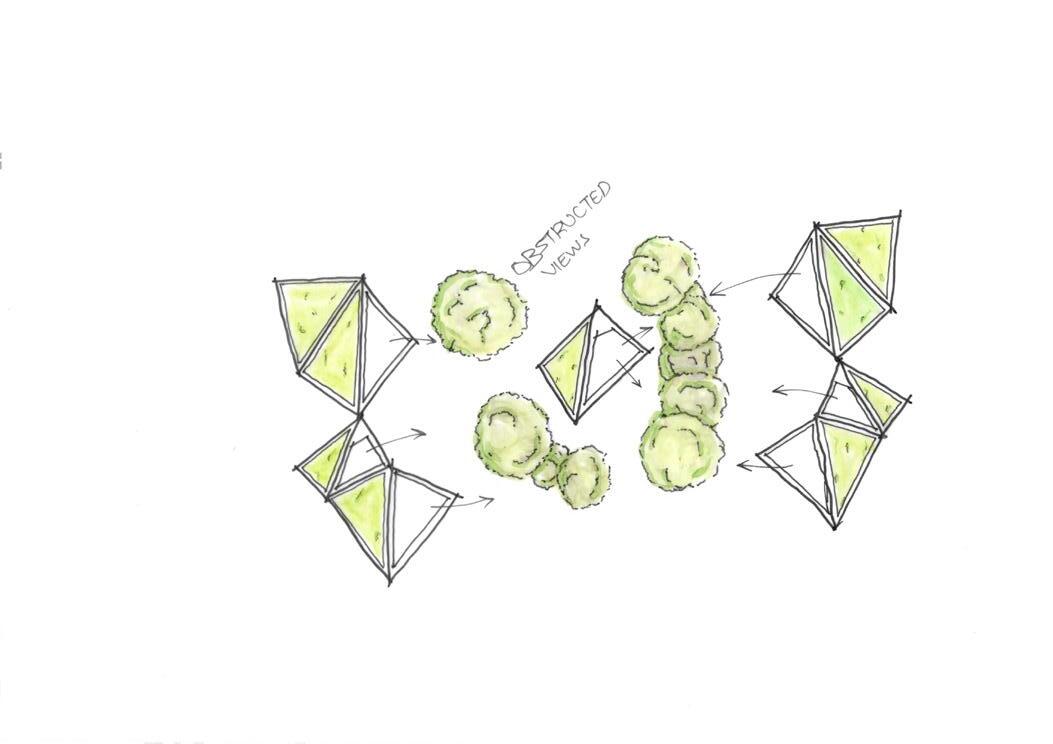

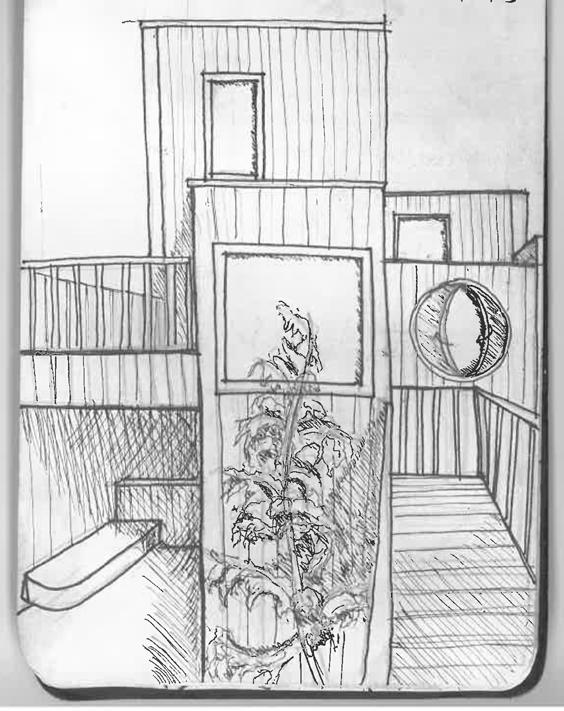

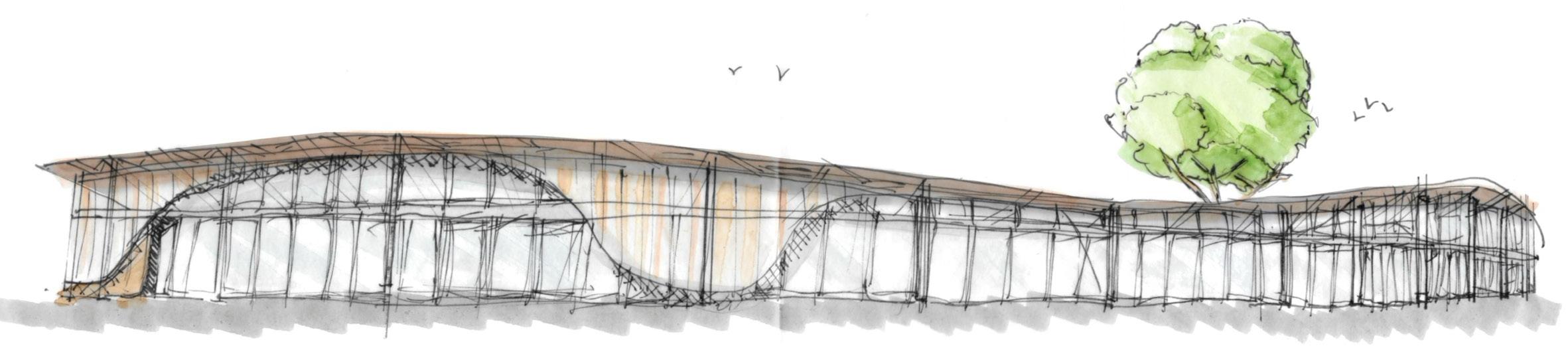

Concept Sketch
Garden Atmospheric Render

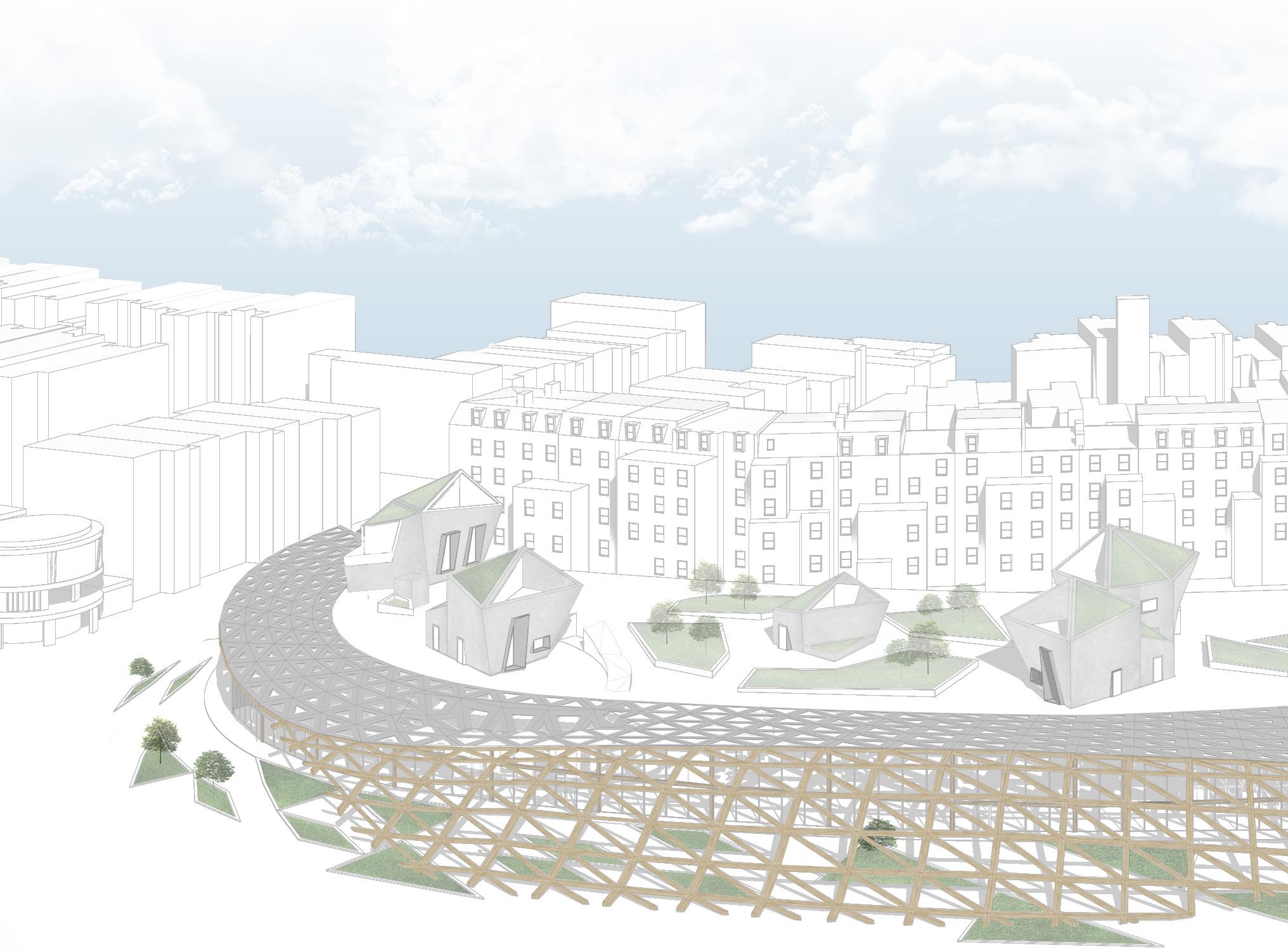

Aerial Site View
Larger Skylights for Light Areas
