COMMA THU ARCH 2022 Semester 1 Li Hsu
Contents Foreword Part A Perception Sense of Scale Landscapes Perceptual Map Part B Development Link of Landscapes Site Selection Space Development Part C Architectural Design Drawings Models 1 2 5-6 7 8 10 11 12 15 27 28 30

Foreword

Propose a place on campus that has feelings for you. Follow the mood to interpret the poems of campus, and feel various elements, layers, materials, sounds, temperature, smell, density...etc. Let the gesture and presence of the hut respond to the clues of the environment, becoming the comma in the poem.

2

PART A Perception

3
4 All
creations come from the perception of existing things.

Sense of Scale

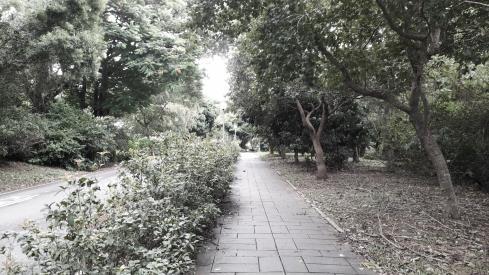

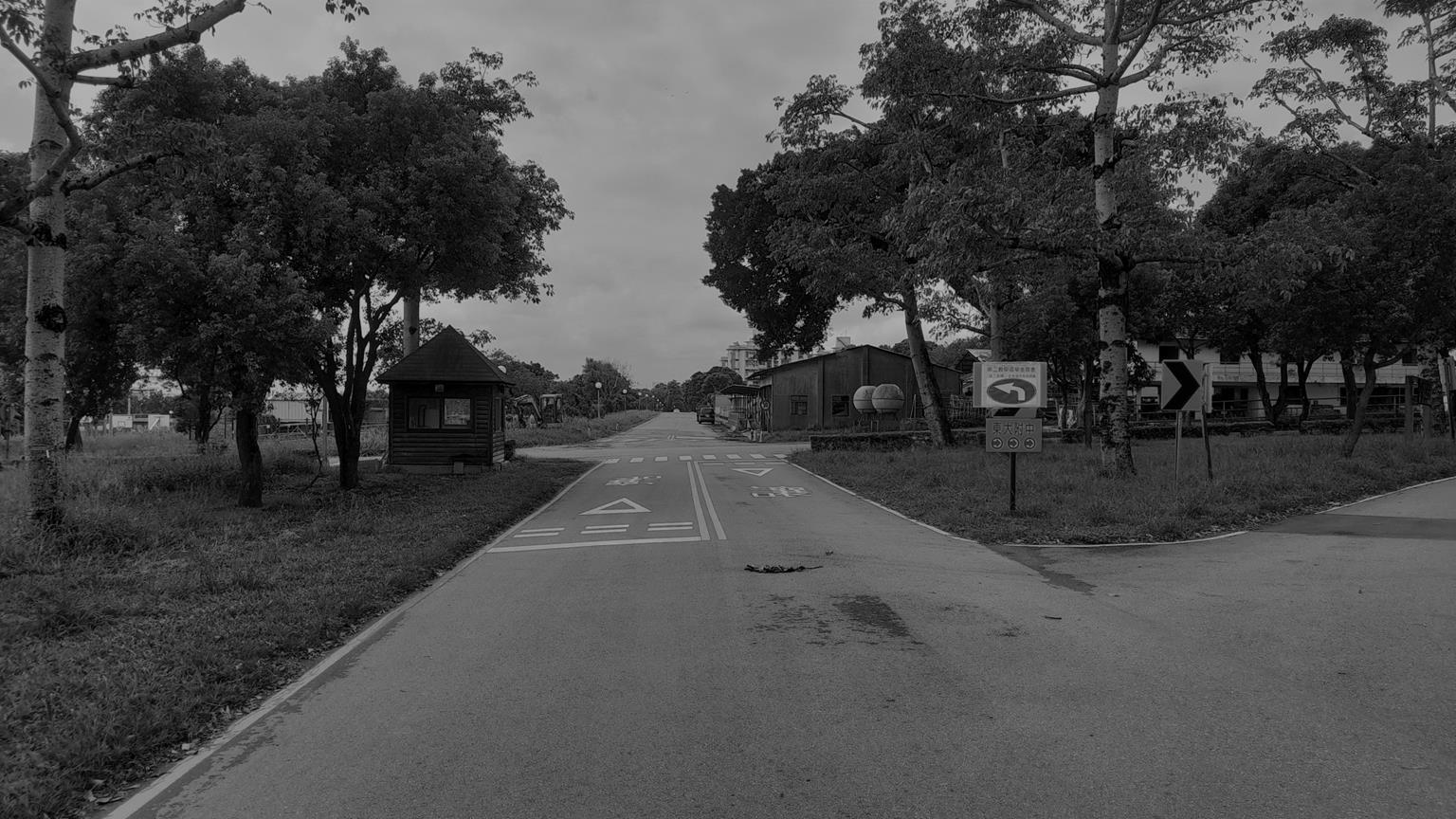

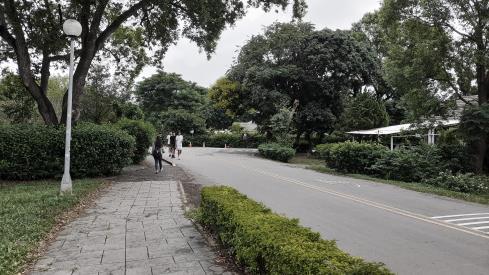

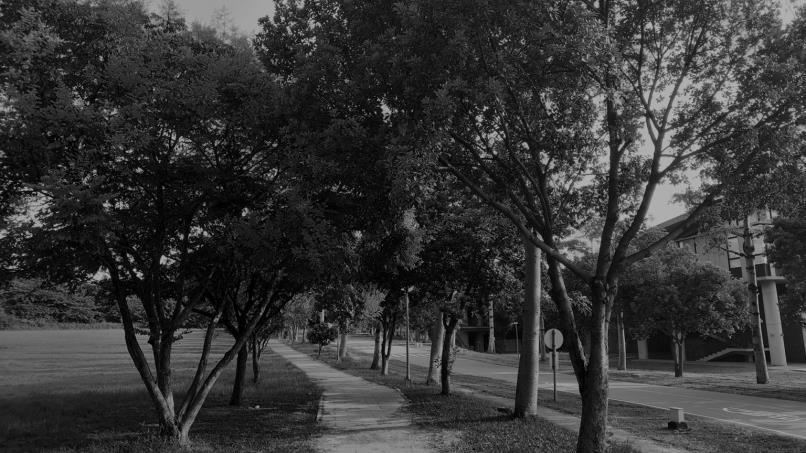

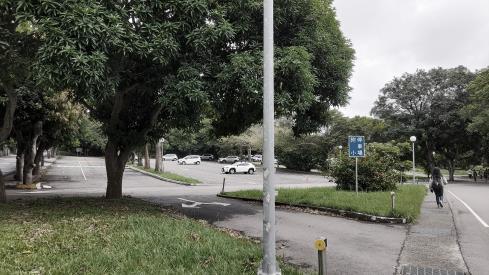

Walking from the first campus to the second campus, the depth of place or the scale of the place will change rapidly. For example, from the road full of trees to the process of overlooking the large turf, or a long road between the stadium and the pasture. The scale contrast of the place is strong, but short-lived. Covered by trees again in a short time.

5

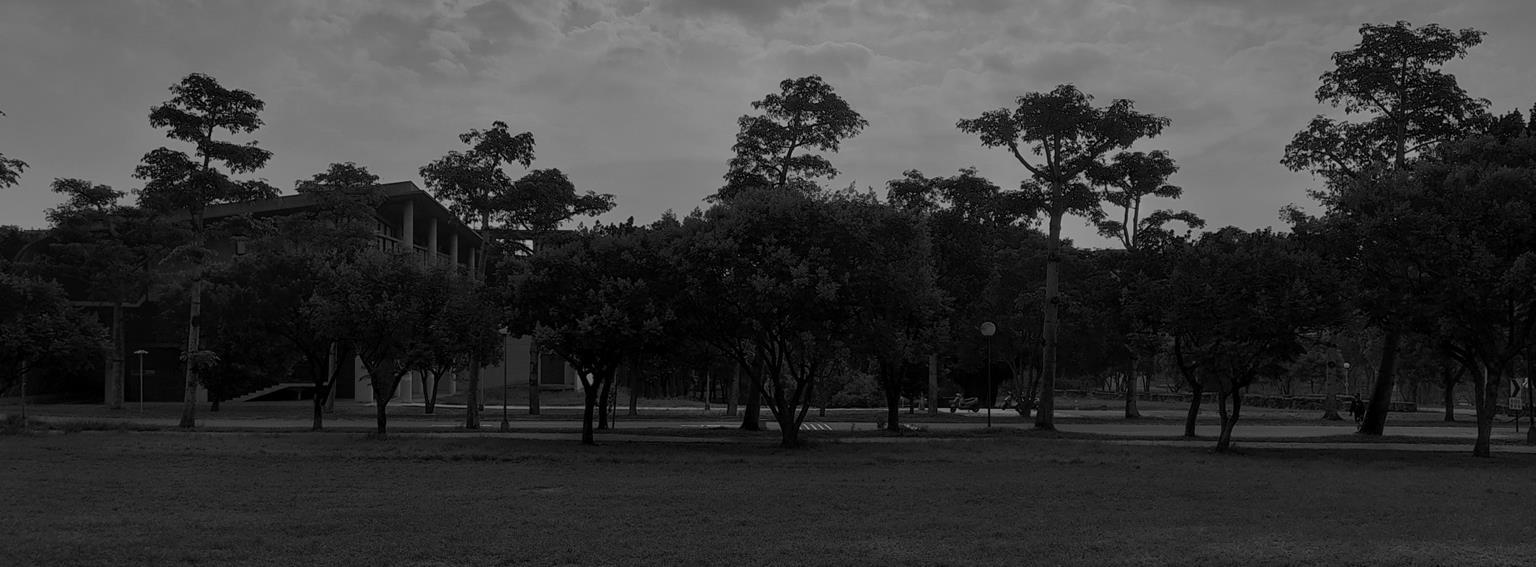

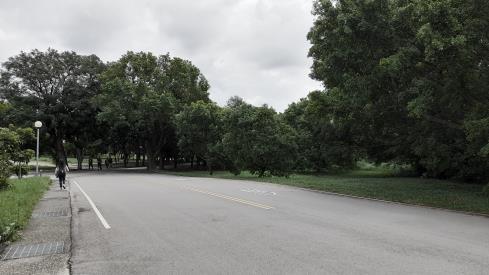

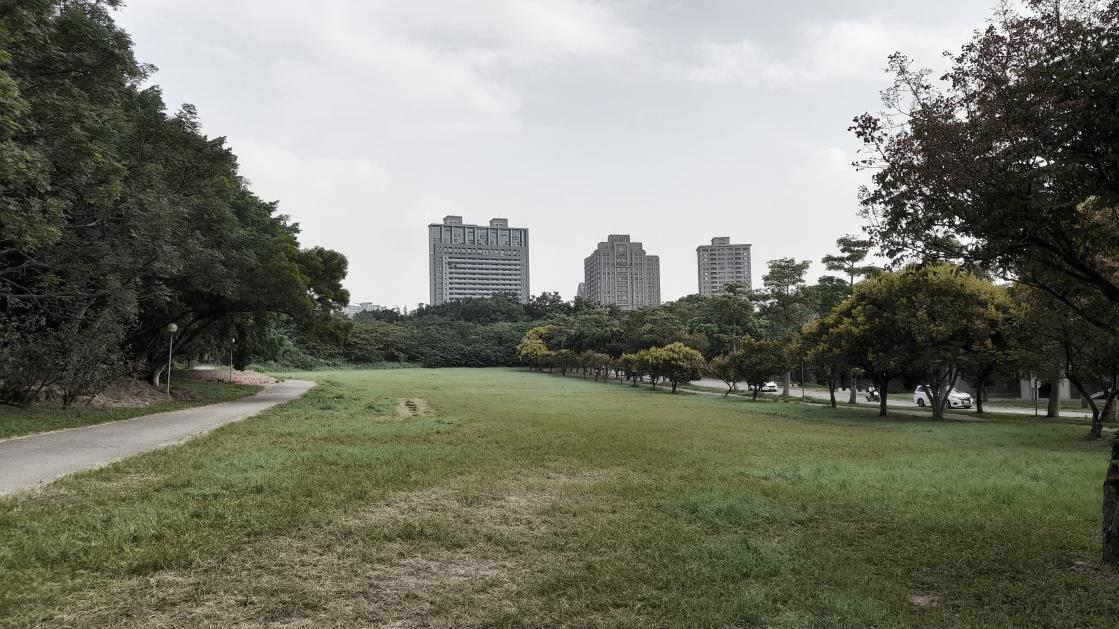

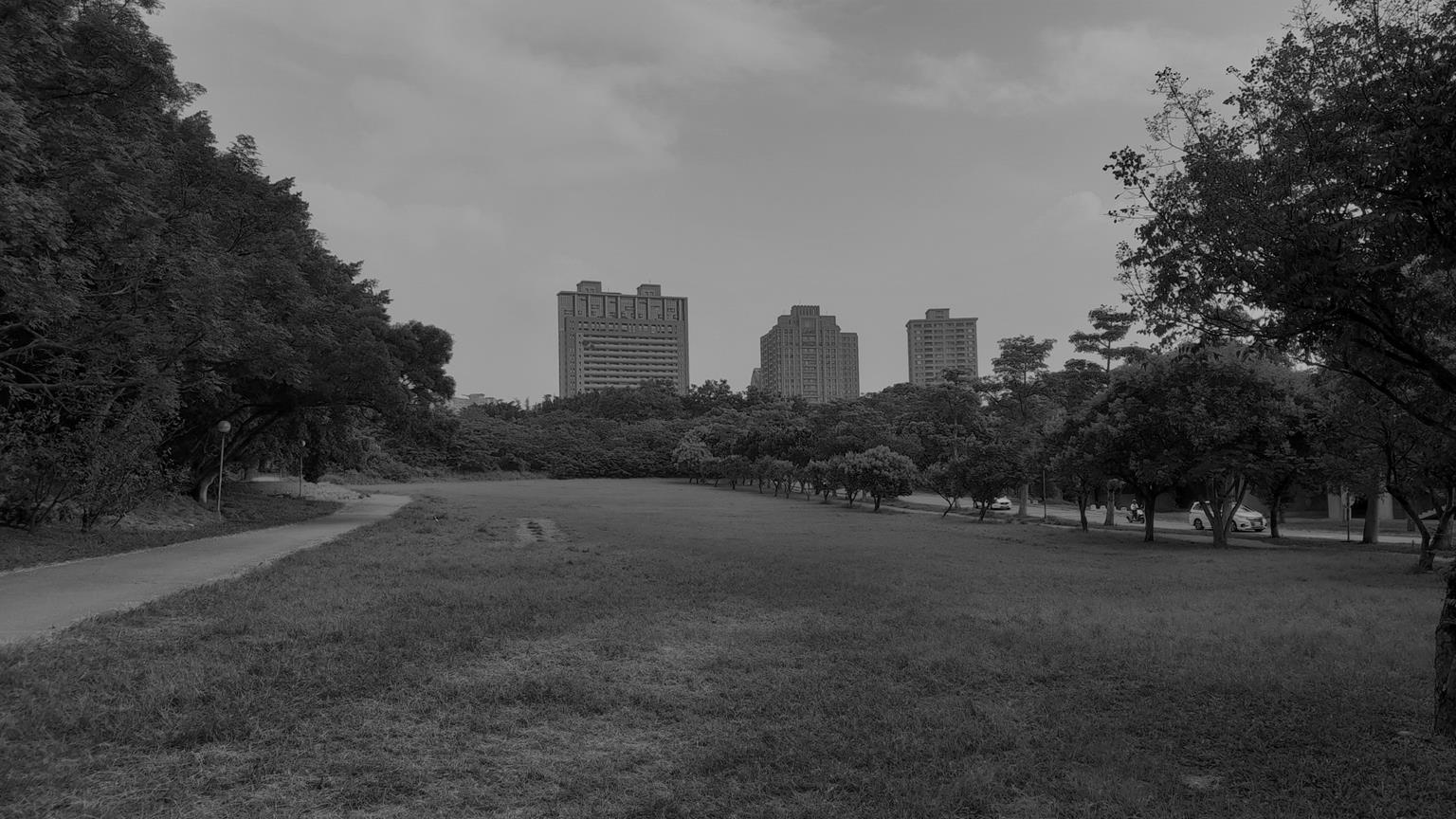

The landscape hundreds of meters away comes into view, creating a strong depth of place.

6

Landscapes

The places where we can see the open landscape are only two small dots in the whole map.

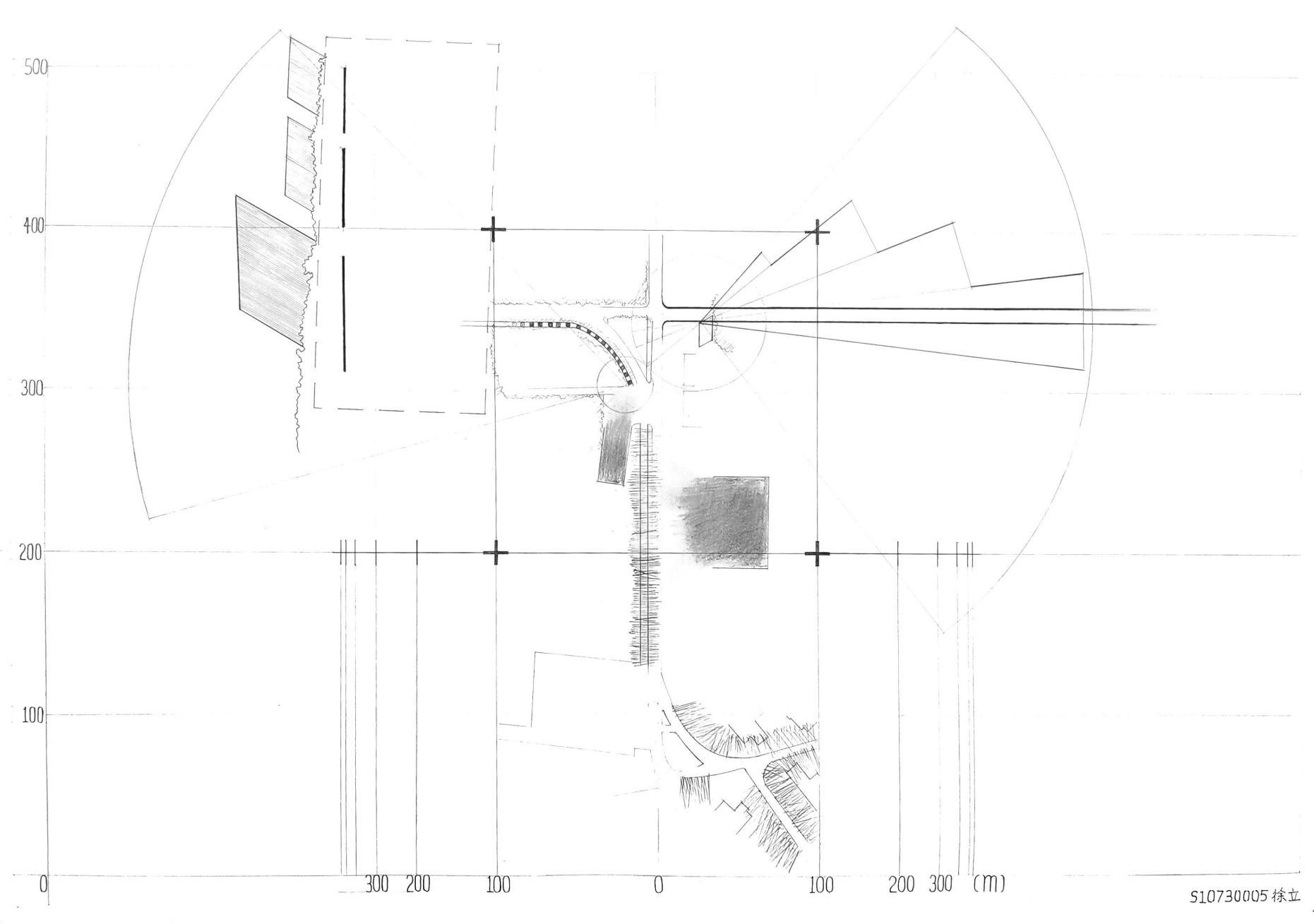

Perceptual map is based on these observations. The distorted reading method of the X-axis also presents a huge gap between physical experience and visual experience.

7

Perceptual Map

8

PART B Development

9

Link of Landscapes

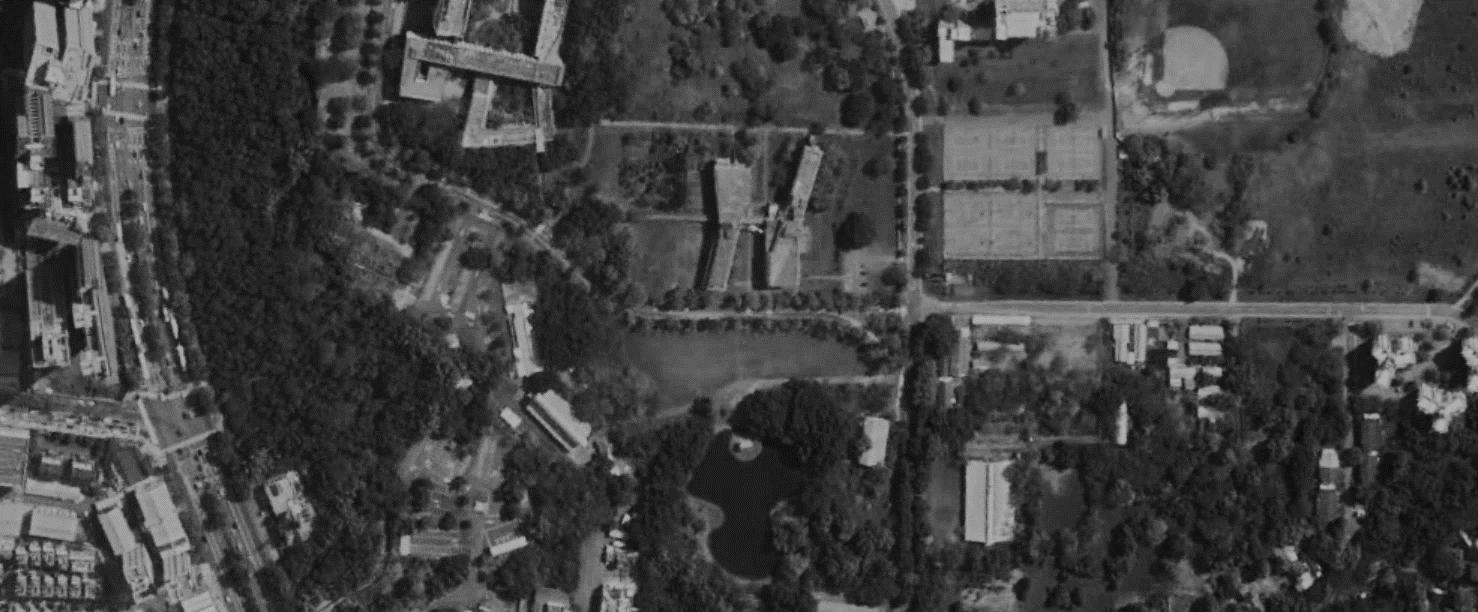

In the tree array dozens of meters away from the two original landscape observation points, the landscape in two directions can be observed and connected at the same time. This discovery determines the location of the site.

10

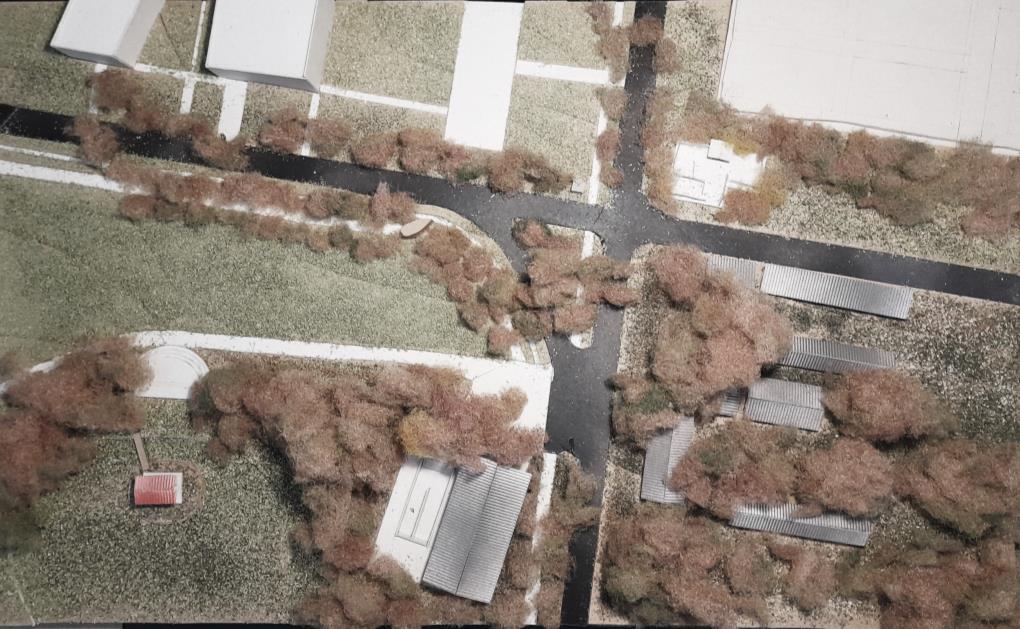

Site Selection

11

Space Development

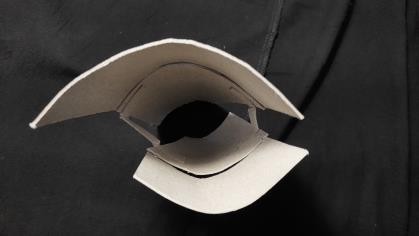

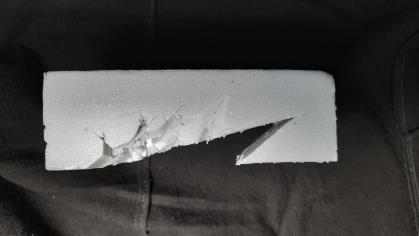

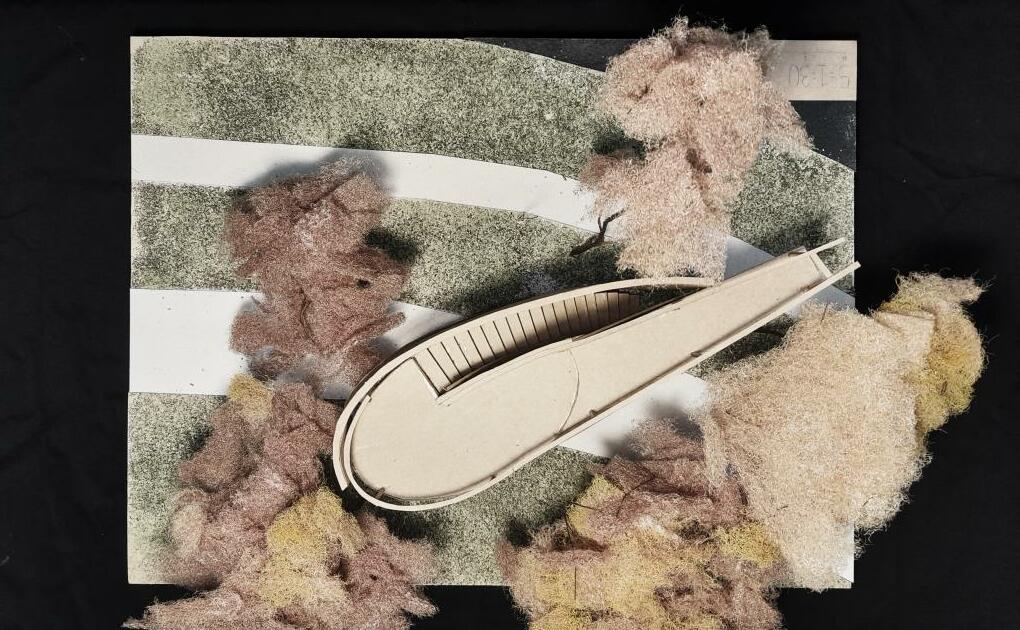

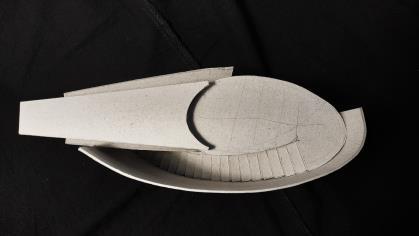

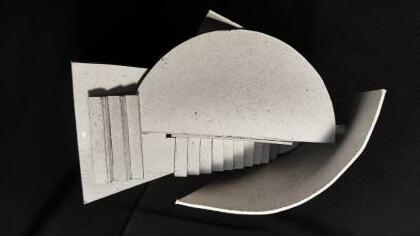

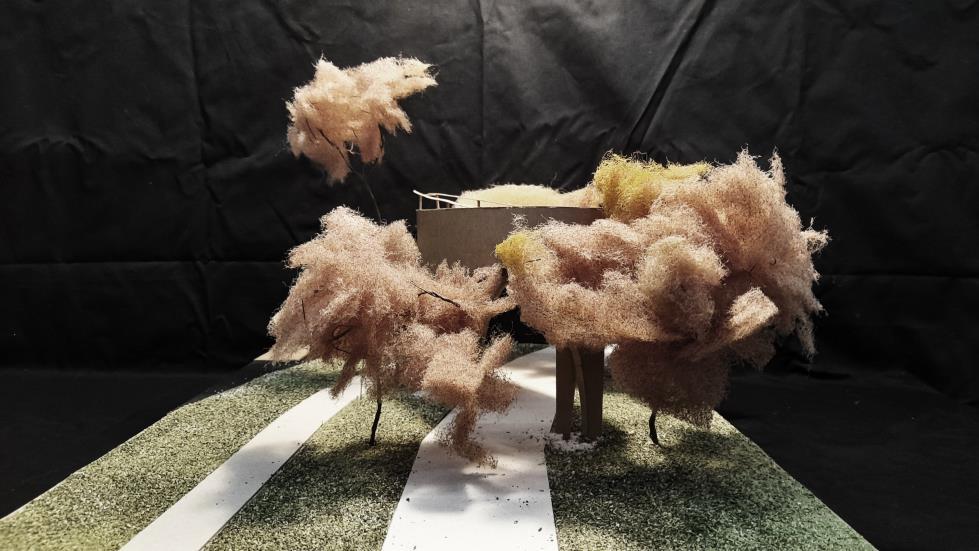

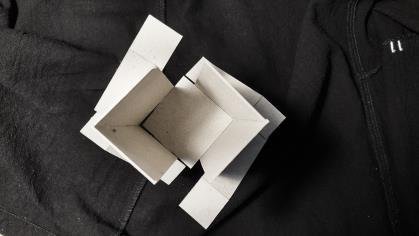

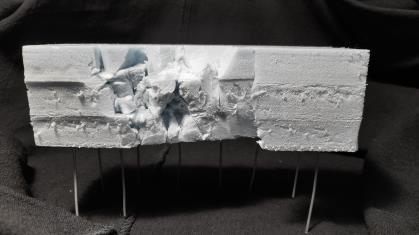

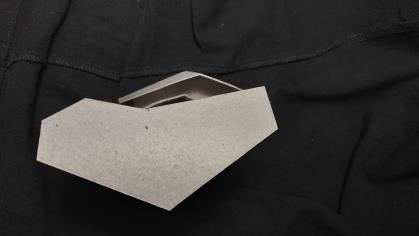

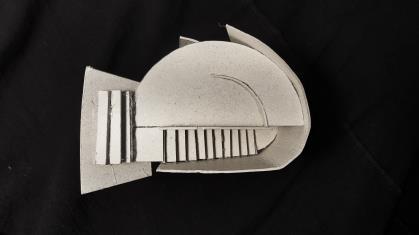

First, the architectural intervention is modest, hidden in the tree canopy. Secondly, there’s one axis and two directions due to the observation of the landscape. Finally, corresponding to the two landscapes with different properties, a drop shaped plan is created. Sharp point corresponds to narrower landscapes which is obscured by distant tree canopies, and the other side corresponds to the broad turf.

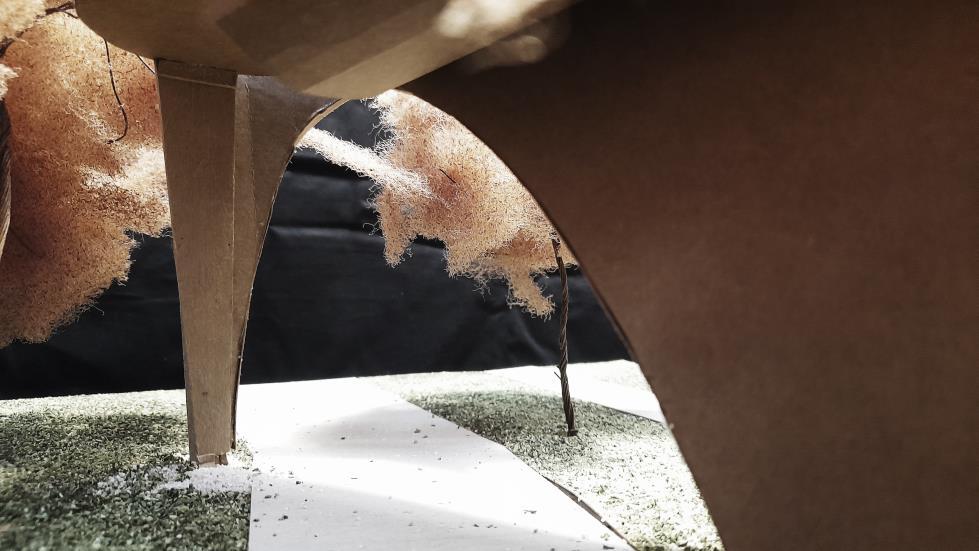

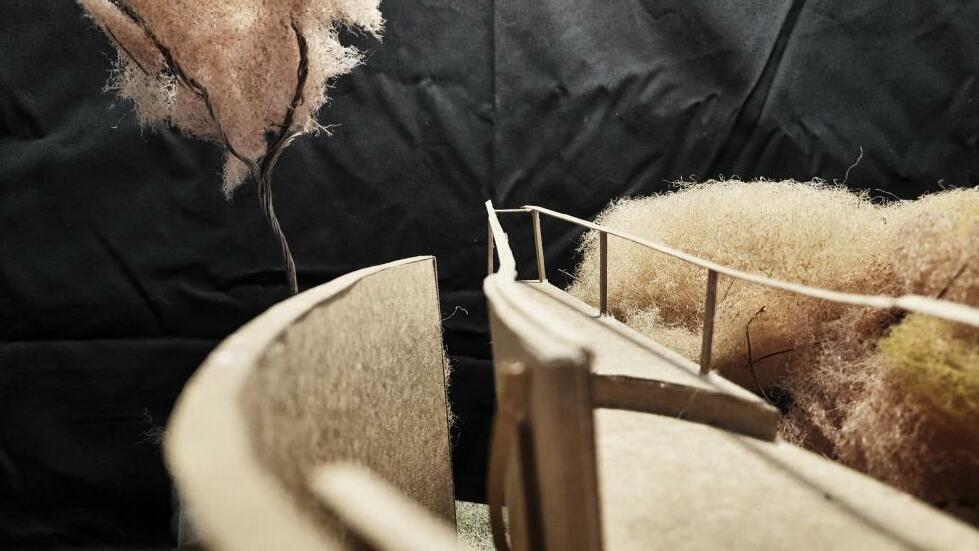

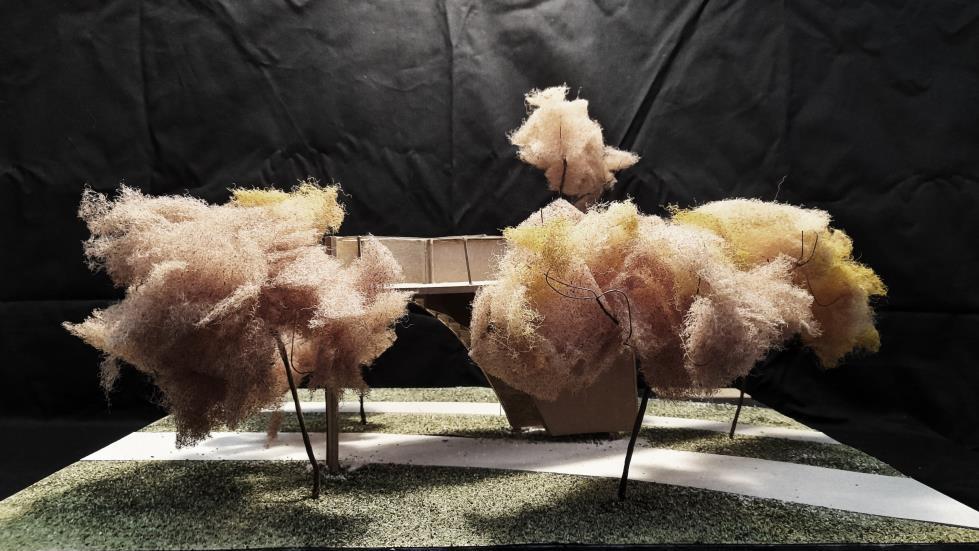

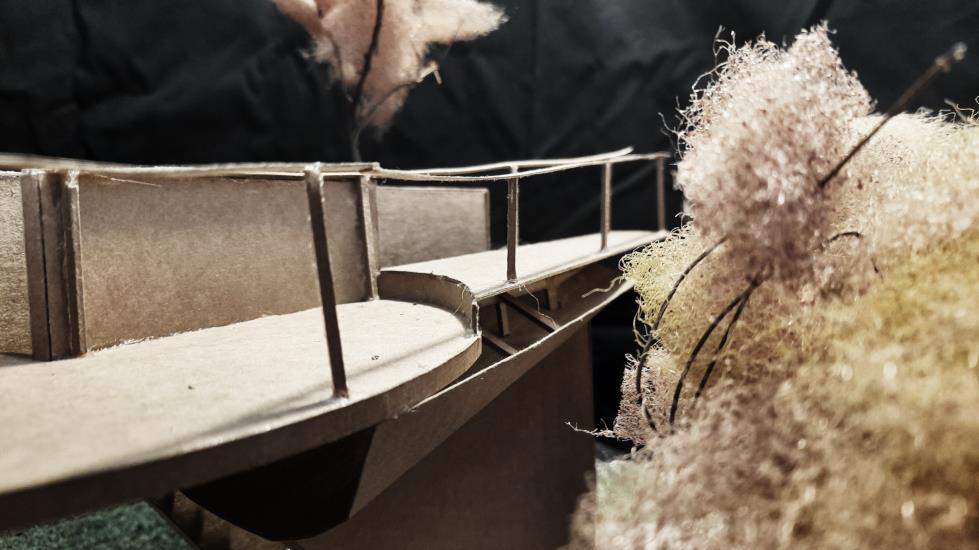

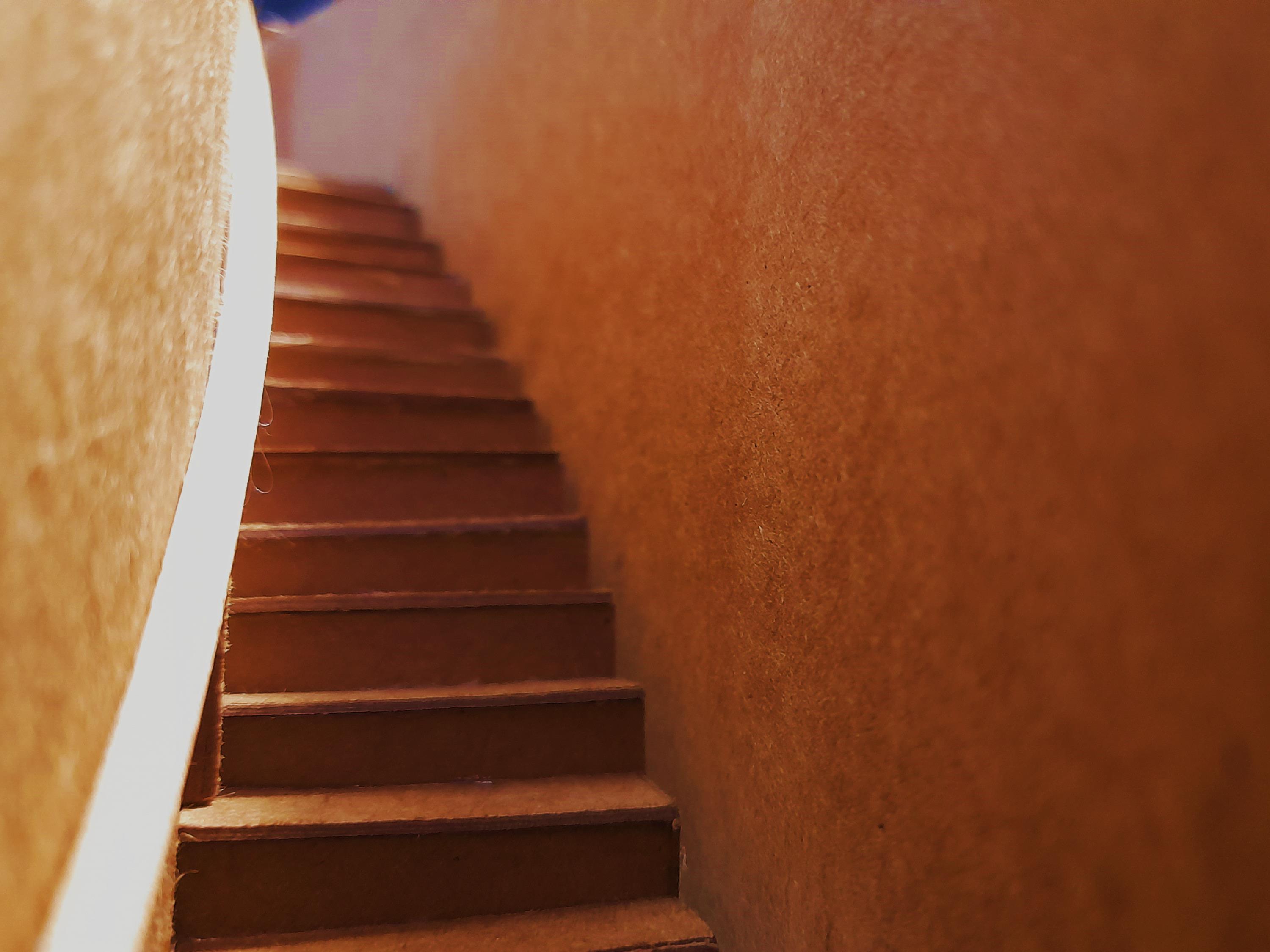

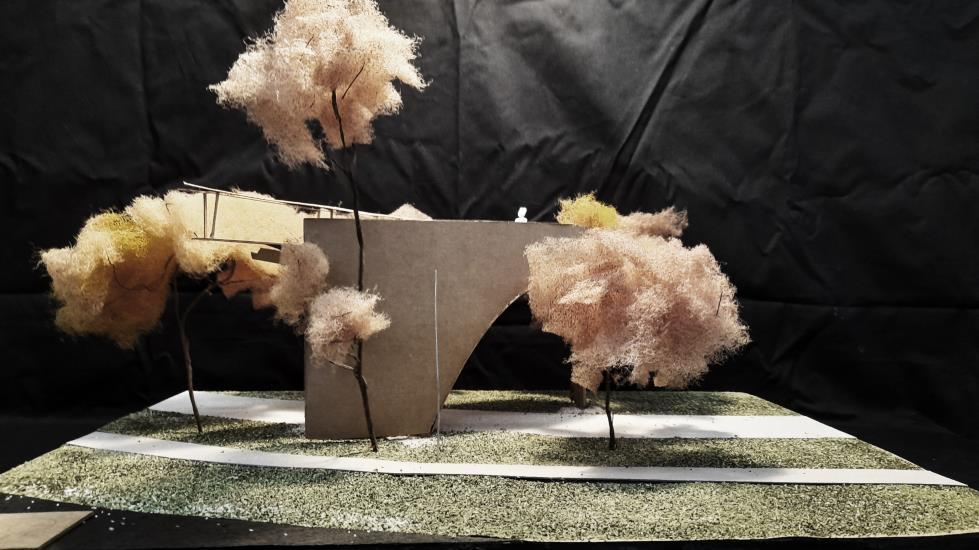

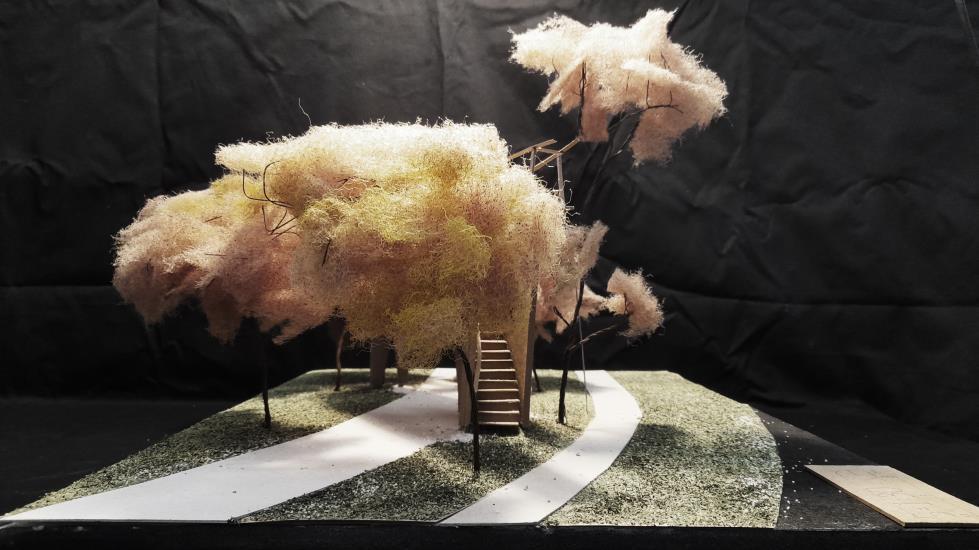

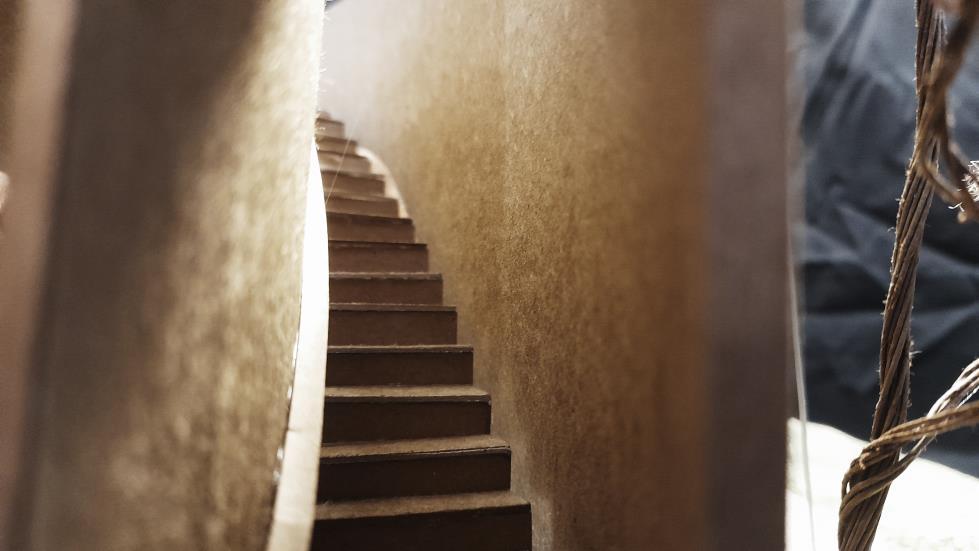

The purpose of the hut is enriching the layers of the field scale, from two narrow walls to the surrounding tree canopy, finally, to the landscape a few hundred meters away. The elevation is light and the material is corten steel. It’s a spaceship floating among the tree canopy.

12

PART C Architectural Design

13
A1 A101 Design Diagram A2 A201 Site Plan A3 A301 GF Plan A302 RF Plan A4 A401 East Elevation A402 West Elevation A403 South Elevation A404 North Elevation A5 A501 Section(AA’) A502 Section(BB’) A503 Section(CC’) A504 Section(DD’) A6 A601 Plan Oblique 14

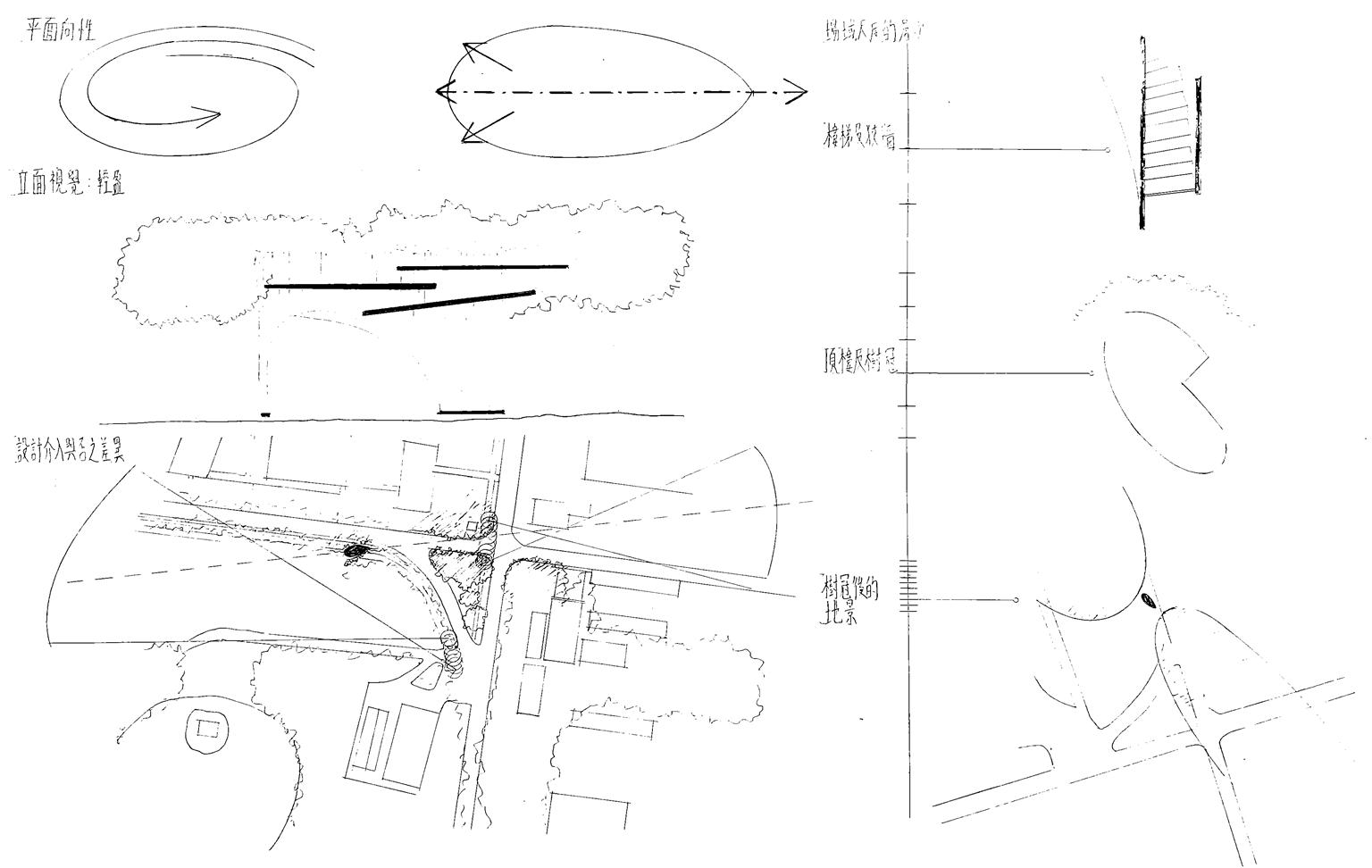

A101 15 Design Diagram Direction of Plan Light Elevation Stairs Narrow Wall Roof Floor Canopy Canopy Landscapes Intervention

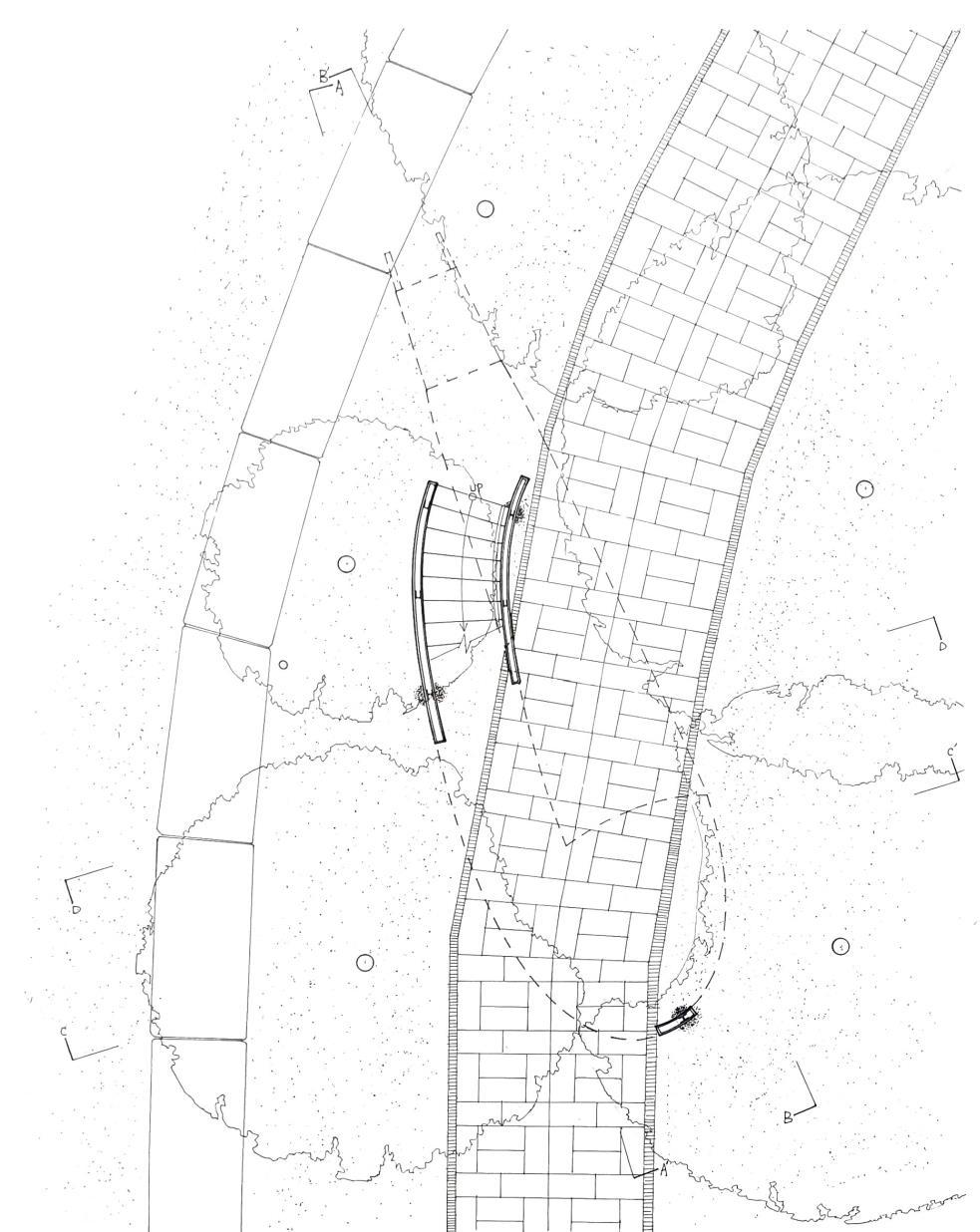

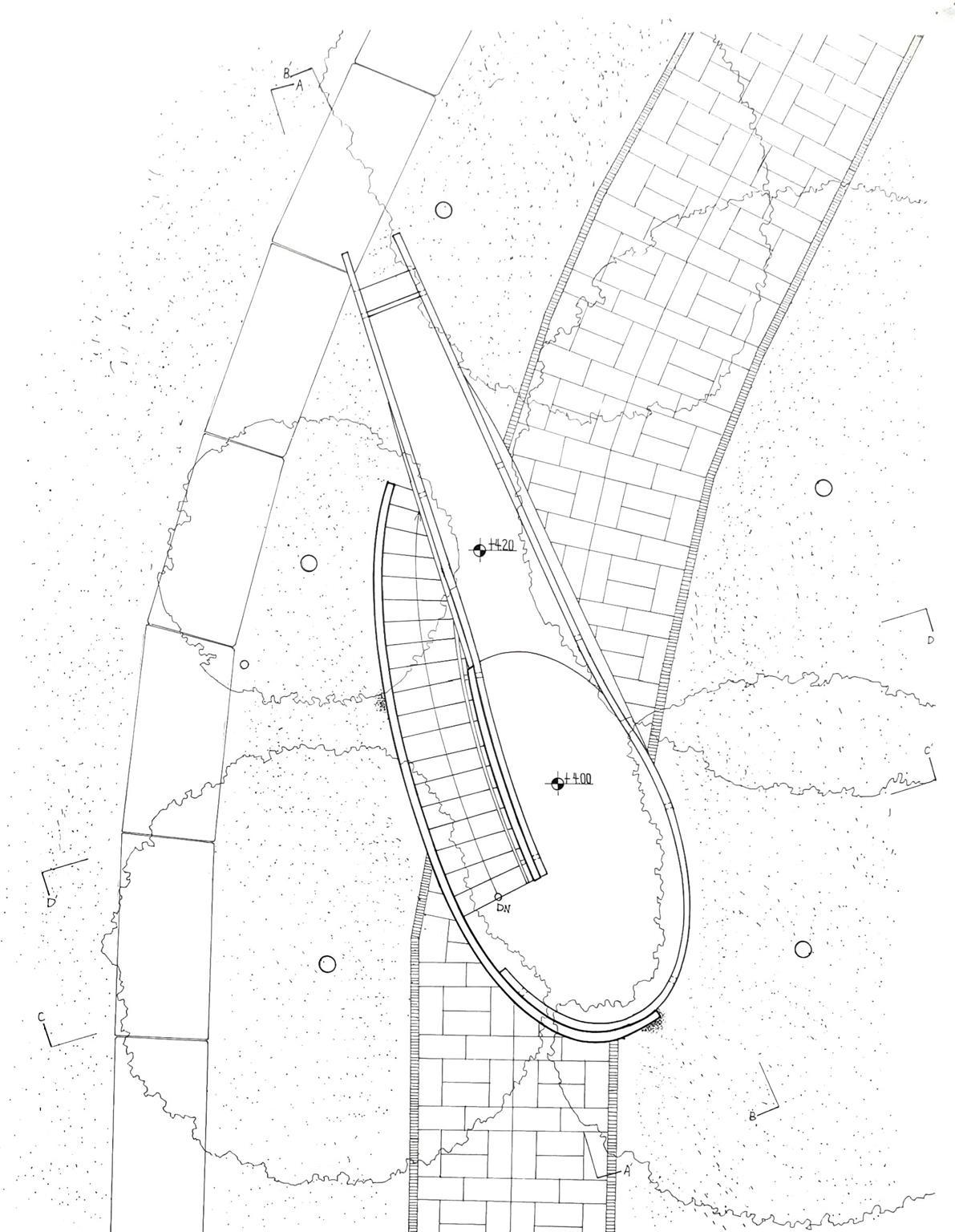

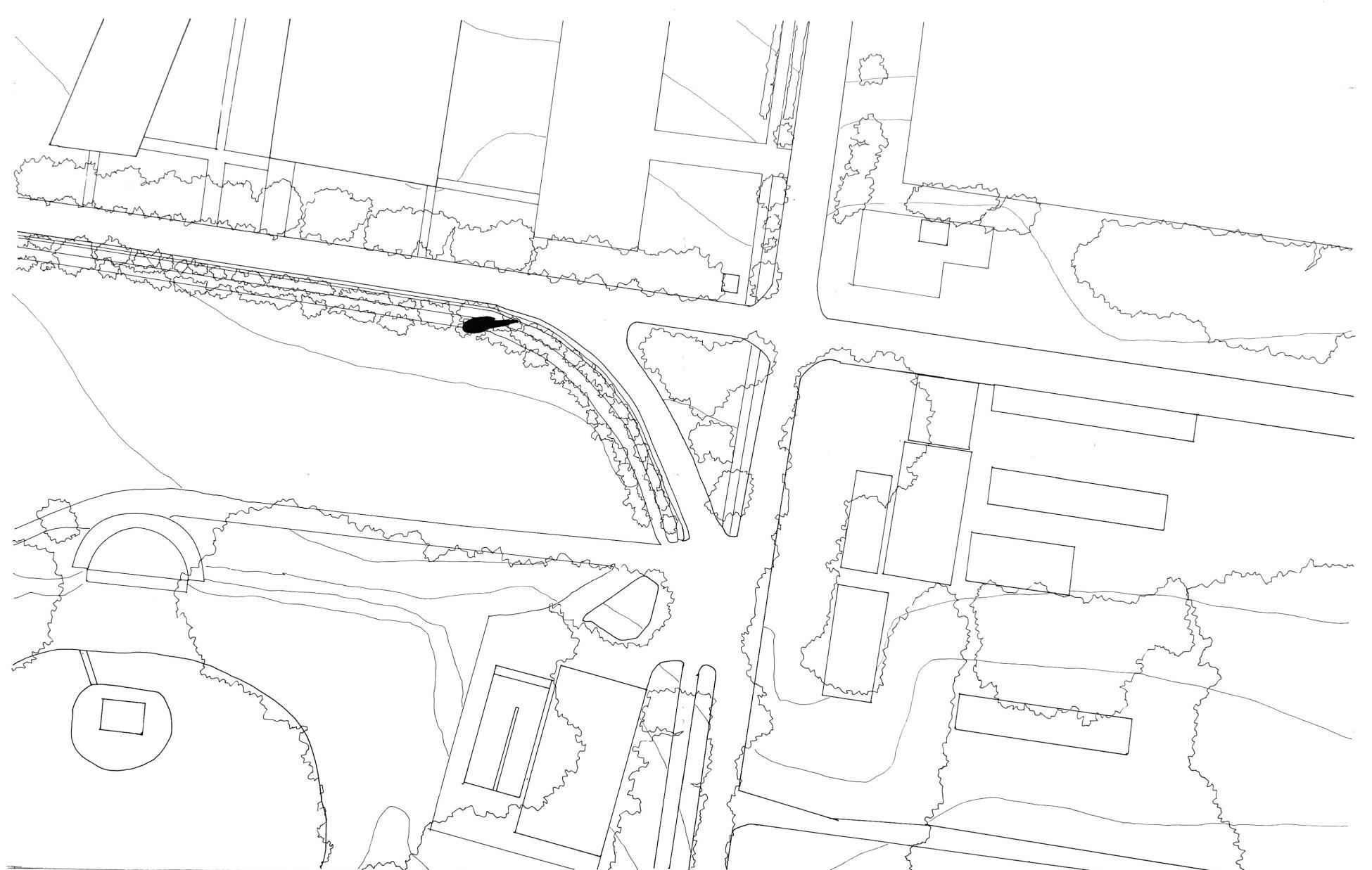

A201 S=1/1000 Site Plan 16
17 A301 S=1/100 GF Plan
A302 S=1/100 RF Plan 18
19 A401 S=1/100 East Elevation
A402 S=1/100 West Elevation 20
21 A403 S=1/100 South Elevation
A404 S=1/100 North Elevation 22

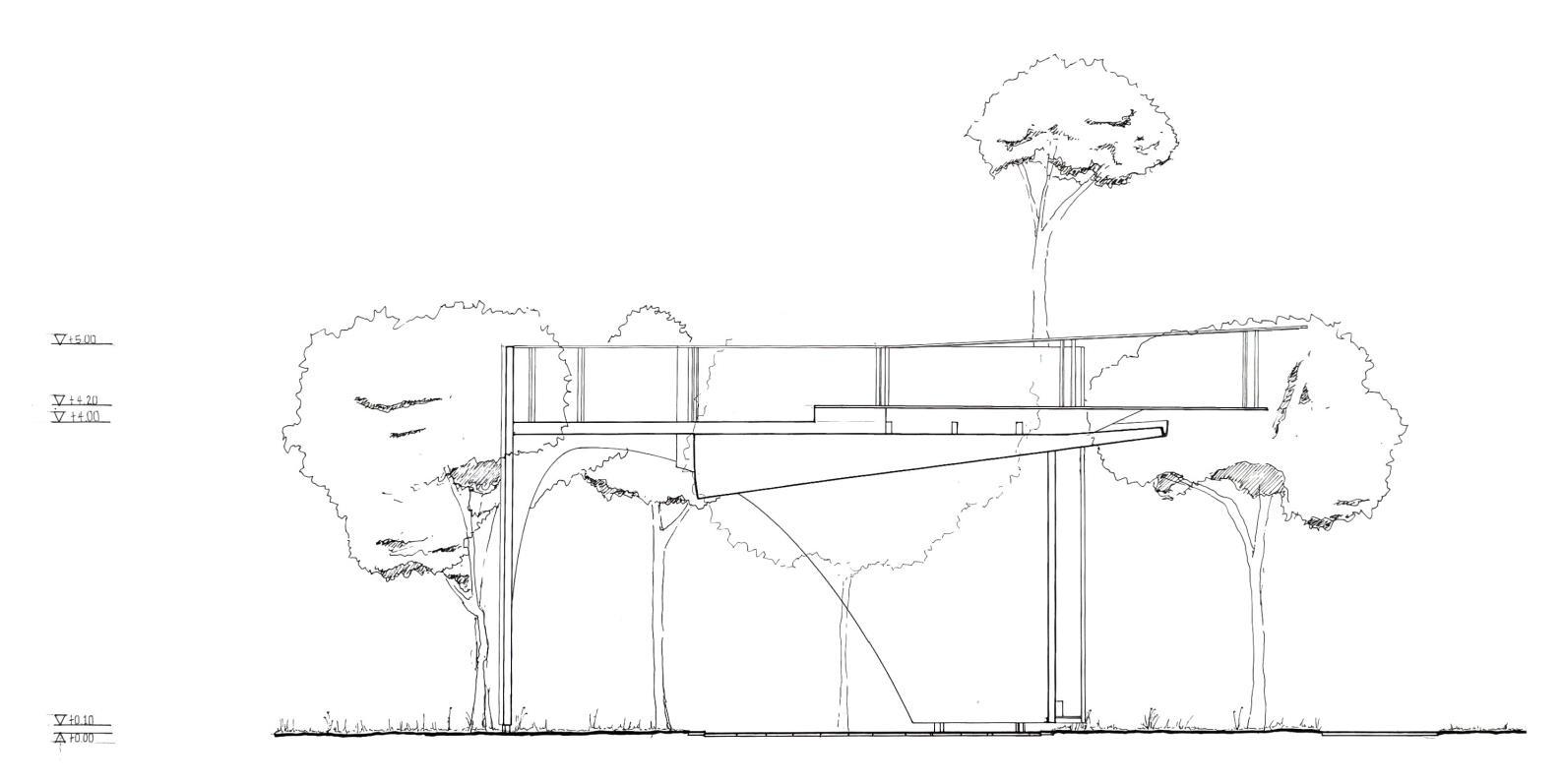

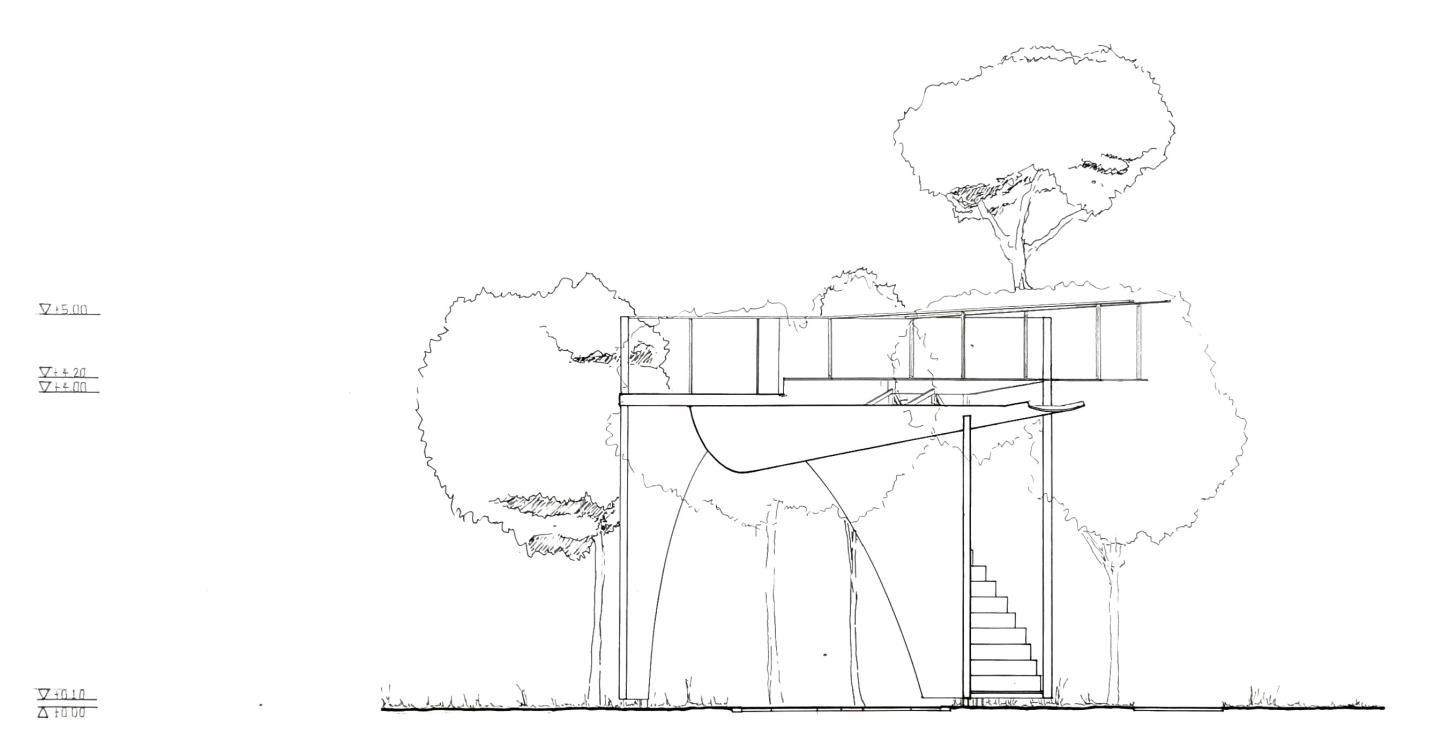

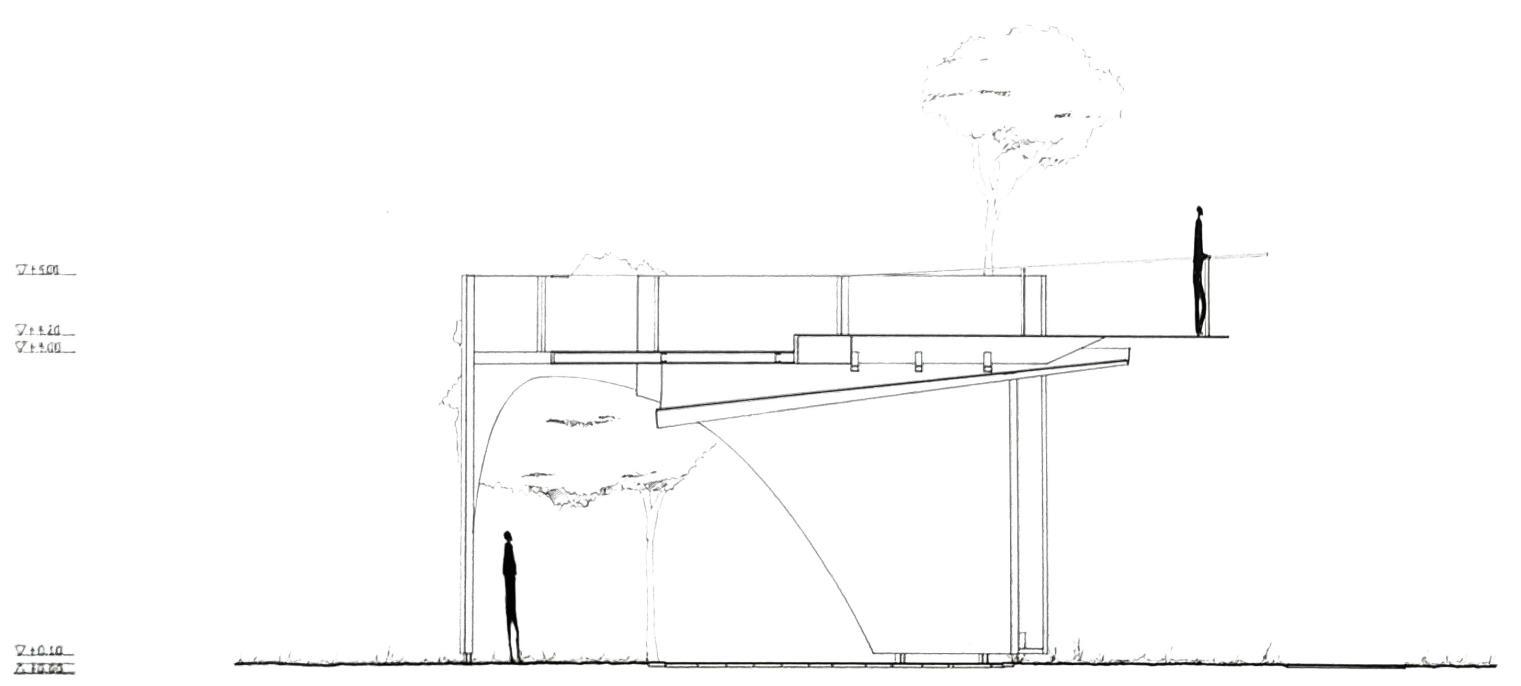

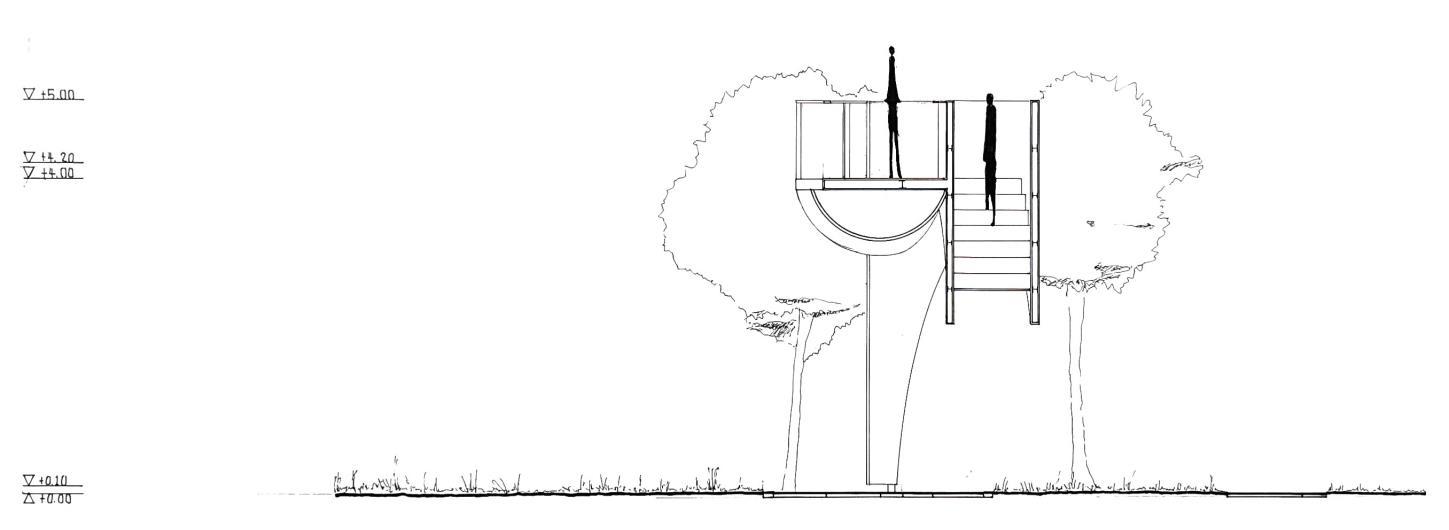

23 A501 S=1/100 Section(AA’)

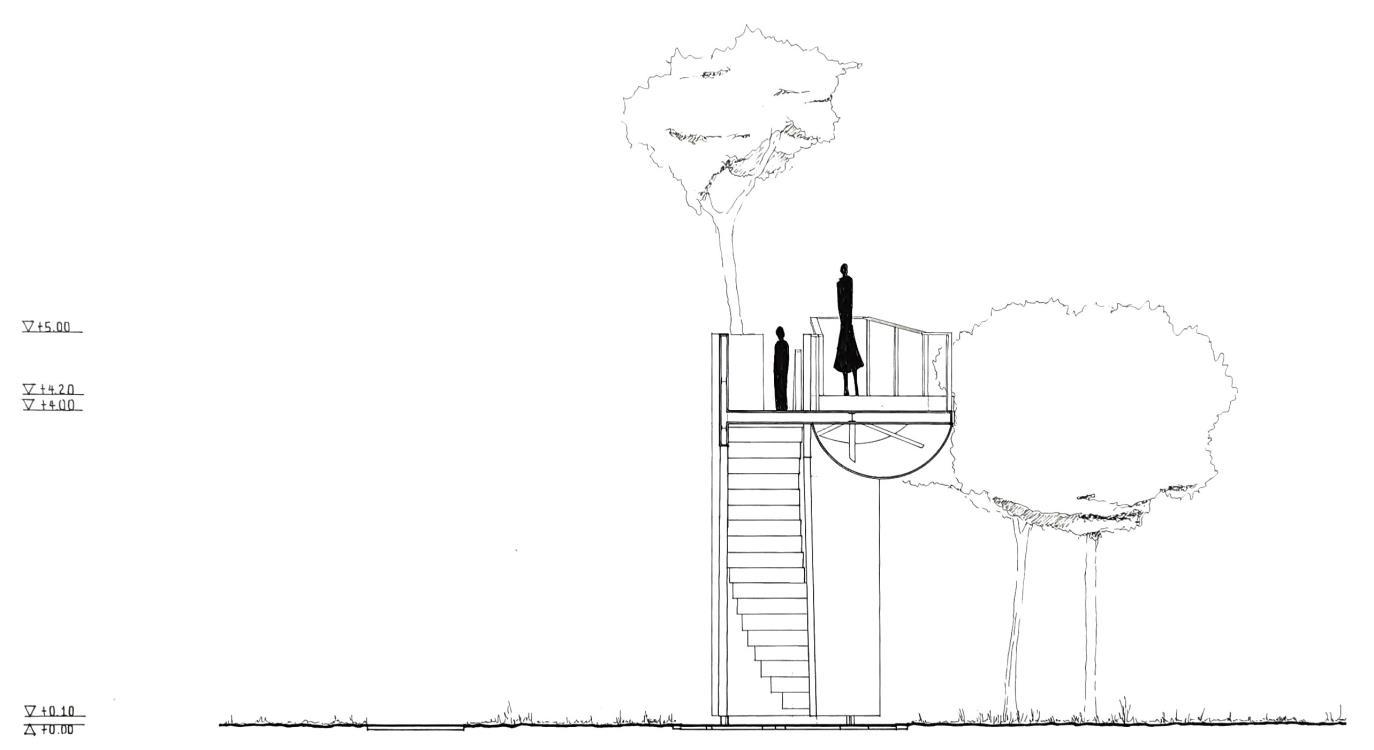

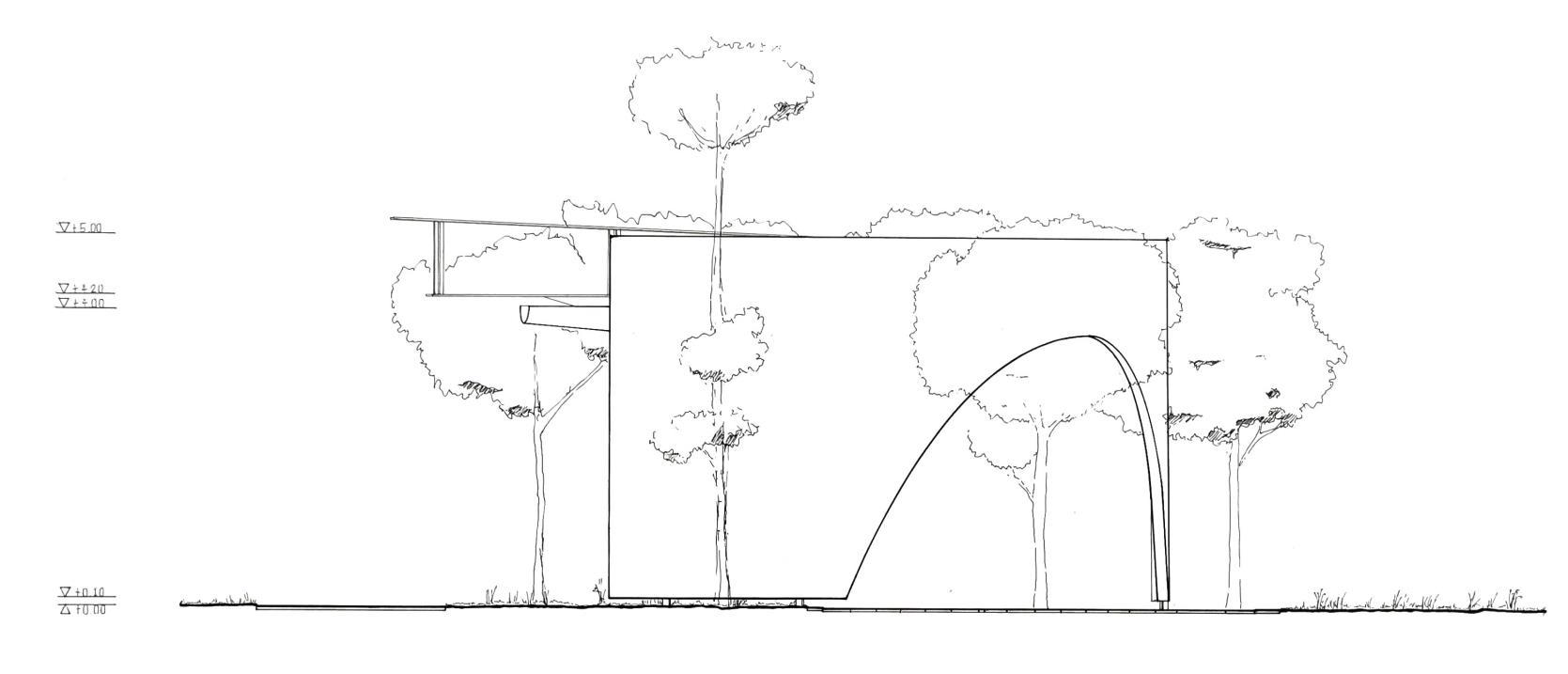

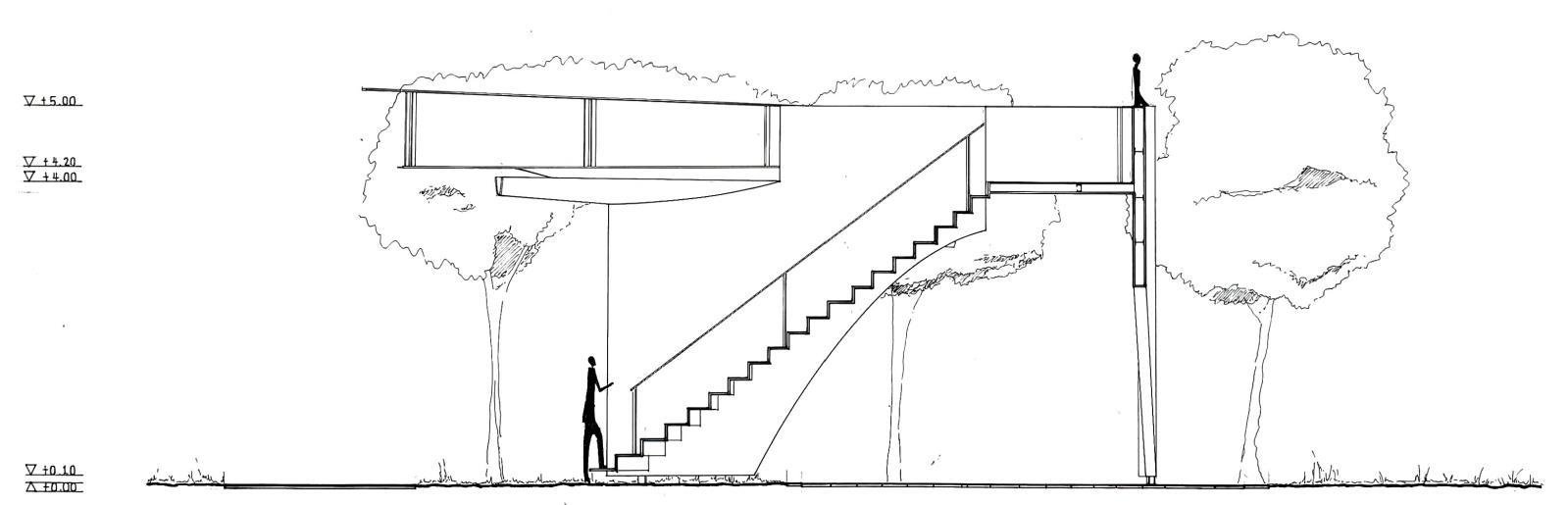

A502 S=1/100 Section(BB’) 24

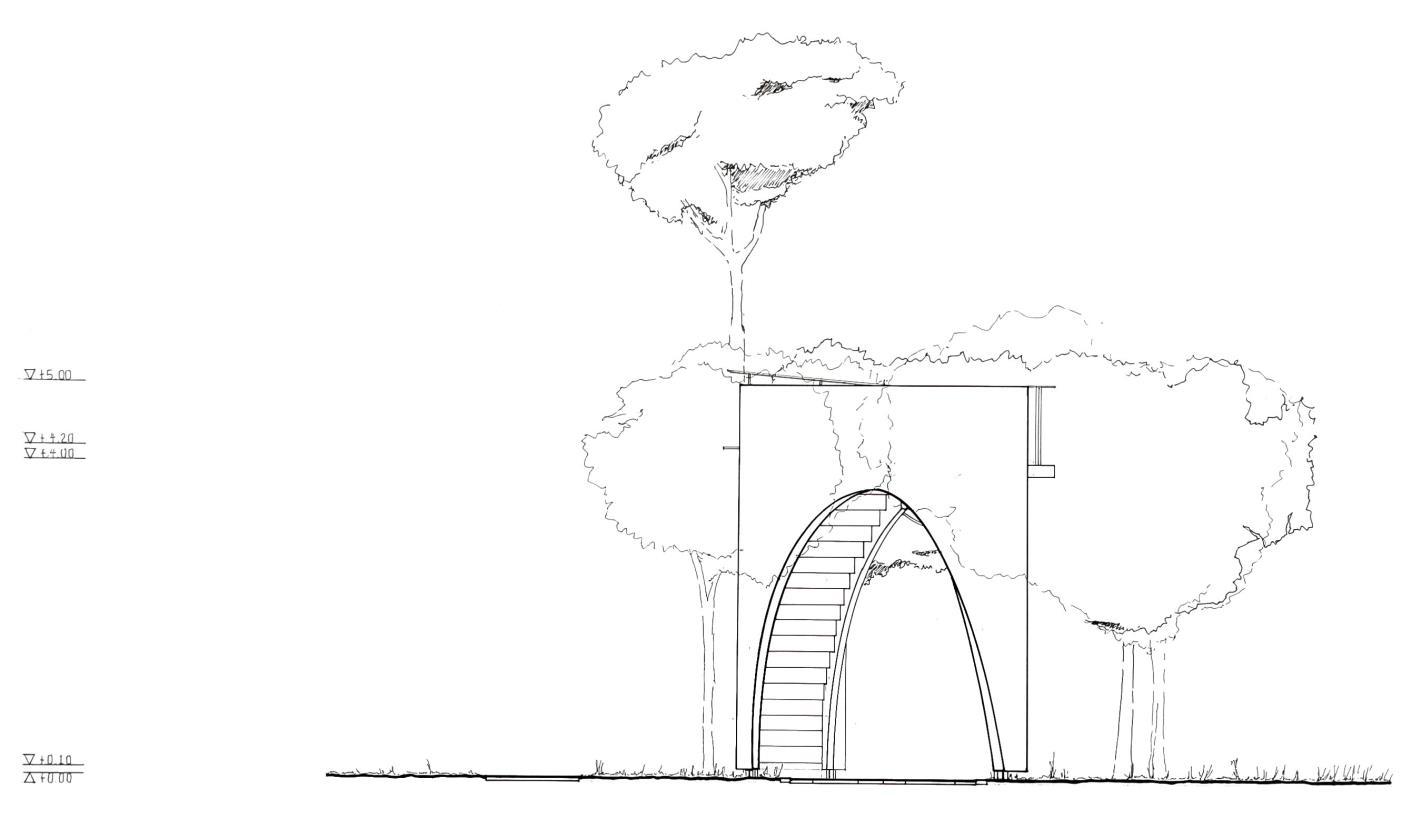

25 A503 S=1/100 Section(CC’)
A504 S=1/100 Section(DD’) 26

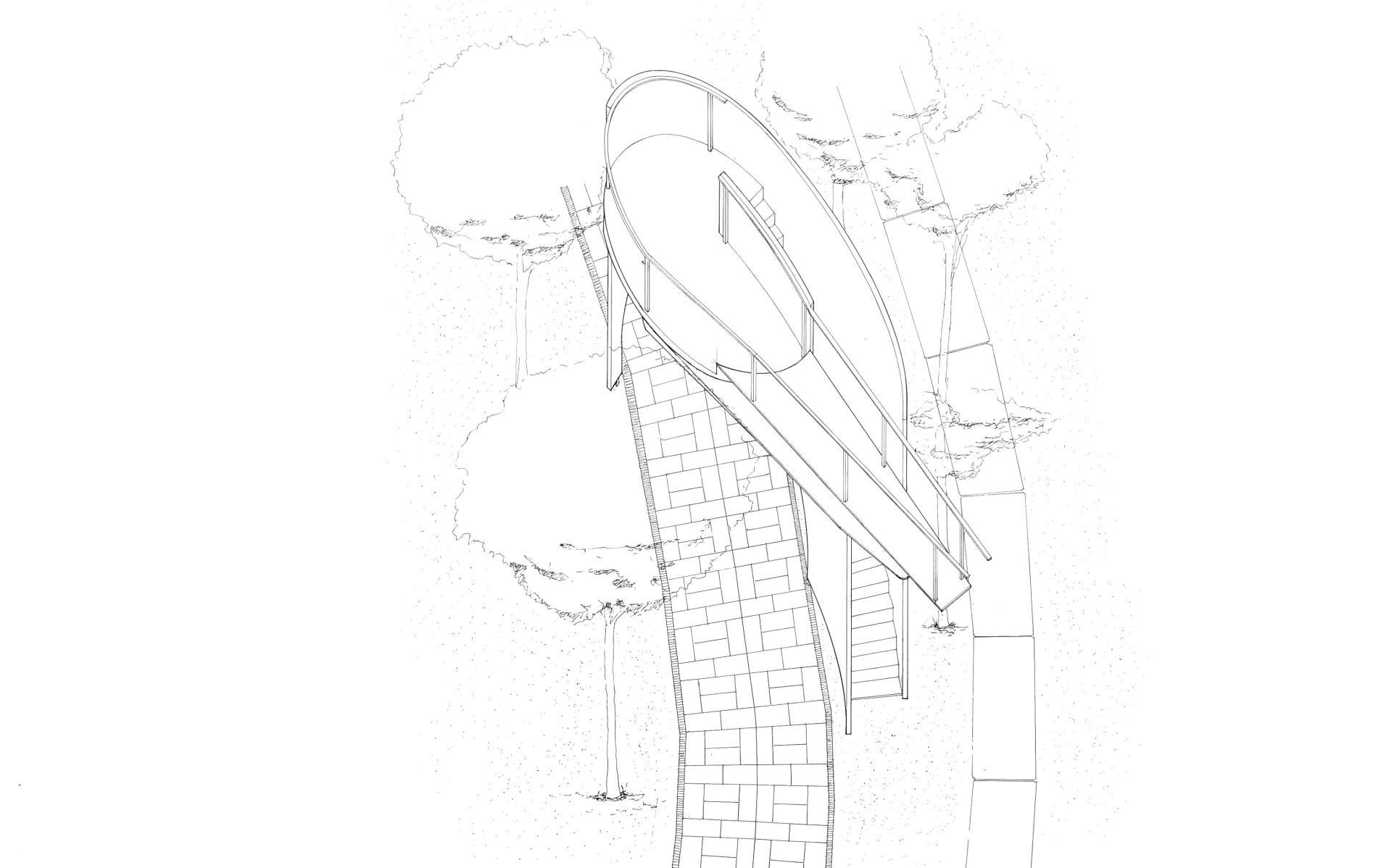

A601 S=1/100 Plan Oblique 27
28
29
30
