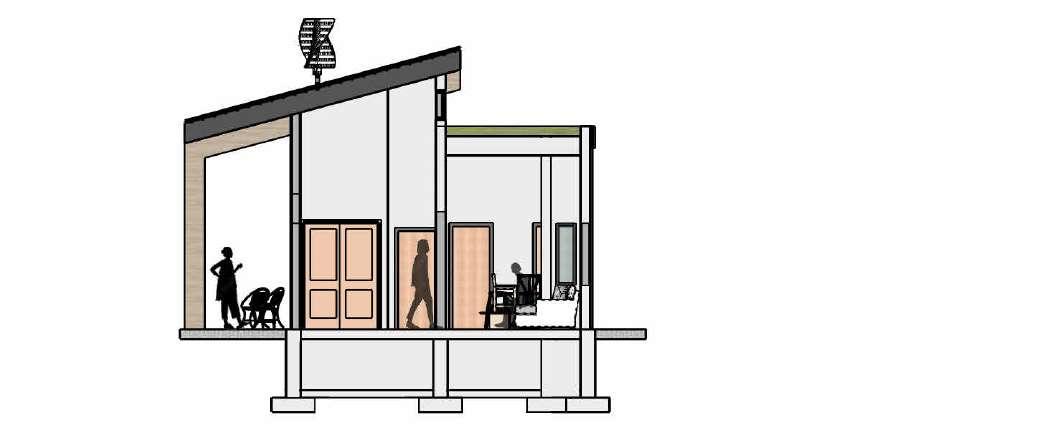

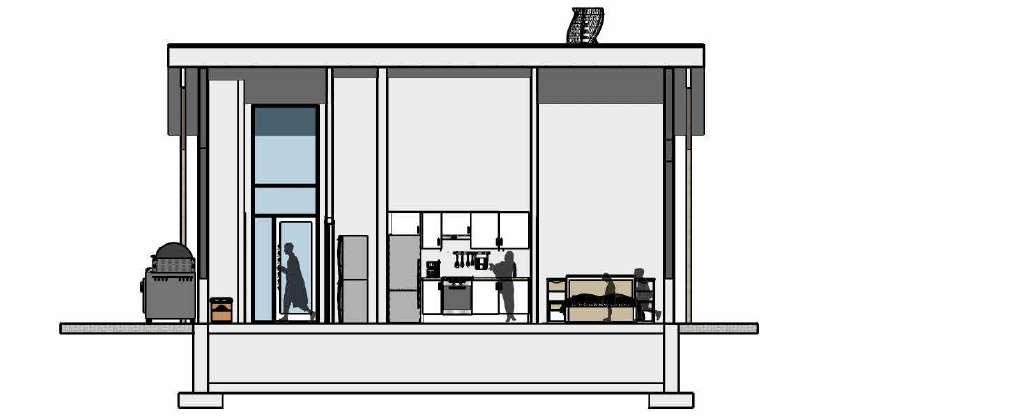

VICTORIA SQUARE BLVD
RECYCLED DARK COLOURED ASPHALT SHINGLE ROOF
RECYCLED SHINGLES AS PER ELEVATIONS
ROOFING SYSTEM OR PREPRARED ROOF COVERING
12.7mm (1/2") PLYWOOD SHEATING
38mm x 190mm (2"x8") ROOF RAFTERS @ 410mm (16") O/C.
W/ BATT. INSULATION
15.9mm (5/8") TYPE X GYPSUM WALL BOARD
EXTERIOR WOOD LINTEL
RESIDENTIAL KITCHENKITCHEN
TRIPLE PANE DOUBLE HANG WINDOW
RESIDENTIAL FLOOR STURCTURE
10mm (25/64") GRANITE TILES
6.5mm (13/64") UNDERLAYMENT
15.9mm (5/8") OSB SUBFLOOOR SHEATHING
302mm (11 1/2") TJI 560 @ 406mm (16") O/C
JOIST W/ BRIDGING
12.7mm (1/2") PLYWOOD SHEATHING
15.9mm (5/8") TYPE X GYPSUM WALL BOARD
38mm x 140mm (2"x6") DOUBLE TOP PLATE
COFFEE SHOP FLOOR STRUCTURE
10mm (25/64") GRANITE TILES
6.5mm (13/64") UNDERLAYMENT
15.9mm (5/8") OSB SUBFLOOOR SHEATHING
302mm (11 1/2") TJI 560 @ 406mm (16") O/C
JOIST W/ BRIDGING
12.7mm (1/2") PLYWOOD SHEATHING
15.9mm (5/8") TYPE X GYPSUM WALL BOARD
38mm x 88.9mm (2"x4") DOUBLE TOP PLATE
NEW ADDITION REINFORCED CONCRETE SLAB
10mm (25/64") GRANITE TILES
5mm (13/64") MORTAR BOND COAT
100mm (4") POURED CONCRETE SLAB
VAPOUR BARRIER
50mm (2") RIGID INSULATION (HYDRONIC WEBBING)
100mm (4") GRAVEL ON TOP OF UNDISTURBED SOIL
EMPLOYEE'S LUNCH ROOM
PREFINISHED ALUMINUM ROOF GUTTER
EAVESTHROUGH, RWL FASCIA BOARD & SOFFIT, FINISH AS PER ELEVATIONS
METAL FLASHING W/ SEALANT
40mm (2") RECLAIMED VERTICAL WOOD SIDING AS PER ELEVATION
25mmx50mm (1"x2"") WOOD STRAPPING
50mm (2") RIGID INSULATION
AIR BARRIER
12.7mm (1/2") PLYWOOD SHEATHING
38mm x 140mm (2"x6") WOOD STUD @ 410mm (16" O/C W/ CELLULOSE INSULATION
VAPOUR BARRIER
12.7mm (1/2") GYPSUM WALL BOARD
RECLAIMED VERTICAL WOOD SIDING EXTERIOR WALL
40mm (2") RECLAIMED VERTICAL WOOD SIDING AS PER ELEVATION
25mmx50mm (1"x2"") WOOD STRAPPING
50mm (2") RIGID INSULATION
AIR BARRIER
12.7mm (1/2") PLYWOOD SHEATHING
38mm x 140mm (2"x6") WOOD STUD @ 410mm (16" O/C W/ CELLULOSE INSULATION
VAPOUR BARRIER
12.7mm (1/2") GYPSUM WALL BOARD
PREFINISHED ALUMINUM FLASHING
SLOPED
NEW ADDITION CMU FOUNDATION WALL
BITUMINOUS DAMPPROOFING
240mm (9.5") CONCRETE BLOCK FOUNDATION WALL
50mm (2") RIGID INSULATION
12.7mm (1/2") PLYWOOD SHEATHING
38mm x 88.9mm (2"x4") WOOD STUD @ 410mm (16" O/C W/ CELLULOSE INSULATION
VAPOUR BARRIER
12.7mm (1/2") GYPSUM WALL BOARD
150mm ( 6") CRUSHED STONE OVER AND AROUND WEEPING TILE
100mm (4") DIAMETER MIN. WEEPING TILE
90mm x 170mm (23"x6.7") CONTINUOUS KEYED CONCRETE
FOOTING
COFFEE SHOP
240mm (9.5") NEW ADDITION FOUNDATION WALL
BITUMINOUS DAMPPROOFING
240mm (9.5") CONCRETE BLOCK FOUNDATION WALL
50mm (2") RIGID INSULATION
12.7mm (1/2") PLYWOOD SHEATHING
38mm x 88.9mm (2"x4") WOOD STUD @ 410mm (16" O/C W/ CELLULOSE INSULATION VAPOUR BARRIER
12.7mm (1/2") GYPSUM WALL BOARD
COFFEE SHOP FLOOR STRUCTURE
10mm (25/64") GRANITE TILES
6.5mm (13/64") UNDERLAYMENT
15.9mm (5/8") OSB SUBFLOOOR SHEATHING
241mm (9.5") TJI 210 @ 406mm (16") O/C JOIST W/ BRIDGING
12.7mm (1/2") PLYWOOD SHEATHING
15.9mm (5/8") TYPE X GYPSUM WALL BOARD
38mm x 88.9mm (2"x4") DOUBLE TOP PLATE
EXISTING BRICK VENEER WALL W/ NEW INSUL.
92mm (3 5/8") BRICK VENEER 25mm (1") AIR SPACE 16mm (5/8") PLASTER
25mm (1") WOOD BOARD 75mm (3") WOOD STUD 25mm (1") WOOD BOARD (NEW) 38mm x 88.9mm (2"x4") WOOD STUD (NEW) W/ CELLULOSE INSUL. (NEW) VAPOUR BARRIER (NEW) 12.7mm (1/2") GYPSUM BOARD
PREFINISHED ALUMINUM FLASHING
470mm (18 1/2")
470mm (18 1/2") STONE FOUNDATION WALL
12.7mm (1/2") PLYWOOD SHEATHING
38mm x 88.9mm (2"x4") WOOD STUD @ 410mm (16" O/C W/ CELLULOSE INSULATION (NEW) VAPOUR BARRIER (NEW) 12.7mm (1/2") GYPSUM WALL BOARD
EXISTING FOUNDATION WALL W/ NEW INSUL.
470mm (18 1/2") STONE FOUNDATION WALL (NEW) 50mm (2") RIGID INSULATION (NEW) 12.7mm (1/2") PLYWOOD SHEATHING (NEW) 38mm x 88.9mm (2"x4") WOOD STUD 410mm (16" O/C W/ CELLULOSE INSUL. (NEW) VAPOUR BARRIER (NEW) 12.7mm (1/2") GYPSUM WALL BOARD
NEW RECLAIMED VERTICAL WOOD SIDING
40mm (2") RECLAIMED VERTICAL WOOD SIDING AS PER ELEVATION
25mmx50mm (1"x2"") WOOD STRAPPING
50mm (2") RIGID INSULATION AIR BARRIER
12.7mm (1/2") PLYWOOD SHEATHING 38mm x 140mm (2"x6") WOOD STUD W/ CELLULOSE INSULATION
VAPOUR BARRIER
12.7mm (1/2") GYPSUM WALL BOARD
PREFINISHED ALUMINUM FLASHING
240mm (9.5") NEW ADDITION FOUNDATION WALL
BITUMINOUS DAMPPROOFING
240mm (9.5") CONCRETE BLOCK FOUNDATION WALL
50mm (2") RIGID INSULATION
12.7mm (1/2") PLYWOOD SHEATHING 38mm x 88.9mm (2"x4") WOOD STUD @ 410mm (16" O/C W/ CELLULOSE INSULATION VAPOUR BARRIER
12.7mm (1/2") GYPSUM WALL BOARD
EXISTING FLOOR STRUCTURE
(NEW) 10mm (25/64") OAKWOOD FLOORING
6.5mm (13/64") UNDERLAYMENT
15.9mm (5/8") EXISTING WOOD SHEATHING 440mm (17") EXISTING WOOD JOIST (NEW) 15.9mm (5/8") TYPE X GYPSUM BOARD
(NEW) 38mm x 88.9mm (2"x4") DOUBLE TOP PLATE
1 BEDROOM SUITE
ARCHITECTURAL OFFICE SUITE
