Greenspan Arts Center

Spanning gracefully over the Nervión River in Bilbao, Spain, the Greenspan Arts Center is a multi-functional bridge that seamlessly integrates nature, art, and music, inviting visitors to experience a unique convergence of culture and urban design in the heart of Bilbao. Hosting a diverse range of events, from music and art festivals to theater performances, its versatile design accommodates a rich array of artistic experiences.

The bridge’s open and inclusive atmosphere encourages visitors to come together, forging connections, and celebrating the arts in an inspiring and accessible setting that connects the urban city center to a once disjointed park. With its distinctive combination of form and function, the Greenspan Arts Center is a testament to the power of architecture to enrich the urban landscape, and to inspire human connection through art and music

Winter 2023 | Instructor: John McMorrough

2

Second Floor Gallery North Elevation South Elevation Section 1 Section 2

Greenspan Arts Center 3

First Floor Gallery

Expanding Homeless Shelter System

Winter 2023 | Instructor: Peter Halquist

Expanding Homeless Shelter System

Fall 2020

After conducting thorough research, a breakthrough was achieved, inspiring the design of a homeless shelter system that utilizes underutilized parking lots and flat sites, which are abundant throughout America.

The system is designed to foster a sense of community through communal building in negative spaces between units and their open-air kitchens.

The surrounding areas would be dedicated to gardening, which requires relatively low upkeep, considering the number of people living in the site. At the end of each growing season, the community could potentially earn enough money from their harvest to move out, opening up opportunities for other homeless individuals in Los Angeles to benefit from this unique living arrangement.

6 7

4

8 9 Expanding Homeless Shelter System

A 5

2nd Floor Plan 1st Floor Plan Section

Common Ground Apartments

Fall 2022 | Systems Studio | Group Project

Winter 2023 | Group Members: Sophie Johnson, Tian Xin Xu

Instructors: Lars Graebner, Christina Hansen

SITE AREA: GROSS FLOOR AREA: FAR: ROOF AREA: BUILDING FOOTPRINT: LOT COVERAGE: PERCENTAGE OF PERVIOUS SITE AREA: UNIT PER ACRES: 108,770 SF 142,896 SF 1.35 41,777 SF 3,587 SF 68,702 SF 36.8% 33.6 UNIT/ACRES TYPICAL LEVEL 2 A B GROUND LEVEL TYPICAL LEVEL 3 32’ 16’ 32’ 16’ 0’

TYPICAL BALCONY CONSTRUCTION:PROOF MEMBRANE 5/8” CDX PLYPLYWOOD STEEL FRAMED TIMBER CLADDING AT OVERHANG TYPICAL SLAB ON GRADE: RIGID INSULATION CLADDING AROUND A.F.F. TYPICAL WINDOW/BALCONY DOOR FRAME: DARK WALNUT WOODEN FRAME TYPICAL INTERIOR FLOORING FINISHED FLOORING 2” RIGID FURRING STRIPS 5-PLY 6-7/8” CLT WITH INSULATION BETWEEN TYPICAL FACADE WALL STANDING SEAM METAL O.C., WITH RIGID BETWEEN WEATHER WRAP TIMBER BATTEN @ 12” O.C. LAYERS OF 5/8” DRYWALL TYPICAL ROOF CONSTRUCTION: FIXING CLIP WITH 4” RIGID INSULATION AND AIR SPACE BETWEEN 5-PLY 6-7/8” CLT METAL HAT CHANNEL WITH INSULATION BETWEEN LAYERS OF GWB VERTICAL WOODEN STRIPS 2X8 GUARDRAIL” MIN A.F.F. TYPICAL BALCONY CONSTRUCTION:PROOF MEMBRANE 5/8” CDX PLYWOOD 5-PLY 6-7/8” CLT DECKING PLEXIGLASS/TRANSPARENT GUARDRAIL FLOOR CHANNELMETAL PANEL TYPICAL WINDOW/BALCONY DOOR WITH INSULATION BETWEENSTANDING SEAM METAL 5-PLY 6-7/8” CLT 1”X2” HORZ. STANDING SEAM METAL CLADDING BETWEEN LAYERS OF GWBINTERNAL WOODEN STRIPS MOUNTED PLAN DETAIL - COURTYARD SIDE TYP. WALL SECTION DETAIL TYP. WALL SECTION DETAIL PLAN DETAIL STREET SIDE 1 2 3 2 3 4 4 1 1 BED UNIT - LOFT LEVEL 2 2 BED UNIT 1 BED UNIT - LOFT LEVEL 1 1 BED UNIT 0’ 32’ 16’ 3 BED UNIT 0’ 4’ 2’ 0’ 4’ 2’ 0’ 4’ 2’ 0’ 4’ 2’ SECTION A SECTION B 0’ 32’ 16’ 32’ 16’

Bandemere Boathouse

Winter 2020 | Instructor: Joel Schmidt

Winter 2020

Project Term: Winter 2020

14

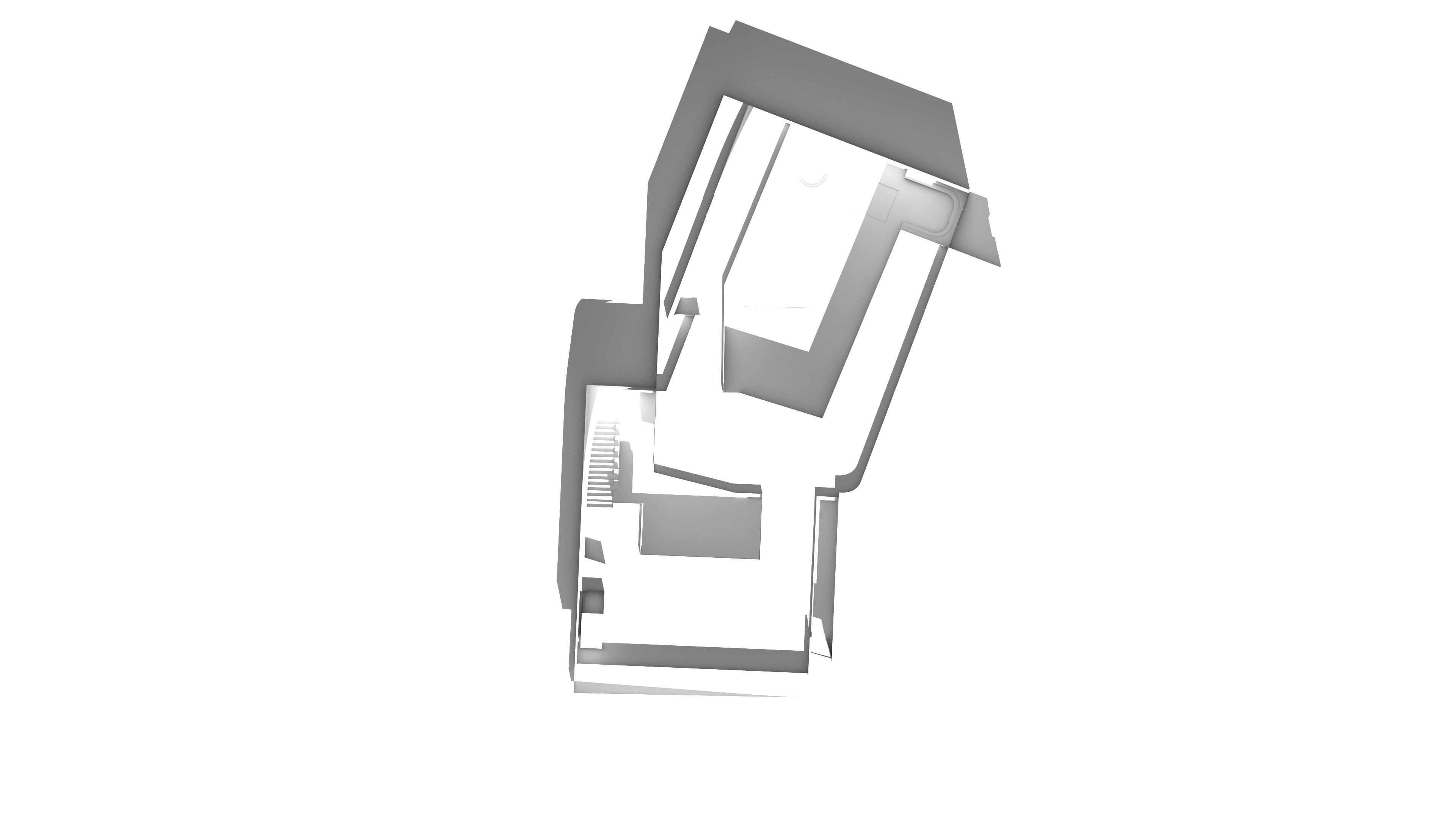

Circulation Diagram Sun Path Site Diagram

First Floor 16 17 Bandemere Boathouse

Second Floor

Flow Diagram

9

Site Analysis

Positive and Negative Study in Designing

Underground Gallery

Fall 2019 | Instructor: Yojairo Lomeli

Fall 2020

Stacked

Board - Positive

Stacked Museum Board - Positive

Worms- Eye Axon of Positive and Negative Model

Worms-Eye Axon of Positive and Negative Model

Cast

- Negative

Rockite

18 19

Rockite

10

Museum

Positive and Negative Study in Designing

Underground Gallery

Soldered Wire Frame of Negative

With Site:

Without Site:

20 21

11

Second Floor First Floor

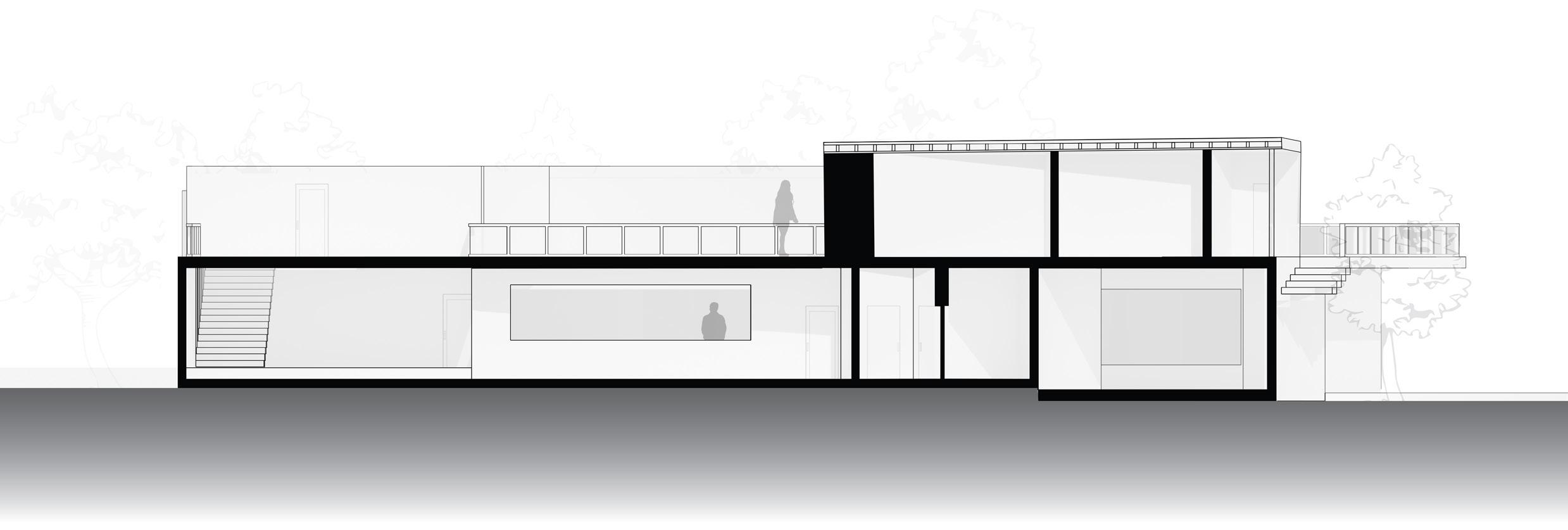

Cross Section B

Section

Cross Section A

Long

Positive and Negative Study in Designing

Underground Gallery

Final Model

24 25

13

Bonsai Tree Archive

Fall 2019 | Instructor: Yojairo Lomeli

Fall 2019

Archives are not simply repositories for old documents and records, they can also hold living works of art that challenge our perception of what is possible when humans meticulously intervene with nature over decades or even centuries. Bonsai trees are a testament to the artistry and patience required to craft something truly extraordinary. These miniature trees, carefully cultivated over time to exhibit their natural beauty on a small scale, are living works of art that remind us of the endless possibilities that exist when humans dedicate themselves to perfecting their craft. Whether it be through bonsai trees or other forms of art, archives can be a source of inspiration and wonder that transcend time and space.

In this archive, the magnetic appeal of bonsai trees is harnessed by ensuring that they are displayed up close and personal, while preserving their exquisite nature by showcasing the meticulous care required to shape them. The layout of the archive encourages visitors to flow seamlessly through the building, culminating in the main display on the rooftop. From there, visitors can retreat to a tranquil garden that offers respite from the urban context. Further on, visitors can learn about the art of bonsai and the work that goes into caring for them. The archive even provides a space for visitors to try their hand at bonsai cultivation, encouraging a deeper appreciation for the art and skill required to create these living works of art.

In this archive, the magnetic appeal of bonsai trees is harnessed by ensuring that they are displayed up close and personal, while preserving their exquisite nature by showcasing the meticulous care required to shape them. The layout of the archive encourages visitors to flow seamlessly through the building, culminating in the main display on the rooftop. From there, visitors can retreat to a tranquil garden that offers respite from the urban context. Further on, visitors can learn about the art of bonsai and the work that goes into caring for them. The archive even provides a space for visitors to try their hand at bonsai cultivation, encouraging deeper appreciation for the art and skill required to create these living works of art.

26 27

26

14

Diagramatic Axon

28 29 Bonsai Tree Archive Cross Section A Cross Section B Cross Section C Cross Section D Plan Section 4 Plan Section 3 Plan Section 2 Plan Section 1 Longitudinal Section D C B A b a 15

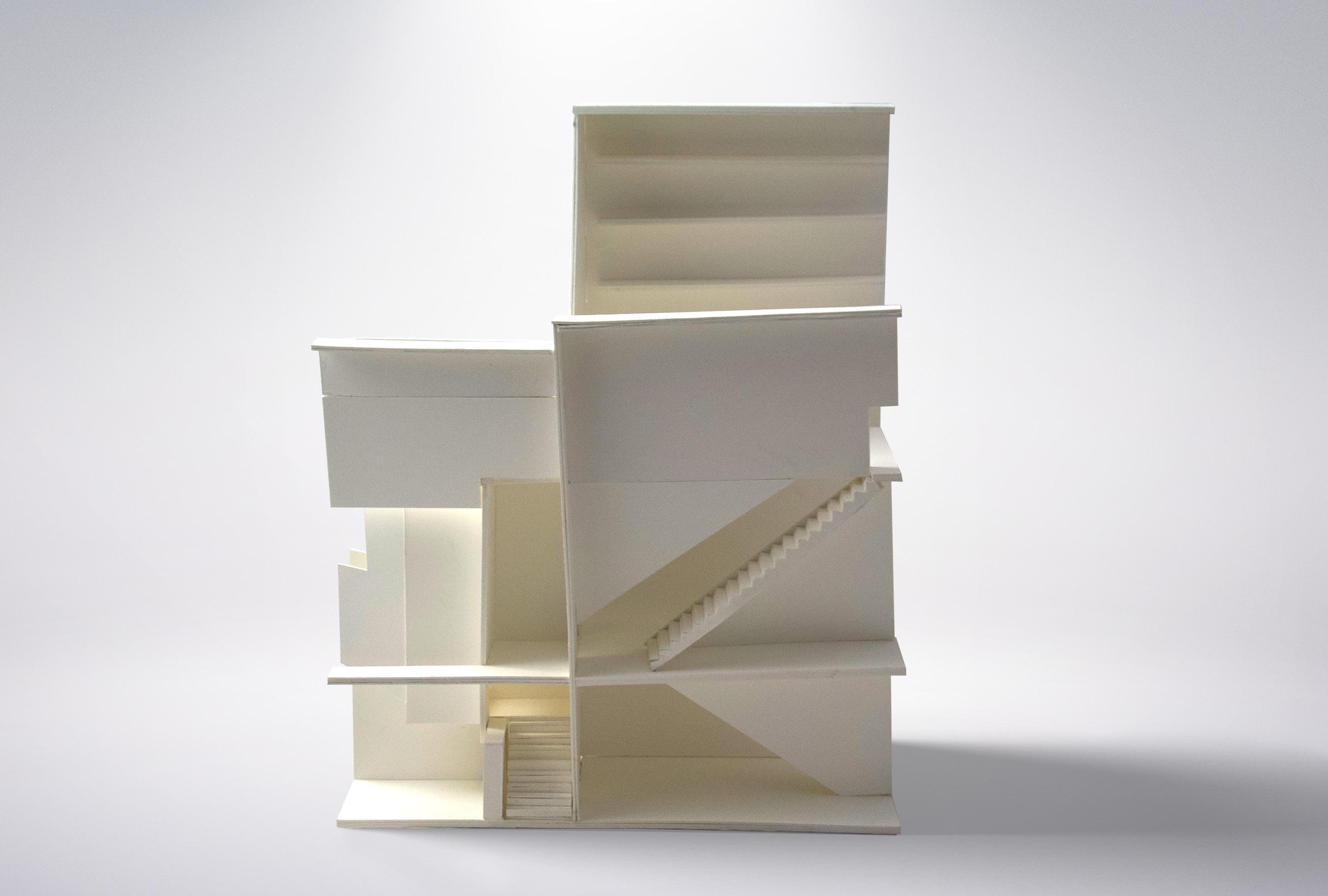

Site Model Site Built with Studio Section Stem Section Model 30 31 Bonsai Tree Archive Stem Section Model Site Model Site Built with Studio Section 16

Carlo’s Cookie Jar

Winter 2023 | CNC Fabrication | Instructor: Neal Robinson

Inspired by the propylaeum at the Brion Cemetery, this cookie jar is a reimagining of Carlo Scarpa’s most infamous detailing elements. Taking hints how Scarpa utilized the Vesica Piscis as a moment of interactivity seen across many of his works including the handles seen at the Gavina Showroom, or the holy water basin at Brion Cemetery, the cookie jar uses the intersected portion of the Vesica Piscis for its handle in the lid.

Additionally, this utilization of intersection was a great inspiration for how the lid meets its base. Seen at the Brion cemetery and Museo Revoltella, as well as many similar meandering line moments throughout
