Architectural Technology Portfolio by John Nicole Bahillo

JOHN NICOLE

portfolio

ARCHITECTURAL TECHNOLOGIST

3 4

BUILDING N

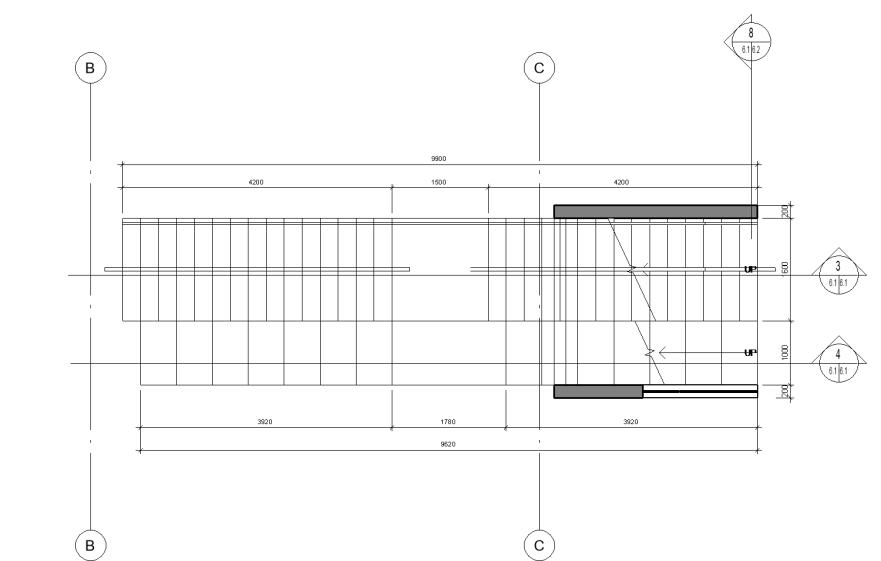

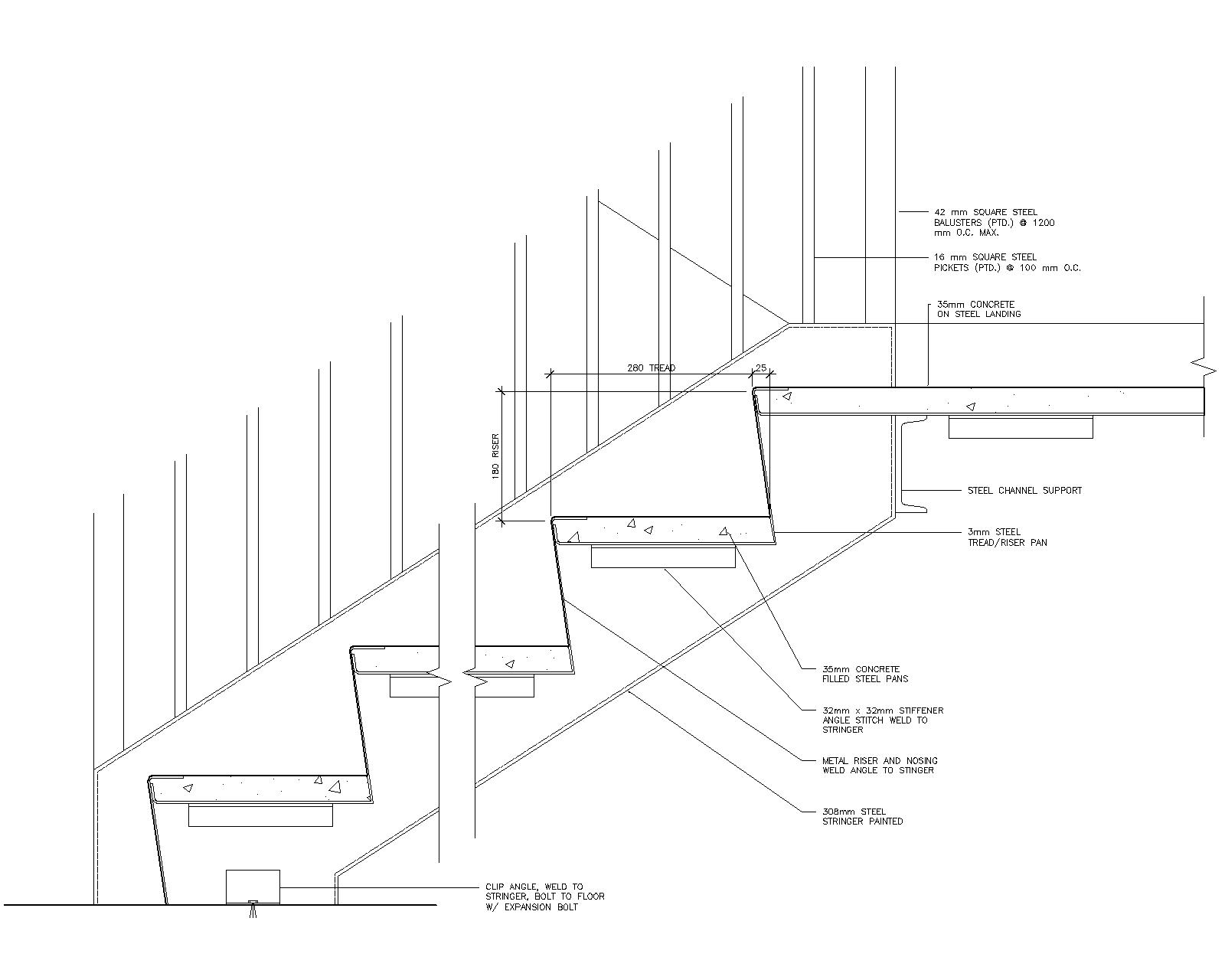

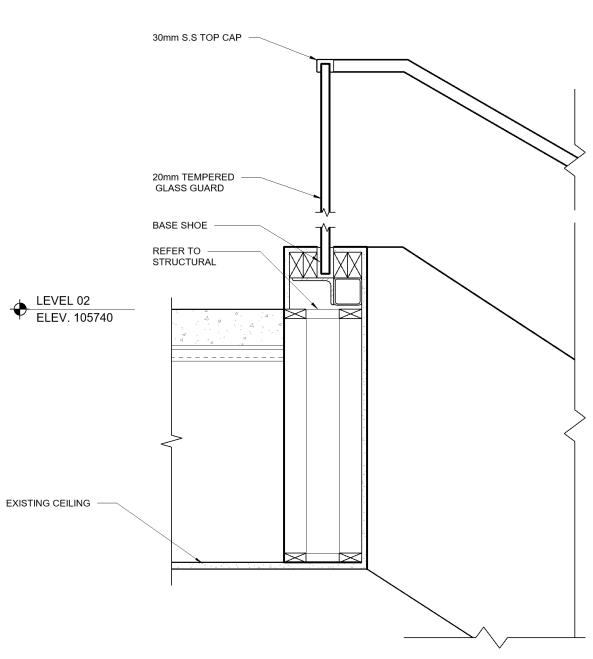

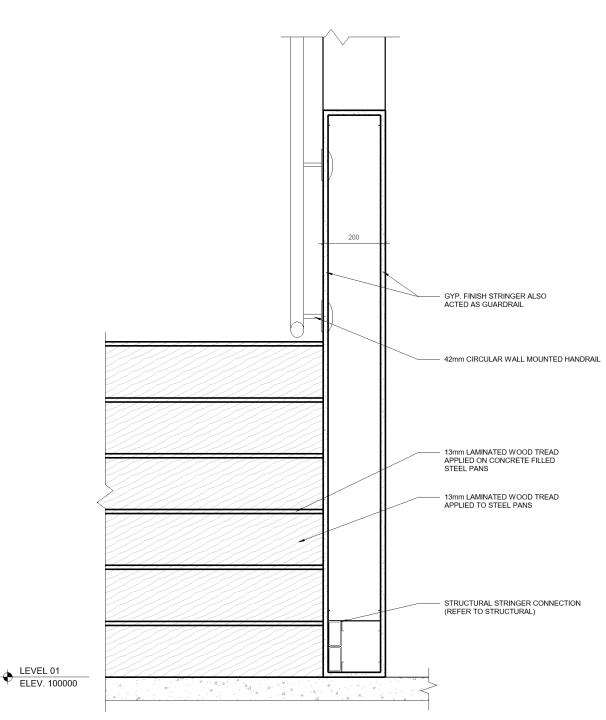

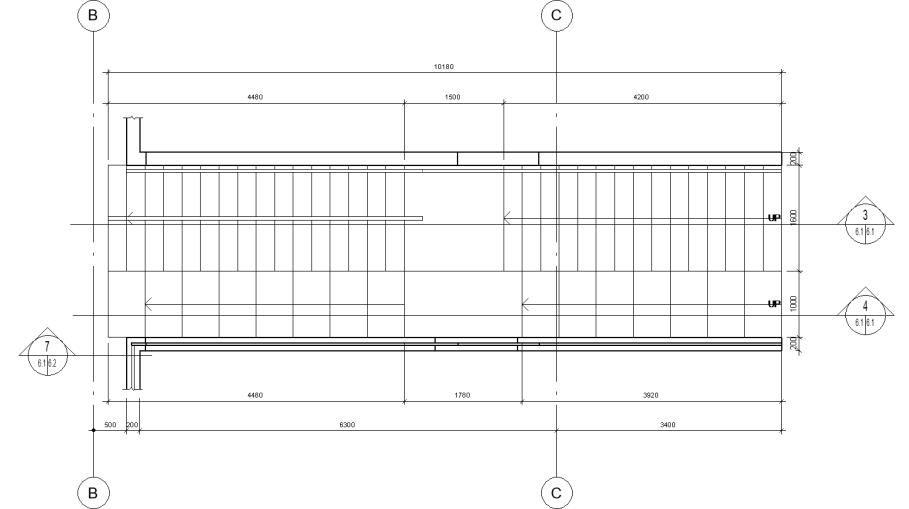

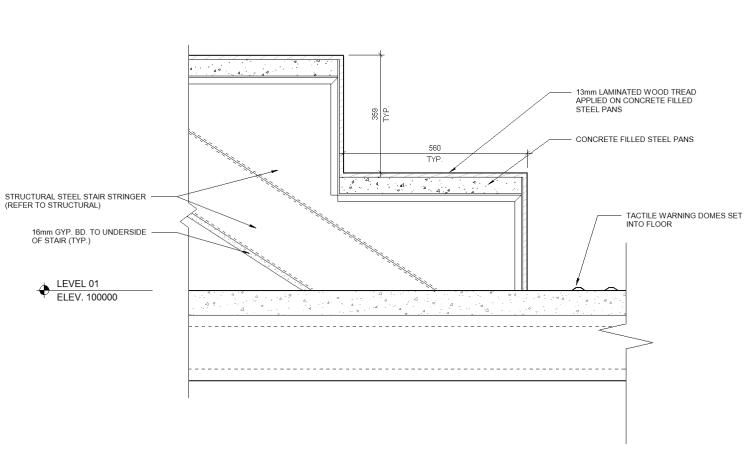

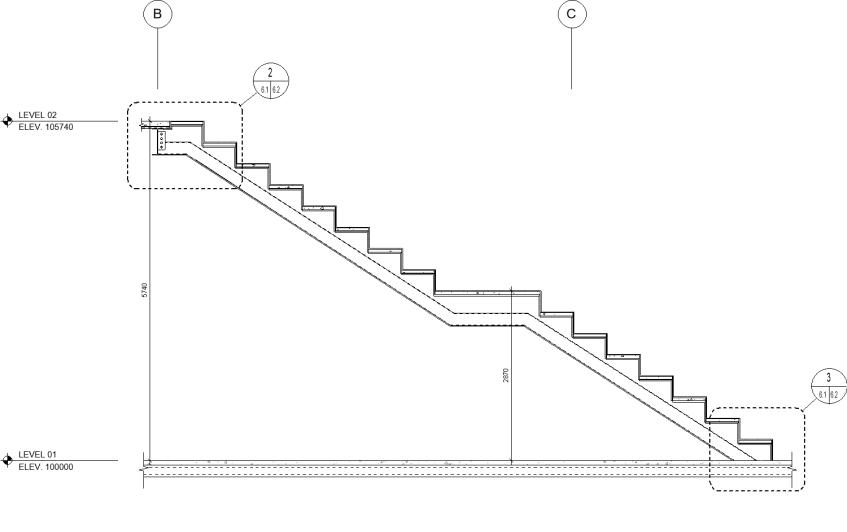

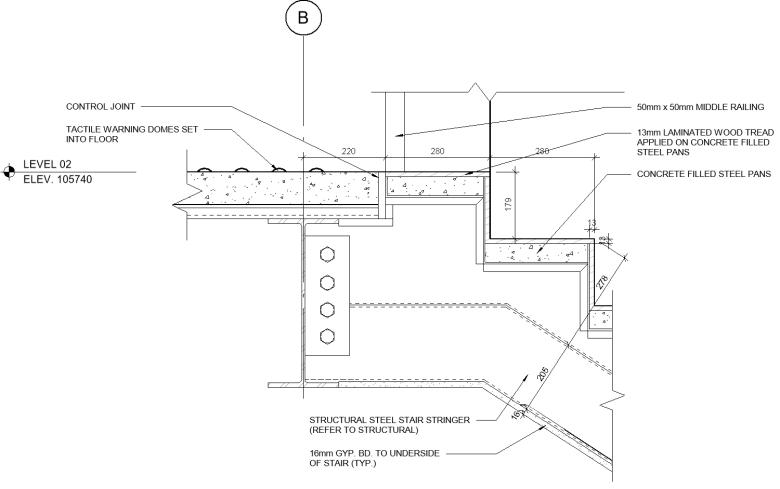

STAIR DETAILING

page 2 - 5 page 16 - 17

FERNANDA’S HOME

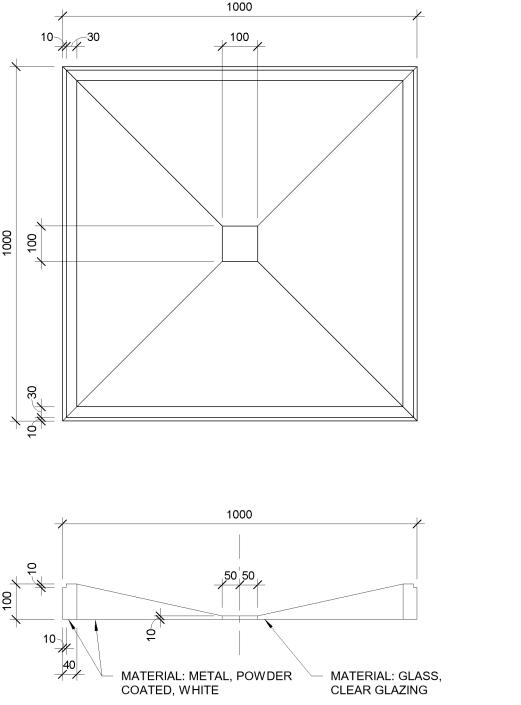

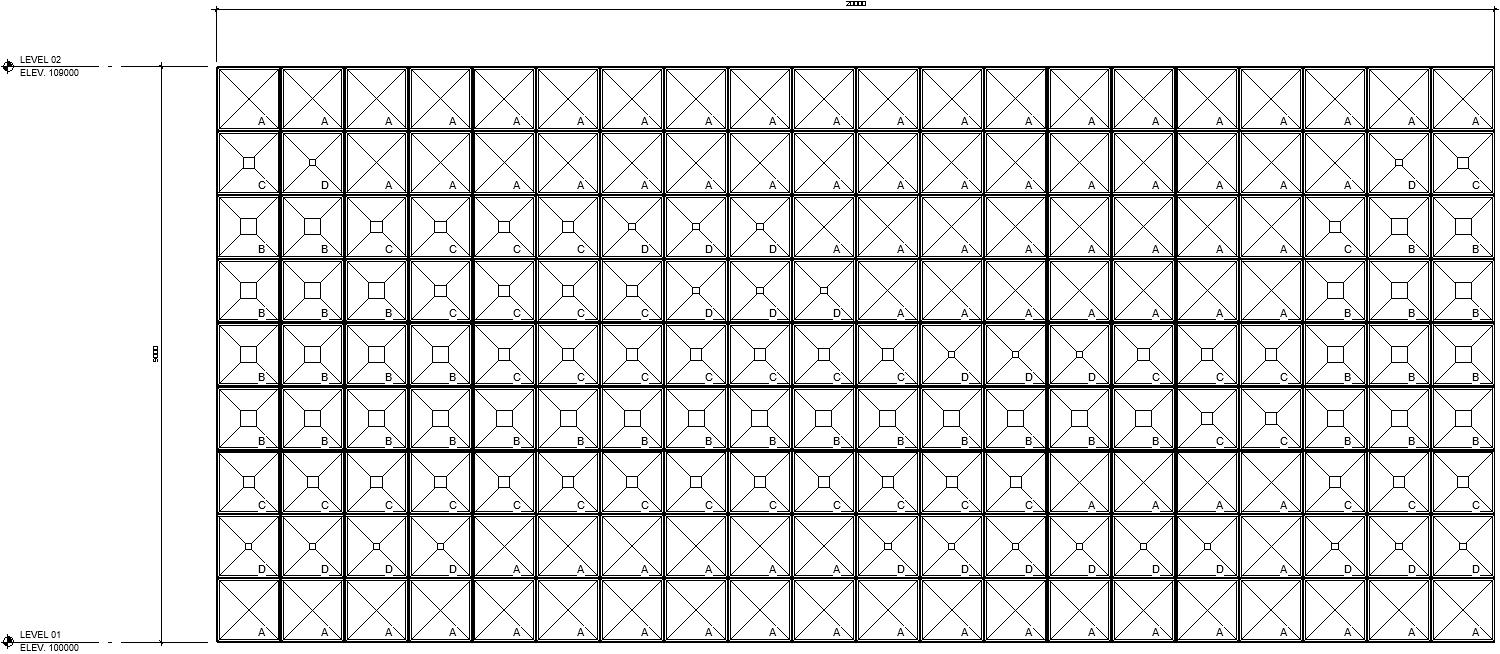

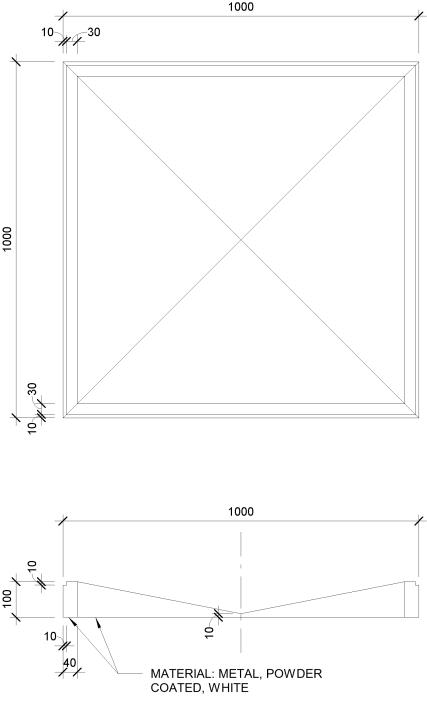

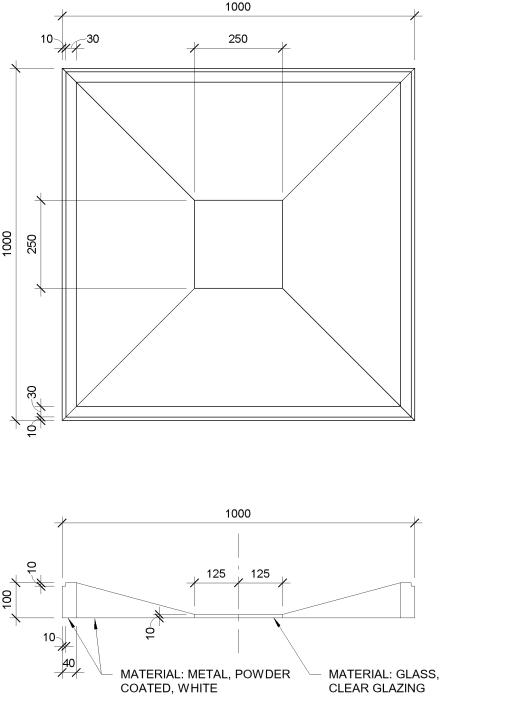

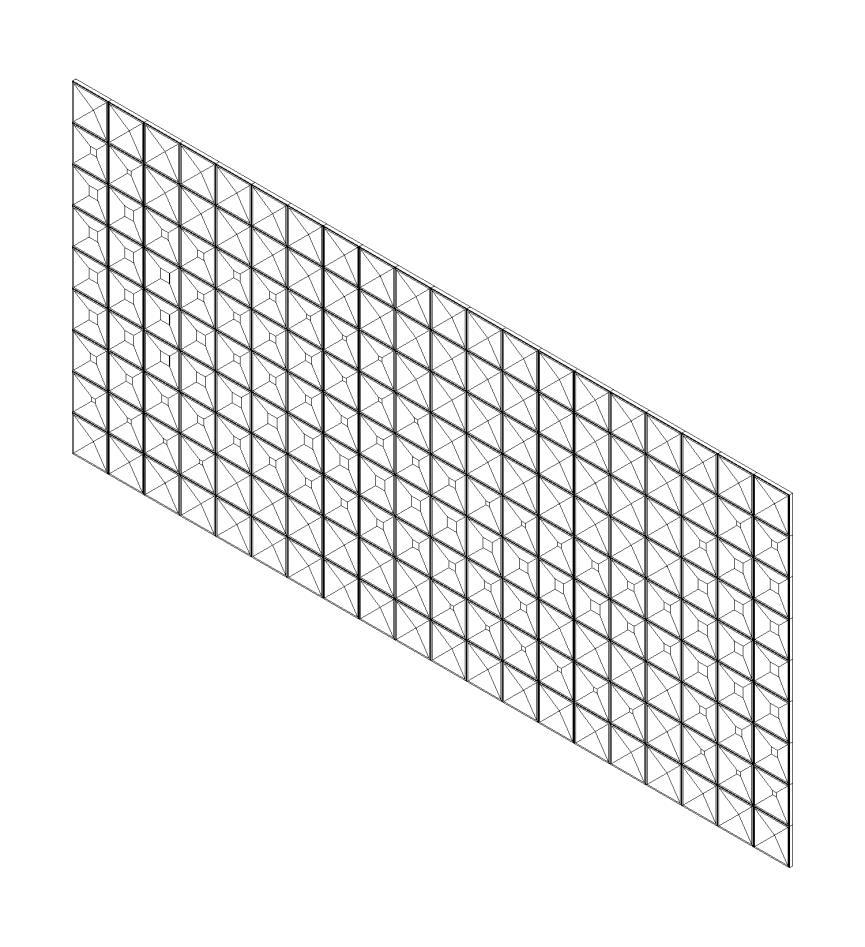

PARAMETRIC WALL

page 6 - 9 page 18 - 19

COMMERCIAL BUILDING

AUTOCAD PROJECTS

page 10 - 11 page 20 - 23

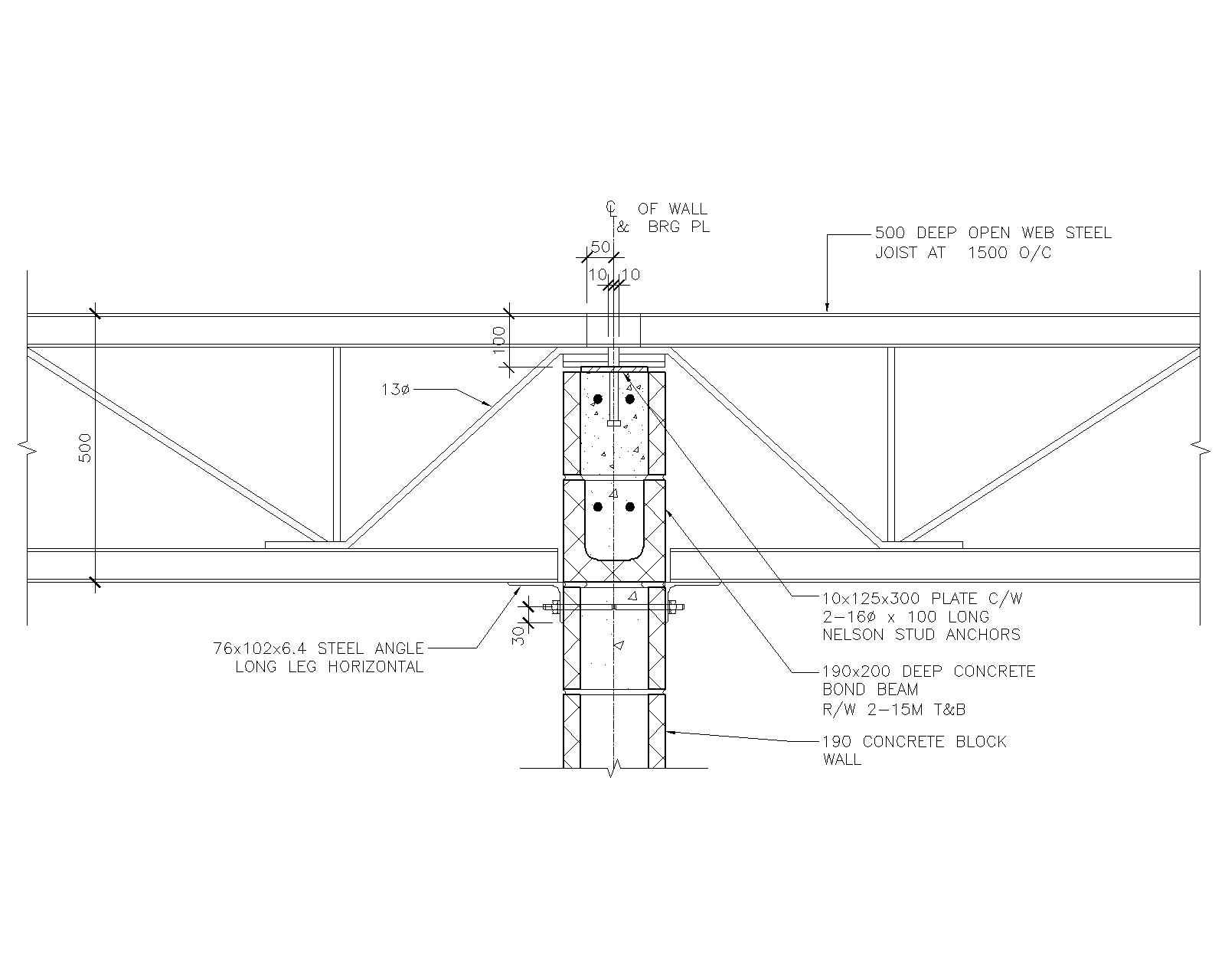

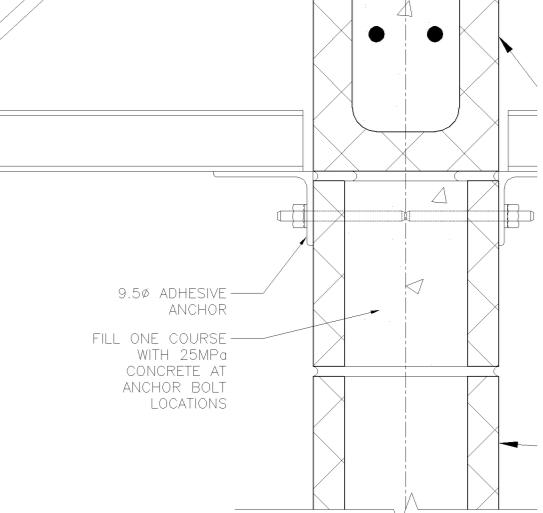

STRUCTURAL DETAILING

page 12 - 15

CONTACT

204.291.0243 nicolejbahillo@gmail.com Winnipeg, MB linkedin.com/in/bahillo

TECHNICAL SKILLS

Autodesk AutoCAD

Autodesk Revit

Autodesk Forma

Adobe Photoshop

Enscape

MS Word, Excel & Powerpoint

MS Project

Twinmotion

SKILLS

Attention to detail

Creative Thinking

Collaboration

Problem Solving

Project Management

Time Management

JOHN NICOLE BAHILLO

ARCHITECTURAL TECHNOLOGIST

Detail-oriented Architectural Technology graduate offering heavy experience with Revit modeling and AutoCAD drafting, accompanied with a creative and goalsetting mind. Seeking to achieve greater work in the collaborative architectural and engineering environment.

EXPERIENCE

RED RIVER COLLEGE POLYTECHNIC

ARCHITECTURAL TECHNOLOGY STUDENT

AUG. 2022 – APR. 2024

• Apply BIM software tools to be a productive member of a project team

• Create floor plan, elevation, and section views of a Building Information Model for project documentation

• Employ BIM work-sharing procedures through use of worksets

• Import and link CAD drawings into a BIM for analysis and reference

• Model structural elements and systems for a building project using BIM software

• Produce 2D and 3D technical details for documentation in accordance with project standards

• Produce schedules of building components and assemblies

• Identify how structural systems interact with other design disciplines

• Sketch preliminary drawings with the use of metric and imperial skills and proper proportions

RED RIVER COLLEGE POLYTECHNIC

STUDENT RESEARCHER | CO-OP TERM MAY 2023 – SEPT. 2023

• Apply Geographic Information System software to enhance building design and assemblies

• Collaborate in a team environment with 3D models to examine feasible flooding solutions

• Identify appropriate building materials suitable for flood resilient building construction

• Provide specifications and additional research about flood resilient technology options

EDUCATION

RED RIVER COLLEGE POLYTECHNIC

ARCHITECTURAL TECHNOLOGY HONOURS DIPLOMA

AUG. 2022 – APR. 2024

WEST KILDONAN COLLEGIATE

HIGH SCHOOL DIPLOMA

SEPT. 2017 – JUNE 2021

BUILDING N

Red River College Polytechnic

OBJECTIVE

The project objective was to design and model a multi-purpose / dormitory building for the existing Red River College campus. The building consists of the lower 2 floors having classrooms, breakout rooms and a café. While hosting its upper floors for student housing. As a team of 3, we strived to create a unique and sustainable building for staff and students to feel at ease when on campus.

SUSTAINABLE FEATURES

GREEN ROOF

Reduces urban heat, improves air quality, and supports biodiversity

PHOTOVOLTAIC PANELS

Generates renewable energy while enhancing building insulation and reduce carbon emissions

SUSTAINABLE MATERIALS

Minimize environmental impact and promote resource efficiency.

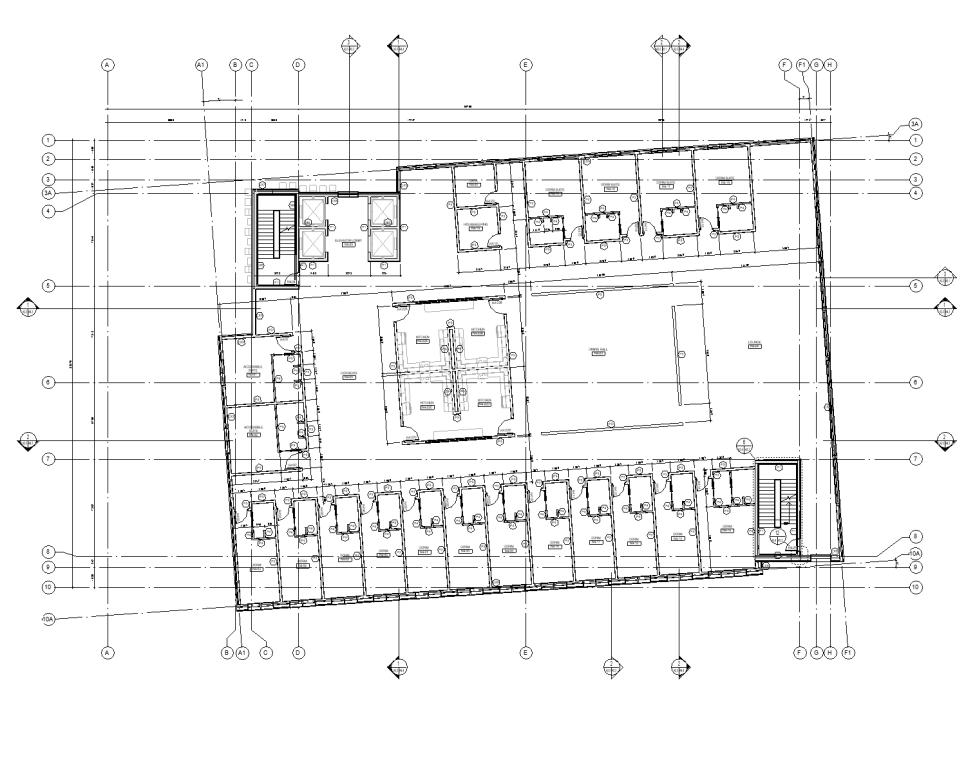

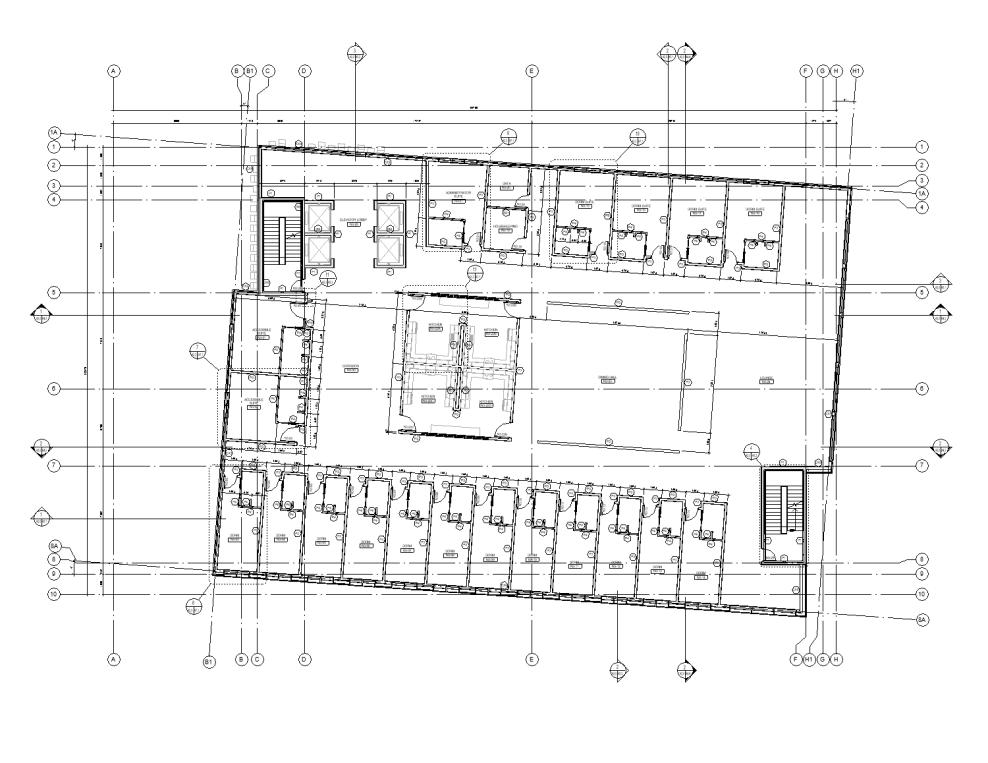

ALTERNATING RESIDENTIAL FLOOR PLANS

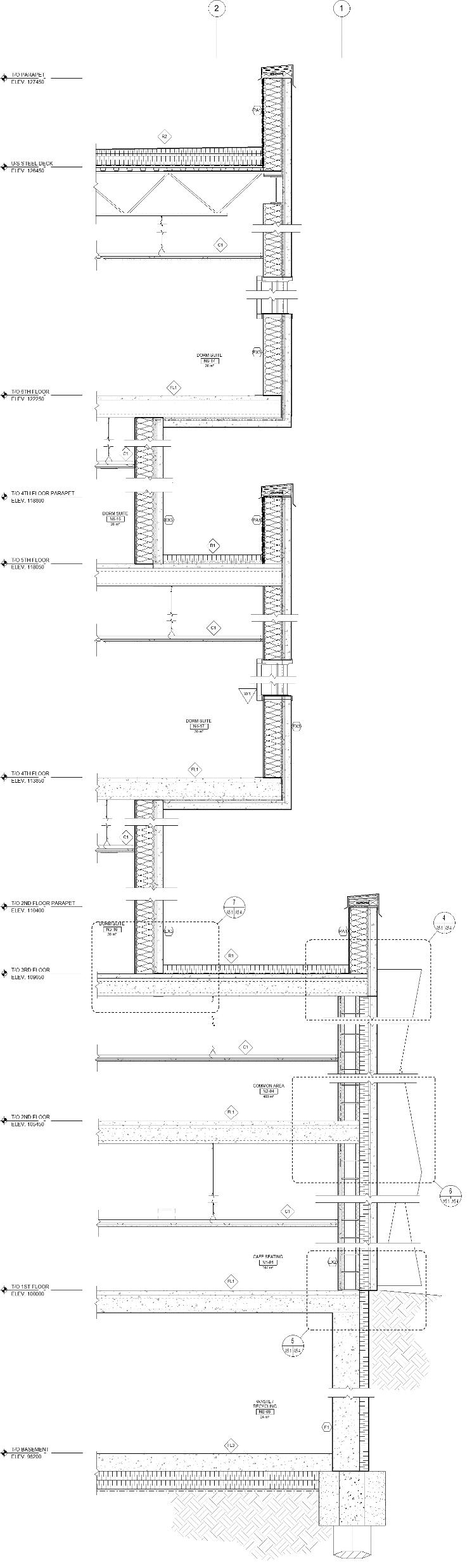

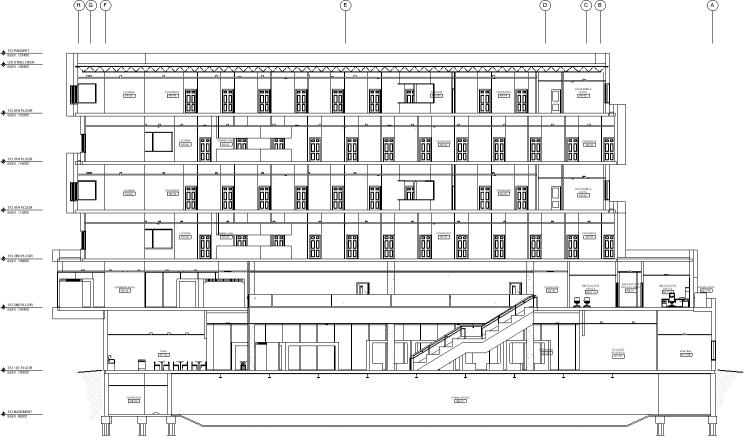

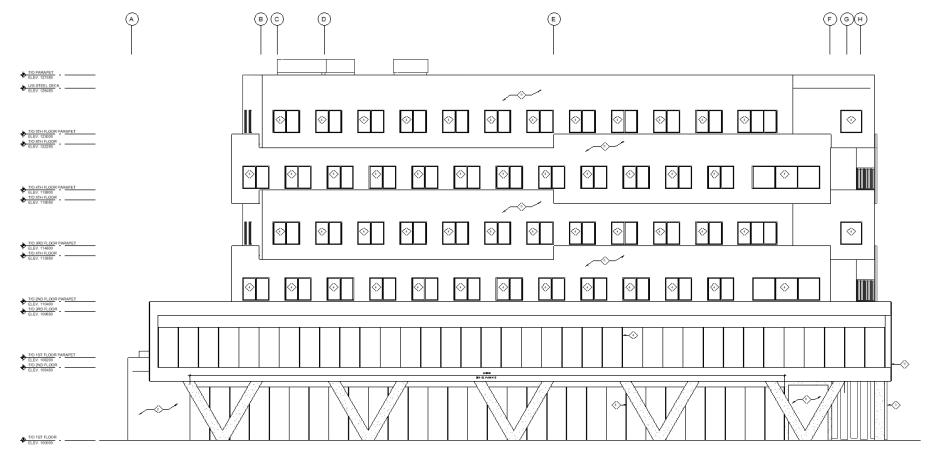

BUILDING SECTION

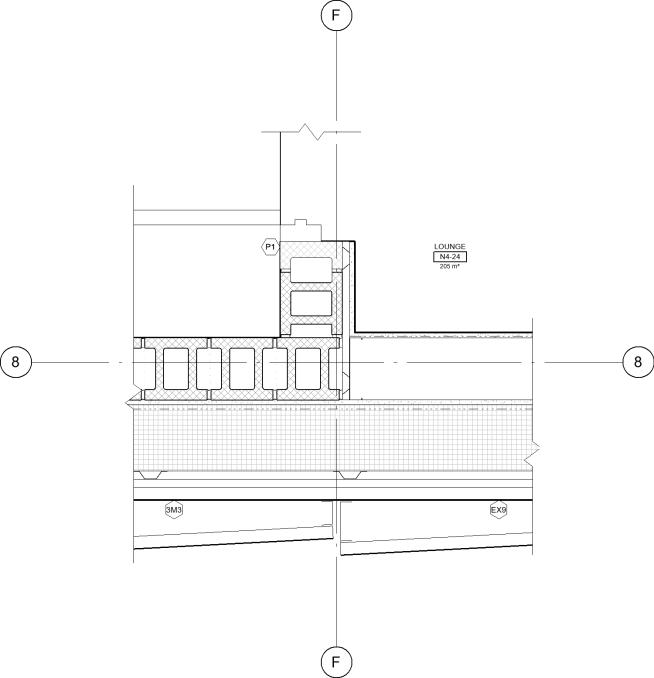

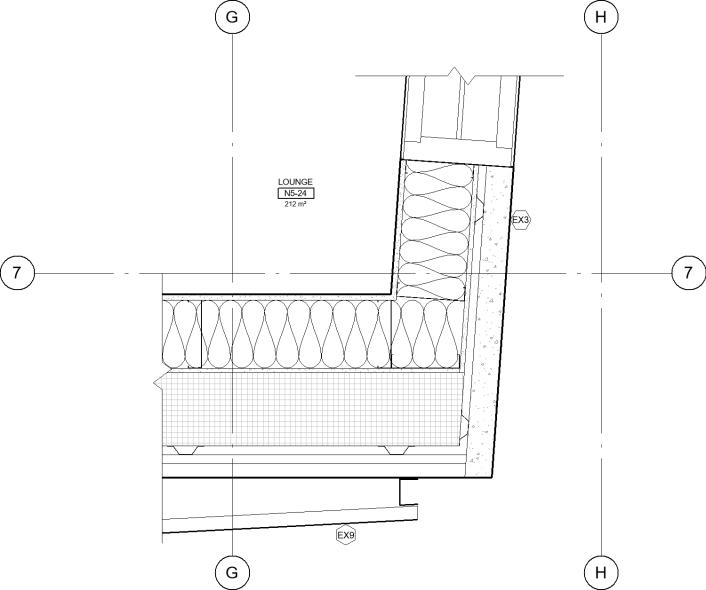

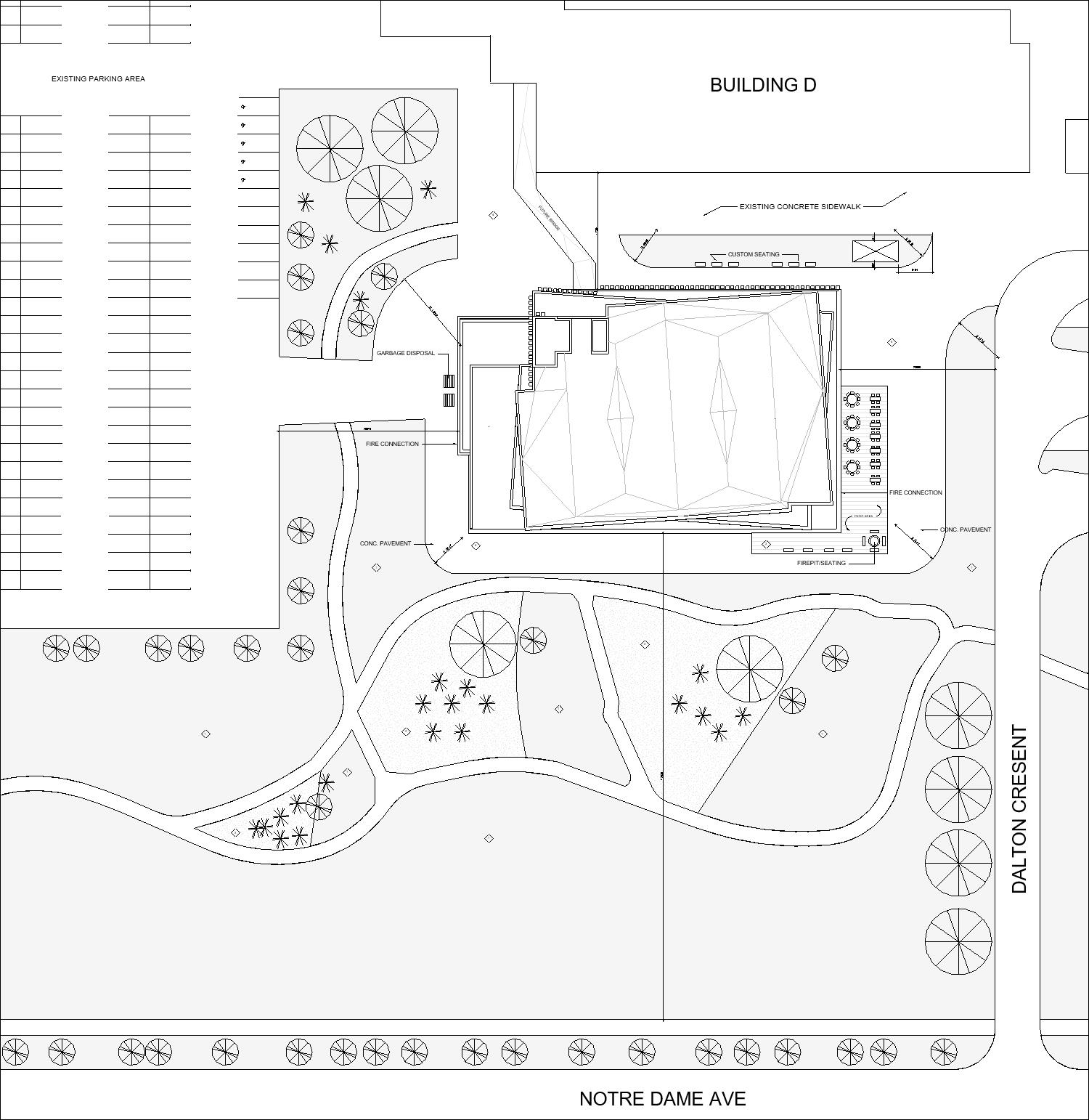

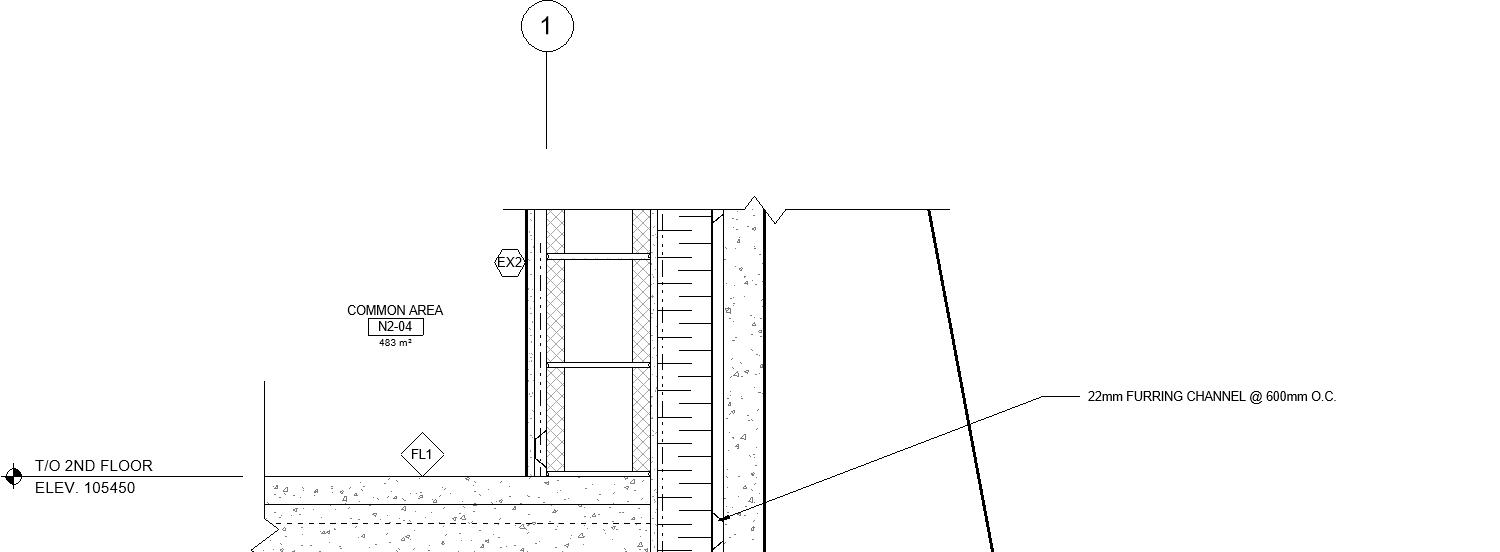

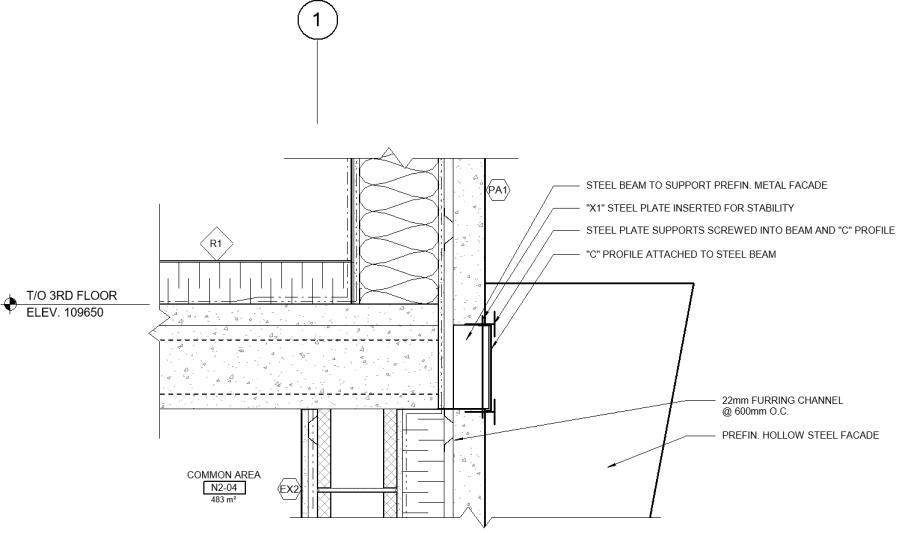

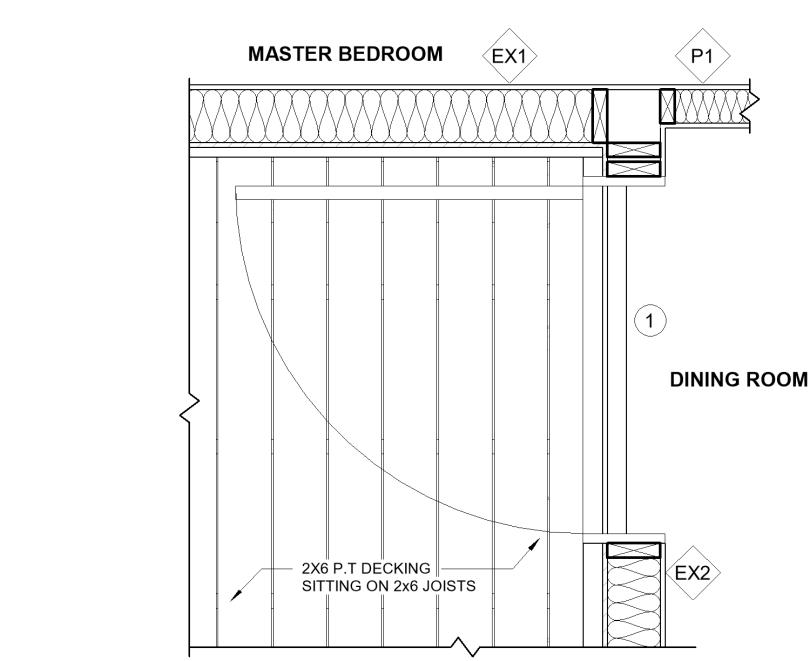

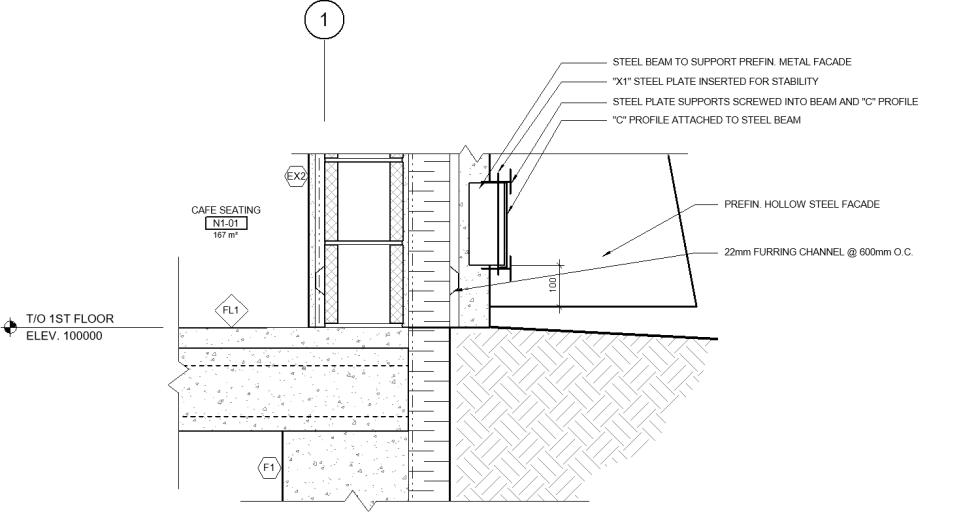

PLAN DETAIL

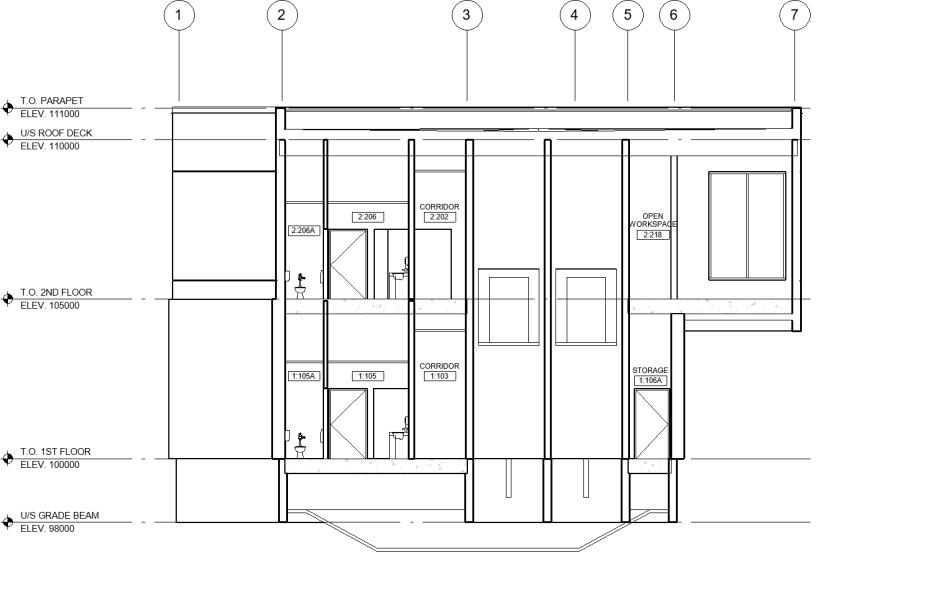

LONGITUDE SECTION

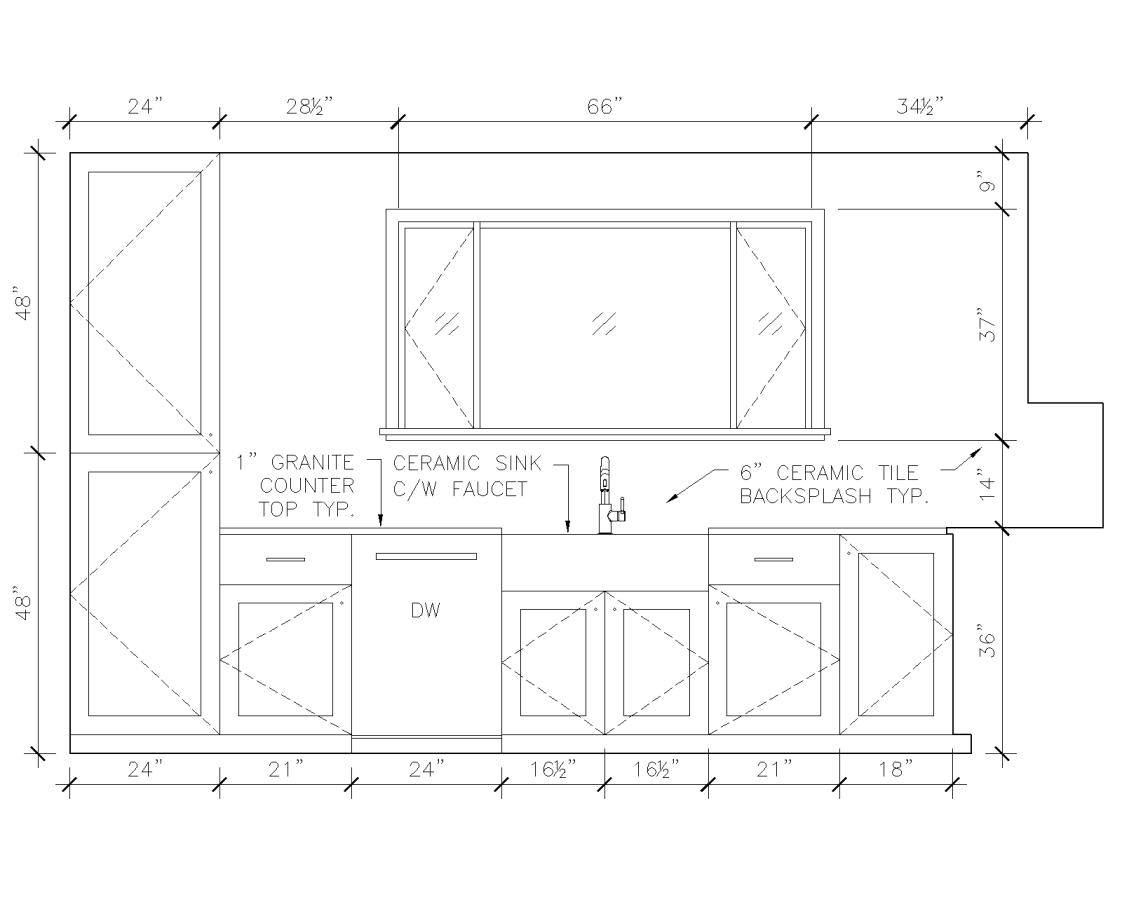

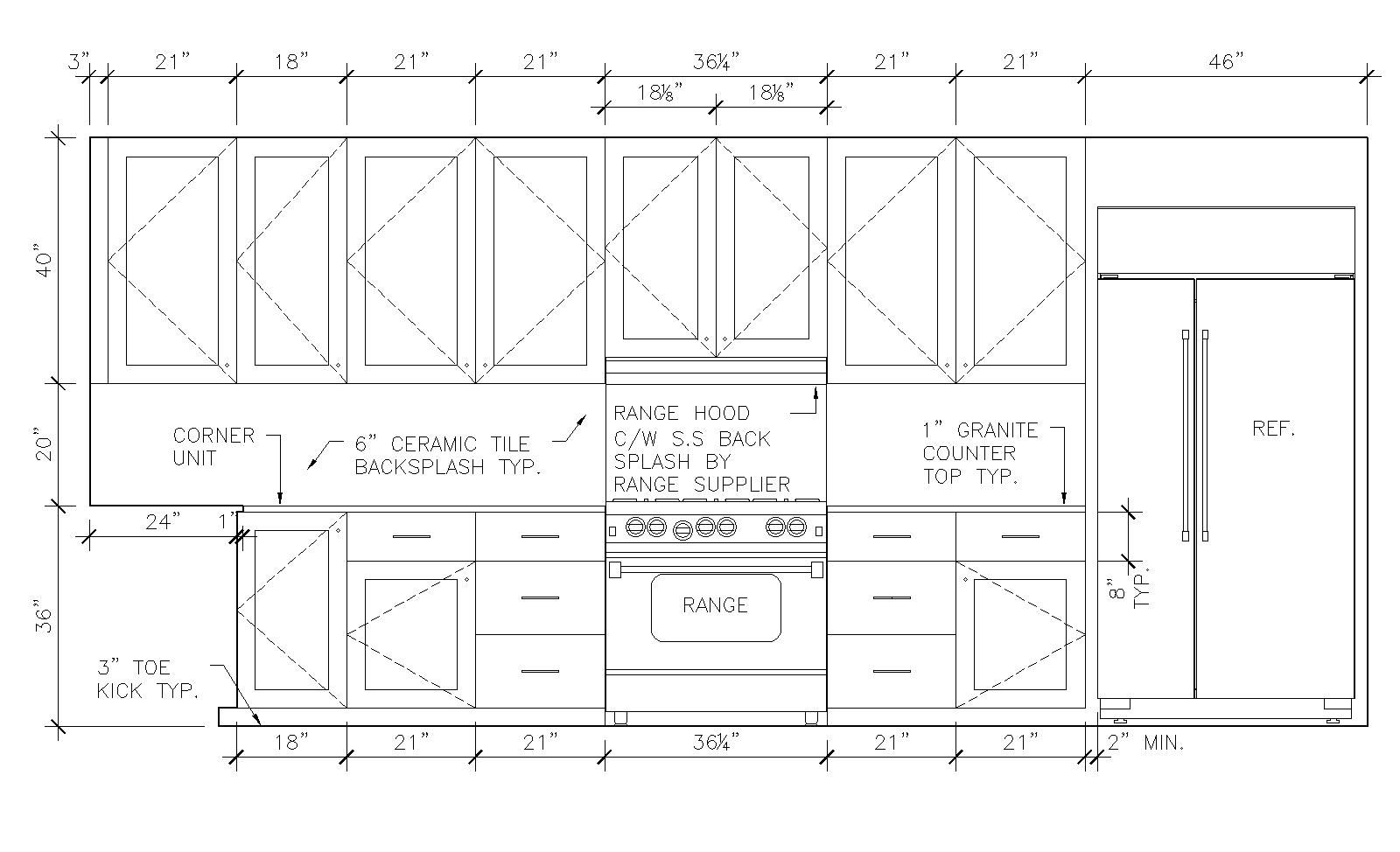

FERNANDA’S HOME

1545 MCCREARY RD, WINNIPEG MB

OBJECTIVE

Our mission was to plan, design and detail a home for a client located in the south tuxedo area of Winnipeg. The project’s created by brainstorming and collaborating with the class through an exercise. Our design was inspired by mid-century modern the neighbouring area. This home features a mezzanine looking upon the basement floor and lots of open space within its for quick and efficient drainage of rainwater, as well as an increase in ceiling height.

layout, sizes, orientation and functionality was modern architecture which is consistently a choice in its public quarters. The skillion roof design was chosen

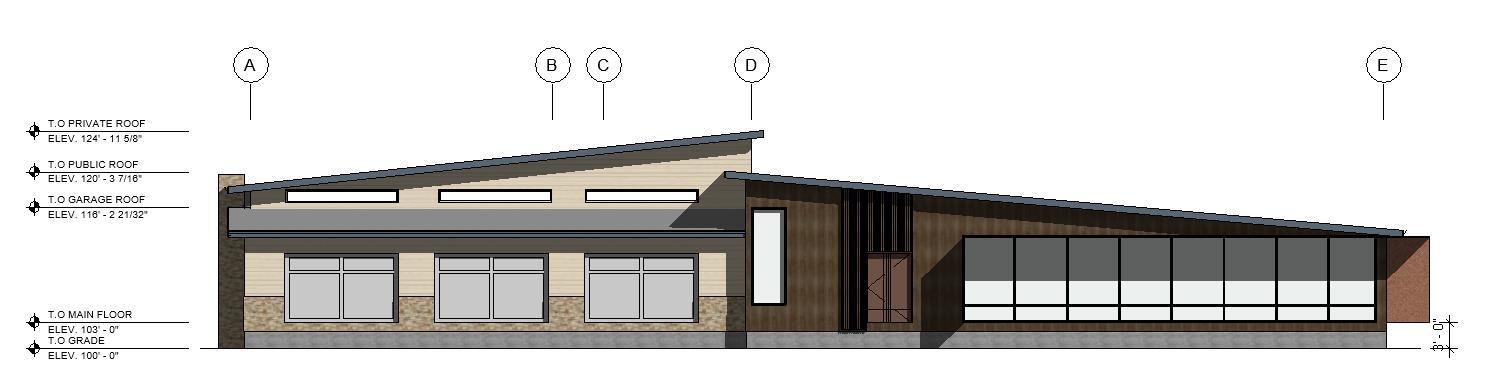

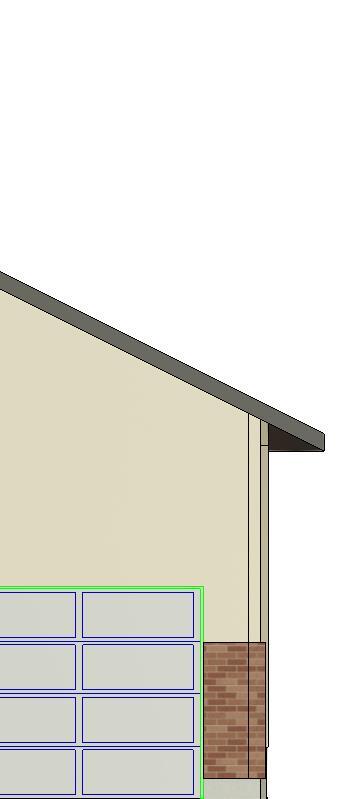

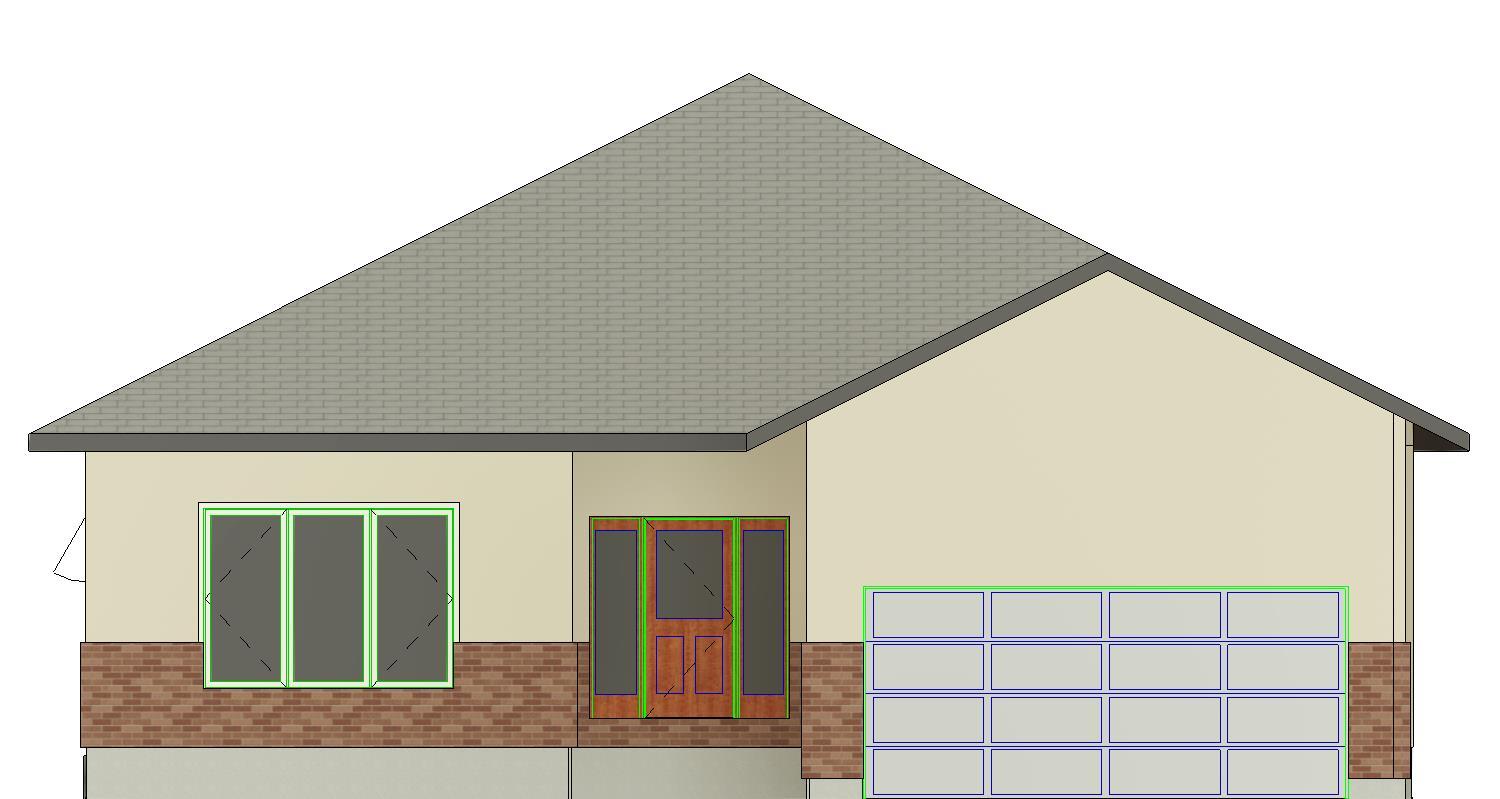

EAST ELEVATION

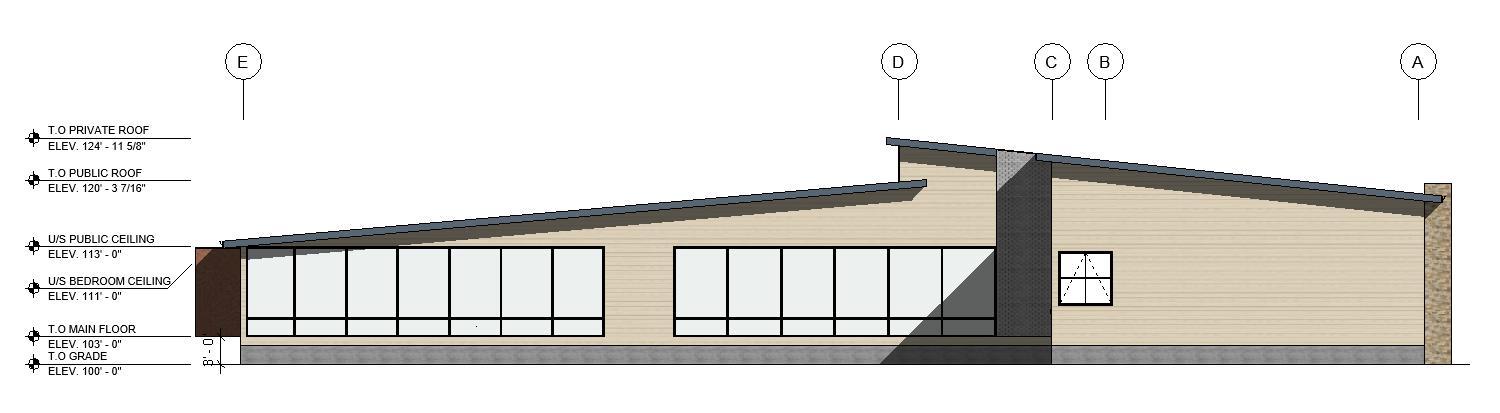

WEST ELEVATION

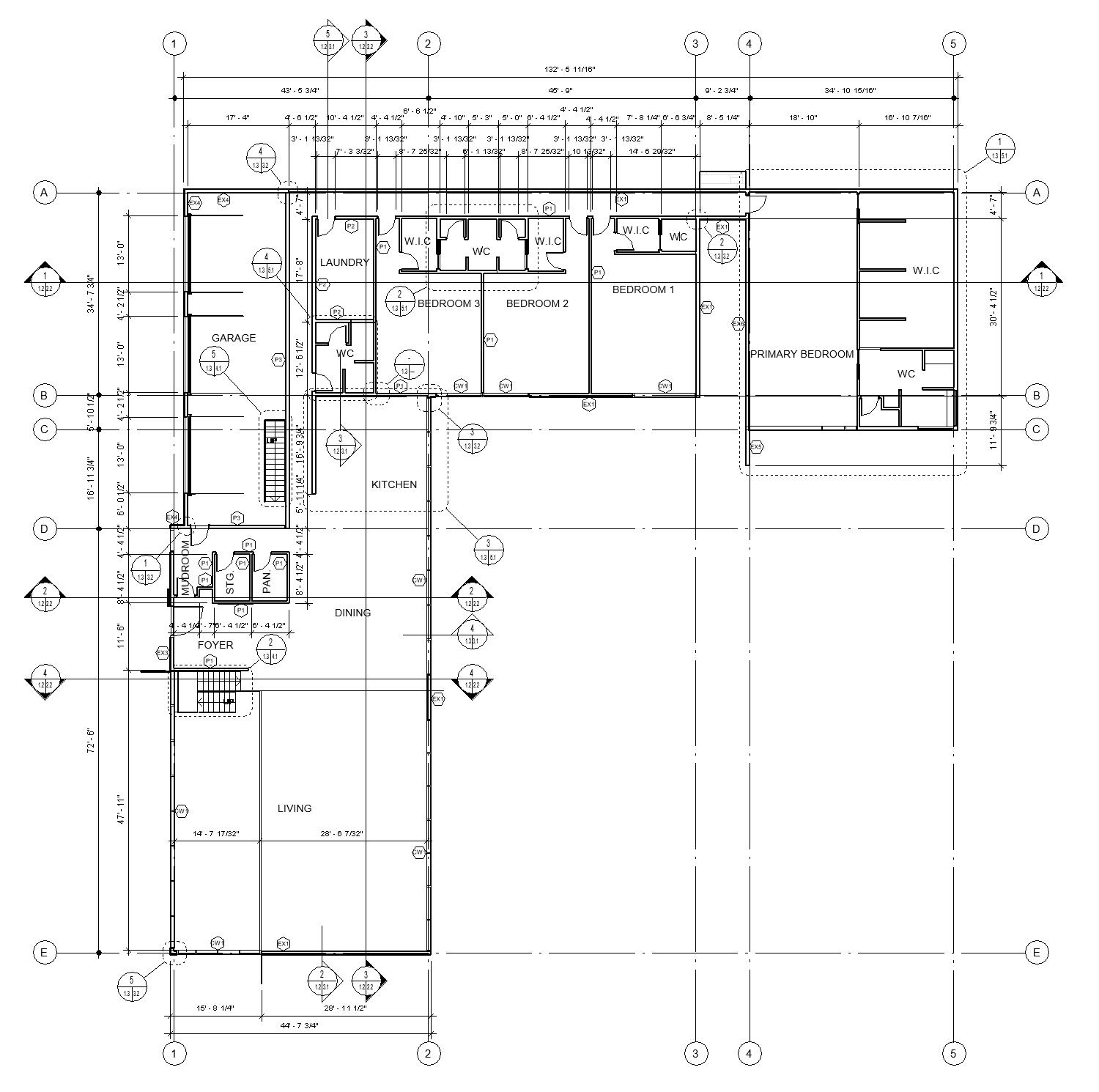

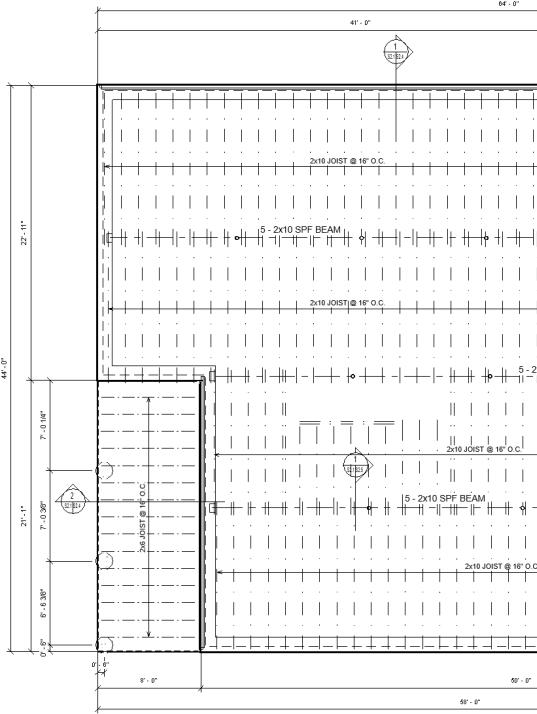

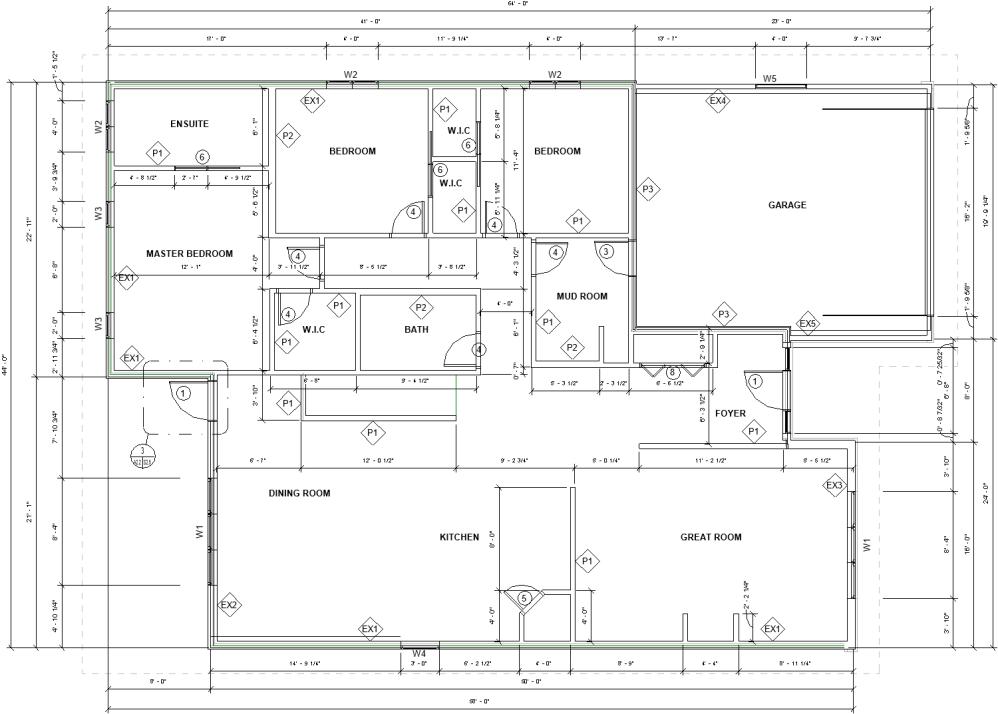

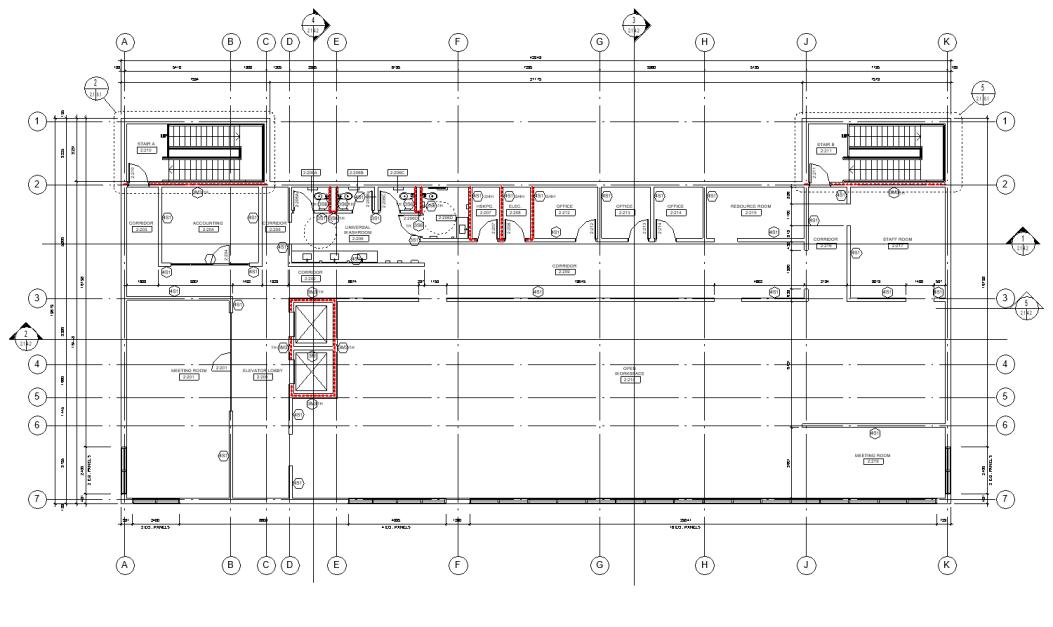

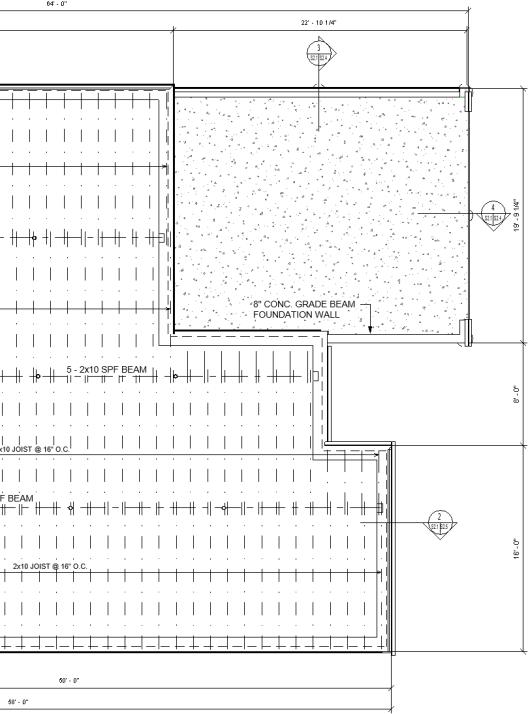

MAIN FLOOR PLAN

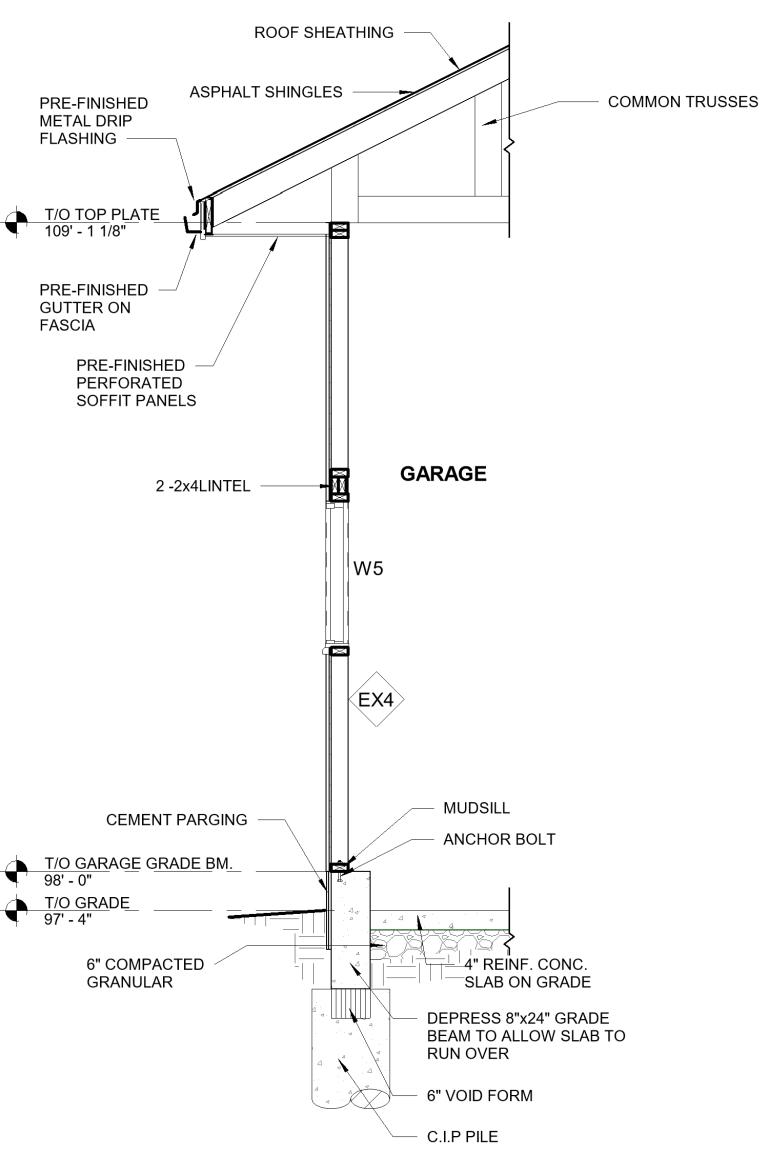

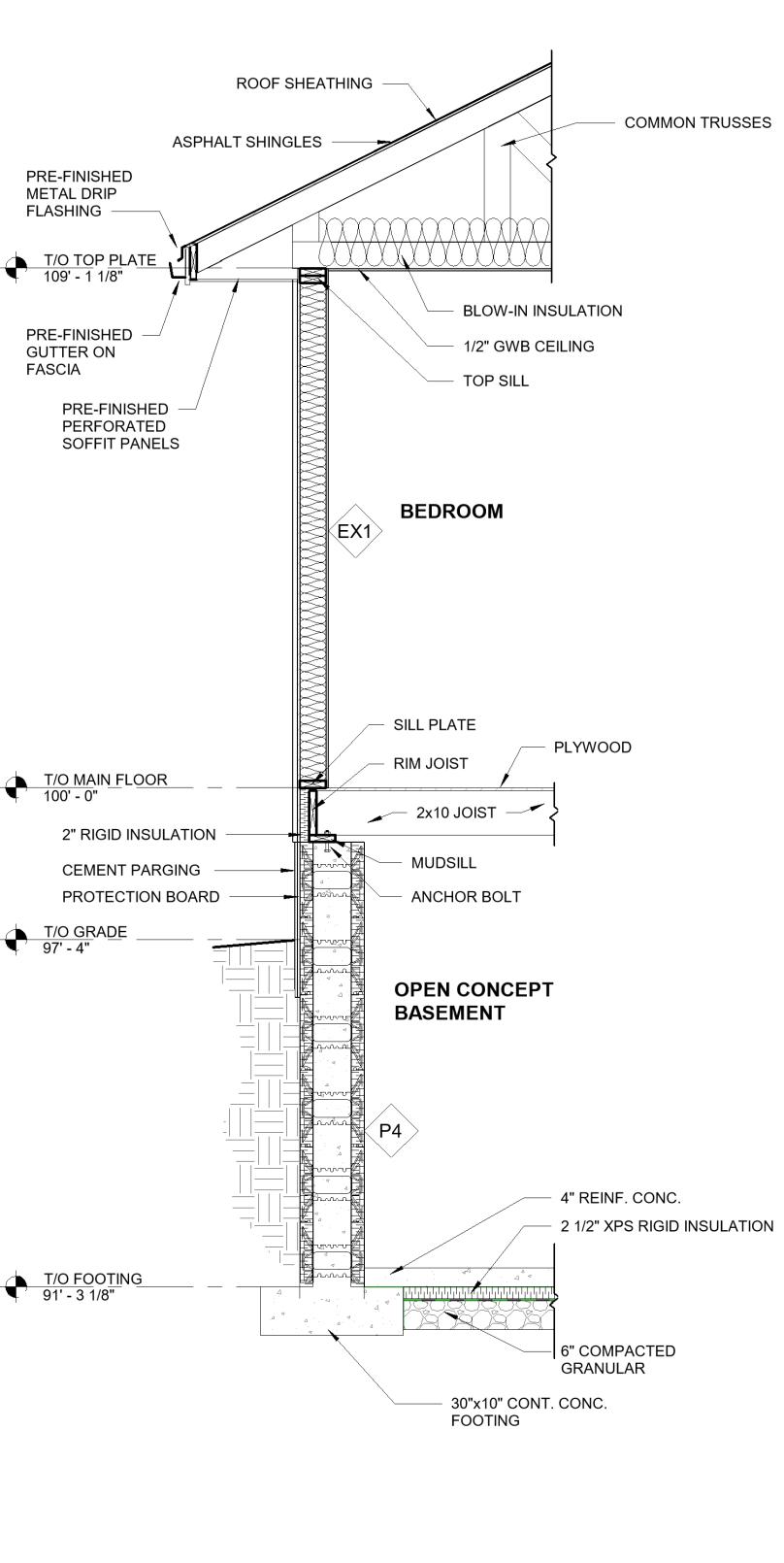

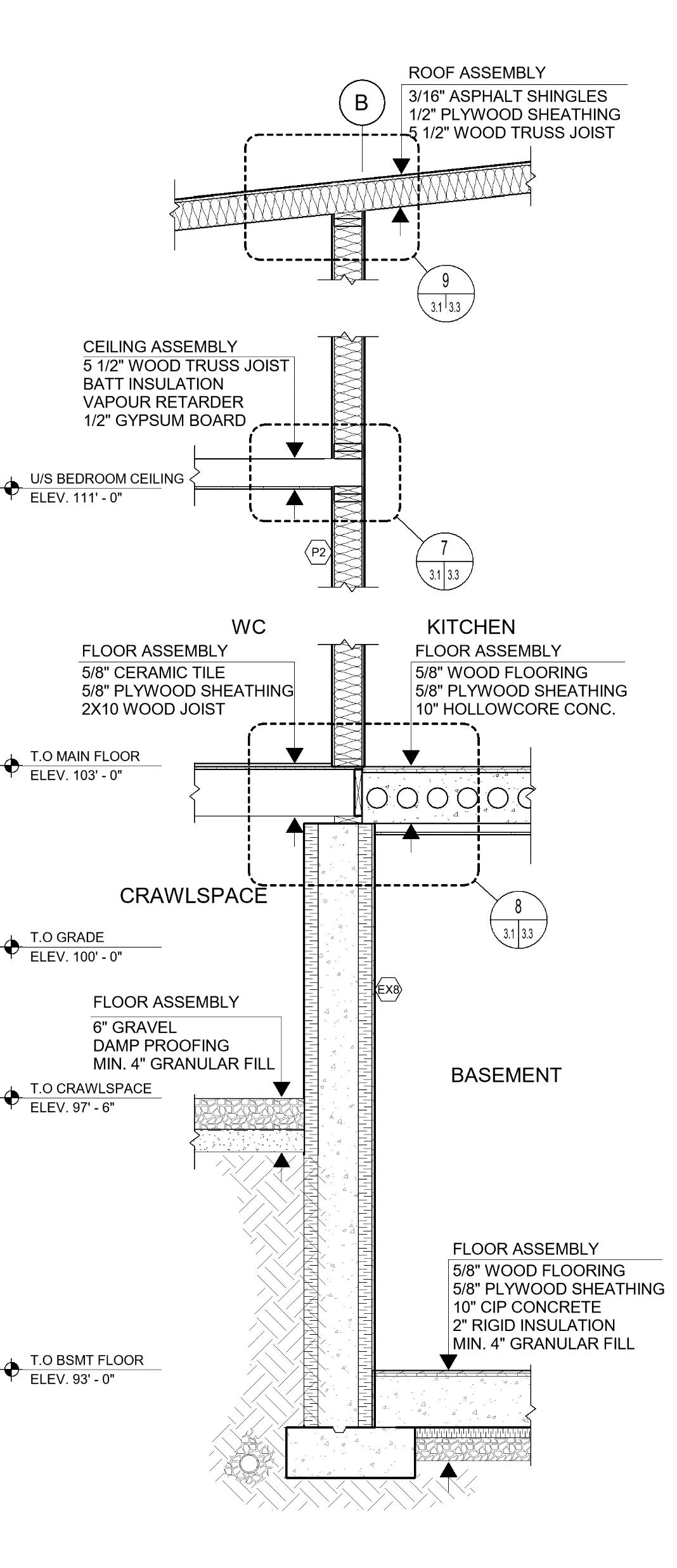

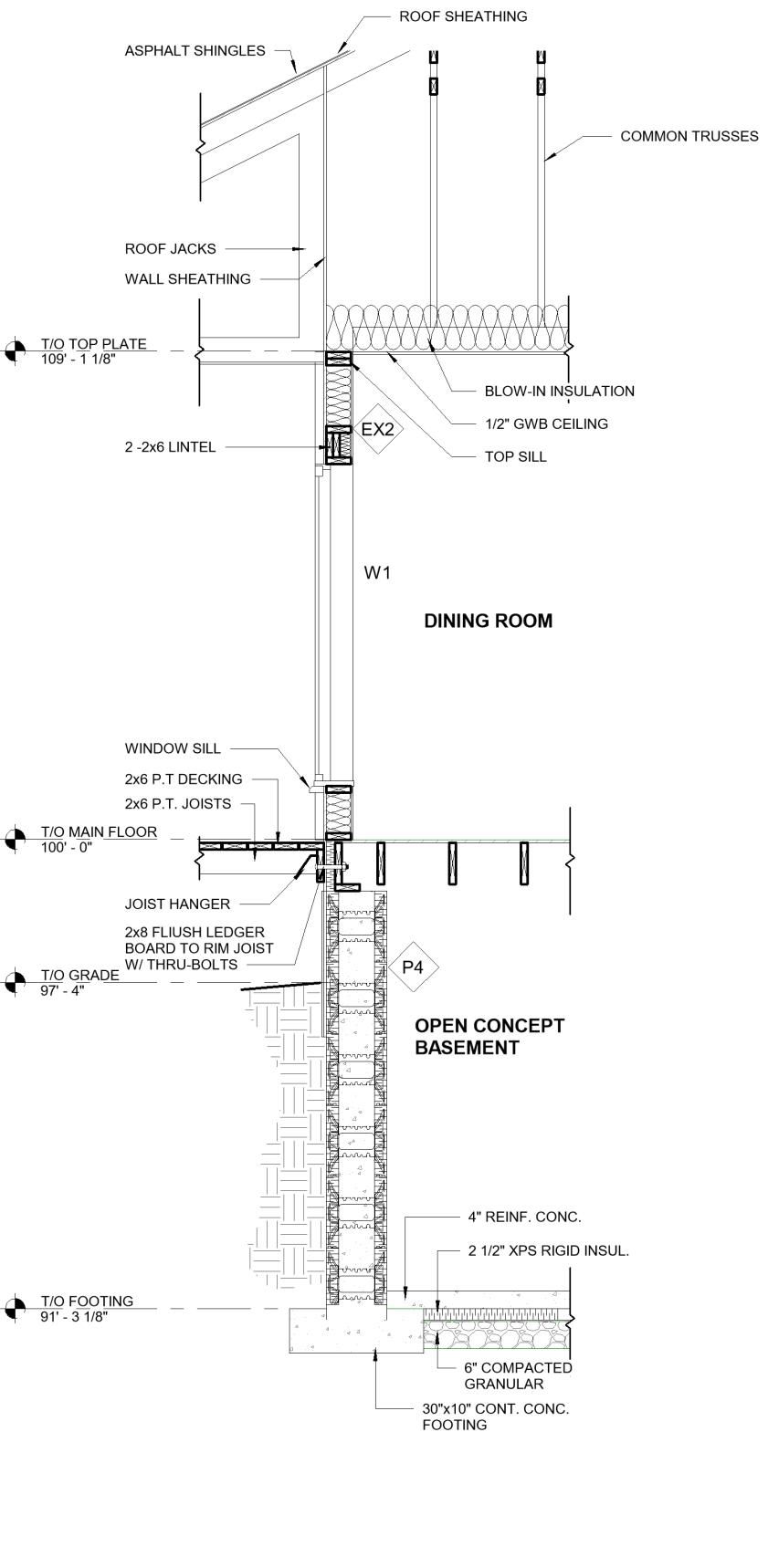

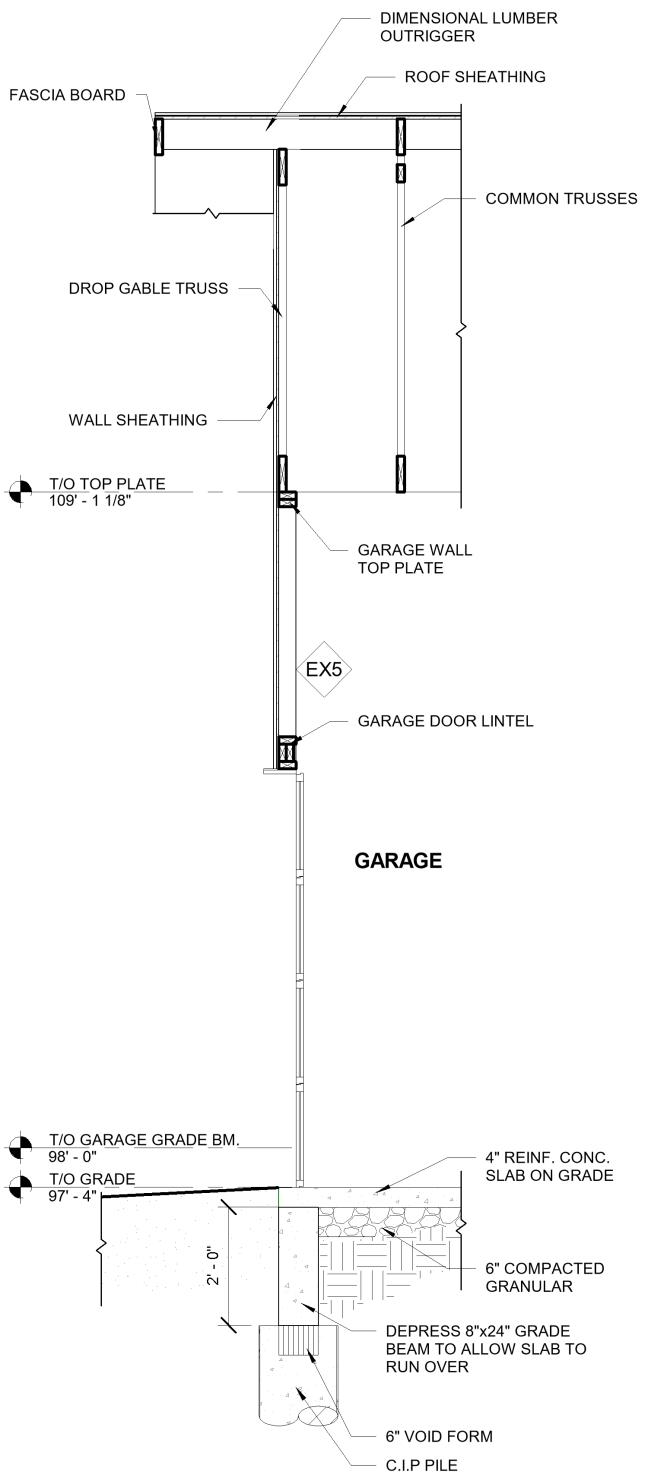

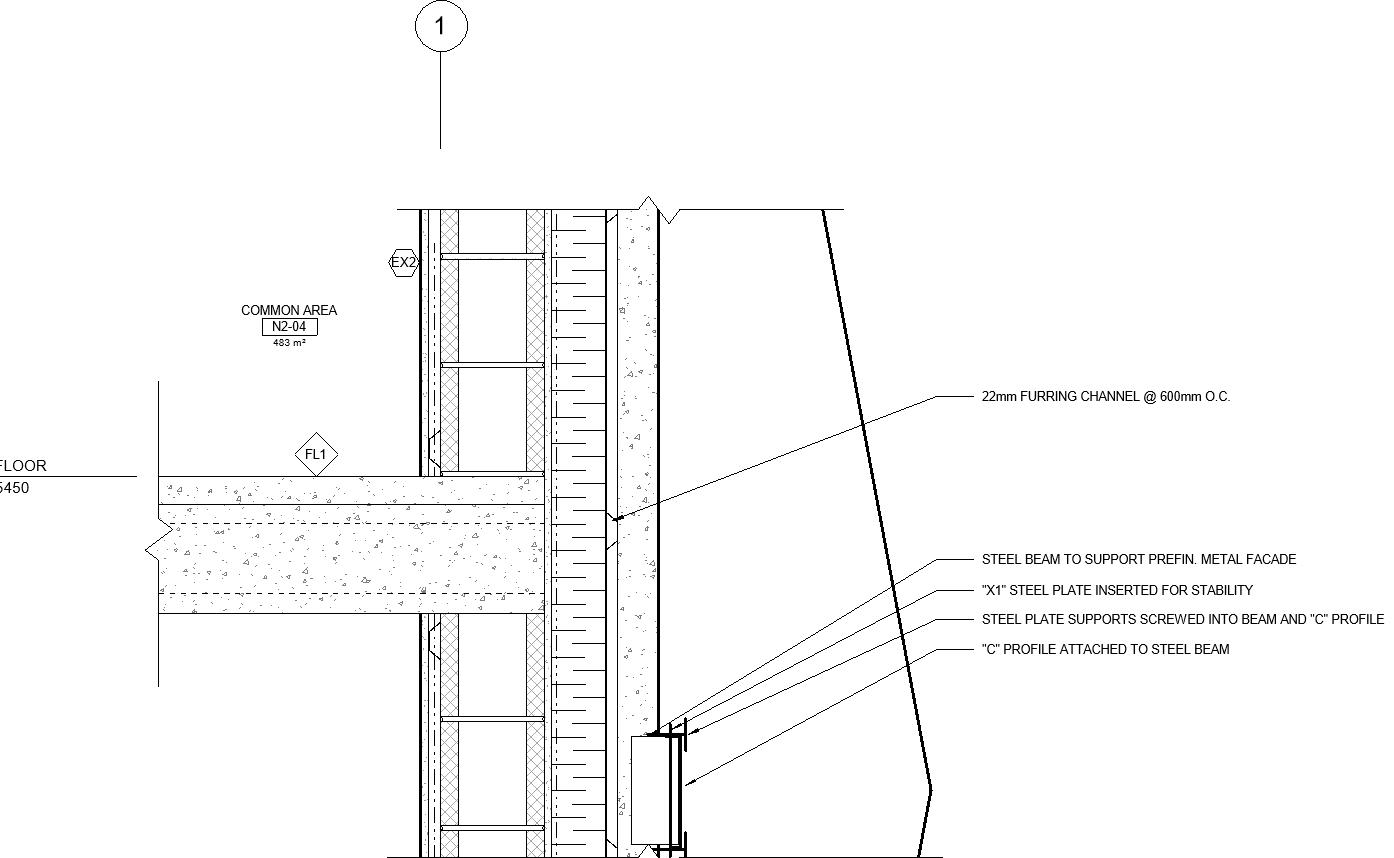

WALL SECTION

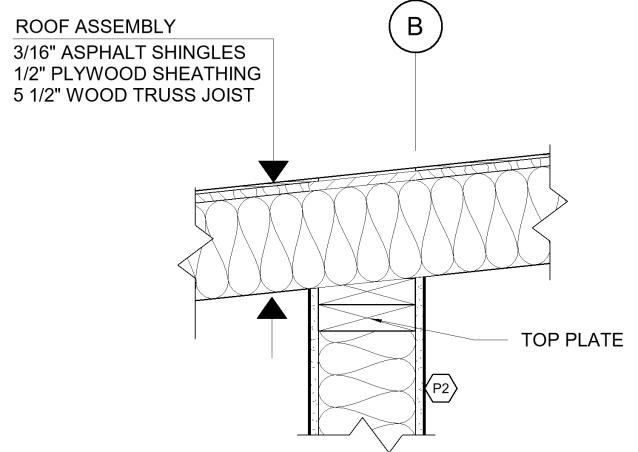

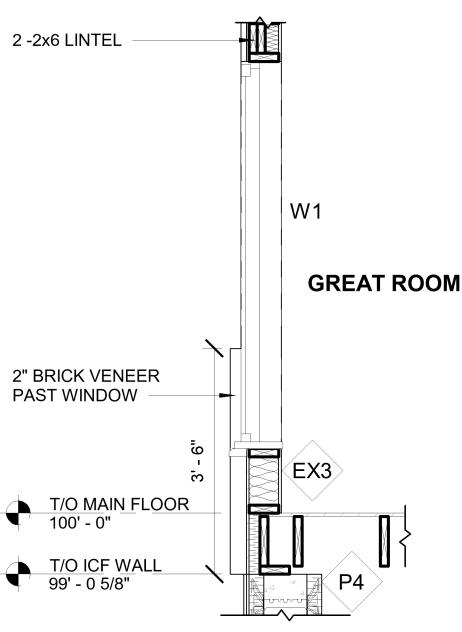

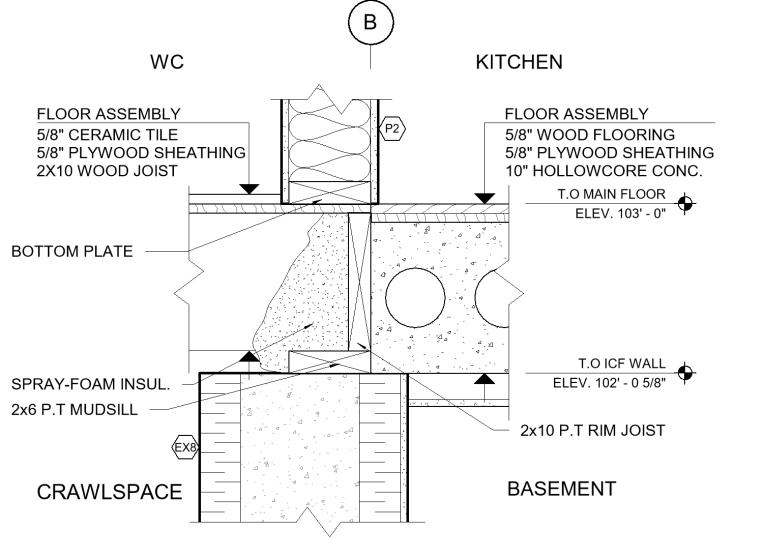

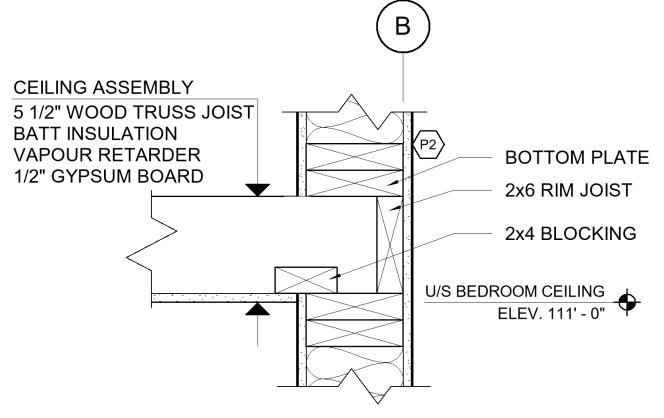

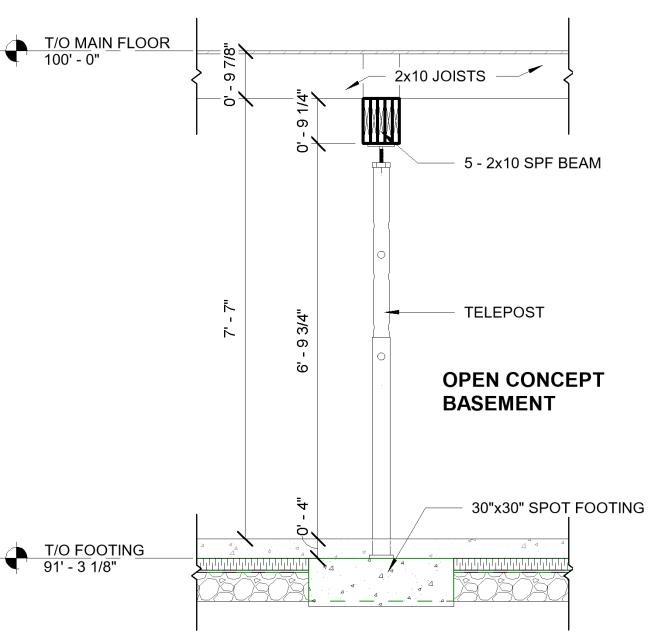

SECTION DETAIL

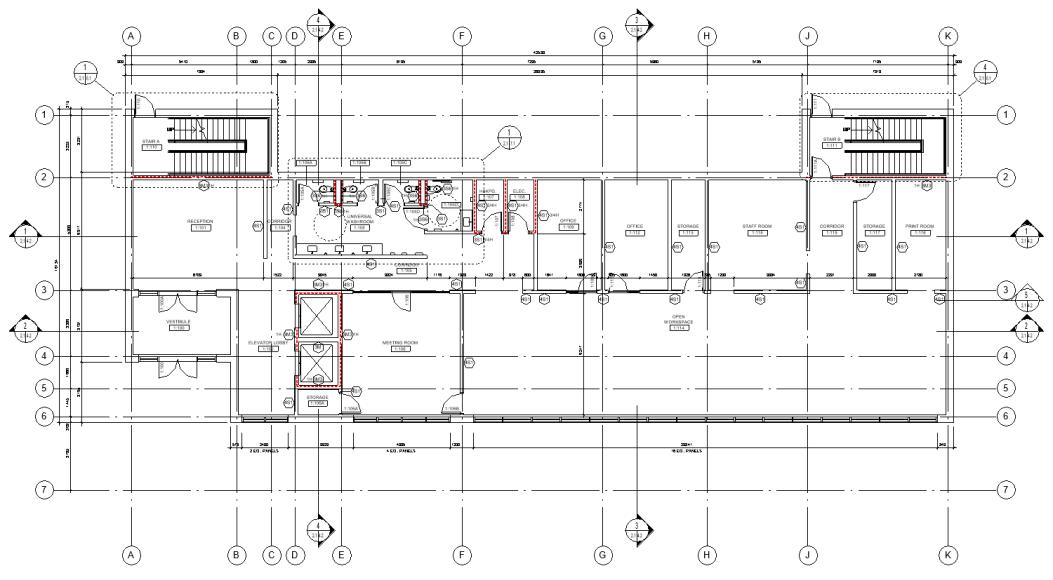

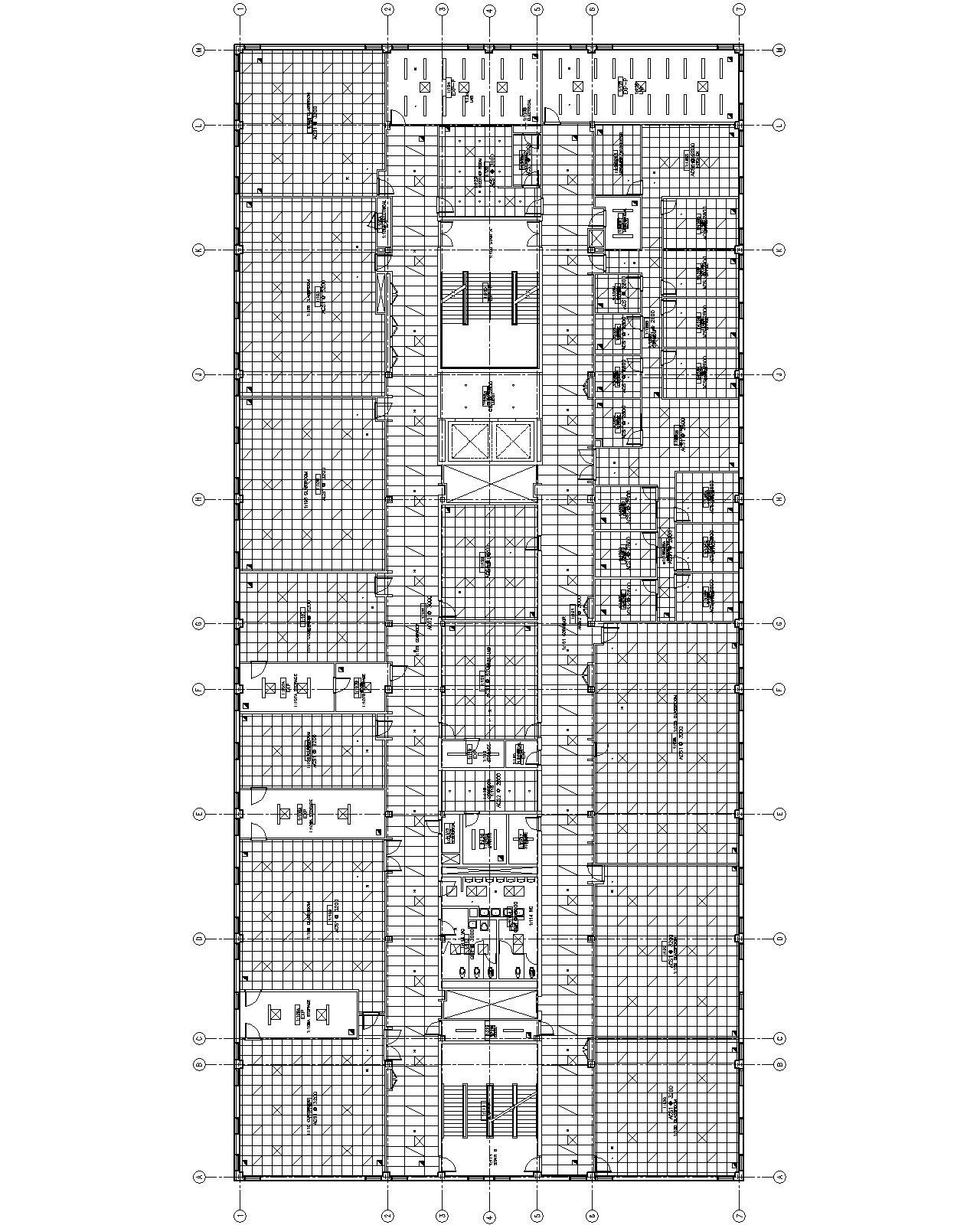

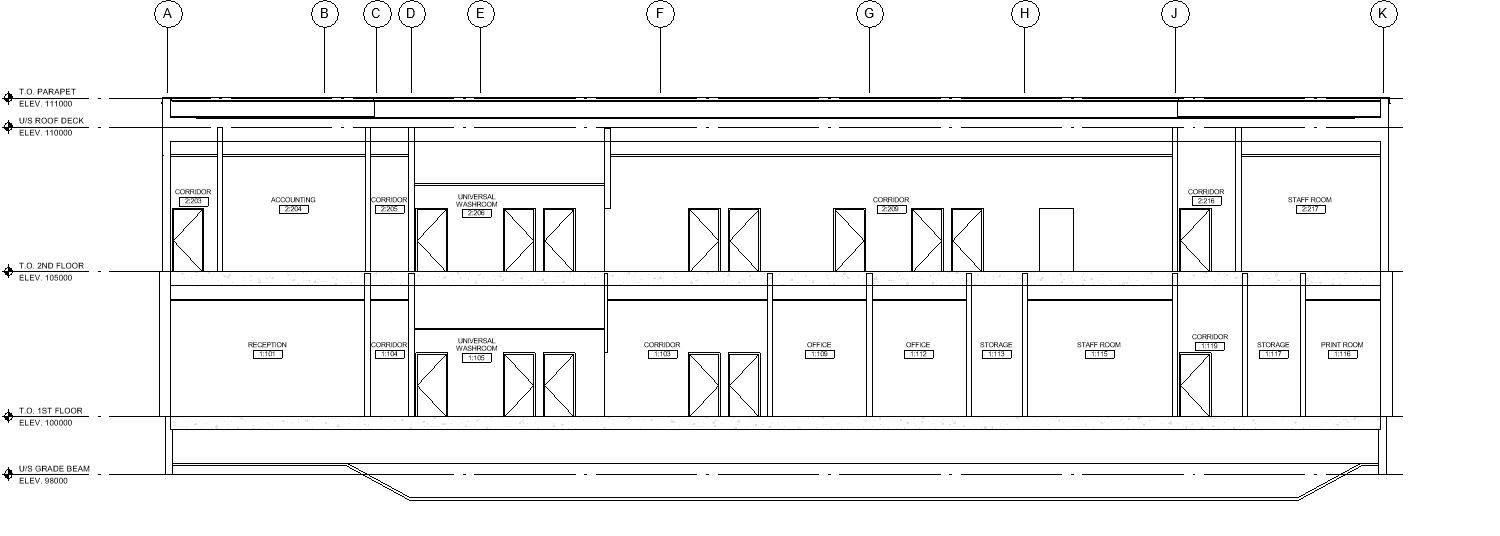

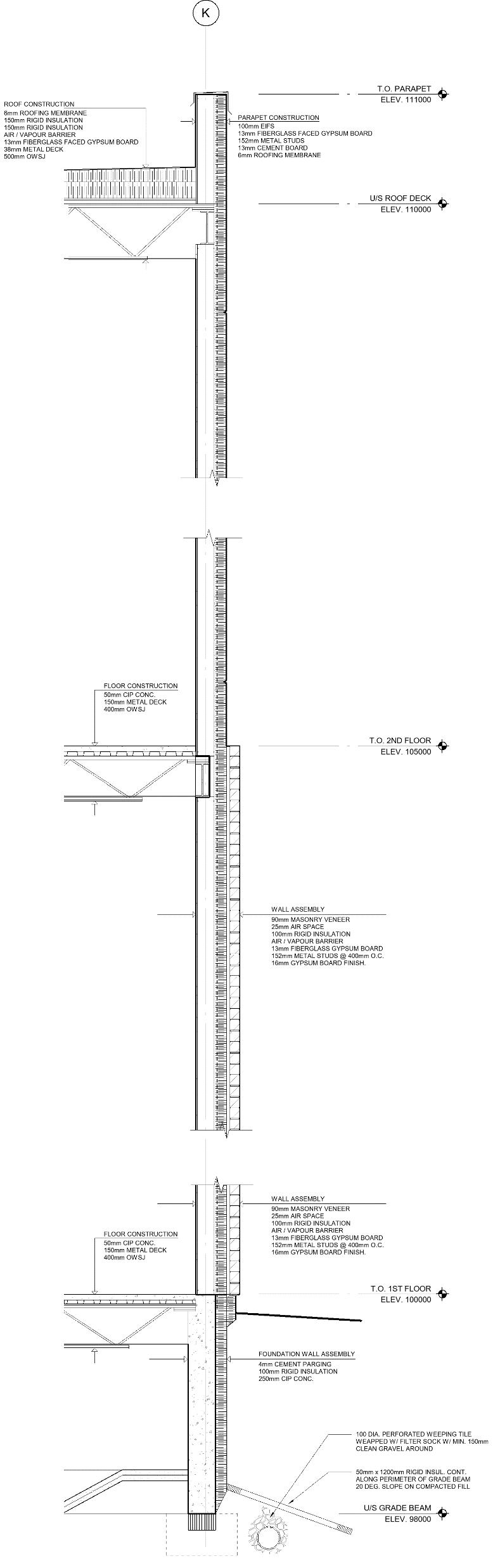

COMMERCIAL BUILDING 3

OBJECTIVE

This commercial project is near the beginning of my journey. Here we learned the tools and fundamentals of Revit and took upon the challenge of detailing and developing a construction drawing set for this commercial building. The completion of this project was done by weekly steps and studying commercial standards. Details were done through referencing existing building construction documents to help our understanding.
