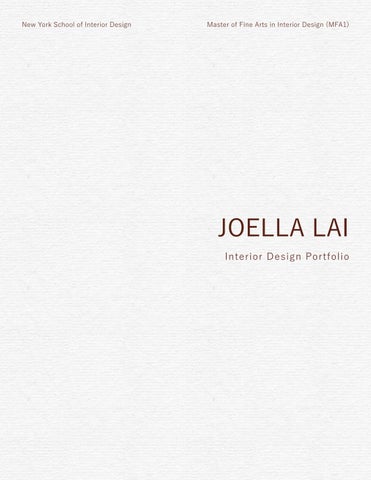

Lai_Joella_InteriorDesignPortfolio

New York School of Interior Design

Master of Fine Arts in Interior Design (MFA1)

JOELLA LAI Interior Design Portfolio

CONTENTS

2

CHAPPAQUA CHILDREN’S LIBRARY Civic Space

FLUSHING HEART HEALTH Healthcare

HOTEL MARINEAUX Hospitality

3

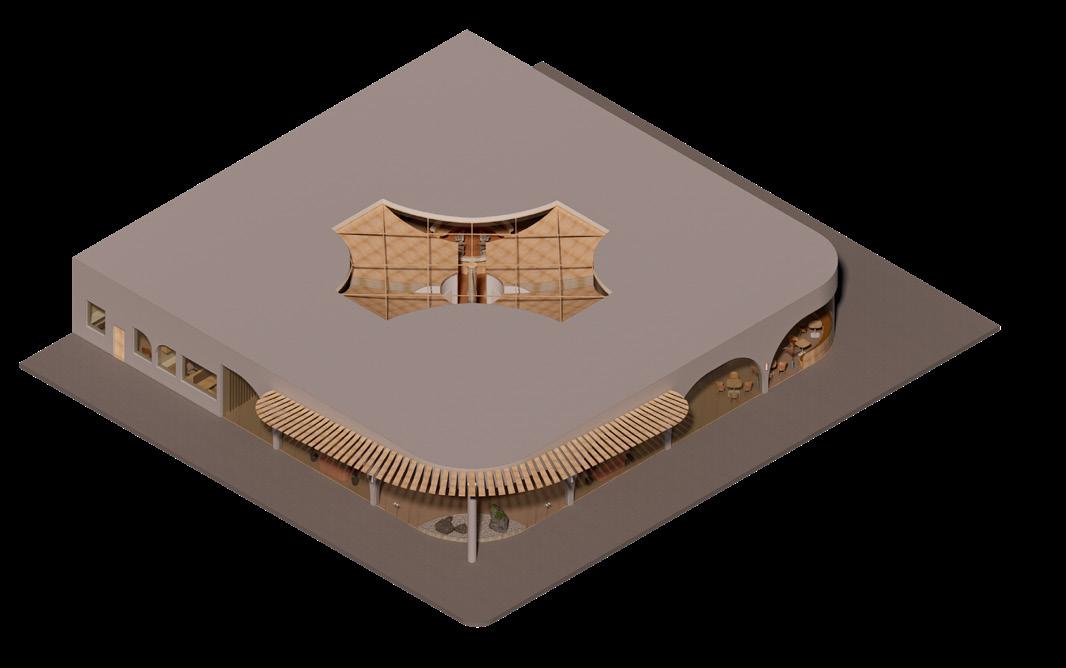

CHAPPAQUA CHILDREN’S LIBRARY TYPE: CIVIC SPACE SKILLS: RHINO, ENSCAPE, PHOTOSHOP

Libraries are vital civic spaces housing a wealth of knowledge while serving as a community hub. Its impact on children resembles the butterfly effect where a child’s favorite story can spark a lifelong journey of curiosity, creativity, and learning.

4

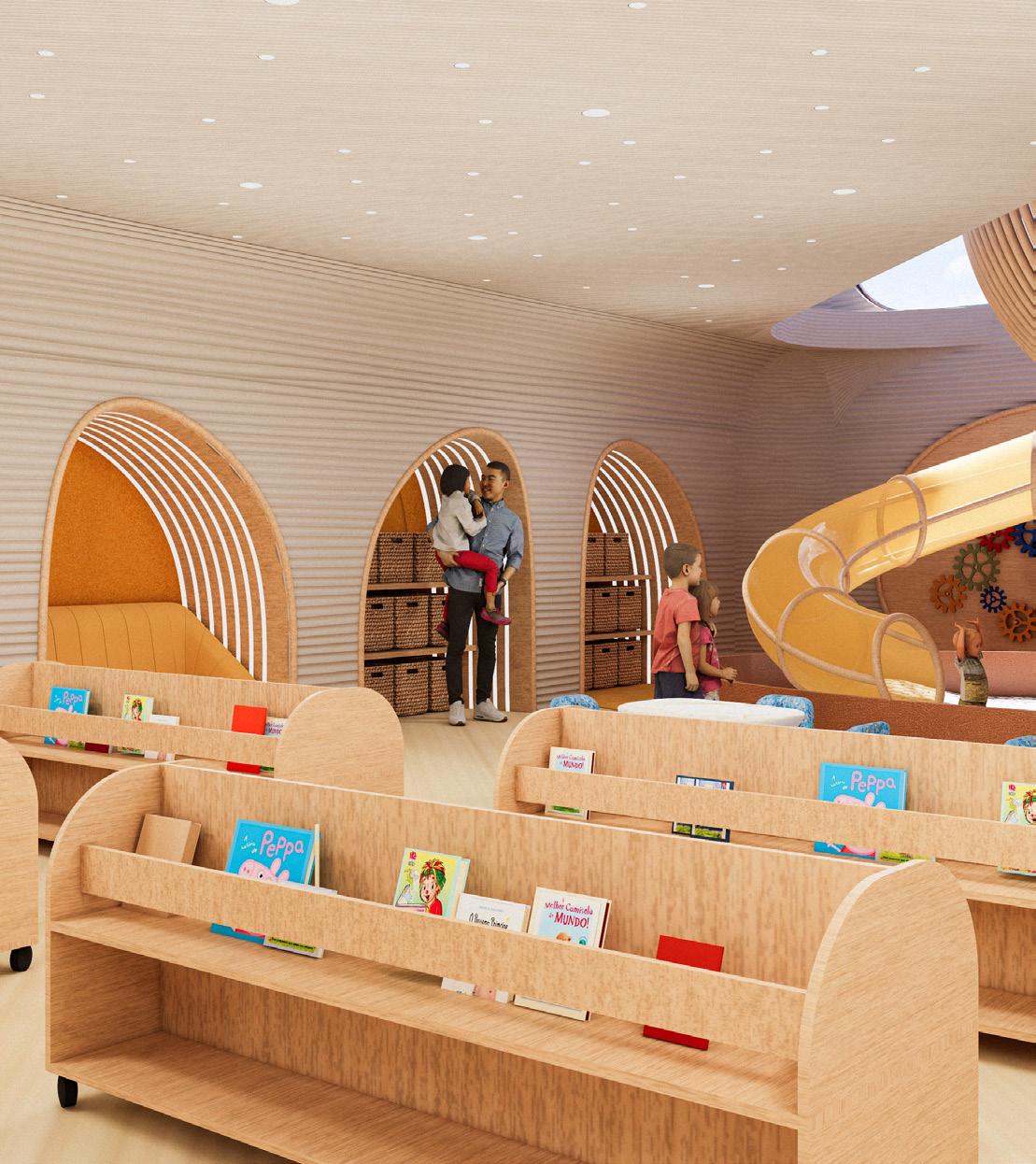

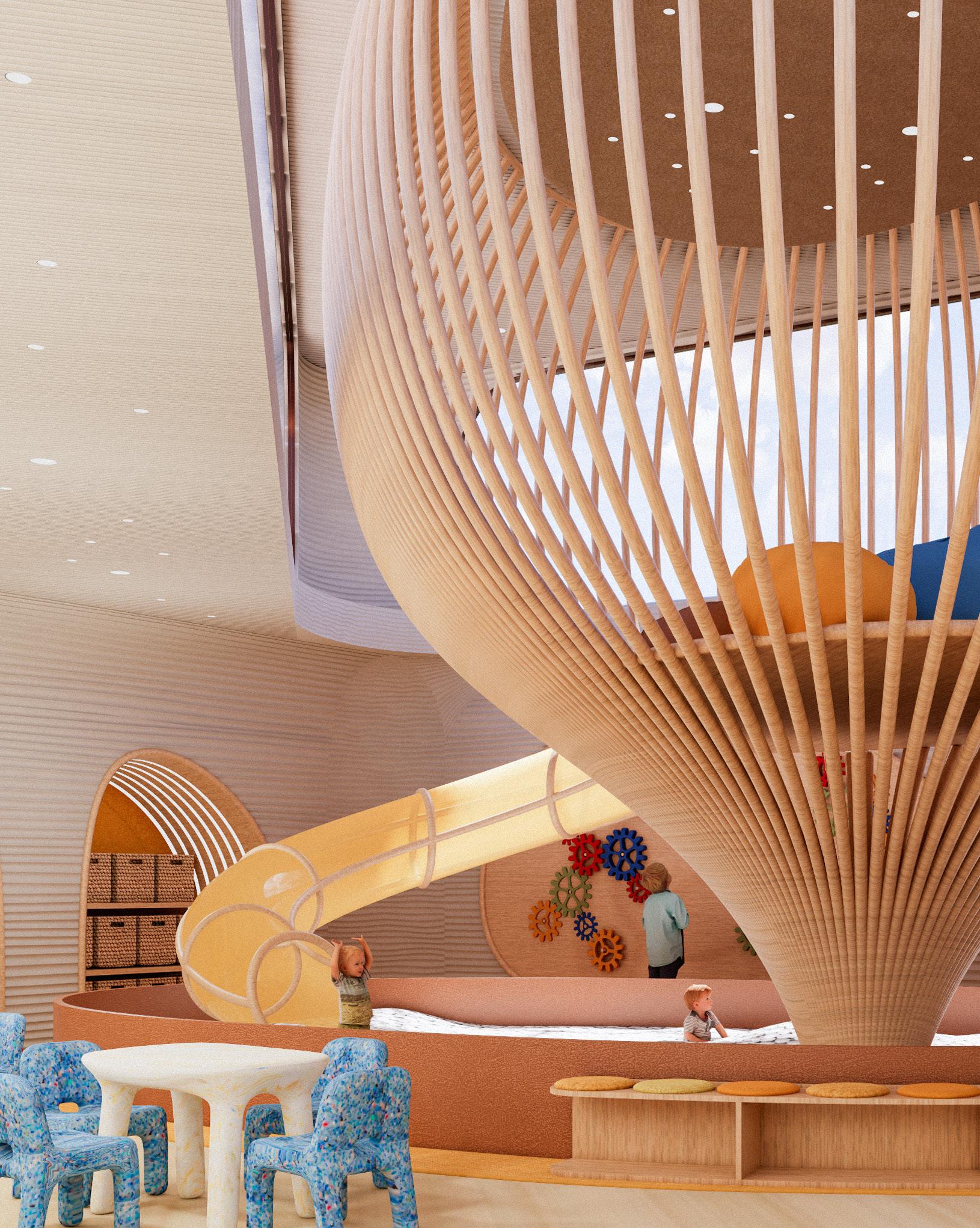

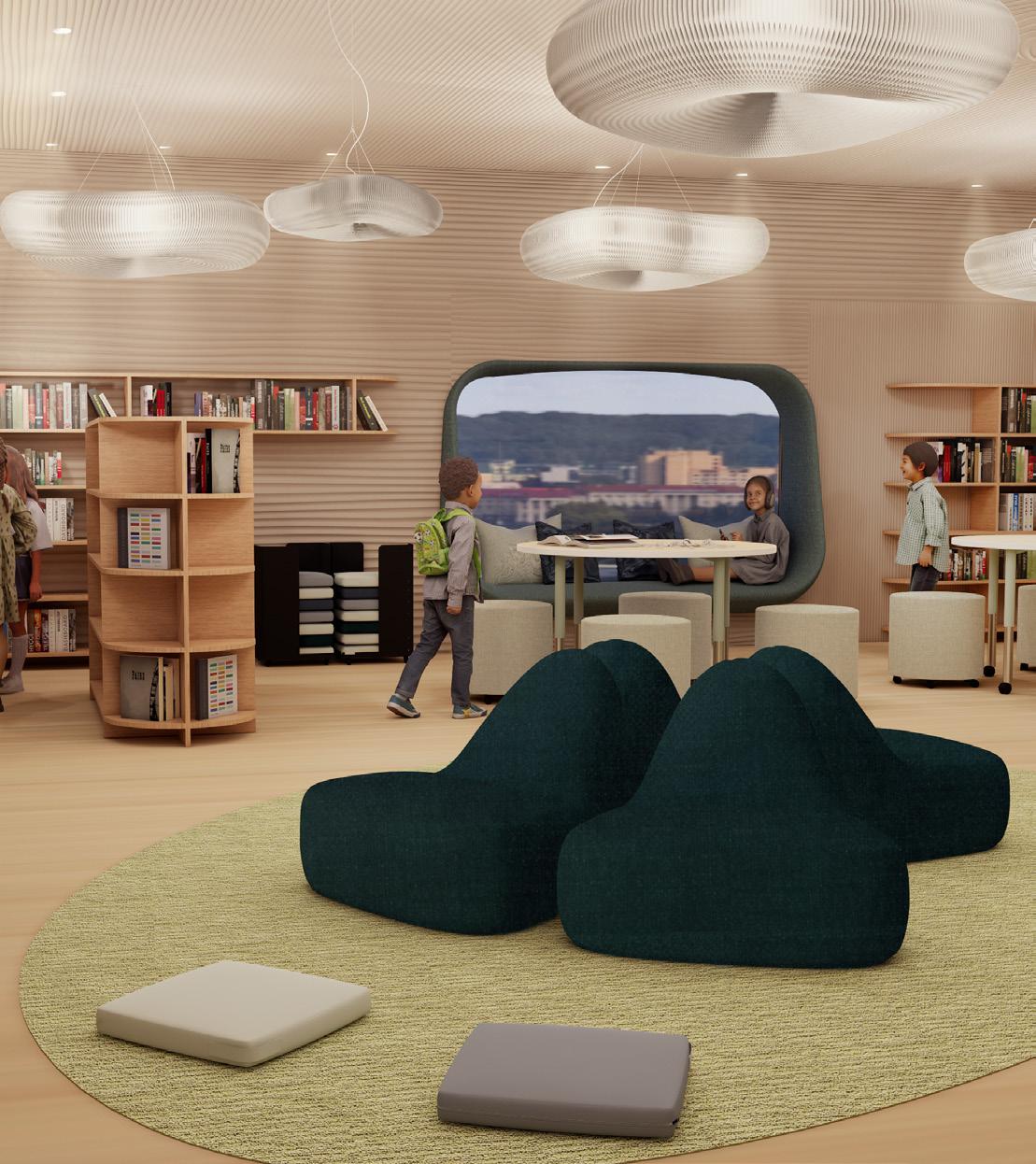

CHILDREN’S PLAY AREA

5

7

6 2

6

3

5

1 4

10

11

8

9

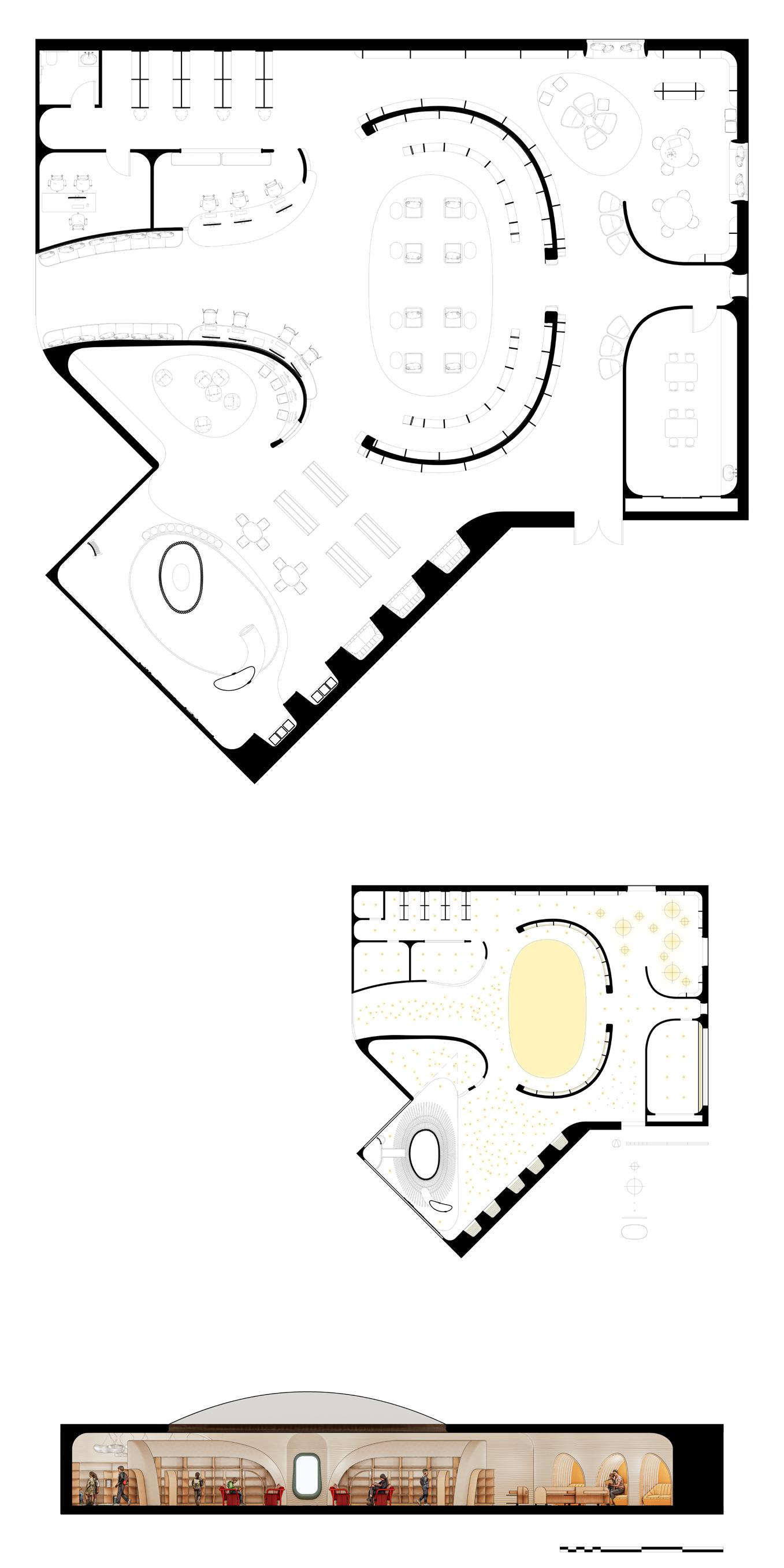

N 0’

5’

10’

20’

12 1

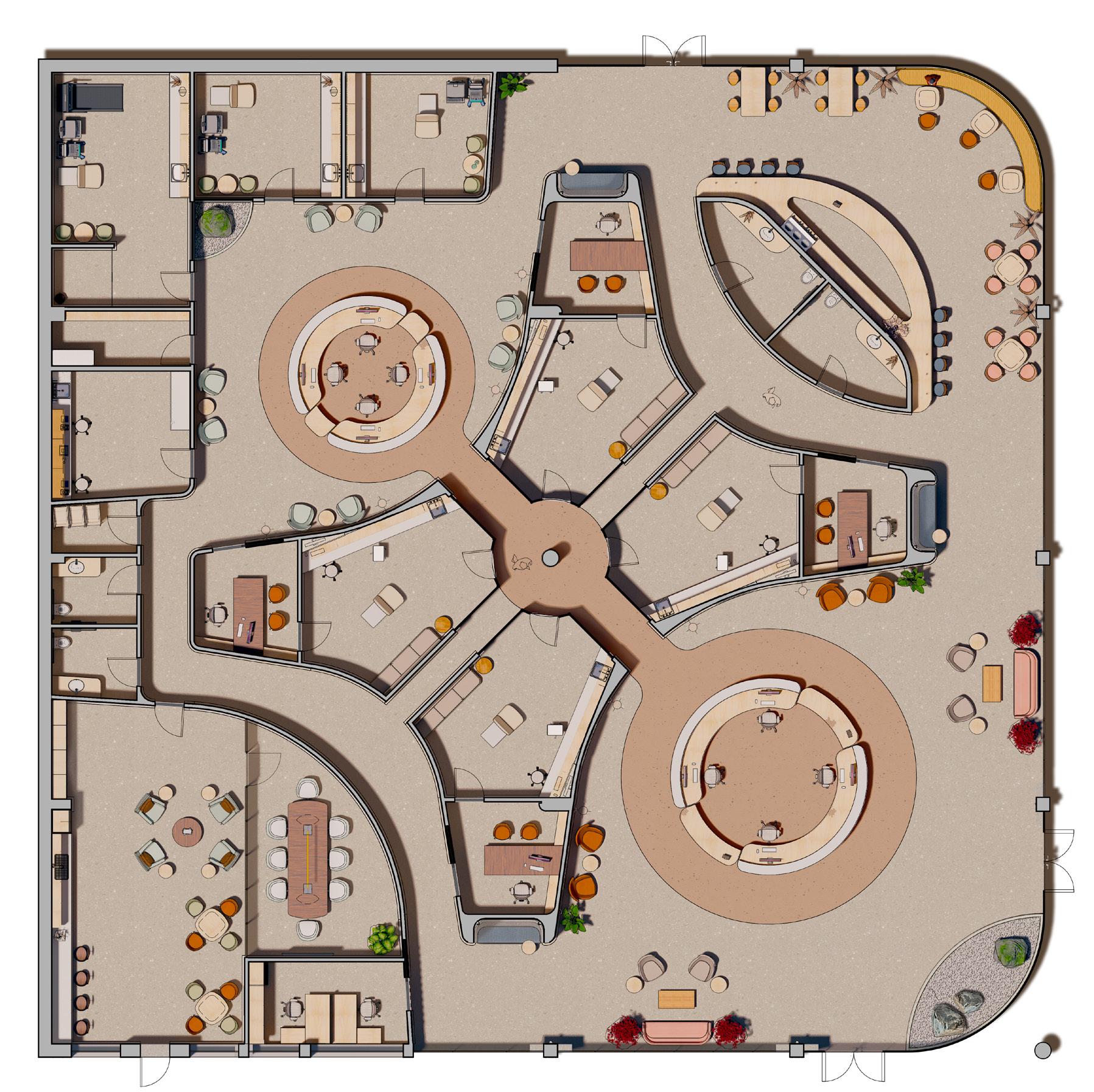

Entrance

7

Bathroom

2

Reception

8

Program Room

3

Librarian’s Office

9

Toddler Area

4

Catalog/Internet Area

10

Stroller Parking

5

Main Library Space

11

Computer Game

6

Third-Fifth Graders

12

Play Area

6 N 0’

5’

10’

20’

USER GROUPS The children’s library serves a wide range of user groups from toddlers to adults.

Infants - Toddlers Third-Fifth Graders

Adults (Teachers & Parents)

NOISE As the children’s library is connected to the larger Chappaqua Public Library, louder areas are placed further away from the entrance.

Loud Moderate

Quiet

7

1

ENTRANCE

2

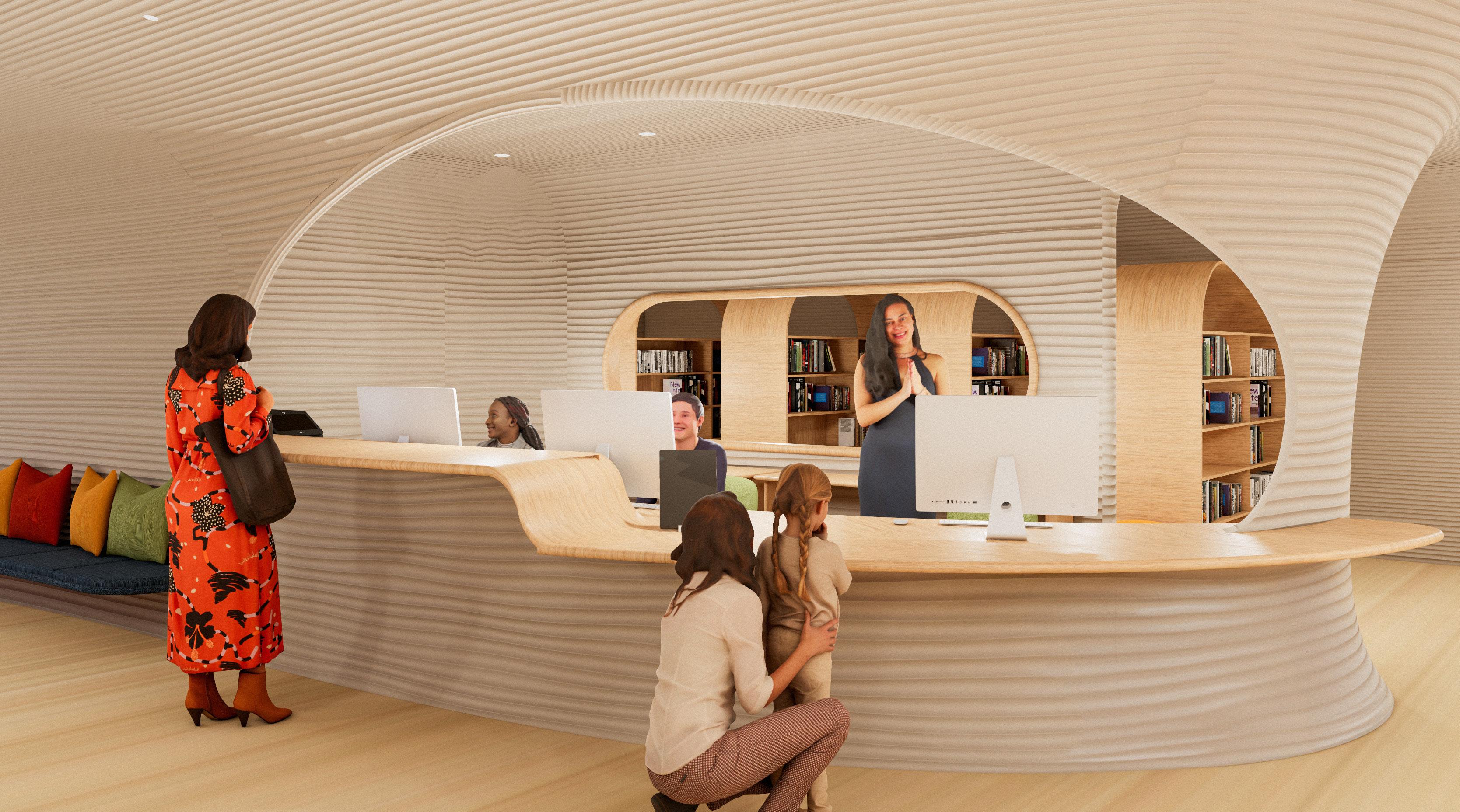

RECEPTION

8

3

THIRD-FIFTH GRADERS AREA

4

TODDLER AREA

3

1

2

4

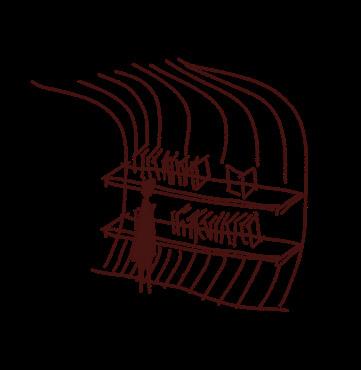

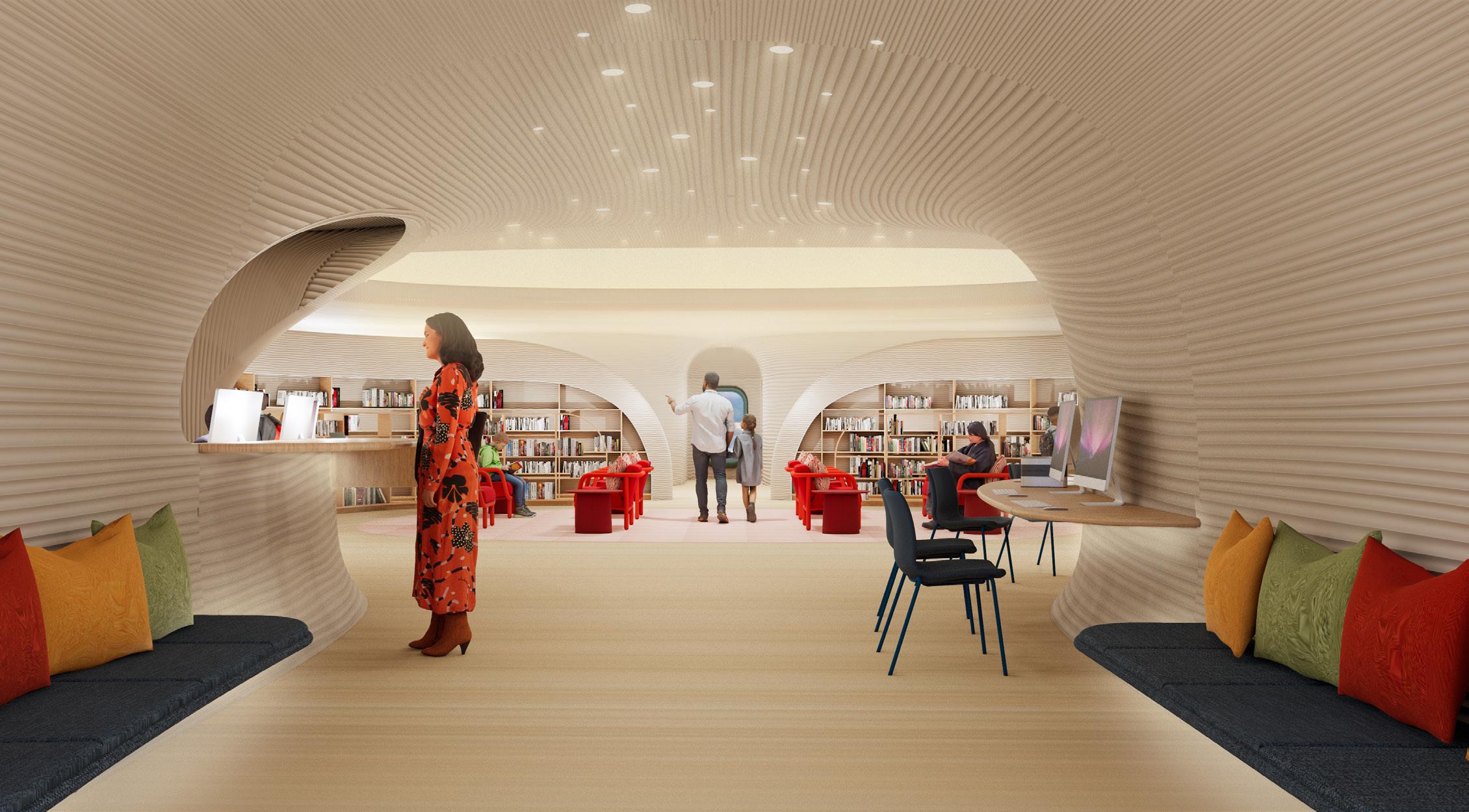

Curved, flowing forms create a monolithic environment that engages both the visual and tactile senses. Entering the space becomes an experience that sparks curiosity and comfort in people of all ages.

9

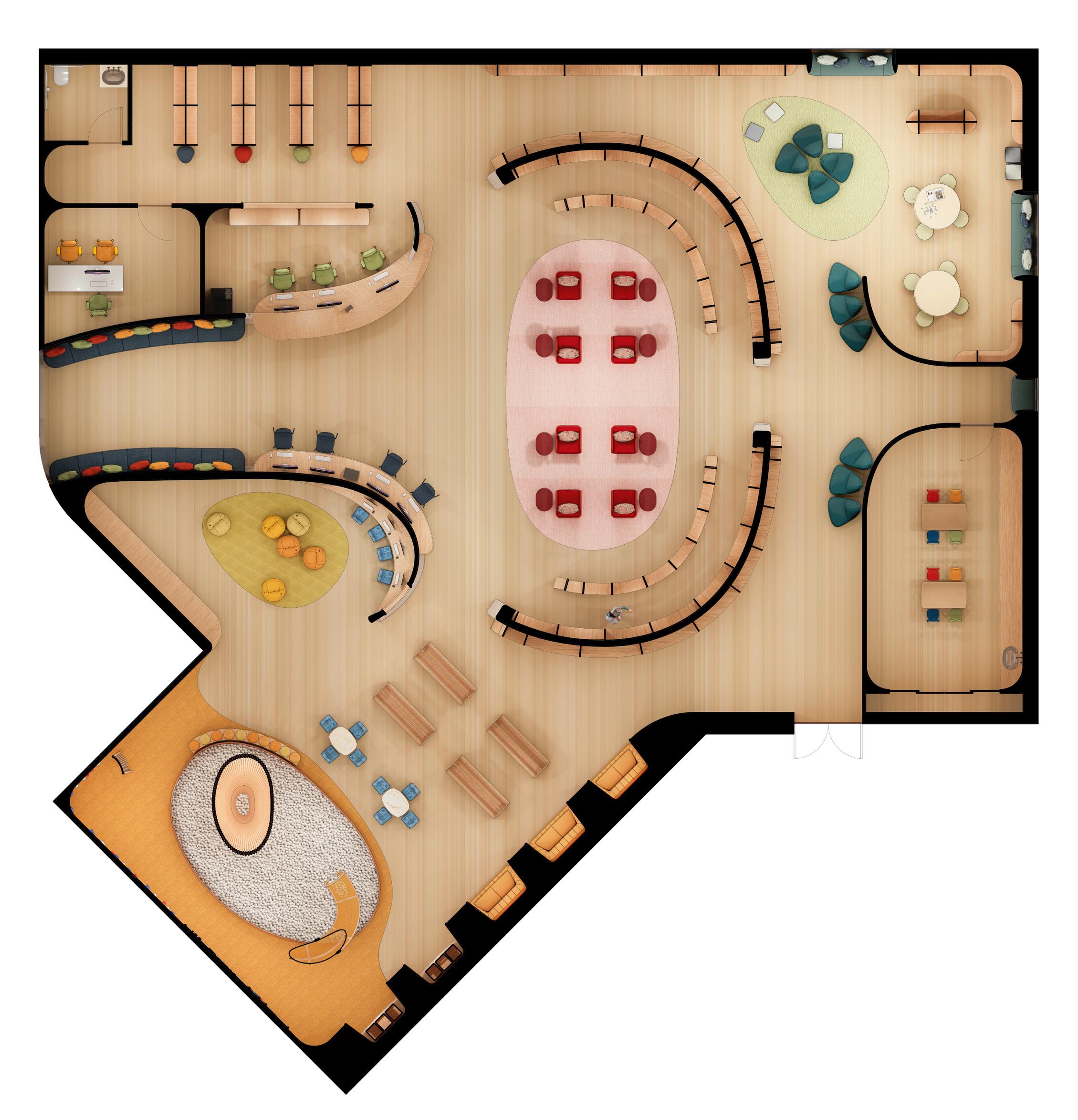

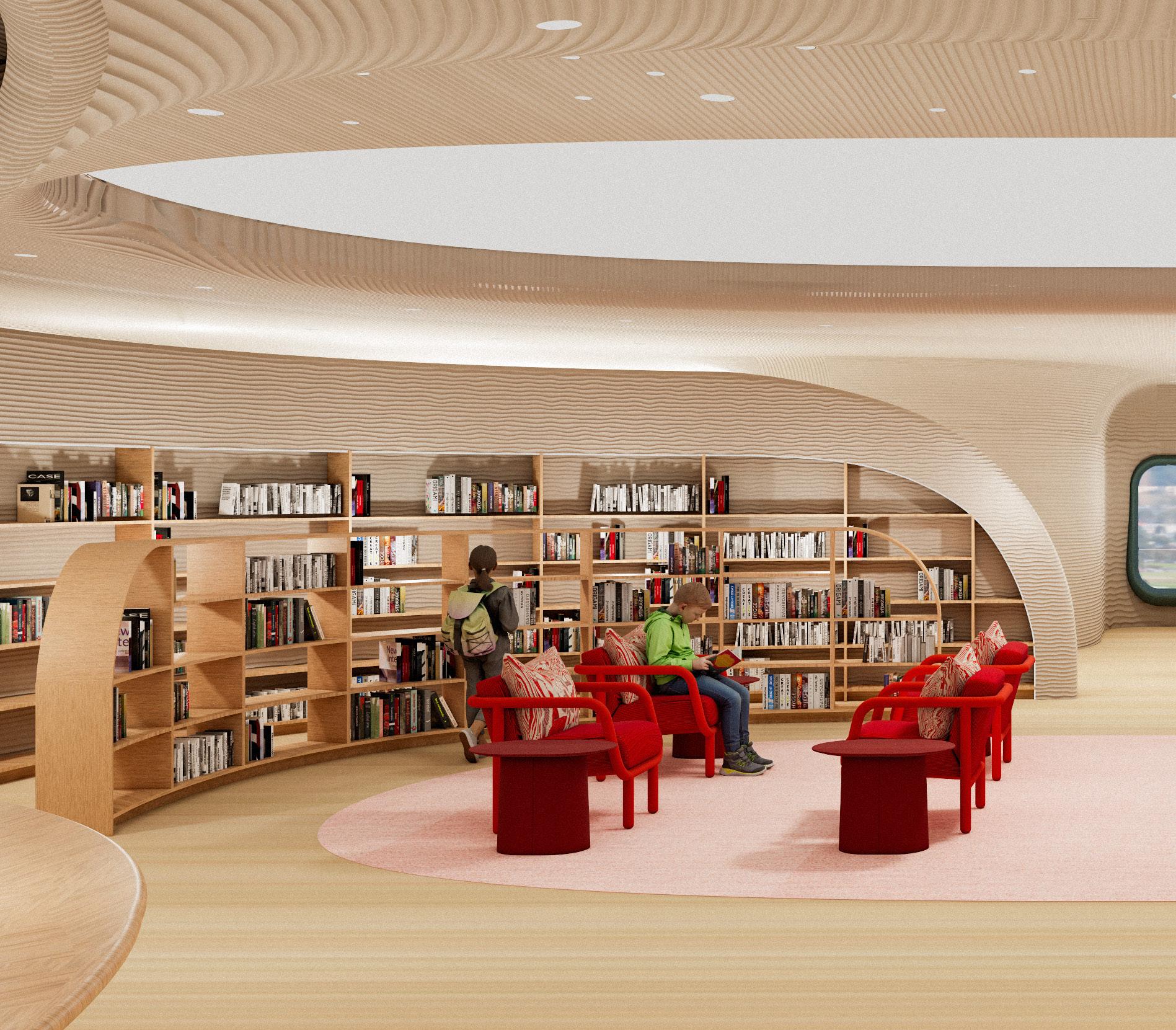

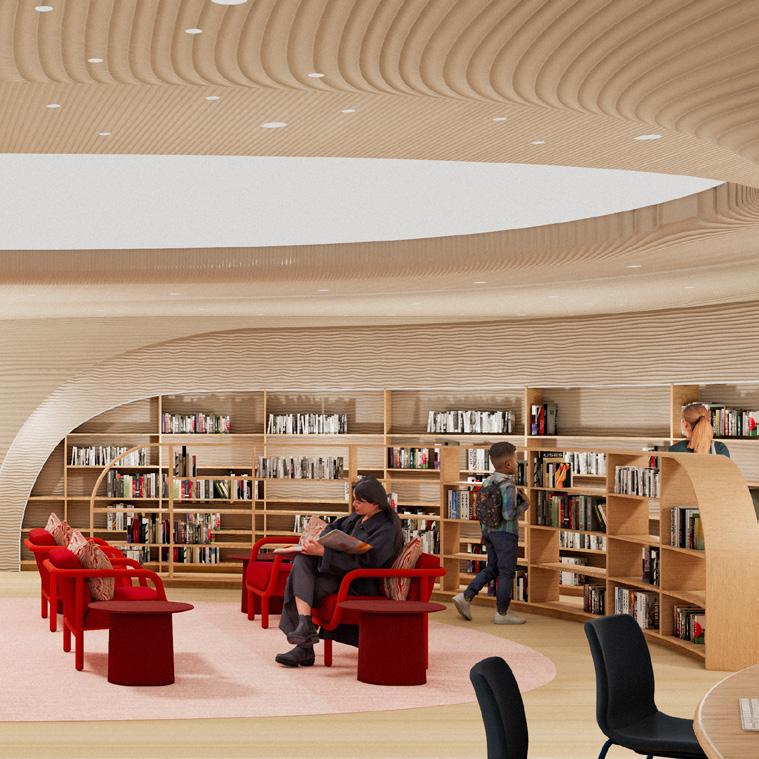

MAIN LIBRARY SPACE

1

10

2

3

4

5

6

1 2 3 4 5 6

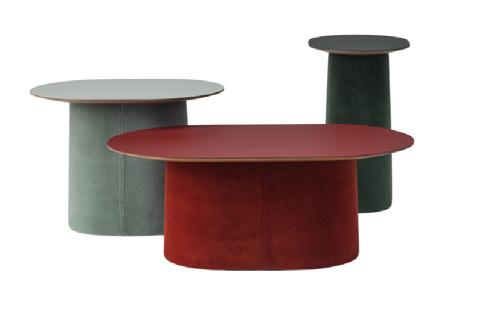

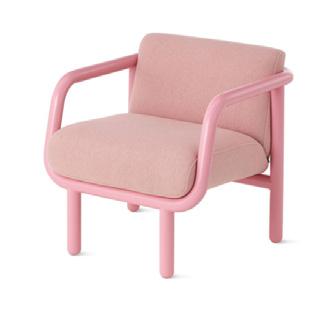

Carnegie (Colorado 6884 | 9) Luum (Modulus | Masonry) Designtex (Velvet Corduroy | Camine) Flor (Made you Look | Blush) NaughtOne (Percy Chair) NaughtOne (Tun Side Table)

11

FLUSHING HEART HEALTH TYPE: HEALTHCARE SKILLS: REVIT, ENSCAPE, ILLUSTRATOR, PHOTOSHOP

Flushing Heart Health is an outpatient heart clinic serving the residents of Flushing. This modern clinic is driven by concepts of rhythm, santuary, and expansiveness to create a warm, welcoming space. Hints of Asian-inspired design is incorporated to bring a sense of familiarity for the patients. Organization of the space is connected to the anatomy of the heart allowing for easy wayfinding and clear division of spaces.

12

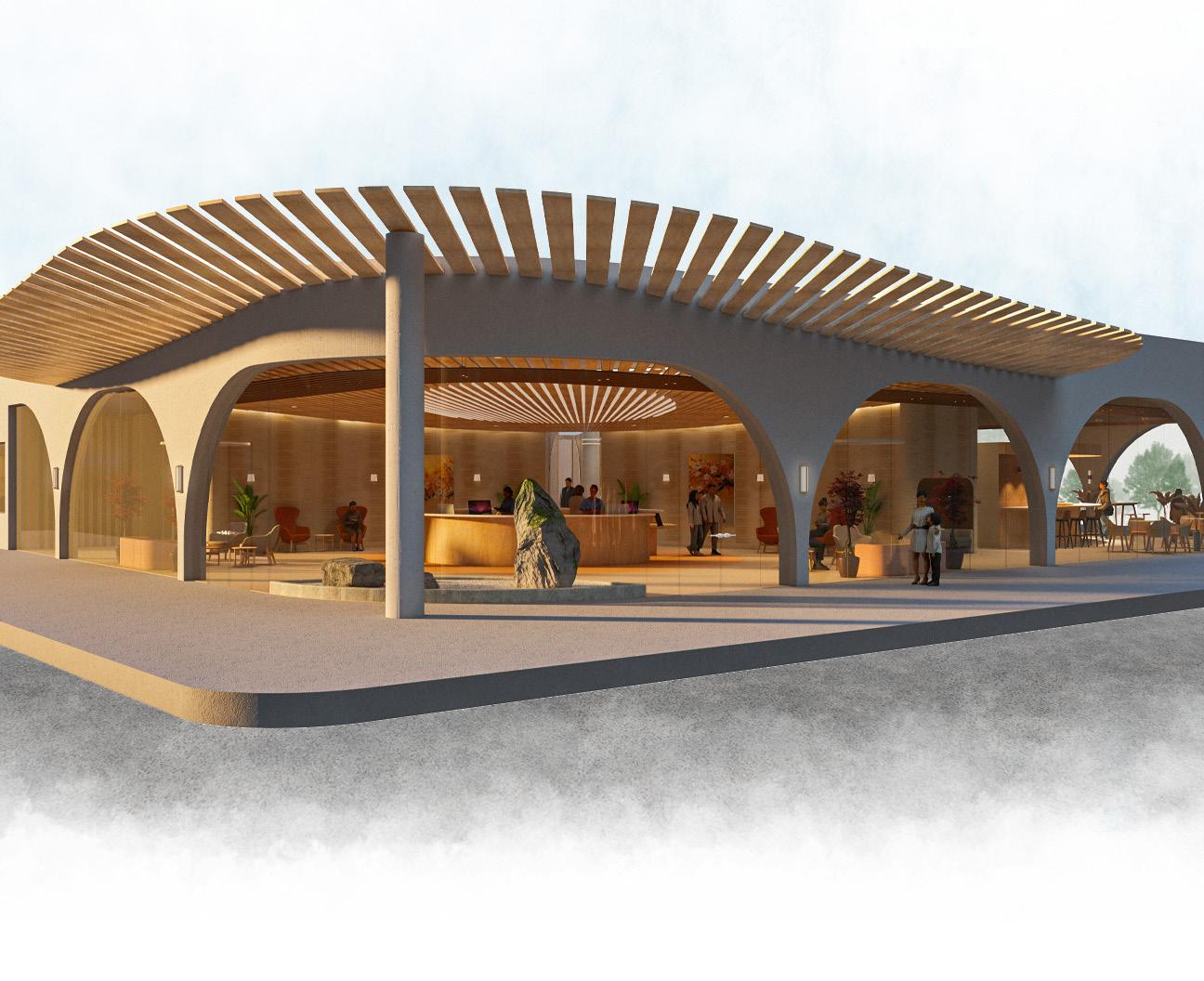

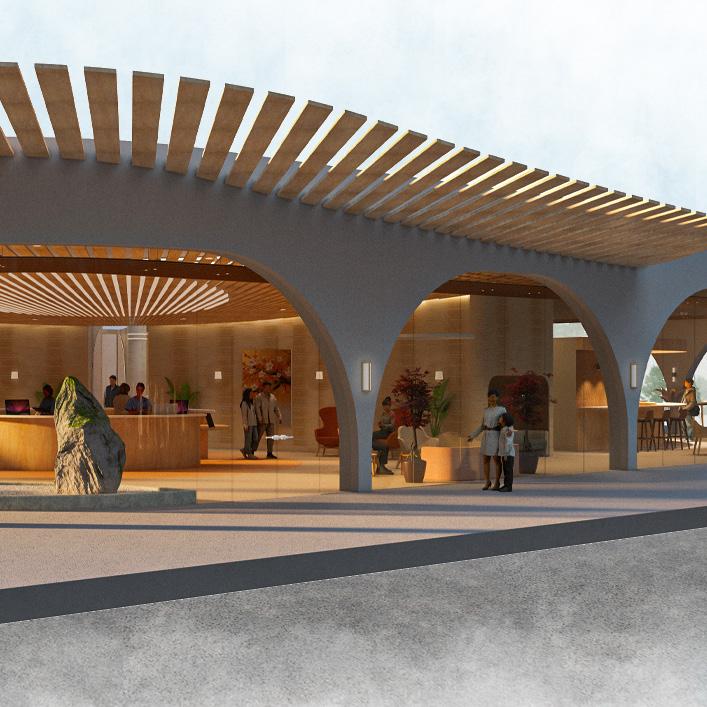

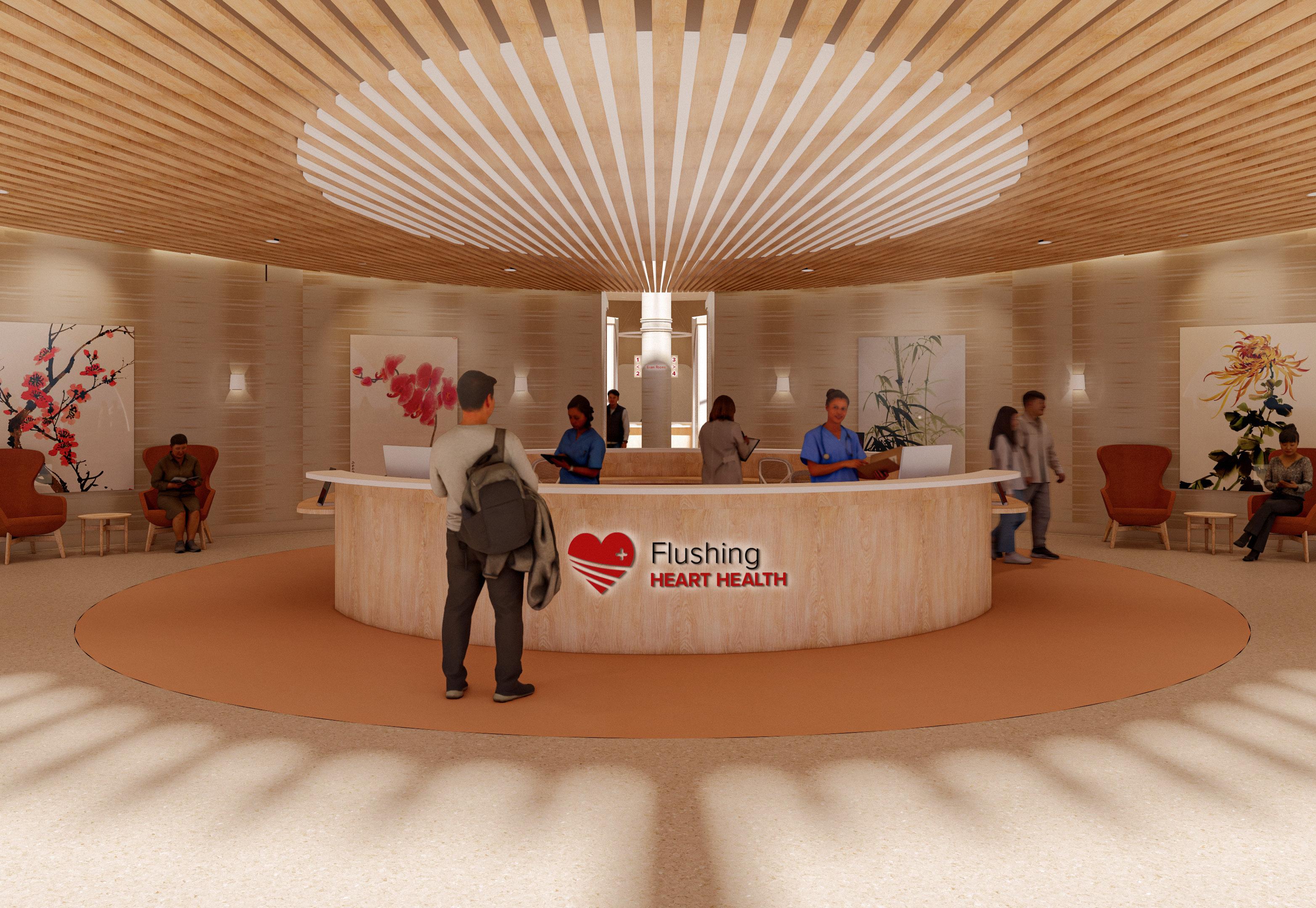

RECEPTION

13

A 7

6

6 12 4

2

11

8

11

5

9

1

Reception

2

Waiting Area

3

Exam Room

4

Doctor’s Office

5

Nurses’ Station

6

Echocardiogram

7

Stress Test

8

Storage Room

9

Laboratory

10 Medical Waste Storage 3

2

11 Restroom

4

12 Cafe

3

10

4

13 Staff Break Room

3

11

14 Conference Room 2

3

11

15 Admin Office

13 1 4 14

2

15

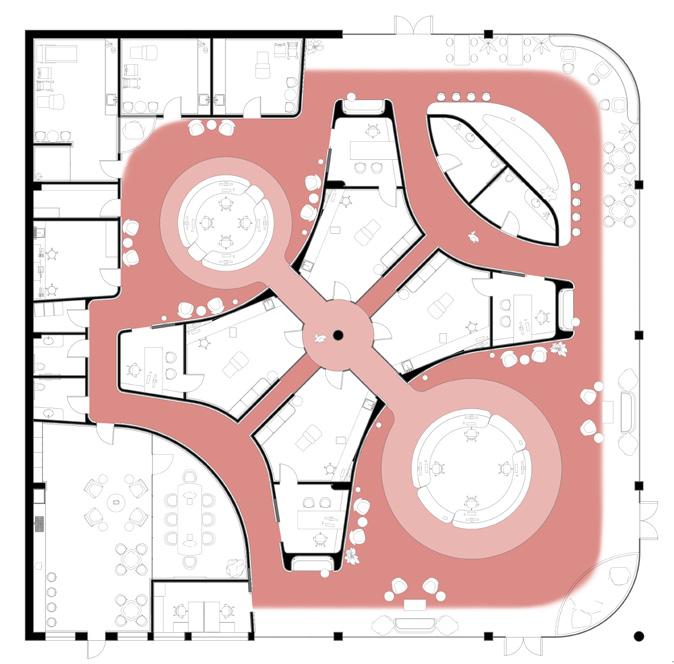

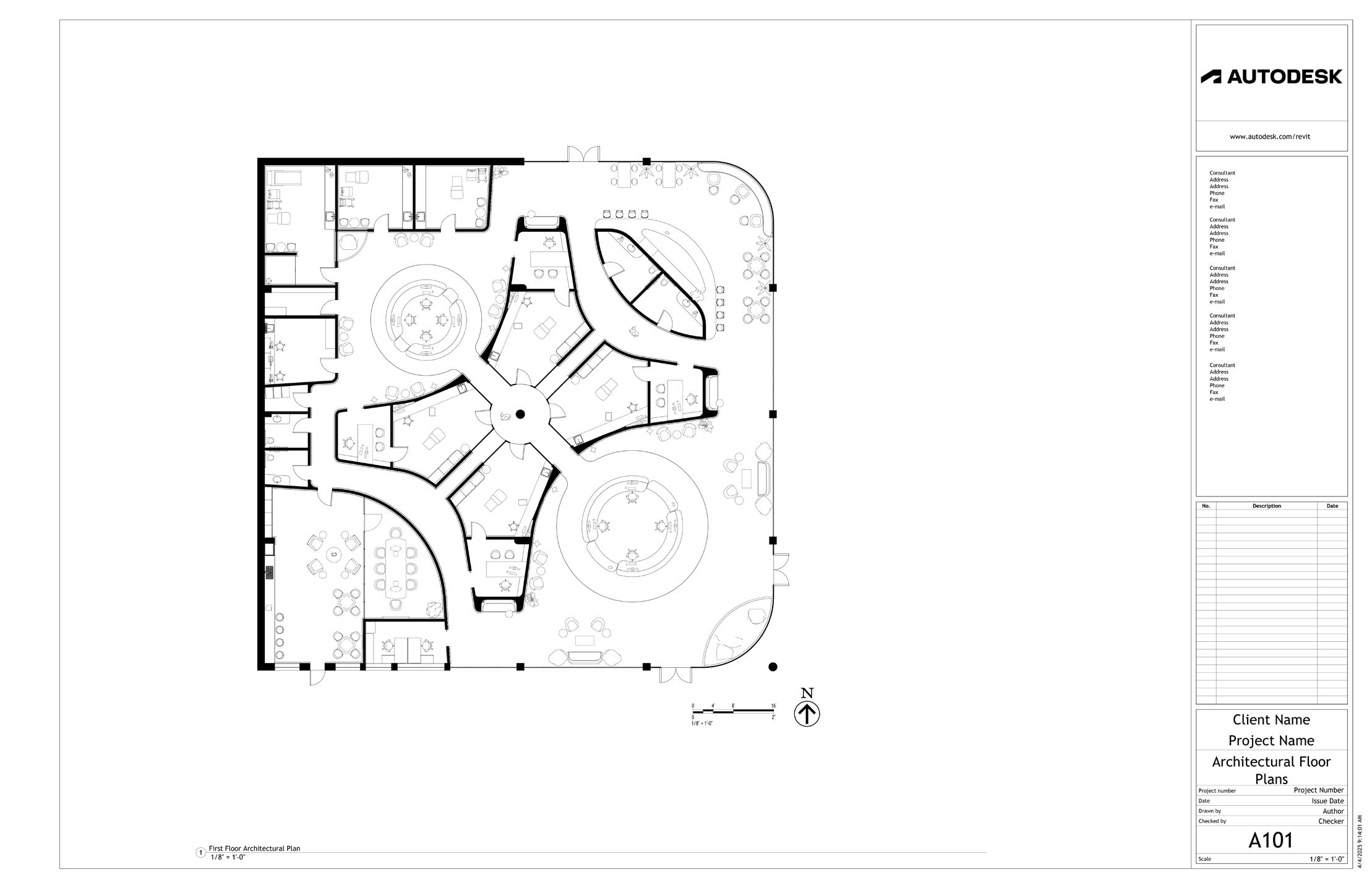

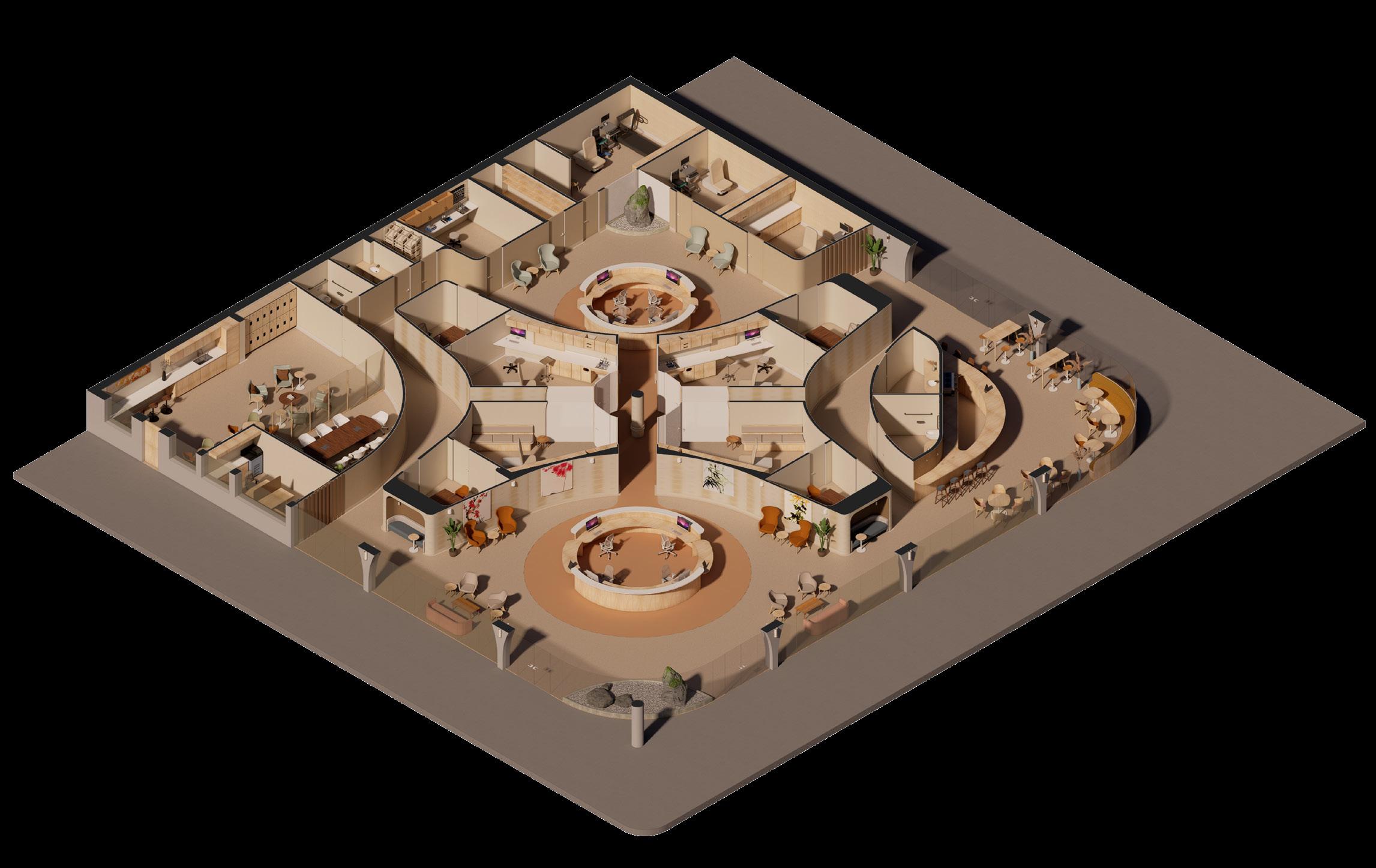

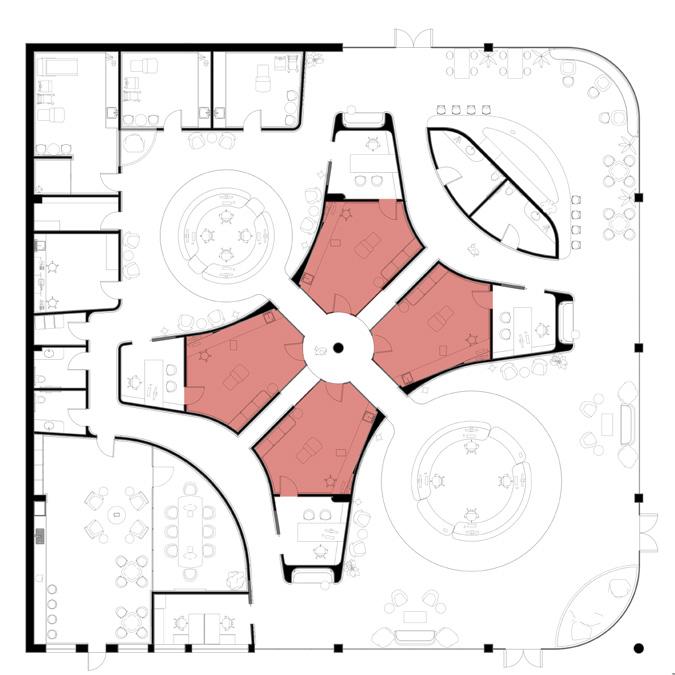

FLOOR PLAN

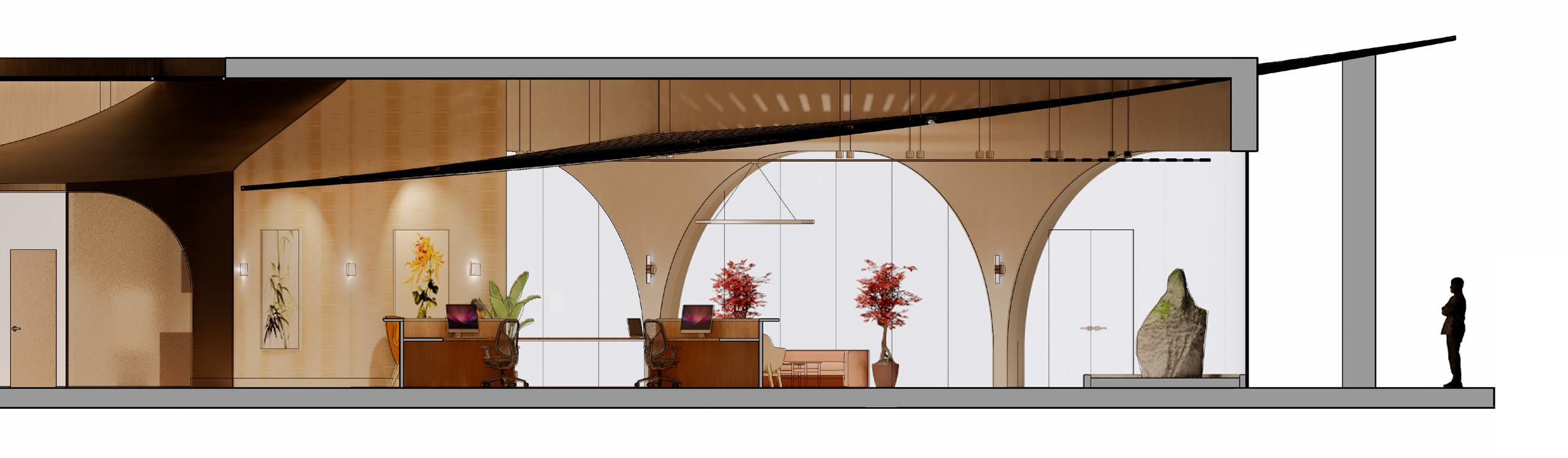

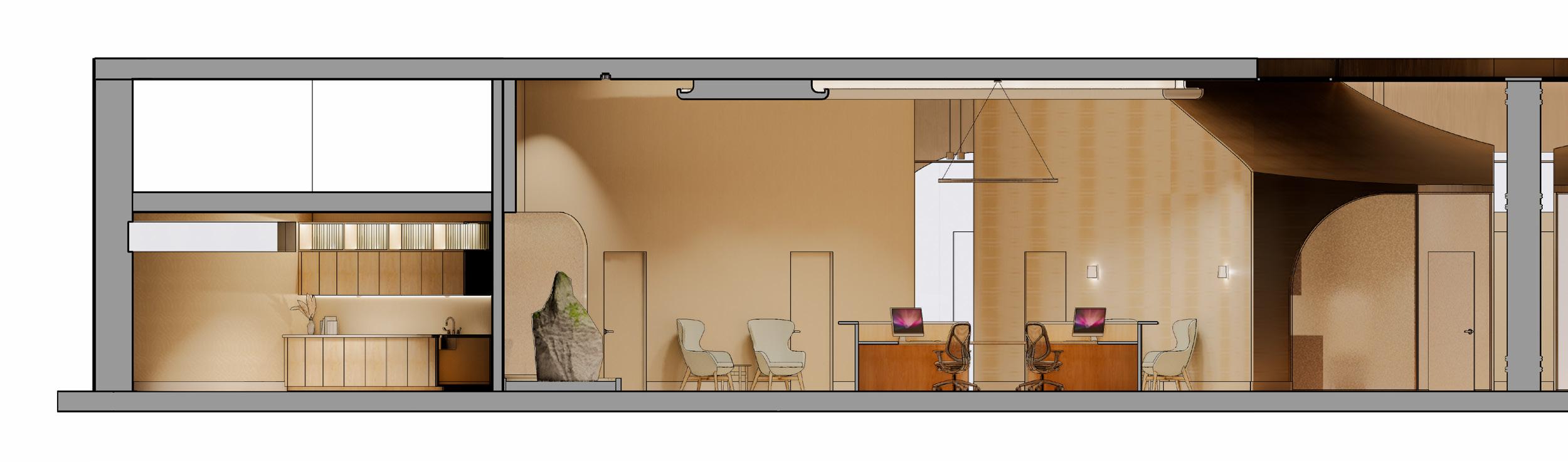

SECTION A-A

14

A

N

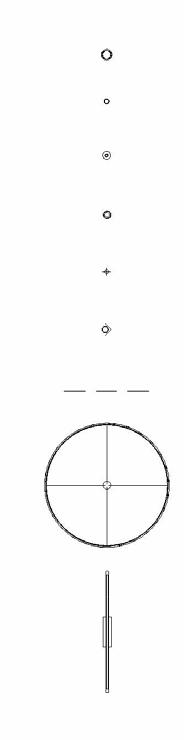

A LIGHTING LEGEND Recessed Light 4” dia.

Recessed Light 2” dia.

Pendant Downlight 4” dia.

Pendant Downlight 2” dia.

Cylindrical Pendant 2” dia.

Wall Washer Linear LED Strip Light Direct/Indirect Ring Pendant Linear Pendant

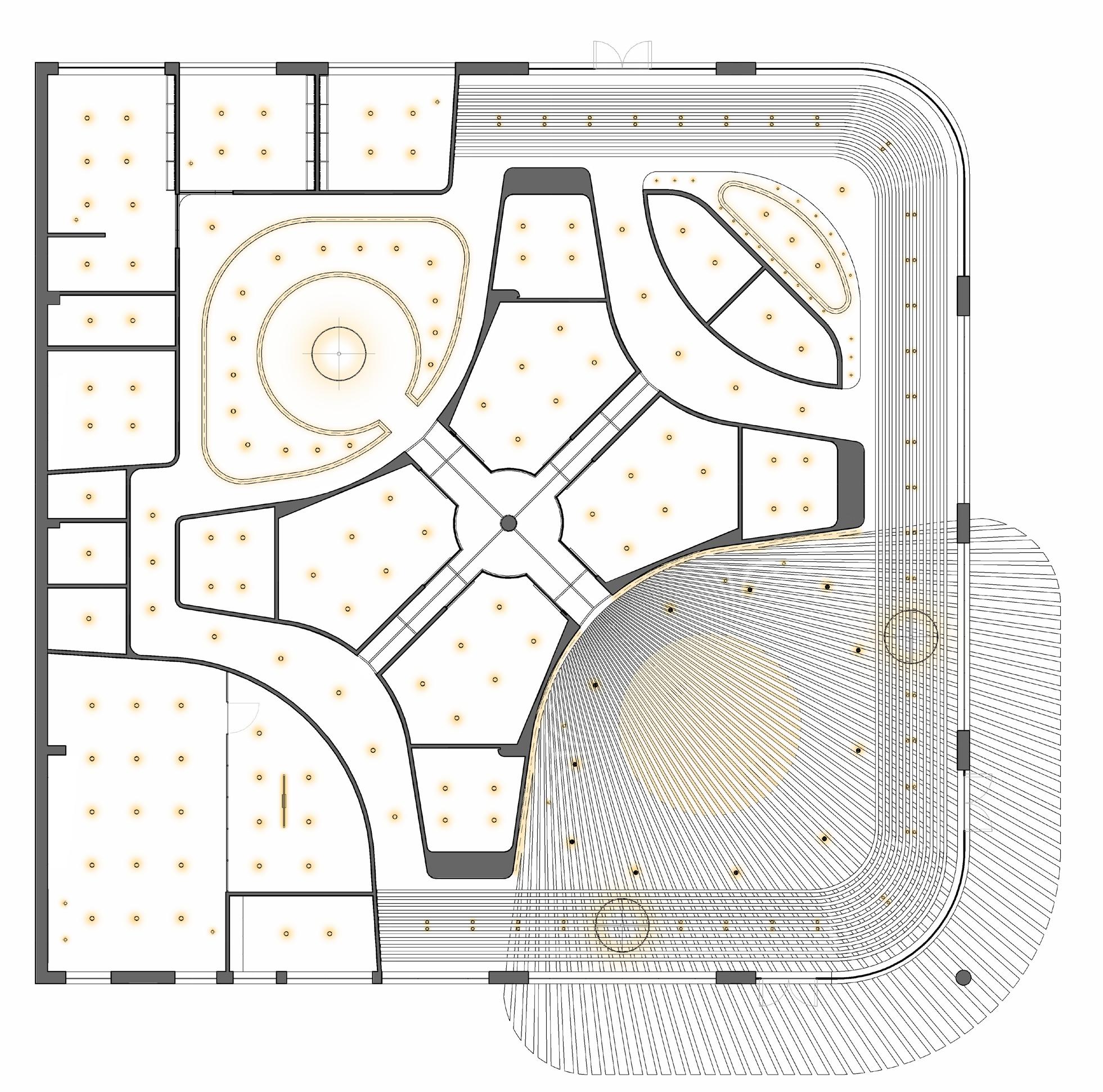

REFLECTED CEILING PLAN

A

N

15

A GRA M S

S CH EM A T IC D IA G RA M S

DESIGN DEVELOPMENT

16

EXAM ROOMS

CIRCULATION

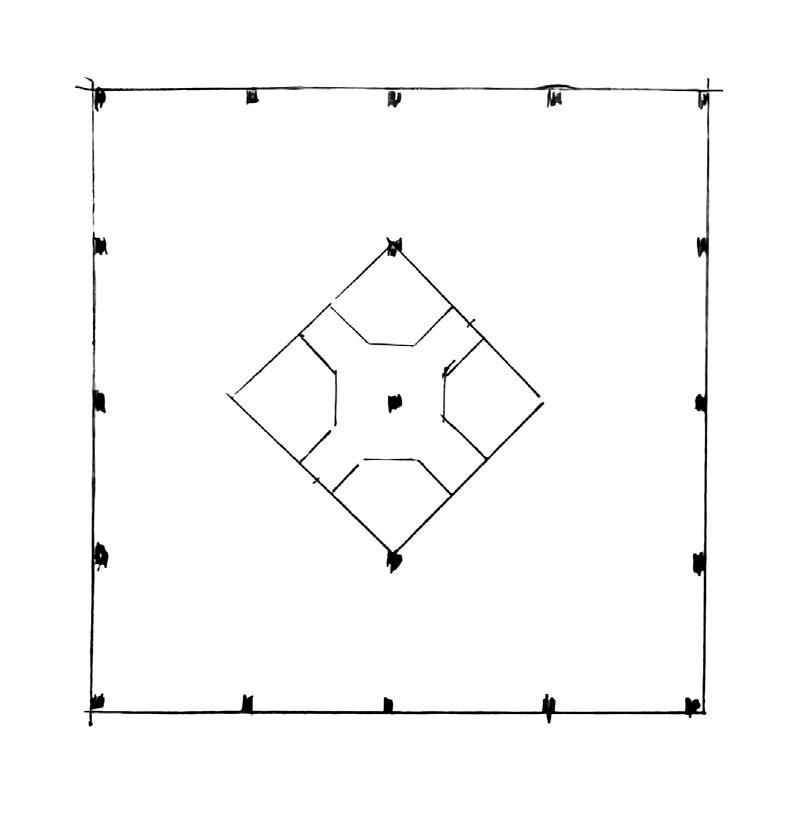

Patients receiving treatment in the exam rooms are positioned at the heart of the clinic. The shape is also reflected in the skylight, which brings additional natural light into the space.

17

1

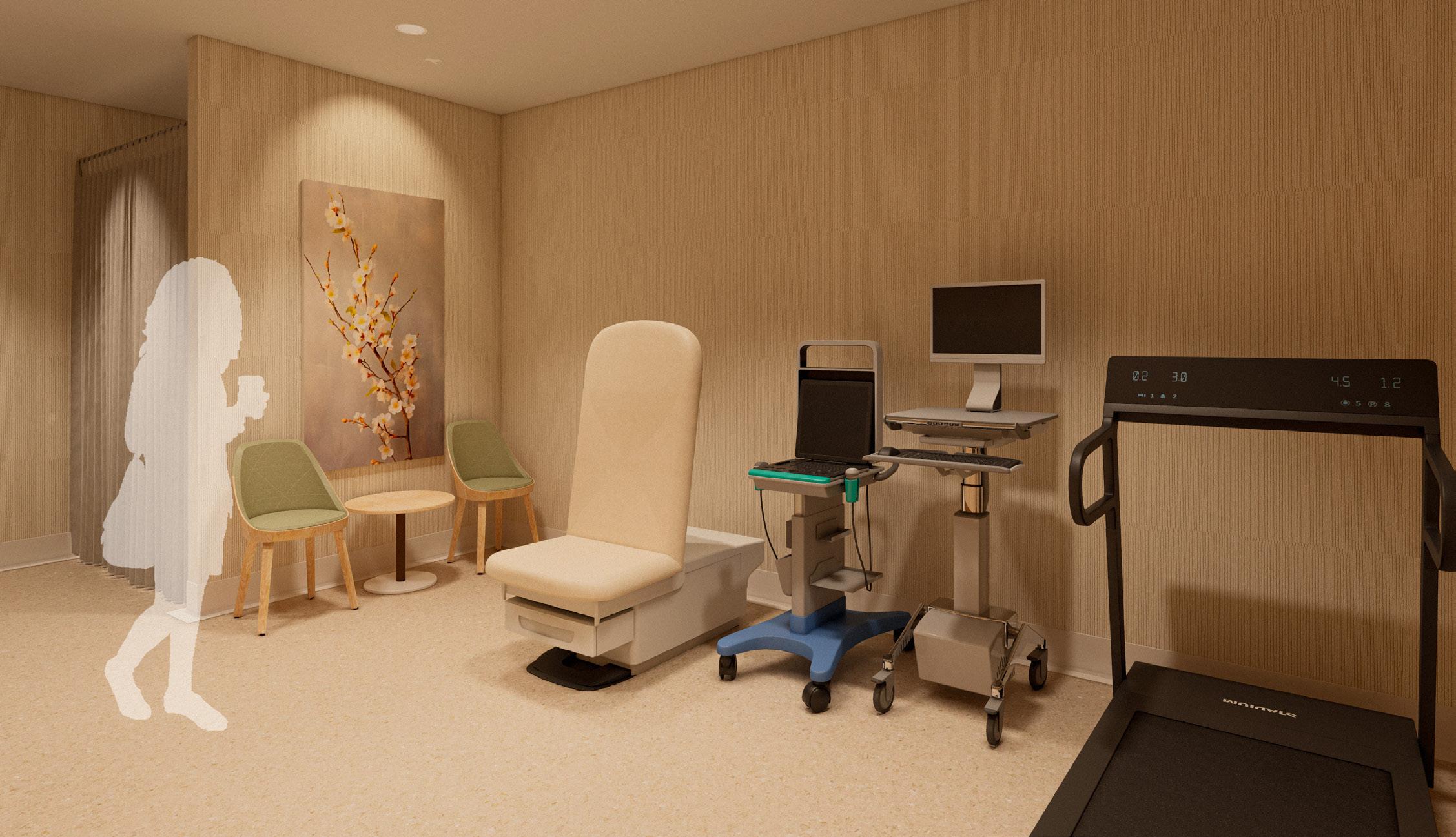

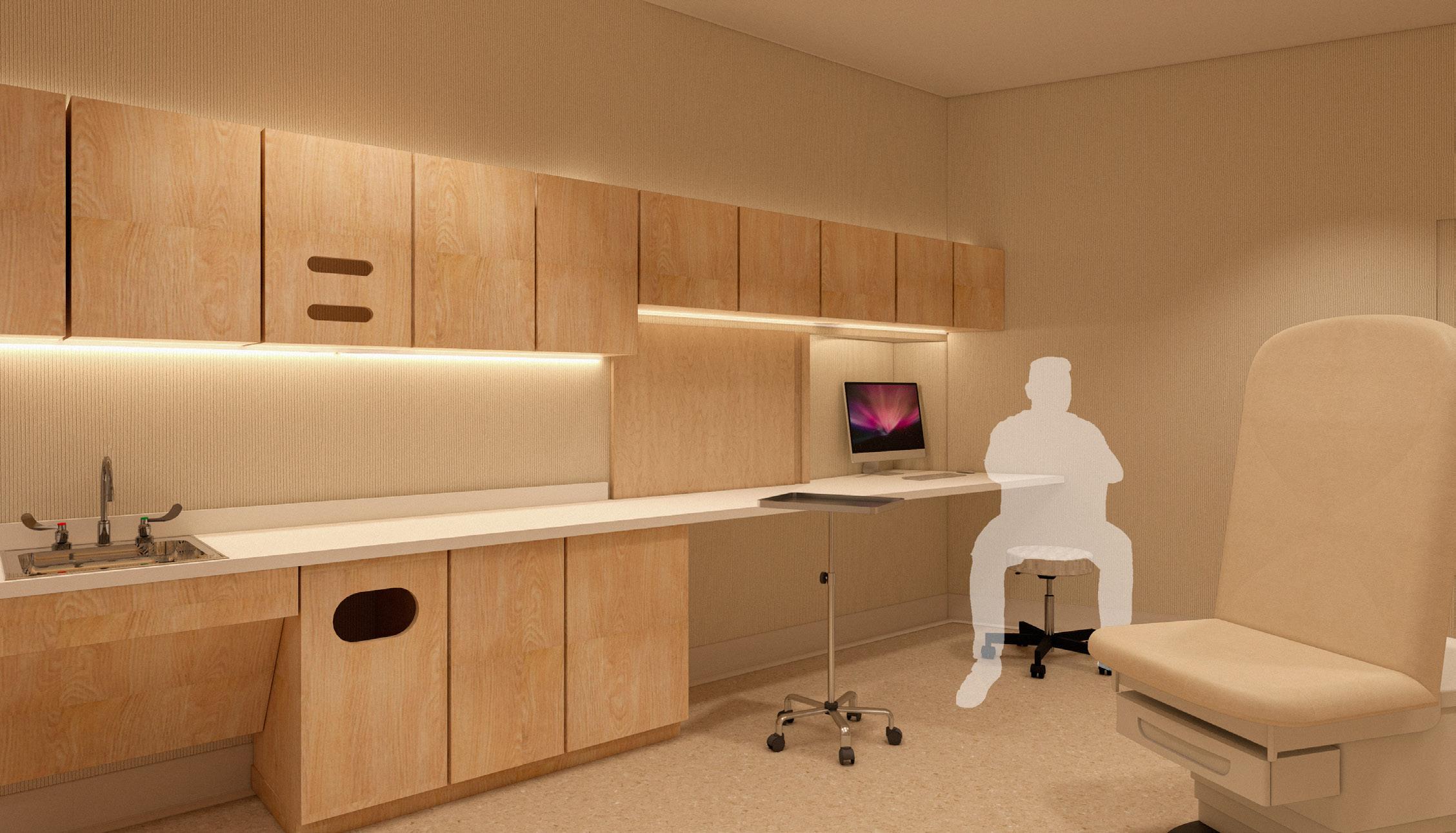

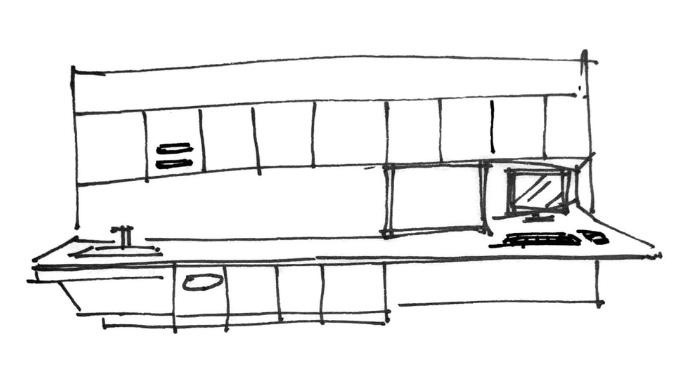

EXAM ROOM

2

1

18

3

2

STRESS TEST ROOM

1 2 3 4 3

1

2

3

4

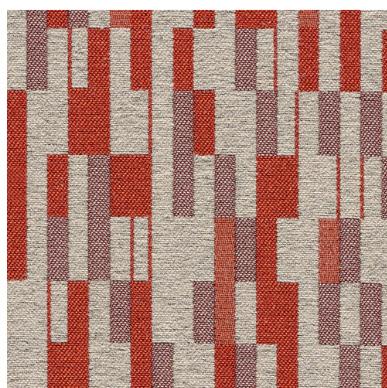

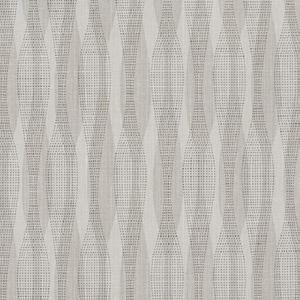

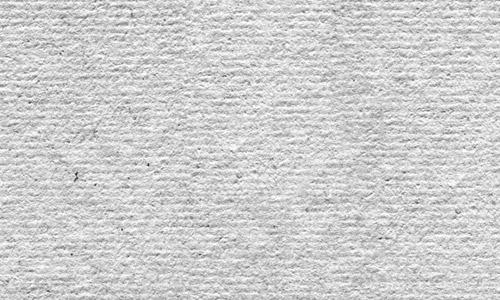

Designtex (Cirrus | Sand) Designtex (Felt 2mm | Nettle) Designtex (Billiard Cloth | Storm Cloud) Designtex (Current | Misty Gray)

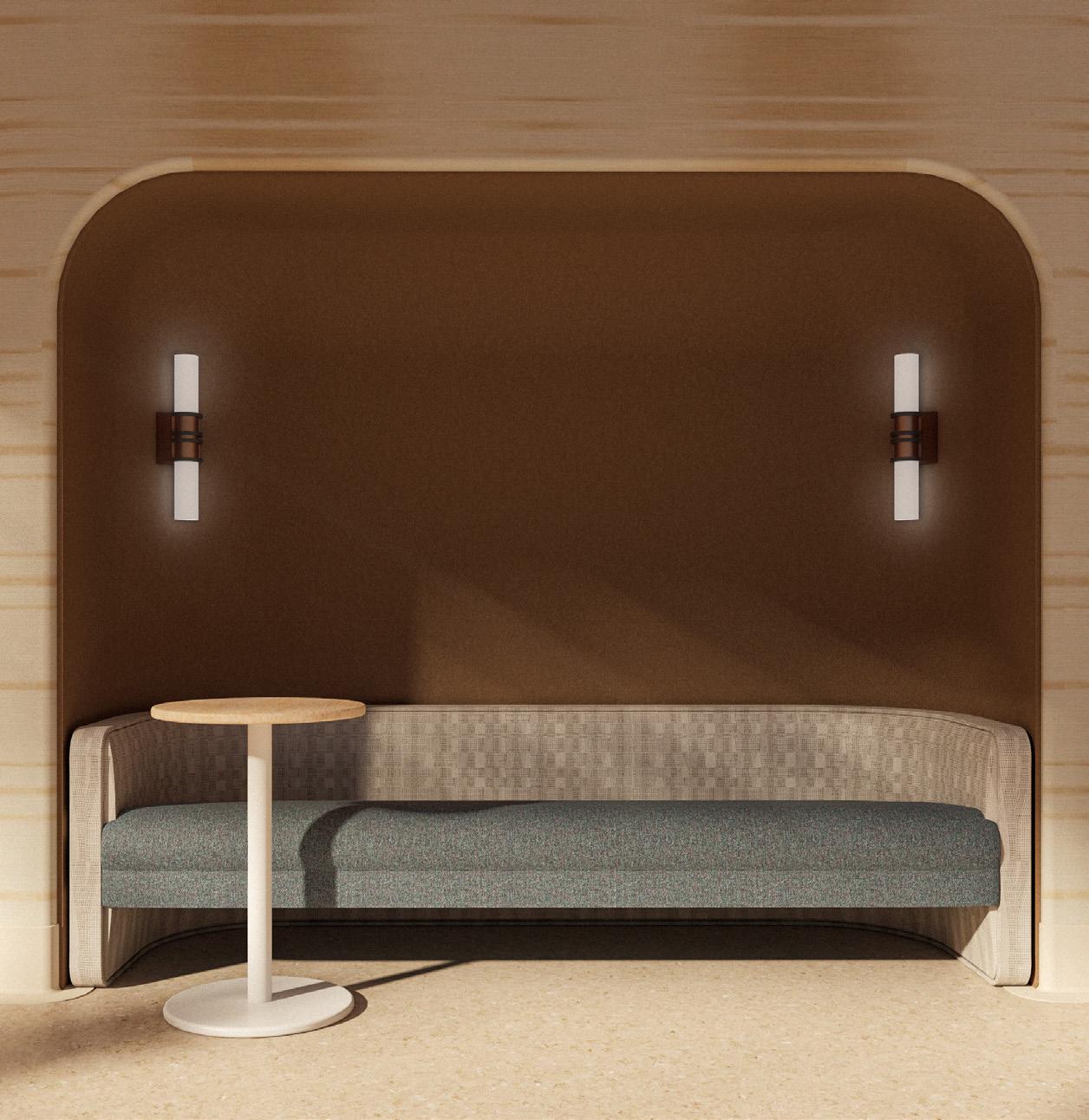

SEATING NICHE

19

HOTEL MARINEAUX TYPE: HOSPITALITY SKILLS: REVIT, ENSCAPE, PHOTOSHOP

Anchored in Montréal’s history and cultural identity, Hotel Marineaux draws inspiration from the city’s geographic location at the confluence of the St. Lawrence and Ottawa Rivers.

The design adopts a sculptural, abstract language that evokes the essence of ships, water, and movement. Taking a modern approach not only explores the contemporary expression of flow and connection, but more importantly honors Montréal’s legacy as a vibrant port city and crossroads of trade, culture, and creativity. Sculptural, curving walls shape the interior, guiding guests through a river-like circulation that begins the moment one enters the building. A rich interplay of metallic finishes and lustrous fabrics capture the reflective quality of water, introducing moments of sparkle that infuse the space with a sense of grandeur and contemporary luxury.

20

HOTEL CAFE

INSPIRATION IMAGES

21

4

5

5

9

5

7 3

2 6

8

3

A

1

A

N ENTER

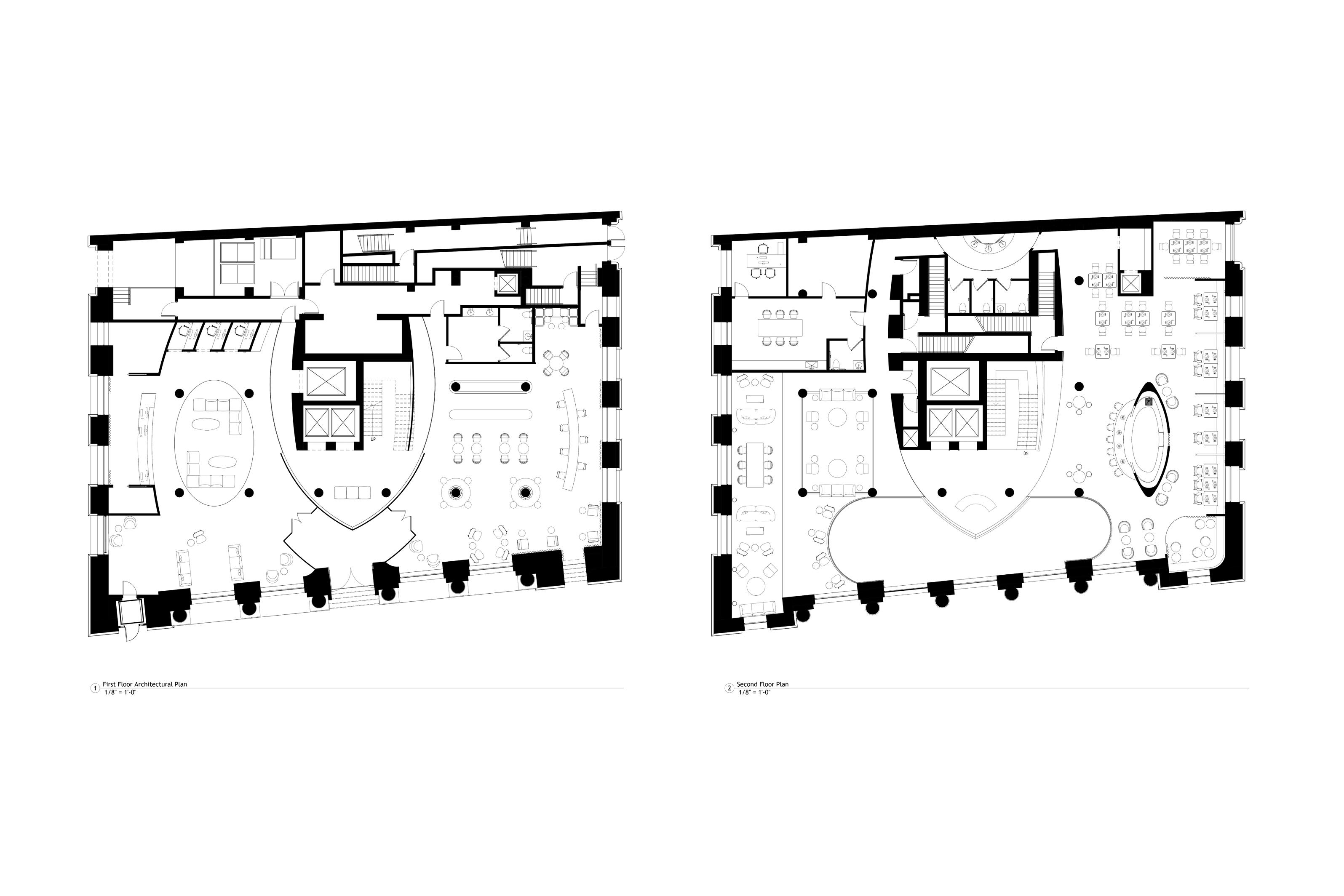

FIRST FLOOR PLAN

22

12

9

11 9

14

7 10

13 6

A

A

OPEN TO BELOW

N

SECOND FLOOR PLAN

1

VESTIBULE

8

CAFE

2

LOBBY

9

RESTROOM

3

CHECK-IN/CONCIERGE

10 BAR

4

BAGGAGE STORAGE

11 STAFF OFFICES

5

BUSINESS CENTER

12 STORAGE

6

ELEVATOR BANK

13 BAR

7

STAIRS

14 RESTAURANT

23

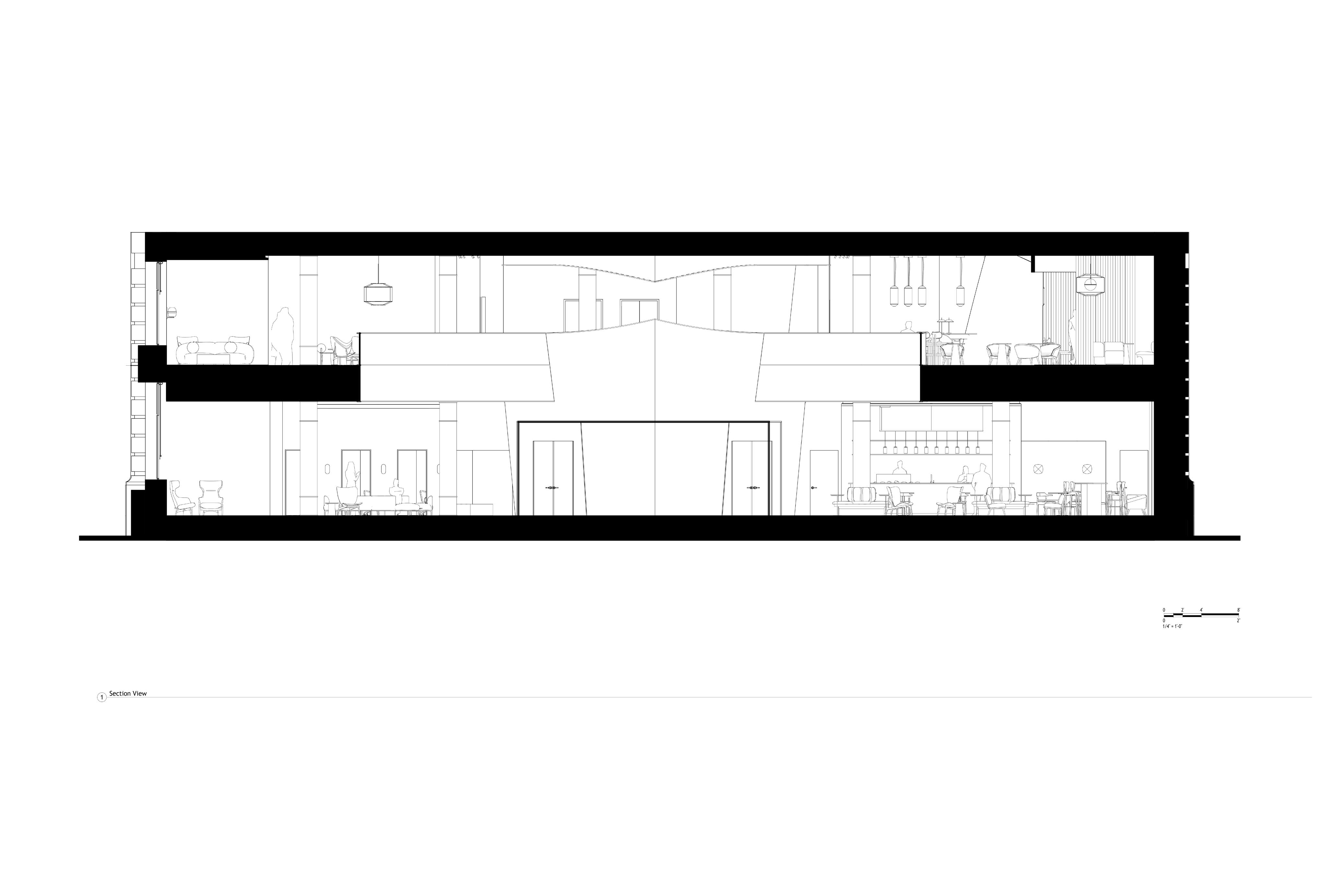

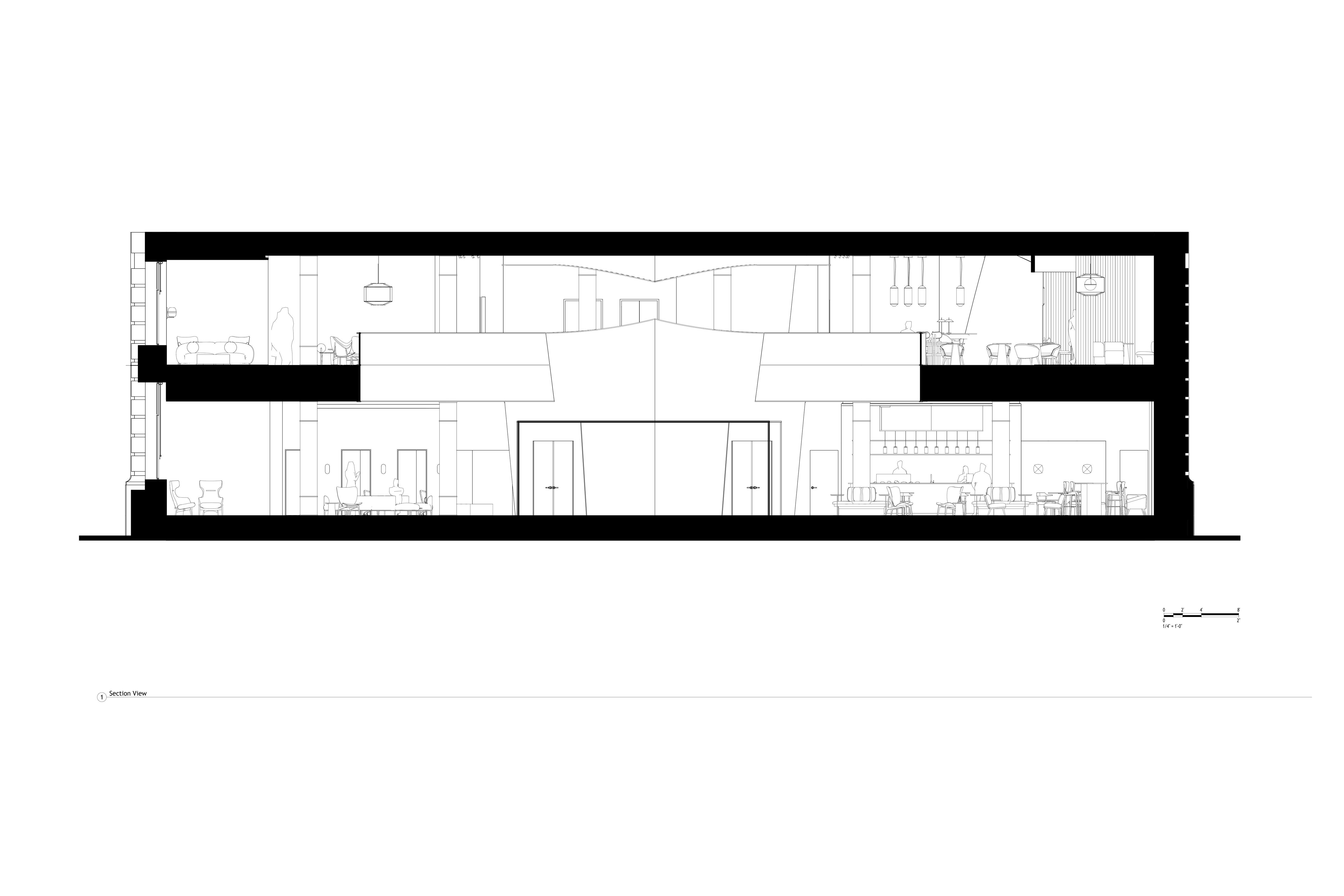

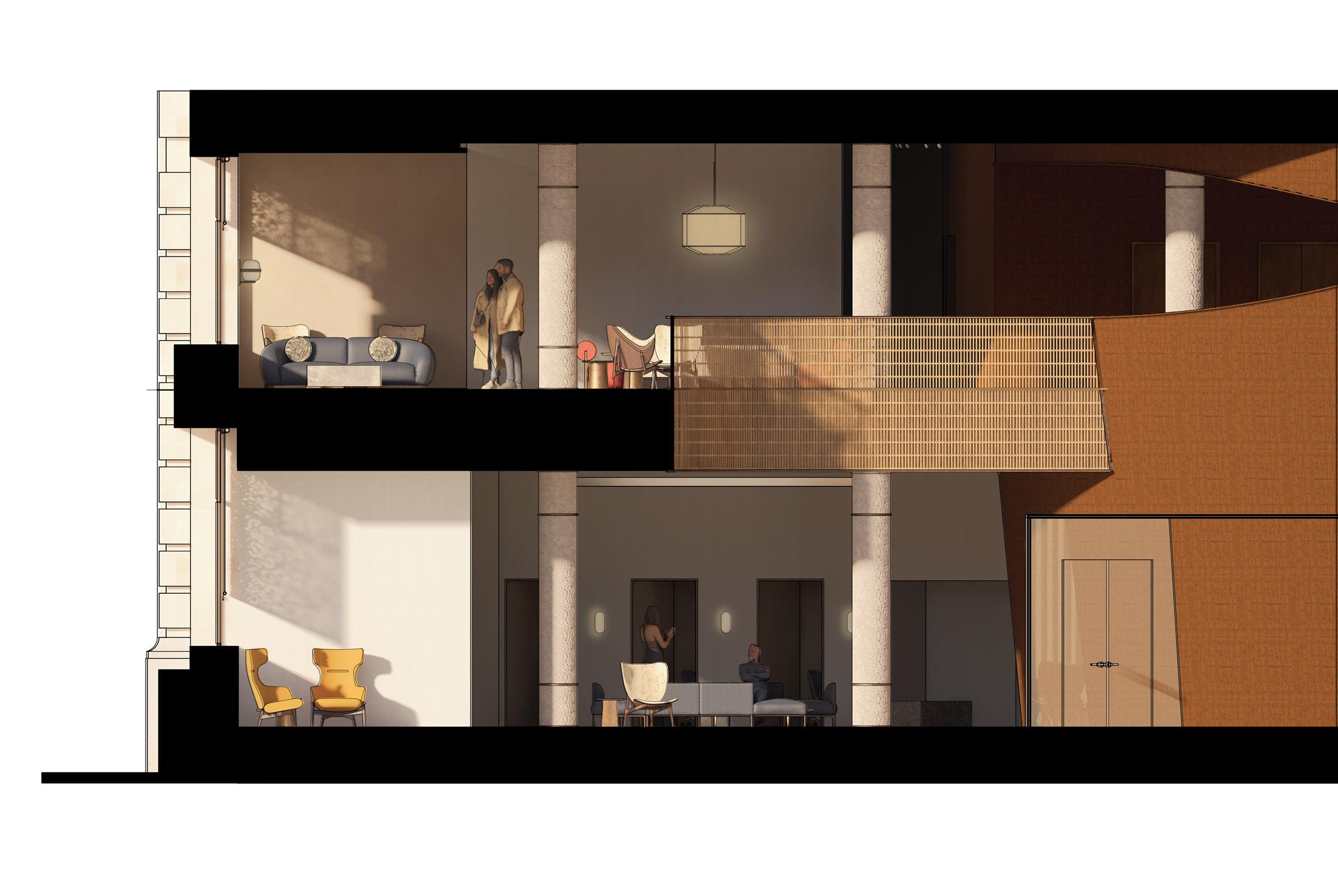

ＳＥＣＴＩＯN A-A

Lounge

Lobby/Check-In

Elevator Bank

Vestibule Semi Public Program

24

Restaurant

Cafe

Public Program

The large, ship-like feature serves to separate the hotel into two halves vertically. One half is dedicated to serving hotel guests (lobby/ check-in and hotel lounge). The other half contains the public-facing program, such as the cafe and restaurant. This was intentionally designed to contain louder program areas to one side of the hotel.

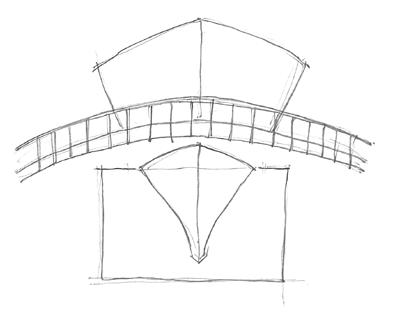

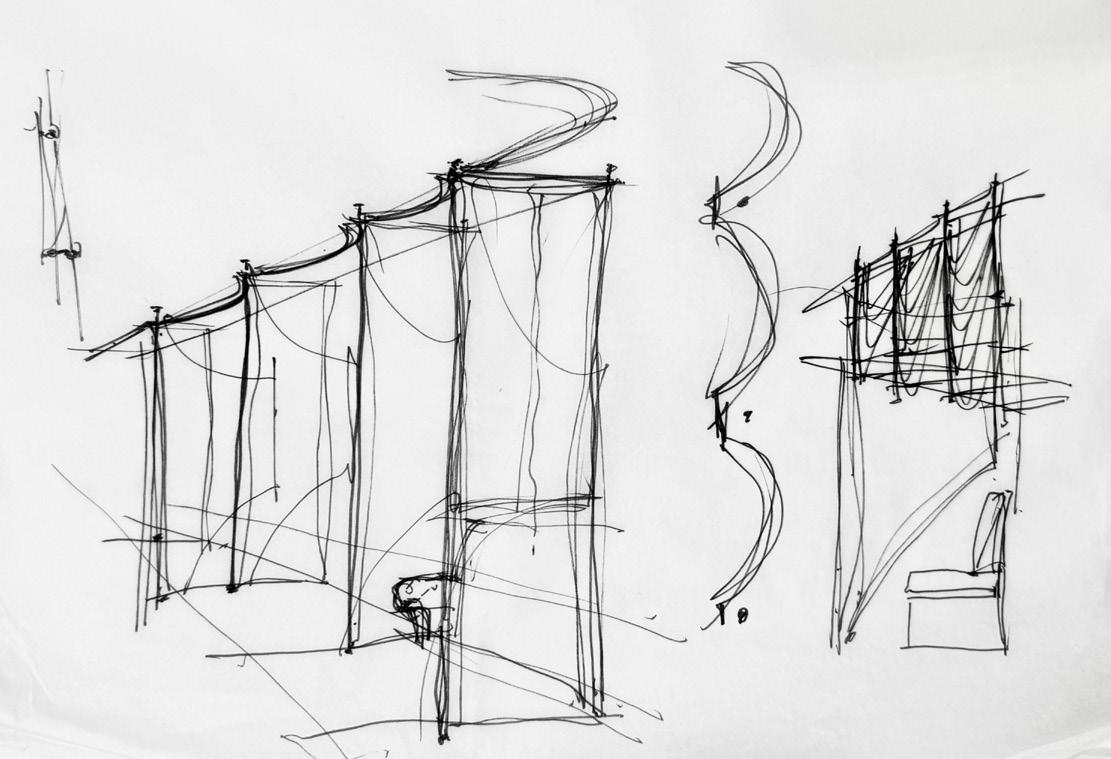

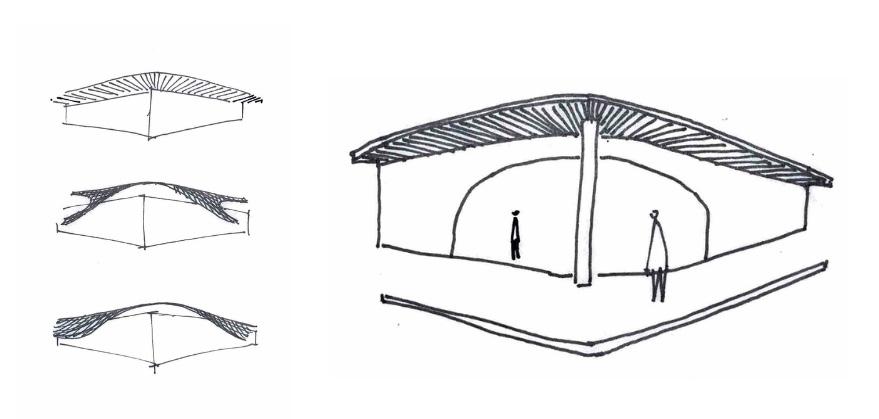

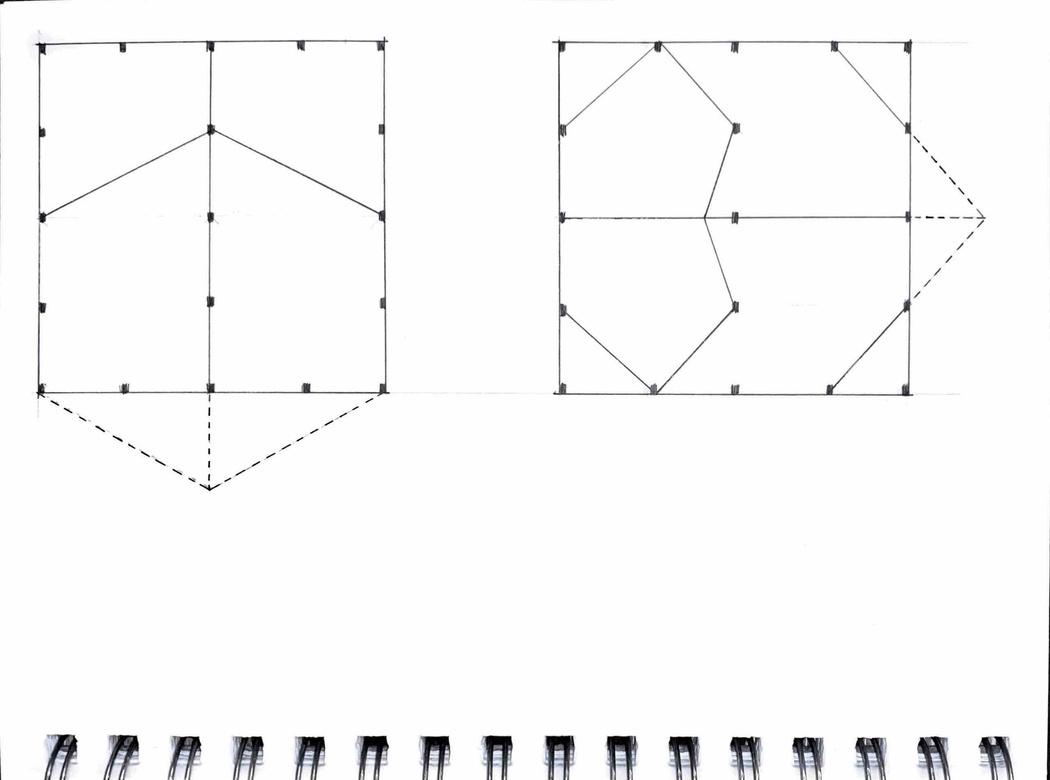

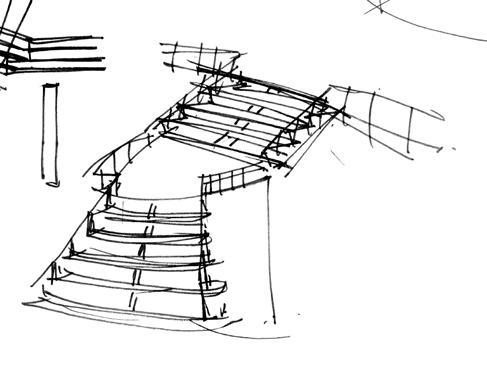

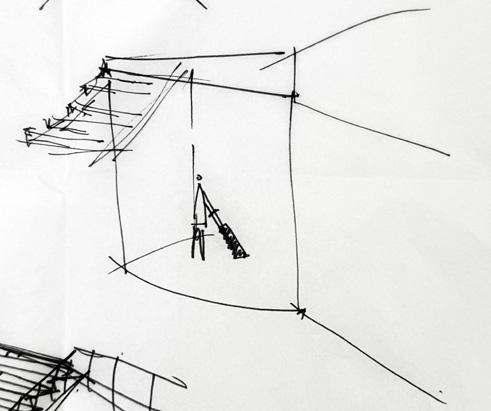

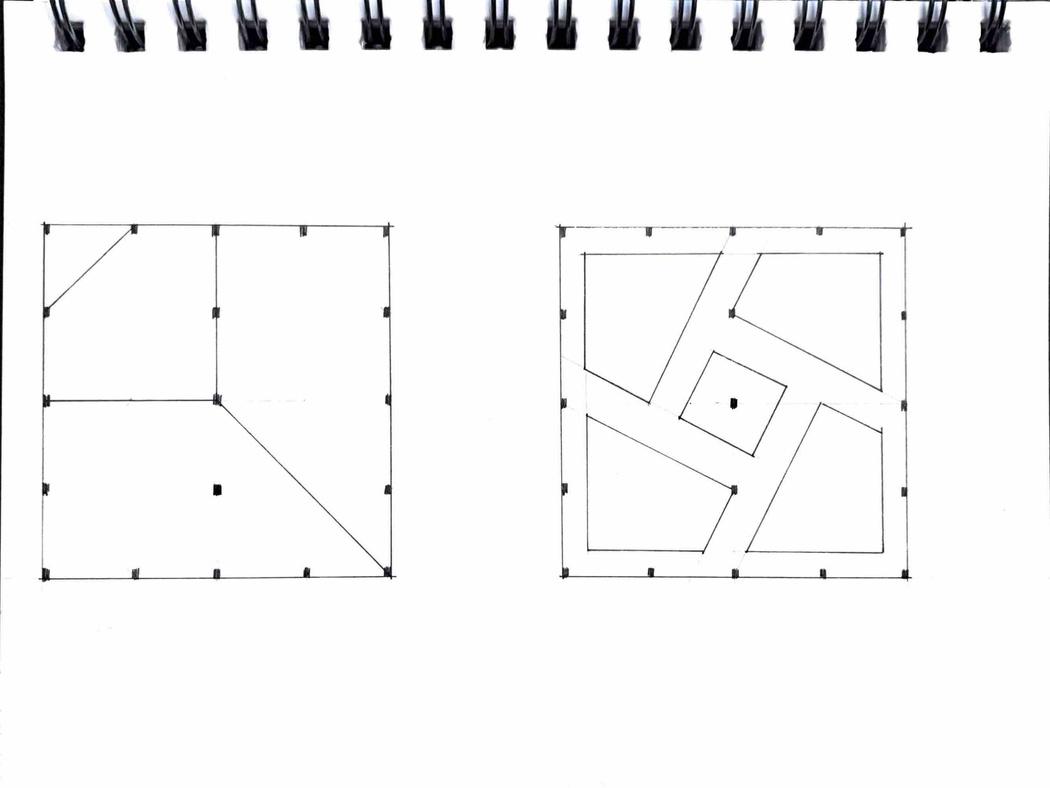

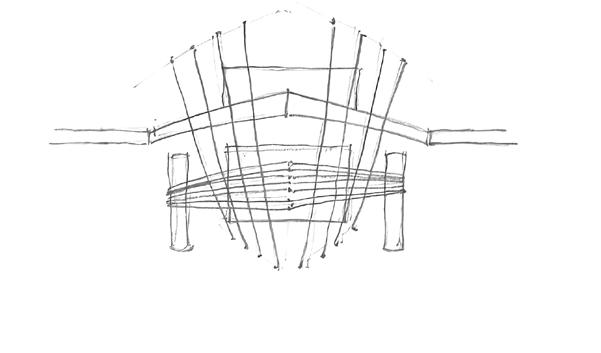

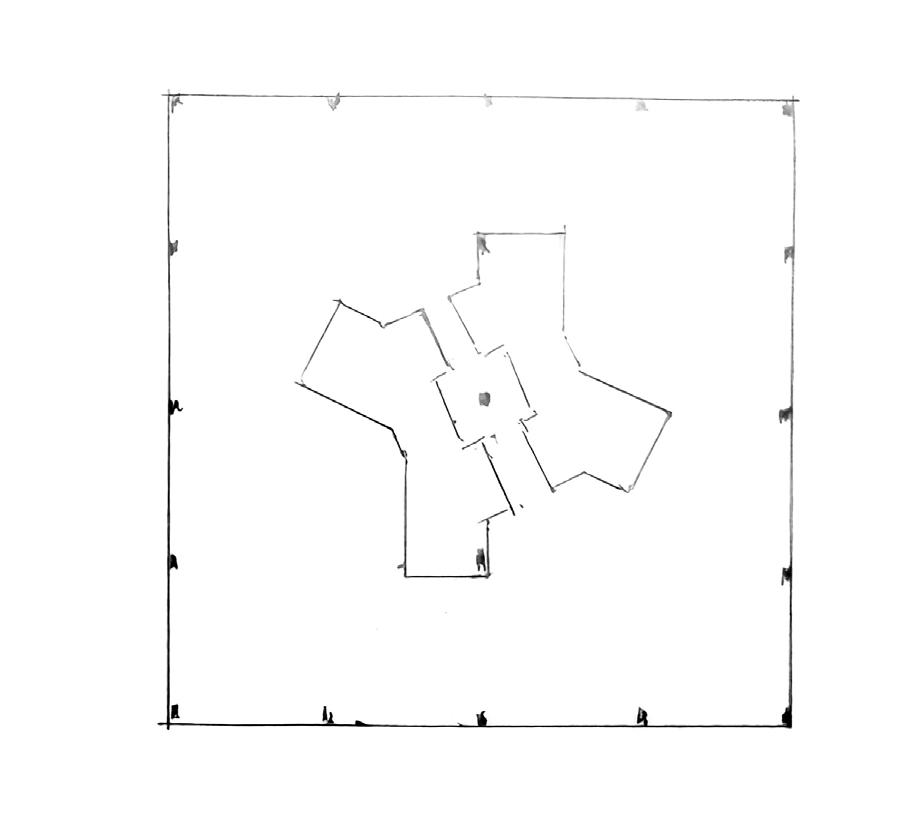

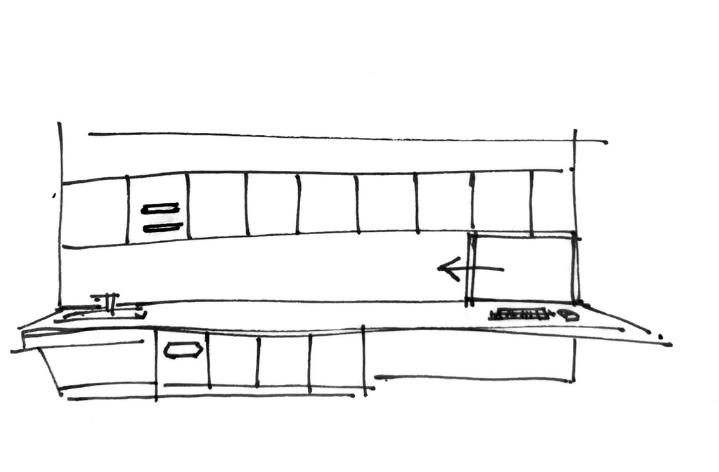

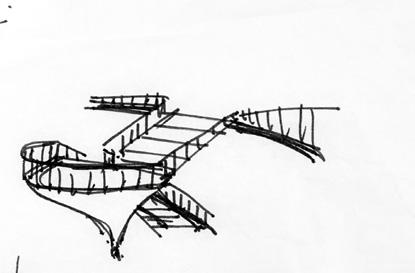

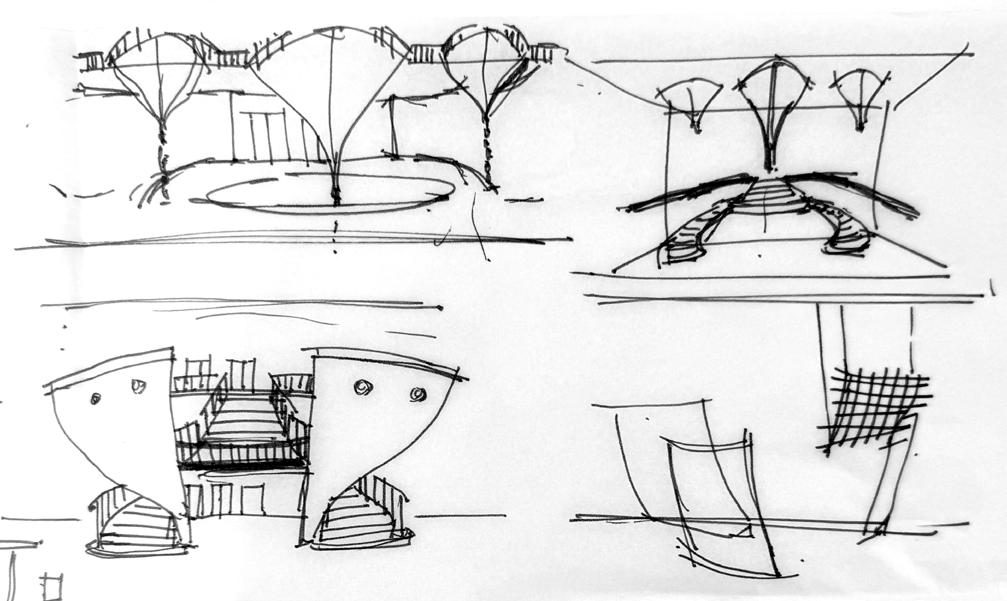

INITIAL SKETCHES

25

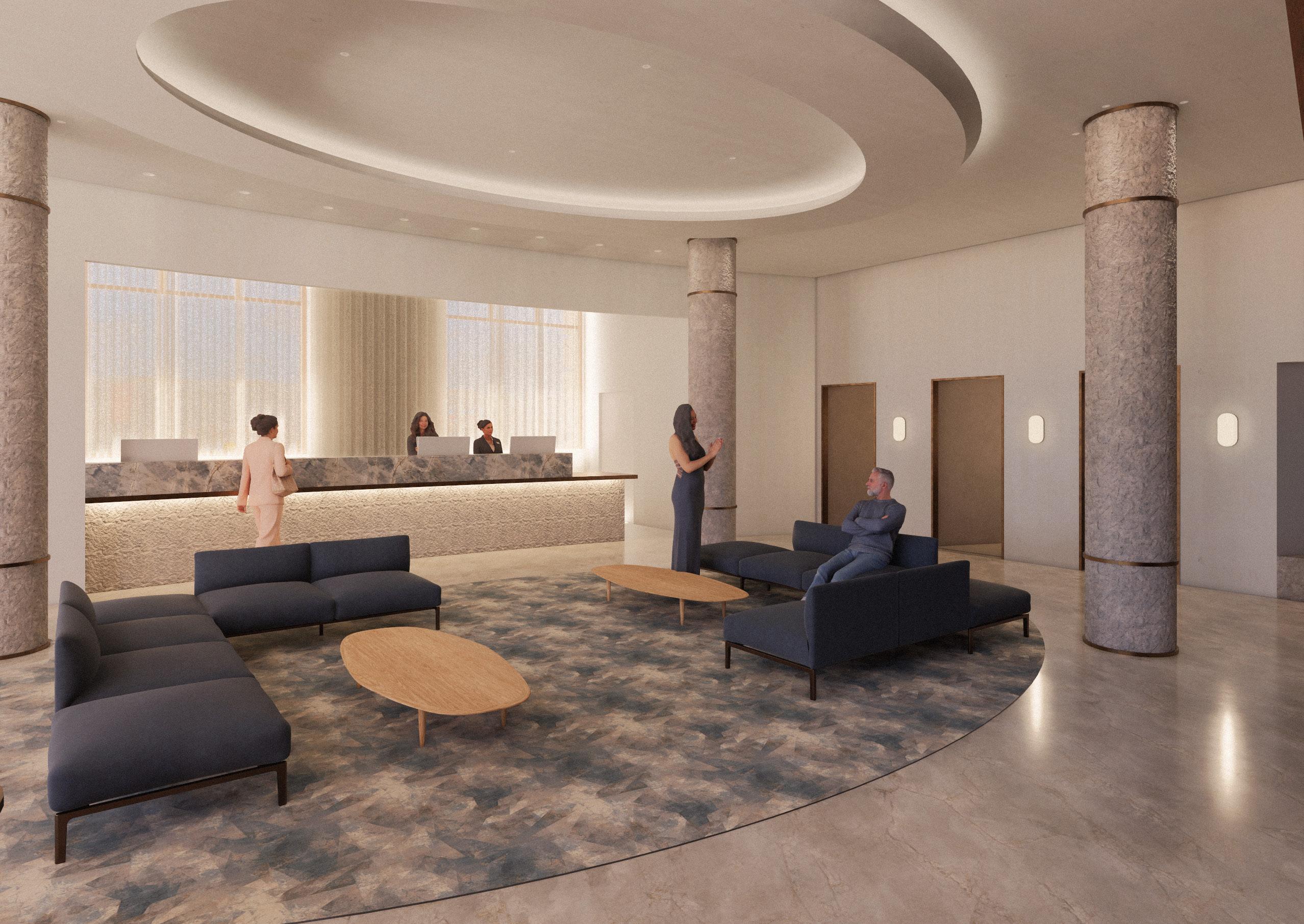

LOBBY/CHECK-IN

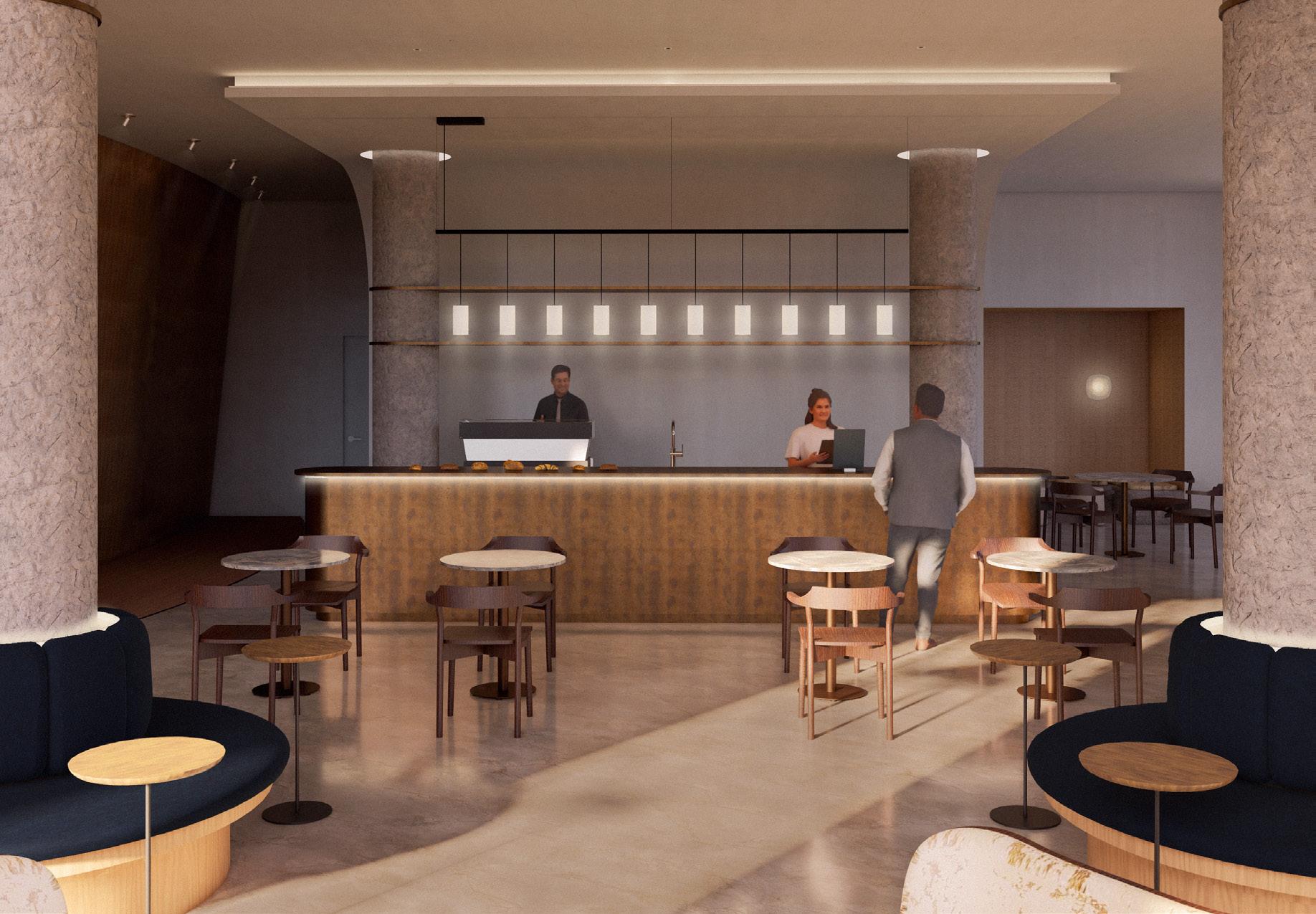

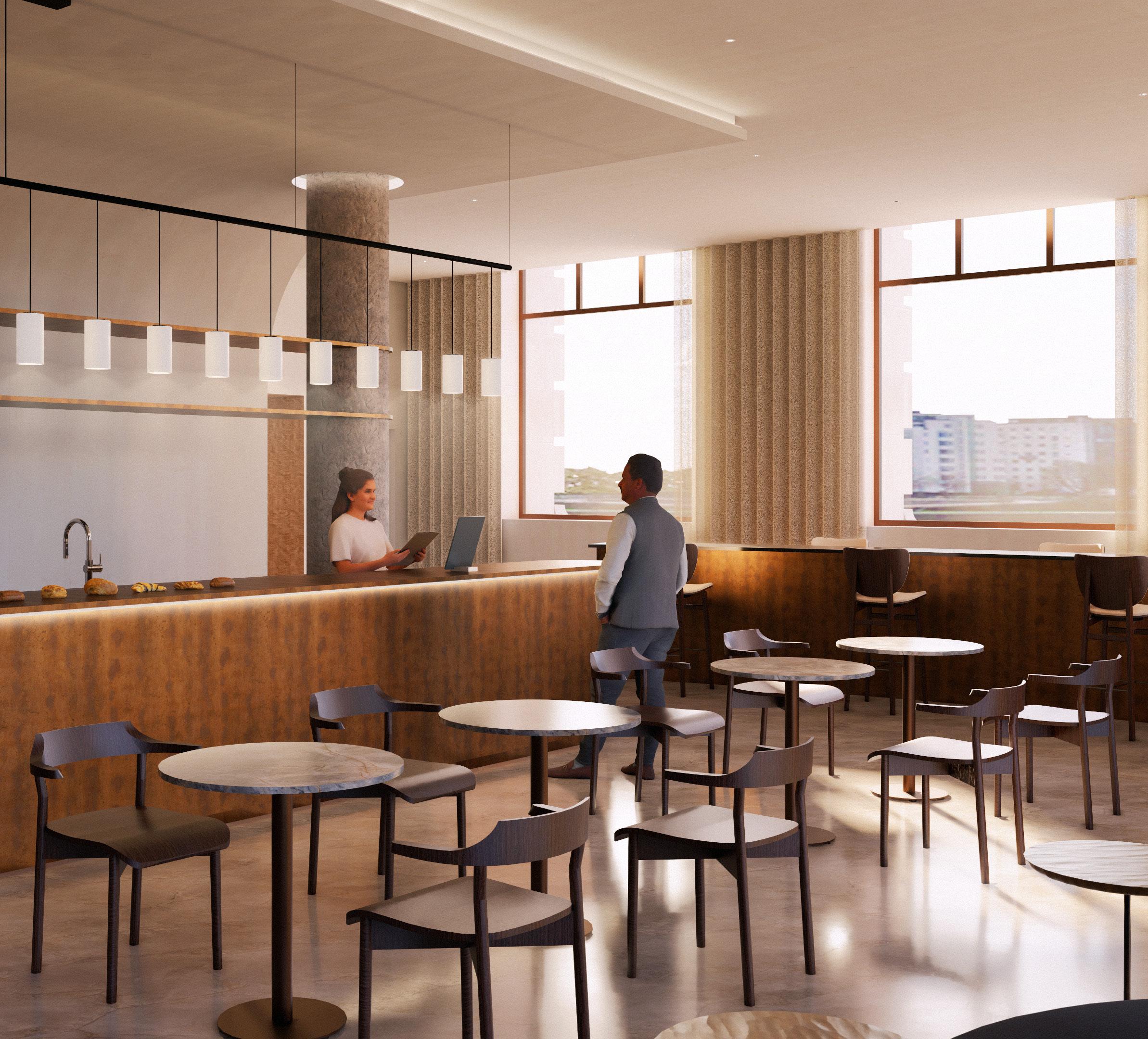

CAFE

26

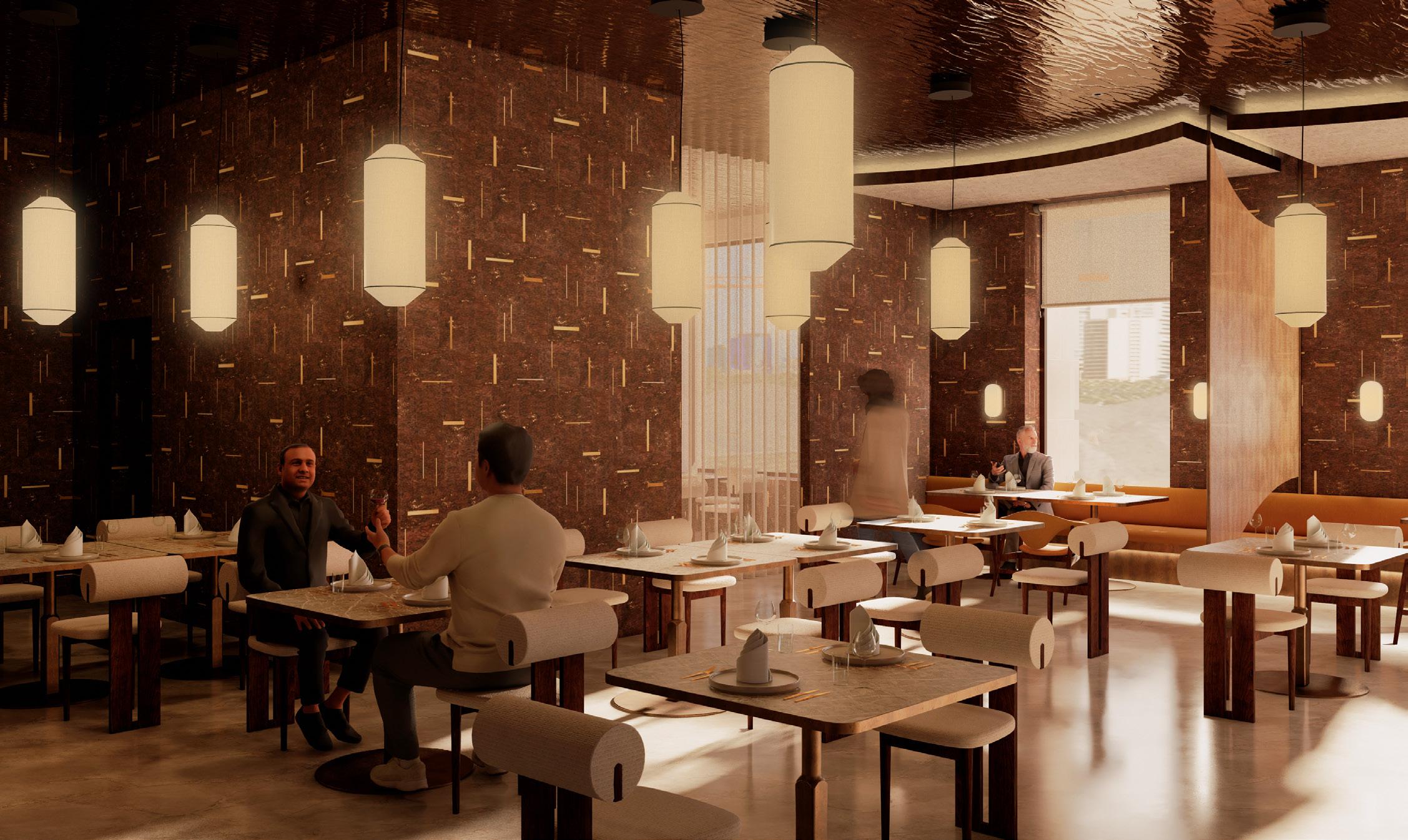

RESTAURANT

The first floor of the hotel features cooler-toned materials and finishes paired with neutral color-temperature lighting, evoking the diffused quality of afternoon light at a port. The second floor transitions into more night-time program (restaurant and bar) with dramatic contrasts of light and shadow. Warmer color temperature lighting with reflective, shimmery materials mimic the golden glow emanating from windows as you view a harbor at night.

27

1

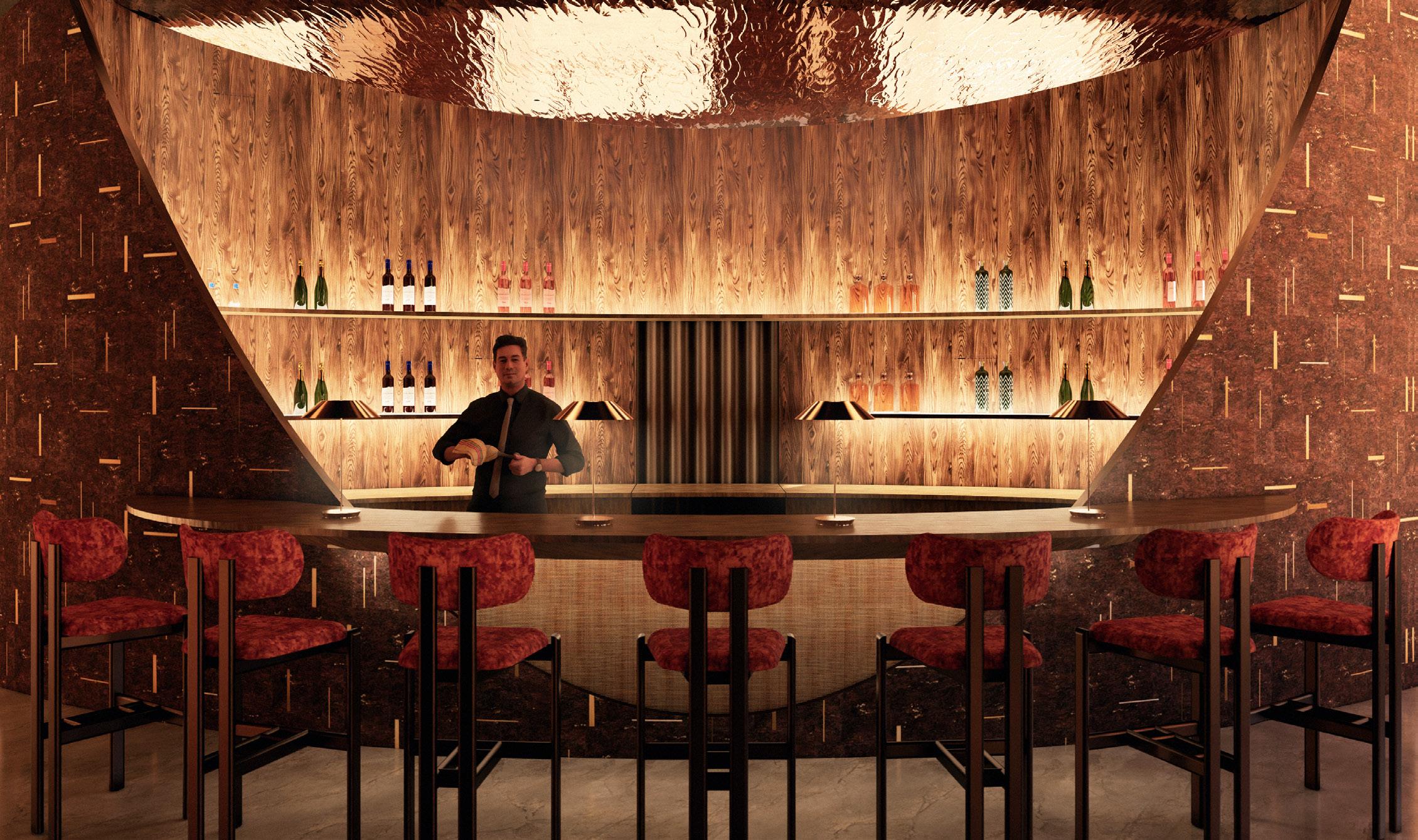

RESTAURANT BAR

2 1

28

2

1 2 3 4 5 6 7 8

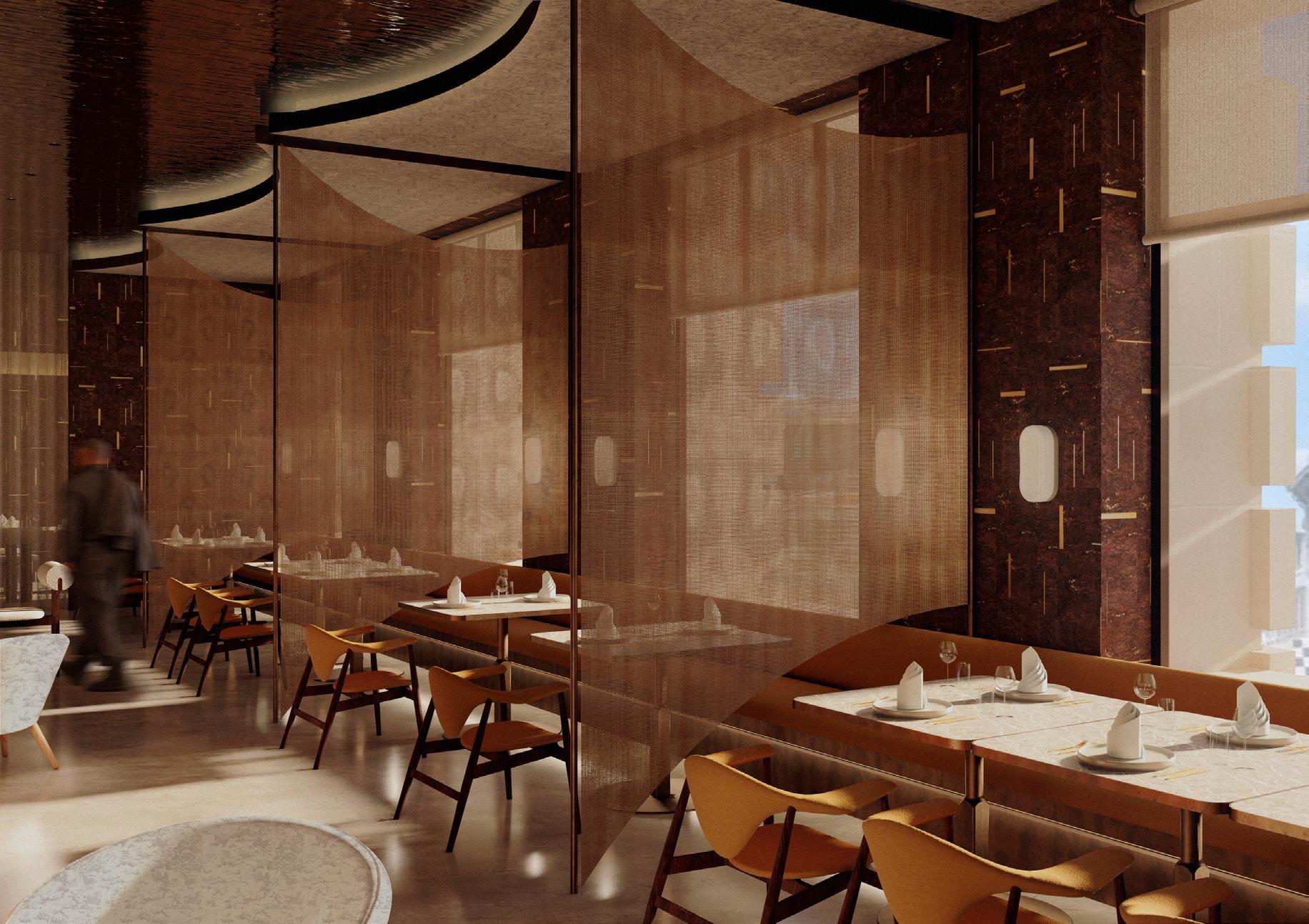

RESTAURANT

1

2

3

4

5

6

7

8

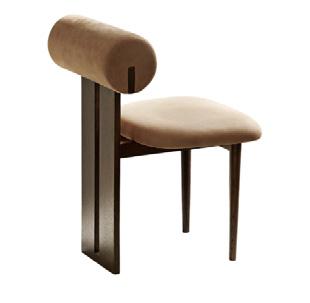

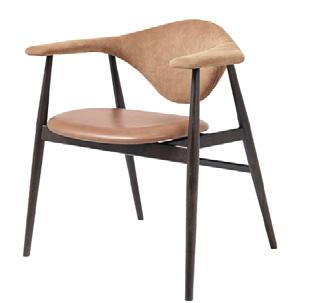

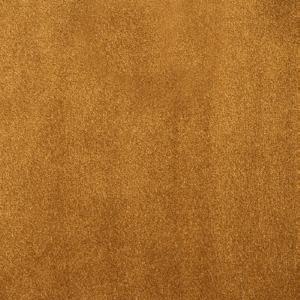

Chemetal (Waterworld | 943) Élitis (Essence de Liège RM 987 | 72) Erica Shamrock (Dante | Amber) Artemest (Roxana 01 CS | 1004) Masculo Dining Chair NORR11 Hippo Chair Santa & Cole Tekiò Vertical Pendant RBW Dimple Sconce

29

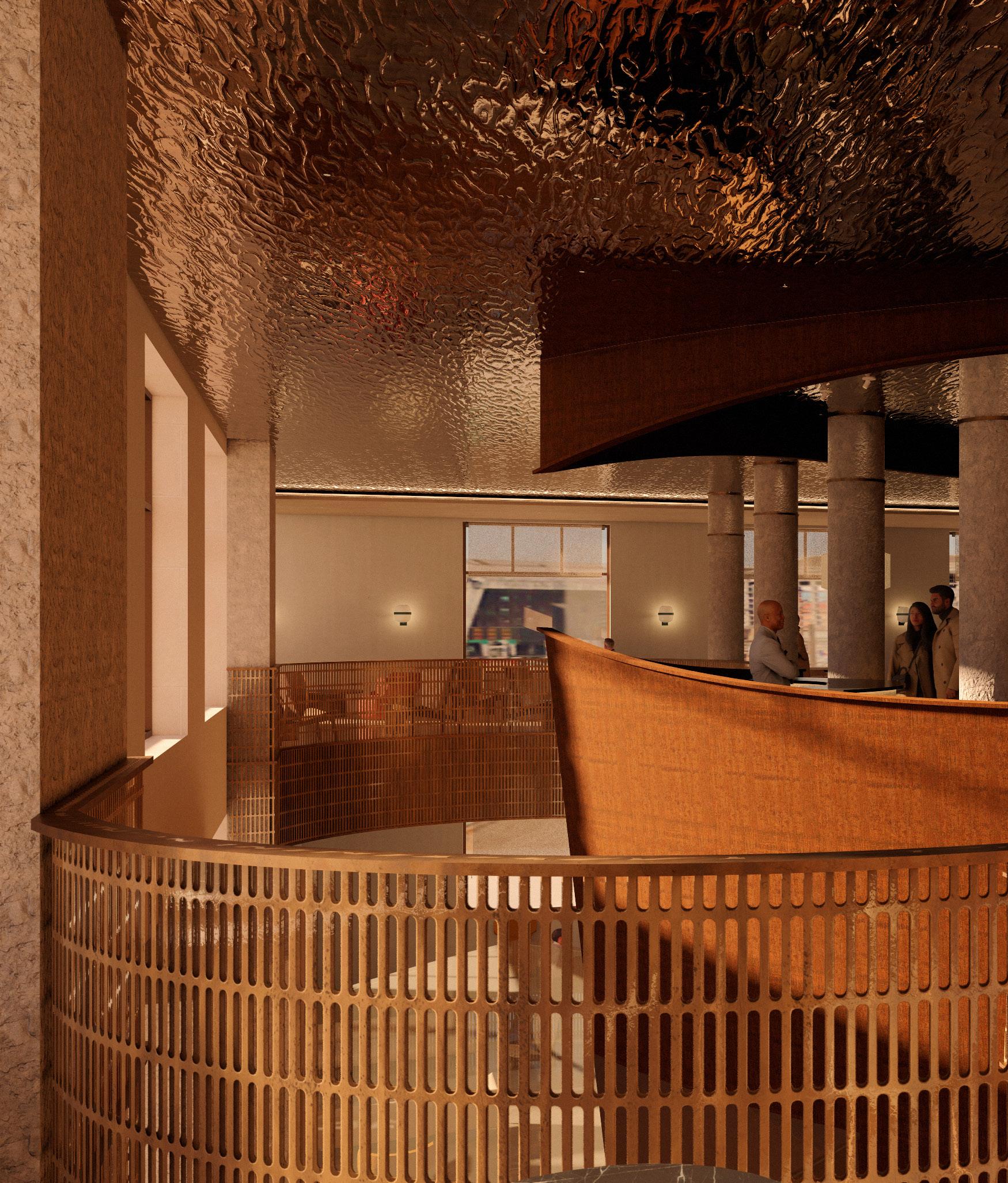

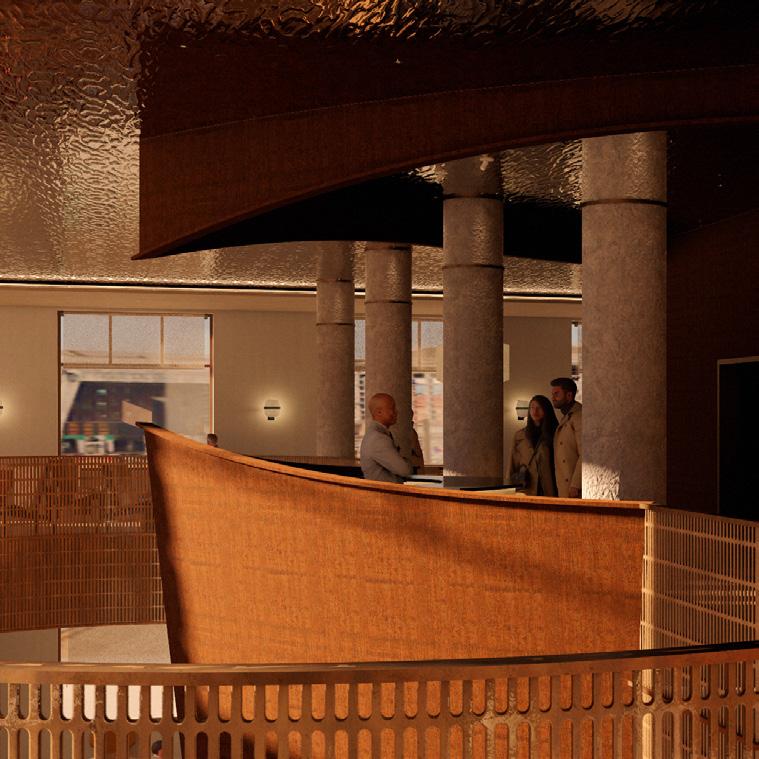

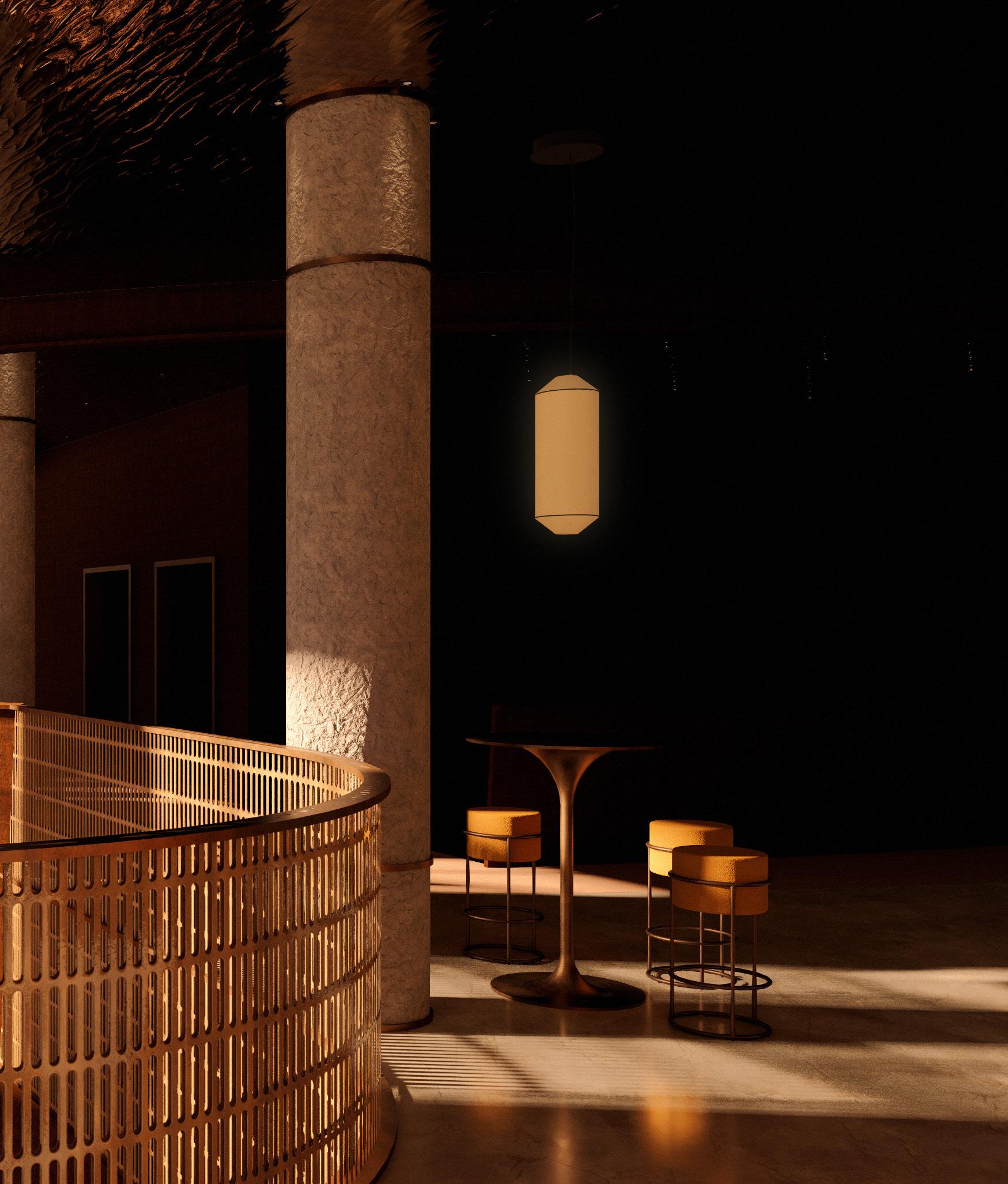

HOTEL SECOND FLOOR

30

31
